Rethinking Image-Based Table Recognition Using Weakly Supervised

Methods

Nam Tuan Ly

, Atsuhiro Takasu

, Phuc Nguyen

and Hideaki Takeda

National Institute of Informatics, Tokyo, Japan

Keywords: Table Recognition, End-to-End, Self-Attention, Weakly Supervised Learning, WikiTableSet.

Abstract: Most of the previous methods for table recognition rely on training datasets containing many richly annotated

table images. Detailed table image annotation, e.g., cell or text bounding box annotation, however, is costly

and often subjective. In this paper, we propose a weakly supervised model named WSTabNet for table

recognition that relies only on HTML (or LaTeX) code-level annotations of table images. The proposed model

consists of three main parts: an encoder for feature extraction, a structure decoder for generating table structure,

and a cell decoder for predicting the content of each cell in the table. Our system is trained end-to-end by

stochastic gradient descent algorithms, requiring only table images and their ground-truth HTML (or LaTeX)

representations. To facilitate table recognition with deep learning, we create and release WikiTableSet, the

largest publicly available image-based table recognition dataset built from Wikipedia. WikiTableSet contains

nearly 4 million English table images, 590K Japanese table images, and 640k French table images with

corresponding HTML representation and cell bounding boxes. The extensive experiments on WikiTableSet

and two large-scale datasets: FinTabNet and PubTabNet demonstrate that the proposed weakly supervised

model achieves better, or similar accuracies compared to the state-of-the-art models on all benchmark datasets.

1 INTRODUCTION

Table recognition has been receiving much attention

from numerous researchers. It plays an important role

in many document analysis systems, in which tabular

data presented by PDF or document image often

contains rich and essential information in a structured

format. Table recognition aims to recognize the table

structure and the content of each table cell from a

table image, and to represent them in a machine-

readable format, which can be HTML code (Jimeno

Yepes et al., 2021; Li et al., 2019; Zhong et al., 2020),

or LaTeX code (Deng et al., 2019; Kayal et al., 2021).

However, this task is still a big challenging problem,

due to the diversity of table styles and the complexity

of table structures.

In recent years, many table recognition methods

have been proposed and proven to be powerful

models for both PDF and image-based table

recognition. However, most previous studies (Nassar

https://orcid.org/0000-0002-0856-3196

https://orcid.org/0000-0002-9061-7949

https://orcid.org/0000-0003-1679-723X

https://orcid.org/0000-0002-2909-7163

et al., 2022; Qiao et al., 2021; Ye et al., 2021; Zhang

et al., 2022) are based on fully supervised learning

approaches. They rely on training datasets that

contain lots of richly annotated table images. Detailed

table image annotation, e.g., cell or text bounding box

annotation, however, is costly and often subjective.

Due to the rapid development of deep learning, some

works (Deng et al., 2019; Zhong et al., 2020) focus

on weakly supervised approaches that rely only on

HTML (or LaTeX) code-level labels of table images.

However, their performance is still mediocre

compared to the fully supervised methods.

This paper proposes a weakly supervised model

named WSTabNet for image-based table recognition.

The proposed model consists of three main parts: an

encoder for feature extraction, a structure decoder for

generating table structure, and a cell decoder for

predicting the content of each cell in the table. The

system is trained in an end-to-end manner by

stochastic gradient descent algorithms, requiring only

872

Ly, N., Takasu, A., Nguyen, P. and Takeda, H.

Rethinking Image-Based Table Recognition Using Weakly Supervised Methods.

DOI: 10.5220/0011682600003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 872-880

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

table images and their ground-truth HTML (or

LaTeX) representations. To facilitate table

recognition with deep learning, we create and release

WikiTableSet

, the largest publicly available image-

based table recognition dataset built from Wikipedia.

The experimental results on WikiTableSet and two

large-scale datasets: FinTabNet (Zheng et al., 2021)

and PubTabNet (Zhong et al., 2020) show that our

model achieves better, or similar accuracies

compared to the state-of-the-art models on all

benchmark datasets. We also evaluated the proposed

model on the final evaluation set of the ICDAR2021

competition on scientific literature parsing (Jimeno

Yepes et al., 2021), demonstrating that the proposed

weakly supervised model outperforms the 5th ranking

solution and achieves competitive results when

compared to the top four solutions.

In summary, the main contributions of this paper

are as follows:

• We present a novel weakly supervised learning

model named WSTabNet for image-based table

recognition. The proposed model can be trained

end-to-end, requiring only table images and their

ground-truth HTML (or LaTeX) representations.

• We present WikiTableSet, the largest publicly

available

image-based table recognition dataset in

three languages built from Wikipedia.

• Across all benchmark datasets, the proposed

weakly supervised model achieves better, or

similar accuracies compared to the state-of-the-

art models.

The rest of this paper is organized as follows. In

Sec.2, we give a brief overview of the related works.

We introduce the overview of the proposed model in

Sec. 3. Sec. 4 describes the overview of the

WikiTableSet dataset. In Sec. 5, we report the

experimental details and results. Finally, we draw

conclusions in Sec. 6.

2 RELATED WORK

Table analysis in unstructured documents can be

divided into two main parts: table detection (Casado-

García et al., 2020; Huang et al., 2019) and table

recognition (Deng et al., 2019; Ye et al., 2021; Zhong

et al., 2020), which we will briefly survey here. Most

of the previous methods for table recognition are

based on two-step approaches dividing the problem

into two steps. The first step is table structure

recognition, which recognizes the table structure

(including cell location) from a table image. The

https://github.com/namtuanly/WikiTableSet

second step is cell content recognition that predicts

the text content of each table cell from its location.

Due to the simplicity of the cell content recognition,

which can be easily solved by the standard OCR

model (Lu et al., 2021; Ly et al., 2021), many

researchers only focused on the table structure

recognition problem (Prasad et al., 2020; Raja et al.,

2020; Schreiber et al., 2017). Early works of table

structure recognition are based on hand-crafted

features and heuristic rules and mainly applied to

simple table structure or pre-defined table structure

formats (Itonori, 1993; Kieninger, 1998; Wang et al.,

2004). In recent years, motivated by the success of

deep learning, especially in object detection and

semantic segmentation, many deep learning-based

methods (Prasad et al., 2020; Raja et al., 2020;

Schreiber et al., 2017) have been proposed and

proven to be powerful models for table structure

recognition. S. Schreiber et al. (Schreiber et al., 2017)

proposed a two-fold system named DeepDeSRT that

applies Faster RCNN (Ren et al., 2015) and FCN

(Long et al., 2015) for both table detection and

row/column segmentation. Sachin et al. (Raja et al.,

2020) proposed a table structure recognizer named

TabStruct-Net that predicts the aligned cell regions

and the localized cell relations in a joint manner.

Recently, some researchers (Nassar et al., 2022;

Qiao et al., 2021; Ye et al., 2021; Zhang et al., 2022)

worked on both table structure recognition and cell

content recognition to build a complete table

recognition system. J. Ye et al. (Ye et al., 2021)

employed the Transformer decoder layers to build the

model named TableMASTER for table structure

recognition and combined it with a text line detector

to detect text lines in each table cell. Finally, they

employed a text line recognizer based on (Lu et al.,

2021) to recognize each text line in table cells. Their

system achieved second place in ICDAR2021

competition (Jimeno Yepes et al., 2021). A. Nassar et

al. (Nassar et al., 2022) proposed a Transformer-

based model named TableFormer for recognizing

both table structure and the bounding box of each

table cell and then using the cell contents extracted

from the PDF to build the whole table recognition

system. Z. Zhang et al. (Zhang et al., 2022) proposed

a table structure recognizer named Split, Embed, and

Merge (SEM) for recognizing the table structure from

a table image. Then, they combined SEM with an

attention-based text recognizer to build the table

recognizer and achieved third place in the

ICDAR2021 competition (Jimeno Yepes et al.,

2021). These two-step approaches achieved

Rethinking Image-Based Table Recognition Using Weakly Supervised Methods

873

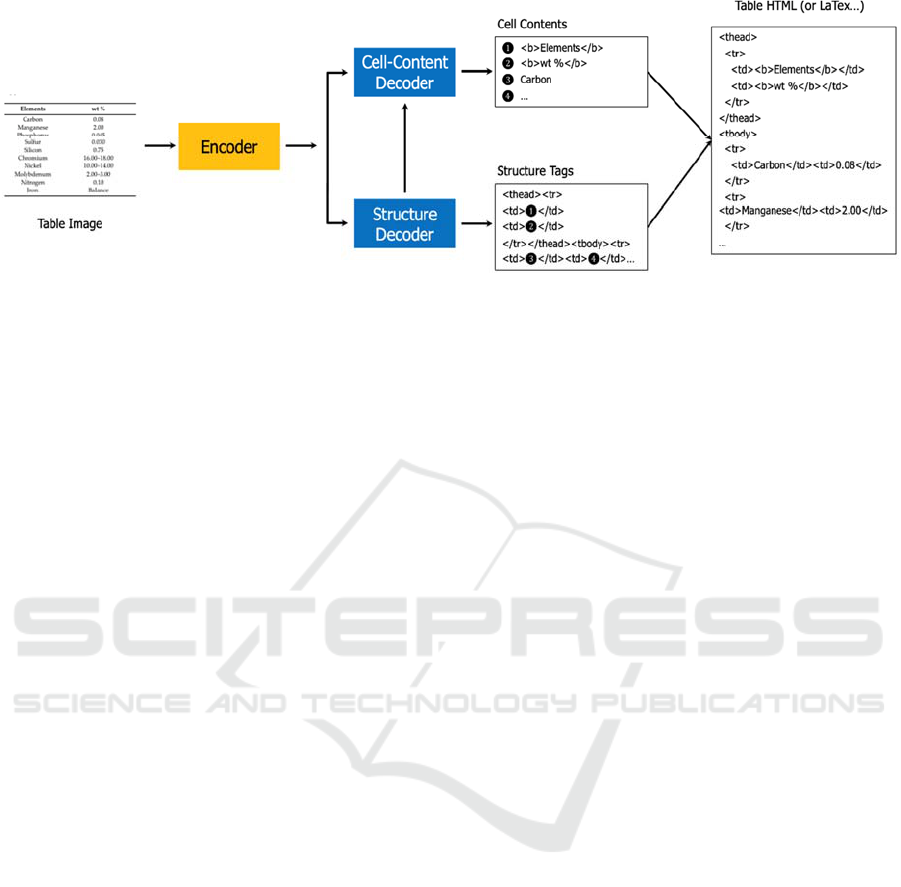

Figure 1: The overview of WSTabNet.

competitive accuracies; however, these systems rely

on training datasets containing many richly annotated

table images. They are also difficult to be maintained

and inferred due to consisting of multiple separate

components.

Most recently, due to the progress of Deep Neural

Networks especially the encoder-decoder models,

some researchers (Deng et al., 2019; Zhong et al.,

2020) try to focus on weakly supervised learning

approaches that require only HTML (or LaTeX) code

level annotations of table images for training the

models. Y. Deng et al. (Deng et al., 2019) formulated

table recognition as an image-to-LaTeX problem and

directly used IM2TEX (Deng et al., 2016) model for

recognizing LaTeX representations from a table

image. X. Zhong et al. (Zhong et al., 2020) proposed

an encoder-dual-decoder (EDD) model for

recognizing table structure and cell content. They also

publicized a table recognition dataset (PubTabNet) to

the community. These methods significantly reduce

the annotation cost of the training data; however, their

performance is still mediocre compared to the fully

supervised learning methods.

In this work, we propose a weakly supervised

learning model that reduces the annotation cost and

achieves competitive performance compared to the

fully supervised learning methods.

3 THE PROPOSED METHOD

WSTabNet consists of three main components, as

shown in Fig. 1: 1) an encoder for feature extraction,

2) a structure decoder for recognizing the structure of

the table image, and 3) a cell decoder for predicting

the content of each cell in the table. The encoder

extracts the features from the input table image and

encodes them as a sequence of features. The sequence

of features is passed into the structure decoder to

predict a sequence of HTML structure tags that

represents the table’s structure. When the structure

decoder produces the HTML structure tag

representing a new cell (‘<td>’ or ‘<td …>’), the

hidden output of the structure decoder corresponding

to that cell is passed into the cell decoder to predict

the text content of that cell. Finally, the text contents

of cells are inserted into the HTML structure tags

corresponding to their cells to produce the final

HTML code representing the input table image. Fig.

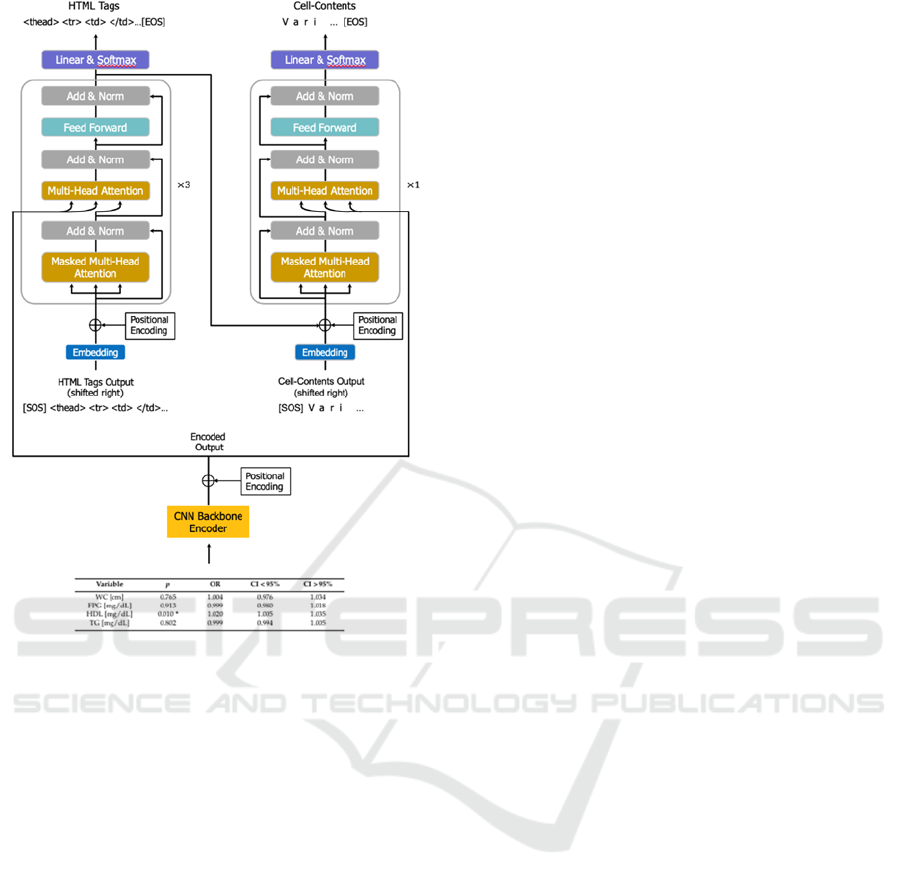

2 shows the detail of the three components in our

model. We describe the detail of each component in

the following sections.

3.1 Encoder

In this work, we employ a CNN backbone network

followed by a positional encoding layer to build the

encoder.

Given an input table image, the CNN backbone

extracts a feature grid F of the size {h’, w’, k}

(where k is the number of the feature maps, h’ and

w’ depend on the input image size and the number

of the pooling layers). The feature grid F will be

unfolded into a sequence of features (column by

column from left to right in each feature map) and

then fed into the positional encoding layer to get the

encoded sequence of features. Finally, the encoded

sequence of features is fed into the two decoders to

predict the table structure and the contents of the

cells.

3.2 Structure Decoder

At the top of the encoder, the structure decoder uses

the outputs of the encoder to predict a sequence of

HTML tags representing the table structure. Inspired

by the works of (Zhong et al., 2020), the HTML tags

of the table structure are tokenized at the HTML tag

level except for the tag of a cell. In our model, the

form of ‘<td></td>’ is treated as one structure token

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

874

Figure 2: Network architecture of WSTabNet.

class. Note that this can largely reduce the length of

the sequence. We also break down the tag of the

spanning cells (‘<td rowspan/colspan=”number”>’)

into ‘<td’, ‘rowspan=’ or ‘colspan=’, with the number

of spanning cells, and ‘>’. Thus, the structure token

of ‘<td></td>’ or ‘<td’ represents a new table cell.

The architecture of this component is inspired by

the Transformer decoder (Vaswani et al., 2017),

which consists of a stack of N identical Transformer

decoder layers (identical layer in short) that comprise

mainly of multi-head attention and feed-forward

layers. As shown in Fig. 2, the structure decoder

comprises a stack of three identical layers followed

by a linear layer and a softmax layer. The bottom

identical layer takes the outputs of the encoder as the

key and value vector inputs. During training, the

right-shifted sequence of target HTML tags (structure

tokens) of the table structure (after passing through

the embedded layer and the positional encoding layer)

is passed into the bottom identical layer as the query

vector. In the inference stage, the right-shifted

sequence of target HTML tags is replaced by the

right-shifted sequence of HTML tags outputted by the

structure decoder. Finally, the output of the top

identical layer is fed into the linear layer. Then, the

results are fed into the softmax layer to generate the

sequence of structure tokens representing the table

structure.

3.3 Cell Decoder

When the structure decoder produces the structure

token representing a new cell (‘<td>’ or ‘<td …>’),

the hidden output of the structure decoder

corresponding to that structure token and the output

of the encoder are passed into the cell decoder to

predict the content of the cell. The cell decoder in our

model can be considered a text recognizer. The text

contents of cells are tokenized at the character level.

In this work, we use one identical layer followed

by a linear layer and a softmax layer to build the cell

decoder, as shown in Fig. 2. The identical layer takes

the output of the encoder as the input value and key

vectors. During training, the right-shifted target text

content of the cell is passed through the embedded

and the positional encoding layers and then added to

the hidden output of the structure decoder before

being fed into the identical layer as the query vector.

In the inference state, the right-shifted target text

content of the cell is replaced by the right-shifted text

content of the cell outputted by the cell decoder.

Finally, the output of the identical layer is fed into the

linear layer and then the softmax layer to generate the

contents of the cells.

3.4 Network Training

The whole system can be trained in an end-to-end

manner by stochastic gradient descent algorithms on

pairs of a table image and its annotation of HTML

code. The overall loss of our model is defined as

follows:

ℒ=𝜆ℒ

.





1𝜆



ℒ



(1)

where ℒ

.

and ℒ



are the cross-entropy loss of

generating the structure tokens and predicting the cell

tokens, respectively. 𝜆∈



0,1



is a weight

hyperparameter.

4 WikiTableSet

Many datasets for table (structure) recognition have

recently been released to the research community

(Zhong et al., 2020). However, there are few large

datasets for table recognition that have enough data to

support the training of deep learning-based methods,

Rethinking Image-Based Table Recognition Using Weakly Supervised Methods

875

including PubTabNet (Zhong et al., 2020), FinTabNet

(Zheng et al., 2021), and PubTables-1M (Smock

Brandon et al., 2022). We summarize these datasets

in Table 1. Furthermore, as far as we know, all the

current datasets for table recognition are table

datasets in English, and currently, we are missing the

dataset in other languages.

To facilitate the research of table recognition in

different languages with deep learning, we release

WikiTableSet, the largest publicly available mage-

based table recognition dataset built from Wikipedia.

WikiTableSet contains nearly 4 million English table

images, 590K Japanese table images, 640k French

table images with corresponding HTML

representation, and cell bounding boxes. We build a

Wikipedia table extractor

and use this to extract

tables (in HTML code format) from the 2022-03-01

dump of Wikipedia. In this study, we select

Wikipedia tables from three representative languages,

i.e., English, Japanese, and French; however, the

dataset could be extended to around 300 languages

with 17M tables using our table extractor. Second, we

normalize the HTML tables following the PubTabNet

format (separating table headers and table data,

removing CSS and style tags). Finally, we use

Chrome and Selenium to render table images from

table HTML codes. This dataset provides a standard

benchmark for studying table recognition algorithms

in different languages or even multilingual table

recognition algorithms.

Table 1: Comparison of table datasets for table structure

recognition (TSR) and table recognition (TR).

Datasets Samples TSR TR Language

PubTabNet 510K   English

FinTabNet

113K   English

PubTables-1M 948K   English

WikiTableSet

(ours)

5M  

English

Japanese

French

5 EXPERIMENTS

To evaluate the effectiveness of the proposed model,

abundant comparative experiments are carried out

on four datasets: FinTabNet (Zheng et al., 2021),

PubTabNet (Zhong et al., 2020),

WikiTableSet_EN750K, and WikiTableSet_JA. The

information on the datasets is given in Sec 5.1. The

implementation details are described in Sect. 5.2; the

https://github.com/phucty/wtabhtml

experimental results are presented in Sect. 5.3; and

the visualization results are shown in Sect. 5.4.

5.1 Datasets

WikiTableSet-EN750K. Considering the

computational cost for training various deep learning

models, we randomly choose 750K English table

images from the English part of WikiTableSet to

create a subset of English table images which is

named WikiTableSet-EN750K. We split the subset

into training, testing, and validation sets with a ratio

of 9:1:1. Consequently, this subset consists of

619,814 table images for training, 17,014 table

images for validation, and 16,842 table images for

testing.

WikiTableSet_JA. We named a subset of Japanese

table images in WikiTableSet as WikiTableSet_JA

and divided them into training, testing, and validation

sets with a ratio of 9:1:1.

PubTabNet (Zhong et al., 2020) is a large-scale table

image dataset that consists of over 568k table images

with their corresponding annotations of the table

HTML and bounding box coordinates of each non-

empty table cell. The dataset is divided into 500,777

training samples and 9,115 validation samples used in

the development phase, and 9,064 final evaluation

samples used in the Final Evaluation Phase of the

ICDAR2021 competition (Jimeno Yepes et al.,

2021).

FinTabNet is another large-scale table image dataset

published by X. Zheng et al. (Zheng et al., 2021). The

dataset comprises 112k table images from the annual

reports of the S&P 500 companies with detailed

annotations of the table HTML and cell bounding

boxes like PubTabNet. This dataset is divided into

training, testing, and validation sets with a ratio of

81% : 9.5% : 9.5%.

5.2 Implementation Details

In the encoder, we use the ResNet-31 network (He et

al., 2016) with the Multi-Aspect Global Context

Attention (GCAttention) (Lu et al., 2021) after each

residual block to build the CNN backbone. All table

images are resized to 480x480 before feeding into the

CNN backbone, and the feature map outputted from

the CNN backbone will be had a dimension of 60x60.

All identical layers in the two decoders have the same

architecture with 8 attention heads, the input feature

size, and the feed-forward network size are 512 and

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

876

2048, respectively. The maximum length of a

sequence of structure tokens and a sequence of cell

tokens are 500 and 150, respectively. The weight

hyperparameter is set as 𝜆=0.5.

WSTabNet is implemented with PyTorch and the

MMCV library (MMCV Contributors, 2018). The

model is trained on two NVIDIA A100 80G with a

batch size of 8. The initializing learning rate is 0.001

for the first 12 epochs. Afterward, we reduce the

learning to 0.0001 and train for 5 more epochs or

convergence.

5.3 Experimental Results

To evaluate the performance of the proposed model,

we employ the Tree-Edit-Distance-Based Similarity

(TEDS) metric (Zhong et al., 2020). It represents the

prediction and the ground-truth as a tree structure of

HTML tags. We also denote TEDS-struc. as the

TEDS score between two tables when considering

only the table structure information.

5.3.1 Table Recognition

In the first experiment, we evaluated the performance

of the proposed model for table recognition on

FinTabNet, PubTabNet, WikiTableSet_EN750K and

WikiTableSet_JA. Table 2 shows the table

recognition performance (TEDS) of the proposed

model on all benchmark datasets, and Table 3 shows

the comparison between its performance with the

previous methods on PubTabNet.

Table 2: Table recognition results on PubTabNet (PTN),

FinTabNet (FTN), WikiTableSet_EN750K (WTN(EN))

and WikiTableSet_JA (WTN(JA)).

Model

TEDS (%)

Dataset Sim. Com. All

WSTabNet PTN 97.89 95.02 96.48

WSTabNet FTN 95.24 95.41 95.32

WSTabNet WTS

(EN)

95.37 92.87 94.83

WSTabNet WTS

(JA)

93.82 92.56 93.43

Sim. (Simple): Tables without multi-column or multi-row cells.

Com. (Complex): Tables with multi-column or multi-row cells.

As shown in Table 2, the proposed model

achieved TEDS of more than 92.5% on both simple

and complex table images of all benchmark datasets.

The results imply that the proposed model works well

on both simple and complex table images as well as

both English and Japanese table images. As shown in

Table 3, on the PubTabNet dataset, the proposed

model achieves superior performance compared to

the previous methods. Specifically, with TEDS of

96.48%, our model significantly improves the weakly

supervised learning methods of EDD and IM2TEX by

more than 8%. Although, the proposed model

requires only table HTML annotations for the training

step, it outperforms all the fully supervised methods

(Nassar et al., 2022; Qiao et al., 2021; Raja et al.,

2020; Ye et al., 2021; Zhang et al., 2022; Zheng et al.,

2021) that require both table HTML and the cell

bounding boxes annotations for training the models.

Note that all the previous fully supervised methods

are non-end-to-end approach. VCGoup’s solution,

and SEM are the 2nd ranking, and 3rd ranking

solutions in ICDAR2021 competition, respectively.

LGPMA (Qiao et al., 2021) is the table structure

recognizer component in the 1st ranking solution in

ICDAR2021 competition.

Table 3: The comparison between WSTabNet and the

previous methods on PubTabNet (PTN).

Model

TEDS (%)

Sim. Com. All

IM2TEX (Deng et al.,

2019)

81.70 75.50 78.60

EDD (Zhong et al., 2020) 91.20 85.40 88.30

TabStruct-Net (Raja et al.,

2020)

- - 90.10

GTE (Zheng et al., 2021) - - 93.00

TableFormer (Nassar et al.,

2022)

95.40 90.10 93.60

SEM

(3)

(Zhang et al., 2022) 94.80 92.50 93.70

LGPMA

(1)

(Qiao et al.,

2021)

- - 94.60

VCGoup

(2)

(Ye et al., 2021) - - 96.26

WSTabNet 97.89 95.02 96.48

(1)(2)(3) are 1st, 2nd, and 3rd solutions in ICDAR2021 competition.

We also evaluate the proposed model on the final

evaluation set of PubTabNet which is used for the

Final Evaluation Phase in ICDAR2021 competition.

Table 4 compares TEDS scores by the proposed

model and the top 10 solutions in ICDAR2021

competition (Jimeno Yepes et al., 2021). Although

we used only table HTML information for training

and neither any additional training data nor ensemble

techniques, the proposed model outperforms the 5th

ranking solution named DBJ and achieves

competitive results when compared to the 4th ranking

solution in the final evaluation set of Task-B in the

ICDAR 2021 competition. Note that all top 10

solutions are non-end-to-end approaches and require

both table HTML and the cell bounding boxes

information for the training step. Furthermore, most

of them also use additional data for training as well as

ensemble methods.

Rethinking Image-Based Table Recognition Using Weakly Supervised Methods

877

Table 4: Table recognition results on PubTabNet final

evaluation set.

Team Name

TEDS

Sim. Com. All

Davar-Lab-OCR 97.88 94.78 96.36

VCGroup 97.90 94.68 96.32

XM 97.60 94.89 96.27

YG 97.38 94.79 96.11

WSTabNet (Our) 97.51 94.37 95.97

DBJ 97.39 93.87 95.66

TAL 97.30 93.93 95.65

PaodingAI 97.35 93.79 95.61

anyone 96.95 93.43 95.23

LTIAYN 97.18 92.40 94.84

5.3.2 Table Structure Recognition

In this experiment, we evaluate the effectiveness of

WSTabNet for recognizing the structure of the table

images on PubTabNet and FinTabNet datasets. Table

5 shows the table structure recognition performance

(TEDS-struc. scores) of the proposed model and the

previous table structure recognition methods on the

validation set of the PubTabNet and the test set of the

FinTabNet.

On the test set of the FinTabNet dataset, the

proposed model achieved TEDS-struc. of 99.06%,

98.33%, and 98.72% on the simple, complex, and all

table images, respectively. These results show that the

proposed model works well on both simple and

complex tables and outperforms EDD (Zhong et al.,

2020) by about 8.1% and the best model in (Nassar et

al., 2022) by about 2%. On the validation set of the

PubTabNet dataset, the proposed model achieved

TEDS-struc. of 97.74% on all table images which

again improves EDD by about 7.8% and the best

model in (Nassar et al., 2022) by about 1%. Note that

all other methods except EDD are fully supervised

approaches that require both HTML and cell

bounding boxes annotations in the training step.

5.4 Visualization Results

In this section, we show some visualization results of

WSTabNet on PubTabNet. As shown in Fig. 3, the

left image is the original table image, and the right

image is the presentation on the web browser of the

generated HTML code. As it is shown, WSTabNet

can recognize the complex table structure and the cell

contents, even for the empty cells or cells that span

multiple rows/columns.

Table 5: Table structure recognition results on PubTabNet

validation set (PTN) and FinTabNet (FTN).

Dataset Model

TEDS-struc. (%)

Sim. Com. All

FTN

EDD (Zhong et

al., 2020)

88.40 92.08 90.60

GTE (Zheng et

al., 2021)

- - 87.14

GTE

(FT)

(Zheng

et al., 2021)

- - 91.02

TableFormer

(Nassar et al.,

2022)

97.50 96.00 96.80

WSTabNet 99.06 98.33 98.72

PTN

EDD (Zhong et

al., 2020)

91.10 88.70 89.90

GTE (Zheng et

al., 2021)

- - 93.01

LGPMA (Qiao

et al., 2021)

- - 96.70

TableFormer

(Nassar et al.,

2022)

98.50 95.00 96.75

WSTabNet 99.06 96.37 97.74

(FT) Model was trained on PubTabNet and then finetuned.

6 CONCLUSIONS

In this paper, we present a weakly supervised learning

model named WSTabNet for image-based table

recognition that relies only on HTML (or LaTeX)

code level labels of table images. The proposed model

consists of three main parts: an encoder for feature

extraction, a structure decoder for generating table

structure, and a cell decoder for predicting the content

of each cell in the table. The whole system is trained

end-to-end by stochastic gradient descent algorithms.

To facilitate the research of table recognition in

different languages with deep learning, we create and

release WikiTableSet, the largest publicly image-

based table recognition dataset in three languages

built from Wikipedia. Extensive experiments on

WikiTableSet and two large-scale datasets

demonstrate that the proposed model achieves

competitive accuracies compared to the fully

supervised learning methods.

In the future, we will expand the WikiTableSet to

more languages and conduct experiments of the

proposed model on the table image datasets of

different languages.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

878

Figure 3: Visualization results on PubTabNet.

ACKNOWLEDGEMENTS

This work was supported by the Cross-ministerial

Strategic Innovation Promotion Program (SIP)

Second Phase and “Big-data and AI-enabled

Cyberspace Technologies” by New Energy and

Industrial Technology Development Organization

(NEDO).

REFERENCES

Casado-García, Á., Domínguez, C., Heras, J., Mata, E., &

Pascual, V. (2020). The benefits of close-domain fine-

tuning for table detection in document images. Lecture

Notes in Computer Science (Including Subseries

Lecture Notes in Artificial Intelligence and Lecture

Notes in Bioinformatics), 12116 LNCS, 199–215.

https://doi.org/10.1007/978-3-030-57058-3_15

Deng, Y., Kanervisto, A., Ling, J., & Rush, A. M. (2016).

Image-to-Markup Generation with Coarse-to-Fine

Attention. 34th International Conference on Machine

Learning, ICML 2017, 3, 1631–1640. https://doi.

org/10.48550/arxiv.1609.04938

Deng, Y., Rosenberg, D., & Mann, G. (2019). Challenges

in end-to-end neural scientific table recognition.

Proceedings of the International Conference on

Document Analysis and Recognition, ICDAR, 894–901.

https://doi.org/10.1109/ICDAR.2019.00148

He, K., Zhang, X., Ren, S., & Sun, J. (2016). Deep Residual

Learning for Image Recognition. 2016 IEEE

Conference on Computer Vision and Pattern

Recognition (CVPR), 770–778. https://doi.org/

10.1109/CVPR.2016.90

Huang, Y., Yan, Q., Li, Y., Chen, Y., Wang, X., Gao, L., &

Tang, Z. (2019). A YOLO-based table detection

method. Proceedings of the International Conference

on Document Analysis and Recognition, ICDAR, 813–

818. https://doi.org/10.1109/ICDAR.2019.00135

Itonori, K. (1993). Table structure recognition based on

textblock arrangement and ruled line position.

Proceedings of 2nd International Conference on

Document Analysis and Recognition (ICDAR ’93),

765,766,767,768-765,766,767,768. https://doi.org/10.

1109/ICDAR.1993.395625

Jimeno Yepes, A., Zhong, P., & Burdick, D. (2021).

ICDAR 2021 Competition on Scientific Literature

Parsing. Lecture Notes in Computer Science (Including

Subseries Lecture Notes in Artificial Intelligence and

Lecture Notes in Bioinformatics), 12824 LNCS, 605–

617. https://doi.org/10.1007/978-3-030-86337-1_40

Kayal, P., Anand, M., Desai, H., & Singh, M. (2021).

ICDAR 2021 Competition on Scientific Table Image

Recognition to LaTeX. Lecture Notes in Computer

Science (Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12824 LNCS, 754–766. https://doi.org/10.1007/978-3-

030-86337-1_50

Kieninger, T. G. (1998). Table structure recognition based

on robust block segmentation. Https://Doi

.Org/10.1117/12.304642, 3305, 22–32. https://doi.org/

10.1117/12.304642

Li, M., Cui, L., Huang, S., Wei, F., Zhou, M., & Li, Z.

(2019). TableBank: A Benchmark Dataset for Table

Detection and Recognition. https://doi.org/10.48550/

arxiv.1903.01949

Long, J., Shelhamer, E., & Darrell, T. (2015). Fully

convolutional networks for semantic segmentation.

2015 IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), 07-12-June-2015, 3431–

3440. https://doi.org/10.1109/CVPR.2015.7298965

Lu, N., Yu, W., Qi, X., Chen, Y., Gong, P., Xiao, R., & Bai,

X. (2021). MASTER: Multi-aspect non-local network

for scene text recognition. Pattern Recognition,

117, 107980. https://doi.org/10.1016/J.PATCOG.2021.

107980

Rethinking Image-Based Table Recognition Using Weakly Supervised Methods

879

Ly, N. T., Nguyen, H. T., & Nakagawa, M. (2021). 2D Self-

attention Convolutional Recurrent Network for Offline

Handwritten Text Recognition. Lecture Notes in

Computer Science (Including Subseries Lecture Notes in

Artificial Intelligence and Lecture Notes in

Bioinformatics), 12821 LNCS, 191–204.

https://doi.org/10.1007/978-3-030-86549-8_13/COVER

MMCV Contributors. (2018). {MMCV: OpenMMLab}

Computer Vision Foundation. https://github.com/open-

mmlab/mmcv

Nassar, A., Livathinos, N., Lysak, M., & Staar, P. (2022).

TableFormer: Table Structure Understanding

with Transformers. https://doi.org/10.48550/arxiv.

2203.01017

Prasad, D., Gadpal, A., Kapadni, K., Visave, M., &

Sultanpure, K. (2020). CascadeTabNet: An approach

for end to end table detection and structure recognition

from image-based documents. IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition Workshops, 2020-June, 2439–2447.

https://doi.org/10.48550/arxiv.2004.12629

Qiao, L., Li, Z., Cheng, Z., Zhang, P., Pu, S., Niu, Y., Ren,

W., Tan, W., & Wu, F. (2021). LGPMA: Complicated

Table Structure Recognition with Local and Global

Pyramid Mask Alignment. Lecture Notes in Computer

Science (Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12821 LNCS, 99–114. https://doi.org/10.1007/978-3-

030-86549-8_7/TABLES/4

Raja, S., Mondal, A., & Jawahar, C. v. (2020). Table

Structure Recognition Using Top-Down and Bottom-

Up Cues. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12373 LNCS, 70–86. https://doi.org/10.1007/978-3-

030-58604-1_5/FIGURES/8

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-

CNN: Towards Real-Time Object Detection with

Region Proposal Networks. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 39(6),

1137–1149. https://doi.org/10.48550/arxiv.1506.01497

Schreiber, S., Agne, S., Wolf, I., Dengel, A., & Ahmed, S.

(2017). DeepDeSRT: Deep Learning for Detection and

Structure Recognition of Tables in Document Images.

Proceedings of the International Conference on

Document Analysis and Recognition, ICDAR, 1, 1162–

1167. https://doi.org/10.1109/ICDAR.2017.192

Smock Brandon, Pesala Rohith, & Abraham Robin. (2022).

PubTables-1M: Towards comprehensive table

extraction from unstructured documents. Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR), 4634–4642.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., & Polosukhin, I. (2017).

Attention is all you need. Advances in Neural

Information Processing Systems, 2017-December,

5999–6009.

Wang, Y., Phillips, I. T., & Haralick, R. M. (2004). Table

structure understanding and its performance evaluation.

Pattern Recognition, 37

(7), 1479–1497. https://doi.org/

10.1016/J.PATCOG.2004.01.012

Ye, J., Qi, X., He, Y., Chen, Y., Gu, D., Gao, P., & Xiao,

R. (2021). PingAn-VCGroup’s Solution for ICDAR

2021 Competition on Scientific Literature Parsing Task

B: Table Recognition to HTML. https://doi.org/

10.48550/arxiv.2105.01848

Zhang, Z., Zhang, J., Du, J., & Wang, F. (2022). Split,

Embed and Merge: An accurate table structure

recognizer. Pattern Recognition, 126, 108565.

https://doi.org/10.1016/J.PATCOG.2022.108565

Zheng, X., Burdick, D., Popa, L., Zhong, X., & Wang, N.

X. R. (2021). Global Table Extractor (GTE): A

Framework for Joint Table Identification and Cell

Structure Recognition Using Visual Context. 2021

IEEE Winter Conference on Applications of Computer

Vision (WACV), 697–706. https://doi.org/10.1109/

WACV48630.2021.00074

Zhong, X., ShafieiBavani, E., & Jimeno Yepes, A. (2020).

Image-Based Table Recognition: Data, Model, and

Evaluation. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12366 LNCS, 564–580. https://doi.org/10.1007/978-3-

030-58589-1_34/TABLES/3.

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

880
