An End-to-End Multi-Task Learning Model for Image-based Table

Recognition

Nam Tuan Ly

and Atsuhiro Takasu

National Institute of Informatics (NII), Tokyo, Japan

Keywords: Table Recognition, End-to-End, Multi-Task Learning, Self-Attention.

Abstract: Image-based table recognition is a challenging task due to the diversity of table styles and the complexity of

table structures. Most of the previous methods focus on a non-end-to-end approach which divides the problem

into two separate sub-problems: table structure recognition; and cell-content recognition and then attempts to

solve each sub-problem independently using two separate systems. In this paper, we propose an end-to-end

multi-task learning model for image-based table recognition. The proposed model consists of one shared

encoder, one shared decoder, and three separate decoders which are used for learning three sub-tasks of table

recognition: table structure recognition, cell detection, and cell-content recognition. The whole system can be

easily trained and inferred in an end-to-end approach. In the experiments, we evaluate the performance of the

proposed model on two large-scale datasets: FinTabNet and PubTabNet. The experiment results show that

the proposed model outperforms the state-of-the-art methods in all benchmark datasets.

1 INTRODUCTION

The tabular format is one of the rich-information

formats and is widely used in communication,

research, and data analysis. Tables commonly appear

in research papers, books, handwritten notes,

invoices, financial documents, and many other places.

Thus, table understanding becomes one of the

essential techniques in document analysis systems

and attracts the attention of numerous researchers.

Image-based table recognition is the key step of

table understanding which refers to the representation

of a table image in a machine-readable format, where

its structure and the content within each cell are

encoded according to a pre-defined standard (Zhong

et al., 2020). The machine-readable format can be

HTML code (Jimeno Yepes et al., 2021; Li et al.,

2019; Zhong et al., 2020) or LaTeX code (Deng et al.,

2019; Kayal et al., 2021). The choice of the machine-

readable format is ultimately not very important,

since one can be transformed into the other. Image-

based table recognition is a challenging task due to

the diversity of table styles and the complexity of

table structures. In the past few decades, many table

recognition methods have been proposed and can be

https://orcid.org/0000-0002-0856-3196

https://orcid.org/0000-0002-9061-7949

divided into two categories: end-to-end methods and

non-end-to-end methods. Most of the previous works

(Nassar et al., 2022; Qiao et al., 2021; Ye et al., 2021)

focus on non-end-to-end approaches which divide the

problem into two separate sub-problems: table

structure recognition; and cell-content recognition,

and then attempt to solve each sub-problem

independently using two separate systems. On the

other hand, the end-to-end approach attempts to solve

the problem using a single model (specifically a Deep

Neural Network) and achieves state-of-the-art results

on many tasks such as machine translation (Vaswani

et al., 2017), speech recognition (Bahdanau et al.,

2016), and text recognition (Lu et al., 2021; Ly et al.,

2021). However, to the best of our knowledge, there

are few studies (Deng et al., 2019; Zhong et al., 2020)

on the end-to-end approach to table recognition and

their performance is mediocre compared to the non-

end-to-end methods.

In this paper, we formulate the problem of table

recognition as a multi-task learning problem, which

requires the model to be jointly learned in three sub-

tasks of table recognition. To address this problem,

we propose a novel end-to-end multi-task learning

model which consists of one shared encoder, one

626

Ly, N. and Takasu, A.

An End-to-End Multi-Task Learning Model for Image-based Table Recognition.

DOI: 10.5220/0011685000003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theor y and Applications (VISIGRAPP 2023) - Volume 5: VISAPP, pages

626-634

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

shared decoder, and three separate decoders for three

sub-tasks of table recognition: table structure

recognition, cell detection, and cell-content

recognition. The model takes an input table image and

produces the table structure information, location of

table cells, and contents of table cells, which can be

easily transformed into the HTML code (or LaTeX

code) representing the table. The shared components

are repeatedly trained from the gradients received

from three sub-tasks while each of three separate

decoders is trained from the gradients of its task. The

whole system can be easily trained and inferred in an

end-to-end approach.

We have evaluated the performance of our model

on the PubTabNet (Zhong et al., 2020) and

FinTabNet (Zheng et al., 2021) datasets,

demonstrating that our model outperforms state-of-

the-art methods in both table structure recognition

and table recognition. We further evaluated our

model on the final evaluation set of Task-B in the

ICDAR 2021 competition on scientific literature

parsing (Jimeno Yepes et al., 2021) (ICDAR 2021

competition in short), demonstrating that our model

achieves competitive results when compared to the

top three solutions. The code will be publicly released

to GitHub.

In summary, the main contributions of this paper

are as follows:

• We present a novel end-to-end multi-task

learning model for image-based table

recognition. The proposed model can be easily

trained and inferred in an end-to-end approach.

• Across all benchmark datasets, the proposed

model outperforms the state-of-the-art methods.

• Although we used neither any additional training

data nor ensemble techniques, our model

achieves competitive results when compared to

top three solutions in ICDAR2021 competition.

The rest of this paper is organized as follows. In

Sec.2, we give a brief overview of the related works.

In Sec. 3, we introduce the overview of the proposed

model. In Sec. 4, we report the experimental details

and results. Finally, we draw conclusions in Sec. 5.

2 RELATED WORK

Table understanding in unstructured documents can

be defined in three steps: 1) table detection: detecting

the bounding boxes of tables in documents (Casado-

García et al., 2020; Huang et al., 2019); 2) table

structure recognition: recognizing the structural

information of tables (Itonori, 1993; Kieninger, 1998;

Wang et al., 2004); 3) table recognition: recognizing

both the structural information and the content within

each cell of tables (Deng et al., 2019; Ye et al., 2021;

Zhong et al., 2020). We will briefly survey table

structure recognition, and then table recognition.

Table Structure Recognition can be considered

the first step of table recognition and has been studied

by researchers around the world for the past few

decades. Early works of table structure recognition

are based on hand-crafted features and heuristic rules

(Itonori, 1993; Kieninger, 1998; Wang et al., 2004).

These methods are mostly applied to a simple

structure or pre-defined data formats. In recent years,

inspired by the success of deep learning in various

tasks, especially object detection and semantic

segmentation, many deep learning-based methods

(Raja et al., 2020; Schreiber et al., 2017) have been

presented to recognize table structures. S. Schreiber

et al. (Schreiber et al., 2017) proposed a two-fold

system named DeepDeSRT that applies Faster RCNN

(Ren et al., 2015) and FCN(Long et al., 2015) for both

table detection and row/column segmentation. Sachin

et al. (Raja et al., 2020) presented a table structure

recognizer named TabStruct-Net that combines cell

detection and interaction modules to localize the cells

and predicts their row and column associations with

other detected cells. Structural constraints are

incorporated as additional differential components to

the loss function for cell detection. Recently, graph

neural networks are also used for table structure

recognition by encoding document images as graphs

(Qasim et al., 2019).

Table Recognition: Most of the previous works

of table recognition (Nassar et al., 2022; Qiao et al.,

2021; Ye et al., 2021; Zhang et al., 2022) focus on

non-end-to-end approaches which divide the problem

into two separate sub-problems: table structure

recognition; and cell-content recognition, and then

attempt to solve each sub-problem independently

using two separate systems. J. Ye et al. (Ye et al.,

2021) proposed a Transformer-based model named

TableMASTER for table structure recognition and

combined it with a text line detector to detect text

lines in each table cell. Finally, they employed a text

line recognizer based on (Lu et al., 2021) to recognize

each text line. Their system achieved second place in

ICDAR2021 competition. A. Nassar et al. (Nassar et

al., 2022) proposed a Transformer-based model

named TableFormer for recognizing both table

structure and the bounding box of each table cell and

then using these bounding boxes to extract the cell

contents from the PDF to build the whole table

recognition system. Z. Zhang et al. (Zhang et al.,

2022) proposed a table structure recognizer, Split,

Embed, and Merge (SEM) for recognizing the table

An End-to-End Multi-Task Learning Model for Image-based Table Recognition

627

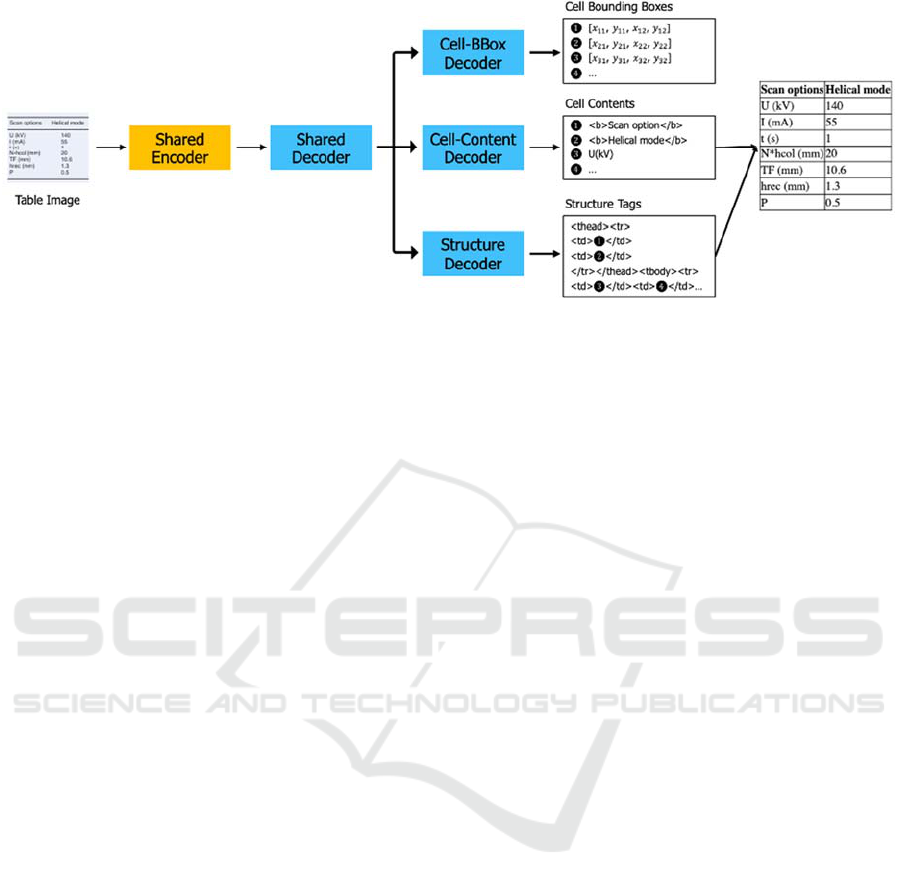

Figure 1: The overview of the proposed model.

structure. Then, they combined SEM with an

attention-based text recognizer to build the table

recognizer and achieved third place in the

ICDAR2021 competition.

Recently, due to the rapid development of deep

learning and the increase in the tabular data, some

works (Deng et al., 2019; Zhong et al., 2020) try to

focus on end-to-end approaches. However, their

performance is still mediocre compared to the non-

end-to-end methods. Y. Deng et al. (Deng et al.,

2019) formulated table recognition as the image to

latex problem and employed IM2TEX (Deng et al.,

2016) model for table recognition. X. Zhong et al

(Zhong et al., 2020) proposed an encoder-dual-

decoder (EDD) model for recognizing both table

structure and content of each cell. They also

publicized a table recognition dataset PubTabNet to

the community.

In 2021, IBM Research in conjunction with IEEE

ICDAR held ICDAR2021 competition on scientific

literature parsing (Jimeno Yepes et al., 2021)

(ICDAR2021 competition in short). The competition

consists of two tasks: Task A - Document layout

recognition which identifies the position and category

of document layout elements, including title, text,

figure, table, and list; and Task B - Table recognition

which converts table images into HTML code. For

Task B, there are 30 submissions from 30 teams for

the Final Evaluation Phase and most of the top 10

systems are non-end-to-end approaches and employ

ensemble techniques to improve their performance.

3 METHODOLOGY

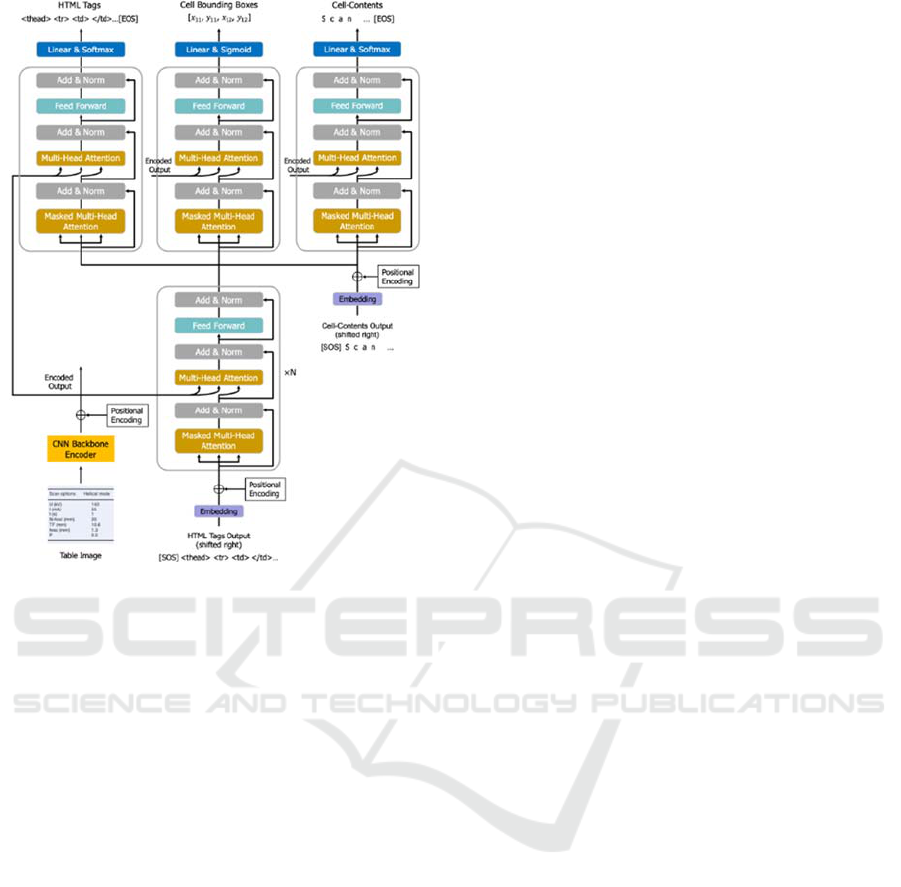

The proposed model consists of one shared encoder,

one shared decoder, and three separate decoders for

three sub-tasks of the table recognition problem as

shown in Fig. 1. The shared encoder encodes the input

table image as a sequence of features. The sequence

of features is passed to the shared decoder and then

the structure decoder to predict a sequence of HTML

tags that represent the structure of the table. When the

structure decoder produces the HTML tag

representing a new cell (‘<td>’ or ‘<td …’), the

output of the shared decoder corresponding to that

cell and the output of the shared encoder are passed

into the cell-bbox decoder and the cell-content

decoder to predict the bounding box coordinates and

the text content of that cell. Finally, the text contents

of cells are inserted into the HTML structure tags

corresponding to their cells to produce the final

HTML code of the input table image. Fig. 2 shows the

detail of the five components in our model. We

describe the detail of each component in the

following sections.

3.1 Shared Encoder

In this work, we use a CNN backbone network as the

feature extractor followed by a positional encoding

layer to build the shared encoder. The feature

extractor extracts visual features from an input table

image of the size {h, w, c} (c is the color channel),

resulting in a feature grid F of the size {h’, w’, k} (k

is the number of the feature maps). Then the feature

grid F is unfolded into a sequence of features (column

by column from left to right in each feature map)

before being fed into the positional encoding layer to

get the encoded sequence of features. The encoded

sequence of features will be fed into the shared

decoder and three separate decoders.

3.2 Shared Decoder

The architecture of all decoders in our model

is inspired by the original Transformer decoder

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

628

Figure 2: Network architecture of the proposed model.

(Vaswani et al., 2017) which is composed of a stack

of N identical Transformer decoder layers where N

can be a hyperparameter. Each identical Transformer

decoder layer (identical layer in short) has three sub-

layers: a multi-head self-attention mechanism; a

masked multi-head self-attention mechanism; and a

position-wise fully connected feed-forward network,

and helps the decoders focus on appropriate places in

the input table image.

At the top of the shared encoder, the shared

decoder is composed of a stack of N=2 identical

layers. As shown in Fig.2, the output of the shared

encoder is fed into the multi-head self-attention

mechanism of each identical layer as the value and

key vectors. During training, the right-shifted

sequence of target HTML tags (structural tokens) of

the table structure (after passing through the

embedded layer and the positional encoding layer) is

passed into the bottom of the shared decoder as the

query vector. In the inference stage, the right-shifted

sequence of target HTML tags is replaced by the

right-shifted sequence of HTML tags outputted by the

structure decoder. Finally, the outputs of the shared

decoder will be fed into the three separate decoders to

predict three sub-tasks of the table recognition

problem.

3.3 Structure Decoder

At the top of the shared decoder, the structure decoder

uses the outputs of the shared decoder and the outputs

of the shared encoder to predict a sequence of HTML

tags of the table structure. Inspired by the works in

(Zhong et al., 2020), the HTML tags of the table

structure are tokenized at the HTML tag level except

for the tag of a cell. In our model, the form of

‘<td></td>’ is treated as one token class. Note that

this can largely reduce the length of the sequence. We

also break down the tag of the spanning cells into

‘<td’, ‘rowspan=’ or ‘colspan=’, with the number of

spanning cells, and ‘>’. Thus, the structural token of

‘<td></td>’ or ‘<td’ represents a new table cell. As

shown in Fig. 2, the structure decoder is composed of

one identical layer followed by a linear layer and a

softmax layer. The identical layer takes the outputs of

the shared decoder as the query vector input and the

outputs of the shared encoder as the key and value

vector inputs. The output of the identical layer is fed

into the linear layer, and then the softmax layer to

generate the sequence of structural tokens.

3.4 Cell-BBox Decoder

When the structure decoder generates a structural

token representing a new cell (‘<td></td>’ or ‘<td’),

the cell-bbox decoder is triggered and uses the output

of the shared decoder corresponding to this cell to

predict the bounding box coordinates of this cell.

As shown in Fig. 2, we use one identical layer

followed by a linear layer and a sigmoid layer to build

the cell-bbox decoder. The identical layer takes the

output of the shared decoder and the output of the

shared encoder as the input and learns to focus on

appropriate places in the input image. The output of

the identical layer is fed into the linear layer and then

the sigmoid layer to predict the four coordinates of

the cell bounding box.

3.5 Cell-Content Decoder

Similar to the cell-bbox decoder, the cell-content

decoder selects the outputs of the shared decoder

referring to the structural tokens representing a new

cell (‘<td></td>’ or ‘<td’) and uses them to recognize

the text contents of cells. The cell-content decoder in

the proposed model can be considered a text

recognizer and the text output are tokenized at the

character level. In this work, we use one identical

layer followed by a linear layer and a softmax layer

to build the cell-content decoder as shown in Fig. 2.

The output of the shared encoder are fed into the

An End-to-End Multi-Task Learning Model for Image-based Table Recognition

629

identical layer as the input value and key vectors.

During training, the right-shifted target of the cell

content (the right-shifted output of the cell-content

decoder in the testing phase) is passed through the

embedded and the positional encoding layers and then

added to the output of the shared decoder before being

fed into the identical layer as the query vector.

Finally, the output of the identical layer is fed into the

linear layer and then the softmax layer to generate the

cell content.

3.6 Network Training

In our model, the shared components are repeatedly

trained from the gradients received from three sub-

tasks while each of three separate decoders is trained

from the gradients obtained from its task. The whole

system can be trained end-to-end on pairs of table

images and their annotations of the table structure, the

text content, and its bounding box per non-empty

table cell by stochastic gradient descent algorithms.

The overall loss of our model is defined as the

following:

ℒ=𝜆



ℒ

.

+𝜆



ℒ

.

+𝜆



ℒ



(1)

where ℒ

.

and ℒ

.

are the table structure

recognition loss and the cell-content prediction loss,

respectively that are implemented in Cross-Entropy

loss, ℒ



is the cell-bbox regression loss which is

optimized by L1 loss. 𝜆



, 𝜆



, and

𝜆



are weight

hyperparameters.

4 EXPERIMENTS

To evaluate the performance of the proposed model,

we conducted experiments on two datasets:

FinTabNet (Zheng et al., 2021) and PubTabNet

(Zhong et al., 2020). The information of the datasets

is given in Sec 4.1. The implementation details are

described in Sect. 4.2; the experimental results are

presented in Sect. 4.3; and the visualization results are

shown in Sect. 4.4.

4.1 Datasets

In this paper, we conduct the experiments on the

following two large-scale datasets that contain the

annotations of both the structure of the table and the

text content with the position of each non-empty table

cell.

PubTabNet (Zhong et al., 2020) is a large-scale

table image dataset that contains over 568k samples

with their corresponding annotations of the table

structure presented in HTML format, the text content,

and its bounding box per non-empty table cell. This

dataset is created by collecting scientific articles from

PubMed Central Open Access Subset (PMCOA). The

dataset is used in the ICDAR2021 competition

(Jimeno Yepes et al., 2021) and divided into 500,777

training samples and 9,115 validation samples in the

development phase, and 9,064 final evaluation

samples in the Final Evaluation Phase.

FinTabNet is another large-scale table image

dataset published by X. Zheng et al. (Zheng et al.,

2021). The dataset is composed of complex tables

from the annual reports of the S&P 500 companies

with detailed annotations of the table structure and

table cell information like the PubTabNet dataset.

This dataset consists of 112k table images which are

divided into training, testing, and validation sets with

a ratio of 81% : 9.5% : 9.5%.

4.2 Implementation Details

We use the ResNet-31 network (He et al., 2016) to

build the CNN backbone in our model. To enable the

CNN backbone network to model the global context

from the input image, we add the Multi-Aspect

Global Context Attention (GCAttention) proposed by

Ning Lu et. al. (Lu et al., 2021) after each residual

block of the ResNet-31 network. All images are

resized to 480*480 pixels and the feature map

outputted from the CNN backbone has a dimension

of 60*60.

At the decoders, all identical layers have the same

architecture with the input feature size of 512, the

feed-forward network size of 2048, and 8 attention

heads. The maximum length of a sequence of

structural tokens in the structure decoder is 500 and

the maximum length of a sequence of cell tokens in

the cell-content decoder is 150. We empirically set all

weight hyperparameters as 𝜆



=𝜆



=𝜆



=1.

Our model is implemented with Pytorch and the

MMCV library (MMCV Contributors, 2018). The

model is trained on two NVIDIA A100 80G with a

batch size of 4 in each GPU. The initializing learning

rate is 0.001 for the first 12 epochs. Afterward, we

reduce the learning to 0.0001 and train for 8 more

epochs or convergence.

4.3 Experimental Results

To evaluate the performance of the proposed model,

we employ the Tree-Edit-Distance-Based Similarity

(TEDS) metric as defined in (Zhong et al., 2020). We

also denote TEDS-struc. as the TEDS score between

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

630

two tables when considering only the table structure

information.

4.3.1 Table Structure Recognition

First, we conducted experiments to verify the

effectiveness of the proposed model for recognizing

the table structure. Table 1 compares the table

structure recognition performance (TEDS-struc.

scores) of the proposed model and the previous table

structure recognition methods on PubTabNet and

FinTabNet datasets.

As shown in Table 1, our model achieves superior

performance on all benchmark datasets compared to

the state-of-the-art models. Specifically, with TEDS-

struc. of 98.79% on the FinTabNet dataset, our model

improves TableFormer (Nassar et al., 2022) by 2%

and other methods by more than 7.7%, and even GTE

(FT) (Zheng et al., 2021) is pretrained in the

PubTabNet dataset. On the PubTabNet dataset, our

model achieved TEDS-struc. of 97.88% which again

improves TableFormer and LGPMA (Qiao et al.,

2021) by about 1.1% and other methods by more

than 4.87%. Note that LGPMA requires additional

Table 1: Table structure recognition results on PubTabNet

validation set (PTN) and FinTabNet (FTN).

Dataset Model

TEDS-struc. (%)

Sim. Com. All

FTN

EDD (Zhong et

al., 2020)

88.40 92.08 90.60

GTE (Zheng et

al., 2021)

- - 87.14

GTE

(FT)

(Zheng

et al., 2021)

- - 91.02

TableFormer

(Nassar et al.,

2022)

97.50 96.00 96.80

Our Model 99.07 98.46 98.79

PTN

EDD (Zhong et

al., 2020)

91.10 88.70 89.90

GTE (Zheng et

al., 2021)

- - 93.01

LGPMA (Qiao

et al., 2021)

- - 96.70

TableFormer

(Nassar et al.,

2022)

98.50 95.00 96.75

Our Model 99.05 96.66 97.88

Sim. (Simple): Tables without multi-column or multi-row cells.

Com. (Complex): Tables with multi-column or multi-row cells.

(FT) Model was trained on PubTabNet and then finetuned.

annotation information for training. The proposed

model also achieves state-of-the-art accuracies on

complex tables (tables with multi-column or multi-

row cells) of both datasets.

Cell Detection: Like any object detection model,

the cell-bbox decoder produces the bounding boxes

of the cells which can be evaluated by the PASCAL

VOC mAP metric. Table 2 shows the mAP of the

proposed model in comparison with the previous

works in (Nassar et al., 2022) on the PubTabNet

dataset. Our model achieves the state-of-the-art

results and significantly improves TableFormer and

EDD + BBox by more than 6.8%. Even without post-

processing, the proposed model slightly outperforms

TableFormer + PP which uses the information of the

cell bounding boxes from the PDF document in post-

processing.

Table 2: Cell detection results on PubTabNet validation set.

PP: Post-processing.

Model mAP (%)

EDD + BBox 79.20

TableFormer 82.10

EDD + BBox + PP 82.70

TableFormer + PP 86.80

Our Model 88.93

4.3.2 Results of Table Recognition

In this experiment, we evaluate the performance of

the proposed model in the table recognition problem

which recognizes both the structure of the table and

the content within each cell. Table 3 shows table

recognition results of the proposed model in

comparison with the previous table recognition

methods on the PubTabNet dataset. Our model

outperforms all the previous methods without

ensemble techniques. Specifically, our model

achieved TEDS of 96.67% which improves

VCGoup’s solution (Ye et al., 2021) by 0.41%,

LGPMA + OCR (Qiao et al., 2021) by 2%, and others

by more than 3%. Note that VCGoup’s solution, and

SEM (Zhang et al., 2022) are the 2nd ranking, and 3rd

ranking solutions in ICDAR2021 competition.

LGPMA (Qiao et al., 2021) is the table structure

recognizer component in the 1st ranking solution in

ICDAR2021 competition. All other methods except

EDD (Zhong et al., 2020) are non-end-to-end

approach and the methods in (Qiao et al., 2021; Ye et

al., 2021; Zhang et al., 2022) requires additional

annotation information for training.

An End-to-End Multi-Task Learning Model for Image-based Table Recognition

631

Table 3: Table recognition results on PubTabNet validation

set.

Model

TEDS (%)

Sim. Com. All

EDD (Zhong et al., 2020) 91.20 85.40 88.30

TabStruct-Net (Raja et al.,

2020)

- - 90.10

GTE (Zheng et al., 2021) - - 93.00

TableFormer (Nassar et al.,

2022)

95.40 90.10 93.60

SEM

(3)

(Zhang et al.,

2022)

94.80 92.50 93.70

LGPMA + OCR

(1)

(Qiao

et al., 2021)

- - 94.60

VCGoup

(2)

(Ye et al.,

2021)

- - 96.26

Our Model 97.92 95.36 96.67

VCGoup + ME

(2)

(Ye et

al., 2021)

- - 96.84

(1)(2)(3) are 1st, 2nd, and 3rd ranking solutions in ICDAR2021 competition.

ME: Model Ensemble.

Without ensemble technique as well as additional

annotation information, however, our model achieves

the competitive results when compared to VCGoup’s

solution + ME in (Ye et al., 2021) which requires

annotations of text-line bounding boxes of cell

contents in table images and employs three model

ensembles in the table structure recognition and three

model ensembles in the text line recognition.

We also evaluate our model on the final

evaluation set of the PubTabNet dataset which is used

for the Final Evaluation Phase in ICDAR2021

competition. Table 4 compares TEDS scores by our

model and the top 10 solutions in ICDAR2021

competition (Jimeno Yepes et al., 2021). Although

we used neither any additional training data nor

ensemble techniques, our model outperforms the 4th

ranking solution named YG and achieves competitive

results when compared to the top three solutions in

the final evaluation set of Task-B in the ICDAR 2021

competition. Furthermore, the proposed model

achieves a similar TEDS score on complex tables

with the 2nd ranking solution named VCGroup. Note

that the 1st ranking solution is a non-end-to-end

approach which employs LGPMA (Qiao et al., 2021)

to recognize the structure of the table and then uses

attention-based text recognizer to provide the OCR

information of the table cells. They also adopt multi-

scale ensemble strategy to further improve the

performance. The other 9 solutions also are non-end-

to-end approaches and most of them use additional

data for training as well as ensemble methods.

Table 4: Table recognition results on PubTabNet final

evaluation set.

Team Name

TEDS (%)

Simp. Comp. All

Davar-Lab-OCR 97.88 94.78 96.36

VCGroup 97.90 94.68 96.32

XM 97.60 94.89 96.27

Our Model 97.60 94.68 96.17

YG 97.38 94.79 96.11

DBJ 97.39 93.87 95.66

TAL 97.30 93.93 95.65

PaodingAI 97.35 93.79 95.61

anyone 96.95 93.43 95.23

LTIAYN 97.18 92.40 94.84

4.4 Visualization Results

In this section, we show some visualization results of

the proposed model on the PubTabNet dataset. As

shown in Fig. 3, the left image is the original image

with detected bounding boxes of table cells, and the

right image is the predicted HTML code of the table

view on the web browser. As it is shown, our model

is able to predict complex table structure as well as

bounding boxes and contents for all table cells, even

for the empty cells or cells that cross span multiple

rows/columns.

5 CONCLUSIONS

In this paper, we formulate the problem of table

recognition as a multi-task learning problem and

propose a novel end-to-end multi-task learning model

which consists of one shared encoder, one shared

decoder, and three separate decoders for three sub-

tasks of table recognition: table structure recognition,

cell detection, and cell-content recognition. The

shared components are repeatedly trained from the

gradients received from three sub-tasks while each of

three separate decoders is trained from the gradients

of its task. Extensive experiments on two large-scale

datasets demonstrate our model achieved state-of-

the-art accuracies in both table structure recognition

and table recognition. Although we used neither any

additional training data nor ensemble techniques, our

model outperforms the 4th ranking solution and

achieves competitive results when compared to the

top three solutions in ICDAR 2021 competition.

In the future, we will conduct experiments of the

proposed model on the table image datasets of other

languages. We also plan to incorporate language

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

632

Figure 3: Visualization results on PubTabNet.

models into the structure decoder as well as the cell-

content decoder to improve the performance of the

proposed model.

ACKNOWLEDGEMENTS

This work was supported by the Cross-ministerial

Strategic Innovation Promotion Program (SIP)

Second Phase and “Big-data and AI-enabled

Cyberspace Technologies” by New Energy and

Industrial Technology Development Organization

(NEDO).

REFERENCES

Bahdanau, D., Chorowski, J., Serdyuk, D., Brakel, P., &

Bengio, Y. (2016). End-to-end attention-based large

vocabulary speech recognition. Proceedings of the

International Conference on Acoustics, Speech and

Signal Processing (ICASSP), 4945–4949.

https://doi.org/10.1109/ICASSP.2016.7472618

Casado-García, Á., Domínguez, C., Heras, J., Mata, E., &

Pascual, V. (2020). The benefits of close-domain fine-

tuning for table detection in document images. Lecture

Notes in Computer Science (Including Subseries

Lecture Notes in Artificial Intelligence and Lecture

Notes in Bioinformatics), 12116 LNCS, 199–215.

https://doi.org/10.1007/978-3-030-57058-3_15

Deng, Y., Kanervisto, A., Ling, J., & Rush, A. M. (2016).

Image-to-Markup Generation with Coarse-to-Fine

Attention. 34th International Conference on Machine

Learning, ICML 2017, 3, 1631–1640. https://doi.

org/10.48550/arxiv.1609.04938

Deng, Y., Rosenberg, D., & Mann, G. (2019). Challenges

in end-to-end neural scientific table recognition.

Proceedings of the International Conference on

Document Analysis and Recognition, ICDAR, 894–901.

https://doi.org/10.1109/ICDAR.2019.00148

He, K., Zhang, X., Ren, S., & Sun, J. (2016). Deep Residual

Learning for Image Recognition. 2016 IEEE

Conference on Computer Vision and Pattern

Recognition (CVPR), 770–778. https://doi.org/10.1109

/CVPR.2016.90

Huang, Y., Yan, Q., Li, Y., Chen, Y., Wang, X., Gao, L., &

Tang, Z. (2019). A YOLO-based table detection

method. Proceedings of the International Conference

on Document Analysis and Recognition, ICDAR, 813–

818. https://doi.org/10.1109/ICDAR.2019.00135

Itonori, K. (1993). Table structure recognition based on

textblock arrangement and ruled line position.

Proceedings of 2nd International Conference on

Document Analysis and Recognition (ICDAR ’93),

765,766,767,768-765,766,767,768. https://doi.org/10.

1109/ICDAR.1993.395625

Jimeno Yepes, A., Zhong, P., & Burdick, D. (2021).

ICDAR 2021 Competition on Scientific Literature

Parsing. Lecture Notes in Computer Science (Including

Subseries Lecture Notes in Artificial Intelligence and

Lecture Notes in Bioinformatics), 12824 LNCS, 605–

617. https://doi.org/10.1007/978-3-030-86337-1_40

Kayal, P., Anand, M., Desai, H., & Singh, M. (2021).

ICDAR 2021 Competition on Scientific Table Image

Recognition to LaTeX. Lecture Notes in Computer

Science (Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12824 LNCS, 754–766. https://doi.org/10.1007/978-3-

030-86337-1_50

An End-to-End Multi-Task Learning Model for Image-based Table Recognition

633

Kieninger, T. G. (1998). Table structure recognition based

on robust block segmentation. Https://Doi.Org/

10.1117/12.304642, 3305, 22–32. https://doi.org/10.

1117/12.304642

Li, M., Cui, L., Huang, S., Wei, F., Zhou, M., & Li, Z.

(2019). TableBank: A Benchmark Dataset for Table

Detection and Recognition. https://doi.org/10.48550/

arxiv.1903.01949

Long, J., Shelhamer, E., & Darrell, T. (2015). Fully

convolutional networks for semantic segmentation.

2015 IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), 07-12-June-2015, 3431–

3440. https://doi.org/10.1109/CVPR.2015.7298965

Lu, N., Yu, W., Qi, X., Chen, Y., Gong, P., Xiao, R., & Bai,

X. (2021). MASTER: Multi-aspect non-local network

for scene text recognition. Pattern Recognition, 117,

107980. https://doi.org/10.1016/J.PATCOG.2021.

107980

Ly, N. T., Nguyen, H. T., & Nakagawa, M. (2021). 2D Self-

attention Convolutional Recurrent Network for Offline

Handwritten Text Recognition. Lecture Notes in

Computer Science (Including Subseries Lecture Notes

in Artificial Intelligence and Lecture Notes in

Bioinformatics), 12821 LNCS, 191–204.

https://doi.org/10.1007/978-3-030-86549-8_13/COVER

MMCV Contributors. (2018). {MMCV: OpenMMLab}

Computer Vision Foundation. https://github.com/open-

mmlab/mmcv

Nassar, A., Livathinos, N., Lysak, M., & Staar, P. (2022).

TableFormer: Table Structure Understanding with

Transformers. https://doi.org/10.48550/arxiv.2203.

01017

Qasim, S. R., Mahmood, H., & Shafait, F. (2019).

Rethinking table recognition using graph neural

networks. Proceedings of the International Conference

on Document Analysis and Recognition, ICDAR, 142–

147. https://doi.org/10.1109/ICDAR.2019.00031

Qiao, L., Li, Z., Cheng, Z., Zhang, P., Pu, S., Niu, Y., Ren,

W., Tan, W., & Wu, F. (2021). LGPMA: Complicated

Table Structure Recognition with Local and Global

Pyramid Mask Alignment. Lecture Notes in Computer

Science (Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12821 LNCS, 99–114. https://doi.org/10.1007/978-3-

030-86549-8_7/TABLES/4

Raja, S., Mondal, A., & Jawahar, C. v. (2020). Table

Structure Recognition Using Top-Down and Bottom-

Up Cues. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12373 LNCS, 70–86. https://doi.org/10.1007/978-3-

030-58604-1_5/FIGURES/8

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-

CNN: Towards Real-Time Object Detection with

Region Proposal Networks. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 39(6),

1137–1149. https://doi.org/10.48550/arxiv.1506.01497

Schreiber, S., Agne, S., Wolf, I., Dengel, A., & Ahmed, S.

(2017). DeepDeSRT: Deep Learning for Detection and

Structure Recognition of Tables in Document Images.

Proceedings of the International Conference on

Document Analysis and Recognition, ICDAR, 1, 1162–

1167. https://doi.org/10.1109/ICDAR.2017.192

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., & Polosukhin, I. (2017).

Attention is all you need. Advances in Neural

Information Processing Systems, 2017-December,

5999–6009.

Wang, Y., Phillips, I. T., & Haralick, R. M. (2004). Table

structure understanding and its performance evaluation.

Pattern Recognition, 37(7), 1479–1497.

https://doi.org/10.1016/J.PATCOG.2004.01.012

Ye, J., Qi, X., He, Y., Chen, Y., Gu, D., Gao, P., & Xiao,

R. (2021). PingAn-VCGroup’s Solution for ICDAR

2021 Competition on Scientific Literature Parsing Task

B: Table Recognition to HTML. https://doi.

org/10.48550/arxiv.2105.01848

Zhang, Z., Zhang, J., Du, J., & Wang, F. (2022). Split,

Embed and Merge: An accurate table structure

recognizer. Pattern Recognition, 126, 108565.

https://doi.org/10.1016/J.PATCOG.2022.108565

Zheng, X., Burdick, D., Popa, L., Zhong, X., & Wang, N.

X. R. (2021). Global Table Extractor (GTE): A

Framework for Joint Table Identification and Cell

Structure Recognition Using Visual Context. 2021

IEEE Winter Conference on Applications of Computer

Vision (WACV), 697–706. https://doi.org/10.1109/

WACV48630.2021.00074

Zhong, X., ShafieiBavani, E., & Jimeno Yepes, A. (2020).

Image-Based Table Recognition: Data, Model, and

Evaluation. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

12366 LNCS, 564–580. https://doi.org/10.1007/978-3-

030-58589-1_34/TABLES/3.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

634
