A Proposal Towards Discovering Metamodels from Low-Code

Application Platforms

Fernando Moreira

1 a

, Nuno Bettencourt

2 b

, Alexandre Braganc¸a

1 c

and Isabel Azevedo

3 d

Institute of Engineering of Porto, Polytechnic of Porto, Portugal

Interdisciplinary Studies Research Center, Institute of Engineering of Porto, Polytechnic of Porto, Portugal

GILT Research Unit, Institute of Engineering of Porto, Polytechnic of Porto, Portugal

Keywords:

Model Driven Engineering, Meta-Model Discovery, Low-Code Applications, Model to Model

Transformations, Ecore, Mapping, REA.

Abstract:

Low-Code platforms enable users to quickly create apps of various types, with little or no coding in general-

purpose programming languages. Despite their popularity, these platforms are often closed-source and do not

adhere to standards. Users of these platforms face two major issues: the ﬁrst is the difﬁculty in the evolution of

applications in terms of platform updates, and the second is the inability to migrate the applications to another

platform, restraining users to use the original platform. Thus, we investigated the feasibility of discovering

these platforms’ meta-models by using some exported models as a starting point. This possibility could enable

apps to be migrated, for example, to a new version of the platform or a different one by describing transfor-

mations using the discovered meta-models. A proposal for solving this issue is described, also its evaluation.

By analysing the obtained test results, the proposal was considered successful.

1 INTRODUCTION

This article is part of the Business Application Mod-

eling Language – Low-Code Platform (BAMoL)

project, whose main goal is designing and implement-

ing a Domain Speciﬁc Language (DSL) for the Low-

Code Application Platform (LCAP) named Omnia.

This is a joint project between the team behind

LCAP, Instituto Superior de Engenharia do Porto

(ISEP), and Faculdade de Engenharia da Universi-

dade do Porto (FEUP).

At the moment, two approaches for building the

DSL are being considered. The traditional method of

manually constructing the DSL is the ﬁrst option. The

second option is a technique that seeks to automate

as much of the DSL generation as possible, using

exported models from LCAP-based applications as a

starting point. This work focused on contributions to

the latter, particularly the generation of a meta-model

from a set of models.

The interoperability of low-code platforms (Sahay

et al., 2020) is lacking. For instance, it is impossi-

https://orcid.org/0000-0002-9268-2007

https://orcid.org/0000-0003-1767-8240

https://orcid.org/0000-0002-4882-9497

https://orcid.org/0000-0003-2172-633X

ble to reuse artefacts from one low-code development

platform to another. Although this work’s objective is

to obtain a meta-model, a DSL would follow, allow-

ing to achieve some level of interoperability.

The remainder of this paper is structured as fol-

lows. The next section describes the context and ex-

istent problem. Section 3 presents some related work.

Section 4 proposes a solution for the enunciated prob-

lem, and Section 5 describes its evaluation. The paper

concludes in Section 6, where some limitations and

some work for the near future are also presented.

2 CONTEXT AND PROBLEM

LCAP is a term used to describe a class of applica-

tions that facilitate the development of other applica-

tions that require little to no code being written. Users

of these platforms are typically called citizen develop-

ers.

At their core, these platforms implement Model-

Driven Engineering (MDE) principles, allowing citi-

zen developers to model the applications they are de-

veloping, as opposed to explicitly writing their code

with a general-purpose programming language. Such

a feature is enabled using advanced graphical user in-

168

Moreira, F., Bettencourt, N., Bragança, A. and Azevedo, I.

A Proposal Towards Discovering Metamodels from Low-Code Application Platforms.

DOI: 10.5220/0011688800003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 168-175

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

terfaces and visual abstractions (Sahay et al., 2020).

The Omnia Platform is an LCAP whose modelling

follows the Resources, Events, Agents (REA) eco-

nomic modelling system (Hruby, 2006).

However, LCAPs are typically closed-source so-

lutions that do not adhere to standards, hence each

individual platform probably has its own approach to

designing its meta-model. Furthermore, due to their

closed-source nature, usually the meta-model is not

explicitly provided or properly versioned.

This issue results in the inability to migrate appli-

cations modelled with one LCAP to another, causing

the user to become dependent on one platform.

Another issue that occasionally affects users of

these platforms is related to updating the application

with a new version of the LCAP, i.e., the user ini-

tially created an application with an older version of

the platform and is then unable to make use of the

features in more recent versions since the migration

mechanisms might not have been implemented.

Both issues challenge proper maintenance and

evolution of applications. In a lot of cases, the only

solution is to redo and remodel the application.

Since developing in an LCAP is, at its core, just

creating and manipulating a model of the ﬁnal appli-

cation, each LCAP requires a meta-model that sets the

boundaries of what is possible to develop through the

platform.

The solution proposed by this article aims at dis-

covering this meta-model from a set of existing mod-

els (i.e., exported applications created in the tar-

get LCAP, represented in a serializable format, such

as JavaScript Object Notation (JSON) or Extensible

Markup Language (XML)). For the sake of simplic-

ity, the approach depicted in this article only deals

with models serialized in a JSON format. By apply-

ing this approach, the source and target meta-models

can be constructed and then used to deﬁne transfor-

mation with the goal of, for example, migrating an

application from a source LCAP to a target LCAP.

The main goal of this article is to test the hypoth-

esis that it is possible to automatically deduce a meta-

model for an existing application from its LCAP ex-

ported models.

The deduced metamodel must be precise enough

to ensure the acceptance of agreeing models by

LCAP. In other words, models instantiated by the de-

duced meta-model should be valid compared to the

original one.

Moreover, it should be as complete as possible to

cover the wide range of features that an LCAP can

have. This means that every feature that exists in the

initial models should also be covered in the deduced

meta-model.

3 RELATED WORK

This section compiles and sums related works in

meta-model deduction.

The authors (C

anovas Izquierdo and Cabot, 2013)

demonstrate an approach to ﬁnd the implicit domain

model from a set of JSON-based services. To illus-

trate this, they use a Representational State Trans-

fer (REST) Application Programming Interface (API)

provided by a real case.

Their implementation consists of three stages:

Pre-discovery; Single-Service Discoverer and Multi-

service Discoverer.

In the Pre-discovery stage, JSON documents are

transformed into models conforming to a JSON meta-

model. During the Single-Service Discoverer stage,

for each JSON service, the JSON models are trans-

formed into Ecore models by applying deﬁned map-

ping rules. Finally, the Multi-service Discoverer stage

is performed. During this stage, all the Ecore models

from the previous stage are merged according to a set

of rules as well. The result is a model that is as close

as possible to the complete domain model of the set

of JSON-based services.

The paper by (Braganc¸a et al., 2021) describes the

experience of using DSLs to add support for a Soft-

ware Product Line (SPL) engineering approach on an

LCAP. For that purpose, a DSL capable of represent-

ing all the LCAPs modeling concepts is developed:

the Low-Code DSL (LC-DSL).

Since LCAPs are usually closed source and do not

provide access to the underlying meta-model but do

provide ways for exporting models, a method was de-

vised that allowed the meta-model to be deduced from

exported models. This meta-model is used as input to

create the LC-DSL.

The LC-DSL is then used to model groups of

LCAP applications that can be managed as a SPL, in

other words, the LC-DSL is a model that covers all

LCAP applications that can be managed as a SPL.

The work includes an import/export process to ob-

tain the LC-DSL from the models in the LCAP (and

vice versa), to integrate the existing LCAP with the

new LC-DSL.

Other works like (Javed et al., 2008) or (Zolotas

et al., 2019) also exist, but their applicability in the

context of this work is not clear.

4 PROPOSAL

A Model to Model (M2M) Transformation was fun-

damental for the approach. This section describes the

source (LC-Metamodel) and the target meta-models

A Proposal Towards Discovering Metamodels from Low-Code Application Platforms

169

Figure 1: Class diagram of the LC-Metamodel.

(LC-MetametaModel). Then it presents the existing

mapping workﬂow, detailing the Basic Structure In-

ference and Reference Deduction stages.

4.1 LC-Metamodel

The source meta-model is the meta-model of LC-

Model, which shall be referred to as LC-Metamodel.

Its class diagram can be found in Figure 1 and the de-

scription of its elements is as follows.

An Archive is a collection of ArchiveFiles. An

ArchiveFile represents a ﬁle. Each ArchiveFile is

identiﬁed by a name and a parent path, which is

relative to the root of the archive. When it contains

JSON it is a JsonFile, otherwise a DefaultFile. Both

types of ﬁles are extensions and speciﬁcations of an

ArchiveFile. While the ﬁrst, a DefaultFile repre-

sents a generic ﬁle by adding the ﬁle’s contents on the

content property, the latter, a JsonFile represents a

JSON ﬁle and adds a reference to a JsonNode.

A JsonNode represents a JSON value that can

be specialized as: an ArrayNode; an ObjectNode;

a TextNode; a BooleanNode; a NumberNode; or a

NullNode;

Each TextNode, NumberNode, BooleanNode

and NullNode represent a JSON primitive value,

whose type depends on the instance.

An ArrayNode represents a JSON array and has

the elements property, which supports a collection of

JsonNodes. An ObjectNode represents a JSON ob-

ject and has one or more properties, which are Key-

ValuePairs.

A Property represents a key/value pair that be-

longs to a JSON object, has a key property to identify

the property and a value, which is a reference to a

JsonNode.

4.2 LC-MetametaModel

The target meta-model is the meta-model of Meta-

model. Since it is a meta-model of a meta-

Figure 2: Class diagram portraying the target meta-model.

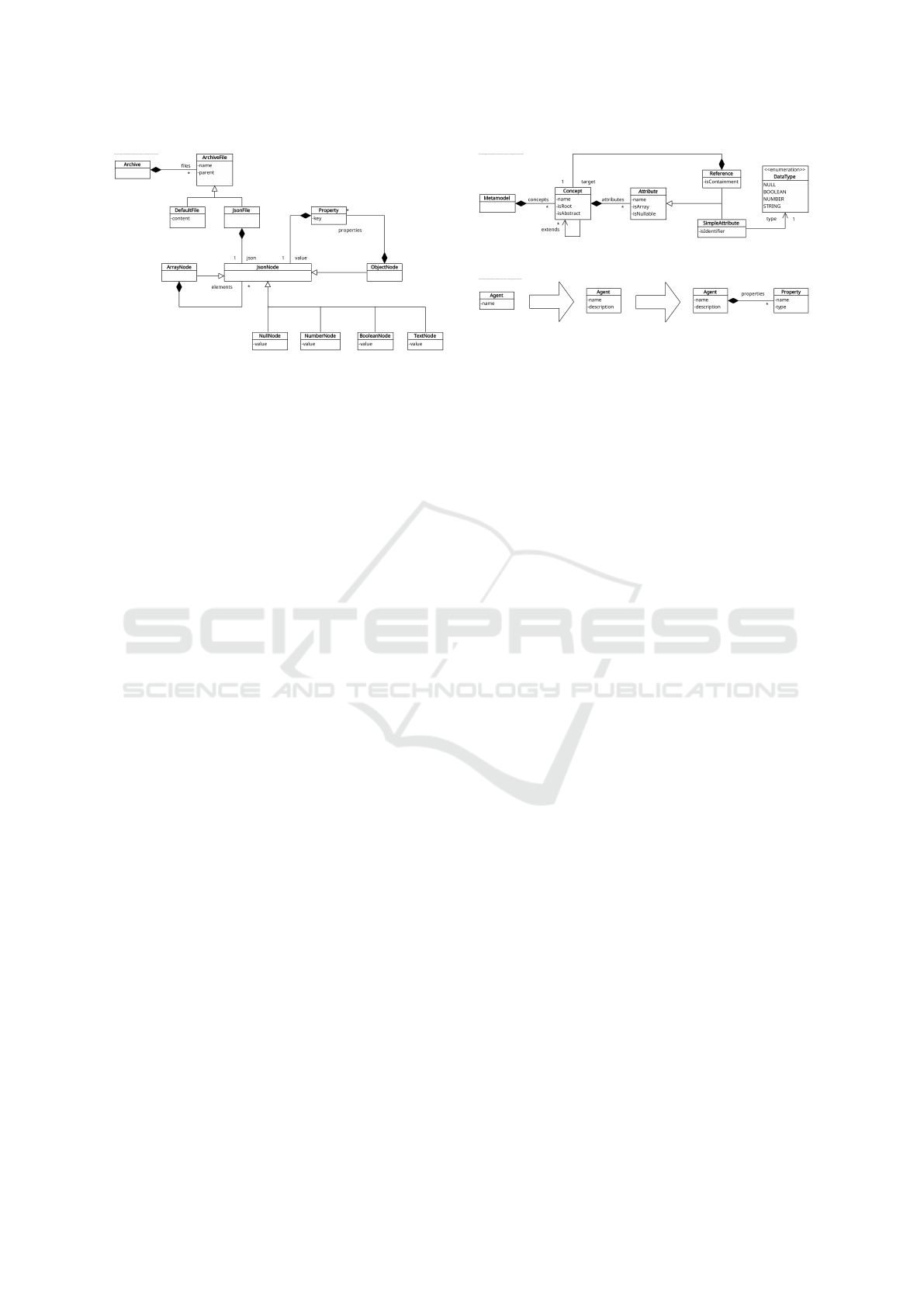

Figure 3: Evolution of a meta-model as more models are

inspected, represented using a Class Diagram.

model, the target meta-model is a meta-metamodel

for all LCAPs, referred from now on as LC-

MetametaModel.

Figure 2 presents a class diagram representing the

LC-MetametaModel. Its elements are described as

follows.

The Metamodel is a collection of Concepts.

Each Concept is essentially a collection of At-

tributes, identiﬁed by a name, and described by two

boolean properties isRoot and isAbstract.

Each Attribute represents a name/value pair. It

is identiﬁed by a name and has two boolean proper-

ties, isArray, and isNullable. Attributes can be

further specialized by the SimpleAttibute and Refer-

ence. A Simple Attribute represents a primitive at-

tribute, i.e., its value is either null, boolean, number

or string. Each Reference represents a Concept,

either by containment (the concept is deﬁned as the

value of the attribute) or a simple text attribute whose

value identiﬁes a Concept, which is indicated by the

isContainment property.

4.3 Workﬂow

The working principle of this algorithm is gradually

building the meta-model with each inspected model,

adding, or updating Concepts when new information

is found.

This is illustrated by Figure 3, where initially the

Agent concept with the name Attribute is found in a

model and then, when processing the next model, a

new description Attribute is found, and the Con-

cept is updated accordingly. Finally, when another

model is processed, an array Attribute with name

properties is found. This time, the type of this At-

tribute is the Property Concept, with name and type

Attributes. This workﬂow has two major stages.

On the ﬁrst stage (Basic Structure Inference),

the goal is to create an initial meta-model by inspect-

ing the input models. The information gathered is rel-

ative to which data structures exist in the models, in-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

170

cluding their ﬁelds, respective types, and other nested

data structures. In MDE terms, this stage can be seen

as a M2M transformation.

On the second stage (Reference Deduction), the

goal is to identify which simple attributes are in fact

references to a concept. In MDE terms, this step is a

model reﬁnement.

4.3.1 Basic Structure Inference

This stage consists in iterating over all the JSON ﬁles

and recursively apply a set of rules that are further

described.

The ﬁrst rule states that an ObjectNode is mapped

to a Concept. If the ObjectNode is the root element

of the ﬁle, i.e., it is referenced by a JsonFile, then

the name in the resulting Concept is the name of the

parent directory of the ﬁle, and the isRoot ﬂag is set

to true. It is assumed that only ObjectNodes can be

root nodes.

If the ObjectNode is the value of a Property, the

name of the resulting Concept includes the path from

the root Concept to it. For example, if the name

Agent.attributes.multiplicity is given to a Concept,

that would imply the hierarchy of concepts Agent ->

Agent.attributes -> Agent.attributes.multiplicity.

Each Property of the JsonNode is mapped to an At-

tribute in the resulting Concept. The property ﬂag

isAbstract is always set to false, since the fact that

a JsonObject exists means the concept cannot be ab-

stract.

The second rule states that an ArrayNode is

mapped as an Attribute. Each element of the Ar-

rayNode is mapped to an Attribute according to the

rules deﬁned for that speciﬁc element and then the re-

sulting Attributes are merged/reduced into a single

Attribute, which property isArray is set to true.

The third rule states that a Property pair is

mapped to an Attribute. The name of the resulting

Attribute is the key ti the pair and the isIdentifier

property is set to true if the name is equal to the

identiﬁer name and set to false if otherwise. The

isArray property in the resulting Attribute is set to

false if no other mapping rule is applied. If the value

is a primitive node (e.g., NullNode, NumberNode,

BooleanNode or TextNode), then the resulting At-

tribute is a SimpleAttribute with the respective data

type. If the value is null, then the isNullable prop-

erty is set to true. Otherwise, it is set to false. If the

value is an ObjectNode, then the resulting Attribute

is a Reference with the isContaiment property set

to true and the ObjectNode is mapped using its spe-

ciﬁc rules.

For example, take the input model shown on List-

ing 1 and the resulting meta-model instance repre-

Listing 1: JSON Model.

{

" name ": " Com p any " ,

" a t tri but e s ": [

{

" name ": " c ode ",

" type " " Text "

}

]

}

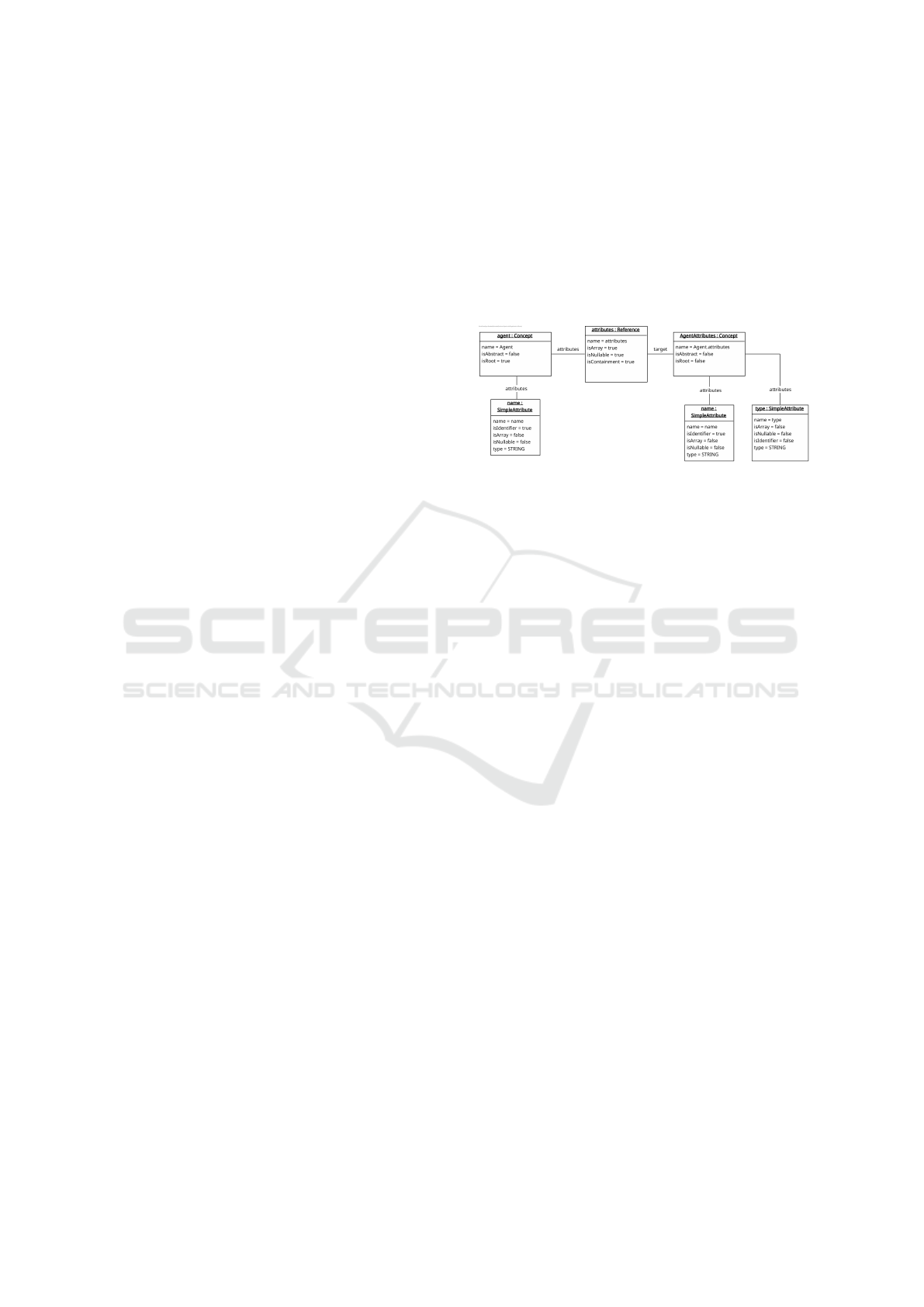

Figure 4: New Concept.

sented using an object diagram that can be seen in

Figure 4.

The input model was placed in the Agent direc-

tory under the name Company.json. When mapping

this model to its respective meta-model, the process

is started at its top-level ObjectNode, which has the

Properties name and attributes.

Since it is a top-level/root object, the name of its

respective Concept is Agent, since it is the name of

the directory where the ﬁle is located, and its isRoot

property is set to true.

Then, its Properties are mapped to Attributes in

the respective Concept.

The name property is mapped to a SimpleAt-

tribute, since its value is a text value and the

isIdentifier property is set to true, since the word

name is assumed to be the designation for the identi-

ﬁer properties. The value is a single value, and it is

not null so the isArray and isNullable properties

are both set to false.

As for the attributes property, since its value

is an ArrayNode which only contains one Ob-

jectNode, the Property is mapped to a Reference

whose target property is the resulting Concept

(mapped from the singular ObjectNode) and both its

isContainment and isArray properties are set to

true.

The singular ObjectNode of the array is then

mapped to a Concept, with Agent.attributes as its

name and, since the object is a property value prop-

erty, its isRoot property is set to false. Like the

previous object, the Properties of the ObjectNode

are then mapped to their respective Attributes in the

Concept.

A Proposal Towards Discovering Metamodels from Low-Code Application Platforms

171

When a Concept or Attribute is added to the

Meta-model it can already exist, since it could have

been found previously. In this situation, new infor-

mation is added to the current Concept or Attribute,

according to some predeﬁned rules.

When merging a Concept: new attributes are

added to the existing Concept and existing attributes

are merged.

When merging an Attribute, if the new At-

tribute is a Reference and the previous is a Sim-

pleAttribute, it upgrades it to a Reference. This fea-

ture is useful for the Reference Deduction stage. For

the boolean properties, the merged value is obtained

by performing an OR operation between the old and

the new value. For the type of the simple attribute,

the merged value is the broader type between the old

and new type. The types are order from broader to

narrower accordingly: string -> number -> boolean

-> null.

4.3.2 Reference Deduction

The goal of this stage is to determine which simple

attributes are, in fact, a reference to another concept.

As an example, the general rule for an attribute A to

reference a concept C is that, given the set of values

of A values(A) and the set of identiﬁers/names for the

concept C names(C), the attribute A is a reference to

C if names(C) contain all the values in values(A), i.e.,

values(A) are a subset of names(C). This relationship

can be expressed in the form values(A) ⊂ names(C).

This approach generally works well to identify

references to a single concept, but if an Attribute ref-

erences more than one Concept at the same time, that

is, it references an abstract Concept that one or more

concepts can extend, this method would not be able to

ﬁnd those kinds of references. One way to deal with

this issue is to predict what the abstract concept could

be.

In the context of metamodel inference, abstract

Concepts are only relevant if at least one reference

uses it as its target. Therefore, a way to ﬁnd possi-

ble references to abstract concepts is to ﬁrst consider

a possible Concept hierarchy, including abstract and

non-abstract Concepts, and, for each Concept, ﬁnd

the SimpleAttributes for which the relationship ex-

pressed by values(A) ⊂ names(C) hold true.

To ﬁnd a Concept hierarchy, for each Concept C

let attributes(C) be the set which holds all the names

of all the attributes belonging to Concept C. Then,

for all the Concepts found in the 4.3.1 stage, for

each unique pair of Concepts C1 and C2, compute

attributes(C1) ∩ attributes(C2). If the intersection of

the sets is not empty, use it to deﬁne a new abstract

Concept. Repeat this with the new abstract Concepts

until no new Concept can be deﬁned.

However, there is one issue with this approach:

given a Concept C that extends abstract Concept AC,

then it follows that names(C) ⊂ names(AC).

Transitively, any Attribute A for which

values(A) ⊂ names(C) holds true implies that

values(A) ⊂ names(AC) also hold true. This might

result in wrongly deduced reference, which is why

out of all the Concepts A might target, the most

speciﬁc Concept (the one with the largest set of

labels) is chosen. This stage of the algorithm can be

summed in the following speciﬁc steps.

1. Find possible abstract Concepts by ﬁnding com-

mon attributes in the existing Concepts;

2. For each non-identiﬁer SimpleAttribute in the

meta-model ﬁnd the Concepts for which the con-

dition values(A) ⊂ names(AC) holds true. If at

least one Concept is found, select the most spe-

ciﬁc one;

3. For each SimpleAttribute in the last step, if one

Concept is chosen, upgrade it to a Reference,

with the selected Concept as its target and the

containment properties set to false.

5 EVALUATION

In this section we discuss what guided the assessment,

the tools used and how, and the results obtained.

5.1 Evaluation Criteria

Besides the fulﬁlling of the requirements, some eval-

uation measures are used to validate the hypothesis,

namely: (i) using the generated meta-model, it should

be able to instantiate the same models that were used

for deduction; (ii) instances of the generated meta–

model should be able to be imported into the LCAP;

(iii) the coverage of the features of the input models.

5.2 Test Tools

Four tools (i.e., Input Model Validator, Generated

Model Validator, Metamodel Validator, and Model

Generators) were used for testing the proposal. Their

usage and procedures are explained in this section.

5.2.1 Input Model Validator

The goal of this tool is to validate the inferred meta-

model by validating the input models against it. This

assumes that the input models are valid from the out-

set and, as such, if the meta-model can successfully

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

172

Listing 2: Omnia meta-model.

[{

" Name ": " Ag en t " ,

" D e sc r ip ti o n ": "..." ,

" P r ope rt ie s " : [

{

" Name ": " N am e " ,

" D e sc r ip ti o n ": " The n a m e of the

ent i ty ( u ni qu e i d en t if ier )

." ,

" T y pe Ki nd ": " Pri mi ti ve " ,

" T y pe Na me ": " T ext " ,

...

} ,

{

" Name ": " De s cri pt io n ",

" D e sc r ip ti o n ": " The t ex tua l

ex pl ana ti on of the e nti t i e s

’ pu r po se ." ,

" T y pe Ki nd ": " Pri mi ti ve " ,

" T y pe Na me ": " T ext " ,

...

}]

}.. . ]

validate them, then the meta-model should be valid as

well. However, since the meta-model only captures

structural features of the models, its validity is limited

to that and does not include semantic relationships be-

tween Concepts/Attributes of the meta-model.

5.2.2 Generated Model Validator

This tool is vendor-speciﬁc, and part of the Omnia

platform being used for this proposal. It is accessible

through the platform’s REST API, whose documen-

tation can be found at the Omnia’s Swagger UI web-

page

, or through the platform’s modeller. To evaluate

the validity of the models, both features can be used

to import a model into the Omnia platform. This as-

sumes that the model is checked for its validity, mean-

ing that if the process is successful, then the model is

valid.

5.2.3 Metamodel Validator

The purpose of this tool is to automatically validate

the meta-models deduced by the solution. For that,

the target meta-model needs to be available in a for-

mat that can easily be read by an algorithm. Thank-

fully, Omnia makes its meta-model available via a

GitHub repository (cf. Figure 2)

Figure 5 shows the meta-metamodel that the Om-

nia meta-model follows. Therefore, the work per-

formed by this tool is to compare Omnia’s meta-

https://platform.omnialowcode.com/api/docs/index.html

https://github.com/OMNIALowCode/omnia3/tree/

master/docs/pages/omnia3/Languages

Figure 5: Omnia Meta-metamodel.

model found in GitHub with the one that was inferred

(cf. Figure 2), particularly comparing analogous fea-

tures, such as OmniaConcepts and the inferred Con-

cepts.

The algorithm behind this tool will essentially

check if for each of the deduced Concepts, there is

also a matching OmniaConcept, i.e., a OmniaCon-

cept with the same name or with the same set of at-

tributes/properties. Only non-abstract Concepts are

considered at this stage, since Omnia’s meta-model

makes no mention of them. This results in the follow-

ing metrics:

• Total number of OmniaConcepts.

• Total number of Concepts existing in the input

models.

• Total number of inferred Concepts.

• Number of Concepts that had a matching Omni-

aConcept.

• Number of Concepts that had did not have a

matching OmniaConcept.

• Number of OmniaConcept that had no matching

Concept.

For each Concept and OmniaConcept compared,

their attributes/properties are also compared. Simi-

larly, for each Attribute, the algorithm will check if

there is a OmniaProperty with the same name in the

OmniaConcept. Attributes are then validated by as-

serting the following criteria:

• If the Attribute is a SimpleAttribute, the match-

ing OmniaProperty should have typeKind of

PRIMITIVE or ENUMERATION.

• If the Attribute is a Reference, the matching

OmniaProperty should have typeKind of CLASS

and the following requirements must be met:

A Proposal Towards Discovering Metamodels from Low-Code Application Platforms

173

– If the isContainment property is set to true,

the aggregationKind of the OmniaProperty

should be COMPOSITE.

– The Reference target should match the Om-

niaProperty’s typeName value.

5.2.4 Model Generators

This tool, as the name indicates, is responsible for

generating models according to the speciﬁed meta-

model. This process starts by recursively navigating

the generated meta-model, starting with the root Con-

cepts, and applying a set of generation rules.

If generating the value for a Concept:

• A Concept will originate a JSON object.

• If it is a root Concept, generate a conﬁgurable

amount of JSON ﬁles. Inside each ﬁle the Con-

cept’s generated JSON object is placed, differing

for each ﬁle.

• The Concept’s Attributes will each originate a

key/value pair inside the respective JSON object.

If generating the value for an Attribute:

• The attribute will originate a key/value pair inside

its respective parent JSON Object.

• The key is the name of the Attribute.

• If the isArray property is set to true, the gener-

ated value shall be an array and its parametrized

length.

• If the Attribute is a SimpleAttribute:

– If the name of the Attribute is lower, upper,

aggregationKind or type it will treat it as an

ENUM and its value is one of the values that

the Attribute assumed previously.

– If the Attribute requires no special treatment,

then it is generated randomly, with its type con-

sidered.

• If the Attribute is a Reference:

– If the isContaiment property is set to true,

the value of the key/value pair is the JSON Ob-

ject that the target Concept is mapped to.

– If the isContaiment property is set to false,

the value of the key/value pair is the name of

one of the generated instances of the Concept.

5.3 Results

Three models were exported from the Omnia plat-

form and used as input for the meta-model inference.

Using the “Metamodel Validator” tool presented

in Subsection 5.2.3, the data shown in Table 1 was

obtained. All the percentages are rounded to the near-

est decimal unit.

The Input Model column identiﬁes the model

used for inferring the meta-model.

The Valid column indicates whether the input

model is valid when compared to the inferred meta-

model.

The No. of Concepts in input models column

displays the number of unique Concepts existing in

the input model.

The Percentage found column shows the percent-

age of Concepts that were correctly deduced out of

the total number of Concepts existing in the Omnia

meta-model, which is 56.

The Relative percentage found column repre-

sents the percentage of Concepts correctly deduced

out of the total number of Concepts existing in the

input models.

The Attributes found average percentage repre-

sents the average percentage of Attributes found for

each Concept

The Not matched Concepts is a list of deduced

Concepts that did not have a matching OmniaCon-

cept.

The models used as input did not cover the en-

tirety of Omnia’s meta-model, since the goal here is

not to ﬁnd what Omnia’s meta-model is but rather if

the algorithm can extract all the concepts present in

the input models. Given the data in Table 1, all the

Concepts that were present in the input models were

discovered with no exception.

This claim is supported by the Valid column,

which indicates whether the input model follows the

structure of the deduced meta-model and is further

validated by the Relative percentage found column.

Furthermore, shown by column Attributes found av-

erage percent, practically all Attributes were found,

since the input models contain all the Attributes, for

each of the Concepts they contain.

While there is no way to determine if the refer-

ences are 100% correct, from using the Omnia plat-

form, it is possible to deduce that all the references

are correct.

6 CONCLUSION

It is a complex challenge to infer a meta-model from

a collection of models. This works depicts the prob-

lem related to migrating models from one version of a

Low-Code Development Platforms to an updated one

or even to another platform. It presents a proposal

for partially ﬁxing the problem by exposing a detailed

process explained through different stages.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

174

Table 1: Meta-model validation results.

Input Model Valid

No. of Concepts

in input models

Percentage

found

Relative

percentage found

Attributes found

average percent

Not matched

Concepts

#1 Yes 29 51.8% 100.0% 98.6% N/A

#2 Yes 20 35.7% 100.0% 98.5%

N/A#3 Yes 29 52.7% 100.0% 100.0%

Combined Yes 33 58.9% 100.0% 99.7%

The procedures for testing the proposal are de-

scribed. By comparing the initial goals with the ob-

tained results, it is possible to conclude that the gen-

erated meta-model covers all the structural features of

the input model. Furthermore, it is possible to sug-

gest potential references which are, for the most part,

accurate.

While it is undoubtedly possible and generally

successful to infer a meta-structure, it is an entirely

different matter when attempting to infer the im-

plicit relationships between its elements and their

constraints. Yet, with the envisaged proposal it is not

possible to determine whether a ﬁeld’s value is dic-

tated by another ﬁeld or follows a pattern.

Moreover, there are some parts of this work that

could be improved by adding a mechanism to pre-

dict the identiﬁer’s attribute name and removing the

need for it to be provided as a parameter, therefore

automating the meta-model discovery process.

Additionally, features that allow for manual

changes in the generated meta-model could be im-

plemented (e.g., adding constraints; adding, updating,

and removing elements).

The evaluation of this approach using models

from various LCAPs to further ensure its adaptabil-

ity and broad applicability will begin shortly.

Discussing “counteracting vendor lock-in”

(Di Ruscio et al., 2022), Di Ruscio et al. refer to the

inability to export development artefacts enabling

their importing into other Low-Code Development

Platforms. This paper discussed a possible ﬁrst step

towards this ambitious and complex goal, particularly

important when initiatives aimed at any regulation in

the sector are missing.

ACKNOWLEDGEMENTS

This work is supported by “Fundo Europeu de

Desenvolvimento Regional (FEDER)” funds through

the “Programa Operacional Competividade e

Internacionalizac¸

ao and Portugal2020” program,

under the project BAMoL Low-Code Platform and

the consortium BAMoL – LCP (POCI-01-0247-

FEDER-39661).

REFERENCES

Braganc¸a, A., Azevedo, I., Bettencourt, N., Morais, C.,

Teixeira, D., and Caetano, D. (2021). Towards sup-

porting SPL engineering in low-code platforms us-

ing a DSL approach. In Proceedings of the 20th

ACM SIGPLAN International Conference on Genera-

tive Programming: Concepts and Experiences, pages

16–28. ACM.

anovas Izquierdo, J. L. and Cabot, J. (2013). Discovering

implicit schemas in json data. In International Con-

ference on Web Engineering, pages 68–83. Springer.

Di Ruscio, D., Kolovos, D., de Lara, J., Pierantonio, A.,

Tisi, M., and Wimmer, M. (2022). Low-code de-

velopment and model-driven engineering: Two sides

of the same coin? Software and Systems Modeling,

21(2):437–446.

Hruby, P. (2006). Model-driven design using business pat-

terns. Springer Science & Business Media.

Javed, F., Mernik, M., Gray, J., and Bryant, B. R. (2008).

MARS: A metamodel recovery system using grammar

inference. 50(9):948–968.

Sahay, A., Indamutsa, A., Di Ruscio, D., and Pierantonio,

A. (2020). Supporting the understanding and com-

parison of low-code development platforms. In 2020

46th Euromicro Conference on Software Engineering

and Advanced Applications (SEAA), pages 171–178.

IEEE.

Zolotas, A., Matragkas, N., Devlin, S., Kolovos, D. S.,

and Paige, R. F. (2019). Type inference in ﬂexi-

ble model-driven engineering using classiﬁcation al-

gorithms. 18(1):345–366.

A Proposal Towards Discovering Metamodels from Low-Code Application Platforms

175
