Modeling Machine Learning Concerns in Collective Adaptive Systems

Petr Hn

etynka

, Martin Kruliš

, Michal Töpfer

and Tomáš Bureš

Charles University, Faculty of Mathematics and Physics, Prague, Czech Republic

Keywords:

Collective Adaptive Systems, Machine Learning, Model-Driven, Meta-Model.

Abstract:

Collective adaptive systems (CAS) are systems composed of a large number of heterogeneous entities without

central control that adapt their behavior to reach a common goal. Adaptation and collaboration in such systems

are traditionally speciﬁed via a set of logical rules. Nevertheless, such rules are often too rigid and do not allow

for the evolution of a system. Thus, recent approaches started with the introduction of machine learning (ML)

methods into CAS. In the is paper, we present a model-driven approach showing how CAS, which employs ML

methods for adaptation, can be modeled—on both the platform independent and speciﬁc levels. In particular,

we deﬁne a meta-model for modeling CAS and a mapping of concepts deﬁned in the meta-model to the Python

framework.

1 INTRODUCTION

Collective adaptive systems (CAS) (Anderson et al.,

2013) are commonly understood as systems composed

of a large number of heterogeneous entities without

central control. The entities adapt their behavior in

order to reach a collective goal. Contemporary smart

systems like smart homes, smart cities, smart agricul-

ture, or Industry 4.0 management systems typically

fall into the category of CAS.

Adaptation and collaboration in such systems are

traditionally speciﬁed via a set of rules (i.e., logical

hard and soft constraints) that are continuously evalu-

ated. While the speciﬁcation via the rules is straightfor-

ward and easy to understand, they are often too rigid

and do not allow for the evolution of the system when

its context gradually changes.

Therefore, many recent approaches (Muccini and

Vaidhyanathan, 2019; Gheibi et al., 2021a; Saputri and

Lee, 2020; Weyns et al., 2021) have started with the

introduction of machine learning (ML) methods, espe-

cially neural networks, to the adaptation loop. Usually,

ML methods in these approaches are added in an ad-

hoc manner, are “hidden” in their implementation, and

there is a lack of support on the architectural level

for a system components speciﬁcation that provides

abstractions for ML. Thus, we have introduced the

concepts of estimators (Töpfer et al., 2022), which are

https://orcid.org/0000-0002-1008-6886

https://orcid.org/0000-0002-0985-8949

https://orcid.org/0000-0002-3313-1766

https://orcid.org/0000-0003-3622-9918

architectural-level objects providing predictions about

a particular quantity, and which are internally backed

by ML methods.

In this paper, we formalize the concept of the es-

timators using meta-models and show how the mod-

els are transformed to speciﬁcation in Python. The

formalization of estimators represents a platform-

independent model while the mapping to Python is

a particular platform-speciﬁc one.

The presented approach is described in the scope of

the DEECo ensemble-based component model (Bureš

et al., 2020), but it is applicable for CAS that are

modeled using components.

The work in this paper is a continuation of our work

presented in (Bureš et al., 2022), where we have de-

signed a model-driven approach of a gradual transfor-

mation of system models that describe their behavior

via logical rules into models with behavior speciﬁed

via specially constructed neural networks while keep-

ing a clear relation to the original logical rules. With

the introduction of estimators, the logical rules can be

directly enhanced with ML capabilities without a need

for extra steps in design and development.

The main contribution of this paper is a complete

model-driven approach for collective adaptive systems

which employ ML methods. Our approach makes it

possible to model such systems and the ML inference

on a platform-independent level (via a set of meta-

models) and on platform-speciﬁc levels (via a mapping

to Python).

The paper is structured as follows. Section 2 de-

scribes a running example and the basics of ensemble-

based component models, including the DEECo model.

etynka, P., Kruliš, M., Töpfer, M. and Bureš, T.

Modeling Machine Learning Concerns in Collective Adaptive Systems.

DOI: 10.5220/0011693300003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 55-62

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Section 3 formalizes the concept of estimators via the

meta-model, and Section 4 describes its mapping to the

Python constructs. Section 5 discusses related work

and Section 6 concludes the paper.

2 RUNNING EXAMPLE AND

BACKGROUND

Our running example is a simpliﬁed use-case taken

from our recently successfully ﬁnished ECSEL JU

project AFarCloud

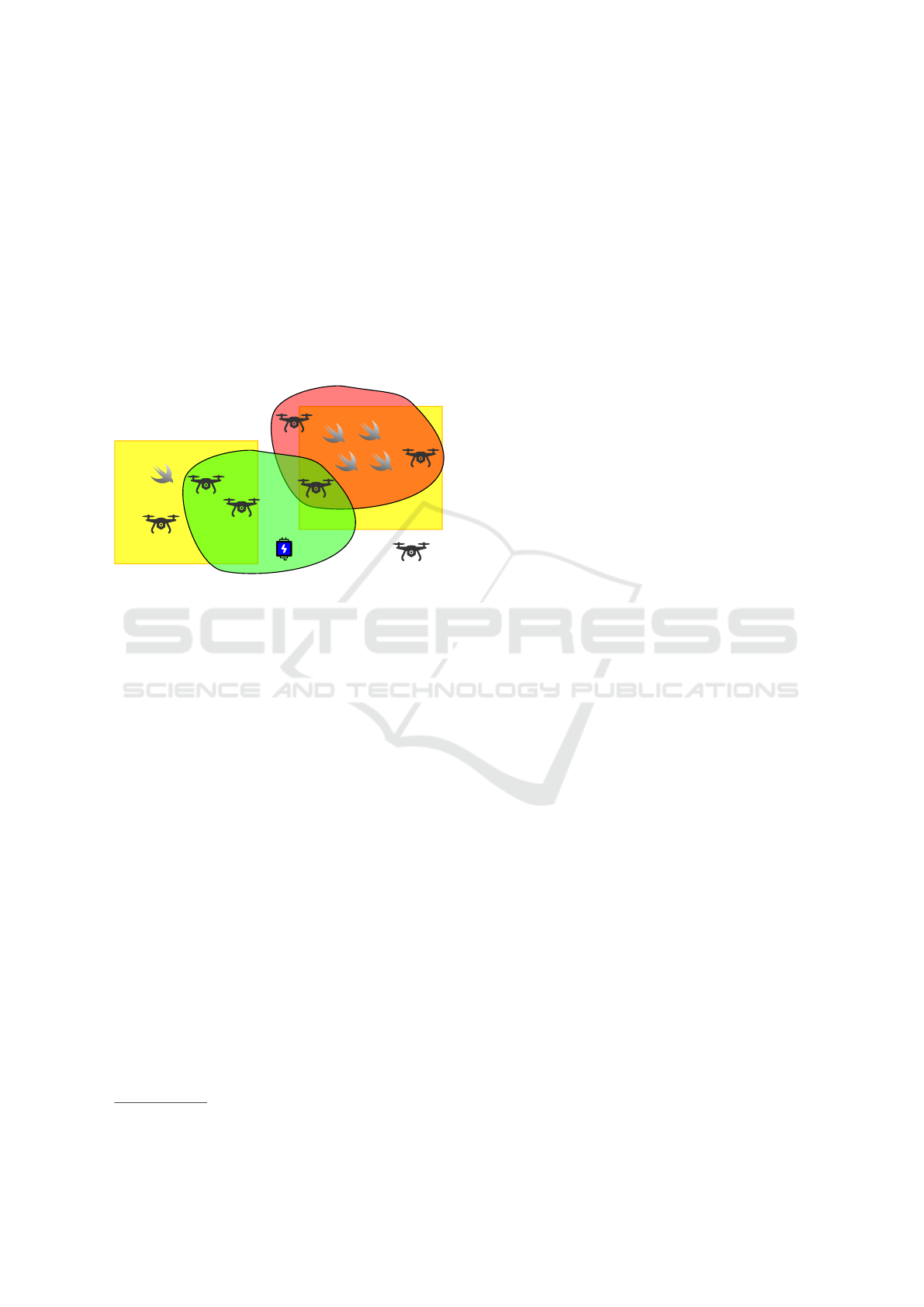

Figure 1: Running example.

In the example (that is visualized in Figure 1), there

is a farm with a number of ﬁelds with crops (yellow

rectangles) that need protection from ﬂocks of birds.

The farm is monitored by a number of drones that

observe the ﬁelds and perform various measurements.

Also, drones are employed to scare ﬂocks away from

the ﬁelds (to farm areas that are not “bird-sensitive”).

Typically, a group of drones is necessary to scare a

ﬂock away from the ﬁelds. Additionally, the drones

operate with a limited battery capacity and need to

recharge at the charger (the blue square with the light-

ning icon in the ﬁgure), which can charge only a lim-

ited number of drones at a single time.

It is obvious that drones need to cooperate closely

and adapt their behavior in order to work successfully.

First, the drones need to form groups to scare ﬂocks

away, and the size and position of the group depend on

the size and position of the ﬂock. Second, the drones

need to cooperate in order to optimize their battery

charge level and charger utilization, ensuring drones

do not terminate without energy and the charger is

used as much as possible.

2.1 Ensembles

To model such adaptive systems, we are exploiting the

power of autonomic component ensembles. Namely,

https://www.ecsel.eu/projects/afarcloud

we are using the DEECo ensemble-based component

model (Bureš et al., 2020).

Figure 2 shows a meta-model (simpliﬁed to save

space) describing the core concepts of the ensembles.

Using DEECo, entities in a system are modeled as

Component

s that are instances of the

ComponentType

meta-class.

ComponentType

declares component

ﬁelds (i.e., data) that contain a state of a particular

component. Also,

ComponentType

declares compo-

nent actions, i.e., its behavior. In the case of the exam-

ple, there are three component types: (i) for the drones,

(ii) for the charger, and even (iii) for the ﬂocks. In the

case of the ﬂocks, the components are “beyond direct

control”, and thus their state can be observed only.

Ensemble

s are dynamically established groups of

components and model interactions among the com-

ponents, and they are instances of

EnsembleType

. For-

mally, the ensemble type deﬁnition consists of the

following: (i) a

priority

providing ordering, in which

the ensembles are evaluated; (ii) an

Action

to be per-

formed on components grouped in the ensemble; and

(iii) a set of

Roles

that determine which components

are to be included in the ensemble. A role is either

StaticRole

DynamicRole

. Both kinds of roles deﬁne

cardinality, i.e., how many components of the same

type have to be set for the role. The static roles are

speciﬁed when the ensemble is instantiated and cannot

change. The dynamic ones are populated in an adap-

tive way, given the situation in the system. Technically,

the dynamic roles have a

Selector

consisting of a pred-

ication determining if a component may be selected

for the particular role, and the utility function (which

orders the components selected for the role, if there

are more potential components than is its cardinality).

Figure 3 shows a part of the

Drone

component

type that is instantiated by individual drones. It has the

battery energy ﬁeld, the drone state ﬁeld, and others

(omitted due to space constraints) and actions to ﬂy

to a position, return to the charger, etc. In a similar

manner, other components (

Charger

Field

Flock

, etc.)

are deﬁned.

In the running example, there are two ensemble

types: the

DroneChargingAssignment

ensemble type

grouping drones with a charger (the green group in Fig-

ure 1), and the

FieldProtections

ensemble type group-

ing drones to protect a particular ﬁeld (the red group

in Figure 1). The former ensemble type is instantiated

once per each Charger component; the latter one is

instantiated once per a ﬁeld in danger.

An excerpt of

DroneChargingAssignment

is de-

picted in Figure 4. A particular charger, for which

the ensemble is instantiated, is assigned to the ensem-

ble static role

charger

and cannot be later reassigned.

Drones to the ensemble dynamic role are selected ac-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

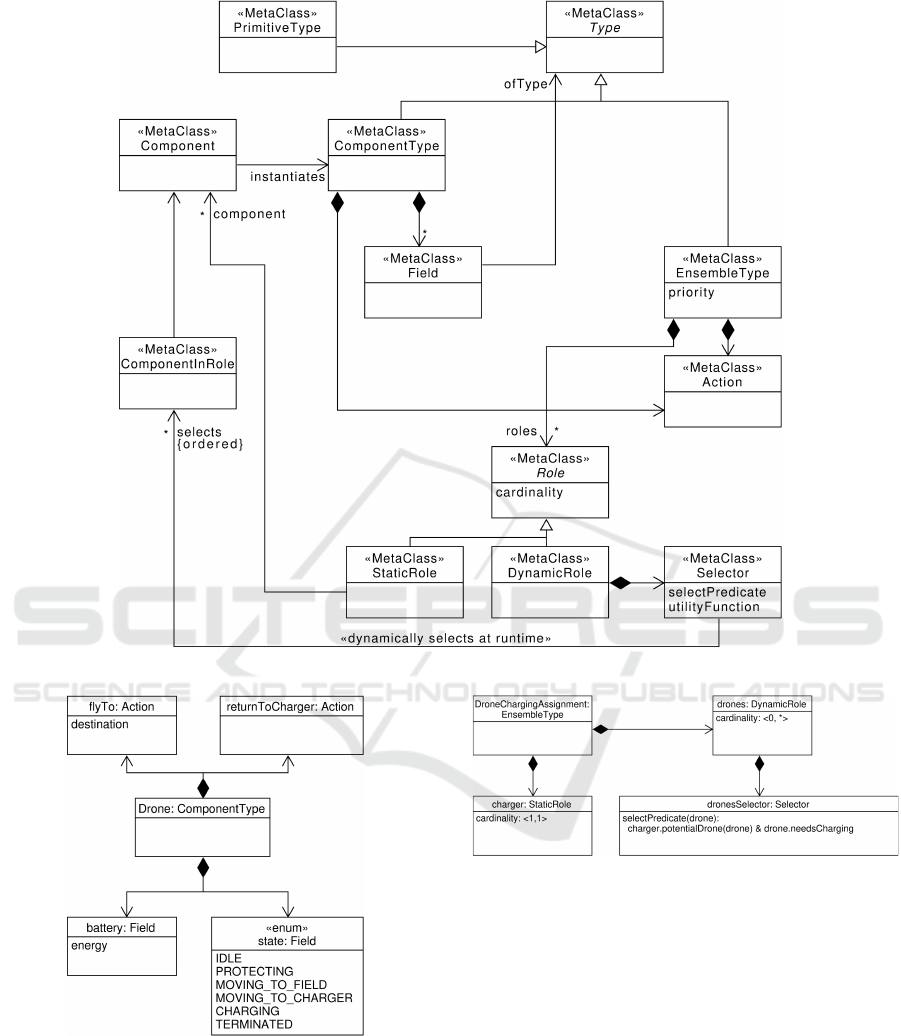

Figure 2: Meta-model of ensemble-based component architectures.

Figure 3: Drone component type.

cording to the role

Selector

, which select drones in-

need-to-be-charged, which are close to the particular

charger. As the cardinality is unlimited, there is no util-

ity function deﬁned (as all the drones can be assigned

to the role).

The FieldProtection ensemble is deﬁned similarly.

Figure 4: DroneChargingAssignment ensemble type.

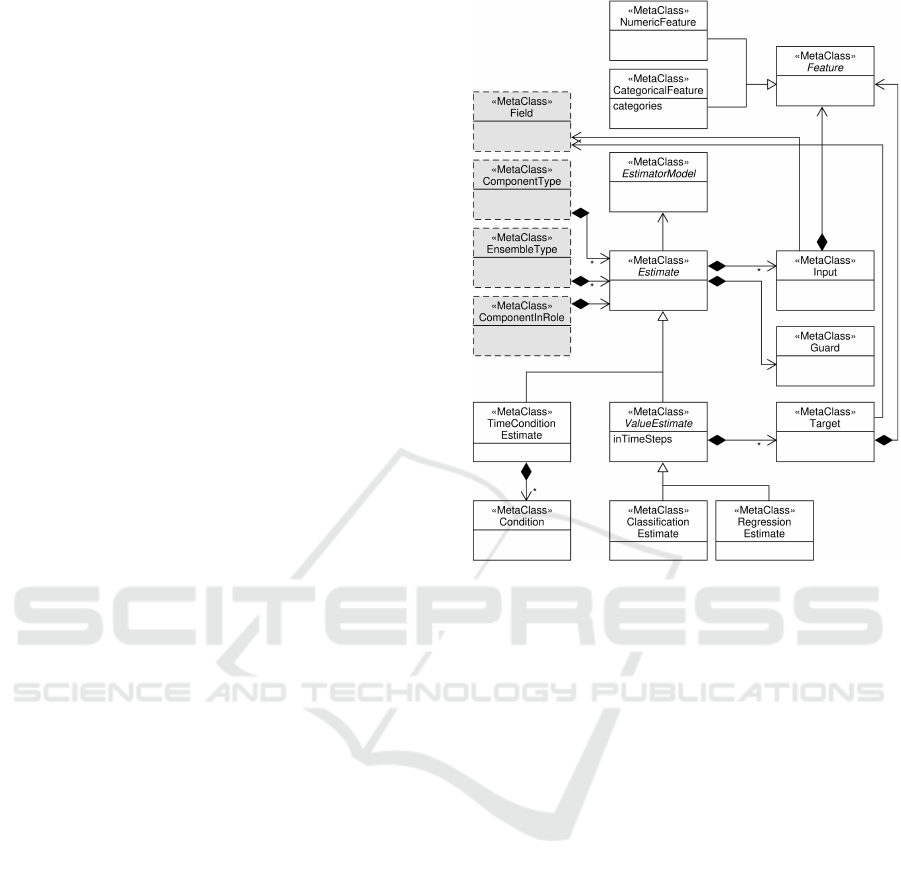

3 MODELING ESTIMATORS

In this section, we present support to model machine

learning concepts directly on the level of components

and ensembles. In (Töpfer et al., 2022), we have intro-

duced the concepts of estimators. An estimator is an

object, which provides predictions about a particular

quantity. We limit the scope of this work to supervised

ML only. This allows for predicting quantities, for

which the true value will be available later during the

run of the system, e.g. predicting a future state of a

component.

The estimator concept itself is a general one and

can be used in any approach for modeling collective

Modeling Machine Learning Concerns in Collective Adaptive Systems

adaptive systems. In ensemble-based modeling, it

can be attached to a component, ensemble, or pair

component-ensemble. In either case, there can be mul-

tiple estimators attached to a given entity, and each of

the estimates predicts another value. Regarding the

predicted value, estimators can be divided to be used

for:

(i)

classiﬁcation—predicting a value from a pre-

deﬁned ﬁxed set of possibilities, e.g., possible

states of a component,

(ii) regression—predicting a continuous value, and

(iii)

time-to-condition—predicting when a condition

becomes true.

Internally, each estimator is implemented by a ma-

chine learning model (e.g., neural network) that per-

forms predictions. Each estimator can have a number

of inputs via which data are collected for the training

of the internal ML model.

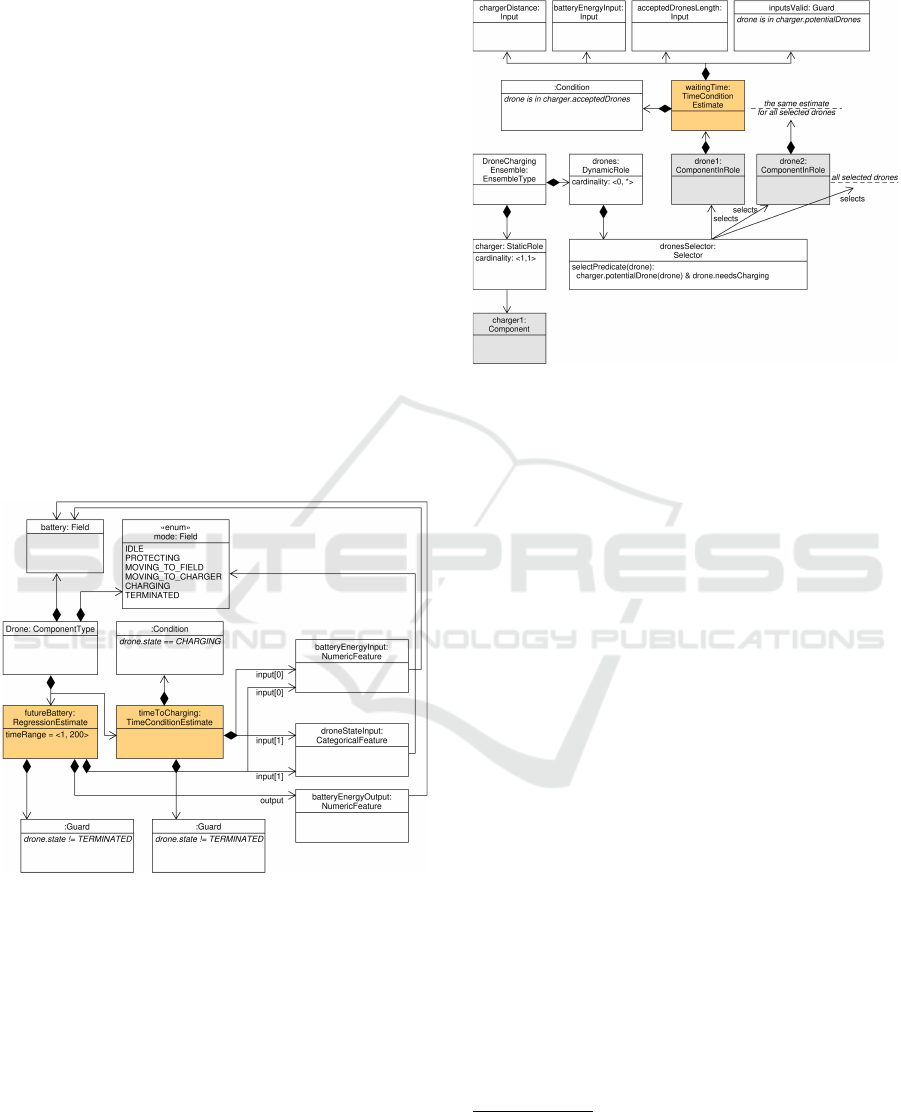

In the running example, the

Drone

component has

two estimators: one predicting how long it will take for

the drone to start charging, and another one predicting

its battery state at time instant in the future. These

estimators are then used in the drone to decide when to

start to signal the drone needs to be charged. Similarly,

the

DroneChargingAssignment

ensemble type deﬁnes

a component-ensemble estimator used in the ensemble

selector to select the best drone for charging.

In the rest of the section, we present the estimators

meta-model in detail, together with particular exam-

ples of usage in the running example.

3.1 Estimators Meta-Model

Figure 5 shows the meta-model of the above-discussed

estimators and how they are incorporated into DEECo

(technically, this meta-model is a package that extends

the core meta-model in Figure 2—the gray dashed

elements are deﬁned in the core meta-model).

The core element is the

Estimate

, which represents

values to be learned together with all the necessary

inputs, guards, etc. The

Estimate

can be attached

to a component (each component can have multiple

Estimate

s—each for a different data ﬁeld), an ensem-

ble, or a pair ensemble-component.

The

Estimate

itself is parameterized by the

EstimatorModel

, which deﬁnes parameters for the un-

derlying neural network and thus the estimate imple-

mentation and behavior. Each

Estimate

can have mul-

tiple

Input

s (training features), i.e., ﬁelds of the com-

ponent needed for training and prediction. We distin-

guish here between numerical and categorical features,

which inﬂuences whether the value is used as-is (pos-

sibly normalized) or whether one-hot encoding (in the

Figure 5: Estimate meta-model.

case of categorical features) is used.

The

Estimate

is further specialized to distinguish

between the options “what” it predicts. In the value

case (represented by subclass

ValueEstimate

), it spec-

iﬁes a target, which denotes the truth values that

are to be predicted by the estimator. This can

be either a numerical or a categorical value com-

puted based on the component ﬁelds. For numeri-

cal values, we use the

RegressionEstimate

subclass of

ValueEstimate

, and for categorical values, we use the

ClassiﬁcationEstimate

. The number of time steps we

want to predict into the future is set by the

inTimeSteps

attribute of ValueEstimate.

For the time-to-condition case, there is another sub-

class of Estimate—

TimeToConditionEstimate

—which

speciﬁes a required condition.

The

Estimate

further deﬁnes a guard predicate

(over component ﬁelds), which determines if inputs

and outputs (i.e., the target feature or the result of the

condition) are valid and thus can be used to collect

data for training the estimator.

Such a description of an estimator is enough for

automated data collection and training. As already

stated, we focus on supervised ML tasks, so we assume

the correct values for the estimator predictions will

be observed later during the run of the simulation.

The semantics of the modeling concepts in the data

collection phase is as follows.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

In the case of the

ValueEstimate

, we perform the

following actions in every time step:

We collect the inputs and the current time provided

that the guard condition on inputs is true.

We collect the true outputs (represented by class

Target

) for the predictions realized earlier during

the run of the system, provided that the guard con-

dition on the output is true. We associate the output

with inputs that were collected

inTimeSteps

time

steps ago. If the guard condition on the output is

false, we discard the inputs recorded

inTimeSteps

time steps ago.

In the case of the

TimeToConditionEstimate

, we

perform the following action in every time step:

We collect the inputs and the current time to a

buffer provided that the guard condition on inputs

is true.

If the condition speciﬁed by the

Condition

is true,

we associate all the inputs collected in the buffer

(as per step #1) with the difference between the

current time and the time of the input in the buffer.

We clear the buffer.

Figure 6: Drone component.

To illustrate the concepts, Figure 6 shows an

instance of the meta-model for the drone compo-

nent of the running example. It extends the model

from Figure 3. In addition to the ﬁelds and ac-

tions, the drone has attached two estimates. The ﬁrst

one—

TimeToConditionEstimate

—predicts how long it

will take for the drone to get into the

CHARGING

state (thus the

Condition

is a simple predicate check-

ing equality of the

State

to the

CHARGING

value).

The estimate has two inputs—

BatteryEnergyInput

and

DroneStateInput

(the former of the numeric kind while

the latter of the categorical kind). Similarly, the sec-

ond one—

FutureBatteryEstimate

—is for predicting

the battery energy.

Figure 7: DroneChargingAssignment ensemble.

Figure 7 shows an example of the component-

ensemble attached estimator. It is applied to com-

ponents selected in the

DroneChargingAssignment

en-

semble (the model extends the model from Figure 4).

The estimate predicts time how long the drone will

be waiting for the charger. As inputs, the estimate

takes the distance to the charger, the drone battery en-

ergy level, and the number of drones waiting for the

charger. All the inputs are valid only when the drone

is considered for the charger as deﬁned by the guard

condition.

4 MAPPING TO PYTHON

As an evaluation and proof of concept, we developed

an open-source Python-based framework that realizes

the approach described in Section 3. The Python

framework represents a particular platform-speciﬁc

model to which the concepts deﬁned in the previous

section are mapped. The framework features API

for deﬁning components, ensembles, and estimators—

thus providing an internal domain-speciﬁc language

for the design of ensemble-based component systems

that employ machine learning.

The framework uses decorators

to deﬁne inputs,

expected outputs (value or condition), and guards for

the estimators—exactly following the concepts in the

meta-model shown in Figure 5.

A decorator in Python is a function/method that takes

the function/method over which is applied and assigns the

result to the identiﬁer of the original function/method—see

https://www.python.org/dev/peps/pep-0318/.

Modeling Machine Learning Concerns in Collective Adaptive Systems

Both the component and ensemble types are de-

ﬁned as classes.

Listing 1 shows the deﬁnition of the compo-

nent type

Drone

. The class extends the predeﬁned

Component

class. The ﬁelds of the component are

deﬁned in the constructor (i.e., the __init__ method).

The

Drone

component showcases two estimators

as deﬁned in the model in Figure 6—one for battery

level estimation and another for estimating the time till

charging is needed. The battery level estimator uses

the current battery level and the state of the drone as

inputs and predicts the battery level 50 time steps in

the future. The deﬁnition of the estimator is split into

three parts: (a) The deﬁnition of the machine learning

model and storage for the collected data (lines 1–4).

This part is speciﬁc to the implementation, thus we do

not reﬂect it in the meta-model. (b) The declaration of

the estimate ﬁeld in the component; this corresponds to

the association from the

ComponentType

Estimate

in the meta-models (lines 8–9). (c) The deﬁnition

of inputs, targets, and guards. These are realized as

decorators on component ﬁelds and getter functions of

the component.

Namely, the decorators are as follows. The

@futureBatteryEstimate.input() decorates methods re-

turning input values. The inputs are marked

whether they are numeric values or categorical ones.

The target is similarly decorated with the @future-

BatteryEstimate.target() (line 33). The @future-

BatteryEstimate.inputsValid() and @futureBatteryEsti-

mate.targetsValid() (starting at line 42) denote guards,

i.e., conditions under which the inputs and targets can

be used for training the estimators (in this particular

case, the drone must not be in the TERMINATED

state—line 46).

The deﬁnition of the estimator for the time till

charging is needed is very similar. The only difference

is that instead of deﬁning the target, a condition is

provided (line 48).

1 droneBatteryEstimator = NeuralNetworkEstimator(

2 hidden_layers=[32, 32], # two hidden layers with 32

neurons

3 name="Drone battery"

4 )

5 timeToChargingEstimator = ...

7 class Drone(Component):

8 futureBatteryEstimate =

ValueEstimate().inTimeSteps(50)\

9 .using(droneBatteryEstimator)

10 timeToChargingStateEstimate = TimeEstimate()\

11 .using(timeToChargingEstimator)

13 def __init__(self, location):

14 self.battery = 1

15 self.state = DroneState.IDLE

16 # more code

18 @futureBatteryEstimate.\

19 input(NumericFeature(0, 1))

20 @timeToChargingStateEstimate.\

21 input(NumericFeature(0, 1))

22 def battery(self):

23 return self.battery

25 @futureBatteryEstimate.\

26 input(CategoricalFeature(DroneState))

27 @timeToChargingStateEstimate.input(

28 CategoricalFeature(DroneState))

29 def drone_state(self):

30 return self.state

32 @futureBatteryEstimate.\

33 target(NumericFeature(0, 1))

34 def battery(self):

35 return self.battery

37 @timeToChargingStateEstimate.target(

38 CategoricalFeature(DroneState))

39 def drone_state(self):

40 return self.state

42 @futureBatteryEstimate.inputsValid

43 @futureBatteryEstimate.targetsValid

44 @timeToChargingStateEstimate.inputsValid

45 def not_terminated(self):

46 return self.state != DroneState.TERMINATED

48 @timeToChargingStateEstimate.condition

49 def is_charging_state(self):

50 return self.state == DroneState.CHARGING

52 def actuate(self):

53 # more code

Listing 1: Drone component speciﬁcation.

Ensemble types are speciﬁed in a way similar to

components. This is illustrated in Listing 2, which

shows the DroneChargingAssignment ensemble type

that we already introduced in Section 2 and its estima-

tors described Section 3.

The static role (

charger

) is declared on line 8. The

value of the role is set in the constructor of the ensem-

ble.

The dynamic role (

drones

) is declared on line 11.

Its content is set dynamically by the framework based

on the actual state, position, and battery levels of the

drones. The declaration of the role is done via the

someOf

function, which denotes that the role is a col-

lection. (An opposite would be

oneOf

, which would

mean the role contains only one instance.) The declara-

tion of the

drones

role further contains the declaration

of the estimator that is associated with the role. This

we will describe later in the text.

Cardinality and selector of the dynamic role are

declared using decorated methods of the ensemble. In

this case, the cardinality is deﬁned on line 13. The

cardinality is a tuple containing the lower and the upper

bound. The selector is deﬁned on line 17.

The ensemble priority (inﬂuencing order in which

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

1 class DroneChargingAssignment(Ensemble):

2 def __init__(self, charger: ’Charger’):

3 self.charger = charger

5 def priority(self): return 2

7 # static role

8 charger: Charger

10 # dynamic role

11 drones: List[Drone] =

someOf(Drone).withTimeEstimate()\

12 .using(waitingTimeEstimator)

13 @drones.cardinality

14 def drones(self):

15 return 0, ENVIRONMENT.droneCount

17 @drones.select

18 def drones(self, drone, otherEnsembles):

19 waitingTime = self.drones.estimate(drone)

20 return drone in self.charger.potentialDrones and

drone.needsCharging(waitingTime)

22 @drones.estimate.input(NumericFeature(0, 1))

23 def battery(self, drone):

24 return drone.battery

26 @drones.estimate.input(NumericFeature(0,

ENVIRONMENT.size))

27 def charger_distance(self, drone):

28 return self.charger.location.\

29 distance(drone.location)

31 @drones.estimate.

32 input(NumericFeature(0,

ENVIRONMENT.chargerCapacity))

33 def accepted_drones_length(self, drone):

34 return len(self.charger.acceptedDrones)

36 @drones.estimate.inputsValid

37 def is_preassigned(self, drone):

38 return drone in self.charger.potentialDrones

40 @drones.estimate.condition

41 def is_accepted(self, drone):

42 return drone in self.charger.acceptedDrones

44 def actuate(self):

45 self.charger.waitingDrones = self.drones

Listing 2: Ensemble speciﬁcation.

the ensembles are instantiated) is speciﬁed as the

method priority (line 5).

The action that gets periodically executed by the

ensemble for the member components is given in the

function actuate (on lines 44—45).

The

DroneChargingAssignment

ensemble type il-

lustrates the most complex case of estimation when the

estimator is associated dynamically with a component

in the context of the ensemble. In this case, it is the

TimeToConditionEstimate

predicting the waiting time

before an actual charging of the drone can start (this

includes the time needed to ﬂy to the charger and the

time a drone has to circle around the charger to be

given a free slot in which it can charge).

The conﬁguration of the estimator is similar to

the example in Listing 1. The speciﬁcation of the

estimator is split into three parts: (a) The deﬁni-

tion of the machine learning model—this is exactly

the same as already explained. (b) The declara-

tion of the estimator in the ensemble differs in that

we are associating the estimator with the ensemble-

component pair. Following the meta-model in Fig-

ure 5, the estimator is associated with a role in the

ensemble, which stems from the transitive relationship

Role→ComponentInRole→Estimate

. This is reﬂected

in the code using the

withTimeEstimate

method used in

role declaration (line 11). (c) The deﬁnition of inputs

and the target condition is again the same as before,

only associated with the ensemble role. Namely, the

inputs are speciﬁed on lines 22–34, the target condi-

tion is given on lines 40–42 and the guard is given on

lines 36–38.

5 RELATED WORK

Related approaches to our one are any that employ

machine-learning techniques to collective adaptive sys-

tems. As stated already in the introduction, there are a

number of such approaches, but most of them incorpo-

rate ML techniques "under the hood" and "hard-coded"

in implementations. Typically, ML is employed in

the planning and adaptation phases of the adaptation

loop as it is conﬁrmed by several systematic litera-

ture reviews (e.g., (Saputri and Lee, 2020; Gheibi

et al., 2021a)). Below, we discuss several particular

approaches that are the closest ones.

A number of approach use ML methods to reduce

the size of an adaption space. These are for exam-

ple (Van Der Donckt et al., 2020; Van Der Donckt et al.,

2020; Gheibi et al., 2021b). In (Cámara et al., 2020),

an approach combining machine learning and proba-

bilistic model checking is described, which again tries

to select the best possible adaptations and thus achieve

optimal decisions. In (Muccini and Vaidhyanathan,

2019), ML methods are used in both the monitoring

and analysis phases of the MAPE-K loop to forecast

future values of QoS parameters of a given system and

therefore to select an optimal adaptation strategy. As

mentioned, these approaches use ML internally and,

contrary to our approach, do not bring ML capabilities

to the level of architectural speciﬁcations of systems.

A large but not closely related usage of ML meth-

ods in adaptive systems is for attack and anomaly

detection (approaches overviewed e.g., in (Moham-

madi Rouzbahani et al., 2020)).

Regarding the explicit modeling of adaptive sys-

tems and model-driven approaches for their develop-

Modeling Machine Learning Concerns in Collective Adaptive Systems

ment, approaches can be found in (D’Angelo et al.,

2018) or (Weyns and Iftikhar, 2019). Nevertheless,

they do not integrate ML techniques.

6 CONCLUSION

In the paper, we have presented an approach for the

formal modeling of machine learning concepts in col-

lective adaptive systems. We have presented the con-

cept of estimators, which are architectural-level ob-

jects providing predictions about a particular quantity,

and deﬁned a meta-model for them. Also, we have

proposed a mapping of concepts deﬁned by the meta-

model to the Python framework, which thus represents

a particular platform-speciﬁc model.

While the Python framework is fully functional,

our future work is twofold. Currently, we are working

on incorporating additional machine learning methods

to be used as estimators implementation. Additionally,

we plan to provide an automated transformation from

the platform-independent speciﬁcations to the Python

framework.

ACKNOWLEDGMENTS

This work has been partially supported by the Czech

Science Foundation project 20-24814J and also par-

tially supported by Charles University institutional

funding SVV 260588.

REFERENCES

Anderson, S., Bredeche, N., Eiben, A., Kampis, G., and

van Steen, M. (2013). Adaptive collective systems:

Herding black sheep. Bookprints.

Bureš, T., Gerostathopoulos, I., Hn

etynka, P., Plášil, F., Krijt,

F., Vinárek, J., and Kofro

n, J. (2020). A language and

framework for dynamic component ensembles in smart

systems. International Journal on Software Tools for

Technology Transfer, 22(4):497–509.

Bureš, T., Hn

etynka, P., Kruliš, M., and Pacovský, J. (2022).

Towards model-driven fuzziﬁcation of adaptive sys-

tems speciﬁcation. In Proceedings of the 10th Interna-

tional Conference on Model-Driven Engineering and

Software Development, pages 336–343.

Cámara, J., Muccini, H., and Vaidhyanathan, K. (2020).

Quantitative Veriﬁcation-Aided Machine Learning: A

Tandem Approach for Architecting Self-Adaptive IoT

Systems. In Proceedings of ICSA 2021, Salvador,

Brazil, pages 11–22. IEEE.

D’Angelo, M., Napolitano, A., and Caporuscio, M. (2018).

CyPhEF: a model-driven engineering framework for

self-adaptive cyber-physical systems. In Companion

Proceedings of ICSE 2018, Gothenburg, Sweden, pages

101–104. ACM.

Gheibi, O., Weyns, D., and Quin, F. (2021a). Applying Ma-

chine Learning in Self-adaptive Systems: A Systematic

Literature Review. ACM Transactions on Autonomous

and Adaptive Systems, 15(3):9:1–9:37.

Gheibi, O., Weyns, D., and Quin, F. (2021b). On the Impact

of Applying Machine Learning in the Decision-Making

of Self-Adaptive Systems. In Proceedings of SEAMS

2021, Madrid, Spain, pages 104–110. IEEE.

Mohammadi Rouzbahani, H., Karimipour, H., Rahimne-

jad, A., Dehghantanha, A., and Srivastava, G. (2020).

Anomaly Detection in Cyber-Physical Systems Using

Machine Learning. In Handbook of Big Data Privacy.

Muccini, H. and Vaidhyanathan, K. (2019). A machine

learning-driven approach for proactive decision mak-

ing in adaptive architectures. In Companion Proceed-

ings of ICSA 2019, Hamburg, Germany, pages 242–

245.

Saputri, T. R. D. and Lee, S.-W. (2020). The Application

of Machine Learning in Self-Adaptive Systems: A

Systematic Literature Review. IEEE Access, 8:205948–

205967.

Töpfer, M., Abdullah, M., Bureš, T., Hn

etynka, P., and

Kruliš, M. (2022). Ensemble-based modeling abstrac-

tions for modern self-optimizing systems. In Proceed-

ings of ISOLA 2022, Rhodes, Greece, volume 13703

of LNCS, pages 318–334. Springer.

Van Der Donckt, J., Weyns, D., Quin, F., Van Der Donckt,

J., and Michiels, S. (2020). Applying deep learning to

reduce large adaptation spaces of self-adaptive systems

with multiple types of goals. In Proceedings of SEAMS

2020, Seoul, South Korea, pages 20–30. ACM.

Weyns, D. and Iftikhar, M. U. (2019). ActivFORMS: A

Model-Based Approach to Engineer Self-Adaptive Sys-

tems. arXiv:1908.11179 [cs].

Weyns, D., Schmerl, B., Kishida, M., Leva, A., Litoiu, M.,

Ozay, N., Paterson, C., and Tei, K. (2021). Towards

Better Adaptive Systems by Combining MAPE, Con-

trol Theory, and Machine Learning. In Proceedings of

SEAMS 2021, Madrid, Spain, pages 217–223. IEEE.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering
