Towards a Visual Analytics Workﬂow for Cybersecurity Simulations

Vit Rusnak

and Martin Drasar

Institute of Computer Science, Masaryk University, Brno, Czechia, Czech Republic

Keywords:

Cybersecurity, Attack Simulator, Visualizations, Analytical Workﬂow, Task Typology.

Abstract:

One of the contemporary grand challenges in cybersecurity research is designing and evaluating effective

attack strategies on network infrastructures performed by autonomous agents. These attackers are developed

and trained in simulated environments. While the simulation environments are maturing, their support for

analyzing the simulation data remains limited, mainly to inspect individual simulation runs. Extending the

analytical workﬂow to compare multiple runs and integrating visualizations could improve the design of both

attack and defense strategies. Through our work, we want to spark interest in the largely overlooked domain

of visual analytics for cybersecurity simulation workﬂows. In this paper, we a) analyze the current state of

the art of using visualizations in cybersecurity simulations; b) conceptualize the three-tier analytical workﬂow

and identify user tasks with suggested visualizations for each tier; c) demonstrate the use of visualizations that

augment existing CYST simulator on several real-world tasks and discuss the limitations and lessons learned.

1 INTRODUCTION

Research on attack strategies is receiving increasing

attention in the cybersecurity community due to the

growing scale and severity of real-world attacks. One

of the leading research directions is autonomous soft-

ware agents implementing the latest advances in ma-

chine learning and other artiﬁcial intelligence meth-

ods. These agents are expected to dominate cyberse-

curity warfare this decade. Their design and develop-

ment require large volumes of training data and simu-

lation environments.

The simulation environments enable testing and

evaluating attackers’ behavior in a secure virtual en-

vironment where simulations can be easily adjusted,

repeated, and executed concurrently. These environ-

ments have already matured in their core features,

such as conﬁgurability, scalability, and logging. How-

ever, they usually lack analytical tools or provide only

limited support focused solely on a single simulation

run inspection. Despite visualizations used in oper-

ational cybersecurity, network trafﬁc anomaly detec-

tion, or malware and forensic analyses, their poten-

tial in autonomous agent research still needs to be ex-

plored.

We report on our work toward improving an-

alytical capabilities of cybersecurity simulation re-

https://orcid.org/0000-0003-1493-2194

https://orcid.org/0000-0002-9623-1756

searchers’ through visualizations. In this paper, we

address three research questions:

RQ1: What are the commonly used visualizations in

cybersecurity attack simulators?

RQ2: Which are the main analytical tasks when work-

ing with the simulation data?

RQ3: How can visualizations support analysts’ work?

Our contributions are, therefore, three-fold: a) an

overview of the visualization usage in analyzing the

simulation data; b) a conceptualization of cyberse-

curity simulation analytical workﬂow; c) sample use

cases demonstrating two prototype visualizations to

solve real-world analytical tasks.

2 RELATED WORK

In this section, we address the RQ1. Based on the lit-

erature review, we showcase examples of simulators

used in cybersecurity research and discuss the visu-

alizations used in such a context. In the review, we

focused on virtual computer network simulators that

have already been demonstrated as a cybersecurity re-

search vehicle.

2.1 Network Simulators

Network Security Simulator – NESSi2 (Grunewald

et al., 2011) is an open-source agent-based simula-

Rusnak, V. and Drasar, M.

Towards a Visual Analytics Workﬂow for Cybersecurity Simulations.

DOI: 10.5220/0011695000003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 3: IVAPP, pages

179-186

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

179

tion environment focused on integrating and evalu-

ating Intrusion Detection Systems (IDS). Its model

allows the creation of custom network topology and

deﬁning scenarios in which the topology will be used.

The simulator provides a graphical user interface, a

simulation engine, and a database with results where

the simulation data are stored. The user interface al-

lows for conﬁguring the components of the simula-

tions and visualizing the simulation results.

Objective Modular Network Testbed in C++ –

OMNeT++ (Varga, 2010) is an open-source, exten-

sible modular framework primarily designed for net-

work simulation. It provides a runtime environment

and a domain-speciﬁc language for network descrip-

tion. Unlike most available simulators, it allows

deﬁning of arbitrary types of networks and commu-

nication protocols. While intended for network trafﬁc

simulations, it also offers support for executing and

evaluating network attack scenarios (Michal

ıkov

2018; Kru

ık, 2018).

Real-time Immersive Network Simulation Envi-

ronment for Network Security Exercises (Liljenstam

et al., 2005) was designed to improve networks’

readiness for possible attacks and security exercises

through realistic simulation of network behavioral at-

tacks. The networks can contain hundreds of subnets

and users compared to the other simulators.

CyberBattleSim (Microsoft Defender Research

Team, 2021) is an experimental platform for explor-

ing the interaction of automated agents in a simulated

network environment. The platform offers a high-

level abstraction of networking and cybersecurity

concepts and uses the OpenAI Gym library (Brock-

man et al., 2016) to train autonomous agents using

reinforcement learning. The simulation environment

uses a ﬁxed network topology and allows the deﬁni-

tion of stochastic defenders to implement defensive

measures.

The CYST (Dra

sar et al., 2020) simulator, which

addresses the shortcomings of the previous simula-

tors, is a discrete event-based message-passing simu-

lator enabling extensive customization of agents’ ac-

tions and impacts. It validated NATO’s reference ar-

chitecture implementation for autonomous cyberse-

curity agents (Theron et al., 2020). We use it as a

base environment for evaluating our visualization ap-

proaches.

2.2 Visualizations in Network

Simulators

While there is broad research in cybersecurity visual-

izations (Dama

sevi

cius et al., 2019), the use of visu-

alizations in cybersecurity simulators is mostly unex-

plored. A literature survey and examination of exist-

ing simulators revealed three visualization types pre-

dominantly used: network graphs, attack graphs, and

sequence diagrams. Other common chart types (e.g.,

line or bar charts) are occasionally used to summarize

statistical information.

Network graphs are used to model the network

topology in which the simulation runs. Nodes rep-

resent individual machines in the network, and edges

are the connections between them. Network graphs

can also model communication (Minarik and Dy-

macek, 2008) or logical topology, i.e., the arrange-

ment of elements into separate segments and virtual

networks that are deﬁned by an addressing mecha-

nism. Edges and nodes can be provided with ad-

ditional attributes to represent their state (e.g., node

attacked/abused, link utilization, or unavailability).

Moreover, nodes might represent different devices,

such as routers, servers, or workstations. The advan-

tage of network graphs in cybersecurity simulators is

their illustrative nature. They make it easy to visual-

ize the progress of an attack and, if the information is

animated and combined with an attack timeline, illus-

trate its different phases. A signiﬁcant disadvantage

of network graphs is that their readability decreases

as the number of edges increases since the resulting

network often resembles hairballs for large topologies

with hundreds of edges.

Attack graph visualizations represent the most

common visualization types used to depict attack

vectors (Yi et al., 2013). They allow identifying

weak spots that an attacker can exploit. Attack

graphs are frequently modeled either as modiﬁed net-

work graphs (Homer et al., 2008) or using the UML

sequence diagrams (Blaha and Rumbaugh, 2005).

While the former is a network-centric representation,

the latter is an attacker-centric representation that al-

lows for modeling time dependencies and simulta-

neous processes, which is beneﬁcial mainly for dis-

tributed attacks.

3 ANALYTICAL WORKFLOW

This section addresses the RQ2 using the CYST sim-

ulator as a model environment. We ﬁrst present the

data produced by the simulator, followed by an in-

troduction to the three-tiered analytical workﬂow and

user goals. We also suggest suitable visualizations for

each tier. Although other simulation tools may dif-

fer in implementation details, the task categorization

is guided by the method described in (Brehmer and

Munzner, 2013).

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

180

Top Tier

Middle Tier

Bottom Tier

Simulator

Adjust simulation parameters

Communication records

from simulation run logs

Abstraction of simulation runs

and their characteristics

A simulation run abstraction,

characteristics, and messages

(Clustering)

(Comparison)

(Reasoning)

Discover

Locate

Compare

Select

Explore

Discover

Identify

Navigate

Filter

Derive

Present

Identify

Explore

Select Filter

Visual

Repres.

Tasks

Data

Analytical Workflow

Table, Scatter plot,

Small multiples,

Histogram

Flow chart, Histogram,

Parallel coordinates, Glyphs,

Small multiples, Timeline, Table

Table, Network diagram,

Sequence chart, Timeline,

Attack graph, Histogram

Figure 1: Proposed formalization of the analytical workﬂow for cybersecurity simulations based on methodology by (Brehmer

and Munzner, 2013), deﬁned by data, tasks, and possible visual representations. The ask color indicates why it is performed

(yellow) and how (green).

3.1 Simulation Data

The CYST simulator implements the Action-Intent

Framework (Moskal and Yang, 2020) attack model,

which contains actions that attackers (i.e., agents)

choose to explore the network, gain new permissions,

exploit sessions, or exﬁltrate and delete data. The

combination of these actions results in a so-called at-

tack scenario. Actions are communicated to targets in

the form of requests sent as messages in the simulated

network. Each message may contain additional meta-

data processed by other components. For example,

a message containing an action to perform a service

scan may stochastically receive an event ﬂag identify-

ing it as a scan, thus simulating detection by an Intru-

sion Detection System (IDS). Other components may

then respond appropriately based on this event ﬂag.

In our implementation, event ﬂags for attack actions

are generated with predeﬁned probabilities, simulat-

ing some risk of detection. A message containing an

event ﬂag is considered an attack action. The gen-

eration of event ﬂags for defensive actions is always

deterministic.

The simulator run creates a communication report,

i.e., the list of sent REQUESTs containing the attack ac-

tions, and RESPONSEs with the related results. There

are up to 13 attributes encoded in each message:

• type – message type (REQUEST or RESPONSE);

• id – identiﬁer (ID);

• {src|dst} ip – source/destination address;

• {src|dst} id – source/destination ID;

• hop {src|dst} ip – intermediate node address;

• hop {src|dst} id – intermediate node ID;

• {src|dst} service – attacked service;

• ttl – time-to-live parameter;

• action – performed attack action;

• result – response to the attack; e.g., when the

attack was successful: SERVICE|SUCCESS.

3.2 Analytical Workﬂow and Tasks

The overarching goal of cybersecurity researchers

working with the simulator is to design, develop,

and test (semi-)autonomous cybersecurity systems.

Based on the informal discussions with domain ex-

perts participating in the CYST simulator develop-

ment and with the second author as its lead architect,

we formalized the analytical workﬂow (Figure 1) us-

ing the guidelines presented in (Brehmer and Mun-

zner, 2013). We identiﬁed three tiers of the analytical

workﬂow with respective tasks and proposed visual-

izations suitable for each tier.

3.2.1 Top Tier

At the highest tier, it is necessary to identify simulator

runs with similar properties and ﬁnd possible outliers

that could be further compared in more detail. The

fundamental problem at this tier is thus the choice of

classiﬁcation criteria. In the CYST simulator, we de-

ﬁne them as a set of Cartesian products of message

attributes and their values obtained from the simula-

tion runs. The system should therefore support ana-

lysts in creating their classiﬁcation criteria, allowing

exploratory analysis and clustering. In terms of vi-

sualizations, dimensionality reduction techniques and

clustering algorithms are appropriate here. Following

Towards a Visual Analytics Workﬂow for Cybersecurity Simulations

181

the cluster analysis results, the analyst can focus on

inspecting individual runs (see bottom tier) or com-

pare two or more runs from the same or different clus-

ters (see middle tier). Thus, the system should provide

methods for individual and group selection of individ-

ual runs.

Related Analytical Tasks:

• Present and explore general patterns in simulation

runs and their groupings based on user-deﬁned

criteria.

• Identify simulation runs where the attack agents

were (un)successful or where the attack agents

behave differently/similarly based on user-deﬁned

criteria (e.g., outliers).

• Filter and select one or more simulation runs for

detailed inspection (see bottom tier) or compari-

son (see middle tier).

3.2.2 Middle Tier

When comparing two or more runs, the analyst’s goal

is to ﬁnd similarities and differences between the sim-

ulation runs, based on which they can infer necessary

adjustments to agent conﬁgurations. In addition to

general summaries of simulation run times or mes-

sage counts, this comparison aims to ﬁnd suitable vi-

sual representations for all (un)successful (e.g., ﬂow

diagrams). At the same time, the interface should al-

low ﬁltering and searching for messages according to

their attributes.

Related Analytical Tasks:

• Discover and compare simulation runs in terms of

their parameters (e.g., number of messages, run-

time, count of (un)successful attack attempts)

• Locate critical points in simulation runs that inﬂu-

ence the ability of agents to reach their goals.

• Compare the attack agent conﬁgurations for simi-

larities and differences.

• Filter and select one simulation run for its detailed

inspection (see bottom tier).

3.2.3 Bottom Tier

The lowest level follows the current practice as de-

scribed in Section 2. The focus is on one simulation

run and the detailed analysis of the agents’ decisions

leading to either successful or unsuccessful attacks.

Except for statistical information such as the count

of sent messages, (un)successful attacks, or their du-

ration, the analyst request the ability to visualize at-

tack graphs with the attack vectors and dynamically

reconstruct the attack by replaying messages on the

network topology.

Related Analytical Tasks:

• Discover and explore communication patterns

(e.g., message sequence, order of breached com-

puters).

• Identify the sources of unsuccessful attacks (e.g.,

the wrong order of requests and loops in the

agent’s attack path).

• Navigate through (replay) a single simulation run.

• Derive adjustments to the attacker’s model.

4 IMPLEMENTED

VISUALIZATIONS

We implemented a workﬂow for criteria creation and

cluster analysis to demonstrate the potential of using

clustering visualizations in analyzing data. We de-

veloped two prototype tools for processing the CYST

simulation run records. The Clustering Analyzer pro-

vides the initial criteria classiﬁcation (top tier), and

the Scenario Player allows to replay of a single sim-

ulation run data (bottom tier). Both tools are web ap-

plications implemented using D3.js (Bostock et al.,

2011) and DruidJS (Cutura et al., 2020) libraries.

4.1 Top Tier: Clustering Analyzer

The tool parses multiple logs of the simulation runs

and stores them in the database. The analysts can

deﬁne their criteria and perform initial clustering to

identify subsets of runs worth inspecting. The anal-

ysis process has four steps. First, the analyst loads

the records of simulation runs. Next, they deﬁne ﬁl-

tering criteria from the message attributes. Filters

are Cartesian products of message parameters that the

tool uses to generate an input data table for further

processing (see Figure 2). The table rows represent

the dimensions, and columns correspond to individ-

ual simulation runs. The cells contain the number

of messages satisfying the ﬁltering condition (e.g.,

a count of successful exploits on a selected IP ad-

dress). Generating a table of at least two independent

variables is necessary for initiating a cluster analysis.

If there are more than two dimensions, the chosen

dimensionality reduction algorithm ﬁrst computes a

low-dimensional representation of the input table. In

the ﬁnal step, the analyst selects one of three dimen-

sionality reduction methods: PCA (Dunteman, 2008),

UMAP (McInnes et al., 2018), or t-SNE (van der

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

182

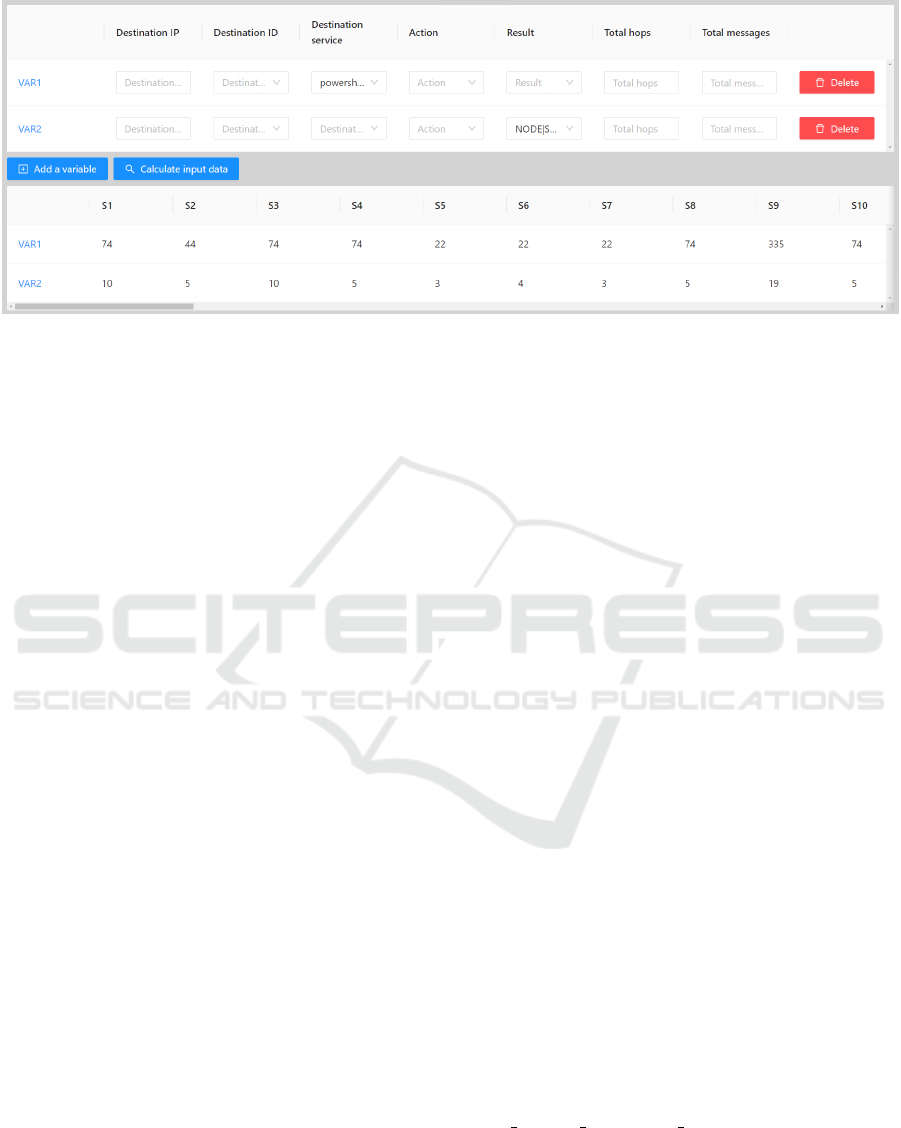

Figure 2: Cartesian ﬁltering (top) and clustering criteria input table (bottom). Generated input table shows only two dimen-

sions (VAR1, VAR2 deﬁned by the ﬁlters above.

Maaten and Hinton, 2008). The hierarchical cluster-

ing algorithm (Murtagh, 2011), applied to the result,

splits the data into clusters and plots them in a two-

dimensional scatter plot based on the selected dimen-

sionality reduction method. Given the exploratory

nature of the analysis, we implemented both linear

(PCA) and non-linear (UMAP and t-SNE) dimension-

ality reduction algorithms. The parameters of the lat-

ter two are conﬁgurable. On mouse over, the pop-up

shows the simulation run identiﬁer. The plotted dots

represent clustered simulation runs.

4.2 Bottom Tier: Scenario Player

In the bottom tier, the analyst explores the behavior

of an attacker in a single simulation run. We have

created an interactive scenario player to make it easier

for them to identify points of interest. The tool loads

a dataset of a single simulation run and the network

infrastructure conﬁguration. The topology is rendered

as a network graph with automated node positioning.

The analyst can reposition them if needed.

Initially, the nodes are color-coded to distinguish

between attacking and target network nodes. Initially,

all nodes are colored green. Only already-known at-

tackers are red. If nodes in the network are com-

promised throughout the attack scenario, their color

changes from green to amber. Such encoding en-

ables identifying the moment of an attack when the

compromise happened, the sequence of actions lead-

ing to it, and the possible impact on other nodes in

the network. The conﬁguration options (Figure 3,

top-right) enable to toggle of four analytic visualiza-

tions: Node activity helps identify whether a node

is predominantly sending or receiving messages; At-

tack progress, adds node numbers indicating the or-

der of successful attacks; Successful attacks, enables

a tooltip on hover displaying successful attack actions

for a given node; and All successful attacks, displays

a summary of all successful attack actions for a given

scenario.

The analyst can also inspect messages by invok-

ing an on-mouseover tooltip with message attributes,

seeking a simulation run, or adjusting a replay speed

(i.e., the ratio of simulated time units to seconds). Re-

quests and responses are color-coded for easier dif-

ferentiation – green for requests and orange for re-

sponses.

5 USAGE SCENARIOS

To demonstrate the usefulness of the implemented

prototypes on the analytical workﬂow (RQ3), we

present several use cases created by the CYST sim-

ulator developers. The use cases utilize the tools to

achieve real examples of analytical goals.

5.1 Clustering Analyzer Use Cases

Each simulation was run 50 times with the same

attacker conﬁguration and topologies described

in (Dra

sar et al., 2020). Given the limited scope, only

selected visualizations of the results are presented.

Case 1: Identify different attackers’ tactics.

The simulation was performed on the topology em-

ployee. The analyst explored different tactics for ser-

vice attacks. Six variables were deﬁned as a cartesian

product of servers through which the attack passed

(web srv, db srv and dc srv) and the response val-

ues (SERVICE|SUCCESS and SERVICE|FAILURE). t-

SNE cluster analysis identiﬁed three clusters, each

representing one attack tactic utilizing a speciﬁc

server (see Figure 4).

Towards a Visual Analytics Workﬂow for Cybersecurity Simulations

183

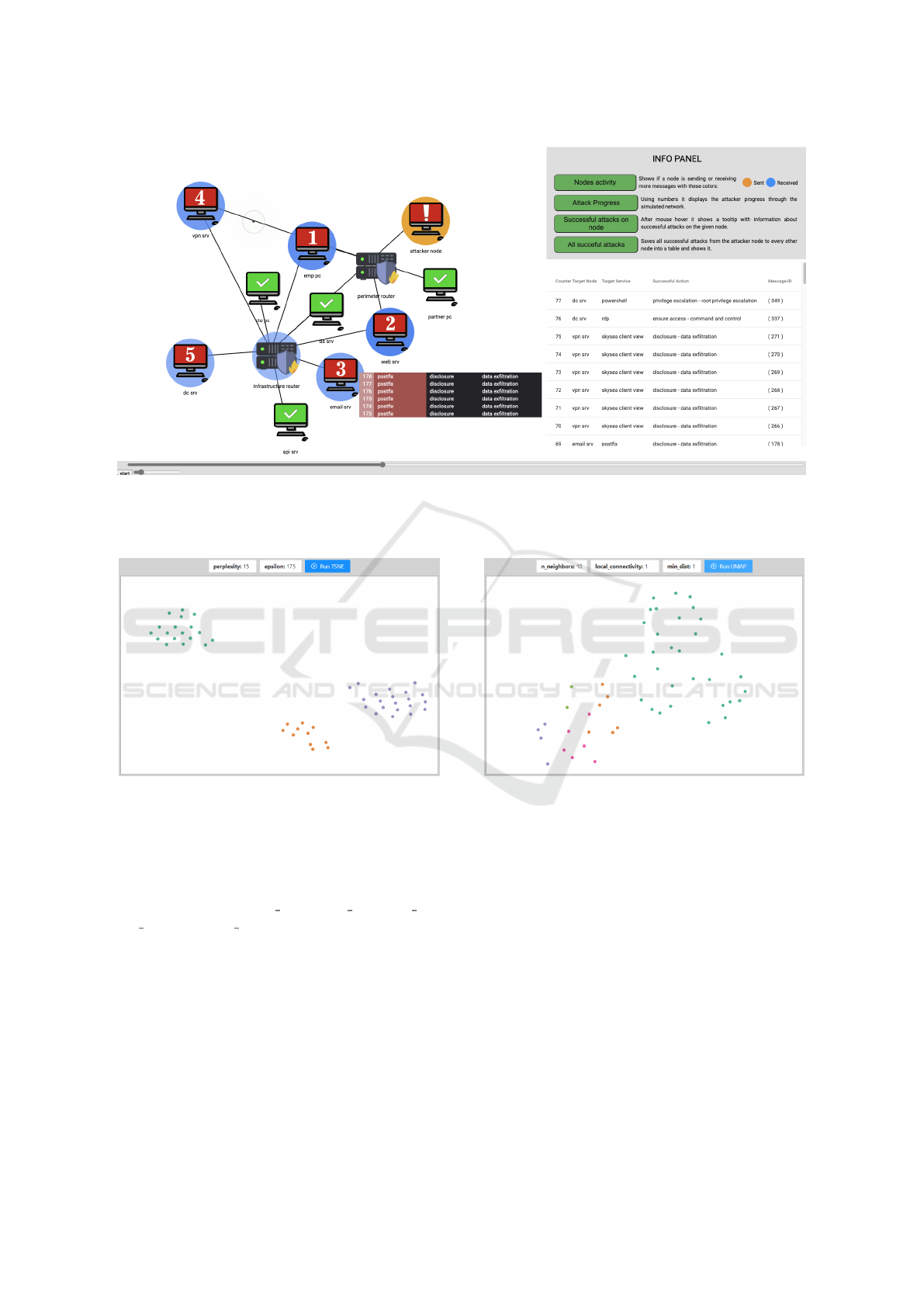

Figure 3: Scenario Player dynamically visualizes a single simulation run. Red nodes are attacking. Numbered nodes are

compromised, green yet uncompromised. The colored circle represents whether a node sends (amber) or receives (blue) more

messages. Its opacity represents the message count relative to other nodes. Logs related to a selected node show in a pop-up

(center-bottom), and all the successful actions are listed on the right.

Figure 4: Result of cluster analysis aimed at showing at-

tackers with different tactics (t-SNE).

Case 2: Identify attackers’ ability to ignore

unimportant targets. The simulation was performed

on the topology cto. The analyst deﬁned ﬁve vari-

ables to indicate requests on servers unimportant for

a successful attack: emp pc, email srv, api srv,

vpn srv, and web srv. The resulting UMAP al-

gorithm showed (Figure 5) a more extensive cluster

(green dots). Upon inspection of the runs, the analyst

concluded that the attacker quickly recognized unim-

portant targets (i.e., terminated the communication

with them) and ignored them in consecutive steps.

Case 3: Explore attackers prone to select in-

appropriate actions. The simulation was run on the

topology cto. Five variables combined servers from

case 2 with the response value SERVICE|SUCCESS.

Ideally, this value should occur only once on each

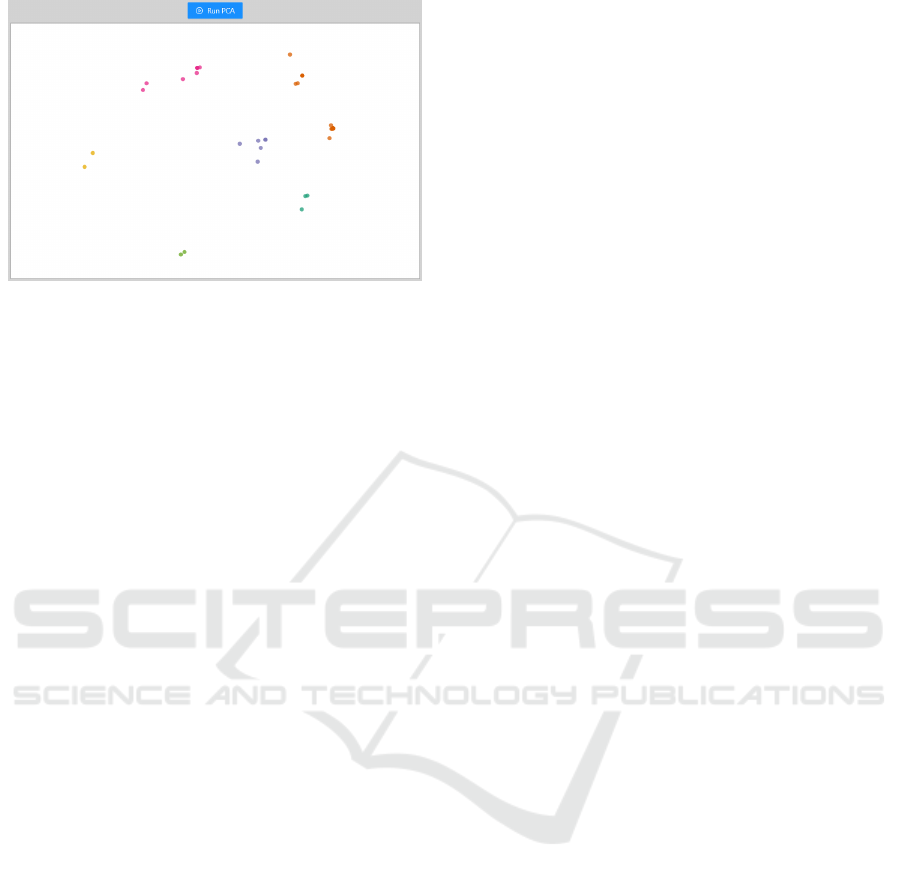

Figure 5: Result of cluster analysis aimed at identiﬁcation

of attackers able to ignore unimportant targets. (UMAP).

service. The PCA method (Figure 6) showed multi-

ple clusters worth exploring. A closer look revealed

clusters where simulation runs have higher variable

counts, i.e., the attacker’s algorithm chose inappropri-

ate actions of an exploratory nature rather than those

that would allow a successful attack to progress.

5.2 Scenario Player Use Cases

The beneﬁt of the single scenario run replays lies in

observing the attack unfolding, thus enabling identiﬁ-

cation and analysis of their time-related aspects. Fur-

ther, we brieﬂy discuss two use cases the Scenario

Player revealed.

Case 4: Identify the general pattern and inef-

ﬁciencies of the attack. As the nodes get progres-

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

184

Figure 6: Result of cluster analysis aiming to identify at-

tackers prone to select inappropriate actions (PCA).

sively numbered to identify compromised hosts, the

analyst can identify preferred or ignored targets or

networks and observe the attack’s path in the con-

text of the whole infrastructure. Large amounts of re-

quest/response pairs exchanged between pairs of net-

work nodes indicate an unnecessarily extensive vol-

ume of network trafﬁc, thus pointing to inefﬁcient at-

tack strategies. Further exploration of target services,

used attacks, and other variables can help identify

weaknesses in attack strategies.

Case 5: Explore deadlocks. When the analyst

sees that there is not any newly compromised node

for an extended period, the attack is stalling. In such

cases, attackers usually aim at invalid targets or make

wrong attack strategy decisions. Scenario replay can

pinpoint the causes of this deadlock and help the ana-

lyst derive possible changes in attacker conﬁgurations

to avoid it.

6 DISCUSSION

Further, we discuss the limitations and validity threats

that we are aware followed by the presentation of

lessons learned from our ongoing work.

6.1 Validity Threats and Limitations of

Our Approach

We identiﬁed three main threats to the validity of our

approach: relevance to the research community, min-

imal opportunities to validate the outputs, and the low

maturity level of the prototypes.

The starting point for the proposed formalization

of the analytical workﬂow and the classiﬁcation of ac-

tions in each tier is the CYST simulator model envi-

ronment (see Section 3). However, the resulting de-

scription of the analytical workﬂow, task categories,

and examples of visual representations generally ap-

ply to other simulators despite their speciﬁcities in log

and report formats.

The speciﬁc focus on the problem of analyzing

data from cybersecurity simulators has determined

a signiﬁcant limitation regarding the validation of

our results. First and foremost, there need to be

more domain experts (i.e., cybersecurity simulation

researchers and analysts). The issue of defensive

and offensive strategies is still being investigated by

a relatively small group of cybersecurity researchers

worldwide. Thus, naturally, in our work, we also en-

countered the problem of ﬁnding other domain ex-

perts outside the team developing the CYST simu-

lator. Therefore, it will be helpful to subject the re-

sults of our work to a thorough discussion, especially

among domain experts.

Lastly, the presented prototypes were used to

demonstrate the initial usability of the proposed work-

ﬂow. They suffer from disconnectedness and low ma-

turity. We also intentionally bypassed the prototyp-

ing of middle-tier visualizations that will require even

more careful analysis and workﬂow reﬁnement.

6.2 Lessons Learned

Unexplored territory: Although the use of visualiza-

tions in cybersecurity practice is now commonplace

and is contributed to by the community around the

IEEE Symposium on Visualization for Cyber Secu-

rity (VizSec), the main directions of visualization us-

age are mainly for network trafﬁc data or supporting

forensic analysis. Cybersecurity simulations are still

an unexplored area that provides many research op-

portunities.

Common visualizations over domain-speciﬁc

ones: Since analysts are usually not experts in

visualizations, it is advisable to prefer commonly

known visual representations, as they eliminate the

risk of misinterpretation. The only domain-speciﬁc

case is the attack graph, which is widely used in the

cybersecurity community.

Clustering analyzer generalization: The proposed

tool can also be used for data analysis in other do-

mains where it is appropriate to derive abstract criteria

based on the combination of the input data attributes.

Verbal feedback from the CYST simulator develop-

ers indicated that even the generated table with input

criteria was sufﬁcient for the initial orientation in the

data. The tool can also allow comparing different di-

mension reduction methods, e.g., depending on the

input data. It also can be easily extensible to other

methods included in the DruidJS library (Cutura et al.,

2020).

Towards a Visual Analytics Workﬂow for Cybersecurity Simulations

185

7 CONCLUSION

In this paper, we have tackled using visualizations

in an analytical workﬂow of cybersecurity simulator

data. To our knowledge, this paper is the ﬁrst at-

tempt to conceptualize the work in this domain. We

described the state-of-the-art network simulators and

commonly used visualizations in the context of cy-

bersecurity simulation research of autonomous agents

(RQ1). ext, we mapped the analysts’ tasks and for-

malized the analyst workﬂow (RQ2) based on the

CYST simulator as a model environment. Finally, we

presented two prototype tools – Clustering Analyzer

and Scenario Player – and ﬁve use cases to demon-

strate their suitability to deal with several real-world

analytical goals (RQ3). We also discussed limitations

and provided lessons learned.

Further, we plan to merge the tools into a sin-

gle data analytics toolkit integrated seamlessly into a

CYST simulator workﬂow. It will also include inte-

grating novel visualizations and advancing the mid-

dle tier according to the deﬁned three-tier analytical

workﬂow.

ACKLNOWLEDGEMENTS

The research was supported by ERDF “Cyber-

Security, CyberCrime and Critical Informa-

tion Infrastructures Center of Excellence” (No.

CZ.02.1.01/0.0/0.0/16 019/0000822).

REFERENCES

Blaha, M. R. and Rumbaugh, J. E. (2005). Object-oriented

Modeling and Design with UML, 2nd Ed. Pearson Ed.

Bostock, M., Ogievetsky, V., and Heer, J. (2011). D

Data-

Driven Documents. IEEE TVCG, 17(12):2301–2309.

Brehmer, M. and Munzner, T. (2013). A Multi-Level Ty-

pology of Abstract Visualization Tasks. IEEE TVCG,

19(12):2376–2385.

Brockman, G., Cheung, V., Pettersson, L., et al. (2016).

OpenAI Gym. arXiv:1606.01540.

Cutura, R., Kralj, C., and Sedlmair, M. (2020). DRUIDJS

– A JavaScript Library for Dimensionality Reduction.

In IEEE VIS 2020, pages 111–115. IEEE.

Dama

sevi

cius, R., Toldinas, J., et al. (2019). Visual An-

alytics for Cyber Security Domain: State-of-the-Art

and Challenges. In Information and Software Tech-

nologies, volume 1078, pages 256–270. Springer Int.

Publ., Cham.

Dra

sar, M., Moskal, S., et al. (2020). Session-level Adver-

sary Intent-Driven Cyberattack Simulator. In Proc. of

the IEEE/ACM 24th Int. Symp. on Distrib. Simulation

and Real Time Applications (DS-RT’20), pages 7–15.

IEEE.

Dunteman, G. H. (2008). Principal Components Analysis.

Number 69 in Quantitative Applications in the Social

Sciences. Sage Publishing, Newbury Park, CA, USA.

Grunewald, D., L

utzenberger, M., Chinnow, J., et al.

(2011). Agent-Based Network Security Simulation.

In The 10th Int. Conf. on Autonomous Agents and

Multiagent Systems – Vol. 3, AAMAS ’11, page

1325–1326, Richland, SC. International Foundation

for Autonomous Agents and Multiagent Systems.

Homer, J., Varikuti, A., et al. (2008). Improving Attack

Graph Visualization through Data Reduction and At-

tack Grouping. In Goodall, J. R., Conti, G., and Ma,

K.-L., editors, Visualization for Computer Security,

volume 5210 of LNCS, pages 68–79. Springer Berlin

Heidelberg.

Kru

ık, M. (2018). Adaptive Network Attacks. Master’s

thesis, Masaryk University, Brno, Czechia.

Liljenstam, M., Liu, J., et al. (2005). RINSE: The Real-

Time Immersive Network Simulation Environment for

Network Security Exercises. In Workshop on Prin-

ciples of Adv. and Distrib. Simul. (PADS’05), pages

119–128. IEEE.

McInnes, L., Healy, J., and Melville, J. (2018). UMAP:

Uniform Manifold Approximation and Projection for

Dimension Reduction. arXiv:1802.03426.

Michal

ıkov

a, M. (2018). Implementation of Methods for

Attack Detection in Software Simulator. Bachelor’s

thesis, Masaryk University, Brno, Czechia.

Microsoft Defender Research Team (2021). CyberBat-

tleSim. github.com/microsoft/CyberBattleSim.

Minarik, P. and Dymacek, T. (2008). NetFlow Data Visual-

ization Based on Graphs. In Vis. for Comp. Sec., vol-

ume 5210 of LNCS, pages 144–151. Springer Berlin

Heidelberg.

Moskal, S. and Yang, S. J. (2020). Cyberattack Action-

Intent-Framework for Mapping Intrusion Observ-

ables. arXiv:2002.07838.

Murtagh, F. (2011). Hierarchical Clustering. In Interna-

tional Encyclopedia of Statistical Science, pages 633–

635. Springer Berlin Heidelberg, Berlin, Heidelberg.

Theron, P., Kott, A., et al. (2020). Reference Architecture

of an Autonomous Agent for Cyber Defense of Com-

plex Military Systems, pages 1–21. Springer Int. Publ.,

Cham.

van der Maaten, L. and Hinton, G. (2008). Visualizing Data

using t-SNE. Journal of Machine Learning Research,

9(11):2579–2605.

Varga, A. (2010). OMNeT++. In Modeling and Tools

for Network Simulation, pages 35–59. Springer Berlin

Heidelberg.

Yi, S., Peng, Y., et al. (2013). Overview on Attack Graph

Generation and Visualization Technology. In 2013 Int.

Conf. on Anti-Counterfeiting, Security and Identiﬁca-

tion (ASID), pages 1–6. IEEE.

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

186
