Complement Objective Mining Branch for Optimizing Attention Map

Takaaki Iwayoshi

, Hiroki Adachi

, Tsubasa Hirakawa

and Takayoshi Yamashita

and Hironobu Fujiyoshi

Chubu University, 1200 Matsumoto-cho, Kasugai, Aichi, Japan

Keywords:

Deep Learning，Attention Branch Network，Attention Mining, Attention Mechanism, Visual Explanation.

Abstract:

Attention branch network (ABN) can achieve high accuracy by visualizing the attention area of the network

during inference and utilizing it in the recognition process. However, if the attention area does not highlight

the target object to be recognized, it may cause recognition failure. While there is a method for ﬁne-tuning the

ABN using attention maps modiﬁed by human knowledge, it requires a lot of human labor and time because

the attention map needs to be modiﬁed manually. The method introducing the attention mining branch (AMB)

to ABN improves the attention area without using human knowledge by learning while considering whether

the attention area is effective for recognition. However, even with AMB, attention regions other than the

target object, i.e., unnecessary attention regions, may remain. In this paper, we investigate the effects of

unwanted attention areas and propose a method to further improve the attention areas of ABN and AMB.

In the evaluation experiments, we show that the proposed method improves the recognition accuracy and

obtains an attention map with more gazed objects. Our evaluation experiments show that the proposed method

improves the recognition accuracy and obtains an attention map that appropriately focuses on the target object

to be recognized.

1 INTRODUCTION

In the ﬁeld of image recognition, Deep Convolutional

Neural Network (DCNN) (Alex and Hinton, 2012)

has achieved high recognition performance, but it is

difﬁcult for humans to interpret the basis of deci-

sions during recognition due to the complex network

structure of DCNN. Visual explanation is a commonly

used approach to overcome this difﬁculty.

Class activation mapping (CAM) (Zhou et al.,

2016), gradient-weighted class activation mapping

(Grad-CAM) (Selvaraju et al., 2017), and attention

branch network (ABN) are major visual explanation

methods. These methods can visualize the attention

regions as the attention map during the inference of

DCNN. ABN not only visualizes the attention regions

during the inference but also can boost recognition

performance by leveraging the attention regions dur-

ing training. Speciﬁcally, it can capture an effective

region for recognition by multiplying the attention re-

https://orcid.org/0000-0003-4421-3270

https://orcid.org/0000-0001-5920-2633

https://orcid.org/0000-0003-3851-5221

https://orcid.org/0000-0003-2631-9856

https://orcid.org/0000-0001-7391-4725

gions to feature maps with the attention mechanism.

However, attention maps of ABN focus on not only

a recognition target but also other things or no longer

focus on it. These attention maps, i.e., the attention

maps including an inappropriate region, make train-

ing of ABN difﬁcult, so they may degrade the recog-

nition performance.

For optimizing attention maps, a ﬁne-tuning

method based on human-in-the-loop has been pro-

posed (Mitsuhara et al., 2021). This method manually

edits the attention maps of misclassiﬁed images that

focus on the target object or characteristic region for

classiﬁcation and then ﬁne-tunes the network param-

eters by using the edited attention map. This enables

the network to correctly focus on the same region as

a human would and improves the explainability and

accuracy. However, this method requires the attention

maps to be manually edited, which causes an increase

in human labor and time.

To overcome the shortcomings of Mit-

suhara et al.’s method, attention mining branch

(AMB) (Iwayoshi et al., 2021) reduces attention

regions other than objects to be recognized without

human knowledge. Speciﬁcally, we have succeeded

in suppressing the generation of unwanted attention

Iwayoshi, T., Adachi, H., Hirakawa, T., Yamashita, T. and Fujiyoshi, H.

Complement Objective Mining Branch for Optimizing Attention Map.

DOI: 10.5220/0011699000003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

105-113

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

105

51.71%

𝑝

𝑥

GT： Loggerhead Shrike

78.46%

Great Grey Shrike

6.48%

𝑝

𝑥

21.72%

Great Grey Shrike

Figure 1: Investigation of the effect of attention areas out-

side the recognition target on inference results. We remove

the attention areas outside the recognition target and inves-

tigate changes in class probability.

regions through learning that considers whether the

attention regions are effective for recognition in

ABN and AMB. However, attention regions other

than the object to be recognized remain, and the

recognition accuracy has not improved as much as

human knowledge. Therefore, in this study, we ﬁrst

clarify the effect of attention regions other than the

object to be recognized on the inference results. As

shown in Figure 1, we observed that the incorrect

class probability tends to decrease, and the correct

class probability tends to increase when unnecessary

regions are manually removed. Based on the results

of this experiment, we believe it is important to inten-

tionally reduce the incorrect answer class probability

and incorporate such a learning method into ABN

and AMB.

In summary, our work makes the following con-

tributions:

• In the randomly selected examples, we observed

a tendency for the incorrect class probability to

decrease by arbitrarily reducing the unnecessary

attention area.

• In this paper, we propose a method to introduce

Complement Objective Training (COT)(Chen

et al., 2019) to ﬂatten the incorrect class probabil-

ity in ABN and AMB and show that our method

can reduce the unwanted attention area by de-

creasing the incorrect class probability and im-

prove the recognition accuracy accordingly. Our

method is able to reduce the number of unneces-

sary attention regions by decreasing the incorrect

class probability and to improve the recognition

accuracy accordingly.

• We show that the proposed method acquires atten-

tion regions better than human knowledge by us-

ing Insertion, which performs inference only on

regions of high importance for each percentage of

the acquired attention regions.

2 RELATED WORKS

In this section, we introduce Methods for Visual Ex-

planation and a learning method that considers the

incorrect class probability, which is considered to be

one of the causes of unwanted attention areas.

2.1 Visual Explanation

Attention maps enable us to understand the reason for

a network decision. Several methods for obtaining the

attention map have been proposed (Fukui et al., 2019;

Iwayoshi et al., 2021; Zhou et al., 2016; Chattopad-

hay et al., 2018; Chen et al., 2019; Fong et al., 2019;

Fong and Vedaldi, 2017; Selvaraju et al., 2017; Mit-

suhara et al., 2021; Ribeiro et al., 2016; Vitali Petsiuk

and Saenko, 2018; Springenberg et al., 2014; Zhang

et al., 2021), which can be categorized into two ap-

proaches: bottom-up and top-down. The bottom-up

approach computes the attention map by using local

responses of convolution (Smilkov et al., 2017; Bo-

jarski et al., 2016). The top-down approach computes

attention maps derived from class information of the

network output. ABN (Fukui et al., 2019), which is

one of the major top-down visual explanation meth-

ods, generates an attention map by using global aver-

age pooling (Lin et al., 2013) and feature maps, and

then uses the map for the attention mechanism to en-

hance the features of the target object. This atten-

tion mechanism improves the classiﬁcation accuracy.

Our method utilizes the branch structure and attention

mechanism for optimizing attention maps.

For optimizing attention maps, a ﬁne-tuning

method based on human-in-the-loop has been pro-

posed (Mitsuhara et al., 2021). This method manually

edits the attention maps of misclassiﬁed images that

focus on the target object or characteristic region for

classiﬁcation and then ﬁne-tunes the network param-

eters by using the edited attention map. This enables

the network to correctly focus on the same region as

a human would and improves the explainability and

accuracy. However, this method requires the attention

maps to be manually edited, which causes an increase

in human labor and time. In contrast, our ﬁne-tuning

approach can optimize attention maps without manual

editing.

Moreover, AMB can reduce the attention areas

other than the object to be recognized without us-

ing human knowledge by introducing AMB into ABN

and learning it while considering the effective areas

for recognition. However, the recognition accuracy

is not improved compared with the case where hu-

man knowledge is introduced, because the attention

regions that are not necessary for recognition remain.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

106

Therefore, in this study, we investigate how attention

regions unnecessary for recognition affect class prob-

ability. Then, we propose a method to improve ABN

and AMB.

2.2 Complement Objective Training

COT is a learning method that considers the entropy

of incorrect classes. The weights are updated so

that the correct answer class probability is close to

1. Next, the weights are updated to ﬂatten the prob-

ability of the incorrect answer class. This is done for

each iteration to improve the probability distribution.

From the investigation described below, we know that

the attention regions other than the object to be rec-

ognized affect the probability of the incorrect answer

class. Therefore, we aim to further improve the atten-

tion regions by introducing this method to ABN and

AMB.

3 PROPOSED METHOD

This paper investigates the effect of incorrect answer

class probability on the attention area and proposes

a method to improve ABN and AMB accordingly.

Speciﬁcally, this study proposes ABN + COT, which

introduces COT to ABN, and ABN + COMB, which

introduces Complement Objective Mining Branch

(COMB), a combination of AMB and COT, to ABN.

3.1 Inﬂuence of Unnecessary Attention

Areas

AMB reduces the attention regions other than the

object to be recognized without human knowledge.

However, attention regions other than the object to be

recognized remain, and the recognition accuracy has

not improved as much as human knowledge. There-

fore, in this study, we ﬁrst clarify the effect of atten-

tion regions other than the object to be recognized on

the inference results. Speciﬁcally, as shown in Figure

2, we investigate the relationship between unneces-

sary attention areas and class probability by deleting

unnecessary attention areas from the attention map

when misrecognition occurs in ABN and performing

inference again.

The ABN model trained on the CUB-200-2010

dataset was used to investigate the relationship be-

tween unwanted attention areas and class probabil-

ity. First, we investigate changes in the probabil-

ity distribution using three samples in the CUB-200-

2010 dataset that are misrecognized by ABN. Figure

Attention

mechanism

Feature

extractor

Attention branch

Perception branch

Attention map

Input

𝑝

𝑥

Figure 2: Flow of Correcting Attention. We remove at-

tention areas outside the recognition target of Attention ac-

quired by ABN and weight the feature map by the Attention

mechanism. Then, the class probability of the perception

branch, which is the ﬁnal evaluation, is investigated.

Table 1: Average of the highest incorrect class probability

in 10 randomly selected samples [%]. Bold letters indicate

the lowest the incorrect class probability.

Incorrect class probability

ABN 41.61

Reduction 26.61

3 shows the probability distributions of the three sam-

ples. As shown in Figure 3, the incorrect class prob-

ability decreases, and the correct class probability in-

creases in all cases. Second, we investigate the varia-

tion of the highest incorrect class probability using 10

randomly selected samples from the CUB-200-2010

dataset. Table 1 shows the average of the highest

incorrect answer class probabilities for the 10 sam-

ples. As shown in Table 1, we observed that the in-

correct answer class probabilities decreased when the

unnecessary regions were manually removed. Based

on these ﬁndings, we believe it is important to inten-

tionally reduce the incorrect answer class probability

and incorporate such a learning method into ABN and

AMB.

3.2 ABN + COT

This paper aims to reduce unnecessary attention areas

by introducing COT to the ABN and ﬂattening the in-

correct answer class probability.

3.2.1 Network Structure

The structure of ABN + COT. It ﬁrst extracts a feature

map from an input image by a feature extractor and

then inputs the feature map into the attention module

to generate an attention map. The feature map and

attention map are used for the attention mechanism

to enhance the features of the highlighted region and

obtain classiﬁcation results by the perception branch.

Complement Objective Mining Branch for Optimizing Attention Map

107

Clark Nutcracker

0.48%

18.39%

14.25%

Western Gull

51.71%

𝑝

𝑥

GT： Loggerhead Shrike

78.46%

Great Grey Shrike

6.48%

𝑝

𝑥

91.12%

7.77%

56.45%

Brandt Cormorant

40.85%

𝑝

𝑥

GT：Pelagic Cormorant

Brandt Cormorant

𝑝

𝑥

7.52%

Western_Gull

𝑝

𝑥

GT：Slaty backed Gull

13.83%

𝑝

𝑥

21.72%

Great Grey Shrike

12.35%

Clark Nutcracker

Figure 3: Probability distribution of three samples misrecognized by ABN in the CUB-200-2010 dataset. Blue letters indicate

incorrect class names.

3.2.2 Learning Algorithm

Algorithm 1 alternates between minimizing the cross-

entropy loss that brings the correct answer class prob-

ability close to 1 and ﬂattening the incorrect answer

class probability. The speciﬁc method is described

below.

Step 1. We ﬁrst initialize the network’s parame-

ters and train the network.

Step 2. We update the network parameters. The

loss is calculated by two loss values: L

att

and L

per

att

is a cross-entropy loss between the output of the

attention module and the correct label. Likewise, L

per

is a cross-entropy loss between the output of the per-

ception branch and the correct label. The entire loss

function L is deﬁned as

L = L

att

+ L

per

. (1)

Step 3. Flatten the incorrect class probability by

updating the weights to minimize the complement en-

tropy. Let ˆy be the predicted probability distribution

for input, H (·) be the entropy function, and g be the

ground truth. Complement entropy C( ˆy

) is deﬁned

C( ˆy

) =

∑

i=1

H ( ˆy

)

= −

∑

i=1

∑

j=1, j̸=g

ˆy

i j

1 − ˆy

log



ˆy

i j

1 − ˆy



(2)

Step 4. Repeat Steps 2 and 3 for each iteration.

3.3 ABN + COMB

This paper aims to reduce unnecessary attention areas

by introducing COT to the AMB and ﬂattening the

incorrect answer class probability.

3.3.1 Network Structure

ABN + COMB automatically optimizes the attention

map by introducing an AMB into the ABN. Figure

Require: Total number of samples N, Class label

, iteration n, probability ˆy, Ground truth g,

Predicted probabilities of the correct classes ˆy

Complement entropy

C, Entropy function H ,

Predicted probabilities of the complement (incor-

rect) classes ˆy

Initialize: Update weights to ﬂatten incorrect an-

swer class probability Load weights from net-

work trained in ABN.

1: for t ← 1 to n do

2: At Attention branch and Perception branch

Update weights so that the correct answer class

probability approaches 1.:−

∑

i=1

log( ˆy

)

3: At Attention branch and Perception branch

Update weights to ﬂatten incorrect answer

class probability:

∑

i=1

H ( ˆy

)

4: end for

Figure 4: ABN + COT.

5 shows the structure of ABN + COMB. It ﬁrst ex-

tracts a feature map from an input image by a feature

extractor and then inputs the feature map into the at-

tention module to generate an attention map. The fea-

ture map and attention map are used for the attention

mechanism to enhance the features of the highlighted

region and obtain classiﬁcation results by the percep-

tion branch. Our method further utilizes the AMB

to optimize the attention map during the ﬁne-tuning

step.

3.3.2 Attention Mining Branch

The AMB learns to acquire regions that are effective

for recognition. Figure 5 shows the optimization ﬂow

of the attention map by the AMB. The structure of

the AMB is the same as that of the perception branch.

Also, the branch shares the weights with the percep-

tion branch and outputs class probabilities by using

a masked feature map. If the class probability of the

target class decreases, we can assume that the masked

region hides the target objects. Therefore, by learning

to minimize the class probability of the target class,

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

108

Attention map

Perception

branch

Attention mechanism

Input

Feature

extractor

Attention

module

Attention

mining branch

Weight

Label

Mask

：binarization

Figure 5: The structure of ABN + AMB. In our method, Attention is binarized to obtain a mask, and the mask is applied to

the feature map to obtain a feature map F

∗

that hides the highlighted area. This is input to Attention mining branch, which

shares weights with Perception branch, to obtain class probabilities. If the class probability of the target class S

decreases,

we can assume that the masked region hides the target objects. Therefore, by learning to minimize the class probability of the

target class, the attention map is optimized to gaze only at the target object.

the attention map is optimized to gaze only at the tar-

get object. The AMB shares weights with the percep-

tion branch. This weight share enables the perception

branch to reﬂect the weights of the AMB, which has

learned to gaze only at the object to be recognized.

3.3.3 Mask Generation Method

For generating a masked feature map, we use the at-

tention maps obtained from the attention module. Let

A be the attention map, and σ be the threshold of at-

tention. The mask T is deﬁned by

T (A) =

1 + exp(−100(A − σ))

. (3)

By using the Sigmoid function, the process is

equivalent to binarization while maintaining the gra-

dient. Then, we multiply the feature map obtained

from the feature extractor and the mask. Let F be the

feature map from the feature extractor. The masked

feature map F

∗

is deﬁned by

∗

= F − (T (A) ⊙ F). (4)

Consequently, we can generate a masked feature map

that hides the highlighted area.

3.3.4 Learning Algorithm

Algorithm 2, minimization of the correct answer class

probability and ﬂattening of the incorrect answer class

probability are alternately repeated in the AMB. The

speciﬁc method is described below.

Step 1. We ﬁrst initialize the network’s parame-

ters and train the network.

Require: Total number of samples N, Class label

, iteration n, probability ˆy, Ground truth g,

Predicted probabilities of the correct classes ˆy

Complement entropy

C, Entropy function H ,

Predicted probabilities of the complement (incor-

rect) classes ˆy

Initialize: Update weights to ﬂatten incorrect an-

swer class probability Load weights from net-

work trained in ABN.

1: for t ← 1 to n do

2: At Attention branch and Perception branch

Update weights so that the correct answer class

probability approaches 1.:−

∑

i=1

log( ˆy

)

At Attention mining branch

Update weights so that the correct answer class

probability approaches 0.

3: At Attention mining branch

Update weights to ﬂatten incorrect answer

class probability:

∑

i=1

H ( ˆy

)

4: end for

Figure 6: ABN + COMB.

Step 2-1. We generate the mask from an atten-

tion map obtained by the attention module. Then,

the output of the feature extractor is multiplied by the

generated mask to obtain the masked feature map.

Step 2-2. We input the masked feature map gen-

erated in step 2-1 to the AMB and obtain class prob-

abilities as an output. Then, we compute a loss of

the AMB L

from the output probability and the

ground truth. L

is the sum of the class probabili-

ties of each sample output from the AMB. This means

Complement Objective Mining Branch for Optimizing Attention Map

109

that the smaller loss L

successfully hides the ob-

ject to be recognized. Let c ∈ {1, . . . , C} be class and

i ∈ {1, . . . , n} be a sample in a mini-batch. We denote

the classiﬁcation probability of correct class c for the

i-th masked feature map as S

. The loss L

is deﬁned

as follows:

∑

i=1

. (5)

Step 2-3. We update the network parameters.

The loss is calculated by three loss values: L

, L

att

and L

per

. L

att

is a cross-entropy loss between the

output of the attention module and the correct label.

Likewise, L

per

is a cross-entropy loss between the

output of the perception branch and the correct label.

The entire loss function L is deﬁned as

L = L

att

+ L

per

+ αL

, (6)

where α is a scaling parameter for L

Step 3. Flatten the incorrect class probability by

updating the weights to minimize the complement en-

tropy. Let ˆy be the predicted probability distribution

for input, H (·) be the entropy function, and g be the

ground truth. The complement entropy C( ˆy

) is de-

ﬁned as

C( ˆy

) =

∑

i=1

H ( ˆy

)

= −

∑

i=1

∑

j=1, j̸=g

ˆy

i j

1 − ˆy

log



ˆy

i j

1 − ˆy



(7)

By setting ˆy

= 0, the correct answer class probabil-

ity is calculated to be 0 and the remaining incorrect

answer class probabilities are ﬂat.

Step 4. Repeat Steps 2 and 3 for each iteration.

4 EXPERIMENTS

To evaluate the effectiveness of the proposed method,

we performed evaluation experiments on a ﬁne-

grained image recognition task.

4.1 Experimental Settings

We used the Caltech-UCSD Birds 200-2010 (CUB-

200-2010) dataset (Welinder et al., 2010) and the

Stanford Dogs dataset (Khosla et al., 2011). ResNet-

50 (He et al., 2016) was utilized as the base network.

The number of training updates was 300 epochs each

for the ABN pre-training and the proposed method.

The batch size was set to 16. The coefﬁcient α of

was set to 0.0001. The mask threshold was set

to 0.78 for the CUB-200-2010 dataset and to 0.40

Table 2: Top-1 and top-5 accuracy on CUB-200-2010

dataset [%]. Bold letters indicate the highest accuracy.

model Top-1 Top-5

ABN 31.68 57.01

ABN + AMB 33.53 58.68

Human knowledge 37.42 62.08

ABN + COT 43.98 66.83

ABN + COMB 39.76 66.57

Table 3: Top-1 and top-5 accuracy on Stanford Dogs dataset

[%]. Bold letters indicate the highest accuracy.

model Top-1 Top-5

ABN 71.81 93.02

ABN + AMB 71.99 92.80

ABN + COT 72.33 91.12

ABN + COMB 73.59 93.89

for the Stanford Dogs dataset. As comparative meth-

ods, we adopted ABN (Fukui et al., 2019), ABN +

AMB(Iwayoshi et al., 2021), and the conventional

ﬁne-tuning method by human knowledge (Mitsuhara

et al., 2021). In this experiments, we call the method

proposed by Mitsuhara et al. to ”human knowledge”.

4.2 Experimental Results

Table 2 compares the top-1 and top-5 accuracies for

CUB-200-2010. In the results of CUB-200-2010, the

recognition accuracy of the proposed method was bet-

ter than that of ABN, ABN + AMB, and Human

knowledge.

Table 3 compares the top-1 and top-5 accuracies

for the Stanford Dogs dataset. In the Stanford Dogs

dataset, the proposed method improved the recogni-

tion accuracy of Top-1 compared with ABN and ABN

+ AMB. Especially, the recognition accuracy of ABN

+ COT was 12.30 points better than that of ABN.

In the Stanford Dogs dataset, the proposed method

improved the recognition accuracy of Top-1 com-

pared with ABN. Although the recognition accuracy

of Top-1 was lower than that of the method introduc-

ing human knowledge, our method successfully im-

proved accuracies without manually modiﬁed atten-

tion maps. Especially, the recognition accuracy of

ABN + COMB was 1.78 points better than that of

ABN. These results show that the proposed method

contributes to the recognition performance.

4.3 Visualization of Attention Maps

We qualitatively evaluated the obtained attention

maps. Figures 7 and 8 show examples of attention

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

110

Blue Jay

(67.54%)

ABN + AMB

GT：Blue Jay

Blue Grosbeak

(79.33%)

Input

ABN

Blue Jay

(76.95%)

Human knowledge

Blue Jay

(34.36%)

ABN + COT

Blue Jay

(87.76%)

ABN + COMB

Yellow bellied Flycatcher

(62.34%)

Yellow bellied Flycatcher

(59.28%)

GT： Yellow bellied

Flycatcher

Yellow bellied Flycatcher

(99.81%)

Yellow bellied Flycatcher

(67.24%)

Yellow bellied Flycatcher

(76.23%)

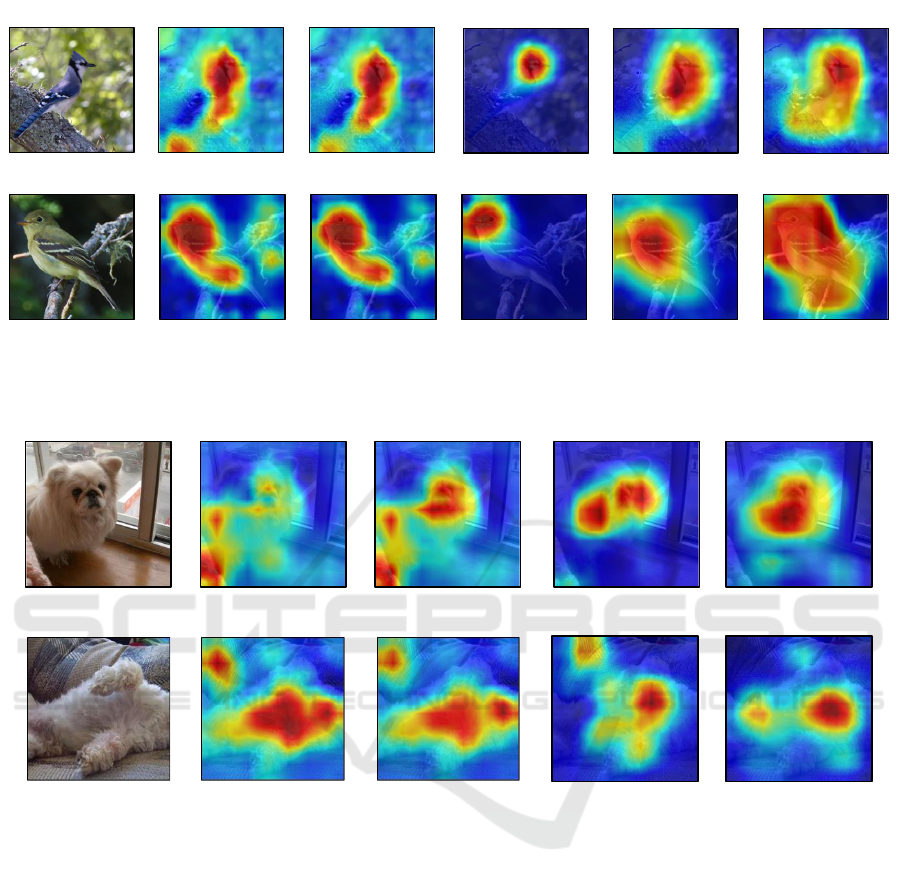

Figure 7: Examples of attention maps on CUB-200-2010. Class names and conﬁdences of the highest class probabilities are

shown below the Attention map.

Pekinese

(50.58%)

ABN + AMB

GT： Pekinese

Pomeranian

(39.48%)

Input

ABN

Pekinese

(33.49 %)

ABN + COT

Pekinese

(73.50%)

ABN + COMB

Shih-Tzu

(45.58%)

Shih-Tzu

(35.80%)

GT： Shih-Tzu

Shih-Tzu

(58.92%)

Shih-Tzu

(45.95%)

Figure 8: Examples of attention maps on Stanford Dogs. Class names and conﬁdences of the highest class probabilities are

shown below the Attention map.

maps on CUB-200-2010 and Stanford Dogs, respec-

tively. As shown in Fig. 7, the attention maps of

human knowledge-based ﬁne-tuning could identify

class objects by focusing on more localized regions.

Compared with ABN and ABN + AMB, the pro-

posed method reducing the attention area outside the

recognition target while gaining the effective area for

recognition. Moreover, compared with ABN, ABN

+ AMB, and human knowledge-based ﬁne-tuning,

ABN + COMB improved the class probability.

In the case of the Stanford Dogs dataset, as shown

in Fig. 8, compared with ABN and ABN + AMB, the

proposed method reduced the attention area outside

the recognition target while gaining the effective area

for recognition.

4.4 Quantitative Evaluation of

Attention Map

Next, we quantitatively evaluated the effectiveness of

the attention acquired by the proposed method. As an

evaluation metric, we used insertion (Vitali Petsiuk

and Saenko, 2018). In this evaluation, we masked

images in the lower attention region and computed

the accuracy for the masked images. We ﬁrst eval-

uated the accuracy while changing the percentage of

masked regions and then checked the average class

probability of each sample for each percentage of in-

sertions and evaluated them by the area under curve

(AUC). The higher the AUC, the more effective the

attention map is for recognition, as insertion is eval-

uated only in the more highlighted region in the at-

Complement Objective Mining Branch for Optimizing Attention Map

111

0.02

0.04

0.06

0.08

0.1

0.12

0.14

0.16

0 0.2 0.4 0.6 0.8 1

conﬁdence

Percentage of inser�on

Human knowledge

ABN

ABN + AMB

ABN + COT ABN + COMB

Figure 9: Insertion metrics on CUB-200-2010 dataset.

Table 4: Area Under Curve for Insertion metrics on CUB-

200-2010 dataset. Bold letters indicate the highest score.

model AUC

ABN 0.0302

ABN + AMB 0.0451

Human knowledge 0.0576

ABN + COT 0.0704

ABN + COMB 0.0921

tention map. In this experiment, we used only sam-

ples that ABN misclassiﬁed to evaluate misclassiﬁca-

tion improvements. Figure 9 and Table 4 show the

results of insertion for each dataset. Table 4 shows

that the AUC of the proposed method was higher than

that of ABN and ABN + AMB, human knowledge-

based ﬁne-tuning. These results demonstrate that the

proposed method can optimize the attention map.

5 CONCLUSION

In this paper, we investigated the relationship between

the attention area outside the recognition target and

the incorrect answer class probability and proposed a

method to optimize an attention map by introducing

Complement Objective Training (COT) into the at-

tention branch network (ABN) and attention mining

branch (AMB). Our experiments showed that the pro-

posed method improved both the attention area and

the recognition accuracy. Further, evaluation with in-

sertion metrics demonstrated that the attention map

obtained by the proposed method could capture the

effective region for recognition. Our future work will

apply this technology to segmentation and multitask-

ing.

ACKNOWLEDGEMENTS

This paper is based on results obtained from a

project, JPNP20006, commissioned by the New En-

ergy and Industrial Technology Development Organi-

zation (NEDO).

REFERENCES

Alex, K., S. I. and Hinton, G. E. (2012). Paper templates.

In ImageNet Classiﬁcation with Deep Convolutional

Neural Networks. SCITEPRESS.

Bojarski, M., Choromanska, A., Choromanski, K., Firner,

B., Jackel, L., Muller, U., and Zieba, K. (2016). Vi-

sualbackprop: efﬁcient visualization of cnns. arXiv

preprint arXiv:1611.05418.

Chattopadhay, A., Sarkar, A., Howlader, P., and Balasub-

ramanian, V. N. (2018). Grad-cam++: Generalized

gradient-based visual explanations for deep convolu-

tional networks. In 2018 IEEE winter conference on

applications of computer vision (WACV), pages 839–

847. IEEE.

Chen, H.-Y., Wang, P.-H., Liu, C.-H., Chang, S.-C.,

Pan, J.-Y., Chen, Y.-T., Wei, W., and Juan, D.-

C. (2019). Complement objective training. arXiv

preprint arXiv:1903.01182.

Fong, R., Patrick, M., and Vedaldi, A. (2019). Under-

standing deep networks via extremal perturbations

and smooth masks. In Proceedings of the IEEE/CVF

International Conference on Computer Vision (ICCV).

Fong, R. C. and Vedaldi, A. (2017). Interpretable explana-

tions of black boxes by meaningful perturbation. In

Proceedings of the IEEE international conference on

computer vision, pages 3429–3437.

Fukui, H., Hirakawa, T., Yamashita, T., and Fujiyoshi, H.

(2019). Attention branch network: Learning of atten-

tion mechanism for visual explanation. In Proceed-

ings of the IEEE/CVF conference on computer vision

and pattern recognition, pages 10705–10714.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Iwayoshi, T., Mitsuhara, M., Takada, M., Hirakawa, T., Ya-

mashita, T., and Fujiyoshi, H. (2021). Attention min-

ing branch for optimizing attention map. In 2021 17th

International Conference on Machine Vision and Ap-

plications (MVA), pages 1–5. IEEE.

Khosla, A., Jayadevaprakash, N., Yao, B., and Li, F.-F.

(2011). Novel dataset for ﬁne-grained image catego-

rization: Stanford dogs. In Proc. CVPR workshop on

ﬁne-grained visual categorization (FGVC), volume 2.

Citeseer.

Lin, M., Chen, Q., and Yan, S. (2013). Network in network.

arXiv preprint arXiv:1312.4400.

Mitsuhara, M., Fukui, H., Sakashita, Y., Ogata, T., Hi-

rakawa, T., Yamashita, T., and Fujiyoshi, H. (2021).

Embedding human knowledge in deep neural network

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

112

via attention map. In The International Conference

on Computer Vision Theory and Applications, pages

626–636.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). ” why

should i trust you?” explaining the predictions of any

classiﬁer. In Proceedings of the 22nd ACM SIGKDD

international conference on knowledge discovery and

data mining, pages 1135–1144.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2017). Grad-cam: Visual

explanations from deep networks via gradient-based

localization. In Proceedings of the IEEE International

Conference on Computer Vision (ICCV).

Smilkov, D., Thorat, N., Kim, B., Vi

egas, F., and Watten-

berg, M. (2017). Smoothgrad: removing noise by

adding noise. arXiv preprint arXiv:1706.03825.

Springenberg, J. T., Dosovitskiy, A., Brox, T., and Ried-

miller, M. (2014). Striving for simplicity: The all con-

volutional net. arXiv preprint arXiv:1412.6806.

Vitali Petsiuk, A. D. and Saenko, K. (2018). Rise: Ran-

domized input sampling for explanation of black-box

models. In British Machine Vision Conference.

Welinder, P., Branson, S., Mita, T., Wah, C., Schroff, F., Be-

longie, S., and Perona, P. (2010). Caltech-ucsd birds

200.

Zhang, Q., Rao, L., and Yang, Y. (2021). Group-cam: group

score-weighted visual explanations for deep convolu-

tional networks. arXiv preprint arXiv:2103.13859.

Zhou, B., Khosla, A., Lapedriza, A., Oliva, A., and Tor-

ralba, A. (2016). Learning deep features for discrim-

inative localization. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2921–2929.

Complement Objective Mining Branch for Optimizing Attention Map

113
