Metamodel-Based Multi-View Modeling Framework for Machine

Learning Systems

Jati H. Husen

1,2

, Hironori Washizaki

, Nobukazu Yoshioka

, Hnin Thandar Tun

Yoshiaki Fukazawa

and Hironori Takeuchi

Waseda University, Tokyo, Japan

Telkom University, Bandung, Indonesia

Musashi University, Tokyo, Japan

fukazawa@waseda.jp, h.takeuchi@cc.musashi.ac.jp

Keywords:

Machine Learning, Consistency Check, Metamodel, Multi-View.

Abstract:

Machine Learning systems provide different challenges for their development. However, machine learning

systems also require speciﬁc attention toward traditional aspects of software engineering. This situation often

leads developers to use different models to cover different views that need to be handled during machine

learning system development which often leads to conﬂicting information between models. In this research,

we developed a multi-view modeling framework for machine learning system development by utilizing a

metamodel as its backbone for consistency. We have conducted a case study and controlled experiment to

evaluate the framework. In conclusion, our framework does help manage the consistency between different

views but relies heavily on the quality of available support tools.

1 INTRODUCTION

Machine learning (ML) systems face unique chal-

lenges towards achieving reliability (Husen et al.,

2021). ML functionalities work in a probabilistic

manner, leading to an unpredictable nature (Vogel-

sang and Borg, 2019). Functionalities are based on

the characteristics of data used for training the de-

ployed ML models. Ensuring data correctness re-

quires a more analytical approach than traditional

software functionalities, which are based on the de-

veloped source code. Furthermore, constant monitor-

ing is necessary to detect whether the data become

outdated or out of sync with actual conditions. Such

a situation is known as data drift.

ML systems also encompass traditional aspects of

software engineering (National Institute of Advanced

Industrial Science and Technology, 2022). The ne-

cessity of functionalities towards achieving business

goals is important for success. Communication of the

ML models as part of a complex software architecture

is also a concern. ML systems must not only commu-

nicate with other ML models but also with traditional

software components.

This condition drives system developers to utilize

multiple models to analyze different views of the ML

system (Yoshioka et al., 2021). Due to the experimen-

tal nature of ML training, canvas-based models such

as ML Canvas are often used for rapid brainstorming

of the aspect of ML components, including data col-

lection and the expected model performance (Thi

ee,

2021). However, such a canvas does not cover the

relationship between the functionalities and the busi-

ness goal or more speciﬁc analyses such as the safety

of ML models when deployed in safety-critical sys-

tems.

Deploying different analysis models may lead to

issues with consistency (Husen et al., 2022). Infor-

mation may be misinterpreted between models, es-

pecially when the models are created independently.

Because inconsistencies cause problems when moni-

toring detects data drift, they must be handled but the

urgency of retraining ML models may not be captured

as information about related business goals or safety

concerns. Hence, inconsistencies may not be under-

stood.

In this paper, we propose an integrated approach

to handle consistencies of different views of ML sys-

tem analysis named Multi-View Modeling Frame-

work for ML Systems (M

S). M

S facilitates system-

atic analysis of different views of ML systems from

higher business-level goals to lower ML training con-

cerns. The analysis consists of several steps and uses

different models guided by a metamodel to identify

194

Husen, J., Washizaki, H., Yoshioka, N., Tun, H., Fukazawa, Y. and Takeuchi, H.

Metamodel-Based Multi-View Modeling Framework for Machine Learning Systems.

DOI: 10.5220/0011699600003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 194-201

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

related elements. To evaluate the capability of M

we deﬁne the following research questions:

• RQ1. Can a metamodel guide the traceability be-

tween elements from different models in the M

framework?

• RQ2. Can a metamodel show the traceability links

in models developed using the M

S framework?

• RQ3. How usable are the traceability links in

models developed using the M

S framework for

detecting inconsistencies?

• RQ4. How usable are the traceability links in

models developed using the M

S framework for

rationalizing inconsistencies?

We conducted a case study to answer RQ1 and

RQ2. The case study implemented M

S to evaluate

an autonomous driving vehicle. We also conducted

a controlled experiment to compare identiﬁed incon-

sistencies using M

S with natural language speciﬁca-

tions to answer RQ3 and RQ4.

This research provides a new approach that in-

tegrates canvas-based analysis with more traditional

analysis techniques for machine learning. We also

present a more in-depth understanding of how differ-

ent views of ML systems interact.

The rest of this paper is constructed as follows.

Section 2 explains the background, including our mo-

tivation and related works. Section 3 describes the

S in detail from the utilized models, the metamodel

as a foundation, and the overall design process. Sec-

tion 4 presents the results of our case study and exper-

iment to answer the research questions. Finally, sec-

tion 5 concludes this paper and provides future works.

2 BACKGROUND

2.1 Motivating Example

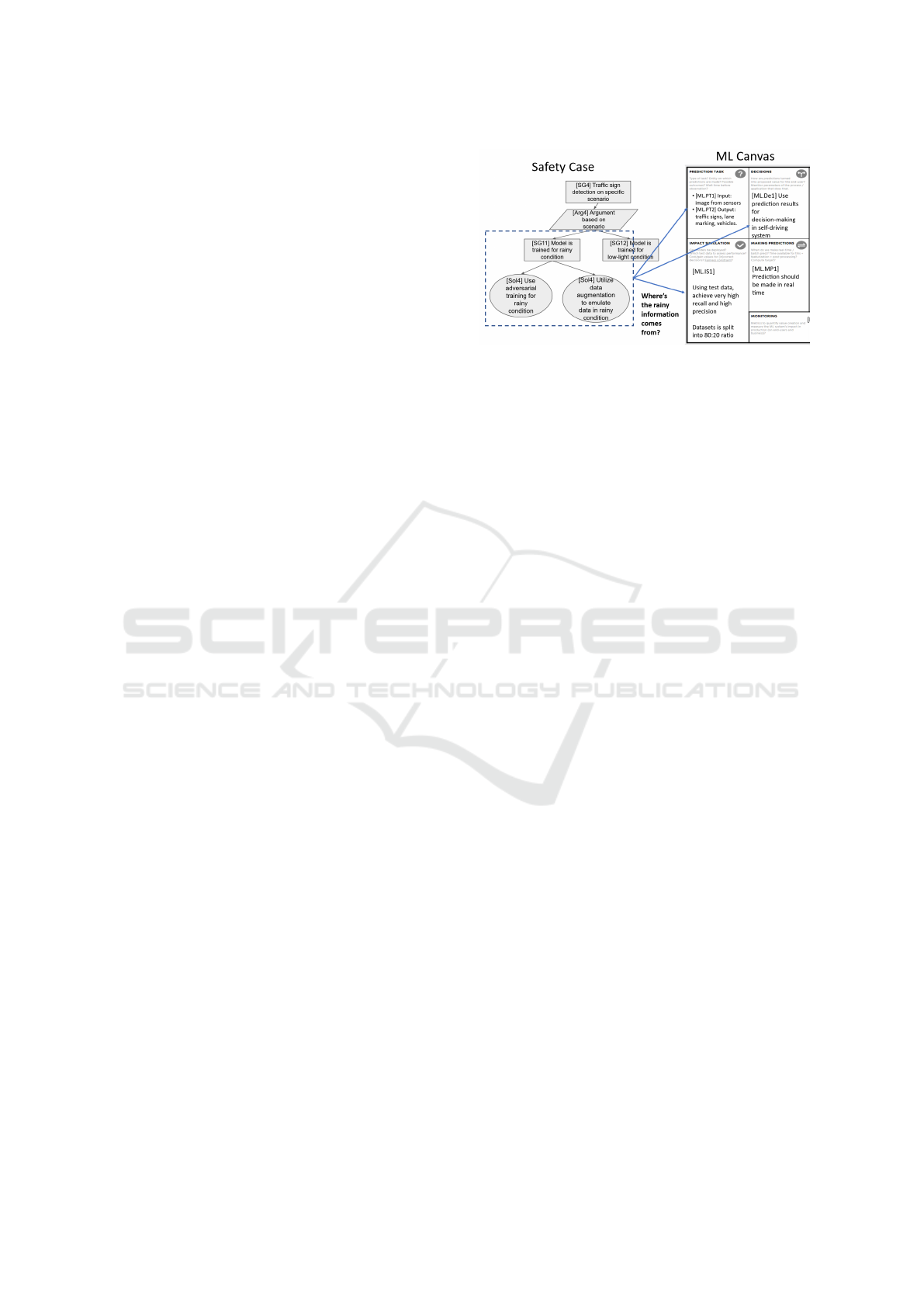

Figure 1 shows our motivating example for this re-

search, which includes a ML Canvas (Dorard, 2015)

and safety case analysis for a ML component for ob-

ject detection. The safety case facilitates safety anal-

ysis that is not covered in ML Canvas. Although both

models represent level 3 self-driving cars on a high-

way, they were developed separately by different peo-

ple during our pilot research. Inconsistencies between

the two models may have occurred due to differences

in understanding the scenarios included in the opera-

tional domain.

As described in the impact simulation section in

ML Canvas, the operational design domain (ODD)

expectation is described generally. However, the

Figure 1: Motivating Example.

safety requirements in safety case analysis speciﬁ-

cally describe the rainy condition as risky. Due to

the difference in information between the two related

models, the correctness of the information becomes

questionable as the risk assessment may or may not

include the rainy conditions. Such a situation may in-

duce problems because the deﬁnition of dataset qual-

ity relies on both elements. The difference between

these elements generates uncertainty in the prepared

datasets. Incorrect assumptions may result in unhan-

dled safety risks and accidents. Our framework aims

to eliminate the uncertainty caused by inconsistencies

inside the models.

2.2 Related Works

Several works have modeled a ML software system.

Chuprina et al. proposed an artefact-based approach

for modeling requirements of ML software (Chup-

rina et al., 2021). Their goal was to bridge the con-

ceptual and application layer of ML systems, which

is similar to ours. Nalchigar et al. proposed a

modeling framework for ML software requirements.

Their approach used three perspectives: business, an-

alytics design, and data preparation (Nalchigar and

Yu, 2018). Ishikawa and Matsuno also proposed an

evidence-driven approach to model goals of a ML-

based system (Ishikawa and Matsuno, 2020).

Other works have investigated safety-critical ML

systems. Pereira and Thomas explained their ﬁnd-

ings on challenges in managing safety in ML systems

(Pereira and Thomas, 2020). They explained hazards,

which may arise due to inadequate deﬁnitions in re-

quirements engineering activities such as data, object

deﬁnition, and performance measures. Hawkins et al.

proposed an assurance framework for an autonomous

system named AMLAS (Hawkins et al., 2021).

In general, existing multi-view approaches for ML

systems do not emphasize safety concerns, whereas

existing safety approaches do not handle the con-

nection between safety concerns and higher-level re-

Metamodel-Based Multi-View Modeling Framework for Machine Learning Systems

195

Figure 2: Relation of models of M

S to ISO/IEC Guide 51.

quirements. M

S aims to facilitate safety analysis of

ML components while ensuring the connection be-

tween different aspects of development.

3 MULTI-VIEW MODELING FOR

MACHINE LEARNING SYSTEM

3.1 Views of M

To comprehensively understand a ML system, we de-

ﬁne ﬁve views for analysis: value, MLOps, goal, ar-

chitecture, and safety. All views are related to each

other and together construct a comprehensive view of

a reliable ML system.

Value is the center of all views. Value covers the

description of the expected contribution of the ML

system as a whole. It contains the deﬁnition of suc-

cess and motivation of the project. Value describes the

main business goal and the environment surrounding

the ML system development project.

The second view is goal. Goals are objectives that

must be completed for the project to provide the value

and be successful. They are derived from the main

business goal to describe the expected capabilities of

the ML system and its components. Capabilities in-

clude both functional and non-functional ones.

The third view is architecture. Architecture de-

scribes how the developed ML models run their ex-

pected functionalities inside the software system. It

explains how the ML models interact with other soft-

ware components, receive the required input, and pro-

vide outputs to be processed by other components.

The fourth view is MLOps. MLOps describes how

training and testing will develop ML models. It ana-

lyzes the needs of data for training and testing, the

functionalities necessary due to the training results,

and the expected performance of the ML models.

The ﬁnal view is safety. ML models require spe-

ciﬁc attention to safety due to their probabilistic na-

ture. Safety analyzes the safety risks and hazards re-

lated to the failure of ML systems and components. It

generates countermeasures to reduce risks and act as

an argumentation for the safety of the ML system.

3.2 Models of M

S is developed in compliance with ISO/IEC Guide

51. The selection for each view facilitates the view

and the necessary process of ISO/IEC Guide 51. Fig-

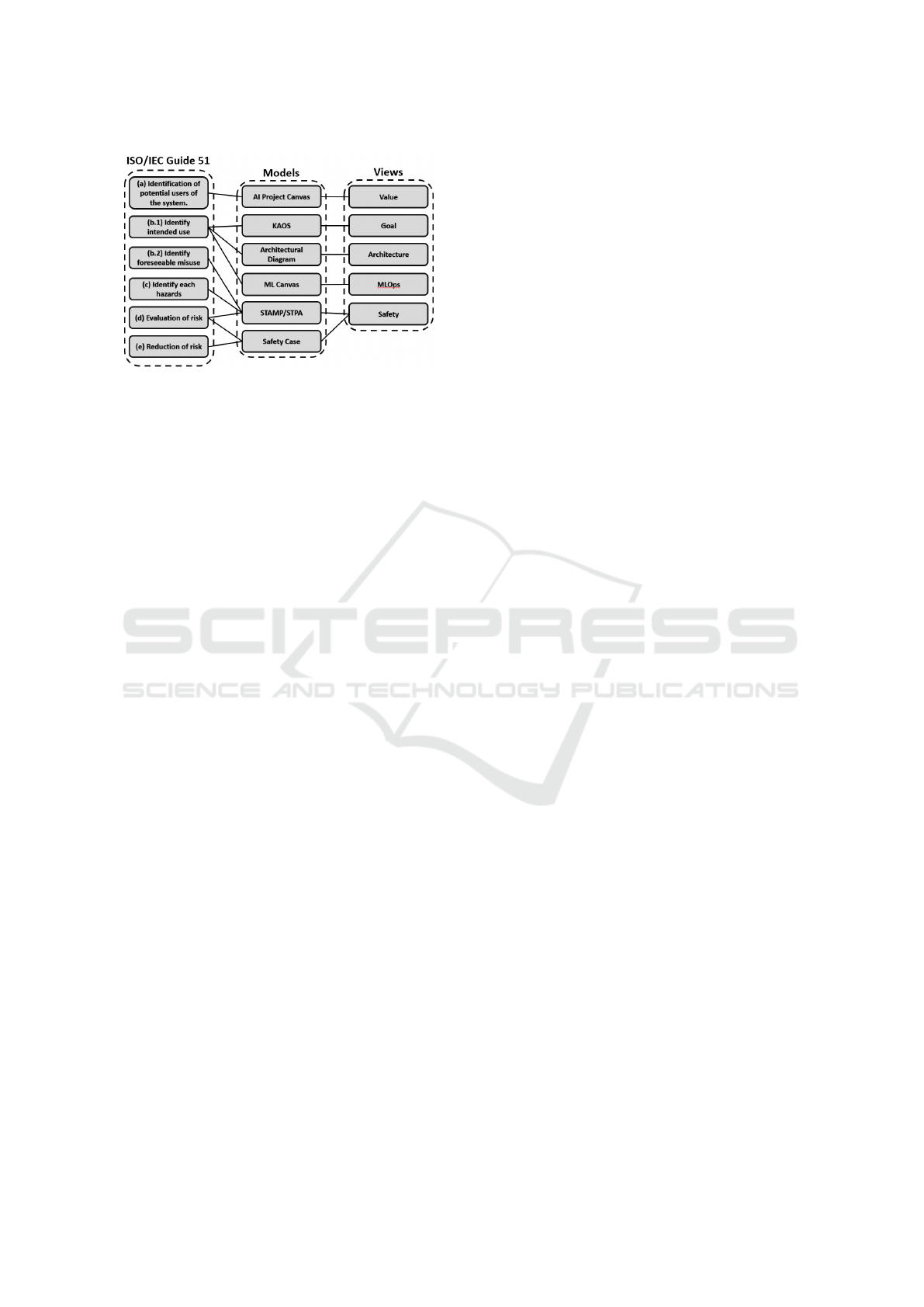

ure 2 summarizes how the utilized models in M

bridge the view and process of ISO/IEC Guide 51.

The process of ISO/IEC Guide 51 itself is deﬁned as

follows:

• a. Identify potential users of the system, including

vulnerable users and others affected by the sys-

tem;

• b. Identify the intended use of the system;

• c. Identify potential misuse of the system;

• d. Identify hazards that arise during different

stages of usage;

• e. Estimate and evaluate risks to affected parties

caused by each hazard;

• f. Minimize each intolerable risk.

To analyze the value, M

S uses the AI Project

Canvas as its model. The AI Project Canvas ana-

lyzes the requirements speciﬁc to the AI development

project. It provides a platform to identify the main

value provided by the ML system to the customer, the

required skills of the development team to complete

the project, and the project’s revenue stream. The

stakeholder and customer elements of the AI Project

Canvas deﬁne the potential user and vulnerable par-

ties during operations of the ML system.

Goal view utilizes KAOS goal modeling to di-

vide the main value in the AI Project Canvas into

smaller goals. The top-down approach of KAOS goal

modeling derives achievable sub-goals from the busi-

ness objectives by the capabilities of the ML com-

ponents (Zickert, ). The sub-goals describe the in-

formation needed to identify the system’s intended

use in ISO/IEC Guide 51. Additionally, the KAOS

goal modeling approach is deployed into the uncertain

condition of the ML system (Ishikawa and Matsuno,

2020).

Architecture view employs an architecture dia-

gram to map the interaction between ML models and

other software components. The architecture diagram

describes how data is transformed and transferred be-

tween the different components inside the ML system.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

196

Figure 3: The M

S process.

Information about the architectural design identiﬁes

potential hazards caused by a failure in the communi-

cation ﬂow, which will be identiﬁed in STAMP/STPA

later. In M

S, the architecture is modeled in a SysML

block diagram.

The ML Canvas deﬁnes the requirements from the

MLOps view and describes the desired functionality

and performance (Dorard, 2015). It also expresses the

data source, the collection process, the scheduled re-

training, and the redeployment frequency. The deﬁni-

tion of data quality is the basis for deﬁning solutions

in safety case analysis. ML Canvas is used for each

ML component in the ML system.

The safety view utilizes two models with different

philosophies. STAMP/STPA conducts a safety analy-

sis from the perspective of the interaction between the

system and its components to identify possible misuse

at both the system and component levels (Leveson,

2012). Then a safety case analyzes safety concerns in

a more top-down manner to ﬁnd the root cause of ML

inadequacies in the training process (Hawkins et al.,

2021). Both models understand, evaluate, and counter

potential risks in ML systems and components.

3.3 Process of M

S has two main objectives. The ﬁrst facilitates con-

sistent analysis of different ML system development

views. This objective mainly works as a prescriptive

description of ML system requirements. The second

efﬁciently identiﬁes the impact of drifts in ML oper-

ations. This identiﬁcation is achieved by traceabil-

ity between the monitoring results and the related re-

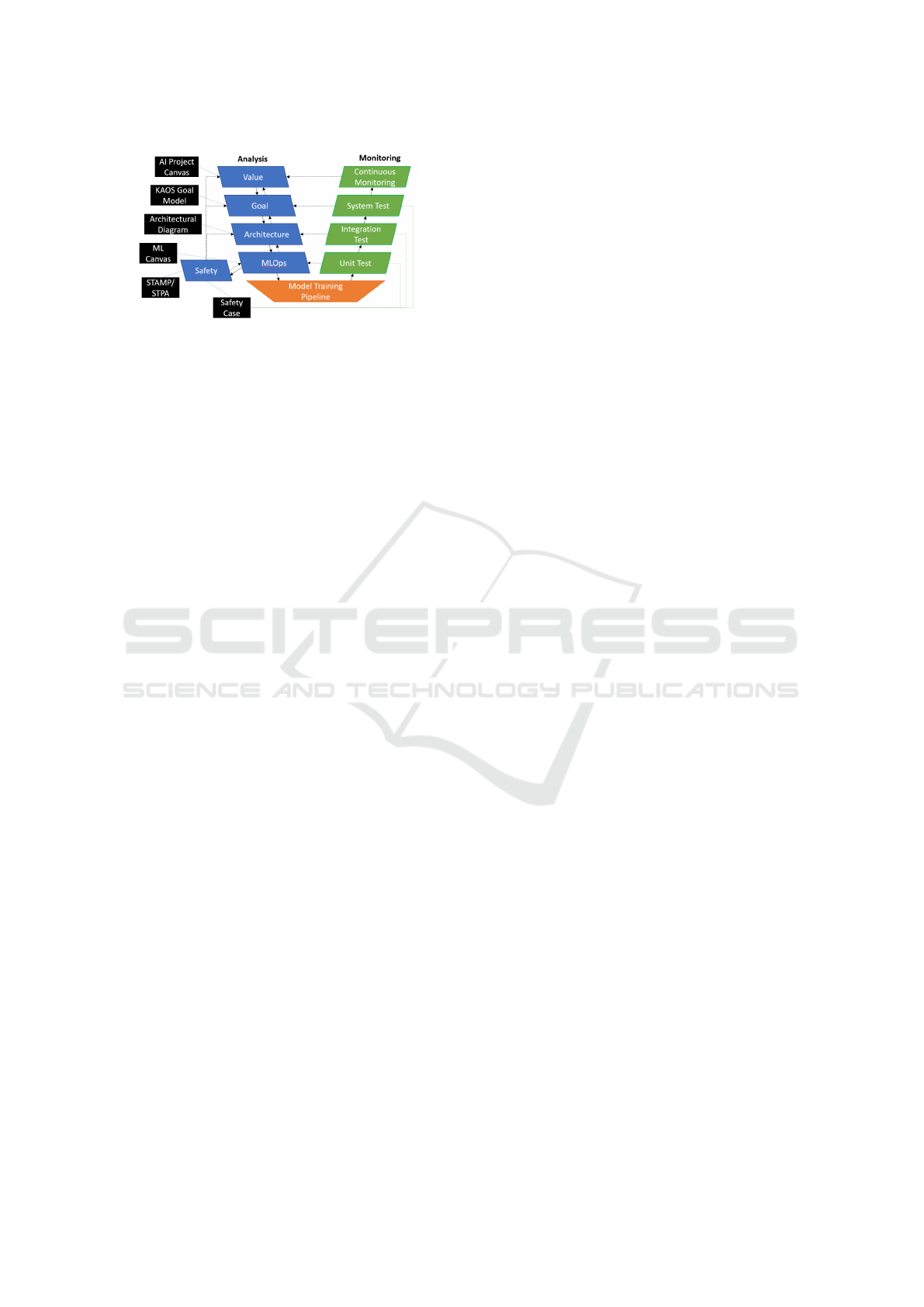

quirements. Figure 3 summarizes the M

S process.

The objectives drive the process design. The pro-

cess consists of two main phases: the analysis phase

and the monitoring phase, which target the ﬁrst and

second phases, respectively. The training phase is an-

other phase where model training is executed using a

ML training pipeline developed according to the anal-

ysis phase results. The process is iterative. The moni-

toring phase results re-trigger the analysis phase. The

analysis phase leads to the execution of the training

phase. Finally, the training phase returns to the moni-

toring phase.

The analysis phase is conducted in a top-down

manner. It begins from the value view. Then the

value is divided into smaller achievable objectives in

the goal view. Each capability is then assigned to

the components in the view of architecture. Next,

the development of ML components is deﬁned in the

MLOps view. The safety risks and countermeasures

are speciﬁed in the safety view. For each view analy-

sis, changes due to the analysis of the preceding views

may occur to incorporate new ﬁndings such as imple-

menting countermeasures in the safety view to the ar-

chitectural design or expected ML performance.

The monitoring phase consists of four layers.

Each layer is related to different views that must be

reevaluated in case of failure. The lowest layer is the

unit test result monitoring, which is related to the ML

performance described in the MLOps view and the

ML component capabilities in the goal view. Integra-

tion result monitoring is conducted after the unit test

is passed successfully. This layer monitors successful

integration, which is related to the design decision in

the architectural view. The capabilities of successful

integration are monitored in the system testing layer.

Success in this layer is related to the capabilities in the

goal view and countermeasures in the safety view. Fi-

nally, continuous monitoring is conducted for the ML

system. Any changes in the success rate of achiev-

ing the value during the operation triggers reanalyzing

and retraining of the ML model.

3.4 Metamodel of M

S provides a metamodel to deﬁne the relation of

elements from different models utilized by each view.

The metadata modeling process generates the meta-

model. The generated metamodel provides an inte-

grated view of all M

S models. Figure 4 shows an in-

tegrated M

S model implemented in a safety-critical

system.

The metamodel is constructed and evaluated it-

eratively. The construction begins with metamodel-

ing the concept behind each utilized model. Then

the team evaluates the correctness of each metamodel.

Afterward, each metamodel integrates elements from

different models with similar concepts and either

merges them into a single concept or connects them

using four types of mapping: ”same”, ”similarity”,

”aggregation”, and ”contribution” (El Hamlaoui et al.,

2018). Construction and evaluation of the metamod-

els are conducted internally by the authors. External

parties then evaluated all results that passed the in-

Metamodel-Based Multi-View Modeling Framework for Machine Learning Systems

197

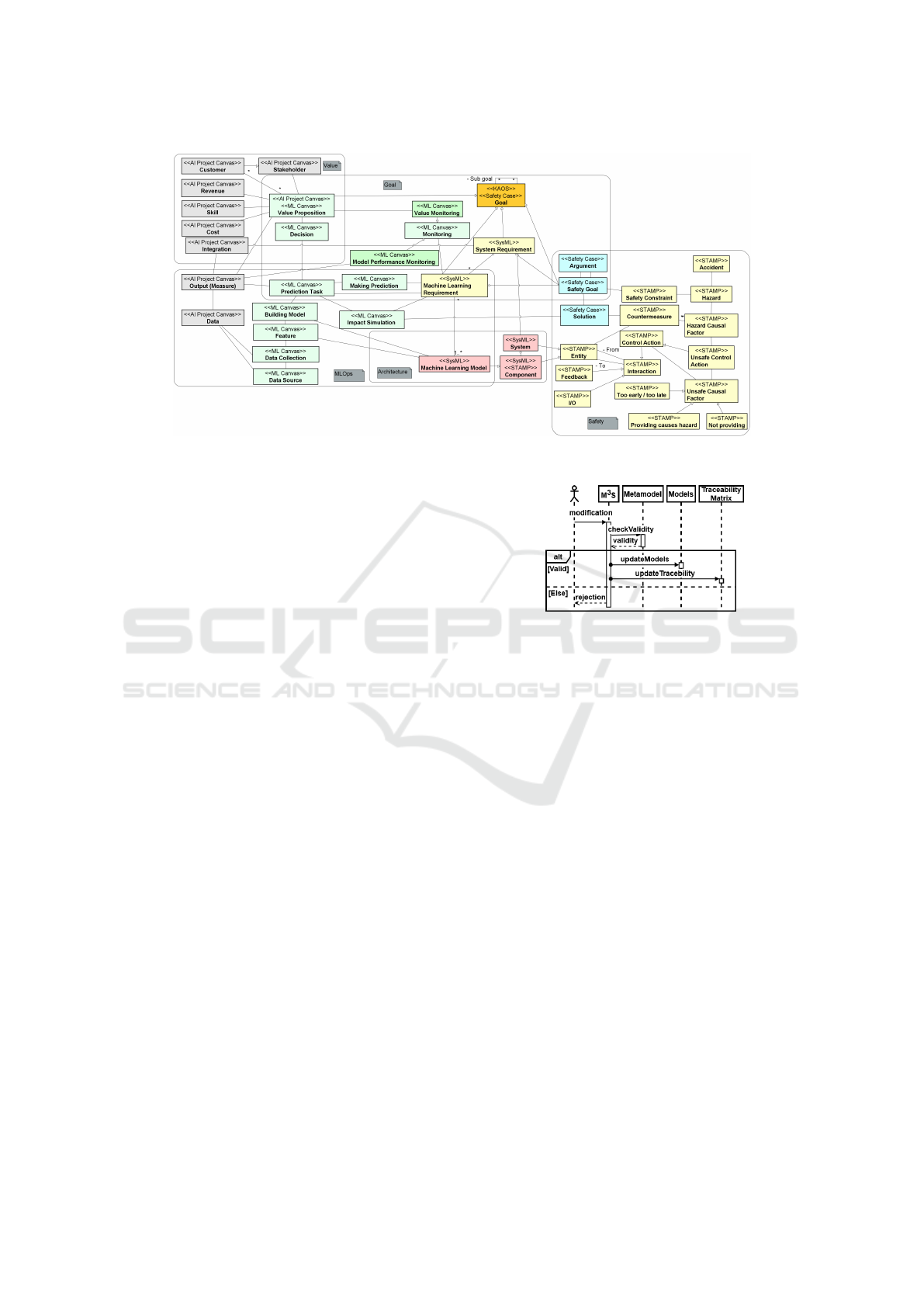

Figure 4: Integrated metamodel of M

ternal evaluation. Revisions are made based on com-

ments on the external evaluation.

Table 1 shows an example of the results from con-

cept mapping. The metamodel merges elements with

the same concept such as value propositions from AI

Project Canvas and ML Canvas into a single con-

cept. The concept of goal from KAOS goal mod-

eling is the most connected to other models due to

its similarity with safety goals from the Safety Case,

value propositions from the AI Project Canvas, and

value propositions from ML Canvas. Solutions from

safety case are contributing to the countermeasures

from STAMP/STPA.

3.5 Traceability Links

The main feature of the framework is the traceabil-

ity between information contained in elements from

different models. Figure 5 summarizes this process.

Traceability information is stored in a traceability ma-

trix, which consists of data describing the type of re-

lationship for each one-to-one pairing of all elements

from all models inside the M

S model. Information

stored in the traceability matrix can be used for differ-

ent purposes such as changing the impact simulation

or consistency checking between different models.

The M

S framework is a gateway to validate

model modiﬁcations. Validation is conducted for ev-

ery modiﬁcation towards models inside M

S based on

conformance with relationships deﬁned in the meta-

model, leading to acceptance or rejection. For every

accepted modiﬁcation, traceability links are updated

to ensure information on existing links is updated. In

contrast, the framework rejects invalid modiﬁcations.

Figure 5: Flow of treaceability links management.

3.6 Consistency Checking

Our framework covers which elements should be con-

nected to manage the traceability as this information

can deﬁne the consistency that must exist between

them. Some elements act as the basis to generate other

elements, while others are copied to elements in other

models. Consistency between safety and functional

requirements is essential to ensure software systems’

safety. For ML intensive systems, the need for con-

sistency arises due to highly unpredictable conditions

of the quality of utilized datasets and the operation

domains. Although changes occur to adapt to uncer-

tainty, some result in ad-hoc alterations of the ML

system capabilities, which may cause safety risks

while operating. The framework evaluates the con-

sistency after such changes and determines whether

another adaptation to the requirements is necessary.

3.7 Support Tool

We partially developed a tool to support the model-

ing process of M

S. The tool facilitates navigation

of the traceability between related elements on dif-

ferent models. As a basis, we used the astah* Sys-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

198

Table 1: Examples of concept mapping for metamodel construction.

Source Element Source Model Destination Element Destination Model Mapping

Result

Value Proposition AI Project Canvas Value Proposition ML Canvas Same

Value Proposition AI Project Canvas Goal KAOS Goal Model Similar

Safety Goal Safety Case Goal KAOS Goal Model Similar

Component SysML Entity STPA Similar

Solution Safety Case Countermeasure STPA Contribution

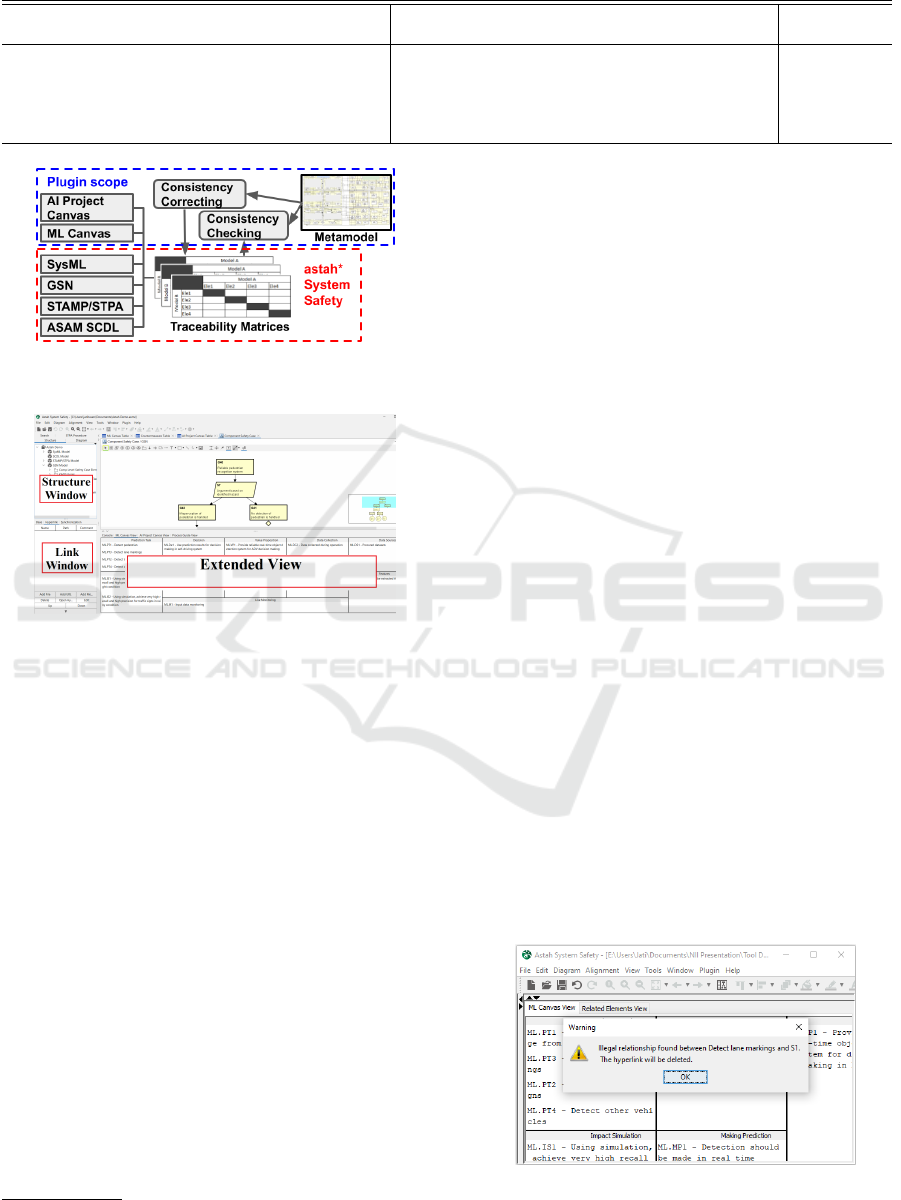

Figure 6: Overview of extended functionalities of astah*

System Safety.

Figure 7: Overview of M

S Support Tool.

tem Safety

modeling tool. The astah* System Safety

provides modeling support for SysML, which can be

used for architectural diagrams, Goal Structuring No-

tion (GSN) for KAOS and Safety Case Analysis, and

STAMP/STPA. Links between different models are

also facilitated partially between SysML and GSN.

We extend these basic functionalities as a plugin to

transform the astah* System Safety to ﬁt the M

framework. Figure 6 depicts the overall concept to

extend the functionality of the astah* System Safety,

while Fig. 7 shows our implementation.

We implemented support for the ML and AI

Project Canvas using the extended view support of the

astah* System Safety. The data is an extension of the

existing SysML requirement element to ensure that

existing features of astah* System Safety also work in

the ML and AI Project Canvas elements. We also im-

plemented simple consistency checking as a blocker

when users tried to add an incorrect connection be-

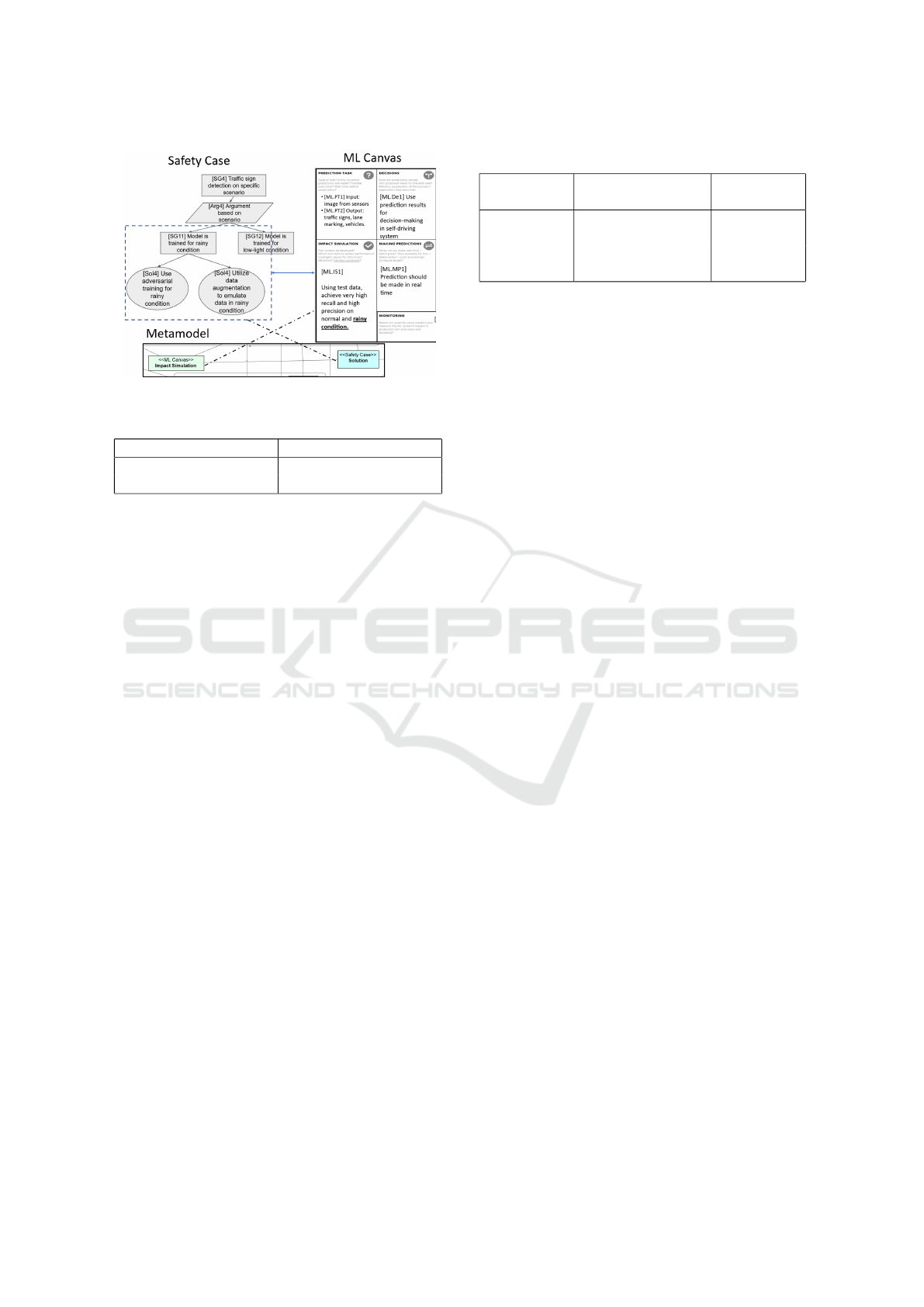

tween elements. Figure 8 shows a snapshot of consis-

tency checking between an ML model and safety case

elements. Further development and evaluation for the

tool will facilitate connection types of the links, load-

https://astah.net/products/astah-system-safety/

ing and editing metamodel information,and recom-

mendation of possible links of an element based on

a metamodel.

4 EVALUATION

4.1 Case Study

To answer RQ1, a case study assessed whether the

framework works as intended when implemented in a

real-world case of sign detection necessary for an au-

tonomous driving vehicle (ADV). Because a reliable

source is necessary to describe ADV operation con-

ditions to design the proper case, we employed the

Japan Automobile Manufacturers Association Auto-

mated Driving Safety Evaluation Framework to gen-

erate the driving conditions for previously described

environmental conditions (Japan Automobile Manu-

facturers Association, 2021). The case is limited to a

highway setting for three environmental conditions:

day, night, and rain. Additionally, we limited the

ADV operation to lane-keeping maneuvers.

Figure 9 shows the M

S version of the motivat-

ing example generated during the case study. Com-

paring it with the metamodel shows that the impact

simulation on ML Canvas is associated with the solu-

tion for the safety case. We can deduce that the pro-

cess revises existing models based on the result of the

safety analysis because the safety case is developed

with more information. Hence, the impact analysis

can be updated to follow the solution shown in Fig.

Figure 8: Example of consistency checking for ML model

elements in the tool prototype.

Metamodel-Based Multi-View Modeling Framework for Machine Learning Systems

199

Figure 9: Snippet of Case Study.

Table 2: Number of inconsistencies found by both groups.

Group Inconsistencies Found

Experiment Group 9

Control Group 12

4.2 Controlled Experiment

To answer RQ2, an experiment evaluated the frame-

work’s usability to detect inconsistencies between dif-

ferent models. In this experiment, the participants

were tasked to ﬁnd inconsistencies between models

developed by our frameworks and explain the ratio-

nale for marking elements as inconsistent. This ex-

periment demonstrates whether the participants can

ﬁnd inconsistencies systematically. Another team of

participants was given the same task except that they

used the model to ﬁnd inconsistencies in natural lan-

guage speciﬁcations on exact requirements. The ex-

periment was conducted without the support tool to

level the capabilities of both groups in moving be-

tween models or speciﬁcations.

Six participants were divided equally into the ex-

perimental and control groups. Both groups were

briefed on the task. Then each group was assigned

a narrator, who explained the models or speciﬁca-

tions they needed to work on. Each member of the

group wrote down all identiﬁed inconsistencies. Af-

terwards, members discussed their ﬁndings to gen-

erate a list of inconsistencies that the group agreed

upon.

Table 2 shows the number of inconsistencies

found by groups and the distribution of types of con-

sistencies. Based only on the number of consisten-

cies, the control group found signiﬁcantly more in-

consistencies than the experiment group. Thus, the

control group was more successful in this task than

the experimental group.

Table 3 summarizes the distribution of the ratio-

nales behind the inconsistencies. The control group

Table 3: Distribution of rationale used per group.

Group Model Inconsis-

tencies

Experience

& Intuition

Experiment

Group

75% 25%

Control

Group

0% 100%

identiﬁed inconsistencies based solely on experience

and intuition rather than comparing different speciﬁ-

cations. In contrast, the experiment group found in-

consistencies mostly by comparing elements between

models as only 25% of their ﬁndings were made using

intuition and experience. The difference between the

two groups is extreme.

4.3 Answers to Research Questions

For RQ1, the metamodel is an effective tool to guide

traceability. The case study showed that following

the relationship realizes a more systematic approach

to generate each element. Following the metamodel

allows the usage of existing elements to act as a basis

for deciding the content of elements on other models.

For RQ2, some support for expressing the links

based on the metamodel may be needed. Although

connections between elements can be made by com-

paring the elements with the metamodel, the process

is not intuitive and can be time consuming. Employ-

ing a tool, which represents the link in the metamodel

in an effective manner, should facilitate efﬁcient us-

age of the framework.

For RQ3, the current state of the M

S framework

is inadequate in terms of ease of detecting incon-

sistencies. The experiment revealed that the control

group found 50% more inconsistencies than the ex-

perimental group. The experimental group had issues

navigating and processing the information. This ﬁnd-

ing suggests that a support tool is necessary to facili-

tate the use of this framework.

For RQ4, the enormous difference between the ra-

tionales indicates the answer. The experiment group

paid more attention to the connection of information

inside different elements. In contrast, the control

group showed an unwanted ignorance toward the dif-

ferences between requirements. These results suggest

that the M

S framework facilitates a systematic ap-

proach to ensuring consistency.

4.4 Threat to Validity

There are several threats to the validity. First, the

study involved a small number of participants because

the experiment focused on practitioners as the frame-

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

200

work’s users. Hence, those without prior experience

in developing ML could not be included. Second,

each participant had differing abilities as well as fa-

miliarity with models, speciﬁcations, and general ML

development. We tried to minimize this threat by se-

lecting participants with similar expertise and experi-

ence. Additionally, we randomized the groups to min-

imize the threat.

5 CONCLUSION AND FUTURE

WORKS

This paper proposes and evaluates the Multi-View

Modeling for ML System (M

S) framework. The

case study and experiment revealed several vital ﬁnd-

ings. On the positive side, the framework facilitates

the traceable multi-view approach to analyze safety-

critical ML systems. However, efﬁcient utilization of

the framework requires a support tool for decision-

making of the solutions.

In the future, we plan to explore several different

directions. We will continue developing and evaluat-

ing the support tool. We want to explore the possibil-

ity of creating a guide by extracting existing solutions

into a catalog and extend the framework’s traceability

into the ML model’s training pipeline.

ACKNOWLEDGEMENTS

This work was supported by JST-Mirai Program grant

Number JPMJMI20B8, JST SPRING grant Number

JPMJSP2128, JSPS JPJSBP 120209936, and JSPS

KAKENHI 21KK0179.

REFERENCES

Chuprina, T., M

endez, D., and Wnuk, K. (2021). To-

wards artefact-based requirements engineering for

data-centric systems. In Joint Proceedings of REFSQ

2021 Workshops, OpenRE, Poster and Tools Track,

and Doctoral Symposium co-located with the 27th

International Conference on Requirements Engineer-

ing: Foundation for Software Quality (REFSQ 2021),

Essen, Germany, April 12, 2021, volume 2857.

CEUR-WS.org.

Dorard, L. (2015). Machine learning canvas.

El Hamlaoui, M., Bennani, S., Nassar, M., Ebersold, S.,

and Coulette, B. (2018). A mde approach for hetero-

geneous models consistency. In Proceedings of the

13th International Conference on Evaluation of Novel

Approaches to Software Engineering, ENASE 2018,

page 180–191, Setubal, PRT. SCITEPRESS - Science

and Technology Publications, Lda.

Hawkins, R., Paterson, C., Picardi, C., Jia, Y., Calinescu,

R., and Habli, I. (2021). Guidance on the assurance

of machine learning in autonomous systems (amlas).

CoRR, abs/2102.01564.

Husen, J. H., Tun, H., Yoshioka, N., Washizaki, H.,

and Fukazawa, Y. (2021). Goal-oriented machine

learning-based component development process. In

2021 ACM/IEEE International Conference on Model

Driven Engineering Languages and Systems Compan-

ion (MODELS-C), pages 643–644. IEEE Computer

Society.

Husen, J. H., Washizaki, H., Tun, H., Yoshioka, N.,

Fukazawa, Y., and Takeuchi, H. (2022). Trace-

able business-to-safety analysis framework for safety-

critical machine learning systems. In 2022 IEEE/ACM

1st International Conference on AI Engineering –

Software Engineering for AI (CAIN), pages 50–51.

IEEE Computer Society.

Ishikawa, F. and Matsuno, Y. (2020). Evidence-driven

requirements engineering for uncertainty of machine

learning-based systems. In 2020 IEEE 28th Inter-

national Requirements Engineering Conference (RE),

pages 346–351. IEEE Computer Society.

Japan Automobile Manufacturers Association, I. (2021).

Automated driving safety evaluation framework ver

2.0. Technical report.

Leveson, N. G. (2012). Engineering a Safer World: Systems

Thinking Applied to Safety. The MIT Press.

Nalchigar, S. and Yu, E. (2018). Business-driven data an-

alytics: A conceptual modeling framework. Data &

Knowledge Engineering, 117:359–372.

National Institute of Advanced Industrial Science and Tech-

nology (2022). Machine learning quality manage-

ment guideline, 2nd english edition. Technical report,

Digital Architecture Research Center / Cyber Physi-

cal Security Research Center / Artiﬁcial Intelligence

Research Center, Digiarc-TR-2022-01 / CPSEC-TR-

2022002.

Pereira, A. and Thomas, C. (2020). Challenges of machine

learning applied to safety-critical cyber-physical sys-

tems. Machine Learning and Knowledge Extraction,

2(4):579–602.

Thi

ee, L.-W. (2021). A systematic literature review of

machine learning canvases. In INFORMATIK 2021,

pages 1221–1235. Gesellschaft f

ur Informatik, Bonn.

Vogelsang, A. and Borg, M. (2019). Requirements engi-

neering for machine learning: Perspectives from data

scientists. In 2019 IEEE 27th International Require-

ments Engineering Conference Workshops (REW),

pages 245–251.

Yoshioka, N., Husen, J. H., Tun, H., Chen, Z., Washizaki,

H., and Fukazawa, Y. (2021). Landscape of require-

ments engineering for machine learning-based ai sys-

tems. In 2021 28th Asia-Paciﬁc Software Engineering

Conference Workshops (APSEC Workshops), pages 5–

8. IEEE Computer Society.

Zickert, F. Evaluation of the goal-oriented requirements

engineering method kaos recommended citation eval-

uation of the goal-oriented requirements engineering

method kaos. In AMCIS 2010 Proceedings.

Metamodel-Based Multi-View Modeling Framework for Machine Learning Systems

201
