Deep Analysis and Detection of Firewall Anomalies
Using Knowledge Graph
Abdelrahman Osman Elfaki
a
and Amer Aljaedi
b
College of Computing and Information Technology, University of Tabuk, Tabuk 71491, Saudi Arabia
Keywords: Firewall Anomalies, Firewall Rules, Network Policies, Knowledge Graph.
Abstract: Implementing firewall policy with defining firewall rules is a cumulative process that could take place in
different periods and depend on the network conditions, which makes it prone to errors and difficult to validate
without effective tools. Such tools should be carefully designed to capture and spot firewall configuration
errors and anomalies. The solution in this paper consists of four steps, which are: formalizing the firewall
rules by using FOL, defining the general form of the anomaly, collecting all active destinations’ IP addresses
and port numbers in updated lists, and applying the proposed FOL rules for detecting firewall anomalies. The
general form has been represented by using knowledge graph for supporting visualization aiming to detect
firewall anomalies by extracting knowledge from the knowledge graph and its formalization rules. The
proposed method is efficient and capable of discovering all types of firewall anomalies.
1 INTRODUCTION
Nowadays, many daily activities depend on the
internet services, such as online shopping, learning,
or entertainment. Some of these activities are
sensitive and require the deployment of security
measures. Firewall is a cornerstone in internet
security as it is can be defined as a network security
system that controls and monitors incoming and
outgoing network traffic based on a predetermined
security set of rules (Boudriga, 2017). This set of
rules has been commonly declared as firewall rules or
filtering rules in the literature. In this paper, we will
use these two interchangeable names to refer to the
set of firewall rules.
According to the research work in (Chao, 2018),
filtering rules in firewalls could reach hundreds or
even thousands of rules. Hence, it is impossible to
ensure the correctness and efficiency of these rules
without automated tools. Such automated tools
should validate the set of filtering rules and assist in
the optimization process. According to (Voronkov et
al., 2018) setting up a firewall is a complicated
process and an error-prone task. As facts, the legacy
firewall rules might be designed and implemented by
different administrators (Hu et al., 2012). In addition,
a
https://orcid.org/0000-0002-8881-0504
b
https://orcid.org/0000-0003-4099-5025
the firewall policies might be maintained in the
network by more than one administrator. These facts
explicate the complicated nature of managing firewall
policies and their implementation. In practice, the
network may face security issues due to firewall
configuration errors. In literature, these configuration
errors in firewall rules have been collectively
described as firewall anomalies. The prominent
firewall anomalies that have been discussed in
literature are shadowing, redundancy, correlation,
generalization, and irrelevant (Abbes et al., 2016;
As-Suhbani & Khamitkar, 2017; Ahmed & Askari,
2018; Kim et al., 2021). In the following, we discuss
each anomaly case in the firewall rule context.
Shadowing anomaly rule can be identified as a
preceding rule (i.e., superior rule by its order in the
set) that matches all the networking traffic packets
which also could match other subsequent rules in the
set. Hence, such the subsequent rules will never be
counted since they are shadowed by the preceding
rule that its matching fields cover a larger range of
addresses. In the following, fr denotes a firewall rule.
A rule fr
2
is shadowed by rule fr
1
if fr
2
follows fr
1
, and
the fr
2
matching fields are subsets of the
corresponding fields in fr
1
while the actions of fr
1
and
fr
2
are different. Table 1 illustrates an instance of the
Elfaki, A. and Aljaedi, A.
Deep Analysis and Detection of Firewall Anomalies Using Knowledge Graph.
DOI: 10.5220/0011704900003411
In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 411-417
ISBN: 978-989-758-626-2; ISSN: 2184-4313
Copyright
c
 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
411

shadowing anomaly. On the other hand, if the actions
of fr
1
and fr
2
are same, then this case represents
redundancy in the firewall rule set.
Table 1: An instance of shadowing anomaly.
Index Proto. Src-IP Src-Port Dst-IP Dst-Port Action
I
1
TCP 10.0.0.0/2
8
* 20.0.0.0/28 22
Deny
I
2
TCP 10.0.0.5 * 20.0.0.3 22
Allow
According to Karafili et al. (2020), correlation
anomaly is defined as two firewall rules with opposite
action conditions, but they can match some packets of
each other. Table 2 illustrates an instance of
correlation anomaly. In case the packet fields are
(TCP,10.0.0.5,*,20.0.0.3, 22), the action of fr
1
will drop the network packet, as it is matched first
with fr
1
before it can reach fr
2
, which forwards it.
Therefore, the result of correlation anomaly could
cause conflicting actions on the network packets.
Table 2: An instance of correlation anomaly.
Index Proto. Src-IP Src-Port Dst-IP Dst-Port Action
I
1
TCP 10.0.0.0/28 * 20.0.0.3 22
Deny
I
2
TCP 10.0.0.5 * 20.0.0.0/28 22
Allow
According to (Ahmed & Askari, 2018), the
generalization anomaly occurs when there are two
rules having contradictory decisions, and all the
packets matched by one of the rules are a subset of
the matched packets of the second rule. Table 3 shows
an instance of generalization anomaly. In case the
packet
(TCP,10.0.0.5, *,20.0.0.3, 22), the
action of fr
1
will drop the packet, whereas the action
of fr
2
would forward it. Note that the second rule is
generalization of the first rule, and if the order of the
rules is reversed, it will result in shadowing anomaly.
The generalization is considered merely warning,
especially when updating the firewall policy, as it is
used to make exceptions for the general rules.
Table 3: An instance of generalization anomaly.
Index Proto. Src-IP Src-Port Dst-IP Dst-Port Action
I
1
TCP 10.0.0.5 * 20.0.0.3 22
Deny
I
2
TCP 10.0.0.0/28 * 20.0.0.0/28 22
Allow
The last firewall anomaly is irrelevant anomaly.
According to (Ahmed & Askari, 2018), an irrelevant
firewall rule is a rule that would not match any
packets that traverse the firewall system. To the best
of our knowledge, we can summarize the irrelevant
firewall rules in the following two common cases: 1)
An erroneous entry of the IP addresses within the
firewall rule such as identical IPs for the source and
destination addresses, and 2) The firewall rule
contains irrelevant addresses according to the
network addressing scheme of the 5-tuple traffic flow
(i.e., non-existent destinations or services). For
instance, in the first rule of Table 4, the IP addresses
of the source and destination are identical. Hence, the
firewall rule fr
1
will not match any received packet.
Table 4: Instances of irrelevant anomaly.
Index Proto. Src-IP Src-Port Dst-IP Dst-Port Action
I
1
T
CP 10.0.0.5 * 10.0.0.5 22
allow
I
2
UDP 10.0.0.5 * 50.0.0.3 70
allow
The second rule fr
2
of Table 4 presents an instance
of irrelevant anomaly (case 2). The flow tuple (UDP,
50.0.0.3, 70)
would represent a non-existent
destination if there was no machine in the network
with that IP address
(50.0.0.3), or a non-existent
service if there was no application that is listening on
port 70, or both. Hence, the irrelevant rule will not
match any received packet since the destination, or
the service does not exist or has been removed from
the network.
Knowledge graph has been utilized in many
domains for knowledge representation and reasoning
(Elfaki et al., 2019). In this paper, the firewall
anomalies have been described by using knowledge
graph and predicate calculus. The knowledge graph
can assist in providing pictorial visualization for
network administrators while predicate calculus aims
to provide solution formalization.
2 RELATED WORK
Hu et al. (2012) have suggested a firewall policy
anomaly management framework, named as Firewall
Anomaly Management Environment (FAME). This
framework has been used for anomaly detection and
resolution. For anomaly detection, a rule-based
segmentation technique has been adopted, and for
conflict resolution, a risk level has been utilized as a
strategy. The risk level is defined based on Common
Vulnerability Scoring System (CVSS). The
implementation of FAME has been done based on
JavaBDD which has scalability issues.
Abbes et al. (2016) proposed Firewall Anomaly
Tree (FAT) as a representation technique for firewall
rules. The essential concept of their technique is the
drawing paths of the filtering rules in a tree, and hence
the common paths that reflect anomalies could be
detected. While it is obvious the paths that are taken
by individual rules, it is not clear how aggregate rules
ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods
412

could be illustrated in the graph. The work in (Von et
al., 2020) used Knowledge Graph to handle the
difficulties of extracting knowledge from multi-
source security logs. Also, the work in (Wang et al.,
2021) used Knowledge Graph application for
extracting knowledge from 15 social attack incidents
and scenarios. The results show how Knowledge
Graph is capable to define social engineering threat
elements and potential threats to victims. Wang et al.
(2021) developed Knowledge Graph for predicting
the possible attack path. They considered CVSS’s
quantitative indicators for a single vulnerability and
combine the network security evaluation method to
calculate the possible paths.
3 METHODOLOGY
In this section, we discuss the methodology that has
been adopted to develop our proposed method.
According to (Chao, 2018), the form of standard
firewall rule is
(<order><protocol><src_ip>
<src_port><dst_ip><dst_port><action>).
In our
proposed method, the firewall rule has been
represented by using First Order Logic (FOL). A
predicate named “rule” with eight parameters. In the
following, the syntax and semantic of this predicate
have been explained in detail.
Syntax: fr
( index, proto, scr_IP, src_port,
dst_IP, dst_port, action).
Semantic: fr denotes firewall rule, index denotes the
identifier for the rule (i.e., it can be used to prioritize
rules),
proto denotes the used networking protocol,
scr_IP denotes the source IP address, src_port
denotes source port of the machine,
dst_IP denotes
the destination IP address,
dst_port denotes the
destination port in the other end of the communication,
action denotes the instruction that will be taken when
the network packet matches the rule. Table 5 shows an
instance of standard firewall rule, which will be
represented in the proposed method as:
fr
(I,tcp,10.0.0.5, *,20.0.0.3, 22, allow).
3.1 Assumptions
The proposed method has two assumptions, which
are: a rule represents a single packet, and it uses IP
addresses and ports that are defined in updated lists.
In the following, the methodology has been discussed
in steps.
1) Symbolizing the firewall rules by using FOL;
2) Defining the general form of the anomaly;
3) Collecting all active IPs addresses and ports in
updated lists;

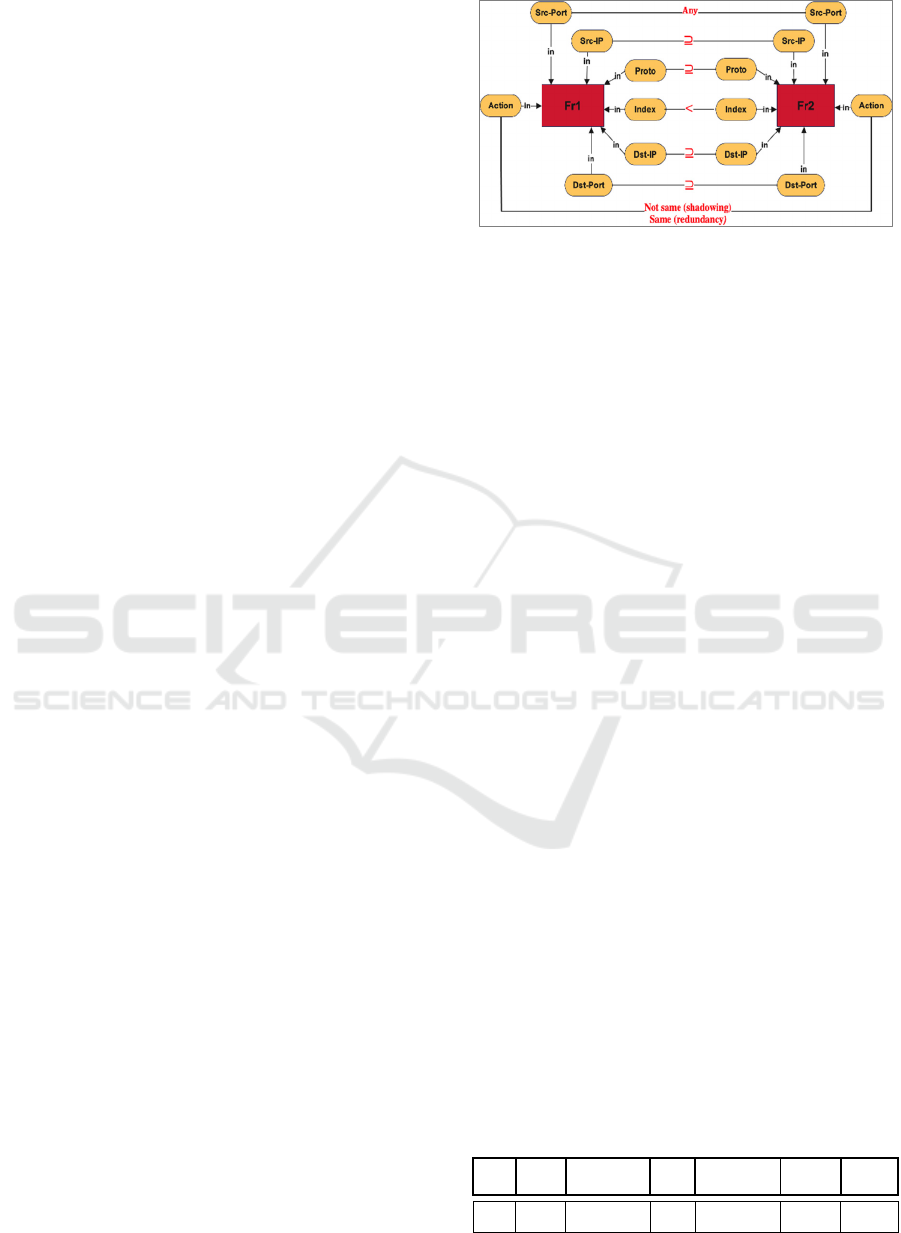

Figure 1: Knowledge graph depicts shadowing and
redundancy anomalies.
4) Appling the proposed FOL rules for detecting
firewall anomalies.
3.2 Validation Rules
Regarding aforementioned discussion, the firewall
anomalies could be summarized into four categories
as follows:
Shadowing ⟹

∀𝑙,
(
𝑓𝑟


⊇𝑓𝑟




∧𝑓𝑟


𝑓𝑟


 (1)
Redundancy ⟹

∀𝑙,
(
𝑓𝑟


⊇𝑓𝑟




∧𝑓𝑟


=𝑓𝑟


 (2)
Correlation ⟹

∃𝑙,
(
𝑓𝑟


⊇𝑓𝑟




∧

∃𝑙

,𝑓𝑟



⊆𝑓𝑟





∧𝑓𝑟


𝑓𝑟



(3)
Generalization ⟹

∀𝑙,
(
𝑓𝑟


⊆𝑓𝑟




∧𝑓𝑟


𝑓𝑟



(4)
Where fr is a firewall rule, a and b are orders of the
firewall rules such as a > b, while action is the
instruction of the firewall rule ∈ (allow, deny), which
is basically means forward the network packet or drop
it. The 𝑙 is the individual matching field of the
firewall rule such as source IP (
scr_IP ), destination
IP (
dst_IP ), source port ( src_port ), destination port
(
dst_port ), and the communication protocol ( proto ).
4 FIREWALL ANOMALIES
DETECTION
In this section, we present and discuss the first order
calculus predicates that are used to detect firewall
rules anomalies.
Table 5: An instance of standard firewall rule.
Index Proto. Src-IP Src-Port Dst-IP Dst-Port Action
I
1
TCP 10.0.0.5 * 20.0.0.3 22
allow
Deep Analysis and Detection of Firewall Anomalies Using Knowledge Graph
413

4.1 Shadow Anomaly
The general form of shadow anomaly as below:
∀ fr , pk: (I
1
<I
2
)∧(pk
1
∈ fr
1
)∧(pk
2
∈fr
1
)∧(pk
2
∈
fr
2
) ∧(pk
1
\== pk
2
)⟹fr
2
is shadowed by fr
1
(5)
The equation (5) denotes that rule fr
2
comes after
fr
1
in the firewall rules ordering, i.e., fr
1
will execute
first. The fr
2
can match two types of packets ( pk
1
and
pk
2
, and fr
2
has only type pk
2
. Hence, equation (5)
shows the general shadow anomaly, where all packet
matching fields in fr
2
are belonging to fr
1
(i.e., subsets
of fr
1
). Thus, fr
2
is shadowed by fr
1
. This case
represents shadowing anomaly, and if the actions are
equal, then it is considered as redundancy. Figure 1
shows knowledge graph depicts shadow anomaly.
In the following, the shadowing anomaly has been
classified into four cases as following:
∀:I,proto,src_IP,src_port,dst_IP,dst_port,
action: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,
dst_IP
1
,dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,
src_IP
2
,src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧
(I
1
<I
2
)∧(proto
1
= proto
2
)∧(src_IP
1
= src_IP
2
)
∧(dst_IP
1
= dst_IP
2
)∧(dst_port
1
= dst_port
2
)
∧(action
1
~=action
2
)⟹Shadowing case1 (6)
Equation (6) presents the first case of a shadowing
rule, where fr
1
and fr
2
are denoted by predicates fr
1
and fr
2
respectively. The fr
1
and fr
2
have the same
protocols, source IPs, destination IPs, destination
ports, and different actions. The fr
1
is preceding fr
2
.
We have called it first case of shadowing. In the
following, the rest of other possible cases of
shadowing rules are presented.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧(I
1
<I
2
)∧
((proto
1
= any) ∨(proto
2
∈ proto
1
))∧ (src_IP
2
=
src_IP
1
)∧(dst_IP
2
= dst_IP
1
)∧(dst_port
2
=
dst_post
1
) ∧(action
2
~= action
1
)⟹
Shadowing case2 (7)
Equation (7) denotes that fr
2
is shadowed by fr
1
.
In fr
1
, the protocol is equivalent to “any”, i.e., all
types of protocols, TCP or UDP, which means the
protocol of fr
2
is part of the protocols in fr
1
regardless
of the protocol type in fr
2
. The other case, proto
2
∈
proto
1
, means that the protocol in fr
2
is belonging
to the protocol in fr
1
, i.e., proto
1
= {TCP, UDP},
hence proto
2
∈ proto
1
. The rest of packet matching
fields are equal in fr
1
and fr
2
but with different actions.

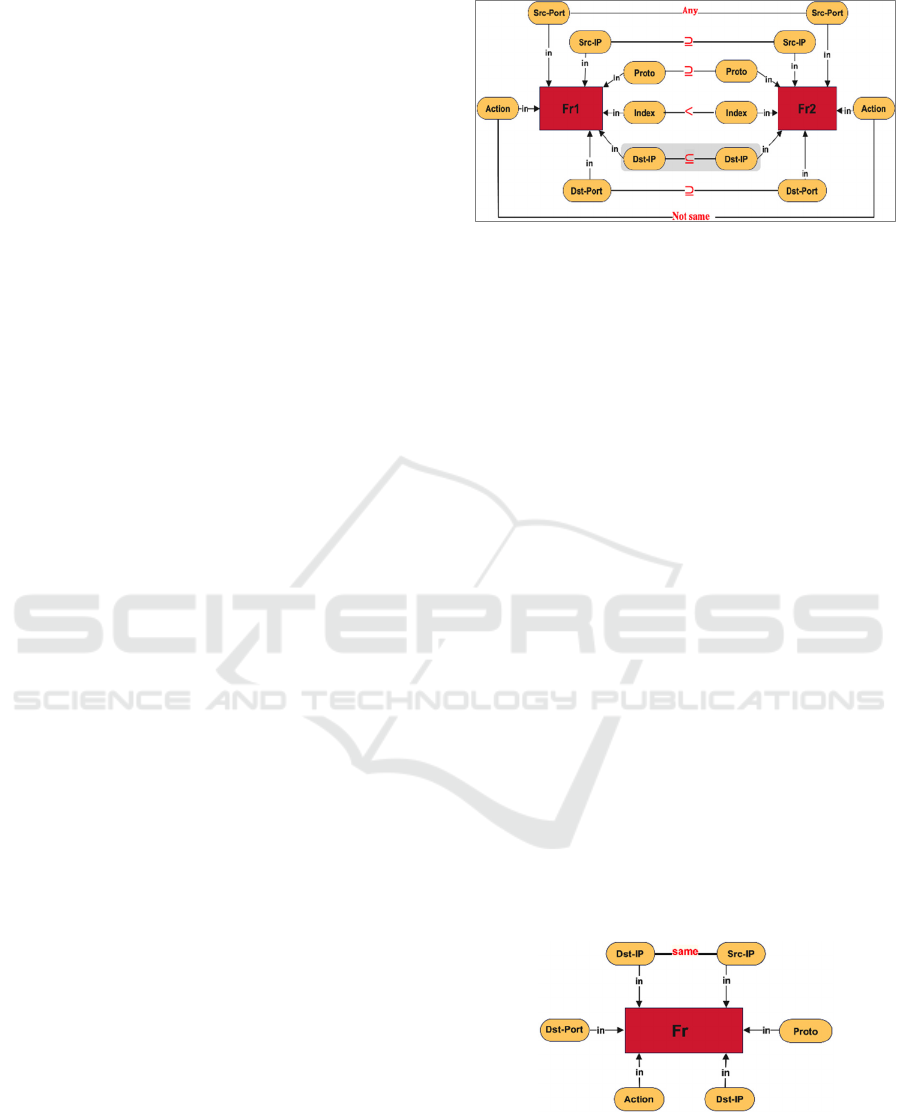

Figure 2: Knowledge graph depicts a case of correlation
anomaly.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion:fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
,action
1
)∧ fr
2
(I
2
, proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧
(I
1
<I
2
)∧(proto
2
= proto
1
)∧((src_IP
1
= any)
∨(src_IP
2
∈ src_IP
1
)) ∧ (dst_IP
2
= dst_IP
1
)∧
(dst_port
2
= dst_post
1
) ∧(action
2
~= action
1
)⟹
Shadowing case3 (8)
Equation (8) denotes that fr
2
is shadowed by fr
1
.
In this equation, there are two scenarios of the source
IP of fr
1
, either equal to “any”, or it is an aggregate
IP. An aggregate source IP means that it covers a
range of source IP addresses in single rule. The source
IP of fr
2
is a single address or it covers a smaller range
of addresses that belong to the source IP of fr
1
. For
instance, suppose source IP of fr
1
= {10.0.0.1-
10.0.0.10} and the source IP of fr
2
is {10.0.0.5},
hence source IP of fr
2
is belonging to fr
1
. In equation
8, the source IP of fr
2
is belonging to fr
1
and the rest
of packet matching fields are equivalent, but with
different actions. Therefore, fr
1
is shadowing fr
2
.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧
(I
1
<I
2
)∧(src_IP
2
= src_IP
1
) ∧ ((dst_IP
1 =
any)∨
(dst_IP
2
∈ dst_IP
1
))∧(action
2
~=action
1
)⟹
Shadowing case4 (9)

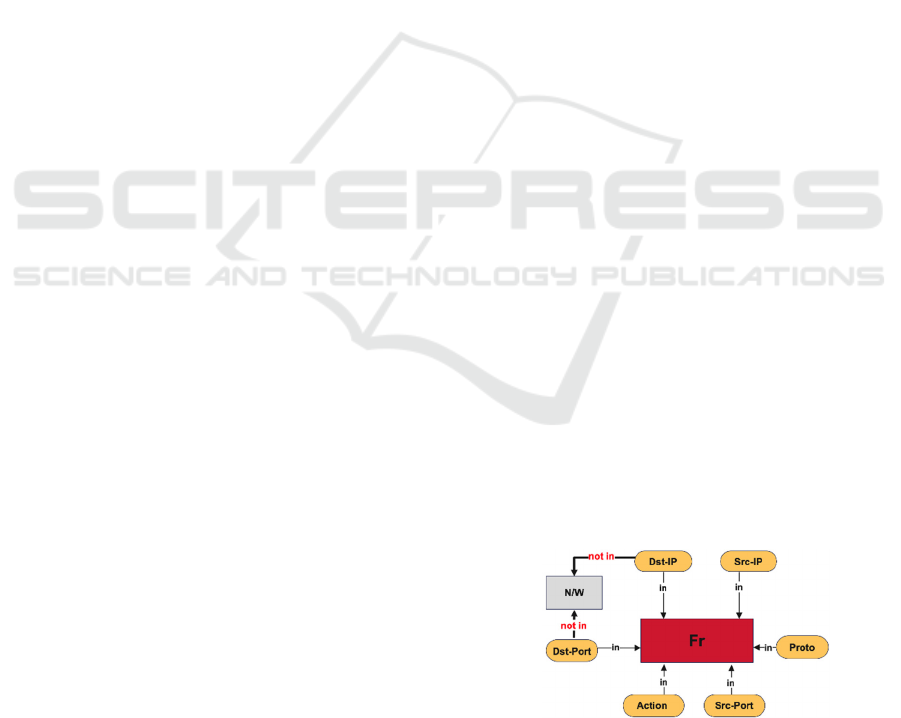

Figure 4: Knowledge graph depicts a case of irrelevant
anomaly.
Equation (9) denotes that fr
2
is shadowed by fr
1
. In
this equation, there are two scenarios of the
ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods
414

destination IP address of rule 1 as either equal to
“any”, or it is an aggregate IP address. An aggregate
destination IP means that it covers a range of
destination IP addresses in single rule, fr
1
. The
destination IP of fr
2
is a single address or it covers a
smaller range of addresses that belong to the
destination IP of fr
1
. For instance, suppose destination
IP of fr
1
= {10.0.0.10-10.0.0.20} and destination IP of
fr
2
is {10.0.0.11}, hence destination IP of fr
2
is
belonging to fr
1
. In equation (9), the destination IP of
fr
2
is belonging to fr
1
and the rest of packet matching
fields are equivalent, but with different actions.
Therefore, fr
2
is shadowed by fr
1
.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion:fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
, action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
, dst_port
2
, action
2
)∧
(I
1
<I
2
)∧(src_IP
2
= src_IP
1
)∧(dst_IP
2
= dst_IP
1
)
∧((dst_port
1
= any)∨(dst_port
2
∈ dst_port
1
))
∧(action
2
~=action
1
)⟹
Shadowing case5 (10)
Equation (10) denotes that fr
2
is shadowed by fr
1
.
In this equation, there are two scenarios of the
destination port of fr
1
, either equal to “any”, or it is a
range of port numbers, which aggregate a number of
destination ports in single rule; fr
1
. The destination
port of fr
2
is a single port or it can be a smaller range
of port numbers that belong to the destination port
numbers in fr
1
. For instance, suppose destination port
of fr
1
= {2069-3068} and the destination port of fr
2
is
{3035}, hence the destination port of fr
2
is belonging
to fr
1
. In equation (10), destination port of fr
2
is
belonging to fr
1
and the rest of packet matching fields
are equivalent, but with different actions. Therefore,
fr
2
is shadowed by fr
1
.
4.2 Correlation Anomaly
The difference between shadowing and correlation
anomalies is that in shadowing all packets of fr
2
are
covered by fr
1
with different actions, whereas in
correlation some packets of fr
2
are covered in fr
1
, and
also some packets of fr
1
can be matched by fr
2
, which
has different action. Table 2 shows an instance of
correlation anomaly. Figure 2 shows knowledge
graph represents correlation anomaly. The general
form of correlation anomaly as follows:
∃ pk, ∀ fr:(I
1
<I
2
)∧(pk
1
∈ fr
1
)∧(pk
2
∈ fr
2
)∧((pk
2
∈
fr
1
)∨(pk
1
∈ fr
2
))⟹ fr
2
is correlated with fr
1
(11)
Equation (11) denotes the general form of
correlation anomaly, where pk denotes packets and fr
denotes firewall rule. In equation (11), packet pk
1
belongs to fr
1
, packet pk
2
belongs to fr
2
, and fr
1
is
preceding fr
2
. Some of the packets that are belonging
to fr
2
are belonging as well to fr
1
, or some of packets
that are belonging to fr
1
are also belonging to fr
2
.
Hence, fr
2
is correlated with fr
1
. By using distributive
theory, equation (11) could be seen as two parts, part
one is:
(I
1
<I
2
) ∧ (pk
1
∈ fr
1
) ∧ (pk
2
∈ fr
1
), the second
part is:
(I
1
<I
2
)∧(pk
1
∈ fr
1
)∧(pk
2
∈ fr
2
)∧ (pk
1
∈
fr
2
). In regard to part one, if the packets belong to fr
2
and in the same time can match fr
1
, fr
2
is considered
shadowed by fr
1
. For instance, (pk
1
∈ fr
1
)∧(pk
2
∈
fr
2
)∧(pk
2
∈ fr
1
) ⟹ Shadowing. Hence, the analysis
of shadowing could be applied to the first part of
correlation. The second part of general correlation
equation:
(I
1
<I
2
)∧(pk
1
∈ fr
1
)∧(pk
2
∈ fr
2
)∧(pk
1
∈
fr
2
) is discussed below:
∀:I,proto,src_IP,src_port,dst_IP,dst_port,
action: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,
dst_IP
1
,dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,
src_IP
2
,src_port
2
,dst_IP
2
,dst_port
2
,action
2
)
∧(I
1
<I
2
)∧((proto
2
= any)∨(proto
1
∈ proto
2
))∧
(src_IP
2
= src_IP
1
)∧(dst_IP
2
= dst_IP
1
)
∧(dst_port
2
= dst_post
1
) ∧(action
2
~=action
1
)⟹
Correlation1 (12)
Equation (12) denotes that fr
2
is correlated with
fr
1
as the rule with index I
1
is part of the rule with
index I
2
. In fr
2
, the protocol type is equivalent to
“any”, i.e., all types of protocols, which means the
protocol of fr
1
will be part of the protocol in fr
2
regardless of the protocol type in fr
1
. The other case,
proto
2
∈ proto
1
, means that the protocol in fr
2
is
belonging to the protocol in fr
1
, i.e., proto
1
= {TCP,
UDP},
hence proto
2
∈ proto
1
. The rest of packet
matching fields are equal in fr
1
and fr
2
, but with
different actions.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧
(I
1
<I
2
)∧(proto
2
= proto
1
)∧((src_IP
2
= any)∨
(src_IP
1
∈ src_IP
2
)) ∧ (dst_IP
2
= dst_IP
1
)∧
(dst_port
2
= dst_post
1
)∧(action
2
~=action
1
)⟹
Correlation2 (13)
Figure 5: Knowledge graph depicts irrelevant anomalies of
non-existent destination.
Deep Analysis and Detection of Firewall Anomalies Using Knowledge Graph
415

Equation (13) denotes that fr
2
is correlated with
fr
1
. In this equation, there are two scenarios of the
source IP of fr
2
, either equal to “any”, or it is an
aggregate source IP address. The source IP address of
fr
1
is a single address or might be a smaller range of
source IP addresses that belong to the source IP range
of fr
2
.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧(I
1
<I
2
)
∧(src_IP
2
= src_IP
1
)∧((dst_IP
2
= any)
∨(dst_IP
1
∈ dst_IP
2
))∧(action
2
~= action
1
)⟹
Correlation3 (14)
The equation (14) denotes that fr
2
is correlated
with fr
1
. In this equation, there are two scenarios of
the destination IP of fr
2
, either equal to “any”, or it is
an aggregate IP for destination addresses in single
rule, fr
2
. The destination IP of fr
1
is a single address
or it is a smaller range of destination IP addresses that
belong to the destination IP range in fr
2
. Hence, the
destination IP of fr
1
is belonging to fr
2
. In equation
(14), destination IP of fr
1
is belonging to fr
2
and the
rest of packet matching fields are equivalent in fr
1
and
fr
2
, but with different actions.
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion: fr
1
(I
1
,proto
1
,src_IP
1
,src_port
1
,dst_IP
1
,
dst_port
1
,action
1
)∧ fr
2
(I
2
,proto
2
,src_IP
2
,
src_port
2
,dst_IP
2
,dst_port
2
,action
2
)∧
(I
1
<I
2
)∧(src_IP
2
= src_IP
1
)∧(dst_IP
1
= dst_IP
1
)
∧((dst_port
2
= any)∨(dst_port
1
∈ dst_port
2
))∧
(action
2
~=action
1
)⟹ Correlation3 (15)
Equation (15) denotes that fr
2
is correlated with
fr
1
. In this equation, there are two scenarios of the
destination port number(s) of fr
2
, either equal to
“any”, or it is aggregate port numbers. Aggregate
destination port numbers means there are multiple
destination ports in a single rule, fr
2
. The destination
port of fr
1
is a single port or can be a smaller range of
destination port numbers that belong to the
destination port of fr
2
. In equation (15), the
destination port of fr
1
is belonging to fr
2
and the rest
of packet matching fields are equivalent in fr
1
and fr
2
,
but with different actions. Therefore, fr
1
is correlated
with fr
2
.
4.3 Generalization Anomaly
The generalization anomaly occurs when there are
two rules having contradictory decisions and all the
packets matched by one of the rules are a subset of
the packets that match the second rule. The difference
between shadowing and generalization anomalies
could be represented by the following equation:
Shadowing: fr
2
⊆ fr
1
:- Rule2 is subset of rule1
Generalization: fr
1
⊆ fr
2
:- Rule1 is subset of
rule2
Table 3 shows an instance of generalization anomaly.
The general form of the generalization anomaly as
follows:
∀ fr, pk: (fr
1
<fr
2
) ∧ (pk
1
∈ fr
1
) ∧ (pk
2
∈ fr
2
) ∧
(pk
1
∈ fr
2
)⟹ fr
2
is generalization of fr
1
(16)
This general form of generalization anomaly is
similar to the second part of correlation anomaly.
Hence, same equations that are applied to satisfy
second part of the correlation anomaly are suitable to
satisfy the generalization anomaly which are
equations 12-15.
4.4 Irrelevant Anomaly
As it mentioned in Section 1, the irrelevant firewall
rule is a rule that would not match any transmitted
packets in the network. Such anomaly could occur
when the firewall rules are not updated along with the
changes in network topology or configurations (i.e.,
added/ removed devices or addressing scheme) or due
to rules misconfigurations. Equation (17) denotes
irrelevant anomaly (rule 1 in Table 4). In equation
(17), the source and destination IP addresses are
same, which is misconfiguration:
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion:fr(I,proto,src_IP,src_port,dst_IP,
dst_port, action)∧ (src_IP
= dst_IP)⟹
Irrelevant1 (17)
∀:I,proto,src_IP,src_port,dst_IP,dst_port,ac
tion:fr(I, proto, src_IP, src_port, dst_IP,
dst_port, action)∧ ((dst_IP ∨ dst_port) ∉
network) ⟹
Irrelevant2 (18)
Equation (18) denotes that the irrelevant case
could happened if destination IP address or the
destination port number is currently not existing in
the network. Figures 4, and 5 shows the knowledge
graphs depicting irrelevant cases in equation (17) and
equation (18) respectively.
5 DISCUSSION AND
CONCLUSION
In this paper, the knowledge graph-based approach
has been introduced for providing deep analysis of
networking firewall anomalies which are: shadowing,
generalization
, correlation, irrelevant, and correl-
ation. Knowledge graph provides visualization that
can assist networking administrators in deploying
ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods
416

their firewall rules safely with the capability to detect
anomalies in the rule set. In our work, knowledge
graph is formulated as predicate calculus rules to
provide solid mathematical representation for the
existing anomalies, which in turn bridges the gap in
developing automation tools and effective solutions.
As a methodology, a general pattern for each anomaly
has been formally defined, and then the cases satisfied
each general pattern have been presented and
analysed to ensure that our method covers all possible
scenarios of well-know firewall rules’ anomalies.
As a future work, we will implement a handy
solution for our approach, including a solver for
automatic knowledge extraction from the predicate
calculus rules, which will be connected to KgBase, a
knowledge graph builder free tool. On the other hand,
the work in (Nguyen & Sakama, 2019) will be used
to prove the generalization of our approach.
REFERENCES
Boudriga, N. (2017). Security of Mobile Communications.
In Proceedings of the IEEE International Conference
on Signal Processing and Communications. IEEE.
Chao, C. (2018). A Feasible Anomaly Diagnosis
Mechanism for Stateful Firewall Rules. In Proceedings
of the 27th International Conference on Computer
Communication and Networks (ICCCN). IEEE.
Voronkov, A., Iwaya, L., Martucci, L., Lindskog, S. (2018).
Systematic Literature Review on Usability of Firewall
Configuration. IN ACM Computing Surveys, issue 6,
ISSN 0360-0300. ACM.
Hu, H., Ahn, G., Kulkarni, K. (2012). Detecting and
Resolving Firewall Policy Anomalies. In IEEE
Transactions on Dependable and Secure Computing,
issue 3, pp. 318-331. IEEE.
Abbes, T., Bouhoula, A., Rusinowitch, M. (2016).
Detection of Firewall Configuration Errors with
Updatable Tree. In International Journal of Information
Security, issue 15, pp. 301-317. SpringerLink.
As-Suhbani H., Khamitkar, S. (2017). Using Data Mining
for Discovering Anomalies from Firewall Logs: a
Comprehensive Review. In International Research
Journal of Engineering and Technology (IRJET), vo. 4,
issue 11, pp. 419-423.
Ahmed, Z., and Askari, S. (2018). Firewall Rule Anomaly
Detection: A Survey. In International Journal of
Computational Intelligence & IoT, vo. 2, pp. 722-727.
SSRN.
Karafili, E., Valenza, F., Chen, Y., Lupu, E. (2020).
Towards a Framework for Automatic Firewalls
Configuration via Argumentation Reasoning. In
Proceedings of the IEEE/IFIP Network Operations and
Management Symposium (NOMS). IEEE.
Elfaki, A., Aljaedi, A., Duan, Y. (2019). Mapping ERD to
knowledge graph. In Proceedings of the IEEE World
Congress on Services (SERVICES). IEEE.
Von, V., Cao, S., Di, X., Gong, Y., Ren, W., Zhang, X.
(2020). Knowledge Extraction and Knowledge Graph
Construction Based on Campus Security Logss. In
Proceedings of the 6th International Conference on
Artificial Intelligence and Security. SpringerLink.
Wang, Z., Zhu, H., Liu, P., Sun, L. (2021). Social
Engineering in Cybersecurity: a Domain Ontology and
Knowledge Graph Application Examples. In
Cybersecurity, no. 31, pp. 1-21. https://doi.org/
10.1186/ s42400-021-00094-6
Wang, Y., Sun, Z., Han, Y. (2021). Network Attack Path
Prediction Based on Vulnerability Data and Knowledge
Graph. In International Journal of Innovative
Computing, Information and Control, vo. 17, no. 5.
http://www.ijicic.org/ ijicic-170518.pdf
Nguyen, H., Sakama, C. (2019). A New Algorithm for
Computing Least Generalization of a Set of Atoms. In
Proceedings of the International Conference on
Inductive Logic Programming. SpringerLink.
Kim, T., Kwon, T., Lee, J., Song, J. (2021). F/Wvis:
Hierarchical Visual Approach for Effective
Optimization of Firewall Policy. In IEEE Access, vo. 9,
pp. 105989 – 106004. IEEE.
Deep Analysis and Detection of Firewall Anomalies Using Knowledge Graph
417
