Towards a Multi-Level Model of Enterprise Architecture

Modeling Notations

Ahmed Hussein

and Simon Hacks

2 a

KTH Royal Institute of Technology, Stockholm, Sweden

Stockholm University, Stockholm, Sweden

Keywords:

Enterprise Architecture Modeling, Multi-Level Model, Meta-Meta-Model, Taxonomy.

Abstract:

Over the past few decades, the ﬁeld of enterprise architecture (EA) has grown, and many EA modeling nota-

tions have been proposed. In order to support the different needs, the different notations vary in the element

types that they provide in their metamodel. This abundance of elements makes it difﬁcult for the end-user to

differentiate between the various elements and complicates the model transformation between different EA

model notations. Therefore, this research analyzes existing EA frameworks and their modeling notations and

extracts common properties. First, we performed a literature review to identify common EA frameworks and

their modeling notations. Second, based on the found notations’ concepts, we create a taxonomy based on

their similarities that leads to a multi-level model of EA notations.

Our results showed that The Open Group Architecture Framework, ArchiMate, Department of Defense Ar-

chitecture Framework, and Integrated Architecture Framework are the most used EA frameworks. Those

frameworks served as input for a multi-level model comprising the common concepts of the different model-

ing notations.

1 INTRODUCTION

Although digital transformation offers organizations

great potential for improvement, it comes with addi-

tional challenges such as increasing complexity of IT

systems. Other challenges are business-IT alignment

and changing environments. Moreover, the stakehold-

ers have different needs that should be addressed by

both the business and IT (Hacks et al., 2017). These

challenges can be addressed by means of enterprise

architecture (EA), which can help to address all stake-

holders’ concerns (The Open Group, 2019), and the

implementation fosters organization’s success (Zach-

man, 1987) and balances IT efﬁciency and business

innovation (Shah and Kourdi, 2007).

The idea behind EA has originated since the

1960s (Kotusev, 2016b). Through the years, the con-

cept of EA has evolved, producing a holistic view to

align strategy, operations, and technology of the orga-

nization in order to achieve its business goals. Using

EA ensures better alignment with business objectives

and consistency across the organization, allows rec-

ognizing potential improvements (Steen et al., 2004)

https://orcid.org/0000-0003-0478-9347

and provides a general understanding of the enter-

prise (Franke et al., 2009). Moreover, it improves

return on existing investments while minimizing the

risk of future investments (The Open Group, 2018).

To assess the current state of the organization and

ease the EA’s evolution, EA models are deﬁned. An

EA model is a representation of the whole’s enterprise

EA that consists of multiple views and architectural

models (The Open Group, 2019; Department of De-

fense, 2010). The goal of an EA model is to capture

the most important components of an enterprise and

the relations between them so that the current state

can be visualized, reviewed, and future desired states

can be planned (Department of Defense, 2010; Hacks

and Lichter, 2018a; Hacks and Lichter, 2018b).

In the past decades, many researchers have been

attracted to the ﬁeld of EA, and a plethora of different

EA modeling notations has been proposed (The Open

Group, 2019; The Open Group, 2018; Department of

Defense, 2010; Federal CIO Council, 2013; MOD,

2012; Wout et al., 2010). Unfortunately, one can rec-

ognize that notations get more and more extensive, in-

cluding more and more different element types to sat-

isfy the different needs. For example, ArchiMate (The

Open Group, 2019) includes more than 50 different

466

Hussein, A. and Hacks, S.

Towards a Multi-Level Model of Enterprise Architecture Modeling Notations.

DOI: 10.5220/0011706700003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 2, pages 466-473

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

elements in the latest speciﬁcation. ArchiMate 3.0.1

introduced more than 15 new elements from its pre-

decessor, such as “Events”, “Outcome”, and “Capa-

bility” and ArchiMate 3.1 has added ”Value stream”.

One problem with introducing more elements is

that it will be difﬁcult to create a concise dictionary

of elements deﬁnitions. According to ArchiMate, the

“Value Stream” is deﬁned as “a sequence of activi-

ties that create an overall result for a customer, stake-

holder, or end user” (The Open Group, 2019). This

deﬁnition is very similar to the “Business process” el-

ement, which is already included in the previous ver-

sions. Despite the similarity in the deﬁnition, they are

intended to be used differently. The “Value stream”

describes the organization’s business model and value

proposition, while “Business process” describes the

operating model (The Open Group, 2019). This sim-

ilarity between the different elements will mean that

an end user will have to go through the full speciﬁca-

tions in order to determine what element to use.

This abundance of elements can make it difﬁcult

for the end-user to differentiate between the uses of

the different elements to specify what elements match

their needs. Moreover, it hinders the transformation

of the respective EA models between the different no-

tations. In the context of the Uniﬁed Modeling Lan-

guage (UML), Leroux at al. (Leroux et al., 2006) ar-

gue that having a limited number of elements (while

allowing for extension) typically makes the notation

richer and easier to use. We argue that the same can

be applied to EA modeling notations.

Accordingly, we analyze existing EA modeling

notations and determine their common properties.

These properties include architectural elements, their

attributes, and the relationships between them (Franke

et al., 2009). Additionally, we present the common

elements in layers a multi-level model (Frank, 2014;

Atkinson and K

uhne, 2001) that is capable of describ-

ing the different notations. This yields a better under-

standing of the concepts behind the different elements

and how they interact with each other.

In order to achieve this, we address the following

research questions:

• What are the most commonly used EA modeling

frameworks in scientiﬁc research?

• What are the common properties of EA modeling

that are present in the different notations?

It is criticizable to opt for scientiﬁc research here as

it does not necessarily reﬂect the reality in organizations.

However, to the best of our knowledge, there are no reliable

statistics about the usage of EA frameworks in organiza-

tions available, while it is the case for scientiﬁc research on

EA frameworks (e.g., (Barbosa et al., 2019)).

To answer these questions, we discuss next the dif-

ferent methods that we applied in our research. After-

wards, we present the multi-level model as the result

of the ﬁrst iterations considering different EA model-

ing frameworks. This is followed by a discussion on

the ﬁndings and the limitations of our work. Before

our conclusion, we shed light on related work.

2 METHOD

In order to answer the research questions, we per-

formed our research in four phases:

• Firstly, we studied the relevant literature about

EA, and the provided metamodels of the com-

monly used EA frameworks. A literature review

has been conducted following the guidelines of

Kitchenham and Charters (Kitchenham and Char-

ters, 2007). The outcome of this step was a set of

EA modeling frameworks in which each of them

provides a publicly available metamodel.

• Secondly, the most commonly used EA frame-

works were selected, and their metamodels were

studied and analyzed in order to come up with a

list of the entity types that are supported in the se-

lected modeling frameworks.

• After that, we followed Nickerson et al. (Nick-

erson et al., 2013) to classify the elements into

a taxonomy that we used to determine the multi-

level model. The classiﬁcation was based on the

similarities between the different EA frameworks

and was performed in multiple iterations to deﬁne

characteristic group elements.

• Finally, the elements and the taxonomy were re-

ported, presented, and discussed.

2.1 Literature Review

To identify the primary studies, we searched in ACM

Digital library, Google Scholar, IEEExplore, Sci-

enceDirect, and Springer Link. The search terms

were “enterprise architecture management”, “enter-

prise architecture framework”, “enterprise architec-

ture modeling”, “enterprise architecture implementa-

tion”, and “developing enterprise architecture”.

Each of the search term produced tens of thou-

sands of results for each of the electronic sources. For

each source, the results were sorted by relevance to

the search term (an estimation of how much a speciﬁc

document in the results is related to the search query

(Zhang et al., 2018)). After that, the top 20 papers

were selected resulting in a total of 500 studies.

Towards a Multi-Level Model of Enterprise Architecture Modeling Notations

467

Table 1: Most used EA frameworks.

EA framework Number of studies

TOGAF 40

ArchiMate 37

Zachman 22

DoDAF 15

FEAF 12

IAF 4

Gartner 3

MODAF 3

TEAF 2

GERAM 2

To select only the relevant studies, the following

inclusion and exclusion criteria were deﬁned:

• Inclusion criteria:

1. Studies in English.

2. Studies with full text available.

3. Research articles, conference proceedings, and

book chapters.

4. Studies with focus on EA frameworks.

5. Studies aiming to apply concepts from, ad-

dress limitations of, or critically evaluate an EA

framework.

• Exclusion criteria:

1. Studies not in English.

2. Secondary studies, i.e., excluding any SLR.

In addition to the inclusion and exclusion criteria,

the following criteria were set to assess the quality of

the selected studies.

1. Is the goal of the study stated and explained?

2. Is the context in which the study was performed

described?

3. Is the choice of the selected EA framework(s) mo-

tivated?

4. Is the direction for future work discussed?

5. Is the validity and reliability of the study dis-

cussed?

After applying the inclusion and exclusion criteria

and ignoring duplicate studies, 78 studies have been

included, conducted between 2004 and 2021. After

synthesizing the collected data, we identiﬁed TOGAF

as the most used EA framework, followed by Archi-

Mate. Table 1 shows the top 10 used EA frameworks.

Next, each framework was analyzed to identify

their EA modeling capabilities, based on their spec-

iﬁcations (The Open Group, 2019; The Open Group,

2018; Department of Defense, 2010; Wout et al.,

2010; Federal CIO Council, 2013; Bernus et al.,

2003; MOD, 2012). The Zachman framework, and

Gartner Framework are considered proprietary frame-

works (Hadaya et al., 2020) so they were excluded.

Additionally, the Treasury Enterprise Architecture

Framework (TEAF) was also excluded as we could

not ﬁnd a formal speciﬁcation.

On the other hand, the Generalised Enterprise

Reference Architecture and Methodology (GERAM)

provides a set of requirements that other EA frame-

works should meet. Thus, the framework is actually

considered to be a meta-framework and is intended to

aid the development of EA frameworks (Bernus et al.,

2003; Bernus et al., 2015). Moreover, many studies

have analyzed and mapped existing EA frameworks

to GERAM, such as (Noran, 2003a; Noran, 2003b;

Noran, 2005; Williams and Li, 1999; Saha, 2004;

Chaharsooghi and Ahmadi Achachlouei, 2011).

While FEAF focuses on EA modeling, it does not

provide a metamodel. The framework instead pro-

vides a set of reference models. Accordingly, we do

also neglect this framework.

Following EA modeling frameworks were iden-

tiﬁed as relevant for our multi-level model of EA

modeling notations: (1) TOGAF, (2) ArchiMate, (3)

DoDAF, (4) IAF, (5) MODAF.

2.2 Multi-Level Model Development

To the best of our knowledge, there is no concrete ap-

proach to develop a multi-level model based on dif-

ferent sources. However, the challenge of developing

a multi-level model that relies on common properties

is similar to the challenge to develop a taxonomy for

a certain domain, which is the process of classifying

or categorizing objects into different groups. Accord-

ingly, we want to classify the elements that are avail-

able in the selected EA framework metamodels based

on the similarities between those frameworks.

There are multiple approaches to generate a tax-

onomy (Nickerson et al., 2013; Harst et al., 2021; Us-

man et al., 2017). We followed Nickerson et al. (Nick-

erson et al., 2013) to generate our multi-level model,

as it is a widely used methodology in information sys-

tems literature with over 700 citations.

Nickerson et al. (Nickerson et al., 2013) ﬁrst

deﬁne a basis for the choosing characteristics, i.e.,

meta-characteristic and end conditions. In our case,

the meta-characteristic is deﬁned and to generate the

characteristics of the taxonomy: “Structural elements

similarities between the different metamodels” to ad-

dress our second research question.

Next, one deﬁnes ending conditions of the itera-

tions:

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

468

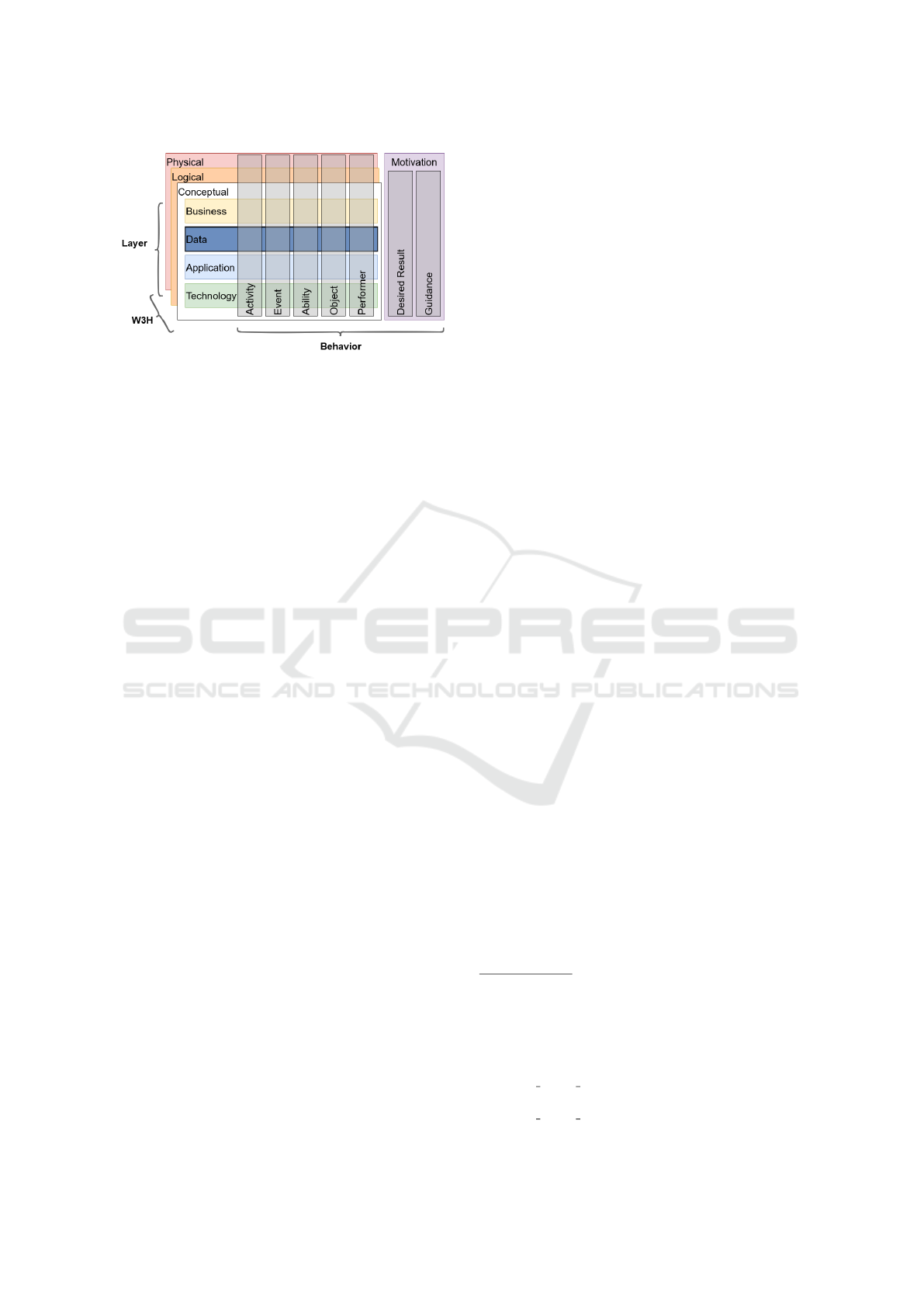

Figure 1: Taxonomy dimensions.

• All elements of the EA framework are examined.

• For all dimensions, each characteristic has at least

one element classiﬁed under it.

• All dimensions and characteristics are unique.

• In the last iteration, no modiﬁcation, additions, or

deletions has been made to the dimensions nor the

characteristics.

• The taxonomy is comprehensive, extensible, and

concise.

In total, we performed three iterations. The ﬁrst

iteration included elements from TOGAF and Archi-

Mate, and each of the following iterations added el-

ements from one additional EA framework (DoDAF

and IAF, respectively).

3 A MULTI-LEVEL MODEL OF

EA MODELING NOTATIONS

To provide a basis for our multi-level model, we cre-

ated a taxonomy within three iterations based on the

found aspects in the considered frameworks. The tax-

onomy is comprised of the three dimensions, “Layer”,

“Behavior”, and “W3H” (Contextual (Why), Concep-

tual (What), Physical (With what), Logical (How)),

and respective classifying items (cf. Figure 1).

Table 2 shows the result of the created taxonomy

for the common elements in the different frameworks.

Each column in the table represents a characteristic of

the taxonomy, and the characteristics are grouped by

the dimensions mentioned above. An element (row)

can be classiﬁed in one and only one of the charac-

teristics of each dimension (marked with an x). The

ﬁnal taxonomy result shows that within the common

elements of the four EA frameworks, most elements

focus on describing the business aspects, activities,

and concepts when looking at the “Layer”, “Behav-

ior”, and ”W3H” dimensions respectively.

The taxonomy provides a common abstraction for

the different frameworks. After the taxonomy was

created, the closest concepts (elements) in the dif-

ferent frameworks were grouped together to ﬁnd the

common elements that are shown in Table 2. This

was done by comparing the different deﬁnitions of the

concepts by one of the researchers and regular dis-

cussion rounds on the constructed taxonomy between

both of the researchers.

Table 3 provides some examples for mapping

the closest concepts in the different EA frameworks,

where closeness means the similarity between the

concept descriptions determined by the researchers.

Even though some concepts are not explicitly avail-

able in a framework, some more granular elements

fall under it. For example, TOGAF does not explic-

itly deﬁne an abstract “Performer” element, but there

are multiple elements available in TOGAF that can

be classiﬁed as “Performers”. On the other hand,

DoDAF uses the same term to describe both physi-

cal and logical application components, while other

frameworks provide separate elements.

The hierarchical structure of the common ele-

ments is visualized in a ﬁgure

. At the top, elements

are divided into Behavior, Resource and Motivation

elements, i.e., using the Behavior dimension. Then,

elements are divided into different layers, Business,

Data, Application, and Technology layers.

When creating the multilevel model for the com-

mon elements, we used the aforementioned hierarchi-

cal structure to assign elements to their corresponding

level. Elements at the lowest level are assigned to M2

and with each level we increase the model level until

we reach M6 for the top abstract element. Our ﬁgure

shows the multilevel model for the generic common

elements. On the other hand, we visualize

the ele-

ments from the different layers.

4 DISCUSSION

The ﬁrst research question of this study aimed at iden-

tifying the most used EA modeling frameworks in the

relevant literature. Our ﬁndings support the claims of

previous studies (Cameron and McMillan, 2013; Mo-

https://github.com/simonhacks/iceis2023/blob/main/


M0 and M1 has not been assigned to any of the ele-

ments, since they typically refer to the real-world user ob-

jects and the elements of a speciﬁc EA model, respectively.

https://github.com/simonhacks/iceis2023/blob/main/

multilevel model generic.png

https://github.com/simonhacks/iceis2023/blob/main/

multilevel model layers.png

Towards a Multi-Level Model of Enterprise Architecture Modeling Notations

469

Table 2: Classiﬁcation of the common elements.

Layer Behavior W3H

Element B D A T G Ab Ac E O P DR G Ct Cp L P

Role x x x

Actor x x x

Data x x x

Business Object x x x

Business Service x x x

Application Service x x x

Technology Service x x x

Business Event x x x

Goal x x x

Objective x x x

Organization Unit x x x

Physical Application

Component

x x x

Physical Technology

Component

x x x

Contract x x x

Business Process x x x

Logical Business

Component

x x x

Logical Application

Component

x x x

Logical Technology

Component

x x x

Principle x x x

Requirement x x x

Constraint x x x

Course of Action x x x

Capability x x x

Project x x x

Layer:

Business,

Data,

Application,

Technology,

Generic.

Behavior:

Ability,

Activity,

Event,

Object,

Performer,

Desired Result,

Guidance.

W3H:

Contextual,

Conceptual,

Logical,

Physical.

hamed et al., 2012; Kotusev, 2016a; Barbosa et al.,

2019) that TOGAF is the most used EA framework,

often in combination with ArchiMate.

The goal of the second research question was to

identify common architectural elements in EA model-

ing frameworks. The taxonomy dimensions cube was

inspired by the ArchiMate layers as well as the IAF

content framework abstraction levels. The “Layer”

dimension is inﬂuenced by TOGAF, IAF, and Archi-

mate, since DoDAF does not provide a classiﬁcation

for the elements into different layers. Similarly, the

“Behavior” dimension is inﬂuenced by the aspect ar-

eas of ArchiMate and the elements from DoDAF. Our

dimension has more granular characteristics than the

ArchiMate aspect areas, mainly due to the high level

abstract elements available in DoDAF; such as “Ac-

tivity” and “Desired Result” which group multiple

concepts together. The last dimension is what we

call “W3H” which is derived from how IAF, and to

some extent TOGAF, to group elements into concep-

tual, logical, physical, and contextual elements.

The four EA frameworks share a total of 24 el-

ements in addition to 13 abstract elements. TOGAF

has the lowest number of elements deﬁned in its meta-

model compared to the other EA frameworks. TO-

GAF content metamodel only deﬁnes a total of 38 ele-

ments, while ArchiMate deﬁnes 59 elements, IAF and

DoDAF has more than 80 elements deﬁned. Addi-

tionally, the business architecture has more elements

in common between the different frameworks. This

can be traced back to TOGAF and IAF; since DoDAF

does not provide an elements’ layers taxonomy, and

ArchiMate has a relatively close number of elements

in business, application, and technology layers

Moreover, we noticed the ambiguity of terms in

EA modeling as different terms in different EA frame-

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

470

Table 3: An Extract from mapping the closest concepts in TOGAF, ArchiMate, DoDAF and IAF.

Concept TOGAF ArchiMate DoDAF IAF

Business Service Business Service Business Service Service Business Service

Business Process Process Business Process Process Business Service

Logical Applica-

tion Component

Logical Applica-

tion Component

Application Func-

tion

System Logical IS Compo-

nent

Physical Applica-

tion Component

Physical Applica-

tion Component

Application Com-

ponent

System Physical IS Com-

ponent

Performer *** Active Structure Performer ***

Business Object *** Business Object Information Business Object

Driver Driver Driver N/A Business Driver

N/A

Concept not available in the EA framework.

***

Concept not explicitly available, but multiple elements fall under it.

works might refer to the same concept (cf. Table 3).

For example, IAF uses the term “Business Service”

to describe both internal processes and externally pro-

vided services. According to IAF, the business service

element can be used on different levels of details de-

pending on the goal of the architecture (Wout et al.,

2010). This adds to the ﬁndings of previous studies

that showed the deviations in both the deﬁnition of

EA (Saint-Louis et al., 2017) and what is considered

an EA framework (Franke et al., 2009).

Our work has some limitations. First, we focused

only on analyzing the common elements used in EA

modeling. Even though we tried to describe these ele-

ments in a multilevel model, the relationships used in

the model were not extracted using the same method

we used to extract the elements due to complexity.

However, in a next iteration, we plan to address this.

Additionally, different other frameworks such as

GERAM (Generalised Enterprise Reference Archi-

tecture and Methodology) or MODAF were not in-

cluded when developing the taxonomy and analyzing

the common elements, due to time limitations. In-

cluding the additional elements might result in the

generation of more dimensions in the taxonomy or

identifying more abstract elements. Moreover, to en-

sure that no additional dimensions are added to the

taxonomy in the last iteration, more iterations were

needed, i.e., more frameworks and more time.

Finally, it would been beneﬁcial to include the in-

put from practitioners. That would help to deﬁne the

common elements from the end users’ points of view.

5 RELATED WORK

Before concluding our work, we focus on related liter-

ature about EA frameworks and, speciﬁcally on pre-

vious literature reviews on EA and EA frameworks.

Finally, we discuss research on metamodeling in EA.

Hadaya et al. (Hadaya et al., 2020) proposed a

methodology to evaluate EA frameworks based on 14

criteria. Their goal was to make it easier for EA prac-

titioners to select the framework that addresses their

needs. They ﬁrst performed a systematic literature

review (SLR) on EA framework evaluation criteria.

They concluded that previous EA literature does not

deﬁne comprehensive evaluation criteria. Therefore,

they developed their own evaluation criteria contain-

ing features like architecture layers taxonomy, archi-

tecture taxonomy aspect areas, metamodel complete-

ness and complexity, or development process. Next,

they tested it with a set of six EA frameworks and

different domain experts, who perceived most of the

proposed criteria to be usable, relevant, and correct.

Zhou et al. (Zhou et al., 2020) performed a SLR

on EA visualization methodologies. The results show

that there is no comprehensive methodology for EA

modeling. Thus, they proposed a method for EA vi-

sualization that aims to address the shortcomings of

the previous methods. Moreover, Zhou et al. (Zhou

et al., 2020) found that the most used EA frameworks

were TOGAF and DoDAF with more than 60 respec-

tively 20 studies using them. Additionally, they re-

ported that ArchiMate was the most used modeling

language, with more than 40 papers using it.

Saint-Louis et al. (Saint-Louis et al., 2017) inves-

tigated the deviations in EA deﬁnitions. They ex-

amined 145 deﬁnitions and concluded that there are

considerable differences in the deﬁnitions. Frank et

al. (Franke et al., 2009) suggested a meta frame-

work for EA frameworks to examine if the content

of a speciﬁc EA framework satisﬁes practitioners’

needs. They divided the content of EA frameworks

into “architectural governance” and “EA modeling

concepts”. As part of the study, the content of mul-

tiple frameworks has been examined and classiﬁed.

Comparably, Cameron and McMillan (Cameron and

McMillan, 2013) investigated the usage and char-

Towards a Multi-Level Model of Enterprise Architecture Modeling Notations

471

acteristics of various EA frameworks to provide a

method for selecting the right EA for an organization.

Another study that aims to help practitioners select

the EA framework that satisﬁes a speciﬁc criterion, is

the study performed by Urbaczewski and Mrdalj (Ur-

baczewski and Mrdalj, 2006), which compared ﬁve

frameworks. The study provides guidelines for com-

paring EA frameworks based on the viewpoints and

the aspects they support.

In the ﬁeld of EA, modeling is considered to be a

focus of many EA frameworks (Franke et al., 2009).

Therefore, EA frameworks usually deﬁne a meta-

model in order to deﬁne a structure for the archi-

tectural artifacts and ensure consistency when using

them to develop an EA (The Open Group, 2018; De-

partment of Defense, 2010; Wout et al., 2010). Addi-

tionally, it allows architecture tools vendors to create

easier to use tools by adding consistency and inter-

operability to the tools they create (The Open Group,

2011). The metamodel of an EA framework is de-

ﬁned by deﬁning the allowed content in an architec-

tural model. The content consists of the entity types

(architectural elements), element attributes and the

relationships between the different elements (Franke

et al., 2009; The Open Group, 2019; The Open Group,

2018; Department of Defense, 2010; Wout et al.,

2010). Some frameworks even deﬁne their graphical

representation of it content (The Open Group, 2019;

Atkinson and K

uhne, 2020), while others only deﬁne

the allowed entities and the relations textually (The

Open Group, 2018; Department of Defense, 2010;

Wout et al., 2010).

Atkinson and K

uhne (Atkinson and K

uhne, 2020)

suggested improving the ArchiMate modeling stan-

dard through the use of multi-level modeling. The

study used deep modeling to describe ArchiMate and

then discusses the potential improvements using the

concepts of deep modeling in EA. They claimed that

deep modeling can simplify the usage of the Archi-

Mate language and improve its expressiveness.

6 CONCLUSION

In this work, we performed an analysis of the most

used EA frameworks (TOGAF, ArchiMate, DoDAF,

and IAF) in the EA literature and extracted the core

elements of EA modeling. Then, a taxonomy of el-

ements was created based on the frameworks’ ele-

ments. The created taxonomy helped in identifying

what concepts are available in the different EA frame-

works. Next, we identiﬁed the common elements that

are available in the different EA frameworks. Fi-

nally, the common elements are presented in both hi-

erarchical structure and in a multi-level model that

shows how the different elements can interact with

each other.

We believe that the ﬁndings will be interesting for

EA researchers and practitioners working on develop-

ing and maintaining EA modeling frameworks. Ex-

isting EA modeling frameworks might use the list of

common elements identiﬁed in this study as their core

elements, while using the rest of the elements just on

demand. Additionally, practitioners can use the tax-

onomy to identify what element types are provided

by the different EA modeling frameworks, thus in-

creasing their ability to identify matching EA model-

ing frameworks.

For future work, we plan to demonstrate our work

on real world cases in which different EA notations

are used and need to be mapped to each other. A

possible case could be the analysis of EA quality at-

tributes and to abstract the deﬁnition of respective

queries while still keeping their semantics (Smajevic

et al., 2021).

REFERENCES

Atkinson, C. and K

uhne, T. (2001). The essence of multi-

level metamodeling. In Proceedings of the 4th Inter-

national Conference on The Uniﬁed Modeling Lan-

guage, Modeling Languages, Concepts, and Tools,

pages 19–33, London, UK. Springer.

Atkinson, C. and K

uhne, T. (2020). A deep perspective

on the archimate enterprise architecture modeling lan-

guage. Enterp. Model. Inf. Syst. Archit. Int. J. Con-

cept. Model., 15:2:1–2:25.

Barbosa, A., Santana, A., Hacks, S., and Stein, N. v. (2019).

A taxonomy for enterprise architecture analysis re-

search. In 21st International Conference on Enter-

prise Information Systems, volume 2, pages 493–504.

SciTePress.

Bernus, P., Nemes, L., and Schmidt, G., editors (2003).

GERAM: The Generalised Enterprise Reference Ar-

chitecture and Methodology, pages 21–63. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Bernus, P., Noran, O., and Molina, A. (2015). Enterprise

architecture: Twenty years of the geram framework.

Annual Reviews in Control, 39:83–93.

Cameron, B. H. and McMillan, E. (2013). Analyzing the

current trends in enterprise architecture frameworks.

Journal of Enterprise Architecture, 9(1):60–71.

Chaharsooghi, K. and Ahmadi Achachlouei, M. (2011).

Developing life-cycle phases for the dodaf using

iso15704 annex a (geram). Computers in Industry,

62(3):253–259.

Department of Defense (2010). DoD Architecure Frame-

work version 2.02.

Federal CIO Council (2013). Federal enterprise architecture

framework v2.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

472

Frank, U. (2014). Multilevel modeling - toward a new

paradigm of conceptual modeling and information

systems design. BISE, 6(6):319–337.

Franke, U., Hook, D., Konig, J., Lagerstrom, R., Narman,

P., Ullberg, J., Gustafsson, P., and Ekstedt, M. (2009).

Eaf2- a framework for categorizing enterprise archi-

tecture frameworks. In 2009 10th ACIS International

Conference on Software Engineering, Artiﬁcial Intel-

ligences, Networking and Parallel/Distributed Com-

puting, pages 327–332.

Hacks, S., Brosius, M., and Aier, S. (2017). A case study of

stakeholder concerns on eam. In 2017 IEEE 21st In-

ternational Enterprise Distributed Object Computing

Workshop (EDOCW), pages 50–56. IEEE.

Hacks, S. and Lichter, H. (2018a). A probabilistic enterprise

architecture model evolution. In 2018 IEEE 22nd In-

ternational Enterprise Distributed Object Computing

Conference (EDOC), pages 51–57. IEEE.

Hacks, S. and Lichter, H. (2018b). Towards an enterprise

architecture model evolution. In Workshops der IN-

FORMATIK 2018-Architekturen, Prozesse, Sicherheit

und Nachhaltigkeit. K

ollen Druck+ Verlag GmbH.

Hadaya, P., Leshob, A., Marchildon, P., and Matyas-

Balassy, I. (2020). Enterprise architecture framework

evaluation criteria: a literature review and artifact de-

velopment. Service Oriented Computing and Applica-

tions, 14(3):203–222.

Harst, L., Otto, L., Timpel, P., Richter, P., Lantzsch, H.,

Wollschlaeger, B., Winkler, K., and Schlieter, H.

(2021). An empirically sound telemedicine taxonomy

– applying the cafe methodology. Journal of Public

Health.

Kitchenham, B. and Charters, S. (2007). Guidelines for per-

forming systematic literature reviews in software en-

gineering.

Kotusev, S. (2016a). Enterprise architecture is not togaf.

British Computer Society (BCS).

Kotusev, S. (2016b). The history of enterprise architecture:

An evidence-based review. Journal of Enterprise Ar-

chitecture, 12:29–37.

Leroux, D., Nally, M., and Hussey, K. (2006). Rational soft-

ware architect: A tool for domain-speciﬁc modeling.

IBM Systems Journal, 45(3):555–568.

MOD (2012). Mod architectural framework.

Mohamed, M. A., Galal-Edeen, G. H., Hassan, H. A., and

Hasanien, E. E. (2012). An evaluation of enterprise

architecture frameworks for e-government. In 2012

Seventh International Conference on Computer Engi-

neering Systems (ICCES), pages 255–260.

Nickerson, R. C., Varshney, U., and Muntermann, J. (2013).

A method for taxonomy development and its applica-

tion in information systems. European Journal of In-

formation Systems, 22(3):336–359.

Noran, O. (2003a). An analysis of the zachman framework

for enterprise architecture from the geram perspective.

Annual Reviews in Control, 27(2):163–183.

Noran, O. (2003b). A Mapping of Individual Architecture

Frameworks (GRAI, PERA, C4ISR, CIMOSA, ZACH-

MAN, ARIS) onto GERAM, pages 65–210. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Noran, O. (2005). A systematic evaluation of the c4isr af

using iso15704 annex a (geram). Computers in Indus-

try, 56(5):407–427.

Saha, P. (2004). Analyzing the open group architecture

framework from the geram perspective.

Saint-Louis, P., Morency, M. C., and Lapalme, J. (2017).

Deﬁning enterprise architecture: A systematic lit-

erature review. In 2017 IEEE 21st International

Enterprise Distributed Object Computing Workshop

(EDOCW), pages 41–49.

Shah, H. and Kourdi, M. (2007). Frameworks for enterprise

architecture. IT Professional, 9:36 – 41.

Smajevic, M., Hacks, S., and Bork, D. (2021). Using

knowledge graphs to detect enterprise architecture

smells. In IFIP Working Conference on The Practice

of Enterprise Modeling, pages 48–63. Springer.

Steen, M., Akehurst, D., ter Doest, H., and Lankhorst, M.

(2004). Supporting viewpoint-oriented enterprise ar-

chitecture. In Proceedings. Eighth IEEE International

Enterprise Distributed Object Computing Conference,

2004. EDOC 2004., pages 201–211.

The Open Group (2011). TOGAF® Version 9.1. TOGAF

Series. Van Haren Publishing.

The Open Group (2018). The TOGAF® Standard, Version

9.2. TOGAF Series. Van Haren Publishing.

The Open Group (2019). Archimate ® 3.1 Speciﬁcation.

The Open Group series. Van Haren Publishing.

Urbaczewski, L. and Mrdalj, S. (2006). A comparison of

enterprise architecture frameworks. Issues in infor-

mation systems, 7(2):18–23.

Usman, M., Britto, R., B

orstler, J., and Mendes, E. (2017).

Taxonomies in software engineering: A systematic

mapping study and a revised taxonomy develop-

ment method. Information and Software Technology,

85:43–59.

Williams, T. J. and Li, H. (1999). PERA and GERAM—

enterprise reference architectures in enterprise inte-

gration, pages 3–30. Springer US, Boston, MA.

Wout, J. v., Hartman, H., Hofman, A., Stahlecker, M.,

and Waage, M. (2010). The Integrated Architecture

Framework Explained: Why, What, How. Springer-

Verlag, Berlin, Heidelberg, 2. auﬂ. edition.

Zachman, J. A. (1987). A framework for information sys-

tems architecture. IBM Systems Journal, 26(3):276–

292.

Zhang, J., Liu, Y., Ma, S., and Tian, Q. (2018). Rele-

vance estimation with multiple information sources on

search engine result pages. In Proceedings of the 27th

ACM International Conference on Information and

Knowledge Management, CIKM ’18, page 627–636,

New York, NY, USA. Association for Computing Ma-

chinery.

Zhou, Z., Zhi, Q., Morisaki, S., and Yamamoto, S. (2020).

A systematic literature review on enterprise archi-

tecture visualization methodologies. IEEE Access,

8:96404–96427.

Towards a Multi-Level Model of Enterprise Architecture Modeling Notations

473
