Visualizing Compiler Design Theory from Implementation Through an

Interactive Tutoring Tool: Experiences and Results

Rafael Del Vado V

ırseda

Computing Systems and Computation Department, Complutense University of Madrid, Spain

Keywords:

Compiler Design Course, Interactive Learning, Interactive Tutoring Systems, Compiler Writing Tools.

Abstract:

In this paper, we analyze the experiences and results obtained by using an Interactive Tutoring Tool (ITT)

(del Vado V

ırseda, 2020; del Vado V

ırseda, 2022) to interactively tutoring the learning of the basic theoretical

contents of a course on compiler design. Instead of beginning by studying the theory and then obtaining the

code of its corresponding implementation in each of the phases of compiler construction, we propose to start

from the implementation obtained by the students using automatic code generation tools (del Vado V

ırseda,

2021). By using ITT, we interactively guide the exploration of the ﬁnite state automata and graphs generated

by compiler writing tools, learning the most important theoretical concepts from the implementation, and

increasing the understanding of the theory in relation to the code of its implementation. This work reports

on this educational experience of improving the teaching of theory from the implementation, by using the

interactive visualizations and explorations produced by ITT. As an evaluation of the educational experience

with ITT, the academic results obtained by the students are analyzed, to provide success indicators.

1 INTRODUCTION AND

MOTIVATION

Although Compiler Design is one of the Computer

Science (CS) subjects that best integrates theory and

practice (Aho, 2008), there are many students’ chal-

lenges in understanding Compiler Design theory. As

we discussed in (del Vado V

ırseda, 2021), a Com-

piler Design course usually focuses on realizing soft-

ware projects in which our students are asked to de-

velop a small compiler, or implement some variant

of a compiler under study (Mak, 2009). The learn-

ing of the structure of a compiler is done from the

implementation, focusing its design and implementa-

tion on the traditional form of a software engineer-

ing project (Waite, 2006). The main disadvantage

of this classical approach is that overemphasizes stu-

dents’ programming skills. Students in a ﬁrst Com-

piler Design course spending too much time on a soft-

ware engineering portion of a compiler is not a prob-

lem (Nystrom, 2021), but classes covering compiler

development also need to cover a lot of theoretical

material. Thus, as we noted in (del Vado V

ırseda,

2020), many students dedicate themselves exclusively

to code development, often ignoring the theoretical

https://orcid.org/0000-0002-1942-751X

concepts necessary for a correct implementation.

As a way of approaching this problem, alternative

approaches to a Compiler Design course make use

of compiler-writing tools (Demaille, 2008), ranging

from Flex/JFlex and Bison/CUP to modern tools

such as ANTLR or LISA, to help students write the im-

plementations automatically. A compiler operates in

phases, each on with its particularities, algorithms,

techniques, and tricks. Students traditionally learn,

in each phase in which a compiler is structured, a set

of theoretical concepts about Compiler Design theory

(lexical and syntactic analysis, syntax-directed trans-

lation, symbol table, type checking, code generation,

etc.), and automatically implement these parts of in-

creasing complexity with the tools before proceeding

to the following phase. However, this educational ap-

proach still gives rise to a problem, as the tools often

do not show students many of the details of their use

that are related to theory. Therefore, in many cases,

the tools do not serve to design a complete course

whose objective is to obtain a theoretical understand-

ing of how they work. This not only results in a large

gap between practice and theory, but also results in

students having an incomplete view of the course. As

a result, students spend less and less effort and time

studying their theoretical content.

In this paper, we start from the methodology de-

DelVado Vírseda, R.

Visualizing Compiler Design Theory from Implementation Through an Interactive Tutoring Tool: Experiences and Results.

DOI: 10.5220/0011709800003470

In Proceedings of the 15th International Conference on Computer Supported Education (CSEDU 2023) - Volume 2, pages 333-340

ISBN: 978-989-758-641-5; ISSN: 2184-5026

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

333

scribed in (del Vado V

ırseda, 2021) to increase the

understanding of the theory of a Compiler Design

course from the concrete implementation generated

by the automatic code construction tools, according

to the various stages that take place during the con-

struction of a compiler. To achieve this goal, we have

developed in this paper an Interactive Tutoring Tool

(ITT), from the initial design ideas set out in our pre-

vious work (del Vado V

ırseda, 2022) as a particular

instance of an Interactive Tutoring System (ITS) (del

Vado V

ırseda, 2020). Unlike other educational tools

for teaching compiler constructions (Boyer and Chit-

saz, 2004; Henriques and et al., 2005; Chakraborty

and et al., 2013), and following (del Vado V

ırseda,

2020), each teacher can choose through ITT the

compiler-writing tools that he/she deems most suit-

able for teaching the course, and combine them in a

modular way in the same educational environment. If

in the future you choose to change these tools or use

another programming language, ITT will still be use-

ful, since the interactive tutoring process performed

by the ITT tool will continue to be valid. Moreover,

the interactive tutoring process carried out by the ITT

tool to explore the ﬁnite state automata and graphs

generated by the compiler-writing tools w.r.t. to the

code will remain analogous for tutoring students from

implementation to theory.

The paper is structured as follows. In the follow-

ing section, we discuss the contributions to related

work. Next, we describe the design and use of the ed-

ucational tool ITT. We analyze the methodology and

evaluation applied to obtain success indicators from

our experiences and results. Finally, conclusions and

an outlook for future work close the paper.

2 CONTRIBUTIONS AND

RELATED WORK

Over the past two decades, several strategies have

been designed to be applied in a course on Com-

piler Design within the CS curriculum (Waite, 2006).

First, “emphasize design patterns, teamwork, and pro-

gramming methodology by constructing a compiler to

meet assigned speciﬁcations” (software project (Mak,

2009; Nystrom, 2021)). Second, “emphasize the role

of theory to enable automation of compiler tasks, and

illustrate the limitations of that theory” (application

of theory (Aho et al., 2006)). Third, “emphasize the

broad applicability of compiler technology to imple-

ment languages for special purposes” (computer com-

munication support (Henry, 2005)). CS students tend

to achieve higher motivation if they start as early as

possible with a simple, self-built implementation that

enables them to apply, as quickly as possible, each

theoretical concept they acquire during their learning

process, i.e., if they have something concrete that they

can manipulate. For this reason, our work focuses

on the second strategy under a different perspective,

focusing on the function of the implementation ob-

tained by using tools for the automation of the com-

piler tasks, in order to emphasize the role of theory.

By this novel approach, we ensure that the importance

of the software engineering strategy in a Compiler

Design course is not underestimated, while avoiding

overemphasis on parsing and syntax-directed transla-

tion theory. The connection with the third strategy is

achieved through the use of ITT, which support com-

puter communication through interactive sessions.

Following (de Oliveira Guimar

aes, 2007; Frens

and Meneely, 2006; del Vado V

ırseda, 2021; del

Vado V

ırseda, 2022), we have developed a different

course content in which theory is presented progres-

sively through various implementations of varying

complexity. The ﬁrst implementation is just a lexical-

syntactic analyzer of a simple language of arithmetic

(see Sections 3 and 4), and the last one is a com-

piler for a PL/0 language. The theoretical concepts

are introduced incrementally through interactive ses-

sions from the implementations, and are used as a

motivation to understand the theoretical reasons that

make the implementation works. In this way, the im-

plementations are a motivation to study the theory of

the course. Unlike other works (Mernik and Zumer,

2003; Henriques and et al., 2005), theory does not

come before or after, but at the same time as the un-

derstanding of the implementation and its execution.

While most recent efforts to improve students’

learning in Compiler Design have focused on design-

ing new tools (Sondag et al., 2010; Henriques and

et al., 2005; Chakraborty and et al., 2013), com-

paratively little research has focused on automating

examinations to improve interactive students’ learn-

ing. Our educational experience with ITT provides

new evidence that switching the assessment of stu-

dents’ understanding of the theory from implemen-

tation through interactive sessions improve students’

results. Following (Lorenzo, 2011), our approach

presents the new ITT tool for the automatic evaluation

of the theoretical and practical parts of a Compiler

Design course. Moreover, in recent years, the number

of papers including studies on the educational effec-

tiveness of the diagnostic messages, produced by in-

terpreters and compilers, has increased (Pettit, 2017).

The ITT tool also uses compiler error messages as a

pedagogical tool and as a part of the learning process

of the Compiler Design theory. Taking (Becker, 2019)

as a starting point, we have designed interactive learn-

CSEDU 2023 - 15th International Conference on Computer Supported Education

334

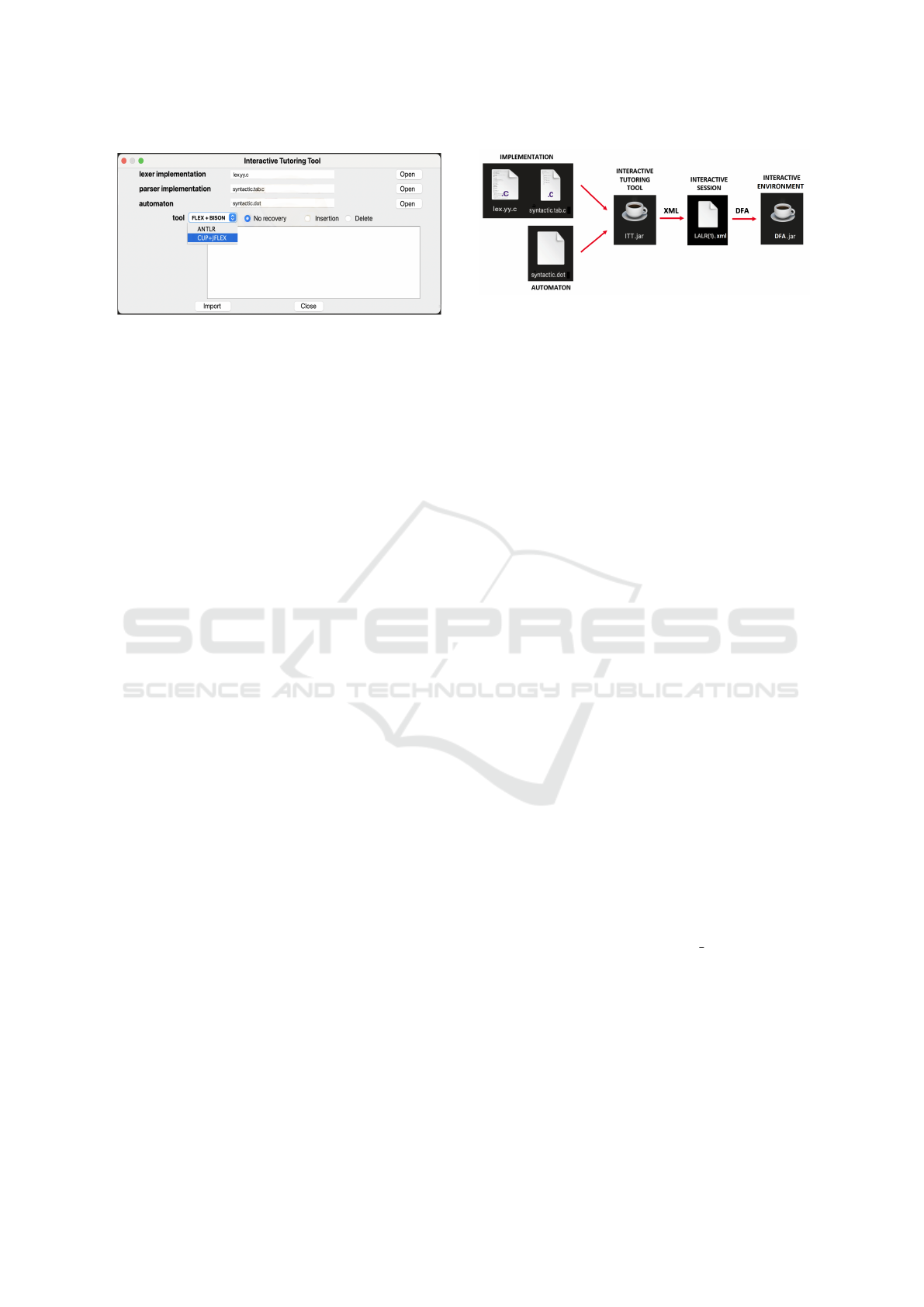

Figure 1: ITT Interface requesting implementation ﬁles.

ing sessions on compiler warnings, runtime errors,

error messages, shift/shift and shift/reduce conﬂicts

(Aho et al., 2006), to correct students’ performance,

track their progress, and tutor their study plans.

Finally, in the last two decades, a series of visu-

alization tools have been designed to teach Compiler

Design (Urquiza-Fuentes et al., 2011; Sondag et al.,

2010). Visualization has been integrated frequently in

Computer Science Education (Naps and et al.l, 2002),

and these tools are very effective in helping students

understand the transformation process from source

programs at various stages of the compilation process

(Vegdahl, 2000; Godbolt, 2021). For this reason, the

interactive tool ITT allows the implementation to vi-

sualize more closely each theoretical concept in re-

lation to its corresponding stage of the compilation

process. Integrating these visualizations with the pro-

gram’s execution, ITT allows the student to improve

the error correction and debugging with each of the

levels of representation of the source language.

However, the ITT tool is not just another visual-

ization tool for understanding code generation, but al-

lows the interactive exploration of the ﬁnite state au-

tomata and graphs generated by automatic code gen-

eration tools underlying the implementation. The ITT

tool enables the materialization of the theory from

the implementation so that the student can manipulate

them and better understand their relationship with the

obtained code by compiler writing tools. Focusing

on the interactive exploration of each automata por-

tion of compilation generated by the compiler writing

tools (as opposed to the full compiler tool chain), to

interactively explain compiler theory and implemen-

tation instead of only automata visualization, is the

primary contribution of this work.

3 THE INTERACTIVE

TUTORING TOOL ITT

Our educational experience uses ITT as a particu-

lar instance of our previous interactive tutoring sys-

Figure 2: From the implementation to theory: Design and

use of ITT for the interactive exploration of a DFA in XML.

tem (del Vado V

ırseda, 2020), a computer system

designed to interactively tutor traditional learning

from theory to implementation in a Compiler Design

course, providing immediate and customized instruc-

tion and feedback to our students. Unlike other sim-

ilar educational systems (Mernik and Zumer, 2003;

Henriques and et al., 2005), ITT can be used para-

metrically and modularly with a number of compiler-

writing tools that the teacher considers most appropri-

ate for the development of the course, following our

methodology described in (del Vado V

ırseda, 2021).

Now, the main novelty is that with ITT students start

now with their own implementations in C/C++ or

Java, along with DOT format ﬁles to generate and

interactively explore the attribute graph and the ﬁ-

nite automata underlying the code of the implemen-

tation, developing our preliminary ideas presented in

(del Vado V

ırseda, 2022). ITT interactively guides

the students in the use of some theoretical tool, link-

ing the most signiﬁcant fragments of your code with

the most classical theory concepts (del Vado V

ırseda,

2021). We describe the use and experience of ITT

through an example of one of the ﬁrst grammars that

books use to teach compilers (Aho et al., 2006).

Students begin their learning from a speciﬁcation,

provided by the teacher, of a very simple formal lan-

guage, for example, for the recognition and evalua-

tion of arithmetic expressions (Aho et al., 2006). This

speciﬁcation is composed, in the ﬁrst place, by the ﬁle

lexical.l, which contains the lexical speciﬁcation

of the language consisting of an intuitive regular ex-

pression to recognize (yytext) and evaluate numbers

as positive integer and ﬁxed-point values, together

with zero (yylval.real) as TOKEN NUM tokens:

DIGIT [0-9]

{DIGIT}+(’.’{DIGIT}+)? { yylval.real = atof(yytext);

return TOKEN_NUM; }

Secondly, the student is provided with the syntax-

semantics speciﬁcation of the language through the

ﬁle syntactic.y. This speciﬁcation is formed by

an intuitive attribute grammar, with which the stu-

dent can introduce arithmetic expressions in different

lines, each of them ending in a line break ’\n’. In

Visualizing Compiler Design Theory from Implementation Through an Interactive Tutoring Tool: Experiences and Results

335

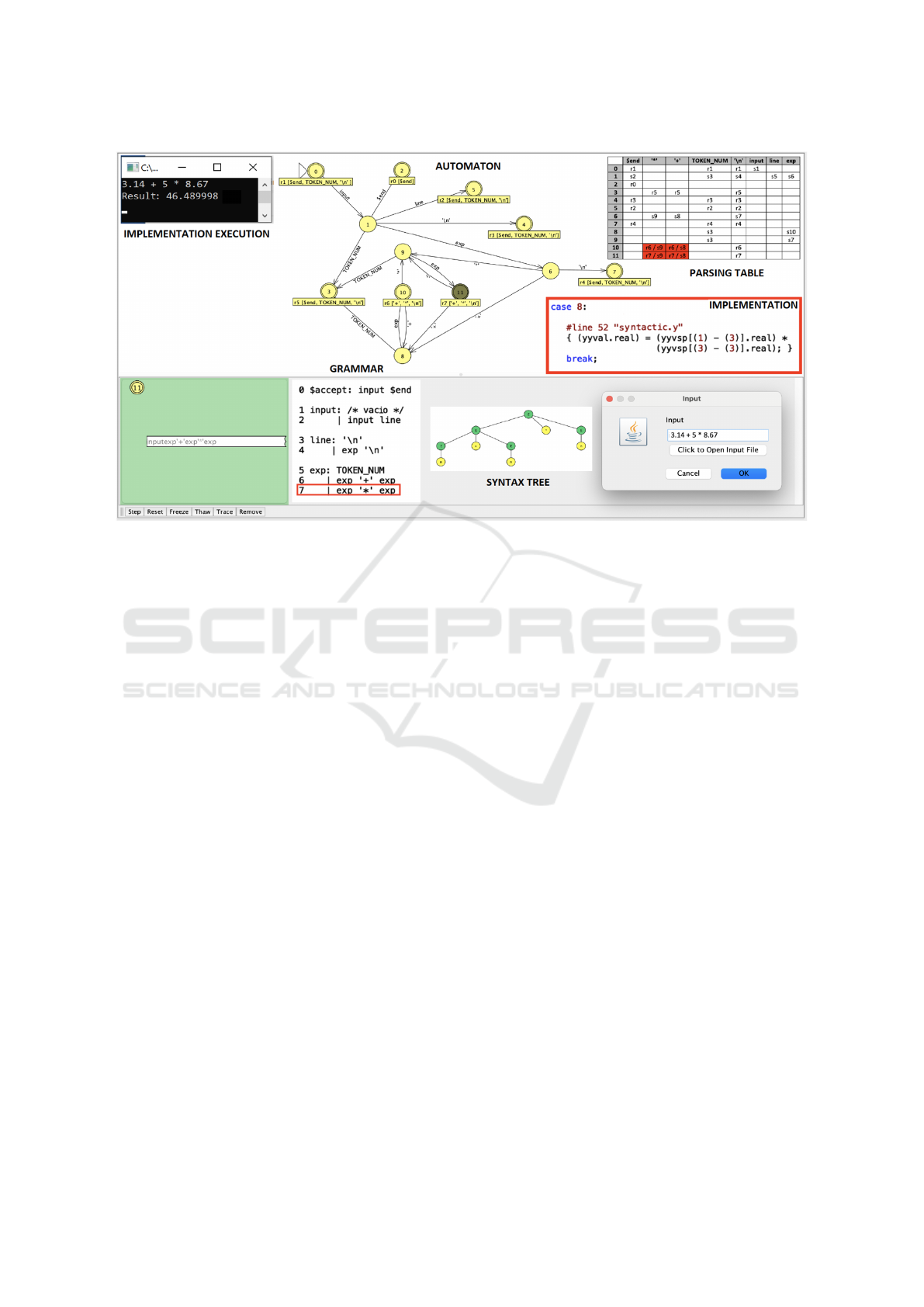

Figure 3: Graphical and interactive ITT environment (1).

addition, the attributes and semantic equations neces-

sary for the evaluation of its result are included:

input : /* r1

| input line /* r2

;

line : ’\n’ /* r3

| exp ’\n’ { printf(’Result: %f’, $1); } /* r4

;

exp : TOKEN_NUM { $$ = $1; } /* r5

| exp ’+’ exp { $$ = $1 + $3; } /* r6

| exp ’*’ exp { $$ = $1 * $3; } /* r7

;

From these two ﬁles, students generate their own im-

plementation in C++ by using the Flex/Bison tools

(Levine, 2009; del Vado V

ırseda, 2022): The ﬁle

lex.yy.c with the implementation of the scanner,

and the ﬁle syntactic.tab.c with the implementa-

tion of the LR parser. In addition, the student gets

the ﬁle syntactic.dot with the Deterministic Fi-

nite Automaton (DFA) underlying the implementa-

tion ﬁles. When the student executes ITT, imple-

mented in a ITT.jar ﬁle, the student is asked to en-

ter the ﬁles with the lexical, syntax-semantics imple-

mentation, the DFA automaton, as well as to indi-

cate the concrete tools used to obtain the implemen-

tation, in this case, FLEX+BISON (see Figure 1). From

these three ﬁles, ITT has all the information needed to

create an interactive session, similar to other graphi-

cal tools as JFLAP (Rodger et al., 2011) (see Figure

2). The ITT tool translates the syntactic.dot ﬁle

into the ﬁle LALR(1).xml in XML (Adams and Trefftz,

2004), so that it can be executed by our interactive

environment DFA.jar, which contains the DFA asso-

ciated to the grammar rules r1, r2, etc., and the links

to the code fragments corresponding to its implemen-

tation in syntactic.tab.c:

<label> r1 [$default_r1_link] </label>

</state>

.............

<read> input [$default_sift_link_01] </read>

</transition>

.............

</automaton>

</structure>

4 FROM IMPLEMENTATION TO

THEORY

When the interactive session starts, ITT.jar opens

a window in which executes the ﬁles with the im-

CSEDU 2023 - 15th International Conference on Computer Supported Education

336

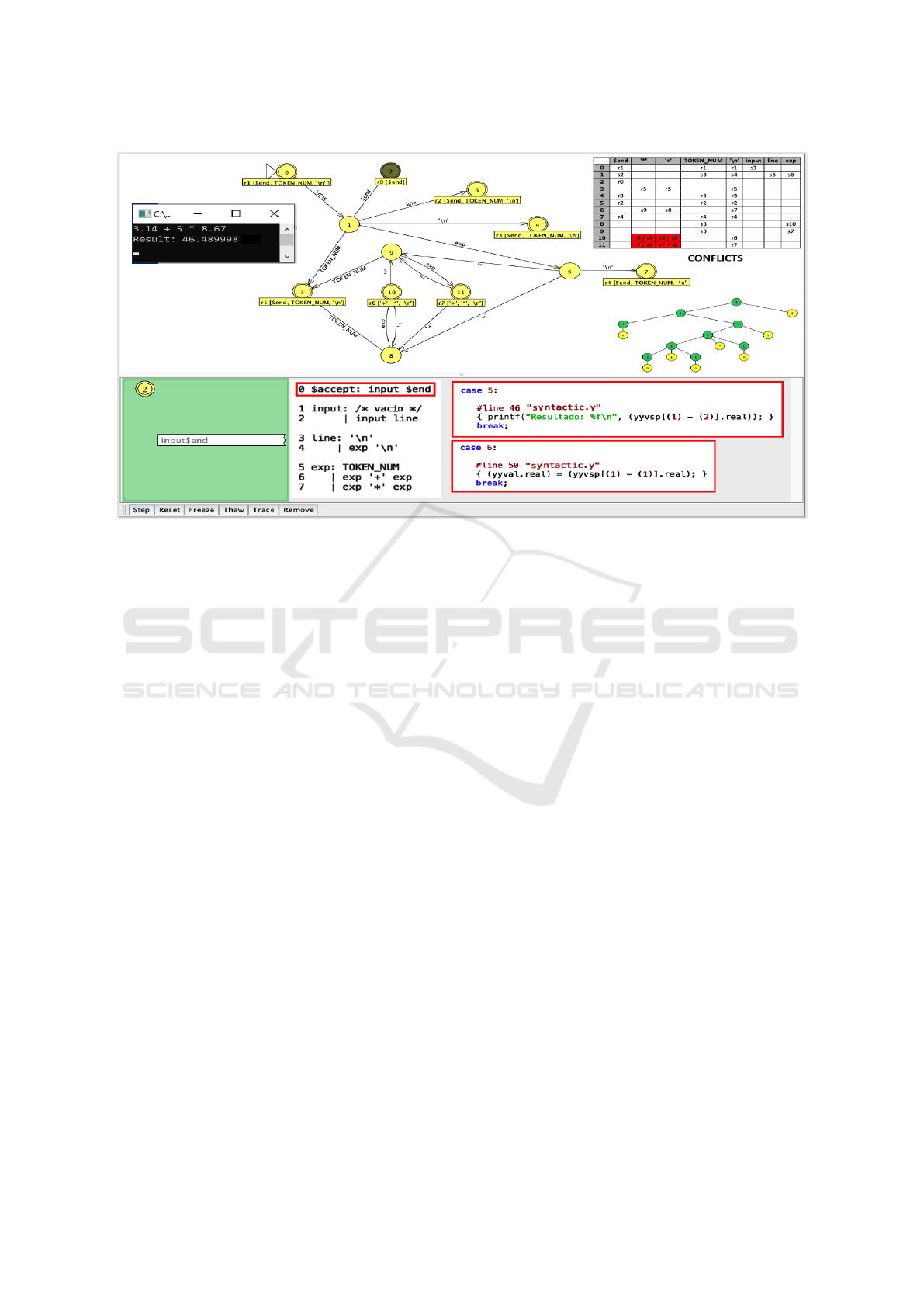

Figure 4: Graphical and interactive ITT environment (2).

plementation provided by the student. If the com-

pilation is successful (errors are shown in the text

box in Figure 1), the student enters an arithmetic ex-

pression as input, for example, 3.14 + 5 ∗ 8.67, and

the result of the evaluation of the expression, in this

case, 46.489998, appears in the window (see Figure

3, upper left corner). Next, DFA.jar opens a new

window with the interactive session, in which the

graphical visualization of the main theoretical con-

tents underlying the implementation execution will

appear (see Figure 3, upper part): The DFA re-

sponsible for directing the analysis process, and the

state transition table with which to traverse the au-

tomaton from its initial state 0 to the different ﬁ-

nal states, highlighted with double circles. The stu-

dent’s goal is to enter sequences of tokens that rep-

resent and correspond to the arithmetic expression

entered in the execution (e.g., students enter the se-

quence 3.14 + 5 ∗ 8.67, corresponding to the expres-

sion inputexp’+’exp’*’exp’\n’) as shown in the

lower right corner of Figure 3. Thus, using the state

transition table, the student will try to start from the

initial state of the DFA and reach one of the ﬁnal

states, each of which has a grammar rule associated.

When the student successfully reaches a ﬁnal state

(in the example, the student clicks on the ﬁnal state

11), ITT displays this fact in green color, and shows

the student the grammar rule responsible for the re-

duction applied during the execution, in this case, the

rule r7 (i.e., exp : exp ’*’ exp). In addition, ITT

shows the bottom-up construction of the syntax tree

achieved up to that moment (see Figure 3, bottom),

as well as the code fragment of the implementation

in syntactic.tab.c for the reduction/shift, and the

evaluation of the attributes in the semantic equation

$$ = $1 * $3 associated with the grammar rule r7.

The student’s ultimate goal is to interactively intro-

duce sequences of tokens until successfully complet-

ing the construction of the syntax tree, as shown in

Figure 4. During this analysis process, the student

clicks on the ﬁnal states to visualize and debug the

complete code trace corresponding to the execution

of the implementation, and at the same time, under-

stand how the DFA works and how its associated state

transition table is used. The student will also un-

derstand and identify the existence of DFA states in

which shift/shift or shift/reduce conﬂicts (Aho et al.,

2006) may appear, as in the example with states 10

and 11, indicated in red in the table. Students can then

perform several sessions with ITT to visually better

understand why the value 46.489998 is obtained dur-

ing the execution, instead of 70.5738, and why it is

necessary to establish priorities and associativity be-

tween arithmetic operators to avoid ambiguity in the

starting grammar given in syntactic.y (i.e., %left

’+’; %left ’*’).

Thus, ITT does not require the student to start with

a correct grammar without conﬂicts and errors. The

ITT tool offers functionality to debug grammars and

resolve conﬂicts and errors, using them as an educa-

tional tool to deepen the understanding of theoretical

design concepts (Becker, 2019). If at any time the

Visualizing Compiler Design Theory from Implementation Through an Interactive Tutoring Tool: Experiences and Results

337

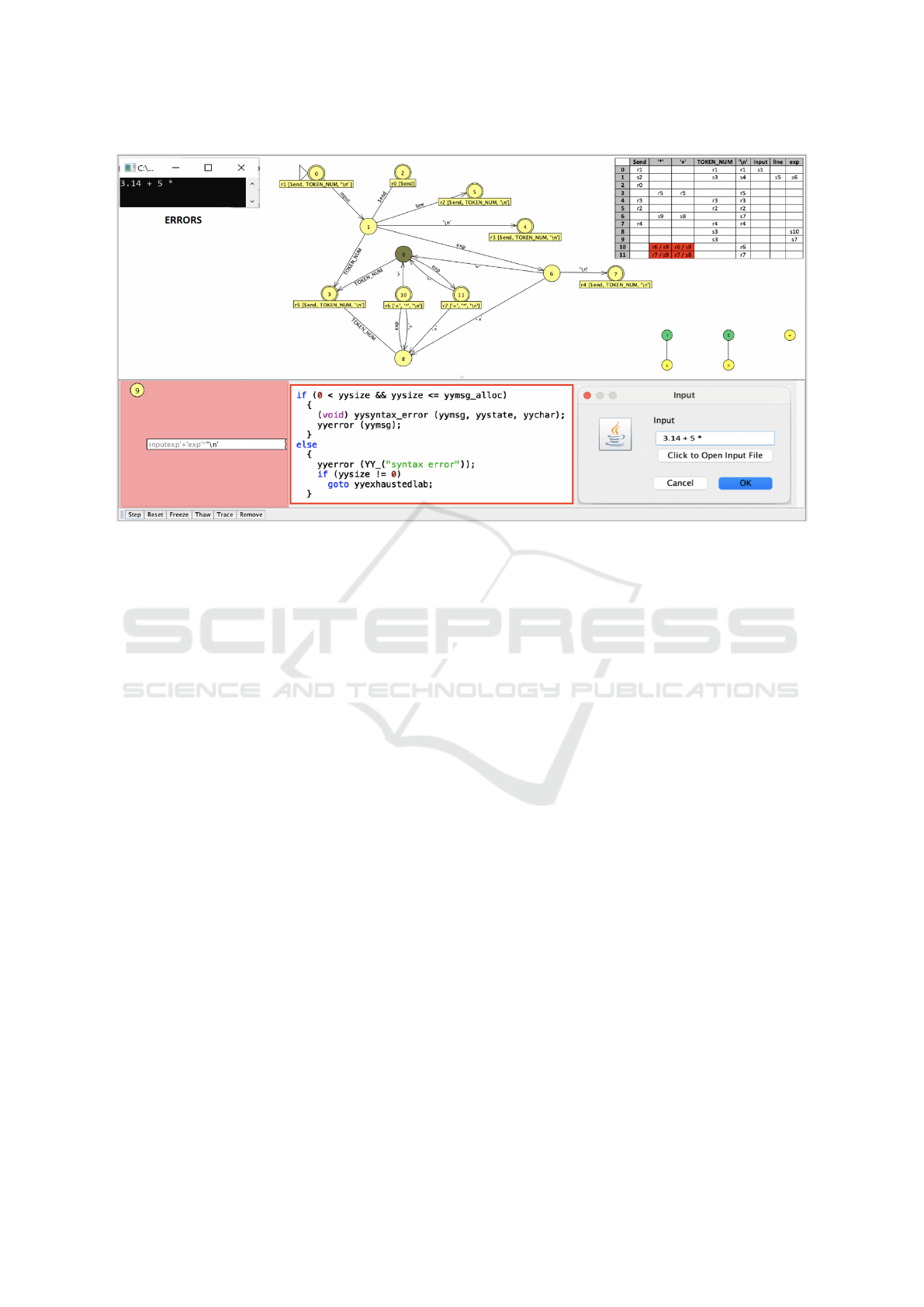

Figure 5: Interactive ITT debugging of errors and conﬂicts.

student enters an incorrect token sequence, or a ﬁnal

state with an incorrect reduction is reached, ITT dis-

plays it in red color (see Figure 5). In addition, ITT

will show the part of the syntax tree it has built up to

that point, as well as the code fragment of the imple-

mentation that is responsible for identifying this er-

ror. The student will better understand how to resolve

these conﬂicts and errors, and if it is necessary, re-

design the grammar in syntactic.y to obtain a new

implementation with which to run again the interac-

tive session provided by ITT.

5 METHODOLOGY AND

EVALUATION

Following our previous methodology of evaluation

in (del Vado V

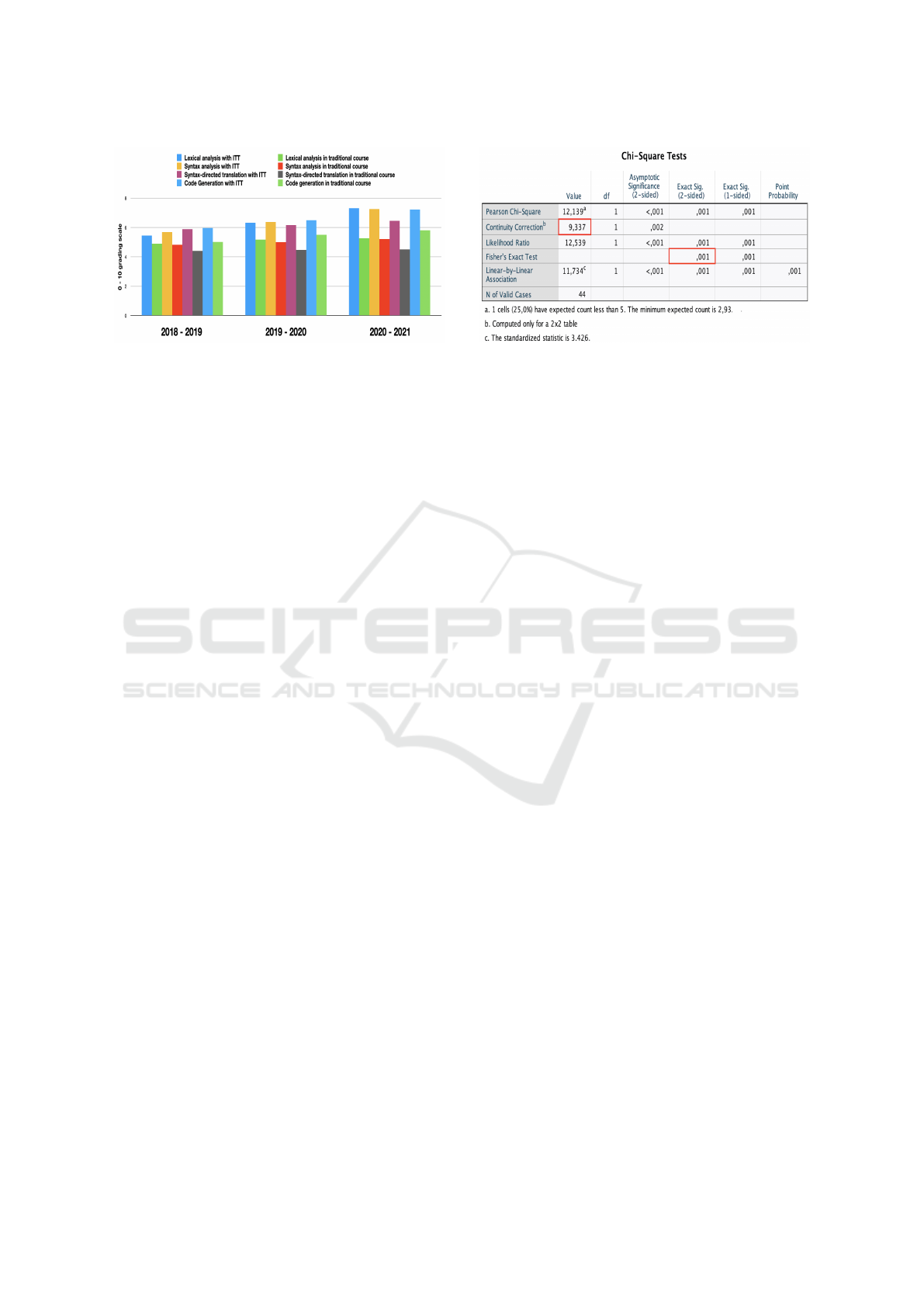

ırseda, 2021), Figure 6 shows the re-

sults achieved by means of the application of ITT

by several groups of students in a Compiler Design

course, over several consecutive academic years, on

each phase in which a compiler is structured. The re-

sults of our experience have been obtained as the ITT

tool and its underlying methodology have been devel-

oped and applied.

During the 2018-2019 course, ITT was tested for

the ﬁrst time with good results (see Figure 6), with 39

students contributing their ideas and criticisms for its

development and implementation (17 with ITT and

22 in traditional course with only compiler writing

tools). The average was 5.89 points, a step above the

traditional method without ITT.

In the 2019-2020 course, ITT was applied for

the ﬁrst time in a controlled and supervised environ-

ment to evaluate its application (del Vado V

ırseda,

2022). Students were carefully selected to follow the

traditional tool-based learning method or using ITT

throughout the course (to prevent students who are

more likely to do well in the course are also more

likely to choose to use ITT). Of the total number of

students enrolled, 24 students were selected to use

ITT and 17 students followed the traditional method.

The students who followed the classical method ob-

tained an average of 5.93 points, similar to the results

already obtained in the 2018-2019 course. Students

using ITT obtained now a higher average of 6.44.

The 2020-2021 academic year was affected by

COVID-19, which resulted in classes going virtual.

To facilitate the remote delivery of the main theo-

retical concepts, we developed in more detail the re-

mote instance of ITT presented in Sections 3 and 4.

On this occasion, 33 students were selected to follow

the new learning method using ITT, and only 11 stu-

dents were selected to follow the traditional learning

method from theory to implementation, using notes

and recorded lectures prepared by the teacher together

usual compiler-writing tools. The average obtained

by the students who used ITT increased to 7.0 points,

while the average obtained by the students who fol-

lowed the traditional method increased to 6.15 points.

We have used speciﬁc quizzes for the topics where

the ITT tool can be used, comparing the projects and

CSEDU 2023 - 15th International Conference on Computer Supported Education

338

Figure 6: Results in each compiler phase with/without ITT.

exam grades with and without using the tool (see Fig-

ure 6). The evaluation compares students learning un-

der each approach in the same group, in which stu-

dents following the traditional method only make use

of the compiler-writing tools, instead of our tool ITT

on the phases where the interactive tool can be used.

6 RESULTS AND SUCCESS

INDICATORS

Finally, we have conducted statistical analysis to ex-

amine the effect of using ITT with students in a Com-

piler Design course. In the last year, the individual

projects and exams have been the same, but there

were two groups of students. Those who have fol-

lowed the traditional method of learning from theory

to the implementation provided by compiler-writing

tools (without ITT), and those who have learned the

theory of the course from the implementation with the

help of ITT. We have tested, from the results and sur-

veys presented in Section 5, the following research

hypothesis: Students who learn the theory of a Com-

piler Design course from the implementation by using

the interactive sessions generated by ITT, have been

successful in the course by obtaining better results,

motivation, and interested than with traditional learn-

ing methods without ITT.

For this purpose, we performed χ

-tests of inde-

pendence for hypothesis testing with the SPSS soft-

ware and the calculation of conﬁdence intervals of

95%. We tested H

(there is independence between

the variables ITT use and Success in the course), and

(there is no independence). The two variables are

coded as follows: ITT use is coded with the number 1

if the ITT tool is used and 2 in the negative case, and

Success in the course is coded with the number 1 if

the ﬁnal exam is passed and a positive motivation has

been recorded, and 2 in the negative case. The statisti-

cal table in Figure 7 shows the value of the continuity

correction statistic as a 2 × 2 table whose value was

Figure 7: Chi-Square tests of independence for the use and

evaluation of the ITT tool in a Compiler Design course.

9.337, with one degree of freedom. If we look at the

Fisher’s exact statistic for the exact sig. (bilateral) col-

umn, which we call p, this value indicates the prob-

ability of obtaining a difference between the groups

greater than or equal to the observed one, under the

null hypothesis H

of independence. As this proba-

bility is less than α = 0.05 (since p = 0.001 < 0.05),

we conclude with a signiﬁcance level of 5% that the

starting hypothesis H

should be rejected, so we must

assume H

(i.e., the two variables are not indepen-

dent, but associated). Therefore, the use of ITT to

interactively learn theory from implementation tends

to increase grades and motivation.

7 CONCLUSIONS AND FUTURE

WORK

Compiler Design has resulted in a beautiful combina-

tion of practice and theory in Computer Science (Aho

et al., 2006). However, theory and practice are not

mutually exclusive, but are intimately connected, so

that they coexist and support each other. Although

new resources are being developed to balance theory

and practice to get students better connect the prac-

tice and theory of compiler design (Nystrom, 2021),

educational approaches based on traditional compiler

books (Aho et al., 2006; Wirth, 1996) seem to have

become obsolete to bridge the gap that students en-

counter between Compiler Design theory, and tools

for designing modern compilers

This work has shown how to use the ITT tool

to set interactive learning connections between the

key phases in the implementations achieved by the

compiler-writing tools, and speciﬁc portions of com-

piler theory. The use of ITT with an interactive graph-

ical interface, to engage students and enhance the un-

derstanding of the theory from the implementation,

gives students a ﬁrst-hand understanding of how the-

ory and practice can be beneﬁcially interwoven.

Visualizing Compiler Design Theory from Implementation Through an Interactive Tutoring Tool: Experiences and Results

339

Our main future work consists of enabling ITT

to interactively use other tools, such as LISA or

ANTLRTree, with which to better visualize the values

of inherited and synthesized attributes from the code.

We are also intending to use ITT with other com-

piler writing tools following (Chakraborty and et al.,

2013). We are also working on using other imple-

mentation languages following (Godbolt, 2021), such

as C#, Java code, provided by the JFlex/CUP tools,

and Python implementations.

REFERENCES

Adams, D. R. and Trefftz, C. (2004). Using xml in a com-

piler course. SIGCSE Bull., 36(3):4–6.

Aho, A. V. (2008). Teaching the compilers course. SIGCSE

Bull., 40(4):6–8.

Aho, A. V., Lam, M. S., Sethi, R., and Ullman, J. D. (2006).

Compilers: Principles, Techniques, and Tools (2nd

Edition). Addison-Wesley.

Becker, B. A. e. a. (2019). Compiler error messages consid-

ered unhelpful: The landscape of text-based program-

ming error message research. ITiCSE-WGR ’19, page

177–210. ACM.

Boyer, T. P. and Chitsaz, M. (2004). Ice™ and ice/t™:

Tools to assist in compiler design and implementation.

SIGCSE Bull., 36(4):55–57.

Chakraborty, P. and et al. (2013). A compiler-based toolkit

to teach and learn ﬁnite automata. Comput. Appl. Eng.

Educ., 21(3):467–474.

de Oliveira Guimar

aes, J. (2007). Learning compiler con-

struction by examples. SIGCSE Bull., 39(4):70–74.

del Vado V

ırseda, R. (2020). An interactive tutoring system

for learning language processing and compiler design.

In ITiCSE’20, page 552. ACM.

del Vado V

ırseda, R. (2021). Learning compiler design:

From the implementation to theory. In ITiCSE’21,

pages 609–610. ACM.

del Vado V

ırseda, R. (2022). ITT: an interactive tutor-

ing tool to improve the learning and visualization

of compiler design theory from implementation. In

SIGCSE’22, page 1074. ACM.

Demaille, A. e. a. (2008). A set of tools to teach compiler

construction. In ITiCSE ’08, page 68–72.

Frens, J. D. and Meneely, A. (2006). Fifteen compilers in

ﬁfteen days. SIGCSE Bull., 38(1):92–96.

Godbolt, M. (2021). Compiler explorer.

Henriques, P. R. and et al. (2005). Automatic generation

of language-based tools using the LISA system. IEE

Proc. Softw., 152(2):54–69.

Henry, T. R. (2005). Teaching compiler construction using

a domain speciﬁc language. SIGCSE, 37(1):7–11.

Levine, J. R. (2009). ﬂex and bison - Unix text processing

tools. O’Reilly.

Lorenzo, E. J. e. a. (2011). A proposal for automatic eval-

uation in a compiler construction course. In ITiCSE

’11, page 308–312. ACM.

Mak, R. (2009). Writing Compilers and Interpreters: A

Software Engineering Approach. Wiley Publishing,

3rd edition.

Mernik, M. and Zumer, V. (2003). An educational tool for

teaching compiler construction. IEEE Trans. Educ.,

46(1):61–68.

Naps, T. L. and et al.l (2002). Exploring the role of visu-

alization and engagement in computer science educa-

tion. ACM.

Nystrom, R. (2021). Crafting Interpreters. Genever Ben-

ning.

Pettit, R. S. e. a. (2017). Do enhanced compiler error mes-

sages help students? results inconclusive. SIGCSE

’17, page 465–470, New York, NY, USA. ACM.

Rodger, S. H., Qin, H., and Su, J. (2011). Changes to jﬂap

to increase its use in courses. ITiCSE ’11, page 339,

New York, NY, USA. ACM.

Sondag, T., Pokorny, K. L., and Rajan, H. (2010). Frances:

A tool for understanding code generation. SIGCSE

’10, page 12–16. ACM.

Urquiza-Fuentes, J., Manso, F., Vel

azquez-Iturbide, J. A.,

and Rubio-S

anchez, M. (2011). Improving compilers

education through symbol tables animations. ITiCSE

’11, page 203–207. ACM.

Vegdahl, S. R. (2000). Using visualization tools to teach

compiler design. volume 16, page 72–83, Evansville,

IN, USA. Consortium for Computing Sciences in Col-

leges.

Waite, W. M. (2006). The compiler course in to-

day’s curriculum: Three strategies. SIGCSE Bull.,

38(1):87–91.

Wirth, N. (1996). Compiler construction. International

computer science series. Addison-Wesley. slightly re-

vised November 2005.

CSEDU 2023 - 15th International Conference on Computer Supported Education

340
