Data Driven Meta-Heuristic-Assisted Approach for Placement of

Standard IT Enterprise Systems in Hybrid-Cloud

Andrey Kharitonov, Abdulrahman Nahhas, Hendrik M

uller and Klaus Turowski

Faculty of Computer Science, Otto von Guericke University, Magdeburg, Germany

Keywords:

Commercial-off-the-Shelf Enterprise Applications, Capacity Management as a Service, Hybrid-Cloud.

Abstract:

We address the problem of hybrid-cloud placement selection for commercial off-the-shelf IT enterprise appli-

cations with the sizing done based on workload proﬁles collected from real-world production systems. The

proposed approach leverages techniques based on evolutionary meta-heuristics with a multi-criteria weighted

sum objective function. A placement decision is made between an on-premises data center and a public cloud,

using real pricing information for virtual machines, storage, and networking published by the public cloud

vendor via automation APIs and on-premises cost estimation as a share of expense per service. Additional ob-

jectives, such as expertise and non-functional requirements, are encoded in a numerical form for the objective

function. The evaluation is performed as single and multi-objective optimization by employing genetic algo-

rithm, and non-dominated-sorting genetic-algorithm-III on the case study of an SAP landscape hybrid-cloud

placement on a selected public cloud with real workload data collected during day-to-day business operations,

indicating the viability of the approach.

1 INTRODUCTION

Standard IT enterprise systems encompass software

solutions designed to fulﬁll the needs of varying

size organizations (i.e., enterprise resource planning

(ERP) systems ). Speciﬁcally, in medium and large

enterprises, such systems are often comprised of mul-

tiple semi-independent sub-systems, such as a vari-

ety of application systems and databases. Infrastruc-

ture refresh, expansion, or transformation involves

a decision-making process on the software systems

placement within a heterogeneous infrastructure con-

sisting of private data centers and public cloud place-

ment options (Missbach et al., 2016).

When simply selecting the cheapest available in-

frastructure fulﬁlling the required key performance

indicators (KPI) conﬁguration isn’t enough, other re-

quirements and relevant indicators must be consid-

ered in the decision-making process. Furthermore,

the efﬁciency of applying this process in real life is of

utmost importance. It is also important to avoid de-

veloping a process that resembles a black box for the

user expert or a customer receiving placement recom-

mendations generated by this process.

Therefore, the motivation for this work is a need

to develop an easily explainable process that can be

delivered as a service providing support in a hybrid-

cloud transformation process of standard IT enter-

prise applications, with SAP-based IT infrastructure

as a particular case study. The service is to provide

data-driven decision support on the challenge of iden-

tifying the best-suitable operating environments for

given SAP workloads. Based on an arbitrary num-

ber of customer-speciﬁc quantiﬁable requirements,

existing constraints, measured workloads, resource

demands, and cost estimations, a placement recom-

mendation is provided for each assessed SAP sys-

tem (identiﬁed by its system ID, or, in short, SID).

In principle, this is a multi-criteria decision problem,

which can be tackled through appropriate approaches

(i.e., weighted sum model), also in the area of cloud

provider selection(Chauhan et al., 2020).

The search space of possible target environments

for each SID is formed by the variety of available

placement conﬁgurations and regions provided by a

public cloud provider and, if applicable, the cus-

tomer’s on-premises data center. In order to measure

what is ”best-suitable”, each potential solution is as-

sociated with a score that represents its fulﬁllment de-

gree of customer requirements, constraints, and the

resulting costs. Therefore, it is a challenge to identify

solutions that maximize the score.

Due to the complexity of the problem, multiple

solution search approaches for similar problems were

Kharitonov, A., Nahhas, A., Müller, H. and Turowski, K.

Data Driven Meta-Heuristic-Assisted Approach for Placement of Standard IT Enterprise Systems in Hybrid-Cloud.

DOI: 10.5220/0011726600003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 139-146

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

139

proposed in the existing literature. Including those

based on algorithms that belong to the class of meta-

heuristics (Rahimi et al., 2022), which we also adopt

within this work. Furthermore, in the presented case

study, of Microsoft Azure, infrastructure costs are

calculated based on publicly available list prices for

compute, network, and storage components per sys-

tem component placement. In the case of on-premises

environments, a generic data center cost model is

used and parameterized with customer input to esti-

mate cost summary for system components. In both

cases (cloud and on-premises), required components

are sized based on real customer workloads and re-

source demands. For this purpose, a workload data

collection software measures resource demands and

capacity for the deﬁned set of SAP systems over a

deﬁned period of time. The impact of using the work-

load collector software on the overall system perfor-

mance is negligible.

Essentially, the goal of the approach is to answer

the following questions posed by a customer under-

going SAP landscape transformation:

Q1: Which of my SAP workloads are suitable for

cloud operations, and which are suitable for on-

premises?

Q2: What would be the infrastructure costs to operate

my SAP workloads in a public cloud?

Q3: What’s the most cost-effective distribution of my

SAP workloads across on-premises infrastruc-

ture and public cloud regional data centers?

Q4: What’s the right level of computational resources

at which point in time?

Q5: How does Remote Function Call (RFC) network

trafﬁc between my SAP instances affects pric-

ing?

2 DATA DRIVEN SIZING

Redesign or transformation of the hybrid-cloud in-

frastructure capacities for the fulﬁllment of the KPIs

can be done based on the real-world workload pro-

ﬁles. As mentioned in the previous section, this work-

load proﬁle can be recorded and used for analysis or

alternatively, performance unit tests can be utilized on

the real system (Hork

y et al., 2015). In this work,

we concentrate on making use of such workload pro-

ﬁles for standard off-the-shelf enterprise systems us-

ing SAP as a speciﬁc use case, well suitable for data-

driven sizing capacity (M

uller et al., 2022).

Alongside the KPIs, pricing plays a crucial role in

planning the hybrid-cloud infrastructure as it’s neces-

sary to ﬁnd the balance between the costs of system

placements in private data centers and pricing plans in

considered public clouds. Estimating the costs of pri-

vate data centers is not trivial (Patel and Shah, 2005),

especially in cases of hybrid-cloud component distri-

bution of the same system. In such cases we can rely

on system component-based cost estimations (Brogi

et al., 2019), while relying upon the workload proﬁles

(CPU, memory, storage, network utilization). Simi-

larly, we can rely on the workload proﬁles to select an

optimal pricing model (Wu et al., 2019) per system

per cloud placement within a speciﬁed planning hori-

zon, with automation facilitated via integration with

the pricing APIs of the public cloud providers.

Pre-calculation of all viable placement combina-

tions for a landscape consisting of hundreds of sys-

tems and databases is computationally and memory

expensive. For each pricing component, which de-

pends on the landscape conﬁguration, a matrix with

dimensions |K| ∗ |P| × |K| ∗ |P| would have to be

calculated, where K is a set of systems in the land-

scape, and P is a set of viable individual placement

conﬁgurations. Instead, such costs, which depend on

the conﬁguration of the landscape, are estimated as

part of the target function of a chosen meta-heuristic

during the evaluation of a solution candidate. It is im-

portant to note that the placement decision can not be

made for each system component in isolation as exist-

ing interdependencies (e.g., network, storage) affect

not only KPIs but also the pricing. Such interdepen-

dencies can be inferred from the corresponding work-

load proﬁle.

3 DECISION OBJECTIVES

The problem discussed in this work is the multi-

attribute decision-making problem (Zanakis et al.,

1998), which we address with an approach similar

to a weighted sum for optimization method (Marler

and Arora, 2010). That means that we consider multi-

ple objectives, which might have a conﬂicting nature.

The simplest example of such conﬂicting objectives is

the maximization of the infrastructure capacities that

stands in direct opposition to price minimization. In

the real world, the decision objectives are more nu-

merous and intricate. Some of these objectives are

universal from project to project, but some can be

unique functional or non-functional business require-

ments. Such objectives would be deﬁned and quanti-

ﬁed for each transformation or infrastructure upgrade

project individually. Therefore, it’s important to have

a mechanism that supports the addition of an arbitrary

number of new objectives in an intuitive way.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

140

3.1 Objectives Deﬁnition

To illustrate this principle, in Table 1 we provide an

example list of such additional objective categories

with values and weights that were considered within

the context of this work. These objectives were de-

ﬁned during a systematic interviewing process of ex-

perts in the ﬁeld of SAP infrastructure architecture as

well as the customers undergoing a refresh process of

SAP infrastructure.

We asked the interviewees to provide a tu-

ple of three numeric values for each requirement

⟨v, w

onprem

, w

cloud

⟩. The ﬁrst value v denotes the

client’s answer to the stated requirement importance

or an assessment question in a numerical representa-

tion. The values v, in principle, can be denoted on any

numerical scale that is logically sound or convenient

for any given requirement, but the upper and lower

bounds of the scale must be known for later normal-

ization. This means that in the end, every requirement

is quantiﬁed in the range of [0, 1], which is selected

for simplicity of calculation as any arbitrary numeri-

cal scale can be easily normalized to this range. If a

requirement can’t be represented as a numerical scale,

it can’t be used in the proposed approach directly and

must be either considered in a post-processing logic

or decomposed to simple quantiﬁable elements.

Values w

onprem

and w

cloud

represent the weights

in the range [0, 1], which denote the importance of

the requirement for the on-premises system place-

ment solution and a public cloud placement solu-

tion, respectively. This means that every objective

is associated with separate importance weights in the

range [0, 1] separately for on-premises and cloud. The

weights are applied via the means of simple multi-

plication during the assessment phase of the system

placement to the value v. While in our short example,

we operate with two types of weights, this principle

can be intuitively extended to vendor-speciﬁc clouds

or different types of private data centers.

The provided in Table 1 short example of such

possible objectives consists of a total of four cate-

gories, differentiated by the designation of two-letter

preﬁxes. Weights for the speciﬁc placement type

within a single category are expected to be always

summed up to 1. Note that the provided values for the

competencies favor the on-premises operations be-

cause the values are based on the customer and expert

interviewees. Every category is also associated with

its own weight, as denoted in Table 2. Important to

note that these criteria are high-level and not meant to

be representative of real-world project complexity.

In the example above, even though values for all

objectives are presented to the experts and the cus-

tomers on a scale with a range [0, 10], the intuition

behind these values differs from category to cate-

gory. Values v in ”Expertise” determine the level of

expertise that is already present within the organiza-

tion. These values in the categories ”Non-functional

requirements” and ”Business strategy” determine the

importance of the objectives for the customer accord-

ing the speciﬁcs of business goals and strategies of the

customer. These values are weighted and considered

directly in the decision process.

All of the costs-related values v are subject to ad-

ditional processing and not considered directly in the

decision process. Instead, the value v denotes an ad-

ditional level of importance for the speciﬁc cost com-

ponent and acts as a scaling factor similar to weights

but independent from on-premises or cloud placement

type. While in the example above, such value is rela-

tively redundant, as well as the explicit separation of

costs between compute and networking, this demon-

strates how such approach can also serve as a way to

precisely balance cost impact on the decision process

for more complex pricing models. These costs for

compute and storage are precalculated as described

in Section 2 for every possible placement type for

each systems present in the IT landscape and added

to the set denoted P

. Pricing in the set is deﬁned

per system P

sys

∈ P

All prices are normalized to

values in the range [0, 1] and subtracted from 1 to en-

able the values to be used as part of the maximization

problem: ∀p ∈ P

sys

= 1 −



sys

− min (P

sys

)



(max (P

sys

) − min (P

sys

)), where P is a ﬁnal set of

normalized prices P

∈ P. Estimations for additional

pricing points (i.e., networking, backups) are pro-

cessed in a similar manner but normalized based on

the landscape-wide minimum and maximum values.

3.2 Constraints

Not every technically possible solution that satisﬁes

the business requirements mentioned above is, in fact,

viable. For example, if a company processes sensitive

information (e.g., personal, medical, commercial) it

falls under certain regulations concerning data place-

ment and processing (Hippelainen et al., 2017; Sar-

feraz, 2022). Therefore, if we take any public cloud

provider with data centers located all over the world,

only a subset of these data centers and combinations

of offerings within others will be viable for consid-

eration. For example, a German company that falls

under such regulations (i.e., GDPR, DSGVO), might

want to only consider data centers within the Euro-

pean Union. This is a hard constraint that cannot be

broken as then the company risks non-compliance le-

gal cases raised against it.

Data Driven Meta-Heuristic-Assisted Approach for Placement of Standard IT Enterprise Systems in Hybrid-Cloud

141

Table 1: Example objective values.

Designation Description v w

cloud

onprem

CO 1 Compute and storage costs 8 0.5 0.5

CO 2 Networking costs 8 0.5 0.5

EX 1 Setting up on-prem SAP landscapes 10 0 0.5

EX 2 Setting up cloud SAP landscapes 5 0.25 0

EX 3 Maintaining on-prem SAP landscapes 10 0 0.5

EX 4 Maintaining cloud SAP landscapes 5 0.25 0

EX 5 Cloud Operations 5 0.25 0

EX 6 Cloud Architecture 4 0.25 0

NF 1 Performance 8 0.2 0.8

NF 2 Scalability & elasticity 5 0.4 0.1

NF 3 Innovation degree 6 0.4 0.1

ST 1 Level of control 5 0.1 0.4

ST 2 Carbon Footprint 2 0.1 0.2

ST 3 OPEX importance 7 0.7 0.1

ST 4 IT impact on business model 8 0.1 0.3

Table 2: Example objective categories.

Preﬁx Objective category Weight

CO Costs 0,35

EX Expertise 0,25

NF Non-functional requirement 0,25

ST Business strategy 0,15

Such constraints can be included as part of the ob-

jectives and processed as part of the objective function

calculation. However, in this particular case, it would

cause needlessly wasteful use of the computational re-

sources as placement hard constraints can easily be

satisﬁed by simple preliminary ﬁltering of the pos-

sible placement options before any calculation takes

place. In the aforementioned example, the placement

options are not a whole set of all possible public cloud

provider locations but a subset limited to the region of

the European Union.

Another type of constraint is a soft constraint.

Soft constraint reﬂects a strong preference that can

be overturned under the weight of the other objec-

tive values. The most obvious examples of such con-

straints are co-location and anti-co-locations (Jam-

mal, M. et al., 2015) for different systems within the

IT landscape. For example, there can be two or more

systems that, due to technical requirements, such as

a high amount of data transferred between them, are

preferred to be placed together. Alternatively, two

systems that are individually critical to the business

processes and the loss of both of them at the same

time can impact business processes, and therefore,

these systems preferably shouldn’t be placed together.

Note that the latter example can also be mitigated by

employing high-availability options on-premises and

in the cloud, but these result in signiﬁcant cost in-

creases, which might not be warranted by the busi-

ness signiﬁcance of the system. High-availability op-

tions, where needed, are selected as part of the pre-

conﬁguration of the placement for the speciﬁc sys-

tem. Soft constraints are associated with a weight,

which determines the signiﬁcance of the constraint to

the overall assessment of the selected placement.

3.3 Objective Function

We approach the problem of placement decision in

two variants, which can be referred to as follows:

multi-objective solved as mono-objective, pure multi-

objective (Pires and Baran, 2015). Or termed alterna-

tively, the problem is represented as a single-objective

and as a many-objective (Helbig and Engelbrecht,

2013). Furthermore, since the discussed objectives

must be represented in a numerical way suitable for

usage in an automation process of calculation of best

available options from the presented alternatives and

for different questions ranges of values can be differ-

ent, normalization is performed to bring all objectives

to a common scale. Considering the practical orien-

tation of the presented approach, simplicity of the ob-

jective function was one of the priorities as it must be

easily explainable and understandable on all levels of

decision-making process in real-world enterprises.

Objectives are grouped into a set of categories de-

noted C. Each c ∈ C is associated with a weight

∈ W, and every weight is with placement type,

such as ”on-premises” or ”cloud” in the use case

discussed in this work: W = W

onprem

cloud

. All

weights wights within the category per placement are

summing up to exactly to 1. Meaning that for every

c ∈C, on-premises sum of weights is

∑

onprem

= 1.0

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

142

and cloud is

∑

cloud

= 1.0.

ς(c) =

∑

x∈c

ζ(x

) ∗ x

|c|

(1)

ζ(x) =



x,x ∈ R

ς(x),x ̸=

(2)

∑

c∈C

ς(c) ∗W

(3)

Finally, the overall weighted score is denoted S

as presented in Equation 3, with a recursive system

of Equation 1 and Equation 2. The approach taken

in this work is inspired by using the weighted sum

model(Chauhan et al., 2020) as a basis and modifying

it to better suit the problem discussed in this work.

Through this simple, easily explainable calculation,

we receive a numerical representation that includes

an arbitrary number of functional and non-functional

requirements coupled with the pricing components.

This representation theoretically allows a hierarchical

composition of the requirement representation where

each value in each category can be represented either

as a real number R or as a subset of values with its

own weights. However, because every subset, when

weighted and summed up, is normalized to the range

[0, 1], the further down below in the hierarchy the

value is located, the less relevant these values become

to the ﬁnal score.

Therefore, the possible maxim score for system

placement conﬁguration is simply a total number of

all top-level categories: S

max

= | {c | c ∈C ∧{r | r ∈

C ∧c ∈ r} =

0} |. Then the minimum score is simply

min

= 0. The ﬁnal scoring for the entire landscape of

multiple systems placed and conﬁgured at available

locations is simply the sum of scores acquired for all

these systems. This ﬁnal summation of scores can

be directly used for the direct comparison of different

landscape placement conﬁgurations and the selection

of the most suitable one according to the price and all

of the speciﬁed additional requirements. In this case,

the higher the score is, the better. This approach can

be directly used as an objective function in a variety of

heuristic or meta-heuristic algorithms as a score max-

imization problem.

However, there is a variety of algorithms that are

suitable for solution search in a multi-objective fash-

ion. In this case the described above mechanism can

still be applied, but instead of calculating of the ﬁ-

nal score, we operate with the top-level requirement

categories as multiple objectives directly with the ac-

cording weights without summing them up. We sim-

ply select all categories C

∆

⊆ C that aren’t child to

any other, as described in Equation 4 and then apply

appropriate weights as seen in Equation 5.

∆

= {c | c ∈ C ∧ {r | r ∈ C ∧ c ∈ r} = ∅} (4)

ϕ =

ς(x) ∗W

| x ∈ C

∆

(5)

Furthermore, the mentioned above scores in the

Equation 3 and Equation 5 are calculated per system

in the landscape. For the landscape-wide ﬁnal score,

a sum of the scores is taken after the placement loca-

tions are selected P

∆

∈ P and systems are assigned to

these placements P

∆

and K

{

k ∈ K ∧ k ∈

∆

Constraints, if deﬁned, are calculated based on the

entire landscape placement. For each individual soft

constraint, a percentage of satisfaction is calculated

and then normalized to the range [0, 1]. After all of the

constraint satisfaction values are calculated for each

constraint type, a weighted average of these values

is calculated and used for further assessment together

with the scoring function. This resulted value is used

as a multiplicator for the calculated score in a single-

objective variate, effectively scaling the resulted score

by the percentage of the soft constraint satisfaction. In

the multi-objective variant, this value becomes just an

additional objective.

4 OPTIMAL PLACEMENT

Capacity planning and placement of the landscape

that consists of just a couple of systems with pre-

calculated sizing and costs for the compute and stor-

age components of the VMs and just a few possi-

ble placement options is a straightforward problem

that can be solved analytically. However, decision-

making becomes more complicated on more complex

landscapes with a variety of different placement op-

tions and requirements, which falls into a category of

problems that is, in fact, an NP-hard problem (Bichler

et al., 2006). The total number of solutions depends

on the number of placement options in set P and the

services in set K and equates to |P|

|K|

(Hyser et al.,

2007).

To simplify and speed up the process of decision-

making, we can employ meta-heuristic optimization

algorithms that are known to work well with objec-

tive maximization problems based on objective val-

ues similar to those described in the previous section.

As an example and to validate the scoring function,

we employ a classic meta-heuristic genetic algorithm

(GA), which is traditionally employed for solving op-

timization problems (Back, 1996) for a single objec-

tive function and a Non-Dominated-Sorting-Genetic-

Algorithm-III or, in short, NSGA-III (Deb and Jain,

Data Driven Meta-Heuristic-Assisted Approach for Placement of Standard IT Enterprise Systems in Hybrid-Cloud

143

2014), that is well suitable for the multi-objective op-

timizations.

We select the classic genetic algorithm meta-

heuristic for the single objective problem solution due

to its simplicity and easy-to-understand and imple-

ment principle, which is inspired by evolutionary the-

ory. GA metaheuristic is a technique for a solution

search in a problem search space within a number

of generations, directed by a so-called ﬁtness func-

tion that determines the quality of the solution. Solu-

tion candidates in this class of algorithms are named

individuals. A large number of GA variations ex-

ist, but in principle, they share the same three main

functions: initialization, mutation, crossover, and se-

lection. Most of the hyperparameters are also com-

mon across many GA variations (i.e., population size,

number of evolutionary generations, crossover rate).

We encode individuals, or solution candidates, as

a sequence of whole numbers with a length of |K|,

where K is a set of systems in the landscape. Each

number in the sequence has a range of (0, |P|] where

each number corresponds to an index of a possible

placement conﬁguration speciﬁc to the system p

∈

. In our encoding, every system is allowed to be

placed on every considered on-premises or cloud lo-

cation. If a speciﬁc placement isn’t valid for the spe-

ciﬁc system, we invalidate the entire individual. Ev-

ery individual is then evaluated directly with a single-

objective function discussed in subsection 3.3.

For multi-objective solution search, we encode a

solution individual in the same way, but the evalua-

tion function used is now based on Equation 5, and

every value is considered as a separate objective. In

our example based on NSGA-III, all of the objective

values are considered equally important by the meta-

heuristic itself, but the category weights mentioned in

subsection 3.1, are applied as part of the aforemen-

tioned equation.

The key parameters in the family of genetic algo-

rithm meta-heuristics are common for all algorithms.

First is the maximum number of generations, denoted

maxGen, controlling the number of iterations the ge-

netic algorithm goes through. Next is the size of the

population, denoted pop, which controls the number

of solution individuals within every generation. Solu-

tion individual mutation probability, prob

mut

, which

determines the probability of random changes in the

solution individual. And ﬁnally, λ, the total number

of children produced during recombination (partially

combining different solution individuals together).

Many different approaches exist for the selection of

the best individual within the generated population

(Kruse et al., 2011), but in this work, we rely speciﬁ-

cally on tournament selection.

5 EVALUATION

The presented approach of answering the ﬁve ques-

tions stated in section 1 is evaluated with a real-world

use case based on a partial cloud transformation of

SAP landscape with target placement environments

located on-premises and in the public cloud infras-

tructure of Microsoft Azure. We consider an example

IT landscape consisting of nine SAP systems, each

identiﬁed by a System ID (SID), some of which are

independent of others, and some have Remote Func-

tion Call (RFC) network connections recorded in the

workload proﬁling data. These interconnections are

illustrated in Figure 1. The volume of data transfer

is taken as an average per hour within the recorded

month-long workload proﬁle, and this value is used

for network cost estimations.

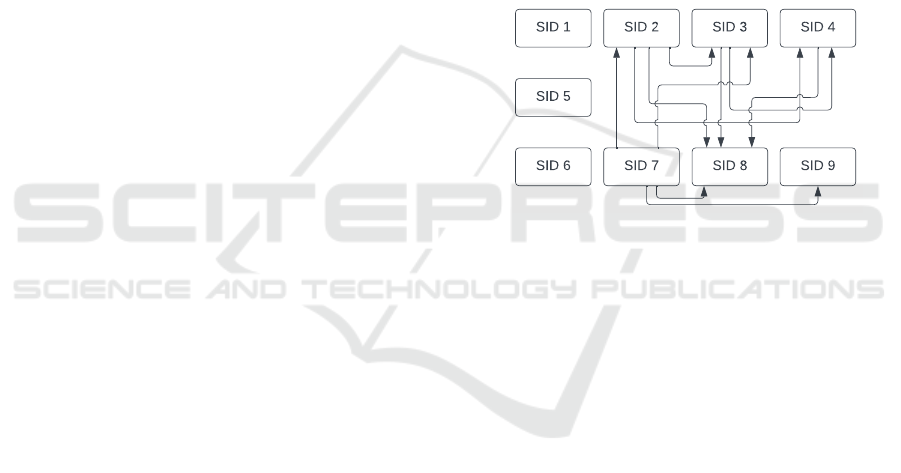

SID 1 SID 2 SID 3 SID 4

SID 5

SID 6 SID 7 SID 8 SID 9

Figure 1: Validation example network connections.

Costs for on-premises and public cloud placement

options are estimated for the horizon of planning of

ﬁve years. Placement options are generated per sys-

tem component and based on the recorded workload

proﬁles and are viable capacity-wise. No potential

workload proﬁle changes or pricing changes are con-

sidered. For cloud-based placements, only the data

centers within the European Union were considered.

In total, 38 cloud placement conﬁguration permuta-

tions per SID distributed across 19 locations were

considered. Only SAP-certiﬁed Azure VMs were

considered. For on-premises, we have considered a

single location with the capacity limit, which we use

as a basis for on-premise cost calculation formed by

the measured workload plus a parameterized buffer of

35% for both CPU and main memory.

Pricing for compute resources and adequate size

of the appropriate type of storage for SAP systems

at the given horizon is estimated, without considering

networking costs for cloud placements, to be on aver-

age 16% cheaper for eight out of nine systems placed

on-premises in comparison to the same systems in

cloud placements, including electricity and cost share

per system for additional expenses (i.e., facility main-

tenance, IT staff, networking equipment). The only

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

144

system with the estimated running costs cheaper on

the cloud is SID 4, with on-premise placements being

signiﬁcantly cheaper, 29% on average.

We investigate two use cases, with and without

constraints. If constraints are present, these are intro-

duced to promote the optimization algorithm to ﬁnd a

solution that is oriented toward reducing networking

costs faster by co-locating communicating systems.

Co-location constraints are deﬁned in pairs of systems

with a weight of 1.0.

Execution of both single- and multi-objective ex-

periments with weights and additional objective val-

ues are as speciﬁed in subsection 3.1. Due to lower

pricing and additional objectives favoring the on-

premises operations, we received the expected results,

which favor the on-premises placement for all sys-

tems, including SID 4 placement due to the network

bandwidth costs. From this, we can directly infer the

answers to Q1-Q5.

This result was achieved within 700 generations

with the size of a population of 200. The best place-

ment result for both single-objective experiments is

found on average at generation 428 within 20 experi-

mental runs, while multi-objective NSGA-III required

on average 683 generations to achieve the expected

outcome.

The presence or absence of placement co-location

constraints made no difference in the single-objective

scenario, as the estimated network bandwidth’s in-

creased pricing expenses negatively affected the ob-

jective function’s result. However, the multi-objective

scenario without constraints required more genera-

tions to achieve the same results as with the presence

of constraints.

Changing category weights balance presented in

Table 1 to favor experience over price with CO weight

reduced to 0, 10 and EX increased to 0, 50 also re-

sulted in an expected ﬁnal landscape placement out-

come that favors on-premises for all services because

additional objectives speciﬁed in this speciﬁc case

study favor on-premises placement options.

Furthermore, it is also easy to see from Ta-

ble 1 that the on-premises conﬁguration is favored

by the scoring and the pricing in our example is also

cheaper on-premises for most systems. In addition

to the aforementioned evaluation runs, we have con-

ducted a series of experiments to see if increasing the

pricing for on-premises without changing the scor-

ing would affect the decision-making within realistic

price ranges. The desired re-allocation favoring on-

cloud placement solutions was achieved by increas-

ing the pricing of the on-premises placement by 41%

on average, which indicates a strong inﬂuence of the

customer requirements in the objective function, and

hence the algorithms are not guided strictly by the

pricing difference. It is important to note that the sys-

tems with high volumes of networking communica-

tions were also successfully placed in the cloud within

the same locations, therefore avoiding high band-

width costs between regions or between on-premises

and on-cloud placement options.

The second set of evaluations we have conducted

on a larger IT landscape consisting of 30 SAP sys-

tems. The landscape is more heterogeneous in its

composition, with 20% of the system estimated to be

signiﬁcantly cheaper when placed in the cloud over

the horizon of planning of ﬁve years. The rest of the

system pricing was almost identical to the ﬁrst exam-

ple, with an average margin of difference of 2%. The

additional objective values and weights were taken

identically to the previous example. However, the net-

working is not recorded for this speciﬁc landscape,

and we relied on the expert estimation of the possible

bandwidth and system interconnections based on their

nature. Only 6 out of 30 systems were designated as

interconnected.

The results of this evaluation were consistent with

such obtained from data representing a smaller land-

scape. However, larger problem instances required

a greater computational effort from both of the em-

ployed algorithms. The best results were obtained

with the population size increased to 320, and the

number of generations also scaled up to 1200 gener-

ations for GA. NSGA-III was able to ﬁnd a suitable

solution with only a 260 population size and within

950 generations. However, these settings are still well

within a realm of tolerable computational effort, indi-

cating the potential of the described approach to scale

with the size of the landscape.

6 FUTURE WORK

Further investigation is planned on the addition of

more constraint types, speciﬁcally with a conﬂicting

nature. A mechanism of resolution for constraints

conﬂicts should be investigated. Furthermore, work-

load forecasting, based on the existing recorded work-

load proﬁle before placement, is an interesting direc-

tion for predicting required capacities according to

possible changes in the business environment. Lastly,

incorporation of the bin-packing type of a problem for

the on-premises placement within the same placement

selection process might have the potential to reduce

any potential inaccuracies in the cost estimations.

Data Driven Meta-Heuristic-Assisted Approach for Placement of Standard IT Enterprise Systems in Hybrid-Cloud

145

7 CONCLUSION

In this work, we present a simple-to-explain data-

driven approach for processing quantiﬁable require-

ments and pricing components for the selection of

the most suitable placement for commercial off-the-

shelf IT enterprise applications, with a case study

based on SAP and sizing performed prior to place-

ment based on the recorded real-world system work-

load proﬁle. We note that this problem can be for-

mulated in a single and multi-objective way, which

allows for the potential use of various optimization

algorithms. The validity of the approach is evalu-

ated with the use of evolutionary meta-heuristics and

the selected algorithms were able to ﬁnd a suitable

solution while taking the pricing, the requirements,

and the considered constraints into account. It’s also

noted that the use of explicit constraints for the facil-

itation of the co-location for interconnected services

leads to faster discovery of a better suitable placement

than simple reliance on the implicit increased costs.

The approach discussed in this work is suitable for the

variable size of considered IT landscapes. However,

it’s noted that a multi-objective NSGA-III suffers a

noticeably smaller performance degradation on larger

problems in comparison to the single-objective GA.

REFERENCES

Back, T. (1996). Evolutionary Algorithms in Theory and

Practice: Evolution Strategies, Evolutionary Pro-

gramming, Genetic Algorithms. Oxford University

Press, USA, Oxford.

Bichler, M., Setzer, T., and Speitkamp, B. (2006). Capacity

Planning for Virtualized Servers. Workshop on Infor-

mation Technologies and Systems (WITS), Milwau-

kee, Wisconsin, USA, 2006.

Brogi, A., Corradini, A., and Soldani, J. (2019). Estimat-

ing costs of multi-component enterprise applications.

Formal Aspects of Computing, 31(4):421–451.

Chauhan, N., Agarwal, R., Garg, K., and Choudhury, T.

(2020). Redundant iaas cloud selection with con-

sideration of multi criteria decision analysis. Proce-

dia Computer Science, 167:1325–1333. International

Conference on Computational Intelligence and Data

Science.

Deb, K. and Jain, H. (2014). An evolutionary many-

objective optimization algorithm using reference-

point-based nondominated sorting approach, part i:

Solving problems with box constraints. IEEE Trans-

actions on Evolutionary Computation, 18(4):577–

601.

Helbig, M. and Engelbrecht, A. P. (op. 2013). Analysing

the performance of dynamic multi-objective optimi-

sation algorithms. In IEEE Congress on Evolutionary

Computation, pages 1531–1539, [S. l.]. IEEE.

Hippelainen, L., Oliver, I., and Lal, S. (2017). Towards

dependably detecting geolocation of cloud servers.

pages 643–656. Springer, Cham.

Hork

y, V., Libi

c, P., Marek, L., Steinhauser, A., and T

uma,

P. (2015). Utilizing performance unit tests to increase

performance awareness. In John, L. K., editor, Pro-

ceedings of the 6th ACMSPEC International Confer-

ence on Performance Engineering, pages 289–300,

New York, NY. ACM.

Hyser, C., McKee, B., Gardner, R., and Watson, B. J.

(2007). Autonomic virtual machine placement in the

data center. In Hewlett Packard Laboratories, Tech.

Rep. HPL-2007-189, volume 189.

Jammal, M. , Kanso, A., and Shami, A. (2015). High

availability-aware optimization digest for applications

deployment in cloud. In 2015 IEEE International

Conference on Communications (ICC), pages 6822–

6828.

Kruse, R., Borgelt, C., Braune, C., Mostaghim, S., and and

Steinbrecher, M. (2011). Computational intelligence:

a methodological introduction. Springer.

Marler, R. T. and Arora, J. S. (2010). The weighted

sum method for multi-objective optimization: new in-

sights. Structural and Multidisciplinary Optimization,

41(6):853–862.

Missbach, M., Staerk, T., Gardiner, C., McCloud, J., Madl,

R., Tempes, M., and Anderson, G. (2016). SAP on

the Cloud. Management for Professionals. Springer

Berlin Heidelberg, Berlin, Heidelberg, 2nd ed. 2016

edition.

uller, H., Kharitonov, A., Nahhas, A., Bosse, S., and Tur-

owski, K. (2022). Addressing it capacity management

concerns using machine learning techniques. SN Com-

puter Science, 3(1):1–15.

Patel, C. D. and Shah, A. J. (2005). Cost model for plan-

ning, development and operation of a data center. In

Hewlett-Packard Laboratories Technical Report, vol-

ume 107, pages 1–36.

Pires, F. L. and Baran, B. (2015). A virtual machine

placement taxonomy. In 2015 IEEE/ACM 15th In-

ternational Symposium on Cluster, Cloud and Grid

Computing, pages 159–168, Los Alamitos, California.

Conference Publishing Services, IEEE Computer So-

ciety.

Rahimi, M., Jafari Navimipour, N., Hosseinzadeh, M.,

Moattar, M. H., and Darwesh, A. (2022). Toward the

efﬁcient service selection approaches in cloud com-

puting. Kybernetes, 51(4):1388–1412.

Sarferaz, S. (2022). Data protection and privacy. In

Compendium on Enterprise Resource Planning, pages

499–513. Springer, Cham.

Wu, C., Buyya, R., and Ramamohanarao, K. (2019). Cloud

pricing models: Taxonomy, survey, and interdisci-

plinary challenges. 52(6).

Zanakis, S. H., Solomon, A., Wishart, N., and Dublish, S.

(1998). Multi-attribute decision making: A simulation

comparison of select methods. European Journal of

Operational Research, 107(3):507–529.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

146
