Bank Checks Fraud Detection Based on the Analysis of Event Trends

in Data-Flow Systems

Uriy Grigorev

, Yury Shashkin

, Andrey Ploutenko

, Aleksey Burdakov

and Olga Pluzhnikova

Bauman Moscow State Technical University, Moscow, Russia

Amur State University, Blagoveschensk, Russia

Keywords: CEP, Fraud with Not-covered Checks, CET Graph, BTree Index, Hash Index.

Abstract: The paper shows trend analysis of events in data-flow systems on the example of fraud detection with

not-covered checks. The analysis is based on Complex Event Processing (CEP) technology. This article

proposes Algorithm 2 based on BTree and Hash type indexes for extracting a complete chain of events of any

length formed by insufficient funds check deposits. The paper presents a comparison between the proposed

Algorithm 2 and the existing Algorithm 1, based on the construction of event trends in the form of graphs.

The average processing time of one event using the new Algorithm 2 is 56 times less with the number of

events equal to 100,000. At the same time, the new Algorithm 2 processes about 900,000 events, while the

existing Algorithm 1 supports only 100,000 events.

1 INTRODUCTION

Large data amounts processing in real time is an

important requirement in modern high-load systems.

Data-flow processing systems are used to solve this

problem. Data-flow processing has found application

in retail (Wu et al., 2006), stock exchange (Poppe et

al., 2017a; Agrawal et al., 2008), fraud detection

(Luckham, 2011; Agrawal et al., 2008; Poppe et al.,

2017b), passenger transportation (Luckham, 2011),

computer cluster monitoring (Poppe et al., 2017a;

Zhang et al., 2014), logistics management (Zhang et

al., 2014), traffic congestion detection (Poppe et al.,

2017a), video streaming (Piyush et al., 2019) and

many other areas.

Nowadays the Complex Event Processing (CEP)

technology is used to support streaming applications

(Poppe et al., 2017a; Agrawal et al., 2008). CEP

systems constantly evaluate events in high-speed

streams (data is "passed" through the query). There

are two classes of problems solved by CEP. The first

class is the aggregation of event trends (calculation of

https://orcid.org/0000-0001-6421-3353

https://orcid.org/0000-0001-9576-9119

https://orcid.org/0000-0002-4080-8683

https://orcid.org/0000-0001-6128-9897

https://orcid.org/0000-0002-4276-8734

count, avg, sum, min, max by pattern) (Poppe et al.,

2017a; Ma et al., 2022), the second class is the

analysis of complete event trends (detection of event

chains by pattern) (Poppe et al., 2017b; Kolchinsky et

al., 2019).

In this article, the problem of event trends analysis

is considered with the example of circular check

kiting which is used to fraudulently obtain funds

(Poppe et al., 2017b). This type of fraud is one of the

most difficult.

In a simple case, the scheme involves writing a

check for an amount from an account in Bank A that

exceeds the account balance; and then writing a check

from another account in Bank B which also has

insufficient funds. Moreover, the second check serves

to cover non-existing funds from the first account.

The scammers withdraw funds from the Bank A

account before the banks discover the scheme. There

were complex variants of this scheme with the

participation of numerous scammers who posed as

large entrepreneurs, thereby posing their activities as

ordinary business transactions. Thus, they persuade

Grigorev, U., Shashkin, Y., Ploutenko, A., Burdakov, A. and Pluzhnikova, O.

Bank Checks Fraud Detection Based on the Analysis of Event Trends in Data-Flow Systems.

DOI: 10.5220/0011727300003482

In Proceedings of the 8th International Conference on Internet of Things, Big Data and Security (IoTBDS 2023), pages 97-104

ISBN: 978-989-758-643-9; ISSN: 2184-4976

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

banks to ignore the limit of available funds. To

implement this scheme, fraudsters transfer millions

between banks using a complex web of useless

checks. For example, in 2014, 12 people were

charged with a large-scale fraudulent scheme that cost

banks more than $15 million (The Press Enterprise,

2015).

The CEP system is used to prevent this kind of

fraud. It constantly monitors events in the flow of

financial transactions (Poppe et al., 2017b). The event

stream passes through the following query:

Q1: PATTERN Check+ c[ ]

WHERE c.type = ‘notcovered’ AND

c.destination = NEXT(c).source

WITHIN 1 day SLIDE 10 minutes

Query Q1 detects a chain (or circle) of any length

formed by insufficient funds check deposits during a

day that slides every 10 minutes. The query pattern is

the Kleene closure (Agrawal et al., 2008; Zhang et al.,

2014; Poppe et al., 2017b) for check deposit events,

designated as Check+ c[]. Predicates (WHERE)

require that the checks in the chain are not covered.

The purpose (destination) of transaction verification

‘c’ should be the same as the source of the next check

NEXT(c). It is necessary for identifying the chain.

Since an arbitrary number of fraudsters, financial

transactions and banks around the world can be

involved in this scheme, detecting circular check

kiting is a computationally expensive task. To prevent

cash withdrawals from an account that participates in

at least one check-picking scheme, the query

constantly analyzes the streams of high-speed events

with thousands of financial transactions per second. It

reveals all the trends of receipt compilation in real-

time.

The query refers to the 'Skip till any match' type

(S3) (Agrawal et al., 2008; Zhang et al., 2014;

Volkova et al., 2020; Poppe et al., 2019). This is the

most complex class of queries. In the existing

methods of solving such problems, Kleene pattern is

used to detect the required chains of events. (Poppe et

al., 2017b) proposed a method to solve the problem

of extracting complete trends of events by cutting the

graph into graphlets, and then "stitching" them. This

solution has exponential complexity. This approach

suffers from both long delays and high memory

consumption. The processing time of the algorithm

(pattern) affects the system boot because the data is

"passed" through the query. The processing time may

become unacceptably long. Moreover, with a high

intensity of input data flows, the pattern processing

link can become a "bottleneck", and the system may

be overloaded. In this case, the upcoming events will

be lost (if they are not saved) or their processing will

be done outside the required screen.

Kolchinsky et al., 2019 proposes CEP

optimization methods for processing a stream of

events according to several patterns. The optimal plan

is built by reordering patterns and sharing them. In

this case, these methods cannot be applied, because

there is only one Check+ c[] patterns in query Q1.

This article proposes a new method of query

implementation, which significantly reduces the time

and memory required for event processing. The

method is based on the use of a special B-tree based

index or a hash table.

2 NOT-COVERED CHECKS

FRAUD

Table 1 shows the sequence of events that can occur

in the process of circular check kiting using fake

checks (Poppe et al., 2017b).

The following particulars are given in Table 1:

 A → B (0) denotes a not-covered deposit event

from Bank A into Bank B (check of Bank A is

not covered);

 B → A (1) denotes a covered deposit event

from Bank B into Bank A (check of Bank A is

covered);

 index N means that the check is not covered

(Notcovered); for example, 10N means that a

check for 10 was issued and it is not yet covered

(cash cannot be withdrawn), and 10 (without

N) means that the check is covered (cash can be

withdrawn).

Table 1 shows that banks have lost (10 + 30 + 20)

= 60 units due to fraud.

3 CURRENT FRAUD

DETECTION METHOD

To fulfil query Q1, the following method is proposed

(Poppe et al., 2017b):

1. When an event e arrives, it is added to the so-

called CET graph. For the above example (see Table

1), the CET graph looks like the one in Figure 1. The

mark (C) means that the corresponding check is

covered.

2. A graph traversal is performed for each event

to detect transaction loops. For example, the loop B

→ C (0), C → B (1) corresponds to the subgraph (C4

→ C6). It is also required to define chains of

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

transactions with payment of not-covered checks in

other banks, resulting in the formation of loops.

It is proposed to use one of the algorithms to solve

this problem in (Poppe et al., 2017b): the M-CET

depth first search (DFS), the T-CET breadth-first

search (BFS) or the hybrid H-CET method. The M-

CET algorithm is more memory efficient; the T-CET

algorithm is more productive in performance and the

H-CET algorithm combines the benefits of the two

previous methods. The H-CET algorithm assumes

cutting the graph into subgraphs (graphlets) (Andreev

et al., 2004; Karypis et al., 1995; Tsourakakis et al.,

2012). DFS is used for one part of the graphlets and

BFS for the others. The problem of cutting a graph

into graphlets is a non-trivial task.

The exponential nature of the storage capacity and

the number of CPU operations remains for large CET

graphs, even for the hybrid H-CET method (Poppe et

al., 2017b).

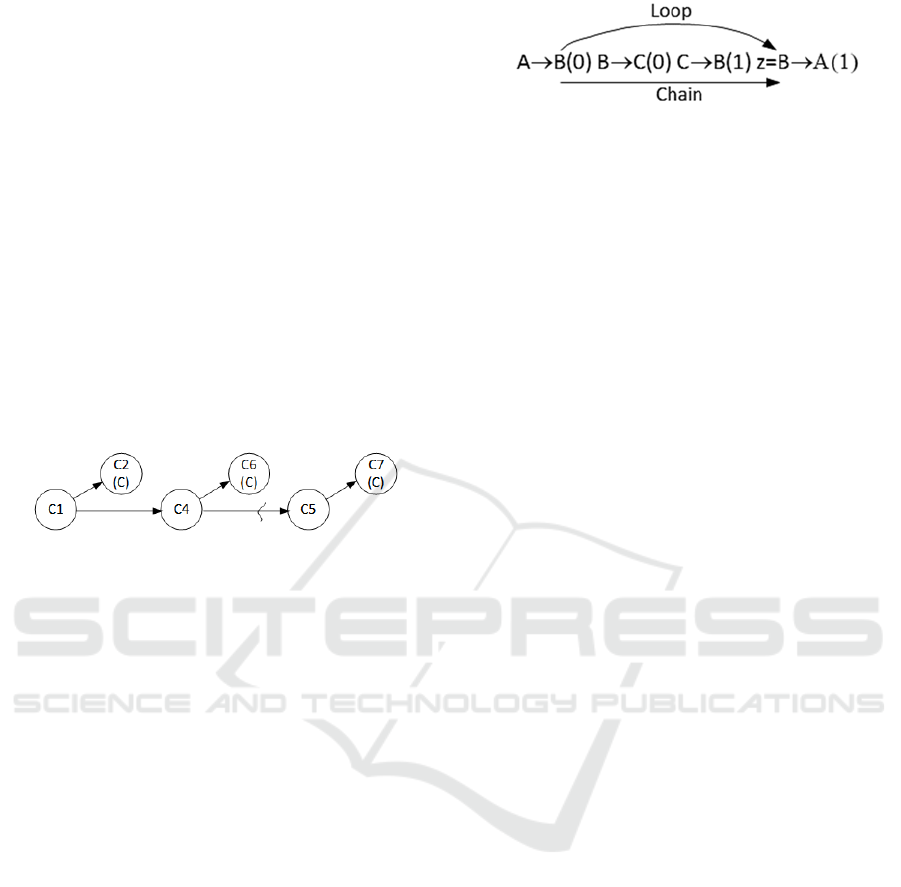

Figure 1: CET graph example.

Table 2 shows an algorithm for executing query

Q1 using the Neo4j graph database.

The CET graph is built at the level of transactions

between banks in Figure 1. It does not consider that

the transaction includes not only the name of the

bank, but also the account and check number. A

transaction (event) is described by a tuple (source,

destination, q) in the developed algorithm. Each of

the source and destination elements has three fields

(bank, account, check). The feature q has also been

introduced: q = 0 - a transaction for paying a check in

another bank, e.g., A → B (0), q = 1 - covering a

check in another bank, for example, B → A (1).

A node z is created corresponding to the new

event e (2 :). Next, a search is for events Y is

performed, when the check must be paid or covered

in the same bank (and account), which is specified in

e.source (3 :). The set Y is equal to {A → B (0), C →

B (1)} in the example in Figure 2. Operators 4: -8:

establish links between node z and nodes from set Y.

Further along z, a search for a node x is performed

with which e forms a loop (9 :). That is, for example,

x = A → B (0), z = B → A (1). A loop is a sign of a

possible fraudulent transaction. If a loop is found (10

:), search for all chains leading to the beginning of the

loop (line 12 :) is in progress. One of them is the loop

itself. Figure 2 shows an example of the found chain.

Figure 2: Chain for the loop (A→B(0), B→A(1)).

4 A PROPOSED METHOD FOR

DETECTING FRAUD USING AN

INDEX

The following features of the flow events can be

noted:

1. The right side of the transaction coincides with

the left side of the next transaction (NEXT) at the level

of the bank name, account number and check, for

example, B → C (0) and C → A (0) (see query Q1 ).

2. A sign of possible fraud is the presence of loops

when covering checks, for example, A → B (0) and

B → A (1) (see C1, C2 in Table 1).

These features allow you to implement query Q1

using an index (B-tree or hash table). Table 3 shows

the flow event algorithm.

Z, y, j are global vars, index1 and index2 are

indices (B-tree or hash table) in this algorithm. To

speed up the search, event e is stored in the index as

two records: (e.source; e.destination, e.q, en1) and

(e.destination; e.source, e.q, en1), where the first

attribute is the search key (1: , 2 :). The search keys

e.source and e.destination may be not unique. The

next 4 operators determine if there is a loop, for

example, A → B (0) and e = B → A (1) (see Figure

2). First, it is determined whether the check is covered

(4 :). Then events A → B (0 or 1) (5 :) are extracted

from index 1. And if d (= B) is equal to e.source (=

B) and q = 0 (8 :), then there is a loop (9 :). The loop

is stored in x, and the strings are searched for leading

to the beginning of the loop (10 :). The problem is the

same as in Algorithm 1, but it is solved in a different

way. The ‘chains’ procedure is used for this, so let us

look at it in details.

The procedure has the following formal input

parameters: i is the number of the recursive call level

chains, a is the key value for searching in index 2

(source), c1 is the final value in the chain

(destination). Let there be a loop A → B (0) and e =

B → A (1) (see Figure 2). Then, at the first call to the

chains procedure, parameters (1, B, A) (10 :) are

Bank Checks Fraud Detection Based on the Analysis of Event Trends in Data-Flow Systems

Table 1: Sequence of events that can occur in the process of circular check kiting.

Event Transaction

Account at

Bank A

Account at

Bank B

Account at

Bank C

Notes

C1 A→B(0) 10

(-10) 0

Writing a check for 10

from Bank А

account (initially 0 in A) with the

payment from Bank B account (initially

0 in B, hence we see (-10))

C2 B→A(1) 10 (-10) 10

Writing a check for 10

from Bank B

account to cover the check in Bank A

W3 0 (-10) 10

Cash withdrawal 10 from Bank A

account

C4 B→C(0) 0 (-10) 10

(-20)

Writing a check for 20

from Bank B

account (initially (-10) in B) with the

payment in Bank C (initially 0 in C,

that’s why we see (-20))

C5 C→A(0) (-30) (-10) 10

(-20) 30

Writing a check for 30

from Bank C

account (initially (-20) in C) with the

payment from Bank A account, that’s

why there is (-30))

C6 C→B(1) (-30) (-10) 10

20 (-20) 30

Writing a check for 20

from Bank C

account to cover the check in Bank B

C7 A→C(1) (-30) 30

(-10) 10

20 (-20) 30

Writing a check for 30

from Bank A

account to cover the check at Bank C

W8 (-30) 30

(-10) 10

20 (-20) 20

Cash withdrawal 30 from Bank C

account

W9 (-30) 30

(-10) 10

(-20) 20

Cash withdrawal 20 from Bank B

account

Table 2: Algorithm 1 (Graph Database).

Algorithm 1 (Q1)

Input: e – event

Output: (x, e) – loop, PATH – chains leading to the beginning of the loop

1: i++ // Number of events

z← CREATE(z:Check{id: i, source: e.source, destination: e.destination, q: e.q}) RETURN z

Y ← MATCH (y:Check) WHERE y.destination =e.source RETURN y

4: IF Y is NOT NULL

FOR n∈Y

6: CREATE (n)-[:Next{id1:n.id, id2:z.id}]->(z)

7: END FOR

8: END IF

X←MATCH (x:Check) WHERE x.source= z.destination and z.source=x.destination and x.q=0 and z.q=1

RETURN x

10: IF X is NOT NULL

11:

FOR x∈X

12:

PATH←MATCH y=(x)-[:Next*]->(z) RETURN relationships(y)

13: END FOR

14: END IF

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

100

referred to it, and the events A → B (0) and C → B

(1) (17 :) will be found. For the first event the loop

will be fixed: y [0] [1 ÷ 0] = (A → B (0), B → A (1))

(see 21: -23 :). For the event C → B (1), the chains

procedure will be called with parameters (2, C, A) (25

:) and so on. For the event C → B (1), the chains

procedure will be called with parameters (2, C, A) (25

:) and so on. Therefore, the chain will be found (see

Figure 2): y [2] [3 ÷ 0] = (A → B (0), B → C (0), C

→ B (1), B → A (1) ). Therefore, Algorithm 2 outputs

a loop and all possible chains y [][] that contain a loop

formed by not-covered check deposits (A → B (0), B

→ C (0)), as well as fictitious covers (C → B ( 1), B

→ A (1)). The loop and chain fall in line with what

has been obtained using Algorithm 1.

Operation z [i] ← NULL is necessary because

other chains may be shorter. In general, recursive

calls to chains form a tree.

According to Algorithm 2, the memory estimate

is O (V), and the CPU estimate is O (V) for a hash

table and O (V⋅log

V) for a B-index, where K is the

number of records in the block index, V is the total

number of records. That is less than for Algorithm 1

(Poppe et al., 2017b).

5 EXPERIMENT

Several experiments were conducted to compare the

two algorithms. We used a virtual machine running

the Ubuntu 20.04.02 x64 operating system based on a

2.3 GHz 8-core Intel Core i9 processor, 8192MB of

RAM for the experiments. To test Algorithm 1 we

used the Neo4j 4.3.2 graph DBMS, and for Algorithm

2 – PostrgeSQL 12.8. We used BTree (B-Tree

Indexes, 2021) and Hash (Re-Introducing Hash

Indexes in PostgreSQL, 2021) indexes.

The source data was generated with the following

components:

 Source Bank - the bank from the left side of the

transaction;

 Source Account - account number from the left

side of the transaction;

 Source Check - check number from the left side

of the transaction;

 Destination Bank - the bank from the right side

of the transaction;

 Destination Account - account number from

the right side of the transaction;

 Destination Check - check number from the

right side of the transaction;

 Date and time of the transaction;

 Direction of the transaction.

Testing was conducted with 10 transactions per

second for 1 day. Loops appeared every 30 minutes.

A smaller dataset was used for Algorithm 1 due to the

large processing time in the Neo4j DBMS. That is, if

Algorithm 2 processes about 900,000 events, then

Algorithm 1 supports only 100,000 events.

Under the experiments three main indicators were

measured: Instructions per Cycle (IPC), the amount

of RAM and the processing time for one event. The

load on the CPU for Algorithm 2 is much lower than

for Algorithm 1 (Figure 3, Figure 4). The graph in

Figure 4 shows that the processor is overloaded, and

some processes are waiting (when the load is greater

than 1).

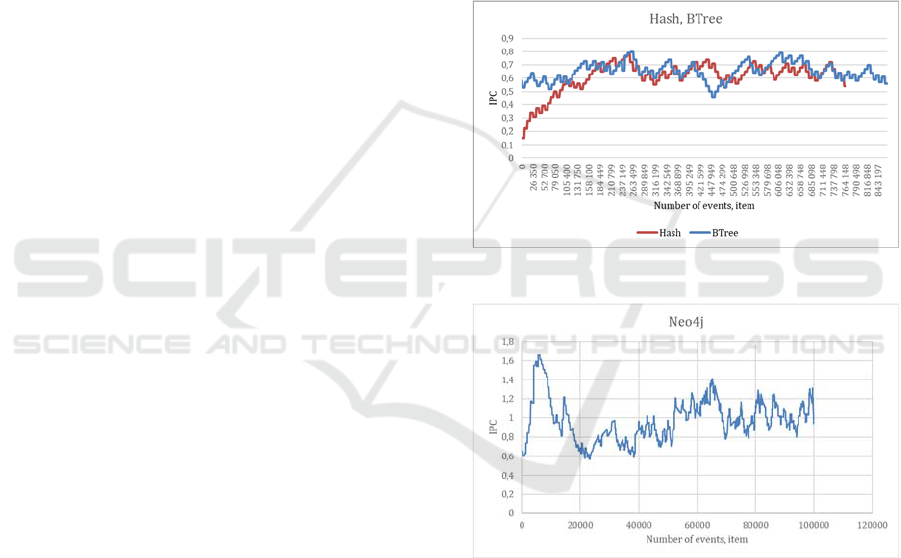

Figure 3: IPC, Algorithm 2.

Figure 4: IPC, Algorithm 1.

The storage capacity is not the most typical

indicator in these tests due to the peculiarities of Neo4j

(Figure 5, Figure 6). It periodically frees memory as

shown in Figure 6. This is due to «garbage collection».

The processing time for one event using

Algorithm 2 is short because the test case is stored in

the RAM and the processing is carried out in the CPU

(Figure 7 and 8). In fact, events are selected from the

stream and the processing time will be longer there. It

is not the absolute values that are important in this

study, but the ratio of the processing time of one event

using Algorithms 1 and 2. The average processing

Bank Checks Fraud Detection Based on the Analysis of Event Trends in Data-Flow Systems

101

time using Algorithm 2 is almost 37 / 0.66 = 56 times

less with the number of events equal to 100,000.

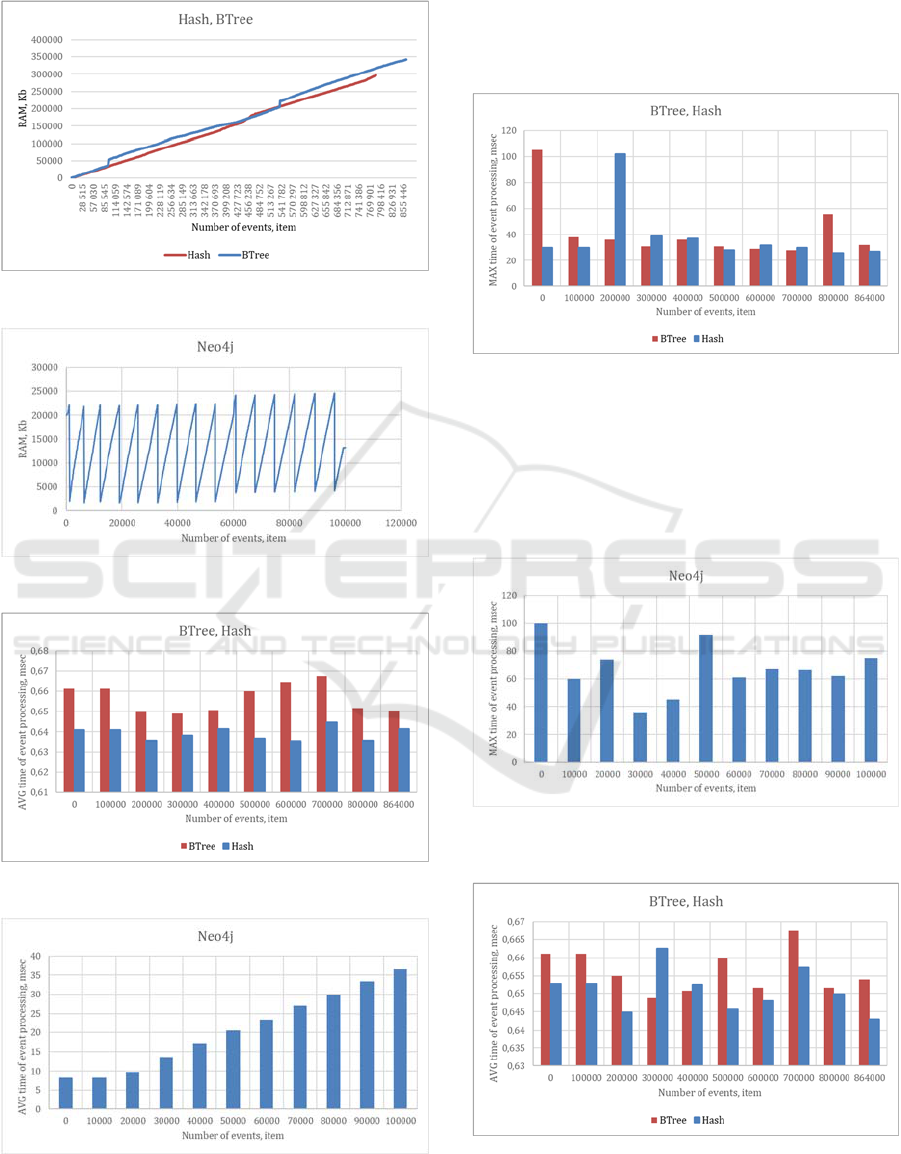

Figure 5: Volume of RAM, Algorithm 2.

Figure 6: Volume of RAM, Algorithm 1.

Figure 7: One event average processing time, Algorithm 2.

Figure 8: One event average processing time, Algorithm 1.

The maximum time for Algorithm 2 fluctuates in

the range of 20-40 msec with a smooth mode of

vibration except for surges up to 100 msec (Figure 9).

The maximum time for Algorithm 1 fluctuates in the

range of 40-90 ms with a stick-slip nature mode of

vibration (Figure 10).

Figure 9: Maximum processing time for one event,

Algorithm 2.

A sliding window was added to Algorithms 1

and 2. No significant changes are observed for

Algorithm 2 (Figure 11). Figure 12 shows that the

processing time for one event begins to increase much

more slowly with a sliding window for Algorithm 1.

Figure 10: Maximum processing time for one event,

Algorithm 1.

Figure 11: Average processing time for one event with a

sliding window, Algorithm 2.

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

102

Table 3: Algorithm 2 (Relational Database).

orithm 2

(

)

ut: e

–

event, en1

–

event number

Out

ut:

(

x, e

)

–

loo

[][]

–

chains leadin

to the be

innin

of the loo

1: index1.add(s=e.source; d=e.destination, q=e.q, n=en1) // key; value

–

for loops search

2: index2.add(d=e.destination; s=e.source, q=e.q, n=en1) // key; value

–

for chains search

z[0] ← (s=e.source, d=e.destination, q=e.q, n=en1)

4: IF e.q==1 // chec

coverage?

D←index1.search(s=e.destination) // d and q saved into D

6: IF D is NOT NULL

7: FOR

(

in D

8: IF d==e.source and

==0

x←(e.destination, d) // loop

10: chains

(

1, e.source, e.destination

)

// searchin

for chains

11: END IF

12: END FOR

13: END IF

14: END IF

15: Return

16: chains

(

i, a, c1

)

17:

B←index2.search(d=a ) // (s,d, q, n) values are saved into B

18:

i1←i+1

19: FOR

(

s,d,

)

in B && n<z[i-1].n // events in one chain are uni

20:

z[i]← (s, d, q, n)

21: IF s==c1 && d==z[0].s && q==0

22:

y[j++][]←z[];

23:

z[i]←NULL

24: ELSE

25: chains(i1, s, c1)

26: END IF

27: END FOR

28:

z[i]←NULL

29: Return

Figure 12: Average processing time for one event with a

sliding window, Algorithm 1.

6 CONCLUSIONS

This article offers a new way to detect not-covered

bank check fraud. This is one of the most difficult

types of fraud to detect due to the complexity of

retrieving complete chains of check transactions. This

problem is solved using Complex Event Processing

technology (CEP). It is used in tasks of processing

many events in real time.

The proposed Algorithm 2 based on indexing

methods is superior to the existing Algorithm 1. It

demonstrates better results for the following three

main indicators of the existing Algorithm 1 based on

graphs: IPC, the amount of RAM occupied and the

processing time of one event.

The considered approach to the analysis of event

trends is planned to be used for a wider class of

queries as a part of the future work.

REFERENCES

Agrawal, J. et al. (2008). Efficient pattern matching over

event streams. In Proceedings of the 2008 ACM

SIGMOD international conference on Management of

data.

Bank Checks Fraud Detection Based on the Analysis of Event Trends in Data-Flow Systems

103

Andreev, K., Racke, H. (2004). Balanced graph

partitioning. In SPAA- 2004.

B-Tree Indexes. (2021). https://www.postgresql.org/

docs/11/btree.html

Karypis, G., Kumar, V. (1995). Multilevel graph

partitioning schemes. In Parallel Processing.

Kolchinsky, I., Schuster, A. (2019). Real-time multi-pattern

detection over event streams. In Proceedings of the

2019 International Conference on Management of

Data.

Luckham, D. C. (2011). Event processing for business:

organizing the real-time enterprise. In John Wiley &

Sons.

Ma, L., Lei, C., Poppe, O., Rundensteiner, E. A. (2022).

Gloria: Graph-based Sharing Optimizer for Event

Trend Aggregation. In Proceedings of the 2022

International Conference on Management of Data.

Piyush, Yadav, Edward, Curry (2019). VidCEP: Complex

Event Processing Framework to Detect Spatiotemporal

Patterns in Video Streams. In 2019 IEEE International

Conference on Big Data (Big Data).

Poppe, O., Lei, C., Rundensteiner, E. A., Maier, D. (2017a).

GRETA: Graph-based Real-time Event Trend

Aggregation. Proceedings of the VLDB

Endowment, 11(1).

Poppe, O., Lei, C., Ahmed, S., Rundensteiner, E. A.

(2017b). Complete event trend detection in high-rate

event streams. In Proceedings of the 2017 ACM

International Conference on Management of Data.

Poppe, O. et al. (2019). Event Trend Aggregation Under

Rich Event Matching Semantics. In Proceedings of the

2019 International Conference on Management of

Data.

Re-Introducing Hash Indexes in PostgreSQL (2021).

https://hakibenita.com/postgresql-hash-index

The Press Enterprise (2015). http://www.pe.com/articles/

checks-694614-people-bank.html

Tsourakakis, C. E. et al. (2012). Streaming graph

partitioning for massive scale graphs. In Technical

report.

Volkova, M.M., Antonova, P.V., Shameeva, A.R. (2020).

High-Performance Complex Event Processing. In 2020

International Multi-Conference on Industrial

Engineering and Modern Technologies (FarEastCon).

Wu, E., Diao, Y., Rizvi, S. (2006). High-performance

complex event processing over streams. In Proceedings

of the 2006 ACM SIGMOD international conference on

Management of data.

Zhang, H., Diao, Y., Immerman, N. (2014). On complexity

and optimization of expensive queries in complex event

processing. In Proceedings of the 2014 ACM SIGMOD

international conference on Management of data.

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

104
