A Framework for a Data Quality Module in Decision Support Systems:

An Application with Smart Grid Time Series

Giulia Rinaldi

, Fernando Crema Garcia

, Oscar Mauricio Agudelo

, Thijs Becker

2, 3

Koen Vanthournout

2,3

, Willem Mestdagh

and Bart De Moor

ESAT Stadius Center for Dynamical Systems, Signal Processing, and Data Analytics, KU Leuven, 3001 Heverlee, Belgium

AMO, Flemish Institute for Technological Research (VITO), Boeretang 200, 2400 Mol, Belgium

AMO, EnergyVille, Thor Park 8310, 3600 Genk, Belgium

Keywords:

Data Quality, Decision Support System, Data Cleaning, Quality Indicator.

Abstract:

Data quality (DQ) measures data status based on different dimensions. This broad topic was brought to

the fore in the ’80s when it was ﬁrst discussed and studied. A high-quality dataset correlates with good

performance in artiﬁcial intelligence (AI) algorithms and decision-making processes. Therefore, checking the

quality of the data inside a decision support system (DSS) is an essential pre-processing step and is beneﬁcial

for improving further analysis. In this paper, a theoretical framework for a DQ module for a DSS is proposed.

The framework evaluates the quality status in three stages: as based on the European guidelines, as based on

DQ metrics, and as based on checking a subset of data cleaning (DC) problems. Additionally, the framework

supports the user in identifying and ﬁxing the DC problems, which speeds up the process. As output, the user

receives a DQ report and the DC pipeline to execute to improve the dataset’s quality. An implementation of

the framework is illustrated in a proof-of-concept (POC) for an industrial use case. In the POC, an example

of the execution of the various framework phases was shown using a public time series dataset containing

quarter-hourly consumption proﬁles of residential electricity customers in Belgium for the year 2016.

1 INTRODUCTION

For most artiﬁcial intelligence (AI) projects, the ﬁrst

step an analyst needs to perform is to evaluate the

quality of the received data. Based on this investi-

gation, the analyst improves the data quality (DQ) if

needed. Therefore, DQ measures the state of the data

based on various factors, among which are accuracy,

completeness, consistency, and timeliness. The pro-

cess of ﬁxing the possible dataset issues is called data

cleaning (DC), which is composed of pre-processing

routines fundamental to guaranteeing the success of

further analysis. For instance, it was demonstrated

that DQ inﬂuences the error rate of machine learn-

ing models (Ehrlinger et al., 2019) and the decision-

making process (Chengalur-Smith et al., 1999).

Appen, an AI company, submits yearly surveys

among data scientists with questions related to Ma-

chine Learning (ML) models and data to investigate

the state of AI and ML. In the 2018 report, most par-

ticipants determined that the quality of the training

data was their biggest challenge.

In 2022, more than

https : / / visit.ﬁgure - eight.com / rs / 416 - ZBE - 142 /

70% of participants declared that they spent at least

30% of their time on pre-processing tasks

Assisting an analyst during this ﬁrst phase can

help to speed up a critical process that requires time

and attention. Common practice reveals the ten-

dency of analysts to do their own custom DC pro-

cess from scratch, even though another analyst had

already cleaned previously. This repetition of work

could be seen as a waste of resources. Organizing the

job in a way that researchers can evaluate and apply

the same data-cleaning process to the datasets would

allow them to save time.

This paper proposes a module to handle DQ inside

a decision support system (DSS). A DSS is a com-

puter software tool that aids a user in managing and

making decisions on the data. The deﬁned module

analyzes the input to extract useful information dur-

ing the data-cleaning process. It checks the quality of

the inputs in three processes:

• EU guidelines process: the focus is mainly on the

images/Data-Scientist-Report.pdf

https://appen.com/blog/2022- state- of- ai- machine-

learning-report/

Rinaldi, G., Crema Garcia, F., Agudelo, O., Becker, T., Vanthournout, K., Mestdagh, W. and De Moor, B.

A Framework for a Data Quality Module in Decision Support Systems: An Application with Smart Grid Time Series.

DOI: 10.5220/0011749700003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 1, pages 443-452

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

443

metadata and reusability of the dataset.

• DQ assessment process: data quality dimensions

are checked on the dataset.

• DC assessment process: The system evaluates

some common data issues.

Based on the outcomes, the system computes two in-

dicators that summarize the last two processes. The

indicators and the analysis details are shown in a ﬁnal

report to submit to the analyst. In the last phase of

the DQ module for DSS, the system assists the user in

designing the DC process by highlighting some clean-

ing problems using the information gathered during

the previous analysis and using historical experiences

stored in a database. The expert decides how to han-

dle them, and each feedback given is saved as histor-

ical experience to be available for future analysis on

future datasets. Therefore, the framework intends to

offer the analyst a way to study the dataset while si-

multaneously speeding up the pre-processing design

pipeline. The framework is then tested on a public

dataset, unlike the usual approach, (Sadiq and Indul-

ska, 2017).

Section 2 presents some of the most pertinent re-

search on frameworks and tools for data quality and

cleaning. Section 3 explains our framework for a data

quality module to be used inside a decision support

system. Section 4 illustrates this framework when ap-

plied to a use case. Section 5 draws conclusions and

delineates possible further research directions.

2 RELATED WORK

DQ started to gain importance during the 1980s when

organizations started to rely more on data and data

mining. Many dimensions and metrics were deﬁned

during the years in various studies and then translated

into practical software tools. (Ehrlinger and W

oß,

2022) identiﬁed 667 tools developed for DQ tasks.

The authors underlined the difﬁculty of identifying

just one deﬁnition of DQ. In their work, they give

an overview of the concept of data proﬁling, sum-

marized as the process of collecting metadata, data

quality measurements, summarized as the capability

of estimating the DQ dimensions, and data cleans-

ing, summarized as the procedure for ﬁxing incor-

rect data. To evaluate the 667 tools, a requirements

catalog consisting of 43 constraints for data proﬁling,

data quality measurements, and continuous data qual-

ity monitoring was deﬁned. Only 13 tools respected

the constraints and were then described in detail. The

authors concluded that there is still a need to research

automation in DQ, and the examined tools missed a

clear “declaration and explanation of the performed

calculation and algorithms”.

The same authors proposed an automated data

quality monitoring tool (Ehrlinger and W

oß, 2017),

which periodically monitors the data quality of het-

erogeneous data collected by an information system.

The employed architecture is comprised of four com-

ponents. The ﬁrst is data proﬁling and quality assess-

ment. During this phase, the metadata and calculated

DQ metrics are collected. The user can also provide

domain-speciﬁc information and additional speciﬁca-

tion used in the process, such as the monitoring fre-

quency. The results calculated over time are stored

in the DQ repository, the second component. The

third element is time series analysis which uses well-

known algorithms to examine the information in the

DQ repository. The last component is visualization,

in which the user can plot the collected time series

and monitor the obtained results.

The framework proposed by (Oliveira and

Oliveira, 2022) monitors DQ using a reliability score.

The input of the system is heterogeneous data. Their

architecture is based on the scalable publish/subscribe

messaging system, Kafka (https://kafka.apache.org/).

The main component is the data quality layer which is

composed of a plug-in and the data quality analyzer.

The latter is the process that produces a data quality

index employing rules to analyze the data stored in

a JSON (JavaScript Object Notation) ﬁle. The plug-

in applies and checks the rules on the data. The au-

thors tested the framework to a use case using cus-

tomer data. In the example, a reliability score was

calculated using the DQ dimensions of accuracy, con-

sistency, and completeness. It was used to identify

possible outliers.

Like the papers described in this section, our

framework intends to monitor the quality status of the

data. The main difference is that our framework offers

three levels of assessment. The ﬁrst focuses on the in-

put’s format and standard, the second on DQ, and the

third assesses common DC problems. In the end, the

user has three evaluations to estimate how much time

is needed to clean a speciﬁc dataset. The tracking of

cleaning changes is a new contribution in our frame-

work. It saves the transformations done to improve

the data as relevant historical experiences, which will

be used for future analysis of similar datasets. In this

way, the system learns from the user and speeds up

future processes by offering better support. The sys-

tem identiﬁes the cleaning problems and solves them

with the human-in-the-loop. At the end, the user is

provided with a report of the raw data and the pre-

processing pipeline.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

444

Metadata Uploader

Human - In -

The - Loop

Guidelines

Assessment

Process

Report

Generator

Guidelines

Assessment

Process

DQ Rules

Assessment

Process

DC Rules

Data Uploader

Intake Phase

(B)

Assessment Phase

(C)

Issue

Extractor

Reproducibility

Analysis Phase

(D)

Analyzer

Issue

Reformulator

DSS Level

(A)

User Level

(E)

Result file

Output

Report +

Preprocessing

Pipeline

C.1

C.4

D.1

D.2

D.3

D.4

B.1

B.2

E.2

E.1

C.3

C.2

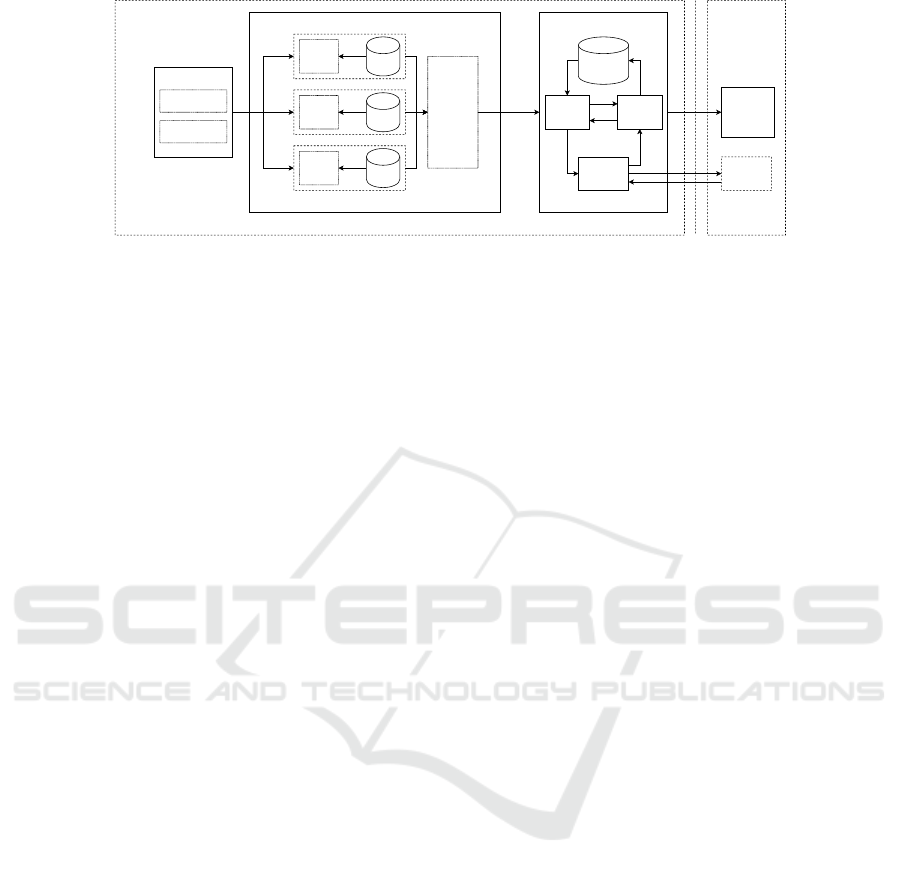

Figure 1: Architecture of the data quality module’s framework. It has two levels: DSS Level (A) and User Level (E). DSS

Level is composed of three phases: the Intake Phase (B), the Analysis Phase (C), and the Annotation Phase (D). Each of them

includes the submodules.

3 DATA QUALITY MODULE’S

FRAMEWORK

The framework’s architecture is depicted in Figure 1.

It has two concept levels: user and DSS. The user

level (Fig. 1E) is the supposed client of the DSS,

while the DSS level (Fig. 1A) is on the server side.

The DSS level starts with the Intake phase

(Fig. 1B), and it describes how the user should up-

load the metadata and the data into the DSS. There

are two subphases: metadata uploader (Fig. 1B.1) and

data uploader (Fig. 1B.2). The ﬁrst aims to deﬁne the

metadata input related to the data, which should in-

clude the description and source of the data. On the

other hand, the data uploader determines the architec-

ture constraints such as the data format – for example,

CSV (Comma Separated Variable) ﬁle for tabular and

time series data or tiff (Tag Image File Format) for im-

ages. In the proof-of-concept (POC) described in Sec-

tion 4, this last option is not implemented but is part of

future research. The metadata and the data are the in-

put for the next phase, the assessment phase (Fig. 1C),

which evaluates the user’s input in three stages com-

posed of an assessment process and a database con-

taining rules or useful information.

The ﬁrst stage is the EU guidelines assessment

process (Fig. 1C.1), which uses rules taken from

the European Guidelines (Data Europa EU, 2021).

The European data quality guidelines are recommen-

dations from the European Union to produce high-

quality datasets. Their proposal uses the principles

of FAIR (Wilkinson et al., 2016), which stands for

four data quality dimensions: Findability, Accessibil-

ity, Interoperability, and Reusability. The guidelines

provide a framework consisting of these dimensions

and additional metrics. The EU guidelines assessment

process interacts with a database where the rules ex-

tracted from the guidelines are stored. The submitted

metadata should follow a template deﬁned during the

setup of the DSS. The EU guidelines assessment pro-

cess follows the dimensions:

• Interoperability: The EU guidelines assessment

process veriﬁes any encoding issues in reading

metadata or opening the data ﬁles.

• Findability: The EU guidelines assessment pro-

cess checks if the metadata at least contains the

description of the data, the source of the data, and

if it is part of a project, the description of the

project. It measures how easy it is to ﬁnd infor-

mation and understand the data.

• Accessibility: The EU guidelines assessment pro-

cess checks how many ﬁles the data are divided

into and if they are all accessible. Then, it veriﬁes

if there are constraints, for example, security con-

straints, to maintain inside the DSS, such as, for

example, “only the admin can access the data.”

• Reusability: The EU guidelines assessment pro-

cess checks the amount of data and any additional

rules related to the speciﬁc ﬁle type. For exam-

ple, if the ﬁle is a CSV, the DSS should check

the presence of headers. If the organization using

the DSS requires any supplementary standard to

be respected, the system will review them at this

point.

The result of each phase is saved and shown to the

user in a ﬁnal report.

The second stage of the assessment phase is the

DQ assessment process (Fig. 1C.2). The rules related

to this stage refer to the data quality metrics:

• Accuracy: The DQ assessment process measures

how correct the data are compared to a reference

dataset.

• Timeliness: The DQ assessment process evaluates

how up-to-date the input dataset is for a task.

A Framework for a Data Quality Module in Decision Support Systems: An Application with Smart Grid Time Series

445

• Completeness: The DQ assessment process mea-

sures how much information the data carries out.

In other words, how much data is not missing

from the dataset.

• Consistency: Semantic rules are deﬁned over the

data by the user. The DQ assessment process es-

timates the number of semantic rules which are

violated.

Based on the results, a DQ indicator is calculated.

This number establishes the data’s quality status at

any moment. The intent is to provide a summary of

the status of the data that is simple to understand but

also possible to change depending on the context of

the problem. The next steps are a possible guide to

calculate this indicator:

1. Calculate quality indicators DQ

per each dimen-

sion i= {comp, acc, time, cons} completeness, ac-

curacy, timeliness, and consistency. Each indica-

tor will be deﬁned by the analyst.

2. Assign importance weights (w

) per each of the

data quality dimensions.

• If the units of DQ

have the same range, we rec-

ommend updating each w

as:

∑

= 1 =⇒ DQ =

∑

(1)

• If the analyst wants to do the average of the

, update each w

as:

= 1 so

∑

= 4 =⇒ DQ =

∑

(2)

3. Calculate a weighted average of each data quality

indicator that we denote as

DQ.

DQ =

∑

(3)

4. Then, compare this value to a threshold ε with a

basic rule:

if DQ ≤ ε insufﬁcient quality else sufﬁcient quality

This step is recommended but optional.

5. Add results to the result ﬁle.

Section 4 presents an example of the DQ indicator.

The ﬁnal stage of the assessment phase is the DC

assessment process (Fig. 1C.3). The rules are based

on typical instructions during the data-cleaning pro-

cedure. These include

• Time column: The DC assessment process tries to

recognize the time column, the start, and the end

date, the frequency of the observations, and the

presence of gaps or duplicates related to winter/-

summer hour time change.

• Single-value columns: The DC assessment pro-

cess veriﬁes how many columns have only a sin-

gle value. It should be stored as metadata.

• Types of columns: The DC assessment process

tries to assign a speciﬁc type to a column based

on the values.

• Duplicates: The DC assessment process extracts

possible duplicates.

• Missing Values: The DC assessment process ver-

iﬁes if there are any missing values.

As with the previous DQ stage, a DC indicator is

calculated based on the result of this stage too. This

number aims to provide an idea of the cleaning status

of the data. It measures how easily the DSS can clean

this dataset without human intervention. This infor-

mation is linked to the analysis phase because the less

information the system deﬁnes, the more time is re-

quired during the following phase. Under this point

of view, the analysts should use it to estimate the time

they will probably need to spend during the analy-

sis phase when additional veriﬁcation will be done.

Section 4 illustrates an example of the DC indica-

tor’s computation. The framework’s modularity of-

fers ﬂexibility. The analyst can decide to skip part of

the analysis and can update or change the rules and

guidelines to make the DQ module more customiz-

able. After the three assessment stages, the last step

in the assessment phase generates a report (Fig. 1C.4)

summarizing all the DSS ﬁndings.

The last part of the framework is the analysis

phase (Fig. 1D) which aims to deﬁne the cleaning pro-

cedure with the analyst and save it in the reproducibil-

ity database. The phase starts with the issue extractor

(Fig. 1D.1), a process that formulates potential prob-

lems based on the assessment phase report and histor-

ical experience already stored in the reproducibility

database (Fig. 1D.4). Then, these problems are dis-

played to the analyst through the analyzer (Fig. 1D.2),

which explains the potential issues and shows addi-

tional information, such as plots or metadata. At this

point, the analyst (Fig. 1E.2) decides whether or not

the issue is legitimate and decides on a solution. Fi-

nally, the analyst’s feedback is passed to the issue re-

formulator (Fig. 1D.3) and stored in the reproducibil-

ity database. This database contains the past problems

found by the DSS and how analysts have decided to

solve them. It helps the user verify the most common

issues and situations that may not be so ordinary. The

output of the framework (Fig. 1E.1) is a report on the

raw dataset and the pre-processing pipeline designed

during the analysis phase.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

446

InstallatieIDType StatusMeetwaarde

Eenheid van

meetwaarde

Meter read tijdstipAfname/Injectie

Elektriciteit

Elektriciteit K6LUKJZ1BtSijA

K6LUKJZ1BtSijA

Afname

01JAN16:23:15:00

01JAN16:23:00:00

01JAN16:16:30:00

01JAN16:16:15:00

01JAN16:16:00:00

Kwh

1,0000 VAL

VAL

1,0000

0,6600

0,9800

VAL

VALElektriciteit

Figure 2: Extract of the data contained in the CSV ﬁle and used as the proof-of-concept. The column “Type” contains what

type of measurements were collected, “InstallatieID” indicates the digital meter id; “Afname/Injectie” indicates if the energy

is off-taken or injected; “Meter read tijdstip” represents the timestamps; “Eenheid van meetwaarde” is the unit of measure;

“Meetwaarde” collects the measurements; “Status” indicates whether the data is valid or not.

4 PROOF-OF-CONCEPT:

INDUSTRIAL APPLICATION

To test the proposed framework, a POC was devel-

oped. The programming language used is python,

and the Graphical User Interface (GUI) was imple-

mented using Streamlit.

The POC is a data quality module for a data-driven

decision support system used in a research organi-

zation. The employed dataset is a public industrial

time series dataset. The publisher is Fluvius, a Bel-

gian distribution system operator. The data represents

the quarter-hourly consumption proﬁles of residential

electricity customers in Belgium for the 2016 calen-

dar year. The use case from which this example was

extracted relates to how to use AI to manage low volt-

age grids more efﬁciently. The experiment presented

in this section is the result of a collaboration with the

researchers of the Smart grid use case of the AI Flan-

ders Research Program.

4.1 Intake Phase

After downloading the dataset from the Flu-

vius website,

the user will have a zip ﬁle

containing a CSV (READING 2016.CSV ) with

the measurement data and a XLSX ﬁle (1 04-

werkeli jkeverbruikspro f ielenhuishoudeli jke-

klantenelektriciteit2016Legende.xlsx) containing the

metadata. The presented dataset is in Dutch. The ﬁrst

step is to upload the data and the metadata into the

DSS. The intake module receives the CSV, a small

extract of it is presented in Figure 2, and then the user

needs to deliver the metadata. To do so, the system

https://www.python.org

https://streamlit.io

https://www.ﬂandersairesearch.be/en

https : / / opendata.ﬂuvius.be / explore / dataset / 1 04 -

werkelijke - verbruiksproﬁelen - huishoudelijke - klanten -

elektriciteit/information/

provides a template to ﬁll in. The user is not obliged

to complete all the ﬁelds to proceed with the analysis,

however, the more information provided, the higher

the ﬁnal score.

4.1.1 Data and Metadata Uploaders

The template for the metadata designed for the POC

has two parts: General information and Data infor-

mation. General information is for the future usage of

the submitted data. It consists of the following:

• The Project’s Name: Low Voltage Grid - Fore-

casting Energy Consumption

• The Domain: Industrial

• The Problem Statement: The visibility on the

low voltage (LV) distribution grids throughout

Europe is limited: the layout of the grids is

only partially known, and measurements are lim-

ited. In the past, this was acceptable, as we em-

ployed a “ﬁt and forget” strategy: install (over-

dimensioned) cables with sufﬁcient capacity to

cover all demand peaks. Today, this solution is

not an option. Now, the alternative is to develop

technology to use the installed capacity more op-

timally by operating our grids closer to their limit

and technically supporting measures to mitigate

the impact of the energy transition.

• The Research Goal: To run long-term forecasts

algorithms for all potential evolutions in the grid

use (Botman et al., 2022), (Soenen et al., 2023).

Data information is more related to how the data

was retrieved. In the example template, the requested

information is:

• The Data Type: Time Series

• The Source: Fluvius Open dataset

• The Data Description: The dataset contains

100 timeseries with quarter-hourly offtake and in-

jection measurements of Low-Voltage (LV) grid

A Framework for a Data Quality Module in Decision Support Systems: An Application with Smart Grid Time Series

447

connections. These anonymized measurements

were obtained in a digital meter proof-of-concept

project in 2016, which was carried out in a pilot

area of the Belgian territory. This dataset only in-

cludes the digital meters for which more than 98%

of their readings were validated. Given that the

total amount of expected measurements is equal

to 96 (readings/day) x 366 (days/year) = 35136

(readings/year), the selected digital meters in this

dataset have more than 35136 x 0.98 =34433 val-

idated readings.

Then, there was a drop-off space where the data

ﬁle had to be added. The last step of this phase is

to move the CSV ﬁle (Figure 2) with the data to the

proper directory and to write the metadata in a JSON

ﬁle (Listing 1). Then, the system starts the next phase-

the assessment phase.

Listing 1: Extract of the JSON ﬁle saved during the upload

of the metadata in the execution of Proof-of-Concept.

1 {” g e n e r a l ” : {

2 ” name ” : ”Low V ol t a g e G ri d ” ,

3 ” p r o b l e m s t a t e m n t ” : ” . . . ” } ,

4 ” d a t a ” : {

5 ” t y p e ” : ” Time S e r i e s ” ,

6 ” d e s c r i p t i o n ” : ” . . . ” } }

4.2 Assessment Phase

The assessment phase accesses the CSV and the

JSON ﬁles, the outputs of the previous phase (Section

4.1). Then, the three processes of this phase begin.

The system automatically executes this phase follow-

ing the conﬁguration setup by the user.

4.2.1 EU Guidelines Assessment Process

The EU guidelines assessment process examines the

inputs, comparing them with rules extracted from the

European Guidelines (Data Europa EU, 2021). The

four dimensions considered in this step are:

• Interoperability: The DSS checks the presence of

an encoding issue inside the data and metadata. In

the POC, the python library cChardet

was used

for this task. The system did not ﬁnd any encoding

issue; the results are illustrated in Table 1. The

outcome was stored in the JSON result ﬁle to be

later translated into the ﬁnal report.

• Findability: The DSS prepares the working space

for the Intake Phase’s output. The system checks

if the project already exists. If so, the metadata ﬁle

https://pypi.org/project/cchardet/

is moved to the already-existing project’s work-

ing space as a subproject. If not, a new working

space is created. In the POC, the working space

was a ﬁle system directory composed of a gen-

eral directory called “Working Space”. It con-

tained the project directory, which in turn con-

tained the directories for the data, the metadata,

and the future result. From the metadata ﬁle, the

data’s description was examined using text quality

indicators implemented in python (Kiefer, 2019).

Speciﬁcally, the POC implemented the number of

Spelling Errors,

Lexical Diversity,

number of

Ungrammatical Sentences,

and Average Sen-

tence Length. All the results on the metadata were

saved in the JSON result ﬁle. The results ob-

tained by the POC are shown in Table 2. They

give an indication of the clarity of the metadata

input. In this case, for example, the lexical diver-

sity, in which the maximum is one, is quite low.

This means that there are many repetitions of the

same words. This analysis is important for the

reusability of the dataset by other users.

• Accessibility: At this point, the DSS has moved

the data ﬁle to the working space. During this

step, as described in Section 3, the system checks

for any possible security constraints, such as lim-

ited clearance access for certain personnel. In the

POC, there were no introduced constraints.

• Reusability: The last step is to verify the data

itself. In the POC, the system read the con-

tent of the CSV ﬁle (Figure 2) without any prob-

lems. The content was loaded as an object called

a dataframe.

If this operation had caused an

error, the process would have read how to miti-

gate the situation from its associate database. For

example, a mitigation action could be asked for

the user’s involvement. Having the dataframe, the

DSS checked the number of samples, the pres-

ence of headers, and any other constraints the user

might have required. The success or failure of

each instruction was saved in the JSON result ﬁle.

Table 1: Results obtained from the EU guidelines assess-

ment process: Interoperability Check.

CSV containing Data JSON containing Metadata

’encoding’: ’ASCII’ ’encoding’: ’ASCII’

’conﬁdence’: 1.0 ’conﬁdence’: 1.0

https://pypi.org/project/pyenchant/

https://github.com/kieferca/quality-indicators-for-text

https://pypi.org/project/language-tool-python/

https : / / pandas.pydata.org / docs / reference / api /

pandas.DataFrame.html

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

448

Table 2: Results obtained from the EU guidelines assess-

ment process after the analysis of data’s description.

Rule Result

# Spelling Error 4

Lexical Diversity ∼ 0.091

# Ungrammatical Sentences 2

Avg Sentence Length 23.5

An extract of the JSON ﬁle result, including the

output of the accessibility and reusability, is shown in

the Listing 2. To summarize the EU guidelines assess-

ment process, the inputs are the metadata ﬁle (JSON

ﬁle), the data ﬁle (CSV ﬁle), and the output is the

JSON result ﬁle, containing the results of each sub-

process.

4.2.2 Data Quality Assessment Process

During the second process, the DSS examines the

quality of the data contained in the CSV input in

depth. The analyst input w

comp

= 0.3, w

acc

= 0,

time

= 0.3 and w

cons

= 0.4 into the DSS. Finally, the

threshold ε was set to 0.8.

The DQ

indicators were calculated as follow:

• Completeness: In Section 3, this metric (DQ

comp

)

evaluates how much information the dataset has.

So, in the POC, it was calculated as

# Expected values − # Missing values

# Expected values

. (4)

Numerically, it was DQ

comp

35136−20078

35136

0, 43.

• Accuracy: In the POC, this metric (DQ

acc

) was

not calculated. Accuracy measures the distance

between the input data and a reference dataset.

Having a reference dataset is not always possi-

ble because, among other reasons, it requires a

lot of time for the expert to generate a dataset

containing what is desirable. Moreover, the rep-

resentativeness of a reference dataset loses its

meaning fast. Energy consumption data depends

on many factors; among them, there are human

habits and the employment of new technology,

such as heat pumps and electric vehicles. The

reference dataset should reﬂect these continuous

changes, causing frequent updates that are not

sustainable. Therefore, the system, not ﬁnding the

reference dataset, skipped this evaluation.

• Timeliness: In Section 3, this metric (DQ

time

) was

deﬁned as a measurement to evaluate how up-to-

date the input is. In the POC, the data available

was from 2016 because it is hard to have values

from a recent period. Recent studies, (Eurostat,

2020), underlined that the electricity consumption

by households in Belgium had decreased by 6.7%

compared to the usage in 2010. On average, there

was a decrease of 1.2% in the European Union.

Since the data available was from 2016, the ana-

lysts decided to consider the data out-of-date be-

cause the percentages are signiﬁcant, however still

relevant for the considered use case. Hence, the

analyst assigned zero as the timeliness score.

• Consistency: Having the data saved in ﬁles is not

the most efﬁcient way to work. So, this metric

(DQ

cons

) measures if the user prefers to save the

data in an external database and calculates how

many semantic rules are violated by the dataset.

Figure 3 shows the interaction between the frame-

work’s architecture and an external database. The

depicted architecture is a simpliﬁcation of the one

shown in Figure 1. The DQ assessment process

(Fig. 3C.2) is possible to link to an external cen-

tralized database (Fig. 3EXT) deﬁned by the user

and containing the data. In the POC, at this point,

the DSS established a connection with the exter-

nal relational database. It retrieved the appropriate

table deﬁnition and inspected each attribute, com-

paring the type with the pertinent column in the

dataset. If the column were a general object, the

system would try to convert the values to the ex-

pected type. In Table 3, two example results of

this operation are shown. The table contains the

names of the column in the dataset (Fig. 2), which

are the same inside the external database as at-

tributes, the types of the attribute found in the ex-

ternal database table’s deﬁnition, the types of the

column in the dataset and the result: they match

or they do not. Consistency was measured as fol-

lows:

cons

# Checked attributes −# Failed matches

# Checked attributes

(5)

In numbers, it is DQ

cons

7−1

= 0, 86.

DQ Assessment

Process

C.2

DSS Level

(A)

User Level

(E)

External DB

(EXT)

Figure 3: The image shows the interaction between the DQ

Assessment Process (C.2) and an External Database (EXT).

The depicted architecture is a simpliﬁcation of Figure 1.

Table 3: Example of results obtained by checking the Con-

sistency of the dataset with the expected types required by

the external relational database.

name attribute:type column:type result

InstallatieID VARCHAR String Success

Meetwaarde FLOAT String Fail

The result obtained by this process for each di-

mension was saved in the JSON result ﬁle. The cal-

A Framework for a Data Quality Module in Decision Support Systems: An Application with Smart Grid Time Series

449

culations of DQ (equation 3), therefore:

DQ = 0.3 × 0.43 + 0 × 0 + 0.3 ×0 + 0.4 × 0.86 = 0.45

(6)

As DQ ≤ 0.8 the DSS deﬁnes the quality level as

insufﬁcient.

4.2.3 Data Cleaning Assessment Process

The DC Assessment Process is the last step before

having the ﬁnal report. During this stage, the DSS

inspects some primary data-cleaning issues. The ones

implemented in the POC, and already introduced in

Section 3, are the following:

• Time Column: The DSS analyzes the column con-

taining the timestamps. In the POC, the ﬁrst ac-

tion was to ﬁnd the range of the considered period,

so the start and the end date. Then, reading the

hours, the DSS identiﬁed the time frequency. Ad-

ditionally, the system examined the time stamps

around March and October with particular atten-

tion. At the end of these months, in Europe, there

is a change of hours between winter and summer

time or vice-versa. This time change of one hour

could create duplicated or missing timestamps.

The DSS veriﬁed the presence of this problem.

All these ﬁndings were stored in the JSON result

ﬁle to be double-checked with the user.

• Single-value columns: In the POC, the DSS, iter-

ating on the columns, identiﬁed the column with

single values. An example is the column “Type”

in Figure 2. The value was stored in the JSON Re-

sult File, and during the last phase, the system will

propose to drop the columns and save the value as

metadata.

• Type of columns: This analysis is linked to the

CONSISTENCY dimension tested in the previous

process. The Consistency test can be performed

only if the user provides semantic rules. The DSS

automatically tries to recognize the data type if

this does not happen during the DC Assessment

Process. In the POC, one value of each column

was tested to verify if it was a string, boolean, cat-

egory, int, ﬂoat, or DateTime.

• Duplicates: In the POC, the DSS calculated the

number of duplicated rows found in the system.

The user decides how to handle them during the

analysis phase, in which all these problems are

presented. In the dataframe, the system did not

ﬁnd any duplicated values.

• Missing Values: In the POC, the last examination

done by DSS was to verify the presence of miss-

ing values. First, the system veriﬁed the presence

of cells with null values. Then, the system calcu-

lated the missing rows using the timestamps col-

umn and the information obtained from the meta-

data. The results are shown in Table 4.

Table 4: Results of the system obtained checking the num-

ber of missing values and rows.

missing type result

null values 0

missing rows 20078

An indicator is calculated at the end of this pro-

cess, similar to the DQ assessment process (Section

4.2.2). This indicator was computed using Equation

7. In detail, the system counted the total number of

all the cleaning problems checked during the DC as-

sessment process, then it calculated the number of ac-

tual cleaning problems that the user needs to check

in the next phase. The results are shown in Table 5.

For example, the test to identify the period range was

one, and the system found the answer, so zero prob-

lems were needed to be checked in this case. How-

ever, during the computation of the missing values,

two tests were performed, and one did need human

intervention. The ﬁnal indicator was computed like

DC =

# Checked problems − #Actual problems

# Checked problems

(7)

Then, the obtained number was converted to a per-

centage. A high score indicator means fewer prob-

lems to check during the next phase. In the presented

scenario, DC Indicator =

17−7

× 100 = 37%.

Table 5: Collected information to compute the DC indica-

tor. The ﬁrst column corresponds to the kind of problem, the

second represents the number of actual cleaning problems

found, and the third is the number of checked problems per-

formed.

actual

problems

checked

problems

id period range 0 1

id time frequency 0 1

winter/summer 2 2

single values per each column 3 7

type check 1 3

duplicates 0 1

missing values 1 2

4.2.4 Report Generator

The assessment phase concludes with the generation

of the report, summarizing all the ﬁndings gathered

during the three processes. The input of this block is

the JSON result ﬁle, an extract of the one produced

by the POC is depicted in Listing 2.

This module’s subphase aims to allow the user to

review the results and, if needed, download them in a

report.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

450

Listing 2: Extract of the JSON result ﬁle containing the

ﬁndings of the three assessment process developed in the

Proof-of-concept’s. It illustrates the result gathered during

the EU Guidelines Process.

1 {”EU ” : {

2 ”INTEROPERABILITY ” :

3 {” Da t a ” :

4 {” en co di n g ” : ” ASCII ” ,

5 ” c o n f i d e n c e ” : 1 . 0 } ,

6 ” M e ta d at a ” : { ” . . . ” } } ,

7 ” FINDABILITY ” :

8 {” S u b p r o j e c t ” : ”NO” ,

9 ” L o c a t i o n w o r k s pa c e ” : ” . . . ” ,

10 ” m e t a d a t a i n d i c a t o r ” : ,

11 ” m e t a d a t a d e t a i l s ” : {

12 ” S p e l l i n g ” : ” 2 ” ,

13 ” . . . ” } } ,

14 ” ACCESSIBILITY ” : {” V i s i b l e ” : ” A l l ” ,

15 ” M o d i f i c a b l e ” : ” A l l ”} ,

16 ”REUSABILITY ” : {” d a t a ” : ” W ell Formed ”}}

The report should summarize each step executed

by the DSS until now and contain all the relevant in-

formation related to the project.

In the POC, a template was designed and ﬁlled

with the obtained results. The DSS started generating

the ﬁnal document ﬁlling in the project’s name. Then,

it added the project’s description, the data’s descrip-

tion, and an extract of the dataset, similar to Figure

2. After this, the DQ and DC indicators were shown

as the ﬁrst result. Following that, the metadata eval-

uation was introduced as in Table 2 during the EU

guidelines assessment process. All the other results

were organized in distinct sections, each for a partic-

ular step in the process similar to the pattern used in

Section 4.2.

4.3 Analysis Phase

The last phase in the proposed DSS module frame-

work is the analysis phase. This phase is designed

in a semi-automatic fashion. The user is involved in

every step and actively participates in the decision-

making process. The system supports the user in gath-

ering information and underlining potential decisions

to make. The input is the JSON result ﬁle acquired

from the assessment phase; the output is a series of

pre-processing steps designed to improve the quality

of the data. Figure 1D shows the processes compos-

ing this phase.

The issue extractor has the job of formulating the

possible cleaning problems based on the JSON result

ﬁle and based on the experiences collected inside the

reproducibility database. In the POC, this database

was designed as a relational database. It was used to

store all the instructions executed by the user to in-

vestigate and solve a cleaning problem. The informa-

tion stored inside the database is the following: the

“id”, which represented the identiﬁcation of the his-

torical record, the “datatype”, which was the type of

data used for that speciﬁc record, the “project”, which

was the name of the analyzed project, the “problem”,

which was the name of the data cleaning issue the

DSS and the user found, the “solution”, which was

the code performed by the user to solve the clean-

ing problem, and the “info”, which was the code used

by the user to visualize the data and investigate the

problem. All the attributes are strings, except “id”

which is an integer, and “solution” and “info” which

are JSON. The issue extractor took from the JSON

result ﬁle the data type, Time Series, and the ﬁrst

problem to check with the user, for example, “Miss-

ing Values.” Then, the process searched for entries in

the reproducibility database with datatype=Time Se-

ries and problem=Missing Values; if there were any

past experiences, all the information was passed to the

analyzer.

The analyzer is the interface between the system

and the user. In the POC, the GUI was divided into

four spaces:

1. Visualization space was where the DSS results of

the under-examination problem were shown. The

DSS showed the Missing Values test results dur-

ing the DC assessment process, Section 4.2.3.

2. Experiences space was where the DSS showed the

experiences found in the reproducibility database,

if any. Firstly, it offered the possibility of visu-

alizing the analysis done. Therefore, the system

proposed the solutions.

3. Study space was where the user performed in-

structions to investigate the problem. The analyst

could start from a code proposed in the previous

space or propose a personal investigation.

4. Solution space was where the user could accept a

past solution or write a new one. For example, the

proposed solution could handle the missing data

using the interpolation technique. The user could

refuse it and instead use the personal solution of

ﬁlling in the missing values by copying the previ-

ous row’s values.

When the user was satisﬁed with the solution, all

the new feedback was passed to the issue reformula-

tor. This process had the job of creating the entry for

the reproducibility database. It translated the python

code written in the study space and the solution space

into two JSON objects. Then, it gathered all the in-

formation to complete the input query and sent it to

the database. To conclude the cycle, the issue refor-

mulator process notiﬁed the issue extractor of the op-

eration’s success, and so a new problem is passed to

the analyzer.

A Framework for a Data Quality Module in Decision Support Systems: An Application with Smart Grid Time Series

451

After showing all the problems examined by the

DSS during the assessment phase, the system checks

the presence of different problems related to the

datatype inside the reproducibility database. If any,

these are shown to the user. This step helps review

problems that, maybe, the analyst has not thought

about. In the end, the user could propose new prob-

lems to test, and they would be saved as new experi-

ences in the database.

5 CONCLUSIONS

DQ and DC are fundamental for any professional

working with data. This paper has proposed a frame-

work that helps users to qualitatively better under-

stand their data and to save time in pre-processing it.

The framework aims to give a general overview of

the data quality status. It computes indicators related

to DQ and DC to support the user in estimating the

time they need to spend performing the cleaning pro-

cess. Furthermore, the framework focuses on speed-

ing up the cleaning process, assisting the user during

the identiﬁcation of any problem then providing pos-

sible solutions for any cleaning issues. The last part

of the paper described the application of the frame-

work in an industrial POC, the low voltage grid. It

was shown that some metrics are not always appli-

cable, but the framework can still be relevant. The

dataset employed contained public time series data

of energy consumption proﬁles for the 2016 calendar

year in Belgium.

In future work, the framework will be tested with

different types of datasets and use cases. Another fo-

cus will be on how to use historical experiences more

effectively and efﬁciently to better suggest cleaning

issues and solutions during the Analysis Phase. Then,

the module will be inserted into the design of a data-

driven decision support system.

ACKNOWLEDGEMENTS

The authors greatly thank Ms. Lola Botman

and Mr. Jonas Soenen (KU Leuven) for their

support and useful suggestions. This research

received funding by KU Leuven: • Research

Fund (projects C16/15/059, C3/19/053, C24/18/022,

C3/20/117, C3I-21-00316), Industrial Research Fund

(Fellowships 13-0260, IOFm/16/004) and sev-

eral Leuven Research and Development bilat-

eral industrial projects; • Flemish Government

Agencies: ◦ FWO: EOS Project no G0F6718N

(SeLMA), SBO project S005319N, Infrastructure

project I013218N, TBM Project T001919N; PhD

Grant (SB/1SA1319N), ◦ EWI: the Flanders AI Re-

search Program, ◦ VLAIO: CSBO (HBC.2021.0076)

Baekeland PhD (HBC.20192204) • European Com-

mission: European Research Council under the Euro-

pean Union’s Horizon 2020 research and innovation

programme (ERC Adv. Grant grant agreement No

885682); • Other funding: Foundation ‘Kom op tegen

Kanker’, CM (Christelijke Mutualiteit)

REFERENCES

Botman, L., Soenen, J., Theodorakos, K., Yurtman, A.,

Bekker, J., Vanthournout, K., Blockeel, H., Moor,

B. D., and Lago, J. (2022). A scalable ensemble

approach to forecast the electricity consumption of

households. IEEE Transactions on Smart Grid.

Chengalur-Smith, I., Ballou, D., and Pazer, H. (1999). The

impact of data quality information on decision mak-

ing: an exploratory analysis. IEEE Transactions on

Knowledge and Data Engineering.

Data Europa EU (2021). Data Quality Guidelines. Publica-

tions Ofﬁce of the European Union.

Ehrlinger, L., Haunschmid, V., Palazzini, D., and Lettner,

C. (2019). A daql to monitor data quality in machine

learning applications. In Prooceedings of the 30th In-

ternational Conference on Database and Expert Sys-

tems Applications - Part I.

Ehrlinger, L. and W

oß, W. (2017). Automated data qual-

ity monitoring. In Proceedings of the 22nd MIT In-

ternational Conference on Information Quality (ICIQ

2017).

Ehrlinger, L. and W

oß, W. (2022). A survey of data quality

measurement and monitoring tools. Frontiers in Big

Data.

Eurostat (2020). Energy statistics - supply, transforma-

tion and consumption. https://www.eea.europa.eu/

data-and-maps/data/external/supply-transformation-

consumption-electricity-annual-data.

Kiefer, C. (2019). Quality indicators for text data. In BTW

2019 – Workshopband.

Oliveira, O. and Oliveira, B. (2022). An extensible frame-

work for data reliability assessment. In Proceedings

of the 24th International Conference on Enterprise In-

formation Systems - Volume 1: ICEIS,.

Sadiq, S. and Indulska, M. (2017). Open data: Quality over

quantity. International Journal of Information Man-

agement.

Soenen, J., Yurtman, A., Becker, T., D’hulst, R., Van-

thournout, K., Meert, W., and Blockeel, H. (2023).

Scenario generation of residential electricity con-

sumption through sampling of historical data. Sus-

tainable Energy, Grids and Networks.

Wilkinson, M. D., Dumontier, M., Aalbersberg, I. J., Apple-

ton, G., Axton, M., Baak, A., Blomberg, N., Boiten,

J.-W., da Silva Santos, L. B., Bourne, P. E., et al.

(2016). The fair guiding principles for scientiﬁc data

management and stewardship. Scientiﬁc Data.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

452
