An Empirical Evaluation of System-Level Test Effectiveness for

Safety-Critical Software

Muhammad Nouman Zafar

, Wasif Afzal

and Eduard Paul Enoiu

alardalen University, Sweden

Keywords:

System-Level Tests, Safety-Critical Software, Fault Detection Effectiveness.

Abstract:

Combinatorial Testing (CT) and Model-Based Testing (MBT) are two recognized test generation techniques.

The evidence of their fault detection effectiveness and comparison with industrial state-of-the-practice is still

scarce, more so at the system level for safety-critical systems, such as those found in trains. We use mutation

analysis to perform a comparative evaluation of CT, MBT, and industrial manual testing in terms of their fault

detection effectiveness using an industrial case study of the safety-critical train control management system.

We examine the fault detection rate per mutant and relationship between the mutation scores and structural

coverage using Modiﬁed Condition Decision Coverage (MC/DC). Our results show that CT 3-ways, CT 4-

ways, and MBT provide higher mutation scores. MBT did not perform better in detecting ‘Logic Replacement

Operator-Improved’ mutants when compared with the other techniques, while manual testing struggled to

ﬁnd ‘Logic Block Replacement Operator’ mutants. None of the test suites were able to ﬁnd ‘Time Block

Replacement Operator’ mutants. CT 2-ways was found to be the least effective test technique. MBT-generated

test suite achieved the highest MC/DC coverage. We also found a generally consistent positive relationship

between MC/DC coverage and mutation scores for all test suites.

1 INTRODUCTION

Software controls safety-critical functions of systems

in different domains, e.g., in avionics and vehicular.

However, the failure of software in such systems di-

rectly affects the physical world. Therefore, failures

in safety-critical software can lead to substantial risk

to the safety of human lives, serious environmental

damage, and severe economic problems. Engineering

safety-critical systems typically require a certain de-

gree of certiﬁcation according to safety standards and

deﬁned processes for thoroughly analyzing the sys-

tem requirements, together with software testing to

ensure its reliability.

The analysis of the preliminary system require-

ments is performed by one of the qualitative or

quantitative safety analysis techniques such as expert

analysis, failure mode and effect analysis, reliabil-

ity block diagrams, and fault tree analysis (Rouvroye

and van den Bliek, 2002). After analyzing system re-

quirements, safety-critical functions are usually im-

https://orcid.org/0000-0001-8746-7209

https://orcid.org/0000-0003-0611-2655

https://orcid.org/0000-0003-2416-4205

plemented in speciﬁc industrial control software sys-

tems. For example, Programmable Logic Controllers

(PLCs) support multiple programming languages for

the development of industrial applications and have

been widely adopted in several domains. The testing

of such software is then carried out to ensure adequate

functional and non-functional operations of the sys-

tem according to speciﬁc system requirements. How-

ever, testing such systems is costly. As a solution

to reducing the cost of testing and assuring the re-

liability of such systems, several techniques for au-

tomated test generation such as model-based testing

(MBT), and combinatorial testing (CT) exist. Be-

sides, manual testing is still considered a prevailing

technique for the testing of real-world industrial ap-

plications (Taipale et al., 2011), with some evidence

suggesting that both technical and non-technical skills

are required for effective fault detection (S

anchez-

Gord

on et al., 2020). There is a scarcity of research

and consequently empirical evidence into the fault-

detection effectiveness of automated test generation

techniques and industrial manual testing, especially if

the aim is to generate test cases at the system level of

a safety-critical system. Thus, the use of automated

test generation alongside industrial manual testing re-

Zafar, M., Afzal, W. and Enoiu, E.

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software.

DOI: 10.5220/0011756800003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 293-305

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

293

quires a thorough evaluation of the fault detection ca-

pabilities in an industrial setting.

This motivated us to analyze the fault detection

effectiveness of manual and two well-known auto-

mated test generation techniques (i.e., CT and MBT)

through mutation analysis, at the system level of

the safety-critical train control management system

(TCMS) developed by Alstom Transportation AB.

We have also analyzed the type of detected faults in-

duced by different mutation operators to identify the

sensitivity of each technique toward each type of in-

jected fault. In addition, we performed a compara-

tive analysis between the mutation scores and cover-

age levels

of each test suite. Based on our goal, we

have formulated the following research questions:

• RQ1. How effective are CT, MBT, and manual

testing techniques in detecting injected faults?

• RQ2. How sensitive are CT, MBT, and manual

system-level testing to different types of injected

faults?

• RQ3. What is the relationship between MC/DC

coverage and mutation scores achieved by CT,

MBT, and manual testing at the system level?

The rest of the paper is organized as follows: Sec-

tion 2 provides an overview of the background and re-

lated work, Section 3 presents the methodology of this

study including an overview of the System Under Test

(SUT), a description of the development process and

mutation injection, test suite creation, deployment of

the SUT and execution of test scripts, and evaluation

metrics. Section 4 describes the results, Section 5

provides a brief discussion on results, Section 6 deals

with the validity threats, whereas the conclusion and

future are provided in Section 7.

2 BACKGROUND AND RELATED

WORK

This section provides necessary background informa-

tion on relevant topics and a summary of related work.

2.1 Safety-Critical Software and PLCs

PLCs are used to control the safety-critical functions

of an embedded system application. PLCs are spe-

cially designed industrial computers connected via a

network of input and output modules using a data

bus. These PLCs communicate with each other,

We use MC/DC since several standards, e.g., EN

50129, suggest its use in safety-critical software system de-

velopment

sensors, and other subsystems to control the safety-

critical functions of an embedded system. Functional

Block Diagram (FBD) is one of the ﬁve standard

languages deﬁned by the International Electrotechni-

cal Commission (IEC) (Maslar, 1996) to implement

safety-critical applications for PLCs and has been

widely adopted by industrial practitioners in domains

such as railways, nuclear power plants, and avion-

ics (Schwartz et al., 2010).

FBD is a graphical notation language that con-

tains ten function block groups stated in IEC 1131-

3 (Maslar, 1996) (e.g., arithmetic, logic, comparison

and timer operations). These function block groups

are responsible for different types of operations be-

tween the states of input and output variables. Func-

tion elements/blocks from these groups are connected

through input/output variables to represent the behav-

ior of an FBD program. The developed FBD pro-

grams are then compiled into the source and ma-

chine code using platform-dependent tools provided

by PLC vendors.

2.2 System-Level Test Generation

Techniques

Automatic test case generation techniques exploit

software artifacts as inputs to generate test cases to

achieve better effectiveness and efﬁciency (Anand

et al., 2013). Multiple test generation techniques

exist such as random (Hamlet, 1994), search-

based (McMinn, 2011), model-based (Utting and

Legeard, 2010), amongst others to generate high-

qualitytest suites to validate a system, mostly at the

functional and structural level. But different studies

(e.g. (Li et al., 2017)) report advantages of CT and

MBT for testing safety-critical software at the sys-

tem level. There exist other studies (e.g., (Zafar et al.,

2022)) that have provided a comparative evaluation of

CT and MBT with manual testing in practice in terms

of coverage criteria.

CT generates a covering array in the form of in-

teraction possibilities of values selected from the in-

put parameters of a system (Nie and Leung, 2011).

Each row of a covering array represents a speciﬁc test

case to validate the functional requirements of a sys-

tem using the generated combination of input param-

eters. CT provides a t-ways test strategy to generate

relevant and ﬁnite number of input interactions. The

t-ways testing strategy generates different test cases

in a test suite depending on the value of t, the interac-

tion strength. It ensures the generation of unique test

sequences by covering each combination based on t-

ways (2, 3, and 4-ways being the most common) input

parameter interactions at least once.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

294

MBT (Tian et al., 2021) generates test cases from

an explicit model representing the SUT. For instance,

a model created using a ﬁnite state machine (FSM)

consists of nodes and edges. Nodes represent the

states of the SUT, whereas edges represent the tran-

sitions between the states containing the guard condi-

tions depicting the functional and non-functional be-

havior of the SUT in terms of Boolean constraints.

After the creation of the model, a variety of abstract

test cases can be generated from the same model of

a SUT depending on selected coverage criteria (e.g.,

edge, node, and requirement) and generator algo-

rithms (e.g., random, weight random, A-star). These

abstract test cases are then converted into concrete,

executable test scripts to validate a system.

2.3 Modiﬁed Condition Decision

Coverage

Testing coverage criteria are used to determine the ex-

tent to which the design and implementation structure

has been exercised. They evaluate the quality of a test

suite by measuring, e.g., the area of a code accessed,

number of states visited, number of logical predicates

covered, or path traversed by a test suite (Lindstr

et al., 2018). Some known structural coverage criteria

are condition coverage, decision coverage, and mod-

iﬁed condition decision coverage (Hemmati, 2015).

However, MC/DC coverage is recommended by cer-

tain standards (i.e., ISO 26262, EN 50128, and EN

50657) to evaluate the structural coverage for safety-

critical systems. Multiple studies (e.g., (Li et al.,

2017), (Vilkomir et al., 2017b)) have shown the ef-

fectiveness and usability of the MC/DC to evaluate

(and generate) test cases. It ensures the coverage of

each parameter in a program i.e., each condition, de-

cision, entry, and exit point of a program as well as

the independent effect of a condition on a decision at

least once. Hence, to evaluate a test suite in terms

of MC/DC each of the above-mentioned parameters

should be examined (Johnson et al., 1998). The test-

ing of safety-critical functions of TCMS needs to fol-

low EN 50128 and EN 50657 safety standards; they

suggest MC/DC as the code coverage metric, leading

us to examine the quality of test suites in this paper in

terms of MC/DC coverage.

2.4 Mutation Analysis

While there are multiple studies showing that test

suite adequacy can be assessed using different cover-

age criteria (Hemmati, 2015), there is evidence show-

ing that these criteria are not enough to evaluate the

quality of a test suite in terms of fault detection ef-

fectiveness. Multiple factors can affect the ability

of a test suite to detect faults (Schwartz and Hetzel,

2016). Mutation analysis is one of the techniques that

can be used to examine the ability of a test suite in

terms of fault detection effectiveness, especially in

cases where naturally-occurring faults are not avail-

able.

Mutation analysis is an error-based approach used

to evaluate the quality of test suites by measuring the

number of detected faults that were induced in the real

system (Acree et al., 1979). It involves the creation of

different versions of an original program by injecting

a small fault in each version. These faulty versions

of an original program are also known as mutants.

Each mutant represents a common and typical syn-

tactical error in a programming language or a logical

error produced due to the misinterpretation of a re-

quirement by a developer. These mutants can be cate-

gorized as equivalent and non-equivalent or stubborn

mutants (Yao et al., 2014). Equivalent mutants can

not be killed by any of the test cases in a test suite

because of their identical behavior to the original pro-

gram. Whereas a non-equivalent mutant can be killed

with one or more potential test cases as they exhibit

different behavior than the original program. After

the creation of mutated versions, test suites are de-

signed with speciﬁc testing techniques and executed

on the programs (i.e., original and mutated programs)

to check if the mutant is killed or not. A mutant is

said to be killed by a test suite t if the test results

of a test suite executed on mutated and original pro-

grams show a contradiction. On the other hand, if

the results of mutated and original programs are iden-

tical, then the mutant is considered alive (M

). The

mutation score is then calculated based on the total

number of mutants (M

) and the number of mutants

killed (M

). The mutation score can be calculated us-

ing either an output-only oracle (i.e., strong mutation)

or a state change/internal oracle (i.e., weak mutation)

against the set of mutants. However, in this study, we

have used strong mutation for the evaluation of the

test suites.

2.5 Related Work

Mutation testing is used to assess the test suites

as well as to validate software in different do-

mains (Petrovic et al., 2018). Multiple state-of-

the-art studies (Oh et al., 2005), (Hierons and Mer-

ayo, 2009), (Lindstr

om et al., 2018), (Enoiu et al.,

2016b), (Delgado-P

erez et al., 2018), (Baker and

Habli, 2012), (Ramler et al., 2017), (Enoiu et al.,

2016a) have explored and examined mutation testing

using platform-dependent languages (e.g., C, C++,

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

295

JAVA, Python, and FBDs) for generating test suites

and evaluating testing techniques and coverage crite-

ria. Since the focus of our paper is on mutation analy-

sis for test coverage and testing technique evaluation,

rather than using it for test generation, below we sum-

marize the papers falling in our focus areas only.

Pedro et. al (Delgado-P

erez et al., 2018) used mu-

tation testing to evaluate the structural coverage cri-

terion and to determine the weakness in the testing

practices using an industrial case study. The results

showed the potential failures caused by the test suite

generated by the branch coverage criterion and im-

provements in the test suites derived from the mu-

tation analysis of the faults and test results. Simi-

larly, an empirical evaluation has been conducted to

improve the test quality of a test suite using mutation

testing in (Baker and Habli, 2012). They also showed

the comparison of mutation analysis with traditional

structural coverage analysis and manual peer review

in terms of identifying deﬁcits in test suites and test-

ing activities. The results demonstrate that mutation

testing is the most effective in detecting issues in test

suites and testing activities than manual review and

structural coverage analysis. However, the results also

showed that mutation testing can not replace manual

review but can be used as a complement to it.

Rudolf et. al (Ramler et al., 2017) investigated the

fault detection effectiveness of unit-level tests by ap-

plying the mutation analysis in the context of safety-

critical systems. They also examined the applicability

of mutation analysis in terms of improving tests gen-

erated at the unit level by the MC/DC coverage cri-

teria. The evaluation showed the deﬁciencies which

were hard to ﬁnd in the test suites and provided em-

pirical evidence for improving test suites using mu-

tation testing. The fault detection efﬁciency and ef-

fectiveness have also been determined and compared

for the speciﬁcation and implementation-based test-

ing using an industrial case study in (Enoiu et al.,

2016a). The mutation analysis of the results indicates

that implementation-based testing is an effective test-

ing technique and provided a higher structural cov-

erage than test suites created by speciﬁcation-based

testing.

The aforementioned studies used mutation anal-

ysis to generate test suites as well as to compare and

evaluate different testing techniques and coverage cri-

teria in terms of fault detection effectiveness. How-

ever, we have found only a limited set of studies

((Shin et al., 2012), (Shin et al., 2016), (Charbachi

et al., 2017), (Ahmed et al., 2020)), which have eval-

uated the automated testing techniques using FBD-

level mutation analysis in an industrial setting. Thus,

we examine the quality of generated test suites gen-

erated by MBT and CT in the industry and provide a

comparative analysis of these techniques with manual

practices, with the aim to improve dynamic testing of

safety-critical systems.

3 METHODOLOGY

The methodology that we have developed and fol-

lowed throughout our study has been presented in Fig-

ure 1. It consists of ﬁve main steps; (1) analysis of

system requirements and test speciﬁcation (i.e., Steps

(1.1), (1.2), and (1.3)), (2) development of mutated

versions of the original program (i.e., (2.1), (2.2), and

(2.3)), (3) creation of test suites using each testing

technique (i.e., (3.1) and (3.2)), (4) deployment and

execution of programs and test scripts to generate test

results (i.e., (4.1), (4.2), and (4.3)), (5) evaluation of

test scripts based on test results.

3.1 Description of SUT

We considered the ﬁre detection system as a case

study from an ongoing project at Alstom Transporta-

tion AB. The ﬁre detection system is a subsystem of

the Train Control Management System (TCMS) for

MOVIA

which is a family of vehicle products de-

veloped at Alstom Transportation and operational in

various metro trains across the globe. TCMS is an in-

tegral part of the complex distributed control system

of a train used to control and manage all the opera-

tional functions of a train by communicating with dif-

ferent devices and subsystems via various networks

i.e. Ethernet Consist Network (ECN), Multi-function

Vehicle Bus (MVB), etc. (Zafar et al., 2021a). All

the safety-critical functions of a train are controlled

by Modular Input/Output-Safe (MIO-S) and Central

Control Unit-Safe (CCU-S) devices connected via the

MVB network. The ﬁre detection system in TCMS

relates to a safety-critical function used to detect two

types of ﬁre in the cabs of a train, i.e., internal, and

external. It uses two instances of Fire Detection Con-

trol Units (FDCUs) connected with the smoke and ﬁre

sensors. Each FDCU can have two states (i.e. Master

and Slave) and only be considered as a ‘Master’ if it

holds the value of its signals as true, whereas the sen-

sors are responsible to transmit signals indicating ﬁre

to the FDCUs. The MIO-S device of TCMS receives

the signals from the FDCUs and reports these signals

to CCU-S. CCU-S computes the logic based on the

functional requirements and reports the type of ﬁre to

https://www.railway-technology.com/projects/bombar

dier-movia-metro-cars/

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

296

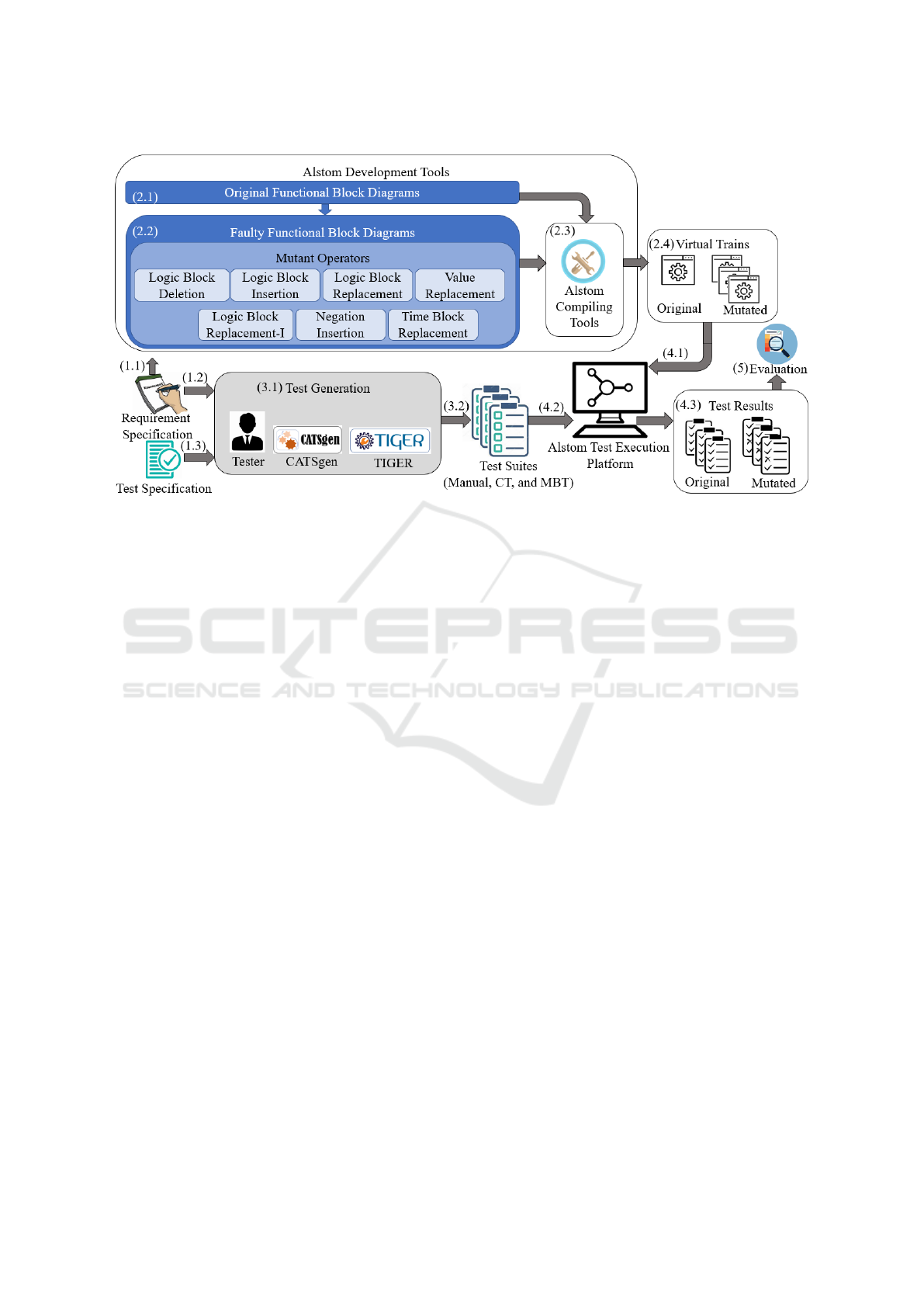

Figure 1: An overview of the experimental methodology.

MIO-S as a corresponding output signal. The MIOS

receives the signal to light a LED indicating the type

of ﬁre on the driver’s desk.

3.2 Requirements and Test Speciﬁcation

Analysis

We have thoroughly analyzed the requirements of the

industrial case study to understand the functional and

non-functional behavior of the system. It includes the

identiﬁcation of input & output signals used to com-

municate with the sensors, PLCs, and TCMS, data

types of the identiﬁed signals, constraints such as the

system’s response time, and arithmetic/Boolean op-

erators that should be used to develop the desired

behavior of the system using FBDs. On the other

hand, the test speciﬁcation analysis helped us create

the complete SUT model for the generation of the

test suite using MBT. It also helped us understand

the test objectives, different test scenarios, and behav-

ior of the system from a tester’s perspective. Soft-

ware engineers and testers at Alstom Transportation

use the logical signal names to specify the require-

ments and test cases whereas the actual system uses

one or more technical signal names for its regular and

safety-critical operations. Hence, the analysis of re-

quirements and test speciﬁcations also provided us

with traceability between logical and technical signal

names in addition to an understanding of the develop-

ment process.

3.3 Development of SUT and Mutation

Injection

The general principle of mutation analysis is to ex-

amine the detection of injected faults in an original

program. These faults are injected based on some

mutant operators that can be used to mimic a pro-

grammer’s common mistakes. So, we have used the

original FBD program of the industrial case study de-

veloped by a developer at Alstom Transportation and

created a set of mutants based on selected mutant op-

erators manually. The selection of mutant operators

is carried out by thoroughly reviewing the previous

studies from the literature (Oh et al., 2005) (Enoiu

et al., 2016b) (Shin et al., 2012) that applies mutation

analysis speciﬁcally for the evaluation of testing tech-

nique, test coverage, or to generate test suites using

FBD programs. Moreover, the development of safety-

critical FBD programs at Alstom Transportation re-

quires only speciﬁc FBD operators. So, by consider-

ing the safety-critical industrial case study and FBD-

speciﬁc faults, we have used seven mutant operators

as follows:

• Logic Block Deletion Operator (LDO): to delete a

logical block from the FBD program (e.g., delet-

ing AND block).

• Logic Block Insertion Operator (LIO): to insert

another logical block between the logical blocks

or the input signals of the FBD program (e.g., in-

serting AND block between the output of two OR

blocks).

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

297

• Logic Block Replacement Operator (LRO): to re-

place a logical block of the FBD program with

another logical block of the same category (e.g.,

replacing the AND block with the OR block).

• Logic Block Replacement Operator-Improved

(LRO-I): to replace the logical block of the FBD

program with a logical block of the same cate-

gory and another logical block with Boolean input

(e.g., replacing OR with RS).

• Negation Insertion Operator (NIO): to insert the

negation block at the inputs or outputs of other

logical blocks.

• Time Block Replacement Operator (TRO): to re-

place the timer block with another timer block

(e.g., replacing TOF with TON).

• Value Replacement Operator (VRO): to replace

the constant value of a variable provided to a

block with another value (e.g., replacing the timer

variable from 3s to 6s).

After injecting the faults based on the selected

mutants, we used the Alstom Transportation-speciﬁc

compiling tools to generate the builds of a train con-

taining the mutated program. We used these builds to

generate the simulations of a train, also known as vir-

tual trains, to execute the test scripts at the software-

in-the-loop level.

3.4 Test Suite Creation

To evaluate the test suite developed using manual

testing, we used the manually created test suite by

a tester at Alstom Transportation for the selected

subsystem. Whereas, for MBT and CT, we have

utilized automated test script generation tools i.e.

TIGER (Model-Based Test scrIpt GenEration fRame-

work) (Zafar et al., 2021b) and CATSgen (Covering

Array Test Script generator) to generate the test suites,

respectively. Both automated tools are based on dif-

ferent abstract test case generation tools but use a sim-

ilar procedure, and format of the XML ﬁle containing

the information about the signals (i.e., data type, log-

ical and technical signal names) to generate the exe-

cutable test scripts. Moreover, the test scripts devel-

oped by the selected techniques are implemented in

the C# language. A brief description of the activities

and tools for test suite generation of each testing tech-

nique is given in the subsequent subsections.

3.4.1 Manual Test Suite Creation

The testers at Alstom Transportation follow EN

50128 and EN 50657 safety standards and regulations

to create the test suites based on Equivalence Par-

titioning (EP) and Boundary Value Analysis (BVA)

testing techniques. However, in some cases, MC/DC

coverage criterion is also used for the creation the test

suites for testing complex systems. The test cases

are written in natural language and consist of a set

of test steps specifying test inputs for the system, ex-

pected output, and response time according to each re-

quirement speciﬁed in the requirement speciﬁcation.

Requirement coverage is considered a de facto crite-

rion at Alstom Transportation for test suite develop-

ment to ensure that each requirement has been cov-

ered and executed by the test cases. After the creation

of test cases, Alstom Transportation-speciﬁc libraries

are used to write the test scripts manually.

3.4.2 Model-based Test Suite Generation

For model-based test suite generation, we have uti-

lized GraphWalker

studio version to create the FSM

model of the SUT and provided the model to TIGER

along with an XML ﬁle to generate C# implemented

test scripts. TIGER uses the CLI version of Graph-

Walker to generate the abstract test cases in JSON for-

mat by traversing through the model elements based

on the selected generator algorithm (e.g., random,

quick random, etc.) and coverage criteria (edge, ver-

tex, requirement, etc.). It contains the implementation

of some deﬁned mapping rules for logical and techni-

cal signal names as well as information speciﬁc to Al-

stom Transportation’s testing framework (i.e., conﬁg-

urations, classes, and methods). After the generation

of abstract test cases, it processes the data in a JSON

ﬁle and utilizes the mapping rules along with testing

framework-speciﬁc information to generate concrete

test scripts. Hence, we generated the test suite by se-

lecting the ‘random’ generator algorithm and 100%

edge coverage criteria using TIGER.

3.4.3 Combinatorial Test Suite Generation

There exist multiple combinatorial test generation

tools to generate test cases using different algorithms

and combinatorial interaction strengths (Khalsa and

Labiche, 2014). However, these tools can only

be used to generate abstract test cases in the form

of a covering array. To execute the test cases

on the Alstom Transportation-speciﬁc testing frame-

work, these test cases need to be concretized and im-

plemented in the C# language. Hence, to generate

the combinatorial-based test suites, we have devel-

oped our own CT test script generator called CATS-

gen based on a state-of-the-art combinatorial test gen-

https://github.com/GraphWalker/graphwalker-

project/wiki

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

298

eration tool known as CAgen

. CAgen is an open-

source tool and available in two versions (i.e. online

web GUI and ofﬂine command-line) with compara-

tively high performance than other combinatorial test

generation tools (Wagner et al., 2020). It provides

three state-of-the-art meta-heuristic search algorithms

(i.e. FIPOG, FIPOG-F, FIPOG-F2) to generate the

test cases based on the t-ways testing strategy. We

have considered the logical names of all the signals

speciﬁed in the requirement speciﬁcation as input pa-

rameters and utilized the web GUI online version of

CAgen and selected the FIPOG heuristic algorithm to

generate the test cases. We have also provided the

test redundancy value ‘1’ with the ‘randomization of

don’t care values’ for the generation of non-redundant

test cases and limited the interaction strength to 2, 3,

and 4-ways to avoid combinatorial explosion (Ramler

et al., 2012).

After the creation of the test cases, we exported

the generated test cases in an excel ﬁle and added

the expected outputs and timing constraints against

each test case manually by thoroughly analyzing the

requirements of the system. Then we provided the ex-

ported ﬁle along with an XML ﬁle as input to CATS-

gen. CATSgen contains the implementation of map-

ping rules, similar to TIGER, to map the logical signal

names and their respective values to the technical sig-

nal names. Moreover, it also contains the implemen-

tation details speciﬁc to the Alstom Transportation’s

testing framework and libraries (e.g., conﬁgurations,

classes, methods, etc.) to generate the executable test

scripts. Hence, CATSgen extracted the data from the

excel and XML ﬁles, used the mapping rules along

with implementation details, and generated the test

scripts in the C# language.

3.5 Deployment and Execution of the

SUT and Test Scripts

After the generation of virtual trains and test scripts,

we deployed the virtual trains on a laptop con-

taining the software compatible with the Alstom

Transportation-speciﬁc testing framework and test

simulation platform for TCMS. Moreover, we used

the Alstom Transportation-speciﬁc libraries and con-

ﬁguration ﬁles to set up the testing environment in a

project using Visual Studio 2019 and executed the test

scripts to generate test results in the form of test ver-

dicts. The generated test verdicts contained passed

and failed test steps that can be used to identify the

detection of a fault produced by a mutant operator in

a program.

https://matris.sba-research.org/tools/cagen/#/about

3.6 Evaluation

We have used two metrics for the evaluation of each

test suite based on our formulated research questions

as follows:

3.6.1 Mutation Score

A mutation score can be calculated for a test suite by

using the total number of mutants P(M

) created for

a program P and the total number of mutants killed

T(M

) by the test suite T in the deﬁned formula:

MutationScore (%) = T (M

)/P(M

) × 100

The mutation score can be used to deduce the fault

detection effectiveness of each test suite. The per-

centage of mutants score shows the number of mu-

tants in percentage detected by a test suite, for exam-

ple, a test suite with a maximum mutation score (i.e.

100) depicts that 100% of the mutants are detected by

that particular test suite. Hence, we used the muta-

tion score to compare and evaluate the fault detection

effectiveness of test suites developed by each testing

technique.

3.6.2 MC/DC Coverage

We used the MC/DC coverage criteria to examine the

structural coverage and analyze the relationship be-

tween the MC/DC and mutation score in terms of

fault detection effectiveness of a test suite. There

is no standard formula to calculate the MC/DC ade-

quacy and different existing tools use different princi-

ples for measuring the MC/DC of test suites (Vilkomir

et al., 2017a). However, we calculated each coverage

parameter presented for MC/DC in Section 2.3 and

used the following formula, similar to the one used

in (Vilkomir et al., 2017b), to measure the MC/DC of

each test suite:

• Conditions having all possible outcomes (C) %

= (No. of conditions having all possible out-

comes/Total no. of conditions) x 100

• Decisions having all possible outcomes (D) %

= (No. of decisions having all possible out-

comes/Total no. of decisions) x 100

• Conditions independently affecting a decision

(AD) % = (No. of conditions independently af-

fected decisions/ Total no. of conditions affecting

decisions) x 100

• Entry and exit points of program invoked (E) % =

(Sum of no. of invoked entry and exit points/Sum

of total no. of entry and exit points) x 100

Hence, the overall MC/DC coverage in percentage

for each test suite is calculated as an average of the

individual MC/DC conditions of C, D, AD, and E.

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

299

4 RESULTS

In this section, we provide the experimental results

of our study in terms of fault detection effectiveness

for each test suite using mutation score, the sensitiv-

ity of each test suite towards mutation operators, and

an analysis of the relationship between MC/DC and

mutation score in detecting faults.

4.1 RQ1: Fault Detection Effectiveness

of Test Suites

To measure the fault detection effectiveness of each

test suite, we created 50 mutants of the original FBD

program based on mutation operators as described in

Section 3.3 and calculated the mutation score for each

test suite. The mutation scores are shown in Column

5 of Table 1. It is important to mention here that

we have considered only non-equivalent mutants in

our results and excluded the equivalent mutants

after

carefully examining the test results and alive mutants

manually. For example, we added an XOR between

two operators in one of the LIO mutants, and none of

the test suites detected this fault. On examining this

mutant, we found out that it had an apparent effect

at the internal level, but that effect did not propagate

towards the overall output of the program. Hence,

we declared this mutant an equivalent and excluded it

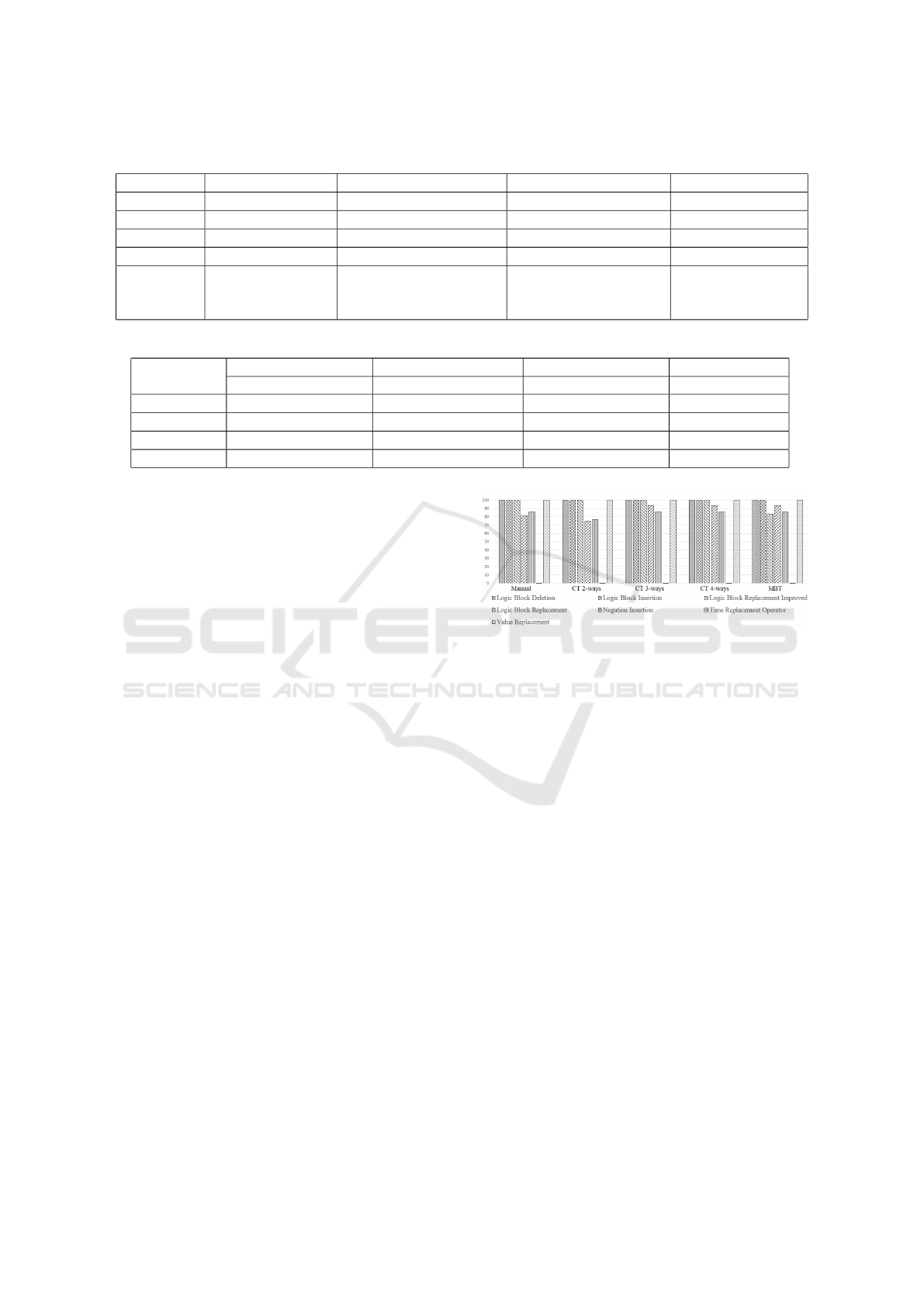

from the results. Table 1 shows the result of each test

suite in terms of mutation score, and the total num-

ber of killed and alive mutants. Table 2 depicts the

number of common mutants killed and alive between

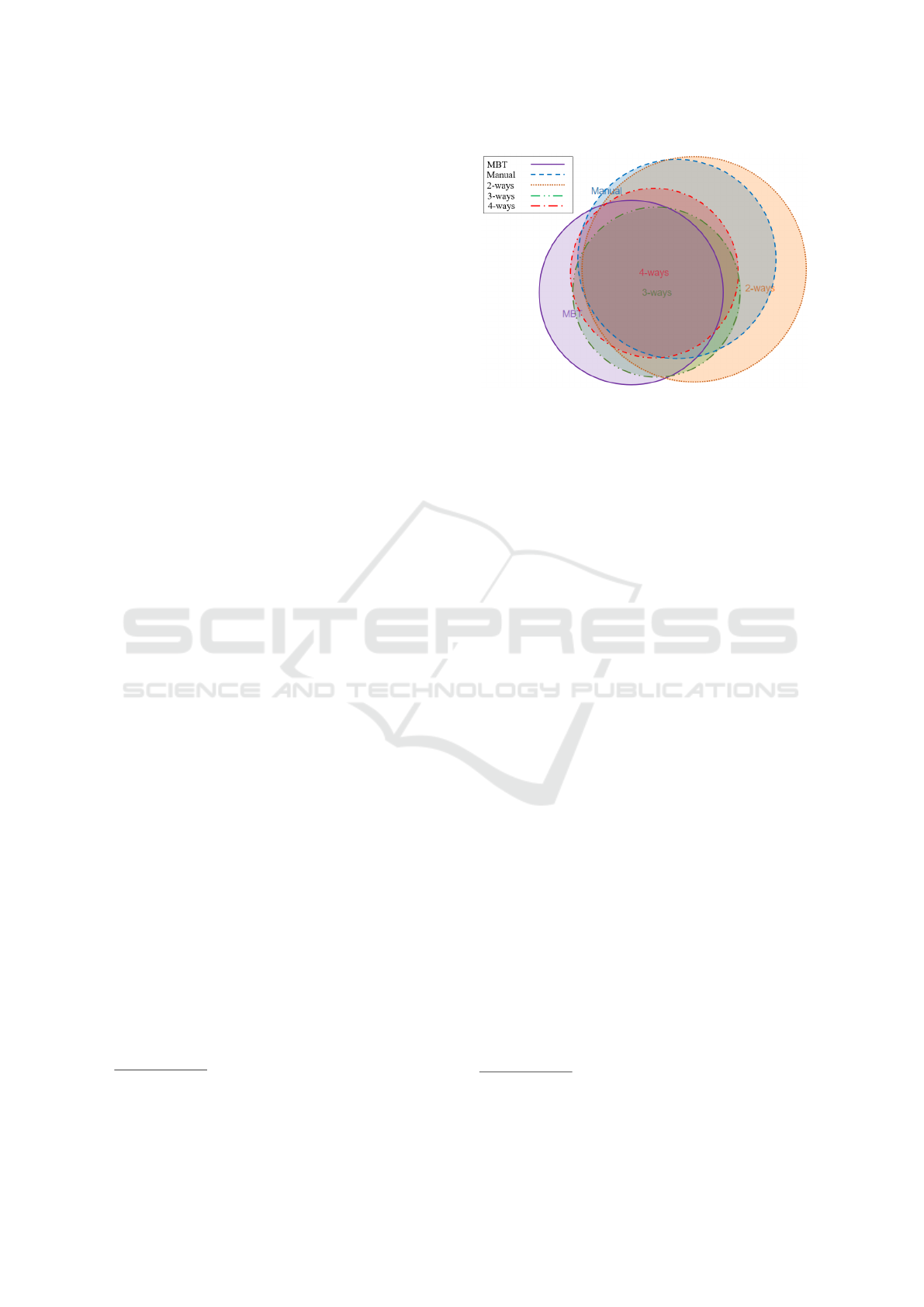

the pairs of test suites. Whereas, Figure 2

illustrates

the overlaps and differences between alive mutants of

each test suite.

The results show that CT-generated test suites pro-

vide the highest mutation scores by detecting 90% of

the mutants when using 3-ways and 4-ways interac-

tion strength while requiring 1140 and 1680 seconds

as an average execution time per mutant, respectively.

In contrast, CT 2-ways, manual, and MBT achieved

82%, 86%, and 88% mutation scores respectively, and

780, 600, and 2760 seconds of average execution time

per mutant, respectively. Moreover, the number of un-

detected mutants in manual, CT 2-ways, CT 3-ways,

CT 4-ways, and MBT were 7, 9, 5, 5, and 6, respec-

tively. We observed that MBT generated the highest

number of test cases in a test suite and required the

highest execution time, on average per mutant, but

still provided a slightly low mutation score than 3-

ways and 4-ways testing strategy. In addition, we also

The mutants that do not change the program behavior.

The Venn diagram is created in an online tool ‘Meta-

Chart’ https://www.meta-chart.com/venn#/data

Figure 2: Venn diagram representing the overlaps and dif-

ferences between alive mutants.

examined the test verdicts of the MBT-generated test

suite and found that, due to duplicate test cases in the

MBT-generated test suite, if a test case in the MBT-

generated test suite detects a fault, its identical test

case(s) also show the presence of the fault in the mu-

tated program. In our industrial context, each failed

test step in a test case requires a maximum waiting

time for a signal response speciﬁed in the require-

ments. Similarly, in the case of other test suites, the

number of test cases detecting a mutant and the wait-

ing time for a signal response have a signiﬁcant effect

on the execution time. However, the number of MBT-

generated test cases in a test suite can be minimized

by removing these identical test cases, which conse-

quently will reduce the execution time too.

The analysis of the data shown in Table 2 and Fig-

ure 2 suggests an similar number of killed mutants

whereas only 4 common alive mutants were found

among all the test suites. We have also examined

these alive mutants and observed that 2 out of these

4 mutants were affecting a part of the code that could

not be invoked by the generated test cases’ inputs and

requires inputs from another subsystem upon integra-

tion. However, test suites developed using Manual, 2-

ways, 3-ways, 4-ways, and MBT left 3, 5, 1, 1, and 2

mutants alive, respectively

. Hence, all the test suites

achieved a reasonably high level of mutation scores,

within the range of 82% to 90%. However, the test

suites generated by CT 3-ways and 4-ways provided

higher fault detection rates than the test suites gener-

ated by other testing techniques. Moreover, each tech-

nique missed the generation of some signal combina-

tions that could be used to achieve a mutation score

of 100%. However, we still found manual testing as a

better-performing technique in terms of average exe-

Some of these are unique across all the test suites,

while some have overlaps among only a subset of the test

suites.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

300

Table 1: Mutation score of each testing technique.

Techniques No. of Test Cases Mutants Killed (M

)% Mutants Alive (M

)% Mutation Score%

Manual 17 43 7 86

CT 2-ways 10 41 9 82

CT 3-ways 22 45 5 90

CT 4-ways 50 45 5 90

MBT 150 (39 after ex-

cluding identical

test cases)

44 6 88

Table 2: No. of common killed and alive mutants between the pairs of test suites.

Techniques CT 2-ways CT 3-ways CT 4-ways MBT

/ M

) (M

/ M

) (M

/ M

) (M

/ M

)

Manual 41/7 42/4 43/5 41/4

CT 2-ways N/A 41/5 41/5 39/4

CT 3-ways - N/A 41/5 43/4

CT 4-ways - - N/A 43/4

cution time per mutant while achieving a 86% of mu-

tation score. A summary of our observations regard-

ing alive mutants across all test suites is as follows:

• The total number of mutants not detected by man-

ual testing, 2-ways, 3-ways, 4-ways, and MBT

were 7, 9, 5, 5, and 6, respectively. 4 of these alive

mutants were common among all the test suites.

• The manual test suite did not detect 3 alive mu-

tants that were also included in the subset of alive

mutants in CT 2-ways, whereas 1 mutant amongst

the 3 was also not detected by the 2-ways and 4-

ways generated test suites.

• The use of CT 2-ways generated test suite did not

detect 1 unique alive mutant which was killed by

each of the other test suites.

• CT 3-ways and 2-ways generated test suites had 1

alive mutant which was not killed by either of the

test suites.

• Lastly, 2 unique mutants were not detected by the

MBT-generated test suite.

4.2 RQ2: Sensitivity of Test Suites to

Speciﬁc Mutation Operators

To examine the type of faults prone to be detected by

each test suite, we calculated the mutation scores as

per each mutation operator. We also developed a bar

graph based on the results to analyze the breakdown

of mutation scores of each test suite as shown in Fig-

ure 3.

Figure 3 shows some meaningful implications

based on the mutants killed by different test suites.

All test suites detected each of the mutants injected

Figure 3: Percentage of mutants killed by each test suite per

operator.

by 3 out of 7 mutation operators i.e., LDO, LIO, and

VRO, and provided 100% mutation scores for these

mutation operators. On the other hand, none of the

test suites detected any mutant induced in the original

program based on the TRO mutation operator, con-

sequently providing 0% mutation scores. In the case

of LRO-I, all the test suites achieved 100% mutation

scores except MBT, which achieved only 83%. For

the NIO-based mutants, all the test suites achieved

86% mutation scores except 2-ways, which achieved

77%. Similarly, 3-ways, 4-ways, and MBT attained

a similar mutation score of 93% by detecting mutants

injected based on LRO, whereas 2-ways and manual

achieved 75% and 81%, respectively.

Based on these results, we observe that for each

mutation operator except TRO, each testing technique

did not generate such combinations (i.e. combina-

tions of inputs invoking the faulty area of the code

affected by the alive mutant) that could be used to

reach 100% mutation score. In order to detect TRO-

based mutants, each test suite requires special test

cases targeting the basic integrity (i.e., ensuring the

starting states of the system) while entering a state

within speciﬁed time, which can be used to vali-

date the timing related requirements of the system.

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

301

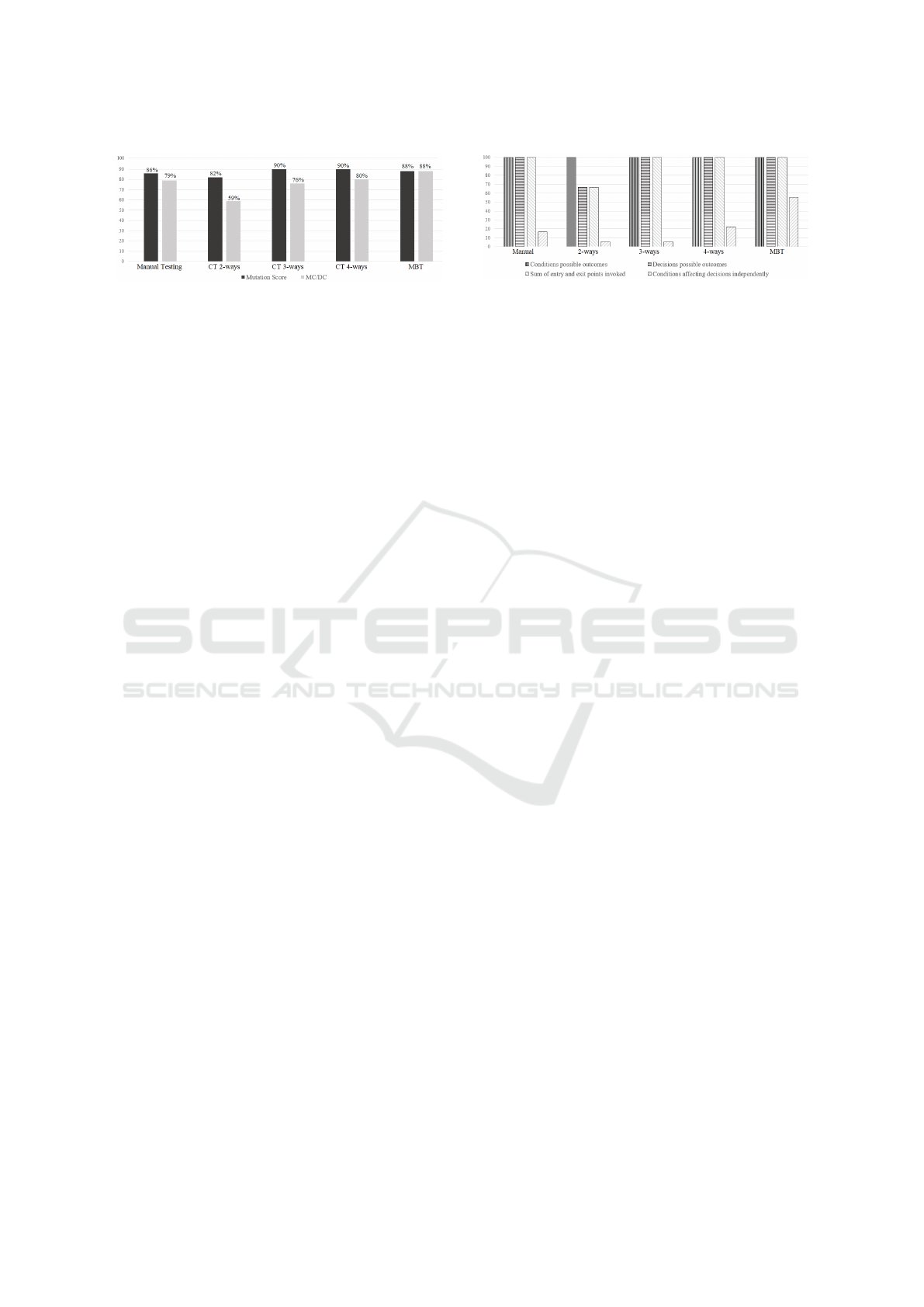

Figure 4: Mutation score and MC/DC of each test suite in

percentage.

Hence, the results show that the CT 3-ways and 4-

ways generated test suites are the most effective in

detecting all types of faults except the faults related to

TRO. MBT’s mutation score closely follows, where

it achieved an equal mutation score in detecting all

types of faults when compared to CT 3-ways and

4-ways, except faults related to LRO-I. CT 2-ways-

generated test suites are least effective in detecting

NIO and LRO-based mutants due to the generation

of less number of input combinations having lower

interaction strength.

4.3 RQ3: Relationship Between MC/DC

Coverage and Mutation Score

Figure 4 presents the mutation score and MC/DC cov-

erage of each test suite. It shows that the MBT-

generated test suite provided the highest MC/DC cov-

erage, i.e., 88%. The test suites developed using CT

2-ways, 3-ways, 4-ways, and manual testing tech-

niques provided 59%, 76%, 80%, and 79% of MC/DC

coverage respectively. The test suite generated by

MBT provided an equal mutation score as its MC/DC

coverage, whereas manual, 2-ways, 3-ways, and 4-

ways generated test suites provided higher mutation

scores as compared to the MC/DC coverage achieved

by the respective test suites. We also observed that the

differences between the mutation scores and MC/DC

coverage in 2-ways and 3-ways generated test suites

were greater than for the test suites generated by 4-

ways and manual testing. Moreover, regardless of

its high MC/DC, MBT shows a slightly lower muta-

tion rate when compared with CT 3-ways and 4-ways

techniques.

To thoroughly analyze the relationship between

MC/DC coverage and mutation scores, we exam-

ined the breakdown of MC/DC coverage achieved by

each test suite according to the selected parameters

as shown in Figure 5, the SUT, as well as the killed

and alive mutants. The analysis showed that if a sys-

tem shares two or more similar requirements, then one

FBD program can be used to generate two instances

of the code. Therefore, each mutant induced at the

FBD level can affect different areas of the code (i.e.

Figure 5: Breakdown of MC/DC according to selected pa-

rameters.

induce more than one fault) and it may be possible

that test suites with lower MC/DC can not detect each

fault induced per mutant. Similarly in our case, a fault

induced at the FBD level affected the behavior of the

selected program at the system level where the combi-

nations of input signals have a signiﬁcant effect on the

output of the system. Hence, the test suites developed

using CT with higher interaction strength i.e., 3-ways

and 4-ways and manual testing techniques contained

such combinations, which were required to achieve an

adequate mutation score at the system level. Whereas,

MBT has provided higher MC/DC coverage by gener-

ating such test cases, especially targeting the MC/DC

parameter ‘coverage of all the conditions having an

independent effect on a decision at least once’, where

other techniques gave relatively lower coverage per-

centages. Based on the graphs presented in Figure 4

and Figure 5, we also observed a generally positive

relationship between MC/DC coverage and mutation

score and argue that test suites achieving an adequate

level of MC/DC coverage also provide higher muta-

tion scores.

5 DISCUSSION

We see from our results that a high fault detection rate

can be achieved using the higher interaction strength

of CT. Results are similar to some previous studies,

e.g., (Bures and Ahmed, 2017), (Petke et al., 2013).

However, CT has an increasing cost of completing

the test suite with expected outputs and timing con-

straints according to the system requirements. On

the other hand, MBT generated a complete set of test

suites containing inputs, expected outputs, and tim-

ing constraints from the model conforming to system

requirements while achieving an 88% fault detection

rate. Moreover, we also found the MBT-generated test

suite is complete (i.e., contained expected output, and

timing constraints) and ready to be executed as well

as similar to speciﬁcation-based manual testing used

in the industry.

The analysis of different mutant operators illus-

trates that all the test suites do not detect faults re-

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

302

lated to time constraints and thus special test cases

should be included to target testing of timing proper-

ties. Our results further suggest that test suites gen-

erated by CT 3-ways, CT 4-ways, and MBT achieved

similar effectiveness in detecting all functional level

faults according to the achieved mutation scores. A

deeper analysis, however, shows that MBT did not

achieve a high mutation score for the operator LRO-I

when compared with CT 3-ways and CT 4-ways and

missed generating speciﬁc fault-revealing input com-

binations due to the random coverage criteria.

Our results also indicate that, in general, the

higher MC/DC coverage corresponds to a higher mu-

tation score. However, there are subtle differences

among different techniques. For example, the differ-

ence between the achieved MC/DC coverage and mu-

tation scores in the case of CT 2-ways and CT 3-ways

is greater between other techniques.

Lastly, we argue that a mutation analysis at the

FBD level alone is not sufﬁcient to measure the

fault detection effectiveness of test suites, particularly

when safety critical systems are concerned, and fur-

ther analysis should be conducted at the code level in

industrial settings. The reason is that for similar re-

quirements, if one FBD program is used to generate

different instances of code, then a limited number of

mutants can be induced as well as a fault at the FBD

level can also produce multiple faults in different ar-

eas of the generated code. This has an impact on the

mutation score that can be achieved per test technique.

Similarly, it is also possible that a test suite may not

achieve signiﬁcant effectiveness in terms of fault de-

tection rate at the code level or if different FBD pro-

grams are used to generate the code for similar re-

quirements.

6 VALIDITY THREATS

The section provides an overview of the threats to the

validity of this study along with the methods we use

to counter them.

The threats related to the internal validity include

the conformance of the model to system requirements

and the existence of equivalent mutants. The model-

ing of system requirements in MBT is a manual pro-

cess, and it requires a complete understanding of the

system requirements and environment. One can mis-

interpret these requirements, impacting the confor-

mance of the model with actual system requirements

and thus impacting the test suite generated. Hence, to

mitigate this factor, we have developed the model in

an iterative manner and by getting continuous feed-

back from the testers at Alstom Transportation AB.

Similarly, in mutation testing, the existence of equiva-

lent mutants is also a possible risk to the evaluation of

test suites. We tried to eliminate this threat by spend-

ing a fair amount of time examining the alive mutants

and test results manually.

The factors that can affect the reliability and ex-

ternal validity of this study include the particulari-

ties of the MBT model and test suites speciﬁc to the

Alstom Transportation’s environment, test generation

tools, modeling notations, size of the subsystem, hu-

man experience, and generation algorithms. We cre-

ated the model and test suites by using the require-

ments related to a subsystem of the TCMS developed

at Alstom Transportation and it contains some par-

ticularities related to Alstom Transportation’s speciﬁc

testing environment, libraries, and development tools

that may not be relevant to other domains. However,

we have provided sufﬁcient information on the exper-

imentation methodology and argue that if a researcher

with similar testing and modeling experience will

replicate this study, similar results can be obtained.

Furthermore, different test generation tools, model-

ing notations, and generator algorithms may also af-

fect the results. The research into the effectiveness

of test suites should therefore require more industrial

case studies for creating generalizable knowledge.

The measures used for MC/DC and mutation

score in this study were inspired by the literature

and evaluation metrics used in industrial safety stan-

dards, i.e., ISO 26262, IEC 61508, EN 50128, and

EN 50657. Moreover, the selection of mutants is

done by thoroughly investigating the operators used

for the development of FBD programs from the liter-

ature, their industrial applicability, and dependencies

on the tools used by the Alstom Transportation for de-

veloping safety-critical programs.

7 CONCLUSION AND FUTURE

WORK

This paper provides an experimental evaluation of in-

dustrial manual testing and two popular system-level

automated test generation techniques, MBT and CT,

in terms of fault detection effectiveness at the sys-

tem level using an industrial case study. In addition,

we measure the sensitivity of each test suite towards

each type of fault induced by different mutant opera-

tors. Moreover, we examine the relationship between

the MC/DC coverage and mutation scores at the sys-

tem level. The experimental results show that the test

suites achieved mutation scores within the range of

82% (CT 2-way) and 90% (CT 3-ways and CT 4-

ways), whereas other techniques’ mutation scores ly-

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

303

ing within this range. Thus, CT with higher interac-

tion strength (3-ways and 4-ways) was found to be the

most effective testing technique in terms of achieved

mutation score, closely followed by MBT with a mu-

tation score of 88%. This means that we found higher-

interaction strength CT and MBT as most effective

in detecting induced faults based on the selected mu-

tant operators, the exception being the TRO, where

none of the techniques were able to ﬁnd faults based

on this particular operator. MBT was found to be the

least effective in detecting faults induced by the LRO-

I operator, while manual testing achieved a low mu-

tation score in detecting LRO mutants. CT 2-ways

was found to be the least effective testing technique in

our case. On the other hand, manual testing was also

found to be efﬁcient in terms of execution time. The

results also showed that the MBT-generated test suite

achieved the highest MC/DC coverage when com-

pared with other techniques. Lastly, the analysis of

mutation and MC/DC coverage scores showed a gen-

eral positive relationship between both measures for

all test suites. Hence, we put forward the hypothesis

that the test suite achieving adequate MC/DC cover-

age tends to also provide a higher mutation score.

In future work, we intend to execute the gener-

ated test suites at Hardware-in-the-Loop (HiL) level

and explore the optimization techniques for the MBT-

generated test suite. Moreover, a thorough evaluation

and statistical analysis are also warranted to analyze

the mutation score and MC/DC coverage at the struc-

tural level.

ACKNOWLEDGEMENT

This work has received funding from the Euro-

pean Union’s Horizon 2020 research and innova-

tion program under grant agreement Nos. 871319,

957212; from the Swedish Innovation Agency (Vin-

nova) through the SmartDelta project and from the

ECSEL Joint Undertaking (JU) under grant agree-

ment No 101007350.

REFERENCES

Acree, A. T., Budd, T. A., DeMillo, R. A., Lipton, R. J.,

and Sayward, F. G. (1979). Mutation analysis. Tech-

nical report, Georgia Inst of Tech Atlanta School of

Information And Computer Science.

Ahmed, B. S., Enoiu, E., Afzal, W., and Zamli, K. Z.

(2020). An evaluation of monte carlo-based hyper-

heuristic for interaction testing of industrial em-

bedded software applications. Soft Computing,

24(18):13929–13954.

Anand, S., Burke, E. K., Chen, T. Y., Clark, J., Cohen,

M. B., Grieskamp, W., Harman, M., Harrold, M. J.,

McMinn, P., Bertolino, A., et al. (2013). An orches-

trated survey of methodologies for automated soft-

ware test case generation. Journal of Systems and

Software, 86(8):1978–2001.

Baker, R. and Habli, I. (2012). An empirical evaluation

of mutation testing for improving the test quality of

safety-critical software. IEEE Transactions on Soft-

ware Engineering, 39(6):787–805.

Bures, M. and Ahmed, B. S. (2017). On the effectiveness

of combinatorial interaction testing: A case study.

In 2017 IEEE International Conference on Software

Quality, Reliability and Security Companion (QRS-

C), pages 69–76. IEEE.

Charbachi, P., Eklund, L., and Enoiu, E. (2017). Can pair-

wise testing perform comparably to manually hand-

crafted testing carried out by industrial engineers?

In 2017 IEEE International Conference on Software

Quality, Reliability and Security Companion (QRS-

C), pages 92–99. IEEE.

Delgado-P

erez, P., Habli, I., Gregory, S., Alexander, R.,

Clark, J., and Medina-Bulo, I. (2018). Evaluation of

mutation testing in a nuclear industry case study. IEEE

Transactions on Reliability, 67(4):1406–1419.

Enoiu, E. P., Cauevic, A., Sundmark, D., and Pettersson, P.

(2016a). A controlled experiment in testing of safety-

critical embedded software. In 2016 IEEE Interna-

tional Conference on Software Testing, Veriﬁcation

and Validation (ICST), pages 1–11. IEEE.

Enoiu, E. P., Sundmark, D.,

Cau

sevi

c, A., Feldt, R., and

Pettersson, P. (2016b). Mutation-based test genera-

tion for plc embedded software using model checking.

In IFIP International Conference on Testing Software

and Systems, pages 155–171. Springer.

Hamlet, R. (1994). Random testing. Encyclopedia of soft-

ware Engineering, 2:971–978.

Hemmati, H. (2015). How effective are code coverage cri-

teria? In 2015 IEEE International Conference on

Software Quality, Reliability and Security, pages 151–

156.

Hierons, R. M. and Merayo, M. G. (2009). Mutation testing

from probabilistic and stochastic ﬁnite state machines.

Journal of Systems and Software, 82(11):1804–1818.

Johnson, L. A. et al. (1998). Do-178b, software considera-

tions in airborne systems and equipment certiﬁcation.

Crosstalk, October, 199:11–20.

Khalsa, S. K. and Labiche, Y. (2014). An orchestrated sur-

vey of available algorithms and tools for combinato-

rial testing. In 2014 IEEE 25th International Sympo-

sium on Software Reliability Engineering, pages 323–

334. IEEE.

Li, D., Hu, L., Gao, R., Wong, W. E., Kuhn, D. R., and

Kacker, R. N. (2017). Improving mc/dc and fault de-

tection strength using combinatorial testing. In 2017

IEEE International Conference on Software Quality,

Reliability and Security Companion (QRS-C), pages

297–303. IEEE.

Lindstr

om, B., Offutt, J., Gonzalez-Hernandez, L., and An-

dler, S. F. (2018). Identifying useful mutants to test

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

304

time properties. In 2018 IEEE International Confer-

ence on Software Testing, Veriﬁcation and Validation

Workshops (ICSTW), pages 69–76. IEEE.

Maslar, M. (1996). Plc standard programming languages:

Iec 1131-3. In Conference Record of 1996 Annual

Pulp and Paper Industry Technical Conference, pages

26–31. IEEE.

McMinn, P. (2011). Search-based software testing: Past,

present and future. In 2011 IEEE Fourth International

Conference on Software Testing, Veriﬁcation and Val-

idation Workshops, pages 153–163. IEEE.

Nie, C. and Leung, H. (2011). A survey of combinatorial

testing. ACM Computing Surveys (CSUR), 43(2):1–

29.

Oh, Y., Yoo, J., Cha, S., and Son, H. S. (2005). Soft-

ware safety analysis of function block diagrams using

fault trees. Reliability Engineering & System Safety,

88(3):215–228.

Petke, J., Yoo, S., Cohen, M. B., and Harman, M. (2013).

Efﬁciency and early fault detection with lower and

higher strength combinatorial interaction testing. In

Proceedings of the 2013 9th Joint Meeting on Foun-

dations of Software Engineering, pages 26–36.

Petrovic, G., Ivankovic, M., Kurtz, B., Ammann, P., and

Just, R. (2018). An industrial application of muta-

tion testing: Lessons, challenges, and research direc-

tions. In 2018 IEEE International Conference on Soft-

ware Testing, Veriﬁcation and Validation Workshops

(ICSTW), pages 47–53.

Ramler, R., Kopetzky, T., and Platz, W. (2012). Combina-

torial test design in the tosca testsuite: lessons learned

and practical implications. In 2012 IEEE Fifth Inter-

national Conference on Software Testing, Veriﬁcation

and Validation, pages 569–572. IEEE.

Ramler, R., Wetzlmaier, T., and Klammer, C. (2017). An

empirical study on the application of mutation test-

ing for a safety-critical industrial software system. In

Proceedings of the Symposium on Applied Computing,

pages 1401–1408.

Rouvroye, J. L. and van den Bliek, E. G. (2002). Comparing

safety analysis techniques. Reliability Engineering &

System Safety, 75(3):289–294.

anchez-Gord

on, M., Rijal, L., and Colomo-Palacios, R.

(2020). Beyond technical skills in software testing:

Automated versus manual testing. In Proceedings

of the IEEE/ACM 42nd International Conference on

Software Engineering Workshops, pages 161–164.

Schwartz, A. and Hetzel, M. (2016). The impact of fault

type on the relationship between code coverage and

fault detection. In Proceedings of the 11th Inter-

national Workshop on Automation of Software Test,

pages 29–35.

Schwartz, M. D., Mulder, J., Trent, J., and Atkins, W. D.

(2010). Control system devices: Architectures and

supply channels overview. Sandia Report SAND2010-

5183, Sandia National Laboratories, Albuquerque,

New Mexico, 102:103.

Shin, D., Jee, E., and Bae, D.-H. (2012). Empirical eval-

uation on fbd model-based test coverage criteria us-

ing mutation analysis. In International Conference on

Model Driven Engineering Languages and Systems,

pages 465–479. Springer.

Shin, D., Jee, E., and Bae, D.-H. (2016). Comprehensive

analysis of fbd test coverage criteria using mutants.

Software & Systems Modeling, 15(3):631–645.

Taipale, O., Kasurinen, J., Karhu, K., and Smolander, K.

(2011). Trade-off between automated and manual

software testing. International Journal of System

Assurance Engineering and Management, 2(2):114–

125.

Tian, Y., Yin, B., and Li, C. (2021). A model-based

test cases generation method for spacecraft software.

In 2021 8th International Conference on Dependable

Systems and Their Applications (DSA), pages 373–

382.

Utting, M. and Legeard, B. (2010). Practical model-based

testing: a tools approach. Elsevier.

Vilkomir, S., Alluri, A., Kuhn, D. R., and Kacker, R. N.

(2017a). Combinatorial and mc/dc coverage levels

of random testing. In 2017 IEEE International Con-

ference on Software Quality, Reliability and Security

Companion (QRS-C), pages 61–68. IEEE.

Vilkomir, S., Baptista, J., and Das, G. (2017b). Using mc/dc

as a black-box testing technique. In 2017 IEEE 28th

Annual Software Technology Conference (STC), pages

1–7. IEEE.

Wagner, M., Kleine, K., Simos, D. E., Kuhn, R., and

Kacker, R. (2020). Cagen: A fast combinatorial

test generation tool with support for constraints and

higher-index arrays. In 2020 IEEE International Con-

ference on Software Testing, Veriﬁcation and Valida-

tion Workshops (ICSTW), pages 191–200. IEEE.

Yao, X., Harman, M., and Jia, Y. (2014). A study of equiv-

alent and stubborn mutation operators using human

analysis of equivalence. In Proceedings of the 36th in-

ternational conference on software engineering, pages

919–930.

Zafar, M. N., Afzal, W., and Enoiu, E. (2022). Evalu-

ating system-level test generation for industrial soft-

ware: A comparison between manual, combinatorial

and model-based testing. In Proceedings of the 3rd

ACM/IEEE International Conference on Automation

of Software Test, AST ’22, page 148–159, New York,

NY, USA. Association for Computing Machinery.

Zafar, M. N., Afzal, W., Enoiu, E. P., Stratis, A., Arrieta,

A., and Sagardui, G. (2021a). Model-based testing in

practice: An industrial case study using graphwalker.

In Innovations in Software Engineering Conference

2021.

Zafar, M. N., Afzal, W., Enoiu, E. P., Stratis, A., and Sellin,

O. (2021b). A model-based test script generation

framework for embedded software. In The 17th Work-

shop on Advances in Model Based Testing.

An Empirical Evaluation of System-Level Test Effectiveness for Safety-Critical Software

305
