VeriCombTest: Automated Test Case Generation Technique Using a

Combination of Veriﬁcation and Combinatorial Testing

Sangharatna Godboley

Department of Computer Science and Engineering,

National Institute of Technology Warangal, Telangana, India

Keywords:

Veriﬁcation, Combinatorial Testing, Test Cases, Mutation Analysis.

Abstract:

We propose VeriCombTest which is the combination of Veriﬁcation and Combinatorial Testing. We experi-

mented with 38 C-Programs from The RERS challenge repository. Veriﬁcation (CBMC) produced 940 test

cases and Combinatorial Testing (PICT) populated a total of 42053 test cases. The good point is that for 40

programs, PICT consumed only 2.6 Minutes to populate the test inputs, however, CBMC which is a Static

Symbolic Executor consumed 546.99 Minutes to generate the test inputs. We performed mutation analysis for

this work. VeriCombTest has 355 extra killed mutants as compared to the baseline. VeriCombTest is a fully

automated tool.

1 INTRODUCTION

Software veriﬁcation and testing are two impor-

tant techniques in Software Development Life Cycle

(SDLC) (Mall, 2018; Mathur and Wong, 1993). Both

have their individual advantages and disadvantages.

For example, veriﬁers are usually faster as compared

to testers. The automated test case generation process

is now becoming an essential approach in the software

testing phase.

Automated test case generation is still a challeng-

ing task. There are several test case generation tech-

niques proposed in past including Fuzzing, Bounded

Model Checking, Dynamic Symbolic Execution, and

Combinatorial Testing, etc. These techniques have

shown good performances in efﬁcient ways to date.

But, each individual technique has some issues as-

sociated and none of them claims to be 100% accu-

rate. Hence, there is always a scope for improvement.

For veriﬁcation, we have considered the state-of-art

tool CBMC (Bounded Model Checker for C) and for

the Combinatorial Testing, we considered PICT (Pair-

wise Independent Combinatorial Testing). The idea

is straightforward, we generate test inputs for a C-

Program using CBMC and supply them into PICT to

populate new test inputs. PICT is lightweight because

it doesn’t execute the program but rather applies pair-

wise or n-way techniques on given test inputs to gen-

erate new useful test inputs.

https://orcid.org/0000-0002-6169-6334

In Bounded Model Checking (BMC)(Clarke et al.,

2003; Armando et al., 2006), a Boolean formula is

checked for satisﬁability using SAT solver. If the

Boolean formula is satisﬁable, a counterexample is

extracted from the output of the SAT. On the other

hand, if the formula is not satisﬁable, the program can

be unwound more to determine if a longer counterex-

ample exists.

Combinatorial Testing (CT) (Nie and Leung,

2011) can identify crashes or failures by interactions

of various parameters in the program with a covering

set of test cases generated by existing techniques. It

has been an active domain of research and practice in

the last 2 to 3 decades.

Motivation of this work is to make stronger test

cases so that the quality of the application can be as-

sured. This is one of the principles of Software Qual-

ity Assurance. As literature shows that no single tech-

nique or tool is sufﬁcient to cover all the corner cases

while testing. Every tool comes with pros and cons.

So, there is a need of combining the tools and test

the application. Such combinations are most of the

time beneﬁcial. There are works such as Veritesting

(Avgerinos et al., 2014), VeriAbs (Afzal et al., 2019),

and VeriFuzz (Basak Chowdhury et al., 2019) which

are based on the combinations of techniques. As we

know the Bounded Model Checking (BMC) concept

is a static symbolic execution. So dynamic behaviour

in BMC is not covered. But, BMC-based tools are

very lightweight and most of the time assure qual-

306

Godboley, S.

VeriCombTest: Automated Test Case Generation Technique Using a Combination of Veriﬁcation and Combinatorial Testing.

DOI: 10.5220/0011758700003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 306-313

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ity results. But, due to the static behaviour, there

is always a scope for exploring the uncovered code

or bugs. On the other hand, combinatorial testing

proved to be the most powerful testing technique. But,

it cannot be even started without a set of initial test

cases. Since combinatorial testing is a black-box test-

ing technique there is no need of providing the source

code of the application. So just test cases are there

to make the pairing and produce new test cases. This

is the main objective of combinatorial testing. Now,

to solve the disadvantages of both techniques, com-

bining them would be a good solution. We consider

coverage and mutation analysis to show the beneﬁts.

In this work, we are taking advantage of both ver-

iﬁcation and testing methods. From the domain of

veriﬁcation, we found that BMC is a prominent ap-

proach and CBMC is a state-of-the-art tool to use. On

the other hand, combinatorial testing is becoming a

reasonable and economical technique to be used to

populate new test cases. PICT is a popular tool in

combinatorial testing domain. Since, the hybridiza-

tion of the techniques and tools becoming one of the

practices, hence, we consider both CBMC and PICT

tools to combine in our work. Our main objective and

contribution to this work are to improve the test suite

so that we get beneﬁts in terms of both coverage and

errors (mutants). Hence, VeriCombTest technique is

proposed and implemented. In our work, we have

chosen two modes and deﬁned them below:

Deﬁnition 1.1 (Mode1). This Mode1 deals with the

process of computing coverage and mutation results

in wrt. test cases generated from CBMC. In this pa-

per, any metrics sufﬁxed with “1” is associated with

Mode1.

Deﬁnition 1.2 (Mode2). This Mode2 deals with the

process of computing coverage and mutation results

in wrt. test cases generated from CBMC and PICT. In

this paper, any metrics sufﬁxed with “2” is associated

with Mode2.

The rest of the paper is organised as below: The

proposed approach is explained in Section 2. An ex-

ample is explained in Section 3. Section 4 shows the

detailed experimental study of the work. Finally, we

conclude the paper with future work in Section 5.

2 PROPOSED APPROACH:

VeriCombTest

In this section we discuss our proposed approach in

detail. We will discuss the framework of our ap-

proach.

Figure 1: Framework for VeriCombTest.

Basically, VeriCombTest tool is the integration of

seven components as shown in Fig. 1 and it is au-

tomatic. These seven components are a) CBMC, b)

PICT, c) TSCombiner, d) GCOV, e) Mutants Genera-

tor, f) Dead Mutants Eliminator, and g) Mutants Val-

idator. The main purpose of this tool is to escalate the

test suite by quantity as well as quality. The quan-

tity can be measured directly by counting test cases.

However, to measure quality, coverage and mutation

analysis are required to be performed. There is a rea-

son to go for mutation analysis which is beyond cov-

erage analysis. This we will explain in more detail

in Section 4. For now, consider the coverage analy-

sis and mutation analysis are the outputs of the auto-

mated VeriCombTest tool.

The ﬂow in the framework starts by supplying a

C-Program into CBMC as an input. The CBMC has

two options to analyse a program. The ﬁrst option is a

bug ﬁnding and the second option is the coverage. We

have used coverage option for our work. CBMC pro-

duces a detailed report from which we have extracted

the test suite. In Fig. 1, it can be observed that CBMC

produced TS1.

This TS1 is supplied into PICT. The PICT tool

has options for n-way testing. The basic one is 2-

way or pairwise testing. We have used this basic and

default option in our work. We leave work on the

higher order n-way testing for future analysis. The

PICT tool produces combinatorial test cases. In Fig.

1, it can be observed that PICT produced TS1’.

Now, the TSCombiner component takes both TS1

and TS1’ and produces TS2. Please note that TS1’ is

generated from PICT tool, which is only mutating test

values and doesn’t bother with logic in the program,

consider it as a black-box tool. So, it is quite possi-

ble that TS1’ alone could lead to low coverage. Also,

as stated earlier CBMC is a veriﬁer though it gener-

ates quality test cases, due to complex predicates and

loop structures, there is a scope for improvement in

the quality of test cases. Now, to utilise the advan-

tages of CBMC and PICT mechanisms we combine

both the test suites TS1 and TS1’, so that at least we

will achieve equal or more coverage. In Fig. 1, it can

VeriCombTest: Automated Test Case Generation Technique Using a Combination of Veriﬁcation and Combinatorial Testing

307

be observed that TSCombiner produced TS2.

Next, C-Program, TS1 and TS2 supplied into

GCOV component. GCOV is a well-known test case

validator that comes with GCC compiler. We re-

played TS1 and TS2 with C-Program and produced

Line Coverage for Mode 1 (LC1), Line Coverage for

Mode 2 (LC2), Branch Coverage for Mode 1 (BC1),

and Branch Coverage for Mode 2 BC2 as shown in

Fig. 1.

Brieﬂy speaking, Line Coverage and Branch Cov-

erage information was not enough to show the quality

of test cases generated by VeriCombTest tool (as men-

tioned earlier too the detailed reason will be explained

in the experimental section). Hence, Mutation Anal-

yser which is developed by us has been used. Muta-

tion Analyser component comprises of three compo-

nents, Mutants Generator, Dead Mutants Eliminator,

and Mutants Validator. From Fig. 1, it can be ob-

served that C-Program is supplied into Mutants gen-

erator to produce Mutants as output. Please note that

we have taken ﬁve types of Mutants (M) in our work.

These are 1. LOF (Logical Operator Faults), 2. AOF

(Arithmetic Operator Faults), 3. ROF (Relational Op-

erator Faults), 4. LNF (Literal Negation Faults) and

5. PNF (Predicate Negation Faults).

Now, after generating all mutants from the C-

Program, it is quite possible that most of them might

be unreachable. The reason is the static mechanism

of mutant generation. We have implemented Dead

Mutants Eliminator which takes all mutants and Line

Coverage information (LC1 and LC2) as inputs and

removes the Dead Mutants (in other words unreach-

able mutants based on line coverage). So, the remain-

ing mutants are called Reachable Mutants which are

the outputs of Dead Mutants Eliminator component.

Finally, the last component i.e. Mutants Valida-

tor accepts C-Program, TS1, TS2, and Reachable Mu-

tants as inputs. This validator replays test cases with

C-Program and all mutants and checks their outputs.

If the outputs of a C-Program and a mutant are not

the same then the mutant is called as Killed Mutant

(KM), otherwise Alive Mutants. This component pro-

duces Killed Mutant for Mode 1 (KM1) and Killed

Mutant for Mode 2 (KM2) as outputs as shown in

Fig.1.

3 WORKING EXAMPLE

In this section, we explain the ﬂow with an example

that we experimented.

We have selected test27-B2.c program from our

experimented benchmark set. This program is of 2934

LOCs, 160 functions, 232 total predicates, and 1293

atomic conditions. It has a for loop with two itera-

tions. Since the program is too big therefore main()

has been shown in Listing 1. This program has a vari-

able “symb” that is not concrete variable rather re-

quired test input value(s) to achieve code coverage.

Also, it is to be noted that the “symb” variable is in-

side “for” loop, it means for each iteration the variable

gets reset and takes new value. It considered as two

different variables for second iteration.

The test27-B2.c

program analysed using CBMC

with coverage mode and test suite have been gener-

ated as shown in Listing 2. Each line in Listing 2 is

a test case. So, there is a total 5 test cases in TS1.

Now, TS1 required some formatting as per the re-

quirement of PICT tool. The format PICT accepts the

test cases is mentioned in Listing 3. It is to be noted

that CBMC’s report considered “symb” variable two

different times but the variable names mentioned was

“symb” only. But, PICT required distinct variables in

the test suite which need to be supplied. Hence, we

renamed the variables for the purpose to utilise PICT.

The renamed variable are “ 1symb” and “ 2symb” as

shown in Listing 3.

Listing 1: main() of C-Program test27-B2.c.

int BOUND = 2;

.....................

calculate_output(int input) {

THE PROGRAM IS TOO BIG

}

.....................

int main() {

int symb;

printf("POINT: 467\n");

for (int FLAG=0;FLAG<BOUND;FLAG++){

printf("POINT: 468\n");

symb = nondet_int();

__CPROVER_input("symb",symb);

printf("POINT: 469\n");

if((symb != 8) && (symb != 9) && (symb != 7) &&

(symb != 5) && (symb != 2) && (symb != 4) &&

(symb != 10) && (symb != 6) && (symb != 3) &&

(symb != 1)){

printf("POINT: 470\n");

return -2;}

calculate_output(symb);//Too Big function

}}

Listing 2: Test Suite (TS1) generated from CBMC.

TC1: symb=8, symb=8

TC2: symb=4, symb=4

TC3: symb=134217732

TC4: symb=8, symb=6

TC5: symb=8, symb=2

Listing 3: Test Suite (TS

PICT

) generated from CBMC and

formatted as per PICT requirements.

_1symb:8, 4, 134217732, 8, 8

_2symb:8, 4, 6, 2

Full Program is provided with Supplementary material

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

308

Table 1: Test Suite (TS1’) generated from PICT.

TC 1symb 2symb TC 1symb 2symb TC 1symb 2symb

1 8 8 8 8 2 15 8 4

2 4 2 9 4 4 16 8 6

3 134217732 2 10 8 6 17 8 2

4 134217732 4 11 8 8 18 8 8

5 134217732 8 12 8 4 19 4 8

6 8 6 13 4 6 20 8 4

7 134217732 6 14 8 2 - - -

Next, TS

PICT

is supplied into PICT and generate

TS1’ as shown in Tabe 1. This test suite has 20 test

cases generated from the combinatorial testing tech-

nique. Factually, PICT generates non-redundant test

cases. But, as we can observe from Table 1 we do get

some duplicate test cases. This is against the princi-

ples of PICT tool. We have identiﬁed the problems

and we explain that the test values of “ 1symb” vari-

able in TS

PICT

has “8” which is repeated 3 times.

But, if we see the context of these repetitions then

we will observe that the combinations of both vari-

ables “ 1symb” and “ 2symb” achieve higher cover-

age which is reasonable, and they are absolutely not

redundant for CBMC. But, this is also true that PICT

is a black-box tool which doesn’t bother for the logic

of the program here. Hence, it is leading to duplica-

tion of test input values in test suite. In this paper, we

haven’t removed such test cases upfront by consid-

ering that PICT is super fast and duplication may not

effect the execution time much. But, yes we are pretty

aware that mutation time might be deﬁnitely affected

by this issue. We leave the study of Optimization of

test cases for the future work. Finally, we merge two

test suites TS1 and TS1’ and form a new test suite TS2.

For the test27-B2.c program TS2 has a total of 25 test

cases (to save space we have not shown a separate

Listing for TS2).

To know whether the combination of test cases

is actually useful or not, we used GCOV to get the

coverage results. GCOV results Line coverage and

Branch Coverage reports. The coverage reports by

GCOV on TS1 and TS2 are shown in Listings 4 and

5. We expect that the coverage should be enhanced

since the test cases have been increased. But, unfor-

tunately, both the modes have the same Line cover-

age for the program test27-B2.c i.e. 18.74%. This

is reasonable because the CBMC is a well-established

veriﬁer which is popularly known for covering lines

(good reachability in terms of bugs). This is not sur-

prising that both modes are having same Line cover-

age. Secondly, we expect that the Branch Coverage

will be enhanced. From Listings 4 and 5, it can be

observed that Mode1 has 23.40% Branch Coverage,

however Mode2 has 23.90%. So, there is little im-

provement of 0.50%. This result shows that CBMC

has not 100% optimal Branch Coverage. Hence, there

is a scope for some improvements in the results.

Listing 4: GCOV report using Test Suite for Mode 1 (TS1).

Lines executed:18.74% of 2102

Branches executed:23.40% of 2389

Taken at least once:13.94% of 2389

Calls executed:31.76% of 636

Listing 5: GCOV report using Test Suite for Mode 2 TS2.

Lines executed:18.74% of 2102

Branches executed:23.90% of 2389

Taken at least once:14.23% of 2389

Calls executed:31.76% of 636

Listing 6: Mutants Generated.

Logical Operator Faults: 1175

Arithmetic Operator Faults: 7312

Relational Operator Faults: 6465

Literal Negation Faults: 1391

Predicate Negation Faults: 235

Listing 7: Mutants Statistics for Mode1.

============Mutation Score Report============

Total number of Alive Mutants =: 2934

Total number of Killed Mutants =: 1171

Total number of Reached Mutants =: 4105

Total number of Dead Mutants =: 12473

Total number of Total Mutants =: 16578

Mutation Score (Killed/Reached) =: 28.53%

============Report-Finish====================

Listing 8: Mutants Statistics for Mode2.

============Mutation Score Report============

Total number of Alive Mutants =: 2928

Total number of Killed Mutants =: 1177

Total number of Reached Mutants =: 4105

Total number of Dead Mutants =: 12473

Total number of Total Mutants =: 16578

Mutation Score (Killed/Reached) =: 28.67%

============Report-Finish====================

Listing 9: Time Statistics.

Time Analysis CBMC Report: 116.10 seconds

Time Analysis PICT Report: 0.002 seconds

Time Analysis GCOV Report: 0.676 seconds

Time Analysis MA Mode1 Report: 1060.71 seconds

Time Analysis MA Mode2 Report: 1295.83 seconds

Now, Listings 7 and 8 show the mutants statistics

for Mode1 and Mode2 respectively. From both re-

ports, we can observe that the total of mutants created

was 16578. Since we know these mutants are stati-

cally generated. So, we use line coverage information

from GCOV to detect the dead mutants and eliminate

them. We have observed that 12473 mutants were

dead (unreachable), which means 4105 mutants were

only reachable and useful to run. In Mode1, a total

number of 1171 mutants got killed and 2934 mutants

were alive as shown in Listing 7. However, in Mode2,

a total number of 1177 mutants got killed and 2928

mutants were alive. So, a total of 6 extra mutants got

killed in Mode2 in contrast to Mode1. The Reach-

VeriCombTest: Automated Test Case Generation Technique Using a Combination of Veriﬁcation and Combinatorial Testing

309

able Mutation scores can be observed for Mode1 and

Mode2 as 28.53% and 28.67% respectively. This

is the strength of our proposed work. There is an

improvement of 0.14% for Mode2 as compared to

Mode1.

Next, we also explain the mutation analysis for

test27-B2.c program. First, we statically generate all

possible mutants for test27-B2.c program. We have

considered 5 types of faults. The created mutants with

each category are mentioned in Listing 6.

Lastly, we report the time analysis for test27-B2.c

program. At each main step, we compute execution

times. We consider CBMC, PICT, GCOV, MA Mode1

and MA Mode2 steps as important to capture execu-

tion times. For this program, CBMC consumed 116

sec, PICT consumed 0.002 sec, and GCOV consumed

0.67 sec (it covers both modes). Mutation Analy-

sis time for Mode1 has 1060 sec and for Mode2 it

is 1295 sec. We can observe that PICT’s execution

time is very less, almost negligible. But, the muta-

tion analysis time for Mode2 which is actually having

test cases generated from both CBMC and PICT tools.

The extra mutation analysis time Mode2 required was

235.12 sec as compared to Mode1. This is the weak-

ness of our work.

4 EXPERIMENTAL STUDY

In this section, we discuss the setup and benchmarks

tested, and discuss on results.

4.1 The Set Up

We used an Intel Core i7-9700 CPU @ 3.00GHz × 8

Linux box (64-bit Ubuntu 16.04) with 64 GB RAM.

All the input programs considered for our study are

written in ANSI-C format. For result comparison, we

consider CBMC as our baseline because it is a state-

of-the-art tool. The programs and all the raw experi-

mental details are provided in the supplementary arte-

facts (VeriCombTest-Artifacts, 2021).

4.2 Benchmarks Tested

Here, we describe the programs experimented with.

In total, we have tested 38

programs taken from

various open source repositories. In our study, we

have considered programs from RERS(RERS, 2018).

These programs are from the small and moderate size

Actually we targeted to run 40 programs, but CBMC

runs for test23-B4 and test23-B5 were consuming almost

30+ hrs so we discontinued testing them.

Table 2: Test Cases and Coverage Results.

Sl Program TC1 TC1’ TC2 LC BC1 BC2 BI

1 test21-B2 13 156 169 26.95 28.43 28.43 0.00

2 test21-B3 24 619 643 53.67 56.35 56.35 0.00

3 test21-B4 64 4324 4388 100.00 100.00 100.00 0.00

4 test21-B5 49 2716 2765 100.00 100.00 100.00 0.00

5 test22-B2 6 30 36 9.78 12.83 12.83 0.00

6 test22-B3 13 159 172 15.05 22.03 22.03 0.00

7 test22-B4 24 596 620 23.58 31.32 31.40 0.08

8 test22-B5 44 2195 2239 40.03 51.57 51.57 0.00

9 test23-B2 8 56 64 6.46 7.89 7.89 0.00

10 test23-B3 19 365 384 11.99 15.10 15.10 0.00

11 test29-B2 10 100 110 28.54 32.80 32.80 0.00

12 test29-B3 23 556 579 47.57 55.03 55.03 0.00

13 test29-B4 38 1508 1546 62.96 68.25 68.25 0.00

14 test29-B5 40 1773 1813 73.08 76.19 76.19 0.00

15 test26-B2 9 81 90 26.23 33.44 33.44 0.00

16 test26-B3 17 314 331 38.17 49.27 49.27 0.00

17 test26-B4 28 883 911 58.52 69.68 69.68 0.00

18 test26-B5 32 1209 1241 73.00 84.33 84.33 0.00

19 test31-B2 4 12 16 7.00 8.53 8.53 0.00

20 test31-B3 6 30 36 9.45 11.25 11.25 0.00

21 test31-B4 7 49 56 12.77 15.18 15.18 0.00

22 test31-B5 10 110 120 16.71 19.44 19.44 0.00

23 test32-B2 17 272 289 27.41 27.32 27.43 0.11

24 test32-B3 47 2265 2312 46.66 46.54 46.54 0.00

25 test32-B4 72 5471 5543 60.82 59.79 59.79 0.00

26 test32-B5 87 8282 8369 66.76 65.30 65.30 0.00

27 test24-B2 5 25 30 14.34 16.02 16.02 0.00

28 test24-B3 9 74 83 15.34 16.80 16.80 0.00

29 test24-B4 11 143 154 18.03 19.74 19.74 0.00

30 test24-B5 22 556 578 22.97 24.70 24.75 0.05

31 test28-B2 7 49 56 15.19 17.54 17.54 0.00

32 test28-B3 13 164 177 18.35 20.31 20.31 0.00

33 test28-B4 28 854 882 23.27 24.55 24.55 0.00

34 test28-B5 40 1829 1869 31.25 31.61 31.69 0.08

35 test27-B2 5 20 25 18.74 23.40 23.90 0.50

36 test27-B3 10 95 105 24.83 32.31 33.24 0.93

37 test27-B4 23 563 586 36.63 46.30 47.47 1.17

38 test27-B5 56 3550 3606 63.84 69.28 71.20 1.92

group and easy to hard categories. Note that due to the

complex loop patterns, the number of Killed mutants

can change at different bounds. Programs are origi-

nally unbounded. We instead set reasonable bounds

as 2, 3, 4, and 5. Also in the programs identiﬁed by a

sufﬁx with “-B*”, “*” indicates the bound used in the

programs. The unbounded programs mean the pro-

grams have inﬁnite loop bound without any exit cri-

terion. Further, it is to be noted that, the size of cov-

erable parts in the program will vary from one loop

bound to another loop bound. Because for a higher

loop bound more parts of the program will be cov-

erable. Since the reachable and killable mutants are

getting increased hence the mutation score will be

higher. It is to be noted that the total number of mu-

tants for lower or higher loop bounds is equal because

it is computed statically.

4.3 Coverage Analysis

In this section, we discuss on the coverage results gen-

erated for test cases.

Table 2 shows test cases and coverage results.

Columns 1 and 2 of Table 2 show the number and

names of programs. Columns 3 to 5 show the test

cases. Column 3 (TC1) is the test cases generated

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

310

from CBMC and Column 4 (TC1’) is the test cases

generated from PICT. For 38 programs, the aggregate

of the test cases for CBMC and PICT are 940 and

42053 respectively. We can observe that test cases

generated by PICT (TC1’) have extra test cases al-

most 44× as compared to CBMC. Now, Column 5

(TC2) can be generated by using the equation “TC2 =

TC1 + TC1

′

”. It is to be noted that TC1 and TC2

show the test cases for Modes 1 and 2 respectively.

Next, TC1 replayed with C-Program to generate

Line and Branch Coverage. Column 6 of Table 2

shows the LC (Line Coverage). It is to be noted that

LC = LC1 = LC2, which means the Line coverage for

both modes 1 and 2 are equal hence, we reported in

a single column only. The reason is that the CBMC

has a good statement reachability feature. Columns 7

and 8 show the Branch Coverage information. Col-

umn 7 (BC1) shows the Branch Coverage for Mode 1

and Column 8 (BC2) shows the Branch Coverage for

Mode 2. Lastly, Column 9 shows the Branch Cover-

age Improvement (BI) which can be computed using

the equation “BI = BC2 − BC1”. From Table 2, it can

be observed that for 8 (21.05% out of 38) programs

(highlighted with green colours in Table 2), Mode

2 i.e. VeriCombTest has higher Branch Coverage as

compared to CBMC i.e. Mode 1. Though the im-

provements in Branch Coverage for the programs are

not much, the achieved results are sufﬁcient to prove

that the baseline CBMC alone has the scope of im-

provement by introducing the extra test cases.

Giving a remark, in this section before the ex-

perimentation our main expectation was to observe

improvement in Line Coverage. But, after the ob-

servation, we got to know that Line Coverages for

both modes are equal. Hence, we decided to com-

pute Branch Coverage in a hope that we might get

an improvement. After the experimentation, we have

observed that we have some improvements which ig-

nite our further analysis i.e. Mutation analysis. As we

know that Branch Coverage report will just focus on

the true and false branches of conditional statements

such as “if-statement” which might not be enough

to observe the actual beneﬁts of VeriCombTest tech-

nique. Therefore next we explain mutation analysis

for the programs.

4.4 Mutation Analysis

In this section we discuss Mutation Analysis in de-

tail. Table 3 shows the results of Mutation Analy-

sis for the considered benchmark programs. Column

1 of Table 3 shows the programs. Columns 2, 3,

and 4 show the total number of Mutants (TM), to-

tal number of Dead Mutants (DM), and total num-

Table 3: Mutation Analysis.

Sl TM DM RM KM1 KM2 T1% T2% R1% R2% TI RI D1 D2

1 1302 950 352 287 288 22.04 22.12 81.53 81.82 0.08 0.28 59.49 59.70

2 1302 598 704 550 558 42.24 42.86 78.13 79.26 0.61 1.14 35.88 36.40

3 1302 0 1302 1033 1046 79.34 80.34 79.34 80.34 1.00 1.00 0.00 0.00

4 1302 0 1302 1025 1051 78.73 80.72 78.73 80.72 2.00 2.00 0.00 0.00

5 12858 11302 1556 676 677 5.26 5.27 43.44 43.51 0.01 0.06 38.19 38.24

6 12858 10225 2633 1205 1207 9.37 9.39 45.77 45.84 0.02 0.08 36.39 36.45

7 12858 9014 3844 2104 2114 16.36 16.44 54.73 54.99 0.08 0.26 38.37 38.55

8 12858 6494 6364 3904 3918 30.36 30.47 61.35 61.57 0.11 0.22 30.98 31.09

9 31455 28947 2508 1280 1280 4.07 4.07 51.04 51.04 0.00 0.00 46.97 46.97

10 31455 26641 4814 2842 2845 9.04 9.04 59.04 59.10 0.01 0.06 50.00 50.05

11 1314 904 410 294 296 22.37 22.53 71.71 72.20 0.15 0.49 49.33 49.67

12 1314 621 693 535 547 40.72 41.63 77.20 78.93 0.91 1.73 36.49 37.30

13 1314 437 877 703 710 53.50 54.03 80.16 80.96 0.53 0.80 26.66 26.92

14 1314 322 992 799 814 60.81 61.95 80.54 82.06 1.14 1.51 19.74 20.11

15 3219 2129 1090 544 546 16.90 16.96 49.91 50.09 0.06 0.18 33.01 33.13

16 3219 1739 1480 884 889 27.46 27.62 59.73 60.07 0.16 0.34 32.27 32.45

17 3219 1078 2141 1405 1418 43.65 44.05 65.62 66.23 0.40 0.61 21.98 22.18

18 3219 646 2573 1797 1816 55.82 56.42 69.84 70.58 0.59 0.74 14.02 14.16

19 3182 2922 260 181 181 5.69 5.69 69.62 69.62 0.00 0.00 63.93 63.93

20 3182 2845 337 242 242 7.61 7.61 71.81 71.81 0.00 0.00 64.20 64.20

21 3182 2713 469 274 275 8.61 8.64 58.42 58.64 0.03 0.21 49.81 49.99

22 3182 2582 600 384 385 12.07 12.10 64.00 64.17 0.03 0.17 51.93 52.07

23 5883 3087 2796 948 956 16.11 16.25 33.91 34.19 0.14 0.29 17.79 17.94

24 5883 2085 3798 1840 1850 31.28 31.45 48.45 48.71 0.17 0.26 17.17 17.26

25 5883 1362 4521 2500 2514 42.50 42.73 55.30 55.61 0.24 0.31 12.80 12.87

26 5883 1074 4809 2785 2801 47.34 47.61 57.91 58.24 0.27 0.33 10.57 10.63

27 7827 5391 2436 407 408 5.20 5.21 16.71 16.75 0.01 0.04 11.51 11.54

28 7827 5322 2505 533 534 6.81 6.82 21.28 21.32 0.01 0.04 14.47 14.49

29 7827 5121 2706 767 770 9.80 9.84 28.34 28.46 0.04 0.11 18.55 18.62

30 7827 4752 3075 1125 1140 14.37 14.56 36.59 37.07 0.19 0.49 22.21 22.51

31 8478 5835 2643 717 717 8.46 8.46 27.13 27.13 0.00 0.00 18.67 18.67

32 8478 5595 2883 1008 1014 11.89 11.96 34.96 35.17 0.07 0.21 23.07 23.21

33 8478 5229 3249 1379 1388 16.27 16.37 42.44 42.72 0.11 0.28 26.18 26.35

34 8478 4611 3867 1909 1948 22.52 22.98 49.37 50.37 0.46 1.01 26.85 27.40

35 16578 12473 4105 1171 1177 7.06 7.10 28.53 28.67 0.04 0.15 21.46 21.57

36 16578 11155 5423 2149 2169 12.96 13.08 39.63 40.00 0.12 0.37 26.66 26.91

37 16578 8650 7928 4187 4203 25.26 25.35 52.81 53.01 0.10 0.20 27.56 27.66

38 16578 3742 12836 8803 8839 53.10 53.32 68.58 68.86 0.22 0.28 15.48 15.54

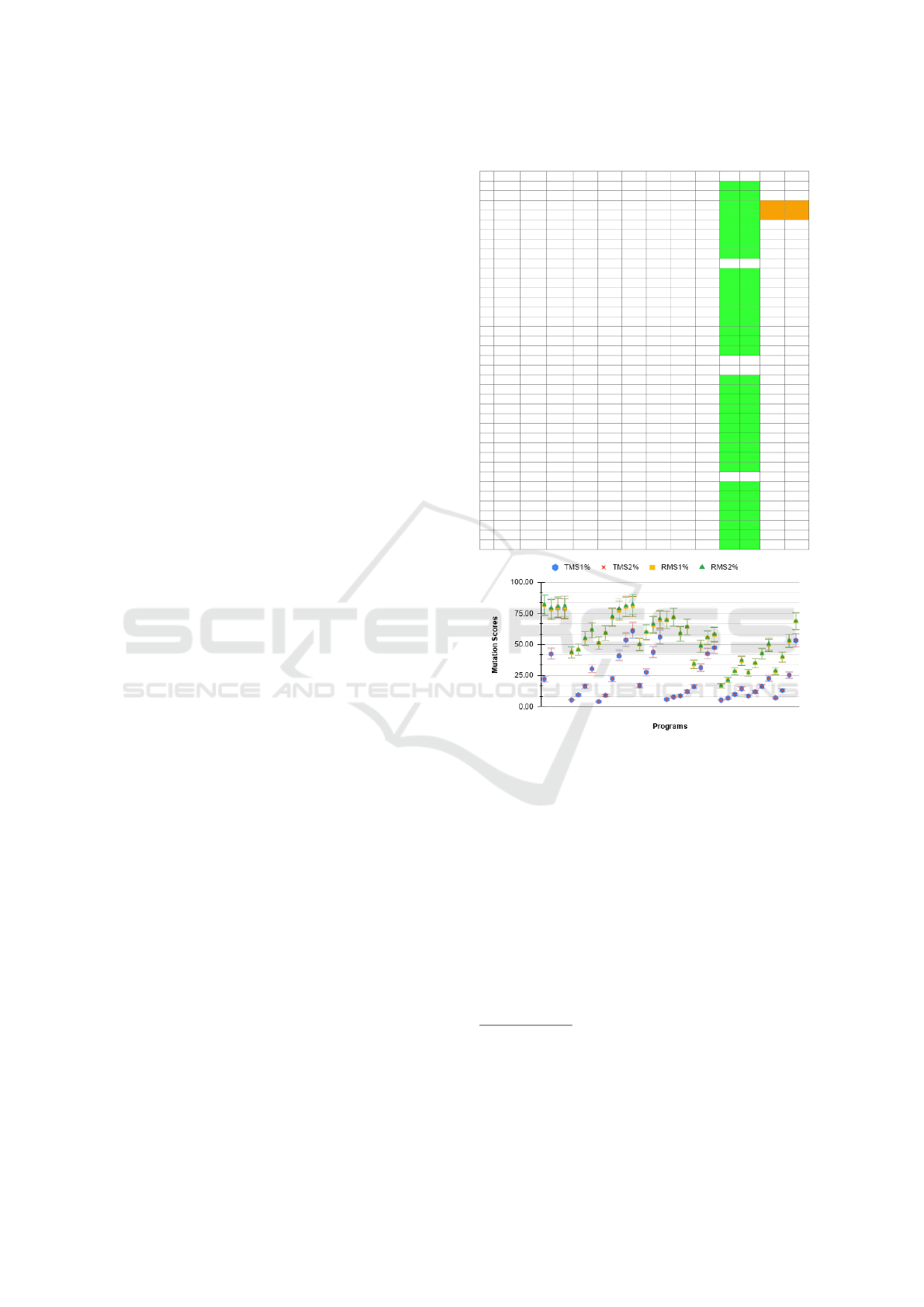

Figure 2: Improvement Analysis.

ber of Reachable Mutants (RM) respectively. RM can

be computed using the equation “RM = T M − DM”.

Columns 5 and 6 show the total number of killed

mutants (KM1 for Mode1 and KM2 for Mode2) af-

ter processing reachable mutants. For 38 programs

there are a total 305474 mutants (TM). Out of which

198593 mutants are Dead Mutants (DM) and 106881

are Reachable Mutants (RM). It means 65% of total

mutants are dead (or unreachable) and it does not re-

quire running them using the test cases for both modes

because they will be reported as Alive Mutants which

means no test case can detect that mutant. But, tra-

ditionally the mutation scores were able to compute

without the information of dead mutants

. The total

To avoid the confusion, it is to be noted that “Dead

Mutants” and “Killed Mutants” are two different elements.

The “Dead Mutants” is nothing but the mutation or change

made in the code which is actually dead or unreachable.

However, “Killed Mutants” shows the detection of the mu-

tants or change in the reachable code using test cases.

VeriCombTest: Automated Test Case Generation Technique Using a Combination of Veriﬁcation and Combinatorial Testing

311

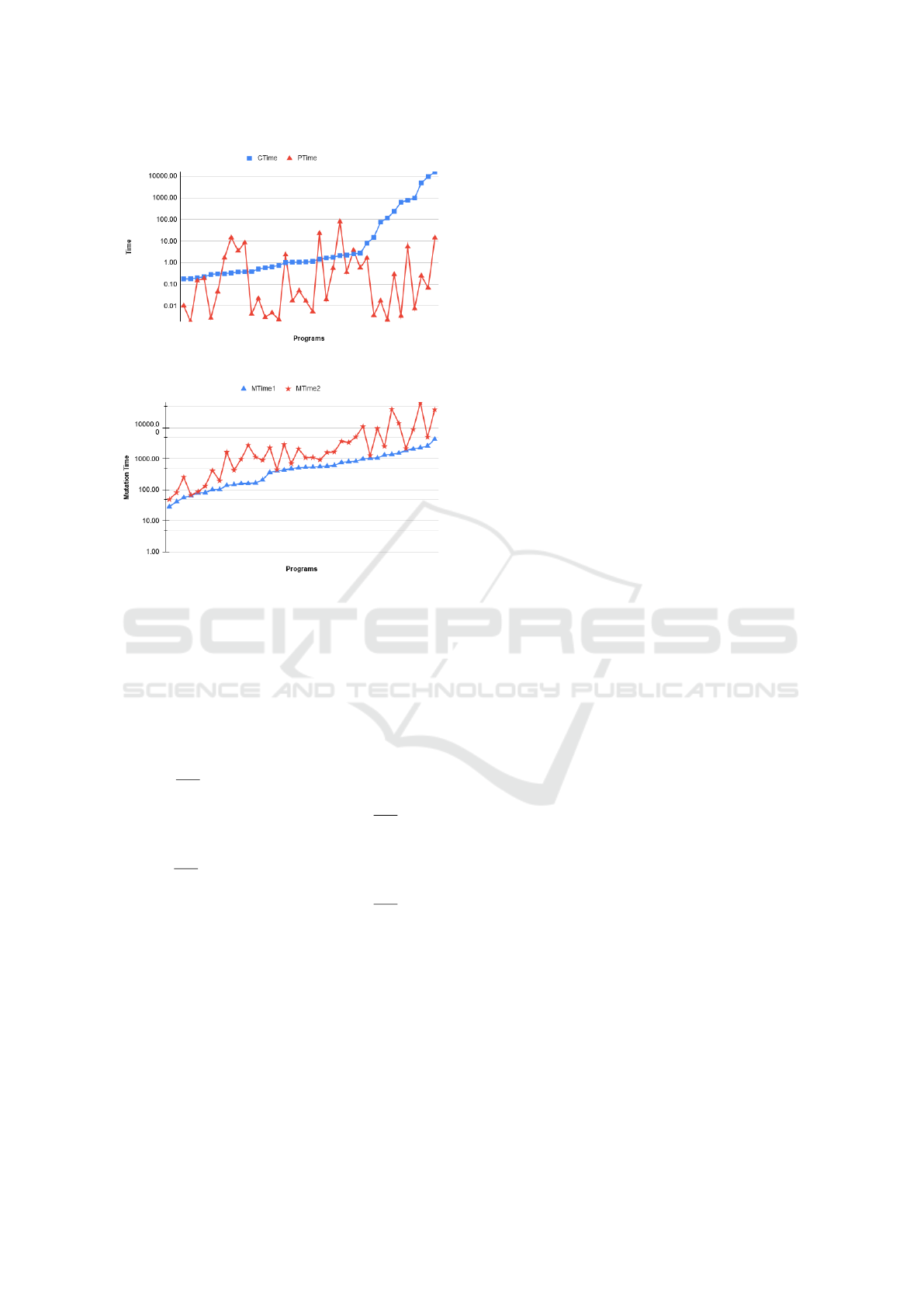

Figure 3: Time consumption by CBMC and PICT.

Figure 4: Time consumption in mutation analysis by Mode

1 and Mode 2.

killed mutants for Mode 1 is 55176 and for Mode 2

is 55531. It can be observed that Mode 2 has killed

355 extra mutants as compared to Mode 1, this is the

key result and strength that we were expecting from

VeriCombTest approach.

Next, Columns 7 to 10 show the mutation scores.

Column 7 shows the Traditional Mutation Score for

Mode 1 (T1%) and can be computed using equation

“T 1% =

KM1

T M

X100”. Same way, Column 8 shows

the Traditional Mutation Score for Mode 2 (T2%) and

can be computed using equation “T 2% =

KM2

T M

X100”.

Column 9 shows the Reachable Mutation Score for

Mode 1(R1%) and can be computed using equation

“R1% =

KM1

X100”. Same way, Column 10 shows

the Reachable Mutation Score for Mode 2 (R2%) and

can be computed using equation “R2% =

KM2

X100”.

Columns 11 and 12 show the Traditional Muta-

tion Improved (TI) and Reachable Mutation Improved

(RI) results respectively. TI can be computed using

equation “T I = T 2% − T 1%” and RI can be com-

puted using equation “RI = R2% − R1%”. From

Columns 11 and 12 of Table 3, we can observe that

in total 34 (89.47% of 38) programs have improve-

ments (highlighted with green colours). The four pro-

grams test23-B2, test31-B2, test31-B3, and test28-B2

have no improvements in both TI and RI. We can ob-

serve the programs, the loop bound inside the pro-

grams is 2 or 3. It means the structure of the pro-

gram is less and a huge part is uncovered. As soon

as the loop iterations get increased so the uncovered

parts become coverable. On an average of 38 pro-

grams, the value for TI is 0.26% and RI is 0.42%.

Fig. 2 shows the Improvement Analysis. The x-

axis shows the programs whereas the y-axis shows

the mutation score. We can observe that blue cir-

cles (T1%) and red crosses (T2%) are mostly below

as compared to yellow squares (R1%) and green tri-

angles (R2%). The error differences between blue

circles (T1%) and red crosses (T2%) can be observed

for 34 programs. Same way, it can be observed for

yellow squares (R1%) and green triangles (R2%) for

34 programs.

A side work is done on mutation analysis to check

that how much improvement has been achieved from

the traditional to the proposed technique. Columns

13 and 14 of Table 3 show the Reachable Traditional

Difference (D1 i.e. “D1 = R1% − T 1%” for Mode1

and RTD2 i.e. “D2 = R2% − T 2%” for Mode2).

For 36 (94.73% of 38) programs the improvement

can be observed in D1 and D2. For two programs

test21-B4, and test21-B5 have no improvements in D1

and D2 (highlighted with orange colour). This is be-

cause, for these two programs, the total number of

dead mutants is 0. On an average of 38 programs, the

value of D1 is 29.22% and D2 is 29.38%. It shows

that even though it is a traditional or newly proposed

technique the elimination of Dead Mutants is impor-

tant which can save a huge time of in mutation anal-

ysis. Finally, in this mutation analysis, we have ob-

served that the VeriCombTest technique is beneﬁcial,

and we have provided the evidence with all the results.

4.5 Time Analysis

In this section, we discuss the time analysis. Except

for a few programs mostly CBMC takes less execu-

tion time to analyse the programs. This is due to the

abstract interpretation in CBMC. Also, the program

structure is easy to verify by CBMC. Next, PTime

is computed independently of the program. PICT

requires a set of test cases and it produces another

set of test cases after using a combinatorial testing

approach. Therefore the execution time by PICT is

less. In a comparison of Time for PICT (PTime)

with Time for CBMC (CTime), it has been observed

that 31 (81.57% out of 38) programs have less time-

consuming as compared to CTime. For the rest 7 pro-

grams, it has been observed that the CBMC generated

more test cases in less time and since the total num-

ber of test cases is more PICT consumed more time.

The time comparison graph is shown in Fig. 3. The

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

312

x-axis shows the programs and the y-axis shows the

time in seconds (logarithmic format). We can observe

the red line (PTime) is most of the time below the

blue line (CTime). This shows that PTime is very less

and hence PICT is beneﬁcial to use in VeriCombTest

framework. Time for GCoV (GTime) is the time con-

sumed by the GCOV tool for both modes. The Ag-

gregate of 38 programs, CTime, PTime, and GTime

are 546.99 min, 2.67 min, 5.69 min respectively. Fig.

4 shows the graph for time consumption in mutation

analysis by Mode1 and Mode2. The x-axis shows the

programs and the y-axis shows the time in seconds

(logarithmic format).

From the graph, it is very clear that the blue line

is mostly below the red line. For very few programs

the time difference is closer. In the Aggregate of 38

programs, the value of Mutation Analysis Time for

Mode 1 (MTime1) is 496.07 min and Mutation Anal-

ysis Time for Mode 2 (MTime2) is 3960.17 min. The

VeriCombtest i.e. Mode2 is clearly worse in muta-

tion analysis time by 7.98× as compared to baseline

CBMC i.e. Mode1. Since the PICT produced more

number of test cases that makes mutation time anal-

ysis worse. Improvement of the mutation time is the

out of the scope of this paper. From this work, we

would like to highlight that there is a scope for im-

provement for a veriﬁer i.e. CBMC wrt. test cases.

5 CONCLUSION

From the literature survey we can observe that the

works such as Veritesting (Avgerinos et al., 2014),

Veriabs (Afzal et al., 2019; Darke et al., 2018), and

VeriFuzz (Basak Chowdhury et al., 2019) used the

common mechanism of combining different tools and

techniques. Motivating by these works, we com-

bine two techniques viz. Veriﬁcation and Combi-

natorial Testing. For veriﬁcation, we have consid-

ered CBMC and for Combinatorial Testing we con-

sidered PICT. We experimented with 38 C-Programs

from The RERS challenge repository. For 38 pro-

grams PICT only consumed 2.6 Minutes to popu-

late the test inputs, however, CBMC which is a Static

Symbolic Executor consumed 546.99 Minutes to gen-

erate the test input. The VeriCombTest (Mode2)

has 355 extra killed mutants as compared to base-

line CBMC (Mode1). Finally, as discussed in cover-

age analysis section VeriCombTest has 21.05% pro-

grams to achieve higher Branch Coverage and in mu-

tation analysis VeriCombTest has 94.73% programs

to achieve higher mutation score, these show the

strength of our proposed work.

REFERENCES

Afzal, M., Asia, A., Chauhan, A., Chimdyalwar, B., Darke,

P., Datar, A., Kumar, S., and Venkatesh, R. (2019). Ve-

riabs : Veriﬁcation by abstraction and test generation.

In 2019 34th IEEE/ACM International Conference on

Automated Software Engineering (ASE), pages 1138–

1141.

Armando, A., Mantovani, J., and Platania, L. (2006).

Bounded model checking of software using SMT

solvers instead of SAT solvers. In 13th SPIN, volume

3925 of Lecture Notes in Computer Science, pages

146–162. Springer.

Avgerinos, T., Rebert, A., Cha, S. K., and Brumley, D.

(2014). Enhancing symbolic execution with veritest-

ing. In Proceedings of the 36th International Con-

ference on Software Engineering, ICSE 2014, page

1083–1094, New York, NY, USA. Association for

Computing Machinery.

Basak Chowdhury, A., Medicherla, R. K., and R, V. (2019).

Verifuzz: Program aware fuzzing. In Beyer, D., Huis-

man, M., Kordon, F., and Steffen, B., editors, Tools

and Algorithms for the Construction and Analysis

of Systems, pages 244–249, Cham. Springer Interna-

tional Publishing.

Clarke, E., Kroening, D., and Yorav, K. (2003). Behavioral

consistency of C and Verilog programs using bounded

model checking. In 40th DAC, pages 368–371. ACM

Press.

Darke, P., Prabhu, S., Chimdyalwar, B., Chauhan, A., Ku-

mar, S., Basakchowdhury, A., Venkatesh, R., Datar,

A., and Medicherla, R. K. (2018). Veriabs: Veriﬁca-

tion by abstraction and test generation. In Beyer, D.

and Huisman, M., editors, Tools and Algorithms for

the Construction and Analysis of Systems, pages 457–

462, Cham. Springer International Publishing.

Mall, R. (2018). Fundamentals of software engineering.

PHI Learning Pvt. Ltd.

Mathur, A. P. and Wong, W. E. (1993). Comparing the fault

detection e ectiveness of mutation and data ﬂow test-

ing: An empirical study.

Nie, C. and Leung, H. (2011). A survey of combinatorial

testing. ACM Comput. Surv., 43(2).

RERS (2018). RERS:. http://rers-challenge.org/.

VeriCombTest-Artifacts (2021). Raw experimnetal data.

https://ﬁgshare.com/s/0d412445b4411208ae68.

VeriCombTest: Automated Test Case Generation Technique Using a Combination of Veriﬁcation and Combinatorial Testing

313
