Visualizing Environments of Modern Scripting Languages

Kaian Cai

, Martin Henz

, Kok-Lim Low

, Xing Yu Ng

, Jing Ren Soh

Kyn-Han Tang

and Kar Wi Toh

School of Computing, National University of Singapore, Singapore

Keywords:

Learning Programming, Visualization Tools, Integrated Development Environments, Lexical Scoping,

First-Class Functions.

Abstract:

A central learning objective of introductory programming courses is a thorough understanding of environments

that arise when programs written in modern programming languages run. An awareness is arising in the CS-

Ed community that a mental model based on a runtime stack does not do justice to languages that combine

lexical scoping with ﬁrst-class functions. As a result, debugging and visualization tools designed around

a runtime stack are not suitable for this family of languages, which includes Python, JavaScript, Ruby, Lua,

Java, and Scheme. As a suitable mental model for environments in these languages, the classical programming

textbook “Structure and Interpretation of Computer Programs” (SICP) introduced the environment model of

computation using diagrammatic graphics. The SICP authors Hal Abelson and Gerald Jay Sussman designed

the environment model to represent the runtime data structures required for executing programs written in such

languages while blending out all forms of control. In this paper, we describe a novel tool for automatically and

interactively visualizing the execution environments of programs written in the targeted language family. After

introducing the environment model in detail, we highlight the main challenges for its automatic and interactive

visualization. We outline the architecture of the tool and its integration into a web-based environment for

learning the structure and interpretation of computer programs and conclude with an analysis of the tool’s

impact based on feedback from 69 course facilitators in Academic Year 2021/22.

1 INTRODUCTION

Environment structures evolve during the interpreta-

tion of programs written in languages with lexical

scoping and ﬁrst-class functions, such as all modern

scripting languages (Python, JavaScript, Ruby, Lua,

etc). A thorough understanding of environment struc-

tures is typically a central learning objective of an in-

troductory computer science course that uses such a

language. The textbook Structure and Interpretation

of Computer Programs (SICP, (Abelson and Suss-

man, 1996)) introduced the environment model as a

pedagogical tool. Chapter 3 of SICP explains the ap-

plication of functions in programs of lexically-scoped

languages with ﬁrst-class functions informally, fol-

https://orcid.org/0000-0003-3130-275X

https://orcid.org/0000-0002-6529-5896

https://orcid.org/0000-0001-6837-5835

https://orcid.org/0000-0001-6954-0126

https://orcid.org/0000-0002-0677-2605

https://orcid.org/0000-0002-9396-2895

https://orcid.org/0000-0001-6564-4235

lowed by an implementation in a metacircular eval-

uator in Chapter 4. The application of functions plays

a central role; SICP Section 3.2.1 gives the following

high-level explanation.

To evaluate a [function] application, evalu-

ate the subexpressions of the application, [and

then] apply the value of the [function] subex-

pression to the values of the argument subex-

pressions.

The evaluation of expressions in programs of these

languages must be carried out with respect to an envi-

ronment that keeps track of the values that program

names refer to. Assignment to a name is then ex-

plained as an operation that destructively changes the

value that the name refers to in the environment.

While teaching a ﬁrst-semester computer science

course using the JavaScript adaptation of SICP (Abel-

son and Sussman, 2022) (SICP JS) at the National

University of Singapore (NUS), we saw the need for a

visualization tool that illustrates the evaluation of pro-

grams in the presence of lexical scoping and ﬁrst-class

functions. A review of recent related work in Sec-

146

Cai, K., Henz, M., Low, K., Ng, X., Soh, J., Tang, K. and Toh, K.

Visualizing Environments of Modern Scripting Languages.

DOI: 10.5220/0011766700003470

In Proceedings of the 15th International Conference on Computer Supported Education (CSEDU 2023) - Volume 1, pages 146-153

ISBN: 978-989-758-641-5; ISSN: 2184-5026

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

tion 2 reveals that in current tools for visualizing the

execution of programs, a runtime stack plays a cen-

tral role. We argue that environment structures in our

target languages do not follow a stack discipline, and

therefore conventional stack-based debugging and vi-

sualization tools are not suitable in the context of our

course. In response to our teaching needs, we have

developed a novel environment model visualization

tool and integrated it in Source Academy (Ander-

son et al., 2023), a web-based environment for learn-

ing the structure and interpretation of computer pro-

grams. Section 3 reviews the environment model in

detail, using examples from SICP Chapter 3. Sec-

tion 4 shows how our visualizer displays the environ-

ments of example programs. Section 5 describes the

main implementation challenges for interactive visu-

alization of environments. In Section 6, we outline

the architecture of the tool and its integration into

Source Academy. In Section 7, we provide a quanti-

tative analysis of the beneﬁts of using an environment

model visualizer, based on a survey of 69 tutors who

used the tool in Academic Year 2021/22.

2 RELATED WORK

Integrated development environments typically pro-

vide extensive debugging tools for analyzing the run-

time behavior of programs; examples are Microsoft

Visual Studio (Microsoft, 2023) for a wide variety

of programming languages, and IntelliJ IDEA (Jet-

Brains, 2023) for Java, Kotlin, Groovy and other lan-

guages whose implementations use the Java Virtual

Machine. Leading web browsers such as Google

Chrome and Mozilla Firefox provide support for de-

bugging JavaScript programs (Google, 2023; Mozilla,

2023). Python Tutor (Guo, 2021) provides a visual-

ization of the execution of Python programs. These

tools are based on a runtime control stack as their cen-

tral mental model. Clements and Krishnamurthi point

out the limitations of this approach for the target lan-

guage family in (Clements and Krishnamurthi, 2022):

The premise of this paper is that the tradi-

tional depiction of the stack, as a sequence of

self-contained frames, is insufﬁcient and po-

tentially misleading, mirroring and even cre-

ating troubling misconceptions.

Indeed, none of these tools clearly explains the re-

lationships between environment frames and function

values (closures) that unfold when programs use func-

tions a ﬁrst-class values. Therefore using them in a

large ﬁrst-year course that aims to cover ﬁrst-class

functions would be of questionable merit. Instructors

and facilitators would need to spend precious time on

explaining the differences between a suitable model

for environments and the representations in the tool.

Clements and Krishnamurthi (Clements and Krish-

namurthi, 2022) don’t provide a tool for visualizing

environments but study alternative pedagogical ap-

proaches using Snap! blocks (Harvey and M

onig,

2010) that are manually arranged by learners.

Related to this work is the concept of a notional

machine, which is an abstraction of a computer that

explains the execution of programs as a step-by-step

process. In his dissertation (Sorva, 2012), Sorva

points out that learners inevitably construct notional

machines for program execution and argues that they

beneﬁt from being deliberately introduced to ped-

agogically sound notional machines. The disserta-

tion and (Sorva, 2013) contain in-depth discussions of

notional machines, program visualization tools, and

their pedagogical value, but do not cover lexically

scoped languages with ﬁrst-class functions.

The substitution model of SICP Chapter 1 can

be seen as a notional machine for program execu-

tion, and interactive tools such as the Racket Step-

per (Racket team, 2021) and the Source Academy

stepper (Henz et al., 2021) can be seen as inter-

active visualizations of such a notional machine.

Substitution-based program visualization tools are

limited to purely functional programs (no assignment)

and provide a rather low level of abstraction.

Related to the visualization of data structures

covered in Section 4 is the Racket data visual-

izer (Rosenthal, 2019) and the IntelliJ plugin Java Vi-

sualizer (Lipsitz, 2019), but these tools are not de-

signed to present their data visualization in the con-

text of environments.

Landin’s SECD machine (Landin, 1964) intro-

duced environments as a data structure for keep

track of name bindings during the interpretation of

expressions in the call-by-value lambda calculus.

While minimalistic in the covered language features,

the SECD machine contains the essential ingredi-

ents of the targeted language family and could be

extended into a notional machine for this family.

Danvy (Danvy, 2004) systematically explores SECD

variants, and compilation-based variants have served

as inspiration for implementations of functional pro-

gramming languages and their correctness proofs,

most recently in (Kunze et al., 2018).

3 THE ENVIRONMENT MODEL

In the environment model of evaluation, a function

is a pair consisting of some code and a pointer to an

environment. Functions are created by evaluating a

Visualizing Environments of Modern Scripting Languages

147

return x * x;

parameters: x

body: return x * x;

square(5)

program

env

other names

square:=

x: 5

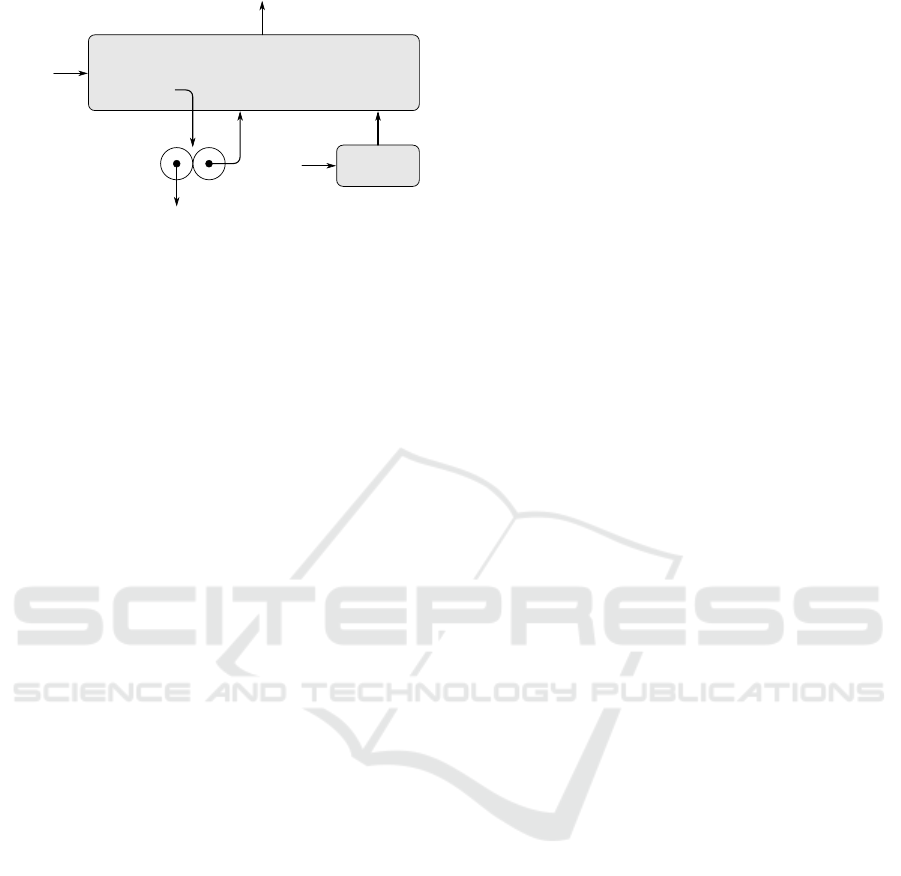

Figure 1: Environment created by evaluating square(5) in

the program environment. [In the diagrams, := indicates a

JavaScript constant and : a JavaScript constant.].

lambda expression, which produces a function whose

code is obtained from the text of the lambda expres-

sion and whose environment is the environment in

which the lambda expression was evaluated to pro-

duce the function. SICP JS illustrates the concept in

Section 3.2.1 using the square function as an example:

For example, . . .

const sq ua re = x => x * x ;

. . . evaluates x => x * x and binds square

to the resulting value, all in the program envi-

ronment. Figure 1 shows the result of evalu-

ating this declaration statement. . . . The func-

tion object is a pair whose code speciﬁes that

the function has one parameter, namely x, and

a function body return x * x;. The envi-

ronment part of the function is a pointer to the

program environment, since that is the envi-

ronment in which the lambda expression was

evaluated to produce the function. A new

binding, which associates the function object

with the name square, has been added to the

program frame.

Function application leads to the evaluation of the

function body in an environment that extends the

function’s environment with a binding of the parame-

ter x to the argument 5, as depicted in Figure 1. Using

a make_withdraw function

function m ak e _w i th d ra w ( b al an ce ) {

return a m ou nt = > {

if ( ba la nc e >= am ou n t ) {

ba la nc e = ba la nc e - am ou nt ;

return b al an ce ;

} else {

return " in su f fi c i e nt "

+ " fu nd s " ;

}

};

}

SICP JS explains the evaluation of programs with lo-

cal state in Section 3.2.3 as follows.

The interesting part of the computation

happens when we apply the function

make_withdraw to an argument:

const W1 = ma k e_ w it h dr a w ( 1 00 );

We begin, as usual, by setting up an envi-

ronment E1 in which the parameter balance

is bound to the argument 100. Within

this environment, we evaluate the body of

make_withdraw, namely the return statement

whose return expression is a lambda expres-

sion. The evaluation of this lambda expression

constructs a new function object, whose code

is as speciﬁed by the lambda expression and

whose environment is E1, the environment in

which the lambda expression was evaluated to

produce the function...

The application of account W1 to the amount 50

W1 (50) ;

// result: 50

leads to the environment structure of Figure 2. Note

that the application of W1 in the program environment

leads to an extension of E1, which at that point is only

accessible through the function object to which W1

refers. The example “Closures Outlive Stack Frames”

in Section 4 of (Clements and Krishnamurthi, 2022)

mirrors this example to illustrate that environments

do not follow a stack discipline. The ﬁrst frame of E1

outlives the function call that created it and serves as

enclosing environment for calls of W1.

The environment model as presented here is mini-

mal in the sense that all components of runtime struc-

tures are forced to be present by the semantics of

the language. Lexical scoping forces environment

frames to refer to their parent frames, and function

values (closures) to carry the environment in which

they were created.

4 THE VISUALIZATION TOOL

Figure 3 shows how the visualizer displays the en-

vironments of Figure 2. The visualizer is integrated

in Source Academy (Anderson et al., 2023), a web-

based system for supporting the teaching of courses

that use SICP JS. The learners enter their programs

in the editor on the left. Before program execution,

a “Run” button in place of “Resume”—indicated by

Arrow 1—lets learners execute their programs and

view the results. Note the circle in the beginning of

CSEDU 2023 - 15th International Conference on Computer Supported Education

148

make_withdraw:= ...

W1:=

balance: 100

amount: 50

if (balance >= amount) {

balance = balance - amount;

return balance;

} else {

return "insufficient funds";

}

parameters: amount

body: …

make_withdraw:= …

W1:=

program

env

balance: 100

amount: 50

Here is the balance

that will be changed

by the assignment

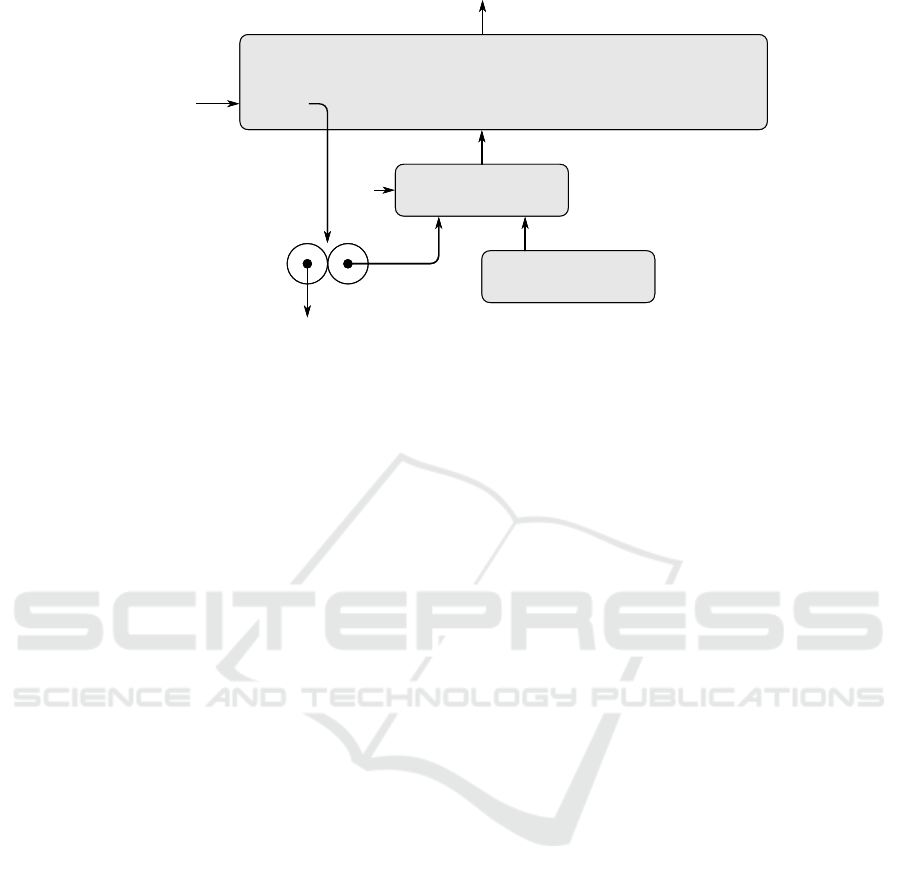

Figure 2: Environments created by applying the function object W1.

line 11, which represents the breakpoint added by the

learner to pause program execution just before the line

is reached. When a program encounters a breakpoint,

the environment visualizer displays the environment

structures that have been created before the line in

which the breakpoint appears. The “Run” button turns

into a “Resume” button. A “Stop Debugger” button

aborts program execution, indicated by Arrow 2.

The runtime representation of data structures typ-

ically poses challenges to learners, especially in the

presence of ﬁrst-class functions. Figure 4 shows how

the environment model visualizer displays the appli-

cation of a map function to a three-element list, which

is made up of pairs whose components are accessed

with the functions head and tail.

const sq ua re = x => x * x ;

const m ap =

(f , xs ) => is _n ul l ( xs )

? nu ll

: pa ir ( f( h e ad ( xs )) ,

map (f , tai l ( xs )) ) ;

const ys = ma p ( squar e , lis t (2 , 3 ,4);

The ﬁgure shows the situation after pressing “Re-

sume” once, so we see the state at the beginning of

the ﬁrst recursive call of map.

The tool is integrated in the latest release of

Source Academy (Source Academy, 2023a), which

also contains an interactive version of SICP JS.

Both are available in the repositories of the Source

Academy GitHub organization (Source Academy,

2023d) under free licences.

5 IMPLEMENTATION

CHALLENGES

The most obvious implementation challenge is

posed by the browser-based architecture of Source

Academy. The usual implementation pathway for

JavaScript programs in a browser-based architecture

consists of passing the learner’s JavaScript programs

to the browser’s JavaScript engine. As described

in (Anderson et al., 2021), Source Academy uses

a JavaScript parser to restrict the JavaScript sub-

language available to the learners, and a JavaScript-

to-JavaScript transpiler that improves error messages

and realizes proper tail calls. The challenge for im-

plementing the environment model visualizer in such

a system is the lack of access to the browser’s inter-

nal data structures for representing environments and

to the browser’s runtime environment in order to in-

teractively pause and resume program execution as

a result of setting breakpoints in the program. We

solved these problems by implementing an alterna-

tive implementation pathway for JavaScript programs

that uses an interpreter instead of a transpiler. The

sub-languages approach of the course and Source

Academy facilitates this solution, because only those

aspects of JavaScript that are relevant for SICP JS

need to be implemented by this interpreter.

The second challenge is posed by the need to inter-

actively pause program execution at any breakpoint,

display the environment data structures that have ac-

cumulated up to the breakpoint and resume evaluation

Visualizing Environments of Modern Scripting Languages

149

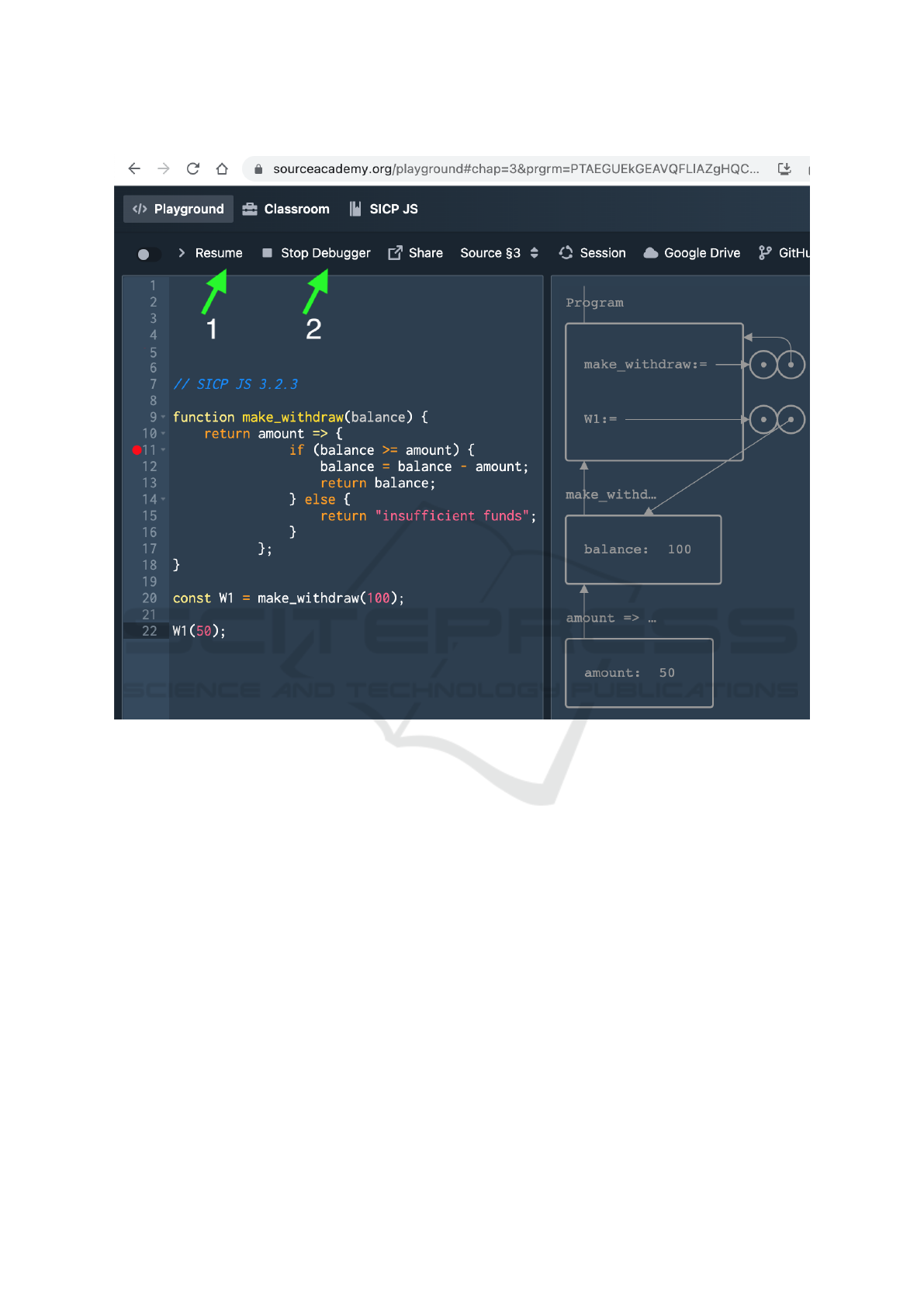

Figure 3: Environment model visualizer, showing the environments of Figure 2.

upon pressing “Resume”. This is handled by perva-

sively using asynchronous JavaScript functions in the

implementation of the interpreter. An alternative solu-

tion is presented in (Baxter et al., 2018) which would

have led to transforming the mentioned transpiler into

continuation-passing style. We rejected this option to

keep the transpiler as simple as possible. The inter-

pretation overhead is not critical because the visual-

ized programs are typically short-running.

A third implementation challenge is posed by a

pedagogical aspect of the environment model as pre-

sented in SICP. According to the environment model

diagrams in SICP, environment frames do not “ex-

pire”. Once created, they persist and should be dis-

played even if they are not reachable after resuming

evaluation. It is therefore not sufﬁcient to display the

reachable environment frames from the current frame.

We explored two options of addressing this challenge.

The ﬁrst option consists of establishing a registry of

environment frames to which any new frame is added

and that is used for the display. The second option

turns environments into a doubly-linked data struc-

ture: Parent frames include references to their child

frames, in addition to the usual parent pointers in

child frames. We chose the second option, because

the visualization can naturally traverse and display the

environment structure starting from the global frame.

Both options obviously keep all environment frames

alive in the heap of the JavaScript runtime system.

This does not pose performance problems because the

environment model visualizer is used only for quite

simple programs.

An important functional requirement is consis-

tency across breakpoints. Once a frame has been

drawn for one breakpoint, its position should not

change when it gets displayed again for further break-

points so that the learner recognizes previously seen

frames by their position on the screen. This constraint

does not allow the visualizer to recompute a globally

optimized layout for environments at each breakpoint.

CSEDU 2023 - 15th International Conference on Computer Supported Education

150

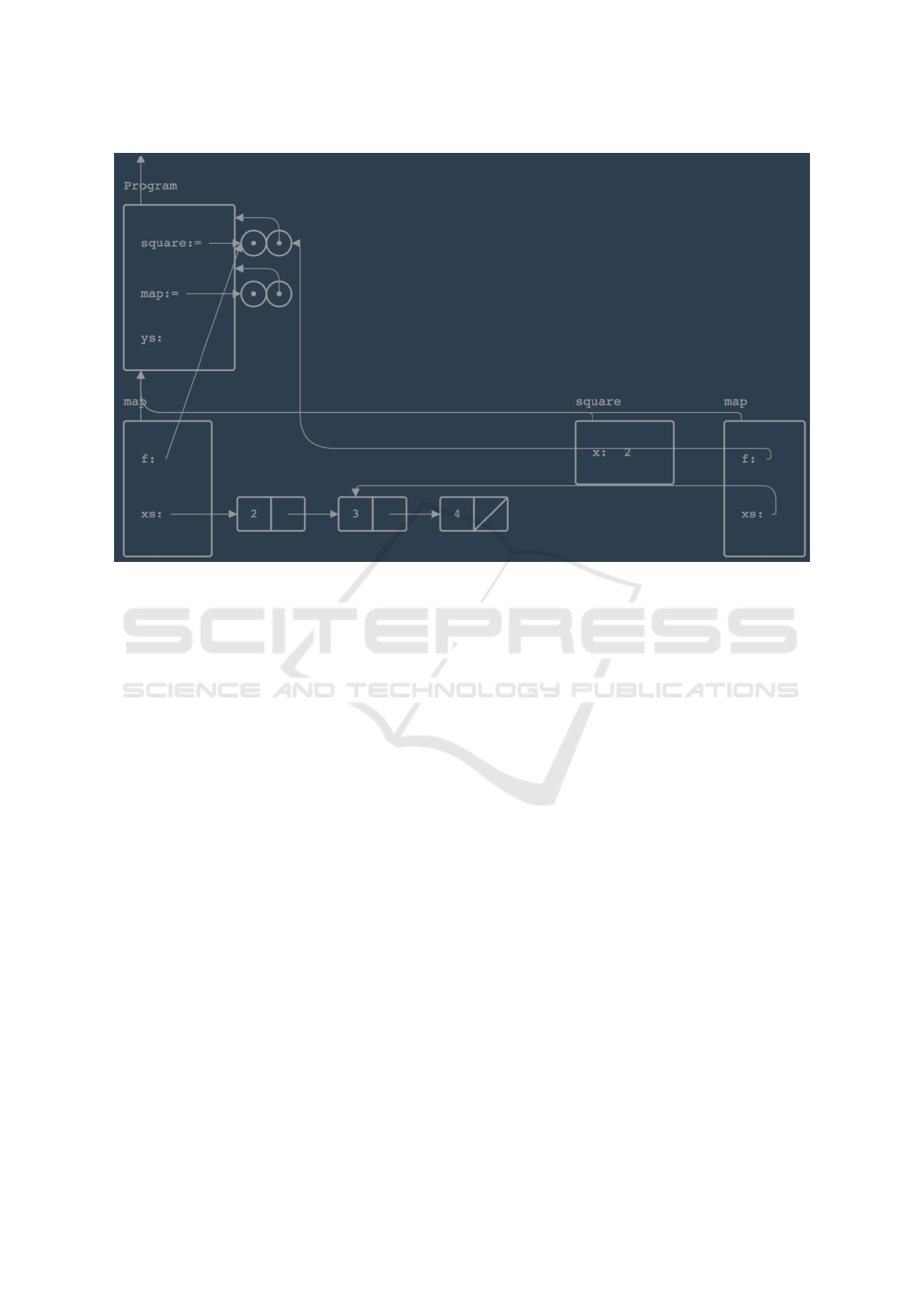

Figure 4: Environment model visualizer, showing the environments at the beginning of the ﬁrst recursive call of a map function.

6 ARCHITECTURE OF THE

VISUALIZATION TOOL

The visualization tool is integrated into the Source

Academy (Anderson et al., 2023), a browser-based

environment for entry-level programming. The sys-

tem is designed and built by students and staff of

NUS, is published under an Apache license (Source

Academy, 2023b), and is implemented as a React

application (Meta Platforms, Inc., 2023). Source

Academy switches to the JavaScript interpreter de-

scribed in the previous section when at least one

breakpoint is set. Setting a breakpoint inserts a

debugger; statement in the program.

The interpreter is implemented—along with all

other JavaScript-speciﬁc system features—in a sepa-

rate Node.js package for browser-independent devel-

opment and testing (Source Academy, 2023c). When-

ever the interpreter meets a debugger; statement,

the current program context is sent to the visualizer.

The visualizer receives the context in the form of the

doubly-linked environment data structure described in

the previous section, which represents all frames cre-

ated so far during the execution of the program. The

data structure is rooted at the global frame.

The visualization is implemented with

Konva.js (Lavrenov, 2023). A Layout class en-

capsulates the canvas and layout calculations. The

singleton Layout instance contains a Grid, which in

turn contains an array of Levels containing frames,

pairs, and function objects, each with their (x, y)

coordinates on the canvas. We investigated published

graph drawing algorithms (for an overview, see (Bat-

tista et al., 1998)) and several publicly available

graph drawing frameworks, but decided to implement

the layout from scratch to provide predictable and

visually pleasing diagrams and meet the consistency

requirement given at the end of Section 5.

7 RESULTS

The environment visualizer was designed and devel-

oped over the past ﬁve years by undergraduate stu-

dents at NUS, following the community-based de-

velopment approach described in (Anderson et al.,

2023), and previous versions were integrated into

Source Academy. The instructors of the SICP-based

course at NUS decided that the visualizer needs to be

100% consistent with the textbook, and this consis-

tency was only achieved in 2021. As a result, 2021

was the ﬁrst year in which the visualizer was used

in class and the students were encouraged to used it

while learning the environment model.

Visualizing Environments of Modern Scripting Languages

151

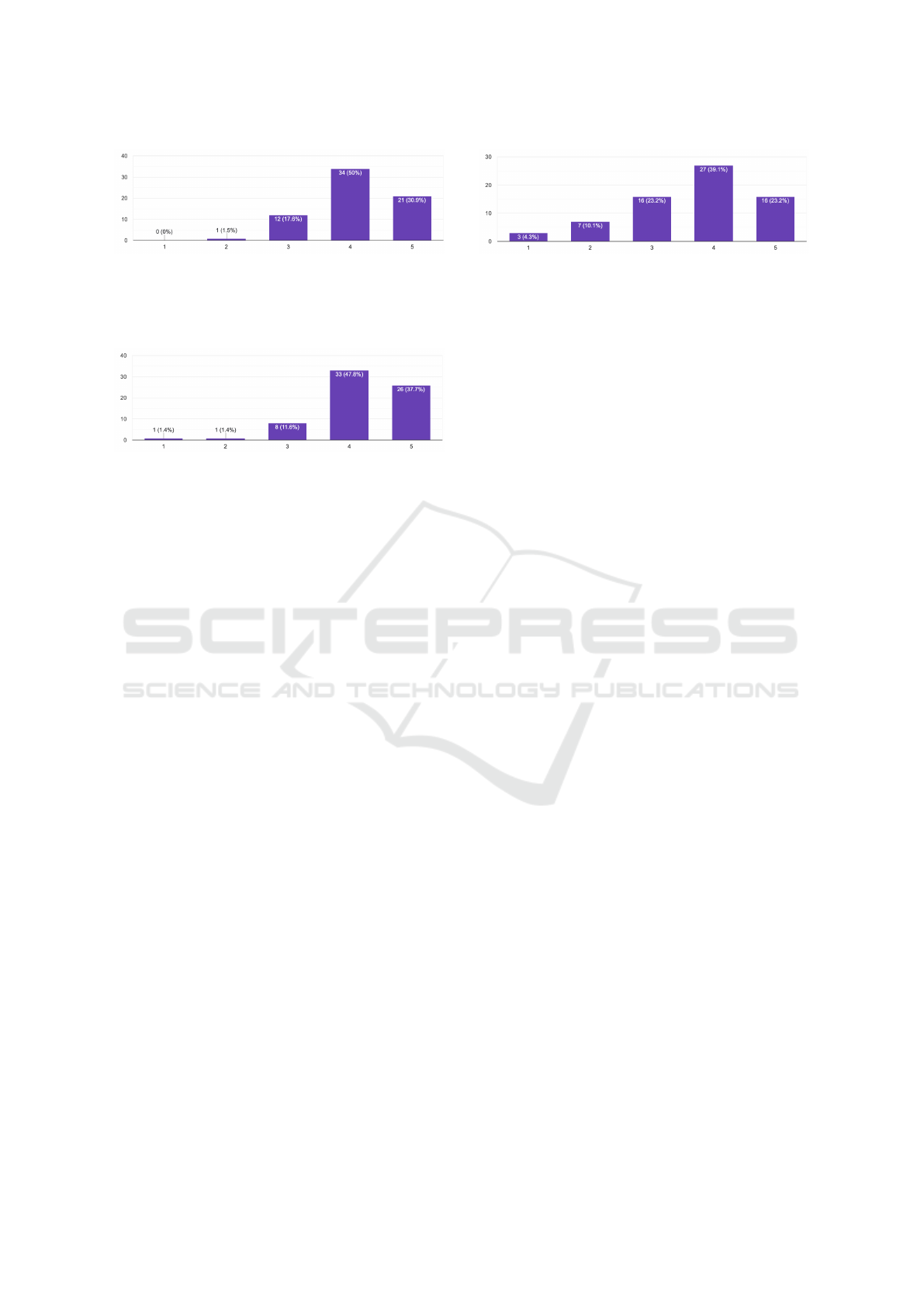

Figure 5: Results of survey question: “The environment

model visualizer [...] helped my students in understand-

ing the environment model of SICP JS. (1 for strongly dis-

agree, 5 for strongly agree)”. Of the 69 corespondents, 68

answered this question.

Figure 6: Results of survey question: “The environment

model visualizer [...] accelerates the learning process by

letting students interactively explore the the environment

structures that their programs give rise to. (1 for strongly

disagree, 5 for strongly agree)”.

The 2021 course had 667 students and a teach-

ing team of close to 100 staff. Three lecturers man-

aged the course and prepared and delivered the lec-

tures (one two-hour session and one one-hour session

in each of the 13 weeks of the semester). The lectur-

ers and six additional tutors (graduate or senior under-

graduate students) shared the facilitation of a weekly

one-hour recitation session, conducted in groups of

20 to 24 students. A team of 88 undergraduate assis-

tants facilitated weekly 2-hour small-group lab ses-

sions with maximally 8 students per group.

The utility of the visualizer was obvious to the

teaching staff of the course, and therefore A/B testing

was deemed unethical. Instead, to assess the degree

in which the visualizer contributed to the learning and

teaching of the course, we conducted an anonymous

survey among the 88 undergraduate assistants and the

6 tutors. From these 94 facilitators, we received 69

responses (73%).

The ﬁrst two survey questions asked the facilita-

tors about the degree in which the visualization tool

contributed to the learning of their students. Figure 5

shows their responses regarding the overall efﬁcacy

of the visualizer, i.e. whether it helped their stu-

dents in understanding the environment model. Of

the responding facilitators, 80.9% agreed or strongly

agreed that it did, and only one disagreed. The sec-

ond question more speciﬁcally addressed the speed

of the learning process and the interactive features

of the visualizer. Figure 6 shows that 85.5% agreed

or strongly agreed that the visualizer accelerated the

learning process, one disagreed and one strongly dis-

Figure 7: Results of survey question: “The environment

model visualizer [...] helped me as instructor to explain the

environment model. (1 for strongly disagree, 5 for strongly

agree)”.

agreed. From these responses, we conclude that the

visualizer is considered by facilitators to be an effec-

tive tool for learning the environment model of com-

putation.

The last survey question asked the facilitators

whether the tools helped them explain the model. Fig-

ure 7 shows that 62.3% agree or strongly agree that

the visualizer helped them explaining the environ-

ment model in their sessions, whereas 14.4% disagree

or strongly disagree. From these responses, we con-

clude that the visualizer is an effective classroom tool

for teaching the environment model of computation.

8 CONCLUSION AND FUTURE

WORK

Starting from the need for a visual representation of

runtime structures to facilitate the teaching of ﬁrst-

year computer science courses, we reviewed the en-

vironment model of SICP. We argued that the model

is minimal in the sense that all its components are

forced by the semantics of lexically scoped languages

with ﬁrst-class functions. We described an interactive

tool for visualizing SICP’s environment model and

its implementation in Source Academy, an environ-

ment designed for supporting the teaching of SICP-

based courses. To our knowledge it is the ﬁrst in-

teractive tool that graphically represents the environ-

ment structures that arise during the interpretation of

Scheme, JavaScript, and by extension other languages

that share the central characteristics of lexical scoping

and ﬁrst-class functions, including Python, Ruby, and

Lua.

The environment model as presented in

SICP (Abelson and Sussman, 1996) deliberately

excludes the control aspect of program execution in

order to keep the model simple enough for an intro-

ductory textbook. Thus the environment model and

by extension our environment model visualizer do not

qualify as a notional machine in the sense of (Sorva,

2013), who argues conclusively that students beneﬁt

from explicit notional machines and their interactive

CSEDU 2023 - 15th International Conference on Computer Supported Education

152

graphical visualization. In future work, we will

approach the notional-machine challenge posed

by (Clements and Krishnamurthi, 2022) for the

targeted language family with the environment model

of SICP as the starting point. For this, we will extend

the environment model with control components to

obtain a proper notional machine for languages with

lexical scoping and ﬁrst-class functions. We hope

that this machine will put us in a position to evolve

our environment model visualizer into a complete,

interactive notional machine visualizer: a tool for the

detailed execution visualization of programs written

in the targeted language family.

REFERENCES

Abelson, H. and Sussman, G. J. (1996). Structure and In-

terpretation of Computer Programs. MIT Press, Cam-

bridge, MA, 2nd edition. With Julie Sussman.

Abelson, H. and Sussman, G. J. (2022). Structure and Inter-

pretation of Computer Programs, JavaScript edition.

MIT Press, Cambridge, MA. adapted to JavaScript

by Martin Henz and Tobias Wrigstad, with Julie Suss-

man.

Anderson, B., Henz, M., and Low, K.-L. (2023).

Community-driven course and tool development for

CS1. In Proceedings of the 2023 ACM SIGCSE Tech-

nical Symposium on Computer Science Education,

page 7, Toronto, Canada. ACM.

Anderson, B., Henz, M., Low, K.-L., and Tan, D. (2021).

Shrinking JavaScript for CS1. In Proceedings of

the 2021 ACM SIG-PLAN SPLASH-E Symposium

(SPLASH-E ’21), pages 87–96, Chicago, IL. ACM.

Battista, G. D., Eades, P., Tamassia, R., and Tollis, I. G.

(1998). Graph Drawing: Algorithms for the Visual-

ization of Graphs. Prentice Hall, Saddle River, NJ.

Baxter, S., Nigam, R., Politz, J. G., Krishnamurthi, S., and

Guha, A. (2018). Putting in all the stops: execution

control for JavaScript. In PLDI 2018: Proceedings of

the 39th ACM SIGPLAN Conference on Programming

Language Design and Implementation, pages 30–45,

Philadelphia PA. ACM.

Clements, J. and Krishnamurthi, S. (2022). Towards a no-

tional machine for runtime stacks and scope: When

stacks don’t stack up. In ICER ’22: Proceedings of the

2022 ACM Conference on International Computing

Education Research, pages 206–222. ACM SIGCSE.

Danvy, O. (2004). A rational deconstruction of Landin’s

SECD machine. In Grelck, C., Huch, F., Michael-

son, G., and Trinder, P. W., editors, Implementation

and Application of Functional Languages, 16th In-

ternational Workshop, IFL 2004, L

ubeck, Germany,

September 8-10, 2004, Revised Selected Papers, vol-

ume 3474 of LNCS, pages 52–71, New York. Springer.

Google (2023). Chrome DevTools. https://developer.

chrome.com/docs/devtools.

Guo, P. (2021). Ten million users and ten years later:

Python Tutor’s design guidelines for building scalable

and sustainable research software in academia. In

UIST ’21: The 34th Annual ACM Symposium on User

Interface Software and Technology, page 1235–1251,

New York. Association for Computing Machinery.

Harvey, B. and M

onig, J. (2010). Bringing “no ceiling” to

Scratch: Can one language serve kids and computer

scientists? In Proceedings of Constructionism 2010,

pages 1–10, Bratislava, Slovakia. Library and Publish-

ing Centre, Faculty of Mathematics, Physics and In-

formatics, Comenius University.

Henz, M., Tan, T., Chua, Z., Jung, P., Tan, Y.-J., Zhang,

X., and Zhao, J. (2021). A stepper for a functional

JavaScript sublanguage. In Proceedings of the 2021

ACM SIG-PLAN SPLASH-E Symposium (SPLASH-E

’21), pages 71–81, Chicago, IL. ACM.

JetBrains (2023). IntelliJ IDEA. https://www.jetbrains.

com/idea.

Kunze, F., Smolka, G., and Forster, Y. (2018). For-

mal small-step veriﬁcation of a call-by-value lambda

calculus machine. In Ryu, S., editor, Asian Sym-

posium on Programming Languages and Systems,

LNCS, volume 11275, pages 264–283, Cham, Switzer-

land. Springer International Publishing.

Landin, P. J. (1964). The mechanical evaluation of expres-

sions. The Computer Journal, 6:308–320.

Lavrenov, A. (2023). Konva.js—an HTML5 Canvas

JavaScript framework. https://konvajs.org.

Lipsitz, E. (2019). Java Visualizer—plugin for

IntelliJ IDEA. https://github.com/elipsitz/

java-visualizer-intellij-plugin.

Meta Platforms, Inc. (2023). React—a JavaScript library

for building user interfaces.

Microsoft (2023). Microsoft Visual Studio. https://

visualstudio.microsoft.com.

Mozilla (2023). Firefox JS Debugger. https://ﬁrefox-

source-docs.mozilla.org/devtools-user/debugger.

Racket team (2021). The stepper. https://docs.racket-lang.

org/stepper.

Rosenthal, J. (2019). Sdraw: Cons-cell diagrams with Pict.

https://docs.racket-lang.org/sdraw/index.html.

Sorva, J. (2012). Visual Program Simulation in Introduc-

tory Programming Education. PhD thesis, Aalto Uni-

versity, Espoo, Finland.

Sorva, J. (2013). Notional machines and introductory pro-

gramming education. ACM Transactions on Comput-

ing Education, 13(2):1–31.

Source Academy (2023a). Public site of Source Academy.

https://sourceacademy.org.

Source Academy (2023b). Software repository of frontend.

https://github.com/source-academy/frontend.

Source Academy (2023c). Software repository of js-slang.

https://github.com/source-academy/js-slang.

Source Academy (2023d). Source Academy GitHub orga-

nization. https://github.com/source-academy.

Visualizing Environments of Modern Scripting Languages

153
