Evaluation of U-Net Backbones for Cloud Segmentation

in Satellite Images

Laura G. M. Arakaki

, Leandro H. F. P. Silva

1,2

, Matheus V. Silva

, Bruno M. Melo

Andr

e R. Backes

, Mauricio C. Escarpinati

and Jo

ao Fernando Mari

Instituto de Ci

encias Exatas e Tecnol

ogicas, Universidade Federal de Vic¸osa, Rio Parana

ıba, Brazil

School of Computer Science, Federal University of Uberl

andia, Uberl

andia, Brazil

Department of Computing, Federal University of S

ao Carlos, S

ao Carlos-SP, Brazil

Keywords:

Cloud Segmentation, U-Net, Cloud-38, Convolutional Neural Networks, Remote Sensing.

Abstract:

Remote sensing images are an important resource for obtaining information for different types of applications.

The occlusion of regions of interest by clouds is a common problem in this type of image. Thus, the objective

of this work is to evaluate methods based on convolutional neural networks (CNNs) for cloud segmentation

in satellite images. We compared three segmentation models, all of them based on the U-Net architecture

with different backbones. The ﬁrst considered backbone is simpler and consists of three contraction blocks

followed by three expansion blocks. The second model has a backbone based on the VGG-16 CNN and the

third one on the ResNet-18. The methods were tested using the Cloud-38 dataset, composed of 8400 satellite

images in the training set and 9201 in the test set. The model considering the simplest backbone was trained

from scratch, while the models with backbones based on VGG-16 and ResNet-18 were trained using ﬁne-

tuning on pre-trained models with ImageNet. The results demonstrate that the tested models can segment the

clouds in the images satisfactorily, reaching up to 97% accuracy on the validation set and 95% on the test set.

1 INTRODUCTION

After World War II, the United States and the Union

of Soviet Socialist Republics (USSR) disputed world

hegemony in different aspects. One aspect of the

dispute was in space exploration through the launch

of artiﬁcial satellites and manned missions (Siddiqi,

2000; Whitﬁeld, 1996). From the period of the con-

ﬂict to the present, the use of satellites has become in-

creasingly recurrent for various applications, among

which we can mention: urban planning, climate mon-

itoring, environmental preservation, and precision

agriculture (PA) (Francis et al., 2019).

In general, satellites provide imaging of an area of

interest through sensors for different decision-making

purposes. In addition, the satellites can have different

sensors attached, which will generate multi and hy-

perspectral images, to provide the most varied type of

analysis of the imaged area. On the other hand, the

images captured by satellites may present noise that

will consequently inﬂuence the aforementioned anal-

yses. Among these noises, we can highlight the pres-

ence of clouds, shadows, fog, and snow, for example.

Thus, the task of identifying and eventually removing

such noise for a precise analysis of the satellite image

is necessary (Ikeno et al., 2021; Meraner et al., 2020).

In this sense, techniques based on image process-

ing can be used for the task in question, where those

based on deep learning stand out. Speciﬁcally for the

identiﬁcation task, which can be understood as a seg-

mentation, we highlight the U-Net, which is a deep

neural network proposed initially for the segmenta-

tion of medical images and also used in other applica-

tions (Ronneberger et al., 2015; Eppenhof et al., 2019;

Silva et al., 2022).

Recent works have shown that the combination of

different backbones can improve the performance of

classiﬁcation networks (e.g., U-Net) in some situa-

tions (Zhang et al., 2020). The possibility that back-

bones are pre-trained could justify this improvement.

In addition, it is important to highlight that the train-

ing of an algorithm based on deep learning is empir-

ical and will take into account, for example, the vari-

ety of hyperparameter conﬁgurations and the dataset

where the model will be applied for the best ﬁt.

Thus, this work aims to evaluate the U-Net capac-

ity, in three different backbone conﬁgurations, in the

task of segmenting clouds in multispectral images ob-

452

Arakaki, L., Silva, L., Silva, M., Melo, B., Backes, A., Escarpinati, M. and Mari, J.

Evaluation of U-Net Backbones for Cloud Segmentation in Satellite Images.

DOI: 10.5220/0011787200003417

In Proceedings of the 18th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theor y and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

452-458

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

tained by satellites.

2 THEORICAL BASES

In this section, we present: (i) the theoretical founda-

tion for this work, and (ii) related works describing

the state of the art for the cloud detection problem.

2.1 Convolutional Neural Networks

Convolutional Neural Networks (CNNs) are one of

four categories of deep learning methods, along with

constrained Boltzman machines, autoencoders, and

sparsecoding. A CNN consists of three types of neu-

ron layers: (i) convolutional layers, (ii) pooling lay-

ers, and (iii) fully connected layers (Goodfellow et al.,

2016; Guo et al., 2016).

The layers of a CNN are structured hierarchically,

with convolutional layers interspersed with pooling

layers and fully connected layers at the top of the

hierarchy. The sequence of convolutional and pool-

ing layers is responsible for automatically extracting

features that can be used to classify these images.

The initial layers are responsible for learning the sim-

plest features that are combined in subsequent layers,

allowing the learning of increasingly complex fea-

tures as one approaches the end of the network. The

fully connected layers are responsible for classifying

the images considering the features learned through-

out the architecture (LeCun et al., 2015; Ponti et al.,

2017).

2.1.1 U-Net

U-Net is a neural network architecture developed for

image segmentation tasks. The U-Net consists of an

encoder and decoder structure based on a Convolu-

tional Neural Network. U-Net can be divided into

two parts: a contract block and a expand block (Long

et al., 2015).

The ﬁrst part is composed of a sequence of con-

volution layers with pooling layers. In this block, fea-

tures are extracted from the input images (convolution

layer) and the size of the images is reduced (pooling

layer) allowing feature extraction in multi-resolution.

Each convolution layer is followed by a batch normal-

ization and a non-linear activation function. The type

of pooling used is max-pooling with stride = 2, which

reduces the output resolution by half (Ronneberger

et al., 2015).

The second part performs the expansion in levels,

making interconnections between images and equiv-

alent scales. The U-Net architecture has connec-

tions between the output of a contraction block and

the input of the corresponding expansion block (Ron-

neberger et al., 2015).

2.1.2 Backbones

A backbone is an element of the network architecture

that deﬁnes how the layers are organized in the en-

coder part and thus also determines how the encoder

should be constructed. Several backbones can be im-

plemented when using U-Net as architecture, such

as VGG, ResNet, Inception, and others (Wang et al.,

2020).

Backbones can be used to improve the perfor-

mance of a CNN due to the ability to extract features

in an optimized way, including enabling the use of

pre-trained backbones (Ciaparrone et al., 2020).

2.2 Related Works

Mohajerani and Saeedi (2019a) proposed an approach

based on a fully connected network to perform the

cloud segmentation, known as Cloud-Net. This ap-

proach is composed of convolutional blocks and sim-

ple layers. Each convolutional block contains addi-

tion, concatenation, and copy layers. After each con-

volution, a ReLu activation function was applied. The

authors compared the approach presented with those

presented by Zhu et al. (2015) and Mohajerani et al.

(2018a). For the evaluation, they considered Jac-

card, Precision, Recall, Speciﬁcity, and Accuracy in-

dices. The results show that Cloud-Net improved all

indexes, except for Recall where the approach pro-

posed by Zhu et al. (2015) performed better.

The work of Francis et al. (2019) also reinforces

the importance of correctly detecting clouds in satel-

lite images for better use of these images in differ-

ent contexts. In this sense, the authors presented a

fully convolutional approach inspired by U-Net for

cloud segmentation. The approach presented is called

CloudFCN and has become state-of-the-art for the

problem in question. In general terms, CloudFCN

will merge the shallowest layers with their content

visible to the deepest layers. The authors demon-

strate the effectiveness of CloudFCN with several

experiments performed on images obtained by the

Carbonite-2 and Landsat 8 satellites.

The cloud detection problem is complex and

therefore sensitive to failures, mainly to deal with

smaller clouds with sparse distribution (called thin

clouds). In this sense, Li et al. (2022) presents the

GCDB-UNet, an approach based on the U-Net for

cloud segmentation, especially those that are more

difﬁcult to be detected. In general terms, GCDB-

UNet has two layers for extracting specialized fea-

Evaluation of U-Net Backbones for Cloud Segmentation in Satellite Images

453

tures in thin clouds. The authors evaluated the ap-

proach through experiments conducted on datasets

from three different satellites (Landsat 8, SPARCS,

and MODIS). The GCDB-UNet demonstrated robust-

ness and superior performance when compared to

other methods.

3 MATERIAL AND METHODS

This section presents the dataset, experimental setup,

and computational resources used to conduct this

study.

3.1 Image Dataset

The dataset used in the experiments was the 38-

Cloud

, which is composed of 8,400 patches for train-

ing and 9,201 patches for testing. Each patch has a

size of 384 × 384 pixels extracted from 38 scenes (of

which 18 are for training and 20 for tests) obtained

by the Landsat 8 satellite. Each patch is composed of

four channels: Red, Green, Blue, and Near-Infrared

(NIR). Each patch of the training set comes with a

binary reference image (ground-truth) in which the

clouds present in the image were manually delineated.

The ground-truth of the test set is only provided for

the complete scenes and thus the evaluation measures

for the test set are computed only for this scenario.

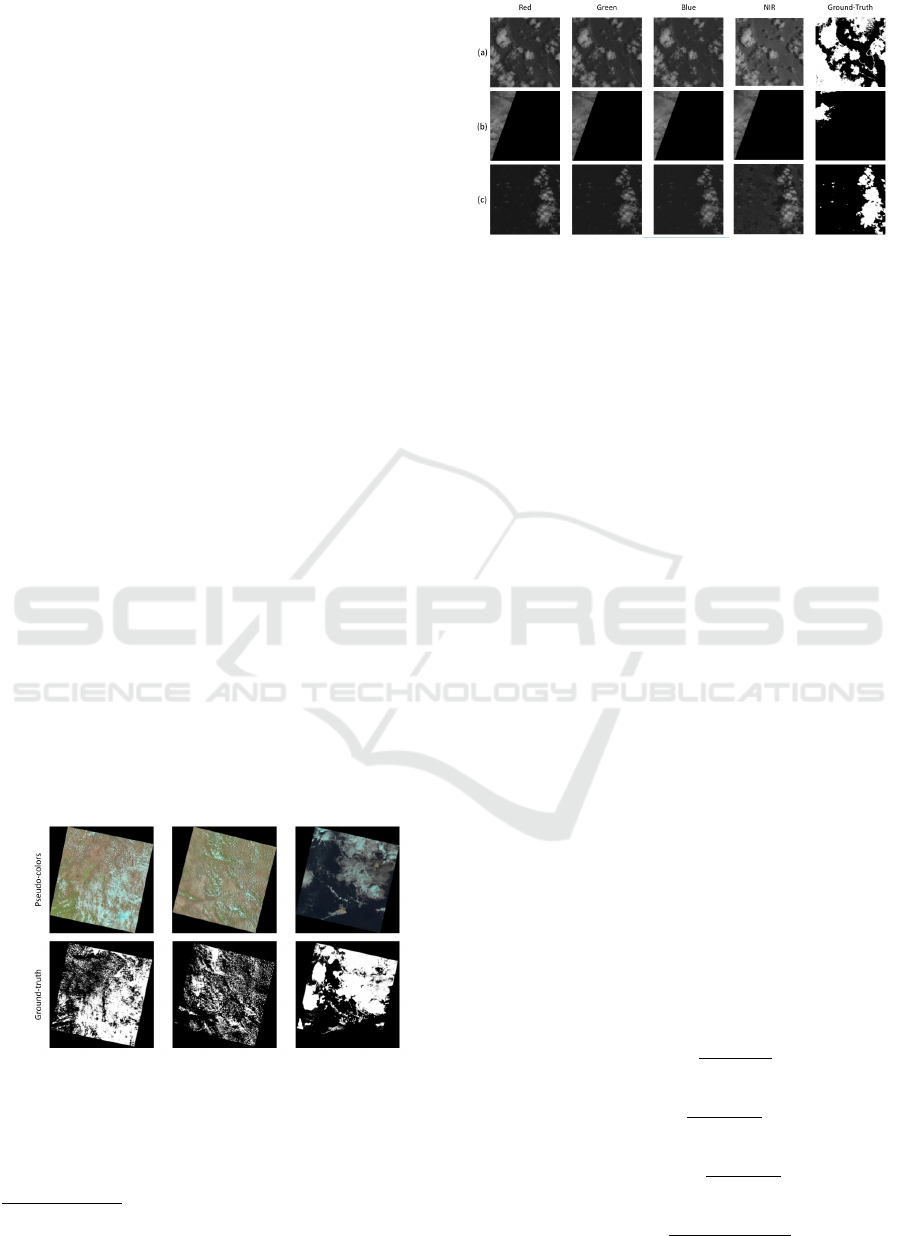

Figure 1 shows three examples of scenes (in pseudo-

colors) and their respective ground truths. Figure 2

shows three examples of patches used in the exper-

iments extracted from the scenes (Mohajerani et al.,

2018b; Mohajerani and Saeedi, 2019b).

Figure 1: Example of scenes from the 38-Cloud set obtained

from the Landsat 8. The ﬁrst row shows views of the images

in pseudo-colors, and the second row shows images of the

outlined clouds.

https://github.com/SorourMo/

38-Cloud-A-Cloud-Segmentation-Dataset

Figure 2: Example of three patches extracted from the

scenes. Each patch has four channels and its correspond-

ing ground truth with information about the clouds.

3.2 Experimental Setup

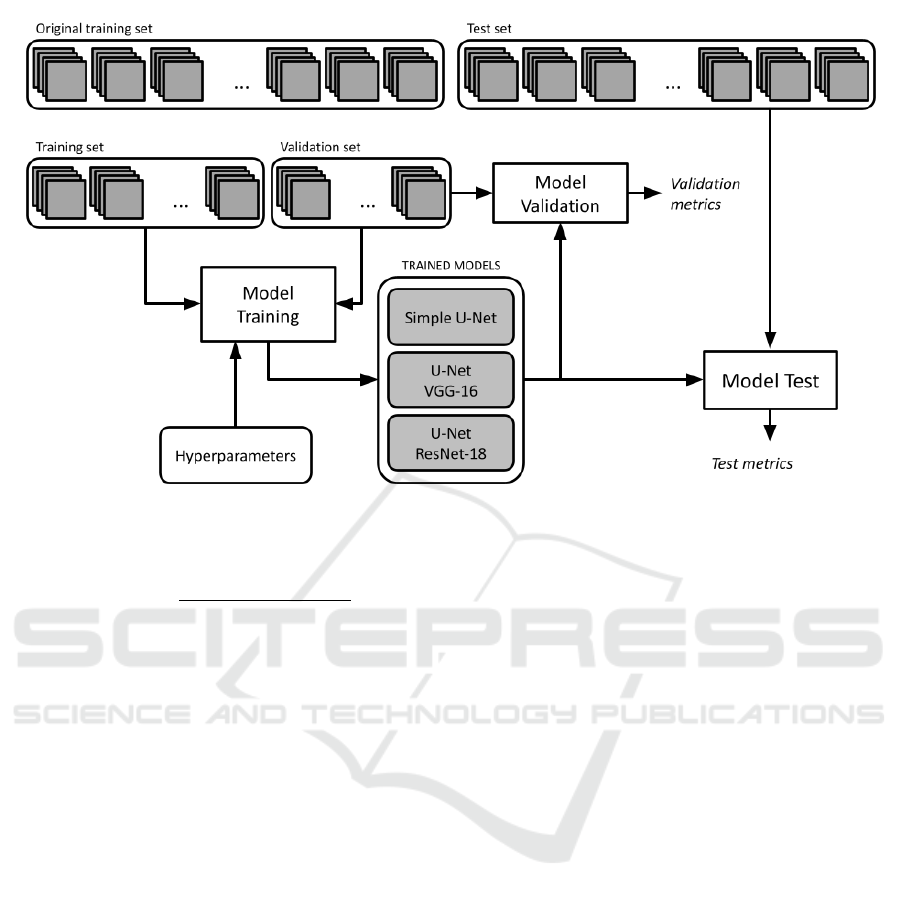

First, the training set was divided into 6,000 patches

for training and 2,400 patches for validation. In this

way, the test set provided by 38-Cloud remained un-

changed during the model training process.

For the experiments, three U-Net conﬁgurations

were evaluated: (i) U-Net with a simple backbone,

(ii) U-Net with a backbone based on VGG-16 (Si-

monyan and Zisserman, 2014), and (iii) with a back-

bone based on ResNet-18 (He et al., 2016). Simple U-

Net was trained from scratch and models with back-

bones based on VGG-16 and ResNet-18 were trained

by ﬁne-tuning pre-trained models with ImageNet. All

models were trained over 50 epochs and a mini-batch

with size 16. The optimizer used was Adam and the

cost function was cross-entropy. The learning rate for

the simple U-Net was 10

−2

and for the U-Net mod-

els with backbones based on VGG-16 and ResNet-

18, the value was 10

−6

, since they were trained using

ﬁne-tuning on pre-trained models. Figure 3 shows a

summary of the described experimental setup.

To evaluate the performance of our experiments

in the segmentation task, the following metrics were

used: Precision, Recall, Speciﬁcity, Jaccard, and Ac-

curacy. These metrics are based on the relationship

between different perspectives of true positives (TP),

true negatives (TN), false positives (FP), and false

negatives (FN). Equations 1, 2, 3, 4, and 5 present

the mentioned metrics.

Precision =

T P

T P + FP

(1)

Recall =

T P

T P + FN

(2)

Speci f icity =

T N

T N + FP

(3)

Jaccard =

T P

T P + FP + FN

(4)

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

454

Figure 3: Experimental setup of this work. The three models, the dataset splitting, and the evaluation of the results.

Accuracy =

T P + T N

T P + T N + FP + FN

(5)

The experiments were performed on PCs

equipped with a 3.0 GHz Core i5-4430 CPU and 32

GB of RAM. Two PCs have NVIDIA GTX 1080 ti

GPUs (11 GB memory) and one PC has an NVIDIA

Titan Xp GPU (12 GB memory). The experiments

were developed using the Python 3.8 programming

language and the NumPy and Matplotlib libraries

for numerical processing and visualization of im-

ages and data. The Scikit-learn library was used

to manipulate the set of images and analyze the

classiﬁcation results. The library used to implement

the deep neural network models was PyTorch 1.8 and

the pre-trained models of VGG-16 and ResNet-18

were obtained from the Torchvision 0.9 module. All

random number generation seeds were ﬁxed to ensure

reproducibility among the experiments.

4 RESULTS

With the execution of the experiments, we can quan-

titatively evaluate the results. For the validation set,

in terms of accuracy, the U-Net model with VGG-16

backbone obtained the highest result (98.01%). For

the same validation set, the Simple U-Net and U-Net

models with ResNet-18 backbone had 96.24% and

97.76% of accuracy, respectively.

For the test set, the Simple U-Net obtained better

results in the Recall, Jaccard, and Accuracy indexes

(84.23%, 74.48%, and 94.56%, respectively). For

Precision and Speciﬁcity indices, U-Net with VGG-

16 backbone obtained the best results (88.17% and

98.75%, respectively). Table 1 presents a summary of

the metrics evaluated in each of the models analyzed

in this work.

Figures 4, 5, and 6 present the semantic segmen-

tation for the same ﬁve patches of the validation set

considering Simple U-Net, U-Net (VGG-16), and U-

Net (ResNet-18), respectively, for purposes of com-

parison. In the ﬁrst row of ﬁgures, the segmentation

is overlapped over the pseudo-color image (the Red,

Green, and Blue channels were combined and con-

verted to grayscale). In the second row, each pixel

was colored according to the type of correct or incor-

rect classiﬁcation: green: true positive (TP); black:

true negative (TN); orange: false positive (FP); and

red: false negative (FN).

Finally, Figure 7 shows three complete images be-

longing to the test set. The ﬁrst two columns show

the pseudo-color image and the ground truth. The

other columns show the result of the segmentation

performed by the Simple U-Net, U-Net with VGG-

16 backbone, and U-Net with ResNet-18 backbone

models, respectively.

Evaluation of U-Net Backbones for Cloud Segmentation in Satellite Images

455

Table 1: summary of indexes evaluated in each analyzed model in the test set.

Model

Metrics

Precision Recall Speciﬁcity Jaccard Accuracy

Simple U-Net 86.98% 84.23% 96.96% 74.48% 94.56%

U-Net (VGG-16) 86.15% 58.55% 98.13% 52.63% 82.45%

U-Net (ResNet-18) 88.17% 58.28% 98.75% 51.19% 82.80%

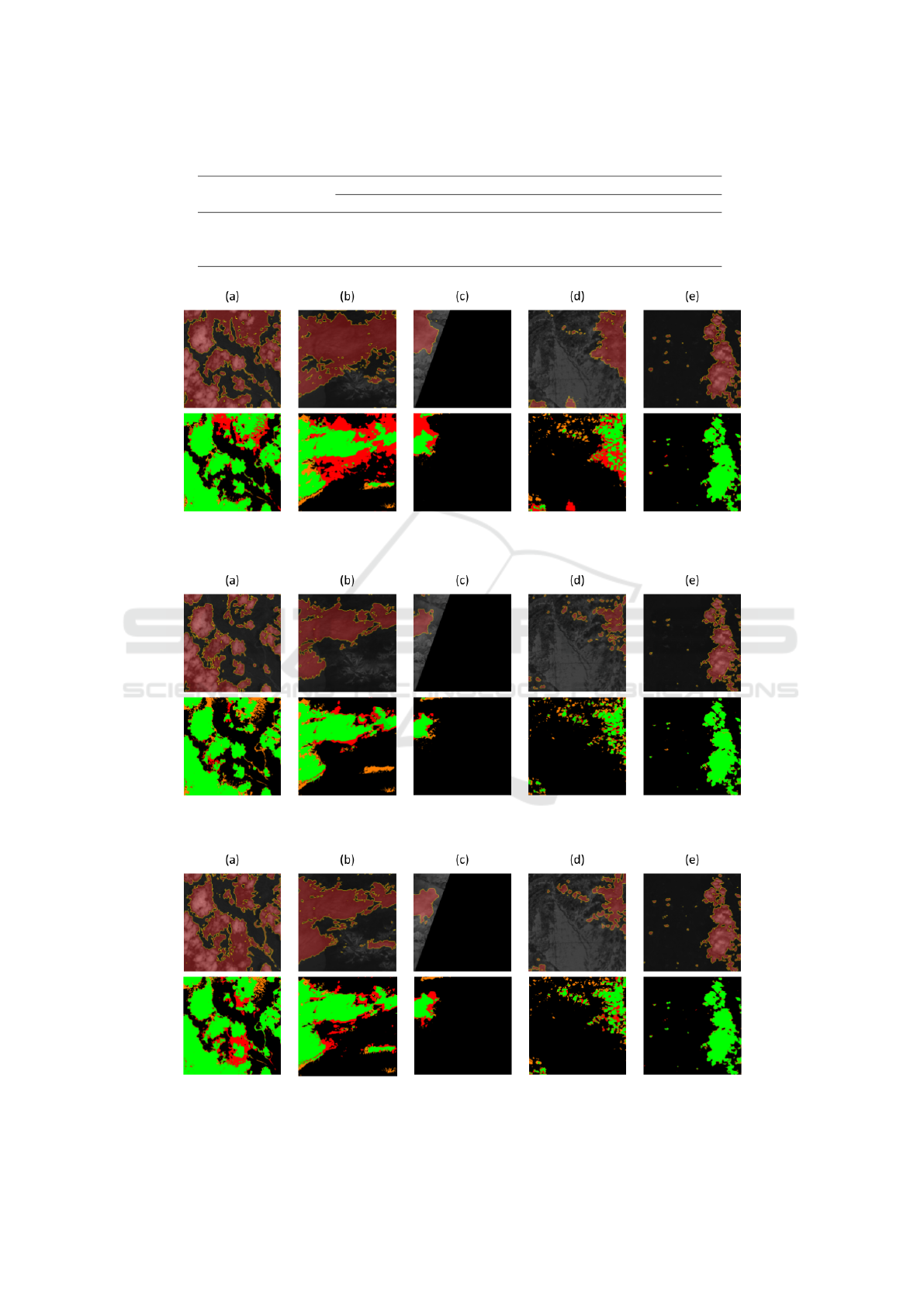

Figure 4: Segmentation results of ﬁve patches (a – e) using simple U-Net. The ﬁrst row shows the segmentation superimposed

on the original image (pseudo-colors). The second row shows a map with the evaluation of the segmentations.

Figure 5: Segmentation results of ﬁve patches (a – e) using U-Net (VGG-16). The ﬁrst row shows the segmentation superim-

posed on the original image (pseudo-colors). The second row shows a map with the evaluation of the segmentations.

Figure 6: Segmentation results of ﬁve patches (a – e) using U-Net (ResNet-18). The ﬁrst row shows the segmentation

superimposed on the original image (pseudo-colors). The second row shows a map with the evaluation of the segmentations.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

456

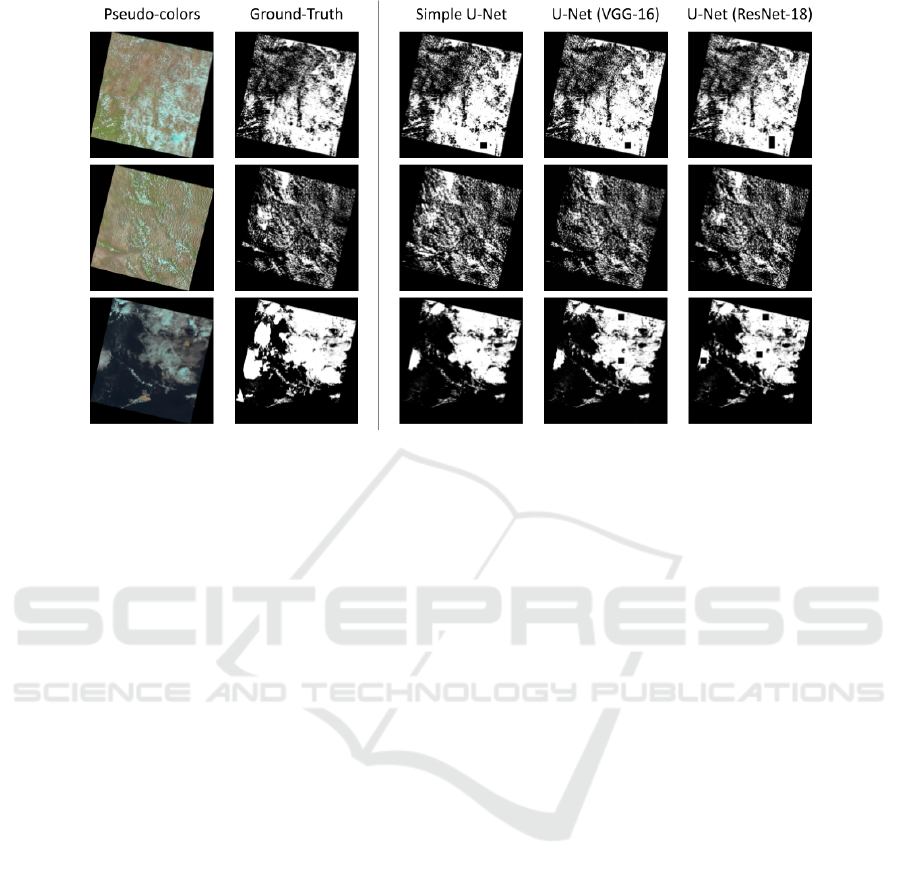

Figure 7: Segmentation result of three scenes extracted from the test set.

5 CONCLUSIONS

In this work, we presented the implementation and

comparison of three models based on deep neural net-

works for satellite image segmentation. The models

based on the U-Net architecture with different back-

bones: (i) a simple backbone with three contraction

blocks and three expansion blocks, (ii) a backbone

based on VGG-16 pre-trained with the ImageNet im-

age set, and (iii) a backbone based on ResNet-18 also

pre-trained with ImageNet. The models were tested

using the 38-Cloud image set.

The results indicate that the three implemented

and tested methods are capable of segmenting the

clouds in satellite images. Simple U-Net performed

better for the Recall, Jaccard, and Accuracy indices.

On the other hand, when we analyzed Precision and

Speciﬁcity, better results were noted for the model

with ResNet-18 backbone. As deep learning training

is related to empirical aspects (e.g., tuning hyperpa-

rameters and model selection), our contribution to this

work is to initiate an evaluation to ﬁnd the best model

based on deep learning for the segmentation of clouds

in satellite images.

5.1 Future Works

As future works, it is intended to: (i) test other mod-

els based on deep learning for cloud segmentation, (ii)

consider other metrics to evaluate the results, (iii) per-

form tests with other sets of images, and (iv) provide

hyperparameter optimization.

Subsequently, with robust results for the task in

question, it is expected to perform the cloud removal

task and the consequent image reconstruction in ap-

plications in precision agriculture also using tech-

niques based on deep learning. From these tasks, it is

possible to estimate more accurate agronomic indices

(e.g., water and nitrogen stress, sowing estimate, and

future harvest prediction) and thus enhance decision-

making in the agricultural sector.

ACKNOWLEDGEMENTS

Andr

e R. Backes gratefully acknowledges the ﬁnan-

cial support of CNPq (National Council for Scien-

tiﬁc and Technological Development, Brazil) (Grant

#307100/2021-9). This study was ﬁnanced in part by

the Coordenac¸

ao de Aperfeic¸oamento de Pessoal de

ıvel Superior - Brazil (CAPES) - Finance Code 001.

We gratefully acknowledge the support of NVIDIA

Corporation with the donation of the TITAN Xp GPU

used for this research. Laura G. M. Arakaki received

a scholarship from PIBIC/CNPq.

REFERENCES

Ciaparrone, G., Bardozzo, F., Priscoli, M. D., Kallewaard,

J. L., Zuluaga, M. R., and Tagliaferri, R. (2020). A

comparative analysis of multi-backbone mask r-cnn

for surgical tools detection. In 2020 International

Evaluation of U-Net Backbones for Cloud Segmentation in Satellite Images

457

Joint Conference on Neural Networks (IJCNN), pages

1–8. IEEE.

Eppenhof, K. A., Lafarge, M. W., Veta, M., and Pluim,

J. P. (2019). Progressively trained convolutional neu-

ral networks for deformable image registration. IEEE

Transactions on Medical Imaging, 39(5):1594–1604.

Francis, A., Sidiropoulos, P., and Muller, J.-P. (2019).

CloudFCN: Accurate and Robust Cloud Detection for

Satellite Imagery with Deep Learning. Remote Sens-

ing, 11(19):2312.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

learning. MIT press.

Guo, Y., Liu, Y., Oerlemans, A., Lao, S., Wu, S., and Lew,

M. S. (2016). Deep learning for visual understanding:

A review. Neurocomputing, 187:27–48.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

Ikeno, K., Fukuda, T., and Yabuki, N. (2021). An enhanced

3d model and generative adversarial network for au-

tomated generation of horizontal building mask im-

ages and cloudless aerial photographs. Advanced En-

gineering Informatics, 50:101380.

LeCun, Y., Bengio, Y., and Hinton, G. E. (2015). Deep

learning. Nature, 521(7553):436–444.

Li, X., Yang, X., Li, X., Lu, S., Ye, Y., and Ban, Y.

(2022). GCDB-UNet: A novel robust cloud detec-

tion approach for remote sensing images. Knowledge-

Based Systems, 238:107890.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Meraner, A., Ebel, P., Zhu, X. X., and Schmitt, M. (2020).

Cloud removal in sentinel-2 imagery using a deep

residual neural network and sar-optical data fusion.

ISPRS Journal of Photogrammetry and Remote Sens-

ing, 166:333–346.

Mohajerani, S., Krammer, T. A., and Saeedi, P. (2018a).

Cloud Detection Algorithm for Remote Sensing Im-

ages Using Fully Convolutional Neural Networks.

arXiv:1810.05782 [cs].

Mohajerani, S., Krammer, T. A., and Saeedi, P. (2018b).

Cloud detection algorithm for remote sensing im-

ages using fully convolutional neural networks. arXiv

preprint arXiv:1810.05782.

Mohajerani, S. and Saeedi, P. (2019a). Cloud-Net: An End-

To-End Cloud Detection Algorithm for Landsat 8 Im-

agery. In IGARSS 2019 - 2019 IEEE International

Geoscience and Remote Sensing Symposium, pages

1029–1032, Yokohama, Japan. IEEE.

Mohajerani, S. and Saeedi, P. (2019b). Cloud-net: An

end-to-end cloud detection algorithm for landsat 8 im-

agery. In IGARSS 2019-2019 IEEE International Geo-

science and Remote Sensing Symposium, pages 1029–

1032. IEEE.

Ponti, M. A., Ribeiro, L. S. F., Nazar

e, T. S., Bui, T.,

and Collomosse, J. (2017). Everything you wanted

to know about deep learning for computer vision but

were afraid to ask. In SIBGRAPI Tutorials, pages 17–

41. IEEE Computer Society.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Siddiqi, A. A. (2000). Challenge to Apollo: the Soviet

Union and the space race, 1945-1974, volume 4408.

US National Aeronautics & Space Administration.

Silva, L. H. F. P., J

unior, J. D. D., Mari, J. F., Escarpinati,

M. C., and Backes, A. R. (2022). Non-linear co-

registration in uavs’ images using deep learning. In

2022 35th SIBGRAPI Conference on Graphics, Pat-

terns and Images (SIBGRAPI), volume 1, pages 1–6.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Wang, C.-Y., Liao, H.-Y. M., Wu, Y.-H., Chen, P.-Y., Hsieh,

J.-W., and Yeh, I.-H. (2020). Cspnet: A new backbone

that can enhance learning capability of cnn. In Pro-

ceedings of the IEEE/CVF conference on computer

vision and pattern recognition workshops, pages 390–

391.

Whitﬁeld, S. J. (1996). The culture of the Cold War. JHU

Press.

Zhang, R., Du, L., Xiao, Q., and Liu, J. (2020). Comparison

of backbones for semantic segmentation network. In

Journal of Physics: Conference Series, volume 1544,

page 012196. IOP Publishing.

Zhu, Z., Wang, S., and Woodcock, C. E. (2015). Improve-

ment and expansion of the fmask algorithm: Cloud,

cloud shadow, and snow detection for landsats 4–7,

8, and sentinel 2 images. Remote sensing of Environ-

ment, 159:269–277.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

458
