A Comparative Study on Vision Transformers in Remote Sensing

Building Extraction

Georgios-Fotios Angelis, Armando Domi, Alexandros Zamichos, Maria Tsourma, Ioannis Manakos,

Anastasios Drosou and Dimitrios Tzovaras

Information and Technologies Institute, Centre for Research and Technology Hellas,

Keywords:

Remote Sensing, Transformers, Building, Extraction, Segmentation.

Abstract:

Data visualization has received great attention in the last few years and gives valuable assets for better under-

standing and extracting information from data. More speciﬁcally, in Geospatial data, visualization includes

information about the location, the geometric shape of elements, and the exact position of elements that can

lead in enhances downstream applications such as damage detection, building energy consumption estimation,

urban planning and change detection. Extracting building footprints from remote sensing (RS) imagery can

help in visualizing damaged buildings and separate them form terrestrial objects. Considering this, the cur-

rent manuscript provides a detailed comparison and a new benchmark for remote sensing building extraction.

Experiments are conducted in three publicly available datasets aiming to evaluate accuracy and performance

of the compared Transformer-based architectures. MiTNet and other ﬁve transformers architectures are intro-

duced, namely DeepViTUNet, DeepViTUNet++, Coordformer, PoolFormer, EfﬁcientFormer. In these choices

we study design adjustments in order to obtain the best trade off between computational cost and performance.

Experimental ﬁndings demonstrate that MitNet, which learns features in a hierarchical manner can be estab-

lished as a new benchmark.

1 INTRODUCTION

Effective information visualiztion from RS imagery

is a vital and useful step to applications, such as ur-

ban planning, damage detection and land use manage-

ment. The acquisition of buildings footprints from re-

mote sensing images was an open issue for discussion

for researchers, but nowadays it can be considered

as a mature research. Although, the recent advance-

ments in artiﬁcial intelligence have given accurate so-

lutions in many computer vision tasks, like building

extraction from RS imagery, many challenges persist.

In the last few years, Transformers (Vaswani et al.

(2017)) have demonstrated exceptional predictive per-

formance in a large variety of natural language pro-

cessing tasks, (Liu et al. (2020), Zhang et al. (2021)).

Their performance results, lead research community

to apply them in computer vision ((Liu et al., 2021)).

Currently, they managed to stand as a state of the

art solution image segmentation with several works

proposing Transformer-based models as a solution.

Moreover, this work (Xie et al. (2021)) introduced

SegFormer, which utilized a hierarchical Transformer

as an encoder and lightweight Multi Layer Percep-

trons (MLPs) in the decoder part. Another interesting

model presented in (Chen et al. (2021a)) where UNet

was combined with Vision Transformer for medical

image segmentation. The proposed TransUNet com-

bined the individual advantages of the two networks

and achieved superior results. Another approach is

Trans4pass (Zhang et al. (2022)), that was originally

proposed for panoptic segmentation. The authors in-

troduce a Deformable Patch Embedding (DPE) which

is applied both on the encoder and the decoder of the

architecture.

Except their ability in understanding geometric

object in scenes, Transformers have successfully ap-

plied in RS building extraction task. In this work,

(Chen et al. (2021b)) the authors employed a Sparse

token transformer, referred as STTNet for building

extraction. Instead of using convolutional layers they

utilized a spatial and channel transformer to receive

a global receptive ﬁeld. Additionally, they generated

semantic sparse tokens in the low-resolution feature

map to make their architecture computationally efﬁ-

cient. Another method that has achieved high seg-

222

Angelis, G., Domi, A., Zamichos, A., Tsourma, M., Manakos, I., Drosou, A. and Tzovaras, D.

A Comparative Study on Vision Transformers in Remote Sensing Building Extraction.

DOI: 10.5220/0011787800003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 3: IVAPP, pages

222-229

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

mentation accuracy was (Wang et al. (2022a)). The

authors designed a model that utilized as backbone

Swin Transformer to extract context information and

a novel model as a decoder DCFAM that was re-

sponsible to produce the ﬁnal segmentation mask.

Hatamizadeh et al. (2022) proposed UNetFormer, a

model that was based on (Wang et al. (2022b)) for

RS building footprint extraction. The authors in their

proposed model they replaced the convolution layers

in the UNet decoder with Transformer blocks. They

also utilized Global-local attention to preserve and en-

hance the capturing of local and global information.

Considering their differences on experimental set-

tings and dedicated vision tasks, it is necessary to

categorize and evaluate the existing architectures un-

der the same scenarios. Several comparative stud-

ies (Li et al. (2021); Han et al. (2022)) tried to ad-

dress this issue aiming to provide extensive analy-

sis and fair comparisons among domains, tasks, and

performance. Focusing on building footprint extrac-

tion from RS imagery, which is tackled as seman-

tic segmentation task, handful of publications exist

that performed review, evaluated and summarized the

current status of the literature (Han et al. (2022);

Sariturk et al. (2022)). However, to the best of

our knowledge, a study that evaluates the ability of

state of the art Transformer-based architectures to ex-

tract building footprints under the same settings is

missing. This manuscript aims to overcome this is-

sue, presenting an extensive comparison of different

Transformer-based models on three aerial imagery

datasets (Inria Aerial Image Labeling dataset, WHU

building dataset, WHU Satellite Dataset I (Global

Cities)). Furthermore, the state of the art literature

baselines are modiﬁed and several other Transformer-

based variants are introduced (DeepViTUNet, Deep-

ViTUNet++, Coordformer, MiTNet, PoolFormer, Ef-

ﬁcientFormer) to explore the learning ability of Vi-

sion Transformers in RS imagery. The aforemen-

tioned modiﬁcations are based on two principles, ﬁrst

learning efﬁciently through hierarchical structure and

secondly replacing the canonical self attention. Ex-

perimental ﬁndings show that hierarchical structure

can learn from structured datasets efﬁciently, using

a small number of network parameters. Considering

these, the main contributions of this paper are the fol-

lowing:

• Extensive comparison and analysis of state-of-

the-art Transformer based in buliding footprint

extraction task.

• MitNet, a lightweight new benchmark approach

that presents a trade-off between speed and accu-

racy.

• Modiﬁcations on the current Transformer models

are being performed and ﬁve new architectures are

being presented to handle building footprint ex-

traction task.

• Evaluation in three publicly available datasets,

that represent diverse conditions and settings.

The rest of the paper is organized as follows. First,

MiTNet and the evaluated Transformer architectures

are presented in section 2. The Section 3 presents the

data of study and the experimental settings. The re-

sults of the building extraction from aerial imagery

are presented and discussed in Section 4. The con-

cluding remarks and future work are given in Section

2 VISION TRANSFORMER

MODELS

In this section before the models utilized for evalu-

ation are introduced, a brief formulation on Vision

Transformers is presented.

2.1 Preliminaries on Vision

Transformers

Dosovitskiy et al. (2020), originally presented Vision

Transformer (ViT), aiming to replace completely con-

volutions with Transformer blocks for image recogni-

tion task. The methodology of Vision Transformer

is based on ﬁve steps. First of all, since the orig-

inal Transformer architecture Vaswani et al. (2017)

is taking 1D sequences as an input, the input image

x ∈R

H×W×C

is converted into a sequence of ﬂattened

patches x ∈ R

N×P

. The terms (H,W ) correspond

to the height and the width of the original image, C

to the channels, (P,P) the width and height of the re-

sulting image patch and ﬁnally N = HW /P

the num-

ber of patches that are created. Afterwards class to-

kens and positional encodings for each sequence are

extracted with the methodology proposed in (Devlin

et al. (2018)). Then positional encodings that are cre-

ated to are added to the patch embeddings in order

to hold positional information for each patch. The

created embedding vector is utilized as input in the

Transformer encoder. The main part in the encoder is

the self-attention layer, that is responsible for comput-

ing the similarities between elements in the input, and

more speciﬁcally between queries and keys. The self-

attention is described from the following equation:

Attention(Q, K,V ) = so f tmax



√



V. (1)

A Comparative Study on Vision Transformers in Remote Sensing Building Extraction

223

Figure 1: MiTNet complete architecture.

Where Q, K, V represent queries, keys and values

that in the multi-head attention have the same dimen-

sions N ×C, and N describes the length of the input

sequence that is the product of the input patch width

and height, N = H ×W . Except of the Multi-Head

Self Attention (MHSA) layers, the Transformer en-

coder is composed of Feed forward networks (FFN)

and Layer Normalization (LN) and residual connec-

tions.

2.2 MitNet: A Lightweight Approach

One of the key contributions of this manuscript is

MiTNet, a network that presents a trade-off between

performance and accuracy. As it can be depicted in

Figure 1, MiTNet is composed of two parts the en-

coder and the decoder. The encoder is a the Hierar-

chical Transformer Encoder, originally presented in

(Xie et al. (2021)). The transformer blocks are uti-

lized, in our case. After each downsample layer the

resolution of the input representation is reduced. In

the downsampling instead of using regular convolu-

tional layers, we employ linear layers with depthwise

convolutions. Given an input image with dimensions

H ×W ×3, the input resolution after the downsam-

pling process is

i+1

×W2

i+1

×C

with i ∈{1, 2, 3,4}.

By this the encoder is able to produce multi-level fea-

tures similar to CNNs. Furthermore another two core

elements of the encoder are the efﬁcient self-attention

that replaces the regular self-attention introduced in

2.1 and the Mix-FFN. Regarding the ﬁrst part, its core

difference with vanilla self-attention is that utilizes

the input sequence length reduction methodology that

was applied in (Wang et al. (2021)). As a result the

computational complexity is reduced from O(N

) to

) where K is manually selected. For the FFN, a

depthwise convolutional layer with 3 ×3 kernel and

zero padding and GeLU as activation function to mix

it with FFN network, aiming to enhance the posi-

tional information that is captured in the Transformer

blocks.

For the decoder part, an Feature Pyramid Network

(FPN) decoder is utilized that was proposed for object

detection task (Lin et al. (2017)). The decoder is com-

posed of four convolutional parts, while also an 1 ×1

convolutional layer is applied before each downsam-

pled transformer block is fed into the corresponding

FPN part. In the current architecture layer normaliza-

tion is added in this blocks These 1×1 lateral connec-

tions provide strong semantic features in each block

directly from the encoder. After each FPN block the

output representation is fed into an upsampling layer

and then is added with the output of the lateral con-

nection. Each FPN block is composed of 3 ×3 convo-

lutional layer with zero padding and ReLU as activa-

tion function. After the fourth FPN block the output

representation is passed into the segmentation head,

which is a 1 ×1 convolutional layer that produces the

ﬁnal segmentation mask.

2.3 Revisiting Existing Vision

Transformers

Except MiTNet ﬁve other architectures are built in or-

der to provide a detailed evaluation. In this subsection

the structure and characteristics are described.

• Metaformer: Metaformer is general architecture

abstracted from Transformer by not specifying the

token mixer (Yu et al. (2021)).The Metaformer

architecture is considered Transformer/ MLP-like

models depending of using attention/spatial MLP

as the token mixer. The authors propose to re-

place the attention module in Transformers with a

simple pooling operator as token mixer and intro-

ducing a new model named PoolFormer. In this

manuscript, the PoolFormer-S12 model is used

as feature extractor equipped with FPN decoder.

This model is designed in order to compare with

an architecture that utilizes also hierarchical struc-

ture, as MiTNet, but without using self-attention

modules.

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

224

• EfﬁcientFormer: In this work (Li et al. (2022)),

the authors proposed a new dimension-consistent

design paradigm for vision transformers in or-

der to achieve low latency on mobile devices

while maintaining high performance. They sug-

gest a simple but efﬁcient latency-driven slim-

ming method to create a new family of models

called EfﬁcientFormers. The proposed Efﬁcient-

Former comprises patch embedding and a stack of

meta transformer blocks, where each block con-

tains different token mixer followed by a MLP

block. The network has four stages, each serves

as an embedding operation that maps the embed-

ding dimensions and downsamples token length.

The EfﬁcientFormer-L1 is selected as backbone

in conjunction with FPN decoder.

• DeepViTUNet: In this study, a variation of Tran-

sUNet is designed that uses DeepViT (Zhou et al.

(2021)) in the bottleneck part of the UNet model.

The proposed architecture employs deeper ViT

modules, to increase the depth of the architec-

ture. Moreover, another difference between the

two TransUNet and DeepViTUNet, lies in the

Transformer block, where DeepViT replaces the

self-attention module with re-attention, to address

attention collapse. For the DeepViTUNet also the

same Base-16 heads architecture is employed.

• DeepViTUNet++: Based on the combination of

UNet with Transformers, the latest modiﬁcation

of UNet series is applied, namely UNet++ (Zhou

et al. (2018)). Based on this, a new architecture

is proposed in this manuscript DeepViTUNet++.

It follows the same encoder – decoder structure

as its predecessors but its main difference is the

redesigned path skip-ways that combine the fea-

ture representations in the two subnetworks. In

that case, the architecture utilizes a dense con-

volution block whose number of layers depends

on the pyramid level. Similar to the TransUNet

and DeepViTUNet, the features from the Deep-

ViT serve as a second input to the decoder.

• Coordformer: The core of this model was based

on the UNetFormer, but the global-local attention

was replaced with coordinate attention, initially

proposed in (Hou et al. (2021)). Coordinate at-

tention, was utilized to reduce computational re-

sources, aiming at creating an attention mecha-

nism suitable for devices with low computational

power. The authors proposed to reshape chan-

nel attention by performing two separate 1D cal-

culations and then aggregating the produced fea-

tures into spatial dimension. The authors also

proved that coordinate attention is also a proper

candidate for several visual tasks. In the Coord-

former model, we replace the global-local atten-

tion mechanisms inside the Transformer modules

with coordinate attention, to create a more com-

putationally efﬁcient architecture.

3 EXPERIMENTAL SETTINGS

3.1 Dataset

In order to evaluate the aforementioned architectures,

three publicly available datasets are utilized.

1. Inria Aerial Image Labeling (INRIA) dataset

(Maggiori et al. (2017)) is a widely used and chal-

lenging database that contains urban settlements

over ﬁve different cities. The spatial resolution is

0.3 m and the complete dataset covers 81 km

for

each region. The ﬁnal publicly available INRIA

dataset includes 36 ortho-rectiﬁed images for each

location, sized 5000 ×5000 pixels. Since there

isn’t a complete test set released, the training set

is divided into a training and a test set with the

ratio of 8:2.

2. WHU building dataset (Ji et al. (2018)) contains

both aerial and satellite imagery with 0.075m spa-

tial resolution and includes countryside, residen-

tial, culture, and industrial areas with more than

187000 building footprints. The dataset is com-

posed of 8188 extracted tiles, 4736 utilized for

training, 1036 for validation and 2416 for testing.

3. Moreover a partition of WHU building dataset

is utilized, the WHU Satellite Dataset I (Global

Cities). It contains 204 satellite images with mul-

tiple spatial resolutions collected from various

satellite sources. The 75% of the total dataset

samples is utilized for training while the rest 25%

for testing purposes.

3.2 Experimental Setup

In this subsection, the preprocessing steps are de-

scribed and the methodology utilized for training and

testing is presented. For the INRIA dataset, since the

original database includes images with high resolu-

tion, the included ﬁne resolution images were divided

into 512 ×512 overlapping patches to reduce com-

plexity and the stride was set to 32. For the WHU

and Global cities datasets the input image resolution

remained the same at 512 ×512. Afterwards all the

three datasets were augmented by randomly rotating,

resizing, contrasting, transposing and horizontal axis

ﬂipping. Data augmentation helps in building a strong

A Comparative Study on Vision Transformers in Remote Sensing Building Extraction

225

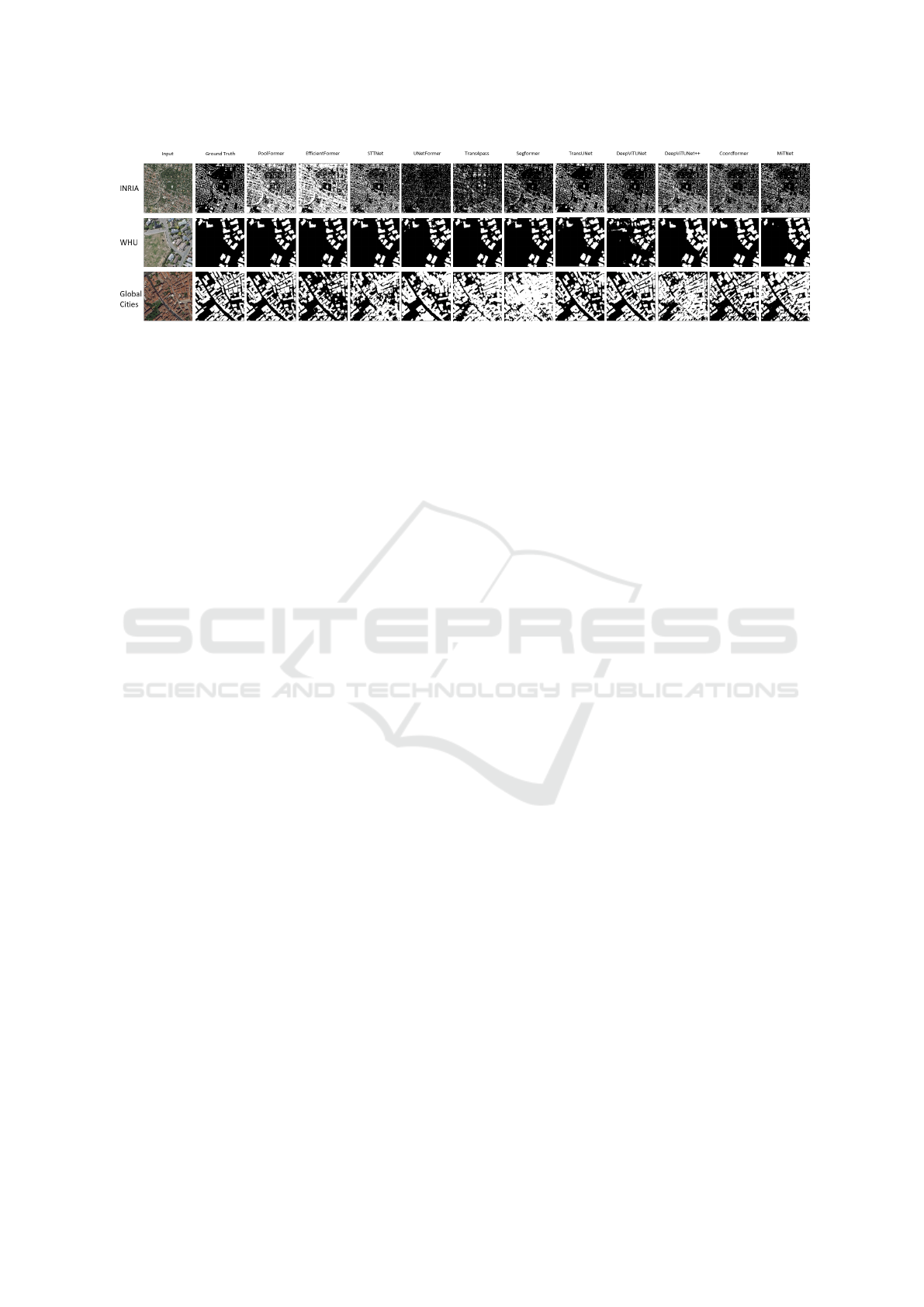

Figure 2: Qualitative comparison between Tranformer-based models in a single image in INRIA (ﬁrst row) WHU (second

row) and Global Cities (third row) datasets.

model, which is less dependent on input image orien-

tation. This is very helpful for our model to generalize

to different regions other than regions in training set.

All of the training procedures were implemented

using PyTorch on a single NVIDIA RTX 3090 and the

speciﬁc gradient descent variant used for the training

of the models was the Adam optimizer with learning

rate initial value of 1e−4 while the objective func-

tion that were utilized in all the cases except Coord-

former, UNetFormer and STTNet, was cross entropy

loss. In these three models a combination of cross

entropy with dice loss (Jadon (2020)) was employed.

Furthermore, in order to quantitatively evaluate the

effectiveness of the proposed method, three different

widely used metrics were employed, the overall ac-

curacy (OA), mean Intersection over Union (mIoU ),

and F1-score (F1).

4 RESULTS

In this section, we present the numerical results of the

experimental evaluation of the eleven aforementioned

Transformer-based networks over three building ex-

traction datasets, with the symbol ⋆ the architectures

that are introduced in this manuscript are denoted. In

Table 1, the accuracy results from all three datasets

are illustrated.

Considering INRIA dataset, it can be distin-

guished that STTNet and TransUNet stand among the

top performing models, in the mIoU metric, outper-

forming all the other architectures and achieving sig-

niﬁcant better value. Speciﬁcally for the STTNet the

introduced sparse token sampler seems to enhance

the prediction accuracy, with a relatively small num-

ber of parameters. Regarding the inference results in

WHU dataset, it can be noticed that all the compared

architectures are managing to extract buildings from

remote sensing imagery more accurately. One obvi-

ous reason is that the WHU is a dataset that includes

more training instances from the other two, that helps

models to learn to segment objects efﬁciently. More-

over, comparing to the INRIA dataset, WHU includes

smaller spatial resolution, where visual objects are

more clearly described and as a consequence it affects

positively the performance of the evaluated models.

Regarding the prediction accuracy, it can be depicted

that MiTNet presents the best results considering OA

and mIoU metrics. STTNet maintains its accuracy

while TransUNet which has attained decent results

in the INRIA dataset, presents predictive accuracy

degradation in WHU dataset. Moreover, architec-

tures with hierarchical Transformers structure (Pool-

Former, EfﬁcientFormer, MiTNet) capture better sim-

ple low-level visual information and for this reason

they manage to perform better in WHU dataset. Ad-

ditionally, lower scale models like MiTNet can pro-

duce features more directly and extract more efﬁ-

ciently buidling masks. TransUNet manages to ob-

tain better results in datasets with a larger spatial res-

olution, as it can operate better low level informa-

tion. In overall, we can conclude that MiTNet outper-

forms all other approaches in two out of three met-

rics. More speciﬁcally, it reaches 93.27 on the mIoU

metric outperforming all other methods. Additionally,

the Global Cities dataset, consists of a limited number

of training examples and spatial resolution similar to

INRIA, which explains the lower predictive perfor-

mance. Again, STTNet and TransUNet are the top

performing approaches in all three metrics, and more

speciﬁcally TransUNet is achieving the best results in

all three metrics.

Further insights are provided from Figure 2 were

inference results from a single image on each dataset

are illustrated. The ﬁrst two parts of each row of

the image grid represent the input and the ground

truth image, while the rest of them depict the pre-

dictions from the evaluated architectures. In the IN-

RIA dataset, TransUNet achieves the best prediction

results compared to all others. It captures the exis-

tence of buildings, manages to decouple them from

impervious surfaces and roads. Additionally, it pro-

duces an accurate ﬁnal result when it has to handle

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

226

Table 1: Results of Transformer-based models in all three datasets.

Models Params (M) INRIA WHU building Global Cities

OA mIoU F1-score OA mIoU F1-score OA mIoU F1-score

PoolFormer ⋆ 13.2 93.03 70.75 80.93 98.28 91.89 95.66 86.49 70.30 81.84

EfﬁcientFormer ⋆ 13.2 90.98 69.03 79.80 98.37 92.30 95.90 86.54 70.61 82.10

STTNet 18.8 95.54 84.44 91.21 98.52 92.96 95.69 87.14 71.72 82.91

UNetFormer 11.7 94.05 74.73 84.19 95.98 92.45 98.38 87.95 73.62 84.31

Trans4pass 39.7 93.32 70.77 80.89 98.00 90.07 95.00 86.25 70.12 81.73

Segformer 13.6 87.61 57.65 68.59 91.57 85.09 96.41 84.87 68.46 80.58

TransUNet 21.5 95.88 84.82 91.03 91.09 71.57 82.05 88.49 74.55

DeepViTUNet ⋆ 20.1 91.45 64.92 75.63 83.29 58.99 71.63 88.09 74.14 84.70

DeepViTUNet++ ⋆ 90.9 91.18 63.24 73.91 97.83 89.97 94.55 86.74 70.55 82.01

Coordformer ⋆ 11.5 93.86 77.04 86.08 97.62 89.21 94.10 87.65 72.91 83.80

MiTNet ⋆ 15.0 91.33 65.75 76.51 98.60 93.27 96.44 87.02 71.76 82.96

Symbol ⋆ refers to the architectures that are introduced in this manuscript

Figure 3: Accuracy - GFLOPS comparison for all the evaluated architectures on all three datasets. The legend on the left

depicts the symbol that describes each evaluated architecture and the color refers to the dataset.

multiple tiles from a very high resolution image, re-

turning a reconstructed mask without artifacts. Fur-

thermore, the DeepViTUNet and MitNet also man-

age to produce better segmentation masks, especially

compared to the RS literature baselines STTNet and

UNetFormer, where the ﬁrst one struggles to sepa-

rate buildings from surfaces. For the WHU dataset,

Coordformer, UNetFormer and STTNet produce seg-

mentation maps more closely to the ground truth.

They manage to predict segmentation masks with

ﬁner details while the building boundaries in a de-

cent way. For the Global cities dataset TransUNet,

DeepViTUNet and UNetFormer they are more sensi-

tive to the context of the image and they predict seg-

ment buildings more accurately. However, all these

three approaches face difﬁculty to generalize in the

diverse conditions. In overall we can conclude that

the lower spatial resolution enhances predictive per-

formance and helps all the evaluated models to extract

building segments.

For a real-time urban application to be feasible,

metrics such as complexity, memory and speed are

crucial. The performance of the eleven Transformer-

based networks is presented in terms of the compu-

tation complexity measured in GFLOPs (G), the in-

ference speed measured by frames per second (FPS),

as well as the memory footprint measured with

megabytes (MB). The inference speed is measured

with input size of 512 × 512 on a single NVIDIA

GTX 3090. The comparison results are presented

in Table 2. The top performing models in terms of

speed are Coordformer, UNetFormer, Segformer and

A Comparative Study on Vision Transformers in Remote Sensing Building Extraction

227

Table 2: Performance Comparison of Transformer-based models.

Models Complexity (G) (↓) Memory (Mb) (↓) Speed (FPS) (↑)

PoolFormer ⋆ 35.52 501.62 10.75

EfﬁcientFormer ⋆ 28.38 580.95 10.92

STTNet 100.9 1721.96 30.70

UNetFormer 23.38 386.19 118.76

Trans4pass 75.72 2075.61 12.50

Segformer 11.10 270.43 102.04

TransUNet 13.9 113.07 10.02

DeepViTUNet ⋆ 9.24 97.56 11.73

DeepViTUNet++ ⋆ 61.54 1131.91 22.16

Coordformer ⋆ 22.52 345.39 136.05

MiTNet ⋆ 3.56 211.62 101.11

Symbol ⋆ refers to the architectures that are introduced in this manuscript

MiTNet. The ﬁrst two models have a comparable

inference speed, Coordformer achieves 136.05 FPS

and UNetFormer achieves 118.76 FPS. In compari-

son with the STTNet, Coordformer is approximately

5 times faster and UNetFormer is approximately 4

times faster. In terms of computational complexity,

MiTNet is the more efﬁcient approach with signiﬁ-

cant difference from the second best DeepViTUNet,

while it manages to surpass STTNet by 33 times.

Summarizing the experimental results from all

the three datasets, and observing Figure 3, it can

be concluded that MiTNet presents the best trade-

off between performance and accuracy, as it presents

decent levels of accuracy, with the smaller num-

ber of GFLOPS. For instance, in INRIA and Global

cities datasets, it can be observed that except MiT-

Net, all the other top-performing models have more

than 25 GFLOPS. Nevertheless, after 25 GFLOPs

the improvement in accuracy of the models is around

1 − 2%, whereas the increase in computation com-

plexity is signiﬁcantly large. However, in WHU

Building dataset, it outperforms all other approaches,

while it is the most efﬁcient architecture in terms of

GFLOPS, with a signiﬁcant difference from the sec-

ond best. Apart from this, we can also observe that

STTNet presents the most stable and accurate perfor-

mance in all three datasets but with the bigger num-

ber of GFLOPs. Furthermore, it can be observed that

TransUnet presents the second best predictive perfor-

mance. Especially in comparison with all the Trans-

former - UNet variants, it can be claimed that Vi-

sion Transformer helps more effectively the model

to extract buildings. However in all Transformer -

UNet variants we can notice big deviations in accu-

racy results between different datasets. This obser-

vation raises concerns about the ability of the vanilla

Vision Transformer to be robust solution in Remote

Sensing imagery.

5 CONCLUSION

This paper investigated Vision Transformers in build-

ing footprint extraction from remote sensing imagery

task, by performing analytical comparison between

eleven different segmentation architectures and pro-

posed a new benchmark model, MiTNet. All dif-

ferent architectures were trained and tested on three

different publicly available datasets, aiming to eval-

uate the predictive performance in different scenar-

ios and cities. MiTNet managed to present the best

trade-off between speed and accuracy, and could be

more suitable for practical applications. Additionally,

is the top-performing approach in one out of three

datasets. Moreover, ﬁve other Vision Transformer

building footprint mask extraction models were in-

troduced, where modiﬁcations on their structure were

employed, aiming to monitor the effects predictive

performance and computational efﬁciency. Future

steps are focused on introducing an architecture that

is entirely relied on Transformers aiming to exploit

their properties on learning effectively low and high

level features in computationally efﬁcient manner.

ACKNOWLEDGEMENTS

This research was supported by grants from Hori-

zon 2020, the European Union’s Programmes for Re-

search and Innovation under grant agreement No.

870373-SnapEarth, No. 101037648-Socio-Bee.

REFERENCES

Chen, J., Lu, Y., Yu, Q., Luo, X., Adeli, E., Wang, Y., Lu,

L., Yuille, A. L., and Zhou, Y. (2021a). Transunet:

Transformers make strong encoders for medical image

segmentation. arXiv preprint arXiv:2102.04306.

IVAPP 2023 - 14th International Conference on Information Visualization Theory and Applications

228

Chen, K., Zou, Z., and Shi, Z. (2021b). Building extraction

from remote sensing images with sparse token trans-

formers. Remote Sensing, 13(21):4441.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Minderer,

M., Heigold, G., Gelly, S., et al. (2020). An image is

worth 16x16 words: Transformers for image recogni-

tion at scale. arXiv preprint arXiv:2010.11929.

Han, K., Wang, Y., Chen, H., Chen, X., Guo, J., Liu, Z.,

Tang, Y., Xiao, A., Xu, C., Xu, Y., Yang, Z., Zhang, Y.,

and Tao, D. (2022). A survey on vision transformer.

IEEE Transactions on Pattern Analysis and Machine

Intelligence.

Hatamizadeh, A., Xu, Z., Yang, D., Li, W., Roth, H.,

and Xu, D. (2022). Unetformer: A uniﬁed vi-

sion transformer model and pre-training framework

for 3d medical image segmentation. arXiv preprint

arXiv:2204.00631.

Hou, Q., Zhou, D., and Feng, J. (2021). Coordinate atten-

tion for efﬁcient mobile network design. In Proceed-

ings of the IEEE/CVF conference on computer vision

and pattern recognition, pages 13713–13722.

Jadon, S. (2020). A survey of loss functions for semantic

segmentation. In 2020 IEEE Conference on Compu-

tational Intelligence in Bioinformatics and Computa-

tional Biology (CIBCB), pages 1–7. IEEE.

Ji, S., Wei, S., and Lu, M. (2018). Fully convolu-

tional networks for multisource building extraction

from an open aerial and satellite imagery data set.

IEEE Transactions on Geoscience and Remote Sens-

ing, 57(1):574–586.

Li, C., Yang, J., Zhang, P., Gao, M., Xiao, B., Dai, X., Yuan,

L., and Gao, J. (2021). Efﬁcient self-supervised vi-

sion transformers for representation learning. arXiv

preprint arXiv:2106.09785.

Li, Y., Yuan, G., Wen, Y., Hu, J., Evangelidis, G., Tulyakov,

S., Wang, Y., and Ren, J. (2022). Efﬁcientformer: Vi-

sion transformers at mobilenet speed.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Liu, X., Duh, K., Liu, L., and Gao, J. (2020). Very deep

transformers for neural machine translation. arXiv

preprint arXiv:2008.07772.

Liu, Y., Zhang, Y., Wang, Y., Hou, F., Yuan, J., Tian,

J., Zhang, Y., Shi, Z., Fan, J., and He, Z. (2021).

A survey of visual transformers. arXiv preprint

arXiv:2111.06091.

Maggiori, E., Tarabalka, Y., Charpiat, G., and Alliez, P.

(2017). Can semantic labeling methods generalize

to any city? the inria aerial image labeling bench-

mark. In 2017 IEEE International Geoscience and

Remote Sensing Symposium (IGARSS), pages 3226–

3229. IEEE.

Sariturk, B., Seker, D. Z., Ozturk, O., and Bayram, B.

(2022). Performance evaluation of shallow and deep

cnn architectures on building segmentation from high-

resolution images. Earth Science Informatics, pages

1–23.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L. u., and Polosukhin,

I. (2017). Attention is all you need. In Guyon,

I., Luxburg, U. V., Bengio, S., Wallach, H., Fer-

gus, R., Vishwanathan, S., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 30. Curran Associates, Inc.

Wang, L., Li, R., Duan, C., Zhang, C., Meng, X., and Fang,

S. (2022a). A novel transformer based semantic seg-

mentation scheme for ﬁne-resolution remote sensing

images. IEEE Geoscience and Remote Sensing Let-

ters, 19:1–5.

Wang, L., Li, R., Zhang, C., Fang, S., Duan, C., Meng, X.,

and Atkinson, P. M. (2022b). Unetformer: A unet-like

transformer for efﬁcient semantic segmentation of re-

mote sensing urban scene imagery. ISPRS Journal of

Photogrammetry and Remote Sensing, 190:196–214.

Wang, W., Xie, E., Li, X., Fan, D.-P., Song, K., Liang, D.,

Lu, T., Luo, P., and Shao, L. (2021). Pyramid vi-

sion transformer: A versatile backbone for dense pre-

diction without convolutions. In Proceedings of the

IEEE/CVF International Conference on Computer Vi-

sion, pages 568–578.

Xie, E., Wang, W., Yu, Z., Anandkumar, A., Alvarez, J. M.,

and Luo, P. (2021). Segformer: Simple and efﬁcient

design for semantic segmentation with transformers.

Advances in Neural Information Processing Systems,

34:12077–12090.

Yu, W., Luo, M., Zhou, P., Si, C., Zhou, Y., Wang, X., Feng,

J., and Yan, S. (2021). Metaformer is actually what

you need for vision.

Zhang, J., Chang, W.-C., Yu, H.-F., and Dhillon, I. (2021).

Fast multi-resolution transformer ﬁne-tuning for ex-

treme multi-label text classiﬁcation. Advances in Neu-

ral Information Processing Systems, 34:7267–7280.

Zhang, J., Yang, K., Ma, C., Reiß, S., Peng, K., and Stiefel-

hagen, R. (2022). Bending reality: Distortion-aware

transformers for adapting to panoramic semantic seg-

mentation. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 16917–16927.

Zhou, D., Kang, B., Jin, X., Yang, L., Lian, X., Jiang,

Z., Hou, Q., and Feng, J. (2021). Deepvit: To-

wards deeper vision transformer. arXiv preprint

arXiv:2103.11886.

Zhou, Z., Rahman Siddiquee, M. M., Tajbakhsh, N., and

Liang, J. (2018). Unet++: A nested u-net architecture

for medical image segmentation. In Deep learning in

medical image analysis and multimodal learning for

clinical decision support, pages 3–11. Springer.

A Comparative Study on Vision Transformers in Remote Sensing Building Extraction

229
