P2BAC: Privacy Policy Based Access Control Using P-LPL

Jens Leicht and Maritta Heisel

Paluno - The Ruhr Institute for Software Technology, University of Duisburg-Essen, Duisburg, Germany

Keywords:

Access Control, Privacy Policy, P-LPL, Policy Enforcement.

Abstract:

Privacy policies are used to inform end-users about the processing of their personal data by service providers on

the Internet. These policies are, however, not systematically enforced. There could be discrepancies between

the policy provided to the end-users and the actual access control policies applied by the service provider.

We propose the Privacy Policy Based Access Control (P2BAC) system to tackle this issue. P2BAC uses

computer-processable privacy policies expressed in the Prolog-Layered Privacy Language (P-LPL) to make

decisions on whether some data may be accessed for a speciﬁc purpose. With P2BAC we extend the Privacy

Policy Compliance Guidance (PriPoCoG) framework. Since P-LPL privacy policies can be customized by the

end-user, we can consider end-users’ privacy preferences during access control. P2BAC uses query rewriting

to perform the access control. The decision point is implemented in Prolog and directly operates on the P-LPL

1 INTRODUCTION

Privacy policies are an important instrument for ser-

vice providers to express their compliance with data

protection legislation, especially since the General

Data Protection Regulation of the European Union

(GDPR) (European Parliament and Council of the Eu-

ropean Union, 2016) came into effect. The enforce-

ment of such privacy policies, however, is an open re-

search topic that we approach by proposing an access

control system working directly on privacy policies.

In contrast, established access control systems require

the deﬁnition of special access control policies.

We name our approach Privacy Policy Based

Access Control (P2BAC) and suggest P2BAC as

an extension to the Privacy Compliance Guidance

(PriPoCoG) framework (Leicht et al., 2022). Us-

ing PriPoCoG ensures that the privacy policies to be

enforced are GDPR-compliant. PriPoCoG is based

on the Prolog-Layered Privacy Language (P-LPL),

which enables data subjects (end-users) to personal-

ize their privacy policies. This makes it possible in

P2BAC to consider data subjects’ privacy preferences

when deciding whether access to some data should be

granted or denied.

P2BAC provides efﬁcient access control decisions

based on query rewriting. For access requests con-

cerning a single data subject we base the access deci-

sion on a Prolog implementation operating directly on

the P-LPL privacy policy. Queries concerning larger

data sets from multiple data subjects are handled sep-

arately, based on the concept of Purpose Based Ac-

cess Control (PBAC) (Byun and Li, 2008).

P2BAC uses the concept of roles and role hierar-

chies as introduced in the hierarchical Role Based Ac-

cess Control (RBAC) (INCITS, 2012). RBAC speci-

ﬁes three types of role hierarchy. While other RBAC-

based access control systems are conﬁned to one type

of hierarchy, P2BAC supports all three types of role

hierarchy.

We evaluate our approach by using a real-world

(eBay GmbH, 2021). Using ebay.com’s privacy

policy also extends the validation of the PriPoCoG

framework.

In Section 2 we introduce necessary background

information. Section 3 discusses related work and its

relation to P2BAC. In Section 4 we present P2BAC

and explain the P-LPL-based decision point, as well

as query rewriting. We conclude our work in Section

5 and provide directions for future research.

2 BACKGROUND

In this section we give short introductions to the Gen-

eral Data Protection Regulation (GDPR), the privacy

policy deﬁnition language P-LPL, the Privacy Policy

686

Leicht, J. and Heisel, M.

P2BAC: Privacy Policy Based Access Control Using P-LPL.

DOI: 10.5220/0011788500003405

In Proceedings of the 9th International Conference on Information Systems Secur ity and Privacy (ICISSP 2023), pages 686-697

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

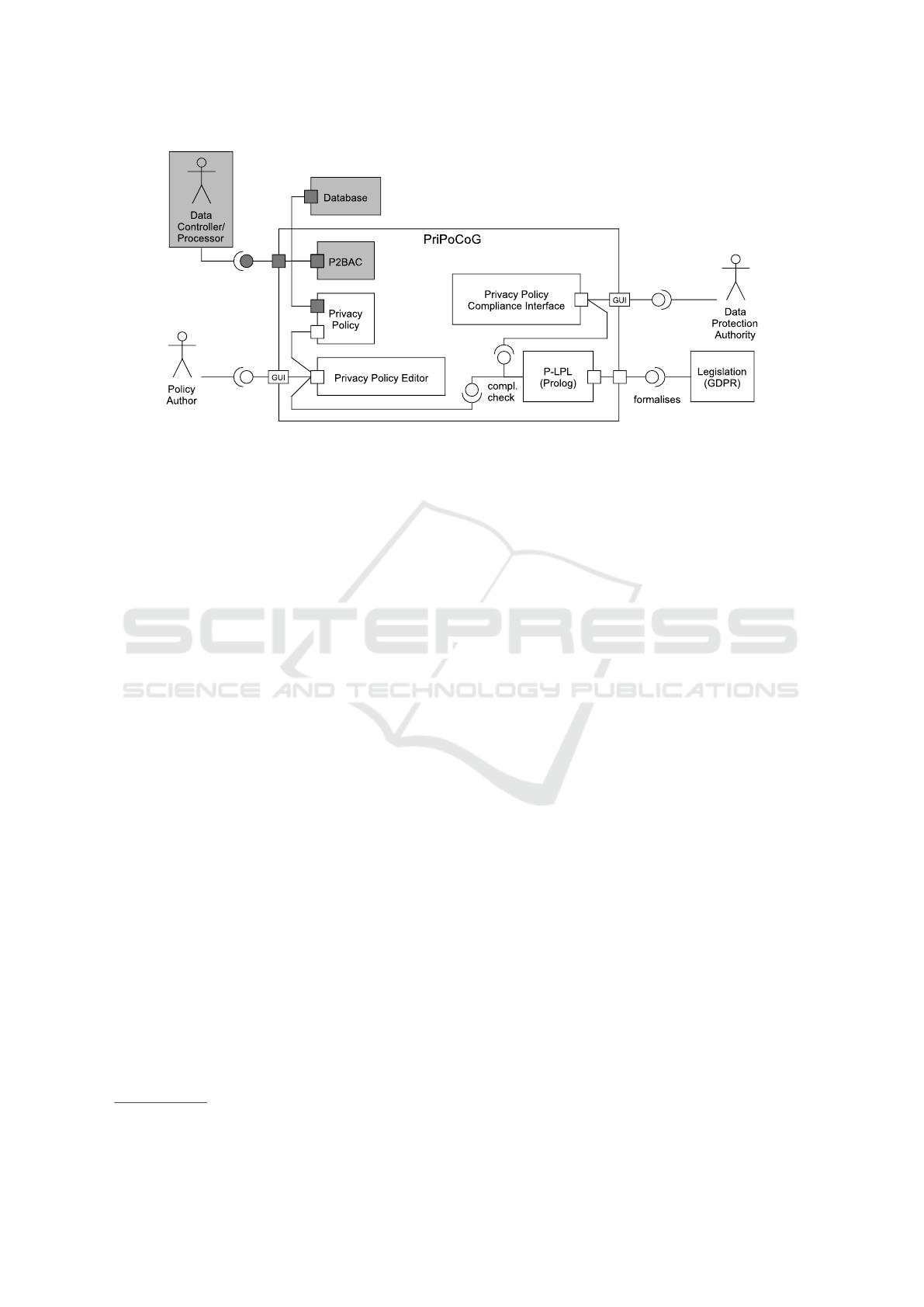

Figure 1: PriPoCoG framework with P2BAC extension highlighted in grey, based on (Leicht et al., 2022).

Compliance Guidance (PriPoCoG) framework, Pur-

pose Based Access Control (PBAC), and role hierar-

chies.

2.1 GDPR Terminology

The General Data Protection Regulation of the Euro-

pean Union (GDPR) introduces some speciﬁc termi-

nology (European Parliament and Council of the Eu-

ropean Union, 2016).

The service provider accountable for the privacy

policy and its enforcement on the service side is called

Data Controller. Third parties processing some data

on behalf of the data controller are called Data Pro-

cessors. The European Union and its member states

establish different Data Protection Authorities, which

manage the enforcement of the GDPR. The person us-

ing a service and providing her or his personal data is

called Data Subject.

2.2 P-LPL

The Prolog-Layered Privacy Language (P-LPL) is an

extension and implementation of the Layered Privacy

Language (LPL) by Gerl (Gerl, 2020). P-LPL uses

Prolog

, a declarative programming language, to for-

malize the language constructs of LPL and require-

ments from the GDPR. This formalization makes it

possible to perform compliance checks on privacy

policies expressed in P-LPL.

P-LPL provides the ability to store access control

information inside the privacy policy. This could for

example be access rules written in any access control

language used by the data controller. Usually, that

information would have to be given explicitly when

https://www.swi-prolog.org/

deﬁning the privacy policy, resulting in an organiza-

tional overhead for data controllers. With P2BAC,

however, no explicit access control information needs

to be stated in the privacy policy, because the privacy

policy itself can be used to determine whether access

is granted or denied.

2.3 PriPoCoG

The Privacy Policy Compliance Guidance

(PriPoCoG) framework (Leicht et al., 2022) uses

computer-interpretable privacy policies and checks

them for compliance with the GDPR. Figure 1

shows an overview of PriPoCoG, with our extension

highlighted in grey in the top left corner.

The base PriPoCoG framework uses P-LPL to for-

malise legislation (the GDPR). This formalisation is

then used to check privacy policies for compliance

with legislation. Policy Authors use the Privacy Pol-

icy Editor to deﬁne a Privacy Policy and check it for

compliance with the GDPR. A Data Protection Au-

thority can use the Privacy Policy Compliance Inter-

face to check an existing Privacy Policy, expressed in

P-LPL, for compliance with the GDPR.

With our proposed Privacy Policy Based Access

Control, we extend the PriPoCoG framework by pro-

viding access control based on the GDPR-compliant

privacy policies, thus, enforcing the privacy policies.

The database is considered external here, as P2BAC

could be used for any database, since the query rewrit-

ing is performed independently of the database, work-

ing directly with the privacy policy.

P2BAC provides an interface for data controllers

and processors. They request access to some data in-

side a database, and P2BAC decides whether access

is granted or not.

P2BAC: Privacy Policy Based Access Control Using P-LPL

687

2.3.1 Purpose Hierarchy

P-LPL organizes purposes of a privacy policy in a pur-

pose hierarchy. This hierarchy contains purpose cate-

gories pre-deﬁned by P-LPL, e.g., serviceProvision or

marketing. Data controllers can deﬁne their own cus-

tom purposes. These purposes have to be assigned to

the pre-deﬁned categories. Such a purpose hierarchy

also enables the use of very ﬁne-grained purposes,

while not overwhelming the data subjects, since they

can get an overview of the purposes by looking at the

main purposes higher up in the hierarchy.

2.3.2 P-LPL Privacy Policy

A P-LPL privacy policy is a computer-processable

policy, which can be checked for GDPR-compliance.

It consists of data elements deﬁning the data that is

handled by the data controller and data processor.

Purposes describe the reason for which data is han-

dled. An excerpt of a purpose from a P-LPL policy is

presented in Listing 1 in Section 4.4.

P-LPL policies can be adjusted by the data sub-

jects, providing their consent only for speciﬁc pur-

poses. This customizability results in data subject-

speciﬁc privacy policies.

Currently, P-LPL policies are deﬁned manually

using Prolog. However, an interactive editor is un-

der development. P-LPL has been evaluated by trans-

lating two privacy policies from major e-commerce

websites into P-LPL (Leicht et al., 2022; Ekundayo,

2022).

2.4 Purpose Based Access Control

Byun and Li’s Purpose Based Access Control (PBAC)

(Byun and Li, 2008) is based on hierarchical Role

Based Access Control (RBAC) (INCITS, 2012).

PBAC uses query rewriting for the Structured Query

Language (SQL) (ISO, 2016). This rewriting allows

for efﬁcient access control on SQL databases.

2.4.1 Role Hierarchies

Hierarchical RBAC allows several types of hierar-

chies in which roles can be organized: (i) tree, (ii)

inverted tree, and (iii) lattice. These hierarchies dif-

fer in the way access right are propagated through the

Director

Marketing Shipping

Customer

Service

Communications ... ... ... ... ......

Figure 2: Role hierarchy (tree).

structure. A role hierarchy allows ﬁne-grained access

control while keeping role management simple.

Purpose Based Access Control is limited to in-

verted trees. However, we introduce all three types

of hierarchy, as P2BAC can operate with all of them.

Tree. A tree role hierarchy is a basic structure where

the parent node accumulates the access rights of all of

its children. An example of a tree hierarchy is de-

picted in Figure 2. The role Director is the root of the

hierarchy, with roles Marketing, Shipping, and Cus-

tomer Service in the layer below the Director. The

role Marketing is further split into sub-roles, e.g.,

Communications. The Director role inherits all the

access rights of its children.

Employee

Marketing Shipping

Customer

Service

Communications ... ... ... ... ......

Figure 3: Role hierarchy (inverted tree).

Director

Head of

Department

Supervisor

Team

Lead

Communications ... ... ... ... ......

Marketing Shipping

Customer

Service

Basic

Department

Figure 4: Role hierarchy (lattice).

Inverted Tree. An exemplary inverted tree hierar-

chy is depicted in Figure 3. Here, the root of the hi-

erarchy is the most general role (Employee), which

owns the least access rights. All roles below it inherit

the rights of the more general role. The Marketing

role, for example, inherits all access rights of the ba-

sic Employee, and can be assigned additional access

rights.

Lattice. The lattice structure is a combination of

tree and inverted tree, where access rights can be

propagated top-to-bottom and bottom-to-top. Figure

4 shows an exemplary lattice, where the most ba-

sic role (Basic Department) is shown at the bottom,

having the least access rights. Marketing, Shipping

and CustomerService inherit all access rights from the

BasicDepartment. The role Communications has the

most speciﬁc access rights inherited bottom-up. The

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

688

upper half of the lattice operates like a tree hierar-

chy, and the Director inherits all access rights from

its children: Head of Department, Supervisor, Team

Lead.

2.4.2 Access Purpose

Access requests require an access purpose, which

states for what purpose the data is requested. In Pur-

pose Based Access Control the access purpose is de-

termined from the role of the person requesting the ac-

cess. Additionally, role attributes and environmental

attributes are considered when identifying the access

purpose.

2.4.3 Privacy Metadata: Access Codes

Purpose Based Access Control uses a binary encoding

for representing and evaluating allowed/prohibited in-

tended purposes and access purposes. Byun and Li

evaluated the application of these access codes to be

very efﬁcient.

A bitwise “and” operation between the encoded

allowed intended purpose (aip) and the access pur-

pose (ap) is used to decide on the access request for

a single data element. If the bitwise “and” operation

returns a non-zero number, as shown in equation (1),

access is granted, because the processing for the re-

quested purpose is encoded in the allowed intended

purpose. If the bitwise “and” results in zero (cf. equa-

tion (2), the access to this data element for the re-

quested purpose is denied.

aip & ap ̸= 0 ⇒ “Access granted” (1)

aip & ap = 0 ⇒ “Access denied” (2)

2.4.4 SQL Query Rewriting

Purpose Based Access Control uses an SQL exten-

sion, introducing the keyword FOR. This keyword is

followed by the access purpose.

SQL rewriting is used to transform the queries

containing the access purpose into queries that can be

handled by the database itself. This transformation re-

places the FOR section of the query with a WHERE

condition containing aip and ap codes, which can be

evaluated as described in Section 2.4.3.

3 RELATED WORK

Access control is a well-researched topic, with many

different models for many diverse kinds of systems.

The well-established and standardized Role Based

Access Control (RBAC) model lays the foundation

for our access control system, as it introduces roles

and role hierarchies, which we use to identify access

purposes for database queries (INCITS, 2012).

Purpose Based Access Control (PBAC) by Byun

and Li is based on RBAC and considers the purpose

for which data is accessed when deciding on an ac-

cess request (Byun and Li, 2008). We adapt PBAC

to modern computer-processable privacy policies us-

ing P-LPL. Instead of separate access control policies,

we use the privacy policy itself to decide whether ac-

cess to personal data is granted or denied. PBAC has

previously been implemented based on query rewrit-

ing (Mehta et al., 2017). Our P2BAC differs from this

implementation in that we base our access decisions

directly on the privacy policy and provide two differ-

ent ways of evaluating access requests.

Hippocratic databases are also purpose-aware ac-

cess control systems, implemented in prototypes of

many different database systems (Agrawal et al.,

2002; Laura-Silva and Aref, 2007). However, these

never extended beyond the prototype state. Pallas

et al. identiﬁed a lock-in issue with these proto-

types and implemented an application-layer approach

to PBAC, which resolves the lock-in issue as it can be

used with any database system (Pallas et al., 2020).

We preserve this database independence for access

requests concerning single data subjects. P2BAC is

however database-dependent for access requests con-

cerning multiple data subjects. This reveals potential

for future research.

Privacy-Aware Role Based Access Control (P-

RBAC) by Ni et al. is another purpose- and privacy-

aware access control model based on RBAC (Ni et al.,

2010). It provides support for highly complex poli-

cies, which must be deﬁned separately from the al-

ready used privacy policies. P-RBAC provides a

conﬂict-checking algorithm, checking for conﬂicting

rules inside the policy. This is necessary because

P-RBAC has positive and negative permission rules,

which could be deﬁned in a conﬂicting way, permit-

ting and prohibiting data access at the same time. Due

to the permitting nature of P-LPL privacy policies,

such conﬂicts cannot occur in P2BAC. P-RBAC ex-

tends access control to consider privacy; however, it

still requires the deﬁnition of separate access control

policies. Our P2BAC works directly on the privacy

policy, thus avoiding the organizational overhead of

deﬁning separate access control policies.

Blockchain technology is also used in modern ac-

cess control approaches. AuthPrivacyChain by Yang

et al. is one approach using a blockchain (Yang et al.,

2020). However, these approaches do not consider

the context of privacy policies. In contrast, we focus

on the efﬁcient use of privacy policies to incorporate

P2BAC: Privacy Policy Based Access Control Using P-LPL

689

2. Data subject

adjusts and accepts

policy

3. Store policy

(consent)

5. Handle access

requests

4. Calculate and

store allowed

intended purposes

6. Data subject

adjusts policy

1. Specify

P-LPL policy

Figure 5: Process of using P2BAC: external behaviour/input in white, access control in grey.

data subjects’ privacy preferences when performing

the access control.

Betg

e-Brezetz et al. developed an end-to-end pri-

vacy policy enforcement system for cloud services,

which combines different policies (e.g., data con-

troller, data subject, legislation) and enforces them

(Betg

e-Brezetz et al., 2013). This approach uses

XACML to encode the policies that should be en-

forced. Compared to our P2BAC, directly working

with the privacy policy that is negotiated between data

subject and data controller, their approach introduces

organizational overhead. Additionally, the separation

of the privacy policy known by the data subject and

the XACML policy applied at the system level can in-

troduce discrepancies between the policies. The pri-

vacy policy provided to the data subject may change,

while the XACML version does not and thus becomes

out-dated.

Fatema et al. propose an enforcement system

that can combine policies written in different policy

languages (Fatema et al., 2010). Their enforcement

system could be extended with our P2BAC decision

point, allowing P2BAC to be used in combination

with other policy languages.

Accountability is another important aspect in the

context of privacy policies. Data controllers are

obliged to collect data subjects’ consent regarding the

collection and processing of data. Data controllers

need to be able to prove that data subjects provided

consent before the collection and processing of data

is performed. Jesus presents a concept that supports

data controllers as well as data subjects with regard

to accountability (Jesus, 2020). The proposed con-

cept creates receipts every time a data subject pro-

vides consent. These receipts contain all purposes for

which the data subject provided consent. Data con-

trollers as well as data subjects can use the receipts

to identify purposes for which consent was provided.

P-LPL policies can be used as receipts, too. They

clearly state for which purposes the data subject pro-

vided consent, ensuring that only accepted purposes

can be used to access data subject’s data.

4 CONTRIBUTION: P2BAC

We ﬁrst give an overview of our proposed access con-

trol system P2BAC, followed by an example-driven

introduction to each of its components. The example

is based on a P-LPL version of ebay.com’s privacy

policy (Ekundayo, 2022). The P-LPL version of the

. We also explain

P2BAC decision points, access codes and SQL query

rewriting in the context of P2BAC.

4.1 Overview

Our privacy policy-based access control approach is

based on Byun and Li’s Purpose Based Access Con-

trol (Byun and Li, 2008). Their approach of us-

ing a purpose hierarchy to decide whether access is

granted or not ﬁts P-LPL very well. P-LPL pri-

vacy policies organize purposes in a hierarchy, which

can be queried directly to make access control deci-

sions. P2BAC extends the PriPoCoG framework (Le-

icht et al., 2022) as depicted in Figure 1, supporting

the enforcement of P-LPL privacy policies.

Highly detailed system level access control poli-

cies are commonly quite complex and are, thus, not

suitable for presentation to the data subjects. The hi-

erarchical organization of purposes in P-LPL enables

us to create different levels of detail when presenting

the policy to the data subject. In combination with a

suitable user interface, these levels of detail provide

comprehensible and transparent privacy policies to-

wards the data subject and ﬁne-grained access control

on the data controller side. A user interface for the

representation of the privacy policies also improves

the readability of P-LPL policies in general. Data

subjects cannot be expected to understand the Prolog

code behind a P-LPL policy, but a good visualisation

will facilitate their understanding.

In Figure 5 we present the necessary steps that are

required prior to using P2BAC in white and steps per-

formed by P-LPL/P2BAC in grey. First, the data con-

troller speciﬁes a privacy policy using P-LPL. In the

https://github.com/jensLeicht/PriPoCoG

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

690

second step the data subject needs to accept the pri-

vacy policy, at least partially, for access control re-

quests to be evaluated positively. All access requests

will be denied if the data subject has not given con-

sent, yet. The customized policy is stored in step 3.

We distinguish two different types of access re-

quests. Either a query tries to access data from multi-

ple data subjects, for example when aggregating data

for statistical purposes, or a single data subject’s data

is queried, for example when a customer service ofﬁ-

cer needs to access a single customer’s address infor-

mation.

For efﬁcient handling of large queries concerning

the data of multiple data subjects, P2BAC calculates

access codes that are stored in the database together

with the data itself. The access codes function like

the allowed intended purposes (aip) in (Byun and Li,

2008) and allow very efﬁcient evaluation of many pur-

pose checks at once. The generation of allowed in-

tended purposes is performed in step 4.

Smaller queries covering data concerning a single

data subject can be handled directly in P-LPL, which

is represented by the arrow from step 3 directly to step

5. Handling of access requests in step 5 is done by

performing SQL query rewriting, either based on the

access decision by P2BAC or using allowed intended

purposes inside the database itself. Step 5 can be re-

peated indeﬁnitely. If at any point in time, the data

subject further adjusts his or her privacy policy, po-

tentially withdrawing consent for some purposes, the

adjusted privacy policy will be stored and the aips will

be re-calculated and updated in the database.

4.2 Concept

P2BAC is an adaptation of the Purpose Based Access

Control by Byun and Li (Byun and Li, 2008). We

make use of the computer-interpretable privacy poli-

cies in P-LPL and implement a decision point in Pro-

log, directly working with the privacy policy. This

eliminates the need for separate access control poli-

cies, reducing the management overhead for the data

controllers. Since data subjects are able to personalize

the privacy policy, P-LPL and P2BAC assure that data

subject’s privacy preferences are considered when an

SQL query tries to access their data.

As privacy policies only contain explicit consent

for some processing of data for given purposes, it

is unnecessary to consider prohibited intended pur-

poses (pip) in our adaptation. Prohibitive rules in-

duced by legislation can be checked directly in the

P-LPL privacy policies during the compliance checks

performed by the PriPoCoG framework (Leicht et al.,

2022).

The P2BAC decision point is efﬁcient in handling

requests concerning data of a single data subject. If

data for multiple data subjects is requested, we make

use of access codes, as described in Sections 2.4.3

and 4.6. Data controllers using P2BAC should con-

sider what data will be accessed in a single data sub-

ject context and what data may be used in a larger

aggregating way. Based on these considerations, ac-

cess codes should be generated for cases where larger

data sets are requested regularly. For the single data

subject context it is advantageous to use the P2BAC

decision point:

• it reduces the overhead inside the database

• it does not require an adaptation of the database to

accommodate the access codes

• it can be used as a proxy, processing the queries

and forwarding the results to any (external)

database

• it operates directly on the privacy policy and does

not require an access code update after the data

subject adjusted her or his privacy policy

The privacy policy, which is needed for a decision on

an access request, is stored in a separate database and

is linked to a data subject by database-internal IDs.

The storage could be handled by any type of database

that allows to store binary large objects (BLOBs) or

character large objects (CLOBs). Even resource de-

scription framework (RDF) storage may be a viable

solution.

In the following, we take an example-based look

at the various parts of P2BAC and the different ways

of making an access decision.

4.3 Roles and Purposes

In P2BAC the access decision is based on two impor-

tant concepts: (i) roles, as deﬁned in hierarchical Role

Based Access Control (RBAC) (INCITS, 2012); and

(ii) purposes, describing why some data may be pro-

cessed. In the following we take a more detailed look

at these concepts and how they interact in P2BAC.

4.3.1 Purpose Hierarchy

Ebay.com’s purpose hierarchy with its 40 purposes is

quite extensive; hence, we only use small excerpt in

our running example. Figure 6 shows three of the

purpose categories that P-LPL uses to manage the

purpose hierarchy: serviceProvision, marketing, and

legalCompliance. Ebay-speciﬁc purposes are the pur-

poses MailAdvertisements (p24) and MarketingCom-

munications (p36). Both are sub-purposes of the mar-

keting purpose category.

P2BAC: Privacy Policy Based Access Control Using P-LPL

691

It is important to note that requesting access using

one of the top purposes (e.g., marketing) reduces the

chance of successfully accessing the data. Access to

the requested data must be accepted by the data sub-

ject for all sub-purposes. This is necessary, because

the person or software requesting access would be al-

lowed to process the data for all sub-purposes.

root

serviceProvision marketing legalCompliance

... ... p24 ... ... ...p36

Figure 6: Purpose hierarchy containing purposes p24:“Mail

Advertisements” and p36:“Marketing Communications”.

4.3.2 Access Purposes

Access requests require an access purpose, which

states for what purpose the data is requested. To de-

termine this access purpose, P2BAC makes use of the

role of the person requesting the data. This method of

selecting the purpose uses a mapping of roles and pur-

poses. In the following, we describe access purpose

mappings for the different types of role hierarchy:

Director

Marketing Shipping

Customer

Service

Communications ... ... ... ... ......

marketing

MailAdvertisements

MarketingCommunications

...

Figure 7: Role hierarchy (tree) with annotated purposes.

Tree. In a tree hierarchy, the parent nodes inherit all

the access rights and all the mapped purposes from

their children. Figure 7 shows an annotated version

of the tree role hierarchy from Figure 2. The role

Communications is mapped to the purpose Market-

ingCommunications, and the super-role Marketing is

mapped to the purpose category marketing and the

speciﬁc purpose MailAdvertisements. The Marketing

role also inherits the MarketingCommunications pur-

pose from its child Communications.

Employee

Marketing Shipping

Customer

Service

Communications ... ... ... ... ......

MarketingCommunications

...

Figure 8: Role hierarchy (inverted tree) with annotated pur-

poses.

Director

Head of

Department

Supervisor

Team

Lead

Communications ... ... ... ... ......

Marketing Shipping

Customer

Service

Basic

Department

MarketingCommunications

marketing

MailAdvertisements

MarketingCommunications

...

......

Figure 9: Role hierarchy (lattice) with annotated purposes.

Inverted Tree. In an inverted tree the children in-

herit all the access rights and purposes from their par-

ents. Figure 8 shows the exemplary inverted tree hi-

erarchy from Figure 3 with annotated purposes. In

this example, the basic roles are not mapped to spe-

ciﬁc purposes, only the MarketingCommunications

purpose is assigned to the Communications role.

Lattice. In the lattice hierarchy, both of the inheri-

tance modes are combined. Figure 9 shows an exem-

plary purpose mapping for the lattice hierarchy in Fig-

ure 4. Basic purposes from the more general roles like

the Basic Department are inherited upwards to roles

such as Communications. In the upper part of the hi-

erarchy the inheritance is continued as described for

the regular tree: the role Head of Department inherits

the purpose MarketingCommunications from the role

Communications. The role Director inherits all the

purposes of its children.

The examples show that a role can be mapped to

multiple purposes. This especially applies to roles

higher up in the role hierarchy. When accessing data,

the purpose selection based on the role becomes difﬁ-

cult as the role accumulates many purposes from the

hierarchy.

Since P2BAC access requests are only evaluated

for a single speciﬁc purpose, a single purpose needs

to be selected for the access request. This can be

achieved by considering the software environment

that is used to perform the access request. When that

software is implemented, its internal operations can

be associated with a speciﬁc access purpose.

If this approach is not possible because off-the-

shelf software is used, plug-ins and middleware could

be used to identify the purpose of a request. For ex-

ample, when the data is requested from an email pro-

gram and the person requesting the data has the role

Marketing, then the requested purpose could be deter-

mined as MailAdvertisements.

Selecting the access purpose based on the soft-

ware accessing the data also allows P2BAC to be used

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

692

purpose(p24 ,(‘‘ MailAdvertisements ’’, true , false ,

1668495600,[...],[...],[ dt01, dt04, dt34, dt48, dt58,

dt74 ],[ ],[ ],[ dr2 ],[ lb4 ],[ ], r )).

Listing 1: Excerpt of the P-LPL representation of the pri-

vacy policy sentence from Listing 2 (Ekundayo, 2022).

for software that operates automatically. A software

regularly aggregating statistics about some data con-

cerning customers, for example, could be assigned

with a speciﬁc purpose. Data subjects could then deny

consent for this purpose to prohibit the software from

performing this statistical analysis on their personal

data.

In contrast to our access purpose identiﬁcation

based on role and software, Byun and Li base their

access purpose identiﬁcation on roles and attributes

(Byun and Li, 2008).

4.4 P-LPL Privacy Policy

The decision process for granting or denying access

to data is based on the content of P-LPL privacy poli-

cies. Listing 1 shows the purpose MailAdvertise-

ments, which is part of a translation of ebay.com’s

inal textual privacy policy, which was translated to the

MailAdvertisements purpose.

The purpose shown in Listing 1 has the inter-

nal ID p24 and is externally known by the unique

name MailAdvertisements. The two Boolean values

true, false state that this purpose can be opted out

of, and that the data subject is not required to ac-

cept this purpose for a successful interaction with

the data controller. The number 1668495600 is the

Unix timestamp of the point in time when the data

subject accepted this purpose. Due to space con-

straints, we removed the verbose textual headers and

descriptions ([...],[...]) from the purpose. The list

[dt01,dt04,dt34,dt48,dt58,dt74] references six data

elements, which are deﬁned in the P-LPL policy, stat-

ing what data may be processed for this purpose. The

two empty lists ([ ], [ ]) state that no privacy models

(e.g., k-anonymity) or pseudonymization methods are

applied to the data. A data processor is assigned to

this purpose, expressed by dr2, the ID of the proces-

sor receiving the data for this purpose. The legal basis

for this purpose is referenced by [lb4]. This informa-

tion is followed by another empty list [ ] which states

that the purpose is not using automated decision mak-

‘‘ Advertisements by mail ( according to your

communication preferences in your eBay account ).’’

Listing 2: Excerpt from ebay.com’s privacy policy (eBay

GmbH, 2021): Purpose Mail Advertisements.

1accessibleData (D,LPP,P,R) :−

2LPP = ( , , , , , , , , PP,PH, , , , , ),

3getDataAndConsentPH(P,PP,PH,DT),

4DT \= [],

5mapDataNames(DT,DTN),

6accessibleDataPurpose (D,DTN,R).

Listing 3: Main rule of the P2BAC decision point (Prolog).

ing. Finally, r is a reference to the part of the policy

describing for how long the data for this purpose may

be stored (retention).

4.5 P2BAC Decision Point

We implement a P2BAC decision point in Prolog,

working directly on the P-LPL privacy policy. This

decision point can be used efﬁciently for access re-

quests concerning a single data subject’s data. For re-

quests covering the data of multiple data subjects we

propose to adapt the allowed intended purpose con-

cept of Byun and Li (Byun and Li, 2008), which we

describe in further detail in Section 4.6.

Listing 3 shows the main Prolog rule, which is

used to evaluate an access request. The head of the

rule in line 1 contains four variables. The ﬁrst three

variables are used as inputs, where D is the list of data

elements that the decision point needs to consider.

In Listing 4 we show an exemplary access request

encoded in Prolog. The list [“address”,“name”] cor-

responds to the variable D in Listing 3. The variable

LPP, in Listing 3, needs to be initialized with the root

tuple of the privacy policy, from which we then ex-

tract the list of purposes PP and the purpose hierar-

chy PH in line 2 of Listing 3. The third variable P

takes the purpose for which the data is requested as

input; in our example in Listing 4 we use the purpose

MailAdvertisements.

Line 3 of Listing 3 extracts all allowed data el-

ements for the given purpose P from either the pur-

poses PP or the purpose hierarchy PH and returns

the list of data elements in DT. If P is one of the

purpose categories, e.g., marketing, getDataAndCon-

sentPH calculates the intersection of the sets of data

elements of each sub-purpose, returning a list of data

elements that may be processed for any of the sub-

purposes of the requested purpose category. Because

of the use of the intersection, which is a restrictive

way of deciding the access request, we suggest for-

mulating precise access requests, providing the most

speciﬁc purpose possible.

accessibleData ([‘‘ address ’ ’ ,‘‘ name’’], LPP,

‘‘ MailAdvertisements’’ , R).

Listing 4: Access request in Prolog for the purpose MailAd-

vertisements with data address and name.

P2BAC: Privacy Policy Based Access Control Using P-LPL

693

Line 4 checks whether the returned list of data

DT is empty. The rest of the rule only applies to

non-empty data lists. If the list is empty, the acces-

sibleData-rule fails, stating that access is denied. A

non-empty data list contains the internal IDs of the

allowed data elements. For a comparison with the re-

quested data elements, we extract the external unique

identiﬁers of the data elements in line 5. Finally, the

call in line 6 intersects the set of requested data with

the set of allowed data and returns the resulting list of

accessible data elements in R, which is forwarded to

the caller of the accessibleData-rule.

The resulting list of accessible data is then used

for query rewriting, giving only access to those data

elements that are allowed to be processed for the re-

quested purpose. We present more details on query

rewriting in Section 4.7.

4.6 Access Codes for Aggregating

Queries

If there are database tables that need to be accessed

by aggregating data or retrieving data for a multi-

tude of data subjects, requests to the P2BAC deci-

sion points might be inefﬁcient, switching back and

forth between database and P-LPL. To address this is-

sue, we adapt the use of binary codes from Purpose

Based Access Control, removing the prohibited in-

tended purposes, which do not exist in P-LPL privacy

policies. In the context of P-LPL, all processing not

explicitly expressed and consented to in the policy is

prohibited. Data subjects can only provide consent

for those purposes they are informed about, thus, only

allowed purposes can be expressed.

4.6.1 Access Code Generation

The length of the binary access codes depends on the

number of purposes inside the privacy policy. A re-

alistic privacy policy (e.g., ebay.com) contains about

40 purposes; thus, the codes are 40 bits long. Each bit

represents one of the purposes. Codes are generated

for each data element that is accessed in large-scale

requests. All bits corresponding to purposes that con-

tain a data element for which the data subject pro-

vided consent are encoded with a “1” bit. All pur-

poses not containing the data element or not having

the data subject’s consent are encoded as a “0” bit.

4.6.2 Example

Table 1 shows an exemplary database table postal,

containing name and address of two data subjects,

with id being a database-internal identiﬁer. In addi-

tion to the main data (name, address, and id) the table

contains the aip codes for each data element, repre-

senting each data subject’s personal privacy policy. In

this case the accepted policies are very similar, where

the data subject Gerald Gadget accepted one more

purpose compared to data subject Margret Marple.

This difference is visible in a single byte of the hex-

adecimal aip, which is highlighted in bold.

The access codes are based on a P-LPL version of

ebay.com’s privacy policy (Ekundayo, 2022), which

contains 40 purposes that are encoded into 40 bits.

The aip name 838181D75F allows data processing

for all purposes that are required for service provi-

sion, including the opt-out purpose MailAdvertise-

ments. The second aip name 8B8181D75F allows

one additional purpose: MarketingCommunications.

When a request for the purpose MailAdvertise-

ments is prepared, the textual identiﬁer of the purpose

must be transformed into an access purpose (ap) bi-

nary code. Considering the 40 purposes and the fact

that MailAdvertisements is the 24th purpose in the pri-

vacy policy, the ap code in hexadecimal notation is:

0000800000.

As an example, we calculate an access request for

the postal database shown in Table 1. Equation (3) vi-

sualizes the bitwise “and” operation for a request on

the data address of the data subject Margret Marple

for the purpose MailAdvertisements. We focus on the

byte 81 of the aip, since this is the most relevant part

of the request. The corresponding byte in the ap is

80. All other bytes of the ap are zeros. The bitwise

“and” of aip (81) and ap (80) results in binary se-

quence 10000000. Since the result is non-zero, access

for this request is granted.

aip: 10000001 byte 81 (Margret Marple)

ap: 10000000 byte 80 (request MailAdvertisements)

10000000 ̸= 0 ⇒ “Access granted”

(3)

These binary operations have to be performed per

line of the database table. Computers are very efﬁ-

cient in the execution of binary operations, and Byun

and Li evaluated access requests to be efﬁcient (Byun

and Li, 2008).

4.7 SQL Query Rewriting

P2BAC’s access control is based on SQL query

rewriting. In this section we take a look at some

queries and how they are processed in P2BAC.

4.7.1 Multiple Data Subjects

Listing 5 shows a query trying to read data from mul-

tiple data subjects. The query requests all columns

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

694

Table 1: Exemplary structure of table “postal”.

name address id aip name aip address

Margret Marple Mainroad 2, 44121 Ferrara, Italia 12345 838181D75F 110081D75F

Gerald Gadget North 3, Diest 3290, Belgium 12346 8B8181D75F 110001D75F

SELECT

FROM postal FOR MailAdvertisements

Listing 5: SQL query before rewriting, for the purpose

MailAdvertisements.

from Table 1 for the purpose MailAdvertisements.

Listing 6 shows the resulting query after rewriting.

The * is used to identify the data elements that are

requested: name, address. This information is used to

initialize the aipCheck-calls in the WHERE part of

the resulting query (aip name, aip address). The ﬁrst

parameter 0000800000 is the access purpose encoded

in hexadecimal form (cf. Section 4.6).

A pseudocode implementation of the aipCheck is

shown in Listing 7. Line 1 contains the signature of

the function. In line 2 the bitwise “and” operation is

executed, and if the result equals zero the function re-

turns false. Returning false removes the current line

of the database table from the result set. If the result

of the bitwise “and” is not equal to zero the function

returns true, and the query condition that called the

function is fulﬁlled. Hence, the line becomes a mem-

ber of the result set.

If the query in Listing 5 was restricted to the data

of a single data subject, e.g., by adding a condition

WHERE id=12345, the request could also be handled

by the P2BAC decision point, as described in Section

4.5. The result of using the decision point would be

a regular SQL query selecting all data elements in the

row ﬁtting id 12345.

4.7.2 Single Data Subject

Listing 8 shows a second query that would be handled

by the P2BAC decision point, because it is limited to a

single data subject by expressing a condition on the id

column. Data subject Margret Marple did not provide

consent for the processing of the data element address

for the purpose MarketingCommunications. Hence,

the decision point would not rewrite the query, but

instead deny the access request.

Another example of a request that is handled by

the P2BAC decision point is shown in Listing 9. This

query requests both name and address from Gerald

Gadget for the purpose MarketingCommunications.

SELECT

FROM postal WHERE

aipCheck(0000800000, aip name)

AND aipCheck(0000800000, aip address)

Listing 6: SQL query for address data for Mail Advertise-

ment purposes after rewriting.

1 aipCheck(ap, aip ): Boolean

2 if (ap & aip) == 0 then

3 return false ;

4 else

5 return true ;

6 end if ;

Listing 7: Pseudocode for the function aipCheck.

The data subject Gerald Gadget provided consent

for the purpose MarketingCommunications, so the re-

quest should be rewritten to allow this access. How-

ever, the privacy policy does not allow access to the

address for the requested purpose. Hence, P2BAC

rewrites the request to the SQL query shown in List-

ing 10, where only the name is selected.

4.7.3 Further Queries

So far, we only considered select queries. Here, we

give short explanations for other types of queries.

Insert/Update. Insert and update queries are han-

dled similarly to the select queries described above.

The only difference lies in access decisions with re-

strictions in the allowed data. When the decision

point decides that only a subset of the requested data

elements may be changed, access will be denied com-

pletely. This prevents incomplete database inserts and

updates.

The task of restricting write access to selected per-

sons on the data controller and processor side is han-

dled by the assignment of roles to persons and pur-

poses to roles.

Missing Purpose. If a query does not contain an ac-

cess purpose, P2BAC provides two ways of handling

the query. Either the query is denied, as no decision

can be made if no access purpose is given, or the root

purpose of the purpose hierarchy is used to make a

decision. This is the most restrictive way of handling

such a request. The requested data must be present in

all purposes of the privacy policy, and all of the pur-

poses must be accepted by the data subject. If one

SELECT address FROM postal

WHERE id=12345

FOR MarketingCommunications

Listing 8: SQL query for address data for Marketing Com-

munication purposes.

P2BAC: Privacy Policy Based Access Control Using P-LPL

695

SELECT name, address FROM postal

WHERE id=12346

FOR MarketingCommunications

Listing 9: SQL query for address and name for Marketing

Communication purposes.

SELECT name FROM postal

WHERE id=12346

Listing 10: SQL query for address and name for Marketing

Communication purposes.

purpose is not accepted or the data element is not al-

lowed for one of the purposes, then access will be de-

nied.

5 CONCLUSIONS AND FUTURE

WORK

Conclusion. We presented P2BAC, a privacy

policy-based access control system, which is inte-

grated into the PriPoCoG framework. Depending

on the size of the request P2BAC operates between

the source of the request and the database or in the

database itself. P2BAC does not require separate ac-

cess control policies, but instead, directly interprets

the personalized privacy policy of the data subject to

decide on whether to grant or deny access. We ex-

plained every step of the decision process using an

example.

Our contributions are: (i) the implementation of a

P-LPL decision point in Prolog, (ii) providing propa-

gation rules for all three types of role hierarchies, (iii)

access purpose identiﬁcation considering the software

requesting the data, and (iv) using privacy policies in-

stead of separated access control policies.

Viewed in combination with the PriPoCoG frame-

work, P2BAC contributes to a comprehensive treat-

ment of privacy policies in a formally grounded way,

where different actors are supported in a variety of

tasks.

Future Work. P2BAC is still partially database de-

pendent for requests concerning multiple data sub-

jects. The application-layer based implementation of

PBAC by Pallas et al. has the beneﬁt of operating

database independently (Pallas et al., 2020). In the

future P2BAC could be adapted to be implemented in

a similar fashion, getting rid of the database depen-

dence.

Since P2BAC uses P-LPL privacy policies to per-

form access decisions, we envision further develop-

ment around the PriPoCoG framework to be bene-

ﬁcial for the acceptance of P2BAC. The framework

is missing the data subject perspective, which is par-

ticularly important when having customizable privacy

policies used for access control.

The multi privacy policy enforcement system by

Fatema et al. is a good approach to combine differ-

ent policy languages in a single system (Fatema et al.,

2010). In the future an integration of P2BAC into

their system may be beneﬁcial for the applicability of

P2BAC.

REFERENCES

Agrawal, R., Kiernan, J., Srikant, R., and Xu, Y. (2002).

Hippocratic databases. In VLDB’02: Proceedings

of the 28th International Conference on Very Large

Databases, pages 143–154. Elsevier.

Betg

e-Brezetz, S., Kamga, G.-B., Dupont, M.-P., and

Guesmi, A. (2013). End-to-end privacy policy en-

forcement in cloud infrastructure. In 2013 IEEE

2nd International Conference on Cloud Networking

(CloudNet), pages 25–32. IEEE.

Byun, J.-W. and Li, N. (2008). Purpose based access control

for privacy protection in relational database systems.

The VLDB Journal, 17(4):603–619.

eBay GmbH (2021). ebay.com privacy policy.

https://www.ebay.com/help/policies/member-

behaviour-policies/user-privacy-notice?id=4260.

Accessed 2022-11-21.

Ekundayo, B. (2022). Translation of ebay’s privacy policy

into P-LPL and performance evaluation of the formal

P-LPL policy. Bachelor’s thesis, University Duisburg-

Essen.

European Parliament and Council of the European Union

(2016). Regulation 2016/679 of the European Par-

liament and of the Council of 27 April 2016 on the

protection of natural persons with regard to the pro-

cessing of personal data and on the free movement of

such data, and repealing Directive 95/46/EC (General

Data Protection Regulation). Ofﬁcial Journal of the

European Union, L119:1–88.

Fatema, K., Chadwick, D. W., and Lievens, S. (2010). A

multi-privacy policy enforcement system. In IFIP

PrimeLife International Summer School on Privacy

and Identity Management for Life, pages 297–310.

Springer.

Gerl, A. (2020). Modelling of a privacy language and ef-

ﬁcient policy-based de-identiﬁcation. Thesis, Univer-

sit

at Passau.

INCITS, A. (2012). Incits 359-2012 information tech-

nology—role based access control. International

Committee for Information Technology Standards (IN-

CITS).

ISO (2016). Information technology — Database languages

— SQL — Part 1: Framework (SQL/Framework). In-

ternational Organization for Standardization, Vernier,

Geneva, Switzerland, ISO 9075-1:2016 edition.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

696

Jesus, V. (2020). Towards an accountable web of per-

sonal information: The web-of-receipts. IEEE Access,

8:25383–25394.

Laura-Silva, Y. and Aref, W. G. (2007). Realizing privacy-

preserving features in hippocratic databases. In 2007

IEEE 23rd International Conference on Data Engi-

neering Workshop, pages 198–206. IEEE.

Leicht, J., Heisel, M., and Gerl, A. (2022). PriPoCoG:

Guiding policy authors to deﬁne GDPR-compliant

privacy policies. In International Conference on Trust

and Privacy in Digital Business, pages 1–16. Springer.

Mehta, A., Elnikety, E., Harvey, K., Garg, D., and Druschel,

P. (2017). Qapla: Policy compliance for database-

backed systems. In 26th USENIX Security Symposium

(USENIX Security 17), pages 1463–1479.

Ni, Q., Bertino, E., Lobo, J., Brodie, C., Karat, C.-M.,

Karat, J., and Trombeta, A. (2010). Privacy-aware

role-based access control. ACM Transactions on In-

formation and System Security (TISSEC), 13(3):1–31.

Pallas, F., Ulbricht, M.-R., Tai, S., Peikert, T., Reppen-

hagen, M., Wenzel, D., Wille, P., and Wolf, K. (2020).

Towards application-layer purpose-based access con-

trol. In Proceedings of the 35th Annual ACM Sympo-

sium on Applied Computing, pages 1288–1296.

Yang, C., Tan, L., Shi, N., Xu, B., Cao, Y., and Yu, K.

(2020). Authprivacychain: A blockchain-based access

control framework with privacy protection in cloud.

IEEE Access, 8:70604–70615.

P2BAC: Privacy Policy Based Access Control Using P-LPL

697
