Face-Based Gaze Estimation Using Residual Attention Pooling Network

Chaitanya Bandi

and Ulrike Thomas

Robotics and Human-Machine-Interaction Lab, Chemnitz University of Technology,

Reichenhainer str. 70, Chemnitz, Germany

Keywords:

Gaze, Attention, Convolution, Face.

Abstract:

Gaze estimation reveals a person’s intent and willingness to interact, which is an important cue in human-robot

interaction applications to gain a robot’s attention. With tremendous developments in deep learning architec-

tures and easily accessible cameras, human eye gaze estimation has received a lot of attention. Compared

to traditional model-based gaze estimation methods, appearance-based methods have shown a substantial im-

provement in accuracy. In this work, we present an appearance-based gaze estimation architecture that adopts

convolutions, residuals, and attention blocks to increase gaze accuracy further. Face and eye images are gener-

ally adopted separately or in combination for the estimation of eye gaze. In this work, we rely entirely on facial

features, since the gaze can be tracked under extreme head pose variations. With the proposed architecture,

we attain better than state-of-the-art accuracy on the MPIIFaceGaze dataset and the ETH-XGaze open-source

benchmark.

1 INTRODUCTION

Eye gaze is a crucial nonverbal cue that determines a

person’s intent. The person’s intent is extremely use-

ful in human-robot interaction applications (Huang

and Mutlu, 2016) such as attracting a robot’s atten-

tion by glancing at it, and when combined with body

motions, it is possible to strengthen communication

between human and robot. Aside from robotics, the

gaze can be used in human-computer interface (Zhang

et al., 2019; Li et al., 2019; Wang et al., 2015),

virtual reality (Patney et al., 2016; Konrad et al.,

2019), and behavioral analysis (Hoppe et al., 2018).

Model-based methods and appearance-based meth-

ods (Hansen and Ji, 2010) are used to estimate eye

gaze. Although classic model-based eye gaze as-

sessment approaches (Guestrin and Eizenman, 2006;

Nakazawa and Nitschke, 2012; Valenti et al., 2012;

Funes Mora and Odobez, 2014; Xiong et al., 2014)

are accurate, the environment is extremely regulated

(i.e., slight occlusions and static laboratory settings).

Furthermore, the distance between the customized de-

vice or camera with RGB-D sensors and the eye is

ﬁxed (often to 60 cm) in order to estimate the gaze.

The eye model is assumed to be constant across all

participants, and without proper calibration, the sys-

https://orcid.org/0000-0001-7339-8425

https://orcid.org/0000-0003-3211-4208

tem frequently fails to estimate the right gaze. Model-

based solutions fail frequently in real-world applica-

tions that involve estimating the gaze in the wild (i.e.,

in an uncontrolled environment).

Because of the restrictions of the model-

based techniques, recent research has switched to

appearance-based models. Dedicated devices are not

essential for appearance-based gaze estimating tech-

niques because standard cameras are adequate for im-

age processing and gaze regression. The appearance-

based models are further classiﬁed into two types:

1) Feature-based methods and deep learning-

based methods. The early works focus on effective

feature extraction techniques like the histogram of

oriented gradients (Martinez et al., 2012) to estimate

gaze. The histogram of oriented gradients works well

for low-level feature extraction but fails to effectively

extract high-level features for gaze in images. One of

the early efforts (Baluja and Pomerleau, 1994) tracks

gaze using artiﬁcial neural networks using 15 × 15

retina input. Later appearance-based approaches (Tan

et al., 2002) estimate eye gaze from images using non-

linear mapping functions. Each calibrated subject has

its mapping functions. The work (Williams et al.,

2006) uses linear interpolation to do an appearance-

based closest manifold point query. Training data

is frequently used in appearance-based models. The

paper introduces a semi-supervised Gaussian pro-

cess with an uncertainty measure that learns map-

Bandi, C. and Thomas, U.

Face-Based Gaze Estimation Using Residual Attention Pooling Network.

DOI: 10.5220/0011789200003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

541-549

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

541

pings from partially labeled input. For unseen im-

ages, the sparse regression model infers mappings

from processed pixel data in real time. The saliency

gaze (Chang et al., 2019) estimates gaze on uncali-

brated users to solve the problems of classic gaze esti-

mation methods such as calibration, lighting, and po-

sition ﬂuctuations. Using l1 optimization, the adap-

tive linear regression (Lu et al., 2014) approach han-

dles calibration problems based on a large number of

training samples, image resolution, and blinking. Al-

though there is a slight improvement in accuracy, they

are not reliable enough to apply in real-world scenar-

ios.

2) Deep learning approaches such as convolu-

tional neural networks (CNN) have been proved to be

effective in extracting high-level image characteristics

and learning non-linear information for regression ap-

plications. Recent research indicates that CNN-based

design regresses the direction of human attention in

eye images (Zhang et al., 2015; Yu et al., 2018; Fis-

cher et al., 2018; Cheng et al., 2018; Lorenz. and

Thomas., 2019a), face images (Zhang et al., 2016;

Xiong et al., 2019; Zhang et al., 2020; Park et al.,

2019), or from both face and eye images (Krafka

et al., 2016; Chen and Shi, 2019; Cheng et al., 2020a).

We focus on regressing the 2D gaze vector from

face images in this work because CNNs can regress

outputs even with eye occlusions. To directly regress

the 2D gaze vector, an image of the face is sent

through the proposed network. Figure 1 depicts the

basic architecture ﬂow. This paper makes the follow-

ing contributions:

[1] We provide a novel network design that re-

gresses the 2D gaze vector using a Panoptic-feature

pyramid network (PFPN) (Kirillov et al., 2019), resid-

ual blocks, pooling, and self-attention modules.

[2] Using the proposed technique, the network

achieves cutting-edge performance on two separate

datasets: the MPIIFaceGaze (Zhang et al., 2016)

dataset and the ETH-XGaze (He et al., 2015) dataset.

2 RELATED WORK

Deep learning-based appearance methods have been

found to be more efﬁcient than model-based and

feature-based learning methods in cross-subject gaze

estimation.

2.1 Convolutional Neural Network

Architectures

CNNs have proven to be useful in a variety of com-

puter vision applications, including eye-gaze estima-

tion. CNN-based gaze estimate is affected by the in-

put features. CNNs can regress eye gaze utilizing fea-

tures such as eyes and face either dependently or in-

dependently.

Eye-based Methods. The paper (Zhang et al.,

2015) provides the ﬁrst CNN-based gaze estimat-

ing methodology that works in real-world situations.

LeNet architecture (Lecun et al., 1998) inspired the

proposed multimodal CNN architecture. The multi-

model CNN receives 60 ×36 pixel eye images as in-

put and outputs a 2D gaze vector, providing an open-

source unconstrained high-resolution dataset known

as the MPIIGaze dataset. (Yu et al., 2018) present a

multi-task framework that uses an end-to-end model

known as the constrained landmark gaze model to lo-

calize eye landmarks and eye gaze. (Yu et al., 2018)

use UnityEyes (Wood et al., 2016) and supplement

data for training and evaluation to build an end-to-end

model. In natural settings, the distance between the

camera and subject is greater, and the resolution of the

eye is fairly low. The work in (Lorenz. and Thomas.,

2019b) present a multi-task CNN arhitecture that ex-

tracts the facial features at ﬁrst and then eye features

for gaze estimation using geometric method. (Fis-

cher et al., 2018) present a CNN model for a new

large-scale dataset known as the RT-GENE that feeds

two eye regions to the VGG-16 (Simonyan and Zis-

serman, 2014) network individually. The characteris-

tics are later concatenated with head posture informa-

tion to regress the 2D eye gaze vector. (Cheng et al.,

2018) proposes two networks for eye gaze regression

that take advantage of eye asymmetry. The ﬁrst net-

work is an asymmetry regression network with four

streams for 3D gaze regression and a two-stream as-

sessment network for asymmetry correction.

Face and Eye Combined Methods.

iTracker (Krafka et al., 2016) is one of the ﬁrst

attempts to use CNNs to forecast gaze based on the

face, patches of both eye regions, and face grid. The

iTracker is speciﬁcally built for commodity hardware

such as mobile phones and tablets, and it makes use

of a novel dataset known as GazeCapture. According

to the study in (Chen and Shi, 2019), most CNN

architectures use multi-layer downsampling, which

degrades spatial resolution. Dilated convolutions are

used to extract features to avoid this. The dilated

convolutions are taken into account for both eye

pictures but not for the facial region. A coarse to ﬁne

strategy (Cheng et al., 2020a) estimates coarse gaze

direction from a facial image, ﬁne gaze direction

from an eye image, and ﬁnal output gaze is reﬁned.

(L R D and Biswas, 2021) suggests the AGE-Net

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

542

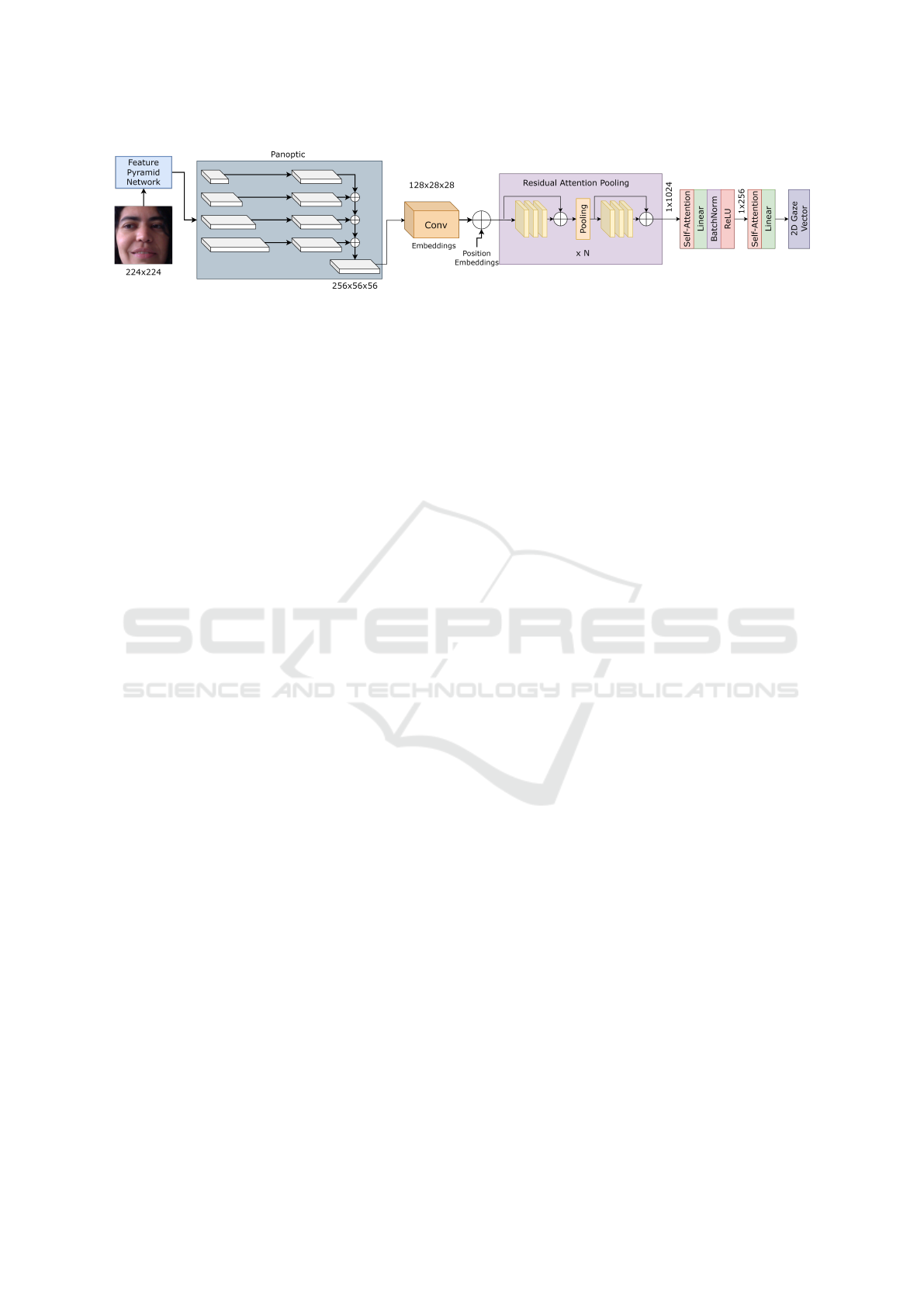

Figure 1: The overall architecture for eye gaze regression. The pipeline is an end-to-end network in which the ﬁrst stage

consists of a feature pyramid network with multiple output pyramids, which are then summed to form panoptic features. The

panoptic features are smoothed and pooled using convolution. The convolution embeddings are then combined with position

embeddings and forwarded to the residual attention pooling network. The output features are then self-attended, and linearized

to obtain the gaze vector.

attention and difference mechanism, which consists

of two networks: one that eliminates similarities in

left and right eyes that are unimportant to eye gazing

and the other that applies attention to eye image at-

tributes. The work (Funes Mora et al., 2014) presents

a new dataset known as the EYEDIAP dataset,

while the work (Smith et al., 2013) introduces the

Columbia gaze dataset, both of which are used by

the majority of the works described above. (Cheng

et al., 2021) compares most appearance-based eye

gaze estimating algorithms to current standards,

while (Kellnhofer et al., 2019) estimates gaze using

temporal information. In response to the two-eye

asymmetry characteristic, (Kellnhofer et al., 2019)

introduces FARE-Net, which predicts 3D gaze angles

for both eyes using an asymmetric approach. They

assign uneven weights to each of the two eye losses

and then sum these losses.

Recent research has demonstrated that eye gaze

can be regressed utilizing face characteristics. (Zhang

et al., 2016) includes a CNN-based framework with

spatial weights for regression that surpasses eye

image-based gaze estimation, and the dataset is a sub-

group of the MPIIGaze dataset known as the MPI-

IFaceGaze dataset. To increase accuracy for real-

world deployments, the principle of mixed effects

from statistics is incorporated in a deep convolutional

network to grasp the hierarchy system of repeated

samples (Xiong et al., 2019). Person-speciﬁc gaze

estimation (Park et al., 2019) increases the accuracy

of eye gaze estimation datasets by employing a mini-

mal number of calibration samples and avoiding over-

ﬁtting for small-scale datasets. The work in (Zhang

et al., 2020) regresses the 2D gaze vector and con-

verts it to 3D for angular error calculation using a ba-

sic residual cnn architecture known as ResNet-50 (He

et al., 2015). This paper also introduces the ETHX-

Gaze dataset, which is a large-scale dataset. Recent

work (Abdelrahman et al., 2022) introduced L2CS-

Net for gaze estimation utilizing binned features from

ResNet 50 (He et al., 2015) and provides a novel

loss strategy that employs classiﬁcation and regres-

sion. The ResNet features are divided into two fully

connected layers for angle estimation in yaw and pitch

directions. PureGaze (Cheng et al., 2022) uses adver-

sarial training with a gaze estimation network and a

reconstruction network to remove irrelevant features

for gaze estimation.

3 METHODOLOGY

In this section, we present the Panoptic feature pyra-

mid and Residual Attention Pooling (P-RAP) frame-

work for eye gaze estimation. We investigate the

essential building blocks of this architecture, such

as panoptic-FPN, residual blocks, and attention pro-

cesses, to gain a deeper understanding. Residual

networks (He et al., 2015) were designed to in-

crease the accuracy and performance of image recog-

nition. Residual networks have been found to be

more efﬁcient in feature extraction and to optimize

quicker with skip connections than networks such as

VGG (Simonyan and Zisserman, 2014). The residual

blocks are the fundamental backbone of the panoptic-

FPN in our architecture. The panoptic-FPN (Kirillov

et al., 2019) architecture is commonly used for object

detection and semantic segmentation in order to ac-

quire multi-scale characteristics for detecting smaller

and larger objects. The network is made up of bottom-

up and top-down layers containing lateral connections

to increase object detection accuracy and image seg-

mentation. We employ the panoptic-FPN architecture

in this work to preserve the multi-scale aspects of the

face and eyes. The basic architecture ﬂow of panoptic

features is shown in Figure 1.

3.1 Attention Mechanism

The attention mechanism accepts n input features and

returns n output features. Attention’s core operation

Face-Based Gaze Estimation Using Residual Attention Pooling Network

543

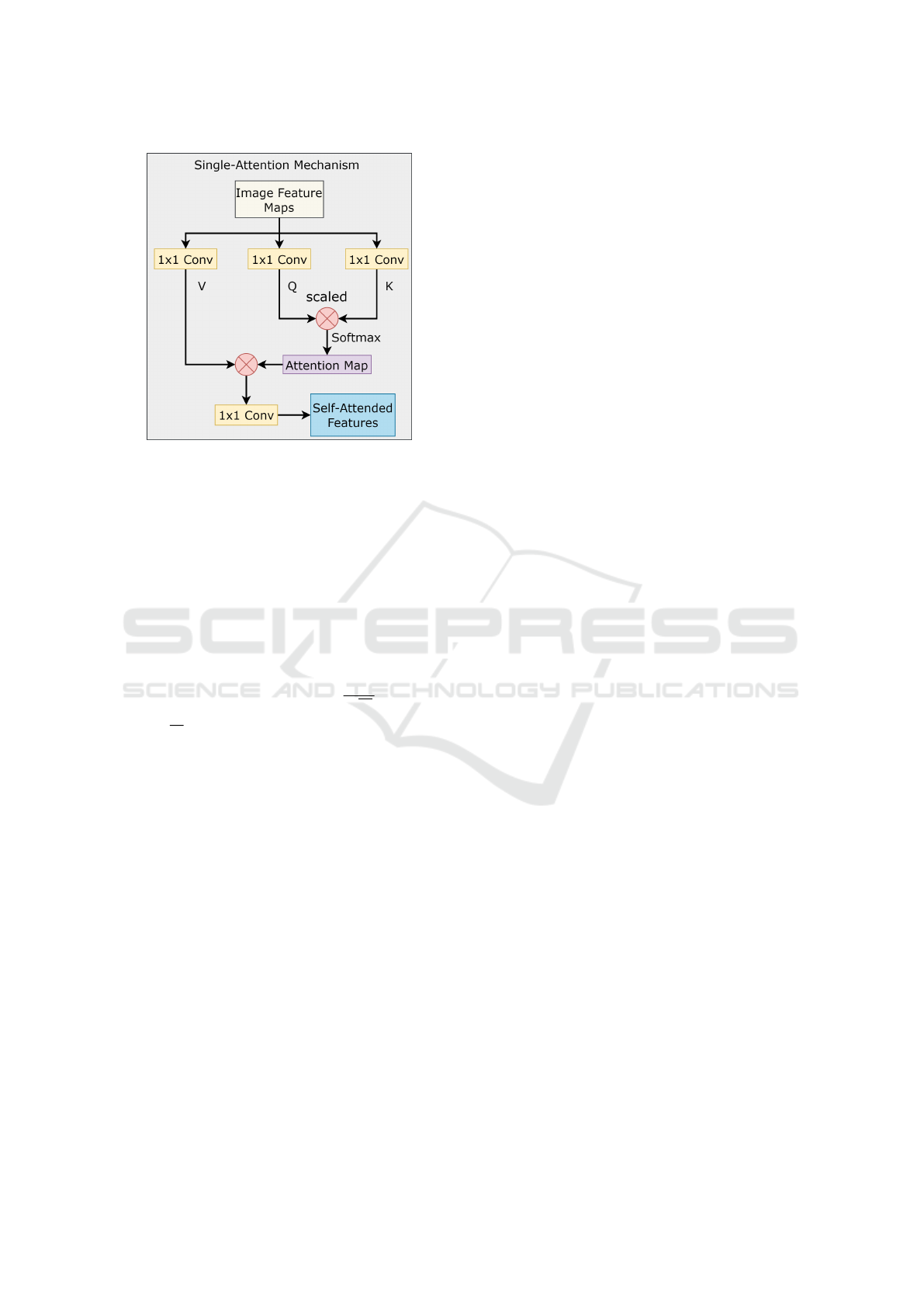

Figure 2: The self-attention mechanism.

is that it learns to pay greater attention to the required

elements. The attention method proposed in (Vaswani

et al., 2017) works well for a wide range of applica-

tions, including natural language processing (Vaswani

et al., 2017) and computer vision (Dosovitskiy et al.,

2021; Heo et al., 2021). The attention mechanism

also referred to as scaled dot product attention, takes

as inputs queries (Q), keys (K), and values (V ). The

identical characteristics from the input are replicated

and passed as the queries, keys, values, and attention

is calculated as

Attention (Q, K, V ) = softmax



√



V (1)

where

√

is a scaling factor. The attention mecha-

nism is applicable to n-dimensional (D) space. Fig-

ure 2 depicts the single-head attention mechanism.

By merging several heads simultaneously, the single-

head attention process is expanded to multi-head at-

tention. We experiment with 2, 4, and 8 heads for

spatial or convolutional attention in this paper.

3.2 Panoptic and Residual Attention

Pooling Network

We feed the input face image of size I ∈ R

224×224×3

to the P-RAP architecture. The panoptic-FPN con-

sists of ﬁve bottom-up layers and four top-down lay-

ers. The last four top-down layers share the lateral

feature information from the bottom-up layers. Each

top-down layer from the FPN is then passed to a con-

volution layer to obtain a size of 256 ×56 ×56. The

four-layer outputs are then element-wise summed to

obtain out features of size 256 ×56 ×56 which are

known as panoptic features. The panoptic features are

then forwarded to a simple convolutional layer with

pooling to obtain features of size 128 ×28 ×28. The

features are then combined with position embeddings

similar to transformer encoder (Vaswani et al., 2017).

We pass the features to the residual-attention-pooling

(RAP) network as in Figure 1 purple block. The

RAP network consists of residual blocks and atten-

tion convolution. Each residual-attention block con-

sists of: attention −convolution

→ batchNorm

→

ReLU → attention −convolution

→batchNorm

→

ReLU → attention −convolution

→batchNorm

→

skipconnection → ReLU. After the activation layer,

the features are pooled and passed through the

residual-attention block. The process is repeated 2

times and we linearize the output and pass through

1 ×N self-attention layer. the process of linearized

output is illustrated in Figure 1. Finally, the attended

features are forwarded to a linear layer to regress the

pitch and yaw angles of eye gaze (i.e., 2D gaze).

3.3 Gaze and Loss Function

Designing the network for a 2D gaze vector is more

efﬁcient than optimizing the network for a 3D gaze

vector. We use the same nomenclature as (Zhang

et al., 2016; He et al., 2015) to transform the regressed

2D gaze vector to a 3D gaze and vice versa as needed.

We compute 2D gaze yaw (theta) and pitch (phi) val-

ues from a 3D gaze vector.

θ = arcsin(y) (2)

φ = arctan 2(x, z) (3)

Similarly, we compute 3D unit gaze vector

[x,y,z]

given 2D gaze angles as

x = cos(θ) ·sin(φ) (4)

y = sin(θ) (5)

z = cos(θ) ·cos(φ) (6)

This conversion is unique to the ETHX-

Gaze dataset (He et al., 2015) and the MPI-

IFaceGaze (Zhang et al., 2016). We employ the L1

loss function with regularization to backpropagate

the weights of the proposed architecture. The loss

function is

predicted

gaze

−actual

gaze

+ λ

∑

i=1

(7)

where λ is a regularization parameter and w

are the

weights of the network.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

544

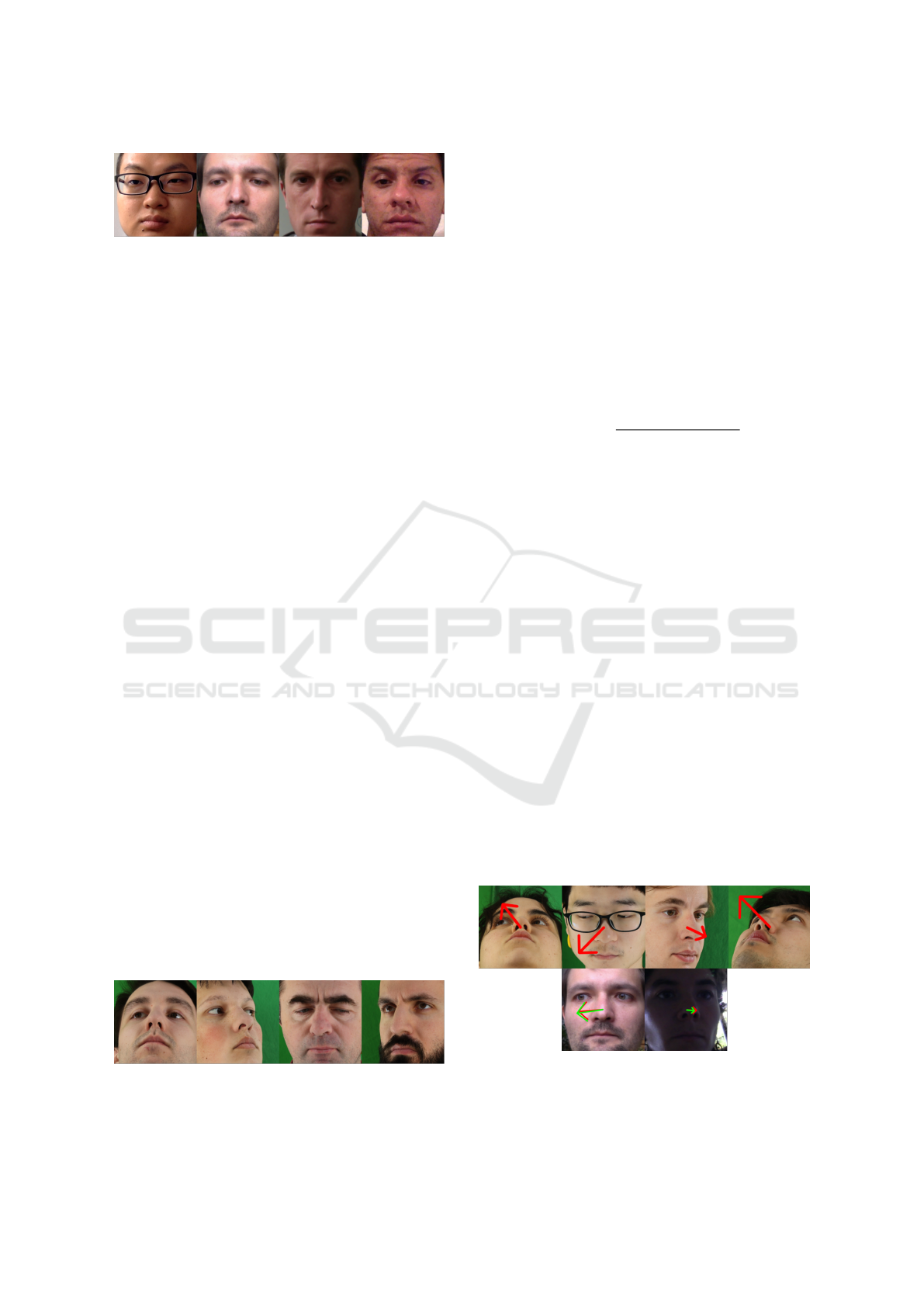

Figure 3: MPIIFaceGaze (Zhang et al., 2015) sample im-

ages from dataset.

4 EXPERIMENTS

In this section, we evaluate the proposed P-RAP ar-

chitecture and experiment with two open-source gaze

datasets.

4.1 Gaze Datasets

We utilize datasets with face images to train and as-

sess our proposed network technique because we in-

tend to regress gaze purely on face images. We use

two open-source datasets to test our architecture. 1)

The MPIIFaceGaze (Zhang et al., 2016) dataset con-

tains high-resolution photos of people who are closer

to the camera. 2) The ETH-XGaze (He et al., 2015)

collection contains incredibly high-resolution images.

MPIIFaceGaze Dataset. The MPI-

IFaceGaze (Zhang et al., 2016) dataset is a subset

of the MPIIGaze (Zhang et al., 2015) dataset. The

MPIIGaze dataset was originally composed of eye

images for experimentation, but a subset of face

images was eventually provided as MPIIFaceGaze.

The MPIIGaze dataset is totally captured in an

uncontrolled context, such as daily laptop usage over

long periods of time. When the target was displayed,

the individuals were prompted to hit a key. The

dataset contains 213,659 photos from 15 distinct

contributors. In the MPIIFaceGaze dataset, a subset

of 45,000 samples with full facial images is released

from this dataset. Each participant’s dataset has 3,000

samples. A few samples are shown in Figure 3.

ETH-XGaze. The ETH-XGaze (He et al., 2015)

dataset contains extremely high-resolution images ac-

quired with 18 Canon 250D digital SLR cameras. The

Figure 4: ETH-XGaze (Zhang et al., 2016) sample images

from dataset.

images captured have a resolution of 6000×4000 pix-

els. The ETH-XGaze dataset contains a large number

of head position variations ranging from ±80

◦

, ±80

◦

The ETH-XGaze dataset is a massive collection of

over 1 million photos from 110 individuals. Figure 4

shows the facial cropped data images.

4.2 Evaluation Metric and Training

Parameters

The evaluation metric for measuring the performance

is the 3D angular error. The angular error between the

actual g

actual

and the predicted gaze g

pred

is computed

angular

actual

·g

predicted

∥g

actual

∥∥g

predicted

∥

(8)

The metric is utilized for both within and cross-

dataset evaluation. To train the proposed architec-

ture, we use the Adam optimizer (Kingma and Ba,

2017) with a learning rate of 0.0001 and a weight de-

cay of 1e-6. We use an Nvidia RTX Quadro with a

48GB graphical processing unit to train the networks.

Each training batch consists of 256 - 224 ×224 ×3

pixel images. For each evaluation, the architecture

is trained for 50 epochs, and in most cases, the loss

curves (training and validation loss) stabilize around

epoch.

4.3 Within Dataset Evaluation

Within dataset evaluation evaluates the effectiveness

of data from a similar subset on unknown subjects.

The MPIIFaceGaze dataset started cross-validation

with leave-one-person-out. The dataset contains 15

persons, 14 of which are used for training and one for

testing. The procedure is evaluated 15 times, with the

overall accuracy calculated by averaging the results.

We use a similar cross-validation technique to eval-

uate the performance of the suggested architectures

Figure 5: The output 2D gaze vector on the ETH-Xgaze and

the MPIIFaceGaze test set. The red arrow is the predicted

gaze and the green arrow is the ground truth gaze.

Face-Based Gaze Estimation Using Residual Attention Pooling Network

545

Table 1: Comparison of the proposed architecture results to the state-of-the-art. The values are within-dataset evaluation

errors. The gaze angular errors are in degrees.

Datasets

Method MPIIFaceGaze ETH-XGaze

FewShotGaze (Park et al., 2019) 5.2

◦

MPIIFaceGaze (Zhang et al., 2016) 4.8

◦

ETH-XGaze (He et al., 2015) 4.8

◦

4.5

◦

RT-GENE (Fischer et al., 2018) 4.3

◦

FARE-Net (Cheng et al., 2020b) 4.3

◦

CA-Net (Cheng et al., 2020a) 4.1

◦

AGE-Net (L R D and Biswas, 2021) 4.09

◦

L2CS-Net (Abdelrahman et al., 2022) 3.92

◦

P-RAP (Ours) 3.8

◦

4.09

◦

Table 2: Cross-dataset evaluation results in degrees.

Train

Test

MPIIFaceGaze ETH-XGaze

MPIIFaceGaze (Zhang et al., 2016) 3.8

◦

27.95

◦

ETH-XGaze (He et al., 2015) 6.79

◦

4.09

◦

on the MPIIFaceGaze dataset. The architecture re-

gresses the 2D gaze vector, and to measure 3D angu-

lar error, we transform both the actual and predicted

2D gaze vectors to the previously speciﬁed 3D unit

vector. Figure 7 depicts the mean 3D angular gaze er-

ror for 15 subjects in the MPIIFaceGaze dataset. The

3D angular error resulting from the proposed network

trained on the MPIIFaceGaze dataset is represented

in Figure 7. The average inaccuracy for all partici-

pants is about 3.8

◦

. The chart demonstrates that the

majority of the participants have an angle error of less

than 4.5

◦

. The most deviations are 4.8

◦

and 6.27

◦

for participants P02 and P14, respectively. The ETH-

XGaze dataset has predeﬁned training and test sam-

ples. We obtain a 3D angular accuracy of 4.09

◦

test set. The ground truth gaze of the ETH-XGaze

test set is not available for direct evaluation. As the

dataset is very recently released not many works are

available for comparison.

Finally, we compare the P-RAP network results

to the state-of-the-art methods for face-based gaze es-

timation. Table 1 contains the comparison ﬁndings.

According to the results, our proposed model deliv-

ers state-of-the-art results on the MPIIFaceGaze and

Figure 6: The high gaze angular error cases on the MPI-

IFaceGaze dataset. The red arrow is the predicted gaze and

the green arrow is the ground truth gaze.

Figure 7: Participant-based mean angular gaze error in de-

grees on MPIIFaceGaze dataset trained on the P-RAP ar-

chitecture.

ETH-XGaze datasets (as far as published work). Fig-

ure 5 and 6 depict a few output samples from both

datasets with low and high precision.

4.4 Cross Dataset Evaluation

Cross dataset evaluation tests the performance of a

model on a completely different dataset. For cross

dataset evaluation, we retrained the architecture with

complete MPIIFaceGaze dataset. We did not re-

train the ETH-XGaze dataset as leave-one-out cross-

validation is not performed during training. The cross

dataset evaluation accuracy is mentioned in Table 2.

The model trained on MPIIFaceGaze dataset is used

for obtaining the gaze for the test set of ETH-XGaze

dataset resulting in 27.9

◦

angular error. Next, the

model is trained on ETH-XGaze dataset and tested on

MPIIFaceGaze dataset to obtain 3D angular error of

6.8

◦

. From this, we can see that the model trained on

the ETH-XGaze dataset performs better for the cross

dataset evaluation.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

546

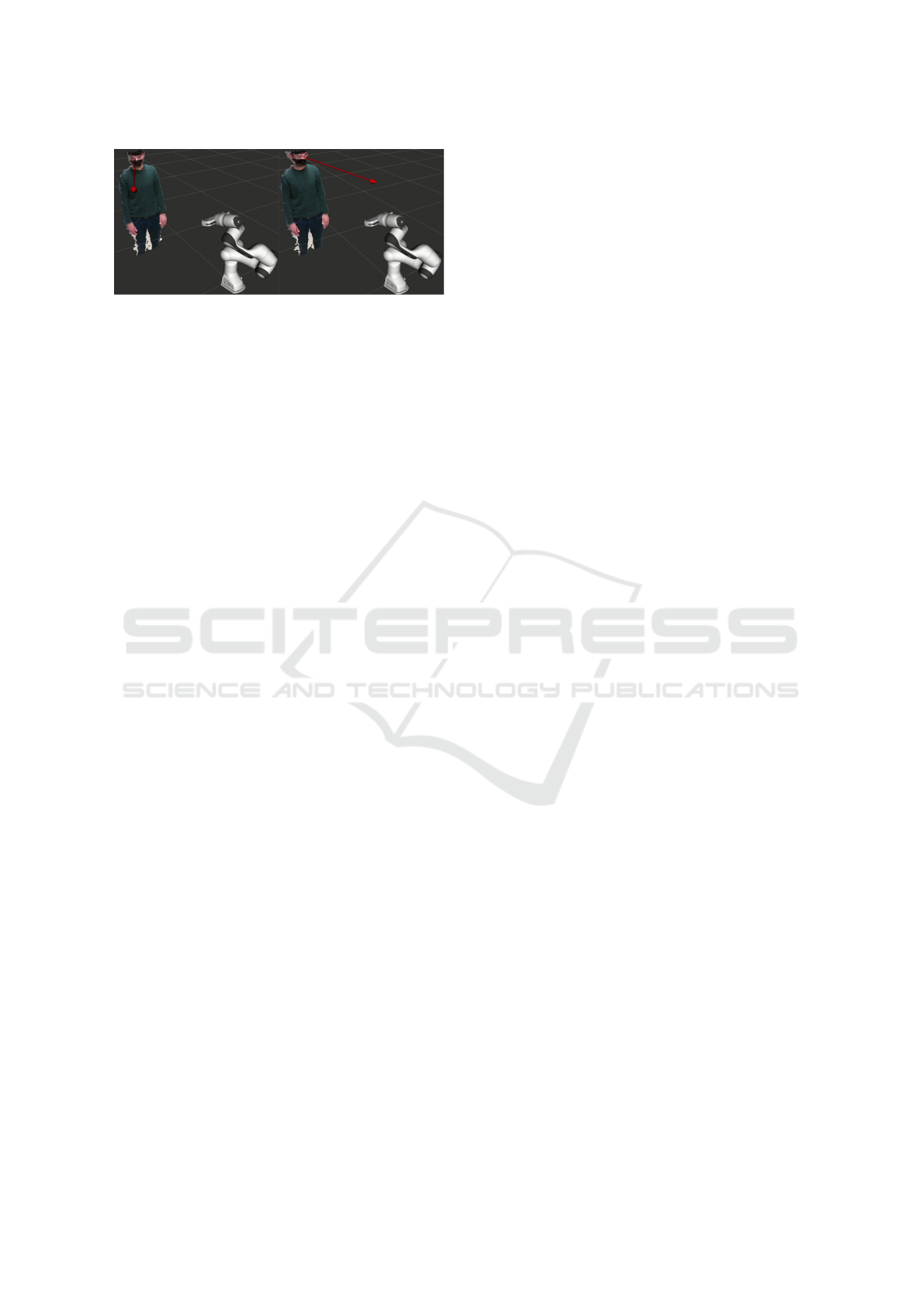

Figure 8: Gaze estimation in a human-robot interaction en-

vironment.

4.5 Human Robot Interaction

Application

We use the gaze estimation method in a real-time

human-robot interaction setting in this section. The

purpose of this environment is to capture a robot’s

attention in a human-robot interaction scenario. The

camera is approximately 1 to 2 meters away from the

subject. According to cross-dataset examination, the

ETH-XGaze dataset performs better than others from

Table 2. We cascade the dlib (King, 2009) face detec-

tion and head posture estimation with the suggested

FPN-AP architecture for gaze estimation for real-time

applications. The suggested model is applied in a

real-time situation, and the direction of gaze in the

surroundings is shown in Figure 8. We can clearly

discern the directions left, right, up, and down based

on the experiments. In addition, we also tested the

gaze in another human-robot environment for pick-

ing objects by gazing at them. From the experiments,

we noticed that the distance between the camera and

the human as well as the distance between objects

are highly dependent. Although it worked for cer-

tain distances, it requires quite a huge improvement

for real-time object-picking applications. As a further

improvement, we are currently working on combin-

ing multi-modal communication information for the

object-picking human-robot application.

5 CONCLUSION

We presented the P-RAP network design for eye gaze

estimation with a panoptic feature pyramid network,

residual blocks, and attention mechanism. We evalu-

ated the framework using two large-scale open-source

datasets. On both datasets, we conducted within-

dataset and cross-dataset evaluations and obtained

state-of-the-art performance. We aim to further im-

prove the accuracy of gaze for real-time robotic ap-

plications in combination with multimodal communi-

cation.

ACKNOWLEDGEMENTS

The project is Funded by the Deutsche Forschungs-

gemeinschaft (DFG, German Research Foundation) -

Project-ID 416228727 - SFB 1410.

REFERENCES

Abdelrahman, A. A., Hempel, T., Khalifa, A., and Al-

Hamadi, A. (2022). L2cs-net: Fine-grained gaze

estimation in unconstrained environments. ArXiv,

abs/2203.03339.

Baluja, S. and Pomerleau, D. (1994). Non-intrusive gaze

tracking using artiﬁcial neural networks. In Cowan,

J., Tesauro, G., and Alspector, J., editors, Advances

in Neural Information Processing Systems, volume 6.

Morgan-Kaufmann.

Chang, Z., Martino, M. D., Qiu, Q., Espinosa, S., and

Sapiro, G. (2019). Salgaze: Personalizing gaze es-

timation using visual saliency.

Chen, Z. and Shi, B. E. (2019). Appearance-based

gaze estimation using dilated-convolutions. CoRR,

abs/1903.07296.

Cheng, Y., Bao, Y., and Lu, F. (2022). Puregaze: Purifying

gaze feature for generalizable gaze estimation. Pro-

ceedings of the AAAI Conference on Artiﬁcial Intelli-

gence.

Cheng, Y., Huang, S., Wang, F., Qian, C., and Lu,

F. (2020a). A coarse-to-ﬁne adaptive network

for appearance-based gaze estimation. CoRR,

abs/2001.00187.

Cheng, Y., Lu, F., and Zhang, X. (2018). Appearance-based

gaze estimation via evaluation-guided asymmetric re-

gression. In Proceedings of the European Conference

on Computer Vision (ECCV).

Cheng, Y., Wang, H., Bao, Y., and Lu, F. (2021).

Appearance-based gaze estimation with deep

learning: A review and benchmark. CoRR,

abs/2104.12668.

Cheng, Y., Zhang, X., Lu, F., and Sato, Y. (2020b). Gaze

estimation by exploring two-eye asymmetry. IEEE

Transactions on Image Processing, 29:5259–5272.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Min-

derer, M., Heigold, G., Gelly, S., Uszkoreit, J., and

Houlsby, N. (2021). An image is worth 16x16 words:

Transformers for image recognition at scale. ArXiv,

abs/2010.11929.

Fischer, T., Chang, H. J., and Demiris, Y. (2018). Rt-

gene: Real-time eye gaze estimation in natural envi-

ronments. In Proceedings of the European Conference

on Computer Vision (ECCV).

Funes Mora, K. A., Monay, F., and Odobez, J.-M. (2014).

Eyediap: A database for the development and evalua-

tion of gaze estimation algorithms from rgb and rgb-d

cameras. In Proceedings of the Symposium on Eye

Tracking Research and Applications, ETRA ’14, page

Face-Based Gaze Estimation Using Residual Attention Pooling Network

547

255–258, New York, NY, USA. Association for Com-

puting Machinery.

Funes Mora, K. A. and Odobez, J.-M. (2014). Geomet-

ric generative gaze estimation (g¡sup¿3¡/sup¿e) for

remote rgb-d cameras. In 2014 IEEE Conference

on Computer Vision and Pattern Recognition, pages

1773–1780.

Guestrin, E. and Eizenman, M. (2006). General theory

of remote gaze estimation using the pupil center and

corneal reﬂections. IEEE Transactions on Biomedical

Engineering, 53(6):1124–1133.

Hansen, D. W. and Ji, Q. (2010). In the eye of the beholder:

A survey of models for eyes and gaze. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

32(3):478–500.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep

residual learning for image recognition. CoRR,

abs/1512.03385.

Heo, B., Yun, S., Han, D., Chun, S., Choe, J., and Oh, S. J.

(2021). Rethinking spatial dimensions of vision trans-

formers. In International Conference on Computer Vi-

sion (ICCV).

Hoppe, S., Loetscher, T., Morey, S. A., and Bulling, A.

(2018). Eye movements during everyday behavior

predict personality traits. Frontiers in Human Neu-

roscience, 12:105.

Huang, C.-M. and Mutlu, B. (2016). Anticipatory robot

control for efﬁcient human-robot collaboration. In

2016 11th ACM/IEEE International Conference on

Human-Robot Interaction (HRI), pages 83–90.

Kellnhofer, P., Recasens, A., Stent, S., Matusik, W., and

Torralba, A. (2019). Gaze360: Physically uncon-

strained gaze estimation in the wild. In IEEE Inter-

national Conference on Computer Vision (ICCV).

King, D. E. (2009). Dlib-ml: A machine learning toolkit.

Journal of Machine Learning Research, 10:1755–

1758.

Kingma, D. P. and Ba, J. (2017). Adam: A method for

stochastic optimization.

Kirillov, A., Girshick, R. B., He, K., and Doll

ar, P. (2019).

Panoptic feature pyramid networks. 2019 IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 6392–6401.

Konrad, R., Angelopoulos, A., and Wetzstein, G. (2019).

Gaze-contingent ocular parallax rendering for virtual

reality. CoRR, abs/1906.09740.

Krafka, K., Khosla, A., Kellnhofer, P., Kannan, H., Bhan-

darkar, S. M., Matusik, W., and Torralba, A. (2016).

Eye tracking for everyone. CoRR, abs/1606.05814.

L R D, M. and Biswas, P. (2021). Appearance-based gaze

estimation using attention and difference mechanism.

In 2021 IEEE/CVF Conference on Computer Vision

and Pattern Recognition Workshops (CVPRW), pages

3137–3146.

Lecun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Li, P., Hou, X., Duan, X., Yip, H., Song, G., and Liu, Y.

(2019). Appearance-based gaze estimator for natural

interaction control of surgical robots. IEEE Access,

7:25095–25110.

Lorenz., O. and Thomas., U. (2019a). Real time eye gaze

tracking system using cnn-based facial features for hu-

man attention measurement. In Proceedings of the

14th International Joint Conference on Computer Vi-

sion, Imaging and Computer Graphics Theory and

Applications - Volume 5: VISAPP,, pages 598–606.

INSTICC, SciTePress.

Lorenz., O. and Thomas., U. (2019b). Real time eye gaze

tracking system using cnn-based facial features for hu-

man attention measurement. In Proceedings of the

14th International Joint Conference on Computer Vi-

sion, Imaging and Computer Graphics Theory and

Applications - Volume 5: VISAPP,, pages 598–606.

INSTICC, SciTePress.

Lu, F., Sugano, Y., Okabe, T., and Sato, Y. (2014). Adap-

tive linear regression for appearance-based gaze esti-

mation. IEEE Transactions on Pattern Analysis and

Machine Intelligence.

Martinez, F., Carbone, A., and Pissaloux, E. (2012). Gaze

estimation using local features and non-linear regres-

sion. In 2012 19th IEEE International Conference on

Image Processing, pages 1961–1964.

Nakazawa, A. and Nitschke, C. (2012). Point of gaze esti-

mation through corneal surface reﬂection in an active

illumination environment. In Fitzgibbon, A., Lazeb-

nik, S., Perona, P., Sato, Y., and Schmid, C., edi-

tors, Computer Vision – ECCV 2012, pages 159–172,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Park, S., Mello, S. D., Molchanov, P., Iqbal, U., Hilliges,

O., and Kautz, J. (2019). Few-shot adaptive gaze esti-

mation.

Patney, A., Salvi, M., Kim, J., Kaplanyan, A., Wyman, C.,

Benty, N., Luebke, D., and Lefohn, A. (2016). To-

wards foveated rendering for gaze-tracked virtual re-

ality. ACM Trans. Graph., 35(6).

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

CoRR, abs/1409.1556.

Smith, B., Yin, Q., Feiner, S., and Nayar, S. (2013).

Gaze Locking: Passive Eye Contact Detection for Hu-

man?Object Interaction. In ACM Symposium on User

Interface Software and Technology (UIST), pages

271–280.

Tan, K.-H., Kriegman, D. J., and Ahuja, N. (2002).

Appearance-based eye gaze estimation. In Proceed-

ings of the Sixth IEEE Workshop on Applications of

Computer Vision, WACV ’02, page 191, USA. IEEE

Computer Society.

Valenti, R., Sebe, N., and Gevers, T. (2012). Combining

head pose and eye location information for gaze es-

timation. IEEE Transactions on Image Processing,

21(2):802–815.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J.,

Jones, L., Gomez, A. N., Kaiser, L., and Polo-

sukhin, I. (2017). Attention is all you need. CoRR,

abs/1706.03762.

Wang, H., Dong, X., Chen, Z., and Shi, B. E. (2015). Hy-

brid gaze/eeg brain computer interface for robot arm

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

548

control on a pick and place task. In 2015 37th Annual

International Conference of the IEEE Engineering in

Medicine and Biology Society (EMBC), pages 1476–

1479.

Williams, O., Blake, A., and Cipolla, R. (2006). Sparse

and semi-supervised visual mapping with the s3gp.

In 2006 IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition (CVPR’06).

Wood, E., Baltrusaitis, T., Morency, L.-P., Robinson, P., and

Bulling, A. (2016). Learning an appearance-based

gaze estimator from one million synthesised images.

In Proceedings of the Ninth Biennial ACM Symposium

on Eye Tracking Research and Applications, pages

131–138.

Xiong, X., Liu, Z., Cai, Q., and Zhang, Z. (2014). Eye gaze

tracking using an rgbd camera: A comparison with a

rgb solution. In Proceedings of the 2014 ACM Inter-

national Joint Conference on Pervasive and Ubiqui-

tous Computing: Adjunct Publication, UbiComp ’14

Adjunct, page 1113–1121, New York, NY, USA. As-

sociation for Computing Machinery.

Xiong, Y., Kim, H. J., and Singh, V. (2019). Mixed effects

neural networks (menets) with applications to gaze es-

timation. In 2019 IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

7735–7744.

Yu, Y., Gang, L., and Jean-Marc, O. (2018). Deep mul-

titask gaze estimation with a constrained landmark-

gaze model. In ECCV 2018 Workshop. Springer.

Zhang, X., Park, S., Beeler, T., Bradley, D., Tang, S., and

Hilliges, O. (2020). Eth-xgaze: A large scale dataset

for gaze estimation under extreme head pose and gaze

variation.

Zhang, X., Sugano, Y., and Bulling, A. (2019). Evalu-

ation of appearance-based methods and implications

for gaze-based applications. CoRR, abs/1901.10906.

Zhang, X., Sugano, Y., Fritz, M., and Bulling, A. (2015).

Appearance-based gaze estimation in the wild. In

Proc. of the IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), pages 4511–4520.

Zhang, X., Sugano, Y., Fritz, M., and Bulling, A. (2016).

It’s written all over your face: Full-face appearance-

based gaze estimation. CoRR, abs/1611.08860.

Face-Based Gaze Estimation Using Residual Attention Pooling Network

549
