Secure Software Updates for IoT Based on Industry Requirements

Ludwig Seitz

, Marco Tiloca

, Martin Gunnarsson

and Rikard Höglund

Combitech AB, Malmö, Sweden

Cybersecurity Unit, RISE Research Institutes of Sweden, Sweden

Keywords:

Security, Software Update, Industrial Control Systems, Internet of Things.

Abstract:

This paper analyzes the problem and requirements of securely distributing software updates over the Internet,

to devices in an Industrial Control System (ICS) and more generally in Internet of Things (IoT) infrastructures

controlling a physical system, such as power grids and water supply systems. We present a novel approach

that allows to securely distribute software updates of different types, e.g., device ﬁrmware and customer appli-

cations, and from sources of different type, e.g., device operators, device manufacturers and third-party library

providers. Unlike previous works on this topic, our approach keeps the device operator in control of the update

process, while ensuring both authenticity and conﬁdentiality of the distributed software updates.

1 INTRODUCTION

Internet of Things can encompass many types of con-

nected devices or things. A class of devices espe-

cially worthy of study from a security perspective are

Industrial Control Systems (ICS). Connected devices

that control processes, e.g., in power grids or facto-

ries, must have strict security requirements due to the

severe potential damage caused by incidents. Provid-

ing updates to vulnerable software (SW) is critical for

maintaining a system’s security. This is exacerbated

in ICS, as their components often cannot easily be up-

dated (Davidson et al., 2018).

An issue with these systems is the very long life-

time of devices (tens of years) and the fact that they

cannot simply be rebooted, as often required for SW

updates. This leads to deployments where devices

with known vulnerabilities keep running unpatched,

making life easy for attackers. While attacks by Ad-

vanced Persistent Threat groups, e.g., the Stuxnet

worm or the Black Energy attack on the Ukrainian

power grid, have raised awareness in the industry, a

solution is not forthcoming, as it would require wide-

ranging replacement of legacy devices.

The International Electrotechnical Commission

(IEC) released a report on patch management in ICS,

under the IEC 62443 series (IEC, 2015). The report

focuses on recommendations to establish sound man-

agement procedures, for both operators and manufac-

turers of ICS devices, e.g., requirements on device in-

ventorying, meta-data on the inventory’s SW versions

and notiﬁcation of available updates. The report also

includes technical recommendations, on assuring that

a patch can be matched to the correct devices. To this

end, it deﬁnes a Vendor Patch Compatibility (VPC)

ﬁle, which uses XML to represent information about

the patch and the issuing vendor, enabling operators

to determine which devices are suitable to apply this

patch to. Cryptographic protection of the VPC ﬁle is

explicitly placed out of scope.

At the Internet Engineering Task Force (IETF),

the SUIT Working Group (IETF, 2022) has worked

on solutions for securing SW updates for IoT de-

vices (Moran et al., 2022). Connected ICS devices

can be seen as a subgroup of IoT devices, so this work

is highly applicable too. SUIT has identiﬁed relevant

threats to SW updates, and has speciﬁed a manifest

ﬁle format (akin to the IEC VPC ﬁle), also containing

meta-data of a SW update. While they partly over-

lap, the SUIT design explicitly considers possible ma-

licious activities, while the approach based on VPC

does not.

This paper presents a novel architectural approach

for securely distributing SW updates to devices in an

ICS over the Internet, based on requirements from an

ICS manufacturer. Our approach is partly based on

the work of the IETF Working Group SUIT (IETF,

2022) and the recommendations of IEC-TR-62443-2-

3 (IEC, 2015). At a high-level, our update distribution

process consists of the following phases.

(1) "Update release". A SW update is distributed

to the target device domain, possibly via an Update

698

Seitz, L., Tiloca, M., Gunnarsson, M. and Höglund, R.

Secure Software Updates for IoT Based on Industry Requirements.

DOI: 10.5220/0011790100003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 698-705

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Server where it is stored for later retrieval. A domain

is a segment of a network controlled by one entity.

The update is authenticated, integrity-protected and

encrypted.

(2) "Update fetching". An Update Dispatcher in

the target device domain obtains the SW update, as

well as the key material to decrypt and verify the up-

date. This involves per-domain key material made se-

curely accessible to speciﬁc Update Dispatchers.

(3) "Update distribution". The Update Dispatcher

securely uploads the SW update to the target devices,

with the device operator keeping control of the update

process. The devices assert the update authenticity by

verifying the signature from the update publisher.

To the best of our knowledge, this is the ﬁrst ap-

proach with all the following beneﬁts. (i) Multiple

types of SW updates are supported, e.g., custom ap-

plications and device ﬁrmware, originated by multiple

sources of different types, e.g., device operator, de-

vice manufacturer and third-party library providers.

(ii) The device operator retains control of the up-

date process, while third-party SW providers can still

make their critical updates available. (iii) Besides in-

tegrity and source authentication of SW updates, also

their conﬁdentiality is ensured, preventing reverse en-

gineering and possible exploitation of vulnerabilities.

The rest of the paper is organized as follows. Sec-

tion 2 discusses the related work. Section 3 deﬁnes

the requirements. Section 4 presents our update ar-

chitecture. Section 5 details the the update process.

Section 6 provides a security analysis. Finally, in Sec-

tion 7, we draw our conclusions.

2 RELATED WORK

Secure Software updates for connected devices is a

complex topic. Software updates for ICS and IoT

have been studied from a multitude of directions.

In (Mugarza et al., 2020) the authors have reviewed

IEC-TR-62443 and related standards, with regards to

software updates of industrial IoT devices (IIoT). The

authors note that the stakeholders; asset owners, ser-

vice providers, and product suppliers have to address

software updates jointly.

The authors of (Hernández-Ramos et al., 2020)

describe challenges for software update of IoT de-

vices. The authors have focused on SUIT and

academic research utilizing blockchain technology.

In (El Jaouhari and Bouvet, 2022), the authors discuss

technical solutions such as Secure Elements (SE), and

Root of Trust (RoT) and the role of such technology

in software updates. The authors provide an exten-

sive overview and evaluation of proposed schemes for

software update for IoT. In (Catuogno et al., 2017) the

authors propose a system for distribution of encrypted

software patches that can only be decrypted on sys-

tems that fulﬁls the requirements.

Several surveys detailing speciﬁc parts of the

software update process have been published.

In (Arakadakis et al., 2021), the authors provide a sur-

vey of Firmware over The Air Update (FOTA) mech-

anisms under 1999-2020. They survey technical chal-

lenges for a FOTA protocol as well as of commercial

and open-source FOTA applications.

In (Petrov, 2018), a patch delivery infrastructure

is proposed for supervisory control and data acquisi-

tion (SCADA) systems, based on a use-case from a

manufacturer of SCADA equipment. The thesis an-

alyzes the requirements of the manufacturer and its

customers, showing signiﬁcant similarities with those

from the ICS manufacturer we have been in contact

with. The thesis proposes a multi-layered solution for

patch delivery, operated by the manufacturer.

In (Asokan et al., 2018), the authors present AS-

SURED, a secure update mechanism for embedded

devices, also applicable to devices in critical infras-

tructure. ASSURED does not consider 3rd-party li-

braries that may be deployed on devices, for which

an update process must provide support. Instead, the

approach we present in this paper does address both

those points.

In (Fassino, 2016), the authors present the secure

ﬁrmware update mechanism deployed by Schneider

Electric. It includes signing of the ﬁrmware updates

and a cloud-based security service to provide updates

to customers. The described mechanism does not

elaborate on automating the update procedure, while

enforcing update policies by the client.

In (Ambrosin et al., 2014), the authors propose

a scheme for software update distribution in cache-

enabled networks. The scheme utilize symmetric en-

cryption of updates to achieve deduplication of stored

updates in a cache. The decryption keys are then dis-

tributed using attribute based encryption.

3 REQUIREMENTS

This section lists the requirements for secure SW up-

dates, determined based on three sources: a use-case

presented to us by an ICS systems vendor; the require-

ments developed by the SUIT Working Group (Moran

et al., 2021); and the requirements stipulated in IEC

62443-2-3 (IEC, 2015). The vendor wishes to remain

anonymous and is thus only referred to as the vendor.

Secure Software Updates for IoT Based on Industry Requirements

699

3.1 Covered Operational Requirements

We consider the following operational requirements:

R1. The device operator must be in control of

the update procedure, i.e., of which update is

downloaded for which devices and when it is

installed.

R2. The update author must provide meta-data

about the released updates, allowing device op-

erators to determine if they are of interest and

applicable. The meta-data must inform about

which hardware and SW versions the update

applies to, and what type of update it is (e.g.,

conﬁguration ﬁles, execute-in-place ﬁle, load-

able modules).

R3. Different update types from different author

types must be supported. Update types include

ﬁrmware updates, manufacturer libraries, third-

party libraries and operator applications. Au-

thor types include device manufacturers, device

operators and third-party library providers.

R4. The device operator must be able to automate

(parts of) the update procedure.

R5. The update procedure must support different

update distribution strategies, e.g., push and

pull.

3.2 Covered Security Requirements

During the whole process, it must be practically in-

feasible to: i) access the content and meta-data of SW

updates, except for the intended recipients; ii) tam-

per with SW updates, by altering their content and

meta-data; iii) inject bogus or replayed updates, mak-

ing them appear as valid and legitimate. Consistently,

we consider the following security requirements.

R6. Updates and meta-data must be source authen-

ticated and integrity protected. The keys for

veriﬁcation must be available to the device op-

erator.

R7. An adversary must not be able to trick a de-

vice into installing updates that are valid and

non tampered with, but yet mismatching. These

include updates that are obsolete, not intended

for the target device, or with unfulﬁlled precon-

ditions.

R8. The device operator must be able to securely

obtain the correct download location for an up-

date.

R9. It must be possible to encrypt the update and

its meta-data, to prevent an adversary from per-

forming reverse engineering. The decryption

keys must be available to the device operator.

3.3 Non Covered Requirements

The following requirements must also be fulﬁlled to

ensure a secure update solution, but are out of scope

for our architecture and need to be addressed sepa-

rately. Yet, we provide the following guidelines.

• The update process must be reliable and resilient to

device malfunctions. For example, a reboot of a de-

vice during an update must not lead to a malfunction.

This can be achieved by equipping the devices with a

second stage bootloader that is capable of performing

the updates and resuming them in case of failures.

• The update procedure should be adapted to resource

constrained environments. For example, the code-

footprint for parsing the meta-data format must be

small, and updates that require a device reboot must

work with a minimal bootloader. Our approach partly

addresses this requirement by ofﬂoading the devices

through the Update Dispatcher (see Section 4.1).

• If the update requires a reboot, protection is needed

against swapping a previously veriﬁed update with a

malicious one during reboot. This can be addressed

by equipping the devices with a secure boot mecha-

nism, that veriﬁes updates during the boot process.

4 UPDATE ARCHITECTURE

Our architecture is shown in Figure 1 and described in

Sections 4.1-4.3 fulﬁlls the requirements in Section 3.

We describe the update process in Section 5.

Domain 1

Device

operator

Check status

Update

dispatcher

Update

server

Key

Repository

Internet

Domain 2

party)

Internet

Domain 3

(Manufacturer)

Update

Author

Signed

and

encrypted

Software

update

UP UA UP

Legend:

Domain 4

party)

Software

Update

Author

Symmetric

Key

Software

Update

Device

Key

transfer

Software

update

transfer

Update

Publisher

Domain

border

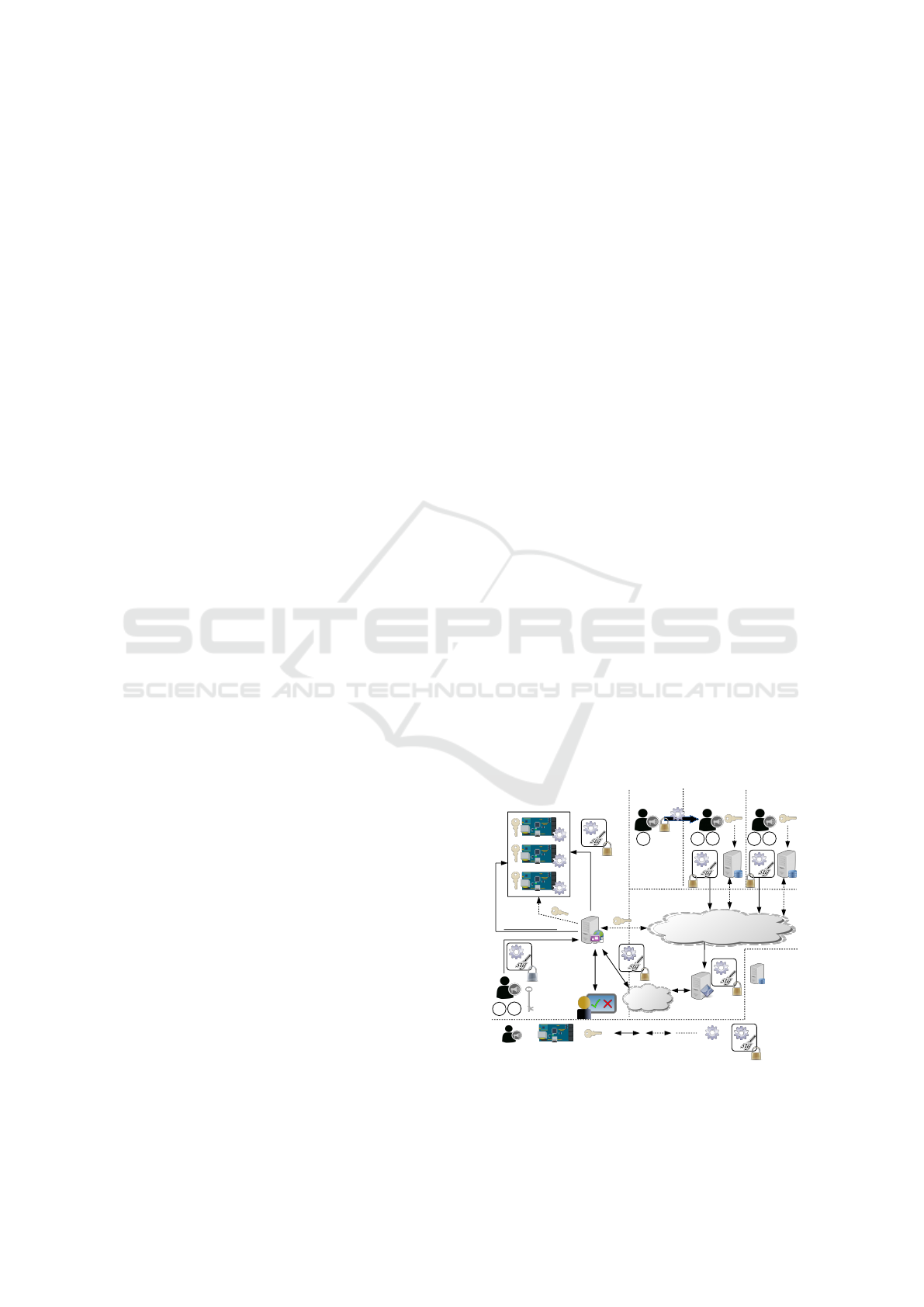

Figure 1: Architecture for secure software update.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

700

4.1 Architecture Entities and Actors

The architecture in Figure 1 includes:

• Domain. Networked cyber-physical systems oper-

ated by the same administrative authority. For in-

stance, a power plant or a factory.

• Device. A networked device operating in a Domain.

A Device runs one or many SW components (possi-

bly issued by different sources), belongs to a single

Device Operator, and is handled by one Update Dis-

patcher in the same Domain.

• Device Manufacturer. The company that designed

and manufactured a Device.

• Device Operator. The entity with authority and con-

trol of Devices in its Domain for day-to-day opera-

tion and maintenance. This includes system/network

administrators and authorized maintenance operators.

• Update Author (UA). Entity issuing a SW compo-

nent and related updates. Different Update Authors

may release different SW components and updates for

a Device. The Update Author may differ from the Up-

date Publisher.

• Update Publisher (UP). Entity distributing an up-

date to a previously released SW component. The

Update Publisher can be internal, i.e., it belongs to

the same Domain of the Devices to update and has

a secure relationship with the Update Dispatcher of

that Domain (see "Domain 1" in Figure 1). Other-

wise, the Update Publisher is external, i.e., it uploads

SW updates to an Update Server (see "Domain 3" and

"Domain 4" in Figure 1).

• Key Repository. A Server available on the Internet

and controlled by a single external Update Publisher,

which is in a secure relationship. It stores key material

that the associated Update Publisher uses to secure

published SW updates.

• Update Server (US). A server available on the In-

ternet, where any external Update Publisher uploads

SW updates to distribute. Different Update Publishers

can use an Update Server, and an Update Publisher

can rely on multiple Update Servers for redundancy

or scalability.

• Update Dispatcher (UD). Domain-local entity that

obtains SW updates from Update Servers or internal

Update Publishers. The Update Dispatcher is con-

trolled by the Device Operator and is responsible for:

i) keeping track of devices in its Domain with regards

to the current SW versions and the status of ongoing

update processes; ii) interacting with the Device Op-

erator for conﬁrming/revising update operations, and

for enforcing ﬁne-grained update policies; iii) dis-

tributing updates to the intended devices.

• Update Key. A symmetric key generated by an Up-

date Publisher used to encrypt SW updates, which en-

sures their conﬁdentiality from the Update Publisher

to the Domain with Devices to update. An Update

Publisher generates a new Update Key upon releasing

a new SW update and uploads it to its associated Key

Repository.

4.2 Types of SW Updates and Update

Authors

Different Update Authors disseminate their SW up-

dates differently based on their expected role and the

type of update. We consider three types of SW up-

dates.

• T1. SW updates for the Application Layer, thus non-

critical for the Devices. Any authorized entity can

both author and publish these updates.

• T2. SW updates for the Firmware and Library

Layer, thus critical for the Devices. They are authored

and published only by the Device Manufacturer.

• T3. SW updates for the Firmware and Library

Layer, thus critical for the Devices. Unlike for class

T2, these updates are authored by a trusted 3rd-party

developer but are published only by the Device Man-

ufacturer after having been approved by it.

Also, we consider three types of Update Authors.

• A1. Update Authors in the same Domain of the De-

vices to update. These Update Authors only produce

and distribute SW updates of class T1. They act as

internal Update Publishers and directly upload their

SW update to the Update Dispatcher over a secure

communication channel. Figure 1 shows an Update

Author of this class in "Domain 1".

• A2. Update Authors that are speciﬁcally Device

Manufacturers. These Update Authors can produce

and distribute SW updates of classes T1 and T2. They

act as external Update Publishers by uploading their

SW update to the Update Server over a secure com-

munication channel. Figure 1 shows an Update Au-

thor of this class in "Domain 3".

• A3. Update Authors as authorized 3rd party devel-

opers, i.e., non Device Manufacturers. These Update

Authors can produce and distribute SW updates of

classes T1 and T3. For a class T1 update, the Update

Authors act as the Update Publisher and upload the

SW update to the Update Server over a secure com-

munication channel. Figure 1 shows an Update Au-

thor of this class as releasing a SW update of class T1

in "Domain 4". For a class T3 update, these Update

Authors do not act as Update Publisher, but rather

provide their SW update to the Device Manufacturer

over a secure communication channel. The Device

Manufacturer veriﬁes the SW update and uploads the

SW update to the Update Server, acting as an exter-

nal Update Publisher on behalf of the Update Author.

Secure Software Updates for IoT Based on Industry Requirements

701

Table 1: Division of roles Update Author and Update Pub-

lisher for types of SW Updates (Author: "Update Author";

Publisher: "Update Publisher").

Author

SW Update type

T1 T2 T3

A1 Author & Publisher

A2 Author & Publisher Author & Publisher Publisher

A3 Author & Publisher Author

Figure 1 shows an Update Author of this class in "Do-

main 2", as providing its SW update to the Device

Manufacturer in "Domain 3" for approval and follow-

ing upload to an Update Server.

Table 1 overviews the types of Update Authors in

relation to the different classes of SW updates.

4.3 Security Model

We assume the distribution process is secured against

an active, on-path adversary. The adversary can cap-

ture, delete, modify, and change the order of all mes-

sages between involved parties. The adversary can

also inject previously captured or newly crafted mes-

sages. However, the adversary does not own the re-

quired key material to participate in such communi-

cations and cannot break the used cryptographic func-

tions.

The entities involved in the update distribution

protect communications to ensure conﬁdentiality,

freshness, integrity and source authentication of mes-

sages. Communications to be secured are among: i) a

third-party developer and a Device Manufacturer; ii)

an external Update Author and an Update Server; iii)

an Update Server and an Update Dispatcher; iv) an

Update Dispatcher and the Key Repository of an ex-

ternal Update Publisher; v) an Update Dispatcher and

the Device Operator; vi) an Update Dispatcher and

an internal Update Author; vii) an Update Dispatcher

and the Devices to update. As long as the require-

ments above are fulﬁlled, our approach is not limited

to a speciﬁc secure communication protocol.

The security of entities such as the Key Reposi-

tory, the Update Server, and the Update Dispatcher

is also critical for the security of the distribution pro-

cess. Those entities are expected to be equipped with

plenty of resources as well as properly implemented

and managed to be robust, reliable, and secure, thus

practically infeasible to compromise. To this end, best

engineering practices exist (Birman, 2012).

Accessing the Key Repository, Update Server, and

Update Dispatcher must be limited to authorized re-

questers and only for performing authorized opera-

tions. Thus, secure and ﬁne-grained access control

must be enforced.

In particular, an Update Publisher has to allow Up-

date Dispatchers to access its Key Repository to re-

trieve Update Keys when needed. This requires ensur-

ing ﬁne-grained access control at the Key Repository.

To this end, a well-established approach is the OAuth

2.0 Authorization framework (Hardt, 2012), with the

Update Publisher, the Key Repository, and the Up-

date Dispatchers acting as Resource Owner, Resource

Server, and Clients, respectively.

A Device Operator has to allow Update Dispatch-

ers to access their devices to distribute the SW up-

dates. In order to enforce ﬁne-grained access con-

trol, a possible, well-established approach is the ACE

framework for Authentication and Authorization in

Constrained Environments (Seitz et al., 2022), with

the Device Operator, the Devices, and the Update Dis-

patcher acting as Resource Owner, Resource Servers

and Client, respectively.

5 UPDATE PROCESS

With reference to Figure 1, the SW update process

occurs as per the three-phase workﬂow below.

5.1 Update Release

The Update Author generates a new version of the

SW to be updated, as an incremental patch to a pre-

vious existing version, or a full-ﬂedged updated ver-

sion. If the SW update is of type T3 (see Section 4.2),

the Update Author, of type A3, ﬁrst provides the SW

update to the Device Manufacturer acting as external

Update Publisher. This relies on a secure communi-

cation channel, ensuring message conﬁdentiality, in-

tegrity and source authenticity. The Device Manufac-

turer decrypts the SW update from the Update Author,

and veriﬁes it to be ﬁne to distribute. If so, the Device

Manufacturer acts as external Update Publisher as de-

scribed below.

For each Update Author type, conﬁdentiality of

the SW update is ensured. In fact, an Update Author

of type A1 (see Section 4.2) acts as internal Update

Publisher, and provides a SW update to the Update

Dispatcher, over a secure communication channel.

Instead, if the Update Author is of type A2 or A3,

the external Update Publisher encrypts the SW up-

date, before publicly releasing it. This is not trivial

to achieve, as the Update Publisher wishes to ensure

conﬁdentiality of the SW update all the way to the

Device domain. That is, the content of the SW up-

date should be accessible to the Devices in "Domain

1", while it should remain opaque to (untrusted) inter-

mediaries in other domains, e.g., the Update Server.

This can be achieved by encrypting the SW update

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

702

with a symmetric key shared among the Update Pub-

lisher and the target Devices. However, the Update

Publisher is not expected to know what Devices are

targeted by the released SW update. This prevents

relying on a (poorly scalable) establishment of sym-

metric keys with the target Devices.

To overcome this issue, the Update Publisher ﬁrst

generates a symmetric key K associated with this up-

date release, and a corresponding key identiﬁer kid.

The Update Publisher uses K to encrypt the SW up-

date, and stores K as well as kid in the Key Reposi-

tory under its control and in its same domain. Then,

the Update Publisher signs the encrypted SW update

together with k id, by using its private key. Finally,

the Update Publisher publicly releases the signed and

encrypted SW update, by uploading it to the Update

Server. As the Update Publisher used the encrypt-

then-sign construction, the Update Server can authen-

ticate and verify the integrity of the SW update, by

using the public key of the Update Publisher to verify

its signature.

5.2 Update Fetching

The Update Dispatcher has a secure association with

the Update Publisher. Also, if the Update Publisher is

external, the Update Dispatcher has ﬁne-grained se-

cure access to the associated Key Repository.

Next, the Update Dispatcher collects SW updates

for Devices in its same Domain, by sending PULL re-

quests to, or receiving PUSH notiﬁcations from, the

entity hosting updates of interest. This can be an in-

ternal Update Publisher (see Figure 1, "Domain 1"),

or an Update Server where external Update Publish-

ers have uploaded an update (see Figure 1, "Domain

3" and "Domain 4"). In either case, the Update Dis-

patcher can authenticate and verify the integrity of the

update, using the public key of the Update Publisher

to verify its signature. For updates of type T2 or T3

(see Section 4.2), the Update Dispatcher veriﬁes that

they are signed by the Device Manufacturer.

Then, the Update Dispatcher retrieves the key K,

possibly from the Key Repository associated with the

external Update Publisher, by using the kid speciﬁed

in the update. Then, the Update Dispatcher decrypts

the update using K, accesses its content, and deter-

mines the next steps to take for the actual distribution

to the target Devices, possibly in concertation with the

Device Operator (see Section 5.3). Note that, thanks

to the digital signature from the Update Publisher, the

Update Dispatcher is not able to alter the content of

the update.

Finally, the Update Dispatcher provides K to the

target Devices, over an associated secure communi-

cation channel.

5.3 Update Distribution

The Update Dispatcher does not necessarily distribute

the SW update to the Devices right after having re-

trieved it. That is, the update distribution is scheduled

as follows.

First, the Update Dispatcher determines which

Devices to update, e.g., based on which SW version

they are running.

Second, the Update Dispatcher enforces update

policies on behalf of the Device Operator, to reﬂect

preferences, requirements and priorities in perform-

ing SW updates. For instance, it may be ﬁne to im-

mediately distribute non-critical updates, if coming

from third-party providers of utility SW libraries. In-

stead, some updates may have to be explicitly ap-

proved and/or postponed to not interfere with safety-

critical operations in the networked system. This re-

quires the Update Dispatcher to "put on hold" the

update process, and interact with the Device Oper-

ator for a ﬁnal approval and/or possible reschedul-

ing. Note that, while feasible for a unit such as the

Update Dispatcher, it is not realistic to expect con-

strained and intermittently available Devices to effec-

tively and promptly interact with the Device Operator

by themselves.

In due time and according to the policies and in-

teraction above, the Update Dispatcher distributes the

SW update to the Devices over a secure communica-

tion channel.

Then the Devices receiving the update: i) authen-

ticate and check the integrity of the update, by using

the public key of the Update Publisher to verify its

signature; ii) decrypt the update by using the key K

originally used by the Update Publisher, as received

from the Update Dispatcher (see Section 5.2); and iii)

install the SW components from the received update

according to vendor- or author-speciﬁc procedures,

which are out of scope for this paper.

6 SECURITY ANALYSIS

This section discusses how relevant security require-

ments are met and supporting security services.

6.1 Integrity and Source Authentication

of SW Updates

We achieve these requirements by signing the en-

crypted SW update using the Update Publisher pri-

Secure Software Updates for IoT Based on Industry Requirements

703

vate key. A Device can ensure that a received up-

date is not tampered with and comes from the in-

tended Update Publisher. Encrypt-then-sign allows

(untrusted) intermediaries to verify the validity of an

update during distribution. Intermediaries include the

Update Server, the Update Dispatcher, and border

routers used as the entry point to local networks. Pub-

lic keys of Update Publishers can be pre-provisioned

or retrieved from a trusted key repository such as a

PKI.

For SW updates of type T3 (see Section 4.2), it

may be convenient that the Update Author, of type

A3, instead uses a construction sign-then-encrypt

when providing the update to the Device Manufac-

turer (see Section 5.1). In fact, after decrypting the

received update, the Device Manufacturer can pre-

serve the original signature from the Update Author

before re-encrypting the update for upload to the Up-

date Server. The advantage is that, later on, both the

Update Dispatcher and the Devices to update have ac-

cess to the original signature from the Update Author.

Thus, they can also verify that: i) the update comes

from that Update Author, despite the Device Manu-

facturer acting as an external Update Publisher, and ii)

the Device Manufacturer has not altered the original

update but only approved it as is before distribution.

This comes at the cost of handling the public keys of

such Update Authors and verifying the signature from

one such Update Author. Public keys of these Update

Authors can be pre-provisioned or retrieved from a

trusted key repository.

6.2 Conﬁdentiality of SW Updates

Unlike integrity and source authentication, this re-

quirement is often optional to fulﬁll. However, it al-

lows for hiding update contents from unintended re-

cipients and impeding reverse engineering of the dis-

tributed SW. This prevents reverse engineering of up-

dates for vulnerability discovery or intellectual prop-

erty infringement. Devices in physically insecure

environments can further leverage secure processing

and storage of received updates.

Our approach ensures that, in the target Domain,

only the intended recipient Devices and the support-

ing Update Dispatcher can access the update’s con-

tents using the key K that only authorized actors can

retrieve from the Key Repository of the Update Pub-

lisher. Also, the content of distributed updates re-

mains inaccessible to intermediaries between the Up-

date Publisher and the Update Dispatcher. These in-

clude the Update Server, which cannot access the

stored updates and is not a valuable target for an

attacker trying to take control of gaining access to

stored updates.

The above requires that Devices trust their do-

main Update Dispatcher, as the point where end-to-

end conﬁdentiality with the Update Publisher ends,

due to the Update Dispatcher fetching K from the Key

Repository of the Update Publisher. Based on the up-

date’s content, the Update Dispatcher takes the cor-

rect next steps (e.g., interacting with the Device Op-

erator), but it cannot alter the update’s content due to

the Update Publisher’s digital signature.

6.3 Supporting Security Services

The open standard CBOR Object Signing and En-

cryption (COSE) (Schaad, 2017) can be used to efﬁ-

ciently encrypt, sign and compute a Message Authen-

tication Code (MAC) on the SW updates achieving

small messages that can be efﬁciently processed.

Open frameworks for authentication and autho-

rization, such as OAuth 2.0 (Hardt, 2012), and ACE

(Seitz et al., 2022), can be used to enforce ﬁne-

grained access control. This concerns Update Dis-

patchers and external Update Publishers accessing

Key Repositories or Update Servers; and the Update

Dispatcher accessing the Devices to update. In the

latter case, the ACE framework is preferable, as it

is designed to enforce access control on resource-

constrained devices.

6.4 Secure Communication

As mentioned in Section 4.3, the message exchanges

are secured against active on-path adversaries.

To this end, the involved parties use secure com-

munication protocols to protect message delivery. Es-

pecially for securing trafﬁc over the Internet, avail-

able protocols include: i) the TLS (Rescorla, 2018)

and DTLS (Rescorla et al., 2022) suites providing se-

curity at the transport layer, and for which related pro-

ﬁles targeting resource-constrained devices have been

deﬁned (Tschofenig and Fossati, 2016); and ii) the

OSCORE protocol (Selander et al., 2019), which pro-

vides security for CoAP messages at the application

layer through COSE, and is explicitly designed to suit

resource-constrained devices.

Alternatives can be implemented at the network

or data-link layer, e.g., in the domain hosting the tar-

get Devices to update, where ad-hoc (legacy) commu-

nication protocols may be used. As long as source-

authentication, integrity, conﬁdentiality, and fresh-

ness of exchanged messages are ensured, our ap-

proach is not devoted to a particular security protocol,

and leaves the choice to the application and deploy-

ment.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

704

7 CONCLUSION

We have presented a novel approach for securely dis-

tributing SW updates over the Internet, to devices in

Industrial Control Systems (ICS). Our approach ad-

dresses several requirements provided by a real-world

ICS operator, and has the following beneﬁts: it en-

ables the secure distribution of different types of SW

updates, originated by different types of authors; it

leaves the device operator in control of the update

process, even for third-party SW updates; it ensures

not only integrity and source authentication, but also

conﬁdentiality of SW updates. Furthermore our ap-

proach builds on well established and adopted foun-

dations such as ﬁne-grained authentication and secure

sessions. To the best of our knowledge, this is the

ﬁrst approach for secure SW distribution that has all

these beneﬁts. Future work will focus on the imple-

mentation and performance evaluation of a SW up-

date process based on our approach, considering real

ICS platforms as devices to update.

ACKNOWLEDGMENTS

This work was supported by the SSF project

Sec4Factory (grant RIT17-0032); by VINNOVA

through the Celtic-Next project CRITISEC; and by

the H2020 project SIFIS-Home (Grant agreement

952652). The authors would like to thank Arash

Vahidi for the helpful discussions and feedback.

REFERENCES

Ambrosin, M., Busold, C., Conti, M., Sadeghi, A.-R., and

Schunter, M. (2014). Updaticator: Updating billions

of devices by an efﬁcient, scalable and secure software

update distribution over untrusted cache-enabled net-

works. In European Symposium on Research in Com-

puter Security, pages 76–93. Springer.

Arakadakis, K., Charalampidis, P., Makrogiannakis, A., and

Fragkiadakis, A. (2021). Firmware over-the-air pro-

gramming techniques for iot networks-a survey. ACM

Computing Surveys (CSUR), 54(9):1–36.

Asokan, N., Nyman, T., Rattanavipanon, N., Sadeghi, A.-

R., and Tsudik, G. (2018). ASSURED: Architecture

for Secure Software Update of Realistic Embedded

Devices. IEEE Transactions on Computer-Aided De-

sign of Integrated Circuits and Systems, 37(11):2290–

2300.

Birman, K. P. (2012). Guide to Reliable Distributed

Systems. Building High-Assurance Applications and

Cloud-Hosted Services. Springer.

Catuogno, L., Galdi, C., and Persiano, G. (2017). Secure

dependency enforcement in package management sys-

tems. IEEE Transactions on Dependable and Secure

Computing, 17(2):377–390.

Davidson, C. C., Andel, T., Yampolskiy, M., McDonald,

J. T., Glisson, B., and Thomas, T. (2018). On SCADA

PLC and Fieldbus Cyber-Security. In The Interna-

tional Conference on Cyber Warfare and Security.

Academic Conferences and Publishing International.

El Jaouhari, S. and Bouvet, E. (2022). Secure ﬁrmware

over-the-air updates for iot: Survey, challenges, and

discussions. Internet of Things, 18:100508.

Fassino, J. (2016). Secure Firmware Update in Schneider

Electric IOT-enabled offers. In Internet of Things Soft-

ware Update Workshop (IoTSU). Internet Architecture

Board (IAB).

Hardt, D. (2012). The OAuth 2.0 Authorization Frame-

work. RFC 6749 (Proposed Standard). Updated by

RFC 8252.

Hernández-Ramos, J. L., Baldini, G., Matheu, S. N., and

Skarmeta, A. (2020). Updating iot devices: challenges

and potential approaches. In 2020 Global Internet of

Things Summit (GIoTS), pages 1–5. IEEE.

IEC (2015). Security for industrial automation and control

systems – Part 2-3: Patch management in the IACS

environment. Technical Report IEC TR 62443-2-3,

International Electrotechnical Commission (IEC).

IETF (2022). SUIT - Software Updates for the Internet of

Things.

Moran, B., Tschofenig, H., and Birkholz, H. (2022). A

Manifest Information Model for Firmware Updates in

Internet of Things (IoT) Devices. RFC 9124.

Moran, B., Tschofenig, H., Brown, D., and Meriac, M.

(2021). A ﬁrmware update architecture for internet

of things. RFC 9019.

Mugarza, I., Flores, J. L., and Montero, J. L. (2020). Se-

curity issues and software updates management in

the industrial internet of things (iiot) era. Sensors,

20(24):7160.

Petrov, S. (2018). Patch Delivery Infrastructure in SCADA

Systems. Master’s thesis, KTH Royal School of Tech-

nology.

Rescorla, E. (2018). The Transport Layer Security (TLS)

Protocol Version 1.3. RFC 8446.

Rescorla, E., Tschofenig, H., and Modadugu, N. (2022).

The Datagram Transport Layer Security (DTLS) Pro-

tocol Version 1.3. RFC 9147.

Schaad, J. (2017). CBOR Object Signing and Encryption

(COSE). RFC 8152 (Proposed Standard).

Seitz, L., Selander, G., Wahlstroem, E., Erdtman, S., and

Tschofenig, H. (2022). Authentication and authoriza-

tion for constrained environments using the oauth 2.0

framework (ace-oauth). RFC 9200.

Selander, G., Mattsson, J. P., Palombini, F., and Seitz, L.

(2019). Object security for constrained restful envi-

ronments (oscore). RFC 8613.

Tschofenig, H. and Fossati, T. (2016). Transport layer secu-

rity (tls) / datagram transport layer security (dtls) pro-

ﬁles for the internet of things. RFC 7925 (Proposed

Standard).

Secure Software Updates for IoT Based on Industry Requirements

705
