Arabic Handwriting off-Line Recognition Using ConvLSTM-CTC

Takwa Ben A

ıcha Gader

, Issam Chibani and Afef Kacem Echi

National Superior School of Engineering, University of Tunis, LR: LATICE, Tunisia

Keywords:

Recognition of Arabic Handwritten, Segmentation, Features Extraction, Recurrent Neural Network, ConvL-

STM.

Abstract:

This work is released in the ﬁeld of automatic document recognition, speciﬁcally ofﬂine Arabic handwritten

recognition. Arabic writing is cursive and recognized as quite complex compared to handwritten Latin script:

dependence on context, difﬁculties with segmentation, a large number of words, variations in the style of the

writing, inter- and intra-word overlap, etc. Few works exist concerning recognizing Arabic manuscripts with-

out constraint, which motivates us to move towards this type of document based on an approach based on deep

learning. It is one of the machine-learning approaches reputed to be effective for classiﬁcation problems. It

is about conceiving and implementing an end-to-end system: a convolutional long-short-term memory (Con-

vLSTM ). It consists of a recurrent neural network for spatiotemporal prediction with convolutional structures

that allow feature extraction. A connectionist temporal classiﬁcation output layer processes the returned result.

Our model is trained and tested using the IFN/ENIT database. We were able to achieve a recognition rate of

99.01%.

1 INTRODUCTION

The recognition of handwritten words is one of the ac-

tive and hot research problems in the ﬁeld of optical

character recognition facing increasingly tricky chal-

lenges: writing not constrained by the shape of the

support and the writer, use of an increasingly large vo-

cabulary, multi-font recognition, multi-writer, multi-

script, multi-language.

Although Arabic is spoken by more than 250 mil-

lion people worldwide, there is no industrial system

for automatic recognition of handwritten Arabic writ-

ing. The ﬁelds of application are, however, numerous:

automation of the sorting of postal mail, processing

of cheques, invoices, forms, and automatic indexing

of old manuscripts. Much work has been done in re-

cent years, but this topic remains an active area of re-

search. The appearance of public databases of a sub-

stantial size, such as the IFN/ENIT database, and the

organization of competitions have made comparisons

between systems possible. They have enabled rapid

progress in the ﬁeld in recent years.

In this work, we are particularly interested in the

ofﬂine recognition of Arabic handwritten words. This

research topic raises a real challenge because the Ara-

https://orcid.org/0000-0002-3786-3649

https://orcid.org/0000-0001-9219-5228

bic script is a cursive script and is quite complex

compared to the handwritten Latin script: context de-

pendence, segmentation problems, a large number of

words, and variations in writing styles, writing, inter-

and intra-word overlap. This work aims to perform an

OCR of a handwritten Arabic script based on the stan-

dard IFN/ENIT database of Tunisian city names. We

focus on the segmentation phases, the extraction of

primitives, and the power of new deep-learning tech-

nologies for word recognition. Deep learning is a

machine learning method that is efﬁcient for classiﬁ-

cation problems, particularly for recognizing images,

speech, automatic translation, identiﬁcation scripting,

named entity recognition, and protein sequence clas-

siﬁcation. We thus aim to recognize handwritten Ara-

bic words by proposing an end-to-end system, more

precisely, a convolutional long-short-term memory

(ConvLSTM), followed by a connectionist temporal

classiﬁcation output layer.

This paper is structured into four sections: In the

next section, we present the state of art in recogniz-

ing handwritten Arabic scripts and the work carried

out in this ﬁeld. The third section is devoted to the

acquisition and pre-processing of the text image, al-

lowing the preparation of images for the OCR sys-

tem. The fourth section describes the proposed Ara-

bic handwriting recognition system. The last section

Gader, T., Chibani, I. and Echi, A.

Arabic Handwriting off-Line Recognition Using ConvLSTM-CTC.

DOI: 10.5220/0011794700003411

In Proceedings of the 12th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2023), pages 529-533

ISBN: 978-989-758-626-2; ISSN: 2184-4313

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

529

discusses the obtained results. We end with a general

conclusion and some prospects.

2 RELATED WORKS

Due to recent advancements in deep learning tech-

nology, numerous deep learning-based solutions were

put up for the challenge of Arabic text recognition. In

2008, Graves (Graves and Schmidhuber, 2008) ini-

tially published the ﬁrst deep learning-based method

for AHTR from document images. The Multi-

Dimensional Long Short Term Memory (MDLSTM)

network and Connectionist Temporal Loss (CTC)

were employed. The suggested model’s accuracy was

equal to 91.4% on the IFN/ENIT dataset.

As we continue our study of the development of

deep-learning-based techniques, we discuss the one

presented in (Abandah et al., 2014). It is based on the

graphemic division of cursive words. A characteris-

tics vector is retrieved and sent to a BLSTM, which

uses graphemes to exploit the transcript sequences.

IA segmentation-free RNN strategy using a four-

layer bidirectional Gated Recurrent Unit (GRU) net-

work with a CTC output layer and the dropout tech-

nique was described by Chen et al. in 2017 (Chen

et al., 2017). The ”abcd-e” scenario was used by

the authors to assess the system performance on the

IFN/ENIT database, and the accuracy rate reached

was 86.4 %.

In 2019, a Convolutional Deep Belief Network

(CDBN) framework was suggested for handwritten

Arabic text recognition in (Elleuch and Kherallah,

2019). The authors employed data augmentation and

dropout regularization to improve the model’s func-

tionality and prevent over-ﬁtting. The model’s accu-

racy rate was 98.86% when initially tested against the

HACDB character database. Further, it was tested on

the IFN/ENIT database and attained an accuracy of

92.9

In 2020, the authors of (Ahmad et al., 2020) sug-

gested a deep learning-based strategy for Arabic text

recognition. They employed preprocessing, which in-

cluded de-skewing the skewed text lines and pruning

extra white spaces. They also used data augmentation

to train the proposed MDLSTM-CTC model using the

KHATT database and achieved a character recogni-

tion rate of 80.02 %. In the same year, Mohamed

Eltay’s (Eltay et al., 2020) Exploring approach con-

sists of a CNN for feature extraction followed by a

recurrent neural network concatenated to a CTC layer

for the learning and transcription of Arabic handwrit-

ten words. The model is trained and tested with the

INF/ENIT and AHDB databases. Recognition rates

of 98.10 % and 93.57 were reached on the IFN/ENIT

and AHDB databases, respectively.

As the last work, we cite the recent one presented

in (Albattah and Albahli, 2022), where several deep

learning and hybrid models were developed. They

used deep learning for feature extraction and machine

learning for classiﬁcation to build hybrid models. The

transfer-learning model on the MNIST dataset pro-

duced the best results among the standalone deep-

learning models trained on the two datasets used in

the trials, with an accuracy of 99.67%. While accu-

racy measures for all of the hybrid models using the

MNIST dataset were greater than 0.9%, the results for

the hybrid models using the Arabic character dataset

were inferior.

3 PROPOSED SYSTEM

The proposed deep neural network for resolving the

AHTR problem is presented in this section. It con-

sists of three main end-to-end components: a CNN,

an RNN, and a CTC (the used architecture is pre-

sented in Figure 2(a)). This combination is the most

promising alternative because it outperforms all other

strategies. CNN performs the extraction of sequence

characteristics from the input pictures. Furthermore,

information inside this sequence is propagated via the

RNN. It produces a matrix of character ratings for

each element of the sequence. The suggested model

will be trained using the CTC function, which is used

to make inferences for the input image. The CTC de-

codes the output matrix of the RNN to infer the text

recognized from the input image. Without the need

for character-level segmentation, word-level recogni-

tion is made possible by these two associated net-

works coupled with the CTC.

3.1 Preprocessing

The ﬁrst fundamental step in an OCR model is pre-

processing, which aims to improve the quality of the

images in the database by suppressing distortions or

enhancing features to get better results. Even though

the IFN/ENIT images had already been extracted and

binarized, we used a preprocessing step to resize the

input images to the 32 × 128 shape without distortion.

3.2 Basic Model: CNN+RNN

The hybrid CNN-RNN model has given excellent re-

sults in different domains, such as visual description,

video recognition of emotions, etc. We performed

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

530

Figure 1: The used reprocessing.

feature extraction using CNN, which acts as an en-

coder, and then generated a language model and pro-

vided a sequence using RNN, which acts as a decoder.

Otherwise, the RNN is a language-based model that

uses the output features of CNN layers and translates

them into natural language sentences. Our end-to-end

hybrid NN-RNN model is typically used to map static

spatial inputs (images) to sequence outputs (text); the

proposed model can perform image classiﬁcation and

text entry leveraging CNN and RNN (see Figure 2(a)).

Our model classiﬁes the containing word in the im-

age provided and recognizes it character by character.

This allows the model to recognize words even if they

are not in the database.

3.3 Methodology: ConvLSTM

The best method for addressing image-related is-

sues is probably a CNN (Convolutional Neural Net-

work). They have demonstrated success in object

identiﬁcation, picture classiﬁcation, and computer vi-

sion. To model sequence-related issues and build

predictions on them, LSTMs are used. They are a

unique variant of RNN (Recurrent Neural Network)

that can recognize enduring dependencies. Gener-

ally, LSTMs are frequently employed in NLP (Natu-

ral Language Processing) related tasks, including sen-

tence creation, categorization, and machine transla-

tion. The CNN-LSTMs models are suggested since

conventional LSTMs cannot be applied directly to

spatial input sequences. Their inputs either have a

spatial structure (two-dimensional (2D) images, one-

dimensional (1D) words in sentences, paragraphs, or

documents), a temporal structure (the sequence of im-

ages in a video or words in a text), or both. Addition-

ally, they can provide output with a temporal struc-

ture. As a result, the CNN-LSTM architecture com-

bines LSTM to facilitate sequence prediction with

CNN layers for feature extraction on input data. The

ConvLSTM model is suggested as a solution to this

handwritten text recognition issue.

ConvLSTM is a type of recurrent neural net-

work for spatiotemporal prediction with convolu-

tional structures in input-to-state and state-to-state

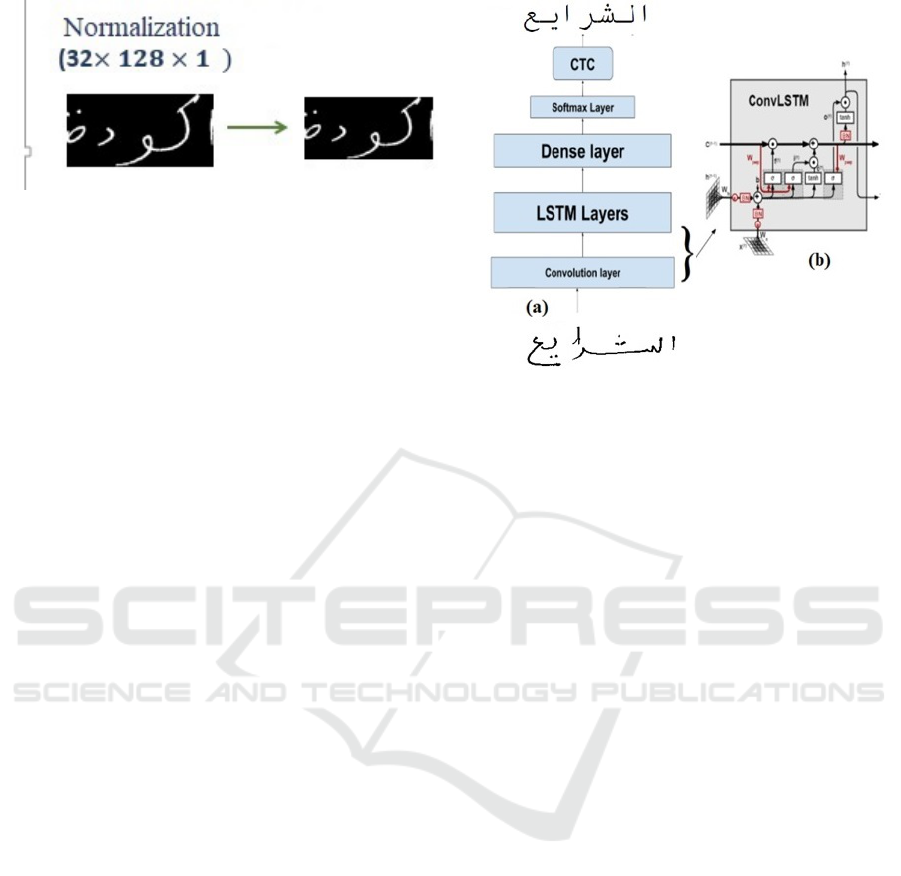

Figure 2: (a): the proposed architecture for text recognition,

(b): the ConvLSTM block.

transitions. The ConvLSTM determines the future

state of a certain grid cell from the inputs and past

states of its local neighbors. This can be easily

achieved using an operator convolution in state-to-

state and input-to-state transitions (see Figure 2(b)).

The key equations of ConvLSTM are shown below:

= σ(W

∗ X

∗ H

t−1

⊙ C

t−1

+ b

) (1)

= σ(W

∗ X

∗ H

t−1

⊙C

t−1

+ b

) (2)

= f

⊙ C

t−1

+ i

⊙ tanh(W

∗ X

∗ H

t−1

+ b

)

(3)

= σ(W

∗ X

∗ H

t−1

⊙ C

+ b

) (4)

= o

⊙ tanh(C

) (5)

where, ∗ denotes the operator of convolution and

⊙ the Hadamard product.

3.4 CTC Function

The Connectionist Temporal Classiﬁcation CTC

(Graves et al., 2006) loss layer provides end-to-end

training and free-segmentation transcription. It takes

as input the output matrix of the last RNN layer and

the ground truth text (GT), then computes the loss

value and infers/decodes the matrix to get the text rep-

resented in the image. The loss calculation is done by

summing up all scores from all possible alignments

of the GT text. Alternatively, decoding is done in two

steps: ﬁrst, it takes the most likely character per time

step and calculates the best path. Second, it removes

duplicate characters and blanks from the path to rep-

resent the recognized text. In summary, it converts a

prediction into a label sequence. A series of obser-

vations serve as its input, while a series of labels, in-

cluding blank outputs, serves as its output. Our design

Arabic Handwriting off-Line Recognition Using ConvLSTM-CTC

531

uses the ”best path” decoder, with a maximum se-

quence length of 50 and a class number of 49 (48 dif-

ferent characters included in the IFN/ENIT database

+ the blank or space character).

4 EXPERIMENTS AND RESULTS

We implemented the proposed ofﬂine Arabic hand-

written text recognition system using Keras on an HP

Z-440 workstation with 16 GB of RAM.

4.1 IFN/ENIT Database

In the IFN/ENIT database (Pechwitz et al., 2002),

there are more than 2200 binary images of exam-

ples of handwriting forms from 411 writers. Approx-

imately 26,000 images of binary words were isolated

from the forms and saved individually for easy ac-

cess. A ground truth ﬁle for each word in the database

was compiled. This ﬁle contains information about

the word, such as the baseline position of the words

and information about the individual characters used

in the word. Figure 3 represents examples of images

extracted from the IFN/ENIT.

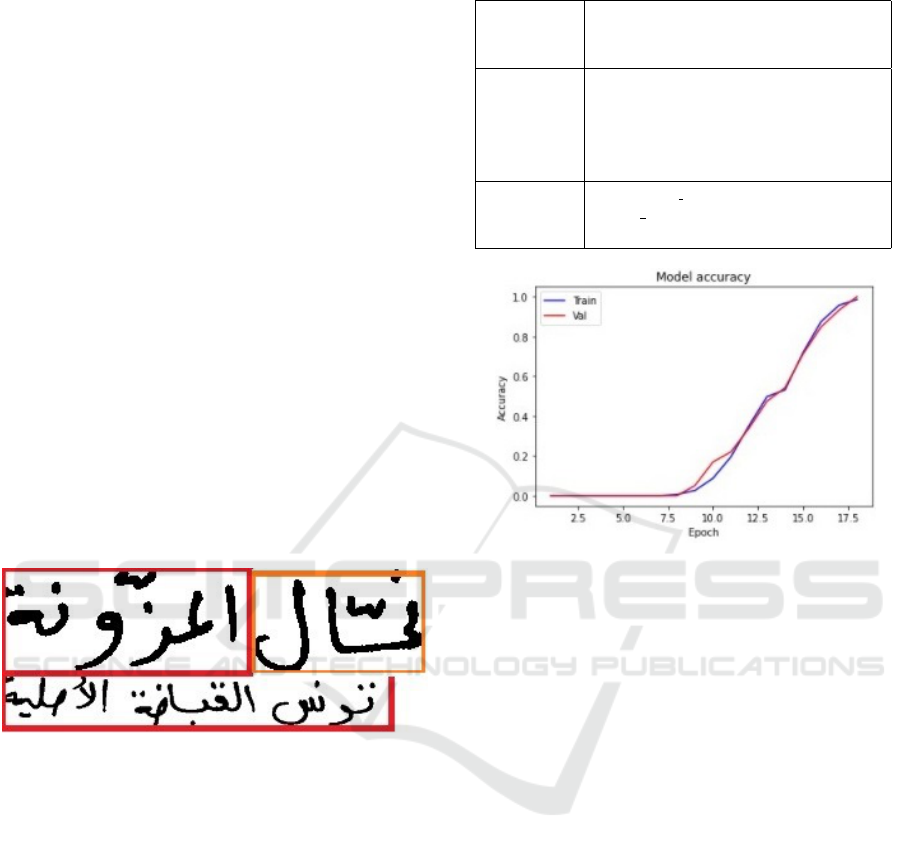

Figure 3: Examples of images extracted from the

IFN/ENIT.

4.2 Obtained Results

We evaluated the model’s training on the IFN/ENIT

dataset using accuracy and loss measures. The pa-

rameter settings used to train the models are shown in

Table 1.

Our model trained over 18 epochs for the dataset

and achieved a training accuracy of 94.72% and

96.01% for validation and a training loss of 0.1 and

0.2 during validation. Figure 4 and Figure 5 show the

training curves with groups a, b, and c for the training

and d for the testing, which reﬂect a good ﬁt. As can

be seen, the learning loss curve lowers until it reaches

a stable point, and the loss validation curve does the

same, showing a slight gap with the learning loss plot.

We conclude that the training dataset has a smaller

model loss than the validation dataset. The accuracy

Table 1: Parameter settings.


pre-

processing

All images are resized to the shape

(32 × 128 × 1). No other processing.

Training

setting

initial

epoch

= 0, epochs = 25,

Lear ning

rate

= 10

−6

, initial

weights

0.001, Batch − size = 30, Optimizer

= Adam, Evaluation metrics: Accu-

racy and Loss,

CTC set-

ting

max

sequence length

= 50, De-

coder Type = bestpath and the

number of classes C = 49

Figure 4: Training and Validation Accuracy curves.

plots for training and validation rise together, stabiliz-

ing with a slight gap. The accuracy and loss curves

demonstrate a satisfactory match, to sum up. The re-

sults show that the model classiﬁes the data with good

accuracy, but further improvements are still possible,

given that the model has been built from scratch. We

also used other database segmentation scenarios and

calculated the recognition rate for each one.

Table 2 represents the different results obtained for

different scenarios. Interestingly, compared to other

state-of-the-art methods evaluated on the IFN/ENIT

database, our method outperforms them. This discov-

ery further strengthened our belief that the suggested

model is script-independent. Figure 6 presents exam-

ples of the model’s inferences on Arabic handwritten

text images.

5 CONCLUSION AND FUTUR

WORK

Handwriting recognition is a dynamic area of study

that frequently requires improvement. We proposed

a novel approach to carry out Arabic handwriting

recognition using deep learning in this work. Our

model comprises neuronal layers with convolutional

short-term memories (ConvLSTM), a recurrent neu-

ICPRAM 2023 - 12th International Conference on Pattern Recognition Applications and Methods

532

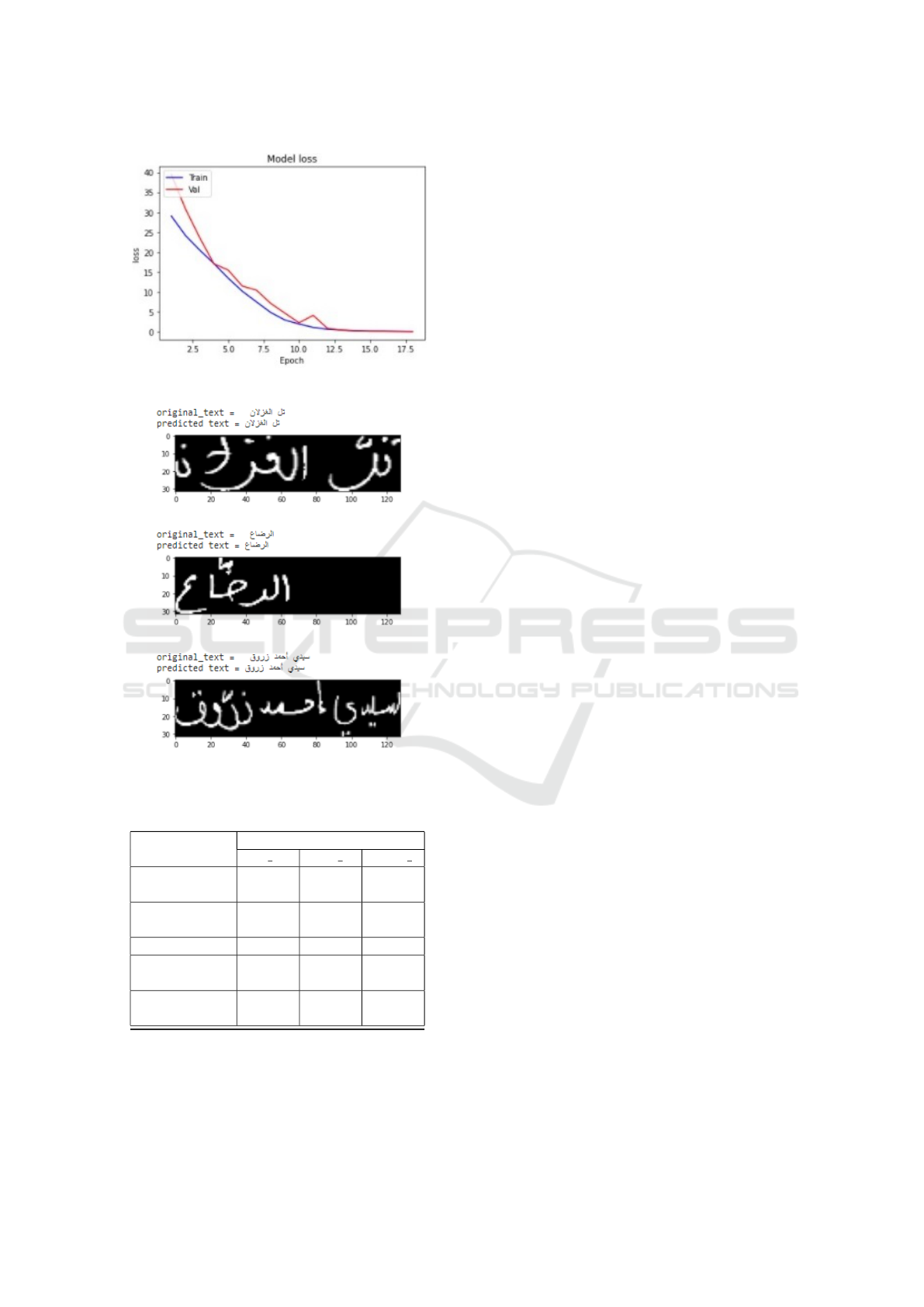

Figure 5: Training and Validation Loss curves.

Figure 6: Examples of recognition.

Table 2: Performance of handwritten Arabic word recogni-

tion systems based on IFN/ENIT.

IFN-ENIT

abc d abcd e abcde f

Mohamed

2015

- - 73.5%

Rabie M.

2017

86.73% - -

Miled 97 - - 60%

(Eltay et al.,

2020)

98.99% 96.01% 93.57%

Proposed sys-

tem

99.01% 95.05% 96.57%

ral network used for Spatio-temporal prediction and

feature extraction and learning at times, followed by

a connectionist temporal classiﬁcation (CTC) output

layer. tries to ﬁnd an alignment between inputs and

outputs. In our case, it allows ﬁnding an alignment

between the probability vector provided by the RNN

and the text of the ground-Truth. The IFN/ENIT

database is used to validate the suggested model.

We used several training and validation scenarios.

We segmented the database into training, validation,

and testing sets according to different possibilities,

and a maximum accuracy of 99.01% was reached.

The model’s feature extraction, training, and recog-

nition processes are all intended to be independent

of scripts. Without requiring time-consuming, hand-

written rules, the model parameters are automatically

calculated from the training data. As a result, it can

handle languages with cursive handwriting with ease.

REFERENCES

Abandah, G. A., Jamour, F. T., and Qaralleh, E. A.

(2014). Recognizing handwritten arabic words us-

ing grapheme segmentation and recurrent neural net-

works. International Journal on Document Analysis

and Recognition (IJDAR), 17(3):275–291.

Ahmad, R., Naz, S., Afzal, M. Z., Rashid, S. F., Liwicki,

M., and Dengel, A. (2020). A deep learning based

arabic script recognition system: benchmark on khat.

Int. Arab J. Inf. Technol., 17(3):299–305.

Albattah, W. and Albahli, S. (2022). Intelligent ara-

bic handwriting recognition using different standalone

and hybrid cnn architectures. Applied Sciences,

12(19):10155.

Chen, L., Yan, R., Peng, L., Furuhata, A., and Ding, X.

(2017). Multi-layer recurrent neural network based

ofﬂine arabic handwriting recognition. In 2017 1st

international workshop on Arabic script analysis and

recognition (ASAR), pages 6–10. IEEE.

Elleuch, M. and Kherallah, M. (2019). Boosting of

deep convolutional architectures for arabic handwrit-

ing recognition. International Journal of Multime-

dia Data Engineering and Management (IJMDEM),

10(4):26–45.

Eltay, M., Zidouri, A., and Ahmad, I. (2020). Explor-

ing deep learning approaches to recognize handwrit-

ten arabic texts. IEEE Access, 8:89882–89898.

Graves, A., Fern

andez, S., Gomez, F., and Schmidhu-

ber, J. (2006). Connectionist temporal classiﬁcation:

labelling unsegmented sequence data with recurrent

neural networks. In Proceedings of the 23rd interna-

tional conference on Machine learning, pages 369–

376.

Graves, A. and Schmidhuber, J. (2008). Ofﬂine handwrit-

ing recognition with multidimensional recurrent neu-

ral networks. Advances in neural information process-

ing systems, 21.

Pechwitz, M., Maddouri, S. S., M

argner, V., Ellouze, N.,

Amiri, H., et al. (2002). Ifn/enit-database of hand-

written arabic words. In Proc. of CIFED, volume 2,

pages 127–136. Citeseer.

Arabic Handwriting off-Line Recognition Using ConvLSTM-CTC

533
