Supporting Change Impact Analysis in System Architecture Design:

Towards a Domain-Specific Modeling Method

Afef Awadid

and Remi Boyer

Technological Research Institute SystemX, 91120 Palaiseau, France

Keywords: Domain-Specific Modeling Method, Change Impact Analysis, System Architecture Design, Change Scenario.

Abstract: The architecture design update is appraised as a key issue in the domain of cyber-physical systems. One reason

for this is its significant cost that can increase up to several folds with each phase of the life cycle, from

conceptual design to operation. Therefore, before accepting such update, it is crucial to analyse its impact -

the so-called "Change Impact Analysis (CIA)". CIA is based on traceability of dependencies between

elements in system artefacts. However, in practice, traceability is not sufficient to allow the automated support

of CIA, as it lacks the consideration of CIA parameters. A CIA parameter is any information that could be

useful for quantitatively or qualitatively assessing change impact. Against this background, this paper

proposes a Domain-Specific Modeling Method for assisting CIA in the context of system architecture design.

Such method is composed of two parts. First, a traceability language built upon existing traceability patterns

and involving a set of CIA parameters. Second, a modeling procedure referring to a change scenario-based

approach that describes how to use such language to provide an automated support for CIA. For the sake of

validity, the method is applied in the aeronautical field.

1 INTRODUCTION

Many highly complex systems such as cyber-physical

systems (e.g. smart grids) have reached a level of

complexity that only very few engineers have the

breadth of knowledge to gain an even cursory

understanding of the system in its entirety. A good

architecture design can help overcome this issue by

capturing the overall complexity of these systems at a

higher abstraction level (Thöne, 2005). Architecture

design refers to a sub-process that focuses on

"modelling and mapping system functions, structure

and predicted behavior of a system" (Eckert and

Jankovic, 2016).

System architecture design allows to reduce the

system complexity by delineating what one can build,

and what requirements are reasonable (Garlan, 2003).

Nevertheless, the architecture design of complex

systems is appraised as challenging. On reason for

this is the need to constantly update such design.

Indeed, architecture design update has been identified

as a key issue in the cyber-physical systems domain

(Wolf and Feron, 2015). Such update is due to

different changes such as operating environment,

https://orcid.org/0000-0001-7525-613X

stakeholder’s requirements, and implementation

technology. Against this background, it is worthwhile

noting that the cost associated with architecture

design update can increase up to several folds with

each phase of the life cycle, from conceptual design

to operation (Chew et al, 2013). Therefore, before

accepting any architecture design update, it is crucial

to analyse its impact known as "Change Impact

Analysis (CIA)".

CIA relies on traceability of relationships

between elements in system artefacts (Holt et al,

2016). Nevertheless, a traceability graph is not

enough to ensure the automated support of CIA, as it

does not explicitly include CIA parameters. The latter

refers to any information that could be useful for

quantitatively or qualitatively assessing change

impact.

To fill this research gap, this paper proposes a

Domain-Specific Modeling Method (DSMM) that is

made up of two parts. First, a traceability language

built upon existing traceability patterns and involving

a set of CIA parameters. Second, a modeling

procedure defined as a change scenario-based

approach that explains how to use such language to

Awadid, A. and Boyer, R.

Supporting Change Impact Analysis in System Architecture Design: Towards a Domain-Speciﬁc Modeling Method.

DOI: 10.5220/0011795800003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 245-252

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

245

ensure the automated support of CIA. Given this, the

proposed method is an attempt to answer the

following research question: how to provide

automated support for change impact analysis based

on a traceability language?

The rest of the paper is structured as follows.

Section 2 introduces the theoretical foundations of

this work. The proposed DSMM for supporting

change impact analysis in system architecture is

presented in Section 3. Section 4 is devoted to the

application of the method to a use case in the

aeronautic domain. Section 5 rounds off the paper

with some future research directions.

2 FOUNDATIONS

The key foundations on which this work is built are

introduced as follows: change impact analysis

(Section 2.1) and domain-specific modeling methods

(Section 2.3).

2.1 Change Impact Analysis

Change Impact Analysis (CIA) can be defined as the

process of exploring the tentative effects of a change

in other parts of a system (Kretsou et al, 2021). A

typical way to analyze change impact is the

following: If I change this requirement or this design

element, what are the elements that will be affected

and must also be modified? ; If I change this model

element, what will the cost be and what effort is

required? (Douglass, 2021). In this sense, CIA is

much about how change propagates and affects its

surroundings (Breivoll, 2010). Building on this, CIA

allows to reduce risks, which often arises from

changes being made without consideration as to the

possible impacts.

When dealing with change in the system

architecture design, one generally refers to three

change types: architecture element's addition,

alteration, or removal (Damak, 2020). Behind each

change type is a Design Change Request (DCR). A

DCR can occur for several reasons, instigated from

within the design consultancy, the contractor or the

project owner/client" (Hindmarch, 2010). For

instance, A DCR is issued when the design team

found that the design of a subsystem should be

changed in order to accommodate constraints from

another subsystem (Guegan and Bonnaud, 2018).

Such requests undergo reviews in terms of change

impact analysis and need to be endorsed before

changes get implemented (Akaikine, 2010). These

reviews are performed by a change board. For the

sake of illustration, the process of CIA as described

above is visualized in Figure 1.

In practice, CIA is based on traceability between

elements in system artefacts (Holt et al, 2016)

(Douglass, 2021). Traceability is defined as "a

discernible association among two or more logical

entities such as requirements, system elements,

verifications, or tasks" (Hunt, 2007). Different types

of artefacts can therefore be subject to traceability

(e.g. needs, requirements, and models). Although

traceability is considered as one of the most

frequently adopted technique for CIA (Kretsou et al,

2021), it has been argued that due to the hidden

coupling issue and the evolvability of architectural

elements, a traceability graph is not sufficient to

support the CIA (Yadav et al, 2019). One reason for

this is the disregarding of CIA parameters. The latter

have been extensively studied in the context of

software development (Kretsou et al, 2021) (e.g.

change proneness (Jaafar et al, 2014) (i.e. the

probability of a software artefact to change) and

amount of change (Arisholm et al, 2001) (i.e. the

extent of changes that occurred on a software

artefact)). However, they are still overlooked in the

field of complex systems.

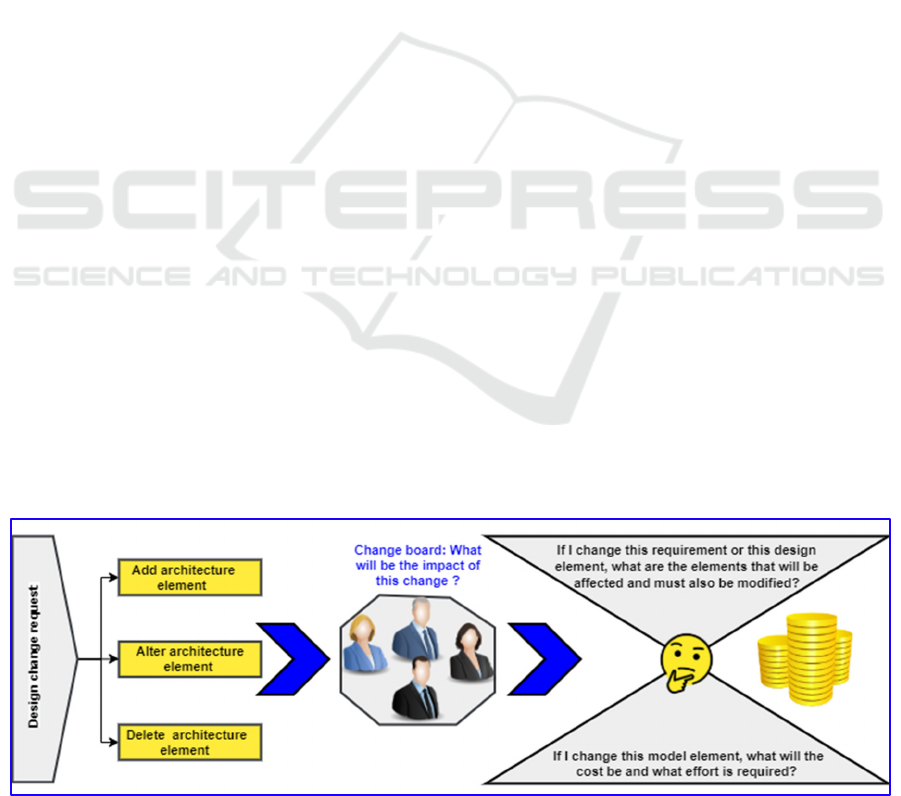

Figure 1: The process of change impact analysis.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

246

2.2 Domain-Specific Modeling Methods

Domain Specific Modeling Methods could be a

promising candidate for CIA support. This could be

ascribed to several reasons. First, in addition to a

modeling language, a DSMM provides a modeling

procedure, mechanisms and algorithms (Karagiannis

and Kühn, 2002). The modelling procedure describes

how to use the modeling language in order to achieve

results (Awadid and Nurcan, 2019).

Second, a DSMM allows users "to employ

familiar concepts to the domain while constructing

models of applications" (Hernández et al, 2005) as

Domain-Specific Modeling is about creating "models

for a specific domain using concepts and terminology

from that domain» (Gray et al, 2001). Third, a DSMM

"is well suited for domains where the composition of

different elements is very flexible" (Leitner et al,

2011), as is the case in the field of system architecture

design. Such method is developed by first creating a

meta-model that specifies the ontology of the domain

and that can be built either from scratch or based on

existing solutions (Hernández et al, 2005).

3 A DSMM FOR SUPPORTING

CIA IN SYSTEM

ARCHITECTURE DESIGN

The proposed method involves the domain specific

modeling language (Section 3.1)), and the modeling

procedure (Section 3.2)).

3.1 A Domain-Specific Modeling

Language for Supporting CIA

By domain specific modeling language for supporting

change impact analysis, we refer to a metamodel that

provides the concepts and relationships needed for the

construction of traceability models, and that

foregrounds the “CIA parameters”. Such parameters

are required not only to analyze changes, but also to

evaluate their potential impacts. As said before, such

language can either be established from scratch or

adapted from existing language(s) (Section 2.2).

In our case, to specify the intended metamodel,

we used two existing traceability patterns coming

from the fields of systems engineering and software

engineering. The former denotes an ontology

definition view showing traceability concepts (Holt et

al, 2016), while the latter stands for a traceability

pattern for crosscutting (Van Den Berg, 2006). The

latter assumes that at least two domains/phases/ levels

are somehow related to each other.

The choice of these two patterns drew on our

experience gained from several industrial research

projects. Once chosen, such patterns are investigated

by considering 1) the notion of “CIA parameters”, 2)

the meaning of the concepts and relationships they

use, and 3) the relevance of these concepts and

relationships to change impact analysis. Given this,

we construct the language/metamodel for supporting

CIA. Such metamodel is presented in Figure 2 and

lays the basis for the analysis of changes and the

assessment of their impacts.

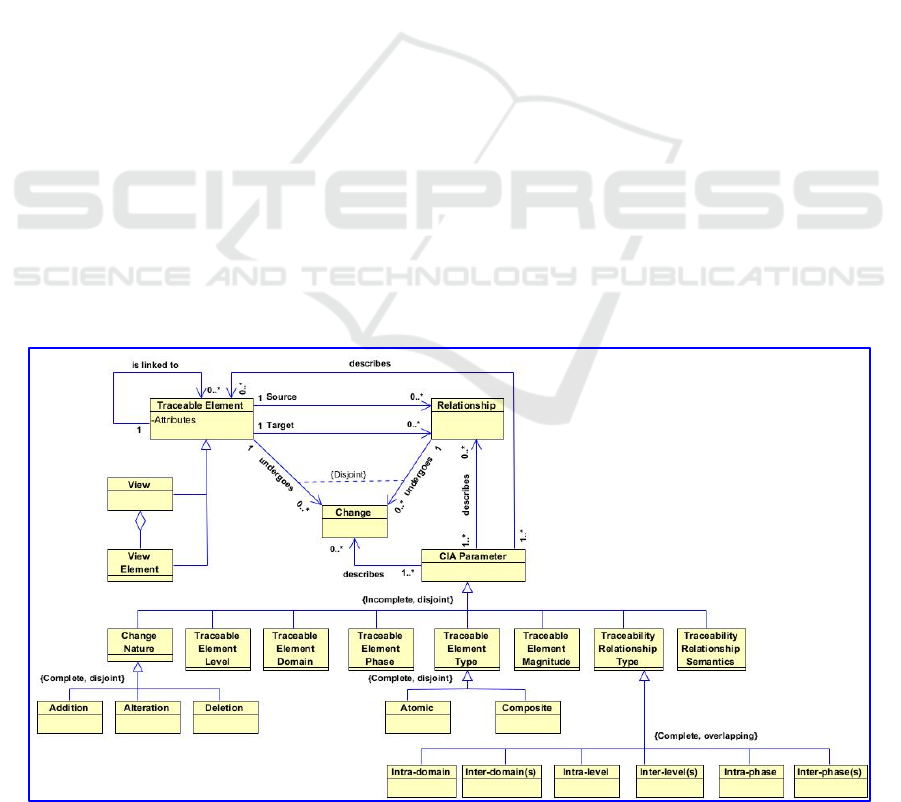

Figure 2: The metamodel for supporting CIA in system architecture design.

Supporting Change Impact Analysis in System Architecture Design: Towards a Domain-Speciﬁc Modeling Method

247

Table 1: Metamodel concepts descriptions.

Concept Description

View An instance of a viewpoint (i.e. a definition to which a view must conform (e.g. the

underlying diagram types)). That instance (view) is made up of View Elements

Traceable Element The element that can be traced. This may be view or view element. Hence, a traceable

element can be abstract. For each two related traceable elements, we distinguish between

“Source traceable element” (i.e. the traceable element being modified) and “Target traceable

one” (i.e. the traceable element being impacted)

Traceable Element

Attribute

A property of a traceable element that could be modified or impacted. Hence, traceable

element attribute refers to both the modified attribute(s) of the source traceable element and

the impacted attribute(s) of the target traceable one

Relationship A representation of the actual traceability relationship which is being considered between

two traceable elements

Domain A specific domain of application

Level Each level is a refinement of the previous one

Phase A phase can refer to any phase in the system development lifecycle

Change Any change (in terms of addition, alteration, or deletion) that can be made to a traceable

element or a traceability relationship

CIA parameter Any information that could be useful for quantitatively or qualitatively assessing change

impact

Change Nature Addition, alteration, or deletion (e.g. deletion of an aircraft component)

Traceable element Level The level of the source traceable element (e.g. the aircraft level)

Traceable Element

Domain

The domain of the source traceable element (e.g. the aircraft safety analysis domain)

Traceable Element Phase The phase of the source traceable element (e.g. the aircraft functional architecture)

Traceable Element Type

It distinguishes between two types of traceable elements: atomic and composite (e.g. an

aircraft function is atomic, while aircraft safety requirements are of type composite)

Traceable Element

Magnitude

It focuses on how many target traceable elements are related to the considered source

traceable element (e.g. there are x target traceable elements that are linked to the aircraft

component in question)

Traceability

Relationship Type

It is described in terms of domain, phase, and/ or level. We distinguish then between intra-

domain (e.g. within the systems engineering domain) and inter-domain (e.g. between

systems engineering and safety analysis domains), intra-level (e.g. within the aircraft level)

and inter-level (e.g. between aircraft and item levels) , and intra-phase (e.g. within the phase

of aircraft functional architecture) and inter-phase relationships (e.g. between the phases of

aircraft functional architecture and functional safety verification)

Traceability

Relationship Semantics

The meaning of a traceability relationship (e.g. refinement, verification, and validation)

As shown in Figure 2, the resulting metamodel

incorporates CIA parameters as inherent constitutive

fragment. All the concepts that seem germane to the

understanding of this metamodel are summarized in

Table 1, where CIA parameters are marked in yellow.

The list of CIA parameters presented in table 1 is

not exhaustive. As mentioned earlier, the definition of

these parameters are based on a review of existing

literature on traceability patterns and on our

experience with system architecture design.

3.2 A Modeling Procedure: A Change

Scenario-Based Approach

As stated previously, a modeling procedure stands for

the part of the domain-specific modeling method

(DSMM) that explains how the underlying

metamodel can be used in order to achieve results. On

that basis, the focus of this section is to elucidate the

way in which the metamodel presented above can

provide support for change impact analysis (CIA).

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

248

To do so, we advocate a change scenario-based

approach, where the concept of a “change scenario”

refers to a description of a given change by

instantiating the concepts of the CIA metamodel

according to the application domain.

This implies a customized instantiation of such

metamodel for the considered application domain.

There are at least two motivations that drive the

adoption of a scenario-based approach. First, the use

of scenarios is highly recommended for evaluations

purposes. In this vein, such use has been accentuated

as one of the best industrial practices for evaluating

architectures (Kazman et al, 2000). Second, a change

scenario-based approach is considered as suitable

basis for handling analysis complexity (Dobrica and

Ovaska, 2011).

The proposed modeling procedure relies on the

change-scenario concept and requires the

involvement of different experts from the considered

application domain. Indeed, two categories of experts

are needed. The first category includes experts on

system architecture design such as system engineers

and system architects. This kind of experts is

generally accustomed to architecture design changes.

Hence, it is likely to be more willing and able to

identify change-scenarios. The second category

encompasses experts on system design quality

assessment like quality engineers. Such experts are

acquainted with impact analysis. Accordingly, they

are in the best position to evaluate the severity of

change scenarios. Having this in mind, the modeling

procedure goes through the following steps:

 Identification of change scenarios according to

the application domain. In this step, experts

from the first category describe each possible

change by instantiating the concepts of the

metamodel, including the CIA parameters. It is

worthwhile to note here that the concepts that

have to be instantiated are determined in

accordance with the application domain

characteristics. The aim of this step is to point

out all the possible changes that can be made to

traceability elements or traceability

relationships, and that can induce different

impacts. Therefore, change analysis can be

facilitated. To define change scenarios, the

experts resort to previous experience and to

existing guidelines and standards in the domain

under consideration (for an illustration of this

step, see Table 2 and Step 1 in Section 4);

 Given the defined change scenarios, experts

belonging to the second category determine the

standpoint(s) from which the change impact

evaluation can be undertaken. This allows them

to identify the most significant CIA parameters

that can be used to quantitatively and/or

qualitatively evaluate the impact of each change

scenario (for an illustration of this step, see Step

2 in Section 4);

 For each considered standpoint, the same

experts define an evaluation criterion along with

its scale for scoring. An evaluation criterion

refers to either one CIA parameter or the

combination of several CIA parameters, among

those previously selected in Step 2 (for an

illustration of this step, see Step 3 in Section 4);

 Using the defined evaluation criteria, the experts

evaluate the impact severity of each change

scenario. The evaluated change scenarios are

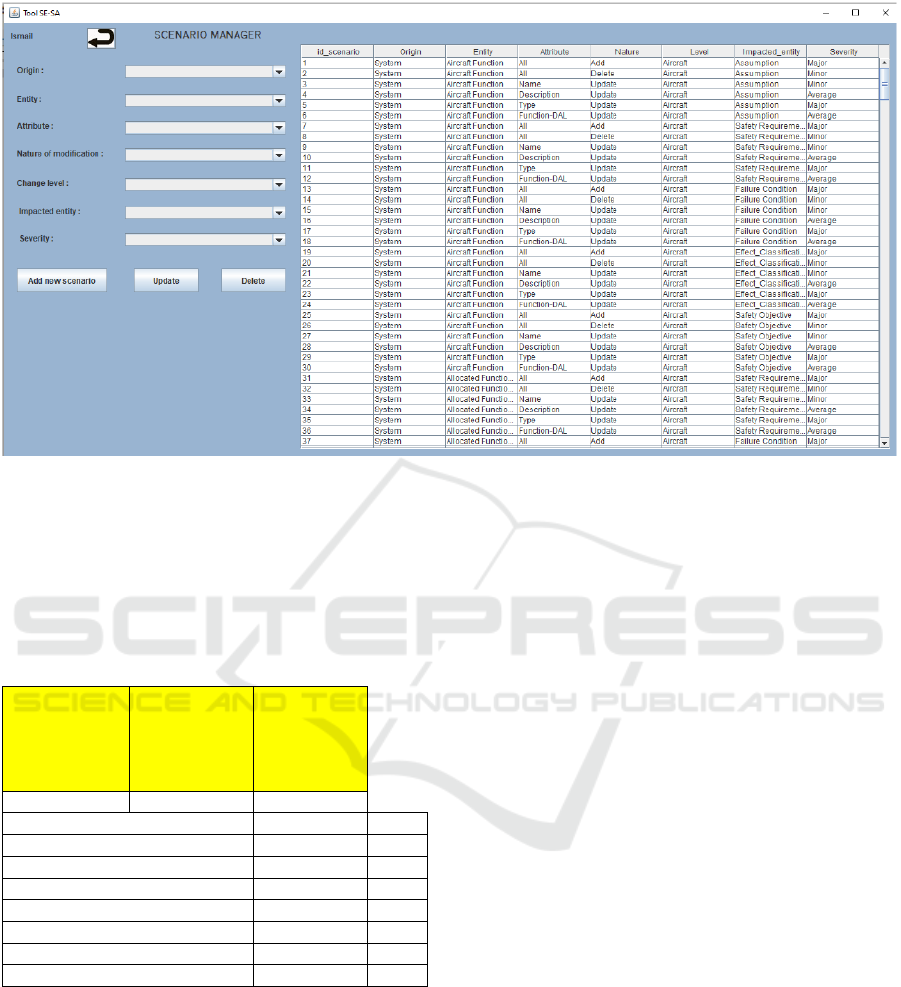

then stored in a tool database in order to be used

by the change board, when analysing change

requests (cf. Figure 1) (for an illustration of this

step, see Step 4 in Section 4). In light of this, the

described modeling procedure needs to be tool-

supported, so that new change scenarios can be

easily added, and the time expended on

evaluating and/ or prioritizing change requests

can be significantly reduced.

4 A DSMM FOR SUPPORTING

CIA: A FIRST APPLICATION IN

THE AERONAUTICAL FIELD

The initial evaluation of the proposed DSMM has been

realized within the joint academic-industrial research

project "S2C-System and Safety Continuity", which

aims to support the consistency between model-based

systems engineering and model-based safety analysis

in the aeronautical industry (De Bossoreille, 2019).

The participation of so many experts in this project

such as systems, safety and quality engineers makes it

a prime candidate for proof-of-concept.

Following the modeling procedure described

above, we first identify the two categories of the

required experts. Once done, the first category of

experts proceed to the identification of change

scenarios. For this end, they count not only on their

experience, but also on Aerospace Recommended

Practices (ARP) viz. ARP4754A (SAE Aerospace,

2010) and ARP4761 (SAE Aerospace, 1996), which

allowed them to instantiate only the metamodel

concepts that they consider relevant to change analysis.

As a result hundreds of change scenarios have been

reported. However, due to space limitations, only a

small selection of these scenarios is presented in Table

Supporting Change Impact Analysis in System Architecture Design: Towards a Domain-Speciﬁc Modeling Method

249

Table 2: A sample of identified change scenarios in the aeronautical field.

Change

scenario

Source traceable element Target traceable element Change

nature

Traceable

element

level

Traceable

element

domain

Traceable

element

magnitude

Traceability

relationship

type

Traceable

element

Attribute Traceable

element

Attribute

1 Aircraft

function

Name FHA_Failure

condition

Assumption Alter Aircraft Systems

engineering

(SE)

(i.e. a given

number)

Inter-domain

& intra-level

2 System

function

Descriptio

FHA_Failure

condition

Minimal

CutSets

Alter System SE <x Inter-domain

& Inte

-level

3 Aircraft

com

onent

All Aircraft Safety

uirements

Satisfy

status

Add Aircraft SE >x Inter-domain

& inte

-level

4 System

component

All Safety

requirements

Description Delete System SE <x Inter-domain

& inte

-level

5 System

com

onent

IDAL Safety

uirements

Assumption Alter System SE =x Inter-domain

& inte

-level

6 Item

com

onent

Name Item_Safety

uirements

Description Alter Item SE <x Inter-domain

& intra-level

7 Aircraft

Safety

requirements

All Aircraft

functional

FDAL Add Aircraft Safety

Analysis

(SA)

Inter-domain

& intra-level

8 Aircraft

Safety

uirements

Satisfy

status

Aircraft

component

IDAL Add Aircraft SA

Inter-domain

& inter-

levels

9 FHA_Failure

condition

probability Aircraft

function

Assumption Alter Aircraft SA

Inter-

domains &

intra-level

Step 1: As illustrated in Table 2, the metamodel

concepts that have been instantiated by the experts

are: source and target traceable elements, change

nature, traceable element level, domain, and

magnitude, and finally traceability relationship type.

The five last concepts stand for the CIA parameters.

Such instantiation is based on the relevance to change

analysis and to specific context of the aeronautical

field. Against this background, it is interesting to note

that the reader not familiar with the terminology used

in such field, and hence in Table 2 may refer to

Aerospace Recommended Practices (SAE

Aerospace, 1996) and (SAE Aerospace, 2010).

Step 2: Once change scenarios are identified, the

second category of experts determined the

standpoint(s) from which the change impact

evaluation can be performed. Indeed, two standpoints

have been advocated. The first standpoint emphasizes

on the impact of the change on the results of systems

engineering or safety analysis activities, while the

second standpoint concerns the impact with respect to

workload related to the resumption of the safety

analysis. To evaluate the change impact from these

two standpoints, the experts selected the most

significant CIA parameters among the five ones

instantiated in Step 1 (cf. Table 2). Consequently,

only three CIA parameters have been considered:

“Traceable Element Level”, “Traceable Element

Magnitude”, and “Traceability Relationship Type”.

Step 3: The experts specified an evaluation

criterion per standpoint. As a matter of fact, the

evaluation criterion that has been defined according

to the first standpoint refers to a combination of two

CIA parameters viz. “Traceable Element Level” and

“Traceable Element Magnitude”. However, that

defined according to the second standpoint

corresponds to only one CIA parameter: “Traceability

Relationship Type”. These two evaluation criteria

along with their scale for scoring are given in Table 3

and Table 4 respectively. In both tables, m denotes

“minor” impact, me denotes “medium” impact, and

M denotes “Major” impact.

Table 3: Evaluation criterion according to the first

standpoint.

CIA parameter 1

CIA parameter 2

Traceable element level

Ite

stem Aircraft

Traceable

element

magnitude

1m m me

<= x m me M

> x me M M

Table 4: Evaluation criterion according to the second

standpoint.

CIA

arameter 3 Ratin

Traceability

relationship

type

Intra-level m

Inte

-level me

Inte

-levels M

Note that “Intra-level” here means that the target

traceable element belongs to only one systemic level

(i.e. item level, system level, or aircraft level); “Inter-

level” implies rather that the target traceable element

belongs to two systemic levels, while “Inter-levels”

denotes that it belongs to the three systemic levels.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

250

Figure 3: Illustration of the evaluated stored change scenarios.

To evaluate the impact severity of each change

scenario from those identified in Step 1, the experts

consider both standpoints, and thus both evaluation

criteria, as illustrated in Table 5.

Table 5: Evaluation of change scenarios severity.

Evaluation

criterion

according to

the first

stand

oint

Evaluation

criterion

according to

the second

stand

oint

Change

scenario

severity

m m m

m me m

m M me

me m me

me me me

me M me

M m me

M me M

M M M

Step 4: Using Table 5, the change scenarios have

been evaluated and stored in the tool database for

further use by the change board (cf. Figure 3). In this

sense, to evaluate a new change request, the change

board has just to search for the concerned change

within the scenarios database. This avoids having to

perform a change impact evaluation from scratch.

Figure 3 is offered just for illustrative purposes, as the

tool is still under development and some

improvements are yet to be done.

5 CONCLUSIONS

Architecture design update has been identified as a

challenging issue, as it may come at an exuberant

cost. Therefore, it is essential to analyse the impact of

such update before it is accepted. This is referred to

as "Change Impact Analysis (CIA)". The latter rests

on traceability of dependencies between elements in

system artefacts. However, in practice, traceability is

not enough to allow the automated support of CIA, as

it does not involve CIA parameters, where a CIA

parameter stands for any information that could be

useful for quantitatively or qualitatively assessing

change impact. To overcome this limitation, the

current paper proposes a domain-specific modeling

method for supporting change impact analysis in the

context of system architecture design. Such method is

composed of two parts. First, a traceability language

(metamodel) endowed with key CIA parameters.

Second, a modeling procedure referring to a change

scenario based approach. The method has the

potential to be easily extended to cover new CIA

parameters.

A first application of the method has been carried

out within the S2C research project in the

aeronautical field, and was promising. Indeed, it has

brought resoundingly positive feedback from

industrial partners of the project, who expressed their

interest in the change scenario based approach. As

future prospects, we plan to perform further

validation of the method, and hence to apply it to

Supporting Change Impact Analysis in System Architecture Design: Towards a Domain-Speciﬁc Modeling Method

251

several fields such as automotive and marine

industries.

REFERENCES

Thöne, S. (2005). Dynamic Software Architectures: A

Style-Based Modeling and Refinement Technique with

Graph Transformations (Doctoral dissertation).

Eckert, C., & Jankovic, M. (2016). System architecture

design. AI EDAM, 30(3), 214-216.

Garlan, D. (2003). Formal modeling and analysis of

software architecture: Components, connectors, and

events. In International School on Formal Methods for

the Design of Computer, Communication and Software

Systems. Springer, Berlin, Heidelberg.

Wolf, M., Feron, E. (2015). What don't we know about CPS

architectures? In 52nd ACM/EDAC/IEEE Design

Automation Conference. IEEE.

Chew, K. H., Klemeš, J. J., Alwi, S. R. W., Manan, Z. A.

(2013). Industrial implementation issues of total site

heat integration. Applied Thermal Engineering, 61(1),

17-25.

Holt, J., Perry, S., Brownsword, M. (2016). Foundations for

model-based systems engineering: from patterns to

models. IET.

Hernández, F., Bangalore, P., Reilly, K. (2005).

Automating the development of scientific applications

using domain-specific modeling. In Proceedings of the

second international workshop on Software

engineering for high performance computing system

applications.

Kretsou, M., Arvanitou, E. M., Ampatzoglou, A.,

Deligiannis, I., Gerogiannis, V. C. (2021). Change

impact analysis: A systematic mapping study. Journal

of Systems and Software, 174, 110892.

Douglass, B. P. (2021). Agile Model-Based Systems

Engineering Cookbook Improve system development by

applying proven recipes for effective agile systems

engineering.

Breivoll, J (2010) Change Impact Analysis–A Case Study.

In the 8th Conference on Systems Engineering

Research, Hoboken, NJ.

Damak, Y. (2020). Operational Context-Based Design and

Architecting of Autonomous Vehicles (Doctoral

dissertation, Université Paris-Saclay).

Hindmarch, H., Gale, A. W., Harrison, R. E. (2010). A

support tool for assessing the impact of design changes

during built environment projects. In 2010 IEEE

International Conference on Industrial Engineering

and Engineering Management. IEEE.

Guegan, A., Bonnaud, A. (2018). Assessing the Maturity of

Interface Design. In International Conference on

Complex Systems Design & Management. Springer.

Akaikine, A. (2010). The impact of software design

structure on product maintenance costs and

measurement of economic benefits of product redesign

(Doctoral dissertation, Massachusetts Institute of

Technology).

Hunt, T. (2007). Vertical and horizontal requirements

relationships. Last accessed, 4(22), 2009.

Yadav, V., Joshi, R. K., & Ling, S. (2019). Evolution

traceability roadmap for business processes. In

Proceedings of the 12th innovations on software

engineering conference (formerly known as india

software engineering conference).

Jaafar, F., Guéhéneuc, Y. G., Hamel, S., Antoniol, G.

(2014). Detecting asynchrony and dephase change

patterns by mining software repositories. Journal of

Software: Evolution and Process, 26(1), 77-106.

Arisholm, E., Sjøberg, D. I., Jørgensen, M. (2001).

Assessing the changeability of two object-oriented

design alternatives--A controlled experiment.

Empirical Software Engineering, 6(3), 231-277.

Karagiannis, D., Kühn, H. (2002). Metamodelling

platforms. In EC-web.

Awadid, A., Nurcan, S. (2019). Overlap-Driven Approach

for the Conceptualization of Consistency Preserving

Modeling Tools. In 25th Americas Conference on

Information Systems.

Gray, J., Bapty, T., Neema, S., Tuck, J. (2001). Handling

crosscutting constraints in domain-specific modeling.

Communications of the ACM, 44(10), 87-93.

Leitner, A., Kreiner, C., Mader, R., Steger, C., Weiß, R.

(2011). Towards multi-modeling for domain

description. In Proceedings of the 15th International

Software Product Line Conference.

Van Den Berg, K. (2006). Change impact analysis of

crosscutting in software architectural design. In

Workshop on Architecture-Centric Evolution at 20th

ECOOP.

Kazman, R., Carrière, S. J., Woods, S. G. (2000). Toward a

discipline of scenario based architectural engineering.

Annals of software engineering, 9(1), 5-33.

Dobrica, L., Ovaska, E. (2011). Analysis of a cross-domain

reference architecture using change scenarios. In

Proceedings of the 5th European Conference on

Software Architecture.

De Bossoreille, X. (2019). Modeling Functional Allocation

in AltaRica to Support MBSE/MBSA Consistency. In

Model-Based Safety and Assessment: 6th International

Symposium.

SAE Aerospace, ARP4754A Guidelines for Development

of Civil Aircraft and Systems, Warrendale, 2010.

SAE Aerospace, ARP4761 Guidelines and Methods for

Conducting the Safety Assessment Process on Civil

Airborne Systems and Equipment, Warrendale, 1996.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

252
