Evaluation of Computer Vision-Based Person Detection

on Low-Cost Embedded Systems

Francesco Pasti

and Nicola Bellotto

1,2

Dept. of Information Engineering, University of Padova, Italy

School of Computer Science, University of Lincoln, U.K.

Keywords:

Embedded Systems, Person Detection, Computer Vision, Edge Computing

Abstract:

Person detection applications based on computer vision techniques often rely on complex Convolutional Neu-

ral Networks that require powerful hardware in order achieve good runtime performance. The work of this

paper has been developed with the aim of implementing a safety system, based on computer vision algorithms,

able to detect people in working environments using an embedded device. Possible applications for such safety

systems include remote site monitoring and autonomous mobile robots in warehouses and industrial premises.

Similar studies already exist in the literature, but they mostly rely on systems like NVidia Jetson that, with a

Cuda enabled GPU, are able to provide satisfactory results. This, however, comes with a signiﬁcant downside

as such devices are usually expensive and require signiﬁcant power consumption. The current paper instead is

going to consider various implementations of computer vision-based person detection on two power-efﬁcient

and inexpensive devices, namely Raspberry Pi 3 and 4. In order to do so, some solutions based on off-the-shelf

algorithms are ﬁrst explored by reporting experimental results based on relevant performance metrics. Then,

the paper presents a newly-created custom architecture, called eYOLO, that tries to solve some limitations

of the previous systems. The experimental evaluation demonstrates the good performance of the proposed

approach and suggests ways for further improvement.

1 INTRODUCTION

Computer vision-based person detection is a key fea-

ture of many real-world applications, including dis-

tributed monitoring systems and autonomous mobile

robots in warehouses, factories, and other industrial

scenarios. Often there also strong limitations in terms

of budget and power consumption, so a trade-off

needs to be found between the performance of the

person detection algorithm and the hardware require-

ments to achieve satisfactory runtime performance.

Most state-of-art solutions rely on rather complex

Convolutional Neural Networks (CNNs) or similar

variants, which typically require sufﬁciently power-

ful hardware to detect people from live video streams.

To this end, the application motivating the current re-

search is the implementation of an embedded vision

system for human safety, which is able to detect peo-

ple in different working environments (e.g. see Fig-

ure 1) and, in case, trigger an opportune response by

a local mobile robot or a remote monitoring station.

Although similar studies exist in the literature,

they typically rely on high-performing embedded

systems like the NVidia Jetson TX2 and Nano,

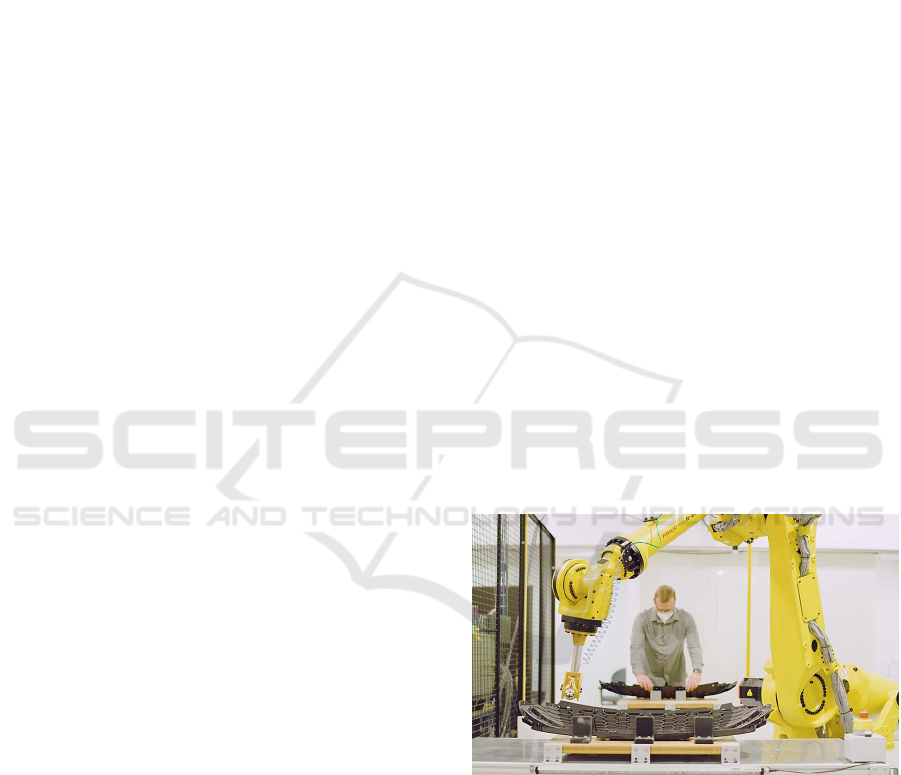

Figure 1: Worker in a potentially unsafe situation.

since these integrate Cuda-enabled GPU that pro-

vide enough computing power to run sufﬁciently

fast CNN-based algorithms. Such a choice however

comes with a signiﬁcant downside, as these devices

are relatively expensive and require too much energy

to run on small battery-powered devices. In this pa-

per, instead, two more energy-saving and less expen-

sive devices are being considered, i.e. a Raspberry Pi

3 and a Raspberry Pi 4. The main challenge is that

these two platforms are not equipped with a powerful

282

Pasti, F. and Bellotto, N.

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems.

DOI: 10.5220/0011797400003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 5: VISAPP, pages

282-293

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

GPU and thus are not able to perform the same huge

amount of calculations required by modern CNNs.

This paper therefore is going to analyse some rel-

evant work on vision-based object detection, with a

particular focus on solutions for embedded devices.

Recent studies mostly focused on CNNs that, due

to the parallelism structure, are solved efﬁciently by

GPU-equipped devices. A different approach is taken

by this paper, by ﬁrst considering some old clas-

sic methods (i.e. not CNN-based) for person detec-

tion, which were developed at a time where com-

puters much less powerful and that could be suitable

for modern-day embedded systems. These algorithms

will be compared to YOLO v3, a representative solu-

tion of CNN-based architectures.

After the initial study of the above methods, the

paper is going to present the implementation of a new

customized CNN, inspired by the original version of

YOLO, where some original techniques and ideas

are adopted to reduce as much as possible the time

required for detecting people on live-stream video

frames with Raspberry Pi 3 and 4, while maintaining

an acceptable level of accuracy for some safety appli-

cations. These performances will be compared to the

previous off-the-shelf methods.

The remainder of the paper is conceptually di-

vided in two parts. The ﬁrst one includes the related

work in Section 2 and the evaluation of old and newer

off-the-shelf algorithms for person detection on em-

bedded systems, presented in Section 3, which forms

a baseline for further improvements. The second part

starts with Section 4, proposing a new version of

YOLO that represents a trade-off between computa-

tional and detection performance on embedded sys-

tems, and concludes in Section 5 with a discussion of

the results and suggestions for future work.

2 RELATED WORK

The task of vision-based object detection is a chal-

lenging problem. There can be a huge number of pix-

els to be processed and the object could be in any po-

sition at multiple scales. The well-known approach of

Viola & Jones (Viola and Jones, 2001) extracts Haar

features, effectively reducing the number of parame-

ters necessary to represent the pixel intensities of the

image. Based on these features, a cascade of classi-

ﬁers is used to detect objects through a fast compu-

tation process. The structure of the cascade resem-

bles a decision tree, where a positive result of the ﬁrst

classiﬁer triggers an evaluation of the second, and so

on, while a negative results causes the rejection of

the sub-window currently analyzed. In practice, each

stage of the cascade acts as a ﬁlter, where the ﬁrst one

discarding a sample prevents further processing by all

the subsequent stages, drastically reducing the com-

putational effort. Viola & Jones’ approach is there-

fore very efﬁcient and potentially useful for low-cost

embedded systems since it does not rely on complex

CNN computations.

Another classic method, which is not based on

CNNs or other recent neural network architectures, is

the Histogram of Oriented Gradients (HOG) approach

introduced by Dalal & Triggs (Dalal and Triggs,

2005). The HOG features are combined with a lin-

ear Support Vector Machine (SVM). Their peculiar-

ity is that they are able to provide, from an input im-

age, the number of gradient orientations in localized

portions of such image, and contain more informa-

tion with respect to the simpler Haar features. For

this reason they also provide better results for person

detection, while maintaining a relatively low compu-

tational cost.

Although the above and other feature-based meth-

ods are still popular for practical applications of em-

bedded computer vision (Farouk Khalifa et al., 2019),

more recent solutions for object detection and image

classiﬁcation are typically implemented with CNNs

and other (deep) neural network architectures. The

main difference from previous previous approaches is

that CNN do not use hand-crafted features, as Haar or

HOG. Instead, they perform an end-to-end process to

learn the best feature representation that ﬁts the prob-

lem.

The work by Girshick et al. (Girshick et al., 2014),

for example, is one of the early approaches show-

ing that a CNN-based solution leads to far better

performances with respect to the previous feature

extraction-based ones. Previous CNN object detec-

tion systems were based on sliding windows or re-

gression. The Region-based CNN (R-CNN) of Gir-

shick et al. solves the object localization problem by

using a ”recognition using regions” paradigm. Each

image generates 2000 independent region proposals,

from which ﬁxed-length features are then extracted

using a CNN and later classiﬁed with a linear SVM.

This approach gives excellent detection results, but

its main disadvantage is a selective-search algorithm

that increases signiﬁcantly the inference time. Fur-

thermore, each part of the algorithm needs separate

training processes, making the method difﬁcult to im-

plement and modify.

An improved version, called Fast R-CNN (Gir-

shick, 2015), addressed the training process and the

inference time problems. The new network takes as

input the entire image and a set of Region of Inter-

est (RoI) proposals to achieve better performances.

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

283

In (Ren et al., 2015), the authors introduced Faster R-

CNN, another method that incorporates a new Region

Proposal Network (RPN) and shares the computation

burden with Fast R-CNN, allowing the whole process

to run even faster.

Another interesting algorithm for object detection

is the Single Shot MultiBox Detector (SSD) proposed

by Liu et al. (Liu et al., 2016). This is a single net-

work that, diffeently from the previous ones, does

not re-sample feature maps of pixels on RoI hypoth-

esis, which makes it extremely fast while keeping the

same detection performance. It is a feed-forward net-

work that produces a ﬁxed size of bounding boxes and

scores for a speciﬁc class of objects. Multiple convo-

lutional feature layers are added at the end of the base

network in order to allow different size predictions.

The output of each feature layer works like a grid:

each grid cell produces a prediction with a score and

an offset relative to the default bounding box. Using

an end-to-end architecture and treating the detection

as a regression problem are the tricks allowing the

network to be really fast while still producing good

results.

Perhaps the most popular CNN for object detec-

tion is YOLO by Redmond et al. (Redmon et al.,

2016). It considers object detection as a single regres-

sion problem with the image as input to the CNN and

output a series of vectors containing the objects loca-

tion with corresponding class probabilities. In partic-

ular, the image is divided by the system into an SxS

grid, and the cell containing the object’s center is the

one considered for its detection. During training, a

custom loss function is optimized to avoid overconﬁ-

dent selection of cells that contain predictions against

the ones that do not, which could lead to instability

and model divergence.

A series of incremental improvements has been

made to the original YOLO network. In particular,

YOLO v2 by Redmond et al. (Redmon and Farhadi,

2017) uses higher resolution for training, exploits

batch normalization to improve the performances, and

uses anchor boxes. The latter are provided as a list of

predeﬁned boxes that best match the desired objects,

and the predicted box is then scaled with respect to

the anchors. YOLO v3, instead, also by Redmond et

al. (Redmon and Farhadi, 2018), adds an objective-

ness score to bounding box predictions, using three

separate levels of granularity to improve the detection

of smaller objects. More recent versions of YOLO,

by Sruthi et al. (Sruthi et al., 2021) and Li et al.

(Li et al., 2022), have then been proposed by differ-

ent authors, making use of new techniques such as

loss functions based on Intersection over Union (IoU)

and adopting state-of-the-art CNNs as a classiﬁcation

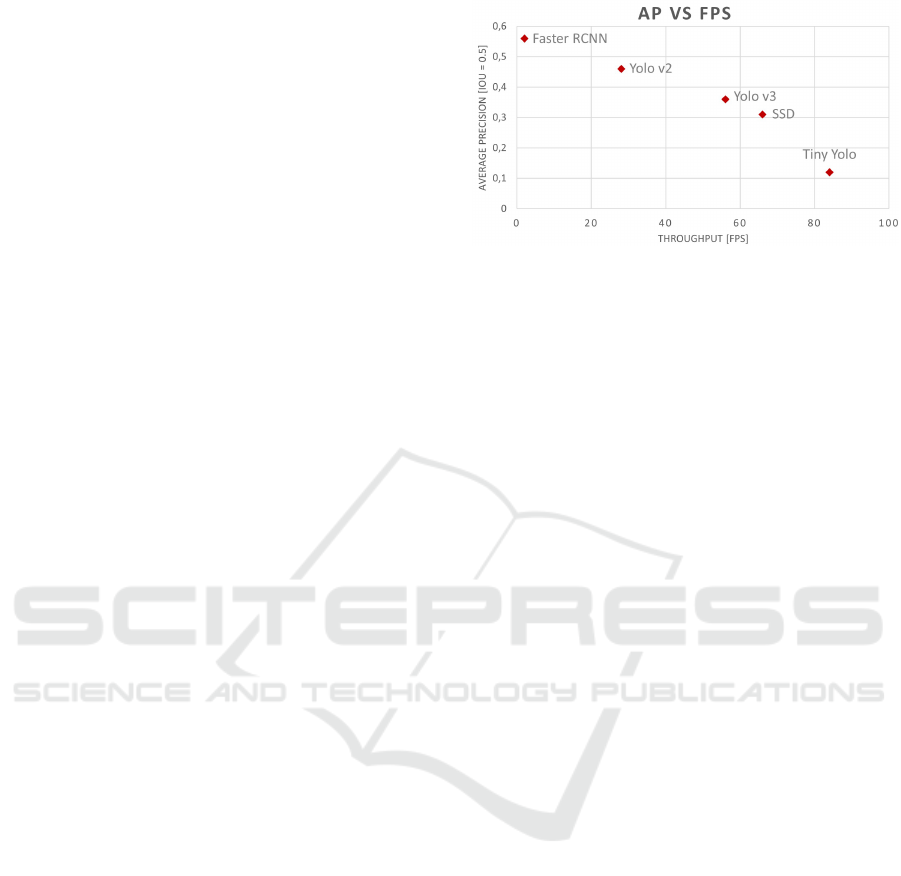

Figure 2: Comparison of the Average Precision versus the

throughput FPS performed by some popular CNN-based ar-

chitectures on a Jetson TX2 (Kim et al., 2019).

backbone.

Continuous advancements in embedded hard-

ware and deep learning architectures enabled re-

search on vision-based object and person detection

with resource-constrained devices. Recent work by

Kim et al. (Kim et al., 2019), for example, provides

a good overview of person detection on embedded

devices, exploring some of the most popular CNNs

such as YOLO, SSD, and R-CNN. The authors also

evaluated these algorithms on an in-house proprietary

dataset, reporting in particular the runtime perfor-

mance on an NVidia Jetson TX2. All the models were

adapted for the task of person detection, trained and

tested on their dataset about costumers in stores. As

highlighted in the paper, ﬁnding a good CNN for an

embedded device deployed in the real world is not

only a matter of how well the person detection per-

forms, but also how fast it accomplishes the task.

In their case, the most computationally efﬁcient and

faster versions of CNN are the Tiny YOLO ones, as

illustrated in Figure 2. However, YOLO v3-416 and

SSD (VGG-500) provide the best trade-off between

average precision and throughput.

As CNNs are getting more efﬁcient and embed-

ded devices more powerful, applications that com-

bine both are also becoming more popular. Some

lightweight YOLO-based architecture have been de-

veloped for non-GPU computers (Huang et al., 2018),

although the availability of high-end GPUs enable

faster and more accurate deep learning solutions.

However, this comes with high expenses and power

consumption. The work by A. Suezen et al. (S

uzen

et al., 2020) discusses the implementation of a CNN

for 13 object categories classiﬁcation evaluated on

three different single-board computers: NVidia Jetson

Nano, NVidia Jetson TX2, and Raspberry Pi 4. Al-

though all these are embedded systems with limited

resources, the key difference between the two NVidia

boards and the Raspberry Pi is that the former have a

CUDA-capable GPU, which is optimized to perform

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

284

Table 1: Benchmarking of the NVidia Jetson Nano, TX2,

and the Raspberry Pi 4 (S

uzen et al., 2020).

Dataset Accuracy [%] Time [sec] Total Power [W]

TX2 Nano PI 4 TX2 Nano PI 4 TX2 Nano PI 4

Idle - - - - - - 3.275 1.23 0.30

5K 87.6 67.5 87.2 23 32 173 7.50 3.73 3.4

10K 93.8 93.9 91.6 32 58 372 8.10 5.57 3.6

the big parallel computation required by CNNs. Ta-

ble 1 reports the results based on their classiﬁcation

network trained and tested on 5 different datasets, in-

cluding the time refers needed to classify all the test-

ing images.

As further shown in more recent work (Wu et al.,

2021), it is clear that GPU-enabled devices have a

huge advantage in terms of speed. For each dataset

in Table 1 indeed, the Pi 4 is outperformed by one

order of magnitude. The results, however, show that

this comes with signiﬁcant extra cost, both in terms

of power consumption (Pi 4 uses up to 35% and 55%

less power in total compared to Nano and TX2, re-

spectively) and price (Pi 4 is typically 3 and 10 times

cheaper than Nano and TX2, respectively).

3 CLASSIC VS CNN-BASED

PERSON DETECTION

The literature review highlighted a knowledge gap in

vision-based person detection on non-GPU embedded

systems. Although (Kim et al., 2019) consideredd

various person detection algorithms for embedded de-

vices, there are a couple of key differences between

their work and the following evaluation. First of all,

the authors tested all their CNNs on an in-house pro-

prietary dataset suitable for in-store applications. This

is signiﬁcantly different from the working environ-

ment (indoor and outdoor) considered in this paper,

where people classiﬁcation is more likely to be af-

fected by occlusions, variability of the surroundings,

and weather conditions. The second but perhaps most

important difference is that the devices evaluated in

this paper are cheap Raspberry Pi 3 and 4 without

GPU, instead of the more expensive and power con-

suming NVidia Jetson TX2 used by previous authors.

This section therefore will evaluate three well known

approaches for person detection on Raspberry Pi. The

results will provide a baseline for the improved archi-

tecture proposed in Section 4.

3.1 Evaluation Methodology

Three person detection solutions described in the re-

lated work are going to be implemented and evalu-

ated on Raspberry Pi (see Figure 3). These are Vi-

Figure 3: Raspberry Pi 4 (left) and Pi Camera v2.1 (right).

ola & Jones (Viola and Jones, 2001), HOG detec-

tor (Dalal and Triggs, 2005) and YOLO v3 (Redmon

and Farhadi, 2018). The ﬁrst two are interesting be-

cause developed when standard computers had sim-

ilar performances to modern Raspberry Pi 3 and 4.

The more recent YOLO v3, instead, well represents

the CNN-based object detectors available nowadays.

In particular, for the Viola & Jones two implementa-

tions will be considered: one only for full-body de-

tection, and another one integrating also also upper-

and lower-body detections to deal with partial hu-

man occlusions. The evaluation discussed in this sec-

tion refers to the off-the-shelf version of the detectors,

i.e. the original algorithms proposed by their authors,

without any signiﬁcant variations or code adaptations

other than those necessary to compile and run the soft-

ware on the target system. Their performances are

going to be evaluated with a particular focus on the

quality of the detection and the processing time on

Raspberry Pi.

The experiments have been performed on im-

ages and ground truth bounding boxes from the Mi-

crosoft COCO 2017 dataset (Lin et al., 2014), which

is a large-scale dataset addressing three core research

problems in scene understanding: detecting non-

iconic views of objects, contextual reasoning, and

precise 2D localization. In particular, for the scope

of this paper, the availability of non-iconic views has

been considered a main factor in choosing COCO

rather than other datasets (see Figure 4). Indeed,

since the target application is person detection for

safety in working environments, it is important to

consider cases where people are occluded or assume

non-canonical poses, differently from other datasets

and studies.

In particular, two testing datasets have been down-

loaded from COCO. One contains 578 variable-sized

images of people, as well as some images without

them, and will be used throughout the paper for com-

paring all the algorithms. The second dataset contains

300 images similar to the previous one, but their size

is ﬁxed at 640 ×480 (i.e. VGA resolution). It will be

used only in Section 3.4 to evaluate the detection per-

formance depending on the size of the input images.

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

285

Figure 4: Some challenging images from the COCO dataset

for the ”Person” class, highlighted by green rectangles.

A standard Intersection over Union (IoU) metric

will be used to discern the bounding boxes of true pos-

itives, false positives, and false negatives, and from

them assess the quality of the algorithms by comput-

ing Precision, Recall, and F1 score. The runtime per-

fomance of the detectors on the Raspberry Pi 3 and

4 will be then evaluated varying the scale of the in-

put images. Finally, the quality of detection will be

re-assessed to see how well the algorithms perform

under the same time constraint.

3.2 Quality of the Detection

As expected, Figure 5 shows that the precision of

the off-the-shelf YOLO is signiﬁcantly better than the

other algorithms, especially for larger IoU values. Vi-

ola and HOG detectors are relatively similar. The su-

periority of YOLO is even more evident in Figure 6

for the recall metric. In particular, when the IoU

threshold is not too high, YOLO always ﬁnd more

than 50% of the people, while the other two meth-

ods perform drastically worse. The same differences

are also captured by the F1 scores in Figure 7.

A consideration worth doing is that the YOLO v3

implementation used in this evaluation was originally

trained to detect 80 classes of objects and not just peo-

ple. This means the network’s discrimination power

is superior to the other methods, resulting in less false

positives. It should also be mentioned that HoG fea-

tures are more suitable for human detection than Vi-

ola’s Haar features, even when three classiﬁers are

combined to detect different body parts. This is be-

cause Haar features are most effective for face detec-

tion and less for other body parts.

It is clear that the detection performances of HOG

and Viola are less suitable for any safety application,

where it is obviously important to avoid any misde-

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 5: Precision vs IoU for Viola & Jones, HOG, and

YOLO detectors.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Figure 6: Recall vs IoU for Viola & Jones, HOG, and

YOLO detectors.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 7: F1 score vs IoU for Viola & Jones, HOG, and

YOLO detectors.

tection. However, it is also worth remembering that

the COCO dataset includes people in non-canonical

poses, at multiple scales, often in the image’s back-

ground and occluded by other objects. This makes

it particularly challenging and harder to achieve high

scores compared to simpler datasets.

3.3 Runtime at Different Image Scales

The runtime performance of the three detectors were

measured by iteratively decreasing the size of the in-

put image. The experiments were performed with an

OpenCV C++ implementation of the algorithms re-

peatedly feeding the classiﬁers with the same input

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

286

30405060708090100

Scale [%]

Figure 8: Detection time vs image scale on Raspberry Pi 3.

30405060708090100

Scale [%]

Figure 9: Detection time vs image scale on Raspberry Pi 4.

image after applying a linear scaling factor of 0.1 (i.e.

new size = old size - 10%). The original input im-

age was the standard VGA 640 ×480, as this is of-

ten used in industrial applications. These experiments

were carried out on both Raspberry Pi 3 and 4.

The results in Figure 8 shows that the runtime of

YOLO is considerably bigger than the other two al-

gorithms, but also that it does not change by vary-

ing the image scale. This is because the input size

YOLO v3’s network is ﬁxed to 416 ×416, so images

of different sizes are always re-scaled automatically

to that dimension. Furthermore, the 52 convolutional

layers and the 40,549,216 parameters of its network

require a huge number of operations to be performed

by the CPU, making the detection extremely slow on

a Raspberry Pi. This is also due to the large number

of object classes handled by the original YOLO, al-

though only the ”Person” category was of interest for

the current application.

The other classic detectors instead perform sig-

niﬁcantly better, and for them the detection time de-

creases linearly with the image scale. In particular,

it can be noticed in the ﬁgure that the Viola detec-

tor based on three classiﬁers takes about three times

longer to run compared to the single classiﬁer ver-

sion. A ﬁnal consideration can be made about the

signiﬁcant improvement of the Rasberry Pi 4 in Fig-

ure 9, showing indeed how better hardware can pro-

vide faster computation. In this case, the Raspberry

Pi 4’s detection runs approximately three times faster

than the older Pi 3, which is consistent with the man-

ufacturer’s information (Upton, 2019).

3.4 Quality at Different Image Scales

Previous results shows how decreasing the input size

of the image decreases the runtime of all the person

detectors but YOLO. It is then interesting to evaluate

the quality of such detection according to the metrics

used in Section 3.2 for varying image scales. For this

comparison, the 300 images of size 640 ×480 of the

second test dataset, mentioned in Section 3.1, will be

used to calculate precision, recall, and F1 score at dif-

ferent image scales with a ﬁxed IoU threshold. The

literature usually sets the latter to IoU = 0.5 (Padilla

et al., 2020). However, looking at Figure 6, it can be

noticed that too many people would be missed using

this value. Since in most safety applications it is more

important to detect whether there is a person rather

than missing any, the threshold in this case has been

set to IoU = 0.1.

To perform this evaluation, the ground truth

bounding boxes had to be scaled down together with

the images. The lower the resolution though, the

higher is the chance that a predicted detection inter-

sects the ground truth. Moreover, the scaling process

introduces a sort of image ﬁltering that removes many

details potentially confused as humans, decreasing

the number of false positives. For this reason, the

precision increases for all the detectors when the im-

age scale decreases. Figure 10 illustrates these re-

sults, together with a conﬁrmation in Figures 11-12

that the YOLO detector maintains its advantage com-

pared to the other feature-based methods, similarly to

what was already observed in Figures 5-7.

3.5 Online Application Results

Following the results in previous sections, an online

application of video-stream person detection can be

evaluated on the Raspberry Pi 3 and 4. As previously

explained, YOLO’s runtime is too high on these em-

bedded devices and it is therefore considered in the

following tables just for reference (as shown in Fig-

ures 8 and 9, YOLO would require 4 seconds to pro-

cess one single frame on the Pi 4, and 13 seconds on

the Pi 3). The IoU threshold has been set again to 0.1.

A target runtime performance of 2 FPS was chosen,

since this is sufﬁciently good for many CCTV appli-

cations (Cohen et al., 2009), although higher frame-

rates might be desirable.

Given the target time t = 0.5 sec (i.e. 2 FPS),

the necessary scale factors can be retrieved from Fig-

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

287

102030405060708090100

0.4

0.5

0.6

0.7

0.8

0.9

Figure 10: Precision vs image scale.

102030405060708090100

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Figure 11: Recall vs image scale.

102030405060708090100

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 12: F1 score vs image scale.

ures 8 and 9 for each detector and Raspberry Pi ver-

sion. From the scale factors, precision, recall, and F1

score can then be obtained from the detection perfor-

mance in Figures 10-12. The results are reported in

Tables 2 and 3, respectively.

As it can be noticed from the tables, the best so-

lution among the classic and faster detectors is HOG,

although its results are clearly not astonishing. The

performances in term of recall and F1 score are indeed

very poor, although, as previously stated, the COCO

dataset sets a very challenging test benchmark. It is

likely the results would be generally more satisfactory

in many real-world applications.

Despite the above considerations, the detection re-

sults could and should be potentially be much better

with a faster YOLO implementation, as hinted also

by the same tables. In the remaining part of this pa-

Table 2: Comparison of different feature-based detectors

for a target runtime of 2 FPS on Raspberry Pi 3.

FPS Scale Precision Recall F1 score

HOG detector 2 80% 87% 16% 26%

Viola one casc. 2 80% 51% 2% 6%

Viola three casc. 2 50% 60% 6% 11%

YOLO v3 0.07 (max) - 95% 71% 81%

Table 3: Comparison of different feature-based detectors for

a target runtime of 2 FPS on Raspberry Pi 4.

FPS Scale Precision Recall F1 score

HOG detector 2 100% 62% 18% 26%

Viola one casc. 2 100% 40% 4% 8%

Viola three casc. 2 70% 51% 11% 19%

YOLO v3 0.2 (max) - 95% 71% 81%

per, the focus will be therefore on a newly customised

version of the latter, developing a light-weight version

of the neural network for single class “Person” detec-

tion, suitable for online applications on Raspberry Pi.

4 CUSTOMISED YOLO

The previous section evaluated some off-the-shelf so-

lutions for vision-based person detection on the Rasp-

berry Pi 3 and 4. It has been shown that classic

feature-based solutions are fast but perform poorly,

in terms of precision and recall, compared to more

recent CNN-based detectors like YOLO. The latter

though is too computationally demanding and slow

for online applications with such low-cost embedded

systems. In this section, therefore, a YOLO-based

network is proposed to reach a better compromise be-

tween detection’s quality and runtime performance.

From now on this new architecture for embedded sys-

tems will be simply referred to as eYOLO.

4.1 Architecture Design

YOLO was initially designed to detect multiple

classes of objects. Given that only people must de-

tected in the current application, some simpliﬁcations

can be made to reduce the number of parameters and

speed up the computation, making eYolo suitable for

low-cost and non-GPU embedded devices.

The main changes here considered are reducing

the size of the network’s output and removing some

of its layers. The original YOLO takes in input an

448 ×448 RGB image, while the output is encoded

as a 7 ×7 ×30 tensor. This means that the image is

divided into a 7 × 7 grid, and each cell of such grid

outputs a vector of length 30 composed by the fol-

lowing quantities:

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

288

• 2 bounding boxes in YOLO’s format

⃗

B =





where P

is a conﬁdence value and the remaining

ones are, in order, X-position, Y -position, width,

and height of the bounding box;

• 20 entries, one for each of the 20 classes.

Since only one class needs to be detected, the output

can be encoded by a simpler 7 ×7 ×5 tensor, where

each cell has an associated vector of length 5, equal

to a single

⃗

B. This means the network would predict

a single bounding box, which can only belong to the

“Person” class.

As reported in Table 4, eYOLO is a sequential net-

work. Its convolutional layers use a Leaky ReLU acti-

vation function and are all followed by batch normal-

isation in order to avoid overﬁtting. The input image

has a resolution of 448 ×448 ×3. MaxPooling layers

and some convolutional ones reduce the feature map

size to produce a 10 ×10 ×256 layer. Finally, a com-

bination of fully connected layers produces the 245

predictions that are re-shaped to produce the needed

7 ×7 ×5 output.

During the training process, an optimised version

of the original YOLO’s loss function L is used:

L = λ

coord

∑

i=1

ob j

[(x

− ˆx

)

+ (y

− ˆy

)

]

+ λ

coord

∑

i=1

ob j

[(

√

−

ˆw

)

+ (

−

)

]

+ λ

noob j

∑

i=1

noob j

[(p

(C))

]

∑

i=1

ob j

i, j

[(p

(C))

]. (1)

In the equation, x, y, w, and h refer to the top-left

corner’s coordinates, the width, and the height of the

predicted bounding boxes, respectively. These pa-

rameters, as well as the boxes probabilities p(C), are

compared with the respective ground truths, identi-

ﬁed by the ˆ (hat) symbol, for each cell of the S ×S

grid, where S = 8. The operator 1

ob j

denotes if an

object appears in cell i. The multiplier λ

coord

= 5

increases the loss for cells containing objects, while

noob j

= 0.5 decreases the loss for cells not contain-

ing objects.

Equation (1) differs from the original one in sev-

eral ways. Indeed there is only one box for each

cell, so there is no need to consider the inner sum for

each

⃗

B. Furthermore, 1

ob j

was originally computed

for all the cells containing a ground truth, consider-

ing only the bounding box prediction with the biggest

Table 4: Sequence of layers in eYOLO.

Layer type Filters/Filter size Output shape

Conv2D 16/(7x7) 448x448x16

MaxPooling2D (2x2)s2 224x224x16

Conv2D 48/(3x3) 224x224x48

MaxPooling2D (2x2)s2 112x112x48

Conv2D 32/(1x1) 112x112x32

Conv2D 64/(3x3) 112x112x64

Conv2D 32/(1x1) 112x112x32

Conv2D 64/(3x3) 112x112x64

MaxPooling2D (2x2)s2 56x56x64

Conv2D 64/(1x1) 56x56x64

Conv2D 128/(3x3) 56x56x128

Conv2D 64/(1x1) 56x56x64

Conv2D 128/(3x3) 56x56x128

MaxPooling2D (2x2)s2 28x28x128

Conv2D 128/(1x1) 28x28x128

Conv2D 256/(3x3) 28x28x256

Conv2D 128/(1x1) 28x28x128

Conv2D 256/(3x3) 28x28x256

Conv2D 256/(3x3)s2 14x14x256

Conv2D 256/(3x3) 12x12x256

Conv2D 256/(3x3) 10x10x256

Flatten - 25600

Dense - 128

Dense - 256

Dense - 245

Reshape - 7x7x5

IoU. In (1) instead, 1

ob j

includes only those cells with

a ground truth different from zero, and since there is

just one prediction per cell, it directly uses its bound-

ing box to compute the loss. Finally, there is no need

to compute the loss of multiple classes, since here

there is only one, and the probability of the latter is

equal to the probability of the bounding box itself.

4.2 Experimental Results

The network was trained on a dataset of 13,000 im-

ages from COCO. The dataset was split in 70% for

training and 30% for validation. The test dataset, also

from COCO, was the same with 578 images men-

tioned in Section 3.1 and later used for assessing the

quality of the detection.

As shown in Figures 13-15, eYOLO outperforms

both HOG and Viola detectors. As expected, its re-

sults are far from those of YOLO v3, which is sig-

niﬁcantly bigger and therefore better in the detection

task, although the latter comes at the expenses of time.

eYOLO instead is able to reach 1 FPS on the Rasp-

berry Pi 3 and ∼3 FPS on the Pi 4. It is therefore much

faster than YOLO v3 and slower than Viola and HOG,

although better than the latter two in terms of detec-

tion quality, as evidenced by the same ﬁgures. Fig-

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

289

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 13: Precision vs IoU for eYOLO detector.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Figure 14: Recall vs IoU for eYOLO detector.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 15: F1 score vs IoU for eYOLO detector.

ure 16 shows also the precision-recall (PR) curves for

three different values of IoU, namely 0.1, 0.25, and

0.5. The average precision (AP) for the three cases

are 29.47%, 9.34%, and 3.11%, respectively.

Finally, some qualitative results are illustrated

in Figure 17 to compare the new eYOLO detector

against the original YOLO v3 and HOG in typical

working scenarios. From these examples it is ev-

ident that, despite the simpliﬁcations introduced to

speed up the detection process, eYOLO performs sig-

niﬁcantly better than HOG and reasonably well com-

pared to YOLO v3, although its reduced accuracy can

affect the detection of distant people (e.g. false nega-

tives on the rightmost image).

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Figure 16: Precision-Recall curve for eYOLO detector.

4.3 Discussion

The results here presented are a compromise be-

tween speed and detection performances. Clearly

the latter are not as good as those reported for other

non-GPU solutions, such as Tiny-YOLO and YOLO-

LITE (Huang et al., 2018), although the results for

the single class detection in this work are not directly

comparable to the multi-class problems addressed by

other authors. It is important to stress also that the

ARM-based architecture of the Raspberry Pi boards

is signiﬁcantly less powerful than the Intel CPU used

in other studies, independently from the adoption of

a GPU or not. The main difference of course is that

ARM processors are designed for power-savvy appli-

cations on embedded systems.

A larger and more accurate network would pro-

duce better detections but would also decrease the

runtime performance, while a smaller and faster net-

work would loose signiﬁcantly in terms of precision

and recall. This is mainly noticeable in the eYOLO’s

loss of precision. Indeed, this detector often predicts

bounding boxes that are too big, too small, or not-

centered with respect to the ground truth, although

generally placed nearby people. This means that,

when the minimum IoU threshold increases, most of

these quasi-correct bounding boxes will be treated as

false positives, considerably decreasing the precision.

When the IoU threshold is low instead, performances

are much better. In Figure 18, some examples of such

bounding boxes are shown together with their IoU

score. The problem is mainly imputable to the net-

work and its combination of hyperparameters, as pre-

viously explained. However, another possible cause is

the training dataset that, besides individuals, contains

also body parts and group of people, which likely

confuses the network’s learning. For speciﬁc applica-

tions, it might be worth to evaluate the network’s per-

formance under simpler scenarios where human ap-

pearance is more homogeneous.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

290

HOGYOLO v3eYOLO

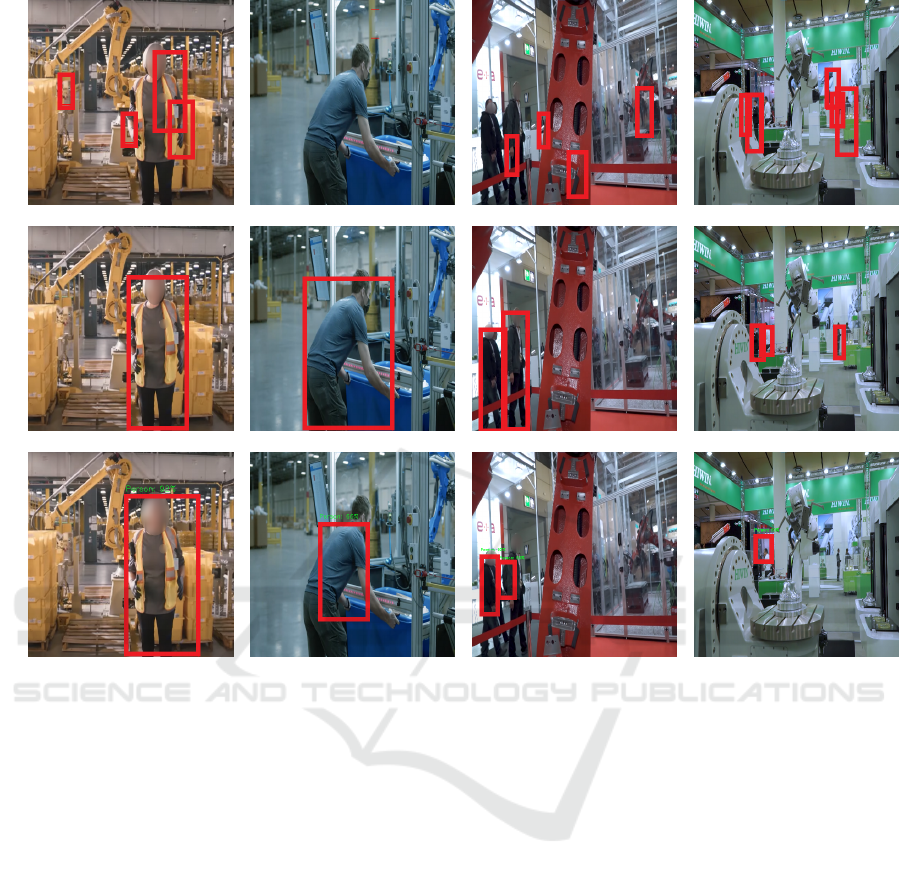

Figure 17: Person detection in typical working scenarios with HOG (top row), YOLO v3 (middle), and eYOLO (bottom).

5 CONCLUSIONS

This paper evaluated some classic computer vision-

based algorithms for person detection on low-cost

embedded system, with a particular focus on safety

applications for work environments. It proposed also

a new YOLO-based detector suitable for processing

live videos with a Raspberry Pi. The main challenge

with respect to previous works has been developing

an embedded solution that does not rely on GPU- or

powerful CPU-based systems, since these would in-

evitably affect its cost and energy consumption.

Three off-the shelf solutions have been ﬁrst im-

plemented and analysed to create a baseline for fur-

ther improvements. Traditional machine learning ap-

proaches such as Viola & Jones and HOG proved

to be good in terms of runtime performance but un-

suitable for the actual detection task. A YOLO deep

learning architecture, instead, showed to be very ac-

curate in detecting people, but it required too much

time to process a single frame, making this algorithm

not suitable for embedded applications.

The comparison served as a baseline and inspira-

tion to develop a new YOLO-based person detector,

with several optimisations to reduce the original net-

work’s size and achieve a satisfactory runtime perfor-

mance. The adopted strategy to re-design the network

from the bottom up included a customised loss func-

tion and the batch generator for the training data. De-

veloping a custom solution from scratch, however, is

not straightforward. Indeed, seeking the right com-

bination of hyperparameters and convolutional layers

without increasing the inference time is a tedious pro-

cess. Nevertheless, the ﬁnal eYOLO architecture is

a good compromise between hardware and software

performance, and can serves as a complementary aid

for many safety monitoring applications. On the one

end, it is clear that the results obtained for large IoU

are not always satisfactory, since the proposed bound-

ing boxes are often too big or too small with respect to

the ground truth. On the other hand, this is not always

a problem, as the simple detection of any person in a

frame, independently from the exact location, might

be sufﬁcient to trigger an opportune response by the

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

291

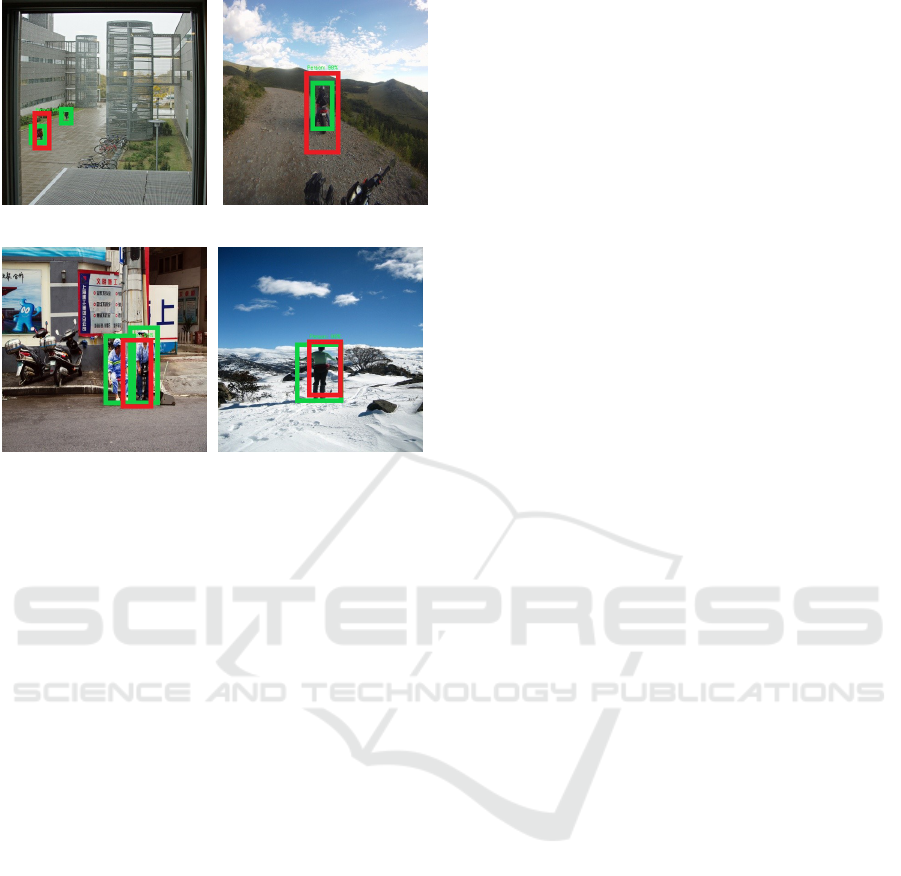

(a) IoU = 30% (b) IoU = 37%

Figure 18: Example of person detections (ground-truth in

green; eYOLO’s output in red) and actual IoU percentages.

safety system.

There are several ways in which the work of this

paper can be further improved to achieve better de-

tection and runtime performances on low-cost em-

bedded devices. In particular, it would be worth ex-

ploring a detection solution based on centroids rather

than bounding boxes. As already reported in the pa-

per, decreasing the number of parameters is very use-

ful to increase the runtime performance of the net-

work. A CNN detecting only the center of a per-

son could achieve that, and at the same time provide

enough information for safety purposes. Future work

should also include a comparison to other methods

(e.g. SSD, Tiny-YOLO) and adapt the most recent

networks, such as YOLO v7, to embedded systems,

possibly pushing their applications even further on

low-cost/low-energy microcontroller-based devices.

ACKNOWLEDGEMENTS

This work has received funding from the EU H2020

research and innovation programme under grant

agreement No. 101017274 (DARKO).

REFERENCES

Cohen, N., Gattuso, J., and MacLennan-Brown, K. (2009).

CCTV Operational Requirements Manual. UK Home

Ofﬁce, Scientiﬁc Development Branch.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In 2005 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR’05), volume 1, pages 886–893.

Farouk Khalifa, A., Badr, E., and Elmahdy, H. N. (2019).

A survey on human detection surveillance systems for

raspberry pi. Image and Vision Computing, 85:1–13.

Girshick, R. (2015). Fast r-cnn. In 2015 IEEE International

Conference on Computer Vision (ICCV), pages 1440–

1448.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In 2014 IEEE Conference

on Computer Vision and Pattern Recognition, pages

580–587.

Huang, R., Pedoeem, J., and Chen, C. (2018). Yolo-lite:

A real-time object detection algorithm optimized for

non-gpu computers. In IEEE Int. Conf. on Big Data

(Big Data), pages 2503–2510.

Kim, C. E., Oghaz, M. M. D., Fajtl, J., Argyriou, V., and

Remagnino, P. (2019). A comparison of embedded

deep learning methods for person detection. In Proc.

of the 14th Int. Conf. on Computer Vision Theory and

Applications (VISAPP).

Li, C., Li, L., Jiang, H., Weng, K., Geng, Y., Li, L., Ke,

Z., Li, Q., Cheng, M., Nie, W., Li, Y., Zhang, B.,

Liang, Y., Zhou, L., Xu, X., Chu, X., Wei, X., and

Wei, X. (2022). Yolov6: A single-stage object detec-

tion framework for industrial applications.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ra-

manan, D., Doll

ar, P., and Zitnick, C. L. (2014). Mi-

crosoft coco: Common objects in context. In Fleet,

D., Pajdla, T., Schiele, B., and Tuytelaars, T., edi-

tors, Computer Vision – ECCV 2014, pages 740–755.

Springer International Publishing.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). SSD: Single shot

MultiBox detector. In Computer Vision – ECCV 2016,

pages 21–37. Springer International Publishing.

Padilla, R., Netto, S. L., and da Silva, E. A. B. (2020). A

survey on performance metrics for object-detection al-

gorithms. In 2020 International Conference on Sys-

tems, Signals and Image Processing (IWSSIP).

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition (CVPR).

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 7263–

7271.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. In CoRR, volume abs/1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with re-

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

292

gion proposal networks. In Cortes, C., Lawrence,

N., Lee, D., Sugiyama, M., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 28. Curran Associates, Inc.

Sruthi, M., Poovathingal, M. J., Nandana, V., Lakshmi,

S., Samshad, M., and Sudeesh, V. (2021). Yolov5

based open-source uav for human detection during

search and rescue (sar). In 2021 International Confer-

ence on Advances in Computing and Communications

(ICACC). IEEE.

uzen, A. A., Duman, B., and Sen, B. (2020). Benchmark

analysis of jetson tx2, jetson nano and raspberry pi us-

ing deep-cnn. In Int. Congress on Human-Computer

Interaction, Optimization and Robotic Applications

(HORA).

Upton, E. (2019). Raspberry pi 4 on sale now from

$35. https://www.raspberrypi.com/news/raspberry-pi-

4-on-sale-now-from-35/.

Viola, P. and Jones, M. (2001). Rapid object detection us-

ing a boosted cascade of simple features. In Proceed-

ings of the 2001 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition. CVPR

2001.

Wu, W., Chen, C., and Lee, J. (2021). Embedded yolo:

Faster and lighter object detection. In Proc. of the Int.

Conf. on Multimedia Retrieval (ICMR), pages 560–

565.

Evaluation of Computer Vision-Based Person Detection on Low-Cost Embedded Systems

293
