Multimodal Light-Field Camera with External Optical Filters Based on

Unsupervised Learning

Takumi Shibata, Fumihiko Sakaue and Jun Sato

Nagoya Institute of Technology, Nagoya, Japan

Keywords:

Light Field Camera, Multi-Modal Imaging, External Optical Filters.

Abstract:

In this paper, we propose a method of capturing multimodal images in a single shot by attaching various

optical ﬁlters to the front of a light-ﬁeld (LF) camera. However, when a ﬁlter is attached to the front of the

lens, the result of capturing images from each viewpoint will be a mixture of multiple modalities. Therefore,

the proposed method uses a neural network that does not require prior learning to analyze such a modal

mixture image to generate an image of all the modalities at all viewpoints. By using external ﬁlters as in

the proposed method, it is possible to easily switch ﬁlters and realize a ﬂexible conﬁguration of the shooting

system according to the purpose.

1 INTRODUCTION

In recent years, images that record various informa-

tion about a target object, such as multispectral im-

ages, polarization images, and high dynamic range

(HDR) images, have been in the spotlight. Since these

images contain information that is difﬁcult to handle

in ordinary RGB images, they can be applied to vari-

ous applications by using them for different purposes.

If these information could be acquired and used si-

multaneously, it would be possible to construct an im-

age processing system with higher accuracy. How-

ever, these images often require a dedicated camera,

and it is difﬁcult to simultaneously acquire this infor-

mation from the same viewpoint. Therefore, in this

paper, we investigate a method of acquiring multi-

modal images with a single shot from a single cam-

era. Several methods for acquiring multimodal im-

ages using a single camera have been studied in the

previous years (Horstmeyer et al., 2009), often us-

ing image sensors equipped with special ﬁlter arrays.

This makes it possible to acquire various information

depending on the ﬁlter, such as multispectral image

(Xie et al., 2019), HDR image, and polarization in-

formation image. However, the ﬁlter conﬁguration

cannot be changed immediately with such a special

image sensor, and ﬂexible operation such as changing

the modality according to the purpose is not possi-

ble. Therefore, we propose a method for acquiring

multimodal images using external ﬁlters that can be

replaced or combined with other ﬁlters.

In order to acquire various information simultane-

ously from a single viewpoint, we focus on a light

ﬁeld (LF) camera, which is a camera that acquires

4D LF images. The camera can obtain images (sub-

aperture images) equivalent to those taken by multi-

ple cameras at the same time by taking a single shot.

In this study, we consider the simultaneous acquisi-

tion of images through different ﬁlters in a single shot

by attaching various ﬁlters to each area of the main

lens of the LF camera and taking a picture, as shown

in Fig.1. However, when the ﬁlters are mounted on

the front of the camera, the ﬁlter position is different

from the optical center, so the ideal group of images

as shown in Fig.1 cannot be obtained directly. Several

modalities are mixed in each subaperture image, and

mixed modal information is lacking. In this research,

we aim to analyze such mixed-modal images taken

from multiple viewpoints to capture multimodal im-

ages with no missing parts in a single shot by a single

camera.

2 MIXED-MODAL IMAGING

USING LFcamera

First, we describe the light ﬁeld (LF) camera used

in this study, which directly records four-dimensional

information on light rays in a target scene. In this

study, we use a plenoptic camera (Ng et al., 2005)

that realizes LF capturing with a single camera by at-

Shibata, T., Sakaue, F. and Sato, J.

Multimodal Light-Field Camera with External Optical Filters Based on Unsupervised Learning.

DOI: 10.5220/0011801900003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

483-490

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

483

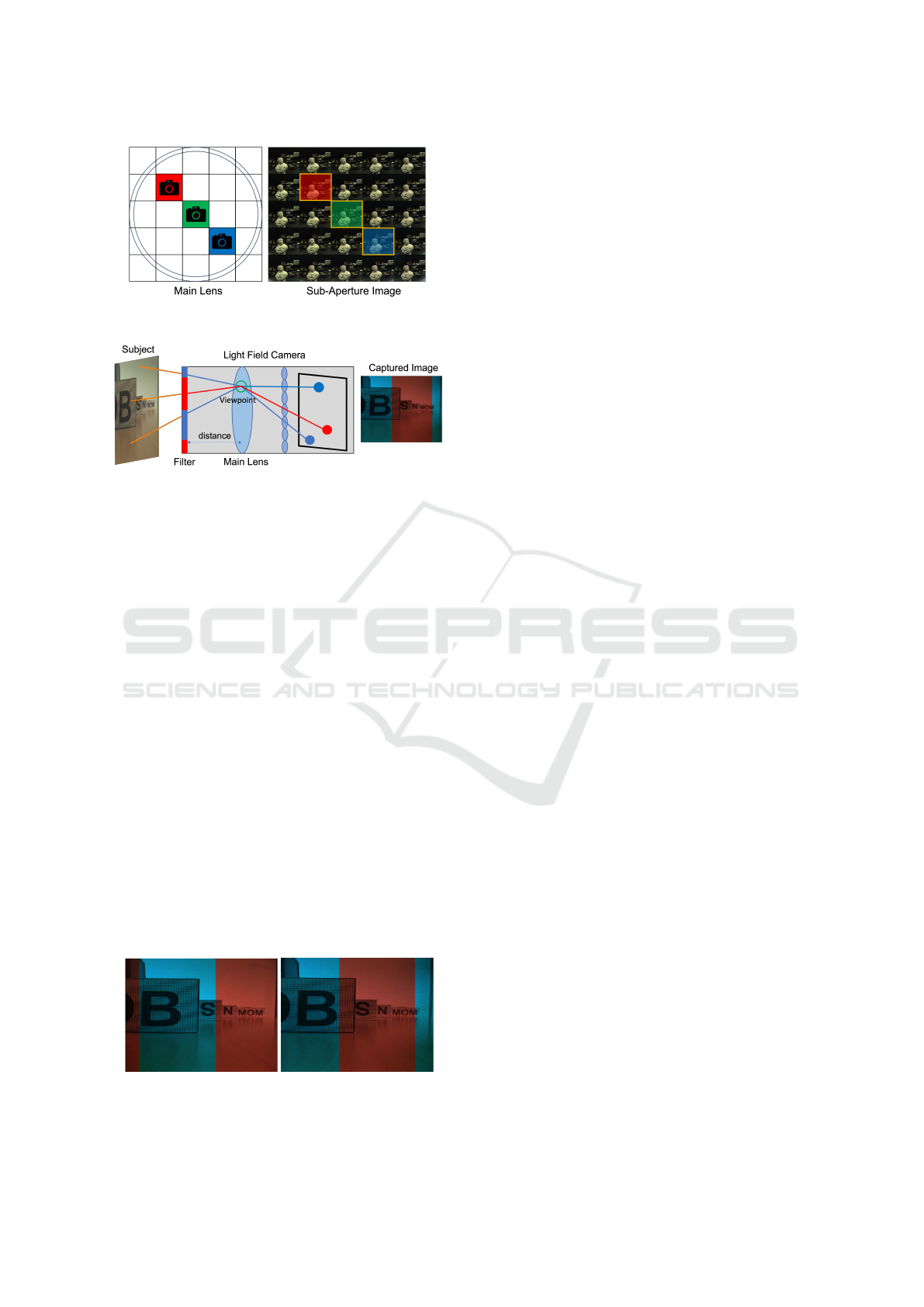

Figure 1: External multi-modal ﬁlters for light-ﬁeld camera

and ideal sub-aperture images.

Figure 2: Image capturing with external multi-modal ﬁlters.

taching a microlens array to the image sensor. We

consider what kind of images can be obtained when

an external ﬁlter that allows light rays with different

characteristics to pass through each part of the cam-

era is attached to this plenoptic LF camera, as shown

in Fig.2. Now, let us focus on a certain region of

the main lens (subaperture) as shown in Fig.2, and

consider the subaperture image obtained by light rays

passing through this region. In this case, as shown

in the ﬁgure, the lens and ﬁlter plane are located at

different positions, so each light ray passes through

a different ﬁlter depending on the direction of inci-

dence and reaches the main lens. Therefore, even if

a subaperture image is generated from the acquired

LF, it is not possible to obtain a single modal image

corresponding to the ﬁlter in front of the subaperture,

and thus, various modalities are mixed in the image.

In this study, we call the image a mixed-modal im-

age. Since the rays passing through each subaperture

change according to the position of the subaperture,

the modal mixed image changes depending on the po-

sition of the subaperture, as shown in Fig.3. The pro-

posed method estimates all unmixed modal images at

all subapertures from the set of such modal mixed im-

ages.

(a) Left Viewpoint Image

(b) Right Viewpoint Image

Figure 3: Difference of mixed modal image according to

the viewpoint.

3 MULTI-MODAL IMAGE

ESTIMATION BY DEEP IMAGE

PRIOR

3.1 Deep Image Prior

In this study, we utilize Deep Image Prior(Ulyanov

et al., 2017) to estimate multi-modal images. Deep

Image Prior uses neural networks as prior knowledge

(Prior) in image generation to achieve natural image

generation. In Deep Image Prior, a noise image N is

input to a neural network with a U-Net structure, and

the output image x is obtained as follows:

x = P(θ, N) (1)

where, P(θ, N) is output from U-net when the noise

N is input to the network and θ is a set of parameters

in the network. Deep Image Prior can generate vari-

ous images by changing the parameter θ of the CNN.

For example, to make the output x closer to the target

image x

, the parameter θ is optimized by as follows:

∗

= argmin

||(P(θ, N) − x

)||

(2)

The reconstructed image P(θ

∗

, N) can be obtained

from the parameter θ

∗

obtained in this way. By chang-

ing this evaluation function according to the pur-

pose, various image processing such as image super-

resolution and inpainting can be realized without prior

learning(Ho et al., 2021)(Rasti et al., 2022).

3.2 Conditions for Image Generation

Next, we consider the constraints imposed on Deep

Image Prior to generate multi-modal images. In this

study, we focus on the fact that the modality infor-

mation that can be obtained from each pixel changes

for each viewpoint in generating each modal image.

Figure3 shows an example of a subaperture image ob-

tained by using a red and blue mixture ﬁlter, and it can

be seen that rays of light passing through different ﬁl-

ters are obtained for each viewpoint, even when the

same object is captured. This is because the relative

positional relationship with the ﬁlter changes for each

subaperture. Therefore, if the image from each view-

point can be transformed into an image from a dif-

ferent viewpoint, it is possible to acquire information

on various modalities from all viewpoints. Therefore,

a viewpoint transformation network is constructed to

represent the change in image with viewpoint trans-

formation and used for image generation.

Assuming that there is a certain correlation be-

tween the modal images, it is possible to transform

one modal image to another using a neural network.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

484

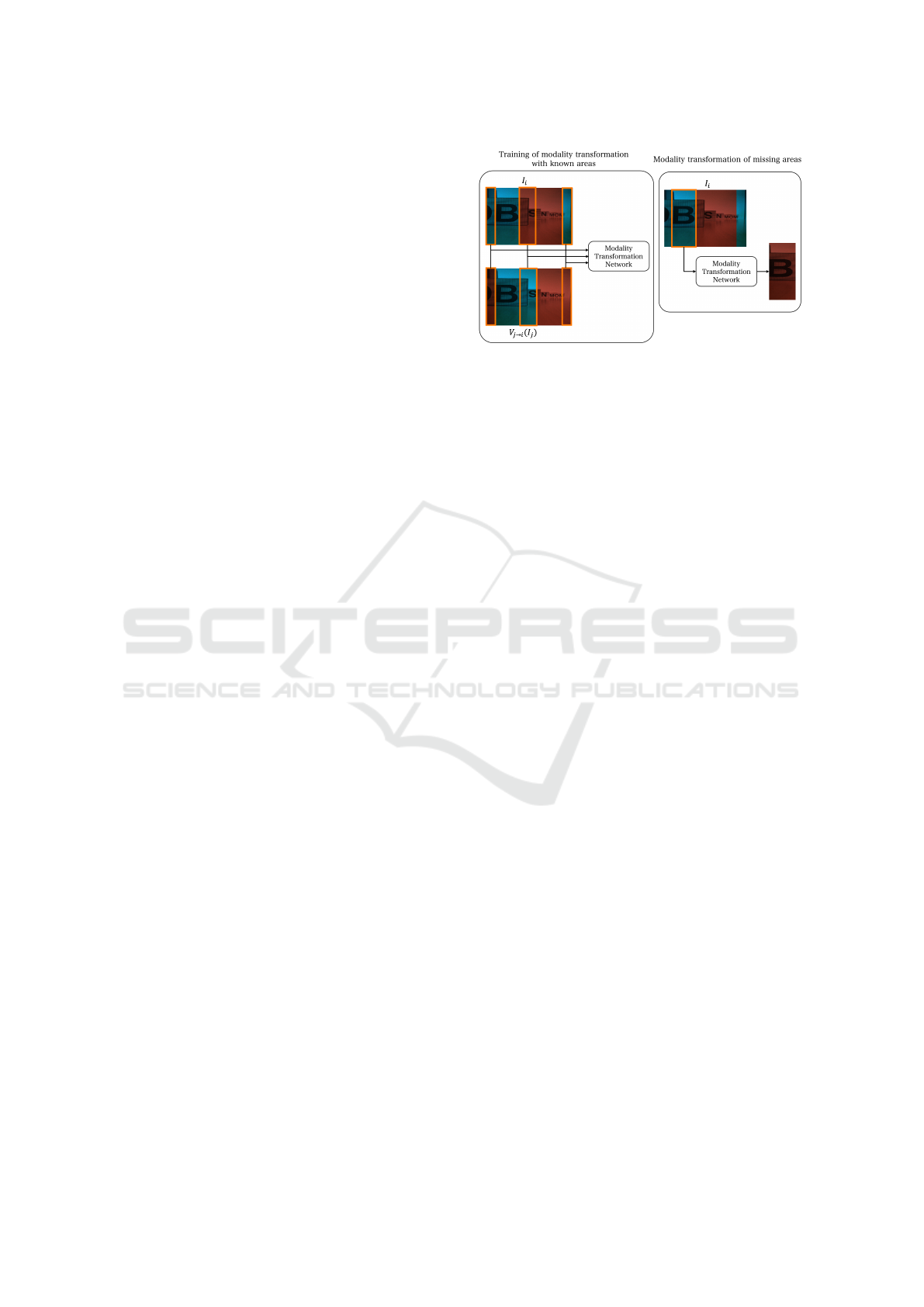

Therefore, a modal transformation neural network

that transforms each modal image into another modal

image is also trained, and this is also used as a con-

dition for image generation. Furthermore, by sharing

some of these networks, a multi-task learning frame-

work is applied to estimate multimodal images with

high accuracy.

In the following, for the simpliﬁcation of the dis-

cussion, we will consider the case where images with

different modals are captured using ﬁlters that trans-

mit light of red wavelength and blue wavelength, re-

spectively, as shown in Fig.3. Let I

be the modal

mixed image taken at viewpoint i. It is also assumed

that at each viewpoint, it is known which modal infor-

mation was acquired at which pixel, and that a mask

replacing the non-red region with 0 and a mask

replacing the non-blue region with 0 are obtained.

Under these conditions, the objective is to bring the

output

= P(θ

, N) and

= P(θ

, N) obtained by

Deep Image Prior to their respective modal images. In

this section, we consider, in particular, the constraints

available when focusing on

3.3 Image Inpainting Constraint

First, consider the constraint that image inpainting is

used to generate an image from an image of the tar-

get modal contained in a modal mixture. In this case,

the error in the unmasked area becomes the evaluation

function for image generation, as follows:

= ||M

− M

(3)

Minimizing this evaluation function yields an image

that mimics the input for regions where red informa-

tion can be captured directly, and an interpolated im-

age based on the input for regions where it cannot be

obtained.

3.4 Constraint from Viewpoint

Transformation

Next, we consider using information from images

taken from different viewpoints by estimating the dis-

parity between the images. In this study, we extend

the method of Luo et al(Luo et al., 2018). to estimate

the disparity. In this method, multiple images are pre-

pared for the image to be viewpoint transformed that

have been shifted by k pixels in advance, and these

are called the shifted image set S

(I). A weight map

representing the weight of each pixel is estimated

for each image in this shifted image group, and the

weighted average of the weight maps is computed to

generate the viewpoint transformation image. The

weight map W

indicates from which shifted image

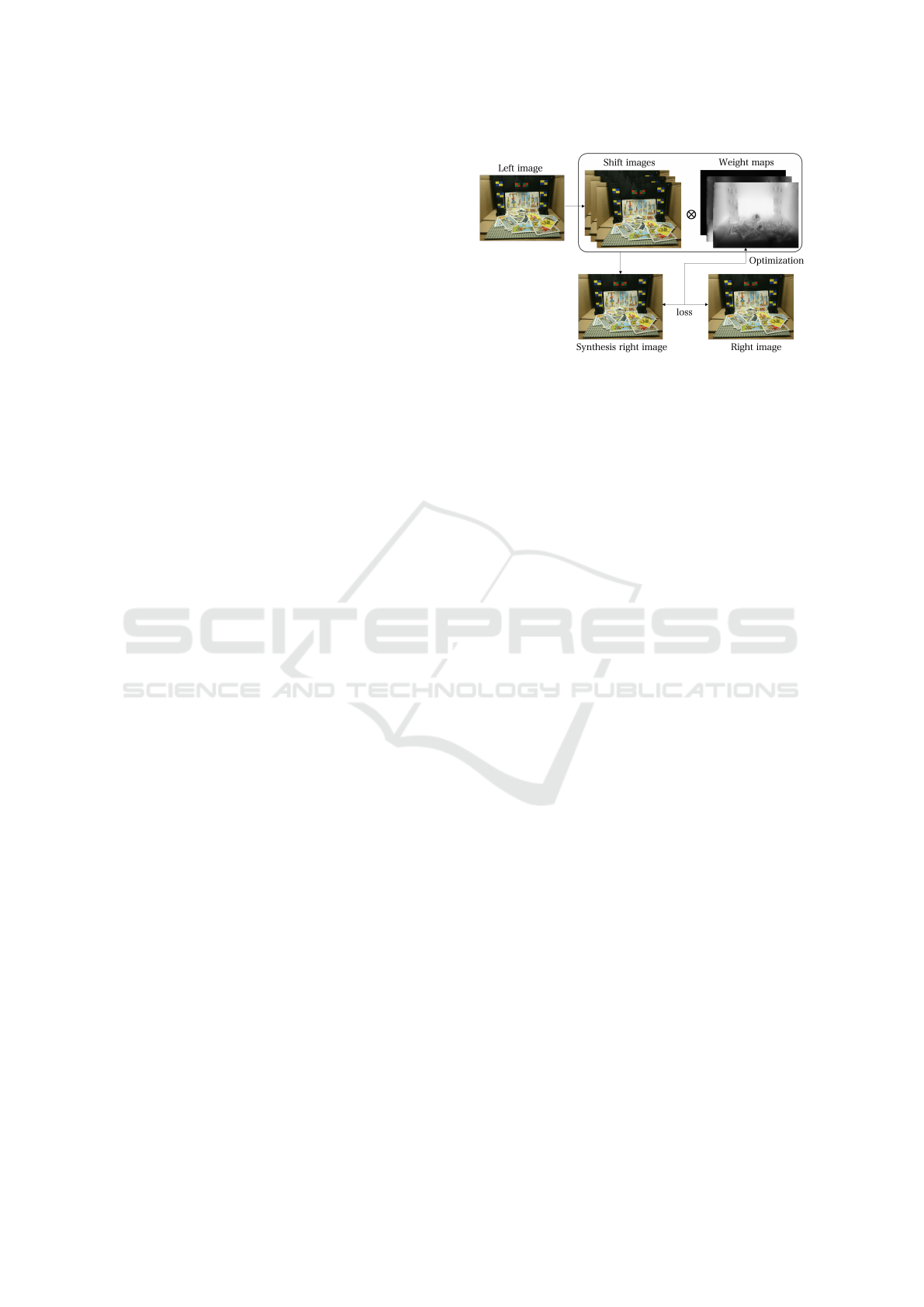

Figure 4: Overview of the Viewpoint Transformation Using

Shifted Image Set.

the pixel values are referenced for each pixel in the

viewpoint-transformed image, and by optimizing this

map, an image that is appropriately shifted according

to disparity can be generated.

In the method of Luo et al. as shown in Fig.4,

the viewpoint transformation is performed according

to the input by learning the relationship between the

input and W

in advance. In this study, the viewpoint

transformation is performed by generating this weight

map using Deep Image Prior. However, since the im-

ages handled in this study are modal mixed images,

the number of pixels that can be compared is limited

when directly comparing input images. Therefore, the

viewpoint-transformed image is estimated by com-

paring the generated image

(m ∈ {R, B}) at view-

point i with the generated image

at viewpoint j.

This optimizes the weight map W

, which represents

the k pixel shift, for the conversion of the viewpoint j

image to the viewpoint i image as follows:

j→i

∑

m∈M

−

∑

(

)||

(4)

where M = {R, B}. When the generated image is

ﬁxed, this function is an evaluation function for the

viewpoint transformation. On the other hand, if W is

ﬁxed and the generated image is variable, it becomes

a constraint on image generation considering the re-

sult of viewpoint transformation. In this study, the

optimization of W and

I is performed simultaneously

to simultaneously perform viewpoint transformation

and image generation.

3.5 Modality Transformation by Neural

Network

Next, consider how to use images from other view-

points and other modalities in image generation. As

shown in Fig.3, since each mixed-modal image is

taken from a different viewpoint (subaperture), the ﬁl-

ter pass points are different. Therefore, there are over-

Multimodal Light-Field Camera with External Optical Filters Based on Unsupervised Learning

485

lapping regions between the modal regions. By learn-

ing the correspondence between each modal from

these overlapped regions, we can transform from one

modal to another.

Now, consider a modality transformation T

from

blue to red using the blue region M

from the i-th

viewpoint and the red region image M

from the j-

th viewpoint. In this case, the loss function ε

B→R

used

for learning is deﬁned as follows:

B→R

∑

j(̸=i)

||M

) − M

j→i

)||

(5)

where V

j→i

is the function that transforms the j view-

point image to the i viewpoint image by the viewpoint

transformation described earlier. The transformation

function T

obtained by optimizing this loss function

is used to transform a blue modal region into a red

modal region. This yields an image T

) that pre-

dicts the red image from the blue image. Using this,

the following evaluation function is added to the Deep

Image Prior output

= ||M

− M

)||

(6)

By adding this loss function and optimizing

, in-

formation from another modal image can be used for

image generation.

3.6 Multi-Modal Image Estimation

Simultaneous optimization of the above evaluation

functions produces the target single-modal image.

The aforementioned evaluation functions include var-

ious functions such as viewpoint transformation,

modal transformation, etc., all of which use the same

image as input. Therefore, by minimizing the sum

of all of these evaluation functions, it is possible to

generate an image that satisﬁes all conditions. There-

fore, the evaluation function ε

for estimating

expressed as follows:

= ε

∑

j(̸=i)

+ ε

B→R

+ ε

(7)

In addition, this evaluation function includes the gen-

erated images other than the R-modal images from

the i viewpoints. Therefore, in actual optimization,

all viewpoints and all modal images are estimated si-

multaneously by minimizing ε shown as follows:

ε =

∑

m∈M

(8)

At last, we can estimation of multimodal images for

all viewpoints from any combination of multimodal

ﬁlters using only the information from the input im-

ages.

Figure 5: Modality transformation using neural networks.

4 RESULTS

4.1 Using Color Filters

Semi-simulation experiments were conducted to ob-

tain multimodal images using the proposed method.

In the proposed method, by combining as many ﬁne-

grained ﬁlters as possible, the overlapped area of each

ﬁlter increases, and the estimation accuracy of the

multimodal image can be improved. However, since

it is difﬁcult to create such ﬁne-grained multimodal

ﬁlters, we ﬁrst conﬁrmed the effectiveness of the pro-

posed method in a semi-simulation experiment. In

this experiment, ﬁlters covering the entire surface of

the lens were mounted, and images were acquired

through each ﬁlter. The captured images were then

combined according to the assumed ﬁlter shapes to

obtain a mixed-modal image. in Fig.6(a) the shape

of the ﬁlters is shown, with the red, blue, and green

color ﬁlters arranged on a slant in front of the lens.

The subaperture images taken from the multimodal

ﬁlters arranged in this way are estimated as shown in

Fig.8. We evaluated the proposed method by compar-

ing the results obtained by the proposed method with

those of each of the modalities used to generate the

input images.

The estimated disparity image resulting from the

generation of the center viewpoint multimodal image

by the proposed method and the ground truth image

obtained are shown in Fig.13. The results conﬁrm the

effectiveness of the proposed method, as the proposed

method estimates an image that is very similar to the

ground truth.

On the other hand, the details of the image are not

sufﬁciently restored, resulting in a slightly blurred im-

age overall. This may be due to the fact that the deep

image prior requires a large number of updates to rep-

resent high-frequency portions of the image, which

can be improved by adjusting the network structure

and the number of optimization cycles. The RMSE

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

486

per pixel of the true value image and the estimated im-

age is kept low at 5.4 on average, as shown in Tab.1,

conﬁrming that the image is generated appropriately.

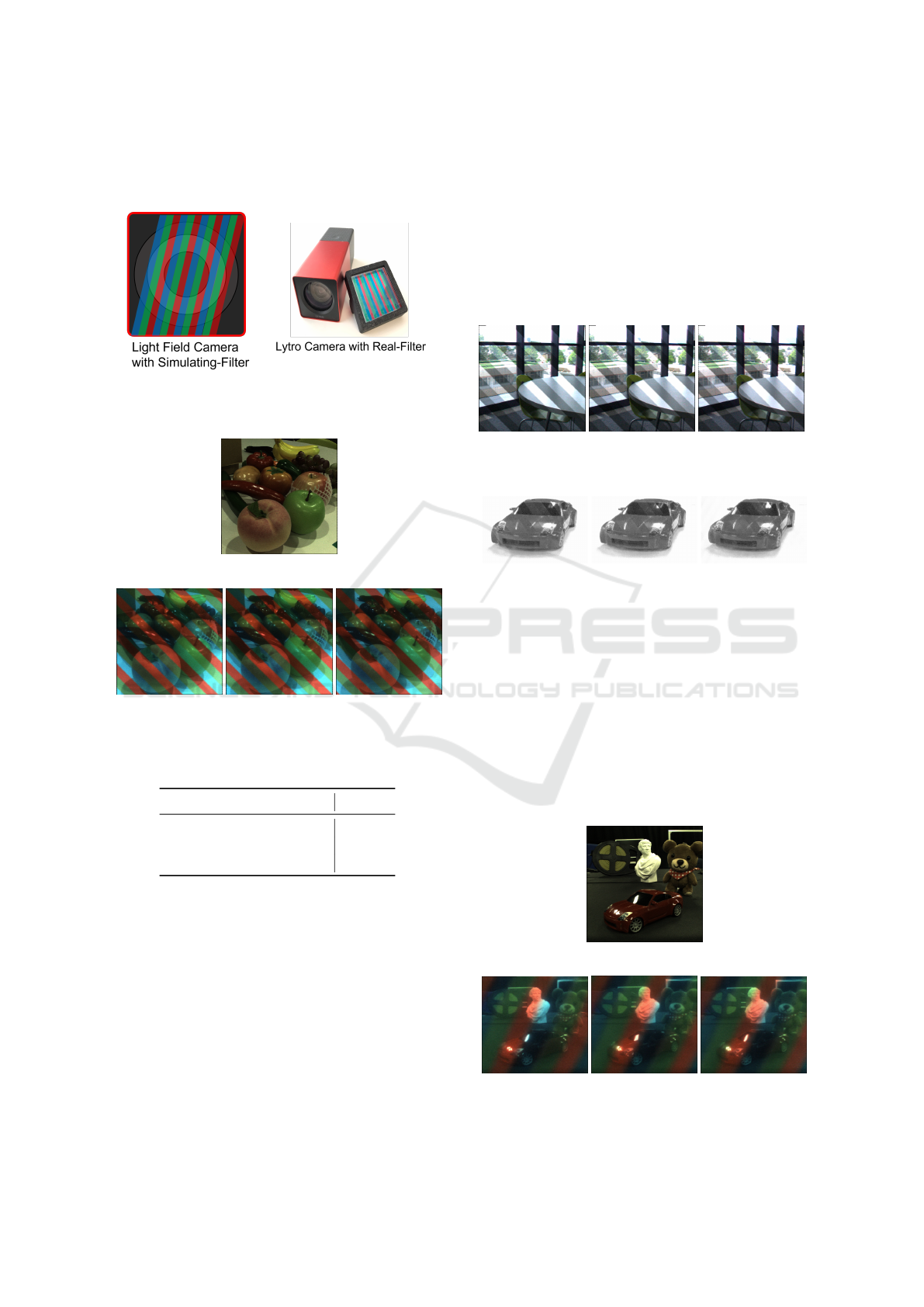

(a) Simulation

(b) Real Environment

Figure 6: Light ﬁeld camera and simulated multimodal ﬁl-

ters.

Figure 7: Target scene.

(a) Left image (b) Center image (c) Right image

Figure 8: Input image synthesized from ground truth im-

ages.

Table 1: Evaluation of the proposed method by RMSE.

Modality of the image RMSE

Red 5.122

Green 5.809

Blue 5.385

4.2 HDR Image Synthesis

Next, we show the results of generating HDR im-

ages using the proposed method. In this experiment,

images were captured assuming that three different

types of light-reducing ﬁlters with different degrees

of light-reduction were installed. As in the previous

experiment, each ﬁlter was placed on a tilt. Each im-

age was captured at three different brightness levels

by adjusting the exposure time.

The input image synthesized from these images

is shown in Fig.9. Based on this image, we esti-

mated different brightness images using the proposed

method. The brightness of each image is estimated

by the proposed method. The HDR image is obtained

by merging these images. The estimated image and

the true value image are shown in Fig.14. The re-

sults show that the HDR image generation was suc-

cessfully performed from a single-shot image, as the

areas where white skipping and blacking out occurred

were well represented in each image.

(a) Left image (b) Center image (c) Right image

Figure 9: Input images synthesized from ground truth im-

ages.

(a) Left image (b) Center image (c) Right image

Figure 10: Input images synthesized from ground truth im-

ages.

4.3 Polarization Image Estimation

Next, we show the results of generating polarization

images using the proposed method. In this experi-

ment, a multimodal ﬁlter with a diagonal combina-

tion of polarization ﬁlters in four directions (0

◦

, 45

◦

, and 135

◦

) was attached to the front of the LF

camera, and a modal mixture of images obtained by

simulation was combined. We use this image as an

input image to estimate the four-directional polariza-

Figure 11: Target scene.

(a) Left image

(b) Center image

Figure 12: Input images.

Multimodal Light-Field Camera with External Optical Filters Based on Unsupervised Learning

487

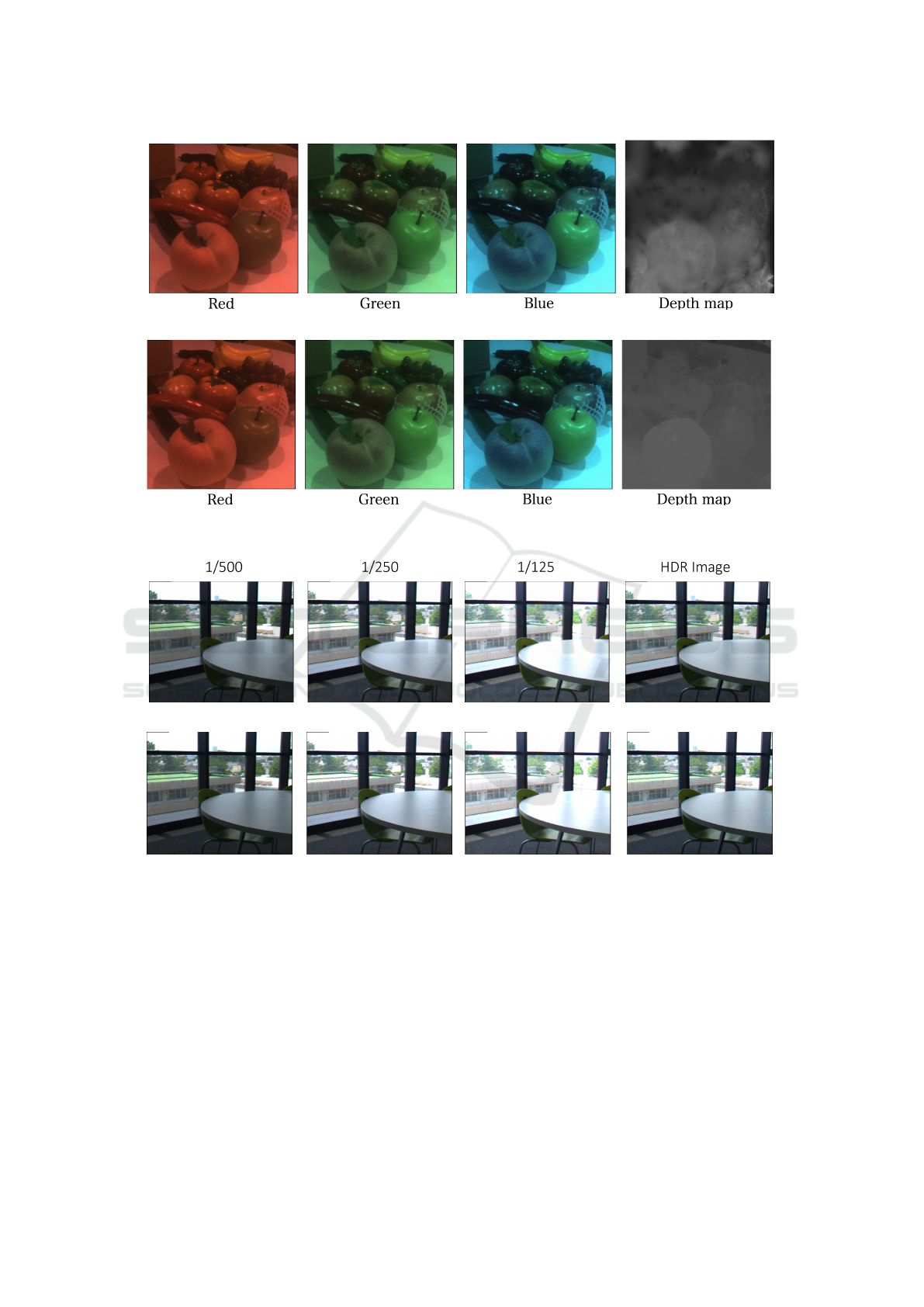

(a) Synthesized images

(b) Ground truth images

Figure 13: Synthesized images and ground truth.

(a) Synthesized images

(b) Ground truth images

Figure 14: Synthesized images and ground truth.

tion image. Furthermore, the polarization angle maps

were estimated using the polarization images in the

four directions and compared with the true values to

evaluate each of the polarization images generated.

The input images synthesized by the simulation

are shown in Fig.10, and the results of the estimation

using the proposed method and the true value images

using these images are shown in Fig.15. The results

show that the proposed method can generate images

that are close to the true value for each angle. In par-

ticular, focusing on the polarization image of 90

◦

, it

can be conﬁrmed that, unlike the other polarization

images, the reﬂection of light is reduced and an image

close to the generated image and the true value image

can be generated. Comparing the polarization angle

maps, it can be conﬁrmed that although the estimation

accuracy in the high-frequency region is lower, the

overall image is similar to the true value, indicating

that appropriate image estimation has been achieved.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

488

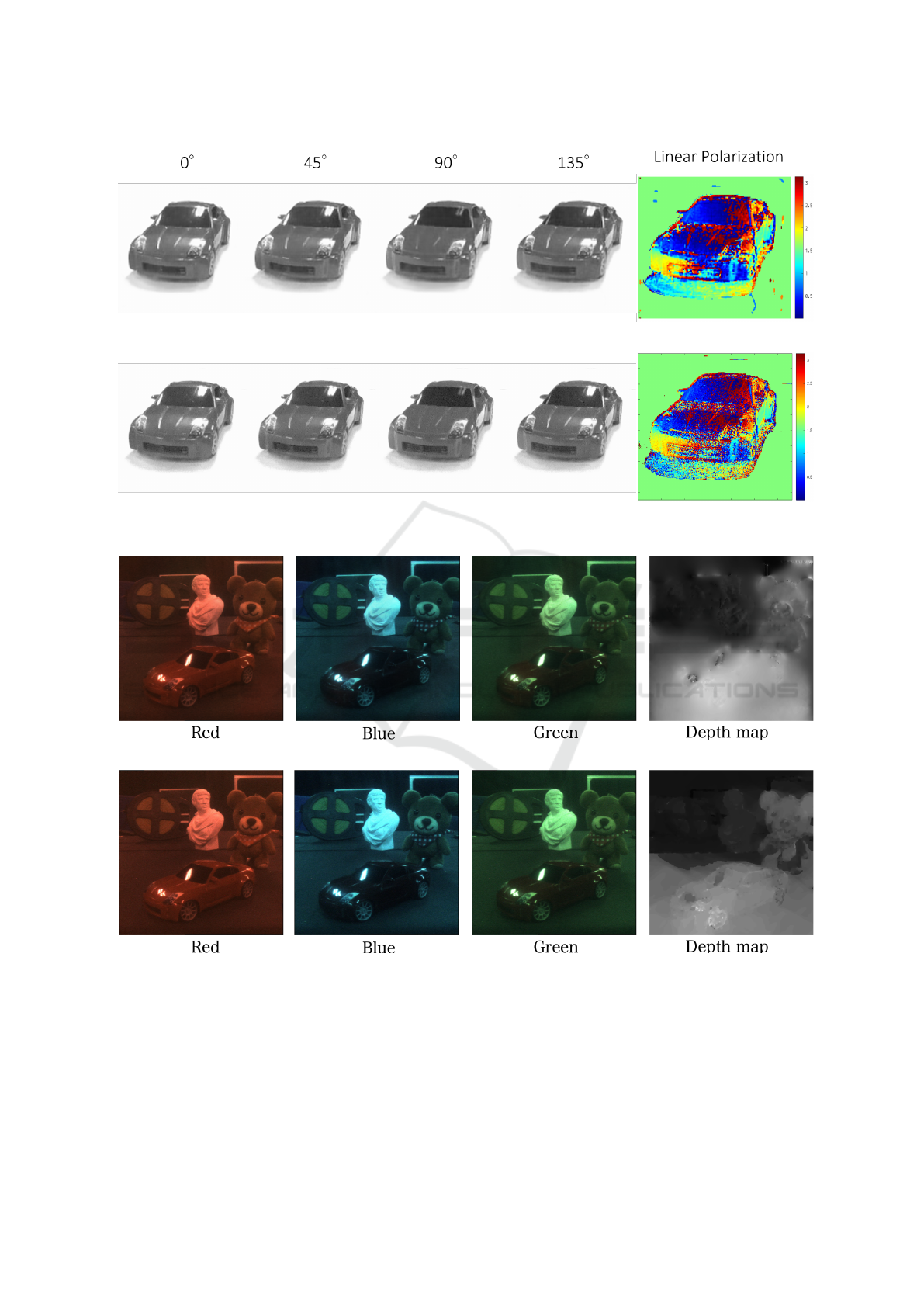

(a) Synthesized images

(b) Ground truth images

Figure 15: Synthesized images and ground truth.

(a) Synthesized images

(b) Ground truth images

Figure 16: Synthesized images and ground truth.

4.4 Real-World Experiments Using

Color Filters

Finally, we show the results of a real-world experi-

ment in which the color multimodal ﬁlters that we

actually created were attached. In this experiment,

a multimodal ﬁlter consisting of red, blue, and green

color ﬁlters cut into strips and arranged diagonally on

the front of the LF camera is attached to the camera

as shown in Fig.6(b). A portion of the modal mixture

of images obtained by this method is shown in Fig.12.

In this experiment, a group of images from 25 verti-

Multimodal Light-Field Camera with External Optical Filters Based on Unsupervised Learning

489

cal and horizontal viewpoints, including the images

in Fig.12, were used as input images to estimate the

images obtained by passing through each ﬁlter.

The multimodal and disparity images of the cen-

tral viewpoint generated by the proposed method and

their true-value images are shown in Fig.16. The re-

sults show that the proposed method is effective even

with the actual multimodal ﬁlter, since it can be con-

ﬁrmed that the images generated are close to the true-

value images.

The RMSE values averaged 9.6, conﬁrming that

the estimation accuracy is lower than in the color ﬁl-

ter simulation experiment. However, the estimation

accuracy in the real environment experiment is ex-

pected to improve by attaching a multimodal ﬁlter

with a more ideal shape.

Table 2: Evaluation of the proposed method by RMSE.

Modality of the image RMSE

Red 9.448

Green 10.015

Brue 9.752

5 CONCLUSION

In this paper, we propose a method for acquiring mul-

timodal images based on unsupervised learning using

an LF camera and exterior ﬁlters. This method is ex-

pected to have a wide range of applications because it

is easy to switch acquisition modalities according to

the purpose and does not require any training data.

REFERENCES

Ho, K., Gilbert, A., Jin, H., and Collomosse, J. (2021). Neu-

ral architecture search for deep image prior. Comput-

ers & Graphics, 98:188–196.

Horstmeyer, R., Euliss, G., Athale, R., and Levoy, M.

(2009). Flexible multimodal camera using a light ﬁeld

architecture. 2009 IEEE International Conference on

Computational Photography, ICCP 09, pages 1 – 8.

Luo, Y., Ren, J. S. J., Lin, M., Pang, J., Sun, W., Li, H., and

Lin, L. (2018). Single view stereo matching. CoRR,

abs/1803.02612.

Ng, R., Levoy, M., Br

edif, M., Duval, G., Horowitz, M., and

Hanrahan, P. (2005). Light Field Photography with a

Hand-held Plenoptic Camera. Research Report CSTR

2005-02, Stanford university.

Rasti, B., Koirala, B., Scheunders, P., and Ghamisi, P.

(2022). Undip: Hyperspectral unmixing using deep

image prior. IEEE Transactions on Geoscience and

Remote Sensing, 60:1–15.

Ulyanov, D., Vedaldi, A., and Lempitsky, V. S. (2017).

Deep image prior. CoRR, abs/1711.10925.

Xie, Q., Zhou, M., Zhao, Q., Meng, D., Zuo, W., and Xu, Z.

(2019). Multispectral and hyperspectral image fusion

by MS/HS fusion net. CoRR, abs/1901.03281.

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

490
