Improving the Human-Likeness of Game AI’s Moves

by Combining Multiple Prediction Models

Tatsuyoshi Ogawa, Chu-Hsuan Hsueh and Kokolo Ikeda

Japan Advanced Institute of Science and Technology, Nomi, Ishikawa, Japan

Keywords:

Human-Likeness, Player Modeling, Move Prediction, AlphaZero, Shogi.

Abstract:

Strong game AI’s moves are sometimes strange or difﬁcult for humans to understand. To achieve better human-

computer interaction, researchers try to create human-like game AI. For chess and Go, supervised learning

with deep neural networks is one of the most effective methods to predict human moves. In this study, we ﬁrst

show that supervised learning is also effective in Shogi (Japanese chess) to predict human moves. We also

ﬁnd that the AlphaZero-based model more accurately predicted moves of players with higher skill. We then

investigate two evaluation metrics for measuring human-likeness, where one is move-matching accuracy that

is often used in existing works, and the other is likelihood (the geometric mean of human moves’ probabilities

predicted by the model). To create game AI that is more human-like, we propose two methods to combine

multiple move prediction models. One uses a Classiﬁer to select a suitable prediction model according to

different situations, and the other is Blend that mixes probabilities from different prediction models because

we observe that each model is good at some situations where other models cannot predict well. We show that

the Classiﬁer method increases the move-matching accuracy by 1%-3% but fails to improve the likelihood.

The Blend method increases the move-matching accuracy by 3%-4% and the likelihood by 2%-5%.

1 INTRODUCTION

Game AI has beaten human champions in two-player

perfect information games such as chess, Go and

Shogi (Japanese chess) (Silver et al., 2018). However,

strong game AI’s policies (probability distributions

over moves given states) often differ from human

players’ (McIlroy-Young et al., 2020), which may

cause problem in human-computer interactions. For

example, players often do not enjoy playing against

game AI when the game AI’s moves may look strange

or hard to understand.

Human-like policies are needed to solve this prob-

lem and can be used not only as an opponent AI. For

example, human-like policies can be used to assess

the difﬁculty of game problems such as chess mat-

ing problems according to the move prediction. With

many possible applications of human-like policies’,

creating human-like game AI is one of the most im-

portant topics in the ﬁeld of game research.

To predict human players’ moves, McIlroy-Young

et al. (2020) introduced a chess AI called Maia. They

divided human players’ records into 9 groups accord-

ing to the players’ ratings (e.g., 1100–1199, 1200–

1299). They used 12 million games in each group to

train a model to predict human players’ moves. Their

results showed that Maia could predict human play-

ers’ moves better than other chess AI.

Despite the promising results, we ﬁnd two is-

sues that are worth further discussing: the evaluation

metric and room for improvement in human-likeness

when using small amounts of data. As for the evalua-

tion metric, related studies often used move-matching

accuracy (McIlroy-Young et al., 2020) (Jacob et al.,

2022), i.e., whether the predicted moves matched hu-

man players’ moves. This metric is useful to some

extent in evaluating the ability to imitate humans.

However, it has a weakness where moves differ-

ent from human moves are equally evaluated as mis-

matches, no matter whether the moves are natural or

impossibly unnatural to humans. In other words, even

if game AI has averagely high move-matching accu-

racy, it may still play moves that are not human-like.

As an alternative metric to evaluate human-

likeness, we consider it reasonable to use likelihood,

which is human moves’ probabilities predicted by the

model. A product of likelihoods is maximal if and

only if the model’s policy is equal to human moves.

Hence likelihood is an evaluation metric that is con-

sistent with the goal of imitating human policies.

Ogawa, T., Hsueh, C. and Ikeda, K.

Improving the Human-Likeness of Game AI’s Moves by Combining Multiple Prediction Models.

DOI: 10.5220/0011804200003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 3, pages 931-939

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

931

Regarding the room for improvement in human-

likeness when using small amounts of data, Maia’s

method requires a large amount of data and cannot be

used in many games. Generally, supervised learning

does not work well when there is little training data.

In such cases, the move-matching accuracy and the

likelihood may be improved by search (Jacob et al.,

2022), or by combining human-like models with dif-

ferent move selection mechanisms such as the policy

of strong game AI like AlphaZero (Silver et al., 2018).

In this paper, we ﬁrst conﬁrm whether supervised

learning like Maia is also effective in Shogi. We then

propose methods that combine multiple policies to

further improve human-likeness. To our knowledge,

we are the ﬁrst to combine multiple policies to imi-

tate human policies. The combined policies include

those from Maia-like models and AlphaZero-like AI,

where the latter has been shown to be less human-

like (McIlroy-Young et al., 2020). Interestingly, our

results show that the combination improves move-

matching accuracy and likelihood.

2 RELATED RESEARCH

To create strong Go programs, Coulom (2007) pro-

posed a new Bayesian technique for supervised learn-

ing for training a model to predict the probability dis-

tribution of human players’ moves. He used strong

human players’ games to train the prediction model

and then combined the model into a Go program

based on Monte-Carlo tree search (MCTS). The Go

program’s strength was greatly improved. Similarly,

some other researchers strengthened their game AI

by incorporating move prediction models (Tsuruoka

et al., 2002) or evaluation functions trained using hu-

man players’ games (Hoki and Kaneko, 2014).

Obata et al. (2010) proposed a consultation al-

gorithm that selects a move from moves of multiple

Shogi AI and succeeded in making Shogi AI signiﬁ-

cantly stronger than each AI alone. A possible reason

their method worked well was that the majority vote

can compensate for each other’s shortcomings.

AlphaZero (Silver et al., 2018) is a reinforcement

model trained using self-play games instead of hu-

man games. Silver et al. (2018) used a policy net-

work to predict probabilities of moves from positions

and a value network to predict the win rates of posi-

tions. The training data of the networks came from

self-play games played by a variant of MCTS that

incorporates the networks. AlphaZero beated world

champion game AI in chess, Go, and Shogi.

Maia (McIlroy-Young et al., 2020) is known for

one of the most effective chess AI in predicting hu-

man moves. This chess AI used deep neural networks

for supervised learning. Human players were divided

into 9 groups according to their ratings. Each neu-

ral network corresponded to a rating range and was

trained using 12 million games from the players in

the rating range. Their results showed that moves in a

rating range was best predicted by the neural network

of the corresponding rating range, where the move-

matching accuracy was about 50%. McIlroy-Young

et al. (2020) claimed that using neural networks alone

obtained higher move-matching accuracy than com-

bining the neural networks into tree search as Alp-

haZero did. However, Jacob et al. (2022) showed

that even with the same training model as Maia, the

model with search was stronger and had higher move-

matching moves if parameter was adjusted properly.

With respect to human-likeness, Togelius et al.

(2013) introduced the concept of ”believability”. Be-

lievability refers to the ability to make a character or

bot seem as if it were controlled by a human being.

Various approaches were then proposed to achieve hu-

manlike characteristics (Fujii et al., 2013) (Hingston,

2010).

As another approach to create human-like AI,

Kinebuchi and Ito (2015) proposed to improve move-

matching accuracy of Shogi AI by considering the

ﬂow of preceding moves. They also targeted play-

ers in a wide range of skill levels. They represented

the ﬂow by combining a search-based value function

(Hoki and Kaneko, 2014) using a transition probabil-

ity function (Tsuruoka et al., 2002). Linear combi-

nation was used and the weight was trained with hu-

man moves. Their proposed method predicted human

moves signiﬁcantly better than each function alone.

3 PROPOSED METHOD

The overview of this study is as follows. First, in

the case of Shogi, we conﬁrm whether supervised

learning like Maia can well predict human moves

in two metrics, move-matching accuracy and likeli-

hood. We also compare AlphaZero-like policy with

supervised learning policy to identify the strengths

and weaknesses of each policy. We then propose two

approaches to improve move-matching accuracy and

likelihood by combining the supervised learning pol-

icy and the AlphaZero-like policy.

We follow Maia’s method and use neural networks

for supervised learning. Consider a neural network

used for multiclass classiﬁcation with K classes, and

let x be the input and u

(−∞ < u

< ∞) be one of the

output of the neural network. The probability p(C

|x)

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

932

that x belongs to class C

is often expressed as

p(C

|x) =

exp(u

)

∑

j=1

exp(u

)

, (1)

and x is classiﬁed into the class of argmax

p(C

|x).

In the case of Shogi, for a position x, if there are K

legal moves, a policy function can be made from the

probabilities p(C

|x) of moves C

(k = 1 to K).

Move-matching accuracy is an evaluation metric

that argmax

p(C

|x) matches the actual move and is

often used in studies when predicting human moves.

However, move-matching accuracy has a weakness of

not being able to properly evaluate the probability dis-

tribution. As an example, consider a position in which

60% of human players play move A, 30% play move

B, and 10% play move C. Assuming that we have two

prediction models, one with the probability distribu-

tion of A: B: C = 90%: 5%: 5% and the other with

34%: 33%: 33%, both models’ move-matching accu-

racy is 60% because move A has the highest probabil-

ity. When imitating humans to improve the strength

of game AI, there were no problems using either pre-

diction model. However, when imitating humans for

human-likeness, the shape of the distribution becomes

important. The ideal probability distribution is to give

high probabilities to moves that human players often

play and low probabilities to moves rarely played, i.e.,

a distribution with the same shape as humans.

To solve this problem, we use likelihood as an-

other metric to evaluate how well a policy predicts

human moves. Given a set of positions x ∈ X and

the corresponding human moves C

human

, we calculate

likelihood as follows,

(

∏

x∈X

p(C

human

|x))

|X|

, (2)

where |X| is the size of X and p(C

human

|x) is prba-

bility of C

human

from the policy. In other words, it is

the geometric mean of the predicted probablities by

the policy. likelihood is the maximal only when the

human move distribution and the model policies are

equal. Therefore, likelihood is a reasonable measure

of the imitation of human policies. In this paper, we

use both move-matching accuracy and likelihood to

evaluate models’ human-likeness.

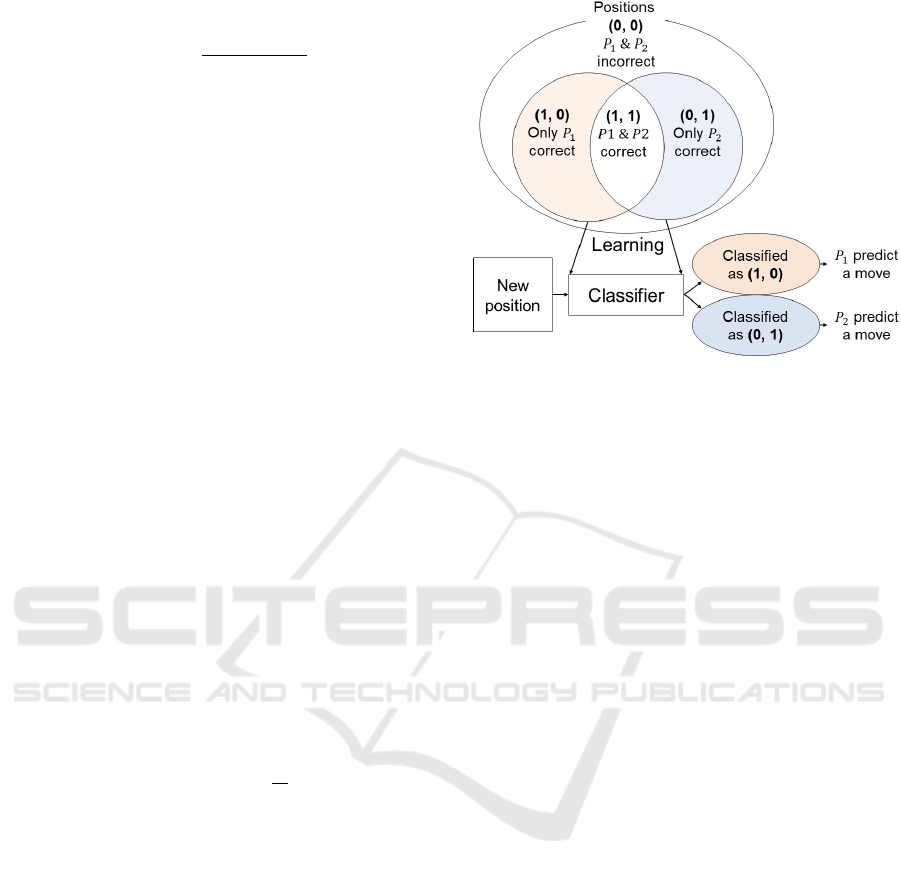

3.1 Classiﬁer Model

The ﬁrst method combining multiple policies is a

model using a classiﬁer. Figure 1 shows an overview

of the Classiﬁer model. Assume that we have two

different policies, P

and P

, each with their own

strengths and weaknesses to predict human moves.

We want P

to predict when the positon is suitable for

Figure 1: An overview of the Classiﬁer model, where (0,

0) means positions that P

and P

cannot correctly predict

human moves, (1, 0) means positions that only P

correctly

predict human moves, (0, 1) means positions that only P

correctly predict human moves, (1, 1) means positions that

and P

correctly predict human moves.

and P

to predict when the position is suitable for

. To achieve this, we use a classiﬁer to determine

whether the positions are suitable for P

or P

To create the training data for the classiﬁer, we

prepare a set of positions with human moves and let

and P

predict moves for each position. A position

is labeled as (1, 0) if only P

correctly predicts the

corresponding human move and as (0, 1) if only P

correctly predicts the move. We then use these (posi-

tion, label) pairs to train the classiﬁer by supervised

learning.

When predicting human moves, P

is used if the

position is classiﬁed as (1, 0), and P

is used if the po-

sition is classiﬁed as (0, 1). With the classiﬁer, we can

use the relatively proper policy for each position. This

method can be further extended from binary classiﬁ-

cation to multi-class or multi-label classiﬁcation.

3.2 Blend Model

The second method combining multiple policies is a

model that blends the values of policies. Inspired by

ensemble learning, a set of machine learning algo-

rithms that obtain better accuracy by integrating the

estimation results of multiple learners, we propose to

blend probabilities from different policies.

As in the Classiﬁer model, assume that we have

two policies that have different strengths and weak-

nesses. Let p

be the probability of move k in P

, p

be that in P

, and α(0 ≤ α ≤ 1) be a parameter decid-

ing the importance of P

. The new probability p

Improving the Human-Likeness of Game AI’s Moves by Combining Multiple Prediction Models

933

calculated as follows.

new k

= p

× p

(1−α)

(3)

new k

∑

j=1

new j

(4)

While this formula blends the two probabilities

nonlinearly, it is possible to use a linear blend like

newk

= α × p

+ (1 − α) × p

(5)

or a more general form from both (3) and (5) like

newk

= (α × p

+ (1 − α) × p

)

1/β

. (6)

In this paper, we use formula (3) because preliminary

experiments showed that (3) is superior to (5) and al-

most equal to (6) in terms of move-matching accuracy

and likelihood.

4 HUMAN MOVE PREDICTION

IN SHOGI

4.1 Experiment Settings

In this section, we conducted experiments to con-

ﬁrm whether supervised learning can predict human

moves with high accuracy in Shogi, as Maia does in

chess, and how well AlphaZero-like policies can pre-

dict human moves. When evaluating how well hu-

man moves are predicted, we used two metrics, move-

matching accuracy and likelihood.

Shogi is a Japanese chess-like game. The main

difference between Shogi and chess is allowing cap-

tured pieces to be returned to the board by the captur-

ing player. We use Shogi games played by humans

on Shogi-Quest

. Shogi-Quest is a popular Shogi

platform that adopts the Elo rating system to eval-

uate players’ skill levels. On this platform, players

can choose 2-minute, 5-minute, or 10-minute games.

These minutes are the thinking time per player, and

when a player runs out of this time limit, he or she

loses the game immediately.

To predict human moves in Shogi, we performed

supervised learning of policy functions and value

functions like Maia’s study. We used 3 million 10-

minute games and ﬁltered out improper data of the

following three types. First, we eliminated games

where players lost due to running out of the time. The

reason for this was that there may be noisy behaviors

speciﬁc to be losing the game by out-of-time, such

as moving the piece that was easiest to operate. Sec-

ond, we eliminated games with a player rating dif-

ference of 50 or more. The reason for this was that

http://questgames.net/

rating difference could adversely affect the learning

of the value function as well as the policy function, as

the stronger player may win from an extremely dis-

advantageous situation, making the data noisy. Third,

we used the positions in which the number of moves

was after the 50th move. The reason for excluding the

early positions was that there are many similar posi-

tions in the early stages of the game, and having many

similar data may harm the learning process.

The remaining 760 thousand games were divided

into six groups of equal number of games according

to the average rating of the players. The rating range

for each group was as follows.

• Group 1: R1433 - R1591

• Group 2: R1592 - R1655

• Group 3: R1656 - R1708

• Group 4: R1709 - R1768

• Group 5: R1769 - R1855

• Group 6: R1856 - R2140

As a result, we used 127 thousand games for training

each model. This is about one-hundredth the number

of datasets compared to Maia’s 12 million.

90% of data in each group were training data, 5%

were validation data, and the remaining 5% were test

data for evaluation. We performed multi-task learn-

ing similarly to AlphaZero’s network architecture, in

which the policy network and the value network were

simultaneously learned as a single network. We re-

ferred to the python-dlshogi2 library

for the network

structure and learning options. The major difference

from the library was that we included past positions in

the network’s input instead of only inputting the cur-

rent position. This is because in Maia’s study, move-

matching accuracy was signiﬁcantly improved after

including the recent history of 12 ply (6 moves for

each player). In our preliminary experiment, a model

that included the last 12 positions improved move-

matching accuracy compared to a model based only

on the current positions. Thus, we adopted the model

that includes the last 12 positions.

We performed 10 epochs of training for each

group. This is because we observed that the loss of-

ten converged at around 10 epochs. The training took

about 4 hours for each group on a PC with an RTX-

3070 GPU.

To simplify discussions, these Maia-like models

are denoted by Maia-S (S stands for the initials of

“small data” and “Shogi”), and the model trained us-

ing group 1 is denoted by Maia-S-1, the model trained

using group 2 is denoted by Maia-S-2, and the re-

maining is similar.

https://github.com/TadaoYamaoka/python-dlshogi2

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

934

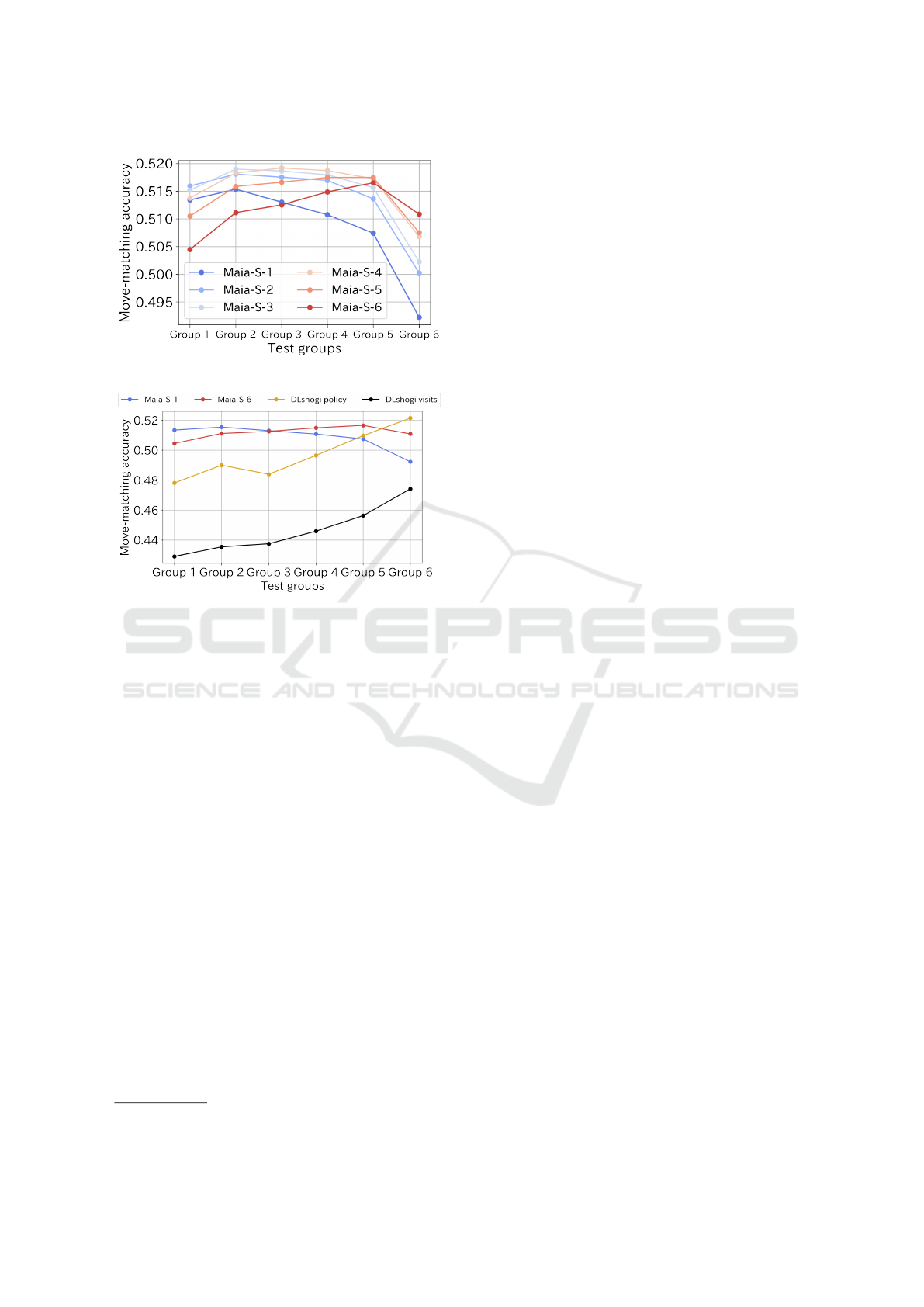

Figure 2: Move-matching accuracy of Maia-S models.

Figure 3: Move-matching accuracy of Maia-S models and

DLshogi.

In addition to Maia-S models, we employed an

AlphaZero-based program, DLshogi

, for compari-

son. DLshogi was also the winner of the 32nd World

Computer Shogi Championship held in 2022. In this

paper, “DLshogi policy” means DLshogi prior (policy

without search) and “DLShogi visits” means the prob-

ability distribution over moves proportionally with re-

spect to the visit counts obtained by MCTS of DL-

shogi. In our experiments, we limited the number of

nodes in DLshogi’s MCTS to 10,000.

4.2 Results

In this section, we ﬁrst discussed Maia-S results. Fig-

ure 2 showed the move-matching accuracy of Maia-

S models tested on different groups. For all groups,

the move-matching accuracy was between 51.0% to

52.0% by the model that best predicted the group.

For example, for Group 1, Maia-S-2’s move-matching

accuracy, 0.515, was the best among Maia-S mod-

els. We conﬁrmed that Maia’s method had reasonably

high move-matching accuracy in Shogi. The accuracy

was about the same level as Maia’s results in chess,

though it is less meaningful to compare results in dif-

ferent games. As a general tendency, if the rating of

https://github.com/TadaoYamaoka/DeepLearningShogi

the training data for the prediction model is closer to

the rating of the test data, the prediction performance

were better, and if the ratings were further, the predic-

tion performance got worse.

Next, we analyzed whether AlphaZero-like poli-

cies can successfully predict human moves. The re-

sults of DLshogi policy and DLshogi visits are de-

picted as the yellow and black curves in Figure 3, re-

spectively. Both policies tended to be able to predict

the higher rated human moves more accurately. This

tendency is consistent with the results of Jacob et al.

(2022). They also claimed that the effect of search de-

pended on the rating when using search with Maia’s

models.

Compared to the results of DLshogi, the move-

matching accuracy of Maia-S models varied only

about 1 % across different groups. In addition, for

Group 6 (high-rated players), DLshogi policy had

higher move-matching accuracy than Maia-S models.

From these results, we conclude that Maia-S models

can predict human moves with high accuracy, inde-

pendent of the rating, and DLshogi policy can predict

the higher-rated human moves more accurately.

In addition to move-matching accuracy, we an-

alyzed the models’ likelihoods of playing human

moves (2). We focused on the data of Group 1 (low-

rated players) for the following reason. We con-

sidered it was worth investigating low-rated players’

moves because the gap between DLshogi policy and

the best-performed Maia-S model was the biggest.

Figure 4 shows the histograms of the likelihoods of

low-rated players’ data for Maia-S-1 model and DL-

shogi policy. The x-axes are likelihoods divided into

100 bins (i.e., 0.00–0.01, 0.01–0.02, ..., and 0.99–

1.00), and the y-axes are the relative frequency of

each bin. Both distributions were bimodal and had

two peaks at the two ends. In more detail, one peak

was at the bin of 0.00–0.01, which means that the

models were unlikely to select the human moves in

the data. The other peak was at the bin of 0.99–1.00,

which means that the models were likely to select the

human moves. When comparing DLshogi policy and

the Maia-S-1 model, DLshogi policy predicted human

moves to have very low probabilities (the left peak)

much more frequently than the Maia-S-1 model.

We further looked into the positions where the cor-

responding human moves received low probabilities

from Maia-S models and/or DLshogi policy. Some

moves were good moves but requiring looking ahead

(search) to ﬁnd these moves to be good. Maia-S mod-

els sometimes predicted these good moves to have

low probabilities, resulting in low likelihood. In ad-

dition, both Maia-S models and DLshogi policy of-

ten obtained low likelihood due to humans’ misun-

Improving the Human-Likeness of Game AI’s Moves by Combining Multiple Prediction Models

935

(a) Maia-S-1 model (b) DLshogi policy

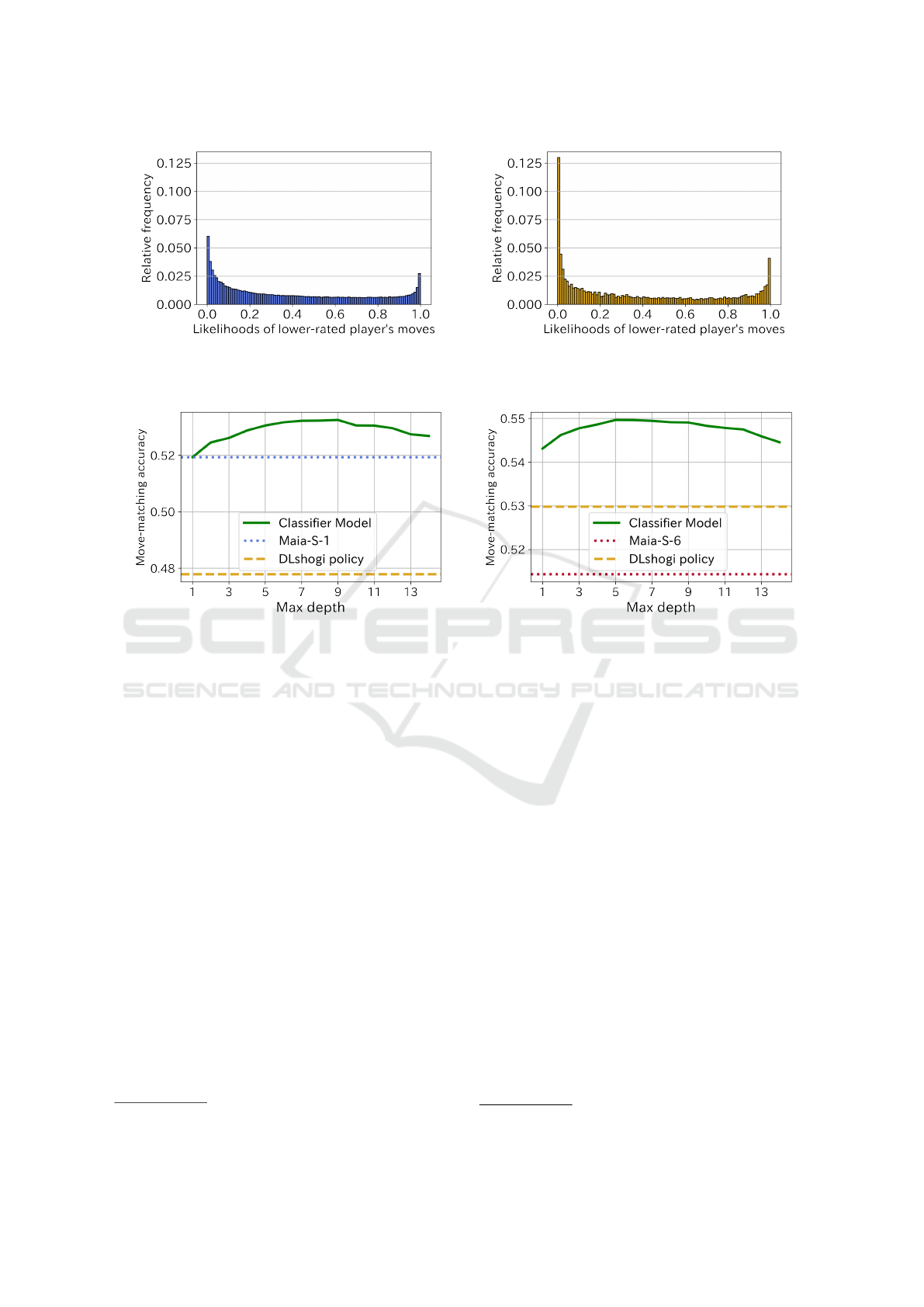

Figure 4: Likelihood histograms of low-rated players’ data.

(a) Low-rated players’ data. (b) High-rated players’ data.

Figure 5: Move-matching accuracy of the Classiﬁer model, Maia-S models, and DLshogi policy.

derstandings such as oversights of moves.

In this chapter, we showed that Maia-S mod-

els and DLshogi policy had reasonably high move-

matching accuracy in predicting human moves, and

that each has its own strengths. We also showed that

there were some human moves with low prediction

probabilities for both Maia-S and DLshogi policies.

In Chapters 5 and 6, we will combine these models to

utilize their strengths and show that the combinations

can predict human move better.

5 CLASSIFIER MODEL

5.1 Data and Model Settings

In this chapter, we conduct experiments to evaluate

the Classiﬁer model proposed in section 3.1 for im-

proving move-matching accuracy and likelihood.

We randomly sampled 45,000 positions from

group 1 and group 6 of the experiments in chapter 4.

We used sklearn.ensemble.RandomForestClassiﬁer

https://scikit-learn.org/stable/modules/generated/

with parameters as the default settings except that

we tried different settings for max depth. Regard-

ing the input to the classiﬁer, we used three fea-

tures: max

p(C

|x) for the given position x from

Maia-S policy, that from DLshogi policy, and the

KL divergence (like the distance between probabil-

ity distributions) between Maia-S and DLshogi pol-

icy. The Classiﬁer model outputs (1, 0) or (0, 1),

deciding whether the Maia-S policy or the DLshogi

policy were more suitable for the given position. 10-

fold cross-validation was used for evaluation, and the

mean of the move-matching accuracy for each test

data was calculated.

5.2 Results

Figure 5 shows the move-matching accuracy of the

Classiﬁer model with different max depth settings.

We also included the results of the Maia-S policy and

the DLshogi policy for comparison.

For the low-rated players’ data, move-matching

accuracy increased by 1% when max depth was 9

compared to Maia-S-1 policy. For the high-rated

sklearn.ensemble.RandomForestClassiﬁer.html

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

936

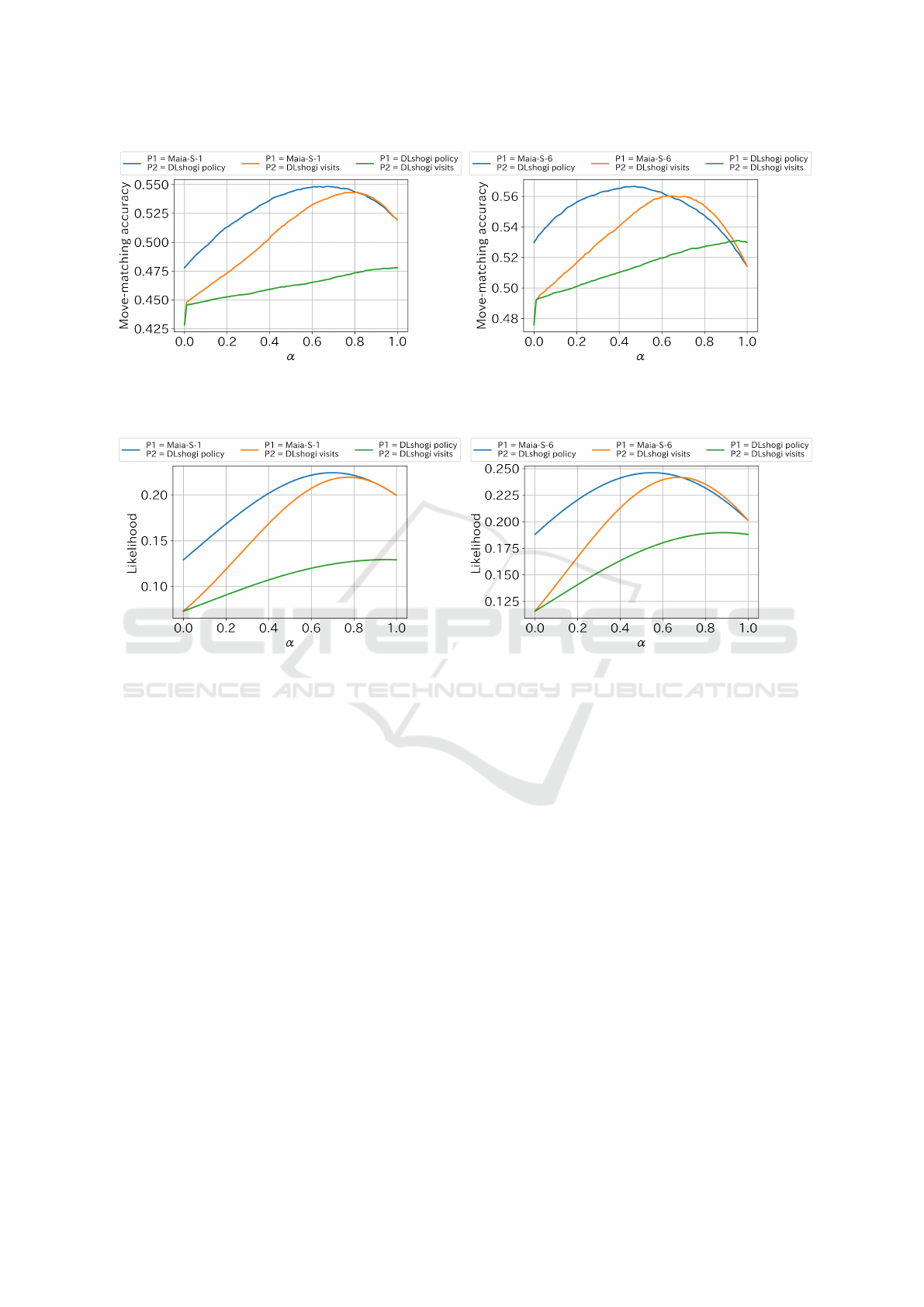

(a) Low-rated players’ data. (b) High-rated players’ data.

Figure 6: The move-matching accuracy under different α and P1/P2 combinations in the 2-Blend models.

(a) Low-rated players’ data. (b) High-rated players’ data.

Figure 7: The likelihoods under different α and P1/P2 combinations in the 2-Blend models.

players’ data, move-matching accuracy increased by

2% when max depth was 5 compared to the DLshogi

policy. The Classiﬁer model obtained higher move-

matching accuracy than using single models for both

low-rated and high-rated players’ data. The results

showed that the accuracy was improved by selecting

more suitable policy using the Classiﬁer model.

We also compared the models’ likelihoods. For

low-rated players, Maia-S-1 model’s likelihood was

0.196, DLshogi policy’s likelihood was 0.129, and

the Classiﬁer model’s likelihood was 0.169. For the

high-rated players, Maia-S-6 model’s likelihood was

0.198, DLshogi policy’s likelihood was 0.188, and the

Classiﬁer model’s likelihood was 0.190. In summary,

the Classiﬁer model improves the move-matching ac-

curacy but not the likelihood. This is one example

where move-matching accuracy alone is not a perfect

measure of human-likeness.

6 BLEND MODEL

6.1 Data and Model Settings

In this chapter, we conduct experiments to evaluate

the Blend model proposed in section 3.2 for improv-

ing move-matching accuracy and likelihood.

We used the same sets of 45,000 positions for

group 1 and group 6 as section 5.1 to test the Blend

model. The model is p

= p

× p

(1−α)

for the 2-

Blend model. Candidates for P are Maia-S, DLshogi

policy, and DLshogi visits. Including DLshogi visits

was the main reason that we used 45,000 positions in-

stead of all games in a group, where DLshogi visits

cost about 4 seconds to obtain the probability distri-

bution per position.

6.2 Results

Figure 6 plots the move-matching accuracy for the 2-

Blend model with the blend parameter α from 0.0 to

Improving the Human-Likeness of Game AI’s Moves by Combining Multiple Prediction Models

937

1.0, and Figure 7 plots the likelihood.

The combination of Maia-S and DLshogi policy

(the blue curves) obtained better move-matching ac-

curacy and likelihood than the other combinations for

both low-rated players’ data and high-rated data. The

best alpha was around 0.4-0.7, which was better than

using the policy alone. As for the combination of DL-

shogi policy and DLshogi visits (the green curves),

the curves show a steadily increasing tendency, but

the move-matching accuracy and likelihood were as

best as using DLshogi policy alone (α = 1.0). The re-

sults showed that this combination was less valuable.

With the combination of Maia-S and DLshogi pol-

icy with the best α settings, the 2-Blend model im-

proved the move-matching accuracy from 0.519 to

0.548 for the low-rated players’ data and from 0.530

to 0.567 for the high-rated players’ data. The model

also increased the likelihood from 0.200 to 0.224 for

the low-rated players’ data and from 0.201 to 0.246

for the high-rated players’ data.

When comparing Figures 6(a) and 6(b), we ob-

served that the best value of α tends to be higher for

the low-rated players’ data than the high-rated play-

ers’ data. α represents how much P1 was blended,

for example, the amount of Maia-S model in the blue

curves. Section 4.2 has shown that Maia-S model was

better at predicting relatively low-rated players’ data,

while DLshogi policy was better at predicting rela-

tively high-rated players’ data. The tendency of α was

consistent with this result.

Figure 8 shows the relative cumulative frequency

of the likelihoods for the 2-Blend model, Maia-S

model, and DLshogi policy. The closer the likeli-

hood is to 0, the more unlikely the model selected hu-

man moves, and the closer likelihood is to 1, the more

likely the model selected human moves. The 2-Blend

model’s curves (green curves) are generally below

Maia-S models’ and DLshogi policy’ curves, which

means that the 2-Blend model gave higher probabil-

ities to human moves than Maia-S models and DL-

shogi policy.

7 CONCLUSION

Maia is known for a chess AI that learns from human

games and is the most effective chess AI in predicting

human moves. In this paper, we ﬁrst showed that su-

pervised learning like Maia, which we named Maia-

S, was effective in predicting human moves in Shogi.

We also analyzed how well AlphaZero-based mod-

els predicted human moves, where AlphaZero learned

from self-play games instead of human games. We

found that the AlphaZero-based model more accu-

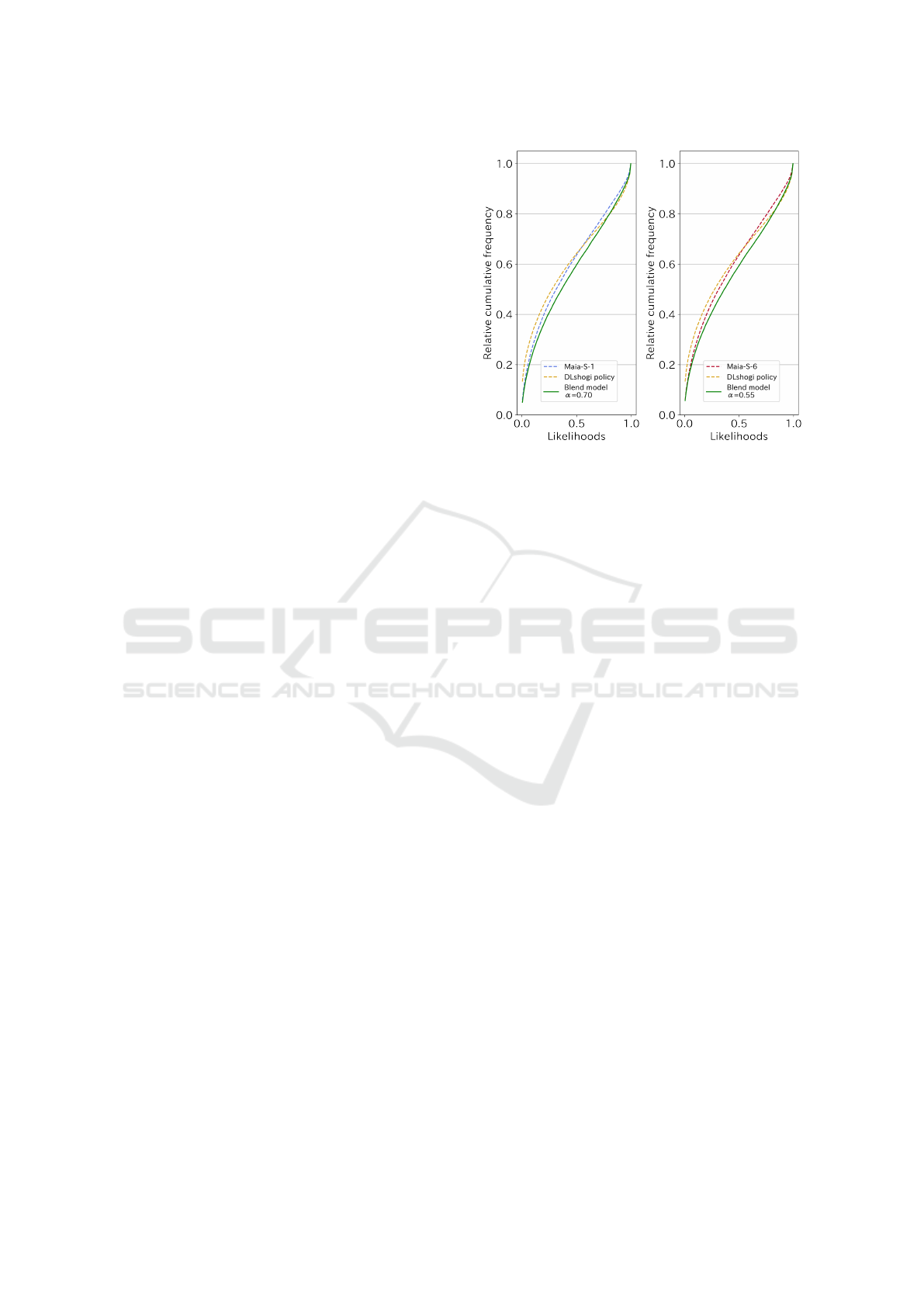

(a) Low-rated players’ data. (b) High-rated players’ data.

Figure 8: The relative cumulative frequencies of likeli-

hoods.

rately predicted moves of players with higher skill.

Based on the analyses, we proposed two approaches

to improve the prediction performance on human

moves by combining multiple policies. The ﬁrst ap-

proach uses a classiﬁer to predict human moves with

a policy more suited to each position. The second ap-

proach is to blend the probabilities output by differ-

ent policies. The former method increased the move-

matching accuracy by 1%-3%. The latter method the

move-matching accuracy by 2%-5%.

There are several directions for future work. Cur-

rently, we do not use the search with Maia-S model.

We will combine these Maia-S models with tree

search as Jacob et al. (2022) did and analyze whether

this helps improve predicting human moves in Shogi.

As another direction, improvement can be expected

by analyzing positions and human moves with low

likelihood and incorporating new approaches that can

reproduce these moves (e.g., approaches with over-

sights of moves like humans do). It would also be

important to investigate to what extent the likelihood

can relects whether a move is likely to be selected by.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Numbers JP18H03347 and JP20K12121. We would

also like to thank Mindwalk Corp. for providing the

Shogi game records on Shogi-Quest.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

938

REFERENCES

Coulom, R. (2007). Computing “Elo ratings” of move pat-

terns in the game of Go. ICGA journal, 30(4):198–

208.

Fujii, N., Sato, Y., Wakama, H., Kazai, K., and Katayose,

H. (2013). Evaluating human-like behaviors of video-

game agents autonomously acquired with biological

constraints. In International Conference on Advances

in Computer Entertainment Technology, pages 61–76.

Springer.

Hingston, P. (2010). A new design for a turing test for bots.

In Proceedings of the 2010 IEEE Conference on Com-

putational Intelligence and Games, pages 345–350.

Hoki, K. and Kaneko, T. (2014). Large-scale optimization

for evaluation functions with minimax search. Journal

of Artiﬁcial Intelligence Research, 49:527–568.

Jacob, A. P., Wu, D. J., Farina, G., Lerer, A., Hu, H.,

Bakhtin, A., Andreas, J., and Brown, N. (2022).

Modeling strong and human-like gameplay with KL-

regularized search. In International Conference on

Machine Learning, pages 9695–9728. PMLR.

Kinebuchi, T. and Ito, T. (2015). Shogi program that se-

lects natural moves by considering the ﬂow of preced-

ing moves. In 2015 3rd International Conference on

Applied Computing and Information Technology/2nd

International Conference on Computational Science

and Intelligence, pages 79–84. IEEE.

McIlroy-Young, R., Sen, S., Kleinberg, J., and Anderson,

A. (2020). Aligning superhuman AI with human be-

havior: Chess as a model system. In Proceedings of

the 26th ACM SIGKDD International Conference on

Knowledge Discovery & Data Mining, pages 1677–

1687.

Obata, T., Sugiyama, T., Hoki, K., and Ito, T. (2010). Con-

sultation algorithm for computer shogi: Move deci-

sions by majority. In International Conference on

Computers and Games, pages 156–165. Springer.

Silver, D., Hubert, T., Schrittwieser, J., Antonoglou, I., Lai,

M., Guez, A., Lanctot, M., Sifre, L., Kumaran, D.,

Graepel, T., Lillicrap, T., Simonyan, K., and Hass-

abis, D. (2018). A general reinforcement learning

algorithm that masters chess, shogi, and go through

self-play. Science, 362(6419):1140–1144.

Togelius, J., Yannakakis, G. N., Karakovskiy, S., and

Shaker, N. (2013). Assessing believability. In Believ-

able bots, pages 215–230. Springer.

Tsuruoka, Y., Yokoyama, D., and Chikayama, T. (2002).

Game-tree search algorithm based on realization prob-

ability. ICGA Journal, 25(3):145–152.

Improving the Human-Likeness of Game AI’s Moves by Combining Multiple Prediction Models

939
