Filling The Gaps in Microservice Frontend Communication: Case for

New Frontend Patterns

Amr S. Abdelfattah

and Tomas Cerny

Computer Science, ECS, Baylor University, One Bear Place #97141, Waco, TX 76798-7356, U.S.A.

Keywords:

Microservices, Micro-Frontend, Backend for Frontends, Microservices Patterns, API Management.

Abstract:

Microservices architecture has exploded in popularity; many organizations use this architectural style to avoid

the limitations of large and monolithic backends. Most systems require multiple frontend clients, such that

each frontend client expects tailored responses from a backend service. However, there are no best practices

for their integration and communication with microservice backends. Backend for Frontends (BFF) is one

of the most used patterns for gluing the frontend with the microservices layer. It keeps the frontend layer

decoupled from the microservices complications; nevertheless, it is tightly coupled with the frontend layer.

Therefore, it introduces barriers in the development process, besides adding risks for business inconsistency.

In addition, it negatively impacts the consumed overall data size and time over requests. This risk is boosted

by the evolution of the micro-frontend architectural style that encourages the decomposition approach for

the frontend components. This paper proposes an alternative pattern that addresses current gaps introduced

by the BFF patterns. It supports cloud-native system components to provide the required customization to

frontends, along with increasing the frontend awareness to share more responsibilities in the architecture. The

new pattern facilitates customizability for client types when interacting with the microservices business layer.

1 INTRODUCTION

Cloud-native systems contain multiple distributed,

independent, and self-contained microservices that

communicate together as a middleware to achieve

scalable systems functionalities (Cerny et al., 2018;

Brown and Woolf, 2016). While many best prac-

tices are recognized for architecting the cloud-native

middleware (Carnell and S

anchez, 2021), there is a

signiﬁcant gap in established practice for connecting

the middleware with the user interfaces. These inter-

faces provide a system frontend and simplify human-

computer interaction. Typically, they hide the internal

system complexity of decentralization from end users

and interface multiple system microservices. How-

ever, too few guidelines and best practice examples

exist for the connection between microservice mid-

dleware and the user interface frontend (Brown and

Woolf, 2016).

Practitioners often resort to a common solution

called Backend for Frontends (BFF) (Newman, 2015)

to address the challenge of accommodating different

user interfaces within a system, as mentioned in the

https://orcid.org/0000-0001-7702-0059

https://orcid.org/0000-0002-5882-5502

Related Work section. The BFF adds an additional

layer between the user interface and the backend, with

BFF components communicating with backend ser-

vices and adapting the data to meet the requirements

of a speciﬁc user interface. However, because a BFF

component is tightly coupled to a speciﬁc user inter-

face experience, it is recommended to have individual

BFFs for each user interface (i.e., website and mobile

application). Despite its demonstrated success, the

BFF pattern introduces numerous challenges when in-

tegrated with microservice and micro-frontend archi-

tectures. These challenges are discussed in the subse-

quent sections, which cover various perspectives, in-

cluding Request Performance, Development Process,

and Business Inconsistency.

This paper proposes an alternative solution to

overcome the above problems. It provides a pattern

of communication between user interfaces and the mi-

croservices backend layer, called the Frontend Micro-

Communication (FMC) Pattern. It optimizes the data

and time consumption of the frontend requests. It also

avoids the extra development barrier which the BFF

introduced into the process. Moreover, it encourages

retaining business consistency inside its correspond-

ing microservices.

184

Abdelfattah, A. and Cerny, T.

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns.

DOI: 10.5220/0011812500003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 184-193

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

In this paper, we provide a detailed perspective of

this solution and assess its properties using a small

case study. The results show that the proposed solu-

tion achieves the same purpose as the existing solu-

tions of BFF. However, compared with the BFF, the

FMC solution shows better performance, especially

for the frontend time to receive a response. More-

over, it discusses the methodology for reducing the

coupling between the development teams, which en-

courages the micro-frontend architecture to scale in-

dependently.

The paper organization is as follows: Section 2

discusses the related work followed by 3 background

and the relations to other frontend communication

patterns. Section 4 states the problem deﬁnition fol-

lowed by Section 5 on the proposed FMC pattern.

Demonstration and discussion are given by Sections

6 and 7. Finally, Section 8 concludes the paper.

2 RELATED WORK

There are not enough guidelines and good exam-

ples to follow for presenting the frontend layer in

the microservices architecture Brown et al. (Brown

and Woolf, 2016). Nevertheless, multiple literature

reviews are driven to investigate the lack of well-

identiﬁed communication patterns.

Osses et al. (Osses et al., 2018) elaborated on aca-

demic architectural tactics and patterns in microser-

vices through a systematic literature review. They

concluded that among 44 patterns, the BFF pattern is

the most well-identiﬁed pattern that is responsible for

the communication between the frontend and the mi-

croservices’ backend components. Different BFFs are

implemented for different types of clients, each with

an API customized to what that client type needs.

Valdivia et al. (Valdivia et al., 2019) derived a sys-

tematic literature review. They emphasized the im-

portance of BFF to facilitate the interactions for the

frontend component. The BFF pattern is identiﬁed as

an entry point pattern, such that it acts as a single API

for a client. Moreover, the BFF could have a respon-

sibility to reduce the load of the API gateway layer

as well. However, the authors highlighted that it has

the disadvantage of being a single point of failure and

is inconvenient for high workloads. Therefore, this

could be the circumstance when the micro-frontend

architecture employs the BFF pattern in its communi-

cation architecture.

Furthermore, M

arquez et al. (M

arquez and

Astudillo, 2018) inspected 17 patterns from

microservices-based open-source projects. The

BFF is shown as the only frontend communication

pattern that is found in their study. It is introduced as

a way to cater to different frontend client types in a

system by providing a tailored API for each frontend

client type.

These studies depict an image of the BFF as the

most common pattern that is utilized for the commu-

nication purpose of frontend and backend layers in a

microservice architecture.

3 BACKGROUND

This section delves into the intricacies of the BFF pat-

tern and micro-frontend architecture. It details how

the frontend layer communicates with the microser-

vices layer.

Regarding the BFF pattern (Brown and Woolf,

2016; Harms et al., 2017), it acts as a composite sin-

gle API for a frontend client, such that multiple BFFs

are implemented corresponding to the different types

of clients to provide their customized needs, as shown

in Figure 1. It has appeared to eliminate the difﬁcul-

ties of General Purpose Backend (Brown and Woolf,

2016) pattern that adds complexity in the frontend,

in addition to it increases the data consumption for

client applications. The BFF pattern faces two chal-

lenges: (1) the frontend requires multiple calls to sat-

isfy a single page requirement, and (2) different client

types (e.g., Web, Mobile) may need different response

data attributes, resulting in the service sending all at-

tributes to all clients, even if some are not needed.

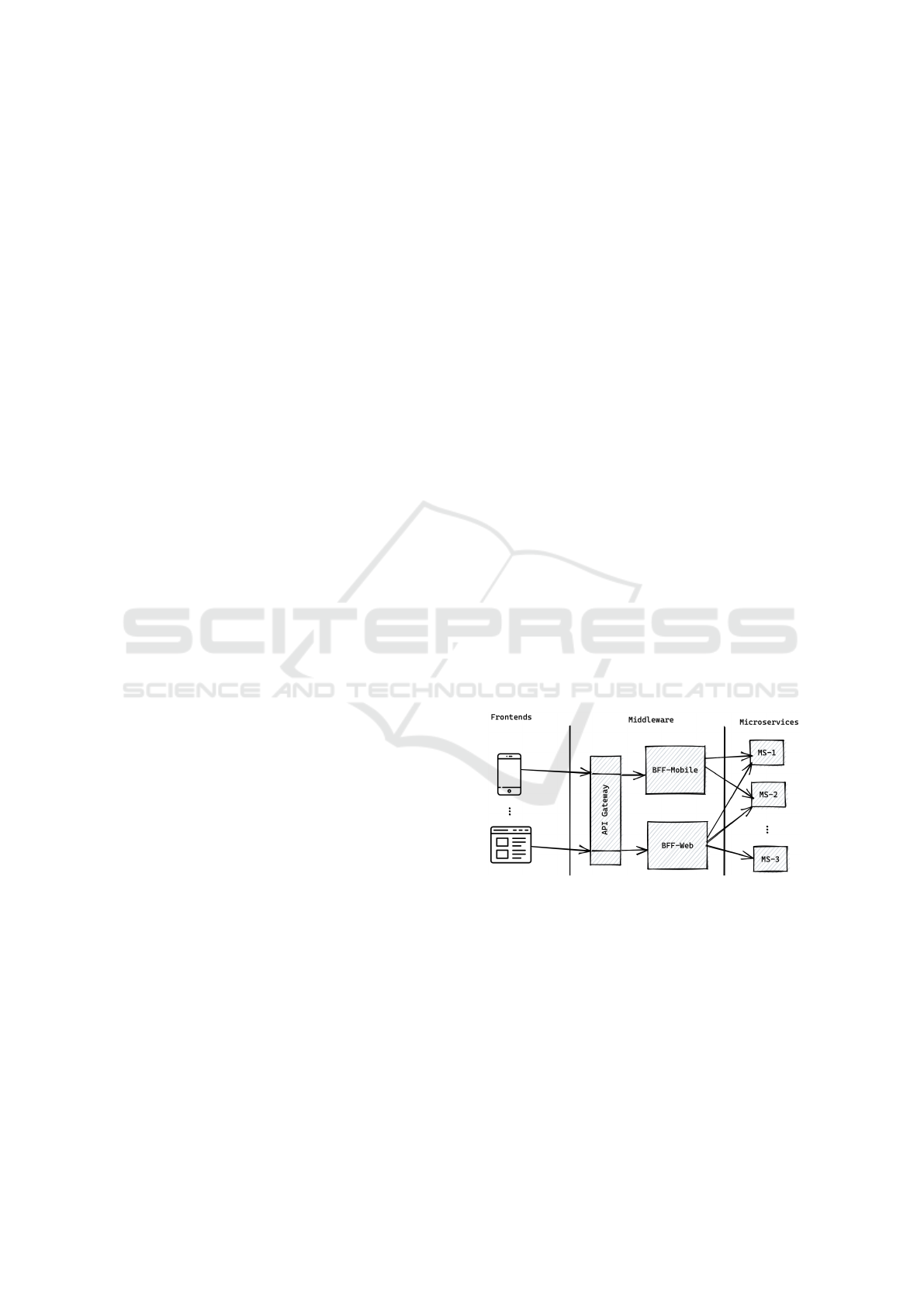

Figure 1: Backend For Frontends Pattern.

The BFF pattern enables the communication be-

tween the frontend and microservices to achieve busi-

ness functionality with minimal requests (Osses et al.,

2018; M

arquez and Astudillo, 2018). It has multi-

ple responsibilities, including orchestration, transla-

tion, and ﬁltering. It orchestrates multiple microser-

vice calls for a single client request, translates results

to ﬁt client requirements, and ﬁlters unnecessary data

for the frontend.

On the other hand, the micro-frontend (Peltonen

et al., 2021; Fowler, 2019) architecture appears to ap-

ply the distribution approach in the frontend layer.

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns

185

Nevertheless, the frontend layer can still be imple-

mented as a monolithic application while commu-

nicating with a microservices-based backend. The

Single Page Application (SPA)

(Brown and Woolf,

2016) frontend pattern constructs a web-based client

type. It loads only one web document while updating

its content via API calls for a more dynamic expe-

rience and better performance gains. However, this

approach may limit the scalability of frontend devel-

opment, especially for large projects (Fowler, 2019).

To overcome this challenge, the micro-frontend archi-

tecture divides the monolithic frontend into smaller,

independent, and reusable components, each respon-

sible for a speciﬁc aspect of the user interface. This

approach enhances deliverability, upgradeability, and

maintainability through decoupling within organiza-

tions, and features smaller components, more cohe-

sive code, and greater scalability.

The micro-frontend architecture creates a micro-

frontend for each page in an application, while a sin-

gle container application handles rendering common

elements such as headers and footers, as well as man-

aging authentication and navigation across the differ-

ent micro-frontends. However, this approach also has

some drawbacks, including the need to manage mul-

tiple artifacts (e.g., repositories, tools, domains, build

and deploy pipelines) for each micro-frontend com-

ponent. Additionally, it can result in large payload

sizes and duplication of dependencies (Fowler, 2019).

The BFF pattern serves as a communication

bridge between frontend and backend layers. It

is adapted as the backend for each micro-frontend

(Fowler, 2019), creating an additional layer in the

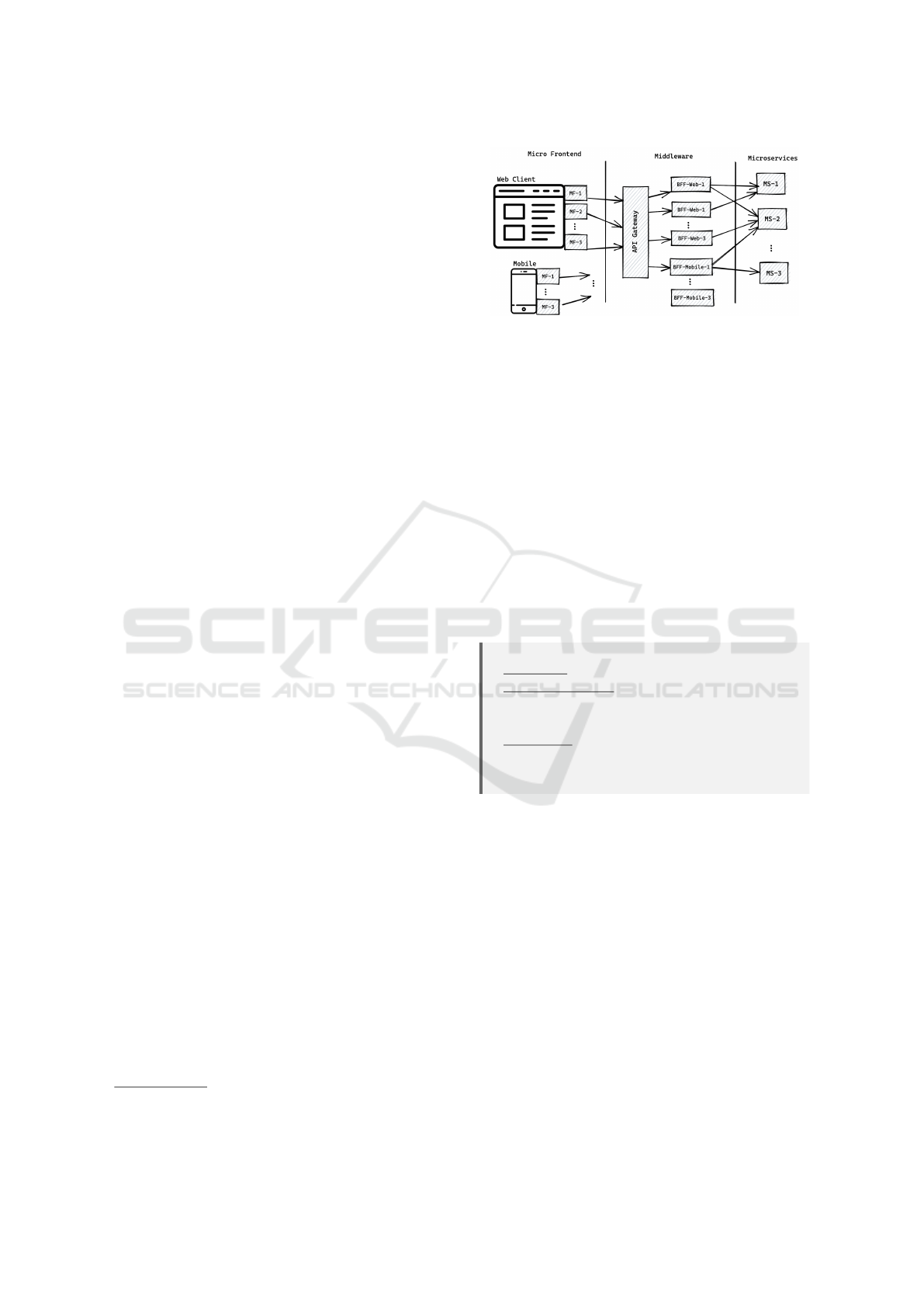

system, as illustrated in Figure 2. This layer adds

complexity and challenges in managing team depen-

dencies during development as the microservices and

micro-frontend layers scale.

4 PROBLEM DEFINITION AND

CHALLENGES

The Microservices architecture is based on the con-

cept of decentralization, where self-contained mi-

croservices interact with each other to produce the

overall system. Each microservice has different func-

tionality and interacts with different Data Stores to

serve the business domain of the system. The Fron-

tend, which is the presentation layer containing user

interfaces, such as web applications and mobile ap-

plications, is integrated with various infrastructure-

SPA: https://developer.mozilla.org/en-US/docs/

Glossary/SPA, accessed on 02/13/2023.

Figure 2: Micro-Frontend Architecture.

supportive services and components (Carnell and

anchez, 2021).

Enterprise systems commonly use multiple user

interfaces and implementing a frontend layer, whether

monolithic or micro-frontend layer, requires adap-

tation to the microservices architecture to meet the

frontend client needs. To manage interactions and

communications between the frontend clients and mi-

croservices, different patterns are used, which vary

from system to system.

The purpose of this paper is to present a new com-

munication pattern for the frontend in the microser-

vice architecture, speciﬁcally addressing the chal-

lenges associated with the widely used BFF pattern.

The goal of the proposed pattern is formulated as fol-

lows:

Designing a frontend communication pattern,

for the purpose of ﬁlling the gap of provid-

ing a client-speciﬁc service interface in a mi-

croservice architecture,

concerning the request performance, the de-

velopment process, and business inconsis-

tency.

Prior to introducing the proposed pattern, we ana-

lyze the deﬁciency in frontend communication within

the microservice architecture from two main perspec-

tives: the challenges faced when implementing the

existing BFF pattern within the microservice architec-

ture, and the feasibility of extending the BFF pattern

to suit the micro-frontend architecture type.

First off, integrating pattern with the microser-

vices distribution style poses several challenges. The

BFF is an additional layer in the architecture (see Fig-

ure 1) to proxy communication between the frontend

and backend, making it a potential single point of fail-

ure for high workloads (Valdivia et al., 2019). Addi-

tionally, the BFF can call multiple microservices to

fulﬁll a frontend request, which impacts request con-

sumption time, such that waiting for all inter-service

requests to conclude can increase the frontend’s wait-

ing time.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

186

Furthermore, the BFF consumes large amounts

of data from business microservices, ﬁlters out the

required attributes for clients, and creates duplicate

logic in the system when a separate BFF component is

implemented for each frontend client type (Newman,

2015). This duplication increases the risk of embed-

ding business logic in the BFF layer and causes incon-

sistency when changing the logic in one BFF compo-

nent. For example, if the logic changes in one BFF, in-

consistencies may occur in the other BFFs, leading to

a greater risk of business inconsistencies during sys-

tem modiﬁcations.

The coupling of the frontend and BFF teams adds

a barrier to the development process, where changes

required by the frontend team also require modiﬁca-

tions by the BFF team or could cause a ripple ef-

fect. This barrier becomes problematic, especially

with large systems that have multiple teams.

Secondly, the BFF pattern can be extended to a

backend for each micro-frontend in the integration of

the BFF with the micro-frontend architecture (Fowler,

2019), as illustrated in Figure 2. However, this can

be an overhead to the system, especially if the micro-

frontend only requires one microservice endpoint to

invoke. Moreover, each BFF has its own business

logic, which could result in business inconsistency

among different client types.

Additionally, Modiﬁcations and new features in a

micro-frontend may also necessitate changes to the

backend response. Therefore, the BFF may impede

expansion and the attainment of micro-frontend scal-

ability, and it may cause a bottleneck in development

processes, particularly if it is not owned by its corre-

sponding frontend team.

5 FMC PATTERN

The FMC pattern provides an alternative approach

for managing the communication between the fron-

tend and microservices backend. Unlike the BFF pat-

tern, the FMC pattern retains system scalability and

reduces the coupling between the development teams.

This section follows the pattern writing language

and style explained in (Wellhausen and Fießer, 2011).

It details the description and the implementation

methodology of the proposed FMC pattern. It in-

cludes multiple perspectives of the pattern as follows:

Context, Problem and Forces, Solution, and Conse-

quences of beneﬁts and liabilities.

5.1 Context

The context of this pattern is building a

microservices-based system and different fron-

tend client types. Such that the frontend clients

consume the microservices APIs for receiving

tailored responses.

5.2 Problem and Forces

Reduce the development barriers between frontend

and microservices teams that result from the BFF

layer. Minimize data communication overhead and

API response time to the microservice frontend. Mit-

igate the risks of business inconsistency between dif-

ferent frontend client types.

Some forces restrict the BFF pattern to solving

these problems, as follows:

1. Development Process: The BFF pattern devel-

ops an additional project for handling the commu-

nication between the frontend and backend. This

project involves an additional repository to control

its source code and manage its deployment pipeline.

This project could be implemented in different lan-

guages that require a different team to develop and

manage changes. However, there is coupling between

the frontend and the BFF layers, therefore, modiﬁ-

cations in the frontend require adaptation from BFF

components as well. Thus, the barriers happen as a

result of every single change.

2. Business Inconsistency: The BFF has an orches-

tration responsibility to invoke multiple microservices

to construct the required collective response. This

functionality adds a risk that the business logic be-

comes embedded in the BFF layer instead of within

the underlying business microservices. Creating a

BFF component per client type increases the risk that

logic becomes inaccessible to other client types unless

it is replicated to all BFF components.

3. Data Consumption: The BFF layer receives a

response from the business microservices that con-

tains all data attributes. It ﬁlters them out according

to the needs of the invoking client type. Therefore,

this communication increases the data consumption

between the business and the BFF layers, even if this

data is useless for the frontend client.

4. Response Time: A frontend request to the BFF is

translated into multiple microservices requests from

the BFF component to the microservices business

layer. The frontend waits until all requests are con-

cluded to receive a complete response from the BFF.

Thus, it waits for the longest response time among the

invoked inter-services.

5.3 Solution

The FMC pattern eliminates the need for the frontend

to wait for the longest inter-service response to be

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns

187

ready by utilizing a single-request-multiple-response

communication approach, which leads to better per-

formance in terms of response time and data con-

sumption. Unlike the BFF pattern, it avoids adding

extra layers to the architecture that can introduce bar-

riers in development and couple the extra layer and

instead leverages microservices architecture compo-

nents.

This pattern is designed over three layers of the

architecture as follows: Frontend, API gateway (Mid-

dleware), and microservices business layer. The three

modiﬁcations are highlighted in red color in Figure 3,

such that the Socket as an example of full-duplex

communication (e.g., WebSocket

) methods that al-

low both the client and the server to send and re-

ceive data from each other. This communication pro-

tocol is integrated for communication between the

API gateway and the frontends. The Contract is

the Consumer-driven Contract (Fowler, 2006) for de-

scribing the frontend requirements and their requests

compositions. Finally, the Mobile and Web red boxes

symbolize the integrated adapters for data communi-

cation with the microservices. They sort out the at-

tributes in the response based on the client types.

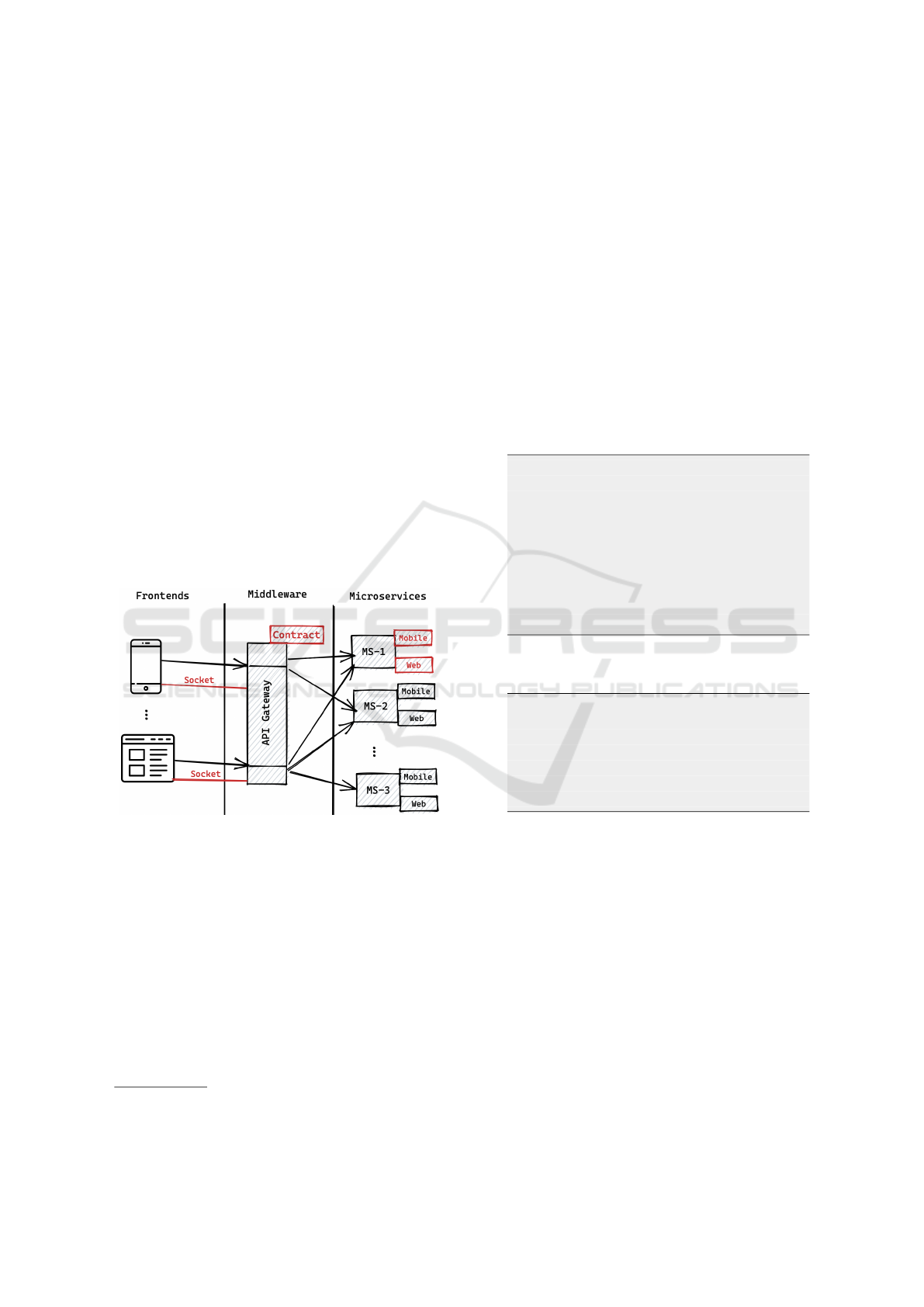

Figure 3: The Proposed FMC Pattern.

The FMC pattern ﬂows as the middleware re-

ceives the frontend request, then it translates the re-

ceived request into multiple microservices requests

based on a predeﬁned Consumer-driven Contract lo-

cated in the middleware. For example, the sampled

contract in Listing 1 indicates the middleware to con-

struct three microservices requests per the ”service1”

request. After that, the middleware detects and injects

the client type into the constructed requests header.

Then, the business microservices perform their busi-

ness logic, and they check the client type to apply tai-

lored adapters for customizing the response attributes

WebSocket: https://datatracker.ietf.org/doc/html/

rfc6455, accessed on 02/13/2023.

accordingly. These adapters follow the pluggable

adapter design pattern; they use Data Transfer Object

(DTO) (Cerny et al., 2018) and Wish List (Stocker

et al., 2018) patterns to avoid impacting the microser-

vices business cohesion. The middleware receives the

responses for each microservices request individually.

Then it forwards them through the Socket protocol to

the frontend client without waiting for all requests to

respond. Finally, the frontend actively receives multi-

ple Socket responses regarding its single-initiated re-

quest. The pseudocode in Listing 2 demonstrates the

frontend calls ”/service1” to receive two microser-

vices responses separately. Therefore, the frontend

can render partial responses to the user and decrease

the application response time.

Listing 1: Consumer-driven Contract Sample.

1 / s e r v i c e 1 :

2 m i c r o s e r v i c e s :

3 − /MS1 :

4 F o r C l i e n t : T ru e

5 − /MS2 :

6 F o r C l i e n t : T ru e

7 − /MS3 :

8 F o r C l i e n t : F a l s e

9 − D ep en de nc ie s :

10 MS1 . r e s p o n s e . d a t a I d −> MS2 . r e q u e s t .

d a t a . i d

Listing 2: Frontend Snippet for a Service call (Single-call

multiple responses).

1 S er vi ce C o n su me r . c a l l ( ” / s e r v i c e 1 ” ) {

2 # MS1

3 c a l l B a c k 1 ( r e s p o n s e 1 ) { . . . }

4 # MS2

5 c a l l B a c k 2 ( r e s p o n s e 2 ) { . . . }

6 o n F i n i s h ( ) { . . . }

7 }

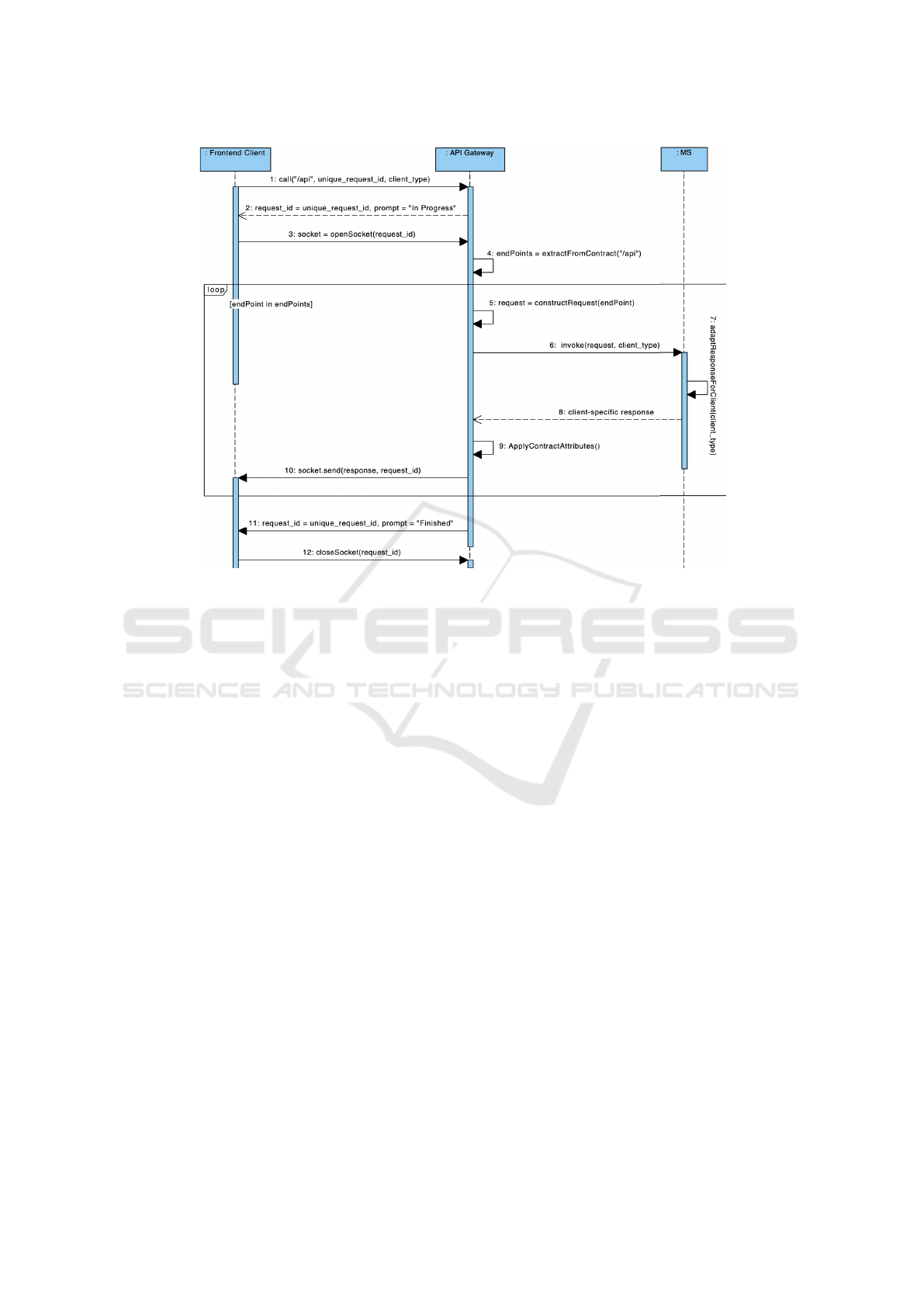

The sequence ﬂow of the pattern is depicted in Fig-

ure 4 as follows:

1. The Frontend client sends a speciﬁc service re-

quest through the API Gateway. And also, the

frontend generates and embeds a unique request

ID to the request body for identifying this re-

quest.

2. The API Gateway sends an immediate response

to the Frontend to acknowledge that request is in

progress. This immediate response could contain

an alert message or cached response to display

until the completion of the request.

3. The Frontend connects a socket channel with the

API Gateway parameterized with the related re-

quest ID.

4. The API Gateway uses the Consumer Contract to

map the received request into the corresponding

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

188

Figure 4: The FMC Pattern sequence ﬂow.

microservices requests.

5. The API Gateway constructs the corresponding

microservices requests.

6. The API Gateway invokes these requests after it

injects the client type and the request ID into their

headers.

7. The Microservice executes the request. Then, it

checks the client type attribute to prepare a corre-

sponding client-speciﬁc tailored response data.

8. The Microservice responds to the API Gateway

with the customized response.

9. The API Gateway applies some ﬁlters to the re-

ceived response based on Consumer Contract

speciﬁed attributes. These attributes are detailed

in the below list.

10. The API Gateway embeds the request ID into

the received responses, then it sends them to the

Frontend through the connected socket channel.

11. The API Gateway sends a conclusion signal

through the socket once the composite requests

of the original request have been completed.

12. The Frontend closes the socket channel, such that

the socket channel duration matches the request

execution time.

The Consumer-driven Contract speciﬁes two at-

tributes (Dependencies and ForClient) to control the

request and response behaviors. As listed in List-

ing 1, The Dependencies attribute describe the depen-

dencies between microservices requests to fulﬁll sin-

gle frontend requests. The ForClient speciﬁes which

response parts should be forwarded to the frontend.

These attributes are detailed as follows:

- Dependencies: It coordinates the dependencies be-

tween the listed microservices and each other. It

could postpone a service call until the dependent

service responds, in addition to transferring data

from the received response to the upcoming requests.

For example, as shown in Listing 1, a dependency

of MS1.response.dataId− > MS2.request.data.id.

This means MS2 waits for the response of MS1, and

then the API gateway should extract the attribute with

the key dataId from the MS1 response. After that,

it inserts the value of this attribute into the MS2 re-

quest body according to the request.data.id keypath.

Notice that, the API gateway neither performs data

conversion nor knows the logical meaning of these at-

tributes, it follows the generalization and abstraction

approaches for applying the dependency relation be-

tween the parties.

- ForClient: This attribute controls if a speciﬁc mi-

croservice response should be forwarded to the fron-

tend client. It differentiates a microservice needed for

business logic and the one the frontend needs its re-

sponse to the display. Thus, this optimizes the data

consumption between the middleware and the fron-

tend layers so that the frontend client receives the

needed data only.

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns

189

5.4 Consequences

The FMC pattern proposes a solution to the men-

tioned problem and its forces. This solution has con-

sequences of beneﬁts and liabilities to illustrate the

pattern tradeoffs.

The beneﬁts are addressed as follows:

1. Development Process: This pattern approaches

the avoidance of the development process barrier that

happens in the BFF pattern. It avoids adding addi-

tional projects to the development teams and addi-

tional layers to the microservices architecture. It over-

comes the coupling between the BFF layer and the

frontend; however, it accomplishes the purpose be-

hind that by providing the frontend clients with cus-

tomized responses.

2. Business Inconsistency: The combination be-

tween the API gateway and the consumer-driven con-

tract manages the orchestration required for accom-

plishing the frontend request. Therefore, the business-

related microservices are the only components re-

sponsible for the business logic and its response cus-

tomization in the system; Especially the API gateway

follows the generalization approach, such that it does

not convert or modify the received responses before

forwarding them to the frontend.

3. Data Consumption: The business layer responds

with the only attributes required for the invoking

client type. This optimizes the data transfer and con-

sumption per each request.

4. Response Time: The frontend clients receive mul-

tiple partial responses per request. Therefore, they

can start gradually rendering the received data. This

technique boosts the usability of the application, such

that it enables the user to interact with the interface

while it displays partial responses until the whole re-

sponse data is received and rendered.

The liabilities are analyzed as follows:

1. Development Process: Extending the function-

ality of the API gateway to handle the customer-

driven contract logic. However, this logic could be

implemented in a generic technique. It should be

constructed into a library to be reused in multiple

projects. Moreover, including the full-duplex com-

munication (i.e., Socket connection) requires more

effort for handling and recording accurate logs, and

for investigating the system issues. Furthermore, the

FMC adds responsibility on microservices to adjust

the response attributes according to the client type.

2. Business Inconsistency: The frontend code should

be designed to accept gradual responses, such that it

receives multiple responses per single request. Thus,

the frontend participates in the orchestration function-

ality as well.

3. Data Consumption: Extra responsibility is added

to the microservices business layer. It adapts the re-

sponse data according to the client type. However,

multiple patterns help in implementing this in a stan-

dard approach, such as DTO and Wish List patterns.

4. Response Time: Achieving the single-request-

multiple-response approach requires multiple han-

dlers from the frontend side to receive these responses

through the socket protocol. Therefore, the frontend

prepares a callback for each expected partial response

as demonstrated in Listing 2.

6 USE CASE

This section highlights a use case that showcases and

conﬁrms the effectiveness of the FMC pattern. It

also compares its performance with the BFF pattern,

speciﬁcally in terms of the size of the response and the

time taken to consume requests from multiple fron-

tend types

6.1 Testbench Description

We have created a cloud-native software applica-

tion

as part of our study that serves the purpose of

showcasing organizational management for licenses.

This application, which employs the Java Spring

Boot framework, consists of three layers: a fron-

tend, an API gateway, and a business layer. We im-

plemented the API gateway utilizing Spring Cloud

Gateway, integrated with Spring Data JPA for data

persistence, Spring WebFlux for WebSocket imple-

mentation of full-duplex and reactive communication,

Spring Cloud Conﬁguration Server, and Eureka Ser-

vice Discovery. We deployed the testbench through

Docker containers, utilizing the Compose tool for the

deployment dependencies.

The business layer contains two microservices

called License-Service and Organization-Service.

These contain endpoints as detailed in Table 1. The

License-Service’s /list returns a list of licenses, and

/details/license-id returns the details of a spe-

ciﬁc license. The Organization-Service provides a

single endpoint called /details/org-id to return

speciﬁc organization information. The endpoints re-

trieve stored data. However, we have added a con-

stant delay to simulate more load. This delay helps to

compensate for the variable overhead we remove, as

detailed in the procedure section.

Implemented Testbench: https://github.com/amr-

abdelfattah/Micro-communication-Pattern, accessed on

02/13/2023.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

190

Table 1: Teshbench Endpoints.

Frontend Request License-Service Organization-Service

/license/list /list —

/license/details/{license-id} /details/{license-id} /details/{org-id}

Two databases are developed using JPA in-

memory data. These databases are initiated by a ran-

domly generated dataset of 20 license items and 30

organization items. This testbench supports two dif-

ferent frontend client types (mobile and web); These

clients expect two requests from the backend side to

fulﬁll their needs as listed in Table 1; however, they

require customized responses.

As shown in Table 1, the ﬁrst frontend request

is /license/list, which communicates with the

License-Service with endpoint /list to return a list of

License Model; however, each client type requires dif-

ferent ﬁelds in the returned list as reported in Table 2.

The second request is

/license/details/license-id which com-

municates with both License-Service with endpoint

/details/license-id, and Orgnaization-Service with

endpoint /details/org-id to return the details of a

License Model and its attached Organization Model

information as well. Moreover, Table 2 shows the

detailed attributes required of the models per each

client; Such that /license/list returns different

attributes from one client to the other; however,

the /license/details/license-id returns the

identical information for both clients.

Table 2: Testbench Data Models.

Models Client type Endpoint Required Fields

License

Model

Database —

id, title, shortDescription,

longDescription, date, url,

licenseType, orgID

Mobile

/list

id, title, shortDescription,

date, licenseType, orgID

/details

id, title, longDescription,

date, url, licenseType, orgID

Web

/list

id, title, longDescription,

date, licenseType, orgID

/details

id, title, longDescription,

date, url, licenseType, orgID

Organization

Model

Database — name, information

Mobile /details name, information

Web /details name, information

6.2 Procedure

This procedure initiates the launch of two system in-

stances, one utilizing the FMC pattern and the other

containing the BFF pattern. To ensure accurate mea-

surements and eliminate external inﬂuences, certain

restrictions are implemented. The same data items

are utilized for both patterns to prevent variation due

to different response sizes. An in-memory database is

integrated to eliminate the processing overhead from

varying database engines. Additionally, a local con-

nection is employed to avoid communication over-

head from the internet and external servers. A local

connection refers to a direct connection between two

devices within the same network, as opposed to a re-

mote connection over the internet.

The experiment sends the two frontend requests

(see Table 1) using both client types conﬁgurations.

We repeat the request calls ﬁve times to eliminate the

random chances. Each time we automatically mea-

sure the response time and the response size using

the Postman

client application. These executions are

very close in their time and size measurements. Thus,

we calculated and illustrated the average among these

executions.

6.3 Results

This section analyzes and concludes the consumed

data size and time over the two patterns. Regarding

these performance aspects, the analysis shows the im-

pact of the BFF pattern on the system. This is, how-

ever, a small system, and it uses monolithic frontend

clients. The results conclude the FMC pattern perfor-

mance impact compared with the BFF one.

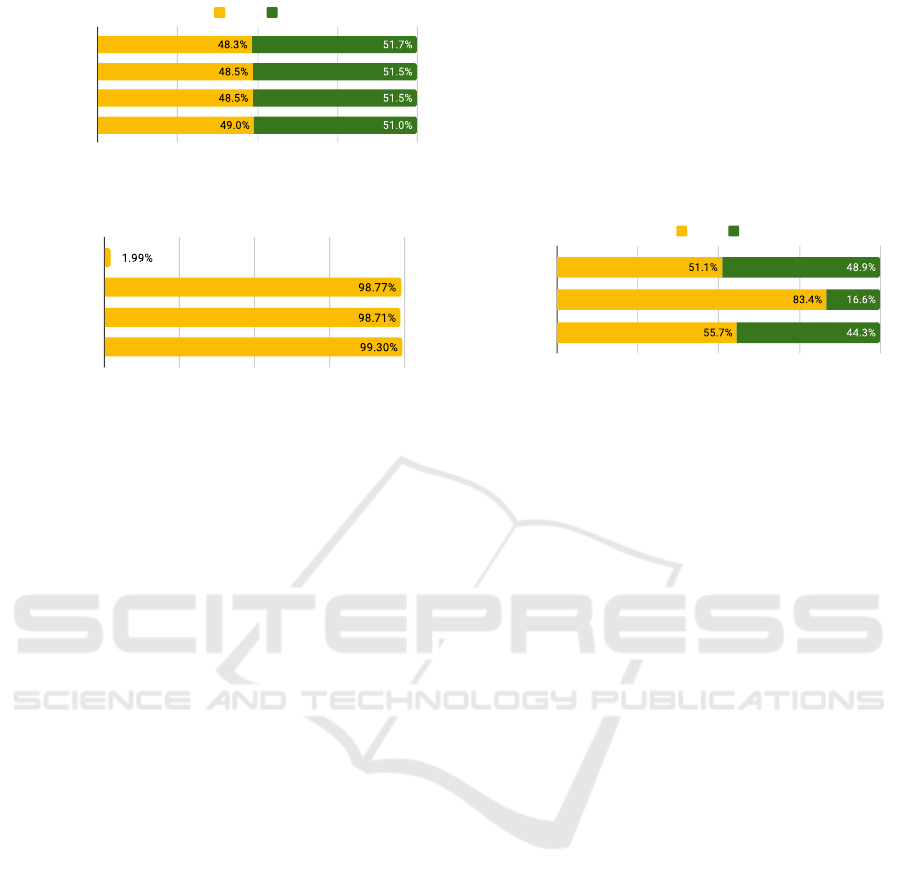

The results show that the FMC pattern consumes

more data than the BFF pattern for both clients; how-

ever, as shown in Figure 5, this difference is rela-

tively small. This data increases because the FMC

pattern injects a few keys in the partial responses.

These keys help in binding the responses with their

related request in the frontend. Moreover, observ-

ing the size differences through multiple trials high-

lights the constant size change per service. On the

other hand, the BFF pattern introduces an additional

perspective on data consumption. It receives all ser-

vice attributes, then it extracts the required ones for

the client. Figure 6 depicts the percentage of sent

data to the client after ﬁltering out the unnecessary

attributes. Therefore, that extra overhead is obvious

in /list (mobile) that consumes much amount of

data than needed for the mobile client. For exam-

ple, the BFF endpoint receives 200KB size, how-

ever, the ﬁltered data size is only 5KB to be sent to

the mobile client. This is the impact of only one at-

tribute (longDescription), which is unnecessary for

the mobile client. Overall, the BFF consumes much

data from two perspectives. However, the FMC pat-

tern encourages the microservices business layer to

send the needed attributes only corresponding to the

invoking client type.

Postman Application: https://www.postman.com, ac-

cessed on 02/13/2023.

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns

191

/list (mobile)

/details (mobile)

/list (web)

/details (web)

0% 25% 50% 75%

BFF FMC

Figure 5: Response Size Percentage Comparison (Client-

side perspective).

/list (mobile)

/details (mobile)

/list (web)

/details (web)

0.00 0.25 0.50 0.75 1.00

Figure 6: BFF Filtered Data Percentage.

From the response time perspective, we highlight

the time consumed per each individual request data

until reaches the frontend client. The behavior is rel-

atively similar for web and mobile clients. The dif-

ferences between the two patterns are illustrated in

Figure 7, which shows that the FMC pattern stands

out from the BFF. The BFF consumes extra time for

ﬁltering the response data, besides the extra commu-

nications for the requests between the BFF and the

microservices business layer. This impact is shown

in the time of /list and /org/details endpoints.

Moreover, /license/details highlights the draw-

back of the BFF pattern, such that the frontends wait

for all inter-services requests to respond so that the

BFF layer sends the ﬁltered data as a single response.

In contrast, the FMC pattern sends the re-

sponse gradually to the frontend in separate

parts. Diving deeper into this case, the ﬁrst sce-

nario is both /license/details/license-id and

/org/details/org-id are independent endpoints,

such that the client has both parameters license-id

and org-id. Thus, both requests are parallel ex-

ecuted. In the BFF, the frontend receives both

the license and organization data models together

in 10 seconds, which is the longest time re-

quired for /org/details/org-id request. How-

ever, in the FMC, it receives the license data model

in 5 seconds, while the organization data model

is received after 10 seconds in total. The sec-

ond scenario is /org/details/org-id depends on

/license/details/license-id for ﬁnding the re-

quired org-id parameter. Therefore, both BFF and

FMC can not parallel these requests. In the BFF, the

frontend receives both the license and organization

data models together in 15 seconds, which is the to-

tal response times for both requests. However, in the

FMC, it receives the license data model in 5 seconds,

while the organization data model is received after 15

seconds in total. To sum up, the BFF has a slower re-

sponse time than the FMC, regardless of request de-

pendencies. This difference may be further ampliﬁed

when the system is deployed on remote servers, due

to extra communication overhead and remote server

calls, leading to increased response time.

/list

/license/details

/org/details

0% 25% 50% 75% 100%

BFF FMC

Figure 7: Response Time Percentage Comparison.

7 DISCUSSION

The data analysis emphasizes the positive impact of

the FMC pattern, this is, however, a primitive exper-

iment. This impact is obvious, especially for request

consumption time. It also impacts the consumed data

size compared to the BFF pattern consumption. How-

ever, both patterns send almost the same amount of

data to clients. In summary, the BFF added an ex-

tra layer of communication that increases the time

and data size overhead throughout requests. Diving

deeper into investigating the other two impact factors

of this pattern. Those are the development lifecycle

and the business inconsistency.

The BFF provides as many separate implemen-

tations as the number of clients and the number of

micro-frontends as well. In the experiment above,

although the identical response for license/details as

shown in Table 2, the BFF provides two separate im-

plementations for the clients. This adds obvious over-

head to the development process and its teams. Fur-

thermore, the FMC pattern reduces the coupling be-

tween the different development teams.

For example, the following scenario illustrates the

coupling between the different layers and, thus, be-

tween the different teams. The frontend clients re-

quire additional attributes to be added to a response

payload for one of the requests. The BFF pattern re-

quires a change to all BFF components. Therefore,

the BFF-related source code repository is changed,

and then it goes through all integration and deploy-

ment pipelines until it’s released to the frontend us-

age. This is beside the required changes for the re-

sponsible business microservice in case it has not re-

turned those attributes already.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

192

On the other hand, the FMC pattern requires only

the change for the business microservice, which pro-

vides the required attributes for the corresponding

client types. Although that adds extra responsibil-

ity on the microservices and their developers, it does

not impact the microservices’ cohesion property. The

FMC pattern embeds a set of adapters for customiz-

ing responses. Therefore, it encourages the embed-

ded adapters to follow the wish list pattern. Thus, it is

only the wish list parameters that would be changed

for customizing responses to clients.

Regarding the business inconsistency perspective,

assume a business change has been requested, such

that it should impact the business microservices and

the data format for all frontend clients. Therefore,

inconsistency happens when the developer forgets to

change any of the BFF-related components for a spe-

ciﬁc client. The business would be inconsistent for

that missed client. On the other hand, the FMC pat-

tern emphasizes that the business is concentrated in

the business microservices layer. There are no mod-

iﬁcations to the original response until it reaches the

frontend that is responsible for combining and ren-

dering it. Thus, this pattern prevents the risks of these

business inconsistencies.

In conclusion, the proposed FMC pattern shows

multi-aspect enhancements compared with the com-

mon BFF pattern. Moreover, these results encourage

a potential ﬁt for the FMC pattern with the evolution

of micro-frontend architecture and its integration with

microservices distributed architecture.

8 CONCLUSION

This paper is motivated by current gaps for frontend

integration in microservice systems. These gaps lead

to challenges in the development process and business

inconsistency over system modiﬁcations. In compar-

ison with the BFF, the proposed FMC pattern offers

better-ﬁtted integration with the microservice devel-

opment process and reduced team coupling. It also

leads to reduce the overall data and time consump-

tion. Although FMC presents liabilities for apply-

ing the pattern, they are scattered through the cloud-

native components. In contrast to the BFF, the FMC

avoids adding extra layers to the architecture.

Our future work includes applying FMC to a large

benchmark, converting a BFF-based system to FMC

for performance comparison, and conducting a user

study with microservice experts to evaluate FMC’s

development process enhancement.

ACKNOWLEDGEMENTS

This material is based upon work supported by

the National Science Foundation under Grant No.

1854049 and a grant from Red Hat Research,

https://research.redhat.com.

REFERENCES

Brown, K. and Woolf, B. (2016). Implementation patterns

for microservices architectures. In Proceedings of the

23rd Conference on Pattern Languages of Programs,

pages 1–35.

Carnell, J. and S

anchez, I. (2021). Spring Microservices in

Action, Second Edition. Manning.

Cerny, T., Donahoo, M. J., and Trnka, M. (2018). Contex-

tual understanding of microservice architecture: cur-

rent and future directions. ACM SIGAPP Applied

Computing Review, 17(4):29–45.

Fowler, M. (2006). Consumer-driven contracts: A service

evolution pattern.

Fowler, M. (2019). Micro frontends.

Harms, H., Rogowski, C., and Lo Iacono, L. (2017). Guide-

lines for adopting frontend architectures and patterns

in microservices-based systems. In Proceedings of the

2017 11th Joint Meeting on Foundations of Software

Engineering, pages 902–907.

arquez, G. and Astudillo, H. (2018). Actual use of archi-

tectural patterns in microservices-based open source

projects. In 2018 25th Asia-Paciﬁc Software Engi-

neering Conference (APSEC), pages 31–40. Ieee.

Newman, S. (2015). Backends for frontends.

Osses, F., M

arquez, G., and Astudillo, H. (2018). An ex-

ploratory study of academic architectural tactics and

patterns in microservices: A systematic literature re-

view. Avances en Ingenieria de Software a Nivel

Iberoamericano, CIbSE, 2018:71–84.

Peltonen, S., Mezzalira, L., and Taibi, D. (2021). Mo-

tivations, beneﬁts, and issues for adopting micro-

frontends: a multivocal literature review. Information

and Software Technology, 136:106571.

Stocker, M., Zimmermann, O., Zdun, U., L

ubke, D., and

Pautasso, C. (2018). Interface quality patterns: Com-

municating and improving the quality of microser-

vices apis. In Proceedings of the 23rd European Con-

ference on Pattern Languages of Programs, pages 1–

16.

Valdivia, J. A., Lim

on, X., and Cortes-Verdin, K. (2019).

Quality attributes in patterns related to microservice

architecture: a systematic literature review. In 2019

7th International Conference in Software Engineering

Research and Innovation (CONISOFT), pages 181–

190. IEEE.

Wellhausen, T. and Fießer, A. (2011). How to write a pat-

tern? a rough guide for ﬁrst-time pattern authors. In

Proceedings of the 16th European Conference on Pat-

tern Languages of Programs, pages 1–9.

Filling The Gaps in Microservice Frontend Communication: Case for New Frontend Patterns

193
