Edge Anomaly Detection Framework for AIOps in Cloud and IoT

Pieter Moens

, Bavo Andriessen, Merlijn Sebrechts

, Bruno Volckaert

and Soﬁe Van Hoecke

Internet and Data Science Lab (IDLab), Ghent University-imec, Ghent, Belgium

{pieter.moens, bavo.andriessen, merlijn.sebrechts, bruno.volckaert, soﬁe.vanhoecke}@ugent.be

Keywords:

AIOps, Cloud Computing, Internet of Things, Microservices, Anomaly Detection, Monitoring.

Abstract:

Artiﬁcial Intelligence for IT Operations (AIOps) addresses the rising complexity of cloud computing and In-

ternet of Things by assisting DevOps engineers to monitor and maintain applications. Machine Learning is an

essential part of AIOps, enabling it to perform Anomaly Detection and Root Cause Analysis. These techniques

are often executed in centralized components, however, which requires transferring vast amounts of data to a

central location. This increase in network trafﬁc causes strain on the network and results in higher latency.

This paper leverages edge computing to address this issue by deploying ML models closer to the monitored

services, reducing the network overhead. This paper investigates two architectural approaches: a sidecar archi-

tecture and a federated architecture, and highlights their advantages and shortcomings in different scenarios.

Taking this into account, it proposes a framework that orchestrates the deployment and management of dis-

tributed edge ML models. Additionally, the paper introduces a Python library to assist data scientists during

the development of AIOps techniques and concludes with a thorough evaluation of the resulting framework

towards resource consumption and scalability. The results indicate up to 98.3% reduction in network usage

depending on the conﬁguration used while maintaining a minimal increase in resource usage at the edge.

1 INTRODUCTION

The rise in cloud computing and the (Industrial) In-

ternet of Things (IoT) introduced a shift in mod-

ern application architectures. Container-based archi-

tectures, e.g., the microservice architecture, tackle

the shortcomings of the traditional monolithic archi-

tecture such as scalability (Dragoni et al., 2017).

The distributed nature of the microservice architec-

ture increases the complexity of the system, which

in turn increases the importance of monitoring and

observability. Artiﬁcial Intelligence for IT Opera-

tions (AIOps) aims to support operations engineers

to maintain the applications and avoid system down-

time by leveraging Machine Learning (ML) for e.g.

Anomaly Detection (AD) and Root Cause Analysis

(RCA) (Dang et al., 2019).

Monitoring and anomaly detection are commonly

performed in a centralized manner, i.e., one service

is responsible for collecting and processing the mon-

itoring data from all services in the distributed sys-

tems. While this approach is easily manageable, it has

https://orcid.org/0000-0003-2035-8766

https://orcid.org/0000-0002-4093-7338

https://orcid.org/0000-0003-0575-5894

https://orcid.org/0000-0002-7865-6793

a major drawback: all monitoring data must traverse

the network to reach the central monitoring service,

therefore introducing additional network trafﬁc and

increasing network latency. Reducing this network

trafﬁc can reduce costs and improve the performance

of the network in general, especially in public cloud

environments (e.g. Amazon Web Services, Google

Cloud Platform, Microsoft Azure) and IoT use-cases.

To address this increase in network usage, edge

ML has been introduced. It brings intelligence close

to the services they are monitoring, which are located

at the edge of the infrastructure layer. In order to

achieve this, several challenges should be addressed.

Firstly, to deploy ML models on edge devices, they

must be optimized towards resource usage (e.g. CPU

and memory consumption). Secondly, moving from

a centralized monitoring and AIOps solution towards

distributed learning at the edge introduces an increase

in complexity with regards to orchestration of the

distributed ML models and services (Goethals et al.,

2021).

This paper presents Deucalion, an edge anomaly

detection framework for cloud computing and IoT

applications. According to Greek mythology, Deu-

calion, son of Prometheus, is able to survive the ﬂood

by building an ark. Analogous, the Deucalion frame-

204

Moens, P., Andriessen, B., Sebrechts, M., Volckaert, B. and Van Hoecke, S.

Edge Anomaly Detection Framework for AIOps in Cloud and IoT.

DOI: 10.5220/0011838600003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 204-211

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

work enables DevOps engineers to survive the mod-

ern ﬂood of monitoring data. It leverages edge com-

puting and distributed learning to provide support

for the automated deployment of ML models on the

edge, real-time data collection from the monitored re-

sources. In addition to the presented framework to

orchestrate the deployment and management of the

distributed edge ML models, a supporting Python li-

brary has been implemented to ease the development

process of the models and to bridge the gap between

data scientists and DevOps engineers.

The remainder of this article is structured as fol-

lows: Firstly, Section 2 discusses the state-of-the-art

in edge computing frameworks, Section 3 provides

background information about the service mesh pat-

tern for microservices and highlights its advantages,

Section 4 describes the methodology and architec-

tures used in our proposed solution, Section 5 dis-

cusses design choices during implementation of the

framework and resulting Python library, Section 6

evaluates the presented framework with regard to

overhead for the monitored system and ﬁnally, Sec-

tion 7 concludes this paper and outlines a vision for

future work.

2 RELATED WORK

Edge computing is an active research area, particu-

larly in the ML department. Thorough research is

done on how models can be reduced and optimized

to be deployed at the edge. The focus of this paper is

therefore not the optimization of the machine learning

or anomaly detection models themselves, but an opti-

mization of the way these models can be deployed in

a decentralized manner, such that the network usage

caused by monitoring is reduced.

(Calo et al., 2017) identiﬁes three generic archi-

tectures for applying AI to IoT (AIoT) in the edge.

First, a centralized approach where the AI is applied

in a centralized cloud environment. All data are sent

to and processed by the cloud. Secondly, an edge ap-

proach where the data is processed in the edge nodes.

The third approach is an enhancement of the edge ap-

proach with a tree-structured architecture: the data is

produced in the leaf nodes but processed in the in-

ternal nodes of the tree structure. The data is further

aggregated as it goes up the tree.

(Debauche et al., 2020) describe a hybrid architec-

ture for edge AIoT by making a distinction between

three types of nodes in the infrastructure layer: (i) re-

mote nodes in the cloud, (ii) nodes in the edge and (iii)

IoT nodes, or devices. The proposed architecture con-

sists of a centralized cluster of nodes in the cloud and

one or more (micro) clusters at the edge. The data are

collected on IoT devices or nodes and pushed to the

edge clusters. These edge clusters host numerous ser-

vices including machine learning models, databases

and a streaming platform. The processed data from

the different edge clusters is then collected and ag-

gregated in the cloud. All nodes in the system are

managed by Kubernetes container orchestration and

the ML models are deployed on the cloud and edge

nodes as containerized applications. The proposed so-

lution yields promising results with regard to latency

and network usage reduction, but the clusters at the

edge introduce a signiﬁcant overhead in terms of re-

source usage.

(Becker et al., 2020) discusses preliminary ideas

towards AIOps for edge computing including the

automated deployment of AD models on edge de-

vices. They introduce a framework, ZerOps4E, which

leverages the Bitﬂow stream processing framework

for both the collection of data streams and the de-

ployment of the models. They speciﬁcally target

lightweight edge devices capable of running Docker

containers (e.g. Raspberry Pi). The authors underline

the need for an edge anomaly detection framework,

but they do not provide enough details and insights

in the architecture and implementation of the frame-

work to enable reproduction of or extensions to their

proposed solution, making it difﬁcult to evaluate or

build upon the presented work.

(Raj et al., 2021) present an automation frame-

work for edge MLOps. They describe a continuous

integration and development pipeline for ML models

at the edge and focus particularly on challenges such

as online learning, analytics and versioning. Similar

to previously mentioned work, they leverage Docker

containerization for deployment of the ML models

on different types of devices. Their framework is

based on the Azure cloud environment, using Azure

ML Services, Azure DevOps, Azure IoT central and

Azure blob storage, which imposes vendor lock-in.

In summary, recent research has shed light on the

beneﬁts of, and need for, AIOps in cloud computing

and IoT. Although various architectures are proposed

to optimize resource consumption, little attention is

given to the orchestration and deployment of the dis-

tributed models as well as the extendibility and ﬂex-

ibility of the solution to different scenarios. This pa-

per tackles these shortcomings by presenting a single

framework for AIOps that focuses on automated de-

ployment and data collection under various conﬁgu-

rations, without altering the underlying application.

Edge Anomaly Detection Framework for AIOps in Cloud and IoT

205

3 BACKGROUND: SERVICE

MESH

Cloud native applications can be designed as dis-

tributed (collections of) microservices. Each mi-

croservice or collection thereof is tasked with a dis-

crete business function. Interaction by the users with

the application often propagates throughout the sys-

tem as these microservices communicate with one an-

other. As the number of microservices in the applica-

tion grows larger, monitoring the network trafﬁc be-

comes complex. A service mesh is a dedicated in-

frastructure layer that can be added to the application

to enable features such as observability, trafﬁc man-

agement, and security (Li et al., 2019). It divides

the application in two layers. Firstly, the data plane

which consists of the application speciﬁc microser-

vices and a number of network proxies. These prox-

ies guide and manage all service-to-service commu-

nication. Secondly, the control plane which consists

of services dedicated to performing the service mesh

speciﬁc tasks such as managing and conﬁguring the

network proxies.

A number of service mesh technologies such as

Amazon Web Services (AWS) App Mesh

, Link-

erd2

, AirBnB Synapse

and Istio (Calcote and

Butcher, 2019) have been developed over the last

years. All of these technologies focus on network

trafﬁc management (e.g. load balancing) and moni-

toring (e.g. network tracing). Istio is an open-source

service mesh technology based on Kubernetes con-

tainer orchestration. Its control plane consists of three

services: (i) the pilot, which communicates with the

proxies to handle trafﬁc management and routing, (ii)

the citadel, which provides secure communication be-

tween services and (iii) the galley, which is respon-

sible for conﬁguration management, distribution and

processing. Istio deploys the network proxies as side-

car containers (Sheikh et al., 2018). By doing this, the

service mesh can be seamlessly applied to any cloud

native application without altering the underlying mi-

croservices. A sidecar proxy is a containerized ap-

plication that runs on the same device as the service

it is monitoring. This means that communication be-

tween the proxy and the service is local and does not

inﬂuence the network.

https://aws.amazon.com/app-mesh/

https://linkerd.io/

https://airbnb.io/projects/synapse/

4 ARCHITECTURE

In this paper, we discuss and showcase how the con-

cept of a service mesh can be expanded, beyond the

use case of network trafﬁc management and monitor-

ing, towards AIOps and edge anomaly detection. The

concept of sidecar containers is not restricted to net-

work proxies. They can be any type of logical com-

ponent that should be deployed closely to the appli-

cation service, such as an anomaly detection model.

Similarly to the previously mentioned service mesh

technologies, a control plane can be deﬁned that con-

sists of framework speciﬁc services. The Deucalion

control plane consists of:

• Sidecar Injector: A component that handles in-

jection of the anomaly detection sidecar in all mi-

croservices of the application.

• Alert Manager: A centralized service that col-

lects the output of the deployed models, such as

detected anomalies.

As these control plane services are located in the

cloud, all communication between the deployed side-

car containers and the control plane components is re-

garded as overhead in network trafﬁc introduced by

the monitoring solution. We present and discuss two

approaches to optimize the reduction in network traf-

ﬁc and latency by moving the ML models and mon-

itoring solutions to the edge while minimizing the

overhead introduced by the framework, such as re-

source usage at the intelligent edge.

4.1 Sidecar Architecture

The sidecar architecture minimizes the network traf-

ﬁc by placing the ML models as close to the mon-

itored services as possible. Each deployed Kuber-

netes pod containing an application service will be

injected with an additional sidecar container. This

sidecar container pulls the monitoring data from the

pod in which it is deployed. As a result, all monitor-

ing data is contained within the pod itself and only

detected events or anomalies are pushed towards the

centralized Alert Manager. This architecture maxi-

mizes the reduction in the network trafﬁc and can op-

timally be used in a scenario where the edge devices

have sufﬁcient resources and network communication

can become costly (i.e. 5G networks or public cloud

environments). A schematic overview of the proposed

sidecar architecture is shown in Figure 1.

4.2 Federated Architecture

Running a sidecar container alongside each applica-

tion service introduces an increase in resource usage,

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

206

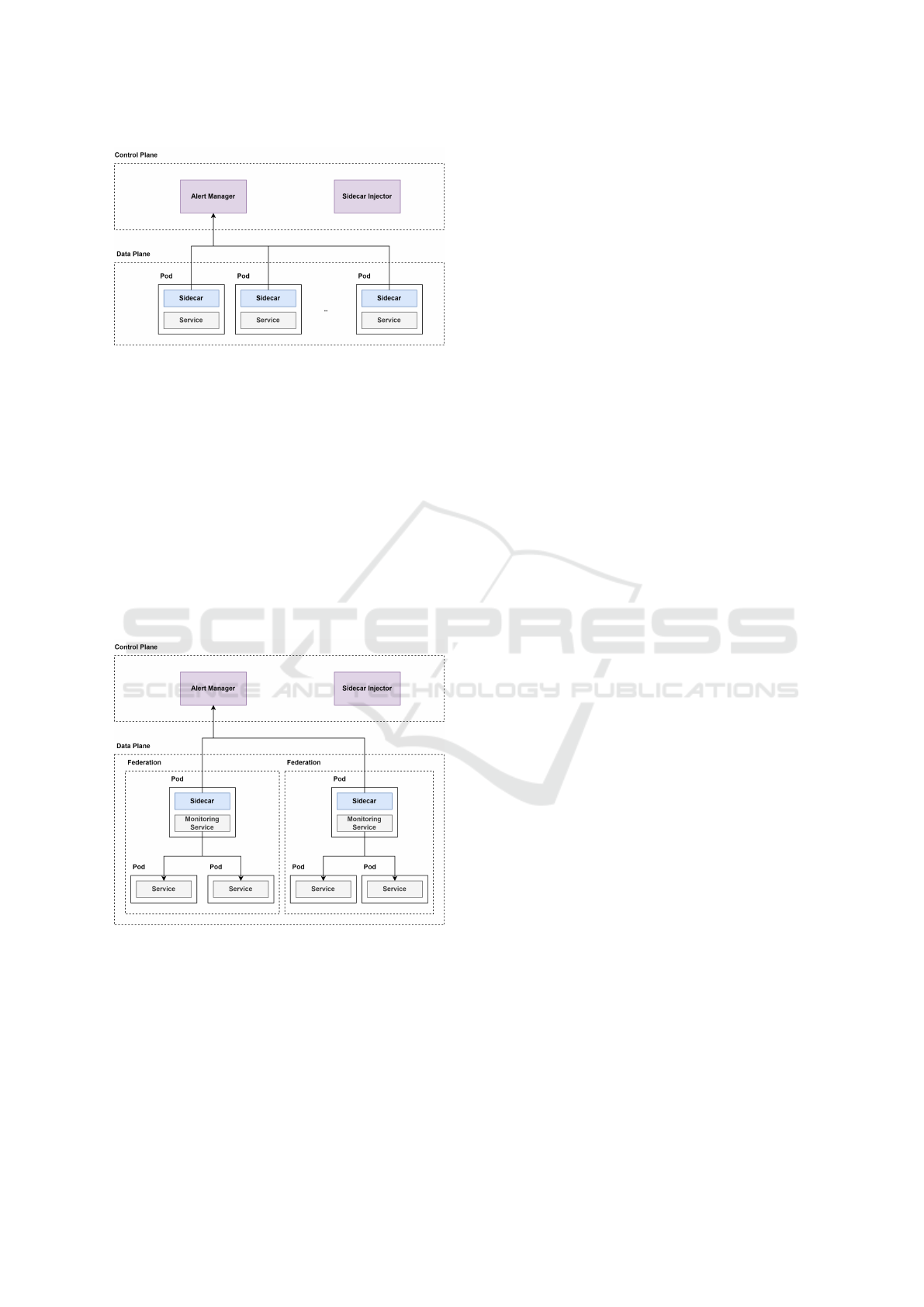

Figure 1: Sidecar architecture where a sidecar container is

injected into every pod in the data plane. The control plane

consists of an Alert Manager, which receives the output of

the anomaly detection models, and a Sidecar Injector.

i.e., memory and CPU consumption. In some use-

cases, it might make sense to group application ser-

vices in federations. For example, given a scenario

where a cloud application is deployed across multi-

ple clusters or availability zones, services within the

same availability zone could be considered to be in

the same federation. Similarly, in an IoT application,

services within the same physical boundary or local

network, e.g. the same building, could represent a

single federation. A visual representation of the pro-

posed federated approach is shown in Figure 2.

Figure 2: Architecture of the federated approach where the

data plane is divided into federations of data plane services.

Only one monitoring service and anomaly detection model

is deployed per federation.

In this approach, hierarchical (sub)layers are cre-

ated. A monitoring solution (e.g. Prometheus) is de-

ployed within each federation. This solution func-

tions as a centralized monitoring service within the

federation and collects all monitoring data from the

application services, or targets, in its federation. An

ML service is then deployed as a sidecar next to the

monitoring instances which it queries to receive all

collected data. This way, the overhead on the system

with regard to resource usage can be heavily reduced

in exchange for a lesser reduction in network usage as

the monitoring service collects monitoring data from

all monitored services or pods. Depending on the use-

case, the size of each federation can be determined in

order to optimize the overall cost of the application.

5 IMPLEMENTATION

To implement the methodology discussed in the pre-

vious section, a number of technology choices can

be made. The most common monitoring solution for

cloud applications today is Prometheus. Prometheus

is an open-source time-series database that collects

data from its targets using a pull policy. It relies on

all services in the application to expose data in the

form of metrics on a conﬁgured HTTP(S) endpoint.

Prometheus uses a standardized data format, Open-

Metrics, that is well documented and widely accepted

within the community (Di Stefano et al., 2021).

The proposed solution is twofold. Firstly, a

Python framework has been designed to support data

scientists in developing real-time AD services with-

out requiring expertise in cloud native applications or

different infrastructures. Secondly, the control plane

components consisting of two components: the side-

car injection, which handles orchestration of the AD

services and ensures automation and ease of deploy-

ment for DevOps engineers, and the central compo-

nent to dynamically collect the output of the deployed

ML models. For this central component, the choice

for Prometheus Alert Manager has been made. The

Alert Manager is open-source and scalable by de-

sign. It is a mature component and supports out-of-

the-box integration with various consumers. As the

Prometheus Alert Manager is well-documented, in-

depth functionality will not be elaborated on in this

paper. We refer the reader to (Sabharwal and Pandey,

2020) for all documentation about this component.

5.1 Python Framework

To establish real-time AD, the monitoring data should

be continuously collected or received from the chosen

monitoring solution and exposed or pushed to the cen-

tral alert manager. In order to relieve the data scientist

of this implementation effort, a framework is created

that ensures integration with the applications services

and the control plane components.

As mentioned in Section 4, the strategy to col-

Edge Anomaly Detection Framework for AIOps in Cloud and IoT

207

lect data differs based on the deployed architecture.

When using the sidecar architecture, the data is di-

rectly collected from the application services. Simi-

larly to a centralized Prometheus solution, all applica-

tion services expose their monitoring data or metrics

on a dedicated endpoint. The AD service then period-

ically scrapes the conﬁgured endpoint of the service

it is monitoring. For the federated architecture, how-

ever, a Prometheus instance is deployed for each fed-

eration. Prometheus is designed to handle data collec-

tion from multiple targets. The AD service then only

needs to query the collected data from the Prometheus

instance.

The core design of the framework is based on the

observer pattern. The developed model can be reg-

istered as an observer. By doing this, the model is

notiﬁed whenever a new (batch of) data point(s) is

available and the prediction pipeline can be executed.

When an anomaly is detected, the observer creates an

event which is pushed to the central Alert Manager.

A visualization of the different modules is shown in

Figure 3.

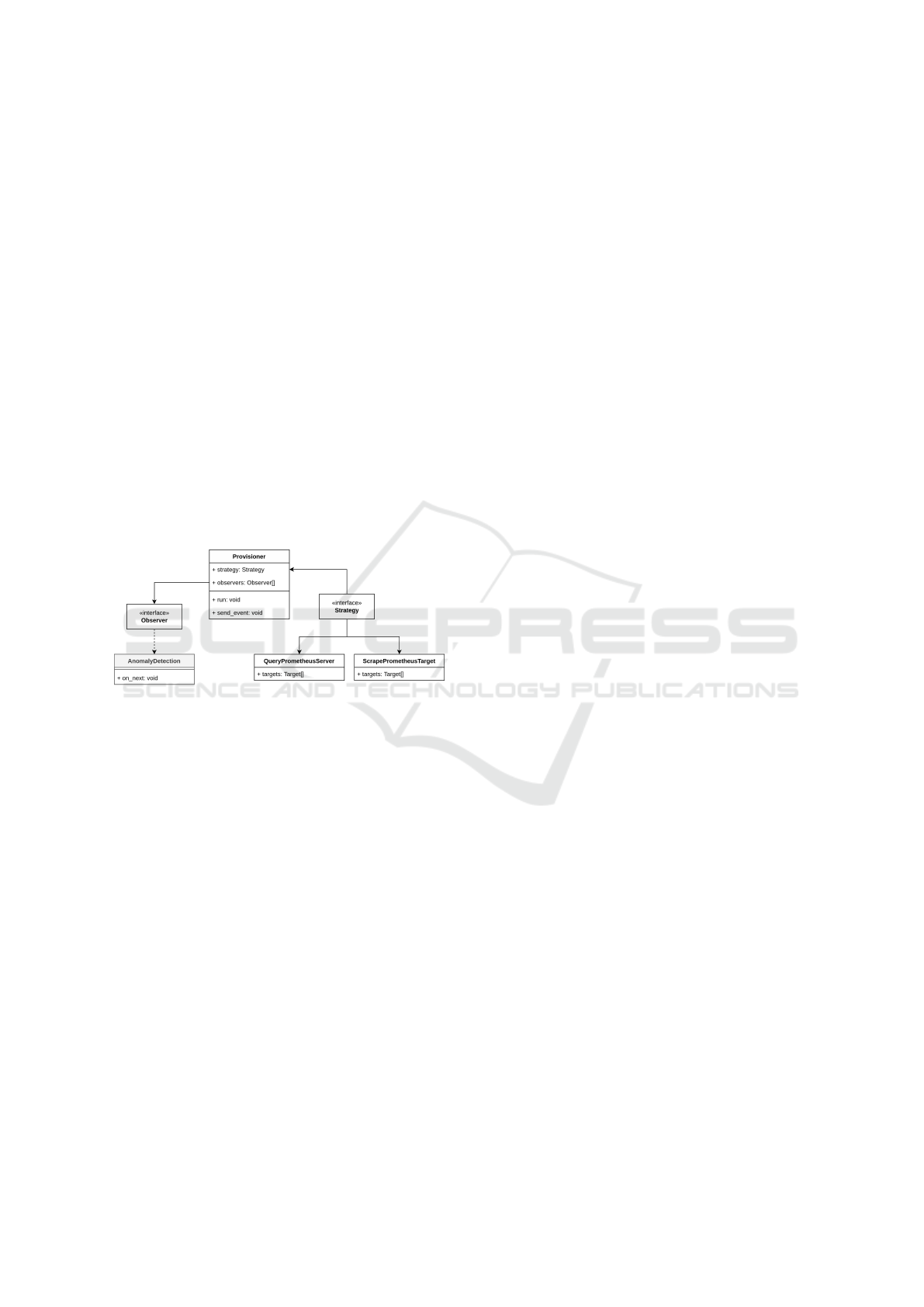

Figure 3: Architecture of the Deucalion framework. The

AnomalyDetection class is an implementation of the Ob-

server interface. This component is created by the user of

the framework and is use-case speciﬁc.

To prevent vendor lock-in, the framework is de-

signed with modularity in mind and can be easily

extended for different technology design choices, al-

lowing components such as Prometheus and the Alert

Manager to be exchanged for alternative solutions.

5.2 Sidecar Injection

The Sidecar Injector is implemented as a Kubernetes

Mutating Admission Webhook (Kubernetes, 2022).

An Admission Webhook in Kubernetes implements

an HTTPS callback which is notiﬁed whenever a re-

source is created, updated or deleted. As the name

suggests, the webhook is able to mutate the newly cre-

ated or updated resource before it is deployed. Dur-

ing this stage, the sidecar container is dynamically in-

jected.

To simplify the conﬁguration and deployment

of the framework, Helm charts have been created

(Howard, 2022). With a limited set of conﬁguration

values, the framework can be installed on any Kuber-

netes cluster (version ≥ v1.16) with the desired side-

car or federated architecture. With a single command,

the framework takes care of the deployment of all

control plane services as well as additional resources

required for a Kubernetes Admission Webhook, such

as SSL/TLS certiﬁcates and Role-based Access Con-

trol (RBAC).

For the sidecar injection, two arguments are re-

quired: (i) the image of the sidecar container and (ii) a

ConﬁgMap containing sidecar speciﬁc conﬁguration.

These arguments can be conﬁgured for each deploy-

ment in the application.

kind: Deployment

metadata:

annotations:

deucalion-config-map:

deucalion-sidecar-config-map

deucalion-sidecar-image:

"pimoens/deucalion-app:latest"

Flexibility towards the various strategies that can be

adopted is assured through different conﬁguration op-

tions for various resources in the Kubernetes mani-

fests. The easiest method is to enable sidecar injec-

tion at the namespace level. A namespace is an ab-

stract hierarchical layer within a Kubernetes cluster.

It consists of a group of resources (e.g. pods, ser-

vices, ingress). Using this method, all pods within the

namespace are injected with a sidecar container. The

conﬁguration and sidecar image are speciﬁed at the

namespace level, but can be overwritten for different

deployments in the system.

kind: Namespace

metadata:

labels:

deucalion-injection: ’enabled’

To achieve the federated architecture, a FederationID

is speciﬁed. Analogous to the sidecar architecture,

this can be achieved at deployment or namespace

level. In addition to sidecar injection, the framework

will deploy and automatically conﬁgure a Prometheus

instance per federation. The Prometheus instance

monitors all containers in the namespace that have the

prometheus.io/scrape annotation.

kind: Deployment

metadata:

annotations:

deucalion-federation: federation1

6 EVALUATION

The presented framework is evaluated using a bench-

mark microservice application: the Bookinfo applica-

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

208

tion developed by Istio

. The evaluation data is col-

lected by deploying the demo on the Fed4Fire testbed

(Demeester et al., 2016). A Kubernetes cluster con-

sisting of four nodes is used, each node has a 2 Intel

Xeon E5620 quad CPUs and 12GB RAM. With In-

tel Hyper-Threading enabled, this results in 16 logical

CPUs per node.

To represent the federated architecture, the canary

deployment with different versions of review service

is considered as a single federation. The other ser-

vices belong to a second federation. This approach

represents a federated architecture where federations

can be dynamically established when services are hor-

izontally scaled. The manifests for both the side-

car architecture and federated architecture, as well as

the captured evaluation data, are made available on

GitHub

6.1 Network Usage

To evaluate the beneﬁts of using the presented frame-

work, the reduction in network trafﬁc is captured.

Figure 4 shows the network usage (mean trasmit-

ted bytes) for the Bookinfo application when de-

ployed using a centralized monitoring solution (i.e.

Prometheus), the sidecar architecture and the feder-

ated architecture respectively. To showcase the base-

line, the microservice application without monitoring

is considered.

As expected the network trafﬁc is heavily reduced

when comparing the sidecar architecture with the

classic centralized monitoring solution. The number

of transmitted bytes per second for the centralized so-

lution is around 56 KB/s, which results in a 55 KB/s,

or 98.3%, reduction in network overhead, caused by a

centralized monitoring solution such as Prometheus,

when using the sidecar architecture. A reduction of

27.5% can also be noticed when comparing the feder-

ated architecture to the centralized solution. This re-

duction of network trafﬁc is inﬂuenced by the number

of federations used and their size. The optimal con-

ﬁguration is use-case speciﬁc and can be easily mod-

iﬁed with the framework as discussed in Section 5.

When comparing to the deployment without moni-

toring, the sidecar architecture deployment increases

the network usage by 10.7%. This increase is in-

troduced by the communication between the control

plane components and the sidecars, i.e. one message

per detected anomaly. For the deployed application

during evaluation, this results in one message per 5

seconds.

https://istio.io/latest/docs/examples/bookinfo/

https://github.com/predict-idlab/deucalion

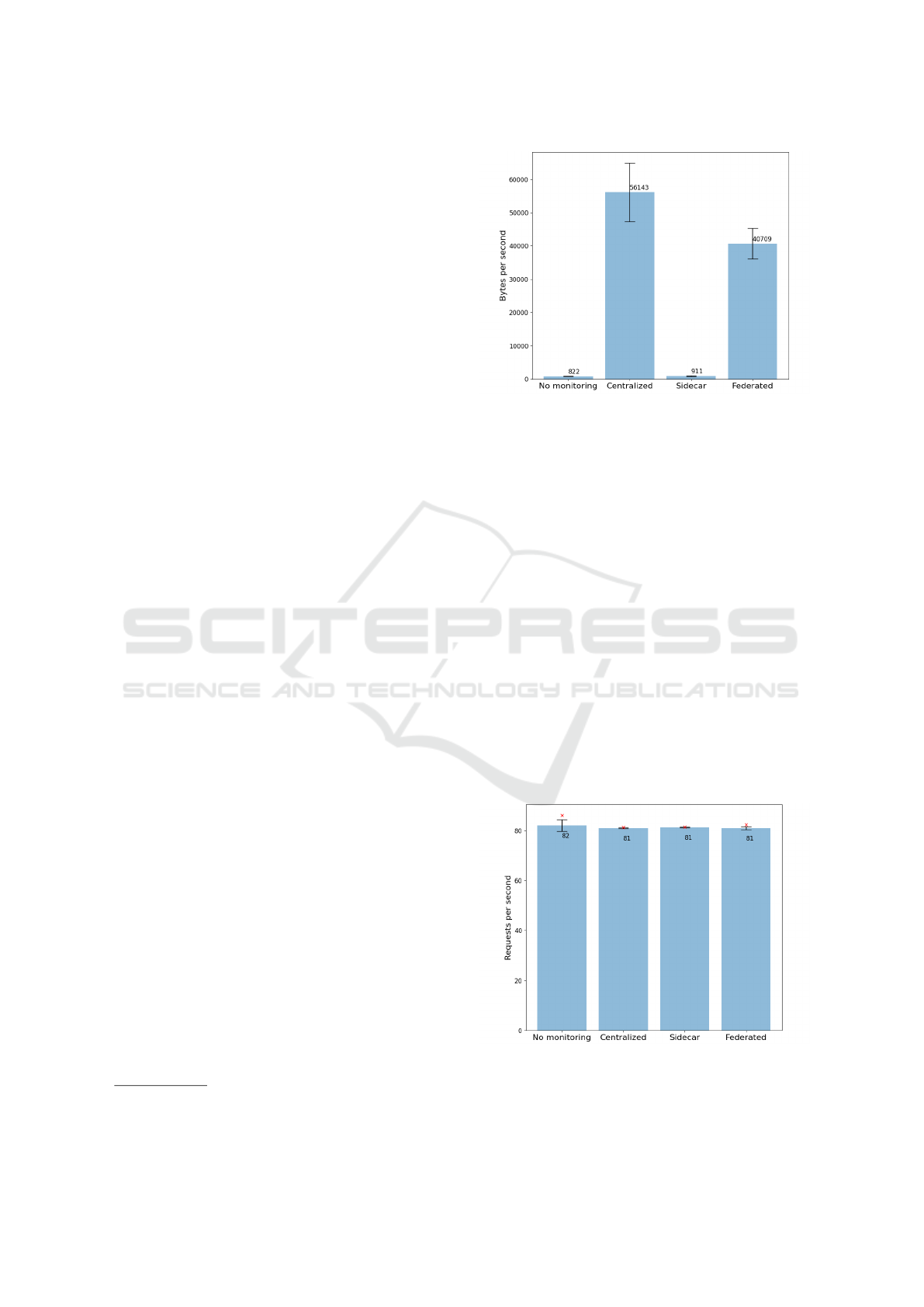

Figure 4: Mean transmitted bytes (Bps) captured for a de-

ployment without monitoring, with centralized monitoring,

using the sidecar architecture and using the federated archi-

tecture.

Quality of Service (QoS) and low latency are a

priority in modern cloud native applications. There-

fore, the impact of the framework on scalability is

measured in addition to network usage. A load test

is conducted on the different deployments using Lo-

cust (Pradeep and Sharma, 2019). The network per-

formance (total requests measured by Istio) is shown

in Figure 5. The results show that the maximum num-

ber of requests handled by the baseline without mon-

itoring is higher than all three other approaches. A

reduction of 4.8% can be measured in terms of maxi-

mum requests per second and a reduction of 1.2% can

be measured in the average requests per second over

the duration of the evaluation. Using a monitoring

solution slightly impacts the scalability of the appli-

cation. When comparing the three deployments with

monitoring however, the measurements do not differ

signiﬁcantly.

Figure 5: Scalability evaluation capturing the latency of the

requests during a load test.

Edge Anomaly Detection Framework for AIOps in Cloud and IoT

209

6.2 Resource Usage

As discussed in Section 4, the choice of architecture

impacts the resource usage of the application. To

evaluate the overhead introduced by the framework,

cAdvisor (Casalicchio and Perciballi, 2017) is used

to collect the CPU and memory usage in different de-

ployments. The results shown in Figure 6 indicate

that the sidecar architecture introduces no signiﬁcant

CPU overhead. When using centralized Prometheus

monitoring, an increase of 10% can be noticed. This

increase is comparable to the 8% increase when using

the federated architecture. Both the centralized ap-

proach and the federated architecture are deployments

where targets are scraped by a Prometheus server in-

stance, whereas in the sidecar architecture, targets are

scraped by the Deucalion sidecar. This increase could

therefore be assigned to the Prometheus server which

implements extra functionality, e.g., health checks.

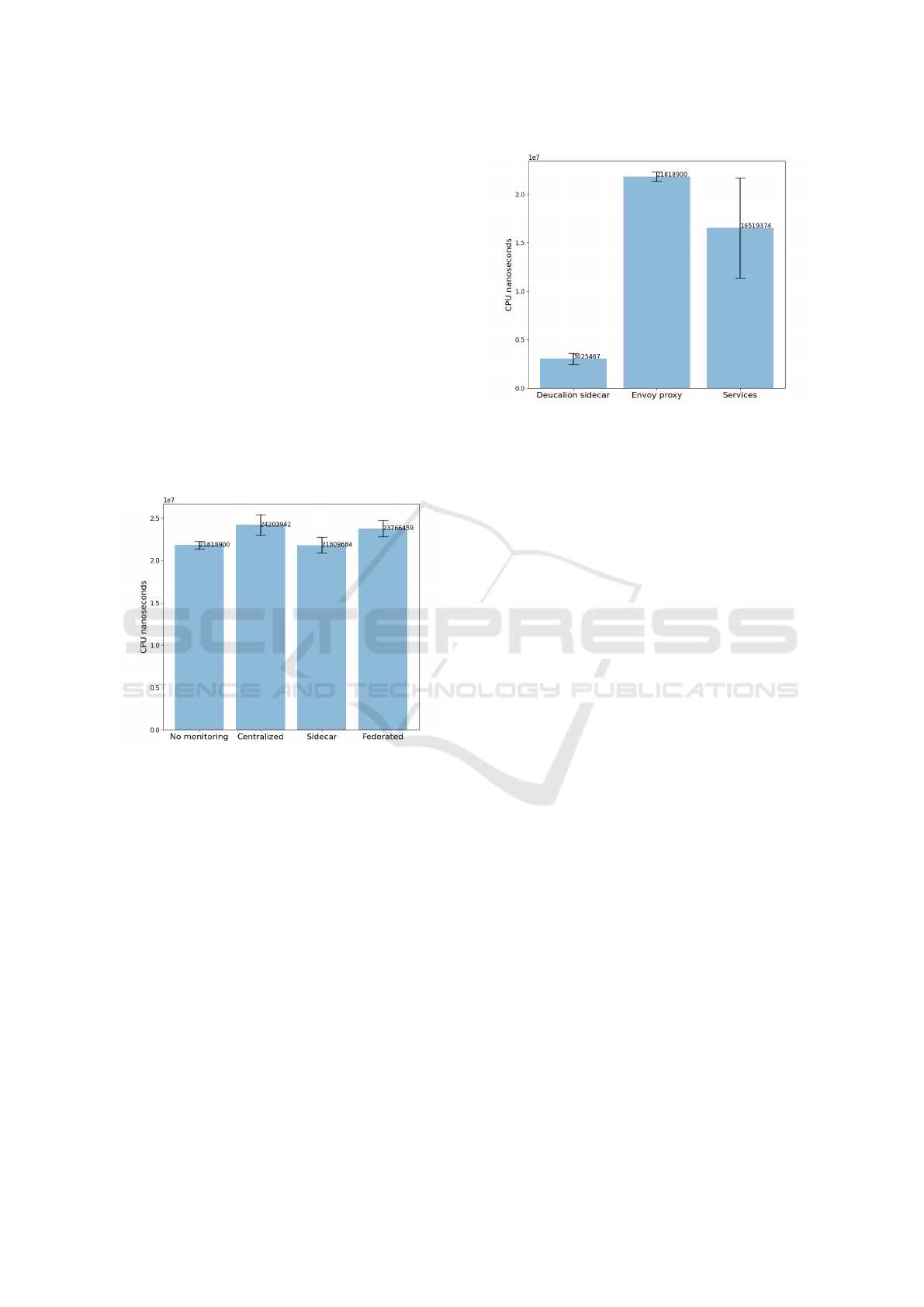

Figure 6: Comparison in total CPU usage of the services

between a deployment without monitoring, with centralized

monitoring, using the sidecar architecture and using the fed-

erated architecture.

To provide an indication of the Deucalion side-

car container, a comparison is made with the Envoy

proxy sidecar used by Istio. The results are shown

in Figure 7. The average CPU time used by Deu-

calion sidecars is 3.03 (±0.572) milliseconds per sec-

ond while the Envoy proxies consume 21.8 (±0.467)

milliseconds per second. The applications at rest con-

sumed 16.5 (±5.16) milliseconds per second on aver-

age, which is 5 times as much as the Deucalion side-

cars. This result shows that the impact of the frame-

work itself is considerably low when compared to the

CPU time consumed by the Envoy proxy and the ap-

plication. It should be noted that the deployed AD ser-

vice for the demo is a minimal application. Resource

usage will increase as the developed ML models in-

crease in complexity.

Figure 7: Comparison in CPU usage between the Deucalion

sidecar container and the Envoy proxy used by Istio. To give

an indication of the overhead on the system, the CPU usage

for the application services is shown.

7 CONCLUSIONS AND FUTURE

WORK

This paper proposes two distinct architectures for

edge anomaly detection and distributed learning to re-

duce the overhead in network usage and latency in-

troduced by AIOps in cloud computing and IoT ap-

plications: (i) a sidecar architecture and (ii) a hier-

archical, federated architecture. It evaluates both ap-

proaches towards resource consumption and scalabil-

ity. The sidecar architecture yields the highest reduc-

tion of network trafﬁc compared to state-of-the-art

centralized monitoring solutions, up to 98.3%, as it

deploys ML models as close as possible to the mon-

itored services and therefore minimizes the network

usage. Due to the ML models being deployed on

the edge devices, however, it introduces an increase

in resource usage. The sidecar architecture can there-

fore be optimally applied to a scenario where the edge

devices have sufﬁcient resources and communication

over the network is costly. In case the sidecar archi-

tecture is not feasible, the federated architecture can

be adopted. This architecture hierarchically groups

the edge devices in federations. For each federation,

a monitoring service is deployed. The federated archi-

tecture can be conﬁgured with regard to the number of

federations and the size of each federation, and there-

fore can be used to reduce the resource usage while

still maximizing the reduction in network usage.

Based on the two architectures, this paper intro-

duces the Deucalion framework to support data scien-

tists and DevOps engineers during both the develop-

ment and the deployment stages of the AIOps mod-

els. This framework enables automated deployment

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

210

and orchestration of ML models at the edge with min-

imal conﬁguration overhead. Furthermore, a Python

library is implemented to relieve data scientists of any

integration effort with monitoring solutions during the

development of real-time AD services.

The framework is based on Kubernetes container

orchestration, which is commonly supported by many

cloud providers, preventing a vendor lock-in. Due to

the modular design of the framework, future work

includes extensions for different technology design

choices (e.g. Prometheus alternatives). Currently, the

framework focuses speciﬁcally on development and

deployment of the AD services. In the future, sup-

port for advanced MLOps can be integrated, enabling

maintenance and versioning of the different deployed

models. Collaboration between decentralized mod-

els, using federated learning, is a heavily researched

ﬁeld. The control plane of the presented framework

can therefore be extended to support further orches-

tration between models and enable federated learning

while maintaining the automated deployment at the

edge.

REFERENCES

Becker, S., Schmidt, F., Gulenko, A., Acker, A., and Kao,

O. (2020). Towards aiops in edge computing environ-

ments. In 2020 IEEE International Conference on Big

Data (Big Data), pages 3470–3475. IEEE.

Calcote, L. and Butcher, Z. (2019). Istio: Up and running:

Using a service mesh to connect, secure, control, and

observe. O’Reilly Media.

Calo, S. B., Touna, M., Verma, D. C., and Cullen, A. (2017).

Edge computing architecture for applying ai to iot. In

2017 IEEE International Conference on Big Data (Big

Data), pages 3012–3016. IEEE.

Casalicchio, E. and Perciballi, V. (2017). Measuring docker

performance: What a mess!!! In Proceedings of the

8th ACM/SPEC on International Conference on Per-

formance Engineering Companion, pages 11–16.

Dang, Y., Lin, Q., and Huang, P. (2019). Aiops: real-

world challenges and research innovations. In 2019

IEEE/ACM 41st International Conference on Soft-

ware Engineering: Companion Proceedings (ICSE-

Companion), pages 4–5. IEEE.

Debauche, O., Mahmoudi, S., Mahmoudi, S. A., Man-

neback, P., and Lebeau, F. (2020). A new edge archi-

tecture for ai-iot services deployment. Procedia Com-

puter Science, 175:10–19.

Demeester, P., Van Daele, P., Wauters, T., and Hrasnica, H.

(2016). Fed4ﬁre: the largest federation of testbeds in

europe. In Building the future internet through FIRE,

pages 87–109.

Di Stefano, A., Di Stefano, A., Morana, G., and Zito, D.

(2021). Prometheus and aiops for the orchestration

of cloud-native applications in ananke. In 2021 IEEE

30th International Conference on Enabling Technolo-

gies: Infrastructure for Collaborative Enterprises

(WETICE), pages 27–32. IEEE.

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara,

M., Montesi, F., Mustaﬁn, R., and Saﬁna, L. (2017).

Microservices: yesterday, today, and tomorrow. In

Present and Ulterior Software Engineering, pages

195–216. Springer.

Goethals, T., Volckaert, B., and De Turck, F. (2021). En-

abling and leveraging ai in the intelligent edge: A

review of current trends and future directions. IEEE

Open Journal of the Communications Society.

Howard, M. (2022). Helm–what it can do and where is it

going? arXiv preprint arXiv:2206.07093.

Kubernetes (2022). Kubernetes documentation.

https://kubernetes.io/docs/home/. Accessed: 2022-

11-09.

Li, W., Lemieux, Y., Gao, J., Zhao, Z., and Han, Y. (2019).

Service mesh: Challenges, state of the art, and future

research opportunities. In 2019 IEEE International

Conference on Service-Oriented System Engineering

(SOSE), pages 122–1225. IEEE.

Pradeep, S. and Sharma, Y. K. (2019). A pragmatic evalua-

tion of stress and performance testing technologies for

web based applications. In 2019 Amity International

Conference on Artiﬁcial Intelligence (AICAI), pages

399–403. IEEE.

Raj, E., Buffoni, D., Westerlund, M., and Ahola, K. (2021).

Edge mlops: An automation framework for aiot ap-

plications. In 2021 IEEE International Conference on

Cloud Engineering (IC2E), pages 191–200. IEEE.

Sabharwal, N. and Pandey, P. (2020). Getting started

with prometheus and alert manager. In Monitoring

Microservices and Containerized Applications, pages

43–83. Springer.

Sheikh, O., Dikaleh, S., Mistry, D., Pape, D., and Felix, C.

(2018). Modernize digital applications with microser-

vices management using the istio service mesh. In

Proceedings of the 28th Annual International Confer-

ence on Computer Science and Software Engineering,

pages 359–360.

Edge Anomaly Detection Framework for AIOps in Cloud and IoT

211
