Requirements Elicitation and Modelling of Artiﬁcial Intelligence

Systems: An Empirical Study

Khlood Ahmad

1 a

, Mohamed Abdelrazek

1 b

, Chetan Arora

2 c

, John Grundy

2 d

and Muneera Bano

3 e

Deakin University, Geelong, VIC, Australia

Monash University, Clayton, VIC, Australia

CSIRO’s Data61, Clayton, VIC, Australia

Keywords:

Requirements Engineering, Human-Centered Software Engineering, Artiﬁcial Intelligence, Conceptual

Modeling, mHealth Applications.

Abstract:

Artiﬁcial Intelligence (AI) systems have gained signiﬁcant traction in the recent past, creating new challenges

in requirements engineering (RE) when building AI software systems. RE for AI practices have not been

studied much and have scarce empirical studies. Additionally, many AI software solutions tend to focus

on the technical aspects and ignore human-centered values. In this paper, we report on a case study for

eliciting and modeling requirements using our framework and a supporting tool for human-centred RE for

AI systems. Our case study is a mobile health application for encouraging type-2 diabetic people to reduce

their sedentary behavior. We conducted our study with three experts from the app team – a software engineer,

a project manager and a data scientist. We found in our study that most human-centered aspects were not

originally considered when developing the ﬁrst version of the application. We also report on other insights

and challenges faced in RE for the health application, e.g., frequently changing requirements.

1 INTRODUCTION

There has been a massive shift towards using Arti-

ﬁcial Intelligence (AI) components in software solu-

tions. This shift has been possible because of the

increase in processing power, better AI models, and

the availability of large datasets to train accurate AI

models (Holmquist, 2017). However, incorporating

AI components has impacted how we build software

systems, and new issues have emerged in the software

development process.

Existing methods and tools used in Software Engi-

neering (SE) are often inadequate in building AI soft-

ware (Sculley et al., 2015; Feldt et al., 2018). Most AI

models rely heavily on the training data, have inherent

inaccuracies, unpredictability, and are largely black-

box in nature. These attributes have led to new re-

quirements, usually not considered or emphasised in

https://orcid.org/0000-0002-7148-380X

https://orcid.org/0000-0003-3812-9785

https://orcid.org/0000-0003-1466-7386

https://orcid.org/0000-0003-4928-7076

https://orcid.org/0000-0002-1447-9521

traditional SE, such as AI-based software ethics and

data requirements (Mart

ınez-Fern

andez et al., 2022).

In traditional Requirements Engineering (RE), i.e.

without an AI component, the process usually in-

volves specifying requirements for systems that are

deterministic, and the outputs are known early on. In

RE for AI (RE4AI), it is more difﬁcult to specify re-

quirements for non-deterministic and black-box com-

ponents, for which the outputs are usually unknown

until the models are trained and tested with data (Be-

lani et al., 2019; Agarwal and Goel, 2014; Khomh

et al., 2018). However, requirements such as policies,

business values and system constraints need to be es-

tablished at early stages (Ezzini et al., 2023).

AI-based software development has mostly fo-

cused on the technical aspects of the AI compo-

nents (Maguire, 2001; Schmidt, 2020) and over-

looked human-centred aspects, such as age, gen-

der, culture, emotions, ethnicity, and many others

(Grundy, 2021; Shneiderman, 2022; Fazzini et al.,

2022). Lu et al. (Lu et al., 2022) interviewed 21

AI scientists and engineers and found that responsi-

ble AI requirements were overlooked or only included

at very high-level system objectives. Overlooking

126

Ahmad, K., Abdelrazek, M., Arora, C., Grundy, J. and Bano, M.

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study.

DOI: 10.5220/0011842300003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 126-137

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

these human-centred aspects when building AI soft-

ware can lead to systems that are biased, discriminate

against user groups, and are non-inclusive (Amershi

et al., 2014).

In this paper, we build on our existing work on

a structured literature review (SLR) on RE for AI

systems (Ahmad et al., 2021; Ahmad et al., 2022),

a survey on practitioners’ perspective on RE for AI

systems (Ahmad et al., 2023), an RE framework for

eliciting and modelling human-centric AI software re-

quirements. In this paper, we report on a case study

we performed on a tool implementation of our frame-

work on a mobile health application (MoveReminder-

App) that encourages people with type-2 diabetes to

move more. We shared the tool with three experts

from the team working on the mobile application to

elicit and model the requirements. We then inter-

viewed the experts for feedback on the tool and frame-

work and report on the ﬁndings in this paper.

Our study found that most of the human-centred

aspects were not considered in the development pro-

cess. In RE for AI systems, it is difﬁcult to specify

certain requirement types at the early stages of the

development process, as data requirements and model

requirements usually have to be adjusted or changed

for the model to achieve desirable outcomes. How-

ever, our framework can help address some of the is-

sues during the early stages of the development pro-

cess, e.g., addressing human-centred issues and think-

ing about the data and model requirements. Based

on our ﬁndings from this case study, we propose

that a progressive and iterative agile method could be

more appropriate to adopt. Furthermore, using our

framework and the tool can help capture requirements

changes as stakeholders learn more about the prob-

lem, data and potential models in the early stages of

development. We note that RE for AI is a relatively

new area of research, and empirical studies in this area

are extremely scarce. This paper and our case study

ﬁndings contribute to the empirical evidence on per-

forming RE for AI.

The rest of the paper is structured as following:

Section 2 presented the related work. Section 3

presents details of our framework and the tool. Sec-

tion 4 reports on the details of our case study. Sec-

tion 5 presents the outcomes of our sessions with ex-

perts on MoveReminderApp study. Section 6 dis-

cusses key results from the interviews and summa-

rizes reﬂections from our study. Section 7 concludes.

2 RELATED WORK

Requirements Elicitation: is considered the most

crucial part of RE as it sets to unravel and capture

the need for the system from the stakeholders early

on in the software development life cycle (Davey and

Parker, 2015). The process of eliciting requirements

includes “a set of activities that must allow for com-

munication, prioritization, negotiation, and collabora-

tion with all the relevant stakeholders” (Zowghi and

Coulin, 2005). In order to capture the correct re-

quirements, system boundaries need to be set and de-

ﬁned (Nuseibeh and Easterbrook, 2000).

The techniques used in eliciting requirements

can vary from formal and informal interviews, sur-

veys and questionnaires to other tasks such as sce-

narios, observations and protocol analysis (Carrizo

et al., 2014). Several presenting issues related to

requirements elicitation techniques include miscom-

munication and difﬁculties in transferring knowl-

edge between the elicitor and stakeholder (Fuentes-

Fern

andez et al., 2010). These issues involve elicit-

ing: (1) known unknowns referring to knowledge of

which the requirements engineer is aware of but not

the stakeholder. (2) unknown knowns refers to the

knowledge held by the stakeholder but not expressed

to the requirements engineer. (3) unknown unknowns

are the most challenging of all, wherein both the

stakeholder and the requirements engineer are not

aware of the existing knowledge in this situation (Sut-

cliffe and Sawyer, 2013; Gervasi et al., 2013). There

are many unknown-unknowns in RE4AI, especially

during the early stages of exploring AI software. Most

AI-based projects lack a common understanding of

what requirements are needed to build the project,

with limited shared knowledge among the stakehold-

ers and the team building the AI software, making it

difﬁcult to elicit and specify requirements. The un-

knowns include the outcomes of the system that may

only be known once the model is trained on a given

dataset. Thus, some requirements can only become

known towards later stages of the software life-cycle.

Requirements Modelling Languages: are used to

visually display requirements and identify the stake-

holders’ needs at a higher-level system abstrac-

tion (Gonc¸alves et al., 2019). The examples of RE

modelling languages include Goal-Oriented Require-

ments Languages (GRL) (Lapouchnian, 2005) and

the i* model (Dalpiaz et al., 2016). In GRL, goals

are used to model non-functional requirements (NFR)

and business rules (Amyot and Mussbacher, 2011).

However, the disadvantage of using GLR is that it

is difﬁcult to learn among non-software engineers.

Modelling languages such as UML and SysML have

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

127

been used to model requirements in RE4AI. Although

these modelling languages are easier to use and learn

than GRL, they have limitations in modelling NFR’s

and business rules (Ries et al., 2021; Gruber et al.,

2017; Amaral et al., 2020). Other studies proposed to

use of conceptual models to present requirements in

RE4AI (Nalchigar et al., 2021).

Existing Tools: used to support software engineers

in developing human-centred AI software include the

“Human-AI INtegration Testing”(HINT) tool (Chen

et al., 2022) and the “AI Playbook” (Hong et al., 2021)

that provides early prototyping to reduce potential er-

rors and failures in AI software.

Although these tools support building human-

centred AI software, they are limited to the design

phase and not to RE. Additionally, the tools found in

the SLR, such as the GR4ML (Nalchigar et al., 2021)

to visually present and model requirements for AI

software systems did not focus on the human-centred

aspects in their prototypes.

3 RE4HCAI FRAMEWORK

We proposed framework (RE4HCAI) for guiding

the requirements engineers and other stakeholders

in requirements elicitation and modelling of human-

centered AI-based software. The framework has three

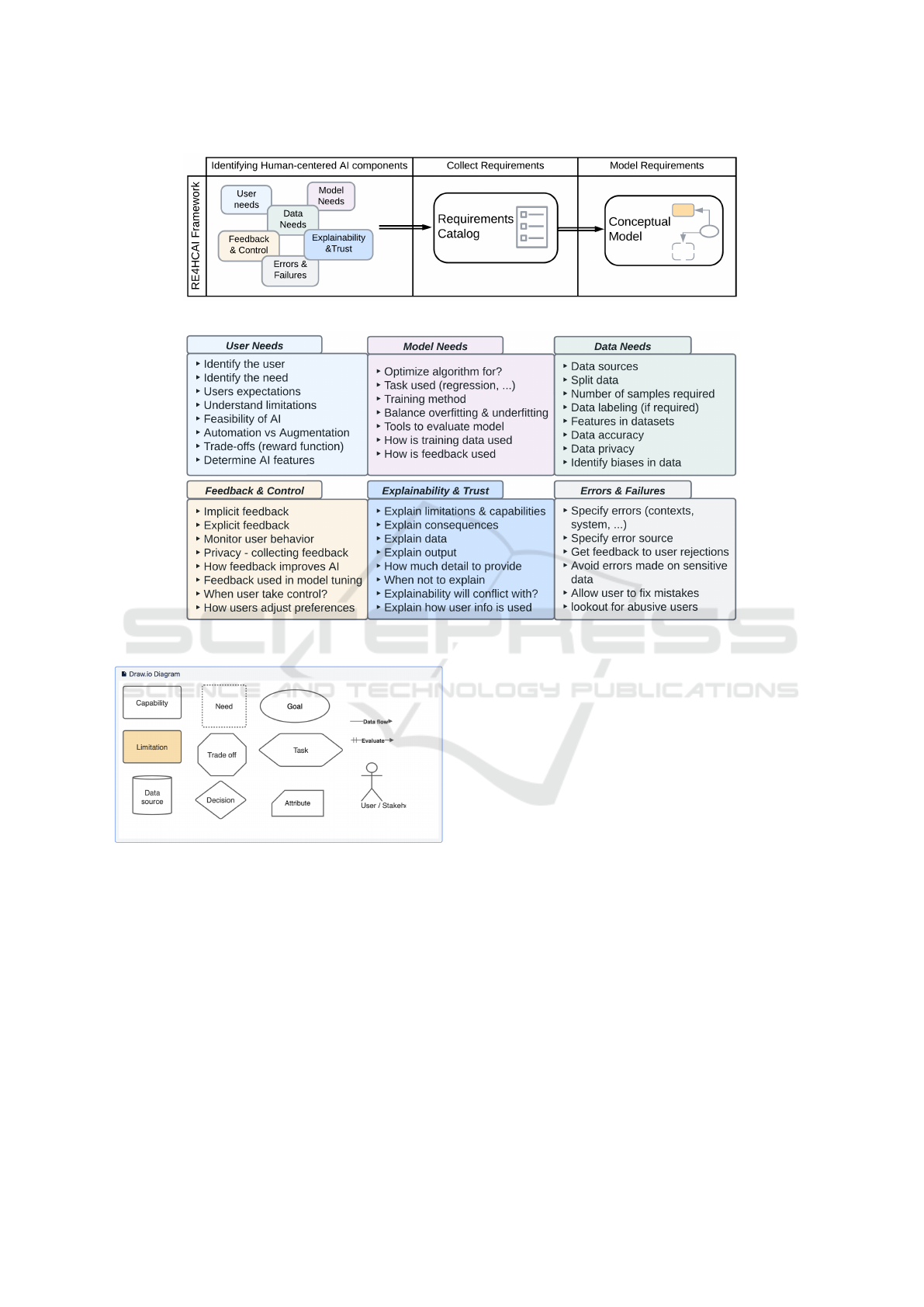

layers, as shown in Figure 1 and discussed below.

Identifying Human-Centered AI components. The

ﬁrst layer consists of six categories of require-

ments that need to be elicited for developing human-

centered AI software solutions. The six areas are

User Needs, Model Needs, Data Needs, Feedback and

User Control, Explainability and Trust, and Errors

and Failure. The categories are inspired by Google

PAIR’s human-centred AI guidelines (Google Re-

search, 2019). Our categorization into six areas aligns

with the ﬁve categories proposed by Google PAIR (all

areas except Model Needs). We added the ‘Model

Needs’ that identify the human-centered approaches

used when selecting and training an appropriate AI

model. Figure 2 shows a high-level summary of the

requirements covered in each area.

Requirements Catalog. For each of the six areas, we

combined the human-centred guidelines from Google

PAIR, Microsoft’s guidelines for human-centred AI

interaction (Microsoft, 2022), and the guidelines for

Apple’s human interface for developing ML applica-

tions (Apple Developer, 2020) along with the Ma-

chine Learning Canvas (Louis Dorard, ). Next, we

then collected all requirements in the literature (Ah-

mad et al., 2022; Villamizar et al., 2021) that ﬁt

our six selected areas and mapped them against the

combined guidelines. To validate our mapping, we

conducted a survey with practitioners to understand

which of these six areas (and the guidelines in Fig-

ure 2 should be included in a RE4HCAI frame-

work (Ahmad et al., 2023). The results showed that

all the six areas in the RE4HCAI framework are

deemed important by practitioners when collecting AI

requirements. The gathered human-centred require-

ments were listed in a tabular format to form our cat-

alog, with six sections. Each section is dedicated to

eliciting detailed requirements for each area of Fig-

ure 2.

Conceptual Model. Our SLR reviewed papers that

used a modeling language or notation to present re-

quirements. We found that most of the studies pre-

ferred UML or a conceptual model. UML was a

preferred choice because it is easier to understand

and use among different groups. However, UML

has some limitations when presenting requirements

for AI and lacks direct support for modeling busi-

ness rules and NFR’s (Ahmad et al., 2021). Also,

in our RE4HCAI we have concepts that are difﬁcult

to visualize in UML, such as needs, limitations, and

trade-offs. Therefore, we created a conceptual model

which can be instantiated in a project to present the

requirements visually.

Our modeling language consists of two layers.

The ﬁrst layer provides a holistic view of each of

our six areas. We show part of this model in Fig-

ure 5. In the ﬁrst layer, we use UML class notations

to showcase a high-level presentation of the require-

ments needed for each area and an oval shape to show

the system’s high-level goal and connect all six pre-

sented areas. The second layer presents a separate

model for each area, and we use uniﬁed notations for

all the areas as illustrated in Figure 3. When creating

our modeling notations, we tried to adhere as much as

possible to the Physics of Notations (Moody, 2009).

We incorporated different shapes, colors, and textures

to reduce cognitive overload for users and make the

notations easy to use and understand.

Each notation is used to model a different concept

from the requirements collected in the requirements

catalog.

3.1 RE4HCAI Collaborative Tool

Developing a software system with an AI component

requires different teams and roles to work together.

In order to facilitate collaboration between the devel-

opment teams, we aimed to develop a collaborative

tool for implementing our framework. The idea was

to use platforms that are familiar among different AI-

software development roles, and utilize existing tools

and collaboration platforms. As part of our practi-

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

128

Figure 1: Framework for eliciting and modeling requirements for human-centered AI software.

Figure 2: Requirements for Human-Centred AI.

Figure 3: Legend for the conceptual model at the second

level to show more abstract requirements.

tioner survey (Ahmad et al., 2023), we asked the par-

ticipants about their platform preferences. Based on

the survey results, we identiﬁed platforms to use for

evaluating our initial prototype. We use Conﬂuence

(https://www.atlassian.com/software/conﬂuence), an

online collaboration platform where team members

can work on projects together and share, plan and

build ideas together. Conﬂuence is used as a mean

to present our framework among participants and al-

lows us to present our modelling tool using the exist-

ing drawing applications Draw.io (https://drawio-app.

com).

The platform contains a template project space as

shown in Figure 4. The landing page provides an

overview of the platform, framework, and a short tu-

torial on how to use the catalog and the modeling

language. The main page further contains six sub-

pages each dedicated to part of the framework. Sub-

page one includes a table with the catalog for eliciting

the human-centered requirements for a speciﬁc AI-

software system. Sub-page two showcases the avail-

able modelling notations that are displayed in Fig-

ure 3. Sub-page three contains the template model

for the ﬁrst layer model. The last three sub-pages

provide templates for the models second layers. We

only provide models for the ﬁrst three areas at this

stage, i.e., “User Needs”, “Model Needs”, and “Data

Needs”, and plan to expand it further in the future.

4 CASE STUDY DETAILS

We conducted a case study to investigate the useful-

ness of our framework and the corresponding plat-

form to engineering AI software with a human-

centered perspective. Our case study the MoveRe-

minderApp project (Daryabeygi-Khotbehsara et al.,

2022), involved designing and building a real-time

health application for people with type 2 diabetes

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

129

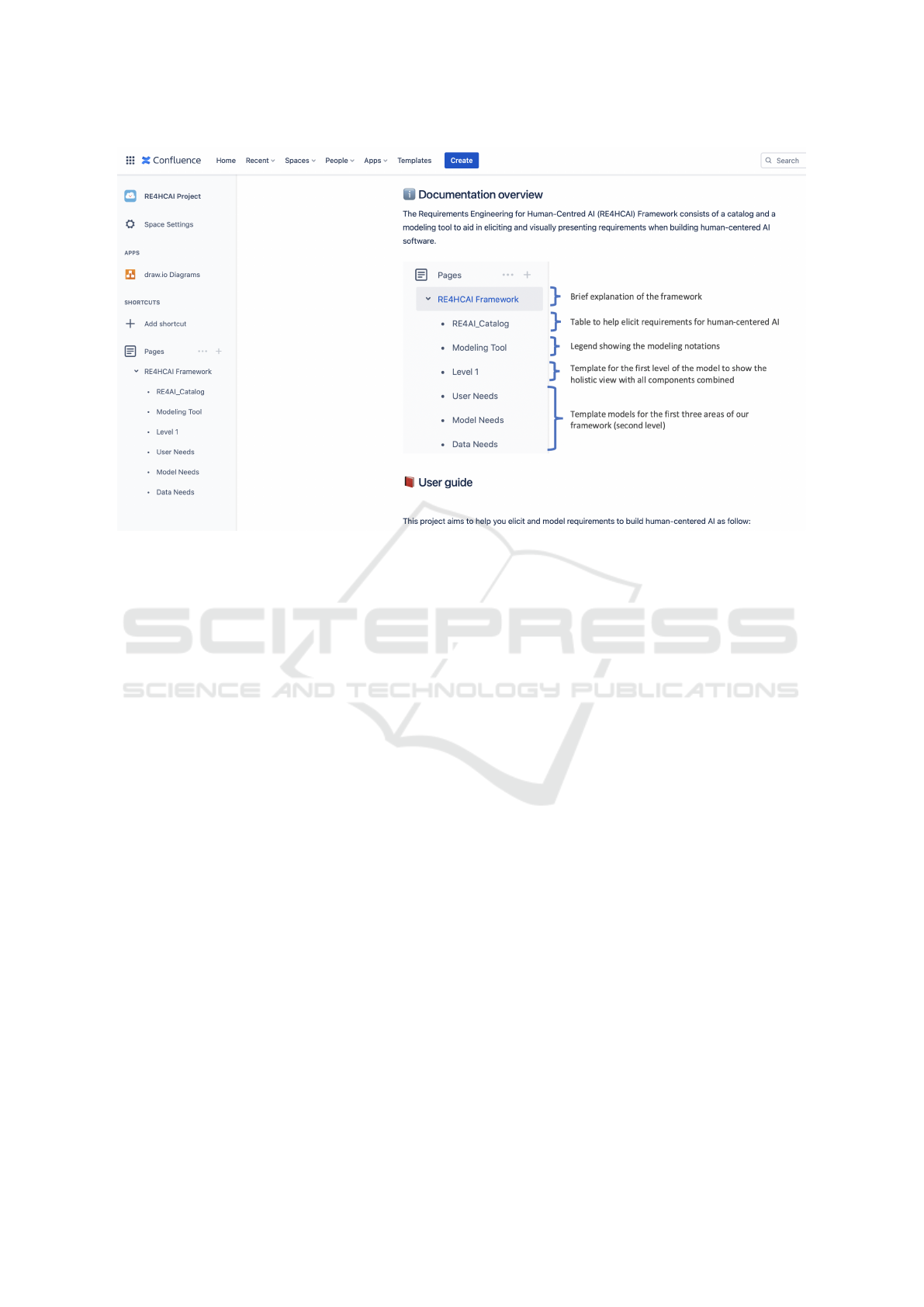

Figure 4: The Conﬂuence collaboration page used to conduct the case study.

(T2D). The application keeps track of the users’ be-

havior toward movement, measures the sedentary

time, and sends notiﬁcations to remind the user to

move. These notiﬁcations consist of messages using

a Deep Learning (DL) model to remind the person to

stand up or walk once the user has been predicted as

sitting for a prolonged time.

We conducted our case study with three experts

who worked on the MoveReminderApp project, in-

cluding a project manager, data scientist, and soft-

ware engineer. Our participants have several years

of professional experience: the project manager has

nine years of experience, the software engineer has

two years of experience, and the data scientist has

four years of experience in their ﬁeld. We note that

getting these three experts in our case study provides

complimentary views and perspectives from different

roles in AI-based software development. Also, the

MoveReminderApp project was already in the late de-

velopment stages and was intentionally selected as we

wanted to investigate if the experts had initially con-

sidered different aspects of our framework while elic-

iting and specifying or modeling requirements.

Requirements Elicitation Sessions. We created a

dedicated project in Conﬂuence for the MoveRe-

minderApp project, giving each participant access to

the project. We ﬁrst conducted a session with each

participant. Due to the workplace recommendations

and experts’ preferences, all sessions were conducted

virtually. The sessions were for 1-2 hours each.

Each session was dedicated at making the participants

aware of our framework and the Conﬂuence platform

and using their domain knowledge and expertise in

the MoveReminderApp project to investigate if our

platform was valuable for their project’s context. We

further wanted to identify any discrepancies between

the participants’ views of the requirements needed for

the ﬁrst three sub-areas in our framework. To do so,

we elicited requirements using the catalog from each

of the three participants individually.

Once all the requirements were elicited, a holis-

tic view of the MoveReminderApp project was estab-

lished, as shown in Figure 5, and a model was created

for each of the three areas as described in the next

sections. We note that we used our requirements cat-

alog of Figure 2 to elicit information for each of these

three areas. Participants could return to the Conﬂu-

ence project at any time and edit the elicited require-

ments and models.

Participant Interviews. The ﬁnal step in our study

involved interviews with the participants to get their

feedback on our platform and the framework. We note

that the data scientist in the project was not available

for the interview stage due to personal reasons, and

only the software engineer and the project manager

participated in our interviews. We obtained consent

from both participant’s, and interviews were carried

out online. Due to the limited availability of the ex-

perts, the two interviews were scheduled for 45 min-

utes each. Both interviews were audio-recorded and

transcribed for analysis and evaluation.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

130

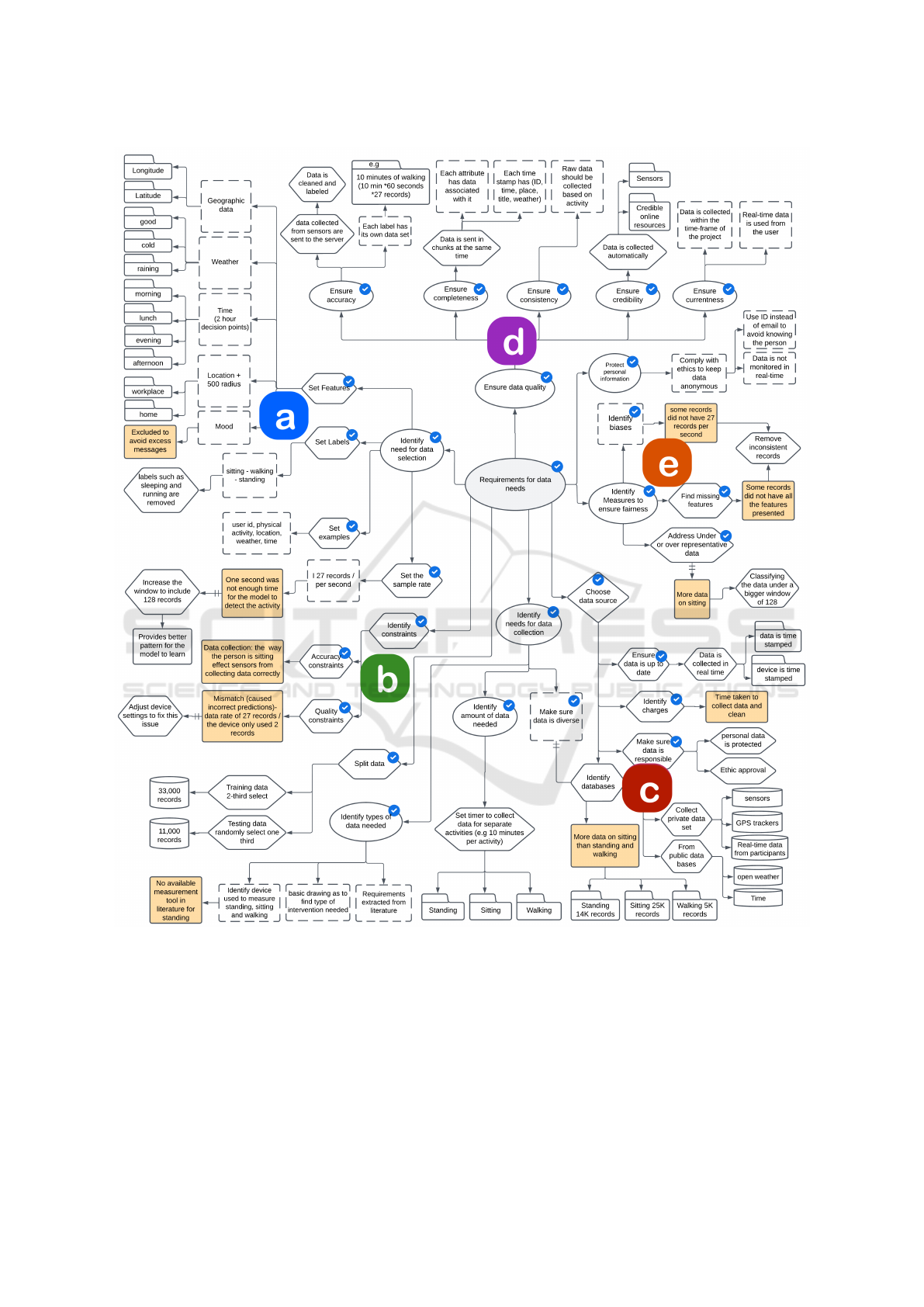

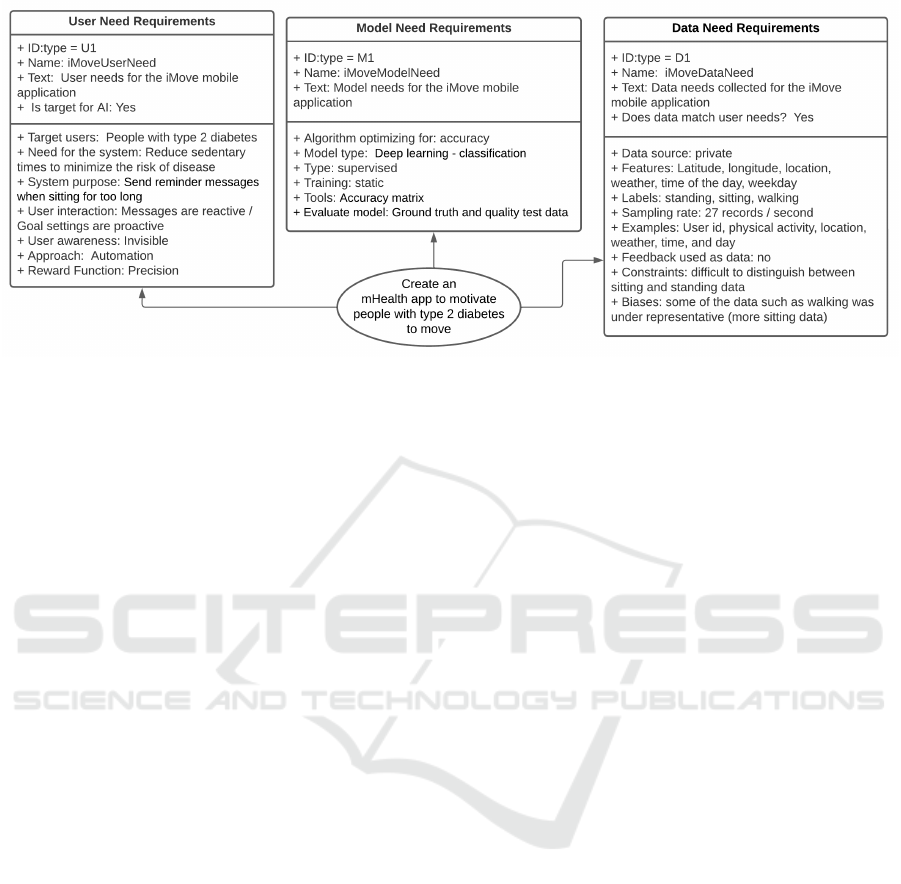

Figure 5: Model presenting a holistic view of the requirements elicited for the MoveReminderApp project.

5 ELICITATION SESSIONS

In this section, we provide details of the outcomes

of our requirements elicitation and modeling sessions

with the three participants. Below, we discuss the out-

comes of eliciting requirements for the user needs,

model needs, and data needs collated from the three

sessions. Figure 5 presents the high-level require-

ments for the ﬁrst three areas and the main goal for

the project. When building the models, we used a

blue tick to distinguish between framework require-

ments and system requirements, as shown in the ﬁrst

three models in Figures 6, 8, and 7. The notations that

do not have a blue tick are speciﬁc to the MoveRe-

minderApp project.

5.1 MoveReminderApp: User Needs

We identify the need for the system as shown in part

a (the blue colored box) in Figure 6. The experts had

considered, among others, previous scientiﬁc litera-

ture on the behavior of T2D patients to determine the

need for the project. A recent SLR showed that people

with T2D have higher sedentary behavior, which can

cause serious health risks (Kennerly and Kirk, 2018).

The existing literature found that getting people with

T2D to break up their sitting time with little move-

ments could improve quality of life and reduce in-

creased health risks due to diabetes (Dempsey et al.,

2016). Using digital health solutions, such as sensors,

wearables, and mobile phones, was found to reduce

sitting times to 41 minutes per day (Stephenson et al.,

2017).

When evaluating the need, it was evident that min-

imizing prolonged sitting times could reduce the risk

of increased blood pressure, high cholesterol, and car-

diovascular diseases, speciﬁcally for people with type

2 diabetes (Daryabeygi-Khotbehsara et al., 2022).

The idea behind using a mobile health application was

to generate notiﬁcations by the system as to when to

stand up. Therefore, the system will have to accu-

rately predict if the user has been sitting too long and

notify them to stand up or walk around. Since the

application had to provide predictions, using AI (i.e.,

machine learning or deep learning) was a feasible so-

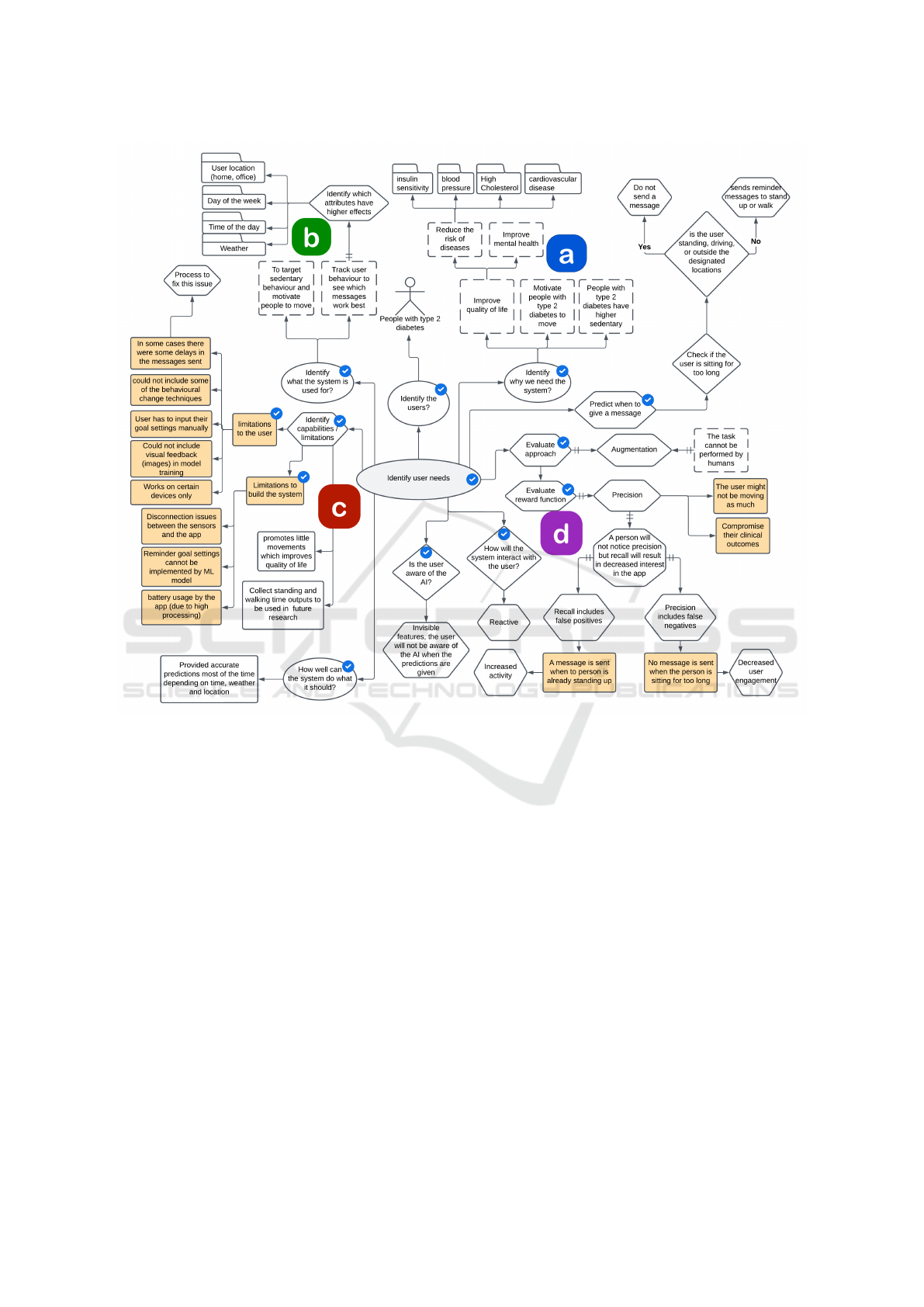

lution. Figure 6 shows the system’s different needs

(part a), including improving mental health as an out-

come of breaking up prolonged sitting times for peo-

ple with T2D. Part b (the green colored box) of Fig-

ure 6 shows what the system is used for.

In part c (the red colored box) of Figure 6 we show

the limitations and capabilities of the system. There

were several system limitations that were identiﬁed

early, and some of these limitations appeared as the

project advanced in the later stages. Some of the limi-

tations were easily addressed, e.g., delays in users re-

ceiving messages from the application and connection

issues between the sensors and the application. Other

system limitations were difﬁcult to address. These in-

cluded goal settings, as the model could not achieve

this feature. Therefore, the user had to input the set-

tings manually through the user interface. Also, part

of the initial plan was to include behavioral change

techniques (BCT), such as mood. However, this was

later discarded as they found that including BCT fea-

tures would increase the number of messages sent to

the user, making it more of a hassle and an inconve-

nience to the end user.

When evaluating the reward function or evaluation

metric, we ﬁrst set out to list the possible outcomes of

getting either a False Positive (FP) or a False Negative

(FN), as reﬂected in Part d (the purple colored box) of

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

131

Figure 6: User Needs for the MoveReminderApp project.

Figure 6. We discussed these options and weighed out

the trade-off. An FP meant the system would send a

message to remind the user to stand up or walk when

they were already standing or walking. An FN hap-

pened when the person was sitting for too long, and

the application would miss sending a reminder. In the

case of an FP, the end user would lose interest in the

system if incorrect notiﬁcations were sent and most

likely become less interested in using the application

altogether. Contrarily, when an FN occurs, the end

user would not notice, as sitting is part of human na-

ture. The downside to an FN was that the user would

move less than required, which might complicate or

delay their clinical goals. However, the project man-

ager explained that from the user’s perspective, hav-

ing an FP had higher consequences than an FN, as an

FN would not irritate the end user as much as having

an FP. Thus, the aim was to minimize FP as much as

possible when selecting the reward function.

5.2 MoveReminderApp: Model Needs

The deep learning (DL) model was designed to opti-

mize for accuracy. Although we established in user

needs that precision would be the evaluation metric,

the predictions were evaluated based on accuracy only

by the experts when building the model. The selected

DL classiﬁcation model was built to distinguish a per-

son’s movement behavior. Initially, the training was

done ofﬂine by collecting data from sensors manually

and using this data to train the model. Therefore, the

model was not designed to learn and adjust to users’

behavior while using the system. Figure 7 shows part

of the model-needs model developed for the MoveRe-

minderApp project.

Most of the model tuning happens at the data level

for this project. When training the model, there were

enough data instances, and the data had ground truth,

thus making it easy to train the model. However, the

experts expressed that while using the training data,

the model could not distinguish between standing and

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

132

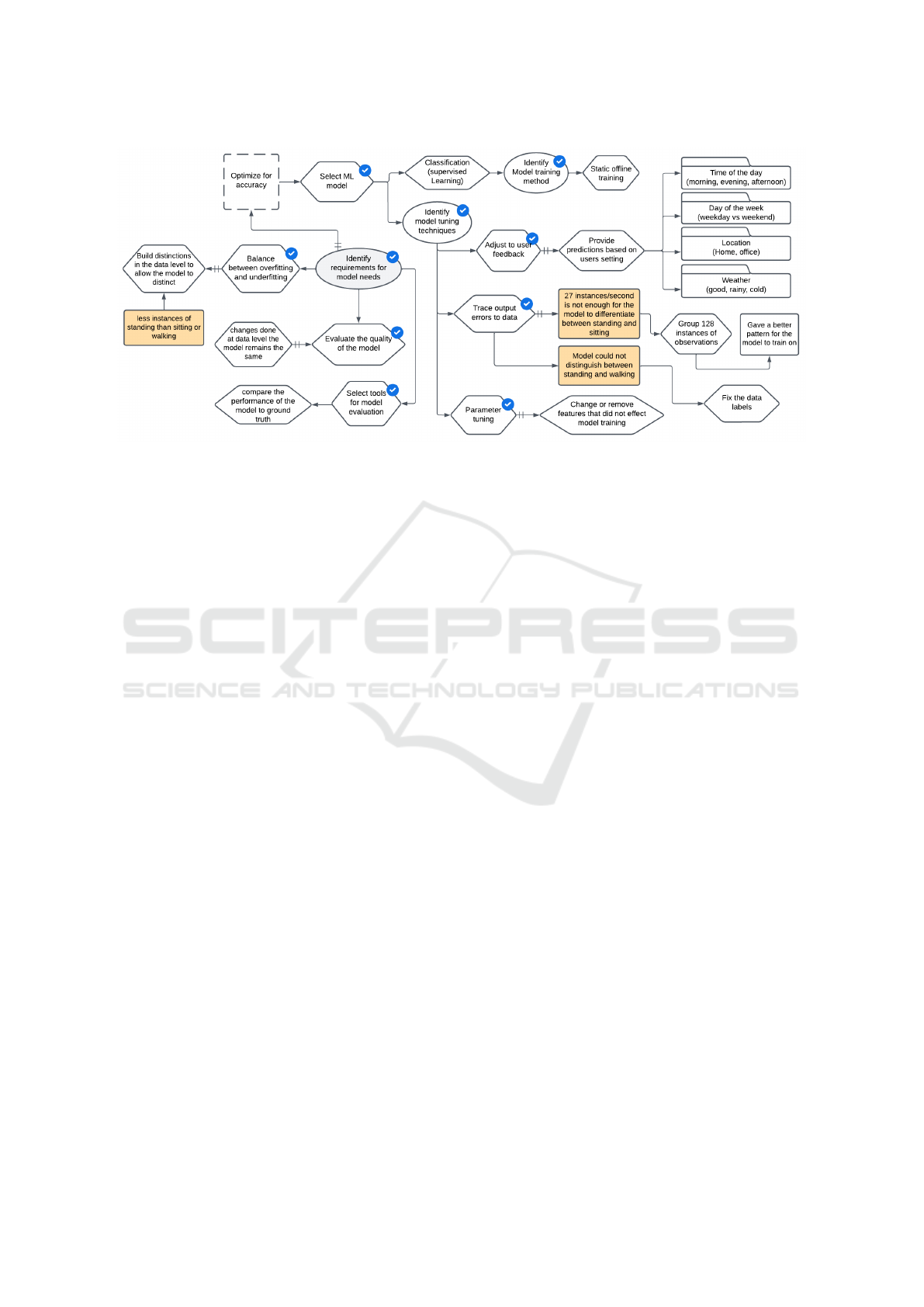

Figure 7: Model Needs for the MoveReminderApp project.

walking instances. This issue was mainly due to the

data collection method, as each data-collection in-

stance had 27 sensor data records per second. One

second’s worth of data for each instance was not

enough for the model to detect the users’ movement

when it came to standing and walking. To ﬁx this is-

sue, they had to increase the window to 128 records

per second. This increase helped the model differen-

tiate between standing and walking.

5.3 MoveReminderApp: Data Needs

The ﬁrst requirement for data collection was to iden-

tify which features were needed, as shown in part

a (blue coloured box) of Figure 8. Features for the

MoveReminderApp included geographic data (longi-

tude and latitude), location, weather, time of the day,

and day of the week. The collected data was then la-

beled as sitting, walking, and standing. The data was

cleaned, and some instances of running and sleeping

were removed. An example of a row included the

user ID, physical activity, location, sitting, standing,

weather, and time. The initial sampling rate was 27

records per second, which was later updated to 128

records due to model limitations.

A private database was primarily built as the main

data source, yet some data was obtained from a public

database, such as weather (open weather), as shown in

part c (the red coloured box) of Figure 8. For the pri-

vate database, the data was collected in real-time in

batches. Data was collected using Internet of Things

(IoT) devices and sensors. Each sample was time-

stamped by the device used to ensure the data was al-

ways up to date. Other resources, such as GPS track-

ers and time applications, were used. When collecting

the data from sensors, they had to account for con-

straints, as shown in part b (the green coloured box)

of Figure 8. The ﬁrst visible constraint was identiﬁed

when some attributes were missing from the collected

data. It was found that the way the user was sitting af-

fected the sensors from collecting the data correctly.

For example, data collected from a person sitting with

one knee crossed over the other provided different

measurements than someone sitting upright on a chair

with both knees bent and feet on the ﬂoor. The other

potential constraint was a mismatch between the data

rate sent from sensors and the model. This mismatch

resulted in predictions that were not accurate due to

a fault in the system. The model was trained on 27

records per second, and the device collecting the data

only transmitted two records per second. Modiﬁca-

tions had to be made to the device to change the data

rate and ﬁx the fault in the system.

Requirements for data quality included that the

data should be accurate, complete, consistent, cred-

ible, and current. As displayed in part d (the pur-

ple coloured box) of Figure 8. The data was col-

lected from sensors and sent to the server as raw data.

Thus, to ensure that the data was accurate, it had to

be cleaned and labeled accordingly. Each label had

its own dataset; i.e., collecting data on walking was

done by setting a timer for 10 minutes (to collect

10*60*27 records) and labeling all the collected data

as walking. Furthermore, data was collected based on

the activity and sent in chunks, which helped build

a more consistent dataset. For data completeness,

the team experienced some data loss due to connec-

tivity issues between the sensors and the device, so

they had to ensure that the sent data matched the time

stamps. For credibility, data were collected automat-

ically from sensors, which they assumed were truth-

ful. And last, data was seen as current since it was

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

133

Figure 8: Data Needs for the MoveReminderApp project.

collected for the project for a period of time.

The ﬁnal step was to investigate whether the col-

lected data was fair and inclusive. This is modeled

in part e (the orange coloured box) of Figure 8. First,

the team had to apply for ethics and comply with the

ethics application while collecting and using personal

information. The team mentioned that it was chal-

lenging to make sure that the users’ personal infor-

mation was protected. They ended up providing each

user with an ID and did not collect data from users

in real-time to keep them anonymous. The next step

was to ﬁnd any missing features. When cleaning the

data, they found that some instances did not have 27

records per second, which caused inconsistencies in

the data. Also, the data on walking and standing was

underrepresented, which caused issues in the accu-

racy of the predicted results.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

134

6 INTERVIEWS

We asked the MoveReminderApp team for feed-

back on our proposed RE4HCAI framework and its

supporting collaborative tool. Below, we present

their feedback on the framework and the tool and

present some insights from applying our framework

to the MoveReminderApp project.

6.1 RE4HCAI Framework Feedback

Collaborative Work. Both experts highly rated the

ability to work collaboratively on the platform. The

project manager felt that it was an excellent choice to

use Conﬂuence. They explain that “using conﬂuence

compared to other platforms that I had used before

such as Jira was easier to learn”. They also felt that

having such a platform could help shorten the dura-

tion of the study and make everything much clearer.

Visual Aspects. Both experts said that the model’s key

advantages include providing a practical visual rep-

resentation of the system’s AI-based component re-

quirements. Using yellow for limitations was favored

by our participants. One participant mentioned that

“limitations are negative, and having it colored yel-

low made it easier to distinguish”. Also, using nota-

tions such as icons, database notations, and decisions

was convenient as they could quickly point them out

without needing to go back and check the legend.

Limitations. We asked our participants about the lim-

itations of the catalog and modeling language. The

project manager explained that they had issues under-

standing some of the terminologies used in the cata-

log. “I had some questions, and some aspects I did

not understand as I am not from an engineering back-

ground, but you clariﬁed those for me.”. They sug-

gested we provide examples to the catalog to explain

the concepts and include a comment section to pro-

vide feedback when required. The major limitation

of the model was that it could get slightly complex

at times. For example, in the data needs model, a lot

of information was presented, and it got difﬁcult to

keep track of the information provided. Suggestions

to reduce the complexity of the ﬁnal models included

slicing the model into smaller parts or highlighting

aspects of the diagram based on how it is categorized.

6.2 Reﬂections

Missing Requirements. We noticed that the human-

centred aspects presented in our catalog were not con-

sidered when originally building the MoveReminder-

App, especially the user needs area. Our participants

said they had to re-consider most of the user needs

only after viewing the models. Requirements such

as evaluating the reward function were not discussed

among the team members when building the project.

For example, they did not consider the consequences

of having a FP vs a FN in the app before starting the

project. This reﬂects the need for a platform like ours

to help guide the practitioners in eliciting and model-

ing requirements when building AI software.

New Roles, Collaboration and Communication. AI

paradigm has introduced new roles and requirements,

which was not the case in traditional software engi-

neering projects. For instance, we noticed that some

of the requirements extracted from the project man-

ager were not in line with the requirements taken from

both the data scientist and software engineer. We used

our framework and tool to assist the team in clarifying

these crucial requirements issues.

For example, when we collected requirements

from the project manager, we established that pre-

cision should be used when evaluating the reward

function. However, the data scientist working on the

DL model focused on accuracy. Accuracy might not

have been the best metric to use as high accuracy

could have been achieved if the negative class was

the dominant one (Juba and Le, 2019). This would

have caused issues in the results, as there was a visi-

ble class imbalance in the dataset. Class imbalance

is when data from the major class is more repre-

sented than the other classes, which can cause the

model to present biased results towards the dominant

class (Johnson and Khoshgoftaar, 2019; Japkowicz

and Stephen, 2002). In this case, data on sitting was

more represented than standing and walking, which

might have contributed to the high accuracy.

We observed that in some instances, the differ-

ent team members were unaware of some aspects the

other members were working on prior to introducing

our tool. For example, the data scientist had to adjust

the amount of data fed into the model to 128 records

due to model limitations. The project manager be-

came aware of this only after observing this limitation

in our conceptual model. Also, the software engineer

was only aware of setting up the sensors and collect-

ing the data from the devices and was not able to pro-

vide much detail on what features were needed for the

data, such as time and weather.

Changing Requirements. Another observation

we made was that some of the MoveReminder-

App project requirements changed over time. For ex-

ample, in terms of user needs, some of the system

needs were found to be difﬁcult to implement due to

model limitations. The original plan was to include

images when displaying the feedback to the end user.

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

135

Over time, it became apparent that the model had

limitations and could only provide textual messages.

Thus, providing visual feedback became a limitation

to the system rather than a need. Also, when collect-

ing data requirements at the start of the project, it was

not very clear how the data should be used to train

the DL model. Initially, there was a lot of raw data to

work with. However, the format and the diversity of

the collected data were not adequate to use for train-

ing or testing the model. The data had to be modiﬁed

throughout the project timeline on many occasions for

it to become ﬁt to train the selected model. This re-

ﬂects the volatility and the exploratory nature of AI

projects. Thus a platform like ours facilitates discus-

sions in the early project stages to establish founda-

tional requirements, which all roles agree on. This

would help deal with the changing requirements as

well, and to see the impact of the changes on different

parts of user needs, model needs or data needs.

7 CONCLUSIONS

In this paper, we reported on a case study related to

our framework and the related tool for eliciting and

modeling requirements for human-centred AI. The

tool is used to support our proposed framework based

on the industrial human-centred guidelines, an analy-

sis of studies obtained from the literature, and a user

survey that we have conducted. The case study was

conducted with three experts from a team working

on a mobile health application targeted at type-2 dia-

betes patients. We found that most human-centred as-

pects were missing from the initial planning of the AI

software solution. Also, we found that requirements

change dramatically over time with AI software, and a

more iterative approach to RE needs to be considered.

In the future, we plan to conduct more case studies

of our framework and the tool. Speciﬁcally, we aim

to select projects using different AI techniques, from

different application domains, and at different stages

of development. We want to investigate the difference

in the RE process with and without our framework, in

different settings.

REFERENCES

Agarwal, M. and Goel, S. (2014). Expert system and it’s re-

quirement engineering process. In International Con-

ference on Recent Advances and Innovations in Engi-

neering (ICRAIE-2014), pages 1–4. IEEE.

Ahmad, K., Abdelrazek, M., Arora, C., Bano, M., and

Grundy, J. (2022). Requirements engineering for ar-

tiﬁcial intelligence systems: A systematic mapping

study. arXiv preprint arXiv:2212.10693.

Ahmad, K., Abdelrazek, M., Arora, C., Bano, M., and

Grundy, J. (2023). Requirements practices and gaps

when engineering human-centered artiﬁcial intelli-

gence systems. arXiv preprint arXiv:2301.10404.

Ahmad, K., Bano, M., Abdelrazek, M., Arora, C., and

Grundy, J. (2021). What’s up with requirements en-

gineering for artiﬁcial intelligence systems? In 2021

IEEE 29th International Requirements Engineering

Conference (RE), pages 1–12. IEEE.

Amaral, G., Guizzardi, R., Guizzardi, G., and Mylopou-

los, J. (2020). Ontology-based modeling and analysis

of trustworthiness requirements: Preliminary results.

In International Conference on Conceptual Modeling,

pages 342–352. Springer.

Amershi, S., Cakmak, M., Knox, W. B., and Kulesza, T.

(2014). Power to the people: The role of humans in

interactive machine learning. AI Magazine, 35(4).

Amyot, D. and Mussbacher, G. (2011). User requirements

notation: the ﬁrst ten years, the next ten years. JSW,

6(5):747–768.

Apple Developer (2020). Human in-

terface guidelines. [online]

https://developer.apple.com/design/human-interface-

guidelines/machine-learning/overview/introduction/

[Accessed 1 May 2020].

Belani, H., Vukovic, M., and Car,

Z. (2019). Requirements

engineering challenges in building AI-based complex

systems. In 2019 IEEE 27th International Require-

ments Engineering Conference Workshops (REW),

pages 252–255. IEEE.

Carrizo, D., Dieste, O., and Juristo, N. (2014). Systematiz-

ing requirements elicitation technique selection. In-

formation and Software Technology, 56(6):644–669.

Chen, Q. Z., Schnabel, T., Nushi, B., and Amershi, S.

(2022). Hint: Integration testing for ai-based features

with humans in the loop. In 27th International Con-

ference on Intelligent User Interfaces, pages 549–565.

Dalpiaz, F., Franch, X., and Horkoff, J. (2016). istar 2.0

language guide. arXiv preprint arXiv:1605.07767.

Daryabeygi-Khotbehsara, R., Shariful Islam, S. M., Dun-

stan, D. W., Abdelrazek, M., Markides, B., Pham, T.,

and Maddison, R. (2022). Development of an android

mobile application for reducing sitting time and in-

creasing walking time in people with type 2 diabetes.

Electronics, 11(19):3011.

Davey, B. and Parker, K. R. (2015). Requirements elicita-

tion problems: a literature analysis. Issues in Inform-

ing Science and Information Technology, 12:71–82.

Dempsey, P. C., Owen, N., Yates, T. E., Kingwell, B. A.,

and Dunstan, D. W. (2016). Sitting less and mov-

ing more: improved glycaemic control for type 2 di-

abetes prevention and management. Current diabetes

reports, 16(11):1–15.

Ezzini, S., Abualhaija, S., Arora, C., and Sabetzadeh, M.

(2023). Ai-based question answering assistance for

analyzing natural-language requirements. In In Pro-

ceedings of the 45th International Conference on Soft-

ware Engineering (ICSE’23).

Fazzini, M., Khalajzadeh, H., Haggag, O., Li, Z., Obie, H.,

Arora, C., Hussain, W., and Grundy, J. (2022). Char-

acterizing human aspects in reviews of covid-19 apps.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

136

In 2022 IEEE/ACM 9th International Conference on

Mobile Software Engineering and Systems (Mobile-

Soft), pages 38–49.

Feldt, R., de Oliveira Neto, F. G., and Torkar, R. (2018).

Ways of applying artiﬁcial intelligence in software en-

gineering. In Proceedings of the 6th International

Workshop on Realizing Artiﬁcial Intelligence Syner-

gies in Software Engineering, pages 35–41.

Fuentes-Fern

andez, R., G

omez-Sanz, J. J., and Pav

on, J.

(2010). Understanding the human context in re-

quirements elicitation. Requirements engineering,

15(3):267–283.

Gervasi, V., Gacitua, R., Rounceﬁeld, M., Sawyer, P., Kof,

L., Ma, L., Piwek, P., Roeck, A. d., Willis, A., Yang,

H., et al. (2013). Unpacking tacit knowledge for re-

quirements engineering. In Managing requirements

knowledge, pages 23–47. Springer.

Gonc¸alves, E., de Oliveira, M. A., Monteiro, I., Castro, J.,

and Ara

ujo, J. (2019). Understanding what is impor-

tant in istar extension proposals: the viewpoint of re-

searchers. Requirements Engineering, 24(1):55–84.

Google Research (2019). The people +

AI guidebook. [online] Available at:

https://research.google/teams/brain/pair/ [Accessed 1

April 2020].

Gruber, K., Huemer, J., Zimmermann, A., and Maschotta,

R. (2017). Integrated description of functional and

non-functional requirements for automotive systems

design using sysml. In 2017 7th IEEE International

Conference on System Engineering and Technology

(ICSET), pages 27–31. IEEE.

Grundy, J. C. (2021). Impact of end user human aspects on

software engineering. In ENASE, pages 9–20.

Holmquist, L. E. (2017). Intelligence on tap: artiﬁcial

intelligence as a new design material. interactions,

24(4):28–33.

Hong, M. K., Fourney, A., DeBellis, D., and Amershi, S.

(2021). Planning for natural language failures with the

ai playbook. In Proceedings of the CHI Conference on

Human Factors in Computing Systems, pages 1–11.

Japkowicz, N. and Stephen, S. (2002). The class imbalance

problem: A systematic study. Intelligent data analy-

sis, 6(5):429–449.

Johnson, J. M. and Khoshgoftaar, T. M. (2019). Survey on

deep learning with class imbalance. Journal of Big

Data, 6(1):1–54.

Juba, B. and Le, H. S. (2019). Precision-recall versus ac-

curacy and the role of large data sets. In Proceedings

of the AAAI conference on artiﬁcial intelligence, vol-

ume 33, pages 4039–4048.

Kennerly, A.-M. and Kirk, A. (2018). Physical activity and

sedentary behaviour of adults with type 2 diabetes: a

systematic review. Practical Diabetes, 35(3):86–89g.

Khomh, F., Adams, B., Cheng, J., Fokaefs, M., and Anto-

niol, G. (2018). Software engineering for machine-

learning applications: The road ahead. IEEE Soft-

ware, 35(5):81–84.

Lapouchnian, A. (2005). Goal-oriented requirements engi-

neering: An overview of the current research. Univer-

sity of Toronto, 32.

Louis Dorard. The machine learning canvas.

https://www.louisdorard.com/machine-learning-

canvas. Accessed [March, 2020].

Lu, Q., Zhu, L., Xu, X., Whittle, J., Douglas, D., and

Sanderson, C. (2022). Software engineering for re-

sponsible ai: An empirical study and operationalised

patterns. In 2022 IEEE/ACM 44th International Con-

ference on Software Engineering: Software Engineer-

ing in Practice (ICSE-SEIP), pages 241–242. IEEE.

Maguire, M. (2001). Methods to support human-centred de-

sign. International journal of human-computer stud-

ies, 55(4):587–634.

Mart

ınez-Fern

andez, S., Bogner, J., Franch, X., Oriol, M.,

Siebert, J., Trendowicz, A., Vollmer, A. M., and Wag-

ner, S. (2022). Software engineering for ai-based sys-

tems: a survey. ACM Transactions on Software Engi-

neering and Methodology (TOSEM), 31(2):1–59.

Microsoft (2022). Guidelines for human-ai interac-

tion. [online] https://www.microsoft.com/en-

us/research/project/guidelines-for-human-ai-

interaction/ [Accessed 1 Feb 2022].

Moody, D. (2009). The “physics” of notations: toward a sci-

entiﬁc basis for constructing visual notations in soft-

ware engineering. IEEE Transactions on software en-

gineering, 35(6):756–779.

Nalchigar, S., Yu, E., and Keshavjee, K. (2021). Mod-

eling machine learning requirements from three per-

spectives: a case report from the healthcare domain.

Requirements Engineering, 26(2):237–254.

Nuseibeh, B. and Easterbrook, S. (2000). Requirements en-

gineering: a roadmap. In Proceedings of the Future of

Software Engineering Conference, pages 35–46.

Ries, B., Guelﬁ, N., and Jahic, B. (2021). An MDE method

for improving deep learning dataset requirements en-

gineering using alloy and UML. In Proceedings of the

9th International Conference on Model-Driven Engi-

neering and Software Development, pages 41–52.

Schmidt, A. (2020). Interactive human centered artiﬁcial

intelligence: a deﬁnition and research challenges. In

Proceedings of the International Conference on Ad-

vanced Visual Interfaces, pages 1–4.

Sculley, D., Holt, G., Golovin, D., Davydov, E., Phillips,

T., Ebner, D., Chaudhary, V., Young, M., Crespo, J.-

F., and Dennison, D. (2015). Hidden technical debt

in machine learning systems. In Advances in neural

information processing systems, pages 2503–2511.

Shneiderman, B. (2022). Human-Centered AI. Oxford Uni-

versity Press.

Stephenson, A., McDonough, S. M., Murphy, M. H., Nu-

gent, C. D., and Mair, J. L. (2017). Using computer,

mobile and wearable technology enhanced interven-

tions to reduce sedentary behaviour: a systematic re-

view and meta-analysis. International Journal of Be-

havioral Nutrition and Physical Activity, 14(1):1–17.

Sutcliffe, A. and Sawyer, P. (2013). Requirements elicita-

tion: Towards the unknown unknowns. In 2013 21st

IEEE International Requirements Engineering Con-

ference (RE), pages 92–104. IEEE.

Villamizar, H., Escovedo, T., and Kalinowski, M. (2021).

Requirements engineering for machine learning: A

systematic mapping study. In 2021 47th Euromicro

Conference on Software Engineering and Advanced

Applications (SEAA), pages 29–36. IEEE.

Zowghi, D. and Coulin, C. (2005). Requirements elicita-

tion: A survey of techniques, approaches, and tools.

In Engineering and managing software requirements,

pages 19–46. Springer.

Requirements Elicitation and Modelling of Artiﬁcial Intelligence Systems: An Empirical Study

137
