YASF: A Vendor-Agnostic Framework for Serverless Computing

Mikael Giacomini and Amjad Ullah

School of Computing, Engineering & the Built Environment, Edinburgh Napier University, Edinburgh, U.K.

Keywords:

Serverless Computing, Function as a Service (FaaS), Vendor Lock-in, Vendor-Agnostic Framework, CDK.

Abstract:

The serverless execution model allows application developers to deploy their software using tiny functions

with zero administration, no handling of resource provisioning, monitoring and scaling. Due to such advan-

tages, the serverless model emerged as a new promising paradigm, where pay as you go offerings can be found

by all public cloud providers. However, these offerings encourage vendor lock-in. This paper aims to address

the vendor lock-in issue using a novel framework that combines the strength of an agnostic infrastructure con-

ﬁguration based on the Constructs Programming Model, and the creation of abstraction layers that supports

function logic by handling provider-speciﬁc integration. The proposed framework abstracts away the speci-

ﬁcities and complications of the various underlying serverless platforms and the application developers are

only required to provide their speciﬁc functions. The evaluation consists of the deployment of a benchmark

application across different cloud providers to demonstrate the ease and ﬂexibility of the framework.

1 INTRODUCTION

Cloud computing has immensely changed the provi-

sion of computing, both for individual and business

users. Since its inception, adoption of cloud services

has continued to grow. This is evident from the cur-

rent market size of 2022, which is estimated as 483.98

billion $ and is expected to witness a compound an-

nual growth rate of 15.7% to reach 1,554.94 billion

$ by 2030. This is not surprising considering the

inherent characteristics of cloud Infrastructure-as-a-

Service (IaaS) model, which takes away the respon-

sibility of managing hardware from customers, and

offers economic beneﬁts as well as operational efﬁ-

ciencies (Marston et al., 2011). This is further rev-

olutionised by the serverless model, which has also

taken away the responsibility of resource provision-

ing and tasks such as run-time management, monitor-

ing, and scalability (Baldini et al., 2017). As a re-

sult, the serverless model emerged as a new promis-

ing paradigm, where pay as you go offerings can be

found from all public cloud providers, e.g. AWS

Lambda, Google Functions, Azure Functions, and

Tencent SCF.

These offerings allow developers to just deploy

their code for execution using tiny functions with no

administration overhead. However, each of these rely

on the use of their own underlying infrastructure and

https://orcid.org/0000-0002-2407-4480

services, hence resulting in vendor lock-in, where ap-

plication owners get restricted to the use of services

from a speciﬁc provider. The lock-in issue is implicit

to the design of cloud solutions by choice; however,

it plays a role in slowing the adoption of cloud, as

organisations are concerned with the associated tech-

nical and legal issues of lock-in (Opara-Martins et al.,

2014). Hence, any system that helps loosen vendor

lock-in, contribute to an additional growth of cloud

and support a healthier environment where applica-

tion owners can be empowered to freely move be-

tween different clouds (Kumar, 2019).

The lock-in issue is not speciﬁc to serverless of-

ferings. It also remains a challenge in case of IaaS

resource offerings. Over the years, a number of so-

lutions such as Cloudify (Cloudify, 2022), Terraform

(HashiCorp, 2022), MiCADO (Kiss et al., 2019; Ul-

lah et al., 2021), Cloudiator (Baur and Domaschka,

2016), PrestoCloud (Verginadis et al., 2017), have

been developed to improve the portability and inter-

operability of cloud solutions. Similarly, a number

of such frameworks have also emerged to resolve

the lock-in issue for the serverless model. For ex-

ample, some industry initiatives include The Server-

less Framework (Serverless, 2022), Spring Cloud

(Tanzu, 2022), Midway Serverless(Midway.js, 2018),

Up (Apex, 2021), , Wing (Ben-Israel, 2022) and some

notable academic ones include Lithops (Sampe et al.,

2021), Kotless (Tankov et al., 2019), Nimbus (Chatley

Giacomini, M. and Ullah, A.

YASF: A Vendor-Agnostic Framework for Serverless Computing.

DOI: 10.5220/0011847700003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 46-56

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

and Allerton, 2020), Functionizer (Matei et al., 2021).

These solutions have contributed towards achieving

some aspects of agnosticism. However, they fell short

in various aspects such as facilitating an overall ag-

nostic functionality in terms of infrastructure con-

ﬁguration, function deployment and execution (e.g.

(Serverless, 2022; Apex, 2021; Sampe et al., 2021;

Midway.js, 2018)), lack of developers friendly ab-

straction layer (e.g. (Matei et al., 2021; Casale et al.,

2020)) or lack of agnostic integration of extended

components and platform conﬁguration (e.g. (Tankov

et al., 2019; Tanzu, 2022)). All these aspects are es-

sential to be part of a framework that aims to provide

a complete agnostic solution in terms of provider and

language independence. This paper presents YASF

(yet another serverless framework), which also aims

to facilitate application developers to make use of

fully-managed serverless environments without risk-

ing lock-in.

The rest of this paper is organised as follows. Sec-

tion 2 consists of state-of-the-art, where a thorough

review of related works in Section 2.2 is carried out

in light of a novel taxonomy (Section 2.1). Section 3

reﬂects on the reviewed solutions and identiﬁes a set

of requirements for YASF. Section 4, presents YASF

framework, where Section 5 demonstrates the appli-

cability of YASF using a benchmark application and

two public clouds. Lastly, Section 6, concludes and

brieﬂy discusses future work.

2 STATE OF THE ART REVIEW

This section discusses the related vendor-agnostic

serverless solutions (VaSS). However, to perform a

thorough review, we initially introduce a novel tax-

onomy. This enables us to accumulate, analyse and

synthesise the related work, using a uniform frame-

work. This also aims to highlight the importance of

why there is the need to propose yet another serverless

solution. The following section brieﬂy introduces the

proposed taxonomy, where the next section presents

the review.

2.1 Taxonomy

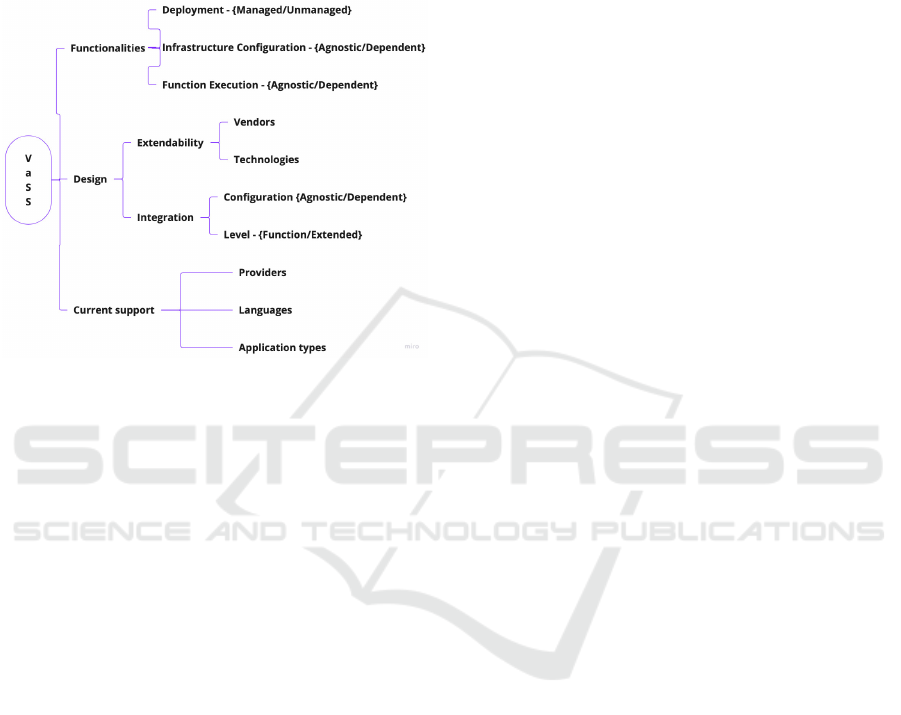

Figure 1 presents our taxonomy, which consists of at-

tributes that are essential to the core implementation

of a VaSS. These attributes are identiﬁed after a thor-

ough review of existing solutions. These attributes are

structured into following categories:

Functionalities grouped together the following key

operations that a VaSS should provide to its users:

• Infrastructure conﬁguration: A VaSS should

provide a mechanism that enables developers

to describe the infrastructure requirements of

their serverless functions, without having to deal

with the underlying vendor-speciﬁc conﬁgura-

tions. This attribute measures whether a VaSS

provides such a support in an agnostic way or not.

• Deployment: Function developers require tools to

be able to deploy functions along its required con-

ﬁgurations to a speciﬁc cloud provider without in-

vesting additional efforts especially in regards to

target a different (or new) provider. The deploy-

ment can be either Managed — where the deploy-

ment is carried by the solution — or Not managed

— where developers manually handle the deploy-

ment of additional assets.

• Function execution: Different cloud providers

have different requirements in relation to the spec-

iﬁcation of events and context information. These

requirements affect the way developers parse in-

puts/outputs of their functions. If not handled

properly, this may result in an incompatible for-

mat. In this regard, this attribute evaluates the un-

derlying abstraction mechanism of a VaSS, which

can be either Provider agnostic — where a VaSS

provides an abstraction layer that allows devel-

oper’s code to be agnostic — or Provider depen-

dant — where developers are required to produce

different function assets for each cloud provider.

Design grouped together aspects that are related to the

design of a serverless solution itself. These include

the following aspects:

1. Integration: Serverless functions usually inter-

act with other infrastructure components, such

as with storage solutions, databases, and event

queues. The VaSSs are therefore required to pro-

vide a mechanism, which facilitates developers to

integrate functions with other components. Such a

support can be evaluated in two aspects: 1) the un-

derlying nature that the integration can be handled

within a solution, i.e. either in a provider agnostic

or dependent way, and (2) the level of provided

integration, which can be either only at the Func-

tion level — the bare minimum requirement for a

solution — or also include the Extended level —

where agnostic support for interaction with addi-

tional components is provided.

2. Extendability: The success of a VaSS mainly re-

lies on the following key factors: how easy a so-

lution adapts to vendor changes, enabling sup-

port for new vendors, languages, and the abil-

ity to maintain low complexity (or no changes)

from users viewpoint in case new capabilities are

added. Hence, it is important for a VaSS to sup-

YASF: A Vendor-Agnostic Framework for Serverless Computing

port the ability to incorporate new vendors, and

languages.

Current support evaluate existing ability of VaSSs

in terms of Providers, Languages, and their suitabil-

ity towards target Application type/s. This evaluation

helps in gauging the overall maturity of a VaSS,

Figure 1: Taxonomy.

2.2 Review of Existing Solutions

The solutions selected for review is the result of a two

step process: 1) We searched for relevant solutions

using terms like cloud (or multi-cloud or vendor) ag-

nostic (or independent) serverless (or FaaS) frame-

works (or solutions), 2) From the results, we further

selected solutions that have mainly focused on vendor

lock-in issue. During step 1, we commonly encoun-

tered solutions such as Fn, Knative, and OpenFaaS as

vendor-agnostic serverless solutions. These and other

such solutions followed a serverless approach. How-

ever, these solutions generally created a containerised

support for the functions that are further deployable

across multiple clouds. This is undoubtedly a valid

approach to tackle vendor lock-in. However, it also

results in giving up cloud native FaaS features such as

monitoring, billing per execution, and container free

management. Hence, all such solutions are consid-

ered as non-native FaaS platforms and therefore, do

not fall within the scope of the review carried out in

this paper.

All relevant solutions are grouped into two cat-

egories, namely industry and academic initiatives.

These are discussed in following sections, where their

summaries in light of the attributes from taxonomy

are presented in Table 1 and 2.

2.2.1 Industry Initiatives

The Serverless Framework (TSF) (Serverless, 2022)

supports a large number of cloud providers and pro-

gramming languages. Furthermore, it also provides

a huge number of plugins to support integration with

other AWS components such as API Gateway, Step

Functions, Alerts, and DynamoDB. However, the

conﬁguration needed for enabling the integration is

required to be provided in an AWS speciﬁc manner,

which encourages lock-in. Furthermore, the same

level of support is not offered to integrate compo-

nents from other vendors. The Serverless Multicloud

Library (Microsoft, 2019) extends the TSF solution

with the key purpose of providing a more complete

provider-agnostic experience to users. This solution,

in contrast to TSF, only includes support for AWS and

Azure, where the support for Google cloud platform

is currently in progress. However, it has achieved an

extended level of agnosticism by enabling the support

to integrate the main components of both Azure and

AWS.

Spring Cloud Function (SCF) (Tanzu, 2022) also

supports a large number of vendors; however, it

only supports functions in Java language. Similarly,

the Midway Serverless framework (Midway.js, 2018)

only supports Node.js. SCF’s agnostic behaviour is

limited to function level and does not facilitate ag-

nostic integration of other components as part of the

deployment phase. However, it takes ’recognising

and parsing incoming events and output compatibil-

ity of the functions’ into consideration. In contrast

to the SCF, the Midway Serverless (Midway.js, 2018)

offers some integration with different cloud’s stor-

age solutions, e.g. with Alibaba (Alibaba, 2022)

and Tencent (Tencent, 2022) storage systems. How-

ever, the provided procedure requires to perform the

integration is not agnostic. Moreover, similar to

TSF, both these solutions also require making explicit

cloud-speciﬁc changes when switching the deploy-

ment across different cloud environments.

The Up framework (Apex, 2021), despite claim-

ing to be a platform-agnostic, its current support is

only limited to AWS. Up supports multiple program-

ming languages including Golang, Node.js, Crystal,

Python, Java and Clojure. However, additional fea-

tures are hidden behind a commercial plan. Lastly,

Wing (Ben-Israel, 2022) distincts itself from other so-

lutions by proposing a new programming language,

which incorporates both infrastructure conﬁguration

and functions logic in a single asset. Wing language

deﬁnitions are agnostic. However, their solution cur-

rently only supports AWS.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

2.2.2 Academic Initiatives

The scope of Functionizer (Matei et al., 2021) is

larger than just serverless agnostic behaviour across

different providers. It also facilitates simultaneous

cross-cloud deployment, real time monitoring, and

most importantly, utility-based optimisation. Func-

tionizer uses CAMEL modelling language (Camel,

2022), where developers write application speciﬁca-

tion as CAMEL model, which has the ability to di-

rectly deﬁne a constraint programming model. Func-

tionizer accepts CAMEL model to solve the de-

ﬁned cloud optimisation problem. A similar cross-

cloud approach, however, without the optimisation

aspect, is also proposed by Wurster et al. (Wurster

et al., 2018), where a well-known standardised

modelling language for cloud orchestration named

TOSCA (Lauwers and Tamburri, 2022) has been used

for abstraction. Wurster et al. suggests the use of ex-

isting TOSCA constructs (e.g., Node templates, Node

and Relationship types) to describe aspects of server-

less application (e.g., events, functions and event

source). In such a case, the interpretation and map-

ping of existing constructs of TOSCA rely on the

modeller, hence it cannot be adopted as a generic ap-

proach.

TOSCA currently lacks native support to model

serverless application (Wen et al., 2022). To address

this (Casale et al., 2020) within the scope of an in-

progress EU research project called RADON, aimed

to extend TOSCA with new constructs for modelling

serverless functions. Furthermore, they also intro-

duce a constraint deﬁnition language (CDL) for the

formal speciﬁcation of serverless application require-

ments with a key purpose to increase automation in

their design. RADON aims to support serverless

functions, microservices, and data pipelines using a

uniform description approach by utilising the com-

bination of TOSCA and CDL annotation. Yussupov

et al. (Yussupov et al., 2022) focused on a similar

approach, where they proposed the use of business

process model and notation (BPMN) and TOSCA

to model orchestration of functions and their auto-

matic deployment. This solution, however, require

modellers to produce two different models. Firstly,

to produce a generic BPMN-based model represent-

ing the function orchestrations, which could be trans-

formed into a provider speciﬁc orchestration model

(e.g., ASL model for AWS). Secondly, to produce a

TOSCA model to deﬁne technology-agnostic func-

tion orchestration deployment model, which can be

executed (i.e., deployed and orchestrated) by any

TOSCA-compliant orchestrator.

Nimbus (Chatley and Allerton, 2020) makes use

of annotation-based conﬁguration in contrast to the

above-mentioned approaches that are based on sepa-

rate conﬁguration (or an additional layer of abstrac-

tion). Nimbus approach allows developers to deﬁne

functions and resources using internal annotations.

Such an approach reduces the need for explicit con-

ﬁguration, however, their implementation approach

is function-centric, where the extended integrations

are supported, however, these are not deployed with

the function but expected to have already been im-

plemented in an external infrastructure conﬁguration.

Furthermore, though, the overall architecture of Nim-

bus is cloud-agnostic; their current support is lim-

ited to AWS only. Moreover, it only supports Java

Functions. Similarly, Lithops (Sampe et al., 2021)

is for the Python language and speciﬁcally designed

to support parallel data intensive systems that follow

the Map-Reduce programming model. In contrast to

Nimbus, Lithops has the support for a large number

of cloud providers and relies on an external YAML

based conﬁguration. However, its agnostic behaviour

is limited in terms of storage services and not ex-

tended to other services of the providers. Lastly, Kot-

less (Tankov et al., 2019) is speciﬁcally for the Kotlin

language, where the use of a client side DSL is pro-

posed to facilitate developers to write their functions

using the proposed DSL annotations to automatically

generate Terraform based deployment code. The is-

sue with Kotless is that it does not interact with cloud

providers to deploy the code. Instead, it provides an-

other Gradle based deployment plugin that is used for

deployment. Furthermore, various infrastructure con-

ﬁguration related attributes, such as integration with

storage components, is not agnostic.

3 REQUIREMENTS

The following paragraphs reﬂect on the review carried

out in Section 2.2 and introduce key requirements for

our proposed solution.

Developer’s Friendly Abstraction Layer. The

core function of a VaSS is to facilitate develop-

ers with an abstraction mechanism for describing

their applications. The reviewed solutions address

this challenge in two ways: 1) using a custom

DSL or annotation-based conﬁgurations such as Kot-

less (Tankov et al., 2019), Nimbus (Chatley and Aller-

ton, 2020), Lithops (Sampe et al., 2021); 2) using

a standardised modelling language, such as the use

of Camel by Functionizer (Matei et al., 2021) or

the use of TOSCA in (Wurster et al., 2018; Casale

et al., 2020; Yussupov et al., 2022). Both of these

approaches facilitate agnostic behaviour. However,

such approaches also expect developers to learn an-

YASF: A Vendor-Agnostic Framework for Serverless Computing

Table 1: Key functionalities and design characteristics of the reviewed solutions.

Key operations

Design

Platform integration Extendibility

Agnostic Infras-

tructure Conﬁgu-

ration

Managed De-

ployment

Agnostic Func-

tion Execution

Level Agnostic Conﬁgu-

ration

Vendors Languages

Industry

The Serverless Framework E

Serverless Multicloud Library E

Spring Cloud Function F

Midway Serverless E

Up E

Wing E

Academic

Lithops (Sampe et al., 2021) E

Kotless (Tankov et al., 2019) F

Nimbus (Chatley and Allerton,

2020)

Functionizer (Matei et al., 2021) F

Wurster et al. (Wurster et al., 2018) E ?

Yussupov et al. (Yussupov et al.,

2022)

E ?

RADON (Casale et al., 2020) ? E

Function level (F), Extended level (E)

Table 2: Support currently provided by the reviewed solutions.

Vendors Languages

App type

AWS

Google

Azure

Alibaba

Cloudfare

Knative

Kubeless

IBM

OpenWhisk

spotinst

Tensent

Crystal

Java

Kotlin

Node.js

Python

Ruby

Industry

The Serverless Framework G

Serverless Multicloud Li-

brary

Spring Cloud Function G

Midway Serverless B

Up B

Wing G

Academic

Lithops BP

Kotless B

Nimbus G

Functionizer G

Wurster et al. (Wurster et al.,

2018)

This work only consist of a prototypical implementation where OpenTOSCA was used to orchestrate an example scenario. G

Yussupov et al. (Yussupov

et al., 2022)

RADON (Casale et al., 2020) G

Generic (G), Backend (B), Batch Processing (BP)

other tool and/or modelling language for writing ab-

stract models. Such a functionality can be avoided by

empowering developers to write the required models

(and conﬁguration) using a tool of their choice.

Overall Agnostic Functionality. A VaSS, as dis-

cussed in Section 2.1, should consider the follow-

ing four agnostic aspects: infrastructure conﬁgura-

tion, function deployment, integration of extended

components, and platform conﬁguration. It is evi-

dent from Table 1, only Serverless Multicloud Li-

brary (Microsoft, 2019) and Radon (Casale et al.,

2020) support these features. However, Serverless

Multicloud Library only supports Node.js and is spe-

ciﬁc for batch processing type applications, where

Radon, as mentioned earlier, is based on TOSCA, i.e.

it does not provide a developer friendly abstraction.

Simplicity and Extendibility. Many of the reviewed

solutions, e.g., Functionizer (Matei et al., 2021) and

Radon (Casale et al., 2020), facilitate agnostic de-

ployment of functions through their custom-built or-

chestrators. The scope of such systems is usually

much larger, where they also handle other tasks such

as monitoring, and scaling; and therefore, additional

components need to be deployed and executed con-

stantly. Hence, an overhead overall. In the serverless

execution model, such administration tasks are the re-

sponsibility of cloud providers. Hence, a VaSS should

avoid any such unnecessary overhead. Furthermore, a

VaSS should follow a modular and extendable archi-

tecture such that the support for new cloud providers

and languages can be easily added.

4 YASF: YET ANOTHER

SERVERLESS FRAMEWORK

YASF is our proposed solution to address the above-

mentioned requirements. Figure 2 depicts the high

level architecture of YASF. It mainly consists of three

components titled YASF Abstraction, YASF Core,

and YASF Resolvers. The following subsections ex-

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

plain these components in detail followed by a de-

scription on the usage workﬂow of YASF in Sec-

tion 4.4.

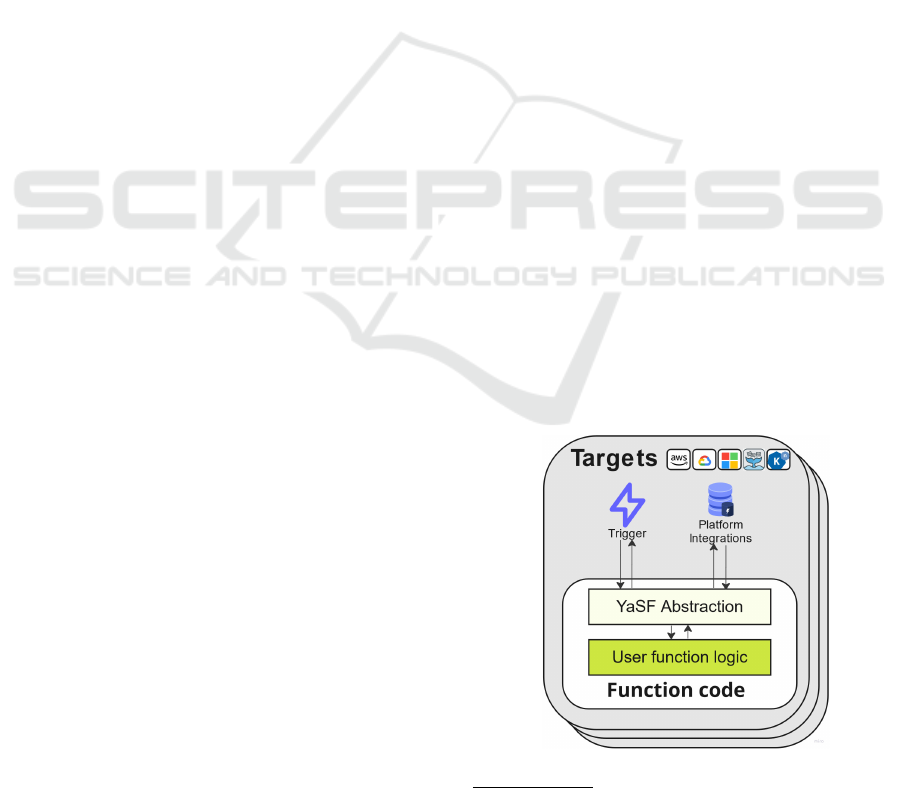

4.1 YASF Abstraction

YASF Abstraction is the only component that is in

direct contact with the developer’s provided code.

YASF Abstraction allows agnostic executions of de-

veloper’s code across different providers, where oth-

erwise a change in code would have been required

in relation to a speciﬁc provider. More speciﬁcally,

YASF Abstraction guarantees agnostic function exe-

cution and extended platform integration by providing

an interface between providers’ invocation format and

function logic. The abstraction interface processes

the provider’s input into an agnostic input. Where

necessary, the YASF Abstraction also transforms the

function’s output, such that an agnostic response can

still be provided when vendors require a speciﬁc for-

mat for the function’s output. Furthermore, YASF

Abstraction also provides agnostic integration with

other cloud components, e.g. with a database stor-

age. As this normally requires provider-speciﬁc SDK

libraries, further attention is provided such that these

libraries are installed only in the function asset being

deployed against the relevant target provider.

The implementation of YASF Abstraction is de-

signed such that very minimal developer’s effort is

required to adapt their existing function code with

YASF Abstraction. Figure 3 presents a Python based

function as an example, where the developer only re-

quires to add two objects from YASF abstraction in-

cluding the entrypoint decorator and GenericContext.

The entrypoint decorator is responsible for provid-

ing abstraction for the event trigger input and func-

tion response output, where GenericContext provides

type deﬁnitions of the context variable, which con-

tains execution metadata. These additions to user

code are neither substantial nor speciﬁc to any cloud

provider. In the case of switching from one cloud

provider to another, not a single line of code change

is required. Our abstraction approach is similar to the

internal annotation-based approach provided by Nim-

bus (Chatley and Allerton, 2020). However, though

Nimbus supports extended integration of additional

components, these are not deployed with the func-

tion but expected to have already been implemented

in an external infrastructure conﬁguration. In con-

trast, YASF infrastructure conﬁguration aims to be

non-function speciﬁc and it is designed to support the

provisioning of other cloud resources as well.

4.2 YASF Core

YASF Core exposes agnostic constructs to devel-

opers that can be used to build a generic in-

frastructure conﬁguration. These constructs are

based on the concept of Constructs Programming

Model (CPM) (AWS, 2022), or also known as

Cloud Development Kit (CDK), which developers

used to write Infrastructure as Code (IaC) with-

out having to learn a purpose-speciﬁc conﬁgura-

tion language such as TOSCA (Lauwers and Tam-

burri, 2022), CAMEL (Camel, 2022), or Terraform

HCL (Hashicorp, 2022). CPM empowers developers

to write cloud conﬁgurations in the language of their

choice and with a variety of features inherent from

the use of programming languages such as loops, con-

ditions and objects re-usability. The aforementioned

reasons highly favor the choice of this technology in

regard to the developer friendly abstraction. For ex-

ample, consider the following code snippets:

The snippet (A) is the deﬁnition of a generic cloud

provider with a requirement for region, where user

function aims to be deployed. The speciﬁc details

such as the choice of cloud providers and user cre-

dentials will be provided at deployment time. More

details on this is provided in Section 4.4. Snippet (B)

on the other hand, deﬁne the function asset by indi-

cating the underlying language runtime — Python in

this case — and other related attributes including: 1)

handler: name of the source ﬁle, 2) entrypoint: name

of the entrypoint function within source code, and 3)

functionAssets: ﬁle system reference to the bundled

function.

CPM is an emerging young concept for deﬁning

IaC using familiar programming languages and rich

object-oriented APIs (AWS, 2020). It was initially

introduced by AWS. However, it is not AWS spe-

ciﬁc and is largely adopted by the open-source com-

munity such as Terraform (Howard, 2022), Kuber-

netes (cdk8s, 2021) and Projen (Projen, 2020). The

inherent features of CPM like the free choice of any

programming language and use of common program-

ming constructs as we seen in Figure 4 make YASF

Core more developer friendly in comparison to other

domain speciﬁc languages such as TOSCA, CAMEL

that demands learning of additional modelling con-

structs.

4.3 YASF Resolvers

YASF provides a repository of Resolvers, where a

speciﬁc Resolver is responsible for mapping the ag-

nostic infrastructure conﬁguration, written using the

YASF Core component, and deploying it to a tar-

YASF: A Vendor-Agnostic Framework for Serverless Computing

Figure 2: YASF architecture.

from yasf import entrypoint, GenericContext

# Handles abstraction process and inputs/outputs

@entrypoint

def handler(event: dict, context: GenericContext):

# event/context received in same format

,→ independently of cloud provider

# Developer provided code

# ...

Figure 3: Usage demonstration of abstraction decorator.

new GenericProvider(this,

{

continent: CONTINENTS.Europe,

coordinates: COORDINATES.West,

location: ”2”,

});

(a) Cloud requirements.

new GenericFunction(this,”demo−fun”,{

runtime: RUNTIMES.PYTHON39,

handler: ”demo handler”,

entrypoint: ”main”,

functionAssets: demoAssets,

});

(b) Function deﬁnition.

Figure 4: YASF Core snippets.

get cloud provider. A single Resolver supports one

or multiple cloud providers. Overall, YASF fol-

lows a generic and modular approach, where each of

the three components work independently from each

other. YASF facilitates easy extendability, where a

custom Resolver can be developed to target a new in-

frastructure (either private or public), or containerised

serverless solutions such as Knative, Fn and Open-

Faas. Adding a new Resolver will not have any im-

pact on existing support.

From a technical viewpoint, YASF Resolvers ref-

erence YASF Core. The agnostic infrastructure con-

structs provided through YASF Core become input

into YASF Resolver such that the agnostic infras-

tructure can be translated to provider-speciﬁc require-

ments. When utilised in a project, YASF Resolvers

are dynamically loaded by YASF Core, meaning that

a change of Resolver does not require a change of im-

ports or deﬁnitions in the infrastructure conﬁguration.

Additionally, a simple CLI tool is offered that facili-

tates developers to select a Resolver of their choice in

case multiple Resolvers are available.

4.4 YASF Usage Workﬂow

The usage workﬂow of YASF can be seen in Figure 5.

The following paragraphs explain the involved steps.

1. To start, developers can simply apply YASF Ab-

straction into their functions’ code as explained

Figure 5: Developer usage steps of the solution.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

earlier in Section 4.1. Developers can also skip

this step, if the aim is to target a speciﬁc provider,

or the required infrastructure does not include any

function, or the target code already includes some

abstraction that can manage function execution on

a given provider.

2. This step is compulsory, where a CDK-based con-

ﬁguration using YASF Core needs to be produced.

In this step, the developer speciﬁes their func-

tions, the code bundle to be deployed, the run-

time, and other details like the conﬁguration re-

lated to memory, location, environment variables,

etc. Furthermore, if required, integration details

with other services (e.g. NoSQL database) should

be provided. It is important to note that YASF

Core is not necessarily function-centric; for ex-

ample, a conﬁguration without any function only

consisting of a deployed database for external pur-

poses is also possible.

3. Prior to deployment, the developer is required to

provide their credentials separately to the CDK-

based conﬁguration previously produced. Differ-

ent cloud providers may require different informa-

tion, e.g. Google Cloud Platform requires a Pro-

jectID to be speciﬁed in addition to credentials.

Providing all such details is the responsibility of

developers. For both practicality and security,

such details are not included as part of the CDK-

based conﬁguration. Furthermore, YASF does not

handle account creation, hence any account setup

is external to YASF.

4. Finally, a YASF Resolver can be used to deploy

function/s and other infrastructure to a speciﬁc

cloud. YASF Resolvers fetch credentials from

the host system’s environment variables. This ap-

proach also allows that the deployment process

can be carried out locally and also in CI/CD setup,

where credentials could be set as CI/CD secrets.

It is important to note, once steps 1 and 2 are

completed, a developer can switch between cloud

providers by repeating only steps 3 and 4, where users

can deploy their functions by simply providing cre-

dentials while using the same or a different supported

YASF Resolver. Once a function is deployed (see Fig-

ure 6), YASF Abstraction is the only persisted com-

ponent in the ﬁnal state, which handles the interac-

tion between user code and provider execution. As

mentioned earlier, developers can also skip the use

of YASF Abstraction. In such a case, user code is

responsible for this mediation itself. This decoupled

nature of YASF components is one key difference be-

tween our solution and other related works such as

(Chatley and Allerton, 2020; Serverless, 2022; Ben-

Israel, 2022). Such decoupling empowers developers

to freely choose to deploy their functions by applying

the YASF Abstraction or simply use YASF framework

for deployment.

5 USE CASE DEMONSTRATION

YASF

is fully agnostic. Currently, we have im-

plemented two YASF Resolvers to support AWS

and Google environments. Both these Resolvers are

based on a well-known IaC orchestrator called Ter-

raform (HashiCorp, 2022), which supports around

1000 providers (HashiCorp, 2022). The implemented

YASF Resolvers provide a mapping between the

developer-provided agnostic conﬁguration and cor-

responding Terraform based provider speciﬁc con-

structs. While Terraform was chosen for the develop-

ment of the ﬁrst two Resolvers, this does not prevent

any other technology to be used for new Resolvers.

The remainder of the section further discusses the use

of a benchmark application for demonstrating the ap-

plicability of YASF by deploying it to two different

clouds without making any changes.

The benchmark application (Tai Nguyen Bui,

2019) is a prototype for a basic inventory system

that includes CRUD operations on products using a

NoSQL database. Each of these operations is encap-

sulated in a different function. This application was

originally developed for AWS and therefore it uses

AWS speciﬁc input/output formatting, and vendor-

speciﬁc calls to DynamoDB, which is an Amazon

speciﬁc NoSQL database.

To make the benchmark application executable

across different cloud environments, it needs to de-

couple from the speciﬁcities of AWS, especially

Figure 6: Function post deployment architecture.

YASF implementation: https://github.com/YaSF-

serverless

YASF: A Vendor-Agnostic Framework for Serverless Computing

the use of AWS speciﬁc input/outputs formatting,

and calls to DynamoDB. This is performed using

the YASF Abstraction step discussed earlier in Sec-

tion 4.4. The difference before and after the use of

NoSQL integration can be seen in Figure 7.

Following the above abstraction step, a vendor-

agnostic infrastructure conﬁguration (see Figure 8) is

prepared. The lines L:4-7 are responsible for deﬁning

the region for execution, L:8-9 provision a NoSQL

Database with the speciﬁed primary key, L:10-28 de-

ﬁne the provision of 5 serverless functions. This also

demonstrates how the advantage of a programming

language enables code reusability in conﬁguration.

Finally, L:29-30 provide each function access rights

to the provisioned NoSQL database.

Following the above two steps, the benchmark ap-

plication can be deployed into any cloud environment

without changing code and also without re-writing the

conﬁguration. Figure 9 depicts a post-deployment ar-

chitecture of the benchmark application on the AWS

and Google platforms, where the same conﬁguration

has been used across both environments. When un-

derlying cloud-speciﬁc components have different be-

haviours, it is the responsibility of YASF Abstraction

to provide a standard interface. Lastly, it is impor-

tant to note that YASF neither deploy an additional

component nor rely on any orchestration tool that re-

quires to stay on at all time. Hence, no additional

overhead in operating cost. The only minor computa-

tional overhead is the inclusion of YASF Abstraction

— responsible for all the required abstraction — into

the developer’s function code. Hence, it directly be-

come part of the user code and runs in the function

space. The revised implementation of benchmark ap-

plication is available here

dynamoDB=boto3.resource(’dynamodb’

,→ )

class ProductService:

def init (self):

self.dynamoDBClient =

dynamoDB.Table(

os.environ[’TABLE’]

)

def getItem(self, sku):

return

self.dynamoDBClient.get item(

Key={’sku’: sku})

(a) Original implementa-

tion.

from yasf.nosqldb import client

class ProductService:

def init (self):

self.table name =

os.environ[’TABLE’]

def getItem(self, sku):

return client.get item(

table name=self.table name,

key name=’sku’,

key value=sku )

(b) YASF Abstraction.

Figure 7: YASF Abstraction integration code snippets.

Benchmark application: https://github.com/YaSF-

serverless/yasf/tree/main/example/aws-lambda-benchmark

1 class ProductsStack extends GenericStack {

2 constructor(scope: Construct, name: string) {

3 super(scope, name);

4 new GenericProvider(this, {

5 continent: CONTINENTS.Europe,

6 coordinates: COORDINATES.West,

7 location: ”2”, })

8 const productsDb = new GenericNoSQLDatabase(this, ”products−

,→ db”, {

9 primaryKey: ”sku”, })

10 const functionAssets = new FunctionAssets({

11 path: ”build”,

12 archiveName: ”src.zip”,

13 bundlingCommands: [

14 ”mkdir −p build && rm −rf build/

&& cp −r src/app/

,→ build/ && cp src/requirements.txt build/”,

15 ”pip install −r src/requirements−local.txt −t build/”,

16 ”cd build && zip −r src.zip .” ], })

17 const createFunction = (id: string, name: string): IGenericFunction

,→ => new GenericFunction(this, id, {

18 runtime: RUNTIMES.PYTHON39,

19 handler: ”handler”,

20 functionAssets: functionAssets,

21 entrypoint: name,

22 envVariables: {

23 ”PRODUCTS TABLE”: productsDb.name, } })

24 const createProductFunction = createFunction(”create−product”, ”

,→ createProduct”)

25 const getProductFunction = createFunction(”get−product”, ”

,→ getProduct”)

26 const updateProductFunction = createFunction(”update−product”, ”

,→ updateProduct”)

27 const deleteProductFunction = createFunction(”delete−product”, ”

,→ deleteProduct”)

28 const listProductsFunction = createFunction(”list−products”, ”

,→ listProducts”);

29 [createProductFunction, getProductFunction, updateProductFunction

,→ , deleteProductFunction, listProductsFunction].forEach((

,→ functionInstance) => {

30 db.grantReadWriteAccess(functionInstance) }) }

31 }

Figure 8: YASF infrastructure conﬁguration for the bench-

mark inventory application.

Figure 9: Use case deployment architecture.

6 CONCLUSIONS

This paper thoroughly explored existing serverless so-

lutions that aimed to resolve the vendor lock-in is-

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

sue. We highlighted that the lock-in issue is still

a challenge. For this purpose, we proposed YASF

— a simple and generic vendor-agnostic serverless

framework. YASF follows a loosely coupled, modu-

lar and extendable architecture that empowers devel-

opers to enable their serverless applications to be de-

ployable to different cloud environments without risk-

ing vendor lock-in. YASF, in addition to the function

level agnosticism, also facilitates an extended level of

integrating provider services in an agnostic manner.

As an initial prototypical implementation, YASF in-

cludes support for Amazon and Google cloud envi-

ronments; and Python-based functions. Future work

will focus on two key directions: On one hand, we

aim to extend our taxonomy to evaluate the serverless

solutions with respect to existing standards regarding

FaaS with a particular focus on the inclusion of as-

pects like Function call, Return interfaces, and Trig-

gers. On the other hand, we aim to extend support

for other providers and languages; support for custom

overrides and escape hatches; and ﬁnally the facilita-

tion of YASF deployments in CI/CD environments.

REFERENCES

Alibaba (2022). Object storage service (oss)-alibabacloud.

Apex (2021). Apex up — serverless applications and apis

in seconds.

AWS (2020). Overview of deployment options on aws.

AWS (2022). What is the aws cdk? - aws cloud develop-

ment kit (aws cdk) v2.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., et al. (2017). Serverless computing:

Current trends and open problems. Research advances

in cloud computing, pages 1–20.

Baur, D. and Domaschka, J. (2016). Experiences from

building a cross-cloud orchestration tool. In Proceed-

ings of the 3rd Workshop on CrossCloud Infrastruc-

tures & Platforms, pages 1–6.

Ben-Israel (2022). Wing programming language.

Camel (2022). Camel: Cloud Application Modelling and

Execution Language.

Casale, G., Arta

c, M., Van Den Heuvel, W.-J., van Hoorn,

A., Jakovits, P., Leymann, F., Long, M., Papaniko-

laou, V., Presenza, D., Russo, A., et al. (2020).

Radon: rational decomposition and orchestration for

serverless computing. SICS Software-Intensive Cyber-

Physical Systems, 35(1):77–87.

cdk8s (2021). cdk8s.

Chatley, R. and Allerton, T. (2020). Nimbus: Improv-

ing the developer experience for serverless applica-

tions. In Proceedings of the ACM/IEEE 42nd Inter-

national Conference on Software Engineering: Com-

panion Proceedings, pages 85–88.

Cloudify (2022). Cloudify devops automation & orchestra-

tion platform, multi cloud.

HashiCorp (2022). Browse providers — terraform registry.

Hashicorp (2022). HCL Native Syntax Speciﬁcation.

HashiCorp (2022). Terraform by hashicorp.

Howard, M. (2022). Terraform–automating infrastructure

as a service. arXiv preprint arXiv:2205.10676.

Kiss, T., Kacsuk, P., Kov

acs, J., Rakoczi, B., Hajnal,

A.,

Farkas, A., Gesmier, G., and Terstyanszky, G. (2019).

Micado—microservice-based cloud application-level

dynamic orchestrator. Future Generation Computer

Systems, 94:937–946.

Kumar, M. (2019). Serverless architectures review, future

trend and the solutions to open problems. American

Journal of Software Engineering, 6(1):1–10.

Lauwers, C. and Tamburri, D. (2022). OASIS Topology and

Orchestration Speciﬁcation for Cloud Applications.

Marston, S., Li, Z., Bandyopadhyay, S., Zhang, J., and

Ghalsasi, A. (2011). Cloud computing—the business

perspective. Decision support systems, 51(1):176–

189.

Matei, O., Materka, K., Skyscraper, P., and Erdei, R. (2021).

Functionizer-a cloud agnostic platform for serverless

computing. In International Conference on Advanced

Information Networking and Applications, pages 541–

550. Springer.

Microsoft (2019). Multicloud solutions with the serverless

framework.

Midway.js (2018). Midway serverless.

Opara-Martins, J., Sahandi, R., and Tian, F. (2014). Criti-

cal review of vendor lock-in and its impact on adop-

tion of cloud computing. In International Conference

on Information Society (i-Society 2014), pages 92–97.

IEEE.

Projen (2020). projen/projen: A new generation of project

generators.

Sampe, J., Sanchez-Artigas, M., Vernik, G., Yehekzel, I.,

and Garcia-Lopez, P. (2021). Outsourcing data pro-

cessing jobs with lithops. IEEE Transactions on

Cloud Computing.

Serverless, I. (2022). Serverless: Develop & monitor apps

on aws lambda.

Tai Nguyen Bui,

Alvaro L

opez Espinosa, A. B. (2019).

theam/aws-lambda-benchmark: A project that con-

tains aws lambda function implementations for several

runtimes e.g. nodejs, haskell, python, go, rust, java,

etc.

Tankov, V., Golubev, Y., and Bryksin, T. (2019). Kot-

less: A serverless framework for kotlin. In 2019

34th IEEE/ACM International Conference on Au-

tomated Software Engineering (ASE), pages 1110–

1113. IEEE.

Tanzu, V. (2022). Spring cloud function.

Tencent (2022). Cloud object storage — tencent cloud.

Ullah, A., Dagdeviren, H., Ariyattu, R. C., DesLauriers, J.,

Kiss, T., and Bowden, J. (2021). Micado-edge: To-

wards an application-level orchestrator for the cloud-

to-edge computing continuum. Journal of Grid Com-

puting, 19:1–28.

YASF: A Vendor-Agnostic Framework for Serverless Computing

Verginadis, Y., Alshabani, I., Mentzas, G., and Stojanovic,

N. (2017). Prestocloud: Proactive cloud resources

management at the edge for efﬁcient real-time big data

processing. In CLOSER, pages 583–589.

Wen, J., Chen, Z., and Liu, X. (2022). A literature

review on serverless computing. arXiv preprint

arXiv:2206.12275.

Wurster, M., Breitenb

ucher, U., K

epes, K., Leymann, F.,

and Yussupov, V. (2018). Modeling and automated

deployment of serverless applications using tosca. In

2018 IEEE 11th conference on service-oriented com-

puting and applications (SOCA), pages 73–80. IEEE.

Yussupov, V., Soldani, J., Breitenb

ucher, U., and Leymann,

F. (2022). Standards-based modeling and deployment

of serverless function orchestrations using bpmn and

tosca. Software: Practice and Experience.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science
