Generation-Based Data Augmentation Pipeline for Real-Time Automatic

Gesture Recognition

Mingxi Cheng

1a b

, Fatima Zohra Daha

1a c

, Amit Srivastava

and Ji Li

1 d

Microsoft, Mountain View, CA, U.S.A.

ServiceNow, Santa Clara, CA, U.S.A.

Keywords:

Gesture Recognition, GAN, 3D-CNN, Deep Learning.

Abstract:

With the SARS-CoV-2 pandemic outbreak, video conferencing tools experience huge spikes in usage. Gesture

recognition can automatically translate non-verbal gestures into emoji reactions in these tools, making it easier

for participants to express themselves. Nonetheless, certain rare gestures may trigger false alarms, and acquiring

data for these negative classes in a timely manner is challenging. In this work, we develop a low-cost fast-to-

market generation-based approach to effectively reduce the false alarm rate for any identiﬁed negative gesture.

The proposed pipeline is comprised of data augmentation via generative adversarial networks, automatic gesture

alignment, and model retraining with synthetic data. We evaluated our approach on a 3D-CNN based real-time

gesture recognition system at a large software company. Experimental results demonstrate that the proposed

approach can effectively reduce false alarm rate while maintaining similar accuracy on positive gestures.

1 INTRODUCTION

Speakers in all cultures gesture when they talk (Goldin-

Meadow and Alibali, 2013). Even congenitally blind

individuals, who have never seen any gesture, move

their hands when they talk, highlighting the universal-

ity and robustness of hand gesture in communication

(Iverson and Goldin-Meadow, 1998; Goldin-Meadow

and Alibali, 2013). Accordingly, automatic hand ges-

ture recognition becomes an important computer vi-

sion research topic with considerable downstream ap-

plications, such as human-computer interaction, sign

language interpretation, touchless interfaces and non-

verbal communication systems (Min et al., 2020; Liu

et al., 2020).

With the SARS-CoV-2 pandemic outbreak, it be-

comes particularly interesting to incorporate hand ges-

ture recognition into video conference software, such

as Microsoft Teams (Microsoft, ), Cisco WebEx (Cisco

Systems, ), Google Meet (Google, ), and Zoom (Zoom,

), to support automatic reactions for enhanced remote

social touch. The model can be hosted either in the

cloud, such as Microsoft Azure (azu, ), Google Cloud

These authors contributed equally to this work.

https://orcid.org/0000-0002-8070-6665

https://orcid.org/0000-0002-1142-0874

https://orcid.org/0000-0003-4699-084X

(goo, ), and Amazon Web Services (aws, ), or on users’

end devices. There are mature production pipelines

to deploy the model candidates in the cloud for better

maintainability. However, from an economic point

of view, hosting models on users’ end devices is be-

coming more and more attractive as compared to the

high cost of hosting models in the cloud where cloud

service providers have to pay for the electric bills of

data centers.

Despite the economic beneﬁt, serving real-time

hand gesture recognition models faces severe chal-

lenges. Firstly, the model must be small enough to

be deployable to majority of the edge devices, which

could be a smartphone, a desktop, or a web browser.

This ensures consistent user experience across differ-

ent edge platforms. Secondly, the model must be

fast enough to achieve real-time response in order to

provide smooth auto-reactions in a video conference.

Thirdly, the model must be accurate enough to avoid

any misﬁre so as to avoid bringing embarrassment to

the online video meeting.

There are numerous techniques proposed to ad-

dress the aforementioned small model size and low

latency challenges, such as data dependent or indepen-

dent efﬁcient architectures (Zaheer et al., 2020; Tay

et al., 2020), parallel computing (Rajbhandari et al.,

2020), memory optimization (Pudipeddi et al., 2020),

and model compression techniques, such as knowledge

Cheng, M., Daha, F., Srivastava, A. and Li, J.

Generation-Based Data Augmentation Pipeline for Real-Time Automatic Gesture Recognition.

DOI: 10.5220/0011886600003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 2, pages 437-446

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

437

distillation (Hinton et al., 2015), quantization (Zafrir

et al., 2019), and pruning (Brix et al., 2020).

The high precision requirement, on the other hand,

turns out to be more challenging in practice. Many

prior arts in the ﬁeld of hand gesture recognition re-

ported high accuracy numbers on various benchmarks.

Nonetheless, in subjective evaluations with a group of

users, we ﬁnd that model candidates with high accu-

racy scores on benchmarks can have high false alarm

rates for gestures which are not included in the train-

ing data. For example, a model candidate trained for

recognizing “hand raise” and “thumb up” can get con-

fused by “quote sign” and “peace sign”, which are not

included in the training data. Getting sufﬁcient amount

of data for these negative classes is difﬁcult, as the en-

tire process of data preparation, labeling, veriﬁcation,

and legal review costs extra time and money.

The majority of recent research efforts in video-

based gesture recognition is focused on 3D hand track-

ing (Boukhayma et al., 2019; Ge et al., 2019; Mueller

et al., 2018), skeleton/pose estimation (Iqbal et al.,

2018; Doosti et al., 2020; Liu et al., 2020; Min et al.,

2020), and accuracy improvement (Narayana et al.,

2018; Abavisani et al., 2019; Tang et al., 2019; Chen

et al., 2019). There is a serious lack of research of ef-

fective approaches to reduce false alarm rate for video-

based hand gesture recognition, which is critical to its

success in video conference software.

In this work, we develop a low-cost fast-to-market

generation-based approach to effectively reduce the

false alarm rate of hand gesture recognition for any tar-

get negative class. We propose a pipeline starting from

data augmentation via generative adversarial networks

(GANs), and followed with an alignment algorithm

to further improve the generation results. To address

the false alarm issue, we must take into consideration

a diverse training set, where deep learning models

can learn representative and diverse patterns and gain

generalization ability to achieve good performance in

real world applications or external independent test

sets. Our proposed pipeline learns to take existing

training data and insert negative gestures to produce

useful samples, which preserve visual features from

original training set, and provide enough information

about negative classes. We ﬁnd that the generated syn-

thetic data helps deep learning models gain abilities

to recognize unseen negative gestures and distinguish

them from pre-deﬁned positive classes, even when

it does not look perfect by human inspection. We

evaluate our augmentation pipeline with the proposed

3D-Convolutional Neural Network (3D-CNN) model

and a pre-trained real-time vision model, MobileNet,

to demonstrate its superiority in terms of false alarm

reduction.

The contributions of this work are as follows:

•

We propose a 3D-CNN model for automatic re-

action function for online meeting applications,

where the 3D-CNN model maps video streams to

hand gesture reactions accurately in real-time.

•

We propose a data augmentation pipeline to enrich

training set by generating synthetic hand gesture

data, which preserves the original visual features

from real world data and includes unseen hand ges-

tures. With augmented datasets, we improve our

proposed 3D-CNN model and a bench-marking

model in both internal and external test sets.

•

We utilize an alignment algorithm to further im-

prove the quality of our generated synthetic data,

and we demonstrate empirically that our pipeline

signiﬁcantly reduces false alarm rate while achiev-

ing equivalent or higher accuracy performance.

The rest of this paper is organized as follows. In

Section 2, we provide a overview of related work in-

cluding data augmentation and hand gesture recog-

nition. In Section 3, we introduce the proposed 3D-

CNN gesture recognition model, our GAN-based data

augmentation pipeline and an alignment algorithm to

improve generation quality. In Section 4, we describe

the datasets we used in our experiments and training

details. We also include a ablation study to elaborate

the effectiveness of our proposed pipeline. Section 5

provides a discussion and concludes the paper.

2 RELATED WORK

One of the challenges in real-time hand gesture recog-

nition in online meeting environment is the trade-off

between the accuracy and false alarms. Models that are

sensitive to certain pre-deﬁned positive classes usually

are prone to false alarms, meaning that negative ges-

tures also triggers automatic reactions, e.g., a random

hand wave can trigger “raise hand” reaction. As seen

in other deep learning tasks, training or ﬁne-tuning

models with known and unknown negative gestures

contributes to false alarm rate reduction. Data aug-

mentation methods, such as collecting a new dataset

with negative classes, augmenting existing data with

image processing techniques, and generating synthetic

videos based on current dataset, could enrich the nega-

tive class in training data, and hence help reduce false

alarms.

Synthetic Data Generation.

Given the limited

budget of collecting/purchasing new datasets, syn-

thetic data generation emerges to be a preferable

choice. Generative models, such as generative adver-

sarial networks (GANs) and variational autoencoders

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

438

Softmax

Fully Connected

Video

RGB frame sequence

Preprocess and

augmentation

3D convolution 3D convolution

3D pooling 3D pooling

3D-CNN

...

Hand raise

recognized

Connect to UI

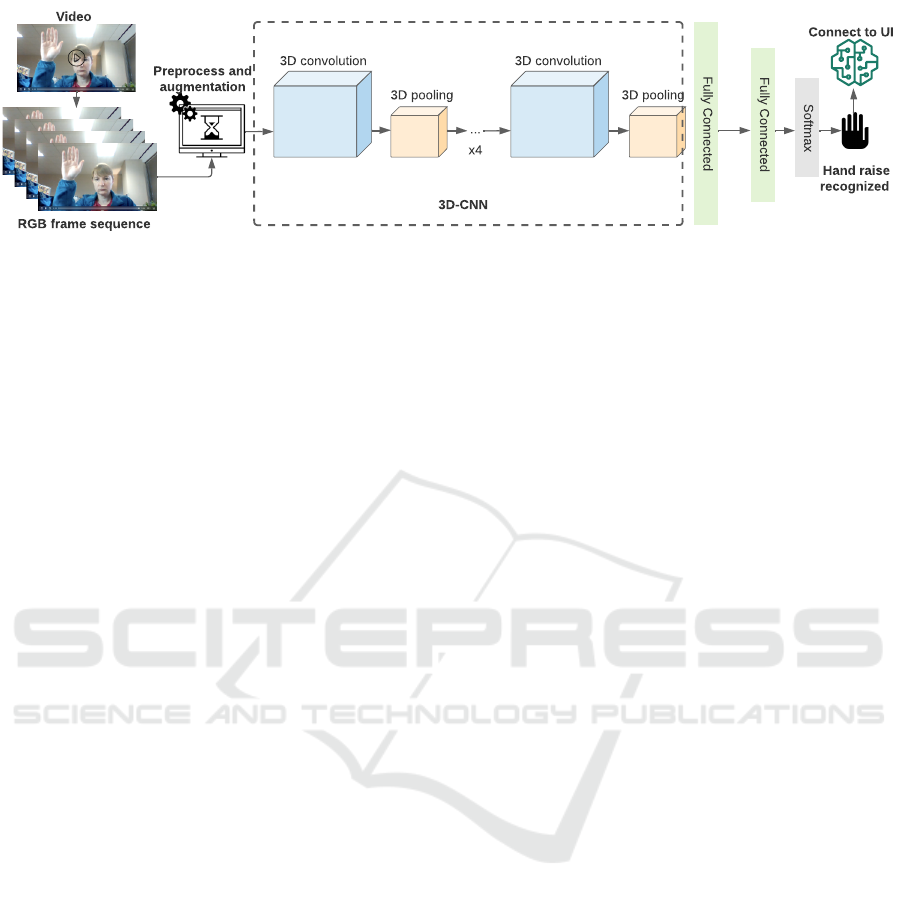

Figure 1: 3D-CNN architecture for hand gesture recognition. We take four central consecutive frames from the input video and

preprocess them with our proposed augmentation pipeline (which will be discussed in the following sections). We then use

augmented and preprocessed data to train the 3D-CNN model. The trained model then predicts a class and connect to down

stream software in online meeting applications.

(VAEs), have shown to have promising results in var-

ious generation applications, e.g., image generation

(Radford et al., 2015; Karras et al., 2017; Kingma

and Welling, 2013; Rezende et al., 2014). Original

GAN models generate realistic results in an uncon-

ditional fashion (Goodfellow et al., 2014), and later

on, conditional GAN models are shown to have better

and controllable results (Mirza and Osindero, 2014).

Latest advanced GAN models that focusing on image

to image translation, or style transfer have shown to

be one of the best performing synthetic data genera-

tion methods. Pix2Pix (Isola et al., 2017) proposed by

Isola et al. in 2017 is a not application speciﬁc image-

to-image translation GAN framework. For instance,

Pix2Pix can generate colorized photos from black and

white images or even from sketches. The paired input-

output is one of the key components behind the success

of Pix2Pix. However, paired data is not always freely

available in most of the application areas. CycleGAN

(Zhu et al., 2017) developed in 2020, breaks the limi-

tation of requiring paired input and successfully learns

various image-to-image translation tasks with unpaired

examples. Although image-to-image translation GAN

works usually can be applicable to various domains, re-

search work on controllable hand gesture generation or

style transfer remains sparse. GestureGAN (Tang et al.,

2020) proposed by Tang et al. is a keypoint/skeleton

guided image-to-image translation framework which

can generate realistic images with designated gestures.

In this work, we exploit GestureGAN for our synthetic

negative gesture augmentation.

Hand Gesture Recognition.

Researchers have

used different approaches to solve the hand gesture

recognition task. Most of these approaches operate

under speciﬁc constraints or require special hardware

or gloves. In (Poon et al., 2019), Poon et al. proposed

a bimanual hand gesture recognition technique where

they ﬁt independent SVM classiﬁers on the shape and

color-encoded features. Recently, deep learning meth-

ods based on Recurrent Neural Network (RNN) and

Convolutional Neural Network (CNN) have been ex-

tensively used and achieved remarkable results in hand

gesture recognition. In (Karpathy et al., 2014), Karpa-

thy et al. applied CNNs to extract spatial features

from individual frames and fuse the temporal infor-

mation. They explored different approaches for fus-

ing information over temporal dimension through the

network and concluded that the slow fusion method

can get more global information in both spatial and

temporal dimensions. In (Simonyan and Zisserman,

2014), Simonyan et al. proposed a two-stream Con-

vNet architecture which incorporates spatial and tem-

poral networks. They capture the complementary in-

formation on appearance from still frames and mo-

tion between frames using optical ﬂow. (Wang et al.,

2015; Zhang et al., 2016; 139, 2016) extend the two-

stream networks by integrating improved trajectories,

motion vector and motion history image, respectively.

In (Köpüklü et al., 2018), Köpüklü et al. involve

both the motion data in the optical ﬂow and the RGB

frames. They fuse the information at the data level,

then they adapt the pre-trained inception architecture.

However, these methods require heavy preprocessing

steps which make them unsuitable for real-time hand

gesture detection. In this paper, we propose the use

of a light-weight 3D-CNN to learn both spatial and

temporal features. Then we apply static quantization

to reduce the model size and latency.

3 PROPOSED METHOD

In this work, we propose a 3D-CNN model along with

GAN-based data augmentation pipeline for automatic

reaction function for online meeting applications. The

design of 3D-CNN ensures real-time accurate hand

gesture recognition, and when trained with data aug-

mentation pipeline produced data, it achieves accurate

recognition with low false alarm rates when tested in

Generation-Based Data Augmentation Pipeline for Real-Time Automatic Gesture Recognition

439

online meeting setup. To further improve the quality

of generated data, we develop an alignment algorithm

to align input images and goal gesture images before

sending these pairs to the GAN model. In this sec-

tion, we ﬁrst introduce the proposed 3D-CNN model

in Section 3.1, then we describe our GAN-based data

augmentation pipeline and alignment algorithm in Sec-

tion 3.2 and Section 3.3.

3.1 3 D-CNN

We propose the use of 3D-CNNs for hand gesture

recognition to capture both spatial and temporal infor-

mation from video frames. The input of this model is

a sequence of RGB frames captured from the user’s

camera feed. We also employ data augmentation tech-

niques for a more effective training and to reduce po-

tential overﬁtting. Figure 1 illustrates our approach

which consists of three main phases: video preprocess-

ing, feature learning, and classiﬁcation.

The video processing step consists of converting

the input video into RGB frames sequences, we take

four successive frames as input and resize each frame

to:

(w,h) = (

width ∗ 100

height

,100)

The input size is variable to assure the processing of

videos with different aspect ratio (e.g., mobile, desk-

top). The RGB channels of each frame are also normal-

ized. The resizing and normalization reduce the com-

putation cost and training convergence of the model.

Our model consists of six 3D convolution layers

and two fully connected layers followed by an adaptive

average pooling layers to handle frames of different

input sizes. The features extracted are then fed into

a softmax layer for classiﬁcation which outputs the

probability of each class. To avoid overﬁtting and en-

hance the model generalization on test data, we apply

dropout after the fully connected layer.

3.2 Augmentation

As shown in Figure 1, before the 3D-CNN takes RGB

frame sequences as input and generates hand gesture

recognition results, an augmentation step is performed

to insert more diversity to data and improve model

performance.

Data Processing.

Data processing is an important

part of the training phase. First, we duplicate the data

by applying horizontal ﬂipping to gestures that require

one hand only. This step ensures that the training set is

inclusive of both left and right hands. Furthermore, to

ensure the diversity of our dataset, we apply lighting

augmentation techniques, small translation and rota-

tion. Moreover, to account for people who are far away

from the camera, we apply padding. These image pro-

cessing techniques are shown to be effective in data

augmentation for computer vision tasks. To further

tackle the false alarm issue in gesture recognition, we

generate synthetic hand gesture data by inserting neg-

ative gestures into data with positive gestures. This

brings the data augmentation into the next level and

we will introduce it in the following section.

Synthetic Data Generation.

In this work, we ex-

ploit the power of GAN and utilize GestureGAN (Tang

et al., 2020) to generate synthetic data. GestureGAN

is a keypoint/skeleton-guided controllable image to

image translation method which takes pairs of image

and skeleton and generates a image with the target

gesture indicated in the skeleton image. It extends the

idea of conditional GAN and CycleGAN (Zhu et al.,

2017) and achieves outstanding generation results par-

ticularly in hand gesture translation.

Thus, we adopt and extend this controllable image

to image translation to generate video frames contain-

ing the goal negative gestures while preserving the

visual features extracted from source image frames as

shown in Figure 2. Given a seed (source) video with

any positive gesture, our goal is to replace the hand

gesture in the seed video with the designated goal

gesture, by utilizing a controllable image to image

translation model, GestureGAN. For example, input


contains ﬁnger raise gesture (

), and the

designated output gesture

out

is peace sign, then the

GAN generated image as shown in Figure 2 contains

peace sign and preserves the visual features from

The generation process is as follows.

• Step 1.

Pre-process the seed video and extract the

central

frames with the original positive gesture,

e.g.,

image frames containing ﬁnger raise gesture

, each of the frames is notated as

. Identify goal

gesture

and generate a skeleton image

of the

goal gesture, e.g., peace sign.

• Step 2.

Detect hand gesture positions in the

seed

frames and detect the skeleton position in the goal

gesture image.

• Step 3.

Utilize image processing techniques such

as shrink, padding, and crop, to align

seed

frames and the skeleton image

according to

the hand/skeleton relative position.

• Step 4.

Use GestureGAN to generate

goal

frames with the goal gesture, e.g., peace sign,

while preserving the visual features of seed frames.

The ﬁrst step into the generation using GestureGAN

is to pre-process the videos into image frames since

GestureGAN is a image-based model. From our gen-

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

440

...

MediaPipe

Hand

gesture

detection

Images with

positive gestures

Negative gesture

skeletons

Alignment

GestureGAN

Crop

Generated

image with

the goal

negative

gesture

Augmented

dataset

Original

dataset

Model

training

Hand

gesture

recognition

model

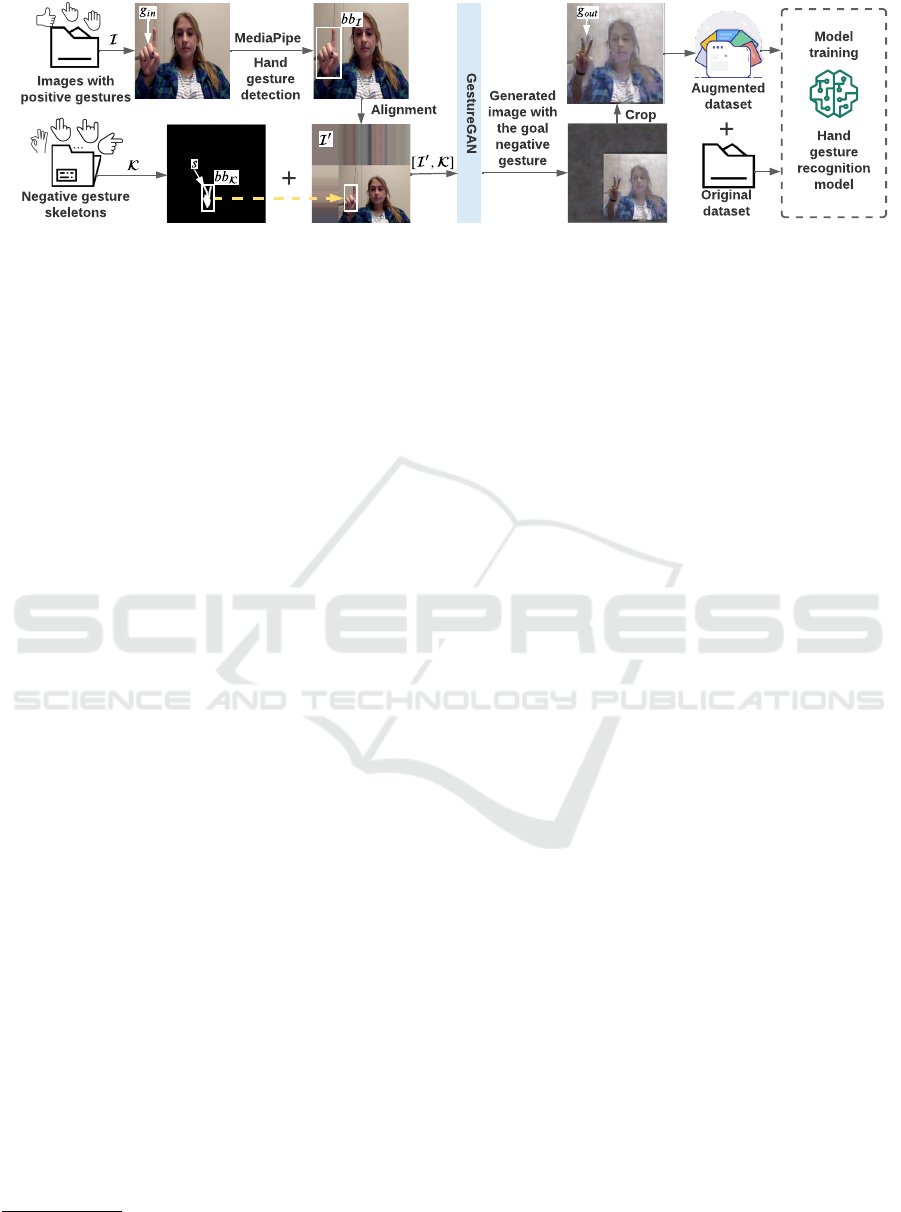

Figure 2: Synthetic data generation and alignment. With images containing positive gestures, e.g., ﬁnger raise, we generate

synthetic data preserving the visual features from original images and containing designated negative gestures, e.g., peace sign.

We ﬁrst detect hand gesture in input image

and detect skeleton

in skeleton image

, then based on the position and size of

the detected hand and skeleton, we align the input image to make the hand gesture in it has similar size and position as

. We

denote the processed input image as

and GestureGAN takes the input pair

,K ]

and generate an image containing the goal

gesture, peace sign. The generated images are then processed and added into augmented dataset for later model training.

eration experience, we ﬁnd that raw generation with

random input pairs of image and skeleton, i.e.,

[I ,K ]

leads to unfavorable results, which is caused by the

mismatch of gesture positions between the input image

and input skeleton. Therefore, we propose to detect

hand gestures (

) and hand skeletons (

) in the input

pairs (Step 2) and then align the input pairs according

to the gesture-skeleton position (Step 3) before feeding

into the generation model. To make our framework

more easy to transfer, we utilize an open sourced hand

detection package MediaPipe (Lugaresi et al., 2019)

in Step 2. Note that any hand detection model that pro-

duces bounding boxes (

bb = [x

]

, where

represent top left and bottom right landmarks

of the bounding box) for hands is applicable in this

step. We introduce in detail our alignment algorithm in

Section 3.3. Step 4 produces an augmented set, which

we denote as D

∗

3.3 Alignment

In this section, we introduce our alignment algorithm

in detail. Assume we have a input pair,

[I ,K ]

, with

a image containing a original hand gesture

, and

a skeleton image containing a goal gesture skeleton

. The alignment algorithm is shown in Algorithm

1. Note that this algorithm utilizes image processing

methods to modify input image

. We can also process

skeleton image

, which we ﬁnd to provide similar

results in the end for generation. Once we have the

aligned image-skeleton pair

,K ]

, we feed Gesture-

GAN with these processed input pairs and generate

image frames containing similar visual features as

and a new hand gesture

out

, which is conditioned on

the goal gesture s.

We denote the processed output image as

to represent

it is modiﬁed base on I .

In alignment, we ﬁrst use

handDetect(·)

to pro-

duce the bounding box (

) of the positive hand

gesture in

and use

skeletonDetect(·)

to predict the

bounding box (

) of the negative skeleton gesture

. Note that

handDetect(·)

can be any hand de-

tection algorithm that produces a bounding box of

the detected hand. In this work, we use MediaPipe

(Lugaresi et al., 2019) as our hand detection model.

We develop a simple

skeletonDetect(·)

algorithm to

detect the left top and right bottom white pixels in a

skeleton image as bounding box indices. With

and

, we calculate the position of

and

. Note

that in our alignment, we process input image

in-

stead of

, therefore, our calculated width and height

offsets are for

. With width and height offsets, we

align

by image processing techniques, i.e., padding

and cropping, to reshape and resize

in order to make

the hand position in

similar to the skeleton position

. We denote our aligned image as

and pass

it to GestureGAN for generation. Because there are

paddings in

, the GestureGAN generated data has

similar patterns as well as shown in Figure 2.

4 EXPERIMENT

In this section, we ﬁrst introduce the datasets we used

for training and test, the training details of two gesture

detection models we considered, and the evaluation

metrics. Then we provide ablation study to justify the

beneﬁt of our alignment algorithm and demonstrate

the results of the proposed data augmentation pipeline.

4.1 Dataset

We train and evaluate our proposed framework on three

benchmark datasets: Jester dataset (Materzynska et al.,

2019), NTU Hand Digit (Ren et al., 2013), and Cre-

Generation-Based Data Augmentation Pipeline for Real-Time Automatic Gesture Recognition

441

Algorithm 1: Align input image

and input skeleton

according to the positions of (original) hand gesture

and (goal) hand skeleton s.

Input :Image-skeleton pair [I ,K ].

Output :Aligned image-skeleton pair [I

,K ].

1 Hand and skeleton detection

2 bb

= [x

] ← handDetect(I )

3 bb

= [x

] ← skeletonDetect(K )

4 end

5 Image-skeleton alignment

6 Size of I = [W

]

7 Size of K = [W

]

8 Position of g

= [x

pos

] ←

[(x

+ x

) ∗ W

/2),(y

+ y

) ∗ H

/2)]

9 Position of s = [x

pos

] ←

[(x

+ x

) ∗ W

/2),(y

+ y

) ∗ H

/2)]

10 Width offset ∆w = x

pos

− x

pos

11 Height offset ∆h = y

pos

− y

pos

12 Process I for alignment:

13 if ∆w > 0 then

14 I

←

Pad

with

∆w

on the right hand side

 Pad

15 I

= I

[:,∆w :]  Crop

16 else

17 I

←

Pad

with

∆w

on the left hand side



Pad

18 I

= I

[:,: ∆w]  Crop

19 end

20 if ∆h > 0 then

21 I

← Pad I

with ∆h on the bottom  Pad

22 I

= I

[∆h :,:]  Crop

23 else

24 I

← Pad I

with ∆h on the top  Pad

25 I

= I

[: ∆h,:]  Crop

26 end

27 end

ative Senz3D (Memo and Zanuttigh, 2018). Jester

datasets is a diverse hand gesture video dataset which

contains 27 classes. We select three positive gesture

classes, i.e., hand raise, ﬁnger raise, and thumb up,

and one negative gesture class, i.e., no gesture, for our

real-world online meeting application scenarios. All

positive gesture should trigger a reaction, e.g., hand

raise and ﬁnger raise both trigger “Raise Hand” re-

action, and thumb up triggers “Thumb Up” reaction.

We split Jester dataset into Jester_train and Jester_test

sets for training and test purposes. NTU Hand Digit

dataset has diverse hand gestures including digits from

zero to nine. We take all hand gestures (except digit 1,

digit 5, and thumb up) as no gesture, and utilize digit

2, digit 3, digit 4, and rock roll gesture (with thumb,

index ﬁnger, and little ﬁnger) as negative goal gestures

for generation purposes. I.e., hand gestures for digit 2,

3, 4, and rock roll gestures are NTU_train, with which

we utilize the skeleton images (

) of NTU_train set

in data augmentation. The rest gestures are used as

test data (NTU_test). Later on, alignment algorithm

shown in Algorithm 1 takes paired input

[I ,K ]

and

produces

,K ]

to train models. Creative Senz3D

dataset contains ten different gestures, and we use this

dataset as an independent test set to evaluate models

and their augmented variants. Note that in all datasets,

gestures that are not positive gestures are labeled as

negative gesture.

4.2 Training Details

We consider two real-time models, 3D-CNN and Mo-

bileNetv2 (Sandler et al., 2018), for their real-time

advantage to evaluate our augmentation pipeline in on-

line meeting automatic reaction application. For Mo-

bileNetv2, we take the pre-trained version to further

study the effectiveness of the propose augmentation

pipeline. We train all models with Jester_train, which

results in baselines without augmentation and we de-

note them as “ Original Model” in later experimental

result comparisons, and augmented dataset, which con-

tains Jester_train and

∗

. We use the positive gesture

ﬁnger raise as base in all generations.

For 3D-CNN, we use stochastic gradient descent

(SGD) with an adaptive learning rate. We set the value

of the initial learning rate to

−2

−5

for decay,

and 0.9 for momentum. We train the model for 100

epochs with early stopping. For MobileNetv2, we

take ImageNet (Russakovsky et al., 2015) pre-trained

model from Tensorﬂow (tf, ) and ﬁne-tune it with the

same setup used in 3D-CNN training.

Usage of GestureGAN.

GestureGAN is an image-

based model, so we utilize it to generate image frames

as input to downstream models. The original de-

sign of GestureGAN makes it take a paired input,

]

, in both training and generation phase,

where I

is the input with a positive gesture, I

is the

output with a negative gesture,

is the input skeleton

image of

, and

is the input skeleton image of

However, in our application we do not need this paired

input since we only require the generation of

based

on input pair

]

. Therefore, we replace

and

with blank placeholder images.

Evaluation Metrics.

Accuracy, false positive rate,

weighted precision, and weighted f1 score are used to

evaluate the models quantitatively.

4.3 Ablation Study

In this section, we ﬁrst study the effectiveness of our

proposed alignment algorithm and inspect whether the

performance of 3D-CNN is affected by the quality

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

442

of GAN generated data. To do this, we compare the

generation quality of GestureGAN with and without

the alignment algorithm. Next, we evaluate the beneﬁt

of different goal gestures by comparing “Peace sign”,

“OK sign”, “4 ﬁngers”, and “Rock roll sign”.

How Does Alignment Affect Model Perfor-

mance?

The proposed alignment algorithm is in-

tended to improve the generation quality of Gesture-

GAN and further help with hand detection model train-

ing. We will elaborate the beneﬁt of alignment by

comparing the performance of 3D-CNNs trained with

∗

and D.

We take “Peace sign” augmented 3D-CNNs and

demonstrate the advantages of alignment by compar-

ing 3D-CNNs trained with

∗

(with alignment) and

(without alignment). From the results shown in Table 1,

we see that model trained with

∗

achieves higher re-

sults most of the time. Especially in NTU_test, it

reduces FPR by

18.44%

compared to model trained

with

. In the external Senz3D test set, model trained

with

∗

beats model trained with

in terms of all

evaluation metrics we considered. These results elabo-

rate the advantage of alignment in improving the hand

detection model’s performance. Because in real-world

applications, we put ﬁnal detection performance at

a higher priority, alignment algorithm although adds

some workload in the ofﬂine data pre-processing stage,

we are convinced by its beneﬁts brought to the online

detection stage.

Different Goal Gesture Improves Model In Dif-

ferent Ways.

We ﬁnd in our experiments that different

hand gesture has different effect in improving the mod-

els. In this section, we show the results empirically.

In this ablation study, we use four goal gestures

separately in augmentation to enhance the 3D-CNN

model, and we ﬁnd different gesture improves models

in different ways. Experimental results of accuracy,

precision, false positive rate (FPR), and f1-score, of

original and augmented 3D-CNN are shown in Ta-

ble 2. We test our models with three datasets, where

Jester_test and NTU_test provides general test results

and an external Senz3D dataset helps evaluate the gen-

Table 1: Experimental results of “Peace sign” augmented

3D-CNN.

∗

and

denote that the augmented models

are trained with and without alignment. This comparison

evaluates the contribution of the alignment algorithm and

we can that the models beneﬁt from alignment and achieves

higher performance most of the time.

Test Train Accuracy FPR Precision F1 Score

Jester_test

∗

94.18% 3.31% 94.65% 94.27%

D 93.84% 3.01% 94.48% 93.96%

NTU_test

∗

55.41% 2.98% 41.36% 41.32%

D 49.66% 21.42% 63.24% 43.67%

Senz3D

∗

44.13% 60.06% 50.95% 42.38%

D 38.26% 67.99% 45.47% 36.30%

eralization ability of our augmented models. The re-

sults demonstrate that all four goal gestures improve

the model, and “OK Sign” provides the best results

compared to other gestures. It reduces FPR to 0% in

NTU_test and improves FPR by 32.93% in the external

Senz3D dataset, which indicates that the augmented

model not only performs well with seen gestures, but

also provides great performance when working with

unseen gestures.

4.4 Results on Pre-Trained Model

MobineNetv2 is known to be fast and effective in

computer vision applications, in this work, we test

our augmentation pipeline on MobileNetv2 and com-

pare with 3D-CNN variations. Because MobineNetv2

is an image-based model, we take four consecutive

frames as input and each frame is processed by a

MobineNetv2 block independently. The results of

pre-trained and ﬁne-tuned MobileNetv2 are shown in

Table 3. “OK sign”, “4 ﬁngers”, and “Rock roll sign”-

based augmentations all improve MobineNetv2 and

achieve better performance in Jester_test, NTU_test,

and Senz3D. However, comparing to 3D-CNN vari-

ants, MobineNetv2 variants although achieve better

results under Jester_test, they all suffer from weak

generalization ability, i.e., augmented MobineNetv2

variants have relative higher FPR in NTU_test and

Senz3D. Overall, our proposed augmentation pipeline

provides improvements in terms of all evaluation met-

rics under all datasets we tested with, while differ-

ent goal gesture provides different improvements and

both un-pre-trained model (3D-CNN) and pre-trained

model (MobileNetv2) can beneﬁt from our pipeline.

5 CONCLUSIONS

Serving real-time hand gesture recognition models

faces several challenges in video conference software,

such as real-time recognition, accurate prediction with

low false alarm rate. Achieving these goal all together

needs a serious amount of work in model developing

and data collecting in a commercial setup. In this work,

we develop a low-cost fast-to-market hand gesture

recognition model to achieve real-time accurate pre-

diction and propose a generation-based data augmen-

tation pipeline to reduce false alarm rates without cost-

ing extra dollars in data collection. We demonstrate

empirically that the models trained with augmented

dataset achieve better results

95%

of the time, and the

false alarm rates reduce signiﬁcantly. It is known that

GAN-generated data sometimes does not look perfect

via human inspection. In our experiments, we ﬁnd

Generation-Based Data Augmentation Pipeline for Real-Time Automatic Gesture Recognition

443

Table 2: Comparison of 3D-CNN and its variants trained with augmented datasets with four different negative gestures. Original

model is 3D-CNN trained without data augmentation pipeline and it is the baseline we compare with. 3D-CNN variants trained

with augmented data in general achieves better results, especially in NTU test set and Senz3D dataset. “OK sign” among all

four negative gestures provides relatively better results in augmentation. 3D-CNN model trained with “OK sign” augmented

data results in extremely low FPR in both NTU test set and Senz3D dataset.

Jester Test Set NTU Hand Digit Test Set Creative Senz3D Dataset

3D-CNN Accuracy FPR Precision F1 Score Accuracy FPR Precision F1 Score Accuracy FPR Precision F1 Score

Original Model 94.08% 2.81% 94.70% 94.20% 45.61% 29.76% 35.74% 40.00% 55.26% 39.33% 54.91% 53.32%

Peace Sign 94.18% 3.31% 94.65% 94.27% 55.41% 2.98% 41.36% 41.32% 44.13% 60.06% 50.95% 42.38%

OK Sign 94.02% 3.71% 94.45% 94.11% 56.76% 0.00% 32.21% 41.10% 70.04% 6.40% 58.66% 62.50%

4 Fingers 94.10% 4.01% 94.59% 94.21% 55.41% 2.98% 35.66% 41.11% 65.59% 15.55% 57.24% 60.89%

Rock Roll Sign 93.91% 2.91% 94.51% 94.03% 56.76% 0.60% 38.43% 41.76% 65.79% 16.46% 57.47% 61.25%

Table 3: Comparison of MobileNetv2 and its variants trained with augmented datasets with four different negative gestures.

MobileNetv2 in these experiments are pre-trained with ImageNet and ﬁne-tuned with our hand gesture dataset. From the

results we can see that variants trained with augmented data achieves better results in all three test sets we considered. For

pre-trained MobileNetv2, no single negative gesture emerges to be a clear winner, “OK sign”, “4 ﬁngers”, and “Rock roll sign”

all appeared to be beneﬁcial.

Jester Test Set NTU Hand Digit Test Set Creative Senz3D Dataset

MobileNetv2 Accuracy FPR Precision F1 Score Accuracy FPR Precision F1 Score Accuracy FPR Precision F1 Score

Original Model 95.80% 0.70% 96.24% 95.88% 43.58% 56.55% 52.14% 46.35% 45.95% 58.84% 51.83% 43.72%

Peace Sign 95.78% 1.60% 96.12% 95.84% 30.07% 74.40% 45.46% 32.51% 55.47% 40.85% 54.76% 53.08%

OK Sign 95.53% 1.50% 95.95% 95.61% 48.99% 33.33% 54.88% 50.17% 52.23% 41.16% 53.62% 50.97%

4 Fingers 96.14% 0.30% 96.54% 96.21% 34.80% 51.79% 43.27% 33.29% 38.87% 67.68% 48.33% 36.97%

Rock Roll Sign 96.05% 1.20% 96.43% 96.12% 31.76% 60.12% 56.93% 35.20% 60.32% 34.15% 66.94% 58.87%

that models can still beneﬁt from those imperfect data

and learn useful features to gain generalization ability.

Therefore, our future work could start from studying

which visual features are most signiﬁcant and effective

for hand gesture detection models to eliminate false

alarms while maintaining high accuracy.

REFERENCES

Amazon web service. https://aws.amazon.com.

Google cloud platform. https://cloud.google.com.

Microsoft azure. https://azure.microsoft.com/en-us/.

Pre-trained mobilenetv2 from tensorﬂow. https:

//www.tensorﬂow.org/api_docs/python/tf/keras/

applications/mobilenet_v2/MobileNetV2.

(2016). Segmental spatiotemporal cnns for ﬁne-grained ac-

tion segmentation. In Leibe, B., Matas, J., Sebe, N.,

and Welling, M., editors, Computer Vision - 14th Euro-

pean Conference, ECCV 2016, Proceedings, Lecture

Notes in Computer Science (including subseries Lec-

ture Notes in Artiﬁcial Intelligence and Lecture Notes

in Bioinformatics), pages 36–52. Springer Verlag.

Abavisani, M., Joze, H. R. V., and Patel, V. M. (2019). Im-

proving the performance of unimodal dynamic hand-

gesture recognition with multimodal training. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 1165–1174.

Boukhayma, A., Bem, R. d., and Torr, P. H. (2019). 3d hand

shape and pose from images in the wild. In Proceed-

ings of the IEEE/CVF Conference on Computer Vision

and Pattern Recognition, pages 10843–10852.

Brix, C., Bahar, P., and Ney, H. (2020). Successfully apply-

ing the stabilized lottery ticket hypothesis to the trans-

former architecture. arXiv preprint arXiv:2005.03454.

Chen, Y., Zhao, L., Peng, X., Yuan, J., and Metaxas,

D. N. (2019). Construct dynamic graphs for hand ges-

ture recognition via spatial-temporal attention. arXiv

preprint arXiv:1907.08871.

Cisco Systems. Webex. https://www.webex.com.

Doosti, B., Naha, S., Mirbagheri, M., and Crandall,

D. J. (2020). Hope-net: A graph-based model for

hand-object pose estimation. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 6608–6617.

Ge, L., Ren, Z., Li, Y., Xue, Z., Wang, Y., Cai, J., and Yuan,

J. (2019). 3d hand shape and pose estimation from a

single rgb image. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 10833–10842.

Goldin-Meadow, S. and Alibali, M. W. (2013). Gesture’s role

in speaking, learning, and creating language. Annual

review of psychology, 64:257–283.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-

Farley, D., Ozair, S., Courville, A., and Bengio, Y.

(2014). Generative adversarial nets. Advances in neural

information processing systems, 27.

Google. Google meet. https://meet.google.com/.

Hinton, G., Vinyals, O., and Dean, J. (2015). Distilling

the knowledge in a neural network. arXiv preprint

arXiv:1503.02531.

Iqbal, U., Molchanov, P., Gall, T. B. J., and Kautz, J. (2018).

Hand pose estimation via latent 2.5 d heatmap regres-

sion. In Proceedings of the European Conference on

Computer Vision (ECCV), pages 118–134.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017). Image-

to-image translation with conditional adversarial net-

works. In Proceedings of the IEEE conference on

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

444

computer vision and pattern recognition, pages 1125–

1134.

Iverson, J. M. and Goldin-Meadow, S. (1998). Why people

gesture when they speak. Nature, 396(6708):228–228.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Sukthankar,

R., and Fei-Fei, L. (2014). Large-scale video classiﬁca-

tion with convolutional neural networks. In 2014 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1725–1732.

Karras, T., Aila, T., Laine, S., and Lehtinen, J. (2017). Pro-

gressive growing of gans for improved quality, stability,

and variation. arXiv preprint arXiv:1710.10196.

Kingma, D. P. and Welling, M. (2013). Auto-encoding

variational bayes. arXiv preprint arXiv:1312.6114.

Köpüklü, O., Köse, N., and Rigoll, G. (2018). Motion fused

frames: Data level fusion strategy for hand gesture

recognition. 2018 IEEE/CVF Conference on Computer

Vision and Pattern Recognition Workshops (CVPRW),

pages 2184–21848.

Liu, J., Liu, Y., Wang, Y., Prinet, V., Xiang, S., and Pan,

C. (2020). Decoupled representation learning for

skeleton-based gesture recognition. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 5751–5760.

Lugaresi, C., Tang, J., Nash, H., McClanahan, C., Uboweja,

E., Hays, M., Zhang, F., Chang, C.-L., Yong, M. G.,

Lee, J., et al. (2019). Mediapipe: A framework

for building perception pipelines. arXiv preprint

arXiv:1906.08172.

Materzynska, J., Berger, G., Bax, I., and Memisevic, R.

(2019). The jester dataset: A large-scale video dataset

of human gestures. In Proceedings of the IEEE/CVF

International Conference on Computer Vision Work-

shops, pages 0–0.

Memo, A. and Zanuttigh, P. (2018). Head-mounted gesture

controlled interface for human-computer interaction.

Multimedia Tools and Applications, 77(1):27–53.

Microsoft. Teams. https://teams.microsoft.com.

Min, Y., Zhang, Y., Chai, X., and Chen, X. (2020). An ef-

ﬁcient pointlstm for point clouds based gesture recog-

nition. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

5761–5770.

Mirza, M. and Osindero, S. (2014). Conditional generative

adversarial nets. arXiv preprint arXiv:1411.1784.

Mueller, F., Bernard, F., Sotnychenko, O., Mehta, D., Srid-

har, S., Casas, D., and Theobalt, C. (2018). Ganerated

hands for real-time 3d hand tracking from monocular

rgb. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 49–59.

Narayana, P., Beveridge, R., and Draper, B. A. (2018). Ges-

ture recognition: Focus on the hands. In Proceedings

of the IEEE conference on computer vision and pattern

recognition, pages 5235–5244.

Poon, G., Kwan, K. C., and Pang, W.-M. (2019). Occlusion-

robust bimanual gesture recognition by fusing multi-

views. Multimedia Tools and Applications, pages 1–20.

Pudipeddi, B., Mesmakhosroshahi, M., Xi, J., and Bharad-

waj, S. (2020). Training large neural networks with

constant memory using a new execution algorithm.

arXiv preprint arXiv:2002.05645.

Radford, A., Metz, L., and Chintala, S. (2015). Unsu-

pervised representation learning with deep convolu-

tional generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Rajbhandari, S., Rasley, J., Ruwase, O., and He, Y. (2020).

Zero: Memory optimizations toward training trillion

parameter models. In SC20: International Confer-

ence for High Performance Computing, Networking,

Storage and Analysis, pages 1–16. IEEE.

Ren, Z., Yuan, J., Meng, J., and Zhang, Z. (2013). Robust

part-based hand gesture recognition using kinect sensor.

IEEE transactions on multimedia, 15(5):1110–1120.

Rezende, D. J., Mohamed, S., and Wierstra, D. (2014).

Stochastic backpropagation and approximate inference

in deep generative models. In International conference

on machine learning, pages 1278–1286. PMLR.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein,

M., Berg, A. C., and Fei-Fei, L. (2015). ImageNet

Large Scale Visual Recognition Challenge. Interna-

tional Journal of Computer Vision (IJCV), 115(3):211–

252.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residuals

and linear bottlenecks. In Proceedings of the IEEE

conference on computer vision and pattern recognition,

pages 4510–4520.

Simonyan, K. and Zisserman, A. (2014). Two-stream con-

volutional networks for action recognition in videos.

In Ghahramani, Z., Welling, M., Cortes, C., Lawrence,

N., and Weinberger, K. Q., editors, Advances in Neural

Information Processing Systems, volume 27. Curran

Associates, Inc.

Tang, H., Liu, H., and Sebe, N. (2020). Uniﬁed generative

adversarial networks for controllable image-to-image

translation. IEEE Transactions on Image Processing,

29:8916–8929.

Tang, H., Liu, H., Xiao, W., and Sebe, N. (2019). Fast

and robust dynamic hand gesture recognition via key

frames extraction and feature fusion. Neurocomputing,

331:424–433.

Tay, Y., Bahri, D., Yang, L., Metzler, D., and Juan, D.-C.

(2020). Sparse sinkhorn attention. In International

Conference on Machine Learning, pages 9438–9447.

PMLR.

Wang, L., Qiao, Y., and Tang, X. (2015). Action recognition

with trajectory-pooled deep-convolutional descriptors.

In 2015 IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), pages 4305–4314.

Zafrir, O., Boudoukh, G., Izsak, P., and Wasserblat, M.

(2019). Q8bert: Quantized 8bit bert. arXiv preprint

arXiv:1910.06188.

Zaheer, M., Guruganesh, G., Dubey, K. A., Ainslie, J., Al-

berti, C., Ontanon, S., Pham, P., Ravula, A., Wang,

Q., Yang, L., et al. (2020). Big bird: Transformers for

longer sequences. In NeurIPS.

Zhang, B., Wang, L., Wang, Z., Qiao, Y., and Wang, H.

(2016). Real-time action recognition with enhanced

Generation-Based Data Augmentation Pipeline for Real-Time Automatic Gesture Recognition

445

motion vector cnns. In 2016 IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

2718–2726.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. In Proceedings of

the IEEE international conference on computer vision,

pages 2223–2232.

Zoom. Zoom video communications. https://zoom.us/.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

446
