CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

Nibel Nadjeh, Sabrina Abdellaoui and Fahima Nader

Laboratoire des M

ethodes de Conception de Syst

emes (LMCS),

Ecole Nationale Sup

erieure d’Informatique (ESI), BP, 68M Oued-Smar, 16270 Alger, Algeria

Keywords:

Data Quality, Data Consistency, Data Cleaning, Constraint Satisfaction Problems.

Abstract:

In this paper, we present CSP-DC, a data cleaning system that integrates a new intelligent solution into the

cleaning process to improve data accuracy, consistency, and minimize user involvement. We address three

main challenges: (1) Consistency: Most repairing algorithms introduce new violations when repairing data, es-

pecially when constraints have overlapping attributes. (2) Automaticity: User intervention is time-consuming,

we seek to minimize their efforts. (3) Accuracy: Most automatic approaches compute minimal repairs and

apply unveriﬁed modiﬁcations to repair ambiguous cases, which may introduce more noise. To address these

challenges, we propose to formulate this problem as a constraint satisfaction problem (CSP) allowing updates

that always maintain data consistency. To achieve high performances, we perform a ﬁrst cleaning phase to au-

tomatically repair violations that are easily handled by existing repair algorithms. We handle violations with

multiple possible repairs with a CSP solving algorithm, which selects from possible ﬁxes, values that respect

all constraints. To reduce the problem’s complexity, we propose a new variables ordering technique and prun-

ing strategies, allowing to optimize the repair search and ﬁnd a solution quickly. Our experiments show that

CSP-DC provides consistent and accurate repairs in a linear time, while also minimizing user intervention.

1 INTRODUCTION

Lately, data has been widely used for prediction, anal-

ysis, and decision making, therefore it has become

the most valuable resource in the world. However,

real data is usually of poor quality, according to

a Kaggle survey

, dirty data is considered as the

biggest barrier in data science (Berti-Equille, 2019).

Moreover, the use of this poor-quality data can lead

to bad decision-making which can cause time and

money losses, as well as serious repercussions in

some critical application areas, such as healthcare

and automotive (Yakout et al., 2011). Consequently,

data quality management has become crucial for both

data scientists and decision makers.

To improve the quality of the data, quality rules

(QRs) have been used to identify errors and incon-

sistencies. Data is then modiﬁed to respect the set

of QRs expressed as integrity constraints (ICs) such

as: Functional Dependencies (FD) (Bohannon et al.,

2005), Conditional Functional Dependencies (CFD)

(Cong et al., 2007), Denial Constraints (DC) (Xu Chu

et al., 2013), etc. (Ilyas and Chu, 2015)

https://www.kaggle.com/code/amberthomas/kaggle-

2017-survey-results/report

Over the years, several data cleaning approaches

have been proposed (Raman and Hellerstein, 2001),

(Yakout et al., 2011), (Fan et al., 2012), (Volkovs

et al., 2014). Most of them have opted for repairs

that minimize a cost function deﬁned as the distance

between original and modiﬁed data (Dallachiesa

et al., 2013), (Bohannon et al., 2005), (Chiang and

Miller, 2011), (Wang and Tang, 2017). However,

choosing the minimal repair may add more noise to

the data by modifying the wrong cells or selecting

incorrect repair values (Rezig et al., 2021), (Yakout

et al., 2011). Furthermore, repairing cells that

participate in several ICs is challenging, especially

when dealing with errors from the active domain.

To improve the quality of repairs, external data like

knowledge bases (KBs) have been used to extract

relevant data repairs (Chu et al., 2015), (Abdellaoui

et al., 2017). However, human intervention is usually

needed especially when multiple possible repairs are

proposed (Yakout et al., 2011), (Chu et al., 2015),

(Abdellaoui et al., 2017). Human intervention is

a tedious and time-consuming process, especially

with the huge amount of data to deal with and the

high number of possible repairs usually generated by

repair algorithms.

478

Nadjeh, N., Abdellaoui, S. and Nader, F.

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving.

DOI: 10.5220/0011897000003393

In Proceedings of the 15th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2023) - Volume 2, pages 478-488

ISBN: 978-989-758-623-1; ISSN: 2184-433X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

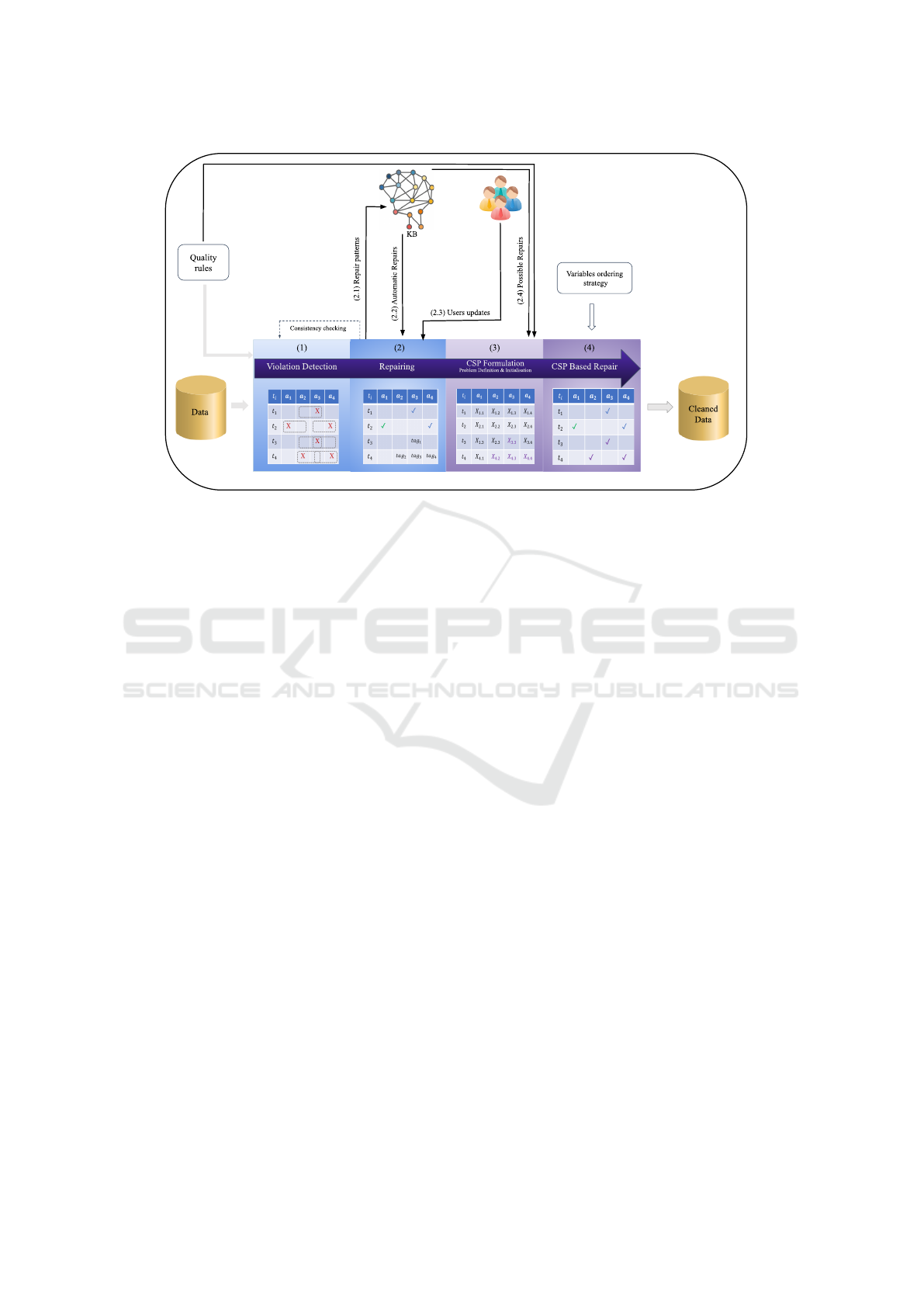

Figure 1: The workﬂow of CSP-DC.

With the aim of automating the repair process

and minimizing human effort without trading off

the consistency nor the accuracy of the repairs,

we propose CSP-DC, a new data cleaning system.

CSP-DC uses one of the state of the art data cleaning

algorithms to automatically repair data when possible

or generate possible repairs otherwise. For this step,

we use QDﬂows (Abdellaoui et al., 2017) but our

solution supports any other repair algorithm as long

as it returns possible ﬁxes that could be exploited by

the CSP-based solution.

Instead of involving the user to choose the appropriate

repair, we propose a new solution to automatically re-

pair ambiguous repair cases. Our solution is inspired

from constraint satisfaction problems resolution

(CSP) (Poole and Mackworth, 2010). A CSP consists

of variables X, domains D which represent variables’

possible values, and a set of constraints C. They

are designed to solve problems under constraints by

assigning to each variable a value that satisﬁes all

constraints. In our case, it consists of ﬁnding repairs

to dirty cells, which respect the entire set of integrity

constraints simultaneously. The choice of translating

the consistency problem to a CSP was based on the

fact that the two problems are very similar. Indeed,

variables correspond to cells, domains refer to the

possible repairs of cells, and constraints represent

the set of ICs. Furthermore, when solving a CSP, the

purpose is to ﬁnd assignments to variables that must

respect all constraints. Data cleaning on the other

hand aims to ﬁnd repairs to dirty data in order to

respect the ICs.

As far as we know, no existing approach has for-

mulated the data cleaning problem as a CSP. We

believe that this representation and the use of a CSP

solving algorithm allow us to improve data quality

and guarantees the consistency of repairs. Since all

constraints are veriﬁed when instantiating variables,

a holistic choice is made to repair each erroneous

cell which ensures high accuracy. Like many data

cleaning solutions (Mahdavi and Abedjan, 2020),

(Geerts et al., 2013),(Xu Chu et al., 2013), (Yakout

et al., 2011), we enable users’ intervention when no

possible repair is returned by QDﬂows. This allows

us to repair violations when no evidence is available

in data or when the repair value must be out of the

active domain.

To achieve our goal, we face several challenges

including:

- The data cleaning problem has never been formal-

ized as a constraint satisfaction problem. There-

fore, there is no deﬁnition or representation of the

problem. The challenge is: (1) Identifying the

variables of the problem and how to relate them to

the data without losing the context of the cells. (2)

In a CSP, a constraint is deﬁned on variables but in

our case, ICs are deﬁned on attributes. Therefore,

it is difﬁcult to translate an IC into a constraint on

variables without losing generality (i.e., exhaus-

tively deﬁning a constraint for each subset of the

problem’s variables). (3) Since a part of the data

is automatically repaired, the CSP solving algo-

rithm must take into account their values without

modifying them.

- Solving a CSP consists of ﬁnding a repair that re-

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

479

spects all constraints. If the initialized variables

do not respect the constraints, the CSP may be-

come unsolvable. As a part of the data is repaired

automatically and used as an initialization of the

CSP, their repair must be done with great care in

order to avoid generating inconsistencies, because

the ﬁnal result strongly depends on this step.

- Solving a CSP is NP-Complete (Pang and Good-

win, 2003). Moreover, the time complexity of

the most known CSP solving algorithms is expo-

nential (Razgon, 2006). For example, the worst

case time complexity of the backtracking algo-

rithm is of the order O(e ∗ d

) (with n the num-

ber of variables, e the number of constraints, and

d the size of the largest domain) (Mouelhi et al.,

2013). As our problem has a large number of vari-

ables and values, it becomes challenging to solve

it efﬁciently.

Contribution:

1. We propose a representation of the data cleaning

problem as a CSP (Section 3.1) and solve it using

one of the dedicated solving algorithms (Section

3.2). This allows to:

- Find repairs to the ambiguous repair cases in an

effective and consistent way.

- Repair cells participating in several ICs safely.

As changing their values is difﬁcult and can

trigger new violations, these cells are critical

to repair. By formulating our problem as a

CSP, the solving algorithm takes into account

all constraints while repairing.

- Replace the user intervention by automatically

selecting ﬁxes to errors not easily handled by

classical algorithms.

2. We propose a pruning strategy to improve the ef-

ﬁciency of our solution (Section 4.1)

3. We propose a new variable ordering technique

adapted to our data cleaning problem which al-

lows us to solve it efﬁciently (Section 4.2).

4. We conduct experiments to assess our solution’s

effectiveness and efﬁciency. We compare its per-

formance to those of some existing algorithms and

study how our optimizations impact the complex-

ity of the problem (Section 5).

2 MOTIVATION & SOLUTION

OVERVIEW

In this section, we present some motivating examples

as well as the architecture overview of CSP-DC.

2.1 Motivation

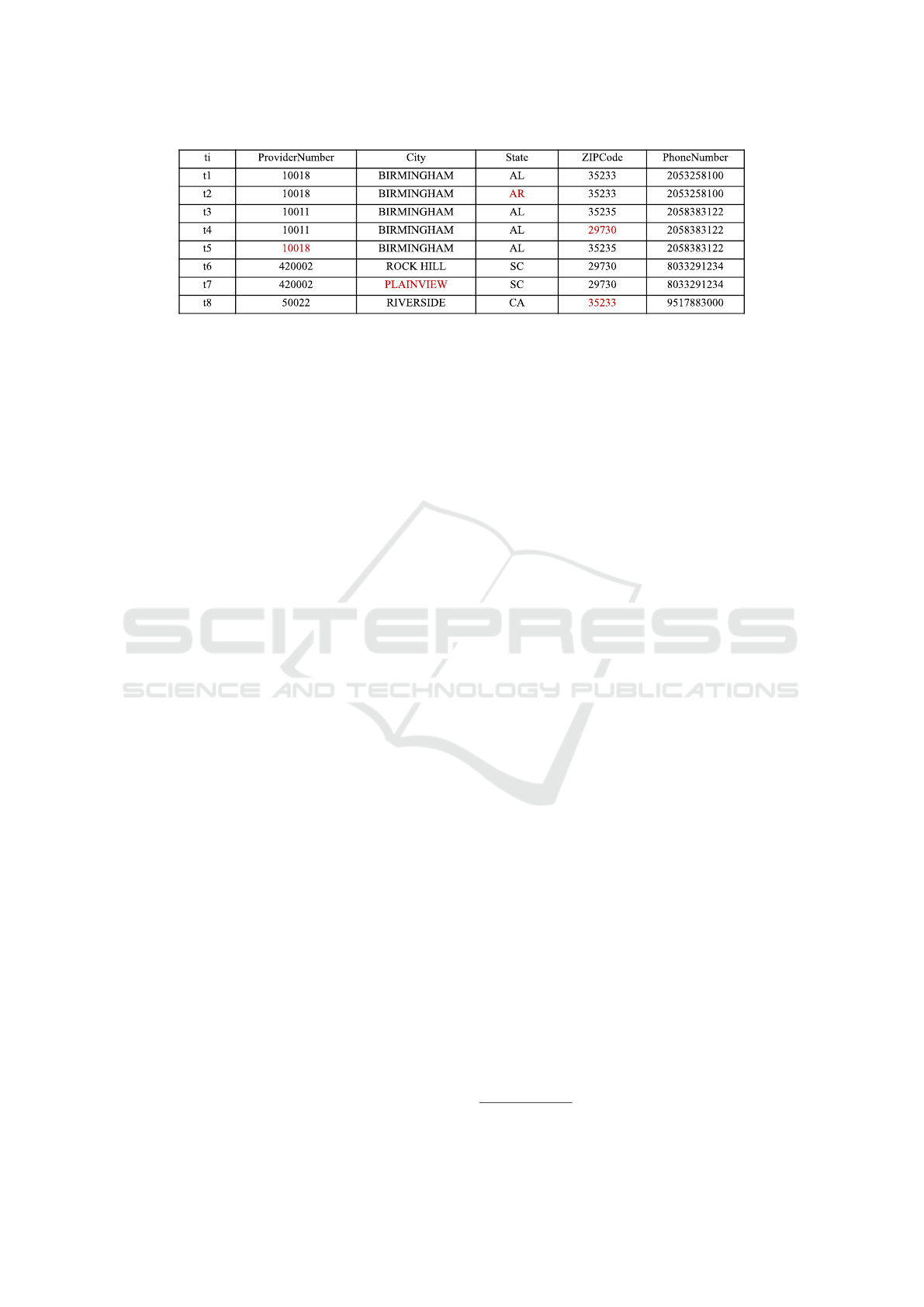

Let the relation in Figure 2 and the following set of

integrity constraints:

FD1 : ZIPCode → State

FD2 : PhoneNumber → ZIPCode

FD3 : ProviderNumber → City, PhoneNumber

CFD : (ZIPCode → State, 35233∥AL).

A typical cleaning scenario is to detect violating tu-

ples, for instance, tuples t

, and t

violate the FD1

and t

, and t

violate the FD3, then use a repair al-

gorithm to ﬁnd updates that satisfy the deﬁned ICs.

In the following, we deﬁne multiple scenarios where

it would be useful to use our proposed solution.

1. When multiple possible repairs validated by exter-

nal data are returned, but still can’t decide about

cells to modify and values to select: In this case,

users are involved to repair dirty data.

Example 1. Consider that we use a repair al-

gorithm that returns multiple possible repairs ex-

tracted from data or KBs. For the ﬁrst violation,

(‘35233’, ‘35235’) are returned as possible ﬁxes

for t

[ZIPCode] and ‘SC’ for t

[State]. For the

second one, ’10011’ and ’2053258100’ are re-

turned as possible repairs for t

[ProviderNumber]

and t

[PhoneNumber] respectively. Instead of in-

volving the user to ensure data consistency, we

mark each cell participating in these violations,

extract the possible repair values and select via a

CSP solving algorithm the combination that guar-

antees the data consistency.

2. When dealing with ICs with overlapping at-

tributes: Repairing such a case is difﬁcult be-

cause modifying a cell value to resolve a vi-

olation may trigger a new violation of another

IC. Most existing repair algorithms do not han-

dle these types of ambiguous repair cases very

well. To resolve violations mentioned in Exam-

ple 1, they would apply a random repair or mod-

ify the right-hand-side to resolve the violation.

This may introduce more noise in data by modi-

fying t

[State] or generate a new violation of FD2

by changing t

[ZIPCode] value to ‘35233’ and/or

[PhoneNumber] to ’2053258100’.

By formulating our problem as a CSP, dealing

with overlapping attributes becomes safer as all

constraints are veriﬁed before updating data.

3. When the data do not contain enough evidence to

resolve the conﬂict safely: A possible way to han-

dle this case is to use lluns (Geerts et al., 2013)

or fresh values (Xu Chu et al., 2013) for example

to mark the concerned cells. This allows to return

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

480

Figure 2: Example of tuples from a dirty Dataset.

a consistent result then, ask for the user interven-

tion to repair marked cells. CSP-DC on the other

hand, handles this case via the CSP based solution

as long as possible ﬁxes to the concerned cells are

available.

Example 2. A possible repair is to update

[State] to ‘AL’ or to change t

[ZIPCode].

However, no possible value from the active do-

main satisﬁes the ICs therefore, the user interven-

tion is required to guarantee the accuracy.

2.2 Solution Overview

Figure 1 illustrates the workﬂow of CSP-DC. It is

composed of two cleaning phases:

1. Violation Detection and Updates Discovery: In

this phase, violations are identiﬁed using the spec-

iﬁed QRs expressed as ICs. Then, QDﬂows con-

structs for each violation, a repair pattern based on

properties involved in the concerned QRs. Next,

horizontal and vertical matches of the repair pat-

terns are searched in the KB. Outputs of QDﬂows

are divided into three groups:

(a) Violations with one possible repair: this means

that the proposed update is likely to be the right

one, data is thus automatically repaired.

(b) Violations with no possible repairs: here, the

users are invited to repair the involved cells.

this case, no decision is made at this stage. The

concerned cells are annotated using “tags” and

their possible repair values are collected.

At the end of this phase, the consistency of data

is veriﬁed. If new violations were triggered when

repairing the ﬁrst violations, another cleaning it-

eration is done.

2. CSP Based Repair: In this phase, updated data,

QRs, and possible repairs are transformed to de-

ﬁne the problem as a CSP and initialize its ele-

ments. Variables referring to clean data are initial-

ized, domains of annotated cells are constructed

using the possible repairs, and the QRs are trans-

lated to constraints on variables. Finally, the CSP

is solved by ﬁnding repair to annotated data using

a backtracking search algorithm which returns the

repaired data.

3 CSP BASED SOLUTION

In this section, we present our solution based on con-

straint satisfaction problems by explaining how our

problem is translated into a CSP, how its elements are

initialized, and how the problem is solved.

3.1 Problem Deﬁnition and

Initialization

Our data cleaning problem is composed of two main

elements: (1) Data that represents a list of tuples, each

one contains multiple attribute values. (2) Integrity

constraints that formulate a set of quality rules in or-

der to ensure data consistency.

The representation of our problem as a CSP was in-

spired from AIMA’s

formulation of the SUDOKU

problem to a CSP. We deﬁne our problem as follows:

− Variables (X ): Each cell is considered as a vari-

able X

of the problem where ”i” indicates the

identiﬁer of the tuple to which the variable be-

longs and ” j” the attribute it refers to.

− Domains (D): Represent the different possible

values that can be assigned to variables. Each

variable has its own domain but it’s possible to

have multiple variables sharing the same domain.

Example 3. D(X

4.3

): [”AL”, ”SC”],

D(X

4.4

): [”29730”, ”35233”, ”35235”].

− Constraints(C ): are a translation of ICs into con-

ditions on variables. A variable may be under

multiple constraints.

https://github.com/aimacode/aima-python

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

481

After formalizing the problem, we initialize its ele-

ments using the CSPBasedRepair algorithm, given in

Algorithm 1 (line 1). Variables related to the clean

cells are initialized by assigning the value correspond-

ing to the tuple ”i” and the attribute ” j” to the variable

i. j

the rest of variables (related to annotated cells)

are set to ‘tags’. After that, the possible repairs re-

turned for the annotated cells, are used in addition to

their original values to construct their domains.

3.2 Problem Resolution

Our constraint satisfaction problem’s resolution is

done using a backtracking search algorithm which

consists in assigning to each variable a value and

recursively checking for each assignment, if a solu-

tion to the problem can be returned from the cur-

rent set of assignments. If no solution is possible

(i.e., the assignment does not respect one or multi-

ple constraints), a backtrack is necessary. Algorithm

2, referred to as BacktrackingSearch, describes the

different steps. It takes as input variables related to

each cell, their domains, their neighbors (i.e., other

variables to be compared with in order to ensure the

consistency), the deﬁned constraints, and optionally,

heuristics for variables and values ordering and/or a

ﬁltering strategy (inference). In turn, from the set

of unassigned variables, a variable is chosen and a

value from its domain is selected. Variables and val-

ues could be picked randomly but it is possible to use

existing variable selection heuristics and value order-

ing heuristics to optimize the search. If an assignment

respects all constraints (i.e., No triggered violation)

then, this value is assigned to the current variable.

In the same way, assignments to other variables are

found. If a variable has all its domain values violating

one or multiple constraints, a backtrack is triggered.

The purpose is to change the value of a previously in-

stantiated variable that may cause this inconsistency,

which offers more options for the next steps of the

search. The solution is returned when all variables

are instantiated which means that consistent data is

returned.

4 OPTIMIZATIONS

As solving a CSP is NP-complete, we propose multi-

ple optimizations to avoid the exponential time com-

plexity of the backtracking search.

Algorithm 1: CSPBasedRepair.

Input: An annotated dataset D, Constraints C, Variables V ,

VariableSelectionHeuristic VSH, ValueOrderingHeuristic VOH,

inference in f

Output: Repaired dataset

1: Partial assignment ← initPartial assignment(D,V )

2: return BacktrackingSearch (Partial assignment, V, C, Dom, N, V SH,

VOH, in f )

Algorithm 2: BacktrackingSearch.

Input: Partial assignment, V, C, Dom, N, V SH, VOH, in f

Output: Solution to the CSP

1: if |Partial assignment| = |V| then

2: return Partial assignment

3: end if

4: for var in VSH(V ) do

5: for val in VOH(Dom[var]) do

6: for var2 in N[var] do

7: val2 ← Partial assignment[var2]

8: if constraints(var, val, var2, val2) then

9: Partial assignment[var] ← val

10: if in f (var, val, Partial assignment) then

11: result ←BacktrackingSearch (Partial assignment,

V , C, Dom, N, VSH, V OH, in f )

12: end if

13: if result is not None then

14: return result

15: end if

16: end if

17: end for

18: return None

19: end for

20: end for

4.1 Neighbors and Domains Pruning

Neighbors Pruning: The complexity of the backtrack-

ing search depends on the number of variables, con-

straints, and values of the largest domain. However,

as explained before, instantiating a variable implies a

consistency veriﬁcation with respect to all constraints.

In practice, this comes to a pairwise comparison be-

tween each non-instantiated variable and all the other

variables concerned by the same constraint (neigh-

bors).

To overcome the pairwise comparison, we propose

a pruned list of neighbors. To do this, for each IC,

we extract a non-redundant list of ”n”-uplets (For in-

stance (35233, AL)) with ”n” the number of attributes

of the IC. This means that the comparison will be

done only with one occurrence of the ”n”-uplets in-

stead of all of them, which avoids the comparison

with the same data combination multiple times. The

list of neighbors is constructed then, by selecting vari-

ables referring to cells of the ﬁrst appearance of the

”n”-uplet in data. If a variable corresponds to an at-

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

482

tribute participating in multiple constraints, neighbors

are selected considering all these constraints.

Domains Pruning: A possible way to initialize vari-

ables’ domains is to select all values of the attribute’s

domain that the concerned variable refers to. To avoid

the exponential time complexity, we use the list of

possible repairs. This allows us to narrow down the

number of values to test before ﬁnding the right re-

pair and consequently, reducing the repair time.

4.2 Variables Ordering Technique to

Improve the Repair Efﬁciency

As explained above, when the backtracking search

algorithm is used to solve a CSP, variable selection

heuristics and value ordering heuristics are usually

used. However, the use of the existing heuristics is

sometimes time consuming. Since our problem has

a high number of variables, we propose another way

to order them. The idea behind is to use conﬂict score

(c f

) used for FD ordering (Chiang and Miller, 2011).

The conﬂict score c f

reﬂects the conﬂicts that a con-

straint F has with other constraints based on the num-

ber of common attributes between them. Instead of

calculating the c f

score for constraints ordering, we

propose to use it also for attribute ordering. Indeed,

variables can be grouped using the attributes that they

refer to, so instead of having n ∗ m variables to order,

we just deﬁne an order on the ”m” groups, each one

having ”n” variables. The selection of variables in-

side groups can be done randomly, since they share

the same constraints, the accuracy of repairs won’t be

affected. The selection is done as follows:

1. The constraint with the highest c f

is chosen ﬁrst.

2. The most overlapping attributes of the chosen IC

are selected in descending order.

3. Two attributes having the same overlap level can

be selected randomly if they belong to different

ICs; otherwise, the LHS attribute is selected ﬁrst.

4. The process is repeated for all other ICs by choos-

ing only attributes that were not selected yet.

5. Variables belonging to the same attribute are re-

paired in a random order or in a speciﬁc order us-

ing a dedicated heuristic.

Example 4. Consider the previously used FDs

and the annotated tuple t

:(tag

, BIRMINGHAM, AL,

35235, tag

). Repairing ProviderNumber ﬁrst, can be

difﬁcult and may take time. If ‘10018’ is selected tin

he ﬁrst place, a backtrack is triggered when we look

for repairs to t5[PhoneNumber]

This happens because

the only value that respects FD3 is ‘2053258100’ but

it violates FD2 since the ZIPCode value is 35235.

By ordering the attributes the way we propose, we

ﬁnd that c f

(FD2) > c f

(FD1) > c f

(FD3). The

order of attributes should be like : PhoneNumber,

ZIPcode, State, ProviderNumber, City. The Pho-

neNumber value is chosen ﬁrst with no ambiguity as

only 2058383122 is accepted. The ProviderNumber

value will be then updated to ‘10011’ and the error

will be corrected.

5 EXPERIMENTAL STUDY

In our experimental study, we evaluate the efﬁciency

and the effectiveness of our solution. We use Hospi-

tal, a real-world dataset on health-care providers that

contains 100k records. Errors from the active domain

were generated on all attributes covered by the FDs

used in the previous examples (FD1, FD2, and FD3).

Our experiments aim to: (1) Evaluate the effective-

ness of CSPBasedRepair algorithm when varying the

error rate and the dataset size, (2) Study the impact

that the error rate and the dataset size have on the efﬁ-

ciency of the algorithm, (3) Study the impact that our

optimizations have on the efﬁciency of the algorithm

and the complexity of the problem, (4) Compare our

results with some existing solutions.

5.1 Effectiveness

(a) Varying the Noise Rate and the Size of the

Dataset.

To evaluate the repair accuracy of CSP-DC, we

used 20k records of the Hospital dataset and in-

jected different error rates. Results illustrated in

Figure 3a show that the F1 score is stable and

higher than 99.8%. This is due to the good au-

tomatic repairs and the user intervention in the

ﬁrst repair phase as well as the instantiation of the

annotated cells by their correct values using the

CSPbasedRepair algorithm.

Note that CSPBasedRepair returns consistent re-

pairs but in some cases, it is not possible to

achieve a 100% clean repairs. This happens when

dealing with some special cases difﬁcult to handle

even by users (see Example 6).

Example 5. Consider the following tuples ex-

tracted from the used Hospital dataset: t

(50008,

SAN FRANCISCO, CA, 94115, 4156006000),

(50047, SAN FRANCISCO, CA, 94115,

4156006000), and t

(10018, SAN FRANCISCO,

CA, 94115, 4156006000). To repair this vi-

olation, two possible repairs are returned for

[ProviderNumber] 50008, 50047.)

In this case,

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

483

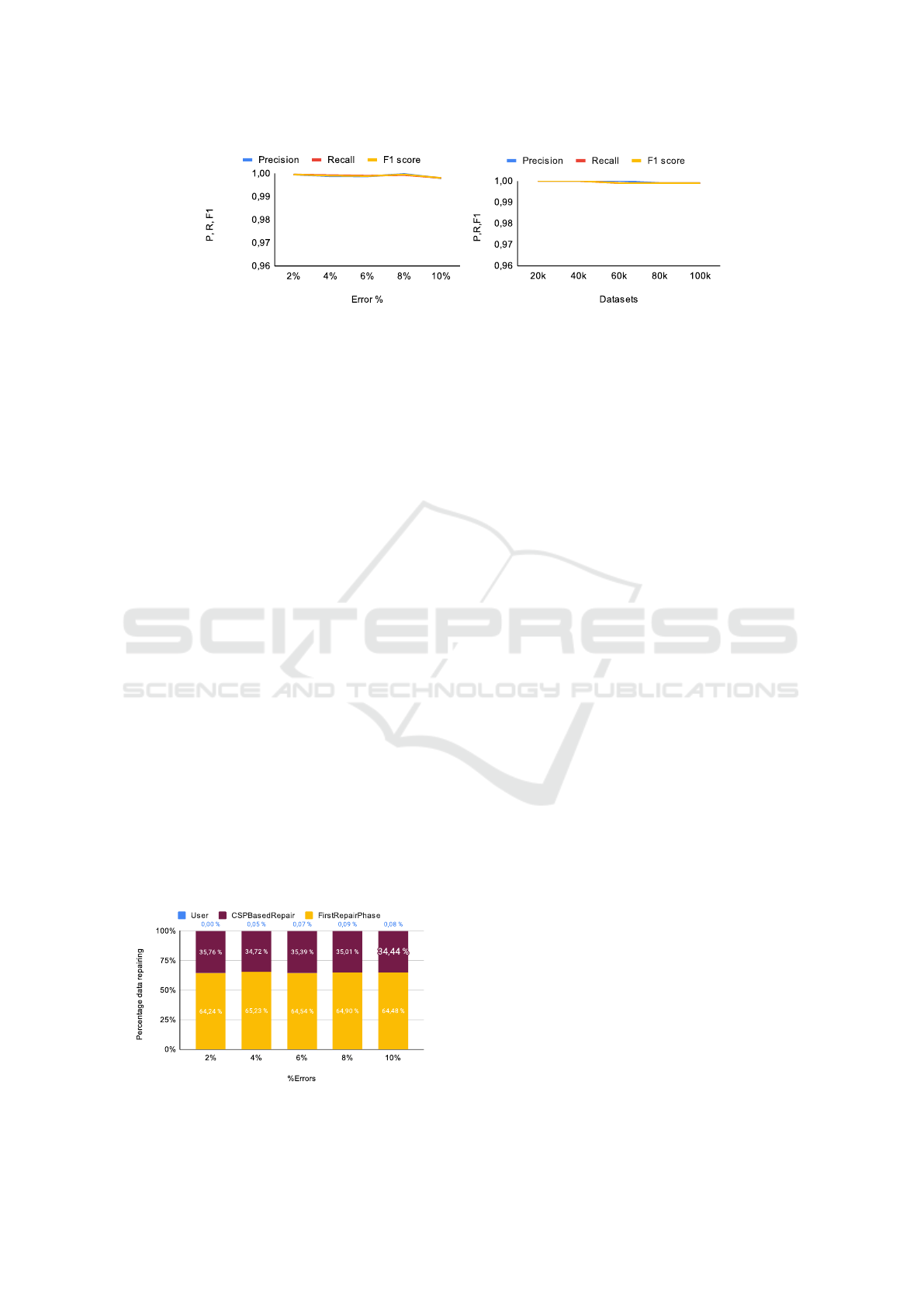

(a) Hospital (2% - 10%) (b) Hospital (20k-100k)

Figure 3: Accuracy when varying the noise rate and the dataset size.

both values guarantee the consistency and there is

no way to identify the good repair, especially that

tuples share the same ZIPCode and State values,

therefore, the F1 score may not reach 100%.

To study the impact of the dataset size on the ef-

fectiveness of repairs, we ﬁxed the noise rate at

1% and varied the dataset size from 20k to 100k,

Figure 3b show that the F1 score is higher than

99% with a 100% precision all the time. It is clear

that our repair algorithm is not affected by the in-

crease of the dataset size as it depends on the pos-

sible repairs extracted in the previous step.

(b) Studying the Degree of User Intervention.

In this experiments, we used 20k records and var-

ied the error rate from 2% to 10%. The Figure 4

shows that when the error rate is lower than 4%,

100% of the dirty cells are repaired automatically.

The user intervention rate increases slightly when

increasing the error rate, which was expected be-

cause the more noise we have, the more difﬁ-

cult it becomes to ﬁnd repairs. Despite the in-

crease of human involvement, it didn’t go beyond

0.08% even when the error rate was rather high

(10%), which means that only 8 cells were man-

ually repaired. On the other hand, about 34%

of the dirty cells were repaired automatically via

CSPBasedRepair instead of repairing them semi-

automatically.

Figure 4: User intervention when varying the dataset size.

5.2 Efﬁciency and Run-Time

5.2.1 Run-Time Results

In Figure 5, we report the run-time results when vary-

ing: 1) the error rate on 20k records and 2) the dataset

size from 20k to 100k with the error rate ﬁxed at 1%.

The Figure 5 illustrates the efﬁciency of CSPBase-

dRepair. Since the algorithm is executed after a ﬁrst

cleaning phase, the initial error rate does not represent

the rate of cells to repair.

Our experiments are run on a 64bit AMD Ryzen 7

5800H and 32GB RAM. As the CSPBasedRepair can

be executed in parallel, we used 16 CPU threads for

its execution.

Results illustrated in Figure 5a and Figure 5b show

that our algorithm is fast. We observe a linear curve

when varying the error rate or the dataset size. This

is due to our optimizations as well as the fact that the

algorithm is designed to be executed in parallel.

5.2.2 Optimization Impact on Run-Time

To study the impact of the domains and neighbors

pruning as well as our variables ordering on the ef-

ﬁciency, we varied the dataset size from 5k to 20k

and ﬁxed error rate at 1%. We consider three com-

binations: (1) CSPBasedRepair with the pruning pro-

cess and our proposed variables ordering technique.

(2) CSPBasedRepair and variables ordering technique

but without the pruning process. (3) CSPBasedRepair

without the pruning process nor the variables ordering

technique (i.e., random selection). As illustrated in

Figure 6, using our optimizations allowed us to accel-

erate the repair process. Indeed, when the dataset size

reaches 20k our repair time is 300 times faster than the

repair without the pruning and 1500 times faster than

the repair without the pruning nor the variables order-

ing. In other words the pruning process and the vari-

ables ordering allowed us to reduce the repair time by

more than 21% and 78% respectively (i.e, 99% when

used together). We also notice that the more data we

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

484

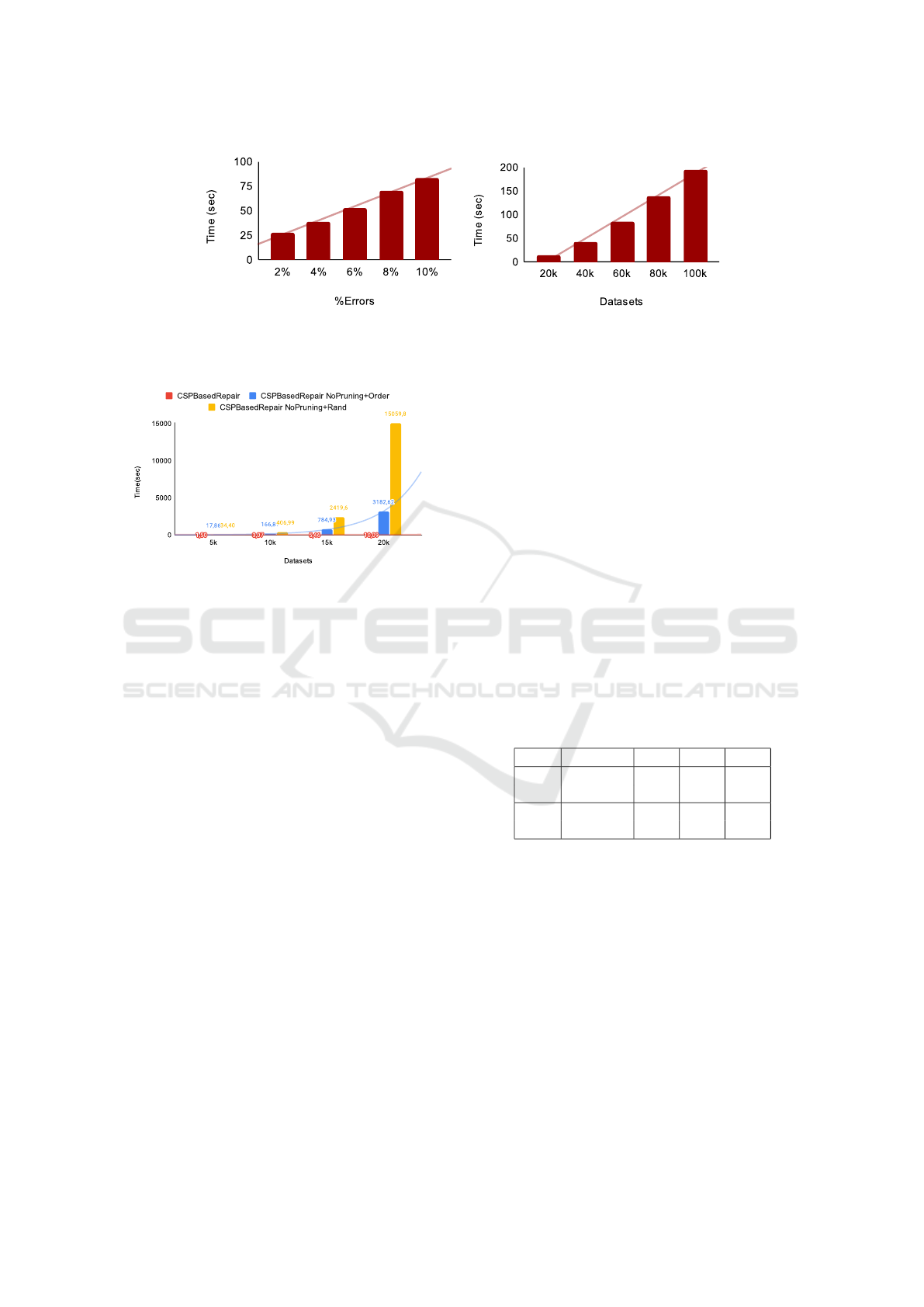

(a) Noise (b) Size

Figure 5: Run-time results.

Figure 6: Optimizations impact on the run-time.

have, the larger the gap between the curves becomes,

which means that our optimizations helped to reduce

the complexity of the problem. We explain this by

the fact that domain pruning allowed us to reduce the

search space, neighbor pruning reduced the number

of comparisons between variables by selecting as few

neighbors as possible, and variable ordering helped us

to converge quickly to the solution by avoiding dead

ends and thus backtracks.

5.3 Comparison to Baselines

We compared the accuracy of the repair process of

CSP-DC and Baran (Mahdavi and Abedjan, 2020)

a recent data cleaning system using one of AI tech-

niques (transfer learning). We used a sample of 20k

records from the Hospital dataset and veriﬁed the er-

ror rate to assess and compare its impact on both so-

lutions. As Baran may return different results in each

run, ten runs were averaged to calculate the metrics.

As shown in Table 1, CSP-DC performed better than

Baran in both cases. Indeed, we achieved 100% accu-

rate repairs and resolved all violations which is due

to: 1) The high quality repairs applied before the

CSPBasedRepair. 2) The strength of CSP formula-

tion which allowed us to apply 100% consistent and

accurate repairs as it considers all constraints at the

same time when looking for a possible update. Baran

on the other hand had an unexpected behaviour as it

achieved a higher F1 score when the error rate was

lower. This also means that Baran was not nega-

tively affected by the error rate because Hospital is a

context-rich dataset and Baran makes use of the con-

textual information available in the dataset which al-

lows it to exploit the remaining trustworthy data. Al-

though Baran returned a rather high F1 score, the pre-

cision scores show that about 17% (resp. 7.5%) of

the data were not correctly updated when the error

rate is 1% (resp. 10%). This could be explained by

the high number of possible ﬁxes returned by its dif-

ferent models interacting holistically, which makes it

difﬁcult to choose the good repair value. Also, Baran

is a general cleaning system, it looks for repairs to

multiple types of errors rather than focusing on im-

proving the data consistency, consequently, some vi-

olations may not be repaired correctly.

Table 1: Comparing the repair accuracy of CSP-DC and

Baran.

E System P R F1

CSP-DC 1.0 1.0 1.0

Baran 0.83 0.83 0.83

10%

CSP-DC 1.0 1.0 1.0

Baran 0.92 0.92 0.92

We study effectiveness and run-time results of the

CSPBasedRepair algorithm (CSP-BR) when using

our proposed variables ordering technique compared

to its performances when using: a random selection

or the MRV (Minimum Remaining Value) heuristic

as well as ﬁltering strategies : Forward checking (FC)

and two optimized versions of Arc-consistency: AC3

and AC4. As MRV performs better in a sequential ex-

ecution, all algorithms were executed in a sequential

manner for a fair comparison. Note that the heuris-

tic and ﬁltering strategies are used with the CSPBase-

dRepair and after the domains and neighbors prun-

ing. The reported time represents the repair search

time without the problems’ Initialization (which took

at most 5 seconds).

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

485

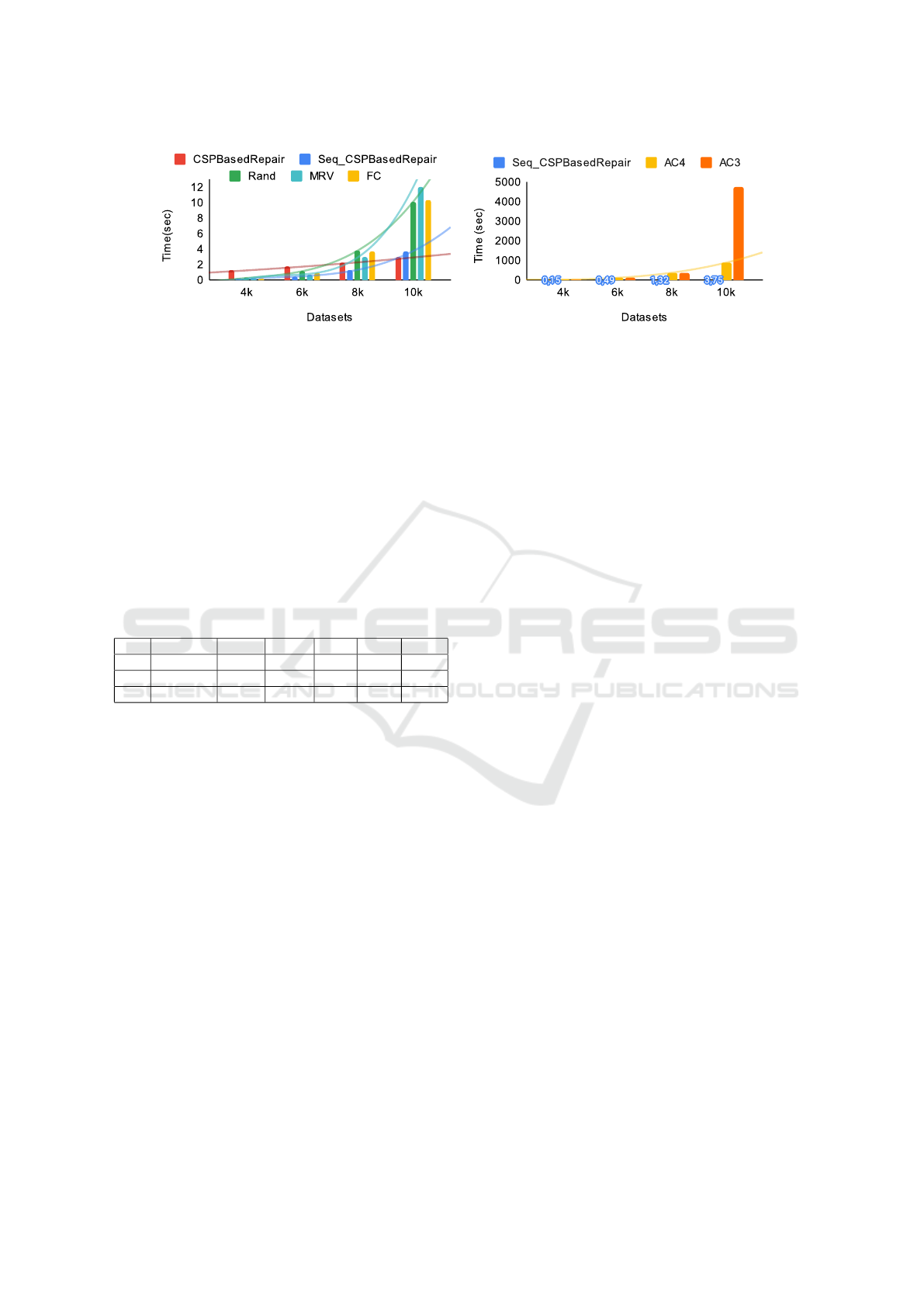

(a) MRV and FC impact on the runtime. (b) AC3 and AC4 impact on the runtime.

Figure 7: Variables ordering and Filtering strategies impact on the run-time.

Table 2, reports the F1 score, the number of back-

tracks (BT), and the run-time results. We used 10k

records and injected 1% errors from its domain. Re-

sults show that CSPBasedRepair not only performs

as well as when using MRV and ﬁltering strategies

but also is at least 3 times faster. Thanks to our good

variable ordering, the purpose of avoiding dead ends

was better achieved by our solution (0 backtracks)

compared to ﬁltering strategies and MRV which back-

tracked 217 times.

Table 2: Impact of heuristics and ﬁltering algorithms on the

number of backtracks and the run-time.

CSP-BR Rand MRV FC AC4 AC3

F1 1.0 1.0 1.0 1.0 1.0 1.0

BT 0 39 217 39 34 39

T 3.7 10.1 12.0 10.3 884 4747

To assess the impact of the dataset size on the run-

time and the complexity of the problem, we injected

1% domain errors and varied the size of the hospi-

tal dataset from 4k to 10k. We didn’t go beyond 10k

because MRV, AC3 and AC4 were taking too long

and did not terminate repairing 20k records within 24

hours. For a better visualization of the curves, we re-

port the run-time of AC3 and AC4 in a separate ﬁgure

(Figure 7b).

Figure 7a shows that our sequential version is also

fast, the larger the dataset is, the larger the gap be-

tween curves becomes. Indeed, when the dataset size

is small (4k and 6k), we notice that the repair time

when using MRV and FC is almost the same com-

pared to CSPBasedRepair when using our variables

ordering strategy. However, once dealing with larger

datasets, their run-time increases considerably. The

same phenomena is noticed with the random variables

selection.

Filtering the domains aims to reduce the research

space and converge rapidly toward the solution. Un-

fortunately, their complexity signiﬁcantly affected the

run-time, especially AC3 and AC4 (Figure 7b). This

is due to the fact that for each variable’s value, con-

straints are veriﬁed in order to eliminate values that

don’t satisfy at least one of them. As our problem is

composed of a high number of variables with large

domains, the complexity of the problem increases

when using such a ﬁltering strategy.

Since our solution is parallelizable, we reported the

parallel run-time Figure 7a. We notice that when

the dataset is small the parallel version of CSP-

BasedRepair was slower than most of conﬁgurations.

However, as the size of the dataset increases, it out-

performs all the competing baselines and the run-

time difference becomes signiﬁcant when reaching

10k records. We also notice that the use of parallel

execution allowed us to have a linear curve in contrast

to the sequential one.

6 RELATED WORK

Existing constraint-based data cleaning approaches

have been focusing on ﬁnding updates that minimally

change original data and satisfy a set of ICs (Xu Chu

et al., 2013), (Geerts et al., 2013), (Dallachiesa et al.,

2013), (Khayyat et al., 2015), etc. However, the min-

imal repair doesn’t guarantee the accuracy of repairs

nor the consistency of data especially, when unveri-

ﬁed ﬁxes are applied (Fan et al., 2012). To overcome

these problems, we automatically repair only easy re-

pair cases. We also prefer to use one of the exist-

ing repair algorithms that exploits external data like

master data and knowledge bases to return relevant

ﬁxes (Chu et al., 2015), (Yakout et al., 2011), (Geerts

et al., 2013). In order to improve the repair quality,

users have been involved in the cleaning process to

choose a solution among multiple ones (Yakout et al.,

2011), to propose repairs for marked cells (Geerts

et al., 2013), to give feedbacks on proposed modiﬁca-

tions (Yakout et al., 2011) or for crowdsourcing (Chu

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

486

et al., 2015). In our work, the user is involved to clean

only dirty data, without any automatically generated

repairs. The user intervention in this case, guarantees

the consistency of data as it resolves all the remaining

violations with no proposed possible ﬁxes.

AI techniques have been widely used for data clean-

ing (Rekatsinas et al., 2017), (Konda et al., 2016),

(Yakout et al., 2011), (Krishnan et al., 2017),

(Volkovs et al., 2014). Some of them, use machine

learning to generate automatic repairs (Yakout et al.,

2011), (Mayﬁeld et al., 2010) and/or leverage users

feedback using active/reinforcement learning (Yakout

et al., 2011), (Berti-Equille, 2019), (Gokhale et al.,

2014).Others learn from probabilities extracted from

data to predict repairs (Rekatsinas et al., 2017), (Yak-

out et al., 2011). In our work we exploit AI techniques

by formulating our problem as a CSP. We leverage

possible repairs returned automatically by a repair al-

gorithm to choose values that guarantee data consis-

tency.

7 CONCLUSION

In this work, we proposed a new data cleaning solu-

tion which makes use of the strength of CSP formu-

lation to ensure data consistency and accuracy in a

fully automatic way, while also allowing human in-

tervention when necessary. For high quality repairs,

we used QDﬂows as it leverages knowledge bases to

perform automatic repairs when possible, or generate

possible repairs otherwise. To ensure the consistency

in this step, we enable user intervention to manually

repair violations with no possible ﬁxes. We also allow

multiple cleaning iterations to repair new eventual vi-

olations. In order to handle ambiguous repair cases,

we annotate the involved cells and collect their possi-

ble repairs generated previously, a CSP solving algo-

rithm is then used for a holistic repair. For optimizing

the repair search, we propose a new variable selection

technique that allows us to reach the solution quickly

and avoid dead ends. Our experiments show promis-

ing results in improving repair accuracy and data con-

sistency, achieving a F1 score higher than 99% while

minimizing human efforts (less than 0.1% for 10% er-

ror rate). They also show that our optimizations and

the proposed variable ordering technique improve the

efﬁciency of the backtracking search by more than

99.9% and allow it to repair data in a linear time.

Future works may focus on: proposing a new data

cleaning approach that provides automatic and con-

sistent repairs before using the CSPBasedRepair, han-

dling larger datasets by using a Big Data processing

tool, and automatically discover quality rules from

dirty data when they are not available.

REFERENCES

Abdellaoui, S., Nader, F., and Chalal, R. (2017). QDﬂows:

A System Driven by Knowledge Bases for Designing

Quality-Aware Data ﬂows. Journal of Data and Infor-

mation Quality, 8(3-4):1–39.

Berti-Equille, L. (2019). Reinforcement Learning for Data

Preparation with Active Reward Learning.

Bohannon, P., Fan, W., Rastogi, R., and Flaster, M. (2005).

A Cost-Based Model and Effective Heuristic for Re-

pairing Constraints by Value Modiﬁcation.

Chiang, F. and Miller, R. J. (2011). A Uniﬁed Model for

Data and Constraint Repair.

Chu, X., Morcos, J., Ilyas, I. F., Ouzzani, M., Papotti,

P., Tang, N., and Ye, Y. (2015). KATARA: A Data

Cleaning System Powered by Knowledge Bases and

Crowdsourcing. In Proceedings of the 2015 ACM

SIGMOD International Conference on Management

of Data, pages 1247–1261, Melbourne Victoria Aus-

tralia. ACM.

Cong, G., Fan, W., Geerts, F., Jia, X., and Ma, S. (2007).

Improving Data Quality: Consistency and Accuracy.

Dallachiesa, M., Ebaid, A., Eldawy, A., Elmagarmid,

A., Ilyas, I. F., Ouzzani, M., and Tang, N. (2013).

NADEEF: a commodity data cleaning system. In

Proceedings of the 2013 international conference on

Management of data - SIGMOD ’13, page 541, New

York, New York, USA. ACM Press.

Fan, W., Li, J., Ma, S., Tang, N., and Yu, W. (2012). To-

wards certain ﬁxes with editing rules and master data.

The VLDB Journal, 21(2):213–238.

Geerts, F., Mecca, G., Papotti, P., and Santoro, D. (2013).

The LLUNATIC data-cleaning framework. Proceed-

ings of the VLDB Endowment, 6(9):625–636.

Gokhale, C., Das, S., Doan, A., Naughton, J. F., Rampalli,

N., Shavlik, J., and Zhu, X. (2014). Corleone: hands-

off crowdsourcing for entity matching. In Proceedings

of the 2014 ACM SIGMOD International Conference

on Management of Data, SIGMOD ’14, pages 601–

612, New York, NY, USA. Association for Computing

Machinery.

Ilyas, I. F. and Chu, X. (2015). Trends in Cleaning Rela-

tional Data: Consistency and Deduplication. Founda-

tions and Trends® in Databases, 5(4):281–393.

Khayyat, Z., Ilyas, I. F., Jindal, A., Madden, S., Ouz-

zani, M., Papotti, P., Quian

e-Ruiz, J.-A., Tang, N.,

and Yin, S. (2015). BigDansing: A System for Big

Data Cleansing. In Proceedings of the 2015 ACM

SIGMOD International Conference on Management

of Data, pages 1215–1230, Melbourne Victoria Aus-

tralia. ACM.

Konda, P., Das, S., Ardalan, A., Ballard, J. R., Li, H.,

Panahi, F., Zhang, H., Naughton, J., Prasad, S., Krish-

nan, G., Deep, R., and Raghavendra, V. (2016). Mag-

ellan: Toward Building Entity Matching Management

Systems.

CSP-DC: Data Cleaning via Constraint Satisfaction Problem Solving

487

Krishnan, S., Franklin, M. J., Goldberg, K., and Wu, E.

(2017). BoostClean: Automated Error Detection and

Repair for Machine Learning. arXiv:1711.01299 [cs].

Mahdavi, M. and Abedjan, Z. (2020). Baran: effective er-

ror correction via a uniﬁed context representation and

transfer learning. Proceedings of the VLDB Endow-

ment, 13(12):1948–1961.

Mayﬁeld, C., Neville, J., and Prabhakar, S. (2010). ER-

ACER: a database approach for statistical inference

and data cleaning. In Proceedings of the 2010 ACM

SIGMOD International Conference on Management

of data, SIGMOD ’10, pages 75–86, New York, NY,

USA. Association for Computing Machinery.

Mouelhi, A. E., J

egou, P., Terrioux, C., and Zanuttini, B.

(2013). Sur la complexit

e des algorithmes de back-

tracking et quelques nouvelles classes polynomiales

pour CSP.

Pang, W. and Goodwin, S. D. (2003). A Graph Based Back-

tracking Algorithm for Solving General CSPs. In Xi-

ang, Y. and Chaib-draa, B., editors, Advances in Artiﬁ-

cial Intelligence, Lecture Notes in Computer Science,

pages 114–128, Berlin, Heidelberg. Springer.

Poole, D. L. and Mackworth, A. K. (2010). Arti-

ﬁcial Intelligence: Foundations of Computational

Agents. Cambridge University Press. Google-Books-

ID: B7khAwAAQBAJ.

Raman, V. and Hellerstein, J. M. (2001). Potter’s Wheel:

An Interactive Data Cleaning System.

Razgon, I. (2006). Complexity Analysis of Heuristic CSP

Search Algorithms. In Hnich, B., Carlsson, M., Fages,

F., and Rossi, F., editors, Recent Advances in Con-

straints, Lecture Notes in Computer Science, pages

88–99, Berlin, Heidelberg. Springer.

Rekatsinas, T., Chu, X., Ilyas, I. F., and R

e, C. (2017).

HoloClean: holistic data repairs with probabilistic

inference. Proceedings of the VLDB Endowment,

10(11):1190–1201.

Rezig, E. K., Ouzzani, M., Aref, W. G., Elmagarmid,

A. K., Mahmood, A. R., and Stonebraker, M. (2021).

Horizon: scalable dependency-driven data cleaning.

Proceedings of the VLDB Endowment, 14(11):2546–

2554.

Volkovs, M., Fei Chiang, Szlichta, J., and Miller, R. J.

(2014). Continuous data cleaning. In 2014 IEEE 30th

International Conference on Data Engineering, pages

244–255, Chicago, IL. IEEE.

Wang, J. and Tang, N. (2017). Dependable data repairing

with ﬁxing rules. Journal of Data and Information

Quality (JDIQ), 8(3-4):1–34.

Xu Chu, Ilyas, I. F., and Papotti, P. (2013). Holistic

data cleaning: Putting violations into context. In

2013 IEEE 29th International Conference on Data

Engineering (ICDE), pages 458–469, Brisbane, QLD.

IEEE.

Yakout, M., Elmagarmid, A. K., Neville, J., Ouzzani, M.,

and Ilyas, I. F. (2011). Guided data repair. Proceed-

ings of the VLDB Endowment, 4(5):279–289.

ICAART 2023 - 15th International Conference on Agents and Artiﬁcial Intelligence

488
