Novel View Synthesis for Unseen Surgery Recordings

Mana Masuda

1 a

, Hideo Saito

1 b

, Yoshifumi Takatsume

and Hiroki Kajita

Department of Information and Computer Science, Keio University, Yokohama, Japan

Department of Plastic and Reconstructive Surgery, Keio University School of Medicine, Shinjuku-ku, Tokyo, Japan

Department of Anatomy, Keio University School of Medicine, Shinjuku-ku, Tokyo, Japan

Keywords:

Medical Image Application, Novel View Synthesis.

Abstract:

Recording surgery in operating rooms is a crucial task for both medical education and evaluation of medical

treatment. In this paper, we propose a method for visualizing surgical areas that are occluded by the heads or

hands of medical professionals in various surgical scenes. To recover the occluded surgical areas, we utilize

a surgery recording system equipped with multiple cameras embedded in the surgical lamp, with the aim of

ensuring that at least one camera can capture the surgical area without occlusion. We propose the application of

a transformer-based Neural Radiance Field (NeRF) model, originally proposed for normal scenes, to surgery

scenes, and demonstrate through experimentation that it is feasible to generate occluded surgical areas. We

believe this research has the potential to make our multi-camera recording system practical and useful for

physicians.

1 INTRODUCTION

The recording of surgeries in an operating room with

cameras has proven to be an indispensable task for a

variety of purposes, including education, the sharing

of surgical technologies and techniques, the perfor-

mance of case studies of diseases, and the evaluation

of medical treatment (Masuda et al., 2022; Hachiuma

et al., 2020; Matsumoto et al., 2013; Sadri et al., 2013;

Shimizu et al., 2020). The targets that depict the

surgery, such as the surgical ﬁeld, surgeon’s hands,

and surgical tools, should be captured in the record-

ings of surgeries for these purposes.

It is challenging, however, to continuously record

these targets without any occlusion. The most

straightforward method for recording surgery is to at-

tach a camera to the operating room environment, but

this may result in occlusion of the surgical ﬁeld by

surgeons, nurses, or surgical machinery. Another op-

tion is to attach the camera to the head of the sur-

geon and record from a ﬁrst-person perspective, but

this video is often affected by motion blur due to head

movements and the surgeon may not always be look-

ing at the surgical ﬁeld. Additionally, the camera at-

tached to the surgeon’s head may interfere with the

surgery itself. As a result, cameras attached to the op-

https://orcid.org/0000–0002–9050–5306

https://orcid.org/0000–0002–2421–9862

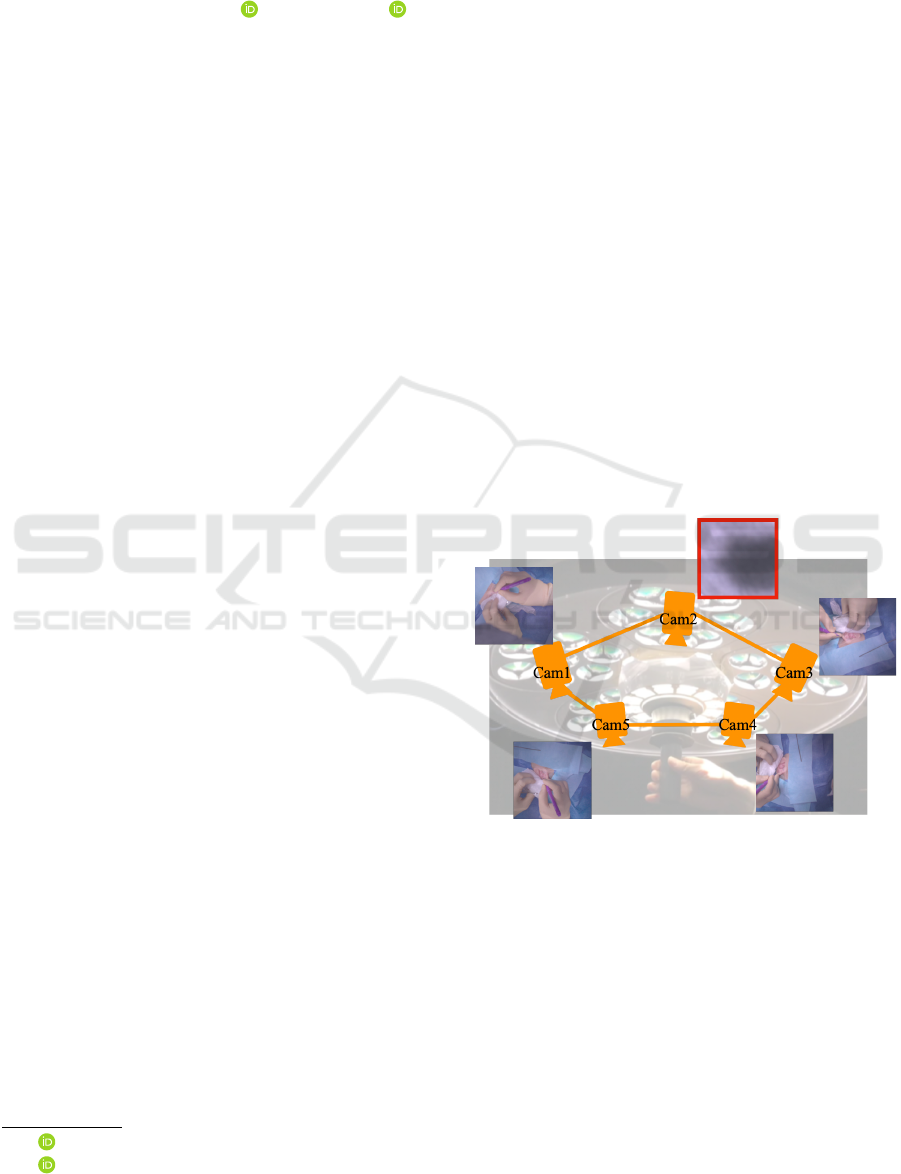

Figure 1: We expect that at least one of the cameras attached

to the surgical lamp will capture the surgical ﬁeld (Cam1, 3,

4, 5), but not all of the cameras will for most of the cases

(Cam2).

erating room environment or the surgeon’s head are

not effective solutions for recording surgeries.

Shimizu et al. (Shimizu et al., 2020) proposed a

novel surgical lamp system with multiple embedded

cameras to record surgeries. A generic surgical lamp,

commonly used in open surgeries, has multiple light

bulbs that illuminate the surgical ﬁeld from multiple

directions in order to reduce shadows caused by sur-

geons. Shimizu et al. expect that at least one of the

multiple light blubs will almost always illuminate the

surgical ﬁeld. They embedded the cameras into each

944

Masuda, M., Saito, H., Takatsume, Y. and Kajita, H.

Novel View Synthesis for Unseen Surgery Recordings.

DOI: 10.5220/0011897200003417

In Proceedings of the 18th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2023) - Volume 4: VISAPP, pages

944-949

ISBN: 978-989-758-634-7; ISSN: 2184-4321

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

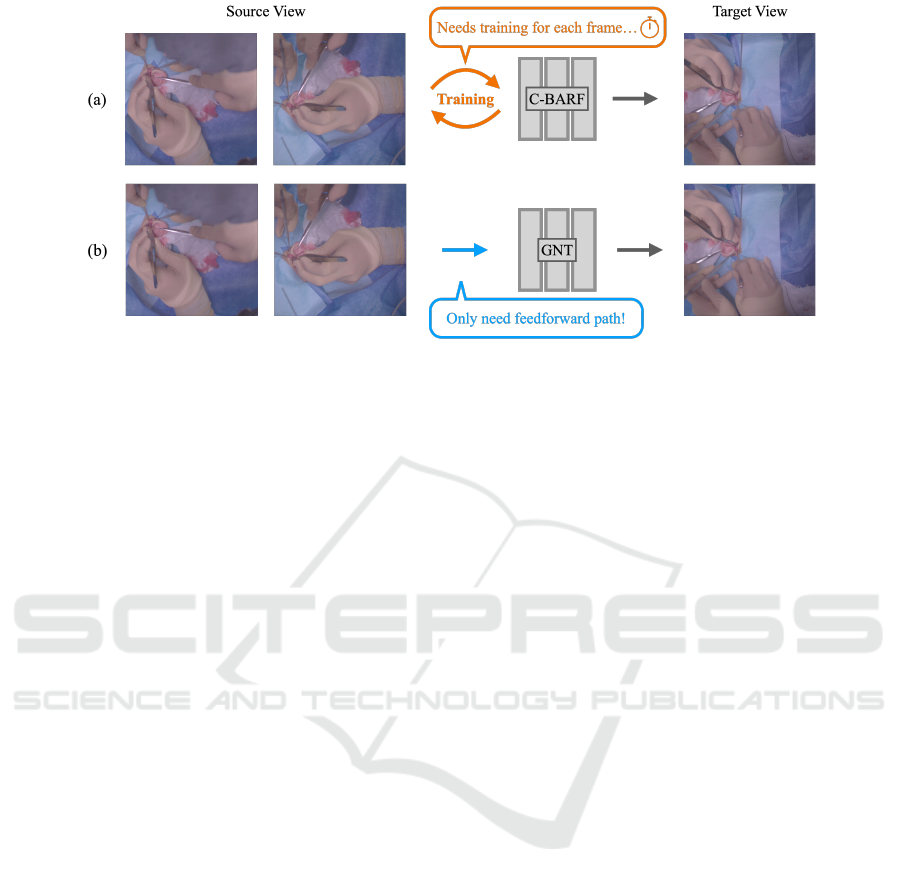

Figure 2: (a) Conditional-BARF (C-BARF) (Masuda et al., 2022) requires training the network for each frame, which takes a

tremendous amount of time to create a video from the beginning to the end of the surgery. (b) We propose using Generalizable

NeRF Transformer (GNT) (Wang et al., 2022) for surgery scenes. This method does not require training even when rendering

unseen scenes, so it is possible to create the video in signiﬁcantly less time than C-BARF.

light blub, ensuring that there is always one camera

that captures the surgical ﬁeld as long as the surgical

ﬁeld is illuminated.

As not all cameras are capable of adequately

capturing the surgical ﬁeld, as depicted in Fig. 1,

post-processing is often required to create reviewable

videos from multi-view video. Various methods have

been proposed for this post-processing (Masuda et al.,

2022; Hachiuma et al., 2020; Shimizu et al., 2020).

Shimizu et al. (Shimizu et al., 2020) and Hachiuma

et al. (Hachiuma et al., 2020) have proposed mod-

els to select the best view frames, while Masuda et

al. (Masuda et al., 2022) have proposed the use of

Conditional-BARF (C-BARF; see Fig.2-(a)) to syn-

thesize occlusion-free image, with the aim of gen-

erating videos with smooth camera pose transitions.

The C-BARF utilizes the relative position of the cam-

era as a condition for improved camera pose estima-

tion, as COLMAP (Sch

onberger and Frahm, 2016) is

unable to accurately determine camera position from

only ﬁve images. However, this approach requires

the training of a network for every frame in order to

generate novel view images, leading to a signiﬁcant

computational time when creating a video of an en-

tire surgery. Additionally, it may struggle to render

images if the target camera pose is not closely aligned

with the source view’s camera pose.

Recently, transformer-based Neural Radiance

Field (NeRF) has been attracting much attention.

Wang et al. proposed IBRNet (Wang et al., 2021),

which introduces the Ray Transformer, enabling the

learning of a generic vire interpolation that general-

izes to novel scenes. Varma et al. proposed the Gen-

eralizable NeRF Transformer (GNT) (Wang et al.,

2022), which introduced the View Transformer as the

ﬁrst stage. This transformer-based architecture allows

for the generation of unseen scenes from source-view

images.

In this paper, we propose the use of GNT for syn-

thesizing surgical scenes (Fig. 2-(b)) with the aim

of synthesizing novel view images of new surgical

scenes without training the network using the GNT’s

features, which can be pre-trained using previous sur-

gical scenes. Our experimental results demonstrate

that GNT can generalize surgical scenes using real-

world surgical data, even though surgical data is typ-

ically less numerous than everyday scenes and in-

cludes complex shapes (e.g., faces, legs, surgeon’s

hands, and surgical instruments). We record all data at

Keio University School of Medicine using the record-

ing system proposed by Shimizu et al. (Shimizu et al.,

2020).

2 RELATED WORK

2.1 Surgical Recording Systems

Recording surgeries and generating videos for re-

viewing surgeries or teaching skills to future gener-

ations is an important task for doctors. Surgeries

performed through an endoscope camera, such as la-

paroscopic surgery, can be easily recorded. However,

surgeries in which the surgeon directly visualizes the

surgical ﬁeld, such as open surgery, are difﬁcult to

record due to spatial restrictions, as the head or hands

of the surgeons and medical equipment may occluded

the important ﬁeld of the surgery.

Many attempts have been made to record the sur-

gical ﬁeld (Shimizu et al., 2020; Matsumoto et al.,

Novel View Synthesis for Unseen Surgery Recordings

945

2013; Murala et al., 2010; Kumar and Pal, 2004; Byrd

et al., 2003). Kumar et al. (Kumar and Pal, 2004)

and Byrd et al. (Byrd et al., 2003) proposed recording

systems that place a camera in the surgery room envi-

ronment. However, the view is easily occluded by the

surgeon’s head or body. Observing the surgical ﬁeld

with a single camera without any occlusion is a difﬁ-

cult task. Matsumoto et al. and Murala et al. proposed

recording systems that ask surgeons to wear cameras.

However, this system is not only limited by hardware

in its ability to produce high-quality videos, but it is

also uncomfortable for surgeons to wear.

To solve this problem, Shimizu et al. proposed a

new system that embeds cameras on a surgical lamp.

This system not only allows one of the cameras to

record the surgical ﬁeld while one of the light bulbs

illuminates it but also does not interfere with the sur-

geons during surgeries.

2.2 Camera Switching System

As the cameras obtain multiple videos of a single

surgery, Shimizu et al. proposed a method for au-

tomatically selecting the image with the best view

of the surgical ﬁeld at each moment using Dijkstra’s

algorithm based on the size of the surgical ﬁeld to

generate a single video. Hachiuma et al. (Hachiuma

et al., 2020) proposed Deep Selection, which selects

the camera with the best view of the surgery using

a fully supervised deep neural network. However, a

problem with these methods is that the video quality

is often low due to frequent changes in the viewing

direction.

2.3 Novel View Synthesis

Novel view synthesis is one of the fundamental func-

tionality and long-standing problem in computer vi-

sion (Gortler et al., 1996; Levoy and Hanrahan, 1996;

Davis et al., 2012).

For Non-medical Images: Recently, novel view

synthesis methods for everyday scenes have made sig-

niﬁcant progress by using neural networks. Milden-

hall et al. (Mildenhall et al., 2020) proposed NeRF, a

method for synthesizing novel views of static, com-

plex scenes from a set of input images with known

camera poses. Wang et al. proposed IBRNet (Wang

et al., 2021), which introduced the Ray Transformer.

This method enables learning a generic view interpo-

lation function that generalizes to novel scenes, unlike

previous neural scene representation work that opti-

mized per-scene functions for rendering. Varma T.et

al. proposed the Generalizable NeRF Transformer

(GNT) (Wang et al., 2022), which introduced the

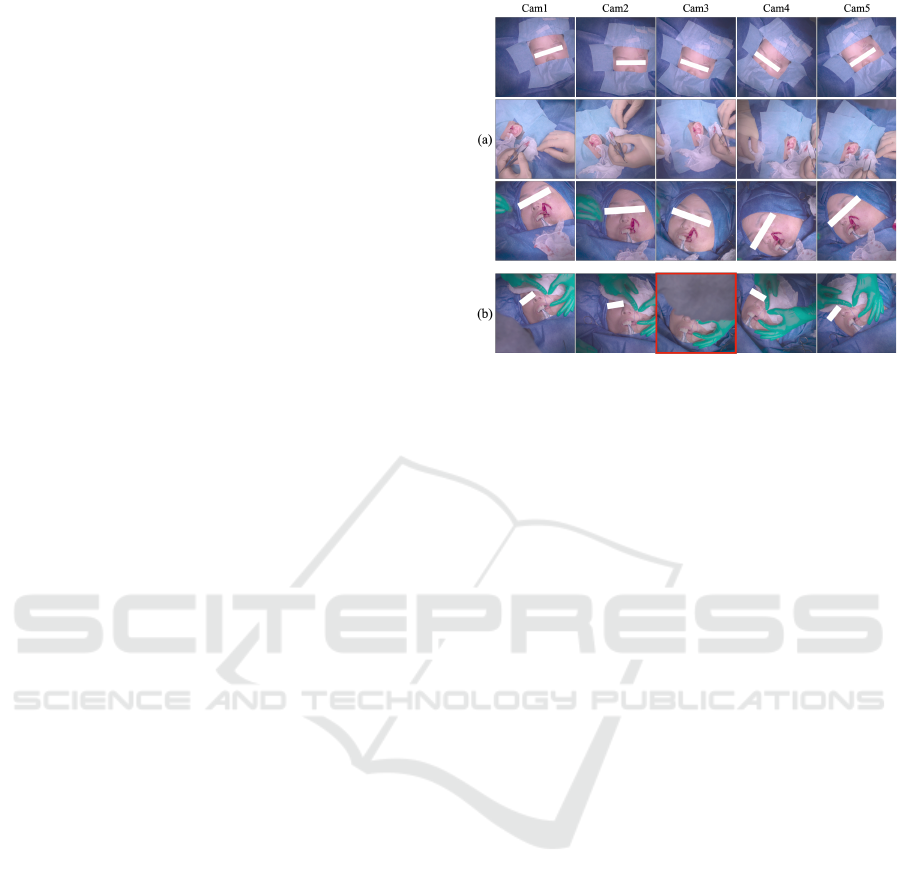

Figure 3: Examples of the data captured by the recording

system proposed by Shimizu et al. (Shimizu et al., 2020).

(a) The examples we used for the training, in which no cam-

eras were obstructed by the surgeon’s head. (b) A bad exam-

ple in which the surgical area was hidden by the surgeon’s

head (Cam3).

View Transformer as the ﬁrst stage. They also demon-

strated that depth and occlusion could be inferred

from the learned attention maps, which implies that

the pure attention mechanism is capable of learning a

physically-grounded rendering process. Furthermore,

this transformer-based architecture makes it possible

to generate unseen scenes from source-view images.

For Medical Images: The novel view synthesis

method is begging to be used for medical scenes. Ma-

suda et al. (Masuda et al., 2022) proposed C-BARF,

which can synthesize novel view images of surgical

scenes. They used the relative position of the camera

to more accurately estimate the camera poses. They

achieved a novel view synthesis method for surgical

videos that consists of a small number of images.

3 METHOD

Our objective is to generate the surgical areas oc-

cluded by the surgeons’ or nurse’s head in order to

create a comprehensive video for reviewing the surgi-

cal procedure. Our methodology can be divided into

ﬁve distinct steps.

The ﬁrst step is to prepare some sets of multi-

view training videos using the camera recording sys-

tem proposed by Shimizu et al.(Shimizu et al., 2020).

In order to train GNT with a diversity of surgeries and

surgical procedures, we recorded the surgeries with

multiple types and for various areas. Presently, there

are numerous frames with occlusions as dipicted in

Fig. 3-(b).

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

946

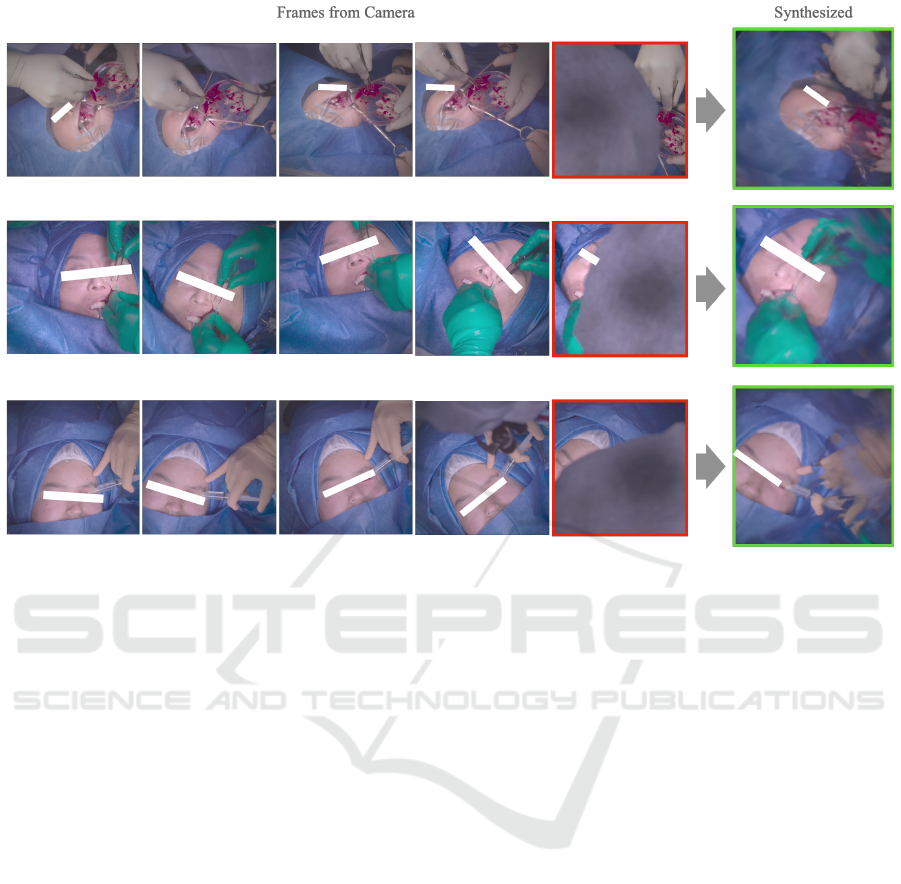

Figure 4: Novel view synthesis result for frames not included in the training set. The GNT has the capabiity to generate the

surgical area occluded by the surgion’s head. The images framed in red dipict the frames that are surgical areas occluded by

the surgion’s head. The images framed in green illustrated the generated result for the same camera positions as the red-framed

images.

The second step is to extract the frames from the

training videos. In this step, we only extract the

frames that are not occluded by the doctors or nurses,

as shown in Fig. 3-(a).

The third step is to run COLMAP (Sch

onberger

and Frahm, 2016) to obtain the camera parameters

for the extracted frames. This step also removes

the frames in which COLMAP failed to map feature

points from the dataset. This third step ﬁnalizes the

creation of the training dataset.

The fourth step is to train the GNT using the

dataset we create in Steps 1 through 3. Through

training in many types of surgical scene frames, GNT

learns a neural representation of the surgical scenes.

The ﬁfth step is generating occluded areas using

the new multi-view images. In this step, we also use

COLMAP to obtain the camera parameters.

4 EXPERIMENTS

4.1 Real Surgical Scene Dataset

As no available dataset contains surgery recordings

with multiple cameras, we use the system proposed

by Shimizu et al. (Shimizu et al., 2020) to create

our dataset. All surgeries were recorded at Keio

University School of Medicine. Video recording of

the patients were approved by the Keio University

School of Medicine Ethics Committee, and written

informed consent is obtained from all patients or

their legal guardians. We recorded nine different

types of surgeries with ﬁve cameras attached to the

surgical lamp in a regular pentagon manner, as de-

picted in Fig. 1. We estimated the camera position

using the COLMAP structure-from-motion package

(Sch

onberger and Frahm, 2016) for both training and

evaluation data.

4.2 Training Data

We used six different types of surgeries as the training

data (three of these examples are shown in Fig. 3-(a)).

For the training data, we extracted frames from the

videos at regular intervals. We excluded some time

stamps where the doctor’s head obscured the opera-

tive area in some cameras, as shown in Fig. 3-(b).

Novel View Synthesis for Unseen Surgery Recordings

947

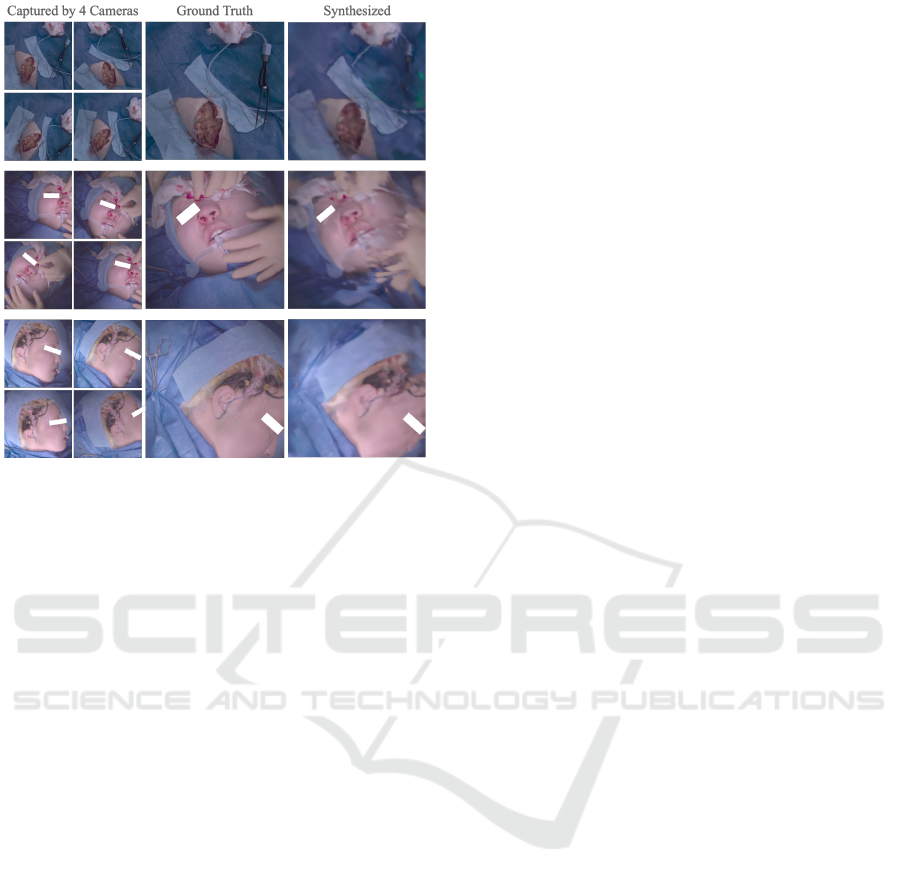

Figure 5: Novel view synthesis result for the multi-view

videos not in the training set. The GNT could generate the

occluded areas for three different kinds of surgical proce-

dures that are not in the training set.

4.3 Evaluation Data

For the evaluation, we used two different types of

datasets. The ﬁrst one is the unknown “frames“ that

are excluded from the training data because they have

some frames that do not capture the surgical areas hid-

den by the doctor’s head. The second one is an un-

known “surgical scene“. These data are not included

in the training set and are different from the training

data for both the surgical type and the patient.

4.4 Training/Inference Setup

Following the ofﬁcial implementation of the GNT

network, we train both the feature extraction net-

work and the GNT end-to-end on datasets of multi-

view posed images using the Adam (Kingma and Ba,

2014) optimizer to minimize the mean-squared error

between predicted and ground truth RGB pixel val-

ues. For all our experiments, we trained for 250, 000

steps with 512 rays sampled in each iteration. We fol-

lowed the GNT’s multi-scene training setup for other

experimental parameters.

4.5 Result

On the Unknown Frames: The result of the unknown

frame dataset is shown in Fig. 4. The synthesized

frames are bordered with green and the frames with

the target camera pose are bordered with red. We can

see that the surgical area completely hidden by the

head is properly synthesized.

On the Unknown Surgical Scenes: The result of

the unknown surgical scenes dataset is shown in Fig.

5. We can see that the surgical area is properly syn-

thesized even though the GNT does not train in these

surgical scenes.

5 CONCLUSION

In this paper, we propose the utilization of a

transformer-based NeRF network called GNT (Wang

et al., 2022) for the purpose of generation of occluded

areas of surgical scenes. The aim of this approach

is to generate the occluded areas for new surgical

scenes without the need for a training network dur-

ing inference, using the GNT’s feature which can be

pre-trained by the previous surgical scenes. Our ex-

periments demonstrated that the GNT can effectively

learn real-world surgical scenarios, and can also gen-

erates the occluded surgical areas not only for un-

known frames as well as for unknown surgical scenar-

ios. As a future endeavor, we intend to devise a model

that can accurately determine the optimal camera po-

sition for rendering videos, to make it easier to create

review videos from the acquired multi-view videos.

ACKNOWLEDGEMENT

This work was supported by MHLW Health, Labour,

and Welfare Sciences Research Grants Research

on Medical ICT and Artiﬁcial Intelligence Pro-

gram Grant Number 20AC1004, the MIC/SCOPE

#201603003, and JSPS KAKENHI Grant Number

22H03617.

REFERENCES

Byrd, R. J., Ujjin, V. M., Kongchan, S. S., and Reed, H. D.

(2003). Surgical lighting system with integrated digi-

tal video camera. US Patent 6,633,328.

Davis, A., Levoy, M., and Durand, F. (2012). Unstructured

light ﬁelds. In Computer Graphics Forum, volume 31,

pages 305–314. Wiley Online Library.

Gortler, S. J., Grzeszczuk, R., Szeliski, R., and Cohen, M. F.

(1996). The lumigraph. In Proceedings of the 23rd

Annual Conference on Computer Graphics and inter-

active techniques, pages 43–54.

Hachiuma, R., Shimizu, T., Saito, H., Kajita, H., and Takat-

sume, Y. (2020). Deep selection: A fully supervised

VISAPP 2023 - 18th International Conference on Computer Vision Theory and Applications

948

camera selection network for surgery recordings. In

International Conference on Medical Image Comput-

ing and Computer-Assisted Intervention, pages 419–

428. Springer.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kumar, A. S. and Pal, H. (2004). Digital video recording of

cardiac surgical procedures. The Annals of thoracic

surgery, 77(3):1063–1065.

Levoy, M. and Hanrahan, P. (1996). Light ﬁeld rendering. In

Proceedings of the 23rd annual conference on Com-

puter graphics and interactive techniques, pages 31–

42.

Masuda, M., Saito, H., Takatsume, Y., and Kajita, H.

(2022). Novel view synthesis for surgical recording.

In MICCAI Workshop on Deep Generative Models,

pages 67–76. Springer.

Matsumoto, S., Sekine, K., Yamazaki, M., Funabiki, T.,

Orita, T., Shimizu, M., and Kitano, M. (2013). Digital

video recording in trauma surgery using commercially

available equipment. Scandinavian journal of trauma,

resuscitation and emergency medicine, 21(1):1–5.

Mildenhall, B., Srinivasan, P. P., Tancik, M., Barron, J. T.,

Ramamoorthi, R., and Ng, R. (2020). Nerf: Repre-

senting scenes as neural radiance ﬁelds for view syn-

thesis. In European conference on computer vision,

pages 405–421. Springer.

Murala, J. S., Singappuli, K., Swain, S. K., and Nunn, G. R.

(2010). Digital video recording of congenital heart

operations with ”surgical eye”. The Annals of thoracic

surgery, 90(4):1377–1378.

Sadri, A., Hunt, D., Rhobaye, S., and Juma, A. (2013).

Video recording of surgery to improve training in plas-

tic surgery. Journal of Plastic, Reconstructive & Aes-

thetic Surgery, 66(4):e122–e123.

Sch

onberger, J. L. and Frahm, J.-M. (2016). Structure-

from-motion revisited. In Conference on Computer

Vision and Pattern Recognition (CVPR).

Shimizu, T., Oishi, K., Hachiuma, R., Kajita, H., Takat-

sume, Y., and Saito, H. (2020). Surgery recording

without occlusions by multi-view surgical videos. In

VISIGRAPP (5: VISAPP), pages 837–844.

Wang, P., Chen, X., Chen, T., Venugopalan, S., Wang, Z.,

et al. (2022). Is attention all nerf needs? arXiv

preprint arXiv:2207.13298.

Wang, Q., Wang, Z., Genova, K., Srinivasan, P., Zhou, H.,

Barron, J. T., Martin-Brualla, R., Snavely, N., and

Funkhouser, T. (2021). Ibrnet: Learning multi-view

image-based rendering. In CVPR.

Novel View Synthesis for Unseen Surgery Recordings

949
