Assessing Risk in High Performance Computing Attacks

Erika Leal

, Cimone Wright-Hamor

, Joseph Manzano

, Nicholas Multari

, Kevin Barker

David Manz

and Jiang Ming

Tulane Univerity, U.S.A.

Paciﬁc Northwestern National Lab, U.S.A.

Keywords:

High Performance Computing, Risk.

Abstract:

High-Performance Computing (HPC) systems are used to push the frontier of science. However, the security

of these systems remains a signiﬁcant concern as the number of cyber-attacks on HPC systems have increased.

Attacks on HPC systems can threaten data conﬁdentiality, integrity, and system availability. Thus, if left un-

addressed, these threats could decrease the ability to push the frontier of science. While HPC and enterprise

systems are found to have similar threats, traditional security solutions are insufﬁcient for HPC systems. This

research examines HPC attacks by using NIST Special Publication 800-30r1: Guide to Conducting Risk As-

sessments to create a generalized threat proﬁle. A threat proﬁle characterizes the threat sources and adversarial

outsiders and is used to identify traditional security solutions that could mitigate risks. Results demonstrated

that attacks originated at the login nodes, followed by coordinated campaigns that propagated the attacks

across organizational systems. The traditional security solutions that could be used to protect the login nodes

negatively impact HPC performance. These performance impacts impede the ability to push the frontier of

science. As a result, these security solutions are unlikely to be deployed in HPC systems.

1 INTRODUCTION

High-Performance Computing (HPC) systems, such

as supercomputers, have been used to push the fron-

tier of science via modeling, simulation, and analy-

sis. There is a considerable body of HPC research

that focuses on increasing performance (Camier et al.,

2021; Chen, 2017; Valeria Barra et al., 2020; Kaiser

et al., 2014), but relatively little is understood about

the security of HPC systems (Peisert, 2017). The

security of these systems remains a signiﬁcant con-

cern as cyber-attacks on HPC systems have increased

to impact the data conﬁdentiality and integrity, and

availability of HPC systems. Thus, if left unad-

dressed, these threats could decrease the ability to

push the frontier of science. While HPCs and en-

terprise systems have similar threats, traditional secu-

rity solutions are insufﬁcient for HPC systems. This

work aims to understand threats that have occurred

to HPC systems and shed some light on why tradi-

tional enterprise-grade security solutions are insufﬁ-

cient for HPC systems. The NIST 800-30r1: Guide

to Conducting Risk Assessments is used to conduct

a qualitative assessment of six publicly documented

attacks. Risk assessments are used to recognize sig-

niﬁcant trends, solutions, and decide where effort

should be applied to eliminate or reduce threat ca-

pabilities (Blank and Gallagher, 2012). The Guide

to Conducting Risk Assessments is a framework for

federal agencies, and HPCs are typically funded and

governed by the National Science Foundation, an in-

dependent federal agency. To our knowledge, no pub-

licly available risk assessment has been performed on

HPCs using NIST 800-30r1. We then use this in-

formation to generate a threat proﬁle for HPC sys-

tems (Blank and Gallagher, 2012). A threat proﬁle is a

characterization of threat sources and adversarial out-

siders. The proﬁle is used to identify enterprise-grade

security defenses capable of mitigating threats. How-

ever, these security defenses may counter the perfor-

mance of the HPC system, which renders them insuf-

ﬁcient. This paper is not intended to be a comprehen-

sive survey of HPC attacks as the number of publicly

documented attacks is limited. Although these cases

may not provide the full picture of attacks on HPC,

this may be the ﬁrst risk assessment on such attacks

of its kind.

Leal, E., Wright-Hamor, C., Manzano, J., Multari, N., Barker, K., Manz, D. and Ming, J.

Assessing Risk in High Performance Computing Attacks.

DOI: 10.5220/0011900500003405

In Proceedings of the 9th International Conference on Information Systems Security and Privacy (ICISSP 2023), pages 793-803

ISBN: 978-989-758-624-8; ISSN: 2184-4356

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

793

2 HPC BACKGROUND

High Performance Clusters have exotic architectures

that require high-performance networks, ﬁlesystems

for production I/O, high ﬂoating-point performance,

large bandwidth, and large storage. These require-

ments are needed to create high ﬁdelity simulations

of the physics of astronomical objects (Peres, 2003),

variable resolutions of analysis of molecular inter-

actions in both classical and quantum levels (Vale-

ria Barra et al., 2020), simulation of future energy

technologies, such as fusion reactors (Madduri et al.,

2011), disease spreading (Minutoli et al., 2020), un-

derstanding how climate evolves (Bougeault, 2008),

planning for resource allocation at the nationwide

level (Huang and Nieplocha, 2008), among oth-

ers. All these applications have massive computa-

tional requirements and / or intensive Input / Out-

put exchanges with expected “reasonable” execution

times

. Examples of HPC architectural designs are

represented by the Oak Ridge National Laboratory’s

Summit (Melesse Vergara et al., 2019) and Fron-

tier (Oakridge Leadership Computing Facility, ) Su-

percomputers, the RIKEN’s Fugaku system (Fujitsu,

), the National Energy Research Scientiﬁc Comput-

ing Center’s (NERSC) Perlmutter computer (Gerber,

2019), the Argonne Leadership Computing Facility’s

Aurora supercomputer (Argonne Leadership Com-

puting Facility, ), the Livermore Computing Cen-

ter’s Sierra computer (Livermore Computing Center,

), among others. Supercomputers are represented by

arrays of powerful computational components com-

posed of Commercial-Off-The-Shelf (COTS) devices

(e.g., CPUs, such as Intel, AMD, or PowerPC nodes,

and GPUs, such as Nvidia A100 or V100 cards)

with efﬁcient network-on-chips fabrics (e.g., PCI ex-

press (Wilen et al., 2003)), NVLink (Foley and Dan-

skin, 2017), QPI (Corp, 2009), etc.) and node inter-

connects (such as Cray’s Slingshot (Hewlett Packard

Enterprise, 2020) or Mellanox InﬁniBand (Shanley,

2002)) that create high bandwidth capacities and low

latency. Inside these components, one of the most

important aspects of efﬁcient computation is mem-

ory. Several memory types (Stocksdale et al., 2017;

Pelley et al., 2014; Pandey, 2019; Wan et al., 2019)

and low latency locality based storage (i.e., computer

caches) might coexist inside these nodes to provide

high-performance and low latency access to the data.

Besides the components described above, a super-

computer facility might have a set of dedicated lo-

gin/authentication nodes (for accepting users, prepar-

Some of these applications deal with very complex

problems that might take years to run if not correctly op-

timized and parallelized

ing program and data, etc.), scheduling facilities, Data

Transfer Nodes and/or Storage components. A typi-

cal user logs into the external facing nodes and then

schedules their jobs into the computational compo-

nents of the supercomputer (see (Argonne Lead-

ership Computing Facility, ; Livermore Computing

Center, ) for examples of this procedure). More-

over, as the computation evolves, produced data (this

being simulation results, proﬁling/visualization infor-

mation and others) can be saved to more permanent

locations residing in the storage components or the

data transfer nodes. The grouping of software com-

ponents used to support the application in a given

hardware architecture is called a software toolchain.

This set is composed of compilers (tools to trans-

late from higher languages to machine code and ap-

ply optimizations along the way, such as GCC (Stall-

man et al., 2009) and LLVM (Lattner and Adve,

2004)), interpreters (used to run high level code di-

rectly into the hardware, such as the Python inter-

preter (Rossum, 1995)), runtime systems (dedicated

to organizing the computational ﬂow in the hard-

ware, such as OpenMP runtime(Dagum and Menon,

1998)), specialized libraries (designed to provide ef-

ﬁcient solutions to domain problems such as the In-

tel GraphBuilder library (Intel Corp, ) or NVIDIA

cuDNN (Chetlur et al., 2014)) and other tools to un-

derstand the behavior of the workload (such as de-

buggers and proﬁlers, such as Intel VTune (Tsym-

bal and Kurylev, 2021)). Vendor supplied software

tool chain, such as compilers and libraries, are re-

purposed and used to create scientiﬁc workﬂows. Ex-

perimental libraries (e.g., (The Trilinos Project Team,

; Dongarra et al., 2015)) and highly optimized

run-

time systems (e.g., (Hammond et al., 2019; Kaiser

et al., 2014; Khronos OpenCL Working Group, 2011;

Vasilache et al., 2014; Hayashi et al., 2017)) are used

to accelerate the application workloads even further

via specialized scheduling algorithms, more powerful

concurrency constructs, data marshalling techniques,

among other techniques (such as the ones presented

in (Blumofe et al., 1995). The various components

coexist together to provide a fertile ground to efﬁ-

ciently implement applications. For example, taking

advantage of the near memory storages (like meth-

ods introduced in (Patwardhan and Upadrasta, 2019)

for accelerator’s caches) and fully utilizing the avail-

able concurrency (by fully parallelizing the workload

among nodes, cores, and hardware threads, as pre-

Optimization here refers to specialized data structures

with optimized memory aware layout and access patterns,

and methods that use architectural speciﬁc features to ac-

celerate the computation that trades portability for perfor-

mance

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

794

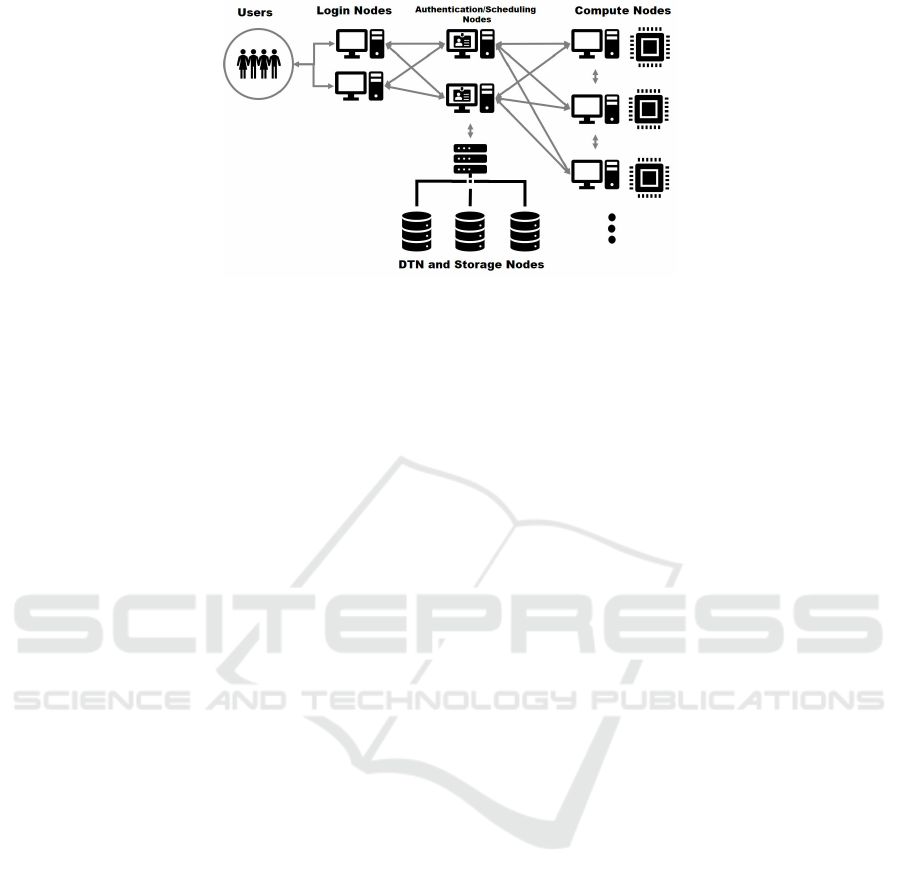

Figure 1: Overview of a typical HPC Architecture Design.

sented in (Sergeev and Del Balso, 2018) for machine

learning workloads) is of utmost important to take ad-

vantage of the substrate. However this is not an easy

task and, as a result of these complexities and the size

of the HPC market, some of these optimizations are

absent in commercial IT software environments. This

leaves some of these workﬂows fully dependant on

academic software that might be in an experimental

state or not well supported (e.g., Combustion applica-

tion S3D implemented in the novel Legion Program-

ming Model (Chen, 2017) and its dependencies).

3 RELATED WORK

The need for HPC security-focused research has been

acknowledged by experts (Hamlet and Keliiaa, 2010;

Peisert, 2017; Blankenship, 2019). A workshop was

created by NIST that gathered stakeholders from in-

dustry, academia, and the government to identify gaps

in HPC-Security (NIST, 2018; NIST, 2016). As

HPCs have speciﬁc purposes some traditional secu-

rity measures could not be adapted for HPC. As such,

those speciﬁc purposes could be leveraged for secu-

rity (Peisert, 2017). Researchers have attempted to

create a threat model for a wide range of clusters,

including High-Performance Computing (Pourzandi

et al., 2005). Integrating several security solutions

due to a heterogeneous nature was nontrivial. There-

fore, suggested security controls focused on dis-

tributed authentication, access control, monitoring,

and secure communications.

4 RISK ASSESSMENT

The National Institute of Standards and Technology

is a part of the U.S. department of Commerce. NIST

Special Publication 800-30r1 is an American federal

tool for measuring risk within information systems.

The idea behind the Guide for Conducting Risk As-

sessments is to begin establishing a context of risk

to to address the needs of an organization so that a

broader risk management process begins. What we

found is that HPCs face the same risks other systems

face. However, due to the nature of HPC using tradi-

tional security solutions may not be enough.

4.1 Risk Assessment Methodology

The NIST Risk Assessment includes four steps: pre-

pare for assessment, conduct assessment, communi-

cate results, and maintain assessment. The scope

of this assessment is limited to steps 1 through 3.

Preparing for the assessment is necessary to estab-

lish a context. The objectives are to identify the pur-

pose, scope, assumptions, and constraints of the as-

sessment, sources of threat, vulnerability, and impact

information to be used, and deﬁne the risk model,

assessment approach, and analysis approach. While

conducting a risk assessment, organizations will iden-

tify threat sources, threat events, vulnerabilities, pre-

disposing conditions, the likelihood that threat events

will result in adverse impacts, the likelihood of threat

event occurrence, the level of adverse impact, and ﬁ-

nally risk. Risk is a measure of the extent to which

an entity is threatened by a potential circumstance or

event, and is typically a function of: (i) the adverse

impacts that would arise if the circumstance or event

occurs; and (ii) the likelihood of occurrence. Finally,

we chose to communicate results by documenting and

sharing our risk assessment results by the way of this

paper.

4.1.1 Prepare for Assessment

The risk assessment guide states that historical data

on successful cyberattacks such as our cases can be

used to perform a risk assessment. The purpose of

performing the risk assessment is to identify common

vulnerabilities and threat events that have occurred in

Assessing Risk in High Performance Computing Attacks

795

Table 1: Summary of Likelihood, Impact, and Risk for HPC

Attack.

Case Likelihood Impact Risk

1 High High High

2 High High High

3 High Moderate Moderate

4 High High High

5 Very High Very High Very High

6 High Very High High

past HPC attacks while also establishing a baseline of

risk due to the harm resulting from the consequences

of unauthorized access. Then we can apply that in-

formation to build a general threat proﬁle for HPC.

The threat proﬁle will identify how risks of this type

could be mitigated using traditional security solutions

that exist. Finally, we can then discuss how these

solutions fail HPC. The scope of this assessment in-

cludes publicly documented attacks that occurred in

government-funded HPC systems. The information

sources used in this assessment are a combination of

reports, articles, keynotes, and legal documents (Na-

tional Vulnerability Database, 2019; U.S. Department

of Justice, 2013; Nixon, 2006; Barr et al., 2002; U.S.

Department of Justice, 2009; Mclaughlin et al., 2015;

Stoll, 1988). The assumptions and constraints are

ﬁrst, that all threat events that are mentioned were

documented in our provided citations. Table E-2 from

the NIST guide 800-30r1 was used to help identify

threat events within the documentation, and actually,

there were no different threat events in the case stud-

ies than what was stated on Table E-2. Our assump-

tion is also that the vulnerabilities and predisposing

conditions are the only vulnerabilities and predispos-

ing conditions based on the case studies provided in

our citations. Vulnerabilities and Predisposing Con-

ditions are placed on a severity scale and a pervasive-

ness scale provided by the NIST guide. The process

to conduct likelihood determinations is based on the

assessment scales from the NIST guide. A likelihood

score is given based on available evidence and judge-

ment (Blank and Gallagher, 2012) assuming the in-

formation of the evidence is accurate. Impact deter-

mination is based on the evidence or actual events that

transpired after the attack occurred. Risk tolerance

is determined individually based on each attack and,

again, will be based upon actual events. Uncertainty

(Blank and Gallagher, 2012), unfortunately, will al-

ways exist and is a part of the risk assessment as it is

inherent. Predictions on the future can only be made

based upon the analysis of past attacks and cataloging

of the similarities found. However, there is no guaran-

tee that future similar attacks will have the same out-

come or impacts. The publicly documented attacks

will provide the sources of threat, vulnerabilities, and

impact. The risk model used to deﬁne key risk factors

was the risk model provided by the risk assessment

which we were easily able to implement for HPC at-

tacks. A qualitative approach is used to assess the

attacks and analyze the attacks using a threat-oriented

approach. The threat-oriented approach focuses on

identifying the threat sources and threat events and

the development of threat scenarios. Vulnerabilities

are identiﬁed in the context of the threats, and impacts

are identiﬁed based on malicious intent.

4.1.2 Conduct Assessment

Identify Threat Source. Threat Sources for the cases

assessed are considered to be Adversarial Outsiders.

The characteristics of Threat Sources as deﬁned by

the risk assessment are Capability, Intent, and Target-

ing. The Capability of an adversarial outsider, in all

cases, was rated moderate to very high. According to

the NIST guide, an adversary would have at least a

moderate amount of resources, opportunities, and ex-

pertise to conduct multiple successful attacks. In the

cases where capabilities were rated as moderate the

adversary supported multiple attacks with a moderate

amount of resources. When giving a high score we

concluded that the attacker had more sophistication in

attacking due to multiple successful coordinated at-

tacks, where multiple locations were invaded simul-

taneously. Finally, for a very high capability score,

the adversary had a sophisticated level of expertise

to support multiple, continuous, and coordinated at-

tacks. All but one case are rated high to very high

in Intent. Case 3 was rated moderate as there were

no real clear intentions. However, the adversarial out-

siders entered the system and continued in the system

without detection for 6 months. They gained access

to accounts through corrupted SSH shells and then fo-

cused selectively on higher accounts (OakRidge Na-

tional Laboratory, 2019). A high intent score was

given to an adversary who impeded systems while set-

ting up ways to maintain a presence with minimal de-

tection, as seen in cases 1, 2, and 6. In cases 1, 2,

and 6, information was also disclosed on the inter-

net with the Intent to sell (U.S. Department of Justice,

2013), espionage (Archer Support, 2020), and sensi-

tive data scans (Stoll, 1988). A very high intent, as

seen in case 5, was rated as the attacker only pursued

conﬁdential information and hacked over 97 comput-

ers in 13 months searching for it, as well as disrupted

the United States Army’s Military District of Wash-

ington network by deleting ﬁles (Department of Jus-

tice, 2002). In Targeting, half of the cases were rated

as high. Case 1, case 4, and case 6. A high score

was given as the attacker used information obtained

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

796

Table 2: Summary of Threat Events.

Threat Event 1 2 3 4 5 6

Deliver modiﬁed malware to internal organizational information systems x x x x x x

Conduct brute force login attempts/password guessing attacks x x x x

Deliver malware for control of internal systems and exﬁltration of data x x

Obfuscate adversary actions x x x

Coordinated campaign propagates attack across organizational systems x x x x x x

Adapt cyber attacks based on details surveillance x x

Perform network snifﬁng x x

Collect publicly accessible information on organization x x

Data Integrity loss on publicly accessible information systems x

Table 3: Summary of Threat Sources.

Case Capability Intent Targeting

1 High High High

2 Moderate High Moderate

3 Moderate Moderate Moderate

4 High High High

5 Very High Very High Very High

6 Moderate High High

via reconnaissance to continue targeting an organi-

zation while also focusing on high-value proﬁles or

information. The critical difference between moder-

ate and high is that in moderate, an attacker will only

use publicly available information to target an orga-

nization, like in case 2, while in a high score, the at-

tacker uses information obtained via reconnaissance.

Finally, a very high score is extreme targeting. A very

high score describes the attack as obtaining informa-

tion through reconnaissance and then using that infor-

mation to only target high-value positions within the

organization as in case 5.

Identify Threat Events. Two threat events appeared

in all cases. Table 2, s summary of all events per case,

displays the two most common threat events. In all

cases the common threat events were, the delivery of

modiﬁed malware to internal organizational informa-

tion systems and a coordinated campaign that prop-

agates across organizational systems. This is most

likely due to the fact that high-performance comput-

ers have a wide global network of users. The sec-

ond most prevalent threat event was brute force login

attempts. Then the third most prevalent events were

obfuscating the actions of the adversary, performing

network snifﬁng, collecting publicly accessibly infor-

mation, delivering malware to extract data, and adapt-

ing the attack based on surveillance.

Identify Vulnerabilities and Predisposing Condi-

tions. Vulnerabilities found in the HPC system cases

were rated from at least moderate to very high. In the

cases of vulnerability severity, moderate meant that

some security control was implemented but not prac-

tical. A High vulnerability score implies that security

control may have existed but was not implemented.

A very high score purported that no security control

existed at all. In all cases, the Impact of what hap-

pened due to the vulnerability reﬂects in the sever-

ity score. Predisposing Conditions affect the likeli-

hood that threat events will result in adverse impacts.

The type of predisposing condition found in all attack

cases was Technical Architectural as systems were

made vulnerable due to the predisposing condition of

having various architectures and software which is a

common practice in HPC. In cases where the attack

spread to other users and systems, cases 2, 4, and

6 were given the predisposing condition Technical

Function Networked Multi-User. It is made clear by

our assessment that due to the HPC’s distinctiveness

of being technical, functional networked multi-user,

results in the increased likelihood that an attack will

occur. These two predisposing conditions occur in all

attacks is no accident. As all High-Performance Com-

puting Systems have multiple users and various hard-

ware and software, these speciﬁc predisposing condi-

tions make HPCs susceptible to attack, as proven by

our study. Other predisposing conditions that HPCs

may have based on predisposing conditions repre-

sented by our cases, is Information related and Tech-

nical Architectural OS. The predisposing conditions

were then rated with Pervasiveness, as in who in the

organization was affected by the attack. A moderate

score is suggested that many users were affected, a

high score is suggested that most were affected, and

very high score in pervasiveness meant all users were

affected.

Determine Likelihood of Occurrence. The likeli-

hood that a threat can be initiated is a combination of

the adversary’s capability, intent, and targeting. Ac-

cording to the guide and the cases, an adversary would

need at least a moderate amount of capability, intent,

or targeting in order to have a moderate amount of

likelihood the adversary would be able to initiate a

threat. A moderately skilled attacker would then be

Assessing Risk in High Performance Computing Attacks

797

able to initiate a threat on HPC. It is then at least

highly likely those threats would have adverse im-

pacts as seen in Table IV. In all cases, the HPC sys-

tems had to be completely shut down and some never

recovered. The overall likelihood that a threat would

be initiated by an attacker and then have an adverse

impact is at least high. A moderate threat initiation is

considered to have a high adverse impact.

Determine Magnitude of Impact. The Impacts

shown in Table 4, were Harm to Operations, Harm to

Assets, Harm to Other Organizations, and Harm to the

Nation. In all cases, there were adverse impacts to op-

erations. The systems were taken down and not func-

tional, as seen in all cases. In all cases, another preva-

lent adverse impact was harm to assets, where there

was damage to informational assets, the network, and

loss of intellectual property. Another prevalent type

of Impact was Harm to Other Organizations, where

the attack spread past the affected system into other

institutions. Finally, one case had a direct Harm to

the Nation which was case 5, which directly affected

the United States of America. After identifying the

type of Impact a Threat Event could affect, the over-

all impact of Threat Events on HPC systems ranged

from moderate to very high as seen in Table 1. The

cases were rated based on the evidence and what hap-

pened afterward. Case 1 Impact was rated as high

not only due to the attack at hand but also because

there exists an entirely new system (Archer Support,

2021). In case 2, the Impact was rated as high. Ac-

cording to (U.S. Department of Justice, 2013), the

attacker impaired the integrity of his victim’s network

as well as damaged it. In response, NERSC began

using an intrusion detection system named Bro that

analyzes user command activity. In case 3, Impact

was rated as moderate due to the system being taken

ofﬂine and rebuilt to the impact of events, but nothing

more was documented. In case 4, it was rated Im-

pact as high. The Impact of case 4, resulted in global

cooperation, damage to system integrity, damage of at

least 5,000 dollars, and even the loss of a person (U.S.

Department of Justice, 2009). In case 5, the Impact

was rated as very high. The attacker shut down the

United States Army District of Washington Network

and deleted highly sensitive ﬁles. The attacker is sus-

pected of crashing networks at the Naval Air Station

where he was accused of deleting weapon logs as well

as six counts of damage to The United States Army,

The United States Navy, NASA, The United States

Department of Defense, and the United States Air

Force aggregating more than 5000 dollars (U.S. De-

partment of Justice, 2009). In case 6, Impact of this

attack was rated as very high for its’ time. The attack

caused damages of up to 100,000 dollars, risked the

life of a person due to access violation of a real-time

system, accessed conﬁdential information, modiﬁed

systems, read thru emails, and on-top of this, all sys-

tems had to be rebuilt (Stoll, 1988).

Determine Risk. Risk which is a combination of

Likelihood and Impact, for all cases, were at least

high as the effects in all cases were considered severe.

5 DISCUSSION

The results from this work provide evidence that HPC

systems are high risk and have similar threats as en-

terprises systems. Instinctively, one would deploy

enterprise-grade security solutions to mitigate HPC

system threats. However, these security solutions

may impede collaboration and reduce the usability of

HPC systems. Threat proﬁles provide organizations

with a characterization of common threat sources and

known adversarial outsiders to guide decision-making

for choosing cyber security solutions that minimize

risk. Detailed below is a generalized threat proﬁle

created from the risk assessment results. The threat

proﬁle was used to identify enterprise-grade security

solutions that could mitigate threats. In addition, a

brief discussion for each security solution was iden-

tiﬁed to examine why these solutions may be insufﬁ-

cient for HPC systems. The general threat proﬁle for

HPC systems is an adversarial outsider with a high

impact given a moderate to a high level of capability,

intent, and targeting. All publicly documented attacks

compromised the login nodes and SSH keys. In an

enterprise system, the network and all devices within

the network are managed by one organization. How-

ever, in an HPC system, the level of security is difﬁ-

cult to manage as there are multiple entities individ-

ually managing security. For example, the user of an

HPC system could be a student from a university. In

this scenario, the user is responsible for managing the

security of the device they are using to connect to the

HPC system. The university is responsible for manag-

ing the network’s security the user is leveraging to ac-

cess the HPC system remotely, and the HPC center is

responsible for managing the security of their system.

Unfortunately, each entity involved (the user, univer-

sity, and HPC center) rarely coordinate to ensure a

minimum level of security is met. The lack of a shared

level of protection makes it difﬁcult to provide secure

authentication. In addition, many of these systems

must be available 24/7 to accommodate international

users, making it difﬁcult to take ofﬂine to install up-

dates. Thus, the systems tend to lack the latest updates

and patches. These situations can invite malicious ac-

tors with moderate capability to compromise the clus-

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

798

Table 4: Summary of Adverse Impacts.

Case Harm to Operations Assets Other Orgs Nation

1 x x x

2 x x x

3 x x

4 x x x

5 x x x x

6 x x x

ter. These actors’ attacks can range from espionage,

scientiﬁc sabotage, ﬁnancial gain, or disruption. Once

attackers pass the user authentication processes, the

computational nodes and File I/O can be exploited.

Thus, updates, ﬁxes, and patches on the login nodes,

DTN’s software stack, and hardware must take prior-

ity. Yet, this might not be entirely realistic in an HPC

setting. The threat actor has a moderately high capa-

bility to attack an HPC system. This capability level

implies that the threat actor is experienced, has a mod-

erate amount of resources available, and has various

opportunities to complete coordinated attacks. These

coordinated attacks are exploited using a combination

of zero-day attacks and known vulnerabilities. There

are two reoccurring threat events, i)delivery of mal-

ware and ii)spread of attack to other organizations.

When forming solutions to protect HPCs against these

two threat events, one must be able to detect the mali-

cious programs being delivered and enforce stronger

boundaries between organizations. In an enterprise

system, known vulnerabilities may be mitigated for

example by strategically deploying ﬁrewalls. How-

ever, it is known that common defensive mechanisms

such as ﬁrewalls are not practical as they cannot main-

tain the throughput required for high-speed data trans-

fers, which is needed for HPCs to share data between

compute nodes. Alternatively, the threat actor may

disrupt mission-critical business functions by main-

taining a presence in infrastructure. Given the ad-

vanced capabilities of the threat actor, they will con-

ceal their presence to minimize attack disclosure. Re-

connaissance is performed to gain information about

the target organization and this information is used

to target mission-critical business functions. Publicly

available information about the organization might be

used to target employees that support those mission-

critical business functions. Unfortunately, it is chal-

lenging to discern attacker behavior from a legitimate

user because HPC systems are designed for experi-

mental purposes. As a result, all software running on

the system is provisional and could be mistaken as

malicious software. To further complicate the situa-

tion, the experimental software may not be designed

using a secure development methodology. Most of

this software is fragile, misused, and lacks the hard-

ening necessary to increase its resilience and secu-

rity. Moreover, the software is usually optimized for

a speciﬁc HPC architecture, making maintenance dif-

ﬁcult. Efforts are underway to update experimental

software (e.g., high-performance libraries developed

by research groups such as OpenMPI, Kokkos, Trili-

nos, and OpenBLAS). However, it might require a

few years to update the large amount of legacy code

spanning several decades of research. As shown in

Table 2, the threat actor will perform actions that co-

ordinate campaigns across multiple organizations to

perform reconnaissance for a speciﬁc attack. The

threat actor will use a sophisticated mechanism to dis-

tribute malware to internal systems. Threat actors es-

tablish a foothold via vulnerable software, OS, and

networks. The threat actor will cause a high adverse

impact. Expect a severe degradation of organizational

operations, unavailability of assets, and business con-

tinuity disruption. A severe degradation may cause

this in one or more mission-critical functions for a

prolonged duration. The degradation could result in

signiﬁcant damage to organizational assets or ﬁnan-

cial loss. The same vulnerabilities that exist in the

average enterprise system also exist in HPC. These

vulnerabilities can at least moderately impact an HPC

system and the validity of the data. For acceptance

by the HPC community, a security defense employed

in an HPC system must decrease risk while main-

taining an acceptable level of performance. Tradi-

tional security tools search for known vulnerabilities

and are designed to traverse networks similar to enter-

prise systems. HPC systems have exotic architectures

and vulnerabilities may not always be easily identiﬁ-

able. Additionally, HPCs host experimental software,

thus the process of searching for CVEs will not iden-

tify threats because the software has not been released

to the general public. Therefore, many security tools

may not capture the critical threats to HPC systems.

The experimental software is not always production

ready and may contain unintended functionality that

could be used to jeopardize the data integrity and con-

ﬁdentiality or disrupt the availability of the HPC sys-

tem.

Assessing Risk in High Performance Computing Attacks

799

5.1 Moving Toward HPC Speciﬁc

Security

In recent years, researchers have become increasingly

interested in cybersecurity solutions for open science

HPC systems. In 2013 researchers at Los Alamos

described the challenges of continuous monitoring

(Malin and Van Heule, 2013) in HPC and explored

the development of such a tool. Then in a techni-

cal report from 2016, researchers at Lawrence Liv-

ermore National Lab deployed a continuous moni-

toring tool (Garcia-Lomeli et al., 2015) for system

conﬁguration information and security patch levels.

At the National Center for Supercomputing Appli-

cations at the University of Illinois, due to an inci-

dent that resulted in the compromise of the cluster

iforge, an automated tool that identiﬁed and excluded

hosts that were experiencing an SSH brute force at-

tack was created. CAUDIT (Cao et al., 2019) was the

ﬁrst of its kind that could handle large-scale networks

and workloads without the interference of security ex-

perts and did not hamper the performance of the net-

work. Due to the incorporation of this tool, they de-

creased their attacks from 30 security incidents a year

to about 2. Another example of a low-latency and

high-throughput tool is research from MIT Lincoln

Laboratory Supercomputing Center (Andrew Prout

et al., 2012) in 2012 and 2019 (Prout et al., 2019).

In (Andrew Prout et al., 2012), the researchers cre-

ated and implemented a cryptographic library used

for user authentication on HPCs. Though this direc-

tion did not solve the escalation of privileges or offer

protection from the compromise of a cluster or node,

it did protect against the export of the cryptographic

keys for malicious intent. In (Prout et al., 2019),

MIT researchers continued their efforts in HPC au-

thentication by incorporating federated authentication

and scaling it to their HPC system. The Texas Ad-

vanced Computing Center (Proctor et al., 2017) de-

scribed their experience switching their system over

to MFA. In (Al-Mamun et al., 2019) (Al-Mamun

et al., 2018), and most recently, (Al-Mamun and

Zhao, 2020), and (Al-Mamun and Zhao, 2020), re-

searchers explore trustworthy data provenance by en-

abling blockchain as a service as well as implement-

ing the ledger of a blockchain into the HPC archi-

tecture to ensure trustworthy scientiﬁc data. Then

in (Scheerman et al., 2021), suggest their novel plat-

form that is not proprietary, as a service for protect-

ing sensitive data, At MIT Lincoln Library, research

surfaced for a system-level application that also had

a low overhead to the network speed (Prout et al.,

2016) that recognized user processes. In (Lee et al.,

2021), researchers applied ACL ﬁltering to existing

ﬁrewalls of HPC systems in order to reduce CPU

loads. In, (Pourzandi et al., 2005) created an ex-

ample threat model for a wide range of clusters, in-

cluding High-Performance Computing. The authors’

mentioned that a challenge for cluster security was in-

tegrating several security solutions due to their het-

erogeneous nature. The authors suggested distributed

authentication, distributed, distributed access control,

distributed monitoring, and distributed secure com-

munications. In (Peisert, 2017), HPC’s have distinc-

tive purposes and those purposes could be leveraged

for security. It was explained how some traditional

security measures could not be adapted for HPC. Fin-

gerprinting workloads for classifying standard com-

putations were also explored, an example of how se-

curity could move forward with machine learning.

6 CONCLUSION

In Open science environments (e.g., universities and

national laboratories) there has been increased sup-

port for domestic and international research groups.

Due to the collaborative nature of HPC systems, ac-

cess to large quantities of data, computational power,

and internet connectivity, these systems are prime tar-

gets for malicious activity. High Performance Com-

puters need their own cybersecurity standards and

methods in order to continue evolving with the ever

changing cybersecurity landscape. We have taken

some of the ﬁrst steps in identifying risk in High Per-

formance Computing. Though not exhaustive, it aids

in HPC speciﬁc security. The NIST Special Publi-

cation 800-30r1: Guide to Conducting Risk assess-

ment was used to evaluate successful attacks on HPC

systems. Assessing these real world cases in our re-

search can provide information to the community that

may not have been available before. A threat pro-

ﬁle based on the risk assessment provides researchers

with cybersecurity context-speciﬁc to HPC systems

and sheds light on the types of threats HPCs en-

counter. Then we explained why usual solutions cant

work and gave examples of HPC speciﬁc solutions

and research. The results from the risk assessment in-

dicate that HPC systems attacks are coordinated cam-

paigns across various organizations and have malware

delivered that spreads to multiple parts. The threat

proﬁle indicated that a threat actor might target crit-

ical mission and business functions and information

systems. The general threat proﬁle for HPC systems

is an adversarial outsider with a high impact given a

moderate to a high level of capability, intent, and tar-

geting. The threat proﬁle provides a detailed record of

the threat actor and can be used as the basis for future

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

800

HPC security research.

REFERENCES

Al-Mamun, A., Li, T., Sadoghi, M., Jiang, L., Shen, H., and

Zhao, D. (2019). Hpchain: An mpi-based blockchain

framework for data ﬁdelity in high-performance com-

puting systems. In Supercomputing.

Al-Mamun, A., Li, T., Sadoghi, M., and Zhao, D. (2018).

In-memory Blockchain: Toward Efﬁcient and Trust-

worthy Data Provenance for HPC Systems. In 2018

IEEE International Conference on Big Data (Big

Data), pages 3808–3813.

Al-Mamun, A. and Zhao, D. (2020). BAASH: enabling

blockchain-as-a-service on high-performance com-

puting systems. CoRR, abs/2001.07022.

Al-Mamun, A. and Zhao, D. (2020). SciChain: Trustworthy

Scientiﬁc Data Provenance.

Andrew Prout, A., Arcand, W., Bestor, D., Byun, C., Berg-

eron, B., Hubbell, M., Kepner, J., Michaleas, P.,

Mullen, J., Reuther, A., and Rosa, A. (2012). Scalable

Cryptographic Authentication for High Performance

Computing. In 2012 IEEE Conference on High Per-

formance Extreme Computing.

Archer Support (2020). Archer Service Status.

Archer Support (2021). Archer Service Status.

Argonne Leadership Computing Facility. Aurora Introduc-

tion.

Barr, T., Langfeldt, N., Vidal, S., and McNeal, T. (2002).

Linux NFS-HOWTO.

Blank, R. and Gallagher, P. (2012). Guide for Conducting

Risk Assessments.

Blankenship, G. (2019). Keeping High-Performance Com-

puters Cybersecure.

Blumofe, R. D., Joerg, C. F., Kuszmaul, B. C., Leiserson,

C. E., Randall, K. H., and Zhou, Y. (1995). Cilk: An

Efﬁcient Multithreaded Runtime System. SIGPLAN

Not., 30(8):207–216.

Bougeault, P. (2008). High performance computing and the

progress of weather and climate forecasting. In High

Performance Computing for Computational Science -

VECPAR 2008, pages 349–349, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Camier, J. et al. (2021). High-order lagrangian hydrody-

namics miniapp (laghos).

Cao, P. M., Wu, Y., Banerjee, S. S., Azoff, J., Withers,

A., Kalbarczyk, Z. T., and Iyer, R. K. (2019). CAU-

DIT: Continuous Auditing of SSH Servers To Mitigate

Brute-Force Attacks. In 16th USENIX Symposium on

Networked Systems Design and Implementation.

Chen, J. (2017). S3d-legion: An exascale software for

direct numerical simulation of turbulent combustion

with complex multicomponent chemistry. In Exascale

Scientiﬁc Applications, pages 257–278. Chapman and

Hall/CRC.

Chetlur, S., Woolley, C., Vandermersch, P., Cohen, J., Tran,

J., Catanzaro, B., and Shelhamer, E. (2014). cuDNN:

Efﬁcient Primitives for Deep Learning.

Corp, I. (2009). An Introduction to the Intel QuickPath In-

terconnect.

Dagum, L. and Menon, R. (1998). OpenMP: An

Industry-Standard API for Shared-Memory Program-

ming. IEEE Comput. Sci. Eng., 5(1):46–55.

Department of Justice, U. (2002). London, England Hacker

Indicted Under Computer Fraud and Abuse Act For

Accessing Military Computers.

Dongarra, J., Gates, M., Haidar, A., Jia, Y., Kabir, K.,

Luszczek, P., and Tomov, S. (2015). HPC Program-

ming on Intel Many-Integrated-Core Hardware with

MAGMA Port to Xeon Phi. Sci. Program., 2015.

Foley, D. and Danskin, J. (2017). Ultra-Performance Pas-

cal GPU and NVLink Interconnect. IEEE Micro,

37(2):7–17.

Fujitsu. Fugaku Supercomputer: Speciﬁcation.

Garcia-Lomeli, H. D., Bertsch, A., and Fox, D. (2015).

Continuous security and conﬁguration monitoring of

hpc clusters. Technical report, Lawrence Livermore

National Lab.(LLNL), Livermore, CA (United States).

Gerber, R. (2019). Perlmutter A 2020 Pre-Exascale

GPUaccelerated System for Simulation, Data and

Learning. In International Computing for the Atmo-

spheric Sciences Symposium (iCAS).

Hamlet, J. R. and Keliiaa, C. M. (2010). National cyber de-

fense high performance computing and analysis: con-

cepts, planning and roadmap. Technical report, Sandia

National Laboratories (SNL), Albuquerque, NM, and

Livermore, CA . . . .

Hammond, J. R., Kinsner, M., and Brodman, J. (2019). A

Comparative Analysis of Kokkos and SYCL as Het-

erogeneous, Parallel Programming Models for C++

Applications. In Proceedings of the International

Workshop on OpenCL, IWOCL’19, New York, NY,

USA. Association for Computing Machinery.

Hayashi, A., Paul, S. R., Grossman, M., Shirako, J., and

Sarkar, V. (2017). Chapel-on-X: Exploring Tasking

Runtimes for PGAS Languages. In Proceedings of the

Third International Workshop on Extreme Scale Pro-

gramming Models and Middleware, ESPM2’17, New

York, NY, USA. Association for Computing Machin-

ery.

Hewlett Packard Enterprise (2020). HPE SLINGSHOT:

The Interconnect for the Exascale Era.

Huang, Z. and Nieplocha, J. (2008). Transforming Power

Grid operations via High Performance Computing. In

2008 IEEE Power and Energy Society General Meet-

ing - Conversion and Delivery of Electrical Energy in

the 21st Century, pages 1–8.

Intel Corp. Intel Graph Builder.

Kaiser, H., Heller, T., Adelstein-Lelbach, B., Serio, A., and

Fey, D. (2014). HPX: A Task Based Programming

Model in a Global Address Space. In Proceedings

of the 8th International Conference on Partitioned

Global Address Space Programming Models, PGAS

’14, New York, NY, USA. Association for Computing

Machinery.

Khronos OpenCL Working Group (2011). The OpenCL

Speciﬁcation, Version 1.1.

Assessing Risk in High Performance Computing Attacks

801

Lattner, C. and Adve, V. (2004). LLVM: A Compila-

tion Framework for Lifelong Program Analysis &

Transformation. In Proceedings of the International

Symposium on Code Generation and Optimization:

Feedback-Directed and Runtime Optimization, CGO

’04, page 75, USA. IEEE Computer Society.

Lee, J.-K., Hong, T., and Li, G. (2021). Trafﬁc and overhead

analysis of applied pre-ﬁltering ACL ﬁrewall on HPC

service network. Journal of Communications and Net-

works, pages 1–9.

Livermore Computing Center. Using LC’s Sierra Systems.

Madduri, K., Ibrahim, K. Z., Williams, S., Im, E.-J., Ethier,

S., Shalf, J., and Oliker, L. (2011). Gyrokinetic

toroidal simulations on leading multi- and manycore

HPC systems. In SC ’11: Proceedings of 2011 Inter-

national Conference for High Performance Comput-

ing, Networking, Storage and Analysis, pages 1–12.

Malin, A. and Van Heule, G. (2013). Continuous monitor-

ing and cyber security for high performance comput-

ing. In Proceedings of the First Workshop on Chang-

ing Landscapes in HPC Security, CLHS ’13, page

9–14, New York, NY, USA. Association for Comput-

ing Machinery.

Mclaughlin, M.-D., Cram, W. A., and Gogan, J. L. (2015).

A High Performance Computing Cluster under At-

tack: The Titan incident. Journal of Information Tech-

nology Teaching Cases, 5.

Melesse Vergara, V., Joubert, W., Brim, M. J., Budiardja,

R., Maxwell, D., Ezell, M., Zimmer, C., Boehm, S.,

Elwasif, W., Oral, H., Fuson, C., Pelfrey, D. S., Her-

nandez, O., Leverman, D. B., Hanley, J. A., Berrill,

M., and Tharrington, A. (2019). Scaling the sum-

mit: Deploying the world’s fastest supercomputer.

In International Workshop on OpenPOWER for HPC

(IWOPH 2019).

Minutoli, M., Sambaturu, P., Halappanavar, M., Tumeo, A.,

Kalyanaraman, A., and Vullikanti, A. (2020). Pre-

empt: Scalable epidemic interventions using submod-

ular optimization on multi-gpu systems. In Proceed-

ings of the International Conference for High Perfor-

mance Computing, Networking, Storage and Analysis,

SC ’20. IEEE Press.

National Vulnerability Database (2019). CVE-2019-15666

Detail.

NIST (2016). NSCI: High-Performance Computing Secu-

rity Workshop.

NIST (2018). High-Performance Computing Security

Workshop.

Nixon, L. (2006). The Stakkato Intrusions: What Happened

and What Have We Learned? In Proceedings of the

6th IEEE International Symposium on Cluster Com-

puting and the Grid (CCGRID’06).

Oakridge Leadership Computing Facility. FRONTIER Spec

Sheet.

OakRidge National Laboratory (2019). TITAN: Advancing

the Era of Accelerated Computing.

Pandey, A. (2019). DDR5: Fifth-generation of DDR Mem-

ory Module.

Patwardhan, A. A. and Upadrasta, R. (2019). Polyhe-

dral Model Guided Automatic GPU Cache Exploita-

tion Framework. In 2019 International Conference

on High Performance Computing Simulation (HPCS),

pages 496–503.

Peisert, S. (2017). Security in High-Performance Com-

puting Environments. Communications of the ACM,

60(9).

Pelley, S., Chen, P. M., and Wenisch, T. F. (2014). Memory

Persistency, volume 42. Association for Computing

Machinery, New York, NY, USA.

Peres, G. (2003). HPC in Astronomy: overview and per-

spectives. Memorie della Societa Astronomica Ital-

iana Supplementi, 1:223.

Pourzandi, M., Gordon, D., Yurcik, W., and Koenig, G.

(2005). Clusters and security: distributed security for

distributed systems. In CCGrid 2005. IEEE Interna-

tional Symposium on Cluster Computing and the Grid,

2005., volume 1, pages 96–104 Vol. 1.

Proctor, W. C., Storm, P., Hanlon, M. R., and Mendoza,

N. (2017). Securing HPC: development of a low cost,

open source multi-factor authentication infrastructure.

In SC ’17: Proceedings of the International Confer-

ence for High Performance Computing, Networking,

Storage and Analysis.

Prout, A., Arcand, W., Bestor, D., Bergeron, B., Byun, C.,

Gadepally, V., Houle, M., Hubbell, M., Jones, M.,

Klein, A., Michaleas, P., Milechin, L., Mullen, J.,

Rosa, A., Samsi, S., Yee, C., Reuther, A., and Kepner,

J. (2019). Securing HPC using federated authentica-

tion. CoRR, abs/1908.07573.

Prout, A., Arcand, W., Bestor, D., Bergeron, B., Byun,

C., Gadepally, V., Hubbell, M., Houle, M., Jones,

M., Michaleas, P., Milechin, L., Mullen, J., Rosa, A.,

Samsi, S., Reuther, A., and Kepner, J. (2016). Enhanc-

ing HPC security with a user-based ﬁrewall. In 2016

IEEE High Performance Extreme Computing Confer-

ence (HPEC), pages 1–4.

Rossum, G. V. (1995). The Python Tutorial. Technical Re-

port CS-R9526, Centrum voor Wiskunde en Informat-

ica (CWI), Amsterdam.

Scheerman, M., Zarrabi, N., Kruiten, M., Mog

e, M., Voort,

L., Langedijk, A., Schoonhoven, R., and Emery, T.

(2021). Secure Platform for Processing Sensitive Data

on Shared HPC Systems.

Sergeev, A. and Del Balso, M. (2018). Horovod: Fast and

Easy Distributed Deep Learning in TensorFlow. arXiv

preprint arXiv:1802.05799.

Shanley, T. (2002). Inﬁniband. Addison-Wesley Longman

Publishing Co., Inc., USA.

Stallman, R. M. et al. (2009). Using The Gnu Compiler Col-

lection: A Gnu Manual For Gcc Version 4.3.3. Cre-

ateSpace, Scotts Valley, CA.

Stocksdale, T., Chang, M.-T., Zheng, H., and Mueller, F.

(2017). Architecting HBM as a High Bandwidth,

High Capacity, Self-Managed Last-Level Cache. In

Proceedings of the 2nd Joint International Workshop

on Parallel Data Storage & Data Intensive Scalable

Computing Systems, PDSW-DISCS ’17, page 31–36,

New York, NY, USA. Association for Computing Ma-

chinery.

ICISSP 2023 - 9th International Conference on Information Systems Security and Privacy

802

Stoll, C. (1988). Stalking the Wily Hacker. Communica-

tions of the ACM, 31(5).

The Trilinos Project Team. The Trilinos Project Website.

Tsymbal, V. and Kurylev, A. (2021). Proﬁling Heteroge-

neous Computing Performance with VTune Proﬁler.

In International Workshop on OpenCL, IWOCL’21,

New York, NY, USA. Association for Computing Ma-

chinery.

U.S. Department of Justice (2009). Swedish national

charged with hacking and theft of trade secrets related

to alleged computer intrusions at nasa and cisco.

U.S. Department of Justice (2013). Pennsylvania Man Sen-

tenced to 18 Months in Prison for Hacking into Mul-

tiple Computer Networks.

Valeria Barra, Jed Brown, Jeremy Thompson, and Yohann

Dudouit (2020). High-performance operator evalua-

tions with ease of use: libCEED’s Python interface.

In Meghann Agarwal, Chris Calloway, Dillon Nieder-

hut, and David Shupe, editors, Proceedings of the 19th

Python in Science Conference, pages 85 – 90.

Vasilache, N., Baskaran, M. M., Henretty, T., Meister, B.,

Langston, H., Tavarageri, S., and Lethin, R. (2014). A

Tale of Three Runtimes. CoRR, abs/1409.1914.

Wan, S., Li, Y., Li, W., Mao, X., Wang, C., Dong, J., Nie,

A., Xiang, J., Liu, Z., Zhu, W., and Zeng, H. (2019).

Non-volatile Ferroelectric Memory Effect in Ultrathin

-In2Se3, volume 29. Wiley Online Library Full Col-

lection 2016.

Wilen, A. H., Schade, J. P., and Thornburg, R. (2003). In-

troduction to PCI Express: A Hardware and Software

Developer’s Guide. Intel Press.

Assessing Risk in High Performance Computing Attacks

803
