Reverse Engineering of OpenQASM3 Quantum Programs to KDM

Models

Luis Jiménez-Navajas

, Ricardo Pérez-Castillo

and Mario Piattini

aQuantum, Faculty of Social Sciences & IT, University of Castilla-La Mancha Talavera de la Reina, Spain

aQuantum, Information Technology and Systems Institute, University of Castilla-La Mancha Talavera de la Reina, Spain

Keywords: Reverse Engineering, Quantum Computing, OpenQASM3, KDM.

Abstract: The development of quantum computing is following a substantial growth. This leads us closer to the

implementation of practical solutions based on quantum software that address problems that are not

computable by classical software in a practical timeframe. Hence, some companies will need to adapt their

development practices and, so, their information systems to take advantage of quantum computing.

Unfortunately, there is still a lack of tools, frameworks, and processes to support the evolution of current

systems towards the combination of the quantum and classical paradigms into information systems. Hence,

this paper presents a reverse engineering technique to generate abstract models based on the Knowledge

Discovery Metamodel (KDM) by analyzing quantum software written in OpenQASM3. The main implication

is that KDM models represent, in a technology-agnostic way, the different components and interrelationships

of quantum software. These models then can be used to restructure and redesign the target hybrid information

system.

1 INTRODUCTION

Quantum computing is the result of the application of

some counterintuitive principles of quantum

mechanics to computer science (e.g., superposition or

entanglement) in order to represent information as

quantum states (Gyongyosi & Imre, 2019). It allows

the performance of certain algorithms which are

unattainable for today’s supercomputers. The

expectation for quantum computing is so high with

plenty of expected applications, like in chemistry

(McArdle, Endo, Aspuru-Guzik, Benjamin, & Yuan,

2020), artificial intelligence (Dunjko & Briegel,

2018) and, even, in communications (Imre & Balazs,

2005). Large companies have invested a lot of

resources in quantum computing and their potential

applications (Julian van Velzen, 2022; Wang, 2021),

which are close to be effectively implemented.

Probably, not all the business operations will be

adapted into the quantum paradigm. This is because

the performance of the classical software for some

business operations is still (and will keep)

https://orcid.org/0000-0001-6257-7153

https://orcid.org/0000-0002-9271-3184

https://orcid.org/0000-0002-7212-8279

appropriate. Thus, the new software systems will

evolve toward hybrid software systems, i.e., classical

and quantum software will operate together (Pérez-

Castillo, Serrano, & Piattini, 2021). Therefore,

companies that want to be benefited, will need to

evolve toward hybrid information systems

(Houekpetodji, Anquetil, Ducasse, Djareddir, &

Sudich, 2021). In such hybrid systems, the classical

part will control and receive all the outputs generated

by the quantum algorithms executed generally in

remote quantum computers in the cloud (Nguyen,

Usman, & Buyya, 2022).

Throughout the years, a mass of knowledge and

experience has been accumulated in the field of

software engineering and, in particular, in software

modernization (i.e., the progress of reengineering by

applying a Model-Driven Engineering approach).

Software modernization has allowed organizations to

develop and evolve high-quality software in

compliance with standards and following well-

proven practices (Durelli et al., 2014). Thus, some of

these software engineering techniques and methods

Jiménez-Navajas, L., Pérez-Castillo, R. and Piattini, M.

Reverse Engineering of OpenQASM3 Quantum Programs to KDM Models.

DOI: 10.5220/0011963000003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 513-520

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

513

are being adapted for quantum software development

(De Stefano, Pecorelli, Di Nucci, Palomba, & De

Lucia, 2022; Li, Khomh, & Openja, 2021; Piattini et

al., 2020). One of these processes is the Quantum

Software Modernization process (Pérez-Castillo,

Serrano, et al., 2021), where the process of software

modernization considers the integration of quantum

algorithms when designing the target hybrid software

systems.

This paper takes place in the context of the

Quantum Software Modernization process and, more

specifically, in the reverse engineering phase. This

phase is crucial since it is used to produce abstract

representations of classical and quantum software.

We are able to generate KDM (Knowledge Discovery

Metamodel) models (Pérez-Castillo, De Guzman,

Piattini, & Interfaces, 2011). As a part of the ADM

initiative, the OMG released KDM within a broad set

of proposed standards (Ulrich, 2010). KDM

addresses the main challenges that appear in the

modernization of legacy information systems (Pérez-

Castillo, De Guzman, et al., 2011) and can contribute

to the modernization of hybrid software systems. The

usage of KDM allows to represent in a technology-

agnostic way all the different components and

interrelationships of quantum software.

This reverse engineering technique was firstly

piloted for Q# programs (Jiménez-Navajas, Pérez-

Castillo, & Piattini, 2020). The support for additional

languages is mandatory, and in case of OpenQASM3

[13] (QASM hereinafter) is also crucial since it can

be considered as de facto standard as it has been used

as a base for developing many software frameworks

and development environments (Garhwal, Ghorani,

& Ahmad, 2021). Thus, this paper proposes a reverse

engineering technique to analyze quantum programs

developed in QASM and represent that information in

KDM models. If we want to facilitate the evolution

from/toward hybrid software systems, companies or

organizations should not face restrictions on which

quantum programs they can incorporate into their

hybrid software systems. Having achieved agnostic

representations of quantum software, it can be

integrated along with classical software, which is a

step forward in the modelling and designing of hybrid

software systems.

The remain of this paper is structured as follows:

Section 2 relates the actual state of Quantum Software

Modernization and how the representation of

quantum programs in KDM has been accomplished.

Then, Section 3 explains how OpenQASM3

programs have been analyzed and modelled in KDM.

Section 4 shows a preliminary evaluation of the

reverse engineering. Finally, Section 5 presents the

conclusions and future work of this research.

2 BACKGROUND

This section is divided in two subsections. Section 2.1

describes the actual state of the Quantum Software

Modernization and Section 2.2 shows the extension of

KDM for quantum software.

2.1 Quantum Software Modernization

In today’s world companies invest considerable

amounts of effort in keeping their information

systems competitive. This often implies performing

maintenance activities in their systems while the

preservation of its business knowledge is required

(Paradauskas, Laurikaitis, & control, 2006).

However, in some cases, this maintenance becomes

difficult since the technology on which it was built

has become obsolete. To address these problems

during evolution of information systems, the

Software Modernization process was proposed

(Pérez-Castillo, de Guzmán, & Piattini, 2011). This

process was developed by following the traditional

reengineering approach alongside the Model Driven

Engineering (MDE) principles. This revisited

approach solves some of the shortcomings of

traditional reengineering (the lack of formalization

and standardization (Kazman, Woods, & Carrière,

1998)).

With the advent of quantum computing, many

information systems could become obsolete, and

companies will have to modernize them. This does

not mean discarding the whole system, but first

assessing which components of the system

could/should be supported by quantum software and

be modernized accordingly. Figure 1 presents the

Quantum Software Modernization process as

proposed in (Jiménez-Navajas et al., 2020), which

advocates the use of standards widely accepted in the

industry such as KDM and UML.

Quantum Software Modernization consists of

three phases: reverse engineering, restructuring and

forward engineering. In the reverse engineering phase

(left-hand side of Figure 1) the different components

of the current classical information system and

quantum programs are represented in KDM models in

a technology-agnostic way. This phase is the scope of

this paper. In the restructuring phase (top center of

Figure 1) the previously generated KDM models are

transformed into high-level abstraction models and

the target hybrid information system is designed.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

514

Figure 1: Quantum Software Modernization approach.

Finally, in the forward engineering phase (right-hand

side of Figure 1), tools are used to automatically

generate the code of the hybrid information system

designed in the previous phase.

2.2 Quantum KDM Extension

To accomplish the task of modernizing legacy

systems, the OMG proposed the KDM specification

(ISO/IEC, 2009). This standard allows the complete

representation of legacy information systems at a high

level of abstraction while preserving all business

knowledge.

Moving to the context of quantum computing, to

represent in KDM models the different components

that are used in quantum software, the metamodel

must be extended. The extension of the metamodel

has been carried out using the mechanism provided

by the standard itself, i.e., by creating an "extension

family". This extension family contains the different

components that can appear in a quantum program

(see Figure 2).

<stereotype name="quantum programming language"

id="id.1"/>

</extensionFamily>

Figure 2: KDM extension family.

Whenever a KDM model is generated from an

OpenQASM3 program, the extension family is

included in the model. Afterwards, when quantum

elements are represented, they have an attribute that

references to a specific stereotype.

3 OpenQASM3 TO KDM

To carry out the generation of KDM models from

QASM quantum programs, the same steps have been

followed as in (Jiménez-Navajas et al., 2020). This

procedure consists of creating two modules: one that

analyses the code and extracts the necessary

information, and another one that translates this

information into the KDM standard. This new

development has not been carried out in a standalone

tool but integrated into QRev (Pérez-Castillo,

Jiménez-Navajas, & Piattini, 2021). Section 3.1 will

discuss how quantum programs are analyzed and

Section 3.2 shows how the information extracted

from the previous step is represented through KDM

standard.

3.1 OpenQASM3 Parser

To extract information from QASM programs, a

parser has been developed. This parser has been

developed by means of ANTLRv4, a tool for

generating parsers based on formal grammar

definitions (Parr). Programs based on ANTLR

contain the formal definition of the syntax and

grammar of the language to be recognized. Using that

grammar ANTLR generates the code of the language

recognition tool, i.e., the parser. That parser is able to

recognize the target programming language and

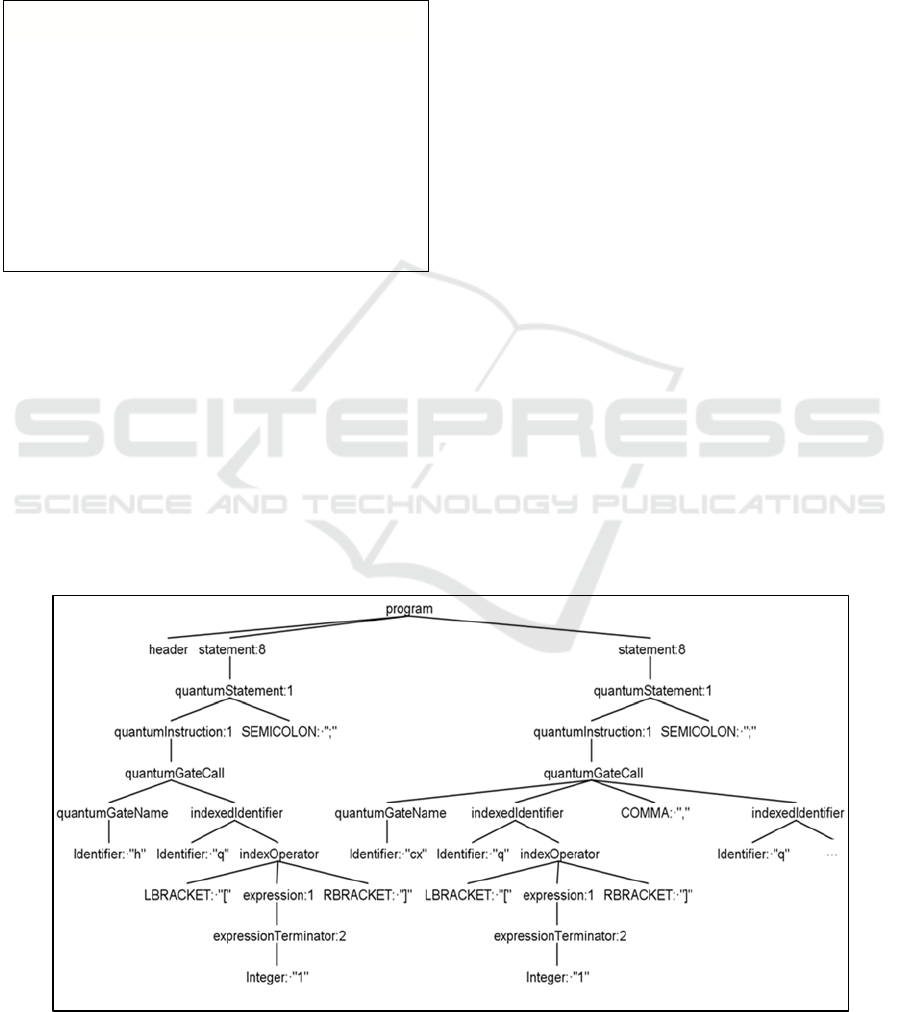

generates an Abstract Syntactic Tree (AST) which

represents the structure of the analyzed program. The

KDM Models UML Models

Existing

Quantum

Programs

Classical

Information

System

Target Classical-

Quantum

System

New Quantum

Programs

Reverse Engineering

Forward Engineering

Restructuring

Reverse Engineering of OpenQASM3 Quantum Programs to KDM Models

515

grammar employed was not defined from scratch, as

an official QASM grammar is available in (Andrew

W. Cross, 2020).

In order to make the explanation of the proposal

presented as descriptive as possible, a running

example of the project will be carried out using the

quantum teleportation algorithm as an input program

(see Figure 3).

1 OPENQASM 3;

2 include "stdgates.inc";

3 qubit[3] q;

4 bit crz;

5 bit crx ;

6 h q[1];

7 cx q[1], q[2];

8 cx q[0], q[1];

9 h q[0];

10 crz = measure q[0];

11 crx = measure q[1];

12 if(crz==1) z q[2];

13 if(crx==1) x q[2];

Figure 3: Quantum teleportation algorithm implemented in

OpenQASM3.

Quantum teleportation (Bouwmeester et al., 1997)

is one of the most important algorithms in quantum

computing as it allows us to move the state of one

qubit to another without violating the no-cloning

theorem (Wootters & Zurek, 2009).

Figure 4 shows the outgoing AST generated for

the teleportation example showed before. Due to the

space limitation, the example only presents a partial

tree for lines 6 and 7. The nodes in the AST

correspond with the same elements used in the

grammar rules defined for ANTLR. The AST

elements and its relationships will be later considered

to generate the KDM model.

3.2 KDM Generator

As mentioned before, the QASM parser and its

corresponding KDM Generator are an extension of

QRev. For the integration of these new parts in the

tool, a complete refactoring of the code has been

performed and the parser and the generator have been

integrated following the ‘state’ design pattern. The

state pattern is intended when the desired program is

desired to “allows an object to alter its behavior when

its internal state changes. The object will appear to

change its class” (Gamma, Helm, Johnson, Johnson,

& Vlissides, 1995). This pattern was chosen because,

when receiving a quantum program as input, the file

will behave as an object whose state is defined once

its extension is known ('.qs' in the case of Q#

programs and '.qasm' if it is QASM). Depending on

this, the KDM generator considers the specific

transformations rules.

Once the AST has been generated, the module

oriented to the generation of the KDM models goes

through the tree and reads the nodes and some

relationships in the tree. Only the relevant

information from the nodes is extracted to make the

KDM models as accurate as possible. Table 1 shows

the name of the nodes of the AST of quantum

elements and their representation in KDM. Each of

the representations in KDM is in accordance with the

definition of the quantum elements themselves.

Figure 4: Fragment of the AST generated from the teleportation algorithm.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

516

Table 1: Quantum elements and its AST and KDM

representation.

Quantum

element

AST

modelling

KDM

modelling

Stereotype

Quantum

program

Compilation

Unit

• quantum

program

Qubit

Quantum

statement

StorableUnit

• qubit

• control

qubit

• qubit array

Quantum

gate

Quantum

instruction

Action

Element

• quantum

gate

• qubit

measure

In Figure 5 we can observe the actual KDM

representation of a Hadamard gate with its

corresponding "ActionElement" type and its

stereotype pointing to <<quantum gate>> (as

defined in the extension family). This KDM elements

has six children, which respectively represent:

• The gate snippet (line 4).

• On which qubit is being applied (line 5-6).

• Being a qubit register, it specifies which

qubit register is being applied (line 7-8).

• The readout of the qubit register (line 9-10).

• The writing of the qubit register (line 11-12).

• The flow of the information to the next

quantum gate (line 12-13).

1 <codeElement id="id.20" xmi:type="action:

2 ActionElement" kind="operator" name="Hadamard"

3 stereotype="id.4">

4 <source language="OpenQASM3" snippet="h q[1]"/>

5 <actionRelation id="id.21"xmi:type="action:

6 Addresses" from="id.20" to="id.17"/>

7 <codeElement id="id.22" name="1"xmi:type="code:

8 Value" stereotype="id.5"/>

9 <actionRelation id="id.23" xmi:type="action:

10 Reads" from="id.20" to="id.16"/>

11 <actionRelation id="id.24"xmi:type="action:

12 Writes" from="id.20" to="id.17"/>

13 <actionRelation id="id.25"xmi:type="action:

14 Flow" from="id.20" to="id.26"/>

15 </codeElement>

Figure 5: KDM resulting from the analysis of a Hadamard

gate.

Following the running example started in the

previous section, in Figure 6 can be seen the teleport

algorithm KDM’s representation through the Eclipse

model view. At the top of the model is located the

extension family explained previously (cf. Section

2.2). Then, we have the declaration of the quantum

program through the type "CompilationUnit" and

through the attribute with the name of the program

(teleport.qasm). Subsequently, we can see the

declaration of a qubit and other variables where the

results of the quantum operations will be stored.

These variables are represented in KDM by means of

the type “StorableUnit”, but the qubit has an attribute

“stereotype” which points to the id of the element

“qubit” in the extension family.

Figure 6: Resulting KDM of the teleport algorithm.

4 PRELIMINARY EVALUATION

This section will consist of a preliminary evaluation

of this tool extension. A total of 13 QASM programs

extracted from the Qiskit example repository on

Github (Qiskit, 2022) have been used to carry out this

evaluation. Currently, there is not a large number of

independent projects publishing quantum algorithms

or programs. As a result, most of the resources or

samples are usually found in the repositories of the

programming languages (i.e., most of the examples

developed in OpenQASM3 are found in their own

repository), which in turn means that these same

programs are the most visualized or used. Although

there are 23 examples in the repository, in the end we

filtered in 13 of them. Some programs were discarded

since these contained sets of language declarations

(like quantum gates’ definitions) or these presented

oracle’s implementations (which are out of the scope

of this project).

The results obtained from the evaluation can be

observed in Table 2, where the name of the analyzed

file and the variables used for its evaluation can be

found, such as the element size, which consists of the

Reverse Engineering of OpenQASM3 Quantum Programs to KDM Models

517

sum of qubits and quantum gates (i.e., StorableUnits

and ActionElements in the KDM model), and the

number of relationships (i.e., Reads, Addresses and

Flow in KDM). In addition, it includes the time (in

milliseconds) spent on generating the KDM. The

execution environment consisted of a laptop with an

i7 10510U with 2.30 GHz, 16 GB of RAM.

For this preliminary evaluation the precision,

recall and f-measure of the KDM models generated

have been calculated. To assess these values, we have

employed the data that can be seen in the columns

which concerns to the size of the elements,

relationships, and missing elements. Missing

elements are mainly composed of three structures:

functions (and therefore all quantum gates that are

implemented within a function), oracles, and

measurement gates. Those missing elements are not

represented in KDM, causing the comparison to be

inaccurate.

Each missing quantum gate (either because it is

defined in an oracle or implemented within a

function) has been multiplied by 4 since at least its

KDM representation would have a child “Addresses”

and another “Writes”, but we considered convenient

to compensate for the possible “Flow” and the

“Value” that other quantum gates may have. Oracles

that work as identity gates have not been considered

as missing elements although are not represented.

About irrelevant elements (i.e., false positives) the

reverse engineering technique does not retrieve

anything undesired in the KDM model. Thus, the

precision of the tool is always 100%.

Observing results in Table, there are specific

programs such as 'msd' or 'rus' where the recall drops

to almost 30%. As explained above, quantum gates

within functions and oracles are not modelled in

KDM yet, which causes the average recall obtained in

programs such as those mentioned to drop.

Nevertheless, the effectiveness of the tool could be

considered acceptable since the study reported an

average of 72.2% recall. Moving to the f-measure

value, obtaining such a high percentage is not

surprising as this measure has a direct relationship

with the values obtained from recall and precision.

However, this measure indicates that the generated

models present a correct accuracy (81.2%).

In summary, reverse engineering of quantum

programs allows to represent them in abstract models

with an average recall of 72.2%, which proves that

quantum programs could be integrated into the high-

level design of hybrid information systems. The

modelling of these new systems has yet to be

formalized, but the state of the art (Azeem Akbar,

Rafi, & Khan, 2022; Pérez-Delgado & Perez-

Gonzalez, 2020; Weder, Barzen, Leymann, Salm, &

Vietz, 2020).

Table 2: Results obtained from the preliminary evaluation.

File name

#Storable

Units

#Action

Elements

#Reads #Addresses #Flow

#Missing

Elements

Precision

(%)

Recall

(%)

F-Measure

(%)

KDM

Generation

time (ms)

adder 5 6 7 6 5 23 100 55.8 71.6 94

alignment 1 2 3 2 1 8 100 52.9 69.2 12

gateteleport 3 3 4 3 2 1 100 93.8 96.8 60

inverseqft1 2 17 17 17 16 4 100 94.5 97.2 77

inverseqft2 5 12 12 12 11 4 100 92.9 96.3 13

ipe 2 4 0 4 3 12 100 52.0 68.4 14

msd 4 6 8 6 5 75 100 27.9 43.6 88

qec 4 6 6 6 5 17 100 61.4 76.1 8

qft 2 13 19 13 12 0 100 100.0 100.0 15

qpt 2 2 0 2 1 1 100 87.5 93.3 8

rb 2 8 10 8 7 1 100 97.2 98.6 4

rus 4 4 0 4 3 31 100 32.6 49.2 13

teleport 4 8 10 8 7 4 100 90.2 94.9 13

Min 1.0 2.0 0.0 2.0 1.0 0 100 27.9 43.6 4

Max 5.0 17.0 19.0 17.0 16.0 75 100 100.0 100.0 94

Avg 3.1 7.0 7.4 7.0 6.0 13.9 100 72.2 81.2 30

Std. Dev. 1.3 4.6 6.2 4.6 4.6 20.7 0 25.9 19.5 30

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

518

As can be seen in the KDM generation time

column, the time does not exceed 100 milliseconds in

any of the cases, obtaining an average of 30

milliseconds and a standard deviation of 30. The

results obtained show that the number of elements

does not necessarily imply an increase in time. For

example, the teleport algorithm ('teleport'), is one of

the algorithms that generates more elements and

relations, took 13 milliseconds, while the magic state

distillation algorithm ('msd') took 88 milliseconds

presenting a smaller number of elements.

5 CONCLUSIONS

This paper presents a reverse engineering technique

that allows the representation of QASM programs in

the KDM standard. The representation of the

programs is performed by means of high-abstraction

level models in a technology-agnostic way. The

KDM models generated from the QASM programs

available in the official Qiskit repository have been

used to conduct a preliminary evaluation that shows

suitability of this extension and contributes to its

applicability in industry.

We can conclude that the major achievement of

this proposal is to demonstrate that, despite the large

number of quantum programming frameworks and

languages, it is possible to agnostically model the

information of quantum algorithms to be used in the

software modernization of hybrid information

systems. Because our task is to bring software

modernization closer to the quantum paradigm, we

represent the information extracted from the

algorithms according to the KDM standard. KDM

was not specifically developed for modelling

quantum software, but its extension mechanism

allows us to do so.

This proposal is framed in long-term research

whose main objective is to adapt the process of

software modernization for the combination of both

classical and quantum software towards hybrid

information systems.

Our future work has two separate but related

paths. The first is the improvement of this technique,

as possible improvements have been identified,

including the implementation of the representation of

oracles and other control structures in QASM. The

second path concerns the implementation of the other

phases of quantum software modernization, such as

restructuring and forward engineering.

ACKNOWLEDGEMENTS

This work is part of the projects SMOQUIN

(PID2019-104791RBI00) and QU-ASAP (PDC2022-

133051-I00) funded by the Spanish Ministry of

Science and Innovation (MICINN) and QHealth

project (EXP 00135977/MIG-20201059), 2020 CDTI

Missions Program (Center for the Development of

Industrial Technology of the Ministry of Science and

Innovation of Spain). We would like to thank all the

aQuantum members, and particularly Guido

Peterssen and, Pepe Hevia, for their help and support.

Competitive Research Programme (CRP Award No.

NRF-CRP 10-2012-03).

REFERENCES

Andrew W. Cross, L. S. B., John A. Smolin, Jay M.

Gambetta. (2020). OpenQASM3 ANTLRv4's

Grammar specification. Retrieved from https://qiskit.

github.io/openqasm/grammar/index.html

Azeem Akbar, M., Rafi, S., & Khan, A. A. J. a. e.-p. (2022).

Classical to Quantum Software Migration Journey

Begins: A Conceptual Readiness Model. arXiv:

2209.05105.

Bouwmeester, D., Pan, J.-W., Mattle, K., Eibl, M.,

Weinfurter, H., & Zeilinger, A. (1997). Experimental

quantum teleportation. Nature, 390(6660), 575-579.

doi:10.1038/37539

De Stefano, M., Pecorelli, F., Di Nucci, D., Palomba, F., &

De Lucia, A. (2022). Software engineering for quantum

programming: How far are we? Journal of Systems and

Software, 190, 111326. doi:https://doi.org/10.1016/j.

jss.2022.111326

Dunjko, V., & Briegel, H. J. J. R. o. P. i. P. (2018). Machine

learning & artificial intelligence in the quantum

domain: a review of recent progress. 81(7), 074001.

Durelli, R. S., Santibáñez, D. S. M., Marinho, B., Honda,

R., Delamaro, M. E., Anquetil, N., & Camargo, V. V.

d. (2014, 13-15 Aug. 2014). A mapping study on

architecture-driven modernization. Paper presented at

the Proceedings of the 2014 IEEE 15th International

Conference on Information Reuse and Integration

(IEEE IRI 2014).

Gamma, E., Helm, R., Johnson, R., Johnson, R. E., &

Vlissides, J. (1995). Design patterns: elements of

reusable object-oriented software: Pearson

Deutschland GmbH.

Garhwal, S., Ghorani, M., & Ahmad, A. J. A. o. C. M. i. E.

(2021). Quantum programming language: A systematic

review of research topic and top cited languages. 28(2),

289-310.

Gyongyosi, L., & Imre, S. (2019). A Survey on quantum

computing technology. Computer Science Review, 31,

51-71. doi:https://doi.org/10.1016/j.cosrev.2018.11.002

Reverse Engineering of OpenQASM3 Quantum Programs to KDM Models

519

Houekpetodji, M. H., Anquetil, N., Ducasse, S., Djareddir,

F., & Sudich, J. (2021). Report From The Trenches A

Case Study In Modernizing Software Development

Practices. Paper presented at the 2021 IEEE

International Conference on Software Maintenance and

Evolution (ICSME).

Imre, S., & Balazs, F. (2005). Quantum Computing and

Communications: an engineering approach: John

Wiley & Sons.

ISO/IEC. (2009). Knowledge Discovery Meta-model

(KDM). Retrieved from https://www.iso.org/standard/

32625.html

Jiménez-Navajas, L., Pérez-Castillo, R., & Piattini, M.

(2020). Reverse Engineering of Quantum Programs

Toward KDM Models. In International Conference on

the Quality of Information and Communications

Technology (pp. 249-262): Springer.

Julian van Velzen, P. B., Sally Epstein, Michiel Boreel,

Sam Genway, Preeti Yadav, Edmond Owen, Gireesh

Kumar Neelakantaiah, Nadine van Son, Kary

Bheemaiah, Prof Moez Draief, Jerome Buvat , Amol

Khadikar, Gaurav Aggarwal. (2022). Quantum

technologies: How to prepare your organization for a

quantum advantage now. Retrieved from Capgemini

Research Institute's Webpage: https://www.capgemini.

com/wp-content/uploads/2022/03/Final-Web-Version-

Quantum-Technologies.pdf

Kazman, R., Woods, S. G., & Carrière, S. J. (1998).

Requirements for integrating software architecture and

reengineering models: CORUM II. Paper presented at

the Proceedings fifth working conference on reverse

engineering (Cat. No. 98TB100261).

Li, H., Khomh, F., & Openja, M. (2021). Understanding

Quantum Software Engineering Challenges An

Empirical Study on Stack Exchange Forums and

GitHub Issues. Paper presented at the 2021 IEEE

International Conference on Software Maintenance and

Evolution (ICSME).

McArdle, S., Endo, S., Aspuru-Guzik, A., Benjamin, S. C.,

& Yuan, X. (2020). Quantum computational chemistry.

Reviews of Modern Physics, 92(1), 015003.

doi:10.1103/RevModPhys.92.015003

Nguyen, H. T., Usman, M., & Buyya, R. J. a. p. a. (2022).

QFaaS: A Serverless Function-as-a-Service Framework

for Quantum Computing.

Paradauskas, B., Laurikaitis, A. J. I. t., & control. (2006).

Business knowledge extraction from legacy

information systems. 35(3).

Parr, T. ANTLR's web page. Retrieved from

https://www.antlr.org/

Pérez-Castillo, R., De Guzman, I. G.-R., Piattini, M. J. C.

S., & Interfaces. (2011). Knowledge Discovery

Metamodel-ISO/IEC 19506: A standard to modernize

legacy systems. 33(6), 519-532.

Pérez-Castillo, R., de Guzmán, I. G. R., & Piattini, M.

(2011). Architecture-driven modernization. In Modern

Software Engineering Concepts and Practices:

Advanced Approaches (pp. 75-103): IGI Global.

Pérez-Castillo, R., Jiménez-Navajas, L., & Piattini, M.

(2021). QRev: migrating quantum code towards hybrid

information systems. 1-30.

Pérez-Castillo, R., Serrano, M. A., & Piattini, M. (2021).

Software modernization to embrace quantum

technology. Advances in Engineering Software, 151,

102933. doi:https://doi.org/10.1016/j.advengsoft.2020.

102933

Pérez-Delgado, C. A., & Perez-Gonzalez, H. G. (2020).

Towards a quantum software modeling language. Paper

presented at the Proceedings of the IEEE/ACM 42nd

International Conference on Software Engineering

Workshops.

Piattini, M., Peterssen, G., Pérez-Castillo, R., Hevia, J. L.,

Serrano, M. A., Hernández, G., . . . Murina, E. (2020).

The Talavera Manifesto for Quantum Software

Engineering and Programming. Paper presented at the

QANSWER.

Qiskit. (2022). OpenQASM3 Examples. Retrieved from

https://github.com/Qiskit/openqasm/tree/main/examples

Ulrich, W. (2010). Modernization Standards Roadmap. In

Information Systems Transformation (pp. 45-64):

Elsevier.

Wang, R. (2021, NOV 30, 2021). Trends: Quantum

Computing Market Cap Tops $174 Billion. Retrieved

from https://www.constellationr.com/blog-news/trends

-quantum-computing-market-cap-tops-174-billion

Weder, B., Barzen, J., Leymann, F., Salm, M., & Vietz, D.

(2020). The quantum software lifecycle. Paper

presented at the Proceedings of the 1st ACM SIGSOFT

International Workshop on Architectures and

Paradigms for Engineering Quantum Software.

Wootters, W. K., & Zurek, W. H. J. P. T. (2009). The no-

cloning theorem. 62(2), 76-77.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

520
