Adapting Is Difficult! Introducing a Generic Adaptive Learning

Framework for Learner Modeling and Task Recommendation Based

on Dynamic Bayesian Networks

Florian Gnadlinger

1,2 a

, André Selmanagić

, Katharina Simbeck

and Simone Kriglstein

Faculty of Computer Science, Communication, and Economics, University of Applied Sciences Berlin, Germany

Faculty of Informatics, Masaryk University, Czech Republic

kriglstein@mail.muni.cz

Keywords: Adaptive Learning, Educational Technology, Virtual Learning Environments, Dynamic Bayesian Network,

Evidence-Centered Design.

Abstract: The process of learning is a personal experience, strongly influenced by the learning environment. Virtual

learning environments (VLEs) provide the potential for adaptive learning, which aims to individualize learn-

ing experiences in order to improve learning outcomes. Adaptive learning environments achieve individuali-

zation by analyzing the learners and altering the instruction according to their specific needs and goals. De-

spite ongoing research in adaptive learning, the effort to design, develop and implement such environments

remains high. Therefore, we introduce a novel, generalized adaptive learning framework based on the meth-

odological Evidence-Centered Design (ECD) framework. Our framework focuses on the analysis of learners’

competencies and the subsequent recommendation of tasks with an appropriate difficulty level. With this

paper and the open-source adaptive learning framework, we contribute to the ongoing discussion about gen-

eralized adaptive learning technology.

1 INTRODUCTION

During the past decades, the rise of educational tech-

nology, including e-learning and virtual learning en-

vironments (VLEs), had a tremendous impact on the

educational sector (Bond et al., 2019). Part of this de-

velopment progress is the personalization of learning

to the individual needs and goals of the learner, also

known as adaptive learning (Shemshack & Spector,

2020). In contrast to the instructional model of the

age-graded system commonly present in formal edu-

cation, which is based on the assumption of “same-

ness with exceptions”, a personalization-based peda-

gogy starts with the assumption that each learner is

different (Dockterman, 2018). Using adaptive learn-

ing, the way instructional content is presented to

learners, is dynamically adjusted based on their pref-

erences or responses (Lowendahl et al., 2016). As

https://orcid.org/0000-0003-4569-9671

https://orcid.org/0000-0002-6457-2791

https://orcid.org/0000-0001-6792-461X

https://orcid.org/0000-0001-7817-5589

such, adaptive learning “can increase motivation, en-

gagement, and understanding, maximizing learner

satisfaction, learning efficiency, and learning effec-

tiveness” (Shemshack & Spector, 2020). But combin-

ing technology and educational theories to personal-

ize learning remains an interdisciplinary challenge

(Rosen et al., 2018).

In this position paper, we present our vision of an

open-source adaptive learning technology called ad-

lete-framework, which incorporates the conceptional

methodology of the Evidence-Centered Design

(ECD) framework in order to act as an intermediate

between the different disciplines participating in the

creation process of adaptive VLEs. We illustrate the

creation of an adaptive VLE using a simplified learn-

ing scenario for basic arithmetical operations. Our in-

tention though is to use the adlete-framework in the

future to create adaptive VLEs for more complex top-

ics such as sustainability and digital transformation in

272

Gnadlinger, F., Selmanagi

c, A., Simbeck, K. and Kriglstein, S.

Adapting Is Difﬁcult! Introducing a Generic Adaptive Learning Framework for Learner Modeling and Task Recommendation Based on Dynamic Bayesian Networks.

DOI: 10.5220/0011964700003470

In Proceedings of the 15th International Conference on Computer Supported Education (CSEDU 2023) - Volume 1, pages 272-280

ISBN: 978-989-758-641-5; ISSN: 2184-5026

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

the domain of electrical engineering, the Naïve Bayes

Classifier in the domain of AI, or playing the piano.

We further suggest the creation of software reposito-

ries of modular adaptive learning technology compo-

nents (“engine building blocks”) for the assembly of

custom adaptive learning technologies.

2 RELATED WORK

2.1 Adaptive Learning

Adaptive learning is a “learning process in which the

content taught, or the way such content is presented,

changes or ‘adapts’ based on individual student re-

sponses” and which “dynamically adjusts the level or

types of instruction based on individual student abili-

ties or preferences” (Oxman & Wong, 2014).

VLEs that support adaptive learning need to ana-

lyze the learner and/or learner behavior as well as

generate recommendations for instructional and con-

tent adaptations (Shute & Zapata-Rivera, 2007). The

component providing this functionality is called

adaptive engine (Rosen et al., 2018) or adaptive learn-

ing engine (Carmichael et al., 2019). In general, adap-

tive engines require the design of four conceptual

models in order to make VLEs adaptive: the content,

learner, assessment, and instructional model (Essa,

2016; Vandewaetere et al., 2011). The content model

“houses domain-related bits of knowledge and skill,

as well as their associated structure or interdependen-

cies” (Shute & Towle, 2003). The learner model is

used for capturing what a person knows and does, the

learner characteristics, e.g. knowledge, goals, or de-

mographics. The assessment model describes how to

infer what the learner knows (Essa, 2016), his / her

level of competence. Learner model, content model

and assessment model are inherently interconnected,

as the competencies a learner is supposed to develop,

which are also the target of the assessment, do always

belong to some subset of the domain (Essa, 2016; Pe-

lánek, 2022). The instructional model can be seen as

the didactical component that encompasses the in-

structional strategy (Vandewaetere et al., 2011).

Based on the characteristics captured in the learner

model (the source of adaptation), the adaptive engine

adapts the content and instruction (targets of adapta-

tion) to the learner (Vandewaetere et al., 2011).

The creation of these conceptual models and their

digital representations is an interdisciplinary process.

To portray this, the following sections draw a line

from the findings in the educational sciences to our

proposed technological solution.

2.2 Competency-Based Learning,

Evidence-Centered Design and

Bayesian Networks

Competency-based learning is a “pedagogical ap-

proach that focuses on the mastery of measurable stu-

dent outcomes” (Henri et al., 2017), which encour-

ages tailoring learning experiences to the learner and

using evidence to improve and adapt learning (Duna-

gan & Larson, 2021). The IEEE standard for reusable

competency definitions uses a broad definition of the

word competency, which includes “any aspect of

competence, such as knowledge, skill, attitude, abil-

ity, or learning objective” (IEEE Computer Society,

2008).

Assessments provide evidence for learning in

competency-based learning environments (Dunagan

& Larson, 2021). Because assessments feed the learn-

ing model and in consequence drive the adaptive in-

terventions, they must be valid and reliable and thus

should follow a principled assessment design ap-

proach like Evidence-Centered Design (ECD) (Shute

& Towle, 2003). ECD is “an approach to constructing

educational assessments in terms of evidentiary argu-

ments” (Almond et al., 2015). A short description of

ECD requires definitions of various terms. A task is

“a goal-directed human activity to be pursued in a

specified manner, context, or circumstance” (Mislevy

et al., 1998). Almond et. al. (2015) explain that when

tasks are processed by learners, these learners inad-

vertently create work products – captures of some as-

pect(s) of the learner’s performance (e.g. the written

solution to a math problem).Work products thus con-

tain evidence about a learner’s competencies (e.g. the

number of mistakes in that written solution), which

can be extracted in the form of observable variables

as part of the evidence identification process. The cur-

rent beliefs the system has about a learner’s compe-

tencies are captured in the learner model (sometimes

proficiency/student model). The evidence accumula-

tion process is responsible for updating these beliefs

across multiple tasks by incorporating the infor-

mation of the work products’ observables into the

learner model. For their specific domain, assessment

designers describe the details of this process in a con-

ceptual assessment framework, which serves as the

blueprint for the creation of assessments. The concep-

tual assessment framework links the task model (de-

scribing task features and potential work products)

via the evidence model (containing the evidence rules

for extracting observables from work products) to the

learner model (containing the beliefs about compe-

tencies) (Almond et al., 2015).

Adapting Is Difﬁcult! Introducing a Generic Adaptive Learning Framework for Learner Modeling and Task Recommendation Based on

Dynamic Bayesian Networks

273

Even though ECD is agnostic to the statistical

methods used, Bayesian networks (BNs) are often uti-

lized for the learner model (Almond et al., 2015;

Shute et al., 2021). BNs are directed acyclic graphs

that describe relationships between random variables

(Uglanova, 2021). Using BNs it is possible to proba-

bilistically infer latent variables (e.g. knowledge

level) from measurable variables (e.g. test results)

(Uglanova, 2021). The relationships between varia-

bles are expressed using conditional probability ta-

bles (Uglanova, 2021). In ECD, BNs are designed

within an interdisciplinary team, including domain

experts, and describe the relationships between com-

petencies, sub-competencies, and observable varia-

bles (Almond et al., 2015). Therefore Bayesian net-

works can be used for knowledge tracing, accumulat-

ing the evidence of multiple tasks in order to describe

the current beliefs about the competencies of a learner

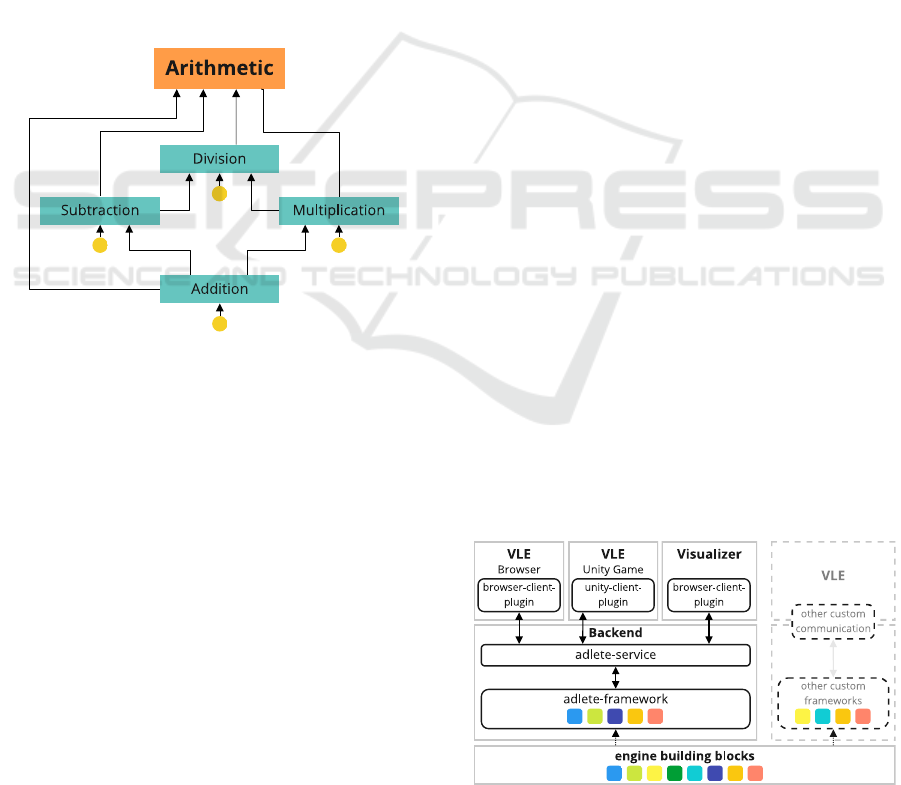

(Almond et al., 2015). Figure 1 shows the simplified

structure of a BN for the domain of arithmetic.

Figure 1: Simple BN structure for arithmetic with observa-

ble nodes (yellow).

2.3 Similar Adaptive Learning Engines

The ALOSI (Adaptive Learning Open Source Initia-

tive) framework consists of an adaptive engine and a

bridge component that handles the communication

between an engine, a learning management system

and a content source (Rosen et al., 2018). The ALOSI

adaptive engine has two main parts. First, the

knowledge tracing component updates profiles of

learners using Bayesian knowledge tracing. Second,

the recommendation component generates item rec-

ommendations using a weighted sum of four scoring

functions: remediation, continuity, appropriate diffi-

culty and readiness of prerequisites (Rosen et al.,

2018).

On the other hand, ALIGN (Adaptive Learning In

Games through Noninvasion) is an adaptive learning

engine for educational games, where adaptations are

only chosen if they do not compromise game narrative

and character consistency (Peirce et al., 2008). The en-

gine is agnostic to the underlying game, by using a two-

step loop, where the inference step translates game

specificities to abstract educational concepts and the

realization step translates abstract adaptations to game

world modifications (Peirce et al., 2008).

Despite these adaptive learning engines showing

promising developments from a technological point

of view, we are missing a stronger connection to the

findings from the educational sciences. Therefore, we

propose the adlete-framework – an adaptive engine

that closely follows the methodology of the ECD in

order to encourage the interdisciplinary creation of

adaptive learning environments.

3 DESIGN

As stated in the introduction, our contribution is two-

fold. First, the adlete-framework, is an open-source

adaptive engine, designed to be a generalized and

user-friendly – though opinionated – framework for

easy integration of adaptivity in VLEs. In its current

state, the framework focuses on competency-based

learning, with learner models being designed by ex-

perts in the form of BNs (as suggested by ECD).

Based on the traced competencies, the framework

recommends task types with appropriate difficulty

levels. Second, the adlete-framework is assembled

from engine-building-blocks – a repository of pieces

(interfaces, classes and functions) – that can be used

for creating custom adaptive engines. Additional

components of our system include the adlete-service

(a web service that provides an interface to the adlete-

framework), client-plugins (provide client-side inter-

faces for communicating with the adlete-service) and

the visualizer (an extendable desktop / web-applica-

tion for building learner models and visualizing

learner histories). The relationships between these

components are illustrated in Figure 2.

Figure 2: Relationship between the software components.

CSEDU 2023 - 15th International Conference on Computer Supported Education

274

The architecture of the software components fol-

lows several conceptual principles. First, the adlete-

framework as a drop-in adaptivity solution should be

configurable and be abstracted / generic enough to be

used in various VLEs (decouple content & environ-

ment similar to the ALIGN engine). Therefore, the

VLE is responsible for a) translating work products

of the learner into abstract observables to be passed

to the engine for evidence interpretation and for b) re-

alizing the abstract recommendations given by the en-

gine by transforming them into executable tasks and

presenting them to the learner. Second, since the ad-

lete-framework follows a vision of a user-friendly

adaptive engine that can be easily integrated into

VLEs, it should provide an understandable program-

ming interface (API) and partially abstract away the

complexity of the underlying concepts of learner

analysis and recommendation. Third, the engine

building blocks strive to be an ever-growing collec-

tion of reusable components and as such must be

modular and easily extendable, starting with blocks

inspired by ECD. The repository of blocks should en-

courage rapid experimentation in adaptive engine de-

sign and allow the re-use and re-combination of mul-

tiple conceptional methodologies. Fourth, because

these blocks are used for assembling custom adaptive

engines, they must be generic in general, but config-

urable to the specific needs of the VLE.

3.1 Engine Building Blocks

The engine building blocks contain various compo-

nents concerning the two main parts of an adaptive

engine: the interpretation of evidence to accurately

model an individual learner and the generation of new

recommendations.

3.1.1 Blocks for Interpretation of Evidence

Within the ECD framework, evidence is identified

from a learner’s work products in terms of observa-

bles (evidence identification) and then accumulated

across tasks in the learner model (evidence accumu-

lation), which provides the beliefs about a learner’s

competencies (Almond et al., 2015). In an adaptive

learning environment, this evidence interpretation

process happens frequently, updating the learner

model continuously based on incoming information.

Therefore, our design of this evidence interpretation

process is based on three important assumptions: (1)

evidence accumulation is a temporal process, where

beliefs are updated continuously with incoming

pieces of evidence; (2) the incoming evidence may

contain uncertainty (probabilistic evidence, also

known as soft or virtual evidence [Jacobs, 2019]); and

(3) a single piece of evidence extracted from a

learner’s work product should only have a limited ef-

fect on the beliefs, where the strength of the effect de-

pends on the complexity of the task. On the one hand,

limiting the effect of evidence makes the model less

volatile by reducing the consequences of accidental

slipping or guessing. On the other hand, we assume

that more complex tasks (potentially with many sub-

tasks) provide stronger evidence for beliefs than short

tasks (e.g. a single multiple-choice arithmetic task)

and thus should have a stronger effect on the model.

The structure of work products and the rules for

extracting observables from them are very specific to

the VLE and are thus not part of the adlete-framework

or the engine-building-blocks (principle 1 above).

Observables (extracted evidence about competencies)

and beliefs on the other hand are central units in the

system. We designed multiple representations of ob-

servables and beliefs. There is a probabilistic repre-

sentation, in which an observable / belief is a discrete

probability distribution, where the values are consec-

utive in its nature (beliefs from low to high). Using

probabilistic learner models allows us to capture the

uncertainty of the assessment process and use it as in-

formation in the recommendation process. We also

designed a scalar representation that we believe is

easier to work with. Instead of discrete values, it con-

sists of two continuous variables: a value (between 0-

1) indicating the level of belief and a certainty (be-

tween 0-1) describing the confidence about the value.

A similar concept is presented in (Morales-Gamboa

& Sucar, 2020, unpublished manuscript).

The engine building blocks also contain evidence

interpreters (probabilistic or scalar) – components,

which update the learner model (e.g. a BN) using in-

coming observables and which can be queried for the

updated beliefs.

3.1.2 Blocks for Recommendation

The engine building blocks contain generic function-

alities for creating utility-based systems. These are

systems that allow scoring possible actions and

choosing actions based on these scores (“utilities”)

(Graham, 2019). Custom utility functions can be

combined using so-called qualifiers, in order to create

a single score for a solution based on multiple criteria.

Based on these functionalities, the adlete-framework

implements a utility-based system for recommending

a specific task type and a corresponding difficult level

(see 3.2).

Adapting Is Difﬁcult! Introducing a Generic Adaptive Learning Framework for Learner Modeling and Task Recommendation Based on

Dynamic Bayesian Networks

275

3.2 adlete-framework

The adlete-framework implements a single interface,

that provides the functionality for interpreting observ-

ables to update the learner model and recommending

a task type with appropriate difficulty.

To trace the competencies of the learner, the

framework uses the scalar evidence interpreter, which

updates a learner model (Bayesian network) accord-

ing to incoming scalar evidence. The structure of this

BN (competencies, their relationships and conditional

probability tables) and the initial beliefs are precon-

figured by the engine user. The process works like

this: (1) the VLE triggers the update process of the

learner model. For this, it has to transform its work

products (e.g. the solution of a math exercise) into

(abstract) task observables, containing information

about the task type (an identifier for similar tasks, e.g.

multiplication with whole numbers), how correct a

task was solved by the learner (correctness between

0-1) and the difficulty that task was tagged with (also

0-1). Because task observable is still an abstract

measure, the adlete-framework can be used in a vari-

ety of VLEs that focus on distinct competencies. (2)

As the engine is configured with the existing task

types and their relationships to the competencies of

the learner model, the task observables are then split

(e.g. the observable of a complex task including both

multiplication and addition is split into one observa-

ble per competency) and converted to scalar observa-

bles (evidence). (3) The scalar observables are passed

on to the scalar evidence interpreter for updating the

beliefs about the competencies in the learner model.

The automatic recommendation process is split

into two steps: choosing a task type and generating an

appropriate difficulty level, both representing the

rules of the instructional model. Task types may be as

broad as topics, e.g. “multiplication”, or as specific as

learning objects, e.g. “multiplication-learning-object-

5”. The task-choosing-step uses the aforementioned

qualifiers to create a weighted sum of multiple utility

functions in order to generate a compound utility

(“usefulness”) for a task type. Using the competency

information and statistics from the learner model, it

calculates the utilities of all task types and chooses

the one with the highest utility. The current utility

functions are: competency weakness (higher score for

task types targeting weaker competencies), repetition

and correctness ratio (higher score for task types often

solved incorrectly). The weights of these functions

are configurable. The difficulty generator calculates

an appropriate difficulty based on the chosen task

type calculated in the previous step, the beliefs about

the competencies associated with that task type and

the tendencies of those beliefs (based on a linear re-

gression of past beliefs). It adds a small “flow factor”

to the difficulty for slightly oscillating between chal-

lenging (arousing) and undemanding (relaxing) tasks.

The realization of this abstract information (task type

and difficulty) is again up to the VLE.

4 IMPLEMENTATION

4.1 JavaScript Ecosystem

The prototype was implemented in TypeScript, a

strongly typed superset of JavaScript (Microsoft,

2022). The JavaScript ecosystem supports multiple

environments. This makes it possible to host the adap-

tive engine in a web service on a server, with which

applications like LMS or native apps can communi-

cate, but also use the engine directly, e.g. in a web-

based learning game or a hybrid mobile app. Cross-

(browser) compatibility issues, performance and sin-

gle-threaded execution are challenges within the Ja-

vaScript ecosystem though, while shareability, inter-

activity and on-device-computation are opportunities

in browser-based environments (Smilkov et al.,

2019).

4.2 Evidence Accumulation

The evidence accumulation process of the evidence

interpreters described above requires the BN, that is

used in the adlete-framework, to change over time.

Such temporal Bayesian networks are called dynamic

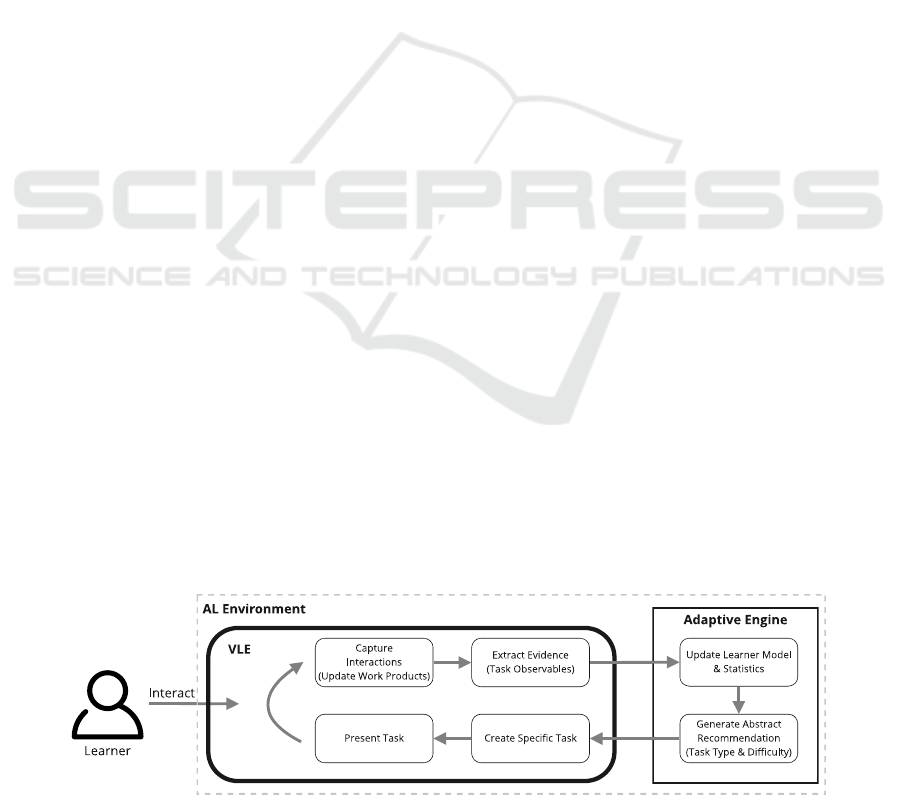

Figure 3: Loop of an adaptive learning environment created using the adlete-framework.

CSEDU 2023 - 15th International Conference on Computer Supported Education

276

Bayesian networks (Reichenberg, 2018). In our case

this means that the posterior belief in a competency is

based on the prior belief in that competency and the

new evidence. A similar method was used in (Mo-

rales-Gamboa & Sucar, 2020, unpublished manu-

script). When evidence is virtual (probabilistic),

Pearl’s method can be used for propagating the evi-

dence by adding an auxiliary node to the BN (Jacobs,

2019).

Due to the limitations of the BN library used

(bayesjs [Nascimento et al., 2021]), we process the

accumulation step in a single mathematical operation

that combines the temporal update, the limitation of

the evidence effect and the usage of virtual evidence

without adding an auxiliary node.

This operation is based on the idea of probabilistic

opinion pooling, which is a method of aggregating

probabilities, for example probabilities given as opin-

ions by experts (Franz Dietrich & Christian List,

2017). Specifically, weighted linear pooling is used to

combine the prior belief about a competency stored in

the BN with the new probabilistic evidence. This type

of pooling basically works like a weighted average of

probabilities. To limit the effect of the new evidence,

most of the weight is given to the prior belief.

The posterior belief is saved in the BN directly

(observable competency variables). Thus, this update

mechanism only works for leaf nodes (see also Figure

1). After setting the beliefs, inference of the con-

nected latent variables is executed using bayesjs’ up-

date mechanism (junction tree).

5 SAMPLE APPLICATION

To exemplify the creation of an adaptive VLE using

the adlete-framework, we return to the use case of a

very simple arithmetic practicing environment, im-

plemented in the form of a command-line application.

The adaptive learning environment presents basic

arithmetical operation tasks to the learner. Figure 3

shows how this practicing environment is based on a

loop. The VLE is responsible for extracting abstract

evidence (task observables) from the learner’s re-

sponses, which the adaptive engine (here: the adlete-

framework) uses to update its internal learner model

and generate an abstract recommendation for a task

type and difficulty. The VLE in turn uses this infor-

mation to create a specific task to be presented to the

learner. An exemplary sequence of generated tasks

and the according abstract recommendation infor-

mation is shown in Figure 4.

Both the VLE and the configuration of the adaptive

engine require the creation of the four conceptual

models (learner -, content -, assessment- and instruc-

tional model) within the interdisciplinary team. The

content model created by the domain experts de-

scribes the domain of arithmetic (e.g. all knowledge

about the four basic operations and their interrelations

like the relationship between multiplication and addi-

tion). The assessment and instructional designers de-

rive the learner model (competency model) from the

content model. It describes the main competencies,

which in this scenario are simply the ability to apply

the four arithmetic operations and the levels of profi-

ciency within these competencies (e.g. on a scale

from 0 to 1). The assessment and instructional design-

ers also create the instructional model, containing

clear descriptions of the types of tasks that should be

practiced in the VLE (here: basic tasks in the four

arithmetic operations) as well as the rules for gener-

ating the personalized sequence of tasks and their dif-

ficulty. The assessment model created by the assess-

ment designers bridges the gap between the task types

from the instructional model and the learner model. It

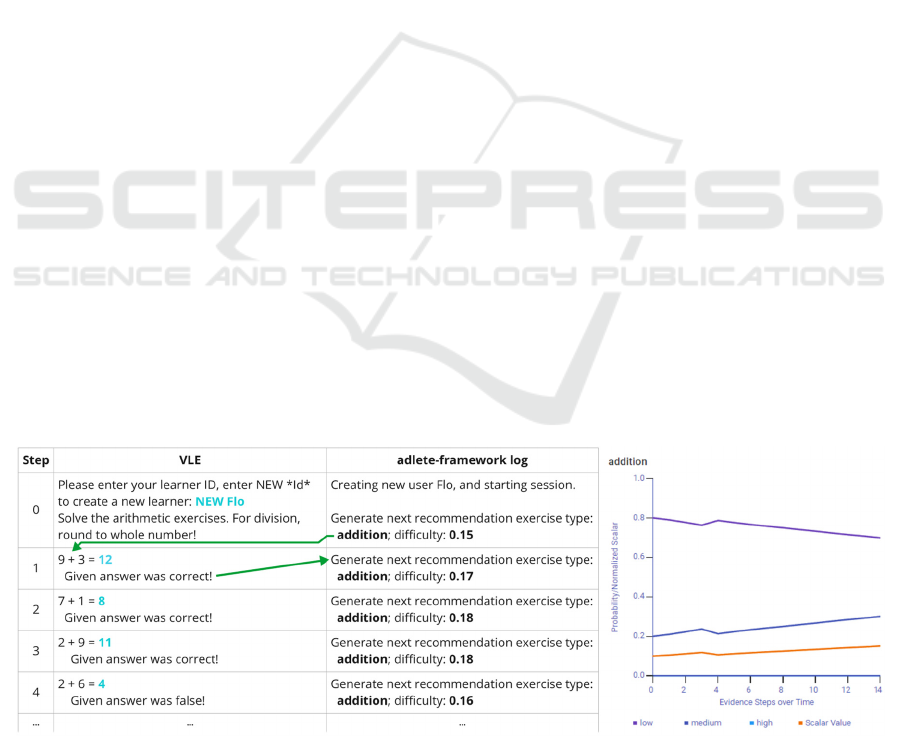

Figure 4: Simple VLE for arithmetic (left; console application with first 4 tasks, user inputs in blue), adlete-framework log

(middle) and belief graph for the competence “addition” (right; probabilities in bluish, scalar value in orange).

Adapting Is Difﬁcult! Introducing a Generic Adaptive Learning Framework for Learner Modeling and Task Recommendation Based on

Dynamic Bayesian Networks

277

describes the mathematical procedures for extracting

evidence for the competencies from the tasks’ work

products and updating the learner model, e.g. formu-

lating how a minor mistake in a multiplication task

should affect the beliefs about the learner’s multipli-

cation competency.

The software developers are responsible for cre-

ating the VLE (here the command-line application)

and configuring the adlete-framework. They trans-

form the conceptual learner model into the layout

configuration of a Bayesian network (see Figure 1),

which serves as the machine-interpretable learner

model for tracking the competencies. They configure

the recommendation part of framework by defining

the names of recommendable task types and trans-

forming the sequencing and difficulty rules into

weights of the utility functions (see 3.2). Internally,

the adlete-framework uses the beliefs in the learner

model and the utility system to recommend the next

task type and difficulty in an abstract format. The

software developers are thus responsible for creating

the algorithm that generates specific tasks based on

this abstract information. Using the conceptual as-

sessment model, they also implement the algorithm

for converting the learner’s work products into ab-

stract task observables (evidence extraction), which

the framework uses for updating the learner model.

6 DISCUSSION

Positive and negative educational impacts of the pro-

posed technology strongly depend on the VLE that

the adlete-framework is integrated into and the con-

figuration of it. Ideally, positive effects include the

main opportunities of adaptive learning: motivation,

engagement, learner satisfaction, learning efficiency

and learning effectiveness. But if the design of the

VLE, learning objects and learner model (BNs) does

not consider the requirements and needs of all of its

users, the learner analysis and / or recommendation

generation may fail. Instead of the desired opportuni-

ties of adaptive learning, the exact opposite effects

may occur. Misuse of the adaptive learning environ-

ment, e.g. by random guessing or cheating will, pro-

voke similar negative effects.

While the adlete-framework is generally agnostic

to the way the BNs were designed, this paper pre-

sented an expert-driven approach using the ECD

framework. It is strongly advised to evaluate such the-

oretical models using empirical and/or simulated data

– a process known as model criticism (Uglanova,

2021). Especially the lay perception of probability of-

ten held by non-statisticians can be subject to heuris-

tic biases and presents a major challenge when basing

probabilities on domain expert opinion (Almond et

al., 2015). Using multiple domain experts may help

in this regard and in eliminating wrong assumptions

of individual experts (Shute et al., 2021).

The adlete-framework is very opinionated at the

moment, as it focuses solely on competency-based

learning. It also only supports a single learner model

in the form of a Bayesian network. Initially, the

framework was developed for practicing physical

skills, which could be trained in any order as long as

the difficulty was appropriate. Thus, the recommen-

dation process currently does not utilize prerequisite

information about knowledge topics, which would be

required for recommending learning paths along

these topics, e.g. using methodologies like Compe-

tency-based Knowledge Space Theory (Korossy,

1997).

The adlete-framework, engine-building-blocks

and the other presented software components are in

use and are being extended in multiple research pro-

jects at the University of Applied Sciences Berlin and

the Masaryk University. Currently we examine the

practicality of the adlete-framework in suitable use-

case studies (e.g. hearing rehabilitation). In the future

we would also like to evaluate the effect of the adlete-

framework on the interdisciplinary creation of adap-

tive VLEs.

7 CONCLUSION

Adaptive learning engines enable VLEs to provide

learners with learning tasks at appropriate levels of

difficulty. In this position paper we summarized our

findings in the field of adaptive VLEs and demon-

strated how these were integrated into a reusable

adaptive learning engine. The main aim of the adlete-

framework is to reduce the effort to design and de-

velop adaptive learning environments. Our frame-

work incorporates ideas of the Evidence Centered De-

sign Framework, which is a sound methodology for

creating the assessments necessary for adaptive learn-

ing. As such it relies on a competency model designed

by experts in the form of a dynamic Bayesian net-

work, which holds the beliefs about a learner’s com-

petencies (learner model). When a learner completes

a task, the model is updated based on the evidence for

specific competencies from the task’s results. With

the updated learner model, the adlete-framework can

subsequently recommend new tasks with appropriate

difficulty levels. We believe that the inherent struc-

ture of Bayesian Networks and the methodological

CSEDU 2023 - 15th International Conference on Computer Supported Education

278

process can notably support the interdisciplinary de-

sign of digital learner models and assessments. There-

fore, we release the adlete-framework as an open-

source

generalized solution for integrating adaptivity

into VLEs and encourage other researchers and de-

velopers to build upon it.

ACKNOWLEDGEMENTS

We would like to thank the German Federal Institute

for Vocational Education and Training and the Ger-

man Federal Ministry of Education and Research for

supporting this research as part of the funding pro-

gram “Innovationswettbewerb INVITE”.

REFERENCES

Almond, R. G., Mislevy, R. J., Steinberg, L. S., Yan, D., &

Williamson, D. M. (2015). Bayesian Networks in Edu-

cational Assessment. Statistics for Social and Behav-

ioral Sciences. Springer. https://doi.org/10.1007/ 978-

1-4939-2125-6

Bond, M., Zawacki-Richter, O., & Nichols, M. (2019). Re-

visiting five decades of educational technology re-

search: A content and authorship analysis of the British

Journal of Educational Technology. British Journal of

Educational Technology, 50(1), 12–63.

https://doi.org/10.1111/bjet.12730

Carmichael, T., Blink, M. J., & Stamper, J. (2019). Tu-

torGen SCALE ® -Student Centered Adaptive Learn-

ing Engine. In Companion Proceedings 9th Interna-

tional Conference on Learning Analytics & Knowledge.

https://www.researchgate.net/publication/

333853230_TutorGen_SCALE_R_-Student_Centered_

Adaptive_Learning_Engine

Dockterman, D. (2018). Insights from 200+ years of per-

sonalized learning. Npj Science of Learning, 3(1), 15.

https://doi.org/10.1038/s41539-018-0033-x

Dunagan, L., & Larson, D. A. (2021). Alignment of Com-

petency-Based Learning and Assessment to Adaptive

Instructional Systems. In (pp. 537–549). Springer,

Cham. https://doi.org/10.1007/978-3-030-77857-6_38

Essa, A. (2016). A possible future for next generation adap-

tive learning systems. Smart Learning Environments,

3(1), 1–24. https://doi.org/10.1186/s405 61-016-0038-

Franz Dietrich, & Christian List. (2017). Probabilistic

Opinion Pooling. In Alan Hájek & Christopher Hitch-

cock (Eds.), The Oxford Handbook of Probability and

Philosophy. Oxford University Press. https://

doi.org/10.1093/oxfordhb/9780199607617.013.37

https://gitlab.com/adaptive-learning-engine

Graham, D. “. (2019). An introduction to utility theory. In

S. Rabin (Ed.), Game AI Pro 360: Guide to Architecture

(pp. 67–80). CRC Press.

Henri, M., Johnson, M. D., & Nepal, B. (2017). A Review

of Competency‐Based Learning: Tools, Assessments,

and Recommendations. Journal of Engineering Educa-

tion, 106(4), 607–638. https://doi.org/10.1002/

jee.20180

IEEE Computer Society (2008, January 25). Data Model

for Reusable Competency Definitions (1484.20.1).

Jacobs, B. (2019). The Mathematics of Changing One’s

Mind, via Jeffrey’s or via Pearl’s Update Rule. Journal

of Artificial Intelligence Research, 65, 783–806.

https://doi.org/10.1613/jair.1.11349

Korossy, K. (1997). Extending the Theory of Knowledge

Spaces: A Competence-Performance Approach.

Zeitschrift Für Psychologie, 205, 53–82.

Lowendahl, J., Thayer, T.‑L. B., & Morgan, G. (2016). Top

10 strategic technologies impacting higher education in

2016. https://scholar.google.com/citations?user=wphht

xgaaaaj&hl=de&oi=sra

Microsoft. (2022). TypeScript: JavaScript With Syntax For

Types. https://www.typescriptlang.org/

Mislevy, R. J., Steinberg, L. S., & Almond, R. G. (1998).

On the Roles of Task Model Variables in Assessment

Design. https://www.researchgate.net/profile/russell-

almond/publica-

tion/240153913_on_the_roles_of_task_model_varia-

bles_in_assessment_design

Morales-Gamboa, R., & Sucar, L. E. (2020, unpublished

manuscript). Competence-Based Student Modelling

with Dynamic Bayesian Networks. https://doi.org/10.48

550/arXiv.2008.12114

Nascimento, F. N., Helwanger, F. A., Darrell, L.‑S., &

Cartuccia, M. (2021). bayesjs (Version 0.6.5) [Com-

puter software]. https://github.com/bayesjs/ bayesjs

Oxman, S., & Wong, W. (2014). White Paper: Adaptive

Learning Systems. Integrated Education Solutions.

Peirce, N., Conlan, O., & Wade, V. (2008). Adaptive Edu-

cational Games: Providing Non-invasive Personalised

Learning Experiences. In 2008 Second IEEE Interna-

tional Conference on Digital Game and Intelligent Toy

Enhanced Learning (pp. 28–35). IEEE.

Pelánek, R. (2022). Adaptive, Intelligent, and Personalized:

Navigating the Terminological Maze Behind Educa-

tional Technology. International Journal of Artificial

Intelligence in Education, 32(1), 151–173.

https://doi.org/10.1007/s40593-021-00251-5

Reichenberg, R. (2018). Dynamic Bayesian Networks in

Educational Measurement: Reviewing and Advancing

the State of the Field. Applied Measurement in Educa-

tion, 31(4), 335–350. https://doi.org/10.1080/

08957347.2018.1495217

Rosen, Y., Rushkin, I., Rubin, R., Munson, L., Ang, A.,

Weber, G., Lopez, G., & Tingley, D. (2018). The effects

of adaptive learning in a massive open online course on

learners' skill development. In R. Luckin, S. Klemmer,

& K. Koedinger (Eds.), Proceedings of the Fifth Annual

Adapting Is Difﬁcult! Introducing a Generic Adaptive Learning Framework for Learner Modeling and Task Recommendation Based on

Dynamic Bayesian Networks

279

ACM Conference on Learning at Scale (pp. 1–8). ACM.

https://doi.org/10.1145/3231644.3231651

Shemshack, A., & Spector, J. M. (2020). A systematic lit-

erature review of personalized learning terms. Smart

Learning Environments, 7(1). https://doi.org/10.1186/

s40561-020-00140-9

Shute, V. J., Rahimi, S., Smith, G., Ke, F., Almond, R., Dai,

C.‑P., Kuba, R., Liu, Z., Yang, X., & Sun, C. (2021).

Maximizing learning without sacrificing the fun:

Stealth assessment, adaptivity and learning supports in

educational games. Journal of Computer Assisted

Learning, 37(1), 127–141. https://doi.org/10.1111/jcal.

12473

Shute, V. J., & Towle, B. (2003). Adaptive E-Learning. Ed-

ucational Psychologist, 38(2), 105–114.

https://doi.org/10.1207/S15326985EP3802_5

Shute, V. J., & Zapata-Rivera, D. (2007). Adaptive Tech-

nologies. ETS Research Report Series, 2007(1), i-34.

https://doi.org/10.1002/j.2333-8504.2007.tb02047.x

Smilkov, D., Thorat, N., Assogba, Y., Yuan, A., Kreeger,

N., Yu, P., Zhang, K., Cai, S., Nielsen, E., Soergel, D.,

Bileschi, S., Terry, M., Nicholson, C., Gupta, S. N., Si-

rajuddin, S., Sculley, D., Monga, R., Corrado, G., Vié-

gas, F. B., & Wattenberg, M. (2019, January 16). Ten-

sorFlow.js: Machine Learning for the Web and Beyond.

https://arxiv.org/pdf/1901.05350

Uglanova, I. (2021). Model Criticism of Bayesian Networks

in Educational Assessment: A Systematic Review.

https://scholarworks.umass.edu/pare/vol26/iss1/22/

Vandewaetere, M., Desmet, P., & Clarebout, G. (2011).

The contribution of learner characteristics in the devel-

opment of computer-based adaptive learning environ-

ments. Computers in Human Behavior, 27(1), 118–130.

https://doi.org/10.1016/j.chb.2010.07.038

CSEDU 2023 - 15th International Conference on Computer Supported Education

280
