A Goal-Oriented Requirements Engineering Approach for IoT

Applications

Deepika Prakash

and Naveen Prakash

Deparment of Computer Engineering, JK Lakshmipat University, Jaipur, India

ICLC, 21/8 S. Bhagat Singh Marg, New Delhi 110001, India

Keywords: Functional Objective, Communication Objective, Sender, Receiver, Goal Reduction.

Abstract: Requirements Engineering of IoT systems has the twin objectives of specifying functionality as well as

communication objectives of the system. Existing goal-oriented and use case approaches were not developed

to bring out communication objectives of systems. Consequently, when these techniques are applied then

communication remains subordinate to functionality. We integrate both objectives in the notion of a GOT,

GOal of Things. The GOT model represents the structure of GOTs and an instance of this model is the

requirements specification of an IoT. The accompanying GOT Process provides three ways of GOT reduction.

We illustrate its application to an Accident Reporting System. The GOT proposal is compared with a use-case

oriented approach and a goal oriented approach.

1 INTRODUCTION

With the rapid growth of IoT applications like for

homes and power grids (Stankovic, 2014), dynamic

cargo monitoring (Focker, 2015), people with special

needs (Ferati, 2016), connected cars (Mikusz, 2017)

etc., it was found necessary to formulate ways of

representing an IoT system. The term IoT system

refers to (Costa, 2016) a ‘composition of Devices and

Services interacting with other Devices, Physical

Entities, and Users’. A number of techniques were

developed to specify this composition (Costa, 2016,

Eterovic, 2015, Fleurey, 2011, Kotnis, 2018,

Prehofer, 2015).

A conceptual modeling layer was placed (Prakash,

2021, Prakash, 2022) on top of the IoT system. This

highlighted the data of interest as well as data

communication needs, in an IoT application. The

salient feature of this conceptual model is its reliance

on COMMunication AGents, COMMAGs that have

aspects. Agents represent real world entities that are

participants in IoT applications. Aspects capture the

measurable quantities like temperature and pressure

that are sensed by agents, possibly processed, and

communicated to other agents.

https://orcid.org/0000-0001-8404-3128

https://orcid.org/0000-0003-1644-5613

Moving further upstream, proposals have also

been made for requirements engineering of IoT

applications. Both Functional and Non-functional

Requirements, FR and NFR respectively, have been

addressed. The approach of (Costa, 2017) determines

four parameters, namely, Location, Sensed Variable,

Sensing Rate, and Sending Rate. For (Costa, 2017)

these constitute FRs. NFRs are quality attributes of

the system to-be, for example, reliability.

Requirements are expressed as propositions in natural

language in Requirements Diagrams of SySML.

Kotnis et al. (Kotnis, 2018) concentrate on NFRs.

They start with the assumption that devices are

already known in their Health application. Devices

are represented in Block Definition Diagrams, BDD

of SySML. Interaction among devices is expressed as

Internal Block Diagram, IBD of SySML. Thereafter

Kotnis et al. associate BDD blocks with the

requirements they must meet. For this, three

categories of requirements are defined for health

systems, namely, non-critical, safety-critical, and

mission-critical requirements. Requirements falling

in each category are identified.

Use cases/Scenarios and Goals techniques

originally developed for determining functionality of

Software Engineering/Information Systems, have

Prakash, D. and Prakash, N.

A Goal-Oriented Requirements Engineering Approach for IoT Applications.

DOI: 10.5220/0011982500003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 581-588

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

581

also been used. Whereas FRs can be determined using

these, special provision must be made for determining

the sensing/actuating capacity of things as well as

communication among devices.

(Meacham, 2016) use a combination of use case

diagrams for system functionality and Requirements

Diagrams of SySML for things and thing-interaction.

There are two levels of analysis, a high level and low

level. Each high-level use case is expressed as blocks

in RD and the action they perform is expressed in text

in these RD blocks. Low-level use case diagrams are

for representing low-level functions comprising the

high-level functions. Again, the action carried out by

these is expressed as text in structural blocks of RD.

Movement to system design starts off from the high-

level RD by postulating system blocks for each RD

block. However, the manner in which this is to be

done is not elaborated in (Meacham, 2016).

(Mezghani, 2017) organize their requirements

engineering approach in two parts, requirements

identification and requirements formalization. In the

former the elicited FRs are expressed as use cases.

The latter is organized in a number of design patterns

in multiple levels. This proposal aims to assist system

architects rather than system developers per se.

Reggio (Reggio 2018) builds a goal hierarchy of

strategic and operational goals. Goals are then

expressed in UML. Operational goals are associated

to technological goals that express communication

and device needs. However, the technological aspect

is not elaborated in (Reggio, 2018) who state that it is

“preliminary”.

The approach of (Takai, 2019) is to use the translate

GQM

approach. Business goals become requirement

nodes, questions become text of the requirement node

and metrics become stereotyped requirement nodes,

stereotyped as performance requirements. These are

then converted into Requirements Diagram of

SySML. The manner in which things and thing

interaction is represented is not articulated in (Takai,

2019).

From the foregoing, we conclude that there are

two parts to Requirements Engineering in the IoT

domain (a) determining function is to be performed

or what is to be done by a thing and (b) what is to be

sensed and interaction among things. The former is

de-emphasized in (Costa 2017, Kotnis, 2018)

whereas the latter is of subordinate concern in

(Meacham, 2016, Mezghani, 2017, Reggio, 2018).

Yet, we believe that thing functionality, its

sensing/actuating capacity and thing interaction form

one integrated whole. By separating these, either

thing functionality is not articulated as in (Costa

2017, Kotnis, 2018) or the sensing/interaction aspect

is not fully elaborated.

It is with a view to obviate this, that we present

our integrated approach to IoT requirements

Engineering. Broadly speaking, our proposal is as

follows. We base our proposal in goal-orientation and

refer to GOals of IoT as GOT. We say that a GOT is

achieved when the functional intention behind it is

fulfilled and communicated. Goal fulfilment is for

the function/processing to be performed by a thing

and goal communication is for the sensing/actuating

and thing interaction part. Goal reduction results in

the usual AND/OR hierarchy.

The layout of this paper is as follows. In the next

section, we elaborate on the notion of a requirement

in the IoT domain and define our notion of a goal. In

section 3, the GOT model is described. The GOT

requirements engineering process and the various

drives are presented in section 4. In section 5, we

apply our ideas to the car accident IoT. Thereafter, in

section 6, we compare the proposals of (Meacham,

2016) and (Reggio, 2018) with ours. Section 7

concludes the paper.

2 GOALS IN IoT

A requirement has been variously defined and we

adopt the definition as in IEEE standard 730-2014 as

“A condition or capability that must be met or

possessed by a system or system element to satisfy an

agreement, standard, specification, or other formally

imposed documents.” When applied to the IoT

domain, a thing is the system component of interest

and a collection of communicating things delivers the

service required by an IoT application. The

“condition or capability” of a thing is that it may

obtain data, optionally process it, and communicate it

to another thing. Data may be obtained by sensing the

environment or as a communication from another

thing. There are terminator things like the cloud or

users, that consume data that they receive. Thus, we

can define a requirement in the IoT domain as a

statement about processing and communicating

data. For example, consider the requirement, “the life

of the battery must be monitored and low-life

batteries must be replaced before they die.” The

processing is “Estimate battery life” and the

communication need is to send the message, “Low

battery” to the user.

Now, let us consider how to represent an IoT

requirement as a GOal Of Things, GOT. A goal has

been variously defined. (Lamsweerde, 2000) defines

a goal as an objective that the system should achieve

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

582

through cooperation of agents in the software-to-be

and in the environment. Anton (Anton, 1994) states

that goals are high-level objectives of the business,

organization or system. Dardenne (Dardenne, 1993)

defines a goal as a non-operational objective to be

achieved by the composite system.

It can be seen that, central to the notion of a goal is

that of an objective. In software

engineering/information systems, an objective is the

identification of the functions that the system should

perform. In the IoT domain, however, the mere

computation of the remaining battery life is not

enough but the objective of the system is fully

achieved only when this is also communicated to the

user. Thus, for us, GOT is a pair

GOT= < FO, CO >

where FO is the functional objective and CO is the

communication objective. Thus, our battery

requirement above is specified as a GOT as follows:

Maintain Battery = <Estimate Battery Life, Inform

battery status>

Now, we turn to the communication aspect of a

GOT. We represent a communication objective as a

triple,

<Sender, Receiver, Message>.

The message may contain the following:

Sensed data. As an example, consider the

temperature sensed by a temperature sensor

Processed data produced as a result of FO, e.g.,

cleaned temperature data after taking false

positives/negatives into account.

Senders and receivers may be physical or virtual.

Consider the goal to keep the milk in a milk van at a

temperature at 4

C. Here, the physical milk van or the

cooling unit is a sender/receiver. If the milk van is

divided into regions, then each region could be treated

as a sender/receiver. Senders/receivers may be the

cloud or a user.

Now, following goal-orientation, we build

AND/OR goal hierarchies. In (Dardenne, 1993), we

get the basis for this as follows:

“Reduction (G, g) iff achieving goal g possibly

with other subgoals is among the alternative ways

of achieving goal G.”

We adopt this for GOT as well thereby allowing

G and g to be GOTs. Again, due to the two objectives

of a GOT, it is possible to reduce an IoT goal along

FO or CO. We illustrate these two forms of reduction

through the milk transportation example having the

requirement, Maintain temperature at 4 degrees

centigrade. The corresponding GOT is as follows:

Maintain_temp = <Compute Avtemp, Inform>

Let computation of average temperature be in two

parts, clean sensed data AND the actual calculation,

Calculate Average. Notice, however, that in this

example, the decomposition of the FO serves to

clarify the manner of its achievement and that cleaned

data obtained from the first sub-goal is not to be

communicated. The rules governing this are given in

section 3.

Now, consider reduction along CO. Average

temperature is required to be sent to two receivers, (a)

the cooling unit, and (b) the cloud. Thus, we can do

goal reduction and get sub-goals

AND

From the foregoing, we see that the approach of

goal-orientation formulated in Software

engineering/Information Systems is extendable to

goal-orientation in IoT with goal reduction along

FOs and COs.

It is to be noted that we do not consider inter-GOT

relationships other than AND/OR here. Thus, issues

of GOTs supporting each other and conflicting GOTs

are not dealt with in this paper. Similarly, we are not

dealing with non-functional aspects in the IoT domain

here. A treatment of these issues is left for another

paper.

3 THE GOT MODEL

The foregoing can be represented in a model- driven

manner in the GOT model shown in Fig. 1. The model

says that a GOT is an aggregate of FO and CO. The

former may specify a computation or unprocessed,

raw data. From the cardinality, it can be seen that a

GOT has exactly one FO and one CO respectively.

Further, an FO or a CO can participate in more than

one GOT. The structure of the CO in Fig. 1 says that

a CO is an aggregate of Sender, Receiver, and

Message. The cardinality shows that a CO has exactly

one Sender, one Receiver, and one Message. In the

reverse direction, a Sender, Receiver, or Message may

participate in more than one CO. It may be that the

Sender sends the message to itself. For this, consider

an IoT system with a single thing, a garden light, that

turns ON/OFF after sensing the ambient light. Here,

the GOT pair will have CO as:

<garden light, garden light, ambientLight>.

The model proposes three types of GOTs, simple

GOTs that cannot be decomposed into simpler ones;

complex GOTs that are composed of other simpler

A Goal-Oriented Requirements Engineering Approach for IoT Applications

583

GOTs; and abstract GOTs or those that enter into a

generalization/specialization hierarchy.

A complex GOT corresponds to the AND of goal-

orientation considered in the previous section.

Specialization/generalization allows a high level

GOT to have specialized GOTs and corresponds to

the OR of goal-orientation. Notice, that the model

allows components/specializations that are

themselves simple, complex or abstract.

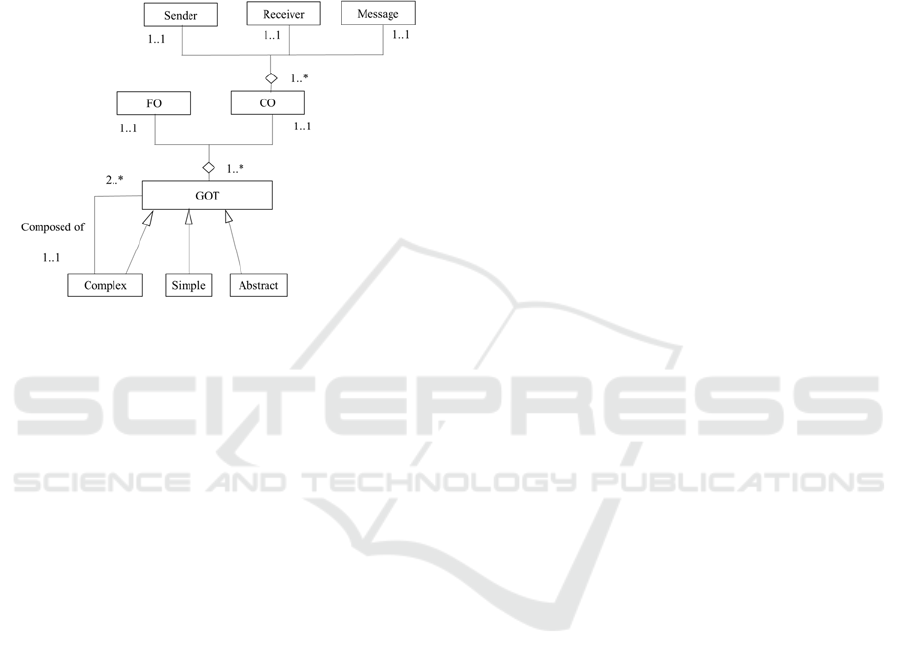

Figure 1: The GOT Model.

Following the classification of a GOT, the FO/CO

may be simple, complex, or abstract (not shown in

the figure to prevent graphical clutter). These terms

have the same meaning as for a GOT but are now

applicable to functional and communication

objectives. Again, the classification of CO implies

that Sender and Receiver may be simple, complex, or

abstract. Thus, the model makes it explicit that the

requirements engineer should consider reduction of

all three of these. We shall use this as a basis of our

requirements engineering process discussed in the

next section.

Interaction among FO and CO is specified by the

rules as follows.

Rule 1: This rule considers the case when the sender

or receiver is complex.

•

If the Sender is complex then ONLY the

complex Sender sends out the message to the receiver

but its component senders DO NOT.

•

If the Receiver is complex, then ALL

component receivers get the message.

Let us consider an example. Let there be a simple

FO that computes Average temperature, Avtemp. Let

our milk van be a complex sender composed of a

number of regions, each of which calculates its own

average temperature and sends it to the milk van. The

milk van sends out the message, Avtemp. Let there be

a complex receiver, Operations, having

components, Cooling Unit and Recording Unit.

Applying Rule 1 to the GOT, we get the pair

<Calculate_Av_temp, (Milk_van, Operations, Avtemp) >

We see that the Milk-van sends its average

temperature to Operations and all components of the

latter receive it. The average temperatures computed

at the regions are not sent to Operations but only to

milk-van. In other words, a valid reduction of the

GOT is

<Calculate_Av_temp, (Milk_van, Cooling Unit, Avtemp)>

AND

<Calculate_Av_temp, (Milk_van, Recording Unit, Avtemp)>

Rule 2: This rule considers Communication with

abstract Sender or Receiver.The rule for

communication is as follows

• The sender is specialized: ANY one or more,

possibly, all the specialized senders can send a

message

• The receiver is specialized: ANY one or more,

possibly all the specialized receivers can

receive the message.

Now, consider a simple FO, Calculate average

temperature. Let us consider the milk van as a region

specialized into two regions, front region and back

region. Each region has its own cooling unit and we

have the receiver, cooling unit specialized into front

cooling unit and back cooling unit. Consider the GOT

<Calculate_Av_temp, (Region, Cooling Unit, Avtemp)>

Applying the rule for specialization, any or both

of our back and front regions can be senders and any

or both the colling units can be receivers. Thus, a

reduction will be:

<Calculate_Av_temp, (Back Region, Back Cooling

Unit, Avtemp)>

<Calculate_Av_temp, (Front Region, Front Cooling

Unit, Avtemp)>

To show communication to more than specialized

receiver, let us change the example. Now, there is the

milk van without regions but two cooling units as

before. Then the message is sent from the milk van to

both units. The GOT to be reduced is as follows

<Calculate_Av_temp, (Milk Van, Cooling Unit,

Avtemp)>

The specialization rule allows the reduction as

follows:

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

584

<Calculate_Av_temp, (Region, Back Cooling Unit,

Avtemp)>

AND

<Calculate_Av_temp, (Region, Front Cooling Unit,

Avtemp)>

Rule 3: This rule considers the case of

communication when an FO is complex. Only the

data resulting from the complex FO is available

for communication. Any data from the component

FOs that needs to be transmitted must be subsumed

by it.

This justifies the example at the end of section 2

above. The FO, Clean Data is a component of the

complex FO, Compute Avtemp. Cleaned data

generated by it is not available for transmission but

only average temperature is. If cleaned data is to be

communicated then it is the responsibility of

Compute Avtemp to do so, in addition to average

temperature.

Rule 1 and Rule 2 apply for communication among

different kinds of senders and receivers of complex

data.

Rule 4: If an FO is abstract and has specialized

FOs, then data available from only one of the

latter may participate in a GOT. That is, a separate

GOT is required for each specialized FO and these are

organized in the GOT reduction hierarchy. Rule 2 and

Rule 3 apply in this case as well.

4 THE REQUIREMENTS

ENGINEERING PROCESS

The requirements specification is a GOT hierarchy.

The requirements engineering process presented in

Fig. 2 considers how the hierarchy is built. We refer

to this process as the GOT Process.

The initial step, Formulate GOT in the GOT

Process is elicitation and formulation of a high-level

GOT. As part of this step, the requirements engineer,

after first eliciting the FO or the CO, proceeds to

complete the GOT. This completion corresponds to a

specification of the various elements comprising the

GOT. For example, it is possible that the FO is

discovered first, as Calculate Average Temperature.

In Formulate GOT, the missing CO part is elicited,

say Inform Cooling Unit. The sender, receiver, and

message of this CO are now determined. This yields

the high-level GOT

<Compute Avtemp, (Milk van, Cooling Unit,

Temperature value)>

With this, Formulate GOT is complete.

Now, as mentioned in section 3, the three aspects

of a GOT that form the basis of GOT reduction are

the FO, Sender, and Receiver. Each of these gives rise

to its own sub-process. We refer to these as FD for

FO Drive, SD for Sender Drive and RD for Receiver

Drive respectively. In the FD, reduction of FO is

done; in the SD reduction of Sender is done and in the

RD, reduction of the Receiver is done. Any of these

can be picked up as the next step in the GOT Process

as shown in Fig. 2.

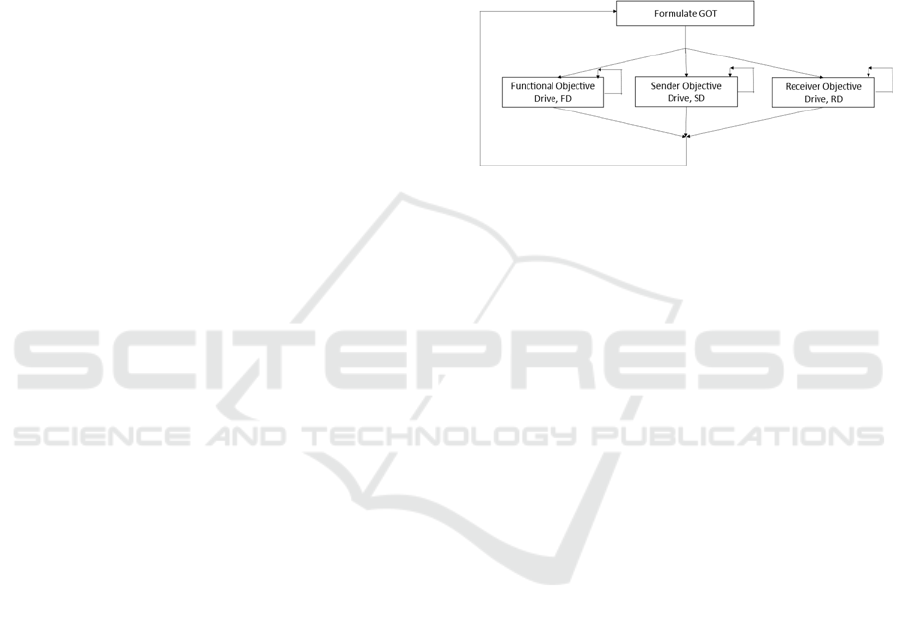

Figure 2: The GOT Process.

In carrying out these drives, the next level of reduced

FOs, Senders or Receivers respectively are

determined along with their nature, simple, complex

or abstract. It is possible to follow these drives to any

depth as shown by the self-loops in the figure. Upon

exit from the drives, Formulate GOT is carried out

and the reduced GOTs are completely defined. The

reduction process takes into account the four rules of

FO-CO interaction of section 3. It can be seen that

GOT reduction is multi-dimensional: FD yields

reduction in one dimension, RD in the second, and SD

in the third. We will indicate the level in each

dimension by the superscript of the drive, for

example, 3

and 2

refer to the third level in the RD

dimension and second level in the SD dimension. The

default dimension is FD.

The GOT Process is applied to each GOT as it is

formulated. The process terminates when simple

GOTs are reached and no further reduction is

possible.

5 THE ACCIDENT EXAMPLE

In this section, we apply the GOT requirements

engineering process to reporting a car accident. In

doing so, we proceed level-wise and complete each

level before proceeding to the next.

The main requirement is to alert help

providers in case of a motor car accident. As

stated, this requirement provides both the FO,

Accident Alert, and the CO, Inform Help

Providers. This latter is further defined in Formulate

A Goal-Oriented Requirements Engineering Approach for IoT Applications

585

GOT to determine the Sender, Accident Estimator

that sends the message, SOS to the receiver, Helper.

Accident Alert is predicated on detecting that an

accident has occurred. The first row of Table I shows

the GOT in two parts in the two columns Functional

Objective and Communication Objective

respectively. The root level of the GOT hierarchy

(level 1 in the table) has been determined and GOT

reduction can now be carried out.

Table 1: FO-Reduced GOT <Accident Alert, Inform Help

Providers>.

Level

Functional

Objective

Communication

Objective

Accident

Alert

Acciden

Estimato

Helpe

, "SOS”

Airbag

Release Alert

Air Bag Mechanism,

Accident Estimator,

“Air Ba

Released”

Seat Belt

Tension Alert

Seat Belt Mechanism,

Accident Estimator,

Tension Value

2 Impact Alert

Impact Assesso

Accident Estimator,

Impact Value

Out of the three drives of Fig 2, let the

requirements engineer choose to apply FD to reduce

Accident Alert. It is determined that Accident Alert

is a complex FO built from multiple inputs. The

second and subsequent rows in Table I show these

FOs. Formulate GOT is applied to each of these FOs

and the COs are determined for each.

Table 2: RD of Root GOT.

Level

Functional

Objective

Communication Objective

Accident Alert Accident Estimator,

Helpe

, "SOS”

Accident Alert Accident Estimator,

Police, "SOS”

Accident Alert Accident Estimator,

Health Service, "SOS”

Accident Alert Accident Estimator,

Relative, "SOS”

Now let us apply SD of Fig 2 to the root goal.

Senders of the reduced GOTs have already been

determined as the result of applying the FD and the

subsequent Formulate GOT step. Now, the

requirements engineer determines that there is an OR

relationship between the second level GOTs since all

are alternative ways of estimating accident

occurrence. Consequently, Accident Estimator is an

abstract sender, with the second level senders as its

specialization.

The requirements engineer now proceeds to apply

RD to the root goal. In fact, the receiver, Helper is

complex as shown in Table II since all must be

informed about the accident. This change in

dimension is shown by the superscript.

Now, the requirements engineer applies the

reduction process to each of the second level GOTs

in Table I. FOs for Airbag Release Alert and Seat Belt

Tension Alert (second and third rows of Table I) are

non-reducible. Attention shifts to Impact Alert and

the result is shown in Table III. There are four ways

in which the car can be impacted making it a complex

FO. Notice that these are at the third level of the GOT

hierarchy.

SD is applied to the GOT for Impact Alert. Again,

the reduced senders have already been determined at

the third level GOTs. The question is only about their

relationships. Any one or more third level senders can

send a message to the second level GOT making

Impact Assessor an abstract sender with third

level senders as its specializations. Application of

RD to Impact Alert shows that the receiver Accident

Estimator structure has already been considered.

Thus, RD does not contribute any further GOTs.

Table 3: Reduction of Impact Alert.

Level

Functional

ective

Communication

ective

Impact Alert

Impact Assesso

Accident Estimator,

Impact Value

Frontal Impact

Alert

Front Acceleration

Assessor,

Impact Assessor,

Acceleration Value

Rear Impact

Alert

Back Acceleration

Assessor,

Impact Assessor,

Acceleration Value

Right Impact

Alert

Right Acceleration

Assessor,

Impact Assessor,

Acceleration Value

Left Impact

Alert

Left Acceleration

Assessor,

Impact Assessor,

Acceleration Value

During application of FO to each of the newly

discovered GOTs, the requirements engineer

determines that these are all simple. Since GOTs of

Table III are all irreducible, the GOT Process comes

to an end.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

586

5.1 The Starting Objective

According to the GOT process, it is possible to deploy

any drive in any order. In the accident example, we

gave precedence to FD. Instead, the requirements

engineer can start with reducing the communication

objective first. In the accident example, this means

that the starting requirement is, “Inform all helpers

that a resident has had an accident” leading to the

communication objective (Resident, Helper, “SOS”).

During the Formulate GOT, the functional objective,

Accident Alert would be identified and the GOT

formulated. Thereafter, instead of FD, the

requirements engineer could follow the RD and

determine the complex structure of Helper.

Alternatively, the SD could be followed.

6 COMPARISON

In this section we compare our proposal with the goal

oriented one of (Reggio, 2018) and use case based

approach of (Meacham, 2016). This allows a

comparison of the GOT approach with existing two

major approaches to requirements engineering.

6.1

The Goal-Oriented Genoa Science

Festival

The major differences between GOT and (Reggio,

2018) are as follows:

• Reggio proposes an explicit domain modelling

stage that yields participants and objects

whereas the GOT approach determines these as

part of the requirements engineering process.

• Sequence and activity diagrams of (Reggio,

2018) identify respectively, the data needed for

realizing operative goals and the sequence of

operations to be carried out. In GOT, the issue

of how irreducible functional objectives are

operationalized is not considered. Rather, it is

left to be considered in a subsequent step that

deals with conversion of the GOT model to the

IoT conceptual model (Prakash 2022). This

aspect is the subject of another paper.

• The communication aspect is brought into

(Reggio 2018) by associating technological

goals like “Communicate with Visitors Using

Email” with operative goals like ‘Ask for

Booking Confirmation’. How this association is

carried out is not clarified but evidently, it is not

part of the reduction process. We believe that

this reflects the functional objective-

communication objective dichotomy found in

the IoT domain. This dichotomy led us to

integrate both in the notion of a GOT.

• The well defined-ness of technological goals of

(Reggio 2018) is not formulated. In the GOT

model, the communication objective is

specified when the sender, receiver, and

message are all specified.

• Technological goals of (Reggio, 2018) reflect a

choice of communication and device

technologies likely to deliver operative goals.

There is no proposal here to consider

alternatives. In contrast, through SD and RD,

we do AND/OR reduction of a GOT.

6.2

The Use Case View of Fall

Detection

Let us now turn our attention to the Fall detection

system of (Meacham, 2016):

•

Use cases are not used in (Meacham, 2016) to

specify data flows in and out of the system but only to

define SySML blocks so as to express objectives in

textual form.

•

Low-level use cases correspond to GOT

reduction following FD. However, in (Meacham

2016), we have only a high and low level. This

inhibits recursive reduction.

•

SySML RDs do not express the message and its

sender/receiver.

•

The use of free text does not provide any

structure for the notion of an objective. In contrast, the

GOT is model driven. This provides a systematic

GOT Process with clear expressive power and

guidance.

7 CONCLUSION

An IoT application has its own specific requirements

consisting of communication among connected

things and processing carried out at things. We have

defined a GOT that integrates the notions of

functional and communication objectives. The

structure of a GOT permits specification of a variety

of communication needs like sending messages to

multiple receivers or selected senders sending

messages to selected receivers.

The issue of non-functional requirements surfaces

in two ways in an IoT application. There are

traditionally recognized issues like security,

reliability etc. Additionally, an IoT has its own non-

functional requirements. These are for example, the

A Goal-Oriented Requirements Engineering Approach for IoT Applications

587

cost; battery life, remaining battery charge;

convenience of humans wearing devices and so on.

We believe that these require detailed investigation in

the future.

REFERENCES

Anton A., McCracken W., Potts C (1994). Goal

Decomposition and Scenario Analysis in Business

Process Reengineering. Proc. 6th Conference On

Advanced Information Systems Engineering

(CAiSE’94), Utrecht, Holland, June 1994

Costa B., Pires P.F., Delicato F. C. (2017), Specifying

Functional Requirements and QoS Parameters for IoT

Systems, 2017 IEEE 15th Intl Conf on Dependable,

Autonomic and Secure Computing, 15th Intl Conf on

Pervasive Intelligence and Computing, 3rd Intl Conf on

Big Data Intelligence and Computing and Cyber

Science and Technology Congress, 407-414.

Costa B., Pires P.F., Delicato F. C. (2016), Modeling IoT

Applications with SysML4IoT, 42

Euromicro

Conference on Software Engineering and Advanced

Applications, 157-164.

Dardenne, A.; Lamsweerde, A.V.; Ficas, S. (1993). Goal

Directed Acquisition. Science of Computer

Programming. 20:(1-2)

Eterovic, T., et al., (2015), An Internet of Things visual

domain specific modeling language based on UML."

Information, Communication and Automation

Technologies (ICAT), 2015 XXV International

Conference on. IEEE, 2015 (3)

Ferati M., Kurti A., Vodel B., Raufi B., (2016),

Augmenting Requirements Gathering for People with

Special Needs using IoT: A Position Paper, 9

Intl.

Workshop on Cooperative and Human Aspects of

Software Engineering, ACM, 48 -51

Fleurey, F., Morin, B., Solberg, A., & Barais, O., (2011),

MDE to manage communications with and between

resource-constrained systems. In International

Conference on Model Driven Engineering Languages

and Systems, 349-363

Föcker F., Neubauer A., Metzger A., Gröner G., Pohl K.

(2015), Real-time Cargo Volume Recognition using

Internet-connected 3D Scanners. ENASE, 323-330.

Kotronis C., Nikolaidou M., Dimitrakopoulos G.,

Anagnostopoulos D., Amira A., Bensaali F. (2018), A

Model-based Approach for Managing Criticality

Requirements in e-Health IoT Systems, in 13th Annual

Conference on System of Systems Engineering (SoSE),

60-67.

Lamsweerde van A. (2000), Requirements Engineering in

the Year 00: A Research Perspective, Keynote Paper for

ICSE’2000 - 22nd International Conference on

Software Engineering, Limerick, ACM Press

Meacham S., Phalp K., (2016) Requirements Engineering

Methods for an Internet of Things applications: Fall

Detection for Ambient Assisted Living, BCS

SQM/Inspire Conference

Mezghani E., Exposito E., Drira K., (2017), A Model-

Driven Methodology for the Design of Autonomic and

Cognitive IoT-Based Systems: Application to

Healthcare, in IEEE Transactions on Emerging Topics

in Computational Intelligence, vol. 1, no. 3, 224-234

Mikusz M., Schafer T., Taraba T., Jud C.

(2017),Transforming the Connected Car into a Business

Model Innovation, 19

IEEE Conference on Business

Informatics, 247 – 256.

Prakash D., Prakash N., (2021), Towards a Life Cycle for

IoT Applications Development, TechRxiv.

Preprint.https://doi.org/10.36227/techrxiv.14906277.v1

Prakash N., Prakash D.(2022), Concepts for Conceptual

Modelling of an IoT Application. ENASE, 494-501

Prehofer C., Chiarabini L. (2015), From Internet of Things

Mashups to Model-Based Development. Proceedings

of the 2015 IEEE 39th Annual Computer Software and

Applications Conference, COMPSAC ’15, vol. 3, 499-

504

Reggio G., (2018), A UML based Proposal for IoT

Requirements Specification, 10

International

Workshop on Modelling in Software Engineering, 9 -

16.

Stankovic J.A.,(2014), Research Directions for the Internet

of Things, IEEE Internet of Things Journal, 1, 1, 3 -9.

Takai T., Shintani K., Andoh H., and Washizaki H. (2019),

Case Study Applying GQM+Strategies with SysML for

IoT Application System Development," 8

International Congress on Advanced Applied

Informatics (IIAI-AAI), 914-919.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

588
