Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic

Mapping Study

arbara da Silva Oliveira

1 a

, Nicolas Ferry

1 b

, Hui Song

2 c

, Rustem Dautov

2 d

Ankica Bari

1 e

and Atslands Rego da Rocha

3 f

Universit

e C

ote d’Azur, I3S/INRIA Kairos, Sophia Antipolis, France

SINTEF Digital, Oslo, Norway

Departamento de Engenharia de Teleinform

atica, Universidade Federal do Cear

a, Brazil

Keywords:

Internet of Things, Cloud, Cloud-to-Thing Continuum, Function-as-a-Service, Systematic Mapping Study.

Abstract:

Until recently, Internet of Things applications were mainly seen as a means to gather sensor data for further

processing in the Cloud. Nowadays, with the advent of Edge and Fog Computing, digital services are dragged

closer to the physical world, with data processing and storage tasks distributed across the whole Cloud-to-

Thing continuum. Function-as-a-Service (FaaS) is gaining momentum as one of the promising programming

models for such digital services. This work investigates the current research landscape of applying FaaS over

the Cloud-to-Thing continuum. In particular, we investigate the support offered by existing FaaS platforms for

the deployment, placement, orchestration, and execution of functions across the whole continuum using the

Systematic Mapping Study methodology. We selected 33 primary studies and analyzed their data, bringing a

broad view on the current research landscape in the area.

1 INTRODUCTION

Nowadays, with the advent of Edge and Fog Comput-

ing, digital services are dragged closer to the physical

world, with data processing tasks distributed across

the whole Cloud-to-Thing continuum. Function-as-

a-Service (FaaS) is gaining momentum as one of the

promising programming models for such digital ser-

vices. It allows developers to focus on the software

development while the Cloud provider manages the

underlying infrastructure. Serverless functions are

simple operations expressing parts of the application

logic, which are triggered on the occurrence of spe-

ciﬁc events. This event-driven nature is a natural ﬁt

for IoT event and data processing (Cheng et al., 2019).

However, challenges hinder the broader adoption

of FaaS solutions for the whole Cloud-to-Thing con-

tinuum, hereafter called FaaS4C2T for short. For ex-

ample, in contrast to classical Cloud infrastructures,

https://orcid.org/0009-0007-8455-9627

https://orcid.org/0000-0003-2036-0508

https://orcid.org/0000-0002-9748-8086

https://orcid.org/0000-0002-0260-6343

https://orcid.org/0000-0001-7513-7907

https://orcid.org/0000-0002-3069-132X

Edge and Thing infrastructures are typically largely

heterogeneous, including devices such as gateways,

base stations, and tiny microcontrollers, with a wide

geographical distribution. Serverless functions typi-

cally need to be deployed close to the data source and

tailored to their host’s cyber-physical context, which

typically cannot be done homogeneously using stan-

dard deployment solutions (e.g., not all devices can

support the same virtualization technology).

Several platforms such as PAPS (Baresi and Quat-

trocchi, 2021) and AuctionWhisk (Bermbach et al.,

2022) have emerged to enable FaaS on Edge infras-

tructures. However, there needs to be more under-

standing of their coverage and support of the IoT

end (i.e., the Thing layer). Consequently, there is

an urgent need to investigate the diverse features and

properties of current FaaS4C2T platforms. In this

context, we conducted a Systematic Mapping Study

to provide a holistic, yet concise overview of the

FaaS4C2T landscape and the existing support for the

whole Cloud-to-Thing continuum, including research

gaps and limitations. The main contributions of this

work are the answers to the following Research Ques-

tions (RQs):

Oliveira, B., Ferry, N., Song, H., Dautov, R., Bariši

c, A. and Rocha, A.

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study.

DOI: 10.5220/0011982600003482

In Proceedings of the 8th International Conference on Internet of Things, Big Data and Security (IoTBDS 2023), pages 82-93

ISBN: 978-989-758-643-9; ISSN: 2184-4976

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

• RQ1. What are the research publication trends

in the domain of FaaS platforms for the Cloud-to-

Thing Continuum?

• RQ2. What are the speciﬁcities and limitations of

FaaS platforms for the Cloud-to-Thing continuum?

• RQ3. What are the open research issues to be fur-

ther investigated in this ﬁeld?

We have systematically processed an extensive

number of relevant papers from four online publica-

tion databases to ﬁnally obtain a set of 33 primary

studies from which we extracted and synthesized data

to answer our RQs. The results show gaps in re-

search (e.g., lack of customizable function alloca-

tion strategies, managing functions’ concurrent ac-

cesses to shared resources) that need to be addressed

to enable proper application of the FaaS programming

model to the Cloud-to-Thing continuum.

The remainder of the paper is organized as fol-

lows. Section 2 introduces some background deﬁ-

nitions. Section 3 details the methodology adopted.

Section 4 presents the results and the analysis of the

data extraction. Section 5 presents related work and

Section 6 concludes our work, presenting and dis-

cussing the main ﬁndings.

2 BACKGROUND

In this section, we describe the main concepts and

deﬁnitions adopted in this paper.

2.1 Cloud-to-Thing Continuum

The Cloud-to-Thing continuum refers to the exten-

sion of the Cloud capabilities towards low-end de-

vices, i.e., Things. This work considers the Cloud-

to-Thing continuum composed of four main layers:

Cloud, Intermediary, Edge and Things layers. The

Intermediary and Edge layers can also be grouped

and referred to as Fog, according to the deﬁnition of

the OpenFog consortium (Byers and Swanson, 2017).

There is still no consensus about the deﬁnition of

Edge and Fog computing; in some cases, Edge and

Fog can be used interchangeably.

According to the National Institute of Standards

and Technology (NIST), Cloud computing is a com-

puting model enabling ubiquitous network access to a

shared and virtualized pool of computing capabilities

(e.g., network, storage, processing, and memory) that

can be rapidly provisioned with minimal management

effort (Mell and Grance, 2001). IoT systems typically

exploit the Cloud layer for centralized and resource-

demanding data processing and storage.

The Open Glossary from the Linux Foundation

deﬁnes Edge computing as “the delivery of comput-

ing capabilities to the logical extremes of a network in

order to improve the performance, operating cost and

reliability of applications and services. By shortening

the distance between devices and the cloud resources

that serve them and reducing network hops, edge

computing mitigates the latency and bandwidth con-

straints of today’s Internet, ushering in new classes of

applications” (LF Edge, 2019). Conceptually, Edge

computing is closer to the bottom IoT layer, rather

than to Cloud-based services (Mahmud et al., 2018).

The Edge layer thereby consists of Edge devices such

as routers, gateways, base stations, etc. This missing

link between Edge and Cloud is often implemented

as an extra layer, which we denote as Intermediary

Layer, following the Fog computing architecture def-

inition by the OpenFog consortium (Byers and Swan-

son, 2017). It is typically composed of Fog servers

or lightweight cloud servers such as Cloudlets (Pang

et al., 2015). The Intermediary and Edge layers are

often grouped as a single Fog layer.

The Thing layer includes low-level leaf nodes

within IoT systems and is deﬁned as “physical objects

that are capable of sensing or acting on their envi-

ronment and able to communicate with each other”

Things cannot always provide virtualization support

and might not be directly connected to the Internet

(i.e., Internet connection is granted via other devices).

2.2 Serverless and

Function-as-a-Service

As explained in (Baldini et al., 2017), “Serverless de-

scribes a programming model and architecture where

small code snippets are executed in the Cloud with-

out any control over the resources on which the code

runs”. The Serverless programming model stands

closer to the Platform-as-a-Service (PaaS) model,

where developers have access to a prepared runtime

software stack maintained by the Cloud provider and

focus on writing application code, rather than to the

Infrastructure-as-a-Service (IaaS) model where the

developer has full control and is accountable for man-

aging the application and its runtime software stack.

However, in contrast to PaaS, serverless applications

are meant to be scalable by design, and developers

expect the operation of these applications to be fault-

tolerant and quickly auto-scalable (Xie et al., 2021).

Serverless applications are often wrapped in software

containers as a lightweight virtualization solution that

As deﬁned by the EU: https://

www.europarl.europa.eu/RegData/etudes/BRIE/2015/

557012/EPRS BRI(2015)557012 EN.pdf

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study

can be easily and rapidly provisioned. (Baldini et al.,

2017) deﬁnes a Serverless platform as “an event pro-

cessing system. The service must manage a set of

user-deﬁned functions, take an event sent over HTTP

or received from an event source, determine which

function(s) to dispatch the event, ﬁnd an existing in-

stance of the function or create a new instance, send

the event to the function instance, wait for a response,

gather execution logs, make the response available to

the user, and stop the function when it is no longer

needed”. This implies that Serverless platforms in-

clude at least an event broker as well as a solution to

dispatch the events and manage the service life-cycle.

FaaS is a form of Serverless computing in which

the Cloud provider manages the resources, life-cycle,

and event-driven execution of user-provided functions

(Van Eyk et al., 2018), denoted as serverless functions

in the rest of the paper.

2.3 Deployment and Orchestration

To deploy an application on a selected target envi-

ronment, its components need to be placed to host-

ing resources. More precisely, the implementation of

those components needs to be placed and deployed.

The notion of a deployable artifact supports exactly

the reference between logical components and con-

nectors to their implementations (Bergmayr et al.,

2018). Placement selects the resources on which

the deployable artifacts will be hosted, and a place-

ment strategy deﬁnes how to drive this selection.

Deployment refers to the action of provisioning (or

de-provisioning) the resources (when possible), in-

stalling, conﬁguring, and starting (or stopping) de-

ployable artefacts. How to enact a deployment is

speciﬁed in a deployment model.

The NIST deﬁnes orchestration as “the sequence

and conditions in which one Web service invokes

other Web services to realize some useful function”.

In the FaaS context, orchestration involves manage-

ment and coordination of serverless functions. An

orchestration model provides a programmatic way

to combine simple, well-deﬁned serverless functions

into more complex applications (Bocci et al., 2021).

3 REVIEW METHODOLOGY

This section describes the adopted review methodol-

ogy, which is based on the established guidelines from

(Kitchenham et al., 2011; Kitchenham and Charters,

2007; Petersen et al., 2015).

3.1 Research Questions

This study investigates how FaaS platforms and as-

sociated mechanisms support the Cloud-to-Thing

continuum. To this end, we classify the main char-

acteristics and capabilities of existing platforms, in-

cluding the toolset they offer, and we identify the gaps

and future research directions. The overall objective

is underpinned by the three RQs listed in Section 1.

As part of RQ1, we intend to understand the cur-

rent status of the research, which includes general

statistics, such as RQ1.1 - the number of studies pub-

lished by year and the venue type; RQ1.2 - the level of

maturity of the research; RQ1.3 - the focus of the re-

search (e.g., Deployment, Placement); RQ1.4 - what

FaaS platforms are frequently used for the Cloud,

Fog, and Thing layers? With RQ2, we want to under-

stand the mechanisms and properties of FaaS for the

Cloud-to-Thing continuum and how they differenti-

ate from FaaS platforms for the Cloud. This includes

the speciﬁc subquestions: RQ2.1 - what are the plat-

forms’ architectural patterns; RQ2.2 - on which lay-

ers of the Cloud-to-Thing continuum serverless func-

tions can be deployed; RQ2.3 - what are the mech-

anisms used to deploy, package and run serverless

functions in isolation; RQ2.4 - what mechanisms are

responsible for the serverless function placement and

scalability? RQ3 also includes two sub-questions.

RQ3.1 - What are the open issues in FaaS4C2T re-

search? RQ3.2 - What research directions can be rec-

ommended for tackling the open issues? These sub-

questions suggest potential future work directions.

3.2 Inclusion and Exclusion Criteria

The Inclusion (ICs) and Exclusion Criteria (ECs) ap-

plied in this systematic mapping are listed in Table 1.

3.3 Selection Strategy

ACM

IEE

Science

Direct

Scopus

39 30

149

369

143

Merge 170 59 33

After reviewing

title and abstract

results

After scanning

content

After cross-check

information

After merging of

results

Figure 1: Study selection process.

Using search engines of online publication databases

is the established practice to search for essential

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

Table 1: Inclusion (ICx) and Exclusion (ECx) Criteria.

IC1 The study presents a FaaS platform or ex-

tends an existing FaaS platform.

IC2 FaaS is applied to the Cloud-to-Thing con-

tinuum, i.e., covering not only the Cloud,

but also the domains Edge, Fog, robotics,

IoT, as well as their possible applications.

IC3 The study provides details about server-

less function deployment, placement, or

scheduling.

EC1 The study is bounded to a speciﬁc Fog

and/or IoT environment, which cannot be

applied in more use cases.

EC2 The paper is published before the year

2008. This year, the concepts of serverless

programming and FaaS started to appear.

EC3 When a solution is reported in several

papers (e.g., overall approach, empirical

study, evaluation), we include all these pa-

pers but treat them as a single approach.

EC4 We excluded papers not written in English,

not peer-reviewed, as well as short papers

(i.e., only accessible as extended abstracts,

posters, or presentations).

EC5 The study has a length of fewer than

four pages in double-column format or six

pages in single-column format.

primary studies, as well as follow-up supplemental

studies (Kitchenham and Charters, 2007). We used

the following four popular publication databases:

IEEE Xplore

, ACM Digital Library

, ScienceDi-

rect

, and Scopus

. Scopus and ACM DL already

index SpringerLink

(Tran et al., 2017). Following

the guidelines from (Kitchenham and Charters, 2007),

we have deﬁned our search terms based on the RQs

and the keywords used in related articles. The search

query was adjusted to ﬁt the search engines of the four

publication databases.

Listing 1: Query string used to perform the database search.

TITLE-ABS (" Se rve rl es s " OR " FaaS " OR ⤸

" F un ct io n as a S er vi ce " OR ⤸

" Fun c t i o n - as - a - S e rvice ")

AND

TITLE-ABS (" IoT " OR " I n t e r n et of T h i ng s " OR ⤸

" Th i n g s " OR " Ed g e " OR " Fo g " OR " C PS " OR ⤸

" Cyber * P h y sic a l Syste m *" OR " R o b o t *") )

AND

PUBYEAR > 200 8

https://ieeexplore.ieee.org

https://dlnext.acm.org

https://sciencedirect.com/

https://scopus.com

https://www.springer.com

The study selection process is illustrated in Fig-

ure 1. First, we searched the databases using the de-

ﬁned query string. Next, for every candidate paper,

we reviewed the title and abstract, and long-listed pa-

pers according to the ICs and ECs. Since an article

may appear in more than one database, we merged

the results, thus removing duplicates. After that, we

short-listed the studies based on full texts, again us-

ing the the ICs and ECs. To do this, the papers were

distributed among the contributing authors, who had

to specify which ICs and ECs they considered for

short-listing the papers. For quality assurance pur-

poses, we also performed another round of peer re-

view to reach the consensus on the short-listing deci-

sions. When there were conﬂicts in judgments be-

tween the reviewers, we discussed the decisions to

reach the ﬁnal agreement.

3.4 Comparison Framework

The review framework contemplates the essential as-

pects of the FaaS4C2T presented in the literature.

In particular, we emphasized characteristics regard-

ing the deployment and placement of serverless func-

tions, taking into account the differences between

only involving the Cloud and other layers within the

Cloud-to-Thing continuum. The primary purpose of

the framework is to extract and compare data from the

primary studies so that they can help to answer the

RQs. To develop a comprehensive review framework,

we extensively explored and discussed the core con-

cepts in the ﬁeld of FaaS when applied to the Cloud-

to-Thing continuum. The resulting framework is doc-

umented in two categories: Architecture and Runtime

Capabilities.

3.4.1 Architecture

This category focuses on the architecture of the FaaS

platforms. We survey the components that form the

core of the FaaS platforms and the typical architec-

tural patterns they adopt when applied to the Cloud-

to-Thing continuum.

• Platform distribution: All the software components

that form a FaaS platform may be centralized or

some of them may be distributed. We speciﬁcally

investigate if these components can, or need to, be

deployed on Fog and Things layers.

• Multi-Tenancy: When multiple independent tenants

operate in the same platform, the same instance or

resources are used for distinct users.

• Multi-Application: When two or more different ap-

plications from the same tenant operate in the same

environment.

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study

• Multi-Cloud: When the platform services, func-

tions, and software components can be deployed

across multiple computing and storage services

from different Cloud providers.

• Entities for Functions Life Cycle Management: We

investigate services and components participating

in the life-cycle management of serverless func-

tions (Aslanpour et al., 2021). This includes as-

pects such as the monitoring, conﬁguration, deploy-

ment, termination, etc. of serverless functions. We

also aim to understand whether the management of

functions on the Fog and Thing layers requires spe-

ciﬁc support.

3.4.2 Runtime Capabilities

We want here to explore the runtime capabilities

offered by the FaaS platform for the management,

deployment, placement of serverless functions, and

mechanisms for function isolation.

Deployment Capabilities.

• Deployable Artefact Type: What is the type of de-

ployable artefacts accepted by the platform (e.g.,

the project code, the binaries, scripts).

• Bootstrap: Bootstrap refers to all the necessary

software modules on the devices required to the

function deployment. (Arcangeli et al., 2015).

• Target Infrastructure: We survey the layers where

serverless functions can be deployed.

• Long-lived tasks: Serverless functions are naturally

suitable for short-lived tasks. For those tasks, there

is a small amount of data to be processed, and they

are rapidly ﬁnished. We investigate the support for

long-lived tasks, which involve substantial amounts

of data, and require a longer period to be processed

(Baldini et al., 2017; Aslanpour et al., 2021).

Placement.

• Placement Strategy: The Placement Strategy may

be to choose a speciﬁc node for the placement, for

example, the closest node to the IoT device. It can

also be deﬁned as an optimization problem, consid-

ering various constraints, such as energy consump-

tion or bandwidth.

• Dynamism: We investigate if the placement algo-

rithm is executed dynamically. One possibility is

that the placement can be carried out by the arrival

of new inputs in the system. The placement can

also be triggered by changes in the infrastructure,

e.g., when new virtual machines are created (Mah-

mud et al., 2020).

• Replication Strategy: We investigate the strategy

adopted for function replication, which plays a part

in the serverless functions scalability mechanism.

Infrastructure Management.

• Resource Monitoring: The deployment of the

serverless functions and the quantity of workload

that can be employed depends on the available re-

sources. Thus, the FaaS platform must bring mech-

anisms to provide the status of the device’s capa-

bilities (Costa et al., 2022), determining whether it

is possible or not to execute the incoming functions

and services in these devices.

• Device Information: The kind of device informa-

tion is being considered, e.g., memory, CPU, or

bandwidth available in the system devices.

• Runtime Information: The kind of runtime informa-

tion is being considered for the monitoring mecha-

nisms. For example, it can be the status of the run-

ning processes in computing Fog nodes.

Scalability. The standard types of scaling in Cloud

modeling include Horizontal and Vertical Scalabil-

ity (Xie et al., 2021). Horizontal scaling is done by

deploying new instances of the serverless function

on existing or newly added machines in the resource

pool. In Vertical scaling, more resources, such as

CPUs and memory, are added to an existing server,

or the function is moved to a more powerful machine.

Isolation. Isolation is a fundamental mechanism

for the secure and effective execution of functions

and services. It aims to separate different tenants

and functions of the same application, which allows

Multi-tenancy and Multi-Application use (Li et al.,

2022). Traditionally, for Cloud applications, possible

solutions are Virtual Machines and Containers, which

can be heavy for devices in constrained scenarios in

the Fog or Thing layers.

4 ANALYSIS OF THE RESULTS

Table 2 details the list of primary FaaS4C2T stud-

ies. Based on the comparison framework, we have

extracted and synthesized the data from the primary

studies to answer our RQs.

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

Table 2: Overview of the primary FaaS4C2T studies.

# Title* Year v

1 Kappa: Serverless IoT Deployment 2017 C

2 Calvin Constrained — A Framework for IoT Applications in

Heterogeneous Environments

2017 W

3 NFaaS: Named function as a service 2017 C

4 Lite-Service: A Framework to Build and Schedule Telecom

Applications in Device, Edge and Cloud

2018 C

5 Dynamic Allocation of Serverless Functions in IoT Environ-

ments

2018 C

6 Towards a Serverless Platform for Edge Computing 2019 C

7 Towards a serverless platform for edge AI 2019 C

8 Fog Function: Serverless Fog Computing for Data Intensive

IoT Services

2019 C

9 An Execution Model for Serverless Functions at the Edge 2019 C

10 A uniﬁed model for the mobile-edge-cloud continuum 2019 J

11 tinyFaaS: A Lightweight FaaS Platform for Edge Environ-

ments

2020 C

12 Device-driven On-demand Deployment of Serverless Com-

puting Functions

2020 W

13 Allocation priority policies for serverless function-execution

scheduling optimisation

2020 C

14 A NodeRED-based dashboard to deploy pipelines on top of

IoT infrastructure

2020 C

15 NanoLambda: Implementing Functions as a Service at All Re-

source Scales for the Internet of Things

2020 C

16 Sledge: A Serverless-First, Light-Weight Wasm Runtime for

the Edge

2020 C

17 µ actor: Stateful Serverless at the Edge 2021 C

18 Self-balancing architectures based on liquid functions across

computing continuums

2021 C

19 Optimized container scheduling for data-intensive serverless

edge computing

2021 J

20 Operating Latency Sensitive Applications on Public Server-

less Edge Cloud Platforms

2021 J

21 Mu actor: Stateful Serverless at the Edge 2021 C

22 PAPS: A Serverless Platform for Edge Computing Infrastruc-

tures

2021 J

23 Colony: Parallel Functions as a Service on the Cloud-Edge

Continuum

2021 C

24 Latency-Sensitive Edge/Cloud Serverless Dynamic Deploy-

ment over Telemetry-Based Packet-Optical Network

2021 J

25 In the Fog: Application Deployment for the Cloud Continuum 2021 C

26 Function delivery network: Extending serverless computing

for heterogeneous platforms

2021 J

27 LaSS: Running Latency Sensitive Serverless Computations at

the Edge

2021 C

28 Dyninka: A FaaS Framework for Distributed Dataﬂow Appli-

cations

2021 W

29 A Decentralized Framework for Serverless Edge Computing

in the Internet of Things

2021 J

30 Real-Time FaaS: Towards a Latency Bounded Serverless

Cloud

2022 J

31 Light weight serverless computing at fog nodes for internet of

things systems

2022 J

32 AuctionWhisk: Using an auction-inspired approach for func-

tion placement in serverless fog platforms

2022 J

33 Towards Efﬁcient Processing of Latency-Sensitive Serverless

DAGs at the Edge

2022 W

Venue type: J = Journal (19), C = Conference (37), W = Workshop (13).

* The titles are clickable to link to the corresponding publications

4.1 Answering RQ1: Publication

Trends

To answer RQ1, we extracted information about the

publication years, venue type, author’s afﬁliation, etc.

Publication Years and Venue Type. Figure 2 de-

picts the publication years according to the venue

type. We can observe a growth in the interest in

the FaaS4C2T research area. The earliest relevant

study was published in 2017. The years 2020 and

2021 show a rise in the number of publications. This

demonstrates the need for research on FaaS4C2T and

the research area is gaining more attention. In the last

year, we collected fewer publications since we did the

database search of papers on April 2022.

Figure 2: Distribution of publication types per year.

From Figure 2, we also observe that conference

paper is the most popular publication type. The jour-

nal articles have a lower percentage and started ap-

pearing in 2019. It is worth noting that the high num-

ber of journal articles in 2021 might be partly due to

the COVID-19 pandemic. Overall, this reﬂects the

paper’s maturity level in the ﬁeld, which is still in its

early stages.

Author’s Afﬁliation. Figure 3 depicts the author’s

afﬁliation. Most authors are from academia, followed

by a collaboration of academia and industry. There

are few studies conducted by the industry, probably

due to the novelty of this research area.

Figure 3: Author’s afﬁliation.

Case Study for Evaluation. Regarding the type

of case study used for evaluating the FaaS4C2T ap-

proaches, to the best of our understanding, all case

studies were deﬁned by academics and not by indus-

trial such as motivational examples, prototypes, or

simulations developed by researchers for discussing

or evaluating. Finally, it is nice to see that only two

primary studies do not provide any evaluation details.

In the future, we expect to see more industry-driven

case studies as the maturity of the research increase.

Technology Readiness Levels. The Technology

Readiness Levels (TRL) is a concept used to deter-

mine a given technology’s maturity level. We used

the TRL scale deﬁned by the EC

to determine the

https://ec.europa.eu/research/participants/data/ref/

h2020/wp/2014 2015/annexes/h2020-wp1415-annex-g-

trl en.pdf

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study

maturity of the FaaS4C2T platforms. Figure 4a de-

picts the TRL of our primary studies. We did not

ﬁnd any work at TRL 1 and only a few at TRL 2,

as such work is more difﬁcult to be accepted by con-

ferences and journals. Most of the FaaS4C2T plat-

forms are in the early stages of TRL 3, and 4 whilst

only a few reach TRL 5. The works at TRL 2 present

technology concepts without connecting components

or performing many experiments. At TRL 3, we typ-

ically ﬁnd experimental studies with at most proto-

types and some evaluation metrics. At TRL 4, results

are validated in labs typically with small use case en-

vironments. The works at stage 5 are more advanced,

implementing the FaaS platforms in large-scale envi-

ronments and applications in more advanced projects.

This represents that we are still distant from the ac-

tual implementation of the platform in an operational

environment. Figure 4b represents the distribution of

the works according to year and scale. We note that

more works in stages 3-5 started to appear in the last

three years, which corroborates our presumption that

this application area is essential and with growing in-

terest and development.

(a) Percentage of pa-

pers per TRL (b) TRL per year

Figure 4: Analysis of the TRLs.

Main Focus of the Primary Studies: Figure 5 de-

picts the main focus of the selected studies. Given that

all studies are about FaaS platforms for the Cloud-

to-Thing continuum (see ICs and ECs), we evaluated

whether their contribution was primarily on server-

less functions deployment, placement, or orchestra-

tion. Indeed, serverless functions placement and de-

ployment are critical for the proper execution of an

orchestration. Placement is the main topic for most

primary studies as classical serverless function place-

ment strategies in Cloud infrastructures are, in most

cases, impractical in the Cloud-to-Thing continuum.

Indeed, in the later cases, the placement strategies

must consider (i) the high heterogeneity of the infras-

tructure - i.e., resources have largely different capa-

bilities and functions must be placed accordingly, as

well as (ii) the geographical location and distribution

of the devices at the Edge and Thing layers - i.e., func-

tions must be placed and replicated in the vicinity of

all sensors of a certain type.

Figure 5: Main focus of the primary studies.

Original or Extension of Existing FaaS Platforms:

As depicted in Figure 6, there is a good balance be-

tween the studies that developed their original FaaS

platform and studies extending existing ones. In the

later cases, the studies proposed modiﬁcations, rules,

and mechanisms for improving widely used plat-

forms. OpenWhisk is the most preferred among the

open-source platforms, since OpenWhisk was one of

the ﬁrst comprehensive open-source FaaS platforms.

For example, Bermbach et al. developed Auction-

Whisk, (Bermbach et al., 2022), and propose a place-

ment mechanism on top of OpenWhisk. For AWS

Lambda, (Pelle et al., 2021) propose including a ser-

vice that provides real-time evaluations of the sys-

tem and dynamic modiﬁcation of placement decisions

based on current performance. There are studies ex-

tending OpenFaaS and one based on OpenStack. It

is also worth mentioning that not all platforms offer

the same features. In particular, some studies lever-

age Kubernetes and KNative, which are not pure FaaS

platforms but rather advanced container management

systems on top of which solutions such as OpenWhisk

and OpenFaaS can be built.

Figure 6: FaaS platforms used.

4.2 Answering RQ2: Support for the

Cloud-to-Thing Continuum

To investigate the peculiarities and limits of existing

FaaS platforms when applied to the Cloud-to-Thing

continuum we analyzed the primary studies using the

comparison framework deﬁned in Section 3.4.

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

How Are the FaaS Platforms and the Application

Using the Platforms Architectured? Figure 7 in-

dicates on which layers of the Cloud-to-Thing con-

tinuum the FaaS4C2T platforms components are typ-

ically distributed. In most primary studies, the plat-

form’s components are located at the Fog and Cloud

layers. (Pelle et al., 2021) implemented a system with

FaaS platform components responsible for Deploy-

ment and Data Storage running both on the Edge and

Cloud Layers. In (Elkholy and Marzok, 2022), some

Manager and Working nodes at the Fog layer are re-

sponsible for the serverless function life-cycle man-

agement and execution, whilst at the Cloud layer, a

Working node offers support for executing ofﬂoaded

tasks from the Fog. In general, Cloud resources are

privileged for resource demanding tasks and Fog re-

sources when low latency is required. We found stud-

ies (24%) that only considered the Fog layer. In (Mit-

tal et al., 2021), an extension of the KNative Platform,

all the components (i.e., Load Balancer, Auto-scaler,

Placement Engine, and other standards modules from

KNative) are located in the Fog Layer. Lastly, we

identiﬁed studies that also included the Things layer

(15%), adding to this layer component related to the

execution of functions. Overall, it is natural that

the FaaS platform, besides supporting the deployment

of applications across the Cloud-to-Thing continuum,

also exploits the beneﬁt of the Fog layer. Among oth-

ers, the main beneﬁts exhibited in the primary studies

are reliability, reduced latency, and the ability to pro-

cess data close to the source.

Figure 7: FaaS platform distribution.

Serverless Function Deployment Location. As

depicted in Figure 8, most primary studies (66%) sup-

port deployment of serverless functions over Cloud

and Fog infrastructures whilst 19% support deploy-

ment on Fog infrastructures only. A total of 15% of

the FaaS4C2T approaches offer support for deploy-

ment on the Thing layer, in combination with Cloud

and Fog layers or not. The deployment of function on

Things is only motivated by a few use cases, typically

to prepare and preprocess the data in the Thing before

sending it to the other layers. An example is when a

sensor must detect changes in an environment (e.g.,

humidity in a greenhouse) for management decisions

(e.g., irrigating the plantation). It is inefﬁcient that

the sensor sends all the data it detects (e.g., insignif-

icant changes in the humidity indicator) for the Fog

or Cloud Layer to be processed. A solution would

be to execute a function on the IoT device or close to

it, which classiﬁes if the data is relevant. This strat-

egy could reduce bandwidth in the network and en-

ergy consumption. Furthermore, in some cases, when

the Internet connection is unstable, deploying func-

tions on IoT devices would prevent the interruption

of tasks. (Persson and Angelsmark, 2017) add that

the use of sensors is a continuous process, implying

the necessity of a continuous execution of functions,

the so called long-lived functions.

Figure 8: Function deployment location.

What Are the Mechanisms Offered for Func-

tions Virtualization, Deployment and Isolation?

As depicted in Figure 9, most of the FaaS4C2T

approaches leverage virtualization techniques such

as Docker containers, WebAssembly, and other

lightweight virtualization techniques to wrap and de-

ploy serverless functions. The isolation offered by

these techniques is essential in multi-tenancy and

multi-application scenarios. Only (4/33) studies rely

on original solutions. (Persson and Angelsmark,

2017) developed the Kappa platform, in which they

leverage the concept of actors, deployment units of

a single operation or data processing. For support-

ing the deployment in IoT devices, (George et al.,

2020) propose isolating different serverless functions

by running them in separate instances of Python Vir-

tual Machines, a solution similar to traditional Linux

containers. In (Hall and Ramachandran, 2019), the

authors use WebAssembly, which has an inherent

strong, yet lightweight, sandboxed environment for

function execution.

Sometimes functions are designed to interact with

other software and hardware resources (in some cases

directly as part of the function code – e.g., a function

retrieving data from a sensor; or indirectly – e.g., mes-

sages being sent to a broker before reaching a soft-

ware service). At the Fog and Thing layers, this in-

cludes hardware such as sensors and actuators, which

cannot be embedded as part of the virtualized envi-

ronment. The management of such shared resources

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study

is of tremendous importance, ranging from business

to safety critical in the case of actuators. (Hall and

Ramachandran, 2019), partly consider this issue by

deﬁning different access to function patterns, includ-

ing a case of multiple clients accessing one serverless

function. As an example, they consider the case of

multiple smart cameras (sensors), each belonging to

a different client requesting image processing to the

same serverless function. We did not ﬁnd any primary

study tackling the opposite case where several func-

tions need to concurrently access a shared resource

such as an actuator.

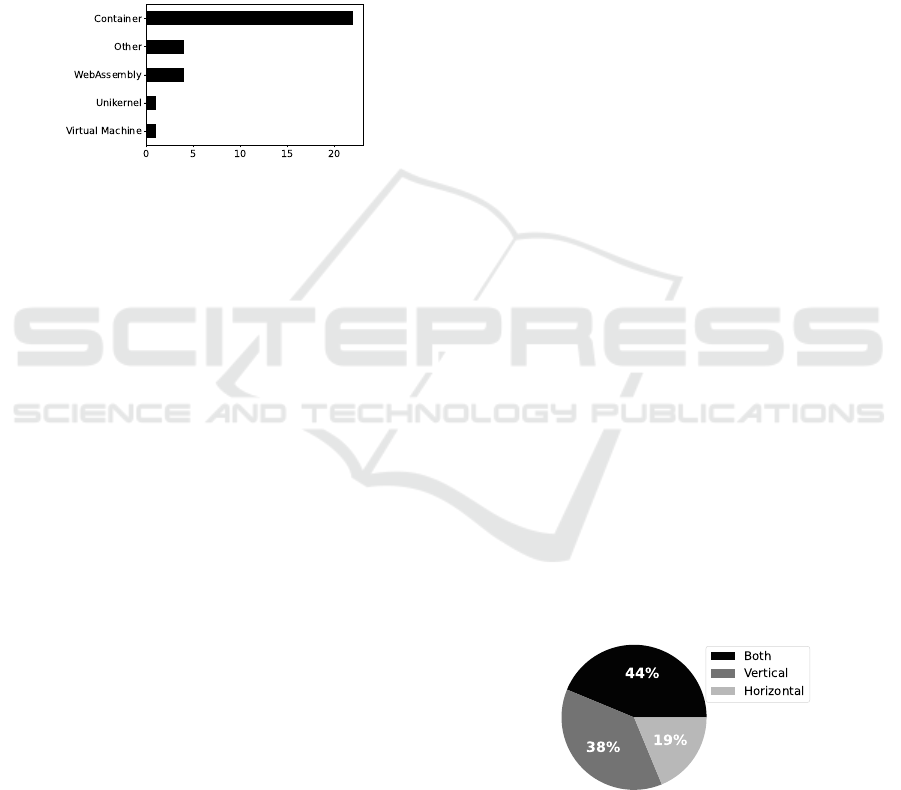

Figure 9: Isolation techniques.

How Serverless Functions Are Placed and Scaled?

We observed that placement strategy is a key research

topic in the ﬁeld as the extension of the FaaS to the

Cloud-to-Thing continuum calls for novel strategies

better exploiting the speciﬁcities of the Fog and Thing

infrastructures – i.e., heterogeneity, limited comput-

ing resources, and geographical distribution of de-

vices. In particular, we identiﬁed that most of the

proposed placement strategies consider the availabil-

ity of resources and device capacity (e.g., CPU, mem-

ory, bandwidth) as key parameters to decide whether

a serverless function can be deployed on a device.

(Pelle et al., 2021) propose considering the data

from the system monitoring for modifying placement

decisions. A monitoring module computes network

statistics, infrastructure status, and function deploy-

ment information (e.g., execution time and invocation

rates). According to this data, there is a reconﬁgura-

tion of the function placement after each deployment.

Another study that considers function information is

(Elkholy and Marzok, 2022). The functions related to

real-time processing are placed ﬁrst and executed in

nodes of greater capacity than others.

Only a few primary studies allow developers to

customize the placement strategy parameters. In

(Bermbach et al., 2022), the authors propose us-

ing bids, attached with the functions to be executed.

Those bids are composed of two parameters, the price

for the function’s execution and a customized pa-

rameter, in which the developers determine the price

they are willing to pay for storing the function’s ex-

ecutable. In (Pelle et al., 2020), there is support for

developers to send as input data constraints for the

placement, such as latency and critical (graph) paths,

among other conditions. (Mittal et al., 2021) focus

on placing functions to avoid container fragmentation

and provide fairness among multiple tenants, whereas

(Cicconetti et al., 2020) implement ﬂexible place-

ment, which can incorporate different algorithms to

ﬁt speciﬁc use cases based on the developer’s choice.

Regarding scalability, we found that (21/33) of the

FaaS4C2T platforms mention support for scalability.

More speciﬁc to the Cloud-to-Thing continuum, we

noted large support for ofﬂoading techniques (16/21)

among the (21/33) FaaS4C2T platforms that mention

scaling mechanisms. Ofﬂoading either refers to for-

warding the function from a local layer to other de-

vices in the same layer (e.g., between Fog devices),

commonly referred to as horizontal ofﬂoading, or to

devices in different layers (e.g., from the Fog Layer

to the Cloud), designated as vertical ofﬂoading. Fig-

ure 10 depicts the types of ofﬂoading techniques con-

sidered by the primary studies. (Baresi et al., 2019)

claims that this is an efﬁcient way of improving users’

Quality of Experience when facing a computation-

intensive and latency-sensitive application. Comput-

ing devices at the Fog and Thing layers may expe-

rience some degradation. Hence, ofﬂoading tasks to

another Fog device or server in the Cloud can pre-

vent service interruptions. This conclusion is also

supported by (Lordan et al., 2021), which adds that

it is also beneﬁcial for workload balancing, result-

ing in less power consumption and time response of

applications. (George et al., 2020) is an example

of FaaS4C2T platform supporting vertical ofﬂoading,

which proposes an algorithm for estimating when bet-

ter latency can be achieved by leveraging execution

from the Things Layer to the Edge or Cloud Layer.

(Hetzel et al., 2021) is an example of FaaS4C2T

platform supporting horizontal ofﬂoading, distribut-

ing the workload on the Edge devices to overcome

resource limitations.

Figure 10: Ofﬂoading technique.

4.3 Answering RQ3: Open Issues

In the following, we discuss open issues we believe

should be further investigated. We try to illustrate

some of these issues and suggest research directions.

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

Regarding the support offered by existing FaaS

platforms for the deployment of serverless functions

over the whole Cloud-to-Thing continuum, we iden-

tiﬁed that only a few primary studies provide means

to deploy serverless functions on devices at the Thing

layer. These approaches are still far from offering the

same features are Cloud FaaS platforms (e.g., in terms

of isolation and replication). We also observe the lack

of proper use cases, and in particular industrial use

cases, that motivate and clearly describe the beneﬁts

this would bring compared to more deployment on

solely Cloud and Fog layers, where the Fog layer is

typically used as a means to integrate Things.

Serverless functions often need to be deployed to-

gether with other services and software components

such as message brokers and data stores. Software

systems, including Edge and IoT systems, are rarely

built entirely from serverless components, but rather

follow a hybrid approach where functions are com-

bined with other types of software components (Ferry

et al., 2022). When dealing with systems deployed

over the whole Cloud-to-Thing continuum, these sup-

porting services typically need to be deployed in the

vicinity of the function, close to the data source (e.g.,

on the same edge device). To the best of our knowl-

edge, there is little support and freedom offered to de-

velopers for deploying and customizing such services

as they deploy serverless functions (i.e., existing plat-

forms come with a ﬁxed and limited set of services

and do not support the deployment of supporting ser-

vices together with the functions).

We found that there can be limits to isolation

and virtualization as sometimes resources cannot be

virtualized and must be shared between tenants and

functions. This is particularly the case at the Fog

and Things layers where the function might want

to concurrently access hardware such as actuators

(e.g., GPIO on a Raspberry Pi) or accelerators (e.g.,

Coral.ai USB accelerator), which eventually cannot

be virtualized. Since actuators can impact the physi-

cal environment, managing access to these shared re-

sources is essential to guarantee the trustworthiness

of the system, including safety, security, and perfor-

mance aspects. To the best of our knowledge, there

are currently no proper solutions to this issue. A few

studies proposed mechanisms tackling this aspect for

shared access to software components. (Jang et al.,

2021) developed an architecture with a sharing de-

ployment module in the same edge device, in which

two or more functions are deployed in the same con-

tainer. For this scenario, the authors considered in the

platform design a control plane, with customized op-

tions for the platform users, and a data plane, guaran-

teeing the deployment of functions in the module by

controlled queue requests.

Regarding the placement of serverless functions,

while our study shows that this topic is gaining in-

terest in the research community, we believe there are

still several areas for improvement. In particular, most

of the work focuses on allocation strategies based on

resource (e.g., CPU, Memory, network) usage opti-

mization. While a few studies also consider aspects

such as the geographical location of Fog and Things,

there is still room for greater consideration of devices’

context. We also found that most strategies are static

and cannot be easily customized or even speciﬁed by

end-users. We believe such a feature would be highly

beneﬁcial and work in this direction is required (in-

cluding the deﬁnition of a tool supported domain spe-

ciﬁc languages for end-user to specify their allocation

strategies).

5 RELATED WORK

In recent years, several surveys were conducted to in-

vestigate different aspects of FaaS platforms for the

Cloud. For instance, (Taibi et al., 2020) focuses on

patterns for serverless functions. There have also

been some recent surveys focusing on some aspects

of serverless and infrastructures within the Cloud-to-

Thing continuum. Some provide an overview whilst

others focus on speciﬁc topics; however, to the best of

our knowledge, no single comprehensive review an-

swers our RQs.

Closest to our work, (Cassel et al., 2022) presents

a systematic literature review about Serverless com-

puting for the Internet of Things. In particular, this

study investigates on which layer (Cloud, Fog, Edge)

serverless functions are usually placed and provides

an overview of the landscape of runtime used to ex-

ecute these functions. We distinguish from this work

by extending this investigation to the whole Cloud-

to-Thing continuum, thereby considering the place-

ment of serverless functions on Things. In addition,

we also investigate how the placement, and the ac-

tual deployment of the serverless functions are per-

formed. (Bocci et al., 2021) explores the secure or-

chestration of serverless functions in Fog computing

environments. This work complements our investiga-

tion to understand how developers can specify how to

deploy serverless functions. However, by contrast, we

consider the whole Cloud-to-Thing continuum and

cover other aspects such as allocation mechanisms,

and scalability.

In (Yussupov et al., 2019), the authors conduct

a systematic mapping study to identify and discuss

challenges related to engineering FaaS platforms. In

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study

contrast to our work, FaaS platforms are considered

independent of their application domain. The re-

view does not focus on identifying speciﬁc aspects

of their application to the Cloud-to-Thing continuum.

By contrast, (Kjorveziroski et al., 2021) focuses on

applying FaaS to the IoT domain. This work inves-

tigates aspects complementary to our study such as

support for security, and performance. In contrast to

our study, there is no focus on the deployment and

allocation aspects, and the ‘Edge’, ‘Fog’, and ‘CPS’

keywords are not part of the study query string, reduc-

ing their scope.

(Leitner et al., 2019) presents a multivocal system-

atic literature review intending to characterize the use

of FaaS. The study does not focus on the design of

FaaS platforms for the Cloud-to-Thing. However, it

provides valuable insight into the typical architectures

and patterns for building FaaS-based applications.

As noted, the previous works only partially cover

our RQs, typically with a different perspective – i.e.,

not focusing on the allocation and deployment of

serverless functions over the Cloud-to-Things contin-

uum.

6 CONCLUSION

In this work, we have examined the research land-

scape of Function-as-a-Service platforms for the

Cloud-to-Thing continuum. After systematically

identifying and reviewing 33 primary studies out of

hundreds of relevant papers in this ﬁeld, we have

found out that there has been a growth in interest

and maturity level of the FaaS4C2T platforms over

the years, yet maturity still remains low. There are

still gaps in the research and several challenges re-

main to be tackled with still a very limited coverage

of the Cloud-to-Thing continuum for the deployment

and placement of serverless functions. In particular,

we identiﬁed that there is little coverage of the Things

layer, and there is no clear study exhibiting all the

possible beneﬁts of applying serverless functions to

the Things layer. We believe this is due to its diverse

technical challenges, in particular regarding the sup-

port for virtualization and dynamic deployment.

ACKNOWLEDGEMENTS

This work was partially funded by the European

Union under the Horizon Europe grant 101070455

(DYNABIC). B

arbara da Silva Oliveira is supported

by the BRAFITEC program at Universit

e C

ote

d’Azur, ﬁnanced by CAPES within the Ministry of

Education of Brazil, and by the scholarship PIBIC,

ﬁnanced by Universidade Federal do Cear

REFERENCES

Arcangeli, J.-P., Boujbel, R., and Leriche, S. (2015). Au-

tomatic deployment of distributed software systems:

Deﬁnitions and state of the art. Journal of Systems

and Software, 103:198–218.

Aslanpour, M. S., Toosi, A. N., Cicconetti, C., Javadi, B.,

Sbarski, P., Taibi, D., Assuncao, M., Gill, S. S., Gaire,

R., and Dustdar, S. (2021). Serverless edge com-

puting: vision and challenges. In 2021 Australasian

Computer Science Week Multiconference, pages 1–10.

ACM.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., et al. (2017). Serverless comput-

ing: Current trends and open problems. In Research

advances in cloud computing, pages 1–20. Springer.

Baresi, L., Mendonc¸a, D. F., Garriga, M., Guinea, S., and

Quattrocchi, G. (2019). A uniﬁed model for the

mobile-edge-cloud continuum. ACM Transactions on

Internet Technology (TOIT), 19(2):1–21.

Baresi, L. and Quattrocchi, G. (2021). PAPS: A serverless

platform for edge computing infrastructures. Frontiers

in Sustainable Cities, 3.

Bergmayr, A., Breitenb

ucher, U., Ferry, N., Rossini, A.,

Solberg, A., Wimmer, M., Kappel, G., and Leymann,

F. (2018). A systematic review of cloud modeling lan-

guages. ACM Computing Surveys (CSUR), 51(1):1–

38.

Bermbach, D., Bader, J., Hasenburg, J., Pfandzelter, T.,

and Thamsen, L. (2022). AuctionWhisk: Using an

auction-inspired approach for function placement in

serverless fog platforms. Software: Practice and Ex-

perience, 52(5):1143–1169.

Bocci, A., Forti, S., Ferrari, G.-L., and Brogi, A. (2021).

Secure FaaS orchestration in the fog: how far are we?

Computing, 103(5):1025–1056.

Byers, C. and Swanson, R. (2017). OpenFog Reference

Architecture for Fog Computing. Technical report,

OpenFog Consortium.

Cassel, G. A. S., Rodrigues, V. F., da Rosa Righi, R.,

Bez, M. R., Nepomuceno, A. C., and da Costa, C. A.

(2022). Serverless computing for Internet of Things:

A systematic literature review. Future Generation

Computer Systems, 128:299–316.

Cheng, B., Fuerst, J., Solmaz, G., and Sanada, T. (2019).

Fog function: Serverless fog computing for data in-

tensive IoT services. In 2019 IEEE International Con-

ference on Services Computing, pages 28–35. IEEE.

Cicconetti, C., Conti, M., and Passarella, A. (2020). A de-

centralized framework for serverless edge computing

in the internet of things. IEEE Transactions on Net-

work and Service Management, 18(2):2166–2180.

Costa, B., Bachiega Jr, J., de Carvalho, L. R., and Araujo,

A. P. (2022). Orchestration in fog computing: A com-

IoTBDS 2023 - 8th International Conference on Internet of Things, Big Data and Security

prehensive survey. ACM Computing Surveys (CSUR),

55(2):1–34.

Elkholy, M. and Marzok, M. A. (2022). Light weight

serverless computing at fog nodes for internet of

things systems. Indones. J. Electr. Eng. Comput. Sci,

26(1):394–403.

Ferry, N., Dautov, R., and Song, H. (2022). Towards a

Model-Based Serverless Platform for the Cloud-Edge-

IoT Continuum. In 2022 22nd IEEE International

Symposium on Cluster, Cloud and Internet Computing

(CCGrid), pages 851–858. IEEE.

George, G., Bakir, F., Wolski, R., and Krintz, C. (2020).

NanoLambda: Implementing functions as a service at

all resource scales for the internet of things. In 2020

IEEE/ACM Symposium on Edge Computing (SEC),

pages 220–231. IEEE.

Hall, A. and Ramachandran, U. (2019). An execution model

for serverless functions at the edge. In Proceedings

of the International Conference on Internet of Things

Design and Implementation, pages 225–236. ACM.

Hetzel, R., K

arkk

ainen, T., and Ott, J. (2021). µactor:

Stateful serverless at the edge. In Proceedings of the

1st Workshop on Serverless mobile networking for 6G

Communications, pages 1–6. ACM.

Jang, S. Y., Kostadinov, B., and Lee, D. (2021).

Microservice-based edge device architecture for video

analytics. In 2021 IEEE/ACM Symposium on Edge

Computing (SEC), pages 165–177. IEEE.

Kitchenham, B. A., Budgen, D., and Brereton, O. P.

(2011). Using mapping studies as the basis for further

research–a participant-observer case study. Informa-

tion and Software Technology, 53(6):638–651.

Kitchenham, B. A. and Charters, S. (2007). Guidelines for

performing systematic literature reviews in software

engineering. Technical Report EBSE 2007-001, Keele

University and Durham University.

Kjorveziroski, V., Filiposka, S., and Trajkovik, V. (2021).

IoT Serverless Computing at the Edge: A Systematic

Mapping Review. Computers, 10(10).

Leitner, P., Wittern, E., Spillner, J., and Hummer, W. (2019).

A mixed-method empirical study of Function-as-a-

Service software development in industrial practice.

Journal of Systems and Software, 149:340–359.

LF Edge (2019). Open glossary of edge computing, version

2.0. Technical report, Linux Foundation.

Li, Y., Lin, Y., Wang, Y., Ye, K., and Xu, C.-Z. (2022).

Serverless computing: State-of-the-art, challenges

and opportunities. IEEE Transactions on Services

Computing, pages 1–1.

Lordan, F., Lezzi, D., and Badia, R. M. (2021). Colony:

Parallel Functions as a Service on the Cloud-Edge

Continuum. In Euro-Par 2021: Parallel Processing,

pages 269–284. Springer.

Mahmud, R., Kotagiri, R., and Buyya, R. (2018). Fog com-

puting: A taxonomy, survey and future directions. In

Internet of everything, pages 103–130. Springer.

Mahmud, R., Ramamohanarao, K., and Buyya, R. (2020).

Application management in fog computing environ-

ments: A taxonomy, review and future directions.

ACM Computing Surveys (CSUR), 53(4):1–43.

Mell, P. and Grance, T. (2001). The NIST Deﬁnition of

Cloud Computing. Technical Report 800-145, Na-

tional Institute of Standards and Technology.

Mittal, V., Qi, S., Bhattacharya, R., Lyu, X., Li, J., Kulka-

rni, S. G., Li, D., Hwang, J., Ramakrishnan, K., and

Wood, T. (2021). Mu: An efﬁcient, fair and responsive

serverless framework for resource-constrained edge

clouds. In Proceedings of the ACM Symposium on

Cloud Computing, pages 168–181. ACM.

Pang, Z., Sun, L., Wang, Z., Tian, E., and Yang, S. (2015).

A survey of cloudlet based mobile computing. In

2015 International Conference on Cloud Computing

and Big Data (CCBD), pages 268–275. IEEE.

Pelle, I., Czentye, J., D

oka, J., Kern, A., Ger

o, B. P., and

Sonkoly, B. (2020). Operating Latency Sensitive Ap-

plications on Public Serverless Edge Cloud Platforms.

IEEE Internet of Things Journal, 8(10):7954–7972.

Pelle, I., Paolucci, F., Sonkoly, B., and Cugini, F. (2021).

Latency-sensitive edge/cloud serverless dynamic de-

ployment over telemetry-based packet-optical net-

work. IEEE Journal on Selected Areas in Commu-

nications, 39(9):2849–2863.

Persson, P. and Angelsmark, O. (2017). Kappa: Serverless

IoT deployment. In Proceedings of the 2nd Interna-

tional Workshop on Serverless Computing, pages 16–

21.

Petersen, K., Vakkalanka, S., and Kuzniarz, L. (2015).

Guidelines for conducting systematic mapping stud-

ies in software engineering: An update. Information

and Software Technology, 64:1–18.

Taibi, D., El Ioini, N., Pahl, C., and Niederkoﬂer, J. R. S.

(2020). Patterns for serverless functions (function-as-

a-service): A multivocal literature review. In Proceed-

ings of the 10th International Conference on Cloud

Computing and Services Science (CLOSER), pages

181–192. SciTePress.

Tran, N. K., Sheng, Q. Z., Babar, M. A., and Yao, L.

(2017). Searching the Web Of Things: state of the art,

challenges, and solutions. ACM Computing Surveys

(CSUR), 50(4):55.

Van Eyk, E., Toader, L., Talluri, S., Versluis, L., Ut

a, A.,

and Iosup, A. (2018). Serverless is more: From paas to

present cloud computing. IEEE Internet Computing,

22(5):8–17.

Xie, R., Tang, Q., Qiao, S., Zhu, H., Yu, F. R., and Huang,

T. (2021). When serverless computing meets edge

computing: architecture, challenges, and open issues.

IEEE Wireless Communications, 28(5):126–133.

Yussupov, V., Breitenb

ucher, U., Leymann, F., and Wurster,

M. (2019). A systematic mapping study on engineer-

ing function-as-a-service platforms and tools. In Pro-

ceedings of the 12th IEEE/ACM International Confer-

ence on Utility and Cloud Computing, pages 229–240.

Function-as-a-Service for the Cloud-to-Thing Continuum: A Systematic Mapping Study
