Using Bigrams to Detect Leaked Secrets in Source Code

Anton V. Konygin

1,2 a

, Andrey V. Kopnin

, Ilya P. Mezentsev

and Alexandr A. Pankratov

SKB Kontur, Russia

N.N. Krasovskii Institute of Mathematics and Mechanics, Russia

Keywords:

Leaked Secrets, Source Code, Machine Learning, Security.

Abstract:

Leaked secrets in source code lead to information security problems. It is important to ﬁnd sensitive infor-

mation in the repository as early as possible and neutralize it. By now, there are many different approaches

to leaked secret detection without human intervention. Often, these are heuristic algorithms using regular

expressions. Recently, more and more approaches based on machine learning have appeared. Nevertheless,

the problem of detecting secrets in the code remains relevant since the available approaches often give a large

number of false positives. In this paper, we propose an approach to leaked secret detection in source code

based on machine learning using bigrams. This approach signiﬁcantly reduces the number of false positives.

The model showed a false positive rate of 2.4% and false negative rate of 1.9% on test dataset.

1 INTRODUCTION

A secret in source code is any sensitive information,

such as passwords, API keys, certiﬁcate ﬁles, and

conﬁguration ﬁles. However, the term “secret” is of-

ten used in a narrower sense, excluding conﬁguration

or certiﬁcation ﬁles (see, e.g. (Sinha et al., 2015),

(Lounici et al., 2021), (Ding et al., 2020)). In this

work, we follow this rule, and only passwords and

API keys are called secrets.

The security of software systems relies heavily on

the use of secrets. This is especially true for code

hosted in public repositories, e.g., on GitHub

. In

2014, an Uber employee accidentally uploaded his

credentials to GitHub, which resulted in the Uber

database hack of 50,000 Uber drivers (Collins, 2016).

Similarly, Amazon found 10,000 AWS keys acciden-

tally left in the source code by Amazon developers

and uploaded to GitHub (Knight, 2016). In 2016, re-

searchers found over 1,500 Slack API tokens in pub-

lic GitHub repositories belonging to major compa-

nies (Marlow, 2019). These tokens might provide ac-

cess to exﬁltrate internal communications or mine for

other shared credentials, such as server or database

access. Leaks such as these can have widespread

effects beyond the individual service to which the

leaked credential applied.

https://orcid.org/0000-0002-0037-2352

https://www.github.com

In (Meli et al., 2019) a large-scale analysis of se-

cret leakage on GitHub is carried out. The authors

examine billions of ﬁles collected using two com-

plementary approaches: a nearly six-month scan of

real-time public GitHub commits and a public snap-

shot covering 13% of open-source repositories. The

research focuses on private key ﬁles and 11 high-

impact platforms with distinctive API key formats.

This focus allows to develop conservative detection

techniques that the authors manually and automati-

cally evaluate to ensure accurate results. They found

that secret leakage not only affects more than 100,000

repositories, but also that thousands of new unique se-

crets are being leaked every day. The work shows

that the leakage of secret data on public repository

platforms is widespread and far from being solved,

exposing developers and services to constant risk of

compromise and abuse.

At the end of 2022, GitHub made it possible

automatically detect leaked tokens (more than 200

patterns). Password detection remains a more difﬁ-

cult task due to the greater password variability.

One way to minimize the risks is to detect the se-

cret as quickly as possible and start a procedure of

neutralizing it. Thus, we get the task of detecting

leaked secrets: by having code fragments as input, it

is necessary to detect secrets if they are present.

The classic approach to solving this problem is to

https://github.blog/2022-12-15-leaked-a-secret-check-

your-github-alerts-for-free/

Konygin, A., Kopnin, A., Mezentsev, I. and Pankratov, A.

Using Bigrams to Detect Leaked Secrets in Source Code.

DOI: 10.5220/0011983600003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 589-596

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

589

use regular expressions. This approach works well

with API keys, especially when their format is known,

but gives a lot of false positives for passwords. In gen-

eral, this is to be expected, especially when the pass-

word can be arbitrary. Also, entropy analysis is often

used to detect secrets. This method is based on the

hypothesis that secrets have a higher degree of uncer-

tainty than the rest of the code. The method performs

better when secrets consist of random sequences of

characters.

One of the approaches to improving the quality of

secret detection is the use of machine learning (Saha

et al., 2020). This approach allows you to customize

the detector for a speciﬁc situation (domain-speciﬁc)

without the need to write an explicit detection algo-

rithm. Along with all of the advantages, machine

learning methods have well-known drawbacks.

Since the data is sensitive (it contains passwords

and API keys), the collected training datasets cannot

be too large. At the moment there are approaches to

solving this problem, e.g., using federated learning

(Kall and Trabelsi, 2021), which is a machine learn-

ing paradigm allowing models to be trained on local

data without the need for its owners to share it.

The problem with data is not the only issue. The

main problem at the moment is a large number of false

positives (see (Rahman et al., 2022)). This applies to

both approaches based on machine learning and ap-

proaches which use classical methods. Despite the

relevance of the task of detecting secrets in the code

and the efforts made, a signiﬁcant false positive rate

hinders the implementation of effective open-source

solutions (Lounici et al., 2021).

Thus, any new advances in solving the problem

are welcomed, as they can lead to a reduction in the

amount of sensitive information in the code and an

increase in the security level of software engineering.

In this paper, we propose a bigram-based ap-

proach that allows us to detect secrets with low false

positive and false negative rates. With the help of bi-

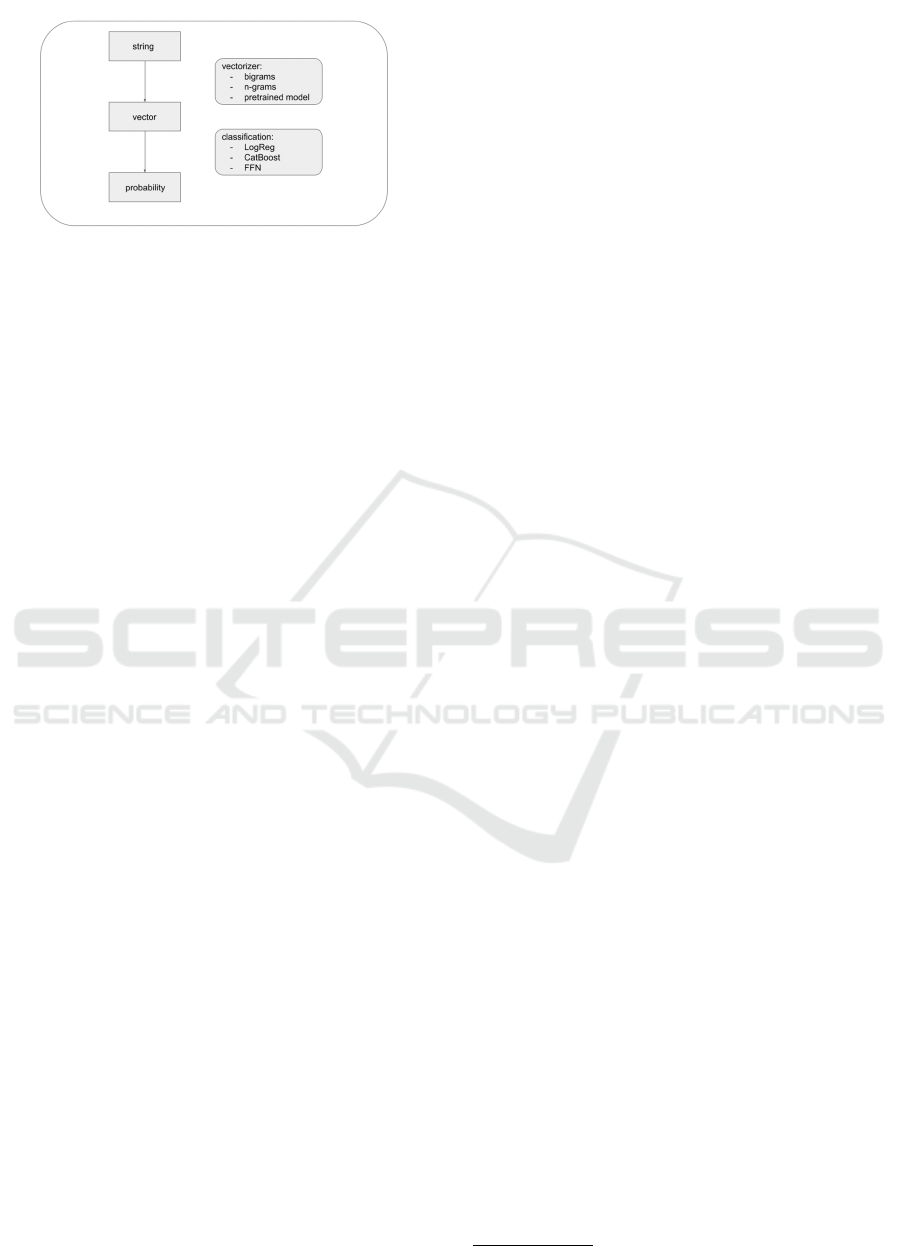

grams, we transform the string into a vector. Next, we

use the CatBoost algorithm (Dorogush et al., 2018) to

build a binary classiﬁer. One of the features of our

approach is that we use data from different distribu-

tions for training and testing. For training, we build

a dataset based on public and automatically gener-

ated data. For testing, we use a private local dataset

of passwords and API keys (it contains sensitive in-

formation and we cannot make it public). Thus, the

model is tested in more complex conditions — the

domain area is changed. However, the low percent-

age of errors during testing suggests that the solution

obtained is stable and reliable. In the paper, we de-

scribe in detail the procedure for collecting a dataset

for training.

The main contributions of this paper can be sum-

marized as follows.

• We present an approach to detecting leaked se-

crets in the code. The approach is based on bi-

grams and gradient boosting on decision trees.

• The proposed approach signiﬁcantly reduces the

number of false positives (false positive rate of

2.4% and false negative rate of 1.9% on test

dataset) and does not require additional manual

data labeling (public and automatically generated

data are used).

The rest of this paper is structured as follows. Sec-

tion 2 presents some related work. Section 3 describes

the proposed approach. Section 4 presents the evalu-

ation of the model. Finally, we make conclusions in

Section 5.

2 RELATED WORK

Secret detection approaches can be divided into two

types: based on classical approaches (e.g., regular

expressions, entropy analysis) and based on machine

learning.

The most straightforward approach is

to use regular expressions. Such tools as

trufflehog

, repo-supervisor

, git-secrets

repo-secutiry-scanner

use regular expression

search, entropy checks or a combination of both to

identify potential secrets. Recent studies (Lounici

et al., 2021) show that the classic regular expression

approaches generate a high false positive rate of about

82%. A different approach is used in (Sinha et al.,

2015). It discusses the advantages and disadvantages

of the following methods for detecting leaks of API

keys: sample selection by using keyword search,

pattern-based search, heuristics-driven ﬁltering, and

source-based program slicing. In addition, a possible

solution that combines these techniques is proposed.

To reduce false positives a standard password strength

estimator zxcvbn

is used. The estimator penalizes

strings with repeating characters or those that contain

dictionary words while accepting strings that have a

high amount of apparent randomness (entropy). The

false positives that remained were auto-generated

key-like strings that were used for different purposes,

https://github.com/trufﬂesecurity/trufﬂehog

https://github.com/auth0/repo-supervisor

https://github.com/awslabs/git-secrets

https://github.com/UKHomeOfﬁce/repo-security-

scanner

https://github.com/dropbox/zxcvbn

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

590

such as identiﬁers of serialized objects. Both pattern

based (Roesch, 1999) and data-ﬂow based (Klieber

et al., 2014), (Zhou et al., 2011) techniques have

been applied for detecting deliberate leakage of user

credentials by malicious software. Similar techniques

(Viennot et al., 2014) have also been applied for de-

tecting accidental leakage of credentials in innocuous

client-side software.

In (Meli et al., 2019) the authors use regular ex-

pressions and a system of ﬁlters (entropy ﬁlter, words

ﬁlter, pattern ﬁlter) to detect API keys. They write

that they did not attempt to examine passwords as

they can be virtually any string in any given ﬁle type,

meaning they do not conform to distinct structures

and making them very hard to detect with high ac-

curacy. According to the article (Saha et al., 2020)

most of existing works either target a speciﬁc type

of secret or generate a large number of false posi-

tives. This makes it possible to achieve high accuracy

in detecting secret keys in public repositories. How-

ever, these works are speciﬁcally aimed towards pri-

vate keys (e.g., an RSA private key) and API keys,

and none of these include generic passwords in their

scan. Another serious limitation of the existing tools

is that they generate a high number of false positives

because loose regular expressions, used in the tools,

match invalid entries (Meli et al., 2019). These false

positives reduce the reliance on the existing tools re-

sulting in extensive manual, time-consuming, effort to

actually identify the false positives. Therefore, there

is a strong need for developing generic approaches

to include all types of secrets and not just private or

API keys, and that signiﬁcantly reduce the false pos-

itives in identiﬁcation of the secrets. To tackle the

issue in (Saha et al., 2020) a voting classiﬁer (combi-

nation of logistic regression, naive bayes and SVM)

is used with an extensive regular expression list. Au-

thors test the voting classiﬁer on a test dataset con-

sisting of 2,180 examples and achieve a precision of

84%.

Similar approach is proposed in (Lounici et al.,

2021). The paper presents an approach to detecting

data leaks in open-source projects with a low false

positive rate. In addition to commonly used regu-

lar expression scanners, authors propose several ma-

chine learning models (LCBOW model, Q-learning)

targeting the false positives. The approach, while pro-

ducing a negligible false negative rate, decreases the

false positive rate to, at most, 6% of the output data.

However, this approach assumes that in addition to

the secret itself, its context is available. This addi-

tional requirement is not always met. In addition,

this requirement signiﬁcantly limits the portability of

the approach to other programming languages. Also,

this requirement limits the possibility of data aug-

mentation when building datasets. Almost all public

datasets with secrets that can be used for training do

not contain the context of secrets. In particular, it be-

comes difﬁcult to repeat the results, since our datasets

do not contain contexts: only a string literal and a la-

bel. Our approach is char-based (Bag-of-Words in the

case of a classiﬁer of (Lounici et al., 2021)) and does

not use a secret context.

It should be noted that, along with the described

approaches, approaches based on knowledge of all the

secrets can be useful in some cases. In (Ding et al.,

2020) authors propose to use known production se-

crets as a source of ground truth for snifﬁng secret

leaks in codebases.

3 PROPOSED APPROACH

Regular expressions are often used to ﬁnd secrets in

code. In this case, we must explicitly formulate the

search rules. The effectiveness of this approach es-

sentially depends on the ability to describe all of the

secrets. For example, if the secrets are API keys in

a known format (e.g., UUID), then such a solution

may well provide the required quality. The quality

will be low if we try to look for passwords (in the

code) for which the format is not ﬁxed. Even if it is

known that the password meets certain requirements

(e.g., the length and symbols used), then there will be

many false positives. However, it may be inefﬁcient

to completely abandon regular expressions since they

are effective and allow you to verify requirements for

secrets.

The approach described in this paper consists of

two stages (see Fig. 1). The ﬁrst stage uses regular

expressions. Having information about the format of

the API keys and the requirements for the complex-

ity of the password, regular expressions allow us to

ﬁnd strings that look like secrets (candidate strings).

Since there are many non-secrets among such strings,

additional ﬁltering is required. Depending on the sce-

nario, up to 82% (Lounici et al., 2021) of the strings

are false positives (in our case we observed up to 70%

false positives).

Thus, a second stage is required at which addi-

tional ﬁltration takes place. In our case ﬁltering was

done manually. Despite the labor costs, secrets must

be detected. Therefore, to automate the process of de-

tecting secrets completely, a solution with a low false

positives rate is needed. Currently, manual veriﬁca-

tion has been replaced by automatic — the proposed

method is used that allows you to detect secrets with

high quality. Since the classiﬁer is not based on the

Using Bigrams to Detect Leaked Secrets in Source Code

591

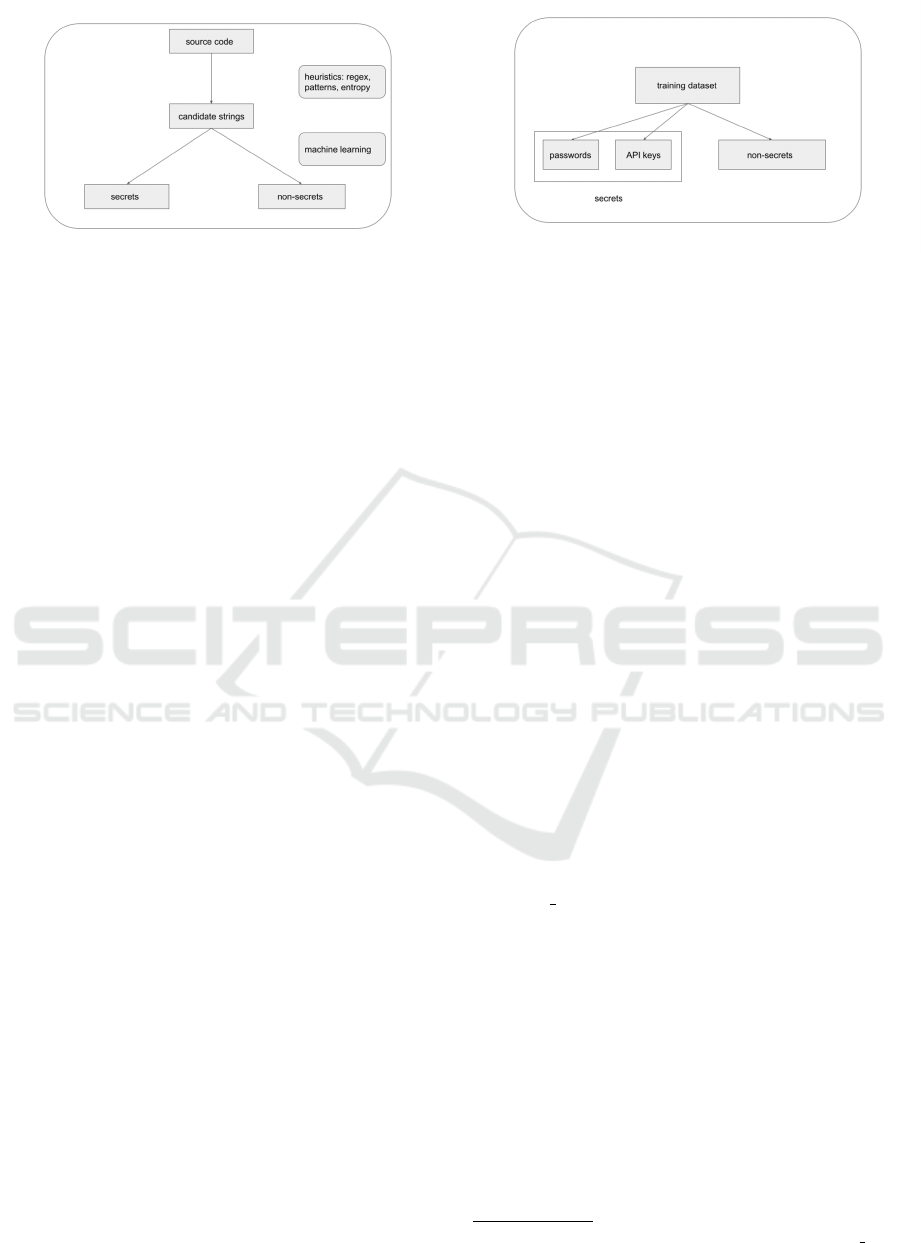

Figure 1: Overview of the proposed approach. In general,

the approach consists of two stages. At the ﬁrst stage, can-

didate strings are extracted from the code fragment. It is

important to pay attention to the speed and scalability of

the methods used at this stage since the codebases may be

huge. Extraction can be done with regular expressions or

code splitting based on whitespaces. At the second (main)

stage, a decision is made as to which of the classes each

candidate string belongs to. Here we can use a large class

of methods because amount of candidates is small in com-

parison to the entire codebase. In our case, the decision is

made with the use of machine learning.

heuristics used at the ﬁrst stage, the classiﬁer is of in-

dependent interest, and this work is devoted to its de-

scription. It is important to note that in this work the

model does not use the context of the string being ver-

iﬁed (tokens before and tokens after). In our opinion

the use of such information can improve the quality

of the model. Building a context model for detecting

leaked secrets in the code is a promising direction for

future work.

Since the approach uses machine learning, and

machine learning, in turn, is working with data, ﬁrst

we will talk about the data, and then about the model

(secret classiﬁer).

3.1 Data

To train a machine learning model we need a dataset.

We have labeled data from the target distribution. For

each string from the data there is a label, whether it is

a secret or not. However, these data have a number of

specialities. First, data contains 7,382 samples. That

is not a lot and it imposes restrictions on the choice of

method. Especially considering that some of the data

needs to be held out for evaluation. Also, if we eval-

uate a model using a small number of samples, the

results become statistically unreliable. Besides, the

distribution of the labeled data is signiﬁcantly differ-

ent since both classes (secrets and non-secrets) went

through the initial regular expression ﬁltering. Con-

sidering all this, all 7,382 samples were left for eval-

uation. To train the model we collected a separate

dataset based on public and automatically generated

data.

Figure 2: The training dataset consists of two classes: se-

crets that must be protected and cannot be stored in a code-

base and non-secrets (regular code snippets). The data con-

sists of three parts: passwords from public repositories, au-

tomatically generated API keys, and code strings from a

public dataset containing code snippets. The ﬁrst two parts

(passwords and API keys) form the ﬁrst class — secrets,

and the third part (code strings) — the second class, non-

secrets.

Building a new dataset has obvious advantages

(you can build a large dataset), but it also has some

drawbacks. A priori, it is possible that the model will

show high quality on the train dataset, but low on

the test one (since they are from different domains).

However, in our case everything went smoothly. The

model showed the ability to cross-domain transfer.

Also, note that since no sensitive data is used for train-

ing the model, such a model can be safely made pub-

lic.

In order to collect a large and diverse dataset, we

use various sources (Fig. 2). In general, we need to

collect three sets of data: passwords, API keys, and

non-secrets.

3.1.1 Passwords

Currently, there are many different datasets avail-

able containing leaked user passwords. To build

the dataset with passwords we use three sources:

the rock you

dataset and two datasets from the

SecLists

repository. These datasets are ﬁltered (too

simple passwords are skipped) and deduplicated.

Authorization systems often do not allow you to

specify an arbitrary sequence of characters as a pass-

word — the password must provide minimal com-

plexity. The complexity of the password is regulated

by its length, the use of numbers, special characters.

Therefore, when collecting passwords for our dataset,

we use ﬁltering so that the most “simple” passwords

do not get into the dataset. Note that often public

datasets with passwords contain additional informa-

tion (password popularity or complexity) that can be

used to judge its complexity. However, we do not use

https://www.tensorﬂow.org/datasets/catalog/rock you

https://github.com/danielmiessler/SecLists

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

592

this information due to the fact that different datasets

use different approaches to determine the complexity.

Our dataset did not include passwords that consisted

only of numbers. In addition, a password was not

included in our dataset if it consisted of only lower-

case or only uppercase letters. Additionally, we used

one more technical limitation: we skipped passwords

longer than 128 characters (note that there were very

few such long passwords, no more than ten items for

the entire dataset). Filtering simple passwords is op-

tional and not a mandatory step. Note that the ex-

clusion of simple passwords from the training sample

does not mean that they will automatically cease to be

determined as passwords (in our approach, the deci-

sion is made on the basis of bigrams).

As a result of such ﬁltering, the number of pass-

words decreased from 14,344,391 to 249,447 for the

rock you source. The million most popular pass-

words list (Miessler, 2021b) from the SecList repos-

itory reduced to 481,621 items. Before ﬁltering

000webhost list (Miessler, 2021a) contained 720,302

passwords, and after ﬁltering — 718,568 passwords.

After ﬁltering we deduplicated the data since some

passwords were present in several sources at the

same time. For example, the size of the intersec-

tion of rock you and 000webhost list was equal to

34,642. As a result, we received a dataset containing

1,337,342 passwords.

Note that it was possible not to perform the ﬁl-

tering and data deduplication procedures. Then we

would have received a lower quality dataset, since

it contained duplicates and more simple passwords.

Nevertheless, by performing ﬁltering and deduplica-

tion, we signiﬁcantly reduced the size of the dataset.

3.1.2 API Keys

To obtain API keys we use the keygen utility, which

allows you to generate keys in a given format. We

found it convenient to use the appropriate Python

package

. The following arguments were used for

generation:

• keygen -s h -l 8

• keygen -s h -l 16

• keygen -s uldp -l 8

• keygen -s uldp -l 16

• keygen -e uuid

As a result, we received 1,337,340 keys (approx-

imately equal to the number of passwords in our

dataset).

https://pypi.org/project/keygen/

3.1.3 Non-Secrets

Passwords and API keys make up the class of se-

crets in the training dataset (see Fig. 2). In addi-

tion, we need a non-secret class. To do this we take a

part of the dataset GitHub Code Snippets

with code

snippets in different languages. This dataset contains

4,850,000 code snippets. Each snippet is a piece of

code. Thus, the number of string literals that are not

secrets is even greater. To ensure the class balance

for the downstream binary classiﬁcation task we ex-

tracted only 2,674,682 string literals from the snippets

(according to the size of the secret class consisting of

passwords and API keys). The code from the snip-

pets has been split into string literals based on whites-

paces. If the string literal was longer than 128 charac-

ters, then it was skipped.

Note that in this case again we have a big differ-

ence in domains. This complicates the original task,

but in the case of success, a more reliable solution can

be obtained. For example, we got another distribution

of programming languages. In the dataset, the most

popular languages are: C, JavaScript, Go, Java, and

C++, while the main target language for the evalua-

tion is C#.

Thus, the dataset for training the model contains

about 5 million strings. Each string is labeled as secret

or non-secret. The number of secrets is roughly equal

to the number of non-secrets. Half of the secrets are

passwords and the other half are API-keys.

3.2 Models

The aim of this research is to obtain a secret detector

with a small number of false positives. In general, we

follow the following plan (Fig. 3):

1. transform the string into a vector;

2. classify the vector (secret, non-secret).

This data transformation is standard for machine

learning based approaches. First, we vectorize an ob-

ject: the values of explicit or implicit features are

calculated. Then it becomes possible to classify ob-

jects using machine learning methods. At the output

we have the probability that object belongs to certain

class.

The choice of features at the stage of vectoriza-

tion is very important. Obviously, if the features do

not contain information useful for separating classes,

then it will not work well to classify objects. Here we

use two approaches. First, we follow the assumption

https://www.kaggle.com/datasets/simiotic/github-

code-snippets

Using Bigrams to Detect Leaked Secrets in Source Code

593

Figure 3: Data pipeline. At the input we have a candidate

string, at the output — the probability that object belongs to

certain class. First, the input string is vectorized. For exam-

ple, using bigrams each string is transformed into a vector

from R

1024

via count vectorizer with the dictionary of size

1024. Next, the vector is sent to the classiﬁer (CatBoost,

LogReg or feedforward neural network) to determine if it is

secret or not using conﬁdence threshold.

that the code (and hence its fragments, string literals)

has much in common with the natural language (Ray

et al., 2016). This means that the methods that have

proven themselves in NLP are of interest. Secondly,

we don’t use hand-crafted features, but use bigrams

(Manning et al., 2008) and pretrained code models. A

bigram is a sequence of two adjacent elements from a

string of tokens, which are typically letters, syllables,

or words. In our case bigram is two consecutive char-

acters. As usual with this approach, a vocabulary of

bigrams is built on the basis of the training dataset.

We assume that the entropy of non-secrets is lower

than that of secrets (some approaches for detecting se-

crets are based on this (Meli et al., 2019)). Thereofore

we use only non-secrets (approximately 2.5 million)

to build a vocabulary of bigrams. Using secret we

will get a huge vocabulary in which any arbitrary bi-

gram can be found with approximately the same prob-

ability. If we use only strings from non-secret class,

which are mostly code fragments, then the distribu-

tion of bigrams is very different from uniform. More-

over, due to the large number of bigrams, it is not ad-

visable to use all of them as features: ﬁrstly, the vec-

tors will have large dimension, and, secondly, they

will be very sparse. If the bigram is uncommon, then

the corresponding feature will almost always be zero.

(For this reason, we did not use bigrams from secret

class. If you use some of them, then in most cases

they will not be found among non-secrets or other se-

crets. If you use all, then there will be too many of

them.) Thus, to calculate the features, we used only a

limited number of the most frequent bigrams. In our

case the dimension of the vectors was 1024. In the

general case, the choice of the number of features de-

pends on the computing resources and the ability of

downstream classiﬁers to work with sparse vectors.

In this bigram-based approach, the coordinates of

the vectors (features) express the statistical properties

of n-grams. In other words, the resulting vectors con-

tain the syntactic features of the strings. This means

that, e.g., the vectors corresponding to the strings

“password” and “secret” are very different. Despite

the close semantics, regarding bigrams these strings

are completely diverse. This is not a problem when

the training dataset contains all possible variations,

but can lead to a signiﬁcant reduction in quality oth-

erwise. One way to mitigate this issue is to use se-

mantic features. Hence we have another approach,

that uses pretrained model as a universal feature ex-

tractor for getting semantic embeddings. The pro-

posed approach uses GraphCodeBERT (Guo et al.,

2021) representation for a string candidate. It is a

pretrained model for a programming language that

considers the inherent structure of code. GraphCode-

BERT is semantic contextual multilingual represen-

tation based on the multi-layer bidirectional Trans-

former (Vaswani et al., 2017). The model follows

BERT (Devlin et al., 2019) and RoBERTa (Liu et al.,

2019). The resulting 768-dimensional vector repre-

sents a string.

After the string is transformed into a vector (of

length 1024 or 768, depending on the selected repre-

sentation) the classiﬁcation is started. As classiﬁca-

tion algorithms we used two well-known standard al-

gorithms: LogReg(McCullagh and Nelder, 1989) and

CatBoost(Dorogush et al., 2018).

4 RESULTS

At the moment, there are a large number of different

methods for solving the problem of binary classiﬁca-

tion. In this study, we used two: logistic regression

(one of the simples algorithms) and CatBoost (an al-

gorithm that has proven itself well for many classiﬁ-

cation tasks).

LogReg (logistic regression) is a statistical model

that models the probability of one event (out of two

alternatives) taking place by having the log-odds (the

logarithm of the odds) for the event be a linear com-

bination of one or more independent variables (“pre-

dictors”). Here we uses sklearn

implementation

of the algorithm.

CatBoost is an algorithm for gradient boosting on

decision trees. CatBoost builds symmetric (balanced)

trees, unlike XGBoost and LightGBM. In every step,

leaves from the previous tree are split using the same

condition. The feature-split pair that accounts for the

lowest loss is selected and used for all the level’s

https://scikit-learn.org

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

594

Table 1: GPU usage.

CPU GPU

representation: bigrams ✓

representation: pretrained ✓

classiﬁcation: LogReg ✓

classiﬁcation: CatBoost ✓

nodes. This balanced tree architecture aids in efﬁ-

cient CPU implementation, decreases prediction time,

makes swift model appliers, and controls overﬁtting

as the structure serves as regularization.

Depending on string literal representation and

which algorithm is used for the classiﬁcation task, we

have the following approaches.

1. bigrams+LogReg (bigrams and logistic regres-

sion),

2. bigrams+CatBoost (bigrams and CatBoost),

3. pretrained+CatBoost (GraphCodeBERT and Cat-

Boost).

We did not explore the pretrained+LogReg ap-

proach because by this point we already had the re-

sults of the pretrained+CatBoost approach. Based on

the results of pretrained+CatBoost, it became clear

that you should not count on fewer errors in pre-

trained+LogReg than it was in bigrams+CatBoost.

4.1 Training

For training the dataset described above was used,

consisting of public and automatically generated data.

The GPU was used to speed up the calculations dur-

ing model training (see Table 1).

As follows from Table 1 we used a GPU to train

the CatBoost classiﬁer. Due to the large size of the

dataset and the large dimensionality of the vectors,

the algorithm builds a large tree. This requires com-

putational resources and a large number of iterations.

We used the implementation of the CatBoost

al-

gorithm for the Python language. Iteration limit is

50,000; coefﬁcient at the L2 regularization term of the

cost function is 2; loss function is logloss; learn-

ing rate is 0.05; bagging temperature is 1; random

strength is 1; leaf estimation method is Newton; early

stopping rounds parameter is 100. Model training

took less than an hour on a GeForce GTX 1080 Ti

graphic card.

To build semantic embeddings we used a pre-

trained GraphCodeBERT

model. This model was

used for vectorization without additional ﬁne-tuning

(see (Abnar et al., 2021)).

https://catboost.ai

https://huggingface.co/microsoft/graphcodebert-base

Table 2: The results of the three experiments. For each ex-

periment, FPR, FNR, and F1 score are given.

FPR,

FNR,

bigrams+LogReg 5.92 16.67 0.78

bigrams+CatBoost 2.4 1.87 0.96

pretrained+CatBoost 7.94 7.52 0.79

Table 3: The confusion matrix for bigrams+CatBoost

model.

predicted se-

cret

predicted non-

secret

secret 1946 37

non-secret 130 5269

4.2 Evaluation

Models were evaluated on a separate private dataset.

This dataset is the most consistent with the target do-

main. It contains 7,382 samples. All these samples

correspond to the real situation and have been manu-

ally labeled into two classes: secrets and non-secrets.

As ﬁnal metrics, we used the FPR (false positive rate)

and FNR (false negative rate) since such metrics most

accurately reﬂect the functionality of the models.

In Table 2 we present the test results. It is expected

that the model based on LogReg showed the worst

result. The best result was shown by a model based

on bigrams and CatBoost. The confusion matrix for

this experiment can be found in Table 3.

The model based on the pretrained model showed

an average result, lower than expected. However, we

believe that this result can be better if string context

is used, that is, characters before and characters af-

ter are taken into account. In such case, contextual

embeddings may contain information useful for clas-

siﬁcation.

5 CONCLUSION

In this research we investigate the problem of detect-

ing leaked secrets in the code. As a result, we propose

an approach to leaked secret detection in source code

based on machine learning using bigrams. This ap-

proach signiﬁcantly reduces the number of false posi-

tives. It showed a false positive rate of 2.4% and false

negative rate of 1.9%. The model was trained on pub-

lic and automatically generated data, and the evalua-

tion took place on target domain, which allows us to

conclude that the resulting solution is stable and reli-

able.

Using Bigrams to Detect Leaked Secrets in Source Code

595

We believe that a promising direction for future

research is the use of pretrained code models. Appar-

ently, the application of such models to build seman-

tic embeddings using the context of the secret (previ-

ous and subsequent tokens) will give better quality,

although it will require more computing resources.

The pretrained code models contain the programming

language model (MLM, masked-language modeling

task). This makes it possible to understand, based on

the context, what is happening in a given fragment

of code. Whether it’s sensitive information or not. A

similar situation occurs in the code completion task or

in the variable name prediction task, where pretrained

code models are great (Guo et al., 2022).

REFERENCES

Abnar, S., Dehghani, M., Neyshabur, B., and Sedghi, H.

(2021). Exploring the Limits of Large Scale Pre-

training. ArXiv, abs/2110.02095.

Collins, K. (2016). Developers keep leaving secret keys

to corporate data out in the open for anyone to take.

https://qz.com/674520.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2019). BERT: Pre-training of deep bidirectional

transformers for language understanding. In Proceed-

ings of the 2019 Conference of the North American

Chapter of the Association for Computational Lin-

guistics, pages 4171–4186, Minneapolis, Minnesota.

Ding, Z. Y., Khakshoor, B., Paglierani, J., and Rajpal,

M. (2020). Snifﬁng for Codebase Secret Leaks

with Known Production Secrets in Industry. CoRR,

abs/2008.05997.

Dorogush, A. V., Ershov, V., and Gulin, A. (2018). Cat-

boost: gradient boosting with categorical features sup-

port. ArXiv, abs/1810.11363.

Guo, D., Ren, S., Lu, S., Feng, Z., Tang, D., Liu, S.,

Zhou, L., Duan, N., Svyatkovskiy, A., Fu, S., Tu-

fano, M., Deng, S. K., Clement, C. B., Drain, D., Sun-

daresan, N., Yin, J., Jiang, D., and Zhou, M. (2021).

GraphCodeBERT: Pre-training code representations

with data ﬂow. In ICLR 2021.

Guo, D., Svyatkovskiy, A., Yin, J., Duan, N.,

Brockschmidt, M., and Allamanis, M. (2022).

Learning to Complete Code with Sketches. ArXiv,

abs/2106.10158.

Kall, S. and Trabelsi, S. (2021). An Asynchronous Feder-

ated Learning Approach for a Security Source Code

Scanner. In ICISSP, pages 572–579.

Klieber, W., Flynn, L., Bhosale, A., Jia, L., and Bauer, L.

(2014). Android taint ﬂow analysis for app sets. In

SOAP.

Knight, S. (2016). 10,000 AWS secret access keys care-

lessly left in code uploaded to GitHub. https://www.

techspot.com/news.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen,

D., Levy, O., Lewis, M., Zettlemoyer, L., and Stoy-

anov, V. (2019). RoBERTa: A robustly optimized

bert pretraining approach. arXiv e-prints, page

arXiv:1907.11692.

Lounici, S., Rosa, M., Negri, C. M., Trabelsi, S., and

Onen,

M. (2021). Optimizing Leak Detection in Open-

source Platforms with Machine Learning Techniques.

In ICISSP, pages 145–159.

Manning, C. D., Raghavan, P., and Sch

utze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, USA.

Marlow, P. (2019). Finding Secrets in Source Code the De-

vOps Way. In SANS Institute.

McCullagh, P. and Nelder, J. A. (1989). Generalized linear

model. In CRC press, volume 37.

Meli, M., McNiece, M. R., and Reaves, B. (2019). How Bad

Can It Git? Characterizing Secret Leakage in Public

GitHub Repositories. Proceedings 2019 Network and

Distributed System Security Symposium.

Miessler, D. (2021a). 000webhost. https://github.com/

danielmiessler/SecLists/blob/master/Passwords/

Leaked-Databases/000webhost.txt.

Miessler, D. (2021b). 10 million password list top

1000000. https://github.com/danielmiessler/SecLists/

blob/master/Passwords/Common-Credentials/

10-million-password-list-top-1000000.txt.

Rahman, M. R., Imtiaz, N., Storey, M.-A., and Williams,

L. (2022). Why secret detection tools are not enough:

It’s not just about false positives — An industrial case

study. Empirical Software Engineering, 27(3):1–29.

Ray, B., Hellendoorn, V., Godhane, S., Tu, Z., Bacchelli,

A., and Devanbu, P. (2016). On the ”naturalness” of

buggy code. ICSE ’16, pages 428–439.

Roesch, M. (1999). Snort — Lightweight Intrusion Detec-

tion for Networks. In LISA.

Saha, A., Denning, T., Srikumar, V., and Kasera, S. K.

(2020). Secrets in Source Code: Reducing False Pos-

itives using Machine Learning. In 2020 International

Conference on COMmunication Systems NETworkS

(COMSNETS), pages 168–175.

Sinha, V. S., Saha, D., Dhoolia, P., Padhye, R., and Mani, S.

(2015). Detecting and Mitigating Secret-Key Leaks

in Source Code Repositories. In Proceedings of the

12th Working Conference on Mining Software Repos-

itories, MSR ’15, pages 396–400. IEEE Press.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. NIPS’17, pages

6000–6010.

Viennot, N., Garcia, E., and Nieh, J. (2014). A measure-

ment study of Google Play. In The 2014 ACM Inter-

national Conference on Measurement and Modeling

of Computer Systems, ser. SIGMETRICS, pages 221–

233.

Zhou, Y., Zhang, X., Jiang, X., and Freeh, V. W. (2011).

Taming informationstealing smartphone applications

(on android). In TRUST.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

596
