An Ontology-based Knowledge Management Model on Information

Governance

Cataldo Mega

Department of Information, University of Stuttgart, Universitaetsstrasse 38 56075, Germany

Keywords: Enterprise Information Management, Information Governance, Ontology, Knowledge Graph, Cloud-Services.

Abstract: Information is a strategic asset to enterprises and subject to Information Governance (IG) as mandated by

corporate and regulatory compliance. Overall governance goals are the management and control of business

relevant data such to minimize legal risks and reduce operational cost. Recent surveys show that around 40%

of companies have insufficient IG practices in place and are exposed to higher compliance risks. Where there

exists an IG Strategy, its implementation is typically homegrown, difficult to integrate and error prone. Our

investigation shows that a major impediment to implementation and interoperability is the lack of a common

language. One that defines what information governance consists of in technical and operational terms. In

addition, the many existing frameworks in this domain make the exploitation of the available knowledge and

definition of standardized IG specific services very difficult, often leading to costly one-off implementations.

A solution to this problem is the availability of a common and unambiguous domain vocabulary as a pre-

requisite to a commonly accepted ontology on information governance. This paper suggests an ontology-

based framework (IGONTO) that supports the creation of a knowledge store that facilitates access of domain

knowledge through semantic search.

1 INTRODUCTION

Our work is premised on the basis that domain

knowledge, expertise and technology on information

governance solutions exist in abundance but scattered

around and difficult to get hold on. In order to aid

companies to find the blueprint of an IG solution that

suites their needs the existing knowledge must be

collected, synthesized, and offered as a service,

accessible to humans and machines in an easy and

cost-effective way. We believe this is best done

through the use of an ontology-based model on

information governance.

Our suggestion is to create an information

governance graph based on an ontology constructed

with a rich semantic model. We envision a graph store

containing generalized information of governance

concepts, components modelled from functional,

non-functional and operational requirements together

with a list of design artefacts that expose key IG

capabilities and functions. Figure 1 outlines this

approach showing the processing pipeline. Starting

from left to right you see: Step 1 knowledge

a https://orcid.org/0000-0002-2816-2699

acquisition phase, where, vocabularies terms,

guidelines, standards, and best practices are acquired

from the IG domain. Step 2 processing phase, the

information is processed in to a taxonomy of related

concepts, associated rule sets and their descriptions.

Step 3 access phase, this is where we create the

semantic schema and load instance data (individuals)

in to the knowledge graph. Step 4 delivery phase, at

this point users are able to retrieve design models and

service templates as constituent parts of an IG

solution blueprint and build plans. The result is

IGONTO a framework consisting of a harmonized

information governance vocabulary, a semantic

schema (IGO) and a knowledge graph (IGG).

Complementing the framework, we also created a

repository of design artefacts in aid of the

development of IG solutions. The aim is to provides

a way for interested parties to use the framework as a

knowledge system for generating state-of-the-art

design models and building blocks such for being

able to compose an envisioned IG solution.

The remainder of this paper details our approach

and is structured as follows: Section 1.1 introduces

168

Mega, C.

An Ontology-based Knowledge Management Model on Information Governance.

DOI: 10.5220/0011985000003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 2, pages 168-178

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Figure 1: Process pipeline from knowledge acquisition to service implementation.artefacts.

briefly some of the key aspects of the governance

domain but focusing on information governance.

Section 1.2 describes the business problem. Section

1.3 motivates a solution with a concrete use case

scenario. Section 2 discusses the governance domain

analysis we conducted. Section 2.1 lists our

contributions. Section 3 uses the results of the

analysis to introduce the taxonomy and the IG

knowledge models which we created. Section 4

presents related work. Section 5 has concluding

remarks and an outlook.

1.1 Governance Domains

Governance at its core is about corporate and

regulatory compliance. It is based on trust fueled by

continuous IG practice, monitoring its effectiveness

and control. This implies responsibilities and

commitments realized through processes that ensure

proper data access, implement guidelines and legal

requirements. As such, corporate governance (CG) in

an enterprise ensures that valuable information

adhere with proper quality standards related to data

authenticity, integrity and reliability in compliance

with regulations. Thus enterprises are governed by a

framework of principles, values, policies and

processes intended to help organizational units to

move towards shared corporate compliance goals.

The principal design criteria of governance have

a focus on enabling information quality strategies and

to classify process capabilities against an Information

Governance Maturity Model (Pierce, 2007). This

means, at its core governance models cover three

major responsibility domains: Corporate Governance

(CG), Information Governance (IG) and IT

Governance (ITG) outlined in Figure 2. Each domain

Figure 2: Corporate governance domains.

addresses different governance areas using

frameworks suitable for one or the other, emphasizing

more the organizational or implementation aspects.

The left-hand side of Figure 2 shows Information

Governance and its relations to the categories of

Information Management, Content Management,

Records Management and Asset Management. These

categories represent the context in which data is

processed under the scrutiny of information

governance lifecycles. The latter being workflows

that perform activities to apply compliance policies

and enforce rules on how to handle corporate data and

information. Similarly, IT Governance, as shown on

the right-hand side, relates to IT-Operations rules

applied to infrastructure, processes. Thus, in the end

governance means to enforce corporate compliance

goals ensuring accountability and transparency such

to minimize possible risks.

The focus of the remainder of this paper is on

information governance (IG) with occasional

references to the other domains, where required.

1.2 Problem Description

From experience we learned that the success of

information governance and regulatory compliance in

companies depends on a common understanding

conveyed through an unambiguous language. Such a

language is an important pre-requisite to design,

implementation and deployment of the required data

governance services and their controls. In addition, an

information governance strategy depends also on the

type of data processed and the business context they

belong to. For organizations this implies a

responsibility to implement information governance

practices that enforce proper data usage in their

specific production environment throughout the

entire information lifecycle.

The problem though is that even after knowing

‘what is’ required, many companies face challenges

with the architecture design of their individual IG

solution because of the many technology and product

options available on the market.

These circumstances translate into a lengthy and

formal process of announcing new information

governance projects through a Request for Proposal

IT-Infrastructure

IT Process

Performance

Information Governance (IG)

IT Governance (ITG)

Corporate Governance (CG)

Risk

In-Output

complements

Information

RecordsData

Assets

Records Management

Digital Asset Management

Content Management

Information Management

is_responsible_for

An Ontology-based Knowledge Management Model on Information Governance

169

(RFP) where in response, qualified contractors submit

bids to undertake the project. Typically, the RFP

document contains detailed information about the

project, requirements, and evaluation criteria.

The good news is that typical information

governance solutions follow on an architecture

blueprint that is composed of well-known software

design patterns, available domain knowledge and

experience. Luckily enough, software instances of IG

building blocks are available in a variety of IG

product offerings from open source and different

vendors. Therefore, our conclusion is that by

exploiting the available knowledge it is possible to

generate the required information on components and

design artefacts and allowing companies to compose

IG solutions instead of custom developing new ones.

Which is the goal of our approach outlined in Figure

1. This motivate the use of ontologies and knowledge

graphs to store domain knowledge and to make it

available through semantic search. The expected

benefit is that on a global and open information

market this knowledge facilitates the sharing of data

and services. We think ontologies can expedite access

and retrieval of IG service building blocks where the

requirements defined in concept entities are matched

by the capabilities of design entities.

1.3 Usage Scenario

Let us look at a real-world IG use case scenario to

better explain our approach. Assume a company

having the following business requisites:

• Business Data: Personal Identifiable

Information (PII), customer contractual data and

related contextual information;

• Businesses domiciled in: US, EU;

• Jurisdictions: US, EU;

• Regulations: US Privacy Act, EU GDPR;

Regulatory compliance with these business

requisites translates into the following functional and

non-functional requirements:

• R1: Contractual and legal obligations require to

collect and classify person and business data as well

as related information from pre-contract and

contract activities (the context).

• R2: Data is persisted reliably, after verifying its

authenticity and integrity.

• R3: Data is stored for as long as required by

business, legislations and regulations.

• R4: Access to stored data is controlled by

security and privacy policies.

• R5: Data is deleted or barred from access upon

lapse of a storage period prescribed by business or

legal instruments.

Figure 3 outlines the use case scenario in form of

a semantic graph which we subdivided into three

functional arias: Governance (top), Implementation

(middle) and Platform (bottom). Note: Capitalized

terms printed in bold represent key domain concepts.

The upper part outlines the business requisites and

reads like this: at corporate level a Company has a

business presence in the Countries: EU and US. Their

Jurisdictions are regulated by the US Privacy Act

(GSA, 2022)and the EU GDPR Regulations (EU,

2018). Thus, this Company by law must instate an IG-

Program consisting of a number of governance

principles that address at the least: Security, Privacy,

Integrity and Authenticity concerns in order to reach

a maturity level Essential (L3 of L5).

This means, each category consists of a number

of obligations and implementation requirements to be

satisfied. These are:

• R6: verify Data Authenticity,

• R7: ensure Data Integrity and

• R8: provide system and Service Reliability.

Figure 3: IG-Scenario concept classes and their relationships by domain.

Principles

Maturity Level

IG-Program

sets

Essential(L3)

Company

Records Management Practice

Regulation

specifies

requires

Record Lifecycle

has

Jurisdiction

Country

has

Data

Record

Repository

Metadata Repository

Content Repository

Database

Content Services

Compute, Storage, Network, Orchestrate, Manage

Governance

governs

is_stored_in

uses

Process

Rule

Retain

Dispose

operates_in

Access

Classify

Policy

Regulation

Alfresco Content Services

PostgreSQL

implemented by

Platform Services

Governance

Implementation

is_a

Security,

Privacy,

Integrity,

Authenticity

GDPR

US Privacy Act

is at

Platform

requires

uses

RDBMS

Hosted on

creates

execute

defines

uses

defines

L1-L5

consists of

Statistics

Reporting

produces

provides

defines

creates

Principles

Accountability,

Transparency, Integrity,

Protection, Compliance,

Availability, Retention

and Disposition.

Maturity levels

L1 – Insufficient

L2 – Started

L3 – Essential

L4 – Satisfactory

L5 - Sufficient

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

170

From an implementation stand point these

requirements translate into the following information

governance guidelines:

• GL1: “…in order to reach a governance

maturity Essential (level 3) an organization must

implement a Metadata Definition Process that is an

integral part of the implemented Records

Management Practice”. See Figure 3.

In addition, the US Privacy Act mandates that:

• GL2: “… Data integrity failures must be

monitored, assessed, and mitigated …”.

The center of Figure 3 lists the concept classes

mentioned in the guidelines: Data, Metadata, and

Records Management Practice. They all relate to

processes that satisfy the associated requirements by

means of inferred implementation and platform

components. For example: Repository, RDBMS,

Content Services as shown on the bottom of Figure 3

The line of thought at concept level follows this

logic: The Metadata Definition Process is responsible

for creating necessary governance metadata that

describe how data is processed and stored based on

applicable corporate and regulatory Policies.

By following well known domain best practices,

implementing such an IG-Program implies the

presence of repositories where Data and related

Metadata is securely stored. In this context, data is

subject to different Lifecycles and controlled by a

Records Management System.

Records Classification processes classify the data

in to categories and assign specific policies used to

control classification, access, retention and

disposition by means of appropriate Rules.

Corporate repositories typically use Databases,

Full Text Indexes and Storage Systems representing

IT-Resources that today are best provisioned by

Platform Services.

In a subsequent refinement step the IG concepts

are then mapped on to solution component models

and implementation classes where concept links are

translated into class relationships. For example,

following nodes at the bottom of Figure 3 one gets:

• Repository -> Content Repository-> Content

Services -> Alfresco Content Services

• Repository -> Metadata Repository -> Database

Service -> Database ->PostgreSQL.

With this approach, it is possible to identify the

required components and design an IG solution

following the architecture blueprint shown in Figure

4. From left to right, Figure 4 outlines how data is

processed. Starting from the data sources where data

is pre-processed and classified. Qualified data is then

collected and loaded in an enterprise information

systems (EIS) and put under control of information

lifecycles. Governance lifecycle processes create

required governance metadata before both data and

metadata are persisted in an enterprise repository

typically a Content Management (ECM) system.

Post-processing, shown on the right side of Figure 4,

is performed by Enterprise Records, Case

Management, eDiscovery and Content Analytics

components. These services produce required

governance information such to satisfy audit trails,

statistics and reporting needs.

At the high level Figure 3 represents the concept

and Figure 4 the implementation domain describing

the mapping between concept, classes and

components. The gist of what this use case is trying

to convey is that with the given business requisites

Figure 4: IG solution blueprint and its major components.

Data

Collection

Policy-Driven

collection from

known sources

Information Governance Services & Management

Retention, eDiscovery, Transfer & Disposal

Policy, Schedule, Information & IT Governance Workflows, Processes

Data

Classification

Data

Assessment

Provenance

Quality

Integrity

Dispose

Functions: Execute - Classify, Store, Archive, Retain, Transfer, Deliver, Dispose

Known Data Sources

Content in the “Wild”

Repository

Content Management

Archive

Enterprise

Records

eDiscovery

Analyzing

Text

Index

Catalog - RDB

Content Analytics

Case

Management

Fast Storage

for Database

& Text Index

Scaled-out

Storage

GPFS, SAN

Data Lakes

IG-Lifecycle

Sources

Pre-processing

Process

Processing

Post-

rocessin

Persisting

Platform Services

Resources

An Ontology-based Knowledge Management Model on Information Governance

171

and based on the defined semantic model, it is

possible to generate concept artefacts having the

capabilities and characteristics for satisfying the

implied functional, non-functional and operational

requirements with the aid of a knowledge store.

In summary we observe that a successful IG-

Program implementation depends directly on an

efficient enterprise information system where

governance is achieved through adjustments of the

information management practice with ongoing

monitoring, assessment and reporting.

2 IG DOMAIN ANALYSIS

This section briefly introduces the domain sources we

evaluated in our effort to identify valuable IG

knowledge, concept classes and their meaning. Table

1 shows a representative list of practitioner

organizations and public agencies, their frameworks

and scope. Common to the taxonomy employed by

each framework is a 3-level category structure.

Column 2 in Table 1 outlines the overall scope of each

governance frameworks and its functional areas.

These are: General Governance Principles (IGMM),

IG Reference Model (IGRM), Electronic Discovery

Reference Model (EDRM), IT Governance Suite,

Digital Asset Management, and Data Management

Framework.

Table 1: IG Frameworks.

Organization

Framework/Scope

ARMA IGMM - IG Maturity Model –

Principles

CGOC / EDRM

(EDM C. , 2021)

IG Reference Model, Electronic

Discovery Reference Model

ISACA COBIT - IT Governance Suite

DAM Digital Asset Management

DAMA Data Management Framework

NARA /CRL (US)

(NARA, 2006)

National Archives and Records

Administration

Records Management,

Center of Research Libraries

The main categories used across the frameworks

are: Accountability, Transparency, Integrity,

Protection, Compliance, Availability, Retention and

Disposition. These categories become principles.

They apply for the organizational or functional areas

and play an essential role when implementing an IG-

Program. See Figure 3. Each principle has a number

of context specific capabilities and/or requirements

assigned. They represent concept/class attributes or

relationship properties. The frameworks also

introduced a scalar metric called governance maturity

level (GML), with a value range from 0 to 5 (i.e. ad

ranging from ad hoc to a fully functional IG-Program

implementation). A GML is computed from a specific

subset of capabilities and requirements that must be

satisfied by context and category.

The last row of Table 1 lists (NARA, 2006) and

CRL both represent government agencies. They share

frameworks with a focus on the records management

lifecycles and aspects to manage and operate

Records-, Content Management System and Digital

Archives. Their guidelines draw requirements from

relevant standards like NIST.IR.8286C (Quinn S,

Barrett, & Witte G, 2022) (ISO-15489, 2016). We

evaluated also international ISO standards for the

applicable domain as listed in Table 2.

Table 2: ISO Standards.

Organization Standards

ISO

Standards

(ISO-14271, 2017) - Open Archive

Information System

(ISO-15489, 2016) Records Management:

Concepts and Principles.

ISO-16363 Audit and certification

(ISO-27000) family of standards related to

Information Security Management Systems

(ISMS) including Information security,

cybersecurity,privacy protection and risk

management guidelines.

Compliance Management systems

(ISO-37301, 2021)

Table 3 shows 3 privacy regulations in force in

the US, EU and DE jurisdictions. We included them

as they represent the security and privacy categories.

The two major principles information governance

these days.

Table 3: Regulators and Regulations.

Interesting to note: Ensuring compliance with

these regulations already employs a complex

implementation model. It involves elements of core

Enterprise Information Systems (EIS) concepts, like

the ones introduced and discussed in the use case

scenario.

In moving from business to implementation

concepts we searched for standards related to

enterprise information management (EIM) systems

and looked at their design models. The 3 Standards of

interest are listed in Table 4. These are the 2 OASIS

standards: 1) CMIS, the “Content Management

Regulator

Regulations

US GSA

US Government Services Agency

Directives: Privacy Act (GSA, 2022)

EUROPE

General Data Protection Regulation (EU, 2018)

Germany

DE Datenschutz-Grundverordnung

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

172

Interoperability Services” standard, 2) TOSCA the

“Topology and Orchestration of Specification for

Cloud Applications” and 3) the “Trustworthy Digital

Repositories” specification which was standardized

in ISO-14271.

Table 4: OASIS CMIS, TOSCA and ISO-14721 OAIS.

Organization Standards

OASIS

CMIS Content Management Interoperability

Services (CMIS

, 2015)

TOSCA Simple Profile in YAML Topology

and Orchestration of Specification for Cloud

Applications (TOSCA

, 2020)

NASA / ISO

Trustworthy Digital Repositories;

(ISO-14271, 2017) / (CCSDS 650.0-B-1)

All three standards are well suited for our

approach as they provide the required links between

the business/governance and systems/design

concepts. In order to create a complementary IG

graph store (IGG), we collected concept/class

instances (individuals) from open source and

commercial services offering and classified them by

functional area and capabilities. Table 5 shows the

group of vendors and lists their product and platform

services related to key IG classes and functional

components.

Table 5: Vendors and their service offerings.

Vendors Products

Alfresco

Alfresco Digital Business Platform:

Content, Process & Governance Services

(ACS, APS, AGS)

OpenText

Opentext / Documentum

IBM

Content Manager, FileNet, OnDemand &

Co-Products

Microsoft

Office 365, & Co-Products (Microsoft, n.d.)

Oracle

Oracle Cloud Services

Google

Google Cloud Services

Amazon

Amazon Cloud Services

Open Source

Docker, Kubernetes, others …

The results of the domain analysis lead to the

design of our ontology. We considered subsets of the

vocabulary terms and concepts. Basically, all those

related to services design, their implementation and

operational aspects. The ISO standards documenta-

tion provided relevant contextual information, which

we used to harmonize the chosen terms before

including them in the IGO semantic schema. The

1 https://docs.oasis-open.org/cmis/CMIS/v1.1/os/CMIS-

v1.1-os.html

2 https://docs.oasis-open.org/tosca/TOSCA/v2.0/TOSC

A-v2.0.html

3 https://www.alfresco.com/platform

4 https://www.opentext.com/products/content-cloud

5 https://www.ibm.com/products/content-services

vendor sources provided domain knowledge on

information management and information

governance through their product offerings. Overall,

through our research we found that standards and

regulations specify what has to be done and what

must be avoided when implementing an IG program.

Whereas frameworks emphasize more on guidelines

and how to achieve corporate and regulatory

compliance, such to reach a specific maturity level.

Implementing an IG program requires state-of the art

technology and methods that promote flexible and

efficient operations favoring the creation of business

value and reduce business, compliance and regulatory

risks. Companies in their actual implementation

efforts can take advantage from information and

artefacts delivered by open source communities,

payable services and online platforms

complementing their in-house development without

going through a lengthy RFP process.

2.1 Contributions

Our contribution can be summarized as follows: we

created an IG taxonomy, used it to design an ontology

(IGO) based on harmonized concept terms and

formalized relationships. Built an IG Graph (IGG)

loaded with instances (individuals) annotated with

domain knowledge on best practices, guidelines and

service descriptions and made this knowledge

accessible through semantic queries. To complement

the ontology and the IG graph we created also IGREPO

a repository of best practices documenttation,

guideline documents and prototype implementations of

service templates written in their domain specific

language (DSL) i.e. TOSCA and YAML.

3 IG KNOWLEDGE MODELS

This section details our ontology (IGO). Due to the

large number of concept/classes we first reorganized

the governance classification scheme into 6 top level

categories and 26 sub-categories. For each top-level

category we created an ontology.

The top-level categories are: Organization

(ORG), Information (INF), System (SYS),

6 https://learn.microsoft.com/en-us/sharepoint/dev/scena

rio-guidance/enterprise-content-management

7 https://www.oracle.com/content-management/

8 https://workspace.google.com/enterprise/

9 https://aws.amazon.com/

10 https://www.cncf.io/projects/

An Ontology-based Knowledge Management Model on Information Governance

173

Component (CPT), Lifecycle (LCS) and Platform

(PLT). We then harmonized the vocabulary terms and

aligned them according to their implementation

relevance and the functional area they belong to. Each

sub-category consists of a number of requirements,

capabilities, recommendations and domain

constraints. Together they form the overall IGO

concept model. A bird’s perspective of the IGO graph

was presented in Figure 3 a few more details are

discussed next.

The foundational ontology is Organization. It is

composed of the child level categories: Agent, Goal,

Objective, Quality, Compliance and Responsibility.

They form the high-level concepts, a semantic graph

that represent an Organization and its associated

concept classes in our context. Each class has a

description, relations (object properties), attributes

(data properties), comments and annotations. We

synthesized this information from domain

knowledge, best practices, and guidelines. (not shown

in this paper). The use of formal description ensures

that concept descriptions utilize unambiguous

semantics and well-formed rule sets readable by both

machines and humans.

The following 6 sub-sections provide a high-level

overview of the 6 ontologies created.

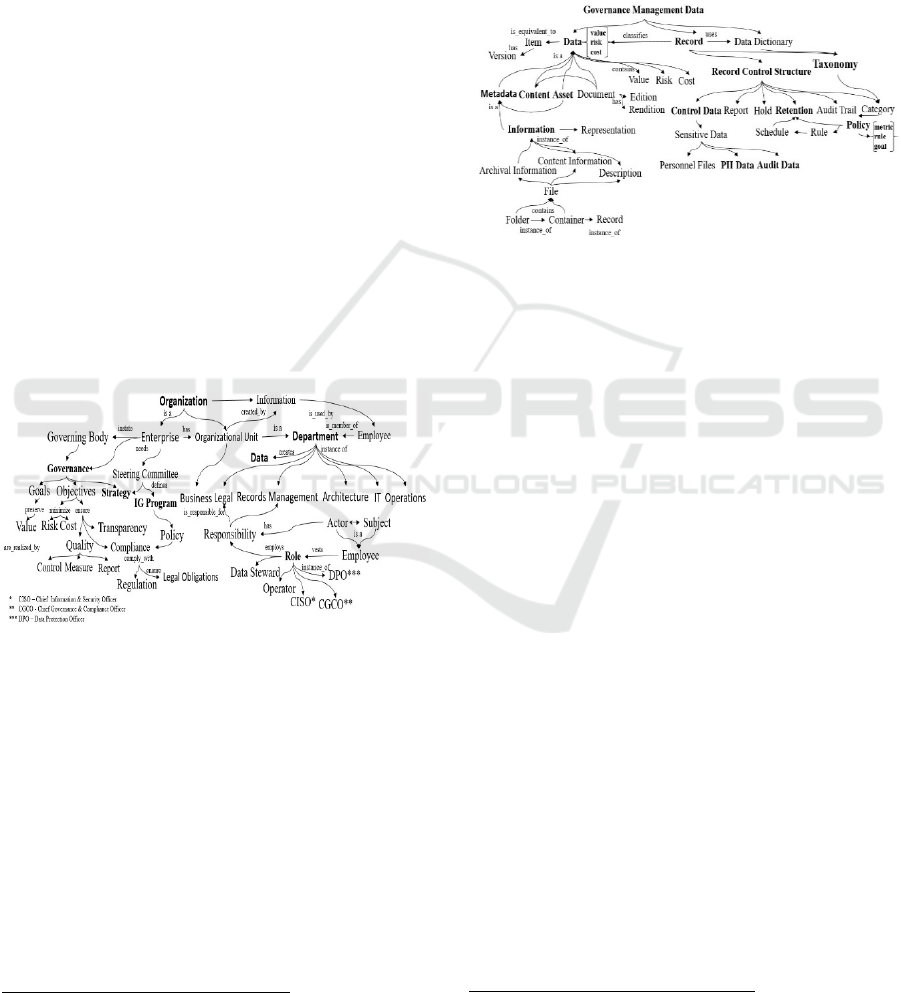

Figure 5: Organization semantic model (ORG).

3.1 Organization Model (ORG)

Model Description: Figure 5 shows the top-level

concepts of an organization as a sematic graph. The

defined concepts are: Organization, Organizational

Unit, Enterprise, Department on the right side.

Governance, Governing Body and Steering

Committee on the left side. One level below you see

instances of Organizational Unit: Business, Legal,

Records Management, Architecture and IT. These are

the typical Departments in an Enterprises.

11 CGCO Chief Governance and Compliance Officer

12 CISO Chief Information Security Officer

The idea conveyed is that departments produce

Data and Metadata through their services. Steering

Committees define long term goals and short-term

objectives. The latter being: data quality, compliance

with regulations and legal obligations. The lower

right corner of Figure 5 lists Employees who vest

Roles that are associated with Responsibilities and

their employed duties. Relevant governance related

roles are: CGCO

, CISO

, and DPO

Figure 6: Information semantic model (INF).

3.2 Information Model (INF)

Model Description: The Information ontology (INF)

is constructed around the key concept of Data. The

graph lists the concepts like: Content, Metadata and

Asset as derived classes. They represent digital

objects of any type and format. In this model, an Asset

represents a data container that links (aggregates)

together digital content, its metadata and associated

contextual information. At concept level Information

is shown as being derived from Metadata which is

itself derived from data. Figure 6 shows the

governance management model, starting with the key

concept of Record and its relation to Data. A Record

represents a set of governance metadata consisting of

classification information used to define process

control information related to security, privacy,

retention and disposition. Such processes are

controlled by Policy instances containing Rules

specific to the data category and lifecycle phase in

which data is being processed.

From a governance standpoint, the concept of a

Policy is the control mechanism assigned to data

through a Record. The record metadata reflects its

classification, according to applicable taxonomies.

By definition, a Policy class aggregates goals, rules

and metrics and is used by an information governance

Lifecycle. Goals, Rules and Metrics depended on

whether it refers to Content, Metadata, Asset,

13 DPO Data Protection Officer

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

174

Records or collateral Information. Assets have value,

cost and risk. Characteristics that are controlled by

governance policies. Policies employ the rules used

to steer wanted information governance course.

Typically, access to persisted data is secured by a

security policy in a way that data objects are assigned

access control permissions and roles are given a set of

privileges i.e. rights. To a subject requesting to

retrieve a specific data object, access is granted if the

subject vests a Role, where the roles privileges do

match the permission assigned to the data object.

Value, cost and risk of data depend on time;

therefore, the applied policies must change over time

and thus require an ongoing process that adjusts

policy rules accordingly. Typical data storage rules

are R1) Data with no value V (t) =0 and must be

deleted to reduce cost; R2) Data with high value must

be kept forever, but to reduce cost it has to be moved

onto less expensive storage. R3) PII Data must be

stored and handled according to regulations by

jurisdiction.

3.3 System Model (SYS)

Model Description: The Systems semantic model

entails the core concepts of the implementation

domain (see Figure 3). The vocabulary terms used in

this model, reflect key concepts related to the

architecture and design of an IG solution that are

based on requirements related to the IG program and

its implementations. Top-level classes are

Architecture, Design, Model and model instances,

including: Data- and Information Model down to the

deployment and execution model.

Figure 7: System semantic model (SYS).

The architecture and design terms listed in Figure

7 represent system characteristics typical of

Enterprise Information System (EIS). The semantic

schema outlined, shows the relationships between

architecture and systems components. It explains

what they do and how to use them. The lower part of

Figure 7 models the internal structure of an EIS

system. Consisting of a number of service

components like: Content-, Information Retrieval-

and Analytics components. A Repository in turn

utilizes a Catalog and a Full Text Index as its source

of information. Last in this hierarchy is the Execution

Environment and the Platform, concepts native to the

IaaS domain that describe how infrastructure

resources of the type Compute, Network and Storage

are provisioned or de-provisioned.

3.4 Component Model (CPT)

Model Description: The Component ontology

shown in Figure 8 is about concepts corresponding to

the major functional areas covered by an IG

framework.

Figure 8: Component semantic model (SYS).

These areas cover: Administration, Maintenance,

Management, Security, Privacy, Function, and

Records. Addressing functions like: Collect, Store,

Access, Index, and Classify components that

represent software with those capabilities. Through

the IGONTO framework (see Figure 11), these

concept/classes are mapped to pre-existing software

services. We found many of these services provided

online.

Their consumption is modelled as service

junction-points. A model that allows to form cross-

platform data processing pipelines.

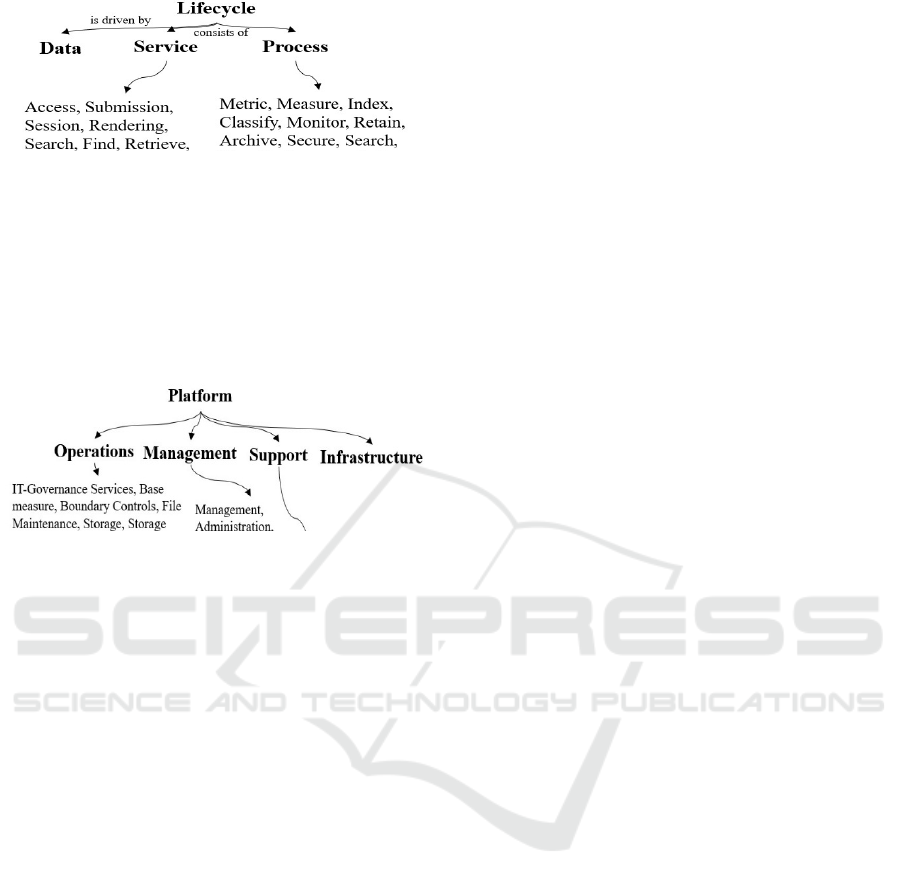

3.5 Lifecycle Model (LCS)

Model Description: The governance Lifecycle

model aggregates concepts related to services and

processes bound to workflows that steer the data

processing chain. They enforce corporate governance

policies using appropriate methods along the process

pipeline (see Figure 1) to collect records metadata.

Governance lifecycles protocol aspects on how

data processed. The governance logic monitors the

process flow and how data handled in their business

production environment. Along the data processing

pipeline complementary tracking information is

produce to ensure and safeguard the chain of custody.

Management

Security

Privacy

Function

Records

Component

Administration

Maintenance

Data, Metadata

Access Control

Policy

Confidentiality,

Conformity

Store, Access,

Classify,

Hold, Dispose

An Ontology-based Knowledge Management Model on Information Governance

175

Figure 9: Lifecycle semantic model (LCS).

3.6 Platform Model (PLT)

Model Description: The Platform ontology (PLT)

models the platform level. It describes the execution

environment, in which a system, its component and

required infrastructure resources are deployed and

orchestrated.

Figure 10: Platform semantic model (PLT).

For this ontology we collected descriptions of

available TOSCA service templates, their capabilities

and relationships. Such a service template describes

at concept level the required infrastructure resources,

the runtime environment, the build plans

(implementation artifacts) and the orchestration logic.

Usage notes complements the service templates with

the instruction of how to map a TOSCA services

template to a platform specific service instance.

For this research we used several tools and

technics that yielded the GONTO framework as a

byproduct, shown in Figure 11. We used Microsoft

Excel to design the taxonomies and prepared the data

to create concept models. The formalized knowledge

helped defining our ontology. Protégé (Musen,

2015)is used as the primary ontology authoring tool.

Apache Jena for loading of the data into the

AllegroGraph (AGraph) triple store. Apache Fuseki

is the protocol used to execute SPARQL queries for

both reporting as well as updating the triple stores.

Gruff as the tool for viewing, querying and

manipulating elements of the sematic data (IGG).

4 RELATED WORK

(DeStefano, Tao, & Gai, 2016) inspired this work

using a similar approach to address a different data

governance problem. (Casonato, 2011) elaborates on

the relationship between Enterprise Information

Management and Information Governance showing

that IG is an extension of EIM. (Leibtag, 2014)

explains the necessity of governance in enterprises.

(Proença, et al., 2018) re-elaborates on a maturity

model for information governance IGMM). (Cheng,

Li, Gao, & Liu, 2017) looks at the governance

maturity model and its implementation investigating

the impact of storing and managing data in the context

of cloud. (Yamada & Peran, 2017) suggests a

governance framework for enterprise analytics and

data. (Al-Ruithe, Benkhelifa, & Hameed, 2018)

compares data governance on cloud versus non-cloud

environments. (Abraham, Brocke, & Schneider,

2019) reviews data governance conceptual

frameworks suggesting a research agenda on white

spaces in the IG research areas. (Mahanti, 2021)

introduces the topics of Data, Data Governance, and

Data Management. Many ISO international standards

relate to information governance like: (ISO-14271,

2017), (ISO-15489, 2016), and the ISO family of

standards (ISO-27000). Little work was found related

on how to implement an IG framework from concept

to actual implementation. None using pre-defined

cloud services. Nor have we found the definition of a

IG semantic schema that utilizes existing

implementation knowledge. (Mubarkoot & Altmann,

2021) published some on software compliance in the

context of information governance. We found also

valuable concept work in W3C FIBO ontology from

(EDM & Council, 2020).

5 CONCLUSIONS AND

OUTLOOK

This paper describes our ontology-based knowledge

management model on Information Governance and

presented the IGONTO framework. Major effort in

our work was to collect domain knowledge from

available IG frameworks. We evaluated their

taxonomies, vocabularies, glossaries and best

practices. Then re-engineered the taxonomy,

enhanced the terms that represent core IG concepts,

defined the semantic schema (IGO) and created a

graph store (IGG). Available solutions components

were stored in the IGREPO repository as artefacts.

Our work provides a way for interested parties, to use

the framework as a system that makes domain

knowledge and experience explicit and accessible

through semantic queries. Result sets produced

consist of generalized service concepts including

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

176

Figure 11: The IGONTO framework.

descriptions of their functional, non-functional and

operational capabilities and a list of IG program

requirements they satisfy. We think of it as an

accelerator for building information governance

solutions composed of pre-defined IG services

artefacts offered on clouds discovered through an IG-

graph store. As an outlook on future work, we are

currently refining the IGONTO prototype and

working on a DSL for IG to extend TOSCA such to

provide a stronger bridge between concept, design

and implementation.

REFERENCES

Abraham, R., Brocke, J. v., & Schneider, J. (2019, July).

Data Governance: A conceptual framework, structured

review, and research agenda. International Journal of

Information Management, 49. doi:10.1016/j.ijinfomgt.

2019.07.008

Al-Ruithe, M., Benkhelifa, E., & Hameed, K. (2018,

January). Data Governance Taxonomy: Cloud versus

Non-Cloud. www.mdpi.com/journal/sustainability, 10,

2-26. doi:10.3390/su10010095

Casonato, R. (2011, May). Enterprise Information

Management and Information Governance 2011.

doi:10.3997/2214-4609.20144732

Cheng, G., Li, Y., Gao, Z., & Liu, X. (2017). Cloud data

governance maturity model. 2017 8th IEEE

International Conference on Software Engineering and

Service Science (ICSESS), (pp. 517–520).

doi:10.1109/ICSESS.2017.8342968

DeStefano, R. J., Tao, L., & Gai, K. (2016, June).

Improving Data Governance in Large Organizations

through Ontology and Linked Data. 2016 IEEE 3rd

International Conference on Cyber Security and Cloud

Computing (CSCloud). IEEE. doi:10.1109/cscloud.20

16.47

EDM, & Council. (2020). Financial Industry Business

Ontology (FIBO). . (EDM, & Council, Eds.) Retrieved

from https://github.com/edmcouncil/fibo

EDM, C. (2021). Information Governance Reference

Maturity Model - IGRM. Retrieved from https://edrm.

net/resources/frameworks-and-standards/information-

governance-reference-model/

EU. (2018, May 23). General Data Protection Regulation

GDPR. (EU, Editor) Retrieved from : https://gdpr-

info.eu/

GSA. (2022, May 22). 2200.1 CIO GSA Privacy Act

Program. (U. S. Administration, Editor) Retrieved

from: https://www.gsa.gov/directive/gsa-privacy-act-

program

ISO-14271. (2017). ISO-14721:2012 Open archival

information system (OAIS) — Reference model. (ISO,

Ed.)

ISO-15489. (2016). Records management Part 1: Concepts

and principles. (ISO, Ed.)

ISO-27000. (2018). ISO/IEC 27000:2018 Information

security management systems — Overview and

vocabulary. (ISO, Ed.)

ISO-37301. (2021). ISO-37301:2021 Compliance manage

ment systems. (ISO, Ed.)

Leibtag, A. (2014). Rule 5 - Make Governance Central. In

A. Leibtag (Ed.), The Digital Crown (pp. 217–229).

Boston: Morgan Kaufmann. doi:https://doi.org/10.10

16/B978-0-12-407674-7.09956-8

Mahanti, R. (2021). Introduction to Data, Data Governance,

and Data Management. In Data Governance and Data

Management (pp. 1–3). Springer Singapore.

doi:10.1007/978-981-16-3583-0_1

Microsoft. (n.d.). Enterprise Content Management in

Sharepoint. Retrieved from Enterprise Content

Management in Sharepoint: https://learn.microsoft.

com/en-us/sharepoint/dev/scenario-guidance/enterpri

se-content-management

Mubarkoot, M., & Altmann, J. (2021, December). Towards

Software Compliance Specification and Enforcement

Using TOSCA. doi:10.1007/978-3-030-92916-9_14

An Ontology-based Knowledge Management Model on Information Governance

177

Musen, M. A. (2015, ). The prot{\'{e}}g{\'{e}} project: a

look back and a look. AI matters, pp. 2--12.

doi:10.1145/2757001.2757003

NARA. (2006). Guidance for Building an Effective

Enterprise-wide Electronic Records Management

(ERM) GovernanceStructure. Retrieved from

https://www.archives.gov/records-

mgmt/policy/governance-guidance.html

Pierce, E. M. (2007). Designing a data governance

framework to enable and influence IQ strategy.

Proceedings of the MIT 2007 Information Quality

Industry Symposium, (pp. 18–19).

Proença, D., Vieira, R., Borbinha, J., Calado, P., Martins,

B., Kaminski, J., Anderson, J. (2018). A Maturity

Model For Information Governance. doi:10.5281/

ZENODO.1173086

Quinn S, I. N., Barrett, M., & Witte G, G. R. (2022). Staging

Cybersecurity Risks for Enterprise Risk Management

and Governance Oversight. doi:doi.org/10.6028/NIST.

IR.8286C

Yamada, A., & Peran, M. (2017). Governance framework

for enterprise analytics and data. 2017 IEEE

International Conference on Big Data (Big Data), (pp.

3623–3631). doi:10.1109/BigData.2017.8258356

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

178
