A Machine Learning Approach to Digitize Medical History and Archive

in a Standard Format

Mohamed Mehfoud Bouh

, Forhad Hossain

and Ashir Ahmed

Faculty of Information Science and Electrical Engineering, Kyushu University, Fukuoka, Japan

Keywords:

Machine Learning, Electronic Health Records, Portable Health Clinic, Data Digitization, Data

Standardization, Data Integration.

Abstract:

Thanks to the advancement of information technology and the wide adoption of smartphone-based apps, an

enormous amount of medical information is being produced worldwide. However, most of the medical records

are yet to be standardized. Small clinics in developing countries generate only handwritten medical documents.

Our past medical history is not digitized. Machine learning approaches applied to predict disease are quite

common. But it will need sufﬁcient past medical records to analyze. However, we do not have past medical

records in digital form. This research aims to generate standard Electronic Health Records (EHRs) from

paper-based documents. The major research tasks will be to investigate (1) the commonalities and differences

of current unstructured paper-based medical documents, (2) the best technology to convert the paper-based

documents into unstructured data, and (3) Extracting structured data from the unstructured data, (4) Integrating

the structured into EHR databse using FHIR-based or OpenEHR Type System. This will produce standard

medical history. Once medical histories are available in a standard format, it will be possible to predict

personalized health status more accurately.

1 INTRODUCTION

In developing countries, access to healthcare can be

limited due to a lack of infrastructure, resources, and

trained medical professionals. Portable Health Clinic

(PHC) has been proposed as a solution to this prob-

lem, as it is designed to be easily transported to re-

mote and under-served areas. (Ahmed et al., 2014).

In the ﬁeld of healthcare, the use of paper-based

documents is still prevalent despite the increasing

adoption of Electronic Health Records (EHRs) and

Electronic Medical Records (EMRs)(Rigatti, 2017).

While many healthcare organizations have imple-

mented EMRs and EHRs, some still rely on paper-

based systems, particularly in smaller clinics and ru-

ral areas (Tolera et al., 2022). However, paper docu-

ments can be difﬁcult to manage and access, leading

to inefﬁciencies in patient care and increased risk of

errors. Additionally, older adults often have multi-

ple chronic conditions and take multiple medications,

which means they have a lot of medical information

https://orcid.org/0000-0002-7716-7007

https://orcid.org/0000-0002-3593-0860

https://orcid.org/0000-0002-8125-471X

to keep track of. This can be difﬁcult for them to re-

member. One solution to these problems is the use

of document scanning technology to digitize paper-

based medical documents and integrate them into

EHRs using FHIR(Fast Healthcare Interoperability)

or OpenEHR(Open Electronic Health Record). FHIR

and OpenEHR are both standards for electronic health

records that aim to improve interoperability and data

sharing between EHR systems, but they differ in their

approach, focus, and adoption(Saripalle et al., 2019).

This process allows for the conversion of physical

documents into digital formats, which can then be

easily stored, shared, and accessed by healthcare pro-

fessionals. This paper will investigate the technical

aspects of scanning paper-based medical documents

and integrating them into EHRs in a standard format.

It will also outline a system architecture with the goal

of providing systems such as PHC and SHGC (Smart

Health Gantt Chart) that our lab is developing (Hos-

sain et al., 2022) with the appropriate data collection

mechanism from paper-based documents in order to

predict patient’s health status more accurately.

230

Bouh, M., Hossain, F. and Ahmed, A.

A Machine Learning Approach to Digitize Medical History and Archive in a Standard Format.

DOI: 10.5220/0011986400003476

In Proceedings of the 9th International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2023), pages 230-236

ISBN: 978-989-758-645-3; ISSN: 2184-4984

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

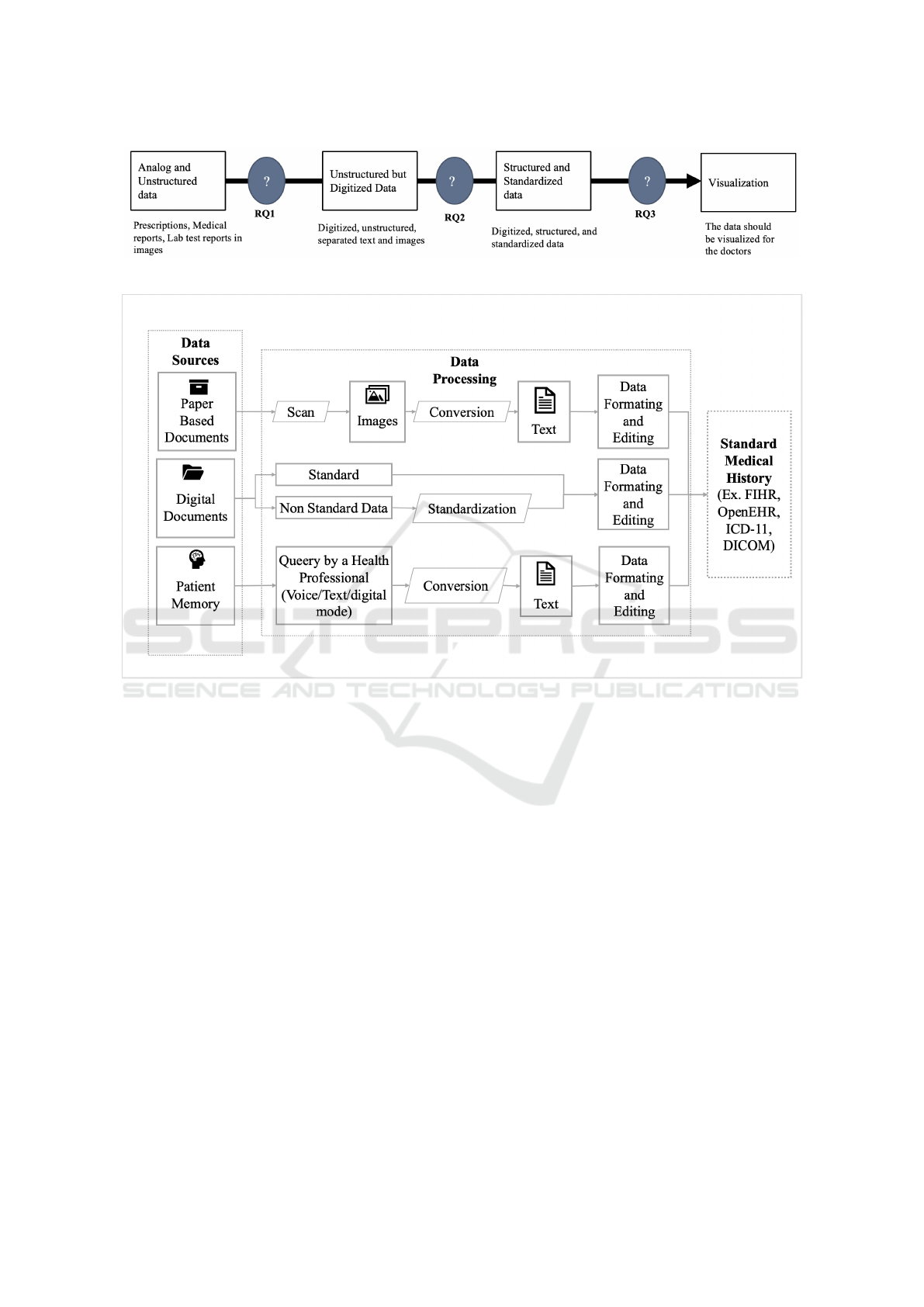

Figure 1: Research Questions.

Figure 2: Data Collection Mechanism for the Smart Health Gantt Chart (Hossain et al., 2022).

2 NEED FOR DIGITIZATION

AND STANDARDIZATION OF

MEDICAL HISTORY

• Digitization: Digitization of medical history can

improve the efﬁciency and accessibility of health-

care. EMRs can be easily shared between health-

care providers, reducing the need for patients to

repeat medical tests and information. This can

also reduce errors and improve continuity of care.

EMRs can also be accessed remotely, which can

be especially beneﬁcial in rural or underserved

areas. Additionally, digitized medical records

can be analyzed to improve population health

and research(Kaneko et al., 2018). Most medical

records are not digitized. Without digitized medi-

cal records, it is difﬁcult for researchers to predict

future health events.

• Standardization: Different systems and devices

can communicate and share information with ease

thanks to standardization. This can reduce the risk

of errors and improve the continuity of care.

Currently, many hospitals are generating digitized

medical records but they are not shared with indi-

vidual patients. Personal healthcare management re-

quires healthcare records to be managed by individu-

als. This research will enable patients to manage and

control their health records. By enabling better data

management, data sharing, and regulatory compli-

ance, digitizing medical records can raise care qual-

ity, increase patient engagement, and reduce costs.

This research aims to generate standard EHRs from

scanned paper-based documents.

3 RESEARCH MOTIVATION AND

OBJECTIVES

To increase the effectiveness and precision of EHR

systems, this research is going to study and pro-

A Machine Learning Approach to Digitize Medical History and Archive in a Standard Format

231

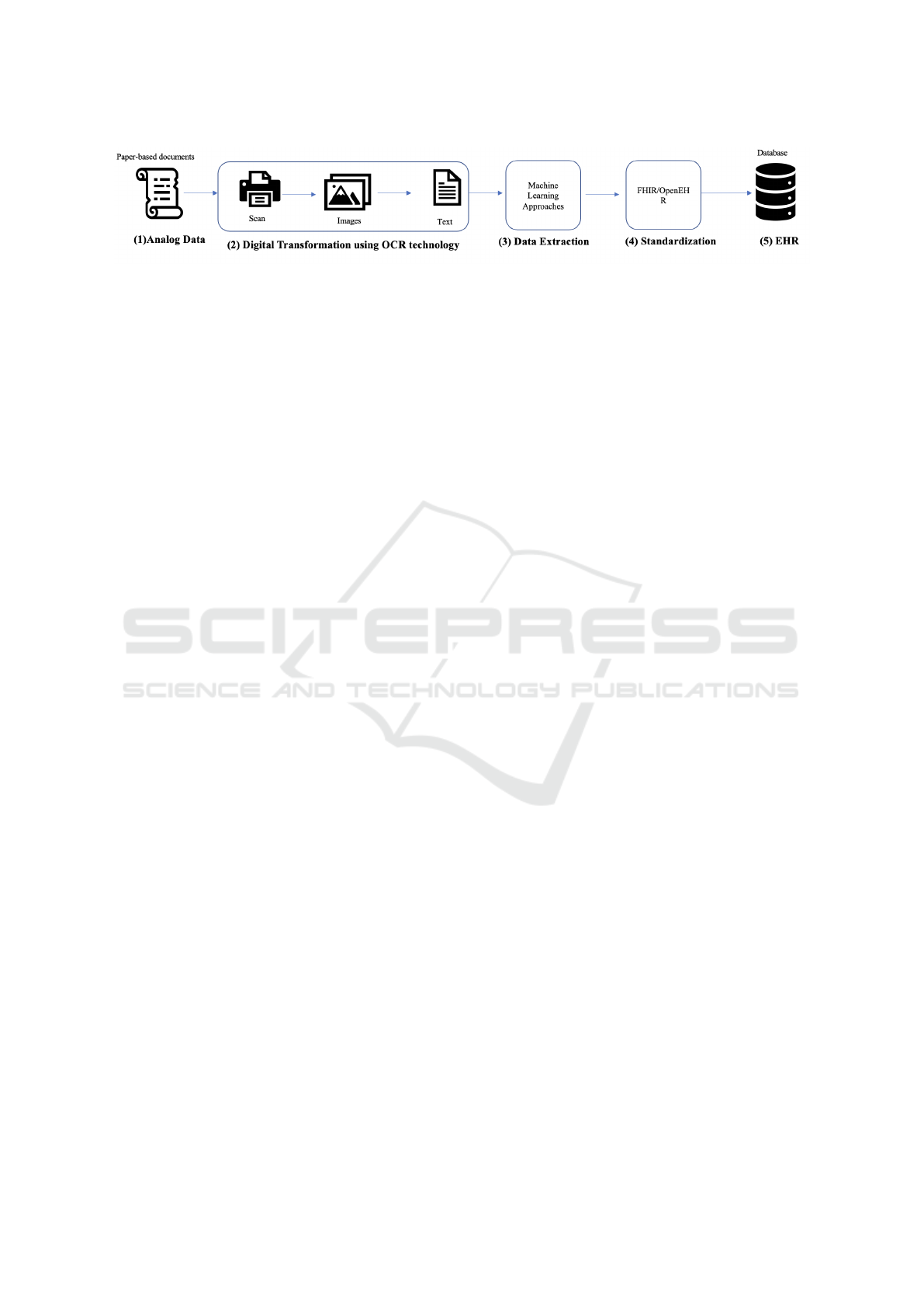

Figure 3: Proposed System Architecture.

pose a machine learning approach to extract medi-

cal data from scanned documents and standardize it

using FHIR/OpenEHR. By using machine learning

techniques to extract this data and standardize it us-

ing FHIR/OpenEHR, healthcare providers can more

easily access and use this information to make clini-

cal decisions and improve patient care.

3.1 Research Questions

Figure 1 illustrates the research questions that this re-

search will seek to answer in further studies in the

future.

1. RQ1: How to accurately convert Analog and

Unstructured medical data into machine-readable

text?

2. RQ2: How to accurately extract structured data

from unstructured and then standardize it?

3. RQ3: How to accurately integrate the data into a

visualization system?

3.2 Research Objectives

The objective of this research is to develop and eval-

uate a machine learning-based system for extracting

medical data from scanned documents and standard-

izing it using FHIR/OpenEHR.

1. To investigate the current state of medical history

digitization and standardization practices.

2. Develop a comprehensive framework for digitiz-

ing and standardizing medical histories that can

be implemented in a variety of healthcare settings.

3. To evaluate the effectiveness of digitization and

standardization of medical history in improving

the performance of digital healthcare systems.

4. To identify the best practices for digitizing and

standardizing medical history and how they can

be implemented in digital healthcare systems.

5. To investigate the role of FHIR and OpenEHR in

enabling the sharing and interoperability of medi-

cal history across different digital healthcare sys-

tems.

As shown in Figure 2, There will be 3 data collection

mechanisms for the Smart Health Gantt Chart.

• Paper-based medical documents: They contain in-

formation about a patient’s medical history, cur-

rent conditions, treatments, and test results. The

purpose of this research is to study the commonal-

ities and differences of current paper-based medi-

cal documents and propose a system for digitizing

and storing them in a standardised way, so they

can be used for the beneﬁt of patients, doctors,

and researchers.

• Digital Documents: Medical history can be col-

lected as digital data from a variety of sources,

including EHRs, EMRs, and Internet of Things

(IoT) devices. EHRs and EMRs typically include

information such as patient demographics, med-

ical history, lab results, medications, and visit

notes. EHRs are primarily used by hospitals and

large healthcare systems, while EMRs are used by

individual providers, such as doctors and clinics.

IoT devices, such as wearable ﬁtness trackers and

smartwatches, can also collect and transmit med-

ical data, such as heart rate, sleep patterns, and

activity levels. This data can be integrated with

EHRs and EMRs to provide a more complete pic-

ture of a patient’s health (Kodali et al., 2015).

• Patient Memory: This can be a limitation in the

collection of accurate and complete medical his-

tory when relying on digital data. Patients may

not remember all of the relevant information about

their medical history, such as past illnesses, surg-

eries, and medications (Kessels, 2003). Overall,

while digitization of medical history can improve

the efﬁciency and accessibility of healthcare, it

is important to also consider patient memory and

other limitations in the collection of accurate and

complete medical history. All medical histories of

a patient may not be in paper nor in digital doc-

uments, especially in developing countries, and

studies have shown that age can affect memory

(Rhodes et al., 2019).

Figure 3 demonstrates the architecture of the ap-

proach that will be studied further in the future. This

architecture can be divided into 5 main components:

ICT4AWE 2023 - 9th International Conference on Information and Communication Technologies for Ageing Well and e-Health

232

1. Analog data: Three different types of data can be

identiﬁed (ACCERN, 2022).

• Structured Data: Data that has been organized

in a speciﬁc format, such as a database table

or an Excel spreadsheet. This form of data has

a predetermined structure, making it simple to

search, sort, and analyze.

• Unstructured data: Data that does not have a

speciﬁc format or structure such as text docu-

ments, images, videos, and audio recordings.

This type of data is more difﬁcult to analyze

and process because it lacks a clear structure.

Our research will be conducted on this type of

data, especially on medical scanned documents

that contain text such as medical notes, reports,

and measurements that can be used to assess a

person’s health. Moreover, computer-generated

text will be our interest. The theories and tools

for data extraction from this type of data will be

investigated.

• Semi-structured data: Type of data that has

some structure, but not as much as structured

data such as XML and JSON ﬁles. This type of

data is easier to process than unstructured data,

but not as easy as structured data.

2. Digital Transformation and Data Extraction: The

signiﬁcance of turning scanned documents into

usable data has increased dramatically as society

is trying to move away from paper and handwrit-

ing in favor of digital documents for convenience.

To suggest a well-designed tool to perform, text

tool conversion from scanned documents, and

data formatting, this study will assess the cur-

rent state of each of these processes. A pipeline

of techniques used to process the scanned med-

ical documents will be proposed. This pipeline

will include OCR approach to convert the scanned

images to machine-readable text followed by an

NLP concept such as NER, Text-classiﬁcation

(Miro

nczuk and Protasiewicz, 2018), and/or in-

formation extraction using pre-trained language

models such as BioBERT (Lee et al., 2019), Clini-

calBERT (Pawar et al., 2022), MedBERT (Rasmy

et al., 2021), etc. This step will produce structured

data.

3. Standardization: The ability for the medical his-

tory documents to be stored in a standard for-

mat will enable them to be shared between EHRs

and EMRs more easily. Thus, this research will

standardize the medical history collected from the

medical scanned documents based on FHIR or

OpenEHR. This step will make the structured data

mapped to FHIR or OpenEHR resources.

4. EHR(Electronic health Records): The EHR sys-

tem will be built based on the FHIR/OpenEHR

standards. The performance of the proposed ar-

chitecture will be evaluated, and different ma-

chine learning techniques will tested in order to

choose the best performing one. This may involve

using metrics such as accuracy, recall, precision

and F1-score to evaluate the performance of the

system, and testing different machine learning al-

gorithms such as Support Vector Machine (Pisner

and Schnyer, 2020), Logistic Regression (LaVal-

ley, 2008), Random Forest (Rigatti, 2017) , Neural

Networks (Bishop, 1994) etc. Additionally, The

proposed architecture will be evaluated using real-

world datasets and different scenarios, which will

help to identify any potential limitations and areas

for improvement.

4 EXISTING RESEARCH AND

THEIR LIMITATIONS

Data extraction from scanned medical documents has

attracted a lot research interest. The goal of this re-

search is to develop automated methods for extract-

ing structured data from unstructured one in scanned

documents and standardizing it which will allow the

data to be more accessible and to be used for research

and healthcare operations. Some common techniques

which are being used include, but not exclusive to:

• Optical character recognition (OCR) to convert

scanned images of text into machine-readable text

(Mithe et al., 2013)

• Natural language processing (NLP) (Chowdhary,

2020) tasks such as Named Entity Recogni-

tion(NER) (Mohit, 2014) to extract structured

data from the text. For instance, patient’s demo-

graphics, medical history, and test results.

• Machine Learning(ML) traditional algorithms to

train models to automatically identify and extract

speciﬁc information from the documents, such as

diagnoses, medications, and lab results.

• BERT(Bidirectional Encoder Representation

from Transformers) (Rogers et al., 2020) mod-

els which are pre-trained models that can be

ﬁne-tuned for a wide range of natural language

processing tasks, including NER and can be

used for extracting structured information from

scanned medical documents.

When it comes to extracting structured data from un-

structured data, researchers have been using:

A Machine Learning Approach to Digitize Medical History and Archive in a Standard Format

233

Health

Events

1 2 10 20 30 40 50

Problems

Pain-left

stomach

Pain-left

stomach

Nephrolithiasis-

Left Kidney

Surgery

Urethroplasty

SWL

Medication

xyz

Dr Visit

xyz

Event X

xyz

1987

1988

1997 2007 2017 2027 2037

Cured

Not cured but not so risky

Risky

Emergency

Age

Health Events

Ye a r

Past medical history collected from different sources Prediction

Figure 4: Smart Health Gantt Chart.

• Rule-based methods: Simple yet powerful tech-

niques such as Regular Expressions to extract

structured data from scanned medical documents

(Aggarwal et al., 2018). However, Regular ex-

pressions have some limitations:

– Variability in formatting: Medical documents

can vary widely in terms of formatting and

structure, making it difﬁcult to create a single

regular expression that can match all relevant

information.

– Regular expressions can be difﬁcult to maintain

and update, especially for complex patterns.

• Combination of different and complex techniques

techniques such OCR, NLP, ML, and BERT mod-

els. (Hsu et al., 2022). This combination is

quite effective in extracting structured data from

unstructured data in scanned documents, as each

technology has its own strengths. However, it’s

important to note that the performance of these

technologies will depend on the quality of the data

and models which are used. So, it’s important to

conduct thorough testing and evaluation on a rep-

resentative dataset to measure the performance of

the combination of these technologies before de-

ploying it in a real-world scenario. Moreover, us-

ing all of these technologies can be computation-

ally intensive, which can require a large amount

of computational resources such as memory, CPU

and GPU.

5 APPLICATIONS

There can be a number of potential applications for

exploiting the medical data once it has been extracted

and standardized. Some examples include:

• Smart Health Gantt Chart: Figure 4 represents the

concept of this Gantt Chart. Basically, the doc-

tor will be able to see all of the patient’s medi-

cal history into one window (Hossain and Ahmed,

2021).

• Predictive modeling: Predictive models can be

created using the extracted data to help identify

patients who are at risk of developing speciﬁc

health issues, such as chronic diseases.

6 DISCUSSION

Data collection from scanned documents is a crucial

stage in this process, but it can be difﬁcult due to the

variety of formats and layouts that may be encoun-

tered. The studies are limited in application to a spe-

ciﬁc clinical domain. To the best of our knowledge, a

generic integration approach for extracting structured

data from scanned documents, modeling EHR data

with the FHIR/OpenEHR data model has not yet been

well studied. For the sake of its effectiveness, an ar-

chitecture that is based on several steps and combine

various techniques such as ML, NLP, OCR, etc was

ICT4AWE 2023 - 9th International Conference on Information and Communication Technologies for Ageing Well and e-Health

234

proposed, and it will be further investigated through

academic research in the future. This architecture will

enable medical data to be extracted from scanned doc-

uments, standardized using FHIR/OpenEHR and then

stored in EHRs.

7 CONCLUSION

In recent years, there has been an increasing interest

in using the quantity of data found in scanned medical

documents. Healthcare delivery could be revolution-

ized by using scanned medical documents to predict

patient outcomes and utilizing them in this way has

the potential to improve patient outcomes, save doc-

tors’ times, and save costs for the healthcare systems.

Extracting structured data from scanned documents

using technologies such as OCR and NLP, and ML

models to extract useful information standardizing it

in a common format like FHIR or OpenEHR, and us-

ing methods like ML and BERT models to generate

predictions is a relatively new ﬁeld. As healthcare or-

ganizations look for ways to use the enormous quan-

tity of data included in scanned medical documents to

enhance patient outcomes and reduce costs, this ap-

proach has gained increasing attention in recent years.

However, it is important to note that the process for

collecting, standardizing, and analyzing the data can

be challenging, time-consuming, and expensive. Nev-

ertheless, the advantages of using scanned documents

in this way make it a worthwhile endeavor for health-

care researchers.

REFERENCES

ACCERN (2022). Differences between

structured, unstructured, and semi-

structured data. https://accern.com/blog/

structured-vs-semi-structured-vs-unstructured-data/.

Aggarwal, A., Garhwal, S., and Kumar, A. (2018). Hedea:

a python tool for extracting and analysing semi-

structured information from medical records. Health-

care informatics research, 24(2):148–153.

Ahmed, A., Rebeiro-Hargrave, A., Nohara, Y., Kai, E.,

Ripon, Z. H., and Nakashima, N. (2014). Targeting

morbidity in unreached communities using portable

health clinic system. IEICE Transactions on Commu-

nications, E97.B(3):540–545.

Bishop, C. M. (1994). Neural networks and their applica-

tions. Review of scientiﬁc instruments, 65(6):1803–

1832.

Chowdhary, K. R. (2020). Natural Language Processing,

pages 603–649. Springer India, New Delhi.

Hossain, F. and Ahmed, A. (2021). Visualization of health-

care data for busy doctors in developing countries to

make efﬁcient clinical decisions. In 10th Social Busi-

ness Academia Conference.

Hossain, F., Islam, R., Ahmed, M. T., and Ahmed, A.

(2022). Technical requirements to design a personal

medical history visualization tool for doctors. In Pro-

ceedings of the 8th International Conference on Hu-

man Interaction and Emerging Technologies. IHIET,

https://ihiet. org.

Hsu, E., Malagaris, I., Kuo, Y.-F., Sultana, R., and Roberts,

K. (2022). Deep learning-based nlp data pipeline for

ehr-scanned document information extraction. JAMIA

open, 5(2):ooac045.

Kaneko, K., Onozuka, D., Shibuta, H., and Hagihara, A.

(2018). Impact of electronic medical records (emrs)

on hospital productivity in japan. International jour-

nal of medical informatics, 118:36–43.

Kessels, R. P. (2003). Patients’ memory for medical in-

formation. Journal of the Royal Society of Medicine,

96(5):219–222.

Kodali, R. K., Swamy, G., and Lakshmi, B. (2015). An im-

plementation of iot for healthcare. In 2015 IEEE Re-

cent Advances in Intelligent Computational Systems

(RAICS), pages 411–416. IEEE.

LaValley, M. P. (2008). Logistic regression. Circulation,

117(18):2395–2399.

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C. H.,

and Kang, J. (2019). BioBERT: a pre-trained biomed-

ical language representation model for biomedical text

mining. Bioinformatics, 36(4):1234–1240.

Miro

nczuk, M. M. and Protasiewicz, J. (2018). A recent

overview of the state-of-the-art elements of text clas-

siﬁcation. Expert Systems with Applications, 106:36–

54.

Mithe, R., Indalkar, S., and Divekar, N. (2013). Optical

character recognition. International journal of recent

technology and engineering (IJRTE), 2(1):72–75.

Mohit, B. (2014). Named Entity Recognition, pages 221–

245. Springer Berlin Heidelberg, Berlin, Heidelberg.

Pawar, Y., Henriksson, A., Hedberg, P., and Naucler, P.

(2022). Leveraging clinical bert in multimodal mortal-

ity prediction models for covid-19. In 2022 IEEE 35th

International Symposium on Computer-Based Medi-

cal Systems (CBMS), pages 199–204. IEEE.

Pisner, D. A. and Schnyer, D. M. (2020). Support vector

machine. In Machine learning, pages 101–121. Else-

vier.

Rasmy, L., Xiang, Y., Xie, Z., Tao, C., and Zhi, D. (2021).

Med-bert: pretrained contextualized embeddings on

large-scale structured electronic health records for dis-

ease prediction. NPJ digital medicine, 4(1):1–13.

Rhodes, S., Greene, N. R., and Naveh-Benjamin, M.

(2019). Age-related differences in recall and recog-

nition: A meta-analysis. Psychonomic Bulletin & Re-

view, 26(5):1529–1547.

Rigatti, S. J. (2017). Random forest. Journal of Insurance

Medicine, 47(1):31–39.

Rogers, A., Kovaleva, O., and Rumshisky, A. (2020). A

primer in bertology: What we know about how bert

works. Transactions of the Association for Computa-

tional Linguistics, 8:842–866.

A Machine Learning Approach to Digitize Medical History and Archive in a Standard Format

235

Saripalle, R., Runyan, C., and Russell, M. (2019). Using hl7

fhir to achieve interoperability in patient health record.

Journal of Biomedical Informatics, 94:103188.

Tolera, A., Oljira, L., Dingeta, T., Abera, A., and Roba,

H. S. (2022). Electronic medical record use and asso-

ciated factors among healthcare professionals at pub-

lic health facilities in dire dawa, eastern ethiopia: A

mixed-method study. Frontiers in Digital Health, 4.

ICT4AWE 2023 - 9th International Conference on Information and Communication Technologies for Ageing Well and e-Health

236
