Digital Twins for Trust Building in Autonomous Drones Through

Dynamic Safety Evaluation

Danish Iqbal

1 a

, Barbora Buhnova

1 b

and Emilia Cioroaica

2 c

Masaryk University, Brno, Czech Republic

Fraunhofer IESE, Kaiserslautern, Germany

Keywords:

Trust, Digital Twins, Safety, Autonomous Drones, Run-Time Compliance Checking, Autonomous Ecosystem.

Abstract:

The adoption process of innovative software-intensive technologies leverages complex trust concerns in differ-

ent forms and shapes. Perceived safety plays a fundamental role in technology adoption, being especially cru-

cial in the case of those innovative software-driven technologies characterized by a high degree of dynamism

and unpredictability, like collaborating autonomous systems. These systems need to synchronize their maneu-

vers in order to collaboratively engage in reactions to unpredictable incoming hazardous situations. That is

however only possible in the presence of mutual trust. In this paper, we propose an approach for machine-

to-machine dynamic trust assessment for collaborating autonomous systems that supports trust-building based

on the concept of dynamic safety assurance within the collaborative process among the software-intensive

autonomous systems. In our approach, we leverage the concept of digital twins which are abstract models

fed with real-time data used in the run-time dynamic exchange of information. The information exchange is

performed through the execution of specialized models that embed the necessary safety properties. More par-

ticularly, we examine the possible role of the Digital Twins in machine-to-machine trust building and present

their design in supporting dynamic trust assessment of autonomous drones. Ultimately, we present a proof

of concept of direct and indirect trust assessment by employing the Digital Twin in a use case involving two

autonomous collaborating drones.

1 INTRODUCTION

The rapid adoption of new technological advance-

ments within the automotive sector is causing ma-

jor security concerns with direct safety implications.

Consequently, approaches for co-analysis of safety

and security concerns are emerging (Cioroaica et al.,

2022b, 2021) with a particular focus on assuring the

safety of autonomous systems subject to communi-

cation errors caused by malicious attackers. A sig-

niﬁcant technological transition towards improved lo-

gistic behavior is the provision of autonomous drones

that have the potential to enhance efﬁciency and op-

timized performance in various industrial applica-

tions (Utne et al., 2020). Autonomous drones are

anticipated to advance conventional transportation

mechanisms by bringing signiﬁcant cost reduction,

improved safety and positive environmental impact.

https://orcid.org/0000-0002-5070-5880

https://orcid.org/0000-0003-4205-101X

https://orcid.org/0000-0003-2776-4521

With the growing risk of malicious attacks, how-

ever, the safety of the operational environment and of

the systems needs to be ensured. In the speciﬁc con-

text of trust, safety is an essential property (Avi

zienis

et al., 2004). In our scenario, the updates of drones

with complex software behavior and advanced sen-

sors, actuators and advanced capabilities to commu-

nicate with other agents within the ecosystem, the

complexity of the operational domain increases con-

siderably. This aspect is of extended concern in situ-

ations when the increased autonomy of collaborating

autonomous systems relies on a trustworthy software-

hardware interaction. The complexity that the dy-

namic runtime updates bring within a smart digital

ecosystem highlights new challenges within the safety

community.

In general, together with the deployment of in-

novative technology within autonomous ecosystems,

the quality of information exchange plays an essen-

tial role (Tao et al., 2018). Namely, information can

be exchanged between two collaborating systems to

support trust building between them (Iqbal and Buh-

Iqbal, D., Buhnova, B. and Cioroaica, E.

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation.

DOI: 10.5220/0011986900003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 629-639

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

629

nova, 2022), when one system can share its planned

behaviour with its collaborator in an attempt to dis-

close information about it and foster trust building.

Digital Twin (DT), which is a virtual model reﬂect-

ing physical objects within the digital world, can be-

come such information, used in the exchange to sup-

port the trust-building process. In our case, this in-

formation needs to include the safety-relevant prop-

erties that can be dynamically evaluated at runtime.

The idea of employing DT of an autonomous agent

in building trust with its collaborator is very promis-

ing. So far, it has only been explored in (Iqbal and

Buhnova, 2022), where it is however unclear what in-

formation shall be included in the actual Digital Twin,

and how different safety rules could be reﬂected in it.

Dynamic safety analysis of collaborating au-

tonomous systems or agents within the autonomous

ecosystems is a challenging task for both the indus-

try and academia (Asaadi et al., 2020). To avoid

runtime exploitation of vulnerabilities of critical sys-

tems, runtime dynamic mechanisms that can perform

a safety assessment for concrete technical situations is

needed (Leng et al., 2021). The dynamic open context

of operation for autonomous systems implies that it is

constantly evolving, making it hard to anticipate how

safe an autonomous system will be in that context.

For autonomous systems, in particular, it becomes

challenging to dynamically evaluate the predicted be-

havior of the autonomous agent, which is why the DT

provided by the collaborator (trustee) can be of enor-

mous help. The trustor can then employ the DT of the

trustee in runtime compliance checking of the actual

trustee behaviour with its declared behaviour (deliv-

ered via the DT) (Cioroaica et al., 2022a). This is a

concept we elaborate in this work, with a focus on the

incorporation of relevant safety rules in the DT spec-

iﬁcation.

Consequently, in this paper, we present a

method for trust evaluation between collaborating au-

tonomous agents, used in the context of autonomous

drones, which employs the concept of a Digital Twin

(DT) enriched with safety properties. The DT can

be exchanged between collaborating agents with the

aim of building trust at runtime. By applying the

STPA (Systems-Theoretic Process Analysis (Dghaym

et al., 2021)) rules, we present a concept for dy-

namic safety evaluation used for building trust be-

tween collaborating autonomous drones. Moreover,

our dynamic safety evaluation approach aims to im-

prove risk assessment accuracy by employing com-

pliance checking for safe-behavior assessment. For

this, runtime behavior intentions are turned into vir-

tual trajectory distributions and are virtually analyzed

using behaviour-speciﬁc framework for hazard anal-

ysis. Our proposed hazard analysis framework sup-

ports the addition of safety attributes to the DT spec-

iﬁcation. Finally, we present a proof of concept to

illustrate the method on an example of collaborating

autonomous drones.

The paper is structured as follows. After the intro-

duction in Section 1, Section 2 describes the state of

the art, Section 3 illustrates our trust-building method

with safety assurance rules, Section 4 describes the

evaluation and Section 5 concludes the paper.

2 STATE OF THE ART

Safety is a highly desirable property that requires

assurance during the construction of systems that

operate within safety-critical autonomous ecosys-

tems (Widen and Koopman, 2022). The typical ap-

proach employed in the process of safety analysis

of autonomous safety-critical systems relies on the

identiﬁcation of the causes of the system’s poten-

tial risks and uncertainties (Tauber and Schmittner,

2018). Then, based on the analysis of these risks

and uncertainties, measures to minimize the critical

system’s failure chances are implemented (Koopman

et al., 2021). In this context, this section discusses

the role of Digital Twins (DT) in connection to the

process of assuring safety and building trust in au-

tonomous safety-critical systems.

2.1 Trust Building via Employing

Digital Twins

The increasing uptake of autonomous drones, robots,

and similar AI-enhanced autonomous systems within

human societies requires an increased evaluation of

runtime trustworthiness of safe operation (Hancock

et al., 2011; Wagner, 2009). The signiﬁcance of trust

has been highlighted in the human-robots interac-

tion (Kuipers, 2018), and has been widely researched

in psychology, management, economics and philos-

ophy (Lahijanian and Kwiatkowska, 2016; Huang

et al., 2019). An important aspect in the process of

building trust in autonomous systems needs to ac-

count for the dynamic safety evaluation of predicted

behavior. This can be done with the support of

run-time veriﬁcation mechanisms (Vierhauser et al.,

2019), possibly with the help of Digital Twins (DTs)

used as a means of information exchange. In this pa-

per, we propose the employment of DT to integrate

the safety rules and mechanism to provide needed

safety information to a collaborator in order to sup-

port trust building among autonomous agents, follow-

ing the concept outlined in our previous work (Iqbal

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

630

and Buhnova, 2022).

Within various industries, IoT (Internet Of

Things) technologies are developed to meet the needs

of diverse systems such as robots, and intelligent de-

vices (Kochovski and Stankovski, 2018). In order to

keep up with the runtime needs of a system opera-

tion, the National Aeronautics and Space Administra-

tion (NASA) and the United States Air Force (USAF)

were the ﬁrst to adopt the concept of DT used to pre-

dict the life span and maintenance of a spacecraft (Ne-

gri et al., 2017). The application of a DT then became

a popular approach used for synchronizing the phys-

ical world with the digital world (Liu et al., 2020; Qi

et al., 2021). Moreover, the interaction between the

physical world and the virtual digital world enables

systems in various industries to achieve high levels of

automation and intelligence (Boje et al., 2020). Many

studies and researchers employ the DT in various in-

dustrial sectors, such as Industry 4.0 and production

with the emergent potential of DT runtime execution

for building trust (Cioroaica et al., 2019).

2.2 Safety Analysis

Traditionally Leveson’s Systems-Theoretic Acci-

dent Model and Processes (STAMP) (Leveson and

Thomas, 2018) has been used as an accident model

based on system theory, improving reliability and

supporting conventional analytical reduction of risks.

The model primarily starts from the premise that ac-

cidents occur as a consequence of complex, dynamic

inter-related processes rather than as a result of a se-

ries of component failures.

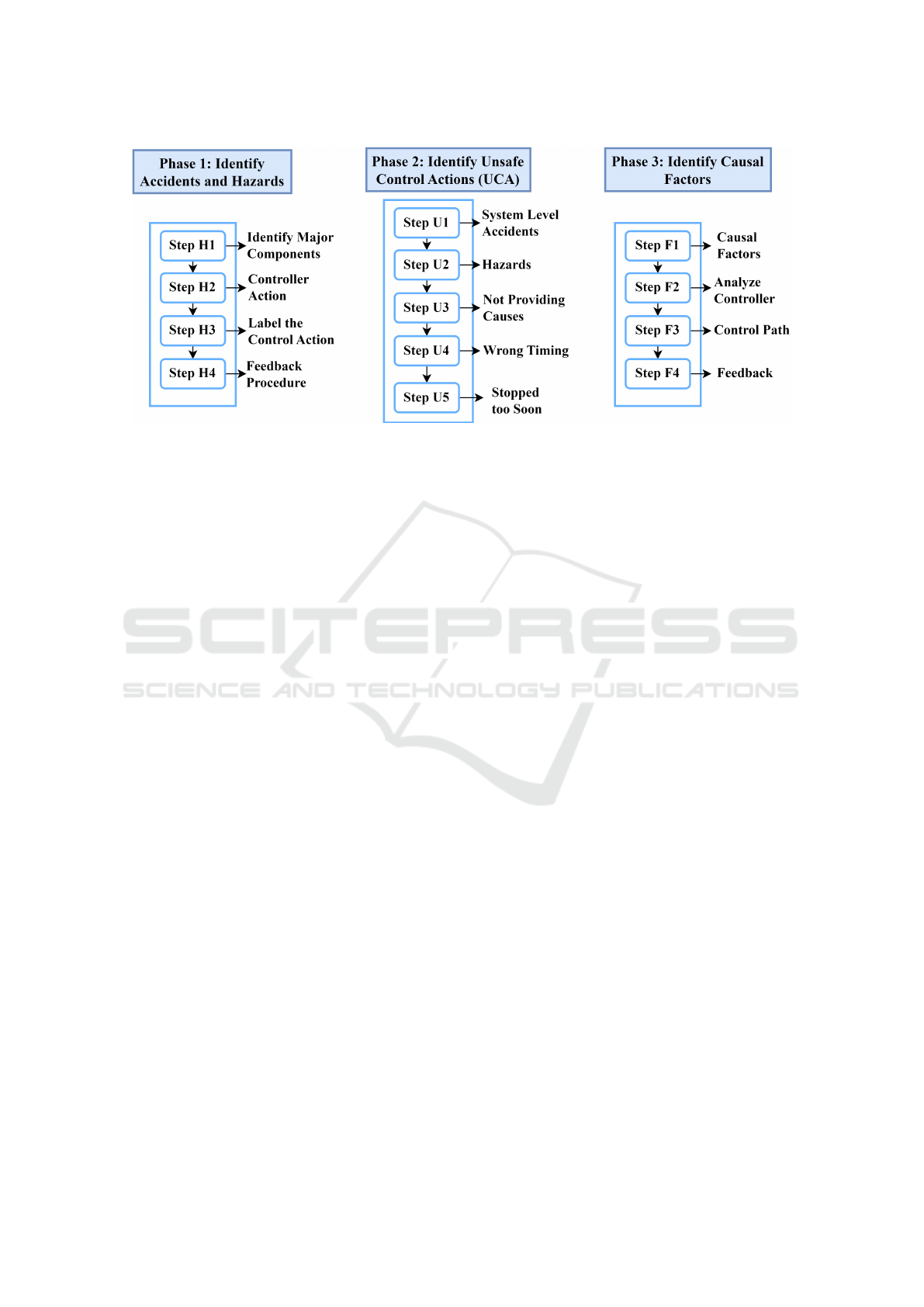

Then, the systems-theoretic process analysis

(STPA) (Dghaym et al., 2021) is a hazard analysis

method that incorporates the fundamental concepts

of the STAMP accident causality models. STPA

is a top-down system engineering approach to as-

suring system’s safety that can be employed in the

early phases of system development with the scope

of creating high-level safety requirements and con-

straints (Plioutsias et al., 2018). However, the ap-

proach has limitations on supporting the generation

of a probability value associated to a hazard. This

happens because the strategy to compute an accident

probability requires the exclusion of critical causal

factors that are not stochastic or do not have prob-

abilistic data. Therefore, STPA aims to investigate

unsafe control actions by identifying the path to acci-

dents or risk scenarios (Ozerov et al., 2021). Then,

it incorporates causal factors that traditional analy-

sis techniques do not fully consider, such as: un-

controlled component interactions, incorrect require-

ments, insufﬁcient coordination between multiple

controllers, and poor decision management (Pliout-

sias et al., 2018). As a result, unsafe behavior is

treated as a dynamic control problem rather than a

component’s reliability problem.

3 SAFETY-BASED

TRUST-BUILDING METHOD

By elevating from the traditional safety assurance pro-

cesses, in this paper, we propose the concept of dy-

namic safety assurance used for building trust be-

tween two autonomous agents based on run-time

compliance checking of trustee actual behaviour

against it declared behaviour provided in form of its

Digital Twin. To achieve this goal, we propose a

safety assurance process embedded within the Dig-

ital Twin by incorporating system’s properties that

emerge from applying the STPA process directed

towards dynamic safety evaluation. The proposed

safety method includes ﬁve steps, which are explained

in detail below.

The notion of trust relies on how effectively two

agents collaborate within an ecosystem. The collabo-

ration among autonomous agents can be divided into

two categories as direct and indirect trust (Buhnova,

2023; Byabazaire et al., 2020). The combination of

these trust-building elements can be explained further

with the help of Figure 1, which exempliﬁes how di-

rect and indirect trust contribute to the trust decision

of a trustor in relation to a trustee. Direct trust can be

built through the direct experience of the trustor with

the trustee and results from multiple interactions. In

our approach, the experience is gained via the com-

pliance checking of the trustee behaviour with its de-

clared behaviour incorporated within the DT that it

shares with the trustor. This is done to reﬂect two

major social metrics relevant to trust building, which

are: 1) honesty (consistency between the declared

and actual behaviour) and 2) openness (transparency

about the intended behaviour). On the other hand,

the indirect trust manifests the opinions of the neigh-

bors (peer network) and the gathered reputation of

the trustee from previous entities that have engaged

in collaborations with the trustee. We further detail

the role of the direct and indirect trust below.

For the deﬁnition of safe behavior, we have fol-

lowed the STPA process for deriving the unsafe action

control and identifying the causal factors, which are

categorized further in the safety assurance process.

Below we are detailing the steps in creating DTs that

can be used for the dynamic safety evaluation with the

Systems-Theoretic Accident Model, Processes Model

and Systems-Theoretic Process Analysis Technique.

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation

631

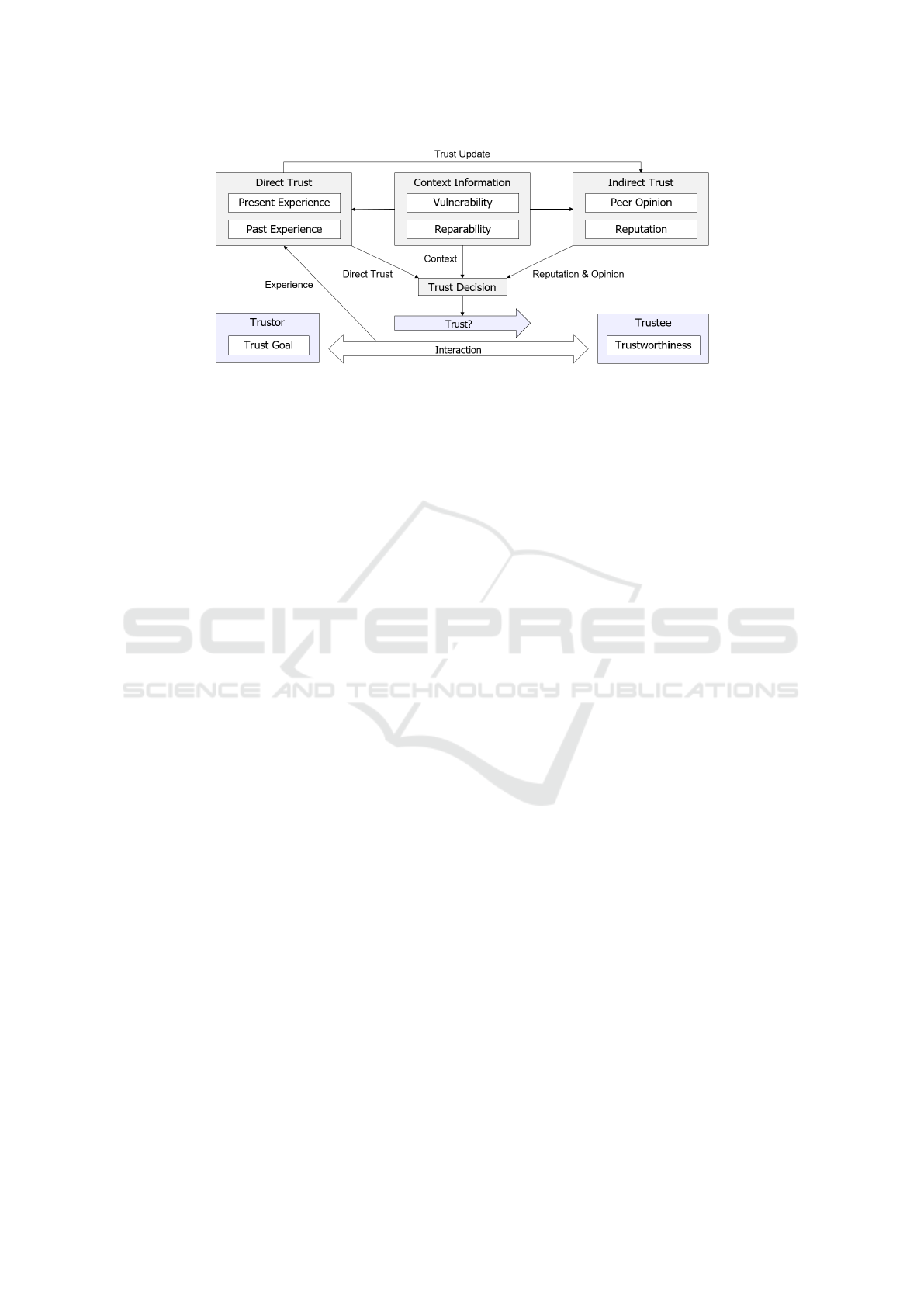

Figure 1: Direct and Indirect Trust (Buhnova, 2023).

3.1 Direct Trust via Run-Time

Compliance Checking

To assess the direct trust in agent-to-agent interaction,

we suggest to employ run-time compliance checking

among the collaborating agents with the help of the

Digital Twins, representing the declared behaviour

disclosed in the ﬁrst phases of the trust building pro-

cess. The direct trust shows the direct experience of

the trustor with the targeted autonomous agent. More-

over, the direct trust of trustor agent in the trustee

agent is built through direct collaboration and run-

time compliance testing using the DT of the trustee

to check the consistency in their declared and actual

behaviour. If the trustee’s actual behavior matches the

declared behavior shared in the form of the DT while

taking the safety requirements into consideration, the

trust experience of the trustor reﬂects it into an in-

creased willingness to trust the trustee.

3.2 Derivation of Safety Rules via the

STPA Method

To assess the hazards and the associated factors in the

operation of a drone system, this section discussed

how to determine individual safety requirements. The

individual steps of the STPA process are discussed be-

low as a mechanism to specify the system under study

and the safety method scope.

STPA (Leveson and Thomas, 2018; Dghaym

et al., 2021) is a method for hazard detection that

uses control structures to represent the system behav-

ior. The hazardous conditions are identiﬁed through

the unwanted presence (commission), absence (omis-

sion), or improper timing (delay/wrong value) of con-

trol actions. Then the causal factors for unsafe control

actions are identiﬁed. by inter-playing formal speci-

ﬁcations in the veriﬁcation process, the systems’ reli-

ability can be assured. Approaches that integrate for-

mal method with analysis techniques such as STPA

offer greater support for trust building in the system

based on safe and correct behavior that results in a

reliable runtime execution. Such a process can be di-

vided into three phases described below.

Phase 1: Hazard Identiﬁcation and Analysis

In this phase, system-level hazardous events and ma-

jor risks of accidents are analyzed and identiﬁed. The

system-level safety limits are deﬁned at the inter-

face of interaction with other components outside the

scope of the system. For our use case, we deﬁne how

unsafe control actions (UCA) and scenarios in which

the UCA may occur may violate system-level safety

restrictions and cause a transition into unsafe state

that can cause hazardous situations. The ﬁnal step is

to identify the triggers of these hazardous situations

with greater chance of occurrence. These situations

act as preconditions, facilitators, or enablers. Figure 2

depicts the essential phases of identiﬁcation of haz-

ardous situations and unsafe control action, which are

listed below.

• Step H1: Describe the system as an independent

control system by giving it a deﬁnition, including

its components and boundaries. For example, ac-

cording to hazards and accidents, the major com-

ponents of an autonomous drone system are the

physical drone, software controller and navigation

system. The larger context of use within dynamic

autonomous ecosystems account for the existence

of additional entities such as an ecosystem orches-

trator, collaborating drones and ecosystem actors

(businesses, ﬁeld workers, etc.).

• Step H2: Deﬁne system-level hazardous events

and safety constraints. This is reﬁned into the

identiﬁcation of the controller responsibilities and

process variables.

• Step H3: Elaborate the unsafe control actions

(UCA) that violate the safety requirements and la-

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

632

Figure 2: Framework for Identiﬁcation of Hazard, Unsafe Control Action and Casual Factors.

bel them according to the STPA process.

• Step H4: Deﬁne the procedure for feedback when

a hazard or accident occurs.

Phase 2: Identiﬁcation of Unsafe Control Actions

The unsafe control action in Phase 2 is described as

follows:

• Step U1: The system-level problem is deﬁned.

An accident example it is the crash of the physi-

cal drone system. How the overall system (physi-

cal drone, software controller, and navigation sys-

tem) or ecosystems (formed by the orchestrator

who implements the logistic algorithm together

with the communicating drones) responds to un-

safe control actions and accidents?

• Step U2: Hazard is deﬁned in the unsafe con-

trol action as the Drone under evaluation is vio-

lating the minimum separation distance to another

drone, and what are the external control possibili-

ties, when the system fails to adhere to a safe be-

havior? In case of internal self-adaptation mech-

anisms, how does the system respond and recon-

ﬁgure itself in case of an hazardous situation?

• Step U3: When the hazard or accident is not

linked to a cause, then an external controlling en-

tity (that can be an ecosystem orchestrator that

implements intelligent logistic algorithms for re-

covery) needs to create a plan of action that in-

volves cooperation of the remaining drones and

actors within the ecosystem (such actors can be

businesses, but also engineers, and ﬁeld workers,

etc.). In case of autonomous drone behavior, the

system needs to reconﬁgure and self-adapt itself

internally.

• Step U4: During an hazardous situation that man-

ifests in an accident, an important aspect of a re-

covery procedure is the time management that re-

ﬂects by the capacity of the ecosystem, or of the

system itself to tackle the problem within a speci-

ﬁed time frame.

• Step U5: As a general rule, the monitoring of the

failed system shall not stop too early during the

violation of the rules or during the unsafe control

action. Sometimes the system can come to track

in the ending phase.

Phase 3: Identiﬁcation of Causal Factors

This phase is concerned with the identiﬁcation of

causal factors, and is explained as follows:

• Step F1: Deﬁnition of the causes of hazards that

can lead to accidents, such as connection prob-

lems, environment negative inﬂuence, or trigger-

ing of internal faults that manifest into system

failure. Under these situations, the system action

need to be deﬁned.

• Step F2: Deﬁnition of factors and risks to be an-

alyzed by the external controller (ecosystem or-

chestrator) or internal controller (in case of au-

tonomous behavior) and deﬁnition of a plan of

action to be communicated within the ecosystem.

This plan of action needs to be shared with other

ecosystem components (such as drones, ecosys-

tem actors that can intervene in case of an acci-

dent).

• Step F3: Develop a recovery path for the ecosys-

tem according to the different hazardous situa-

tions.

• Step F4: Develop a feedback mechanism that

accounts for the risk factors and correlated haz-

ardous situations. Such a feedback mechanism

supports the improvement of the recovery strat-

egy.

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation

633

3.3 Derivation of Safety Properties for

Dynamic Run-Time Evaluation

We start from the deﬁnition of the Digital Twins to

be abstract models fed with real-time data (Cioroaica

et al., 2022a). For the creation of digital twins used

for the dynamic evaluation of a system’s safety, the

safety properties need to be selected from the overall

behavior speciﬁcation. This is performed following

a standardized safety procedures, such as the STPA /

Standard Safety procedure for Functional Safety.

The expected autonomous drone behavior relies

on the drone’s capabilities to execute core functions

(nominal and operational fail-over behavior) to per-

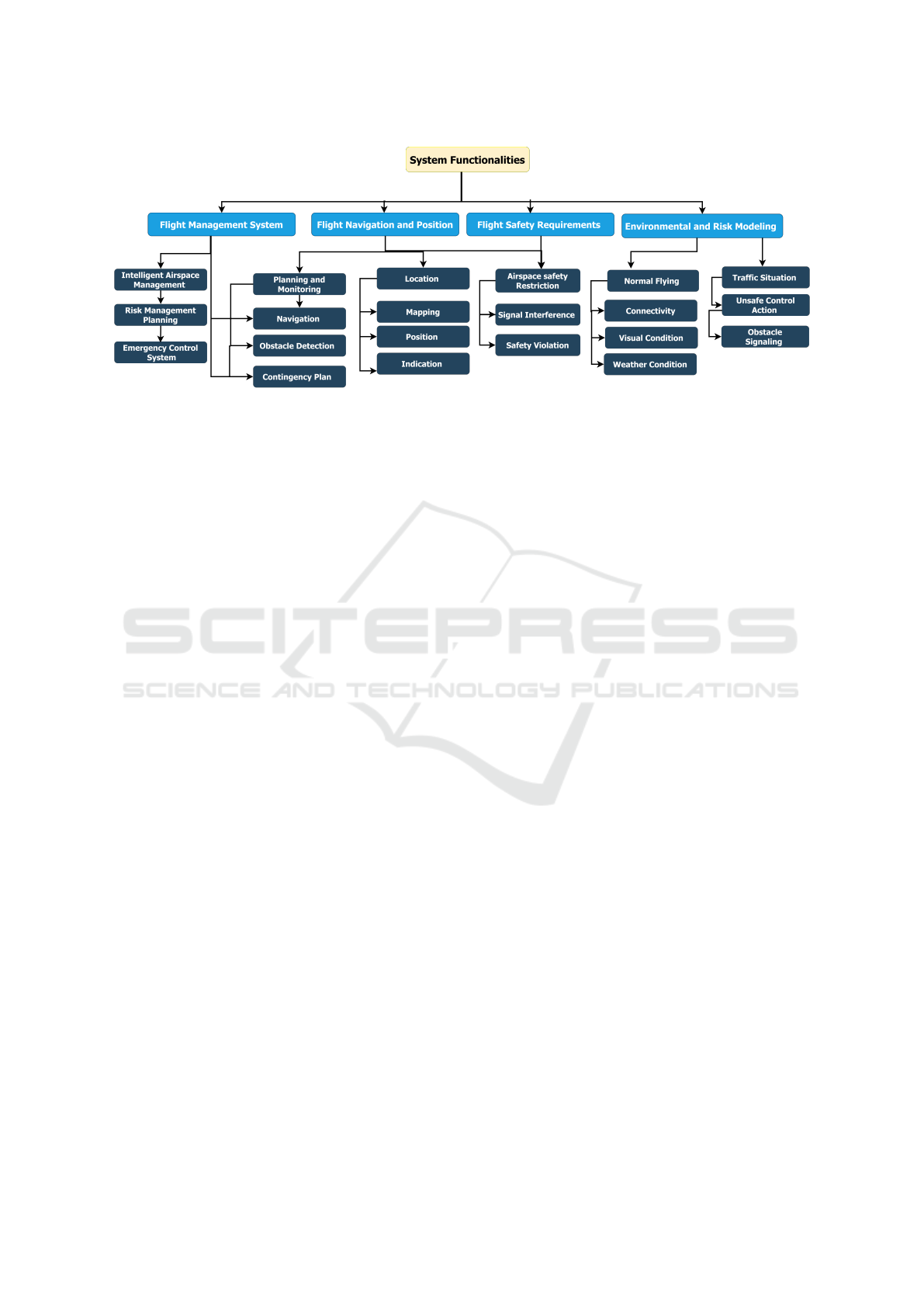

form its ﬂying safely and efﬁciently. Figure 3 de-

picts the various functions of the system, which are

described as follows.

Flight Management System: The Drone is con-

trolled during ﬂight using an intelligent mission

airspace management system. This system shifts the

human role of drone control through a specialized au-

tonomous controller. In order to ensure a safe be-

havior, and achieve a high-level safety goal, it im-

plements an internal dynamic risk management and

emergency control loop. To accomplish such goals,

the drone’s managing control system uses monitoring

of the controller specialized in autonomous ﬂying (the

one that replaces human control) and feedback mech-

anisms to regulate communication between the sen-

sors, actuators and the drone’s other subsystems that

can be triggered in case of detected deviations.

Flight Navigation and Position System: A number

of functions is needed to perform way-point naviga-

tion and position of the Drone from the source to the

destination. First, ﬂight planning and environment

monitoring are important components of a ﬂight nav-

igation system. Then, a component for obstacle de-

tection is a key element on which the safe behavior

within the navigation phase relies. A fast detection

of obstacles can minimize the risk of hazardous situ-

ation. Third, the system’s reaction plan and its capa-

bility internally adapt to unforeseen events needs to

be considered.

Flight Safety Supervisor: A ﬂight safety supervi-

sor is required in order to execute the ﬂying mis-

sion safely and make decisions at the right time. The

ecosystem’s airspace safety restriction can protect the

drones from collisions. In context of multiple drones

that operate in an open environment together with

other systems, avoiding signal interference and phys-

ical safety violation distances are important for a safe

synchronized ﬂight.

Environmental and Risk Monitoring: The Environ-

ment and risk monitoring component is essential to

execute the mission safely and avoid drone accident.

The timely reaction of the system relies on the proper

functionality of this component. Other role, this com-

ponent has is in minimizing the risk it imposes to the

environment, under special operating conditions such

as weather change. Moreover, the management of an

internal risk model and action plan according to trafﬁc

conditions, unsafe control actions and obstacle signal-

ing needs to be implemented in order to ensure a safe

ﬂight missions.

3.4 Derivation of Internal Behavioral

Transitions

Building trust in the autonomous drones over time is

facilitated by modeling physical information in the

form of a DT based on real-world system behavior.

With the help of run-time compliance checking, the

Digital Twins simulate the physical state of its cor-

responding autonomous drone. Recently, we have

in (Iqbal and Buhnova, 2022) shown that modeling

the interaction behaviour in form of a Digital Twin

can be a very promising way to establish trust be-

tween collaborating drones. In this paper, we propose

to build the DT on the basis of safety rules and con-

siderations discussed above, and present an example

of such DT model in the next section. During the cre-

ation of the DT, which can have e.g. form of a Finite-

State Machine (FSM), we consider the safety proper-

ties of an autonomous Drone as the major aspects to

be included. The safety properties are included ac-

cording to the STPA safety rules for the unsafe ac-

tion control. Finally, the design of the DT along with

the safety properties is explained in an example below

(and depicted in form of an FSM in Figure 4).

3.5 Indirect Trust via Reputation-Based

Derivation of Expected Cooperation

Safe collaboration between two drones can be re-

ported to contribute to the reputation-building of

the drones, and creation of direct and indirect trust.

The indirect trust can reﬂect the past experience of

the trusted neighbors and other nearby autonomous

drones that engaged in previous collaborations with

the target autonomous drone (the trustee). Some re-

searchers have previously associated experience and

reputation to explain indirect observation from a rep-

utable authority. As discussed above, in case an

ecosystem has an orchestrator, the orchestrator can

become the central authority that provides the evi-

dence and claim of trust for the trustee. on the other

side, the direct trust is navigated through a direct link

between the trustor and the trustee relying on the

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

634

Figure 3: Drone System Function.

trustor conﬁdence that the trustee will carry out the

expected task. In this case, reputation aggregates all

the prior experiences with the trustee.

4 EVALUATION

This section presents a case study of developing

trust based on dynamic safety evaluation among au-

tonomous drones employed in the logistic domain. To

this end, we extract the case study components, walk

through the process over the use case, and present the

properties of the autonomous drone based on safety

regulation within the speciﬁc scenario. Then, we il-

lustrate the representation of these properties in the

form of an FSM used in the construction of the Digi-

tal Twin (DT) of an autonomous drone. Finally, based

on the DT and run-time compliance checking with the

actual drone behavior, we evaluate the behavior of the

drone, advising whether or not it can be trusted.

4.1 Use Case

Hussein et al. (2021) introduced a case study within

the logistics domain directed towards performing a si-

multaneous delivery to multiple locations at a feasible

price and in a timely manner. The use case addresses

the challenges of the access in remote areas that do

not have transportation infrastructure. The use case

generates two demonstrations to showcase the capa-

bilities of autonomous drones.

The ﬁrst demonstrator objective is to deliver geo-

physical sensors by using a ﬂeet of autonomous

drones, as an autonomous Drone can reach hard-to-

access locations. The Drone builds an innovative 3D

high-density geophysics solution that improves the

caliber of subsurface images and reduces costs and

environmental imprint.

The second demonstrator goal is to deliver a pack-

age in a hospital using a droid (to carry it inside a

building) and a drone (to carry it between buildings)

to accomplish fast delivery. The demonstration is ac-

complished in two stages. In stage one, which is the

longer one, the design of the droid and the Drone is

done in an industrial site to demonstrate the capabil-

ity of their coupling to transport light parts. The sec-

ond stage intends to replicate the industrial site ex-

periment in hospitals for transporting medicine or test

samples.

4.2 Properties Extraction

Iteration of the process over the use case is directed

towards providing evidence of validity via the steps

presented above. In the ﬁrst step, we present the sce-

nario and the use case. In the second step, we ex-

tract the properties of the Drone use case by the safety

rules deﬁned in Section 3 of the method. Then, fol-

lowing the safety process, we extract and incorporate

the safety rules within drones’ explicit behavior. The

third step involves modeling these attributes and inte-

grating the information that is presented in the form

of an FSM model representing the Digital Twin. In

the end, we explain the scenario within an example

that supports the trust decision.

4.3 Autonomous Drone Safety

Requirements

In this section, the properties of an autonomous drone

are extracted from the use case, following the safety

process in the method in Section 3. These properties

are based on the work of Plioutsias et al. (2018), fol-

lowing the drones safety analysis process.

Design-time Safety Requirements: The safety re-

quirements for an autonomous Drone in our approach

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation

635

consist of the following:

• The Drone system complies with civil aviation

norms, meaning that only drones that weigh less

than 20 kg are taken into consideration. This as-

pect is decided in the early phases of drone design.

A property of ”weight” can be explicitly commu-

nicated at runtime to a collaborator.

• The physical drone interaction with other compo-

nents such as sensor and ﬂight controller were an-

alyzed with respect to items mentioned above.

• The civil aviation authority’s airspace safety reg-

ulations are taken into consideration.

• The civil aviation authority’s license requirements

and airworthiness standards are taken into consid-

eration.

Flight Management System: The safety properties

of the ﬂight management and control system for au-

tonomous Drone are described below.

• The response to critical situations of the emer-

gency control system is considered in terms of

time property (too late, too early, non existent).

• Connectivity to the network with the control tower

is considered with respect to status (on/off) and

up/down time.

• Operation regulations for small drones are taken

into the consideration with respect to speed prop-

erties.

• Incident and accident report is considered for

speciﬁed period of up time (time of ﬂying).

• Rules for external communication are followed

according to the safety regulation and quantiﬁed

as a ration: number of established communica-

tion/number of meetings.

Flight Navigation and Position (Collision Avoid-

ance): The following is a description of the safety

requirements and emergent safety properties for col-

lision avoidance to aid in the development of trust

among autonomous drones.

• The eventuality of collision with other ﬂying

drones has been computed by involving the risk

management scheme and has been quantiﬁed.

• The Drone keeps updating the neighboring

Drones about the information of turning right or

left and increasing or decreasing the speed.

• The Drone establishes a minimum separation of

40 meters from other drones.

• The Drone implements check run-time signal in-

terference.

Environmental and Risk Modeling: The following

is a description of the environmental and risk model-

ing to execute mission safely ﬂight and analyze the

environmental risk.

• The Drone implements the unsafe action control

to avoid external disturbance caused by weather

change.

• In bad weather conditions, the Drone increases

distance in order to maintain visibility and avoid

hazardous situations.

• The Drone continuously establishes connectivity

with the central ecosystem orchestrator in order

to receive help on avoid hazardous situations.

4.4 FSM Model of Drone Digital Twin

By integrating the engineering knowledge of the sys-

tem’s architecture and safety knowledge of nominal

and failure behavior in the early stages of system de-

velopment, state machines can be deﬁned to support

the DT. After modeling the behaviour, safety infor-

mation can be reﬂected in the FSM in the form of

various states. Later on, as the speciﬁcation of each

system component advances, the high-level models

are replaced with detailed sates of the FSM. The

safety knowledge can be integrated using a machine-

readable representation of system nominal and failure

behavior.

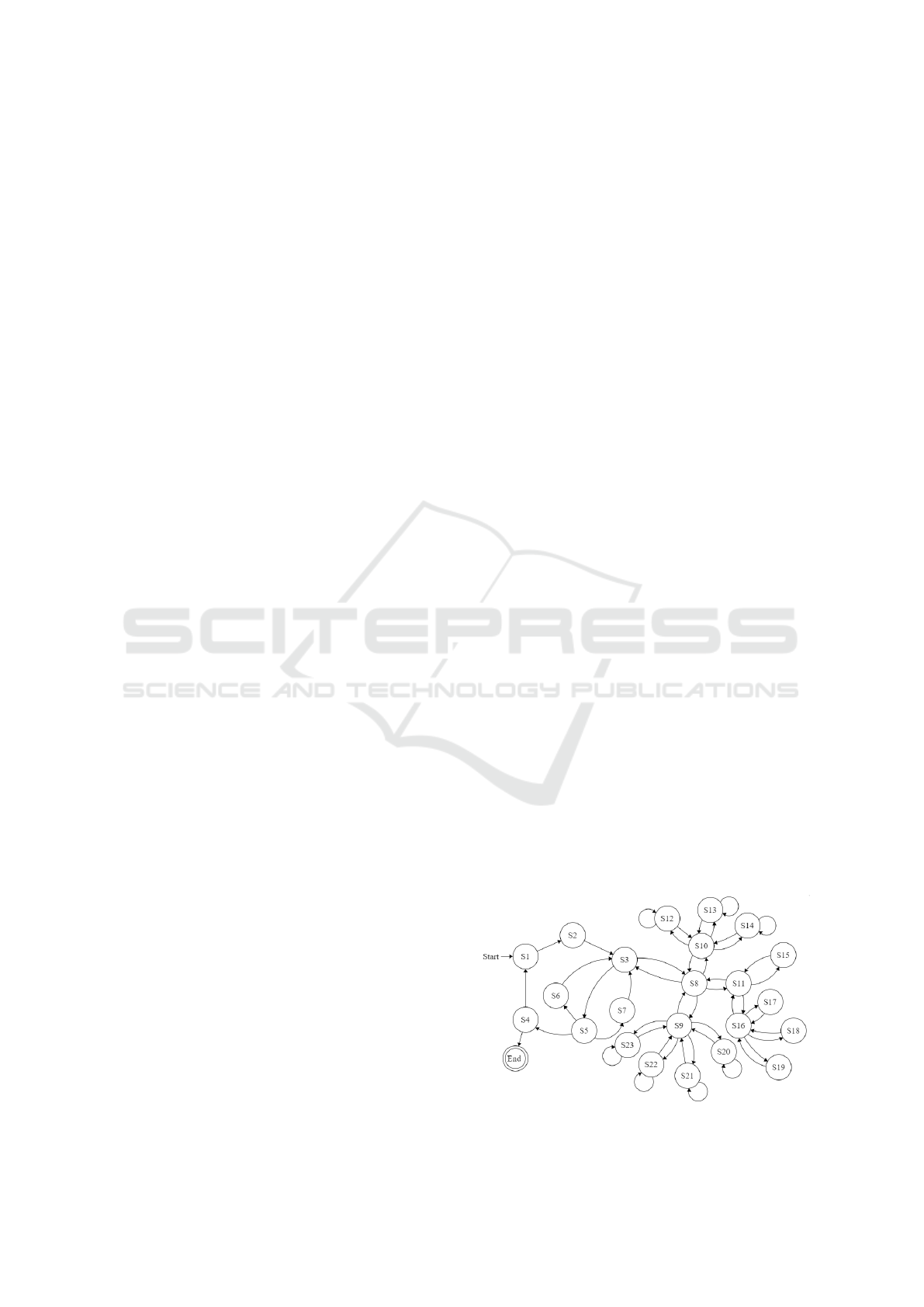

A simple example of FSM for a possible Digi-

tal Twin of an autonomous Drone is in Figure 4, to-

gether with the transitions between states that enable

the expression of the behavioral properties and inher-

ent safety properties. The contingency and collision

avoidance actions included in the FSM are based on

the work of (Hejase et al., 2018).

After deﬁning the state machine for a system, en-

gineers identify the safety status of the system for

each state. The safety status is related to the initial

derivation of safety goals. Then, based on the state-

machine deﬁnition, actions for every state are deﬁned

Figure 4: Digital Twin of an Autonomous Drone via FSM.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

636

Table 1: FSM States and Description.

State Name Description

S1 Accelerate to Start S1 is the start state of the Drone, which is considered as off at the time. When the Drone is turned on, its state changes from S1

to S2.

S2 Air Trajectory Planner

Updates

The S2 state deals with updates to the air trajectory planner, which tracks adjustments to the autonomous Drone’s air trajectory.

If Drone is moving forward, it will transit from S2 to S3.

S3 Flight Navigation Up-

dates

The S3 state deals with ﬂight navigation, and if an object is found, a transition to S5 is triggered; otherwise, the transition is

triggered to S8 (Drone signal interface).

S4 Decelerate to Stop S4 is the stop state of the Drone. As soon as the transition is complete, it goes to the end state. Whenever an unexpected event

occurs or an obstacle is detected, the Drone enters a stop state for a short time until the clear transition to S1 is completed.

S5 Object Detection The S5 state deals with object detection. A transition to the S4 (stop state) is initiated if an object is detected and takes a long

time to clear or if the Drone completes their transition. Unless the object is still detected, however, the transition is triggered to

the S6 state (contingency plan) to avoid the obstacle. If an object is still present, the transition to S7 (lane changing) state takes

place.

S6 Contingency Plan The S6 describes a contingency plan to prevent internal or external failure. If the action in the contingency plan is followed as

expected, the Drone starts moving forward and enters the S3 state.

S7 Lane Changing A lane changing is captured by S7. When a trafﬁc obstruction is encountered, the Drone switches lanes; after changing lanes,

when normal ﬂow resumes, start moving forward, which triggers the transition to S3.

S8 Drone Signal Inter-

face

The S8 state describes the drone signal interface. The signal interface state has three options for deciding the Drone next

transition. It is related to speed; therefore, the transition is triggered, resulting in the S9 state. If a lane change is required, the

transition is initiated, resulting in the S10 state, or the Drone needs to stop so the transition is triggered, leading to the S11 state.

When the Drone needs data for other ﬂights, the transition is triggered to S3 (ﬂight navigation updates).

S9 Speed Information The S9 state deals with speed information, and based on the situation, a transition to the states S20 (maintain distance), S21

(speed keeping), S22 (accelerate speed), S22 occurs (decelerate the speed), or the Drone returns to S8 (Drone signal interface).

S10 Lane Keeping Infor-

mation

The Drone expresses motion action that keeps the lane or changes to S12 (right turn), S13 (left turn), or S14 (level changing), or

the Drone returns to S8 (Drone signal interface).

S11 Stop Information The S11 state represents the situation when the Drone is advised to stop (S16) without details of the reasons, and if the issue is

analyzed as related to the environment, the transition is triggered to S15 (environmental issue) S15, or the Drone returns to S8

(Drone signal interface).

S12 Right Turn The S12 state represents the right turn. When the Drone makes a right turn in response to air trafﬁc signal updates, follows the

path, and then needs to make a turn again owing to trafﬁc problems, the transition to the S10 state is triggered.

S13 Left Turn The S13 state presents the left turn. The Drone changes the left turn according to the air trafﬁc signal updates and follows the

path, and then needs to make a turn again owing to trafﬁc problems, the transition to the S10 state is triggered.

S14 Level Changing The S14 state deals with the level changing. Depending on the path and other circumstances like the weather, the Drone adjusts

its level. When the Drone needs to change the direction so the transition is triggered to the S10 state.

S15 Environmental Issue The S15 state deals with environmental issues. The decision to discontinue was made because of environmental concerns. If the

environmental problem is severe, the transition to S11 state (stop information) is triggered in accordance with the circumstances.

S16 Brake The S16 describes the brake state. Breaking is needed, a decision about whether transition is triggered to S17(light brake) or S18

(strong break) or S19 (emergency brake) would happen according to the situation. Otherwise, the transition is triggered, to S11

(stop state).

S17 Light Brake The S17 state represents the Drone’s light braking owing to trafﬁc or other Drones coming in the route. In case of an obstacle, a

transition is triggered to S16 (brake state).

S18 Strong Brake The S18 state represents the strong brake. Once the Drone reaches the stop position, and needs to change the state, a transition is

triggered to S16 state.

S19 Emergency Brake The S19 represents emergency brake, when unanticipated events happen that force the Drone to abruptly brake. The S19 state

(key to emergency braking) triggers a transition to S16 according to the situation.

S20 Maintain the Dis-

tance

The S20 state deals with distance maintenance. The S20 state is responsible for preventing Drone collisions and ensuring safety

by keeping an appropriate distance between the two Drones. After maintaining the distance, a transition is triggered to S9 state.

S21 Speed Keeping The S21 deﬁnes the speed keeping of the Drone. Until there is no conﬂict and the route is safe, the Drone maintains its current

speed, otherwise the state changes to S9.

S22 Accelerate the Speed The motion is expressed by the S22 state. When there is no conﬂict and the route is safe and clear, the Drone accelerates,

otherwise state changes to S9.

S23 Decelerate the Speed The S23 expresses the control action. The Drone decelerates the speed based on the recognized situations such as trafﬁc, hazards,

objects, environments and states change information. Otherwise, a hazard is not present, the transition to S9 state is triggered

and the forward motion is resumed.

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation

637

in order to assure the safety of the overall system op-

eration. Consequently, every state then depicts a dis-

tinct operational context of the system by incorporat-

ing actions to reduce or eliminate unacceptable op-

eration risks within the context for which the safety

goals have been deﬁned. The processing of the steps

depends on the speciﬁcs of an application scenario.

In a self-adaptive system, the actions become input

events to other automated controls.

4.5 Direct Trust via Run-Time

Compliance Checking

Based on the relevant hazard, emergency and back-

ground knowledge all the states and their transitions

are added to the autonomous Drone Digital Twin

through an FSM (see Figure 4). The aforementioned

DT properties are veriﬁed against the actual Drone be-

haviour via run-time compliance checking, where the

actual compliance serves as an evidence to increase

trust in the Drone. On the other hand, when the actual

behaviour deviates from the DT behaviour, indicat-

ing a violation of the declared contract and breaking

the trust, the Drone launches appropriate safety mea-

sures, e.g. avoiding the Drone, minimizing the speed

or stopping.

In our case, a collision risk between two au-

tonomous drones can be reduced by maintaining the

minimum distance and then maintaining the distance

as realized in S20 in Figure 4 in order to estimate the

future locations of an autonomous drone given its cur-

rent location, the way-points it is traveling to (the re-

maining mission), and the current speed and accelera-

tion. As the Drone periodically compares the received

locations with its own anticipated locations, Digital

Twin broadcasts its future locations.

4.6 Indirect Trust via Reputation-Based

Derivation of Expected Cooperation

Indirect trust is built over time based on third-party in-

teractions with the trustee drone. The established rep-

utation is a propagating property of trust. This form

of trust is important as it informs the other drones

about the past behaviour of the Drone in question.

Moreover, reputation is also based on the quality of

data assessment from the previous different compo-

nents, such as sensors or other nodes. In the proposed

scenario, the data is collected from different sources

and intelligent data monitoring saves the data that the

drones shared with each other in the from of DT. Later

on, these data can be used as a third-party source with

other agents, feeding the indirect trust.

5 CONCLUSION

This section discusses the key ﬁndings of the research

to better comprehend the trust building in ecosystems

using DT via dynamic safety evaluation.

First, we studied how the concept of dynamic

safety evaluation can support the building of trust

in the dynamic ecosystems. With the integration of

safety mechanism and run-time compliance checking,

we evaluated the trust in the proposed scenario. We

used the concept of a Digital Twin to capture the in-

formation from the physical objects. In the method,

we discussed both direct and indirect trust. The direct

trust can be obtained via run-time compliance check-

ing of the declared (DT) and actual behaviour of the

autonomous Drone, with the help of safety rules. The

indirect trust can be obtained through the reputation,

built form the data propagated from the third-party

past interactions and feedback.

Second, we evaluated the proposed method by

presenting a use case from the logistics domain where

two drones interact with each other following the

safety rules and using the DT for run-time compliance

checking to build the trust in one another. We also

discussed the direct and indirect trust on the practical

use case, with the direct trust based on the proposed

properties of the autonomous Drone and considering

the safety rules to design the DT of the autonomous

Drone in the form of an FSM. Finally, we presented

the trust/not trust example for collision avoidance.

In the future, we plan to improve the current de-

sign of the Digital Twin by including more detailed

behavior, presenting an enhanced model, and evalu-

ating the results via run-time compliance checking.

Finally, we plan to employ the trust assessment to val-

idate the model with more attributes and scenarios.

ACKNOWLEDGEMENTS

The work was supported by ERDF ”CyberSecurity, Cyber-

Crime and Critical Information Infrastructures Center of

Excellence” (No. CZ.02.1.01/0.0/0.0/16 019/0000822) and

”Internal Grant Agency of Masaryk University” (Reg No.

CZ.02.2.69/0.0/0.0/19 073/0016943), registration number

1254/2021.

REFERENCES

Asaadi, E., Denney, E., Menzies, J., Pai, G. J., and Petroff,

D. (2020). Dynamic assurance cases: a pathway to

trusted autonomy. Computer, 53(12):35–46.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

638

Avi

zienis, A., Laprie, J.-C., and Randell, B. (2004). De-

pendability and its threats: a taxonomy. In Building

the Information Society, pages 91–120. Springer.

Boje, C., Guerriero, A., Kubicki, S., and Rezgui, Y. (2020).

Towards a semantic construction digital twin: Direc-

tions for future research. Automation in Construction,

114:103179.

Buhnova, B. (2023). Trust management in the In-

ternet of Everything. In Proceedings of the

16th European Conference on Software Architecture-

Companion Volume, pages 1–13. Springer. Preprint at

http://arxiv.org/abs/2212.14688.

Byabazaire, J., O’Hare, G., and Delaney, D. (2020). Data

quality and trust: review of challenges and opportuni-

ties for data sharing in iot. Electronics, 9(12):2083.

Cioroaica, E., Buhnova, B., and Tomur, E. (2022a). A

paradigm for safe adaptation of collaborating robots.

In Proceedings of the 17th Symposium on Software

Engineering for Adaptive and Self-Managing Systems,

pages 113–119.

Cioroaica, E., Kar, S. R., and Sorokos, I. (2022b). Compari-

son of safety and security analysis techniques. In 14th

International Conference on Computational Intelli-

gence in Security for Information Systems and 12th

International Conference on European Transnational

Educational (CISIS 2021 and ICEUTE 2021), pages

234–242, Cham. Springer International Publishing.

Cioroaica, E., Kuhn, T., and Buhnova, B. (2019). (Do not)

trust in ecosystems. In 2019 IEEE/ACM 41st Inter-

national Conference on Software Engineering: New

Ideas and Emerging Results (ICSE-NIER), pages 9–

12. IEEE.

Cioroaica, E., Purohit, A., Buhnova, B., and Schneider,

D. (2021). Goals within trust-based digital ecosys-

tems. In 2021 IEEE/ACM Joint 9th International

Workshop on Software Engineering for Systems-of-

Systems and 15th Workshop on Distributed Software

Development, Software Ecosystems and Systems-of-

Systems (SESoS/WDES), pages 1–7.

Dghaym, D., Hoang, T. S., Turnock, S. R., Butler, M.,

Downes, J., and Pritchard, B. (2021). An stpa-

based formal composition framework for trustwor-

thy autonomous maritime systems. Safety science,

136:105139.

Hancock, P. A., Billings, D. R., and Schaefer, K. E. (2011).

Can you trust your robot? Ergonomics in Design,

19(3):24–29.

Hejase, M., Kurt, A., Aldemir, T., and Ozguner, U.

(2018). Identiﬁcation of risk signiﬁcant automotive

scenarios under hardware failures. arXiv preprint

arXiv:1804.04348.

Huang, X., Kwiatkowska, M., and Olejnik, M. (2019). Rea-

soning about cognitive trust in stochastic multiagent

systems. ACM Transactions on Computational Logic

(TOCL), 20(4):1–64.

Hussein, M., Nouacer, R., Corradi, F., Ouhammou, Y., Vil-

lar, E., Tieri, C., and Casti

neira, R. (2021). Key tech-

nologies for safe and autonomous drones. Micropro-

cessors and Microsystems, 87:104348.

Iqbal, D. and Buhnova, B. (2022). Model-based approach

for building trust in autonomous drones through digi-

tal twins. In 2022 IEEE International Conference on

Systems, Man, and Cybernetics (SMC), pages 656–

662. IEEE.

Kochovski, P. and Stankovski, V. (2018). Supporting smart

construction with dependable edge computing infras-

tructures and applications. Automation in Construc-

tion, 85:182–192.

Koopman, P., Kuipers, B., Widen, W. H., and Wolf, M.

(2021). Ethics, safety, and autonomous vehicles.

Computer, 54(12):28–37.

Kuipers, B. (2018). How can we trust a robot? Communi-

cations of the ACM, 61(3):86–95.

Lahijanian, M. and Kwiatkowska, M. (2016). Social trust: a

major challenge for the future of autonomous systems.

In 2016 AAAI Fall Symposium Series.

Leng, J., Wang, D., Shen, W., Li, X., Liu, Q., and Chen,

X. (2021). Digital twins-based smart manufacturing

system design in industry 4.0: A review. Journal of

manufacturing systems, 60:119–137.

Leveson, N. G. and Thomas, J. P. (2018). Stpa handbook.

Cambridge, MA, USA.

Liu, Z., Zhang, A., and Wang, W. (2020). A framework for

an indoor safety management system based on digital

twin. Sensors, 20(20):5771.

Negri, E., Fumagalli, L., and Macchi, M. (2017). A re-

view of the roles of digital twin in cps-based produc-

tion systems. Procedia manufacturing, 11:939–948.

Ozerov, A. V., Olshansky, A. M., et al. (2021). Safety model

construction for a complex automatic transportation

system. Dependability, 21(2):31–37.

Plioutsias, A., Karanikas, N., and Chatzimihailidou, M. M.

(2018). Hazard analysis and safety requirements for

small drone operations: to what extent do popular

drones embed safety? Risk Analysis, 38(3):562–584.

Qi, Q., Tao, F., Hu, T., Anwer, N., Liu, A., Wei, Y., Wang,

L., and Nee, A. (2021). Enabling technologies and

tools for digital twin. Journal of Manufacturing Sys-

tems, 58:3–21.

Tao, F., Liu, W., Liu, J., Liu, X., Liu, Q., Qu, T., Hu, T.,

Zhang, Z., Xiang, F., Xu, W., et al. (2018). Digital

twin and its potential application exploration. Com-

puter Integrated Manufacturing Systems, 24(1):1–18.

Tauber, M. and Schmittner, C. (2018). Enabling security

and safety evaluation in industry 4.0 use cases with

digital twins. ERCIM News.

Utne, I. B., Rokseth, B., Sørensen, A. J., and Vinnem,

J. E. (2020). Towards supervisory risk control of au-

tonomous ships. Reliability Engineering & System

Safety, 196:106757.

Vierhauser, M., Bayley, S., Wyngaard, J., Xiong, W.,

Cheng, J., Huseman, J., Lutz, R., and Cleland-Huang,

J. (2019). Interlocking safety cases for unmanned au-

tonomous systems in shared airspaces. IEEE Transac-

tions on Software Engineering, 47(5):899–918.

Wagner, A. R. (2009). The role of trust and relationships in

human-robot social interaction. Georgia Institute of

Technology.

Widen, W. H. and Koopman, P. (2022). Autonomous ve-

hicle regulation and trust. University of Miami Legal

Studies Research Paper, Forthcoming, UCLA Journal

of Law and Technology.

Digital Twins for Trust Building in Autonomous Drones Through Dynamic Safety Evaluation

639
