Ontology-Driven IoT System for Monitoring Hypertension

Pedro Lopes de Souza

1,2 a

, Wanderley Lopes de Souza

1,2 b

, Luís Ferreira Pires

João Luiz Rebelo Moreira

, Ronitti Juner da Silva Rodrigues

and Ricardo Rodrigues Ciferri

Semantics, Cybersecurity & Services Group, Faculty of Electrical Engineering, Mathematics and Computer Science,

University of Twente, P.O. Box 217, Enschede, The Netherlands

Ubiquitous Computing Group, Graduate Program in Computer Science, Computing Department,

Federal University of São Carlos, P.O. Box 676, São Carlos, Brazil

ronittirodrigues@estudante.ufscar.br, RRC@ufscar.br

Keywords: Internet of Things, Ubiquitous Computing, Cloud Computing, Interoperability, Ontology, Healthcare.

Abstract: Hypertension is a noncommunicable disease (NCD) that causes global concern, high costs and a high number

of deaths. Internet of Things, Ubiquitous Computing, and Cloud Computing enable the development of

systems for remote and real-time monitoring of patients affected with NCDs like hypertension. This paper

reports on a system for monitoring hypertension patients that was built by employing these techniques. This

system allows the vital signs of a patient (blood pressure, heart rate, body temperature) to be captured via

sensors built in a wearable device similar to a wristwatch. These signals are transmitted to the patient's mobile

device for processing, and the generated clinical data are sent to the cloud to be properly presented and

analysed by the health professionals responsible for the patient. To deal with semantic interoperability issues

that arise when multiple different devices and system components must interoperate, a semantic model was

conceived for this system in terms of ontologies for diseases and devices. This paper also presents the semantic

module that we developed and implemented in the cloud to perform reasoning based on this model,

demonstrating the potential benefits of incorporating semantic technologies in our system.

1 INTRODUCTION

Hypertension is a cardiovascular disease that affects

22% of the world's adult population over 18 years of

age, being the cause of death for approximately 9.4

million people yearly. Diagnosis and monitoring of

hypertension patients are necessary to maintain blood

pressure within levels considered normal, typically

120 mmHg for systolic pressure and 80 mmHg for

diastolic pressure in adults (WHO, 2013). However,

this task is not always trivial, as for more assertive

diagnosis and treatment, it is necessary to consider

risk factors and correlate them with the disease

progression data. In addition, blood pressure

measurements are usually performed by health

professionals during consultation and these data are

https://orcid.org/0000-0002-4538-7590

https://orcid.org/0000-0001-8645-4393

https://orcid.org/0000-0001-7432-7653

https://orcid.org/0000-0002-4547-7000

https://orcid.org/0000-0002-4589-7910

https://orcid.org/0000-0001-5944-8246

often stored in an unstructured way and are not

always available when needed (Sandi, Nugraha and

Supangkat, 2013).

This paper presents the System Based on Internet

of Things for Monitoring Patients with Hypertension

(SBIoT-MPH) (Rodrigues, 2022), which is a

distributed system that allows timely and efficient

monitoring of vital signs. SBIoT-MPH has been

realised using IoT, Ubiquitous Computing and Cloud

Computing technologies to automatically acquire and

process clinical data from hypertension patients and

make them available to health professionals. SBIoT-

MPH allows patient vital signs to be captured and

transmitted from the patient's mobile device to the

cloud. This allows early warnings to be sent to the

Lopes de Souza, P., Lopes de Souza, W., Ferreira Pires, L., Moreira, J., Rodrigues, R. and Ciferri, R.

Ontology-Driven IoT System for Monitoring Hypertension.

DOI: 10.5220/0011989100003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 1, pages 757-767

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

757

patient, health professionals and other caretakers

when critical situations are detected.

One requirement to be addressed by SBIoT-MPH

is to transparently support a multitude of different

devices. In addition, it should be extensible to cope

with other diseases, which means that it should be

able to handle heterogeneous data. Furthermore, once

we decide to integrate our system with other systems

(e.g., IoT platforms), the interoperability issues will

get even more stringent. To represent these issues, we

developed a semantic model based on ontologies for

diseases and devices. This paper then also reports on

the semantic module that we developed based on this

semantic model and implemented in the cloud to

support reasoning based on the collected data.

The objectives of this paper are twofold: (i)

demonstrate how a system (hardware and software)

can be developed to monitor vital signs and make

clinical data available in the cloud for analysis and

visualisation and (ii) demonstrate how to extend this

system with other devices and applications with

support of semantic technologies to cope with

semantic interoperability issues.

The remaining of this paper has been structured as

follows: Section 2 gives the background to this work;

Section 3 introduces the SBIoT-MPH architecture in

terms of its layers; Section 4 presents the SBIoT-

MPH semantic model and describes the architecture

and design of the semantic module; Section 5

discusses our results; Section 6 discusses related

work; and Section 7 presents our conclusions and

suggestions for future work.

2 BACKGROUND

Hypertension is a prevalent cardiovascular disease

and is a strong risk factor for other diseases acquired

during life, such as coronary heart disease, left

ventricular hypertrophy, cardiac arrhythmias

including atrial fibrillation, stroke and renal failure

(Kjeldsen, 2018). Hypertension is characterised by

sustained levels of systolic blood pressure greater

than or equal to 140 mmHg, and diastolic blood

pressure greater than or equal to 90 mmHg, is

considered a silent killer, with symptoms not visible

for many years, and is usually discovered when a

complication occurs, or a vital organ is compromised

(WHO, 2013).

For a more effective treatment of hypertension,

periodic monitoring of the health conditions the

patient is necessary. Continuous monitoring enables

patients and their health professionals to actively

exert disease control. This requires vital signals to be

periodically collected, via equipment or sensors, and

the corresponding clinical data to be stored, treated,

and made available for analysis.

Internet of Things (IoT), Ubiquitous Computing,

and Cloud Computing can be effectively used in

combination to build telemedicine systems aiming at

providing pervasive healthcare (Husain et al, 2022).

Wireless sensor networks and mobile devices have

been used to develop mobile applications and smart

environments. In this way, it is possible to increase

the quality of health services and keep costs down,

allowing for less direct but more effective interaction

between patient and health professionals, and

providing ubiquitous access to health services.

Furthermore, data provided by different sensors can

be combined to produce more complete reports,

allowing more accurate medical diagnoses, and more

effective treatments.

IoT technologies are heterogeneous in terms of

hardware and software at different levels, with

different data formats and semantics, different

devices from different manufacturers, different wired

and wireless networking technologies, and different

communication protocols. Usually, IoT devices

produce large amounts of data, which can be first sent

to a gateway to be pre-processed, for example, in

mobile devices, and then forwarded to the cloud for

further processing (Gawanmeh, and Al-Karaki 2021).

IoT heterogeneity can lead to incorrect or

inefficient use, in addition to making it difficult for

users to access the offered services. To cope with

these different levels of heterogeneity, one should

strive for semantic interoperability, which aims at

providing a common data representation for the

meaningful data exchange between different

applications and services. This encompasses the

meaning of the data and their relationship, and

requires common vocabularies to describe the data

and ensure that data are unambiguously understood

by the devices (Noura, Atiquzzaman and Gaedke

2018). Many semantic models and approaches were

proposed recently for IoT semantic interoperability,

most of them employing ontologies, middleware,

semantic web, and knowledge management systems

(Souza, Souza and Ciferri 2022).

3 SBIoT-MPH

Figure 1 presents an overview of SBIoT-MPH and its

components, which have been structured according to

their locations and functionality in three layers

(Zhang and Zhang, 2012): Sensor Layer, Fog Layer

and Cloud Layer.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

758

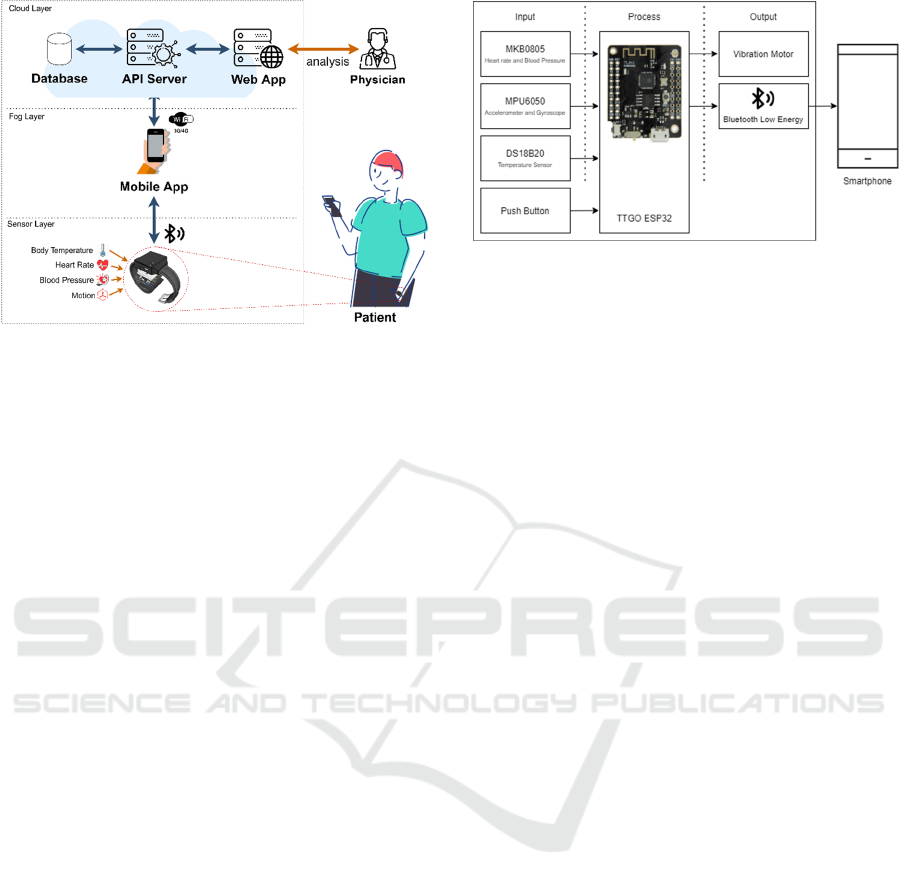

Figure 1: SBIoT-MPH overview.

The Sensor Layer encompasses wearable devices

attached to the patient's body, which have different

sensors responsible for capturing the patient's vital

signs and making them available digitally. In its

current implementation, this layer collects these vital

signs and automatically transmits clinical data related

to these signals to the Fog Layer via the Bluetooth

Low Energy (BLE) standard. The Fog Layer contains

the Mobile App application, which processes the

received clinical data and forwards it to the Cloud

Layer via WiFi or 3G/4G networks. The Cloud Layer

contains the API Server and Web App applications.

The API Server allows other applications to query

and store system data, while the Web App provides a

User Interface (UI) for health professionals to view

and analyse patient clinical data and for system

management.

In its current implementation, the Sensor Platform

collects, analyses and stores blood pressure, heart rate

and body temperature. However, the modular

architecture of this system allows other vital signs to

be captured, simply by adding new sensors.

3.1 Sensor Layer

The Sensor Layer contains a Sensor Platform, which

consists of a Wireless Body Sensor Network (WBSN)

built in a bracelet that the patient can wear on her

wrist like a watch and captures the patient's vital

signs. Clinical data obtained from these signals are

transmitted via Bluetooth Low Energy (BLE) to an

application that runs on the patient's mobile device

(smartphone, or tablet). Figure 2 shows the main

hardware modules of this platform.

Figure 2: Hardware architecture of the Sensor Platform.

The MKB0805 module is a heart rate and blood

pressure sensor that employs the

Photoplethysmography (PPG) method to detect

changes in blood volume in the microvascular tissue

bed. This non-invasive and low-cost method applies

a light source to the surface of the skin and measures

the variations in light intensity caused by the

absorption and reflection of this light by the skin

tissue through a photodetector (Castaneda et al.,

2018). Since these variations depend on the amount

of blood present in the optical path, this sensor reads

the signals and estimates systolic and diastolic

pressures and heart rate, making these clinical data

available to the main module.

The MPU6050 module is a sensor that measures

the acceleration of an object according to three

coordinate axes (X, Y, Z), and is employed to detect

the patient movements necessary to enable the

MKB0805 module to read clinical data. The

DS18B20 module is a digital temperature sensor that

measures temperatures between -55°C and 150°C

with an accuracy of ±0.5°C and is used to measure the

patient's body temperature.

The signals and data obtained by the sensors are

processed by the TTGO T7 V1.3 MINI 32 module, a

hardware board often used in the development of IoT

systems. This board is equipped with a low cost and

low energy ESP32 microcontroller from Espressif

Systems and offers WiFi 802.11b and Bluetooth v4.2

connectivity. The platform has also the Vibration

Motor module, which consists of a small motor

capable of generating vibrations to alert the patient

when critical situations are detected.

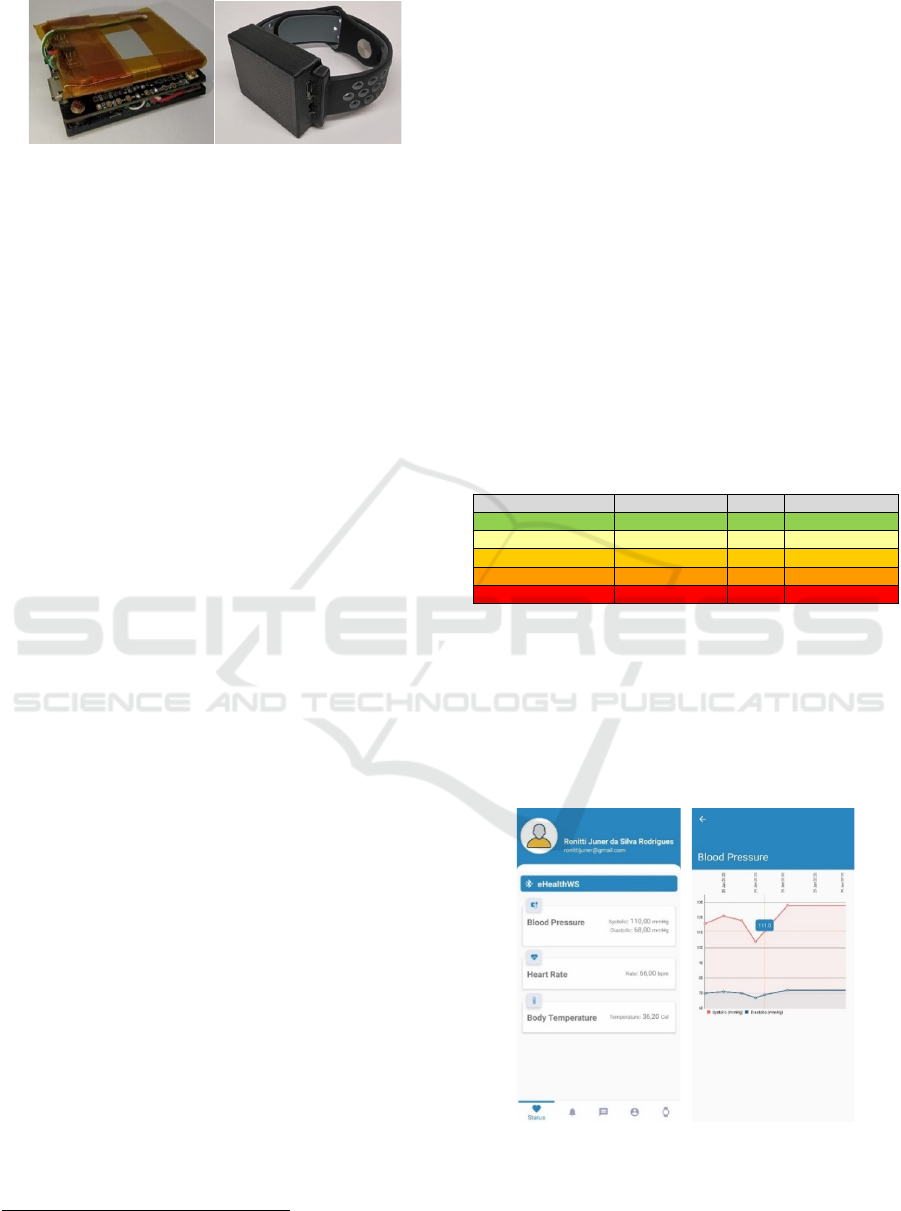

Figure 3 shows two photos of the Sensor Platform

prototype: (a) the components of this prototype,

which are fixed to a base structure to be inserted into

the bracelet; and (b) the bracelet already fully

assembled. The plastic frame was produced with a 3D

printer from the 3D models that were designed using

the FreeCad software.

Ontology-Driven IoT System for Monitoring Hypertension

759

(a) (b)

Figure 3: Sensor Platform prototype. (a) Prototype

components; (b) Assembled prototype.

3.2 Fog Layer

Mobile App is an application we developed for

Android devices that runs on the patient's smartphone

or tablet and acts mainly as a gateway, receiving data

from the Sensor Platform and forwarding it to the

cloud. Two components interact with the Mobile

App, namely the Patient Service and the Background

Service. The Patient Service represents the

hypertension patient and supports the following

functionality:

a) Authentication: the patient provides the

previously registered username and password and

once authorised, she can manage the sensors, and

view her clinical data, messages, and risk alerts.

b) Sensors Management: the patient registers the

sensor platform and can check the connection

status and battery level of the platform.

c) Data Visualisation: the patient consults the data

records of the last 24 hours, which are stored in a

database on the patient's mobile device.

The Background Service runs in the background

in the Android device, and provides the following

functionality:

a) Physiological Data Collection: once sensors are

registered by the patient, the connection and

authentication process of Mobile App with the

Sensor Platform is triggered. After this connection

is established, clinical data are collected,

processed, and sent to the cloud, where they are

stored and made available to health professionals.

b) Patient Data Analysis: the received data are

analysed and classified according to the

recommendations of the American Heart

Association shown in Table 1

into four health risk

levels: NORISK; LOW, indicating that hyperten-

sion can be controlled with lifestyle changes, such

as more physical activities and healthier eating

habits; MODERATE, indicating hypertension

needs to be controlled by medication, in addition to

lifestyle changes; and HIGH, indicating a critical

https://www.heart.org/en/health-topics/high-blood-pressu

re/understanding-blood-pressure-readings

situation so that the patient needs immediate

intervention of a health professional;

c) Alerts Management: alerts are generated

according to the risk levels and sent to the cloud

for analysis by a health professional, and the

patient automatically receives notifications

regarding these alerts on their mobile device and

on the Sensor Platform. For MODERATE and

HIGH risks, the health professional and an

emergency contact immediately receive a text

message with information related to the patient's

health status; and

d) Messages Management: messages recorded by the

health professional on the Web App, such as

recommendations for lifestyle changes, treatment

adjustments involving changes in drug dosages, or

the prescription of new drugs, are received and

stored on the patient's mobile device, who in turn

receives notifications related to these messages.

Table 1: Blood Pressure Category.

Category Systolic mmHg Diastolic mmHg

Normal Lesss than 120 an

Lesss than 80

Elevate

120-129 an

Lesss than 80

Hypertension Stage 1 130-139 o

80-89

Hypertension Stage 2 140 or Highe

90 or Highe

Hypertension Crisis Higher than 180 and/o

Higher than 120

Figure 4 shows two screenshots of the Mobile

App User Interface (UI): (a) the interactive Data

Collection screen, which allows the patient to view

the sensors and update the data collected by each

sensor, and allows the patient to access the screen for

viewing the data history related to a sensor; (b) the

Data History screen, which allows the patient to view

the data history in a graph.

(a) (b)

Figure 4: Screenshots of the Mobile App UI. (a) Data

Collection screen; (b) Data History screen.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

760

Mobile App was implemented in Java using the

API level 21 for Android 5.0 applications, compatible

with around 94,1% of the Android-based devices. To

safeguard the security of the data stored on the

patient's mobile device, the SQLite library with the

SQLChipher extension has been used, which provides

a database with 256-bit AES encryption. The Apollo

GraphQL library 2.4 was also used, which allows

Java models for GraphQL queries to be generated

(Jeon, Liuhaoyang and Hwang, 2019).

3.3 Cloud Layer

Web App and API Server were deployed in the Cloud

Layer allowing cloud resources to be used on

demand, as these applications perform tasks that

require more computing resources. Cloud

deployment also enables access to these applications

via Internet. Web App is accessed via a Web browser,

by health professionals to view and analyse their

clinical data, and by an administrator to manage

health professionals and patients.

The following functionality concerns the

administrator:

a) Patients Management, to support the registration

and maintenance of patient data, such as their

personal data and the types of diseases to be

monitored.

b) Patient to Health Professional Assignment, to

assign a patient to a health professional who will

be responsible for monitoring the patient's clinical

data.

c) Health Professionals Management, to support the

registration of health professionals.

The following functionality concerns the health

professional:

a) Health Data Analysis, which allows the health

professional to access their patients' clinical data,

analyse these data and then make decisions

regarding their treatment.

b) Message Exchange, which allows messages to be

sent to the patient's mobile device via the Mobile

App, with recommendations regarding that

treatment or lifestyle. These messages can be

categorised by the health professional into 3

priority levels for determining the order in which

they are displayed to the patient.

c) Alerts Monitoring, which allows alerts to be

automatically shown on the Mobile App once they

are forwarded to the API Server, allowing health

professionals to analyse clinical data.

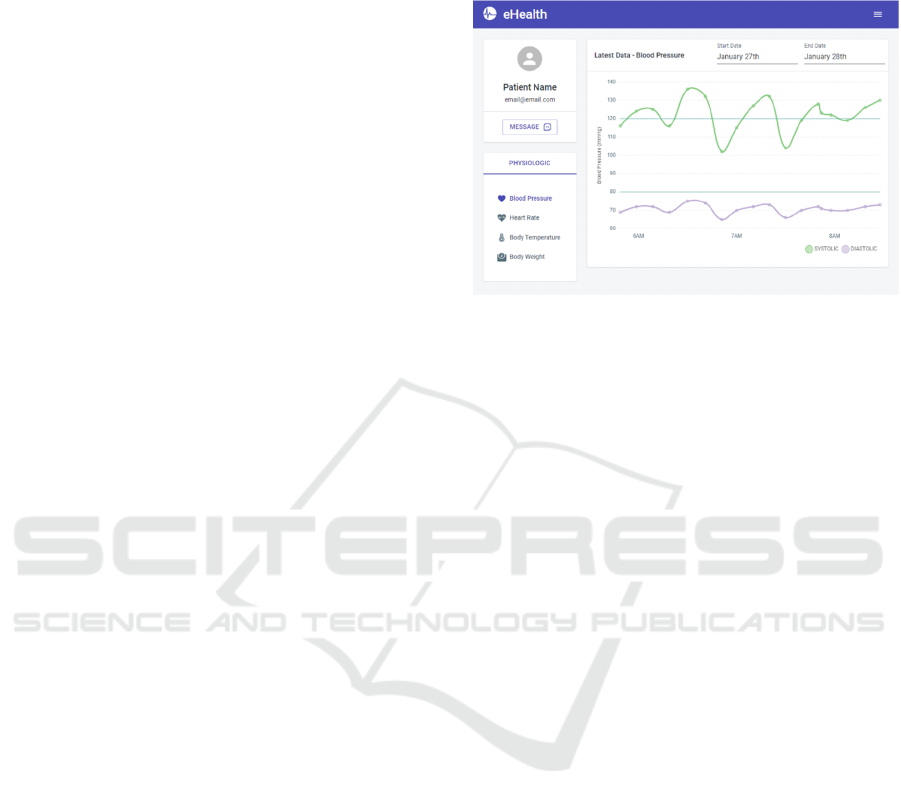

Figure 5 shows a screenshot of the Web App UI,

which allows the health professional to apply filters,

such as the desired clinical data type and the analysis

period. To help the health professional in this

analysis, reference lines related to pre-established

normal values for each clinical data type are plotted.

Figure 5: Screenshot of the Web App.

API Server operates as a server, providing a

secure API so that Mobile App and Web App can

store and retrieve system information. This API

employs the GraphQL query and data manipulation

language, which uses more parsimonious messages

and therefore generates less network traffic than

Representational State Transfer (REST).

Web App was implemented in JavaScript, and the

React and Material UI libraries were used since they

facilitate UI development. Integration with the API

Server was carried out via the Apollo Client library,

as it supports queries to a GraphQL API, managing

the cache and automatically updating the UI data.

API Server was also implemented in JavaScript,

and Node.js was used as a server-side runtime

environment due to its improved performance when

compared to others server technologies (Chitra and

Satapathy, 2017). The Apollo Server open-source

library version 2.16 was used since it supports

GraphQL APIs compatible with any GraphQL client.

API Server provides an authentication and

authorization mechanism that uses JSON Web Token

(JWT), supporting secure communication via the

HTTPS protocol.

4 SEMANTIC MODULE

Figure 6 depicts the IoT semantic model that we

developed based on a model that has been proposed

in (Rahman and Hussain, 2020). In an IoT-based

platform, components may not be able to properly

exchange and understand the raw data generated by

IoT devices (e.g., sensors, actuators, RFID devices)

from different manufacturers due to the lack of

Ontology-Driven IoT System for Monitoring Hypertension

761

common semantics. To solve this problem, the first

step can be to send the data to a gateway for pre-

processing and aggregation, aiming to increase their

quality via an algorithm such as the one presented in

(Rahman, Ahmed and Hussain, 2018). These

aggregated data can be then stored in the cloud so that

semantic operations can be performed on them.

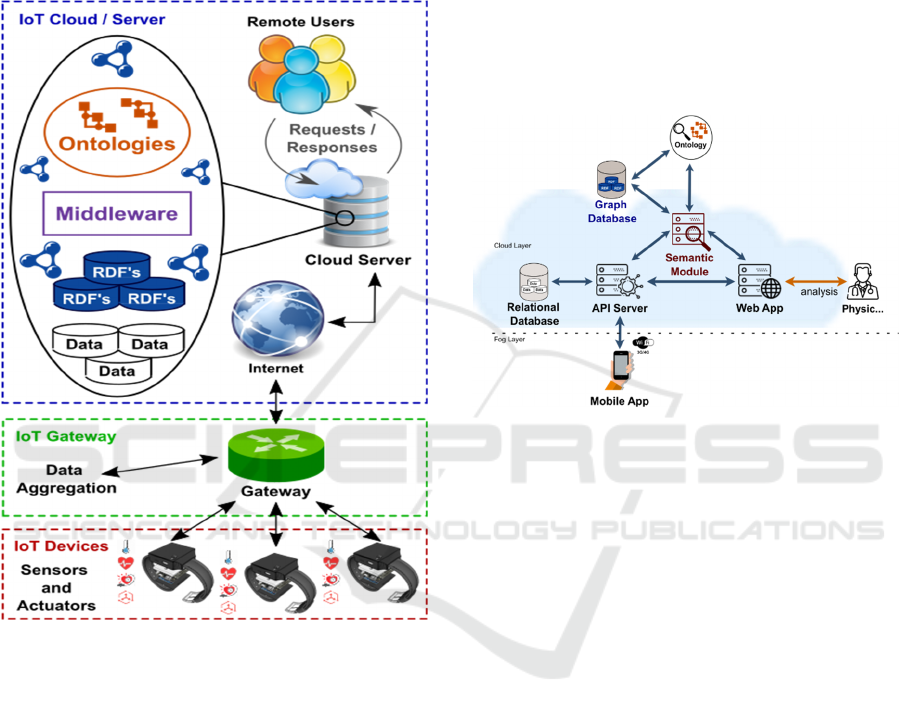

Figure 6: IoT semantic model (adapted from (Rahman and

Hussain, 2020)).

In this model, all processing to achieve semantic

interoperability is performed in the cloud, which must

comprise ontologies to provide semantic annotations

to the aggregated data, adapters to convert aggregated

data into semantic data, a conventional database, and

a triplestore, which is a database in RDF format. The

aggregated data are converted to the RDF triples

format with the help of ontologies. Some work has

already been performed in this direction (Buneman

and Staworko, 2016), but further investigation is still

necessary.

The semantic module improves SBIoT-MPH by

addressing the following requirements of each layer:

a) Sensor Layer, where the sensors have different

data formats based on different data types with

different semantics, and it is necessary to

predefine data according to BluetoothGatt API.

b) Fog Layer, where the interpretation of the data

received from the Sensor Layer, with respect to

the hypertension risk levels, is restricted to the

Patient Data Analysis functionality; and

c) Cloud Layer, where data exchange is not

meaningful, and it is not possible to personalise

the Patient Data Analysis functionality.

Therefore, we adapted the semantic model shown

in Figure 6 to deal with these problems. We worked

mainly on the Cloud Layer, in order to add semantic

annotations to the aggregated data received from the

Fog Layer, as illustrated in Figure 7.

Figure 7: SBIoT-MPH semantic model.

When designing the SBIoT-MPH semantic

model, we sought to keep as much as possible the

original structure of the system. To this end, the

semantic module was introduced in the cloud,

communicating with the SBIoT-MPH applications,

the RDF database and the ontologies, which are also

implemented in the cloud.

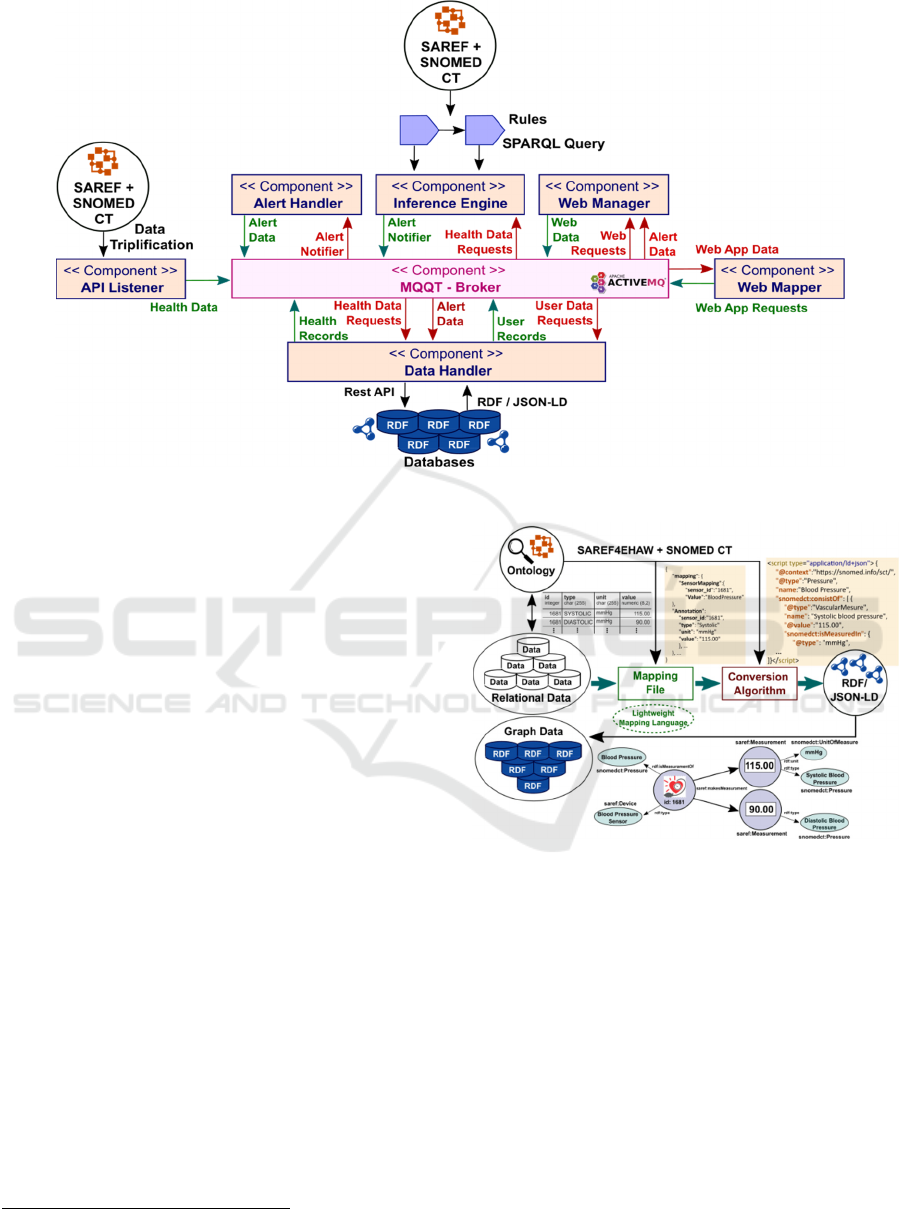

Figure 8 shows the components of the semantic

model, which are discussed in the sequel.

4.1 API Listener

This component is responsible for capturing

aggregated data from API Server, transforming them

into RDF format and publishing the result of this

transformation. Initially, a GraphQL API has been

employed to send to the API Listener all data in JSON

format received by the API Server from the Mobile

App. API Listener uses the GraphQL subscription

operation, which acts like a publisher/subscriber

protocol. Whenever API Server receives data from

Mobile App, API Listener is notified and receives a

copy of those data.

The next step has been to semantically enrich

the aggregated data with RDF annotations, where

additional knowledge expressed in ontologies.

The SBIoT-MPH Semantic Module uses the

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

762

Figure 8: SBIoT-MPH Semantic Module architecture.

SAREF4EHAW

ontology

to represent devices,

sensors, data, and actors. To incorporate concepts and

properties related to hypertension, the Chronic

disease class of SAREF4EHAW was extended with a

subset of the NCDs-related SNOMED CT ontology

A conversion algorithm transforms the aggregated

data into a set of RDF triplets with the help of the

ontology and a mapping file that employs a

lightweight JSON-based mapping language. The

relationship between the schema and the ontology is

stored in this mapping file, which describes how to

extract any information from the ontology (Rahman

and Hussain, 2020). An MQTT client function

connected to the broker publishes the semantically

structured data produced by the conversion algorithm

as a JSON-RD format to the FogHeathData topic.

Figure 9 shows the main activities of API Listener.

4.2 Inference Engine

This component is responsible for real-time

processing of the patient data published by API

Listener, and for detecting possible deviations from

normal values based on a pre-defined classification of

health data, such as the risk levels of Patient Data

Analysis. Furthermore, it is responsible for triggering

the Alert Handler component by publishing in the

broker topics related to each detected deviation type.

https://saref.etsi.org/saref4ehaw/v1.1.1/

https://bioportal.bioontology.org/ontologies/SNOMEDCT

Figure 9: API Listener main activities.

Health data are classified based on acquired

knowledge, being used in real health data to assess

and predict situations. The Inference Engine deals

with two types of knowledge: objective and

subjective. Objective knowledge is present in general

medical standards, well known by health

professionals, easily found in the literature, and

widely disseminated by large health organizations

such as the WHO. Subjective knowledge is related to

the patient’s profile and context, such as medical

history, genetic diseases, and personal lifestyle.

Objective knowledge can be described in the

ontology and, therefore, accessed by the Inference

Ontology-Driven IoT System for Monitoring Hypertension

763

Engine. Subjective knowledge can be manually

described by the user, usually the health professional

responsible for the patient, and stored in the

subjective rules database.

When a FogHealthData topic is received, the

Inference Engine identifies the data type and the

patient associated with these data, and the following

steps are applied involving subjective rules:

a) The Inference Engine verifies if there is any rule

in the subjective rules database for this patient

regarding this data type.

b) For each rule found, it checks whether the data fit

the rule.

c) If a deviation from normal values is detected, a

specific topic describing this deviation is

published, which triggers an alert.

Afterwards, the same steps are applied involving

objective rules. The only difference is in the first step,

where the Inference Engine verifies in the ontology

for these rules regarding this data type.

Objective rules can be skipped if a subjective rule

is found that explicitly states that. Some health data

have variations by default, which invalidates standard

analysis. This may occur due to the patient’s profile

and context, which must be informed by the health

professional when storing a rule in the subjective rule

database. Figure 10 illustrates these steps.

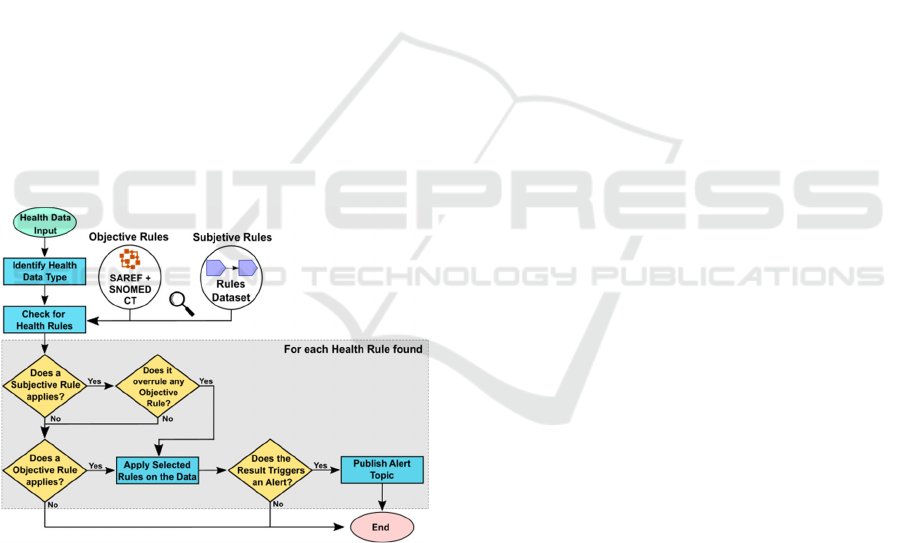

Figure 10: Steps of the Inference Engine.

Rules are described as Semantic Web Rule

Language (SWRL) expressions of the form IF

health-data-preconditions THEN

variants-effects. SWRL expressions can be

evaluated by description logic reasoners, such as

Pellet, for the evaluation of health data, inferring at

runtime new knowledge based on the ontology and

rules database. For example, the SWRL rule below

defines the Patient Data Analysis normal risk level:

Blood_Pressure(?systolic_mmhg,

?diastolic_mmhg), Patient(Pedro),

hasMeasurement(Pedro,?systolic_mmhg),

lessThen(?systolic_mmhg, 120) ^

hasMeasurement(Pedro,?diastolic_mmhg

), lessThen(?diastolic_mmhg, 80) ->

hasHypertensionStage (Pedro, normal).

Each classified deviation from normal heath data

values triggers a topic-related alert message, which is

published and consumed by Alert Handler.

4.3 Alert Handler

This component is responsible for processing real-

time alerts related to topics published by the Inference

Engine, and for contacting the patient and their health

professional. Three alerts related to the topics blood

pressure, body temperature, and heart rate were

respectively implemented in SBIoT-MPH. Alerts of

these topics provide the following information: the

user identifiers (patient and their health professional);

the sort of data and their values, and the timestamp of

the data and of their sort; and a set of actions to be

executed. The actions include sending an email to

notify the patient, their heath professional, or both.

The user identifier is used so that a request to the

Data Handler can be published for retrieving all

required information to execute indicated actions

(e.g., patient email address). Data are used to create a

historic log of all patient alerts, which can be useful

for improving pervasive healthcare by helping health

professionals to define more accurate subjective rules

for each patient. Historic data can be also explored by

data mining and knowledge discovery algorithms. An

alert log is published as HealthAlertLog, and stored

in the RDF database by the Data Handler.

4.4 Web Manager and Web Mapper

These components interact with Web App by

capturing and redirecting all requests and responses

to Data Handler. Furthermore, they provide

additional information not available in the relational

database to Web App (e.g., alert log).

Web Mapper uses an interface similar to the API

Server for receiving a Web App request described in

the Apollo Client definition language for GraphQL.

Web Mapper converts the received request to a

JSON-LD request and publishes it under the

HTMLRequests topic. After receiving the converted

request, Web Manager formulates the corresponding

SPARQL queries, and publishes them for being

processed by the Data Handler, which in turn returns

a response with the processing result. After receiving

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

764

the response from the Data Handler, the Web

Manager structures the received data for being

published in the HTMLData topic. After receiving a

response with these data, Web Mapper converts it into

a GraphQL response for sending to the Web App.

4.5 Data Handler

This component processes any direct request to the

RDF database that is made by other components. It is

an endpoint channel that isolates the persisted data,

and simplifies mutations and queries management, in

accordance with the SOA architectural principles.

SPARQL was adopted for requests and responses

because it is a structural query language designed for

querying RDF data. Since SPARQL queries can be

represented as query graphs, they can be answered by

performing graph pattern matching over RDF graphs.

5 DISCUSSION

Among the main lessons learned is the use of a holistic

approach from the system developer perspective, who

needs to be knowledgeable in many technologies that

play different roles in the solution. For message

exchange, JSON was chosen instead of XML due to

the simplicity of its structure and its minimal syntax,

which makes it lightweight, and easier to learn, use and

read. For the query language and data manipulation, a

benchmark was performed between GraphQL and

REST using Apache JMeter, in which we concluded

that GraphQL has a better performance in terms of

response time and a lower average data size rate

(bandwidth) than REST (Rodrigues, 2022).

We conceived a semantic model to enable SBIoT-

MPH to handle heterogeneous devices, data and

services. This has been realised in the Cloud Layer,

involving ontologies, RDF database (triplestore) and a

semantic module. This module was designed keeping

as much as possible the original SBIoT-MPH structure

and, for this purpose, it has an interface that translates

all the messages received by the API Server from the

Fog Layer and the Web Server. The SAREF4EHAW

ontology, which stands out for representing several

aspects of health sensors (Moreira, 2020), was

extended to describe NCDs especially hypertension,

with SNOMED-CT ontology concepts, which is

another prominent ontology in the health domain.

RDF was adopted for dataset representation to

encode the data with semantic relationships to the

ontology, and SPARQL was used to express queries

on this data source, since it is capable of querying

mandatory and optional graph patterns along with

their conjunctions and disjunctions. The Patient Data

Analysis functionality was incorporated to the

ontology as a set of SWRL rules employed by the

reasoner to determine the hypertension risk level of a

patient, turning into an accessible resource to all

services in the Cloud Layer.

Furthermore, the proposed rule-based solution is

dynamic and adjustable to meet possible changes

related to the patient profiles. The semantic module

allows the reuse of existing services, and facilitates

debugging, update, and maintenance of this module.

The messages were encoded in JSON-LD to link the

properties of an object represented in a JSON

document to concepts defined in the ontology, thus

providing additional mappings from JSON to an RDF

model. ActiveMQ is the MQTT Broker used to

handle the message exchange between services as a

publish-subscribe message broker.

The original SBIoT-MPH design presents some

problems related to interoperability that gives

directions for future work. At the Sensor Layer, our

sensor platform is the only IoT device able to

communicate with the Mobile App in the Fog Layer

at the moment. A solution to allow different IoT

devices in the Sensor Layer to transmit their data to

the Fog Layer is to develop a set of drivers describing

multiple authentication protocols.

In the Cloud Layer, the semantic model needs

refinement to improve reusability, specialisation, and

independence of its components. All services need

the Data Handler to access information from the RDF

database, which creates a communication bottleneck

and deteriorates query performance as the database

grows. A solution is to migrate from a single data

storage that is shared by all services in the application

to a microservices architecture, in which each

microservice has its own database (Database-per-

service pattern). To achieve this, we still need to

investigate how to decompose an RDF dataset

without compromising its integrity.

Recent studies have shown that IoT semantic

interoperability can be improved if implemented not

only in the Cloud Layer but also in the Fog Layer

(Rahman and Hussain, 2019). Since this will require

the redesign of the SBIoT-MPH architecture, a tool

for modelling and simulating IoT computing

environments, such as the one presented in (Mahmud

et al., 2022), will be used to investigate this problem.

6 RELATED WORK

This section discusses some relevant developments

that employ IoT, Ubiquitous Computing, and Cloud

Ontology-Driven IoT System for Monitoring Hypertension

765

Computing in different domains, while also dealing

with semantic interoperability.

An IoT-based large-scale SOA (IoT-LSS)

ontology that extends the SSN ontology for

addressing dynamic service creation, composition

and adoption is presented in (Mishra and Sarkar,

2022). The benefits of this ontology have been

illustrated in the healthcare domain by mapping the

elements of Clinical Decision Support System

(CDSS) ontology with IoT-LSS, supporting

interoperability, scalability, extendibility, flexibility,

manageability and heterogeneity among different

entities. Although this work is interesting from the

point of view of developing ontologies aimed at IoT

semantic interoperability, the application of the

proposed ontology in a realistic system like SBIoT-

MPH was not reported.

An Internet of Medical Things (IoMT) framework

called Medical Data Interoperability through

Collaboration (MeDIC) is presented in (Jaleel et al.,

2020). MeDIC provides services, such as registration,

subscription, probing, translation, and publishing,

and employs translation resources by means of

probing and translating agents at the network edge,

where medical data originate. MeDiC is distributed,

scalable, and extendable to other IoMT dimensions,

such as protocol interoperability, and to other IoT

applications, and it will be extended to support

protocol and semantics compatibility. Although this

work enriches clinical data and translates them from

one format to another, it does so by employing agents

and not ontologies like in our solution.

An IoT-based health system to monitor and report

patients' health conditions at real-time is presented in

(Bhuiyan, 2022). This system can transmit health

information such as blood pressure, body

temperature, heart rate and oxygen saturation, from

anywhere, to medical centres and caregivers. It tracks

the patient's location using different sensors, transmit

data online and offline to mobile apps, and provides

alert signals to caregivers once are identified critical

health conditions. According to the authors, this

system is potentially suitable for rural and urban areas

in developing countries. Although this system has

some similarities with SBIoT-MPH, it does not deal

with semantic interoperability.

A healthcare system based on ontological

reasoning to monitor patients with chronic diseases

called Do-Care is presented in (Elhadj, 2021). Do-

Care infers medical information and

recommendations based on IoT data, subjective and

objective knowledge, and a dynamic rule-based

approach. This system employs a modular ontology

that integrates three different ontologies: ICNP

medicine ontology, SSN/SOAS sensor network

ontology, and FOAF personal profile ontology. The

efficiency of Do-Care was tested as well as its

ontology, and they intend to integrate the Decision

Tree Learner algorithm to this system to predict

diseases and provide additional support to physicians

in recommending preventive medications. Although

this work is similar to ours, some differences are: the

Fog Layer in Do-Care only performs data aggregation

and transmission and, therefore, the patient can only

visualise their data in the cloud; Do-Care employs an

ontology built upon different ontologies than the ones

we used; and Do-Care does not have a relational or a

graphical database, requiring additional functionality

when using the semantic module.

7 CONCLUSIONS

In this paper, we reported on SBIoT-MPH, a three-

layer IoT-based system to monitor hypertension

patients. To enable semantic interoperability in this

system, a semantic model was designed to

incorporate reasoning by using disease and device

ontologies. This semantic module was deployed in

the Cloud layer, and communicates with the SBIoT-

MPH applications, the RDF database, and the

ontologies, which are also deployed in the cloud.

A possible drawback of our solution is that we

replicated the original persisted data in an RDF

triplestore. Although data duplication enforces

resilience, it also requires mechanisms to guarantee

data integrity. For the SBIoT-MPH, this mechanism

may be rather complex since the databases of this

system use different technologies. To investigate this

problem, different scenarios will be simulated to

check the trade-off of keeping two databases.

As future work, we also intend to extend the

sensor platform for collecting other types of clinical

data, and to adapt/reuse the SBIoT-MPH applications

for monitoring patients with other types of NCDs,

such as Diabetes, Asthma and Obesity. In addition,

WHO recommends the practice of physical activity

for preventing NCDs, and since the scenarios for

monitoring physical activity are similar to the ones

for monitoring NCDs patients, we believe SBIoT-

MPH can be extended to be used for this purpose.

In the literature, several fog-based approaches that

provide solutions for heterogeneity problems have

been reported, but semantic approaches are usually

implemented in the cloud. Since the SBIoT-MPH fog

layer is suitable for pre-processing of delay-sensitive

data at the network edge, in future work we intend to

investigate and propose a semantic approach in which

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

766

semantic support is partially deployed in the fog and

partially in the cloud.

ACKNOWLEDGEMENTS

This study was financed in part by the ‘Coordenação

de Aperfeiçoamento de Pessoal de Nível Superior’ -

Brazil (CAPES) - Finance Code 001. We also thank

the Brazilian National Council of Technological and

Scientific Development (CNPq) and the São Paulo

Research Foundation (FAPESP) for sponsoring our

research in the context of the Brazilian National

Institute of Science and Technology in Medicine

Assisted by Scientific Computing (INCT-MACC).

REFERENCES

Bhuiyan, M. N. et al. (2022). Design and Implementation

of a Feasible Model for the IoT Based Ubiquitous

Healthcare Monitoring System for Rural and Urban

Areas. IEEE Access, IEEE, Volume 10, pp. 91984-

91997.

Buneman, P., Staworko, S. (2016). RDF Graph Alignment

with Bisimulation. In: Proceedings of the VLDB

Endowment. Volume 9, Issue 2, pp. 1149-1160.

Castaneda, D., et al. (2018). A review on wearable

photoplethysmography sensors and their potential

future applications in health care. International Journal

of Biosensors & Bioelectronics, Volume 4, Issue 4, pp.

195-202.

Chitra, L. P., Satapathy, R. (2017). Performance

comparison and evaluation of Node.js and traditional

web server (IIS). In: Proceedings of 2017 International

Conference on Algorithms, Methodology, Models and

Applications in Emerging Technologies (ICAMMAET).

IEEE, pp. 1-4.

Elhadj, H. B. et al. (2021). Do-Care: A dynamic ontology

reasoning based healthcare monitoring system. Future

Generation Computer Systems, Elsevier, Volume 118,

pp. 417-431.

Gawanmeh, A. and Al-Karaki, J. N. (2021). Disruptive

Technologies for Disruptive Innovations: Challenges

and Opportunities. In: Proceedings of 18th

International Conference on Information Technology:

New Generations (ITNG 2021). Springer, Advances in

Intelligent Systems and Computing, Vol. 1346, Cap.

55, pp. 427-434.

Husain, M. S. et al. (2022). Pervasive Healthcare - A

Compendium of Critical Factors for Success.

EAI/Springer Innovations in Communication and

Computing (EAISICC), Springer, 379 pp.

Jaleel, A. et al. (2020). Towards Medical Data

Interoperability Through Collaboration of Healthcare

Devices. IEEE Access, Volume 8, pp. 132302-132319.

Jeon, D.-c., Liuhaoyang, Hwang, H. (2019). Design of

Hybrid Application Based on GraphQL for Efficient

Query for PHR. In: Proceedings of 2019 International

Conference on Information and Communication

Technology Convergence (ICTC), IEEE, pp. 381-383.

Kjeldsen, S. E. (2018). Hypertension and cardiovascular

risk: general aspects. Pharmacological Research,

Elsevier, Volume 129, pp. 95-99.

Mahmud, R., et al. (2022). iFogSim2: An Extended

iFogSim Simulator for Mobility, Clustering, and

Microservice Management in Edge and Fog Computing

Environments. Journal of Systems and Software.

Volume 190, 17 pp.

Mishra, S. K. Sarkar, A. (2022). Service-oriented

architecture for Internet of Things: A semantic

approach. Journal of King Saud University - Computer

and Information Sciences. ScienceDirect, Volume 34,

Issue 10, pp. 8765-8776.

Moreira, J. et al. (2020). SAREF4health: Towards IoT

Standard-based Ontology-driven Cardiac E-health

Systems. In: Applied Ontology, Volume 15, Issue 3, pp.

385-410.

Noura, M., Atiquzzaman, M. and Gaedke, M. (2018).

Interoperability in In-ternet of Things: Taxonomies and

Open Challenges. Mobile Networks and Applications,

Springer, Vol. 24, pp. 796-809.

Rahman, H., Ahmed, N., Hussain, M. I. (2018). A QoS-

aware hybrid data aggregation scheme for internet of

things. In: Annals Telecommunications. Springer,

Volume 73, pp. 475-486.

Rahman, H., Hussain, M. I. (2019). Fog-based semantic

model for supporting interoperability in IoT. IET

Communications. The Institution of Engineering and

Technology, Volume 13, Issue 1, pp. 1651-1661.

Rahman, H., Hussain, M. I. (2020). A comprehensive

survey on semantic interoperability for Internet of

Things: State-of-the-art and research challenges.

Transactions on Emerging Telecommunications

Technologies. Volume 31, Issue 12, 25 pp.

Rodrigues, R. J. S. (2022). “SBIdC-MPH: Sistema Baseado

em Internet das Coisas para o Monitoramento de

Pacientes com Hipertensão”. MSc dissertation in

Portuguese. Graduate Program in Computer Science

(PPG-CC), Computing Department (DC), Federal

University of São Carlos (UFSCar), 110 pgs.

Sandi, G., Nugraha, I. G. B. B., Supangkat, S. H. (2013).

Mobile health monitoring and consultation to support

hypertension treatment. In: Proceedings of

International Conference on ICT for Smart Society.

IEEE, pp. 1-5.

Souza, P.L.; Souza, W.L; Ciferri, R.R. (2022). Semantic

Interoperability in the Internet of Things: A Systematic

Literature Review. In: ITNG 2022 Proceedings of 19th

International Conference on Information Technology:

New Generations. Springer, Advances in Intelligent

Systems and Computing, Vol. 1421, pp. 333-340.

WHO (2013). A global brief on hypertension: silent killer,

global public health crisis: World Health Day 2013.

World Health Organization, 39 pp. Available at

https://apps.who.int/iris/handle/10665/79059 [last

access: 14/11/2022].

Zhang, H-t., Zhang, Y-k. (2012). Architecture and Core

Technologies of Internet of Things. Journal of

Changchun University of Technology. Natural Science

Edition, Volume 2, pp. 176-181.

Ontology-Driven IoT System for Monitoring Hypertension

767
