Optimal Control Strategy for Mixed Fuel Use in a Renewable
Polygeneration System
Luca Cimmino
1a
, Jimmy Barco Burgos
2b
and Ursula Eicker
2c
1
Department of Industrial Engineering University of Naples Federico II, Naples, Italy
2
Department of Buildings, Civil and Environmental Engineering, Concordia University, Montréal, Canada
Keywords: Polygeneration Systems, Cogeneration, Renewable Energy Systems, Feedback Control Strategies, Energy
Storage.
Abstract: The proposed work aims to analyse an optimal control strategy applied to a polygeneration system based on
a gasification unit, an anaerobic digester and an alkaline electrolyzer to meet the fuel demand of an internal
combustion engine. The purpose of the studied system is to meet the electricity and thermal energy demand
of several end-users. The focus of this paper is on the fuel management strategy for a 2 MW cogenerator used
to meet both these demands for a hospital. In the proposed model, the fuel injected into the internal combustion
engine is a mixture of gaseous flows produced by renewable energy systems. The mixture is first composed
of biogas, produced by an anaerobic digester fed by organic urban wastes. Secondarily, hydrogen obtained
from the electrolysis of water through a 2 MW alkaline cell is considered. In addition, syngas produced by a
1.7 MW allothermal downstream gasification unit is adopted with different gasifying agents considered,
including oxygen produced by the alkaline electrolyzer. Results show that with the adopted strategy, the fuel
energy demand is met by 15% by biogas, 3% by hydrogen, 45% by syngas using oxygen as gasifying agent
and 37% by syngas using steam as gasifying agent.
1 INTRODUCTION
The adoption of energy management strategies to
reduce the energy consumption in several sectors is
becoming an increasingly relevant issue (Nassar,
2023). Residential, industrial, commercial buildings
as well as the transport sector require energy in form
of power, heat, cool, and fuels (Papadis and
Tsatsaronis, 2020). In most cases, these demands are
still met through fossil fuels technologies that result
in greenhouse gases emissions (Zhang, 2022). The
integration of renewable energy based technologies is
pivotal to prevent the energy systems from being
increasingly climate affecting (Lima, 2020).
Renewable technologies are, however, characterized
by low energy density income and require optimal
control strategies (Dalala, 2022). Studying different
strategies for managing the energy flows produced by
renewable sources is therefore crucial (Khan, 2022).
Mostly, is important to adopt energy storage
a
https://orcid.org/0000-0001-6382-3619
b
https://orcid.org/0000-0002-2779-6614
c
https://orcid.org/0000-0002-6851-250X
strategies to adequately exploit the fluctuating energy
vectors incoming from solar energy (Calise, 2019).
The need for optimum management is especially
significant for polygeneration systems, i.e. systems
based on renewables and capable of meeting more
than three different energy demands (Khoshgoftar
Manesh, 2022). In case of residential applications, the
production of domestic hot water is considered as
additional demand (Gesteira, 2023). Studies on
hybrid polygeneration systems are increasingly
studied (Pipicelli, 2023). For residential applications,
renewable energy systems are commonly based on
solar energy (Kasaeian, 2020). In particular, for
meeting the demand for domestic hot water, solar
thermal collectors (STC) and photovoltaic-thermal
collectors (PVT) are often investigated (Calise,
2022). In many cases, these studies contain energy
and thermoeconomic analyses (Ceglia, 2020). In
(Calise, 2020) the authors proposed a thermo-
economic analysis of three water-energy-nexus
70
Cimmino, L., Burgos, J. and Eicker, U.
Optimal Control Strategy for Mixed Fuel Use in a Renewable Polygeneration System.
DOI: 10.5220/0012000200003491
In Proceedings of the 12th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2023), pages 70-78
ISBN: 978-989-758-651-4; ISSN: 2184-4968
Copyright
c
2023 by SCITEPRESS Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
polygeneration systems for the production of energy
and desalinated water for two Mediterranean islands.
The layouts of the different configurations are
developed in TRNSYS to perform dynamic
simulations. Details of the electric, thermal, cooling,
and freshwater loads are provided by means of the
TRNBuild add-on which allows to simulate the
building behaviour. The three layouts are based,
respectively, on concentrating PVTs (CPVTs) and
electric chillers, PV modules with heat pumps, and
CPVTs equipped with reverse osmosis units. The one
that gave best results in terms of economic feasibility
is the system based on completely electricity driven
technologies.
For industrial applications, biomass driven
polygeneration systems are paving the way for the
production of clean fuels (Tabriz, 2023). Using
different biomasses allows one to produce several
biofuels (as hydrogen, bioethanol, or biodiesel) which
can be exploited for different applications (Seo,
2022). Gasification and pyrolysis are the most studied
processes for syngas production from biomass
(Daraei, 2021), but anaerobic digestion is getting
increasing interest for the possibility of coupling with
the carbon capture process (Salomoni, 2011).
Optimal control strategies are fundamental in
hybrid polygeneration systems, as revealed by several
studies (Menon, 2013), but the proposed works
mainly focus on the optimal management of the
system coupled with the grid (Rossi, 2016). In (Rejeb,
2022) the authors proposed a hybrid polygeneration
system based on PVT collectors, Organic Rankine
Cycle (ORC), proton exchange membrane
electrolyzer (PEM) and liquefied natural gas (LNG).
The model was implemented in EES software and
optimization was carried out by means of genetic
algorithm, setting as objective function the cost and
the overall exergy efficiency. Results shows that
optimal values of 16.24% for the exergy efficiency
and 4.48 $ for the cost rate are obtained, basing on the
TOPSIS decision-making process.
1.1 Aim and Novelty
As investigated in the literature review, many works
analyse hybrid polygeneration systems for both
residential and industrial end use. Furthermore,
optimization algorithm are used for the optimal
management strategy of hybrid systems coupled to
smart networks. This paper introduces some important
novelties in the scientific framework discussed:
An innovative layout of a polygeneration
system based on gasification unit and
anaerobic digester, which exploit biomasses
and alkaline electrolyzer fed by photovoltaic
to meet the energy demand of a hospital.
A novel control strategy proposed to guarantee
an optimal functioning of the technologies
considered. In fact, the configuration
investigated allows the technologies to operate
dynamically with optimal efficiency.
A dynamic model of renewable technologies
producing a gaseous compound useful for
several applications in polygeneration energy
systems.
The system proposed and discussed is part of a greater
work which will be introduced and discussed in the
following sections.
2 SYSTEM LAYOUT
The layout of the polygeneration system proposed in
this work is shown in Figure 1.
This work is included in a wider project of a
hybrid polygeneration system providing power,
heating, cooling, hydrogen, oxygen, syngas, and
biogas for several applications. The original project
consists in a polygeneration system whose aim is to
meet all the energy demands of the botanical garden
José Celestino Mutis in Bogotá (Colombia). The
internal combustion engine (ICE) and the
photovoltaic (PV) systems are the technologies
already available to meet the power demand.
Moreover, the PV surpluses are used to feed an
alkaline electrolyzer (AEC) which provides hydrogen
that can be used to increase the LHV of the fuel
injected into the ICE. Furthermore, oxygen produced
by the AEC is exploited as a gasifying agent for a
gasification unit which provides syngas to feed the
ICE. Together with these technologies available, a
solar thermal collectors (STC) field is used to meet
the thermal energy demand of the system, together
with the ICE used in cogeneration mode (CHP). The
STC is also used to meet the thermal energy demand
of an anaerobic digester which provides biogas which
is used to feed the ICE too. As a first application of
the control strategy, the energy demand of a hospital,
already available from a previous work of the authors,
is considered. The part of the layout which is of
interest for this paper includes the PV system, the
alkaline electrolyzer, the gasification unit, and the
anaerobic digester (AD), equipped with the tanks for
the storage of the gases. These gaseous flow rates are
then mixed according to a precise control strategy to
meet the fuel demand of the ICE used for
cogeneration (CHP) purpose. The flow chart of the
control strategy applied is proposed in Figure 2.
Optimal Control Strategy for Mixed Fuel Use in a Renewable Polygeneration System
71

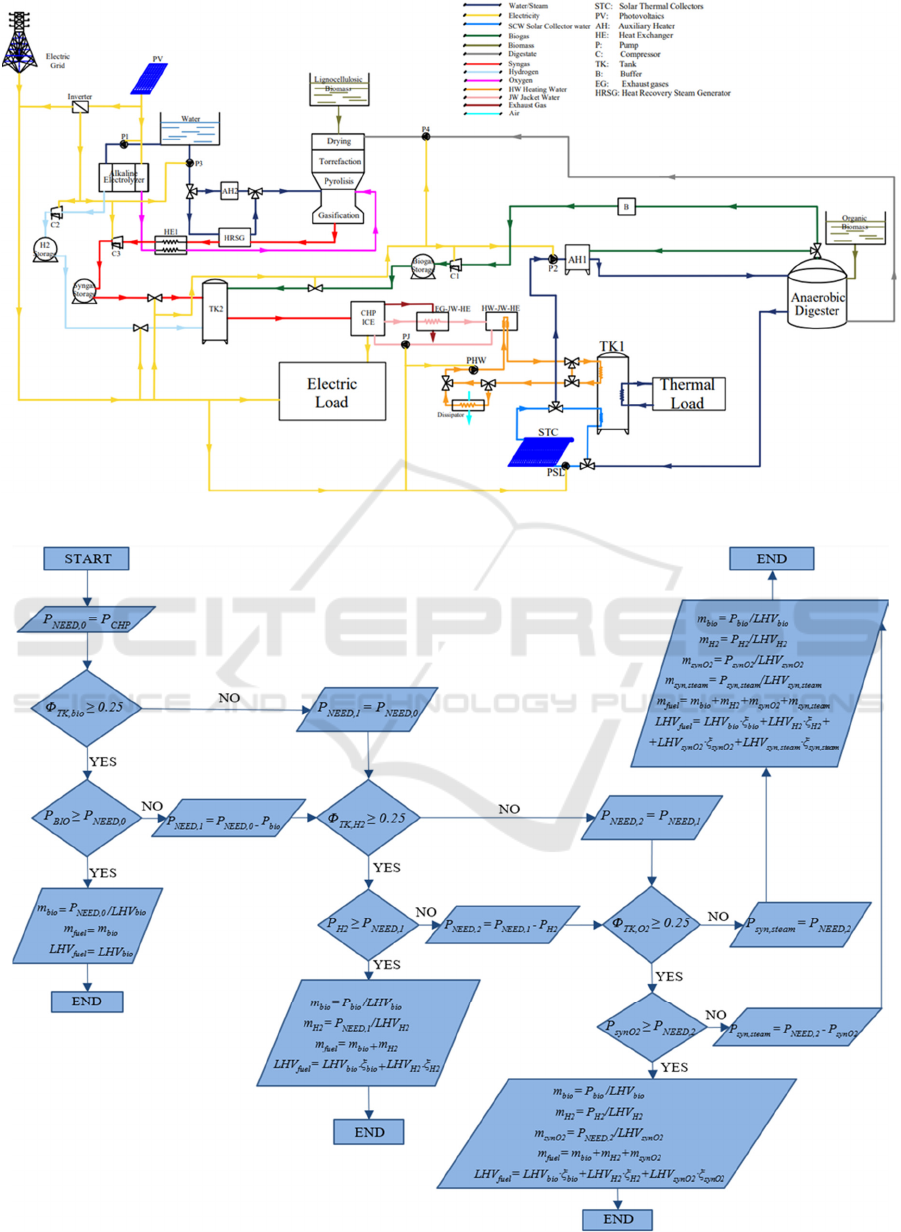

Figure 1: Layout of the system.
Figure 2: Flow chart of the control strategy.
SMARTGREENS 2023 - 12th International Conference on Smart Cities and Green ICT Systems
72
As can be noticed from the flow chart, the backup
technology which provides fuel to the CHP is the
gasifier operating with steam as gasifying agent. In
fact, when no power is available from the tanks,
meaning that none of them is at least 25%, the gasifier
gets immediately activated. In case the biogas tank is
at least 25% full - Φ
TK,bio
= 0.25 - the fuel power
available from biogas is the first one sent to the
engine. The main reason for the adoption of this
strategy is the constant flow rate of the biogas
produced, which allows one to stabilize the fuel
properties and increase the engine efficiency (Jatana,
2014) more easily.
To increase the LHV of the fuel and fully exploit
the electrolyzer production, the hydrogen flow rate is
immediately considered after biogas. More
specifically, if the biogas flow rate is enough to meet
the fuel demand, no more power is required from the
system. If no biogas is available or the energy is not
sufficient, the hydrogen tank is checked. At this point,
if the pressure level of the H
2
tank is more than 25%-
Φ
TK,H2
0.25 – the hydrogen flow rate is exploited,
otherwise the gasification unit is exploited.
According to the same strategy, if it is possible to
use oxygen as gasifying agent, it is used, otherwise
the system exploits steam pre-heated with the
outgoing syngas flow rate. In this case, there are two
reasons to adopt this strategy. On the one hand, the
oxygen produced is supposed not to be sold to the
hospital, since it should undergo several purification
steps to be usefully exploited.
On the other hand, the exergy efficiency of the
gasification unit increases when using O
2
instead of
steam as gasifying agent, and the biomass
consumption is reduced (Kalincı and Dincer, 2018).
Thus, O
2
is used as gasifying agent as long as it is
available, according to the pressure level in the tank.
If the power generated is not enough or none of the
tanks has sufficient charge, the steam flow rate is
needed to feed the gasifier. The final lower heating
value (LHV) of the fuel is calculated as the sum of the
LHV of each component of the mixture times the
fraction of the gas in the compound (ξ).
3 MODEL
The proposed layout integrates several technologies
whose models were developed in large part by the
authors. Some of these models are developed in EES
software, as the gasifier (Barco-Burgos, 2021), others
are developed in MatLab, as for the case of the
alkaline electrolyzer (Firtina-Ertis, 2022). All the
models are then integrated in the TRNSYS platform
for dynamic simulation purpose (Calise, 2017).
For the sake of brevity, in this section only the main
models are concisely discussed, namely:
Gasifier
Alkaline electrolyzer
Anaerobic Digester
All the models are based on the assumption of ideal
gas behaviour.
3.1 Gasification Unit
This model is a semi-empirical model already
developed and validated by the authors in (Barco-
Burgos, 2021). It simulates a downstream
allothermal gasification unit that produces syngas
from lignocellulosic biomass.
The calculation procedure starts with the following
input: the temperature of the gasifier, the biomass
composition, the gasifying agent/biomass ratio, tar
composition, and heat losses. All these data are
empirically verified. With these values, the
equilibrium constants K1 to K3 are calculated and
then the Newton-Raphson method is adopted to solve
the system of nonlinear equations:
()()
()( )
22
2
1
CO H
CO H O
nn
K
nn
=
(1)
()()
()
4
2
2
2
CH TOT
H
nn
K
n
=
(2)
()()
()()()
3
2
2
42
3
CO H
CH H O TOT
nn
K
nnn
=
(3)
The value of the here mentioned equilibrium
constants, as a function of the temperature, are
obtained from the JANAF thermodynamic tables
(Chase,1975).
3.2 Alkaline Electrolyzer
This model is a model developed by the authors
which simulates the operating voltage of the cell at
different current input. The model is validated by
experimental data provided in ref. (Firtina-Ertis,
2022), using the same approach of the overvoltage
calculations. First the reversible voltage of the cell is
Optimal Control Strategy for Mixed Fuel Use in a Renewable Polygeneration System
73
calculated. Then, the activation, concentration, and
ohmic overvoltages are calculated as well. The
nonlinear system of equation integrated in the model
is the following:
cell rev act conc ohm
VVVV V=++ +
(4)
1/ 2
22
00
2
(, ) ( , ) ln
HO
rev rev
HO
pp
RT
VTp VTp
nF p

=+


(5)
0, 0,
ln ln
act
ccaa
RT i RT i
V
nF i nF i
αα

=+



(6)
ln 1
conc
L
R
Ti
V
nF i

=−


(7)
()
ee
RR
ohm lectrode membr lectrol
VRi=++
(8)
The molar production of hydrogen and oxygen is
calculated according to the stoichiometry of the
electrolysis reaction. Given that, the massic flow rates
are known.
3.3 Anaerobic Digester
The model of the anaerobic digestion adopted is the
ADM1, mainly used for biomasses with low total
solid content (Ashraf, 2022). Details of this model
can be found in ref. (Calise, 2023).
The system of equations used for the calculation
of the biogas production from the input biomass has
the following structure:
i,
,
n, in,
10
1
SS
-
liq i
jij
liq liq
in i out i
j
dS q
dt V V
q
ϕ
α
=
=+
(9)
Where the term S,i represents the concentration of
the species “i” in the substrate, q is the flow rate, and
V is the volume occupied by the biomass in the
digester, supposed to be constant for a continuously
stirred tank reactor (CSTR). The term φ
i,j
is the kinetic
term and α
i,j
is the biochemical coefficient per each
process “j”. The first order Monod kinetics for the
biochemical reactions are considered. Arrhenius
kinetics are used for the dependence from the reactor
temperature. An accurate thermal model is also
developed to iteratively calculate the influence of the
evolving temperature on the AD process (Calise,
2023).
For the gas storage, the ideal gas behaviour is
supposed for the compression of the compounds in
the tanks.
4 CASE STUDY
In this section, the main data regarding the
technologies modelled for the dynamic simulation are
provided. As already mentioned, this case study is
part of a larger project involving more renewable
technologies and end users. For this control strategy,
in fact, only the electric energy demand of a large
hospital complex was considered for the internal
combustion engine operation. The interest is indeed
on the analysis of the control strategy applied to the
technologies in charge of feeding the engine. More
specifically, the engine is a JMS-612-GS-
N.L.Jenbacher CHP engine of 2 MW of rated electric
power, whose details are shown in Table 1. In this
table, the most important data regarding the 2 MW
alkaline electrolyzer (AEC) and the 1.7 MW
gasification unit (GAS) are shown. The biogas flow
rate is constant tanks to the use of a buffer
downstream the digester, the volumetric flow rate is
equal to 83.97 Nm
3
/h.
The data regarding the hospital load and the CHP
are provided with detail in (Cappiello and Erhart
2021). The hospital complex consists of several
buildings, the total heated volume is 214000 m
3
and
the floor heated area is 18640 m
2
.
As will be discussed in the “Results” section, the
power demand of the complex is quite stable over the
year because of the intensive usage of electrical
devices and hospital machineries (Cappiello and
Erhart 2021).
5 RESULTS
This section shows and discusses the main results
obtained from the dynamic simulation of the hybrid
polygeneration system with the control strategy
applied for the tanks.
Figure 3 (left) shows the power flow rates for the
different gases considered. The results are perfectly
consistent with the expected behaviour of the system.
In fact, the energy provided by the biogas flow rate is
constant and represent the baseload sent to the CHP
during its operation. Only in the first moments of the
SMARTGREENS 2023 - 12th International Conference on Smart Cities and Green ICT Systems
74
Table 1: Data of the main components.
Component Parameter Description Value Unit
CHP
- Model name JMS-612-GS-N.L -
- Manufacturer GE Jenbacher GmbH & Co OHG -
P
el,CH
P Rated power 2002 kW
P
th,fuel
Rated fuel input 4424 kW
η
el,CHP
Rated electric efficiency 0.452 -
AEC
N
cell
Number of cells in series 49 -
N
stack
Number of parallel stacks 100 -
P
el,AEC
Rated electrolyzer power 2200 kW
T Operating temperature 333 K
p Operating pressure 8 bar
GAS
P
th,GAS
Rated input power 1730 kW
m
biomass
Rated biomass input 386 kg/h
T
agent
Gasifying agent inlet
temperature
700 K
T
gasifier
Gasfication temperature 1123 K
H
2
O/bio Steam/biomass ratio 0.85 -
O
2
/bio Oxygen/biomass ratio 0.26 -
Table 2: Energy usage ratio.
R
BIOGAS
R
H2
R
SYN,O2
R
SYN,STEAM
0.15 0.03 0.45 0.37
day, when the biogas tank is less than 25% filled, the
energy is entirely provided from the gasification unit.
In this case, since no solar radiation is still available,
the H
2
and O
2
tanks are not fed by the electrolyzer,
then the steam is used as gasifying agent, see Figure
3 (right). In the first hours of the morning the biogas
tank continuously sends fuel to the CHP but the
energy mismatch is always met by the syngas
produced with the steam. The reason is that the H
2
and
O
2
tanks are still charging up to the desired state of
charge, 25%.
Around 11 AM., the O
2
tank has reached enough
charge to allow the oxygen to feed the gasifier. In this
case, the syngas provided by the gasification unit has
a higher LHV than the one produced with steam, and
the effect is immediately beneficial. In fact, the higher
the LHV of the syngas, the higher is the LHV of the
mixture sent to the engine, Figure 4 (left). Moreover,
the higher the LHV, the lower is the mass flow rate of
fuel that is necessary to send to the CHP, Figure 4
(right).
The effect of the H
2
flow rate is the most relevant,
as expected, on the increasing of the LHV of the fuel.
In fact, despite a small amount of H
2
is sent during the
allowed activation hours of the tank, the LHV of the
compound increases from 70 to roughly 75 MJ/kg,
see figure 5. This means that the flexibility in the
energy sent to the ICE from the several tanks would
be easily increased by simply applying a different
strategy.
For the sake of completeness, Table 2 shows the
values of the ratio of the energy share from the three
different fuels during the year of functioning. As it is
possible to observe, with this strategy the larger
fraction, 0.45, is due to the syngas obtained from O
2
,
which is the first target for the control developed.
Large share is also due to the syngas operating with
steam, which means that the H
2
could be exploited
more to increase the flexibility of the gaseous
moisture.
Optimal Control Strategy for Mixed Fuel Use in a Renewable Polygeneration System
75

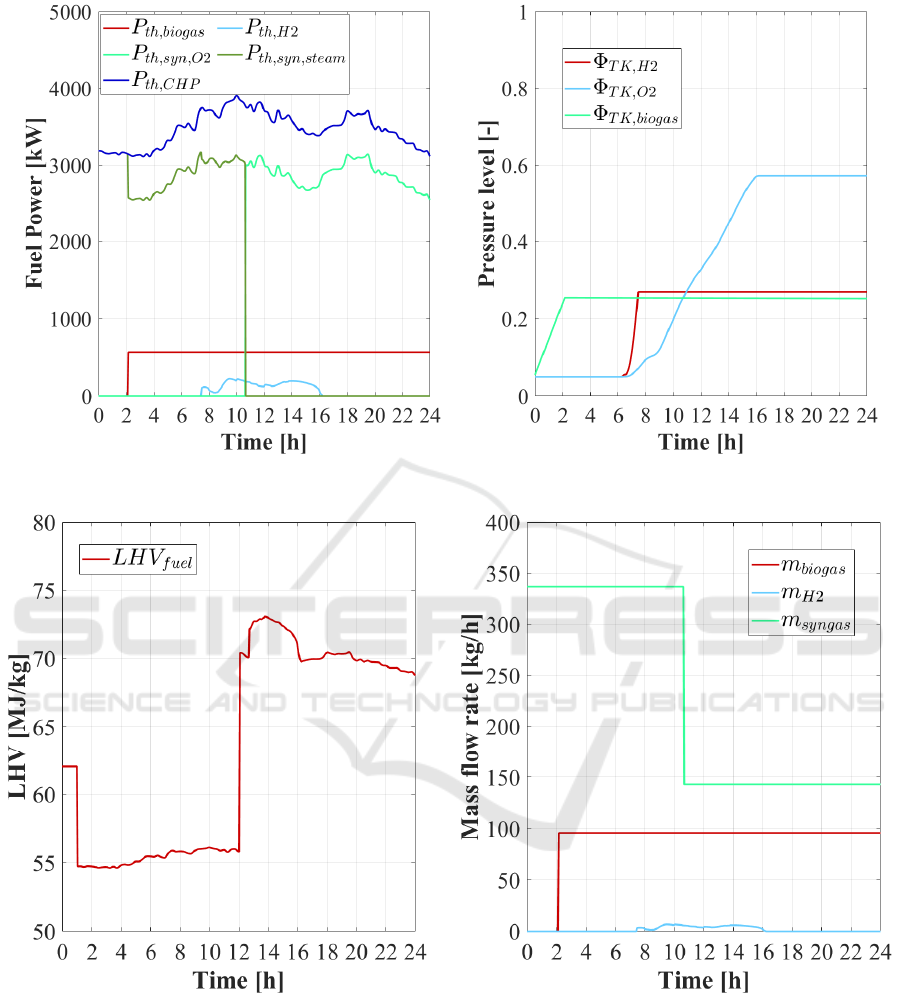

Figure 3: Fuel energy provided by the unit (left) and tank pressure level (right).
Figure 4: LHV of the fuel (left) and mass flow rate injected (right).
6 CONCLUSIONS
In conclusion, the control strategy proposed allows
one to easily manage the several fuels available to
exploit the technologies in the most convenient way,
according to the different targets that could be set for
the hybrid polygeneration system. In this case study
the hospital complex had an almost constant energy
demand and the first aim was to let the gasifier
operate with oxygen as gasifying agent. In a different
scenario, the first aim could be producing oxygen to
be purified and used by the hospital complex and the
system could be easily managed changing the control
strategy.
SMARTGREENS 2023 - 12th International Conference on Smart Cities and Green ICT Systems
76
The final aim of this work was to provide a suitable
control strategy for the optimal dynamic operating
conditions of a polygeneration system based on
biofuels production which could be use for whatever
application.
NOMENCLATURE
AD anaerobic digestion
AEC alkaline electrolyzer
CHP cogeneration of heat and power
CPVT concentrating photovoltaic-thermal
CSTR continuously stirred tank reactor
GAS gasification unit
ICE internal combustion engine
LHV lower heating value [MJ/kg]
LNG liquefied natural gas
M maintenance [euro/year]
m mass flow rate [kg/h]
P power [kJ/h or kW]
PEM proton exchange membrane
PV photovoltaic
PVT photovoltaic-thermal
STC solar thermal collectors
T temperature [°C]
Subscript
bio biogas
fuel fuel
H2 hydrogen
Need demand
O2 oxygen
Steam steam
Syn syngas
TK tank
Greek symbol
ɳ efficiency [-]
ξ gas fraction [-]
Φ fill factor [-]
REFERENCES
Ashraf, R. J., J. D. Nixon and J. Brusey (2022). "Using
multi-objective optimisation with ADM1 and measured
data to improve the performance of an existing
anaerobic digestion system." Chemosphere 301:
134523.
Barco-Burgos, J., J. Carles-Bruno, U. Eicker, A. L.
Saldana-Robles and V. Alcántar-Camarena (2021).
"Hydrogen-rich syngas production from palm kernel
shells (PKS) biomass on a downdraft allothermal
gasifier using steam as a gasifying agent." Energy
Conversion and Management 245: 114592.
Calise, F., F. L. Cappiello, A. Cartenì, M. Dentice
d’Accadia and M. Vicidomini (2019). "A novel
paradigm for a sustainable mobility based on electric
vehicles, photovoltaic panels and electric energy
storage systems: Case studies for Naples and Salerno
(Italy)." Renewable and Sustainable Energy Reviews
111: 97-114.
Calise, F., F. L. Cappiello, L. Cimmino, M. Dentice
d’Accadia and M. Vicidomini (2023). "Dynamic
analysis and investigation of the thermal transient
effects in a CSTR reactor producing biogas." Energy
263: 126010.
Calise, F., F. L. Cappiello, M. Vicidomini and F.
Petrakopoulou-Robinson (2020). "Water-energy nexus:
A thermoeconomic analysis of polygeneration systems
for small Mediterranean islands." Energy Conversion
and Management 220: 113043.
Calise, F., M. Dentice d'Accadia, L. Libertini, E. Quiriti and
M. Vicidomini (2017). "A novel tool for
thermoeconomic analysis and optimization of
trigeneration systems: A case study for a hospital
building in Italy." Energy 126: 64-87.
Calise, F., M. Vicidomini, F. L. Cappiello and M. D.
D'Accadia (2022). Chapter 2 - Components and
processes of polygeneration systems. Polygeneration
Systems. F. Calise, M. Dentice D’Accadia, L. Vanoli
and M. Vicidomini, Academic Press: 35-78.
Cappiello, F. L. and T. G. Erhart (2021). "Modular
cogeneration for hospitals: A novel control strategy and
optimal design." Energy Conversion and Management
237: 114131.
Ceglia, F., A. Macaluso, E. Marrasso, C. Roselli and L.
Vanoli (2020) "Energy, Environmental, and Economic
Analyses of Geothermal Polygeneration System Using
Dynamic Simulations." Energies 13 DOI:
10.3390/en13184603.
Chase M.W., Curnutt J.L., Prophet H., McDonald R.A., and
Syverud A.N. (1975) "JANAF thermochemical tables,
1975 supplement." Journal of Physical and Chemical
Reference Data 4,1 (1975).
Dalala, Z., M. Al-Omari, M. Al-Addous, M. Bdour, Y. Al-
Khasawneh and M. Alkasrawi (2022). "Increased
renewable energy penetration in national electrical
grids constraints and solutions." Energy 246: 123361.
Daraei, M., P.-E. Campana, A. Avelin, J. Jurasz and E.
Thorin (2021). "Impacts of integrating pyrolysis with
existing CHP plants and onsite renewable-based
hydrogen supply on the system flexibility." Energy
Conversion and Management 243: 114407.
Firtina-Ertis, I. (2022). "Thermodynamic and
electrochemical assessment of an alkaline electrolyzer
(AE) at different operating parameters." Journal of
Environmental Chemical Engineering 10(2): 107225.
Gesteira, L. G., J. Uche, F. L. Cappiello and L. Cimmino
(2023) "Thermoeconomic Optimization of a
Polygeneration System Based on a Solar-Assisted
Desiccant Cooling." Sustainability
15 DOI:
10.3390/su15021516.
Jatana, G. S., M. Himabindu, H. S. Thakur and R. V.
Ravikrishna (2014). "Strategies for high efficiency and
Optimal Control Strategy for Mixed Fuel Use in a Renewable Polygeneration System
77
stability in biogas-fuelled small engines." Experimental
Thermal and Fluid Science 54: 189-195.
Kalincı, Y. and I. Dincer (2018). 5.3 Waste Energy
Management. Comprehensive Energy Systems. I.
Dincer. Oxford, Elsevier: 91-133.
Kasaeian, A., E. Bellos, A. Shamaeizadeh and C.
Tzivanidis (2020). "Solar-driven polygeneration
systems: Recent progress and outlook." Applied Energy
264: 114764.
Khan, T., M. Yu and M. Waseem (2022). "Review on recent
optimization strategies for hybrid renewable energy
system with hydrogen technologies: State of the art,
trends and future directions." International Journal of
Hydrogen Energy 47(60): 25155-25201.
Khoshgoftar Manesh, M. H., S. A. Mousavi Rabeti, M.
Nourpour and Z. Said (2022). "Energy, exergy,
exergoeconomic, and exergoenvironmental analysis of
an innovative solar-geothermal-gas driven
polygeneration system for combined power, hydrogen,
hot water, and freshwater production." Sustainable
Energy Technologies and Assessments 51: 101861.
Lima, M. A., L. F. R. Mendes, G. A. Mothé, F. G. Linhares,
M. P. P. de Castro, M. G. da Silva and M. S. Sthel
(2020). "Renewable energy in reducing greenhouse gas
emissions: Reaching the goals of the Paris agreement in
Brazil." Environmental Development 33: 100504.
Menon, R. P., M. Paolone, and F. Maréchal (2013). "Study
of optimal design of polygeneration systems in optimal
control strategies." Energy 55: 134-141.
Nassar, M. Y., M. L. Shaltout and H. A. Hegazi (2023).
"Multi-objective optimum energy management
strategies for parallel hybrid electric vehicles: A
comparative study." Energy Conversion and
Management 277: 116683.
Papadis, E. and G. Tsatsaronis (2020). "Challenges in the
decarbonization of the energy sector." Energy 205:
118025.
Pipicelli, M., M. Muccillo and A. Gimelli (2023).
"Influence of the control strategy on the performance of
hybrid polygeneration energy system using a prescient
model predictive control." Applied Energy 329:
120302.
Rejeb, O., S. M. Alirahmi, E. Assareh, M. El Haj Assad, A.
Jemni, M. Bettayeb and C. Ghenai (2022). "Innovative
integrated solar powered polygeneration system for
green Hydrogen, Oxygen, electricity and heat
production." Energy Conversion and Management 269:
116073.
Rossi, I., L. Banta, A. Cuneo, M. L. Ferrari, A. N. Traverso
and A. Traverso (2016). "Real-time management
solutions for a smart polygeneration microgrid."
Energy Conversion and Management 112: 11-20.
Salomoni, C., A. Caputo, M. Bonoli, O. Francioso, M. T.
Rodriguez-Estrada and D. Palenzona (2011).
"Enhanced methane production in a two-phase
anaerobic digestion plant, after CO2 capture and
addition to organic wastes." Bioresource Technology
102(11): 6443-6448.
Seo, J. Y., D. Tokmurzin, D. Lee, S. H. Lee, M. W. Seo and
Y.-K. Park (2022). "Production of biochar from crop
residues and its application for biofuel production
processes – An overview." Bioresource Technology
361: 127740.
Tabriz, Z. H., L. Khani, M. Mohammadpourfard and G. G.
Akkurt (2023). "Biomass driven polygeneration
systems: A review of recent progress and future
prospects." Process Safety and Environmental
Protection 169: 363-397.
Zhang, C., H. Zhai, L. Cao, X. Li, F. Cheng, L. Peng, K.
Tong, J. Meng, L. Yang and X. Wang (2022).
"Understanding the complexity of existing fossil fuel
power plant decarbonization." iScience 25(8): 104758.
SMARTGREENS 2023 - 12th International Conference on Smart Cities and Green ICT Systems
78
