Light Quantum Key Distribution Network Security Estimation Tool

Sara Nikula

, Pekka Koskela

, Outi-Marja Latvala

and Sami Lehtonen

VTT Technical Research Centre of Finland, Finland

{ﬁrstname.lastname}@vtt.ﬁ

Keywords:

Quantum Key Distribution, Quantum Key Distribution Network, Light Security Tool, Security Estimation.

Abstract:

Quantum key distribution offers a way to create and distribute secure encryption keys based on the laws of

quantum physics, which means that these protocols are secure even in the presence of an adversary with

unlimited computing power. These keys can be forwarded over several hops in quantum key distribution

networks (QKDN). At the moment, any established solutions to assess the security of these networks don’t

exist. This paper describes a concept of light tool for security status estimation, which provides a holistic

estimation of quantum key distribution network systems’ security status, especially concentrating in quantum

issues that might not arise when assessing classical networks. Our approach is to make high abstraction level

questions concerning the status of speciﬁc security issues. Rather than providing detailed questions, we try to

reach a holistic view of QKDN security, where the questions will also guide the future security development.

We present sets of questions which concern different areas of quantum key distribution network security. With

the help of these questions, we offer a high-abstraction level tool for estimating the security of quantum key

distribution networks.

1 INTRODUCTION

Quantum key distribution (QKD) protocols offer a

way for two users, who have an access to a quantum

and a classical communication channel, to form and

distribute keys securely. These can be used to encrypt

the subsequent communication. The quantum chan-

nel is needed for transmitting key information in the

form of, for example, photon polarization. The main

difference to classical key agreement protocols is that

the security of QKD protocols is not based on math-

ematical problems, but rather on the laws of quantum

physics, such as the fact that the quantum state of a

single photon cannot be cloned. Hence, any attempt

to eavesdrop the quantum channel will lead to an in-

creased error rate in the resulting bit string, and thus

the communicating parties will be able to infer that

something has gone wrong. (Huang et al., 2016; Ben-

nett and Brassard, 2014)

The advantage of utilizing QKD is that its security

doesn’t depend on the assumed computing power of

the potential adversary. This means that it remains as

a secure key distribution protocol even though quan-

https://orcid.org/0000-0002-2299-8030

https://orcid.org/0000-0002-2380-2781

https://orcid.org/0000-0001-8083-8986

https://orcid.org/0000-0003-0736-0036

tum computers are developing rapidly and even if

some new mathematical break-throughs would ques-

tion the security of quantum-resistant key exchange

algorithms.

Quantum key distribution protocols are deﬁned

as point-to-point interaction between two adjacent

nodes. In order to manage and distribute the produced

keys in a practical way, these nodes can be connected

with each other to form a quantum key distribution

network in which keys can be transmitted over sev-

eral hops. These networks need two types of chan-

nels. Quantum channels are used for creating secure

keys via quantum key distribution protocols. Clas-

sical channels are needed for the post-processing of

these keys and for passing control information, which

is needed to maintain the network.

For example, we might want to create and trans-

mit secure keys to an application, which would use

them for communicating securely with another ap-

plication over the internet. We would start by cre-

ating these keys in a quantum link, using some quan-

tum key distribution protocol. Then, we would create

the ﬁnal secure keys out of the raw bits in the post-

processing (also called key distillation) phase, and ﬁ-

nally, we would pass these keys forward in the key

distribution network to the target applications. Under

transmission, the data can be secured by decrypting it

in a trusted node and encrypting it again for the next

Nikula, S., Koskela, P., Latvala, O. and Lehtonen, S.

Light Quantum Key Distribution Network Security Estimation Tool.

DOI: 10.5220/0012022100003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 587-596

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

587

hop in some quantum-safe manner, using a key pro-

duced in a QKD protocol previously conducted with

the next node. (Takahashi et al., 2019; Yu et al., 2017)

General tools to assess the information security

status of an organization do exist, e.g., (Kybertur-

vallisuuskeskus, 2021). There are also well-known

frameworks for assessing the maturity of processes

or organizations, e.g., Capability Maturity Model

(CMM) (Paulk et al., 1993) or Cybersecurity Capabil-

ity Maturity Model (C2M2) (Christopher et al., 2014).

QKD is a relatively new technology that has not yet

been utilized in a large scale. At the moment, estab-

lished solutions to assess the security of a QKDN sys-

tem do not exist. Existing tools to assess information

security of a network may not be sufﬁciently detailed

to be applied to quantum key distribution networks,

because these include special infrastructure and pro-

tocols deviating from classical networks. This paper

aims to provide a tool to estimate the security of a

quantum key distribution network speciﬁcally. We

focus on aspects concerning quantum threat, because

quantum key distribution protocols are aimed to be a

safe key distribution method even in the presence of

a quantum attacker, and assume that classical infor-

mation security is well implemented. This is because

tools to assess classical information security already

exist, and covering all classical information security

aspects of a network would be redundant. Our tool

can be realized for example as a spreadsheet.

In the next section we describe the QKDN archi-

tecture. In Section 3 we present our tool. The tool is

divided into parts that concentrate on different secu-

rity aspects of the QKDN. Security of the network is

estimated with the help of high abstraction level ques-

tions, which help to assess and improve the security

of the system. In Section 4 we discuss the strengths,

weaknesses and improvement and expansion poten-

tial of our tool. Section 5 concludes the paper.

2 QKDN ARCHITECTURE

Quantum key distribution network architecture can be

separated into three layers. At the bottom we have the

infrastructure layer, which usually consists of a clas-

sical and a quantum part integrated with each other,

see Figure 1. The classical section consists of routers,

servers and classical links, and the quantum section

consists of switches, splitters, relays, and quantum

links. Above the infrastructure layer is the manage-

ment and control layer, which is used for orchestra-

tion of resources and devices of the QKDN. At the

top there is the user and application layer, where the

key services of the QKDN are provided and used.

The security of a QKDN can be inspected and es-

timated by concentrating on different sectors of the

system, which together form the holistic security of

the whole system. These sectors are discussed more

carefully in Section 3. Based on a generic network ar-

chitecture, Figure 1, the security critical parts can be

deﬁned as the security of physical assets, integration,

response capability of the system, orchestration and

management, and the skills of human resources, see

Figure 2. The security level can then be estimated

through known vulnerabilities and threats with risk

analysis according to the extent of provided services

and how critical these services are.

Several international standardisation organisa-

tions, such as ITU and ETSI, provide standards and

recommendations concerning quantum key distribu-

tion protocols, their security levels and their imple-

mentation. These standards can be exploited to esti-

mate the maturity level of the security solutions and

technology. Appendix gives a brief overview of some

of the currently available standards and recommenda-

tions concerning QKDNs.

3 ASSESSING THE SECURITY OF

QUANTUM KEY

DISTRIBUTION NETWORKS

In the following sections, we present nine short sets of

questions which enable a security expert to assess se-

curity of a QKDN. The sets of questions are divided

according to the different sections of the whole sys-

tem. Each part is covered in its own subsection to-

gether with a table of security questions. We have

structured the tool so that the answer to a question

can be ﬂexibly expressed as a percentage. The 0 and

100 % answers are provided in the tables, and the user

compares their system to these extremes to get a re-

sult, e.g., ”75% complete”.

3.1 Protocols

Protocols are the main component of the quantum key

distribution process. In order to perform quantum

key distribution, two kinds of protocols are needed: a

quantum protocol, which consists of transmitting the

key information in quantum states, and classical pro-

tocols, which are needed to extract the classical key

material from the quantum information and ensure the

security of the process. Quantum protocols can be

divided into discrete variable (DV-QKD) protocols,

such as BB84 (Bennett and Brassard, 2014) and B92

(Bennett, 1992), and continuous-variable (CV-QKD)

SECRYPT 2023 - 20th International Conference on Security and Cryptography

588

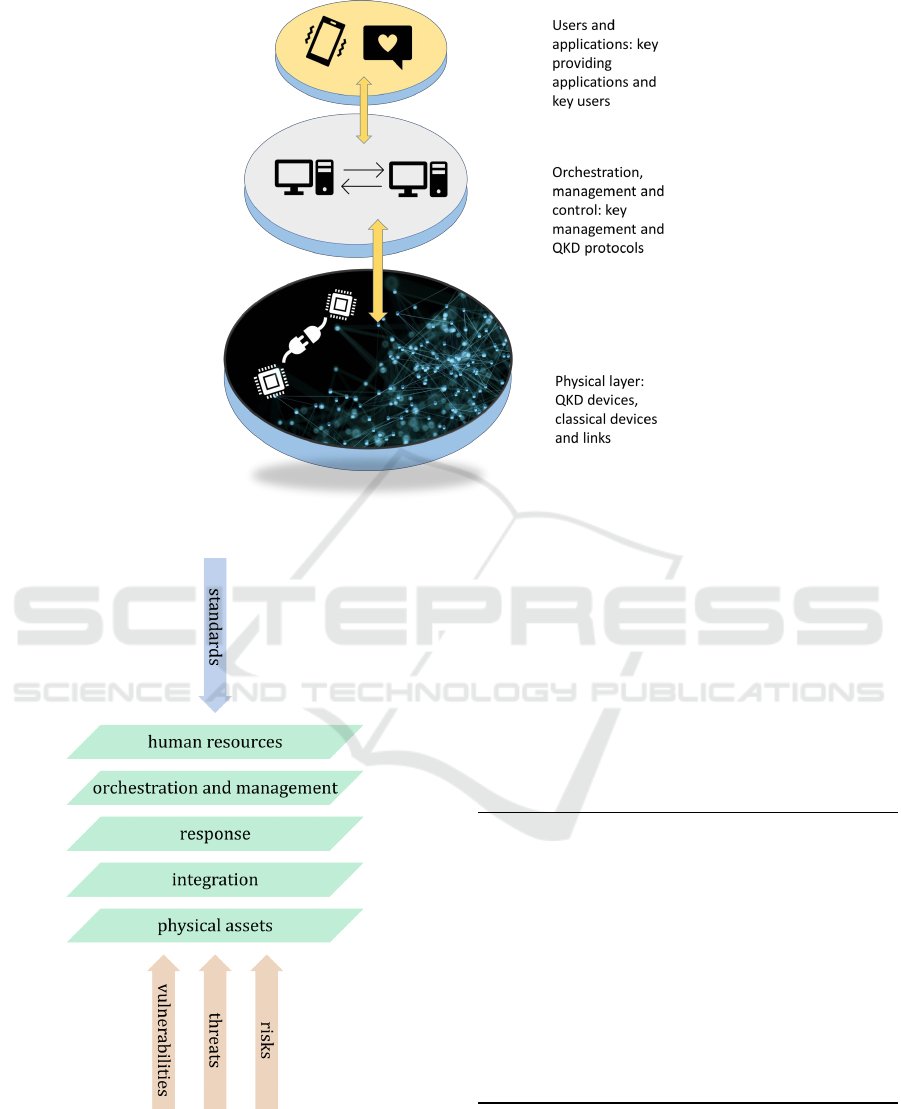

Figure 1: Generic QKD network architecture.

Figure 2: Generic QKD security architecture.

protocols, such as the protocol used in (Huang et al.,

2016). These two protocol types differ from each

other in their working principles and security proofs,

but both are based on utilizing quantum physics for

detecting possible attacks. Classical protocols are

used for post-processing the data and assessing the er-

ror rate of the channel, and they have a signiﬁcant role

in the security of the ﬁnal secret keys. An example of

a classical post-processing protocol is (Brassard and

Salvail, 1994).

The security of the used protocols can be assessed

with the help of the questions in Table 1.

Table 1: Assessing the security of protocols, answer scale

0–100 %.

Has the quantum security of the used protocols

been theoretically proven?

Does the implementation of the protocols comply

with quantum theory in such a way that the secu-

rity of the protocols is maintained?

Do the devices available enable implementing the

chosen quantum protocols correctly?

Has the security level of the ﬁnal secure keys been

deﬁned?

Has information leakage during the quantum and

classical protocols been taken into account when

assessing the security level of these keys?

3.2 Infrastructure

Infrastructure refers to the devices that form a net-

work. In a QKD network, this usually includes classi-

cal network devices, such as routers and servers, and

Light Quantum Key Distribution Network Security Estimation Tool

589

QKD speciﬁc devices, such as relays, switches and

mirrors (Tayduganov et al., 2021; Arteaga-D

ıaz et al.,

2022). The free space and optical links are similar

or same for both classical and quantum side. These

devices together form a QKD network. The choice

of the used quantum protocol is dependent on the in-

frastructure. As stated in (ETSI, 2010b), some chan-

nel types only allow secure implementation of certain

protocols, due to the noise rate of the channel.

Security of the infrastructure should be considered

from two viewpoints: for every device individually

and for the network infrastructure as a system. The

system and devices will have different security threats

and vulnerabilities, and they need to be studied sepa-

rately. Relations and paths between the different com-

ponents of the network can be assessed. For example,

if an attacker has compromised a single device, this

will not necessarily threaten the whole system, and

the event may stay hidden. But in some cases, access

to one device can lead to access to another, more crit-

ical, device in the same system. These kinds of paths

are depicted as attack graphs in (Wang et al., 2007).

In the case of a system wide attack, the impacts may

be noticed widely. For example, a successful DDoS

attack will cause a slowdown of the operation of the

whole system.

Information security, consisting of conﬁdentiality,

integrity and authenticity of the data, must be ensured

in all parts of the infrastructure. Data must be secured

against tampering, and the privileges to see and use

the data need to be controlled. This covers all data

travelling through the infrastructure, and it can be ei-

ther control data or data of different services. For ex-

ample, in trusted relay QKD networks, session keys

to be shared are decrypted and re-encrypted at trusted

nodes so that they can be securely sent through a clas-

sical channel (Yu et al., 2017). This ensures the con-

ﬁdentiality of the data. Similarly, the infrastructure

needs to enable ensuring authenticity and integrity of

the data.

The information security status of the infrastruc-

ture and data can be assessed with the help of the

questions in Table 2.

3.3 Human Capability

QKD networks include devices and protocols, which

deviate from classical networks. Supervising the se-

cure functioning of this kind of a system requires

knowledge from several different ﬁelds: knowledge

of physics in order to assess and set up the quan-

tum key distribution infrastructure, knowledge of in-

formation security to prepare for possible threats, and

knowledge of classical communication and network-

ing infrastructure in order to build and maintain the

Table 2: Assessing the security of the infrastructure, answer

scale 0–100 %.

Is control trafﬁc encrypted with a quantum safe

method?

Is data trafﬁc encrypted with a quantum safe

method?

Have quantum safe access control and authentica-

tion protocols been implemented in the network?

Has the quantum security of individual devices

been estimated and tested?

Has the quantum security of the whole infrastruc-

ture consisting of these devices been estimated?

Is the estimation method tested or based on some

standards?

Are security critical devices placed in such a se-

cured place that they can be considered as trusted

nodes?

network.

For the maintainer of a QKDN, this might be a

challenge from a personnel point of view. For ex-

ample, assessing the sufﬁcient signal-noise-ratio of a

CV-QKD link requires both knowledge of possible at-

tacks and ability to assess the properties of the quan-

tum link (Huang et al., 2016). Furthermore, (ETSI,

2010c) states that operating QKD related equipment

in unsuitable conditions, such as excess humidity or

temperature, can increase the failure probability of a

device, and this can be a security threat. The person-

nel in charge of this equipment must be aware of these

limitations and requirements. These kind of QKD

speciﬁc areas of knowledge may be outside the ex-

pertise of many specialists otherwise capable of mon-

itoring network security.

The ability to prevent and recover from attacks de-

pends on how well the organization is prepared for the

attacks. Preparation includes for example assessing

possible threats, training employees, and the everyday

security routines and practices. For maintaining this

ability, skills of employees and resources for develop-

ing these are important. If the organization in charge

of the QKDN lacks competent personnel of its own,

these human capability resources can also be obtained

from third party consultants.

Human capability resources can be assessed with

the help of the questions in Table 3.

3.4 Integration to Classical Network

Security assumptions on QKD protocols concentrate

on the security of the quantum channel, over which

the raw key bits are being transferred. However, if we

wish to use the resulting keys in classical communica-

tions, it is not enough to guarantee the security of the

SECRYPT 2023 - 20th International Conference on Security and Cryptography

590

Table 3: Assessing the capabilities of human resources, an-

swer scale 0–100 %.

Are secure practices developed and followed?

Is quantum security expertise available whenever

needed?

Does this expertise cover all critical areas (quan-

tum speciﬁc technologies, information security,

classical networking)?

Are human and funding resources sufﬁcient?

Are there means and plans to prevent possible at-

tacks, especially quantum speciﬁc?

Has the personnel been trained to act in case of

possible attacks?

quantum channel. Because QKDN systems need to

have a classical part and they can provide services to

classical networks, the integration between the classi-

cal section and the quantum section will be one source

for attacks and affect the achieved security level of the

whole system. This interface between the quantum

channel and the classical network is speciﬁc to QKD

networks, as in classical networks we don’t need to

do this kind of transition.

Essentially, in QKD, the keys are transferred from

quantum signals to classical bits in a sifting process.

This depends on the chosen QKD protocol, e.g. (Ben-

nett and Brassard, 2014) or (Bennett, 1992). The

sifted key bits are further processed in error correc-

tion, using for example LDPC codes (Limei et al.,

2020), and privacy ampliﬁcation, which is meant to

enhance the security of the ﬁnal key (Tang et al.,

2019).

In order for the QKD protocol to be secure, a reli-

able authentication mechanism is needed. QKD pro-

tocols are used to distribute secure encryption keys,

but authentication of the discussing parties is manda-

tory to make sure that the keys are being shared with

an intended party. Authentication can be either real-

ized through pre-shared keys (Kiktenko et al., 2020)

or using a public key infrastructure and digital signa-

tures (Wang et al., 2022). This also means it’s a criti-

cal intersection between quantum and classical chan-

nels, as the signal sent through the quantum channel

is authenticated via the classical channel.

Integration to a classical network can be assessed

with the help of the questions in Table 4.

3.5 Vulnerability Status

Vulnerability status refers to surveying the possible

vulnerabilities in the different parts of the network.

Vulnerabilities in a QKD network can arise either

from QKD speciﬁc protocols and infrastructure or

classical software and infrastructure. In some cases,

Table 4: Assessing the integration to a classical network,

answer scale 0–100 %.

Have the interfaces between the classical and

quantum network been listed?

Have the possible security issues in these inter-

faces been analyzed?

Has the method used in this analysis been tested or

based on some standards?

Is the authentication method used in the post-

processing phase of the key bit strings quantum se-

cure?

even though a vulnerability would have been detected

in some part of the system, there exists a known ﬁx,

which can mitigate the caused threat. According to

(Forum of Incident Response and Security Teams,

2019), an ofﬁcial ﬁx, meaning a complete vendor so-

lution, is the most preferable option in these cases.

Deviations between theoretical and practical secu-

rity are one prominent source of vulnerabilities, as

stated in (ETSI, 2010b). Immaturity of the current

quantum key distribution technology leads to contra-

dictions between theoretical security and practical im-

plementations of these protocols. Even though dis-

crete variable protocols, such as BB84 (Bennett and

Brassard, 2014) and B92 (Bennett, 1992), in theory

offer unconditional security, their current physical re-

alizations are still imperfect due to e.g. challenges

in emitting only single photon at a time (L

utkenhaus,

1999). This is characteristic for current QKD tech-

niques and should be taken into account when assess-

ing the security of a QKDN, regardless of which pro-

tocols are used. Also (ETSI, 2018c) states that devi-

ations between implementation and theoretic security

should be assessed and, if possible, reduced.

The vulnerability status can be assessed with the

help of the questions in Table 5.

Table 5: Assessing the vulnerability status of the system,

answer scale 0–100%.

Is there a list of the main vulnerabilities in the

QKD protocols deployed in the network?

Is there a list of the main vulnerabilities in the

physical infrastructure of the network from the

quantum computing point of view?

Is there a list of the main vulnerabilities in the clas-

sical software protocols deployed in the network?

Have these vulnerabilities been further assessed?

For example, does exploiting them require some

kind of special equipment?

Has the probability of each of these vulnerabilities

being exploited been estimated?

Light Quantum Key Distribution Network Security Estimation Tool

591

3.6 Threat Status

Threat status refers to surveying the possible threats

towards the QKDN. (International Telecommunica-

tion Union, 2020b) divides threats into three cate-

gories: intentional threats posed by a malicious ac-

tor, threats caused by administration, and accidental

threats. Administrative threats are caused by a failure

in administration, and accidental threats result from

technical failures. Malicious threats include for ex-

ample eavesdropping, corruption of data, denial of

service attacks or unauthorized physical access to the

network.

Maintenance situations can also be a security

threat. As stated in (International Telecommunication

Union, 2020b), interests and aspirations of operators,

users and third parties related to the QKDN should

be identiﬁed. Also (Kyberturvallisuuskeskus, 2021)

states that organizations should be aware of depen-

dencies on suppliers, subcontractors and other rele-

vant third parties, as these can be relevant from infor-

mation security point of view.

Attacks directed especially towards QKD proto-

cols usually require an access to the physical channel,

as in (Shao et al., 2022). Other, software-including

parts of the QKDN can possibly be attacked online,

without physical access to the device. (Forum of In-

cident Response and Security Teams, 2019) classiﬁes

attacks requiring physical access to the devices as less

severe than attacks that can be realized through a net-

work. QKD protocols and their implementations are

still under development, and this means that new at-

tacks and vulnerabilities are probable. This is why a

list of possible threats needs to be actively maintained

and updated.

Survey of security threats can be done, e. g., as

in (International Telecommunication Union, 2020b),

where the threats are grouped according to whether

they threaten conﬁdentiality, integrity or availability

of the data, as well as the type of the attack. In

QKDN, one of the critical assets are the keys deliv-

ered to the client applications. The security of QKD

protocols is based on the fact that eavesdropping of

the channel can be detected, but it does not provide

any means to prevent this kind of attacks; thus avail-

ability of keys can be destroyed by disturbing the net-

work. Conﬁdentiality and integrity of the assets can

be destroyed by attacks on other, classical, parts of the

key management system, where the produced keys are

being transmitted and stored. One aspect of threats to

availability is the QKDN capacity to provide key ma-

terial to its users and applications. When the system

isn’t able to create keys needed anymore very little

can be done. The actual need must be measured in

advance. High utilization rate might be a vulnerabil-

ity.

Threat status can be assessed with the help of the

questions in Table 6.

Table 6: Assessing the threat status, answer scale 0–100 %.

Have the possible threats towards the QKDN been

listed?

Have all protocols, devices and other parts of the

QKDN been covered in this list?

Have these threats been further analyzed?

Have the probabilities of these threats been as-

sessed?

Is this list of threats and their probabilities actively

maintained and updated?

Have the suppliers and clients associated with the

QKDN been reviewed?

3.7 Response Capability of the System

Response capability of the system refers to its ability

to detect realized attacks and respond to them. De-

tection of an attack requires knowledge about pos-

sible attacks and means to measure them. For ex-

ample, in ideally realized classical DV-QKD proto-

cols, eavesdropping of a quantum channel can be de-

tected in an increased error rate (Bennett and Bras-

sard, 2014; Bennett, 1992). On the other hand, some

attacks targeted to CV-QKD protocols enable eaves-

dropping without increasing the error rate (Jouguet

et al., 2013). Some attacks only become possible with

imperfections or errors in implementation (Pereira

et al., 2021). As mentioned in Section 3.2, sometimes

the origin of the attack is hard to locate as the effects

can be seen in the whole network.

Some of the attacks targeted at QKD protocols are

more probable than others. Some are currently hard to

realize and thus improbable in practice, but develop-

ments in technology can change this. After detecting

an attack, the system should be able to respond to it

by mitigating further damages and preventing the at-

tacker from gaining access to the rest of the network.

Response capability of the system can be assessed

with the help of the questions in Table 7.

3.8 Risk Status

Risk status refers to the role of the QKD network as

a key service provider. According to (Kyberturval-

lisuuskeskus, 2021), the organization should identify

critical services it is producing, as well as all infras-

tructure, devices and processes needed for it. The or-

ganization should be aware of how long its customers

SECRYPT 2023 - 20th International Conference on Security and Cryptography

592

Table 7: Assessing the response capability of the system,

answer scale 0–100 %.

What is the status of attack and threat analysis, es-

pecially in sense of quantum computing?

Do you have tools to detect realized attacks, in-

cluding quantum speciﬁc attacks?

How mature are these tools?

Are these tools justiﬁed, i.e., based on reliable re-

search?

Do these tools cover all possible attacks towards

the quantum speciﬁc parts of QKDN?

Is there networking with other companies or asso-

ciations having quantum security know-how?

Does the network contain redundancy, enabling the

network to recover from possible attacks and con-

tinue providing key services?

can survive without these services and have plans for

dealing with this kind of disturbance situations.

Deﬁning the risk status of a QKD network does

not deviate much from any other kind of a network.

QKD networks’ function is to provide secure key ma-

terial for some application domain. Depending on this

domain, realization of information security threats

can have different impacts. For example, if a QKDN

is assumed to provide keys for a critical national in-

frastructure, a realized threat will have more severe

impact than if the QKDN delivers keys for private

IoT devices at homes. The risk will also increase if

the service is widely used and therefore covers a wide

operation or business area. Severity of a risk can be

thought of as a combination of its probability and ef-

fect, where the effect consists of extent and criticality

of impacts.

Risk status can be assessed with the help of the

questions in Table 8.

Table 8: Assessing the risks status, answer scale 0–100 %.

Has the main role of the QKDN been assessed?

Which are the main applications using it?

Does the QKDN maintainer have a plan for man-

aging disturbance situations?

Have the possible effects of a realized attack been

assessed?

What are the possible worst-case-scenarios if the

QKDN is compromised?

How long can the QKDN be out of use before se-

vere damage is caused to the client?

3.9 Management Capability

Management capability refers to resources available

for maintaining the information security of the whole

QKD network. These resources can include, e.g., em-

ployees, devices, and software. Maintaining informa-

tion security can be viewed as three steps: having a

plan, deploying it, and keeping the plan and the de-

ployment up-to-date. New attacks and risks arise con-

tinuously, and the plan and the deployment must be

updated according to them.

Managing information security of an organiza-

tion has been covered in several papers and guide-

lines. (Kyberturvallisuuskeskus, 2021) refers to it as

an information security strategy or information se-

curity program. (International Telecommunication

Union, 2020a) provides a detailed description of a

recommendation for information security manage-

ment process. Management of information security

of a QKDN does not differ much from other organi-

zations, as it mostly covers the practices in the orga-

nization and is less dependent on the detailed infras-

tructure deployed. It can be based on the risks and

threats status deﬁned in the previous sections, which

also cover the QKDN infrastructure in more detail.

Management state can be assessed with the help

of the questions in Table 9.

Table 9: Assessing the management of the system, answer

scale 0–100 %.

Is there a plan for maintaining the information se-

curity of the QKDN, which also takes into account

the development of quantum computing?

Has the information security maintenance plan

been designed according to the risk status of the

network?

Has the information security maintenance plan

been designed according to the threat status of the

network?

Is this plan deployed?

Is this plan and its deployment continuously up-

dated according to new emerging threats and at-

tacks, especially due to quantum computing devel-

opment?

4 DISCUSSION

In the current form, our network security assess-

ment tool does not specify details of the concerned

quantum key distribution network. The advantage

of this approach is that this tool serves as a simple

general-purpose tool to guide security work for dif-

Light Quantum Key Distribution Network Security Estimation Tool

593

ferent types of QKD networks, regardless of their de-

tailed infrastructure or organization behind the net-

work. QKDN technology is still being developed and

more advanced attacks against QKD protocols are be-

ing found, therefore it is impossible to cover all possi-

ble security issues in QKDNs. However, our approach

can point out main shortages in security and guide the

development work of network maintainers.

The strength of using high abstraction level ques-

tions rather than gathering every possible detailed

question makes our tool lightweight and time saving.

In spite of this, it covers many security topics and can

guide the security work to the right direction. The

downside of this approach is that some security as-

pects, which are not explicitly addressed, may remain

unnoticed. Security experts should be used to produce

answers to these questions, widening the coverage in

each security aspect and thus tackling the challenge of

possibly implicit issues. The enclosed paper presents

answers in a table format but also other kinds of user

interfaces could be considered, e.g. slide bars.

In the future, our tool can be made more accu-

rate by deﬁning more detailed questions per different

QKD solutions and technologies. Doing so without

the trade off of losing simplicity of performing the

security estimation is a research topic. These ques-

tions would address the low-level implementation of

the network, security practices, possible threats and

other aspects addressed in this paper. The low-level

implementation questions could be grouped accord-

ing to the infrastructure type, QKD protocol and tech-

nologies, intended use cases of the distributed keys,

and so on. The proposed approach could also be part

of a security standard, providing a formal way to de-

ﬁne security level of a system. The question patterns

could also be developed further for more careful con-

sideration and deﬁnition by adding weight of ques-

tions.

Regardless of the detailed structure of the ques-

tions used in analyzing the security level of a net-

work, it is important to document the results and use

the same questions and measurement methods in the

future. This ensures repeatability and enables to track

the development of the information security status of

the QKDN over time.

5 CONCLUSIONS

Quantum key distribution networks offer a way to de-

liver cryptographic keys in a secure way even in the

era of quantum computers. However, at the moment

no established solutions for assessing the security of

this kind of networks exist. Here we have introduced

an approach to assess the security of quantum key

distribution networks with our lightweight tool. Our

method is to divide the network security in different

domains, which are examined separately with the help

of a set of high-level questions. By answering these

questions, the network maintainer creates a view of

the security level of the network, as well as infor-

mation on how to enhance it further. In the future,

the tool can be developed further by adding more de-

tailed technical speciﬁc low-level questions about the

different domains presented in this paper. However,

adding accuracy leads to balancing between simple-

lightweight and accurate-complex with the trade off

of losing some simplicity and thus making the tool

more time consuming.

REFERENCES

Arteaga-D

ıaz, P., Denisenko, N., and Fernandez, V. (2022).

Modeling the effect of steering mirrors on polariza-

tion for free-space quantum key distribution. Optik,

265:169434.

Bennett, C. H. (1992). Quantum cryptography using any

two nonorthogonal states. Physical review letters,

68(21):3121.

Bennett, C. H. and Brassard, G. (2014). Quantum cryp-

tography: Public key distribution and coin tossing.

Theoretical Computer Science, 560:7–11. Theoreti-

cal Aspects of Quantum Cryptography – celebrating

30 years of BB84.

Brassard, G. and Salvail, L. (1994). Secret-Key Reconcil-

iation by Public Discussion. In Helleseth, T., editor,

Advances in Cryptology — EUROCRYPT ’93, pages

410–423, Berlin, Heidelberg. Springer Berlin Heidel-

berg.

Christopher, J. D., Gonzalez, D., White, D. W., Stevens, J.,

Grundman, J., Mehravari, N., and Dolan, T. (2014).

Cybersecurity capability maturity model (C2M2). De-

partment of Homeland Security, pages 1–76.

ETSI (2010a). ETSI GS QKD 002 V1.1.1 (2010-06) -

Quantum Key Distribution; Use Cases.

ETSI (2010b). ETSI GS QKD 005 V1.1.1 (2010-12) -

Quantum Key Distribution (QKD); Security Proofs.

ETSI (2010c). ETSI GS QKD 008 V1.1.1 (2010-12) -

Quantum Key Distribution (QKD); QKD Module Se-

curity Speciﬁcation.

ETSI (2016). ETSI GS QKD 011 V1.1.1 (2016-05) - Quan-

tum Key Distribution (QKD); Component character-

ization: characterizing optical components for QKD

systems.

ETSI (2018a). ETSI GR QKD 003 V2.1.1 (2018-03) -

Quantum Key Distribution (QKD); Components and

Internal Interfaces.

ETSI (2018b). ETSI GR QKD 007 V1.1.1 (2018-12) -

Quantum Key Distribution (QKD); Vocabulary.

ETSI (2018c). Implementation Security of Quantum Cryp-

tography - Introduction, challenges, solutions.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

594

ETSI (2019a). ETSI GS QKD 012 V1.1.1 (2019-02) -

Quantum Key Distribution (QKD); Device and Com-

munication Channel Parameters for QKD Deploy-

ment.

ETSI (2019b). ETSI GS QKD 014 V1.1.1 (2019-02) -

Quantum Key Distribution (QKD); Protocol and data

format of REST-based key delivery API.

ETSI (2020). ETSI GS QKD 004 V2.1.1 (2020-08) - Quan-

tum Key Distribution (QKD); Application Interface.

ETSI (2022a). ETSI GS QKD 015 V2.1.1 (2022-04) -

Quantum Key Distribution (QKD); Control Interface

for Software Deﬁned Networks.

ETSI (2022b). ETSI GS QKD 018 V1.1.1 (2022-04) -

Quantum Key Distribution (QKD); Orchestration In-

terface for Software Deﬁned Networks.

Forum of Incident Response and Security Teams (2019).

Common Vulnerability Scoring System SIG. https:

//www.ﬁrst.org/cvss/. Accessed 1.2.2023.

Huang, D., Huang, P., Lin, D., and Zeng, G. (2016). Long-

distance continuous-variable quantum key distribution

by controlling excess noise. Scientiﬁc Reports, 6.

International Telecommunication Union (2020a). Infor-

mation security management processes for telecom-

munication organizations. https://www.itu.int/ITU-T/

recommendations/rec.aspx?rec=14044. Accessed

1.2.2023.

International Telecommunication Union (2020b). Secu-

rity framework for quantum key distribution net-

works. https://www.itu.int/ITU-T/recommendations/

rec.aspx?rec=14452. Accessed 1.2.2023.

Jouguet, P., Kunz-Jacques, S., and Diamanti, E. (2013). Pre-

venting calibration attacks on the local oscillator in

continuous-variable quantum key distribution. Physi-

cal Review A, 87(6):062313.

Kiktenko, E., Malyshev, A., Gavreev, M., Bozhedarov, A.,

Pozhar, N., Anufriev, M., and Fedorov, A. (2020).

Lightweight Authentication for Quantum Key Distri-

bution. IEEE Transactions on Information Theory,

PP:1–1.

Kyberturvallisuuskeskus (2021). Kybermittari. https:

//www.kyberturvallisuuskeskus.ﬁ/en/our-services/

situation-awareness-and-network-management/

kybermittari-cybermeter. Accessed 1.2.2023.

Limei, G., Qi, R., Jin, D., and Huang, D. (2020). QKD

Iterative Information Reconciliation Based on LDPC

Codes. International Journal of Theoretical Physics,

59:1717–1729.

utkenhaus, N. (1999). Security against individual attacks

for realistic quantum key distribution. Physical Re-

view A, 61.

Paulk, M. C., Curtis, B., Chrissis, M. B., and We-

ber, C. V. (1993). Capability maturity model for

software, version 1.1. software engineering institute.

Technical report, CMU/SEI-93-TR-24, DTIC Number

ADA263403.

Pereira, D., Almeida, M., Fac

ao, M., Pinto, A. N., and Silva,

N. A. (2021). Impact of receiver imbalances on the

security of continuous variables quantum key distri-

bution. EPJ Quantum Technology, 8(1):1–12.

Pitwon, R. and Lee, B. H. (2021). Harmonising interna-

tional standards to promote commercial adoption of

quantum technologies. In Quantum Technology: Driv-

ing Commercialisation of an Enabling Science II, vol-

ume 11881, pages 53–62. SPIE.

Quantum Internet Research Group RG (2020). Quantum

internet research group charter. https://datatracker.ietf.

org/doc/charter-irtf-qirg/. Accessed 1.2.2023.

Shao, Y., Pan, Y., Wang, H., Pi, Y., Li, Y., Ma, L., Zhang, Y.,

Huang, W., and Xu, B. (2022). Polarization Attack on

Continuous-Variable Quantum Key Distribution with

a Local Local Oscillator. Entropy, 24(7):992.

Takahashi, R., Tanizawa, Y., and Dixon, A. (2019). A high-

speed key management method for quantum key dis-

tribution network. 2019 Eleventh International Con-

ference on Ubiquitous and Future Networks (ICUFN),

pages 437–442.

Tang, B.-Y., Liu, B., Zhai, Y.-P., Wu, C.-Q., and Yu, W.-R.

(2019). High-speed and Large-scale Privacy Ampliﬁ-

cation Scheme for Quantum Key Distribution. Scien-

tiﬁc Reports, 9.

Tayduganov, A., Rodimin, V., Kiktenko, E. O., Kurochkin,

V., Krivoshein, E., Khanenkov, S., Usova, V., Stefa-

nenko, L., Kurochkin, Y., and Fedorov, A. (2021). Op-

timizing the deployment of quantum key distribution

switch-based networks. OPTICS EXPRESS, 29(16),

29(16):24884–24898.

Wang, L., Singhal, A., and Jajodia, S. (2007). Toward mea-

suring network security using attack graphs. In Pro-

ceedings of the 2007 ACM workshop on Quality of

protection, pages 49–54.

Wang, L.-J., Zhou, Y.-Y., Yin, J.-M., and Chen, Q. (2022).

Authentication of quantum key distribution with post-

quantum cryptography and replay attacks.

Working Group Quantum-safe Security. Cloud security

alliance. https://cloudsecurityalliance.org/research/

working-groups/quantum-safe-security/. Accessed

1.2.2023.

Yu, W., Zhao, B., and Yan, Z. (2017). Software deﬁned

quantum key distribution network. 2017 3rd IEEE In-

ternational Conference on Computer and Communi-

cations (ICCC), pages 1293–1297.

APPENDIX

An overview of the mainstream international stan-

dardisation organisations and groups (ITU, ISO, IEC,

CENELEC, IEEE, and ETSI) developing standards

for quantum technologies is provided in (Pitwon and

Lee, 2021). They also identify the areas where the

standards will have the highest relevance without im-

peding future innovations. Although the standards

and recommendations published by the different or-

ganizations discuss the same theme, they present

slightly different views of the structures and main el-

ements of quantum key distribution networks.

Light Quantum Key Distribution Network Security Estimation Tool

595

ITU-T

Recommendation ITU-T X.1710 provides a security

framework to identify and mitigate security issues in

quantum key distribution networks. The recommen-

dation only considers intentional threats posed by ma-

licious actors. Thus, security threats caused inadver-

tently by users or administrators are not covered. (In-

ternational Telecommunication Union, 2020b)

According to ITU, the main information assets of

QKDN are secure key data i.e. random bit strings,

data related to key management, and data related to

control and management information of QKDN. The

functional elements of QKDN are divided into the

following parts: QKD modules, which generate the

keys; links i.e. classical and quantum channels be-

tween the QKD modules; key management nodes;

QKDN controllers; and QKDN managers. For each

part of the QKDN, the following threats are identi-

ﬁed: deletion/corruption of data, eavesdropping, de-

nial of service, spooﬁng, repudiation, and unautho-

rized physical access. This recommendation does

not cover QKD protocol speciﬁc attacks or attacks

towards the post-processing phase. (International

Telecommunication Union, 2020b)

ETSI

ETSI provides many standards covering security of

QKD systems. These standards include the follow-

ing topics: interfaces (ETSI, 2022b; ETSI, 2022a;

ETSI, 2020); communication protocols for QKD net-

works for supplying cryptographic keys to applica-

tions (ETSI, 2019b); main communication resources

and arhcitectures related to ﬁber optical QKD net-

works (ETSI, 2019a); characterisations and speciﬁca-

tions of optical components in QKD systems (ETSI,

2016); application scenarios of QKD (ETSI, 2010a);

vocabulary (ETSI, 2018b); common components and

interfaces in QKD systems (ETSI, 2018a); security

requirements for QKD modules and reference for

evaluating the security of practical quantum key dis-

tribution systems (ETSI, 2010b).

QKD Module Security Speciﬁcation of ETSI

(ETSI, 2010c) speciﬁes security requirements for

QKD modules. Complying with these requirements

aims to ensure that the system will with high prob-

ability notice potential attacks via physical channels.

The document speciﬁes a secure physical structure of

a single QKD module, interfaces which enable com-

munication with the other parts of the system, require-

ments for software used in the module, provided secu-

rity services, other provided services, and authentica-

tion of operators for controlling access to the module.

Security Proofs document of ETSI (ETSI, 2010b)

classiﬁes QKD devices after the security levels

achievable to them and clariﬁes their possible roles

in a larger system. Theoretical security refers to

the mathematical security proofs of the protocols,

whereas practical security refers to the implementa-

tion of these protocols.

IETF

The Internet Engineering Task Force (IETF) has a

working group called ”Quantum Internet Research

Group” (QIRG). The goal of QIRG is to study and

ﬁnd solutions on designing and building quantum net-

works. Its research topics involve routing, resource

allocation, connection establishment, interoperability,

security and API design. One of the key focus areas

in the ﬁeld of quantum networks will be cryptographic

functions, such as quantum key distribution or quan-

tum byzantine agreement. At the moment, QIRG has

not yet provided any proposal for internet standards,

i.e. RFC (Request for Comments), concerning quan-

tum internet. (Quantum Internet Research Group RG,

2020)

CSA

Quantum-safe Security working group of CSA

(Cloud Security Alliance) aims to support the cryp-

tography community in the development and deploy-

ment of a quantum-safe framework to protect data,

whether in movement or at rest (Working Group

Quantum-safe Security, ). The group has not yet pro-

vided any standards.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

596
