DotWrangler: A Method for Assessing Fluency, Originality, and

Flexibility of Concept Maps and Diagrams at Scale

Mohamed Ez-zaouia

1,2 a

and Rubiela Carrillo

3 b

Le Mans Universit

e, LIUM, Le Mans, France

Faculty ITC, University of Twente, Netherlands

CP Lyon, Villeurbanne, France

Keywords:

Concept Maps, Assessment, Concept Mapping, Diagrams, Creativity, Visualization.

Abstract:

Visualization of interrelated ideas and concepts, widely known as concept maps, is a ubiquitous technique

for knowledge inquiry in many areas, such as learning, design, problem-solving, and creativity. While the

effectiveness of concept maps is well documented in research and practice, comprehensive methods and tools

for concept map assessments are scarce. Assessing concept maps is challenging, time-consuming, and prone to

errors. DotWrangler builds upon previous research and proposes a method to assess concept maps qualitatively

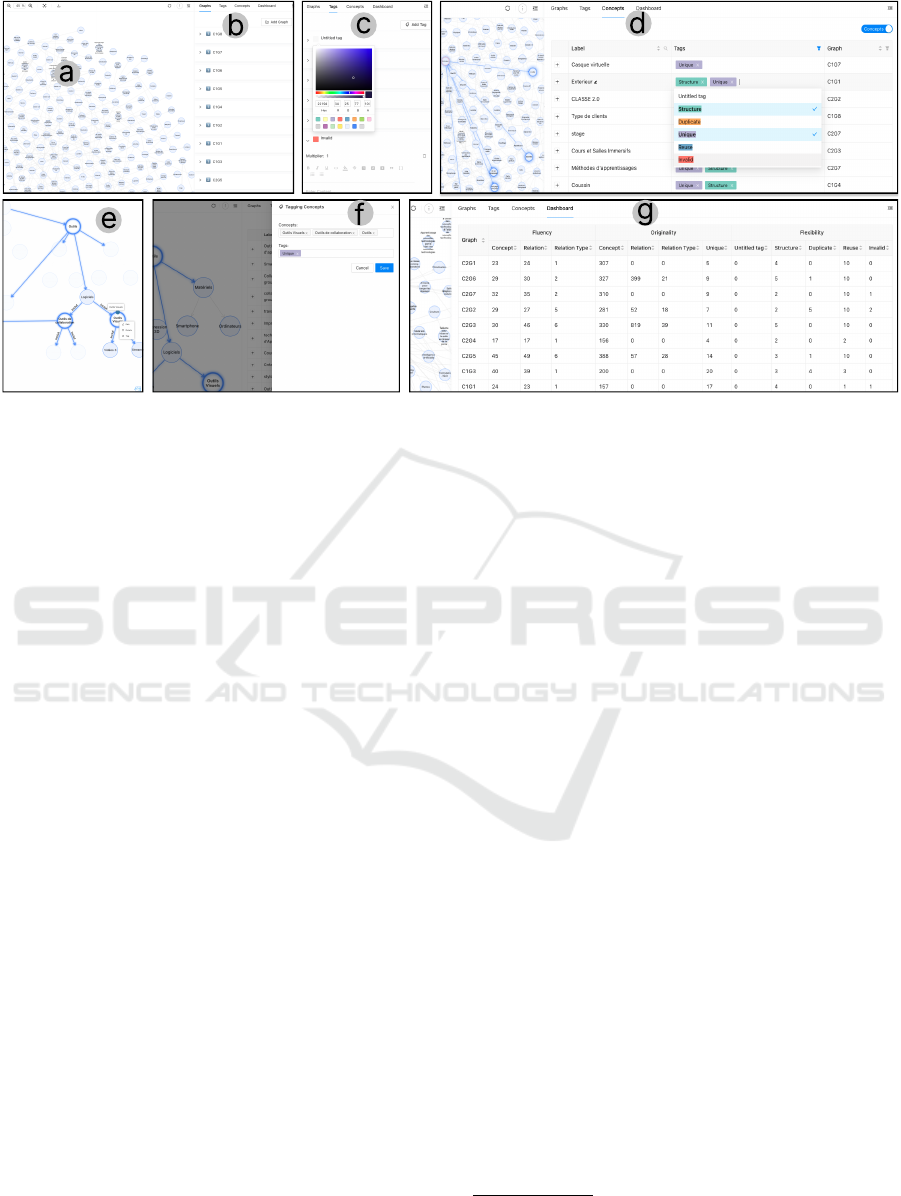

and quantitatively at scale. We present a visual assessment authoring tool demonstrating the DotWrangler

approach and show its utility through a case study. The utility of DotWrangler is to enable the design of a

reliable method of concept maps’ assessments, facilitate the execution of assessments at scale, and reduce the

burden on instructors during the assessment process.

1 INTRODUCTION

Concept maps are node-link representations, where

nodes represent concepts, such as ideas, people,

places, events, etc., and links, implicit or explicit, rep-

resent relationships among concepts. They refer to

a wide range of representations, such as “webs, spi-

der maps, clusters, mind maps, semantic maps, cog-

nitive maps, story maps, diagrams, templates, and

graphic organizers” (Hyerle, 2009, p. 37). Substan-

tial research has shown that studying or constructing

a concept map can enhance signiﬁcantly learners’ per-

formance (Schroeder et al., 2018). Given their well-

documented beneﬁts, concept maps are increasingly

used for knowledge inquiry in a variety of educational

activities, such as note-taking (D’Antoni et al., 2010),

problem-solving (Wang et al., 2018), creativity (Sun

et al., 2019), graphic elicitation (Crilly et al., 2006),

scaffolding (Chen et al., 2012), to name a few.

While the effectiveness of concept maps is well-

documented by researchers, practitioners, and com-

missions, methods for concept map assessments are

not well examined, especially not for large-scale as-

sessment (Ruiz-Primo and Shavelson, 1996). There

https://orcid.org/0000-0002-3853-0061

https://orcid.org/0000-0002-2949-4257

exists a wide variety of heuristics to score concept

maps (Strautmane, 2012). However, existing heuris-

tics are somewhat fragmented and do not provide a

comprehensive framework for a reliable assessment

(Mcclure and Sonak, 1999).

We identiﬁed three challenges in assessing con-

cept maps. Additionally, we identiﬁed three barriers

to designing reliable assessment methods in existing

research. DotWrangler builds upon previous research

and proposes a novel method to assess concept maps

qualitatively and quantitatively at scale. We designed

a visual authoring tool demonstrating the DotWran-

gler approach and showed its utility through a case

study. The utility of DotWrangler is to enable the de-

sign of a reliable method of concept map assessment

at scale, and reduce the burden on teachers during the

assessment process.

2 RELATED WORK

Meaningful and Productive Learning. Con-

cept maps can support meaningful learning of

the structures and transformations within a prob-

lem/knowledge area versus rote learning (Council,

2012, p. 72). Meaningful learning can foster produc-

442

Ez-zaouia, M. and Carrillo, R.

DotWrangler: A Method for Assessing Fluency, Originality, and Flexibility of Concept Maps and Diagrams at Scale.

DOI: 10.5220/0012037400003470

In Proceedings of the 15th International Conference on Computer Supported Education (CSEDU 2023) - Volume 2, pages 442-450

ISBN: 978-989-758-641-5; ISSN: 2184-5026

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

tive thinking, which can help learners generate novel

solutions to new problems. Rote learning might only

enable reproductive thinking. Novak et al., (Novak

and Gowin, 1984) and others developed this line of

thinking by using concept maps as an (external) repre-

sentation technique to tape into and build upon, learn-

ers’ (internal) knowledge. Concept mapping culti-

vates meaningful learning because learners can bridge

the gap between new knowledge and relevant knowl-

edge they already have. Concept mapping can be

an effective technique to direct users’ attention, e.g.,

signaling, focal points (Crilly et al., 2006); support

productive thinking, e.g., creative thinking, reason-

ing, meta-cognition (Sun et al., 2019; D’Antoni et al.,

2010); organize actions, e.g., sequences, processes,

scaffolds, (Chen et al., 2012); engage users and in-

crease dwell time (Sun et al., 2019).

Cognitive Scaffolding and Ofﬂoading. The effec-

tiveness of concept maps resides in three main fac-

tors. First, the act of externalization of concepts and

relationships in a visual artifact support thinking and

reasoning (Crilly et al., 2006). Externalized ideas can

prime one another and generate new ideas and asso-

ciations (Sun et al., 2019). Second, the simplicity of

the technique accommodates users with varying back-

grounds (e.g., computer science, social science, lib-

eral art) as well as various needs and uses (learning,

problem-solving, creativity, design). And ﬁnally, the

expressiveness of the concept maps elicits and com-

municates literal and metaphoric content, structure,

and relationships directly.

Existing Assessments. In education, assessment or,

as deﬁned: “a systematic method with which stu-

dents’ concept maps can be evaluated accurately and

consistently” is important, yet not thoroughly exam-

ined (Ruiz-Primo and Shavelson, 1996, p. 581). As-

sessment can be holistic, relational, and structural.

It can combine qualitative and qualitative analyses

(Besterﬁeld-Sacre et al., 2004; Carrillo et al., 2017).

A main challenge of assessment is that it should

be objective, reliable, and capture unique insights

into the subjects’ knowledge (Mcclure and Sonak,

1999). Traditionally, concept mapping assessments

are achieved using posthoc tests, often conducted

through questionnaires and essays (e.g, Wang et al.,

2018; Chen et al., 2012). Although posthoc tests

might facilitate the assessment, they might not be au-

thentic and reliable because the test structure might

impose cognitive biases on learners. Furthermore,

such tests do not capture learners’ differences in struc-

turing and communicating their conceptual knowl-

edge in a subject area.

Other ways of concept map assessments are

achieved through scoring heuristics. A review iden-

tiﬁed more than 42 heuristics and measures (Straut-

mane, 2012). However, existing heuristics are frag-

mented; some are context-depend (e.g., “amount of

help used” when concept mapping); others are appli-

cable to speciﬁc types of concept maps (e.g., “fre-

quency of branching” in tree-based concept maps)

(Strautmane, 2012). The result is that only a few

heuristics are adopted in practice, namely Novak’s

heuristics concerning the validity of propositions, hi-

erarchies, and cross-links (Novak and Gowin, 1984).

However, Novak’s heuristics capture a narrow set of

concept maps’ features. In addition, concept maps

might differ substantially from one learner to another

(Hyerle, 2009). Existing heuristics, do not capture

ﬁne-grain measures of individual differences among

learners. Furthermore, such heuristics are mainly de-

signed to be conducted by users manually, which can

be tedious and time-consuming. There is still a lack

of comprehensive approaches to assess concept maps

reliably and at scale (Mcclure and Sonak, 1999).

We build upon previous research and design a

method to assess concept maps’ qualities in a ﬂexi-

ble manner and at scale. In particular, Fardhila and

Istiyono (2019) work was inspiring to us. The au-

thors developed a 10 items instrument to assess cre-

ative thinking skills using mind maps for biology

subjects. The instrument spans ﬂuency, originality,

ﬂexibility, and elaboration. However, the 10 items

were designed for manual assessment and are context-

dependent. In contrast, we aim to design a generaliz-

able approach that maximizes the assessment’s reli-

ability by (1) combining quantitative and qualitative

measures and (2) optimizing the assessment consis-

tency using a tagging system. Our approach can sup-

port at-scale assessments and assess items from vari-

ous instruments.

3 ASSESSMENT DESIGN

Following a Design-Based Research (Barab and

Squire, 2004), we ﬁrst report three assessment chal-

lenges from our ﬁeldwork. We then report three bar-

riers to designing reliable assessment methods in ex-

isting research. And ﬁnally, we present our method.

3.1 Field Challenges of Assessments

Given the widespread use of concept maps in edu-

cation, during the academic year 2021-2022, we de-

signed four activities to engage the students in learn-

ing by constructing concept maps. In total, 88 stu-

dents (N=88) participated in the four activities in in-

dividual and group work (see examples in the ap-

DotWrangler: A Method for Assessing Fluency, Originality, and Flexibility of Concept Maps and Diagrams at Scale

443

pendix

). Yet, after each activity, we faced three main

challenges.

C1: There Is a Lack of Well-Deﬁned Methods for

Assessing Diverse Students’ Concept Maps. A con-

cept map leverages three main facets: conceptual con-

tents, relationships, and structures. Students’ pro-

ductions differ substantially from one to another in

these three facets. There is a wide range of aspects

that we can assess about concept maps, whether ex-

ternalization processes, cognitive processes, and out-

comes. Comprehensive measures of the contents, re-

lationships, and structures of a concept map are not

well-deﬁned.

C2: Assessing Students’ Productions Is Challeng-

ing, Time-Consuming, and Prone to Errors. Ex-

ploring and making sense of all the concept maps

made by the students can be challenging due to the

difﬁculty of maintaining awareness of the overall out-

come at the group level (e.g., classroom) and the in-

dividual level (e.g., a student). Additionally, a con-

cept map can be challenging to grasp at a glance by

someone other than the creator. In addition, we can

only allocate a few information items at a time in

our working memory for active cognitive processing

(e.g., when comparing and contrasting different con-

cept maps). Thus, assessing numerous concept maps

at a time is prone to errors. Further, subjectivity can

easily build up and might lead to overlooking or over-

seeing aspects of concept maps.

C3: Tools That Relieve Some of the Burdens of

Assessing Students’ Concept Maps Are Scarce.

Teachers might lack the time and resources to objec-

tively design methods and tools that assess students’

concept maps. Authoring tools for concept map as-

sessments can support users in the assessment pro-

cess. However, apart from spreadsheets and ad-hoc

analyses, we found no commercial or academic tools

to effectively ease the assessment for teachers who

might have a lower digital and analytical literacy.

3.2 Barriers to Reliable Assessments

We identiﬁed three barriers to designing reliable as-

sessment methods in existing research.

B1: There Are Varying Conceptualizations of

“what is a concept map”. Researchers draw upon

varying conceptualizations for concept maps. This

spans: (1) the visual artifacts, (2) the cognitive pro-

cesses, and (3) the semantics and knowledge orga-

nizations. For example, in relation to the visual ar-

tifacts, a concept map was deﬁned as “drawing pic-

Online supplementary examples:

http://bit.ly/3mCqiwc

tures”, “visual form” (Sun et al., 2019), and “arrange-

ment of the graphical objects (e.g. proximity, inclu-

sion, and adjacency)” to represent and communicate

knowledge (Crilly et al., 2006, p. 7). In relation to

cognition, concept mapping is often referred to as a

technique to support a wide range of cognitive pro-

cesses, namely higher-order thinking (D’Antoni et al.,

2010), visual thinking (Crilly et al., 2006), spatial

thinking (Hou et al., 2016), and creative thinking (Sun

et al., 2019). And ﬁnally, concept maps are often re-

ferred to as techniques to communicate semantics and

knowledge organizations (Wang et al., 2018). A con-

cept map carries semantics and organizations, such as

hierarchy (e.g., part of, kind of), centrality, similarity,

connectedness (e.g., tightly connected information),

and ordering (e.g., sequence, process, procedure).

One main challenge is that, often, the assessment

differs depending on the researchers’ considered con-

ceptualization. For example, when a concept map

was designed to support higher-order thinking, such

as critical thinking (D’Antoni et al., 2010), the focus

was more on assessing the knowledge that students

gained and less on the visual artifact itself. However,

when a concept map was designed to support visual

thinking, such as graphical elicitation (Crilly et al.,

2006), the focus was more geared towards the visual

artifact.

B2: Concept Maps Have Various Context-

Dependent Uses, and So Does the Assessments. Re-

searchers leverage concept maps for various contexts.

One context of use is to support comprehension of

learning materials (e.g., text passages) through both

studying and constructing concept maps (Schroeder

et al., 2018). A second use relates to guided and

adaptive learning, where concept maps are designed

to guide learners in acquiring knowledge incremen-

tally through scaffolding and fading strategies (Chen

et al., 2012). Another use relates to capturing learn-

ers’ knowledge and understanding of a subject for

feedback and assessment (e.g, Amadieu et al., 2009).

And ﬁnally, concept maps are used for graphic elici-

tation (Crilly et al., 2006), such as brainstorming (e.g,

Sun et al., 2019), problem-solving (e.g, Wang et al.,

2018), and note-taking (e.g, D’Antoni et al., 2010).

While the usefulness of concept maps for the ac-

tivities mentioned above is interesting, existing as-

sessment methods follow the context of use, mak-

ing the assessment’s design harder to generalize. For

example, when a concept map was designed to sup-

port comprehension, the evaluation focuses on learn-

ers’ understanding, which is usually achieved through

posthoc tests (e.g, Wang et al., 2018). However, tests

are limited because they do not capture individual

differences in structuring knowledge (Mcclure and

CSEDU 2023 - 15th International Conference on Computer Supported Education

444

Sonak, 1999). Similarly, scaffolding strategies, are

often used to help learners in concept mapping activ-

ities (e.g, Chen et al., 2012) and they might ease the

assessment because the learners follow a well-deﬁned

structure. However, they might hinder learners’ cre-

ativity and advancement (e.g, Amadieu et al., 2009).

B3: There Is Less Consensus on Measures and

Heuristics of “what is a good concept map”. Well-

known heuristics were proposed by Novak, which

relate to the validity and signiﬁcance of (1) propo-

sitions, (2) hierarchies, (3) cross-links, (4) exam-

ples, and (5) comparison (to experts’ maps) (Novak

and Gowin, 1984). Although Novak’s heuristics are

widely used, they have subtle limitations. They do

not capture attributes of the artifacts that communi-

cate meaning (e.g., similarities, relatedness, order-

ing, prominence, adjacency, proximity, etc.). Addi-

tionally, Novak heuristics focus mainly a hierarchi-

cal (top-down) concept maps. As the supplemen-

tary demonstrates

, we found that students use vary-

ing ways to structure concept maps (e.g., networks,

mind maps, grids, etc.). And ﬁnally, existing heuris-

tics do not capture critical relational qualities, such

as (i) ﬂuency, i.e., ease in generating concepts, rela-

tions, and relations’ types; (ii) originality, i.e., unique-

ness, rarity, the relevance of concepts and associa-

tions; and (iii) ﬂexibility, i.e., conceptual categories,

themes, depth/breadth of thinking underlying a con-

cept map.

3.3 A New Method for Assessments

To overcome the challenges mentioned earlier, we de-

cided to instantiate the practice of concept mapping

as a cognitive and creative activity of externaliza-

tion of concepts and associations (Crilly et al., 2006).

Here, a concept map can be seen as technique of

brainstorming (Al-Samarraie and Hurmuzan, 2018).

Brainstorming is an act of externalization of ideas and

associations that leads to the production of spatial, vi-

sual, and conceptual artifacts (e.g., ideas, concepts,

designs, diagrams, writings, etc. (Crilly et al., 2006)).

Research into brainstorming as a tool for problem-

solving, creativity, and concept generation, has

yielded measures to evaluate the results of a brain-

storming activity. Primary measures involve the quan-

tity of ideas, quality of ideas, novelty of ideas, re-

source utilization (e.g., initial ideas), redundancy of

ideas, and categorization of ideas, among others (Al-

Samarraie and Hurmuzan, 2018). Quantity of ideas,

also known as ﬂuency, represents the degree of ease

in processing inputs, such as understanding a prob-

lem, or the degree of ease in producing outputs, such

as generating ideas, concepts, or solutions (Thomp-

son et al., 2013). Fluency is widely quantiﬁed as the

number of ideas generated for a given situation.

Additionally, ideas can have several qualitative at-

tributes. One quality is originality, which refers to the

pertinence, novelty, and rarity of ideas (Puccio and

Cabra, 2012). Originality can be essential to quantify

unique, clever, and less frequent ideas but still valu-

able and appropriate for the subject. Another qual-

ity is ﬂexibility, which refers to the conceptual cat-

egories and shifts in thinking underlying ideas, and

indicates heuristics and strategies adopted when re-

solving a problem or a challenge (Puccio and Cabra,

2012). Qualities of ﬂexibility are primarily the results

of thematic analysis of the content. Thus, ﬂexibility

can be an umbrella for concept maps’ qualities. Qual-

ities can be conceptual, relational, structural, or visu-

ospatial, which can be framed depending on the con-

text. In this view, we can deﬁne qualitative and quan-

titative measures for ﬂuency, originality, and ﬂexibil-

ity of concept maps.

• Fluency Measures. We quantify three ﬂuency mea-

sures for concept maps. Concept ﬂuency (CFlue):

the number of generated concepts. Relation ﬂuency

(RFlue) the number of generated relations. Relation-

type ﬂuency (RTFlue): number of generate relations’

types (i.e., unique relations’ labels). Fluency mea-

sures are quantitatively quantiﬁed.

• Originality Measures. We quantify ﬁve originality

measures for concept maps. We do so in two ways.

First, we qualitatively quantify originality through

novelty, uniqueness, or rarity of ideas. Thus we quan-

tify concept originality (COrig): the number of orig-

inal concepts, relation originality (ROrig): the num-

ber of original relations, and relation-type originality

(RTOrig): number of original relations’ types (i.e.,

unique relations’ labels). Second, we use Natural

Language Processing (NLP) approaches to quantita-

tively quantify the rarity scores of ideas. We quan-

tify the rarity score of ideas as the sum of the fre-

quency of each idea’s stem words. After cleaning up

misspellings and abbreviations, we tokenize each idea

using 1-gram (one word). We remove stop-words. In

NLP, stop words are common words of a language,

such as articles and prepositions. We generate the

stem of each word using a dictionary of stems. Stem-

ming uniﬁes the wording used for all ideas, which is

appropriate for computing the frequency of words in

a corpus of ideas. And ﬁnally, we compute the rar-

ity score of each idea as the sum of the frequency

scores of its stem words. A lower rarity score means

that the words used for ideas are unique or less fre-

quent. Using this approach, we quantify concept-stem

originality (CSOrig): the rarity score of concepts and

relation-stem originality (RSOrig): the rarity score of

DotWrangler: A Method for Assessing Fluency, Originality, and Flexibility of Concept Maps and Diagrams at Scale

445

relations.

• Flexibility Measures. We refer to ﬂexibility as a

placeholder for any qualitative measure of a concept

map, whether contents, structures, or relations. We

use tagging, a widely used technique for knowledge

organization, categorization, and thematic analysis, to

quantify ﬂexibility measures. A tag is a code that we

associate with a piece of data. Tags capture insights

into the information at hand. The tagging system is

often context-depend. In addition, tags can have dif-

ferent weights. We do so by associating a weight mul-

tiplier with a tag, which is set to one initially. There-

fore, tagging is a ﬂexible way to map out the qual-

ities of a concept map with varying granularity and

weights. We can tag a concept map as a whole. We

can tag components of a concept map. We can tag

ﬁne-grain elements of a concept map, such as con-

cepts and relations. Once a concept map is tagged,

we compute quantitative measures of the frequency

of tags, whether they are related to a concept map as a

whole or its elements. A tag

ﬂexibility is the number

of occurrences (frequency) of a tag

times the multi-

plier.

4 A VISUAL ASSESSMENT TOOL

We designed an assessment tool using our approach.

We derived four design principles to guide our design.

4.1 Design Principles

DP1: Reduce the Burden of Assessing Multiple

Concept Maps. The assessment process is a time-

consuming task and might require the user to perform

several iterations on different graphs. Such a process

requires maintaining a considerable amount of infor-

mation in the working memory, such as information

about the graph under assessment and contextual in-

formation about other graphs, which is prone to er-

rors. Depending on the need, users need to seamlessly

navigate between views that aggregate all concepts

and relations in a workspace and views of a selected

graph or selected concepts and relations.

DP2: Promote Data Entry and Ability to Modify

Information. Data entry and modifying relational in-

formation are essential to support powerful analysis,

such as natural language processing and tagging. A

common use case is to unify the wording, such as ab-

breviations, the naming of concepts, the naming of

relations, etc. Users need to be able to add notes, de-

scriptions, and conceptual tags to concepts and rela-

tions while performing assessments. Some data en-

tries need to alter the underlying data. Other data en-

tries (e.g., descriptions) can serve as annotations for

later examination, collaboration, or feedback.

DP3: Promote Interactivity and Highlighting. As-

sessing a vast number of concepts and relations can

be overwhelming. Thus, users usually scaffold the

assessments of concept maps over several incremen-

tal iterations. Users make decisions to navigate and

explore further information based on what they are

focusing on or interacting with at a given time. Thus,

users need to be able to explore information in context

while navigating between different views. Users’ in-

teractions, such as hovering over, selecting, or search-

ing concepts and relations, should be highlighted in

different views. Using coordinated views, users can

explore relational content, in a linear (i.e., interactive

lists) and non-linear way (i.e., graph view).

DP4: Promote Qualitative and Quantitative Anal-

ysis. Qualitative assessments are important because

a concept map can differ in several ways. DotWran-

gler aims to strike a balance between qualitative and

quantitative analysis. Quantitative measures, namely

ﬂuency and originality of concepts, relations, and

relations types need to be computed automatically.

Additionally, all the qualitative analyses need to be

achieved using a uniﬁed tagging system. We informed

tagging based on thematic analysis of content. A tag

is a theme that captures some insight into a concept

map. Users can use tags to perform various analyses

(e.g., conceptual, visual, structural, relational, etc.).

Quantitative measures about tags should be computed

automatically.

4.2 User Interface and Interaction

Using our prototype learners can create concept maps.

Teachers can assess learners’ productions. The con-

cept map is rendered on an interactive canvas view

that supports data entry and manipulation (Figure 1-

(a) —DP2-3). We can zoom in/out on the graph using

the mouse wheel. We can select multiple concepts or

links by holding the shift key down while selecting

using the mouse, or brushing on the canvas. We can

explore neighboring concepts and relations by hover-

ing over a concept (Figure 1-(e)). We can use a con-

textual menu to edit, delete, and tag concepts and re-

lations. We can select multiple concepts and tag them

simultaneously.

The Contextual Sider (Figure 1-(b)), has four

main coordinated views: graphs view, tags view, con-

cepts view, and dashboard view. The Graphs View

(Figure 1-(a)) lists all the graphs in the workspace.

We can create, delete graphs, and edits their details

(DP2). We can open one graph or all the graphs in a

CSEDU 2023 - 15th International Conference on Computer Supported Education

446

Figure 1: (a) a Graph View, (b) Contextual Sider, (c) Tags View, (d) Concepts View, (e, f) Tagging view, and (g) Dashboard

View. We can open one graph at a time, or all the graphs combined. A higher resolution Figure : http://bit.ly/3Td1ze1.

workspace. Similarly, the Tags View (Figure 1-(c))

lists all the tags in the workspace. We can create

and delete tags. We can edit tags’ details, such as

label, description, multiplier, and color (DP2). The

multiplier is the weight coefﬁcient parameter of a tag

(equals 1 by default).

The Concepts View (Figure 1-(d)) lists all the

concepts in the workspace using an interactive table

(DP2-3). The table enables (1) navigating between

different graphs in the workspace, (2) exploring con-

cepts and relations, and (3) tagging concepts and re-

lations (DP1). The table lists concepts or relations

in rows with three main columns: Label, Tags, and

Graph label. We can switch between rendering con-

cepts or relations in the table. We can hover over

the labels to edit them. We can expand the rows to

explore or edit the descriptions of the concepts and

relations using a rich text editor. We can click on

a graph label to open it in the graph view. We can

sort, ﬁlter, and search the table. The table is coor-

dinated with the graph view. When we hover over a

row in the table, we highlight the item and its rela-

tions with other items in the graph view. Similarly,

when we text search in the Label column, we high-

light the search results in the graph view. The table

enables adding/removing tags to concepts and rela-

tions in two ways (DP2). First, while exploring the

graph using the table, we can tag concepts and rela-

tions by selecting tags from the Tags column. The list

of the tags is automatically populated from the Tags

view. Also, when selecting multiple concepts or rela-

tions in the graph view, we can tag them simultane-

ously using the contextual menu (Figure 1-(e, f)).

The Dashboard View (Figure 1-(g)) presents qual-

itative and quantitative indicators about the concepts

and relations for each graph in the workspace, namely

ﬂuency, originality, and ﬂexibility (DP4). We use

ﬂexibility as an umbrella for qualitative and custom

indicators needed to evaluate a concept map, which

we can achieve using tagging. The Dashboard view is

coordinated with other views of the Contextual Sider.

Added tags are automatically added to the dashboard.

The dashboard is populated and updated automati-

cally.

We implemented our tool using Typescript, Re-

actjs (UI), G6 (graph), NLPJs (NLP), and supabase

(server).

5 CASE STUDY AND FINDINGS

We conducted a case study using our approach.

Participants. The participants were 40 third-year

graduate students, of two classes of 21 and 19 stu-

dents (N = 40), enrolled in the course “Information

Systems Modeling, 2021-2022”, (gender: [M = 38,

F = 2], age: [>25 = 1, 20-25 = 33, <20 = 6]). The

participants were French native speakers. They vol-

untarily participated in the study as part of the course.

They signed an informed consent for analyzing their

data for research.

Procedure. The activity focused on the conception of

a design using collaborative concept maps. We used

Miro for the collaborative concept mapping

. We

We could not use our tool for concept mapping because it was not designed at the

time of conducting the learning activities. We designed our tool thereafter because of the

challenges (section 3) that we faced with assessing a large number of concept maps using

DotWrangler: A Method for Assessing Fluency, Originality, and Flexibility of Concept Maps and Diagrams at Scale

447

provided nine initial concepts (ideas) to the students

in each class to stimulate their thinking, referred to

as initial ideas. Each concept mapping session took

about 2 hours. For this case study, we collected the

participants’ results: 15 concept maps. We manually

typed the collected concept maps into our tool for as-

sessment. The two authors assessed collaboratively

the 15 concept maps in videoconferencing meetings

and wrote down notes about the assessment process.

5.1 Findings: Assessment Process

F1: Explore and Develop Initial Insights. We used

the Graph view in the Contextual sider panel to ex-

plore graph by graph. We looked for visual and con-

ceptual features, themes, and meanings. We wrote

down a few notes about each graph’s salient features

(in the description ﬁeld). Initial notes were related to

differences between graphs, overall structures, dupli-

cated concepts, the naming of concepts (e.g., abbrevi-

ations), and the use of initial ideas —provided to the

students for stimulation. As we noticed that students

rarely labeled the relationships between concepts, we

focused our assessment on the concepts.

F2: Perform a Fine-Grained Review of Ideas. We

performed a ﬁne-grained review of concepts for va-

lidity using the Concepts view in the Contextual sider

panel. We sorted the Label column in the Concepts

view alphabetically. We ﬁltered the Graph column

to focus on the graphs of each class because the two

classes had two slightly different subject statements.

We corrected some spelling issues to unify the word-

ing. This step is important for quantitative originality

measures because we use Natural Language Process-

ing (NLP). We tagged concepts that were not mean-

ingful using DotWrangler tag Invalid. Invalid con-

cepts are not included in the ﬂuency and originality

measures, but shown under the ﬂexibility measures

(see Figure 1-(g)).

F3: Evaluate Ideas. We checked concepts to re-

move duplicated concepts. Sorting the Label column

and ﬁltering by a graph in the Concept view helped

spot duplicated concepts. The graph view on the left-

hand side was useful for exploring concepts in con-

text as we hover over them in the Concepts View. For

each duplicate, we selected one concept to keep and

tagged the remaining occurrences using DotWrangler

tag Duplicate. Similar to Invalid tag, duplicated con-

cepts are not included in the ﬂuency and originality

measures, but the number of duplicated concepts is

shown under the ﬂexibility measures.

F4: Quantify Resource Utilization. We examined

adhoc methods.

whether the students used the initial ideas (concepts)

that we provided them for stimulation. We tagged the

initial ideas using a new tag Reuse. In the Concepts

view, we ﬁltered the graphs of each class and searched

by labels for the initial ideas. Because the concepts

resulting from the search are selected in graph view,

we used the textual menu to tag multiple concepts si-

multaneously.

F5: Quantify Originality and Flexibility of Ideas.

We iterated on the concepts in the Concepts view, and

we tagged unique, original, and relevant concepts us-

ing a new tag, Unique. Similarly, we quantiﬁed the

level of structure, ﬂow, and clarity of each concept

map. We created a new tag Structure on a scale of

1 (less structured) to 5 (highly structured). For each

graph, we tagged up to ﬁve selected concepts using

the Structure tag, depending on the level of structure

that we assessed.

F6: Review the Assessment Results. Along the way,

we kept reviewing the dashboard which displays au-

tomated measures out of the box, namely ﬂuency and

originality of concepts, relation, and relation type.

The dashboard is automatically updated as we added

tags or updated wordings of concepts. The tagging

approach and the dashboard make it easier to con-

duct and capture important aspects of students’ con-

cept maps in a ﬂexible manner.

6 DISCUSSION

Reﬂections and Limitations. Future studies with

learners and teachers are needed to further exam-

ine our approach. It might prove useful to design

a collaborative process (and tool) for our approach

so that multiple users can collaborate on the assess-

ment, perhaps with a built-in inter-rater agreement.

Future studies can engage with the design and use

of a dashboard systematically (e.g., teacher-centered

design (Ez-Zaouia, 2020)). Similarly, future studies

can combine measures (e.g., using formulas) to build

holistic ratings/rankings of students (e.g., Ez-zaouia.

et al., 2020). And ﬁnally, other measures can be ex-

amined, such as comparisons with expert maps, topic

mining, and sentiment and emotion analysis (e.g., Ez-

Zaouia et al., 2020).

Case Study Applications. We envision that our ap-

proach can support the assessment of concept maps

(and diagrams in general) for activities spanning vari-

ous domains of (1) art, design, and creativity; and (2)

STEM and non-STEM.

Art, Design, and Creativity. During art, design, or

creative problem-solving, students are usually tasked

CSEDU 2023 - 15th International Conference on Computer Supported Education

448

to produce design concepts by analyzing, summa-

rizing, and representing design thinking processes.

Node-link diagrams are common productions for this

work. Measures of ﬂuency, originality, and ﬂexibil-

ity of DotWrangler can make it easier for teachers to

evaluate students’ work and devise informed interven-

tions.

STEM and non-STEM. In France, for example, the

reform of the UBT level (University Bachelor of

Technology) that took place in 2022, has put forth

a new learning form, referred to as “situation of

learning and assessment (SLA).” Writing documents

and diagrams are common productions of SLA. We

engaged with one UBT teacher to understand how

DotWrangler can help them in the assessment pro-

cess. The teacher shared with us the assessment grid

they used in 2022. Four out of eight (4/8) criteria

of assessment involved diagramming. This includes

“completion of functionalities and diagrams,” “read-

ability of UML diagrams”, “respect of UML rules”

and “overall design concept.” The teacher shared with

us a total of 101 (N=101) anonymous diagrams. We

hypothesize that assessing the 101 diagrams manu-

ally with respect to the four assessment criteria would

be difﬁcult to perform objectively and reliably. Fol-

lowing a DBR (Barab and Squire, 2004), we plan to

conduct studies with teachers to examine how this ap-

proach can support assessing concept maps in differ-

ent contexts.

Conclusion. In this work, we formulated a method

to assess concept maps, designed an assessment tool

demonstrating our approach, and showed its utility

through a case study. We discussed our ﬁndings and

envisioned future case study applications. We hope

our work help spark new ideas for generalizable and

reliable methods that reduce the burden and facili-

tate large-scale assessments of concept maps and dia-

grams.

REFERENCES

Al-Samarraie, H. and Hurmuzan, S. (2018). A review of

brainstorming techniques in higher education. Think-

ing Skills and creativity, 27:78–91.

Amadieu, F., Van Gog, T., Paas, F., Tricot, A., and Marin

C. (2009). Effects of prior knowledge and concept-

map structure on disorientation, cognitive load, and

learning. Learning and instruction, 19(5):376–386.

Barab, S. and Squire, K. (2004). Design-based research:

Putting a stake in the ground. Journal of the Learning

Sciences, 13(1):1–14.

Besterﬁeld-Sacre, M., Gerchak, J., Lyons, M. R., Shuman,

L. J., and Wolfe, H. (2004). Scoring Concept Maps:

An Integrated Rubric for Assessing Engineering Edu-

cation. Journal of Engineering Education, 93(2):105–

115.

Carrillo, R., Renaud, C., Pri

e, Y., and Lavou

E. (2017).

Dashboard for Monitoring Student Engagement in

Mind Mapping Activities. In 2017 IEEE 17th Inter-

national Conference on Advanced Learning Technolo-

gies (ICALT), pages 433–437.

Chen, H.-H., Chen, Y.-J., and Chen, K.-J. (2012). The

design and effect of a scaffolded concept mapping

strategy on learning performance in an undergradu-

ate database course. IEEE Transactions on Education,

56(3):300–307.

Council, N. R. (2012). Education for Life and Work: Devel-

oping Transferable Knowledge and Skills in the 21st

Century. National Academies Press.

Crilly, N., Blackwell, A. F., and Clarkson, P. J. (2006).

Graphic elicitation: using research diagrams as inter-

view stimuli. Qualitative research, 6(3):341–366.

D’Antoni, A. V., Zipp, G. P., Olson, V. G., and Cahill, T. F.

(2010). Does the mind map learning strategy facilitate

information retrieval and critical thinking in medical

students? BMC Medical Education, 10(1):61.

Ez-Zaouia, M. (2020). Teacher-centered dashboards design

process. In Companion Proceedings of the 10th Inter-

national Conference on Learning Analytics & Knowl-

edge LAK20, pages 511–528.

Ez-Zaouia, M., Tabard, A., and Lavou

e, E. (2020).

Emodash: A dashboard supporting retrospective

awareness of emotions in online learning. In-

ternational Journal of Human-Computer Studies,

139:102411.

Ez-zaouia., M., Tabard., A., and Lavou

e., E. (2020). Prog-

dash: Lessons learned from a learning dashboard

in-the-wild. In Proceedings of the 12th Interna-

tional Conference on Computer Supported Educa-

tion - Volume 2: CSEDU,, pages 105–117. INSTICC,

SciTePress.

Fardhila, R. R. and Istiyono, E. (2019). An assessment in-

strument of mind map product to assess students’ cre-

ative thinking skill. REID (Research and Evaluation

in Education), 5(1):41–53.

Hou, H.-T., Yu, T.-F., Wu, Y.-X., Sung, Y.-T., and Chang,

K.-E. (2016). Development and evaluation of a web

map mind tool environment with the theory of spatial

thinking and project-based learning strategy. British

Journal of Educational Technology, 47(2):390–402.

Hyerle, D. (2009). Visual Tools for Transforming Informa-

tion into Knowledge. Corwin Press, 2nd ed edition.

Mcclure, J. R. and Sonak, B. (1999). Concept map assess-

ment of classroom learning: Reliability, validity, and

logistical practicality. Journal of Research in Science

Teaching, pages 475–492.

Novak, J. D. and Gowin, D. B. (1984). Learning How to

Learn. cambridge University press.

Puccio, G. J. and Cabra, J. F. (2012). Idea generation and

idea evaluation: Cognitive skills and deliberate prac-

tices. In Handbook of organizational creativity, pages

189–215. Elsevier.

Ruiz-Primo, M. A. and Shavelson, R. J. (1996). Problems

and issues in the use of concept maps in science as-

DotWrangler: A Method for Assessing Fluency, Originality, and Flexibility of Concept Maps and Diagrams at Scale

449

sessment. Journal of Research in Science Teaching,

33(6):569–600.

Schroeder, N. L., Nesbit, J. C., Anguiano, C. J., and Ades-

ope, O. O. (2018). Studying and constructing concept

maps: A meta-analysis. Educational Psychology Re-

view, 30(2):431–455.

Strautmane, M. (2012). Concept map-based knowledge as-

sessment tasks and their scoring criteria: An overview.

In Concept maps: Theory, methodology, technology.

Proceedings of the ﬁfth international conference on

concept mapping, volume 2, pages 80–88.

Sun, M., Wang, M., and Wegerif, R. (2019). Us-

ing computer-based cognitive mapping to improve

students’ divergent thinking for creativity develop-

ment. British Journal of Educational Technology,

50(5):2217–2233.

Thompson, V. A., Turner, J. A. P., Pennycook, G., Ball,

L. J., Brack, H., Ophir, Y., and Ackerman, R. (2013).

The role of answer ﬂuency and perceptual ﬂuency

as metacognitive cues for initiating analytic thinking.

Cognition, 128(2):237–251.

Wang, M., Wu, B., Kirschner, P. A., and Michael Spec-

tor, J. (2018). Using cognitive mapping to fos-

ter deeper learning with complex problems in a

computer-based environment. Computers in Human

Behavior, 87:450–458.

CSEDU 2023 - 15th International Conference on Computer Supported Education

450
