Security for Next-Gen Analytics for Cross-Organisation Collaboration

Laurent Gomez

, Francesco Capano

and Patrick Duverger

SAP Labs France, SAP Security Research, Mougins, France

Chief Information Ofﬁcer, City of Antibes, France

Keywords:

Privacy Enhancing Technique (PET), Blockchain, Trusted Execution Environment (TEE), Cross- Organisation

Collaboration.

Abstract:

With the global economic and energy crisis, businesses are under pressure to create more ﬁnancially sustain-

able and environmentally-aware industries. To that extent, organizations rely on advanced analytics to optimize

their business operations and mitigate risks. However, the increasing complexity of cross-organizational col-

laboration and ever-stricter data protection obligations pose two conﬂicting objectives: achieving transparency

in collaborative processes - mandatory for data and process mining - while adhering to data protection obliga-

tions. In this paper, we elaborate on an approach for privacy-preserving analytics, on data shared along cross-

organization collaborations. Our strategy is two-fold: (1) transparency and traceability in cross-organization

collaboration, leveraging distributed ledger technologies, and (2) privacy-preserving data and process analyt-

ics, using hardware-assisted PET, Privacy Enhancing Technology. In a co-innovation with the city of Antibes,

we evaluated the feasibility and performance of our approach on a public procurement use case, demonstrating

a 5% decrease in late payment penalties.

1 INTRODUCTION

1.1 Context

As a result of the global economic and energy crisis,

companies are confronted with new business impera-

tives for a more ﬁnancially viable and sustainable in-

dustry. However, as cross-organization collaborations

become more complex, organizations face increased

ﬁnancial burdens due to the lack of transparency.

Cross-organization collaboration can be deﬁned

as the business networks of a collaborative organiza-

tion aiming at a common business objective. Legally

framed by contracts, those collaborations leverage in

strengths of each organization, sharing information,

resources, or knowledge.

The lack of transparency and traceability slows in-

ternal transactions, impedes cross-organization pro-

cess mining, or exacerbates conﬂict occurrence. All

are caused by non-compliance with legal and con-

tractual obligations disrupting the objective of cross-

organization collaboration.

1.2 Problem Statement

The digitalization of contract management enables in-

creased transparency and traceability. However, it

comes at the expense of publicizing sensitive busi-

ness information like transaction volume or contrac-

tually agreed-upon prices. This openness requirement

forces organizations to share private information with

various internal and external collaborators, including

contractual, master, and transactional data.

Consequently, the openness imperative directly

conﬂicts with the compliancy duty with laws, regu-

lations, or contractual obligations. Next-gen contract

management must ﬁnd a way to reconcile openness

and non-disclosure of sensitive business information

and processes to reduce costs and mitigate inherent

risks associated with those collaborations.

1.3 Approach

In this paper, we target privacy-preserving analytics

on sensitive data shared along cross-organization col-

laborations. Our strategy is twofold:

• We implement immutable end-to-end col-

laboration management for transparency and

traceability of cross-organization processes, us-

604

Gomez, L., Capano, F. and Duverger, P.

Security for Next-Gen Analytics for Cross-Organisation Collaboration.

DOI: 10.5220/0012044900003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 604-609

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ing distributed ledger technologies, namely

public permissioned distributed ledger (e.g.,

Blockchain (Nakamoto, 2008)).

• We enable Privacy-preserving data and pro-

cess analytics on sensitive shared data making

use of hardware-assisted PETs, Privacy Enhanc-

ing Technology, (e.g., Trusted Execution Environ-

ment (Sabt et al., 2015)).

1.3.1 Immutable End-to-End Collaboration

Management

At the execution of a cross-organization collabo-

ration, each involved stakeholder - organization

- commits transactions and their associated at-

tributes within a transaction distributed ledger.

Each transaction is encoded as an immutable block,

cryptographically linked to the previous one. This

guarantees the integrity and immutability of transac-

tions, regardless of the distributed ledger technology

used. The ledger serves as a shared and decentralized

database of transactions for further data and process

analytics.

1.3.2 Privacy-Preserving Data and Process

Analytics

Before committing a transaction and associated at-

tributes in the ledger, organization

encrypts it with

its own managed cryptographic material. Leveraging

Privacy Enhancing Technologies (PETs), we target

here data and process analytics over protected data.

The remainder of this paper is organized as fol-

lows. We study state-of-the-art in section 2, followed

by a detailed description of our approach in section 3.

In section 4, we introduce a public procurement use

case. In section 5, we evaluate the results of our ap-

proach. Finally, we summarize our ﬁndings and dis-

cuss future research directions in section 6.

2 STATE OF THE ART

In this article, we propose a novel approach for en-

abling privacy-preserving data and process analytics

in cross-organization collaborations. We prioritize

here data protection without compromising the sys-

tem’s functionalities. To the best of our knowledge,

no similar approach have been reported in the litera-

ture.

Our approach is closely associated with Privacy

Enhancing Technology (PET) (Van Blarkom et al.,

2003) research ﬁeld. In this section, we study state-

of-the-art on PETs, categorizing them into two dis-

tincts groups: techniques relying on cryptographic

primitives (crypto-based PETs) and those leveraging

on hardware security mechanisms (hardware-assisted

PETs).

2.1 Crypto-Based PET

Crypto-based PETs such as Homomorphic Encryp-

tion (Viand et al., 2021), Multi Party Computa-

tion (Evans et al., 2018), and Functional Encryption

(Boneh et al., 2011) can be formally proven to offer

privacy guarantees. However, they introduce signif-

icant resource consumption overhead and lack scal-

ability when considering the diversity of processing

capabilities required by data and process analytics.

2.2 Hardware-Assisted PET

Hardware-assisted PETs, such as Trusted Execu-

tion Environments (TEEs) (Intel, 2021), leverage

hardware-based security mechanisms to guarantee

private computations. However, existing implemen-

tations have drawbacks, such as reliance on a Trusted

Third Party for key management and function ac-

cess control, and vulnerability to side-channel attacks

(Kim, 2019) (Fei et al., 2021). Solutions that provide

privacy-preserving function evaluation leveraging on

TEE, such as IRON (Fisch et al., 2017) and STEEL

(Bhatotia et al., 2021), do not meet our decentralized

security requirements as they rely on a Trusted Third

Party for key management and analytic access con-

trol.

Our proposed approach allows each party to main-

tain ownership of its cryptographic material and ana-

lytics access control policy in cross-organization col-

laborations.

3 PRIVACY-PRESERVING FOR

NEXT-GEN ANALYTICS

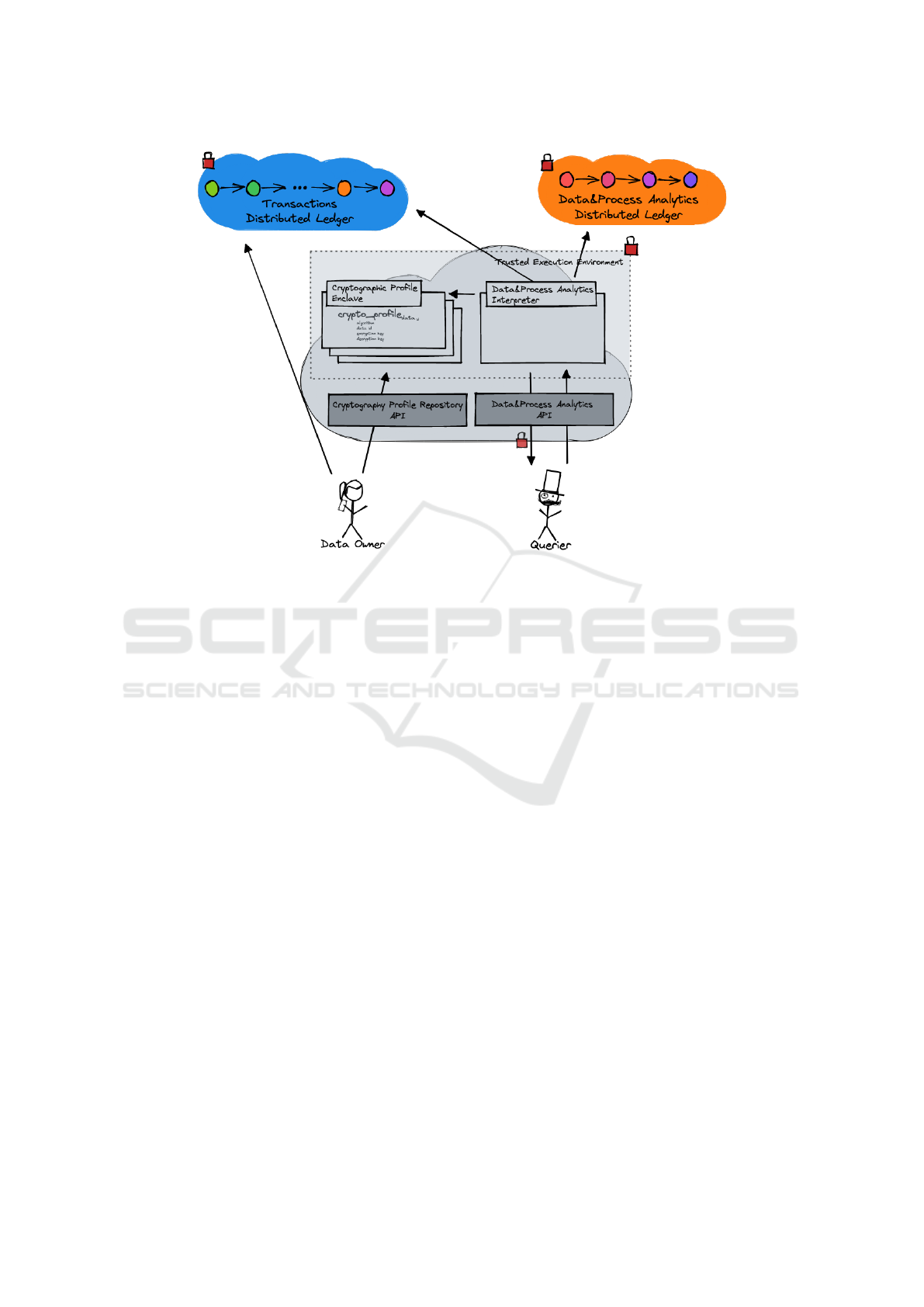

Depicted in Figure 1, we organize our overall pro-

cess in three phases: data and process analytics proﬁle

management, cryptographic proﬁle management, and

data and process analytics evaluation.

3.1 Data and Process Analytic Proﬁle

Management

The Data&Process Analytics Distributed Ledger

serves as a distributed and immutable repository for

all agreed Data and Process Analytic Proﬁle.

Security for Next-Gen Analytics for Cross-Organisation Collaboration

605

Figure 1: Architecture.

This phase includes generating and deploying the

Data and Process analytic proﬁle in the Data and Pro-

cess Analytics Distributed Ledger. It deﬁnes each an-

alytics’ required input, pseudo-code and access con-

trol policy. Each stakeholder, owning processed data,

needs to agree to deploy this proﬁle on the Data and

Process Analytics Distributed Ledger. We consider

agreement on available analytics as out of the scope

of this work. But few technologies, such as Quorum

blockchain (Consensys, ), can be used to deploy a pro-

ﬁle as an immutable block based on a majority voting

consensus mechanism.

3.2 Cryptographic Proﬁle Management

All cryptographic proﬁle are embedded within Cryp-

tographic Proﬁle Enclaves, and deployed within a

joint Trusted Execution Environment.

The Cryptographic Proﬁle Repository API en-

ables the data owner to securely deploy those en-

claves. This phase includes generation and deploy-

ment of cryptographic proﬁles within secure enclaves

on a joint Trusted Execution Environment (TEE) plat-

form.

This proﬁle deﬁnes a cryptographic context per

data type (e.g., purchase order amount) or per

data group (e.g., purchase order-related information).

Each stakeholder is responsible for generating and

deploying those cryptographic proﬁles. In addition,

each stakeholder must protect their encryption ma-

terial (e.g., encryption key, salt). We leverage re-

mote attestation (SSLab Georgia Tech, 2023), as de-

ﬁned by TEEs, for the deployment of cryptographic

proﬁles through the Cryptographic Proﬁle Repository

API over a secure channel. We consider the cloud-

based TEE platform to be trusted by all collaborative

participants. This platform enables the deployment of

cryptographic proﬁles within secure enclaves.

Prior to transaction commitment into the Trans-

actions Distributed Ledger -transactional, master, or

contractual – data are encrypted with their mapped

cryptographic proﬁle.

3.3 Data & Process Analytic Evaluation

Data owner persists any transactions, and associ-

ated -encrypted- data, to the Transaction Distributed

Ledger. Through the Data&Process Analytics API,

a querier requests the evaluation of an agreed Data

and Process Analytics - stored in the Data&Process

Analytics Distributed Ledger. The required data are

extracted from the Transactions Distributed Ledger.

Over local attestation, the Data&Process Analytics

Interpreter retrieves required decryption keys from

Cryptographic Proﬁle Enclaves.

We evaluate Data and Process Analytics over

shared encrypted data. A querier initiates a Data and

Process analytic evaluation via the Data & Process

SECRYPT 2023 - 20th International Conference on Security and Cryptography

606

Analytics API. Optionally, the query provides its pub-

lic key for encrypting the evaluation output. The Data

& Process Analytics API ﬁrst retrieves the Data and

Process Analytic proﬁle from the Data&Process Ana-

lytics Distributed Ledger. The secure enclave Data &

Process Analytics Interpreter starts with access con-

trol enforcement based on querier authentication. The

required input is collected from the transaction dis-

tributed ledger if access is granted. Over local at-

testation, cryptographic proﬁles are collected of each

required data type. Required -encrypted- data is de-

crypted within the secure enclave, and pseudo-code is

interpreted. The outcome of this evaluation is option-

ally encrypted with the querier public key and sent

back to the querier. We consider the above process

of Data and Process analytic proﬁle evaluation by the

Data & Process Analytics Interpreter as a contribu-

tion to this work.

4 PUBLIC PROCUREMENT USE

CASE

We illustrate our approach with a public procure-

ment use case In this cross-organization collabora-

tion, three organizations are involved: a Public Actor,

a Supplier, and a Transport Management. Public Ac-

tor requests supplies via a Purchase Order sent to a

Supplier. The latter prepares requested supplies and

delegates delivery to Transport Management. After

validation, Public Actor pays the Supplier.

Contracts deﬁne the business interactions between

public procurement stakeholders. Contractual terms

and conditions, such as delivery, payment obligations

(e.g., due-time delay, ﬁxed penalties), or agreed-upon

prices, are typically documented by public actors and

suppliers in contracts. If any party does not fulﬁll its

obligation accordingly, penalties are applied.

4.1 Transparency

Transparency-wise, public actors need to demonstrate

efﬁcient and optimized public funds spent while max-

imizing their services to citizens. A few examples of

analytics requirements are as follows:

• Obligation management with late delivery or

payment penalties triggering, computation of due

penalties amount;

• Data mining with the evaluation of late delivery

percentage, the impact of late payment penalties

on global spent budget;

• Process mining with evaluation of average pro-

cessing time per transaction;

4.2 Privacy-Preserving

Privacy-preserving wise, involved stakeholders have

the non-transferable obligation to be compliant with

the data protection regulation (e.g., GDPR (EU Com-

mission, 2016), HIPAA (US Congress, 1996)) and

contractual obligations. They must guarantee the pro-

tection of contractual, master, and transactional data.

A few examples of sensitive shared data are as fol-

lows:

• Contractual data, including any trade secret,

contractually agreed, such as penalties formula,

due-time delays for delivery or payment, negoti-

ated supplies prices;

• Transactional data such as Purchase Order de-

tails, transaction volume;

• Master data such as Purchase Order unitary

prices or delivery details (e.g., address, contact

name, email, or phone number).

5 EVALUATION

In this section, we evaluate the feasibility and perfor-

mance of our approach applied to the public procure-

ment scenario introduced in section 4.

5.1 Technical Background

We utilized Azure Cloud Conﬁdential Comput-

ing (Microsoft, 2023) and Open Enclave SDK (Ope-

nEnclave, 2023) to develop our demonstrator on

a cloud-based TEE, reducing the attack surface of

our enclaves. The Cryptographic Proﬁle Repos-

itory API and Data&Process Analytics API were

developed as REST API using Python. The dis-

tributed ledgers, Data&Process Analytics Distributed

Ledger and Transaction Distributed Ledger, were de-

ployed on a custom deployment of the public per-

missioned blockchain, Hyperledger (The Linux Foun-

dation, 2023). All data was encrypted with AES-

256 prior to deployment on the ledger, and Crypto-

graphic Proﬁle Enclaves were deployed on the Azure

Cloud Computing platform. We implemented a key

exchange and secure channel for exchanging Crypto-

graphic proﬁles between enclaves using the local and

remote attestation protocols from OpenEnclave (Ope-

nEnclave, 2022).

5.2 Evaluation

In collaboration with city of Antibes, we evaluated

our approach’s impact on communication and pro-

Security for Next-Gen Analytics for Cross-Organisation Collaboration

607

cessing time introduced by the use of distributed

ledgers and TEE enclaves.

We used approximately 8000 historical transac-

tions for the evaluation of 5 analytics. Table 1 lists

the outcome of those evaluated analytics.

Before our experimentation, the city encrypted,

using AES-256, and persisted 8000 public procure-

ment transactions within the Transactions Distributed

Ledger. The above-mentioned analytics has been

evaluated 100 times with four transaction dataset

sizes: 1, 100, 1000, and 8000.

5.2.1 Communication Time Overhead

Our approach adds two potential communication time

overheads that impact response time: Data&Process

Analytics API to Data&Process Analytics Interpreter

enclave and Data&Process Analytics Interpreter en-

clave to Transactions Distributed Ledger. Figure 2

shows communication time and enclave communica-

tion overheads. Enclave communication cost is neg-

ligible (a few milliseconds) due to the establishment

of TIPC(TIPC Working group, 2015) sockets. How-

ever, communication between the enclave and the dis-

tributed ledger has a signiﬁcant impact on perfor-

mance. This occurs when the Interpreter gathers data

from the transactions ledger for analytic evaluations.

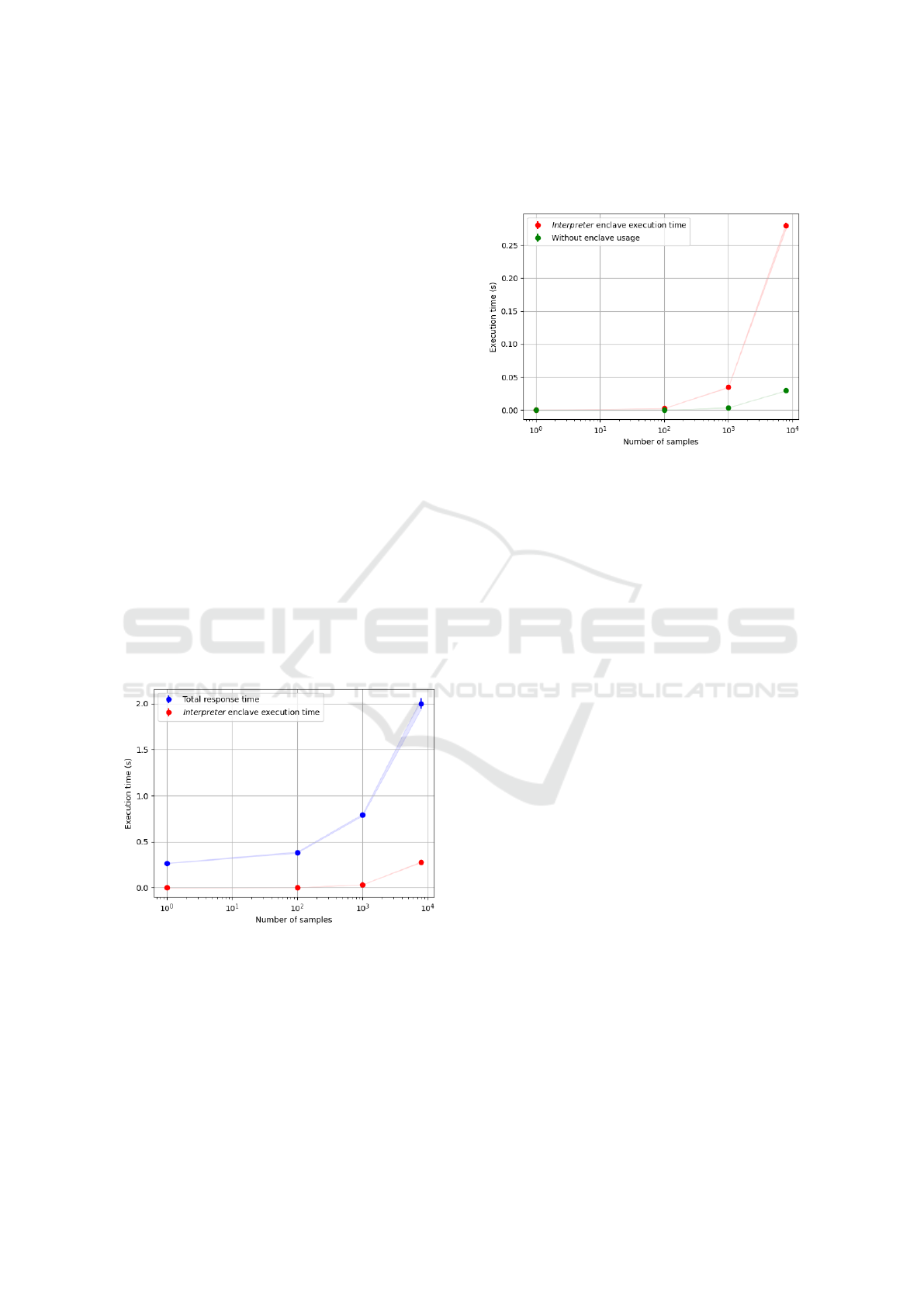

Figure 2 shows that communication overhead in-

creases depending on the size of the collected data,

up to 0.2-0.3 seconds.

Figure 2: Communication time overhead.

5.2.2 Processing Overhead

In addition to network communication overhead, we

also measured processing overhead within the inter-

preter enclave. Figure 3 shows the execution times

for analytics on encrypted data, both inside and out-

side of the enclave. The gap between the two ap-

proaches grows linearly, with a larger gap after eval-

uating around 10

samples. This is due to processing

overhead in the enclave, but we consider it negligible

as the impact is only a few milliseconds for two years

of processed transactions.

Figure 3: Processing Overhead.

5.2.3 Accuracy Loss

Hardware-assisted PET, such as Intel SGX, can im-

prove the accuracy of privacy-preserving analytics by

allowing computations on clear text data within se-

cure enclaves. This eliminates approximation errors

associated with cryptographic techniques, resulting in

more accurate and sophisticated analytics while pre-

serving privacy. Decryption within secure enclaves

prevents accuracy loss, and the absence of added

noise ensures the processed data and its outcome re-

main unaltered.

Process mining over encrypted historical data en-

abled the city of Antibes to detect late delivery and

payment obligations triggering penalties, despite the

absence of such data in the encrypted shared histori-

cal records. The Data&Process Analytics Interpreter

used date comparison and penalty formula evaluation

on encrypted data, expanding the range of processing

beyond simple statistics. This capability allowed the

city to perform a root cause analysis on late payments,

resulting in a 5% decrease in such transactions.

6 CONCLUSION

In this paper, we elaborate a secure approach for the

next-gen of analytics for cross-organisation collabo-

ration. We target privacy-preserving data and pro-

cess mining on sensitive shared data along cross-

organizational transactions, improving their trans-

parency and traceability. To that extent, we combine

hardware-assisted PETs and distributed ledger tech-

nologies. With our public procurement prototype, we

demonstrate the negligible impact of TEE on the eval-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

608

Table 1: Public Procurement Evaluated Analytics.

Analytic Description Result

Late deliveries (%) Percentage of over-due time deliveries 32.80 %

Late payments (%) Percentage of over-due time payments 17.47 %

Small purchase order (%) Percentage of Purchase Orders below 100C 65.75 %

Late deliveries impact (%) Impact of late deliveries penalties on suppliers’ total budget spent 0.36 %

Late payments impact (%) Impact of late payments penalties on city’s total budget spent 19.45%

uation of analytics over encrypted data. However, we

signiﬁcantly enhance the adherence to regulations and

contractual security obligations. Our prototype en-

ables city of Antibes to decrease by 5% their late pay-

ment penalties.

This work paves the way to further ML-based pro-

cessing for prescriptive and predictive analytics. We

foresee the deployment of analytics capabilities for

both recommendations on the best course of actions

at run-time and predictions on the future of evolution

of those cross-organization collaborations.

ACKNOWLEDGEMENTS

This research has been conducted in the scope of the

PROPOLIS(Propolis, 2023) project, jointly funded by

ANR and BMBF.

REFERENCES

Bhatotia, P., Kohlweiss, M., Martinico, L., and Tselekounis,

Y. (2021). Steel: composable hardware-based stateful

and randomised functional encryption. In IACR In-

ternational Conference on Public-Key Cryptography,

pages 709–736. Springer.

Boneh, D., Sahai, A., and Waters, B. (2011). Functional en-

cryption: Deﬁnitions and challenges. Theory of Cryp-

tography Conference, pages 253–273.

Consensys. Quorum. https://consensys.net/quorum/.

EU Commission (2016). General Data Protection Regula-

tion (GDPR). https://eur-lex.europa.eu/legal-content/

EN/TXT/?uri=CELEX:32016R0679.

Evans, D., Kolesnikov, V., Rosulek, M., et al. (2018). A

pragmatic introduction to secure multi-party compu-

tation. Foundations and Trends® in Privacy and Se-

curity, 2(2-3):70–246.

Fei, S., Yan, Z., Ding, W., and Xie, H. (2021). Security

vulnerabilities of sgx and countermeasures: A survey.

ACM Computing Surveys (CSUR).

Fisch, B., Vinayagamurthy, D., Boneh, D., and Gorbunov,

S. (2017). Iron: functional encryption using intel

sgx. In Proceedings of the 2017 ACM SIGSAC Con-

ference on Computer and Communications Security,

pages 765–782.

Intel (2021). Intel Software Guard Exten-

sions. https://www.intel.com/content/

www/ architecture-and-technology/

software-guard-extensions.html.

Kim, T. (2019). Sgx security. https://sgx101.gitbook.io/

sgx101/sgx-security.

Microsoft (2023). Conﬁdential Computing - Azure

Solutions. https://azure.microsoft.com/en-

us/solutions/conﬁdential-compute/#overview.

Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic

cash system. Bitcoin.org.

OpenEnclave (2022). Attestation sample OpenEnclave

SDK. https://github.com/openenclave/openenclave/

blob/ master/samples/attestation/README.md.

OpenEnclave (2023). OpenEnclave SDK.

https://github.com/openenclave/openenclave.

Propolis (2023). PROPOLIS. https://propolis-project.eu/.

Sabt, M., Achemlal, M., and Bouabdallah, A. (2015).

Trusted execution environment: What it is, and what

it is not. In 2015 IEEE Trustcom/BigDataSE/ISPA,

volume 1, pages 57–64.

SSLab Georgia Tech (2023). Intel Attestation Proto-

col. https://sgx101.gitbook.io/sgx101/sgx-bootstrap/

attestation.

The Linux Foundation (2023). Hyperledger.

https://www.hyperledger.org/.

TIPC Working group (2015). TIPC Protocol Speciﬁcation.

http://www.tipc.io/protocol.html.

US Congress (1996). Health Insurance Portability

and Accountability Act (HIPAA). https://www.

hhs.gov/hipaa/for-professionals/special-topics/

hipaa-administrative-simpliﬁcation-regulations.

Van Blarkom, G., Borking, J. J., and Olk, J. E. (2003).

Handbook of privacy and privacy-enhancing technolo-

gies. Privacy Incorporated Software Agent (PISA)

Consortium, The Hague, 198:14.

Viand, A., Jattke, P., and Hithnawi, A. (2021). Sok:

Fully homomorphic encryption compilers. In 2021

IEEE Symposium on Security and Privacy (SP), pages

1092–1108. IEEE.

Security for Next-Gen Analytics for Cross-Organisation Collaboration

609
