ArmorDroid: A Rule-Set Customizable Plugin for Secure Android

Application Development

Cong-Binh Le

1,2 a

, Bao-Thi Nguyen-Le

1,2 b

, Phuoc-Loc Truong

1,2 c

, Minh-Triet Tran

1,2 d

and Anh-Duy Tran

3,∗ e

Faculty of Information Technology, University of Science, Ho Chi Minh City, Vietnam

Vietnam National University, Ho Chi Minh City, Vietnam

imec-DistriNet, KU Leuven, Leuven, Belgium

ﬁ

Keywords:

Android Studio Plugin, Security Coding, Rule-Set Customizable, DevSecOps.

Abstract:

Although Android is a popular mobile operating system, its app ecosystem could be safer. The lack of aware-

ness and concern for security issues in apps is one of the main reasons for this. Given the current situation,

developers have yet to receive sufﬁcient security knowledge. Therefore, we have researched and proposed a

tool to support security coding. Based on the idea of DevSecOps, developers are placed at the center to op-

timize the solution to this problem by integrating security programming into the earlier stage in the software

development process. This paper presents two main research contributions: compilation and categorization of

security issues in Android application development and developing ArmorDroid, a plugin for Android Studio

to support secure coding. This plugin, which can be used for Java, Kotlin, and XML ﬁles, can instantly scan

and detect vulnerable code and suggest quick ﬁxes for developers during the development phase. This plugin

helps developers improve their security code and trains them to write secure code by providing security coding

standards in Android applications. Furthermore, developers can customize our rule set to suit their situation

and share it with different developers. Our work also presents the results of a pilot study on the effectiveness

of the ArmorDroid plugin.

1 INTRODUCTION

Smartphones are being used more and more fre-

quently and are crucial in many facets of life. The two

leading operating systems for smartphones are An-

droid and iOS. According to Statista (Statista, 2023),

in the fourth quarter of 2022, approximately 27.5 bil-

lion apps were downloaded from Google Play, while

the Apple App Store had roughly 8.1 billion down-

loads. Android apps have a shorter publishing time

than iOS apps. However, this also means that the

Google Play Market has more malicious apps than

the Apple App Store, which has stricter quality con-

trol. In many cases, high-ranking apps with hun-

dreds of thousands of downloads from the Google

https://orcid.org/0009-0009-8546-5440

https://orcid.org/0009-0000-3371-6986

https://orcid.org/0009-0008-5665-9986

https://orcid.org/0000-0003-3046-3041

https://orcid.org/0000-0002-8036-954X

∗

Corresponding author

Play Store have been discovered to contain security

issues (Faruki et al., 2014).

The primary responsibility for security problems

in Android apps remains a topic of debate. According

to the ﬁndings of the GitLab DevSecOps Survey 2022

(Gitlab, 2022), many security experts lack conﬁdence

in developers’ ability to write secure code, while de-

velopers feel they lack guidance. In their study, Tran

et al. (Tran et al., 2021) proposed that the main causes

of the above issues are a lack of secure coding stan-

dards for mobile software development, varying lev-

els of developer knowledge and qualiﬁcation in se-

cure coding practices, a focus on functionality, perfor-

mance, and deadlines over security, and the skipping

of important security steps to meet tight deadlines.

The reasons above suggest that various stakeholders

have not prioritized security issues in Android apps,

including software development companies involved

in the development process.

DevSecOps is a practice that integrates security

testing throughout the software development lifecy-

cle. It aims to ”shift-left” security, meaning to involve

634

Le, C., Nguyen-Le, B., Truong, P., Tran, M. and Tran, A.

ArmorDroid: A Rule-Set Customizable Plugin for Secure Android Application Development.

DOI: 10.5220/0012049500003555

In Proceedings of the 20th Inter national Conference on Security and Cryptography (SECRYPT 2023), pages 634-641

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

security from the initial design phase to the ﬁnal de-

livery phase.

Mitigating common vulnerabilities requires se-

cure coding practices to be integrated into the earliest

stages of development. Therefore, a tool to help pro-

grammers track and ﬁx insecure code right in the cod-

ing process is necessary. Several plugins have been

developed to support secure coding based on the men-

tioned idea. However, we have identiﬁed some limita-

tions with using these plugins from both commercial

and open source. For example, FixDroid (Nguyen

et al., 2017) cannot extend the rules or add more

tooltips for new or special security issues. 9Fix (Tran

et al., 2021) can only support Java programming lan-

guage and run on Android Studio versions earlier than

3.0.

In this work, we propose a new Android Studio

plugin that supports secure programming for devel-

opers, called ArmorDroid. It can detect and ﬁx com-

mon security issues in Java, Kotlin, and XML ﬁles. It

works with new versions of Android Studio and runs

locally on the developer’s machine to ensure privacy.

In addition, the tool provides a rule management sys-

tem and support for rules customization. In this paper,

our main contributions are:

• Identifying and categorizing security issues in

Android applications. (Section 3)

• Building a plugin for Android Studio to support

secure coding, ArmorDroid. Designing a data

model that generalizes security issues collected

into a set of rules. (Section 4)

• Running the pilot study and analyzing the results

for ArmorDroid. (Section 5)

2 RELATED WORK

DevSecOps is a practice that ensures security

throughout the software development lifecycle. It

involves applying security principles and tools from

the design phase to the delivery phase. For Android

development, there are various security testing tools

that can be integrated into the CI/CD pipeline such

as AppSweep (GuardSquare, 2023), App-Ray (App-

Ray, 2023)), and MobSF (mob, 2023). These tools

can perform both Static Application Security Testing

(SAST) and Dynamic Application Security Testing

(DAST) of the source code and detect vulnerabilities.

However, they can only be used when code is ready

for testing.

By performing static code analysis, we can inspect

the control-ﬂow and the data-ﬂow of the program

without executing it. EstiDroid is an open-source tool

developed by Fan et al. (Fan et al., 2020). It ana-

lyzes the API calls of Android apps by scanning the

APK ﬁle. This method is faster than dynamic anal-

ysis but less accurate. Some solutions create IDE

plugins that catch insecure code right at the coding

time. SonarLint (son, 2023b) is a commercial product

consisting of plugins for various IDEs and languages,

such as Python, JavaScript, and Java. Another exam-

ple is DroidPatrol by Talukder et al. (Talukder et al.,

2019). It is a plugin for Android Studio that uses static

analysis to ﬁnd data leaks in APK ﬁles. However, this

plugin only works after the code is compiled, not dur-

ing coding. 9Fix by Tran et al. (Tran et al., 2021) and

Sensei by Cremer et al. (De Cremer et al., 2020) are

two plugins that help programmers write secure code

and follow coding guidelines. They provide real-time

feedback and suggestions to ﬁx vulnerabilities and

improve code quality. A current drawback of these

two plugins is that they do not support Kotlin, which

is a modern and popular language for Android app

development.

3 SECURITY ISSUES IN

ANDROID APPLICATION

This section covers various security problems that af-

fect Android apps and how they occur. This helps us

learn from the common mistakes of Android develop-

ers and ﬁnd a way to ﬁx them.

3.1 Security Issues Related to

Cryptography Implementation

Cryptography is essential for securing data in tran-

sit and at rest. Cryptography security issues can lead

to data leaks and compromise the conﬁdentiality, in-

tegrity, and availability of sensitive data and com-

munications. Cryptography vulnerabilities make it

easy for attackers to steal data and violate privacy

(OWASP, 2016). To avoid security issues in cryptog-

raphy implementation in Android applications, devel-

opers should follow the standard guidelines for cryp-

tography algorithms and data protection.

3.2 Security Issues in Network

Communications

Security issues in Network communication in An-

droid applications refer to vulnerabilities or weak-

nesses in how an application interacts with other

devices or servers via a network. These problems

can expose the application and the data it contains

ArmorDroid: A Rule-Set Customizable Plugin for Secure Android Application Development

635

to attack, increasing the risk of data breaches, sys-

tem compromises, or other security incidents. Some

common security issues include Man-in-the-Middle

(MITM) attacks, insecure communication protocols,

a lack of authentication and access control, etc.

3.3 Security Issues in Data Storage

This category refers to security issues in the way that

an application stores and manages user data, which

can leave the application and its data open to attack.

SQL Injection is the most common type of security is-

sue. An attacker can inject malicious SQL commands

into a database management system of an application

to gain unauthorized access to or edit sensitive data.

3.4 Security Issues in Interprocess

Communication

The Android Interprocess Communication (IPC)

mechanisms let you verify the identity of the applica-

tion connecting to your IPC and set security policy for

each IPC mechanism such as Intent, Binder, Messen-

ger with a Service, and BroadcastReceiver. Interpro-

cess communication issues can lead to unauthorized

access to data and code execution.

3.5 Security Issues in WebView

WebView in Android allows applications to display

web content (HTML, CSS, JavaScript). While this

feature is very useful for many cases, improper use

of it can introduce web security issues into your app,

such as injection attacks, MITM attacks, clickjacking,

and cross-site scripting (XSS) attacks. A mobile ap-

plication that uses WebViews can have XSS issue if

untrusted code is executed with local ﬁle access en-

abled.

4 SECURE CODING PLUGIN FOR

ANDROID STUDIO

Android Studio (Google, 2023) is an IDE for develop-

ing Android apps. It is based on IntelliJ IDEA Plat-

form, a code editor and developer toolset. It provides

app development features like code completion, de-

bugging, testing, and deployment. Moreover, third-

party plugins can be written to add new features to

the IDE.

4.1 Overview of ArmorDroid

Android Studio allows several types of extensions,

two of which are suitable for the tool our team is plan-

ning to develop. Firstly, the User Interface Compo-

nents provide the ability to add some UI features to

the IDE such as MenuBar, ToolBar, etc. Secondly, the

Code Analyzing feature provides syntax highlight-

ing, language checking, source code inspection, etc.,

which allows our plugin to check for vulnerabilities.

Using the available extension features, we have im-

plemented a secure coding plugin for Android Studio,

named ArmorDroid. Our plugin’s architecture is de-

scribed in Figure 1.

Code Inspector

Rules data

(.json files)

Rule Manager

Query

Project Manager

Listener

Download

Create, delete, update

Android Studio

Analyze

Listen

Save changes

Rule Editor

Invoke

Figure 1: Architecture of ArmorDroid.

When the user opens a project, the Project Man-

ager Listener will prompt a dialog asking for user per-

mission to inspect this project. If the user agrees, the

plugin will create a folder called ArmorDroidRule-

Data and download the default rule-storage ﬁles into

that folder: java.json, kotlin.json and xml.json. The

downloaded ﬁles are used locally by the Code Inspec-

tor module. No data are transmitted to any web server

to ensure the conﬁdentiality of the project source

code. The Rule Editor module includes actions and

dialogues that are responsible for interacting with the

user. To modify the rules, Rule Editor calls APIs pro-

vided by the Rule Manager module. Rule Manager

is responsible for interacting with the rule ﬁles and

providing the right set of rules to Code Inspector ac-

cording to the language they are scanning. Every time

changes are made to the rule ﬁles, Rule Editor will

notify the Code Inspector to refresh the data.

4.2 Design and Implementation

4.2.1 Code Inspector

To check the rules, our tool utilizes the IDE syntax

parsing features called Program Structure Interface

SECRYPT 2023 - 20th International Conference on Security and Cryptography

636

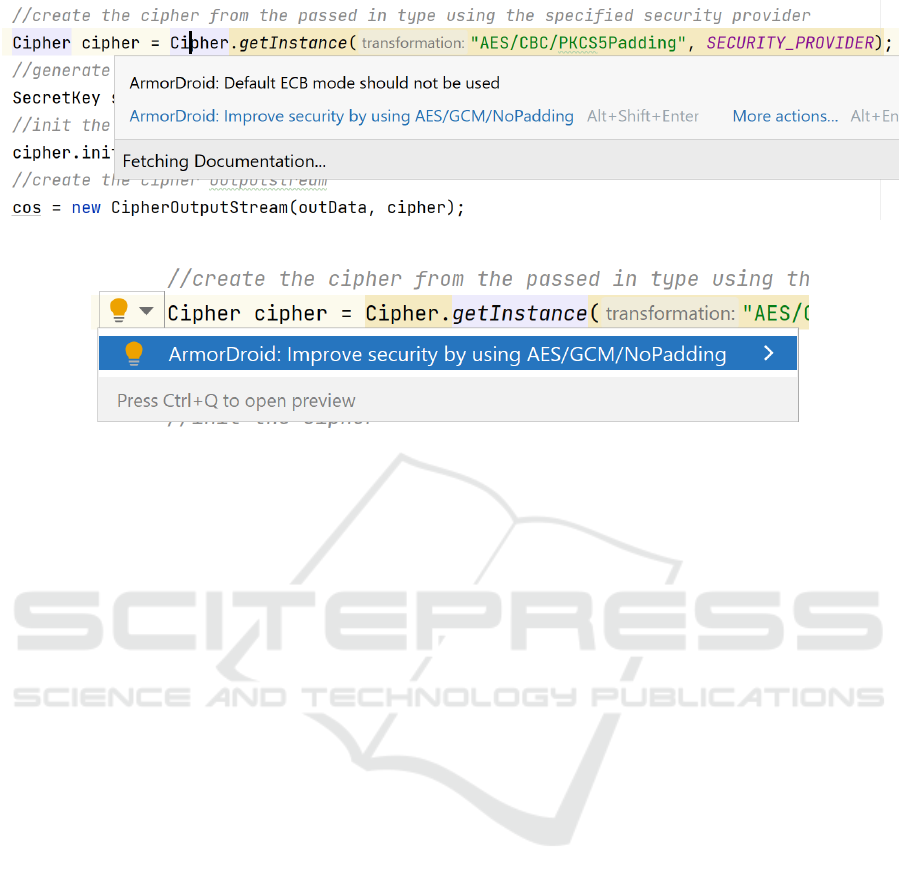

Figure 2: Highlighted Vulnerable Code.

Figure 3: Quick Fix Menu.

(PSI). The PSI is the layer in the IntelliJ Platform re-

sponsible for parsing ﬁles and creating the syntactic

and semantic code model. When a developer writes

new code, the IDE rebuilds the Abstract Syntax Tree

(AST) and computes the changes compared to the

previous version. In simple terms, the AST breaks the

source code into smaller components such as PsiEle-

ment, PsiWhiteSpace, PsiClass, PsiMethod, PsiField,

etc. A typical PSI element will contain the following

information: source text, its parent, its children, and

its position in the source ﬁle. Since we aim to detect

and highlight problematic code as soon as the devel-

oper writes it, the localInspection (loc, 2023) conﬁg-

uration was chosen for our inspection method.

4.2.2 Rule Manager

The Rule Manager module is responsible for man-

aging the rule data storage. The rules are stored in

the JavaScript Object Notation (JSON) format, and

each .json ﬁle is dedicated to a supported language

(Java, Kotlin, XML). Rule Manager provides APIs to

encode and decode JSON to Rule object. The Rule

Manager class implements the singleton design pat-

tern to ensure that only one instance of it exists. This

instance holds a list of rules for each language that are

loaded from JSON ﬁles. The rules are cached in the

list to avoid repeated ﬁle I/O and to save memory.

4.2.3 Rule Editor

ArmorDroid lets you adjust the rules to ﬁt your re-

quirements. It has UI features that can be found in

the Tools tab of the toolbar, under the ”ArmorDroid

Secure Coding” menu option. These UI features are

written in Java using custom Swing UI toolkit compo-

nents. Using these custom components ensures that

our plugin’s UI matches the IDE’s UI in appearance

and functionality.

4.3 Rule Model

Each security issue that we have collected is turned

into a Rule. Rule is a data model that we have de-

signed to contain information about a vulnerability

and how the plugin interacts with that insecure code.

The data structure of the Rule class is presented in

Figure 5.

The briefDescription ﬁeld of each Rule stores the

message that appears when the user clicks on the code

with a warning (see Figure 2). The Rule can be en-

abled or disabled by setting the boolean value enabled

to true or false. The inspector ﬁeld of type Inspection

holds the regex patterns that check the security of a

code fragment. It consists of a string pattern and a

list of patterns for captured groups (gro, 2023). The

main pattern is matched ﬁrst. If it matches, the cap-

tured groups are matched with the corresponding pat-

tern in groupPatterns. If any of the group patterns

fail to match, the inspection result is false, indicating

that the code is secure. Otherwise, if all the patterns

match, the inspection result is true, and the code is

ﬂagged as insecure.

A Rule can provide none, one, or more than one

solution to an issue. It has a ﬁeld ﬁxes that contains

an array of ReplaceStrategy objects. Each object has

a ﬁxName ﬁeld that shows the name of the ﬁx on the

ArmorDroid: A Rule-Set Customizable Plugin for Secure Android Application Development

637

Figure 4: Rule customization dialog.

Rule

+ briefDescription: String

+ enabled: Boolean

+ inspector: Inspection

+ fixes: List<ReplaceStrategy>

Inspection

+ pattern: String

+ groupPatterns: List<String>

ReplaceStrategy

+ fixName: String

+ patterns: List<String>

+ strings: List<String>

Figure 5: Data model of a rule.

suggestion panel (Figure 3). The ﬁelds patterns and

strings are arrays of regex patterns and replacement

strings, respectively. ArmorDroid uses them to re-

place insecure code with secure ones.

4.4 Rule Checklist

ArmorDroid default rule set contains 60 detection pat-

terns covering 3 programming languages (25 for Java,

25 for Kotlin, and 10 for XML). 48 out of 60 rules

support quick ﬁxes, the ones without quick ﬁxes are

those that are too complicated to ﬁx correctly or are

not serious enough. A snippet of the issue list is

shown in table 1.

Our collection of rules comes largely from our

own knowledge and experience with insecure coding

practices in Android app development. During our

research, we also supplement the rule set with some

rules from Sonarlint’s SAST rule list (son, 2023a).

4.5 Examples of Usage

4.5.1 Code Inspection and Quick Fix

ArmorDroid helps developers avoid insecure code by

highlighting and suggesting ﬁxes. For example, Fig-

ure 2 show a Cipher object with the AES/CBC/P-

KCS5Padding parameter, which is vulnerable to at-

tacks. ArmorDroid marks this code with a warning

and provides detailed information when the mouse is

over it. The programmer can click on the light bulb

icon to see a list of quick-ﬁx options and choose one

to replace the insecure code.

4.5.2 Rules Customization

ArmorDroid allows users to customize inspection

rules for each projects; for example, users might want

to detect the use of RSA without OAEP padding

scheme. Users can do this by choosing the Armor-

Droid Secure Coding → Customize Rules to open the

rule editing dialog.

To create a custom rule, press the Add rule button.

A new row will appear at the end of the table. Enter

the details of the vulnerability you want to ﬁnd and ﬁx

in this row. You can also edit or delete existing rules

(Figure 4).

4.5.3 Rules Import/Export

ArmorDroid is a tool that allows developers to create

and share their own rules for Android development.

These rules can be saved as .armor ﬁles and loaded

by other developers in their Android Studio. Alter-

natively, the rules can be distributed through version

control systems as JSON ﬁles in the project.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

638

Table 1: A part of ArmorDroid’s rules.

Issue Language Regex Description Quick ﬁx

Driver

Manager Get

Connection

Java DriverManager.getConnect\((.∗?), (.∗?), (.∗?)\) A secure password should be used

when connecting to a database

Password

Encoder

Java StandardPasswordEncoder\((.∗?)\) Passwords should not be stored in

plain-text or with a fast hashing

algorithm

Use BCryptPasswor-

dEncoder instead of

StandardPasswor-

dEncoder

SSL Context Java SSLContext.getInstance\((.∗?)\) Weak SSL/TLS protocols should

not be used

Improve security by

using TLSv1.2

Message

Digest

Java MessageDigest.getInstance\((.∗?)\) SHA-1 and Message-Digest hash

algorithms should not be used in

secure contexts

Improve security by

using SHA256

RSA Wrong

Mode And

Padding

Scheme

Kotlin Cipher.getInstance\((.∗?)\) Encryption mode and padding

scheme should be chosen

appropriately

Use OAEP padding

scheme

Weak

SSL/TLS

Protocols Get

Instance

Kotlin SSLContext.getInstance\((.∗?)\) Weak SSL/TLS protocols should

not be used

Enforce TLS 1.2 as

the minimum

protocol version

Accessing

Android

External

Storage

Kotlin Context.getExternalFilesDir\((.∗?)\) Accessing Android external

storage is security-sensitive

Use internal storage

by getFilesDir

Broadcasting

Intents

Kotlin Context.sendBroadcast\((.∗?)\) Broadcasting intents is

security-sensitive

Restrict the access to

broadcasted intents

Enabling File

Access

forWebViews

Kotlin Webview.getSettings().setAllowContentAccess\((.∗?)\) Enabling ﬁle access for WebView

is security-sensitive

Disable access to

local ﬁles for

WebViews unless it

is necessary

Debug

Features

Activated

XML android : debuggable = \\”true\\” In the application manifest element

of an android application, setting

the debuggable property to true

could introduce a security risk

In AndroidMani-

fest.xml the android

debuggable property

should be set to false

Clear Text

Protocols

XML android : usesCleartextTra f f ic = \\”true\\” Clear-text protocols (ftp, telnet,

http) lack encryption of transported

data, as well as the capability to

build an authenticated connection

Disable all clear-text

trafﬁc

ArmorDroid: A Rule-Set Customizable Plugin for Secure Android Application Development

639

5 PILOT STUDY

5.1 Study Tasks

In our study, we invited Android developers ranging

from a few months to a few years of experience to

solve a coding exercise comprised of 5 sub-tasks with

and without the assistance of ArmorDroid. The ex-

ercise involves an Android project that uses crypto-

graphic APIs to encrypt and decrypt the input string.

But the encrypting and decrypting code was missing

and the programmers had to implement it. To evaluate

ArmorDroid’s effectiveness, the participants received

a guidance document on how to use the tool. After

the exercise, the participants were asked to ﬁll in a

survey form that collected personal and technical data

to evaluate the tool’s effectiveness.

5.2 Study Results

5.2.1 Participants

Our study involved 41 participants from various do-

mains, including students and developers (see Table

2). Almost all of them had Android development ex-

perience of various levels: 24 participants have less

than 1 year, 12 partipants between 1 year and 2 years

and 5 participants have more than 2 years.

Table 2: Participant’s Background.

Participant’s Background Count

Student 20

Android Developer 9

Security Developer 2

Other 10

According to our survey, about 68% of the par-

ticipants have no experience in security. However,

roughly 76% of them are still concerned about secu-

rity issues that stem from the coding process. This

indicates that most developers prioritize secure cod-

ing but have not received adequate security training.

5.2.2 Features

Code Inspection. As shown in Figure 6, ArmorDroid

code inspection feature was effective in detecting vul-

nerabilities code during the plugin development. The

plugin highlighted the vulnerable code lines in the ed-

itor and provided a brief description of each error.

This helped users to identify and understand the vul-

nerabilities code easily.

However, the brief note on the issues did not help

developers gain insight into the issue. Out of 41 de-

Figure 6: Participants’ Experience with Code Inspection.

velopers, less than 10 strongly agreed, and less than

10 agreed that the note was useful. About 17 were

neutral. The brief note should include links to rel-

evant documentation that provide a detailed view of

the problem for developers.

Quick Fix. The quick ﬁx feature was a popular op-

tion among the participants. According to the survey

results, more than two-thirds (71%) of them indicated

that they utilized this feature during the experiment.

The results show that the majority of the participants

have used quick ﬁxes and achieved good results.

Rule Manager. About 90% of the participants re-

ported that the Rule Manager was easy to use. How-

ever, a small percentage of participants still do not

understand the rules and suggest improving the UI

of Rule Manager. In another question, we ask them

whether customizing the rule set was easy. More than

half of the participants (56%) think that customizing

the rule set is difﬁcult. This implied that more work

needs to be done on the Rule Manager UI for our fu-

ture work.

5.2.3 Performance

We have conducted a performance comparison be-

tween ArmorDroid and Sonarlint on a Windows 11

laptop device with 16 GB of RAM and an Intel Core

i5-8300H CPU. The ﬁrst experiment focused on the

speed of detection, while the second experiment fo-

cused on the memory consumption.

For the speed experiment, we run the test on 30

samples of bad code and measured the time taken by

each plugin to ﬂag them. The results showed that Ar-

morDroid was about as fast as Sonarlint, with a range

of 120 to 400 ms versus 150 to 420 ms. This re-

sult proves that ArmorDroid meets our expectation of

catching bad code in real-time.

For the memory experiment, we used a Python

script to monitor the memory usage of Android Stu-

dio every 2 seconds for 2 minutes while doing a cod-

ing task similar to the one in the survey in Section

5. We repeated this 10 times and calculated the av-

erage memory usage for each condition. The results

showed that Android Studio without any plugin used

1689.25 MB of memory, while with ArmorDroid it

used 1824.24 MB and with Sonarlint it used 1892.61

MB. This means that ArmorDroid increased memory

SECRYPT 2023 - 20th International Conference on Security and Cryptography

640

usage by about 135.01 MB, while Sonarlint increased

it by about 203.36 MB. ArmorDroid used less mem-

ory than Sonarlint initially, but this may be due to

its smaller rule set and fewer features and languages.

Sonarlint has more features than ArmorDroid, which

could explain its higher memory consumption.

6 CONCLUSION AND FUTURE

WORK

This article presents ArmorDroid, a plugin for An-

droid Studio that helps developers avoid common se-

curity problems in Android programming. Armor-

Droid detects insecure code patterns in real-time and

suggests ﬁxes. It also allows users to customize and

share inspection rules with co-workers. We evalu-

ated ArmorDroid with junior Android developers and

found that they appreciated its ability to identify and

correct vulnerable code quickly and easily. They also

found the rule editing feature very useful.

The survey reveals some areas for improvement in

current ArmorDroid. First, the rule editor’s UI. They

complained that it needed to be clariﬁed or that the

regex pattern ﬁelds were not validated. Another is-

sue is the code inspector’s inability to inspect variable

function arguments due to ArmorDroid’s limited un-

derstanding of the expression context.

In future work, we plan to redesign the UI of the

rule editor. We will also create a website where all

the rule detail explanations and examples will be pre-

sented. In addition, the link to each issue will be at-

tached to the brief description, and users can follow

the link to see the vulnerability in more detail. Fi-

nally, we are going the improve ArmorDroid’s con-

text awareness, i.e., allowing it to inspect the value of

a variable.

ACKNOWLEDGEMENTS

This research is funded by the University of Science,

VNU-HCM, Vietnam under grant number CNTT

2023-05

REFERENCES

(2023). groupvalues in kotlin. https://kotlinlang.

org/api/latest/jvm/stdlib/kotlin.text/-match-result/

group-values.html.

(2023). Mobsf. https://mobsf.github.io/docs/#/.

(2023). Plugin conﬁguration ﬁle. https://plugins.

jetbrains.com/docs/intellij/code-inspections.html#

plugin-conﬁguration-ﬁle.

(2023a). Sonar rules. https://rules.sonarsource.com/.

(2023b). Sonarlint. https://www.sonarsource.com/products/

sonarlint/.

App-Ray (2023). App-Ray. App-Ray website.

De Cremer, P., Desmet, N., Madou, M., and De Sutter, B.

(2020). Sensei: Enforcing secure coding guidelines

in the integrated development environment. Software:

Practice and Experience, 50(9):1682–1718.

Fan, W., Zhang, D., g Chen, Y., Wu, F., and Liu, Y.

(2020). Estidroid: Estimate api calls of android appli-

cations using static analysis technology. IEEE Access,

8:105384–105398.

Faruki, P., Bharmal, A., Laxmi, V., Ganmoor, V., Gaur,

M. S., Conti, M., and Rajarajan, M. (2014). Android

security: a survey of issues, malware penetration, and

defenses. IEEE communications surveys & tutorials,

17(2):998–1022.

Gitlab (2022). The GitLab 2022 Global DevSecOps Survey.

Google (2023). Android studio. https://developer.android.

com/studio. Accessed: February 19, 2023.

GuardSquare (2023). AppSweep: Mobile Application Se-

curity Testing. GuardSquare website.

Nguyen, D. C., Wermke, D., Acar, Y., Backes, M., Weir,

C., and Fahl, S. (2017). A stitch in time: Support-

ing android developers in writing secure code. In

Proceedings of the 2017 ACM SIGSAC Conference

on Computer and Communications Security, pages

1065–1077.

OWASP (2016). M5: Insufﬁcient cryptography.

https://owasp.org/www-project-mobile-top-10/

2016-risks/m5-insufﬁcient-cryptography.

Statista (2023). Quarterly number of mobile app downloads

worldwide from 1st quarter 2016 to 4th quarter 2022.

Statista website. Accessed: February 19, 2023.

Talukder, M. A. I., Shahriar, H., Qian, K., Rahman, M.,

Ahamed, S., Wu, F., and Agu, E. (2019). Droidpatrol:

a static analysis plugin for secure mobile software de-

velopment. In 2019 IEEE 43rd annual computer soft-

ware and applications conference (COMPSAC), vol-

ume 1, pages 565–569. IEEE.

Tran, A.-D., Nguyen, M.-Q., Phan, G.-H., and Tran, M.-T.

(2021). Security issues in android application devel-

opment and plug-in for android studio to support se-

cure programming. In Future Data and Security En-

gineering. Big Data, Security and Privacy, Smart City

and Industry 4.0 Applications: 8th International Con-

ference, FDSE 2021, Virtual Event, November 24–26,

2021, Proceedings 8, pages 105–122. Springer.

ArmorDroid: A Rule-Set Customizable Plugin for Secure Android Application Development

641
