Execution Patterns for Quantum Applications

Daniel Georg, Johanna Barzen, Martin Beisel, Frank Leymann,

Julian Obst, Daniel Vietz, Benjamin Weder and Vladimir Yussupov

Institute of Architecture of Application Systems, University of Stuttgart, Universit

atsstraße 38, 70569 Stuttgart, Germany

{ﬁrstname.lastname}@iaas.uni-stuttgart.de

Keywords:

Quantum Computing, Cloud Computing, Patterns, Pattern Language, Quantum Hardware Access.

Abstract:

Continuously evolving quantum service offerings vary in development and deployment requirements they

impose on quantum application developers. Further, since quantum applications often require classical pre-

and post-processing steps, in addition to quantum computing knowledge, expertise in cloud service models,

integration, and deployment automation is needed. Thus, to reduce the required complexity and management

overhead, applications often need to be tailored for quantum offerings suited for the desired execution scenario.

However, clear guidelines that facilitate deciding between diverse quantum offerings are currently missing. In

this work, we bridge this gap by (i) documenting ﬁve patterns that capture different execution semantics for

quantum applications. Furthermore, we (ii) analyze existing quantum offerings and document their support for

the captured patterns to facilitate the decision making process when implementing quantum applications.

1 INTRODUCTION

Compared to classical hardware, quantum comput-

ers promise to solve certain computational problems

in various domains, such as machine learning Ga-

bor et al. (2020) or chemistry Cao et al. (2018),

faster, with higher precision, or with less energy con-

sumption Arute et al. (2019); Barzen (2021). How-

ever, contemporary Noisy Intermediate-Scale Quan-

tum (NISQ) devices have limited capabilities and are

error-prone Preskill (2018). NISQ devices from ven-

dors such as IBM, IonQ, or Rigetti are accessible

as cloud offerings LaRose (2019) that vary signiﬁ-

cantly in their capabilities. For example, graphical cir-

cuit modelers only support the execution of designed

quantum circuits without any further integration fea-

tures Vietz et al. (2021). In contrast, so-called hybrid

runtimes support deploying quantum circuits along-

side desired classical code parts and executing them

together Qiskit (2023a). This is particularly helpful

for quantum algorithms relying on classical parts,

e.g., pre- and post-processing of data.

Since most quantum algorithms are hybrid Ley-

mann and Barzen (2020), engineering quantum appli-

cations often requires expertise in (i) implementing

quantum circuits and classical programs, and (ii) in-

tegrating them Weder et al. (2020a). While many lan-

guages and formats for the implementation of quan-

tum algorithms exist Fingerhuth et al. (2018), they

are often provider-speciﬁc and require extra effort for

running them on other quantum devices, e.g., reengi-

neering or use of compatible transpilers Sivarajah

et al. (2020). Implementing for speciﬁc devices poses

another challenge – their limited availability leads to

long waiting queues, even for simple tasks. Thus, to

implement and run quantum applications, developers

need to consider both, requirements of chosen NISQ

devices and operational semantics of the underlying

service offerings. However, the lack of clear guide-

lines on different execution semantics for quantum of-

ferings can hinder this decision making process.

One well-known way to abstractly capture solu-

tions for problems recurring in speciﬁc contexts is to

use patterns Alexander et al. (1977). They can also be

interconnected in so-called pattern languages to ef-

fectively allow combining related solutions and guide

architectural activities. While there exists the quan-

tum computing pattern language Leymann (2019), it

lacks patterns capturing different execution semantics

for quantum applications. In this work, we extend this

pattern language with ﬁve execution patterns for run-

ning quantum applications that we capture and doc-

ument following the best practices. Further, we ana-

lyze the existing landscape of quantum offerings with

respect to their support for the captured execution

patterns. The resulting patterns and technology cat-

egorization aim to facilitate designing, implementing,

and executing quantum applications.

258

Georg, D., Barzen, J., Beisel, M., Leymann, F., Obst, J., Vietz, D., Weder, B. and Yussupov, V.

Execution Patterns for Quantum Applications.

DOI: 10.5220/0012057700003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 258-268

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 FUNDAMENTALS

This section presents the necessary background about

quantum applications and pattern authoring.

2.1 Quantum Applications

Quantum devices, e.g., quantum annealing or gate-

based devices can mainly be accessed via cloud ser-

vices Leymann et al. (2020). The growing popular-

ity of gate-based devices, however, shifts the current

trend towards quantum offerings that support quan-

tum circuits as quantum algorithm implementations,

i.e., code parts that actually run on quantum devices.

Moreover, due to the hybrid nature of quantum algo-

rithms Leymann and Barzen (2020), a typical quan-

tum application comprises classical code parts in ad-

dition to one or more quantum circuits. These classi-

cal parts are pre- and post-processing steps required

by quantum circuits, e.g., for encoding input data, op-

timizing parameters between quantum circuit execu-

tions, or visualizing the outputs.

To execute quantum circuits and their classical

pre- and post-processing steps, a quantum offering

providing classical and quantum hardware or a

combination of quantum and classical offerings

must be chosen. Most quantum offerings provide

APIs, routines in SDKs, or graphical user interfaces

that simplify interacting with the quantum offering

and executing quantum circuits on the underlying

quantum devices. Furthermore, to balance the load

of incoming quantum circuit execution requests,

quantum offerings often employ queues for fair

utilization of the available quantum devices. Example

quantum offerings include Amazon AWS (2023),

IBM Qiskit (2023a), and Microsoft Microsoft (2023).

Most quantum offerings do not require deploy-

ing quantum circuits: to run a circuit it needs to

be (i) compiled for the target quantum device and

(ii) sent to the corresponding endpoint, e.g., using a

speciﬁc SDK. However, the classical pre- and post-

processing steps implemented in programming lan-

guages such as Python need to be deployed. This can

be done using one or more cloud offerings or they

can simply be executed in a local code editor when

no deployment in the cloud is necessary. This choice

of deployment targets is particularly important for

NISQ devices, as they are limited in the number of

qubits and suffer from gate and readout errors Preskill

(2018). To tackle this limitation, prime NISQ use-

cases focus mainly on Variational Quantum Algo-

rithms (VQAs) Cerezo et al. (2021). VQAs comprise

quantum and classical parts that are executed in a hy-

brid loop multiple times. Depending on how VQAs

are implemented, this may result in additional inte-

gration requirements for classical and quantum parts

that need to run on possibly different cloud services.

Another option is to deploy quantum and classical

parts together on so-called hybrid execution environ-

ments AWS (2023); Qiskit (2023a), which aim to op-

timize the placement of components and runtime efﬁ-

ciency. Hybrid execution environments, however, also

impose vendor-speciﬁc implementation and packag-

ing requirements, e.g., to use Qiskit Runtime, a quan-

tum application must be implemented in Python and

have a custom metadata ﬁle.

2.2 Patterns and Authoring Process

Patterns document abstract solutions for problems,

which frequently reoccur in speciﬁc contexts Alexan-

der et al. (1977). Networks of interconnected patterns

are called pattern languages Falkenthal et al. (2018)

and help solving composite problems in the corre-

sponding domains, e.g., software engineering Coplien

(1996), cloud computing Fehling et al. (2014b), or

quantum computing Leymann (2019). Patterns are

documented using a well-known and intuitive struc-

ture: Each pattern has a name and an icon for memo-

rability. Further, the problem states the driving ques-

tion for the pattern. In the context section, the situ-

ation where the pattern can be used is outlined. The

forces section describes relevant conﬂicting factors

characterizing the problem. In the solution section, a

description is provided to show an abstract solution

for the outlined situation, often accompanied by a so-

lution sketch. Optionally, the variants section shows

variations of the pattern. The result section discusses

the effects of applying the pattern, i.e., the resulting

context, and the known uses section lists distinct in-

stances of applying this pattern in practice. Finally,

the related patterns section documents relations with

other patterns within the same language as well as re-

lations to patterns from other pattern languages.

To systematically identify and author patterns, we

used the approach by Fehling et al. (2014a), which

consists of three phases: First, the Pattern Identiﬁ-

cation phase, in which relevant information is con-

densed and boundaries are identiﬁed to ﬁlter relevant

information. To capture the patterns presented in this

work, the documentation of different quantum cloud

service providers was analyzed with respect to the ca-

pabilities they offer. Second, the Pattern Authoring

phase, in which ﬁrst the structure and format of the

pattern are determined to ﬁt the relevant domain, and

then the patterns are written and iteratively revised.

Finally, the Pattern Application phase, which is de-

coupled from the other two phases, involves struc-

Execution Patterns for Quantum Applications

259

tured search and usage of the patterns, e.g., the solu-

tions from patterns can be applied for a speciﬁc pro-

gramming language to construct a quantum circuit.

3 EXECUTION PATTERNS FOR

QUANTUM APPLICATIONS

To capture different aspects of executing quantum ap-

plications, we extend the quantum computing pattern

language initiated by Leymann (2019) with ﬁve new

patterns. Prior to presenting the new patterns in de-

tail, we brieﬂy describe the quantum computing pat-

tern language and how our extension complements it.

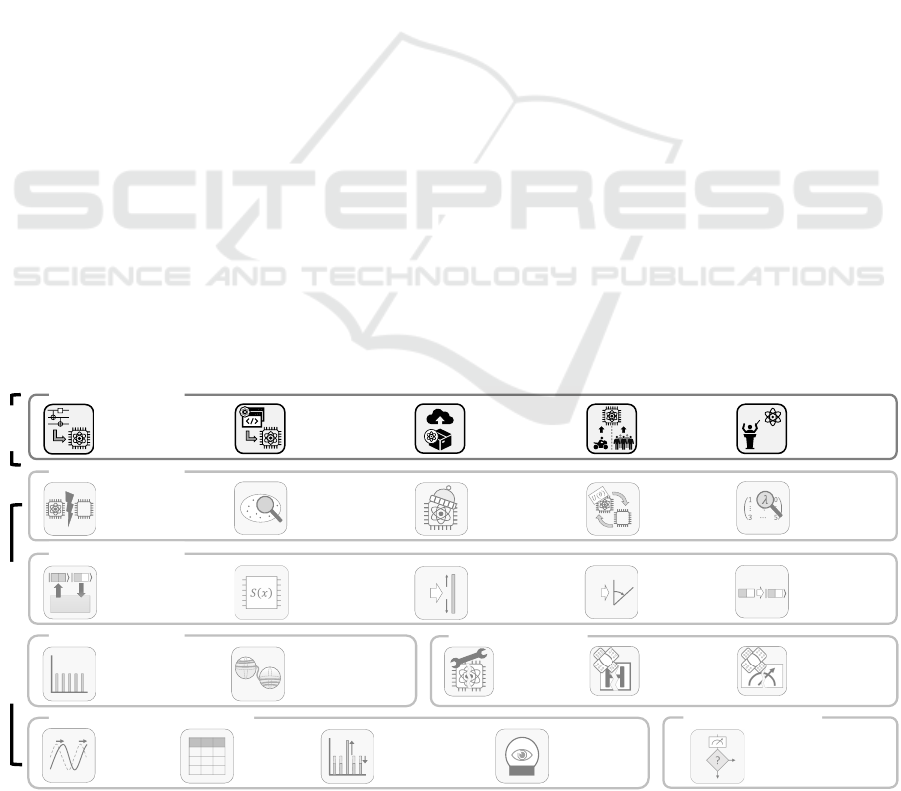

Figure 1 shows existing quantum computing pat-

terns, which aim to support developers in designing

and implementing quantum applications. Different as-

pects of the quantum application lifecycle Weder et al.

(2020a) are addressed using distinct categories in the

language. For example, the Program Flow patterns

give advice on how computational tasks can be split

between quantum and classical resources Weigold

et al. (2021b). They explain hybrid quantum algo-

rithms, such as Quantum Approximate Optimiza-

tion Algorithm (QAOA), and describe techniques to

improve them, e.g., so-called Warm-Starting. Most

quantum algorithms encode classical data into the

quantum circuit, which is typically done, by adding a

subroutine creating the corresponding state to the be-

ginning of the circuit. To facilitate this task, the Data

Encodings category captures different solutions for

encoding the data Weigold et al. (2020). Another as-

pect that must be considered is related to Error Han-

dling – the eponymous category shown in Figure 1

groups various relevant patterns Beisel et al. (2022).

For instance, NISQ devices can beneﬁt from em-

ploying so-called readout error mitigation as a post-

processing step to tackle measurement errors.

In this work, we introduce patterns document-

ing solutions for executing quantum circuits and

applications that were derived by analyzing the

documentation of existing quantum cloud services.

Our new Execution patterns shown in Figure 1

aim to facilitate the decision making process for

choosing quantum service offerings that ﬁt best for

given execution requirements: The STANDALONE

CIRCUIT EXECUTION pattern targets the most basic

execution scenarios in which quantum circuits need

to be executed without any deployment or integration

requirements. Thus, such scenarios can beneﬁt from

quantum offerings that simplify interaction with

quantum devices. In contrast, the AD-HOC HYBRID

CODE EXECUTION pattern focuses on the execution

of quantum circuits with classical pre- and post-

processing steps in an ad-hoc manner, i.e., without

deployment customization requirements for quantum

and classical code parts. More complex scenarios are

covered by the PRE-DEPLOYED EXECUTION pattern

in which components in quantum applications need

to be deployed in a certain way, e.g., distributed to

beneﬁt from heterogeneous offerings or deployed

in vicinity to increase efﬁciency. The PRIORITIZED

EXECUTION pattern describes solutions for executing

several quantum circuits efﬁciently by reducing the

queuing times. It enables, e.g., only waiting once

and then executing multiple quantum circuits with

reduced waiting times or reserving a quantum device

exclusively. The execution of quantum circuits as part

...

Program Flow

Quantum-

Classic Split

Measurement

Post-selective

Measurement

Execution

Orchestrated

Execution

Function

Table

Amplitude

Amplification

Oracle

f(x)

Phase

Shift

...

Unitary Transformations

Standalone

Circuit Execution



Ad-hoc Hybrid

Code Execution

Error

Correction

Gate Error

Mitigation

Readout

Error

Mitigation

Error Handling

Uniform

Superposition

Creating

Entanglement

Quantum States

Data Encodings

Amplitude

Encoding



Basis

Encoding



Angle

Encoding



QRAM

Encoding



QRAM

Schmidt

Decom-

position

Pre-deployed

Execution

Prioritized

Execution

QAOA

VQE

VQA



Warm-Start

...

Existing patterns

New

Figure 1: Overview of the quantum computing pattern language Leymann (2019); Weigold et al. (2021b); Beisel et al. (2022)

with the new patterns extension proposed in this work.

ICSOFT 2023 - 18th International Conference on Software Technologies

260

of orchestrated quantum applications is described

in the ORCHESTRATED EXECUTION pattern. Such

applications can beneﬁt from workﬂows, ensuring

the data and control ﬂow as well as providing advan-

tages, such as scalability, robustness, or transactional

processing. The STANDALONE CIRCUIT EXE-

CUTION, AD-HOC HYBRID CODE EXECUTION,

PRE-DEPLOYED EXECUTION and ORCHESTRATED

EXECUTION patterns capture different execution

variants for quantum applications and can be chosen

based on the requirements of the given application.

In contrast, the PRIORITIZED EXECUTION pattern

focuses on improving the execution efﬁciency and

can be combined with other execution patterns.

3.1 Standalone Circuit Execution

Problem: How to execute standalone

quantum circuits that impose no de-

ployment or integration requirements?

Context: In some scenarios, only standalone quantum

circuits need to be executed, such as circuit design

and testing or education. Thereby, it is beneﬁcial to

execute quantum circuits with minimal effort and re-

quired knowledge about different quantum offerings

as well as deployment or integration technologies.

Forces: Quantum offerings vary in features and ca-

pabilities. Use of advanced offerings for simple use

cases may incur unnecessary management overhead

and even block the task due to lacking technical ex-

pertise, e.g., deployment automation and integration

technologies. In contrast, certain quantum offerings

reduce the amount of required management efforts,

e.g., by generating execution requests automatically.

Solution: Execute quantum circuits via quantum of-

ferings that do not require implementing custom de-

ployment logic or integration with other services. Fig-

ure 2 shows the solution sketch in which distinct

quantum circuits are executed using offerings capable

of creating and executing circuits. This includes ded-

icated graphical circuit composers or text-based tools

transmitting the quantum circuits to the offering. Typ-

ically, providers are responsible for the majority of the

management efforts, e.g., deployment of circuits and

authentication to the underlying quantum offering.

Developer

Quantum

Offering

Circuit Composer /

Circuit Execution

Tool

Quantum

Circuit

Result

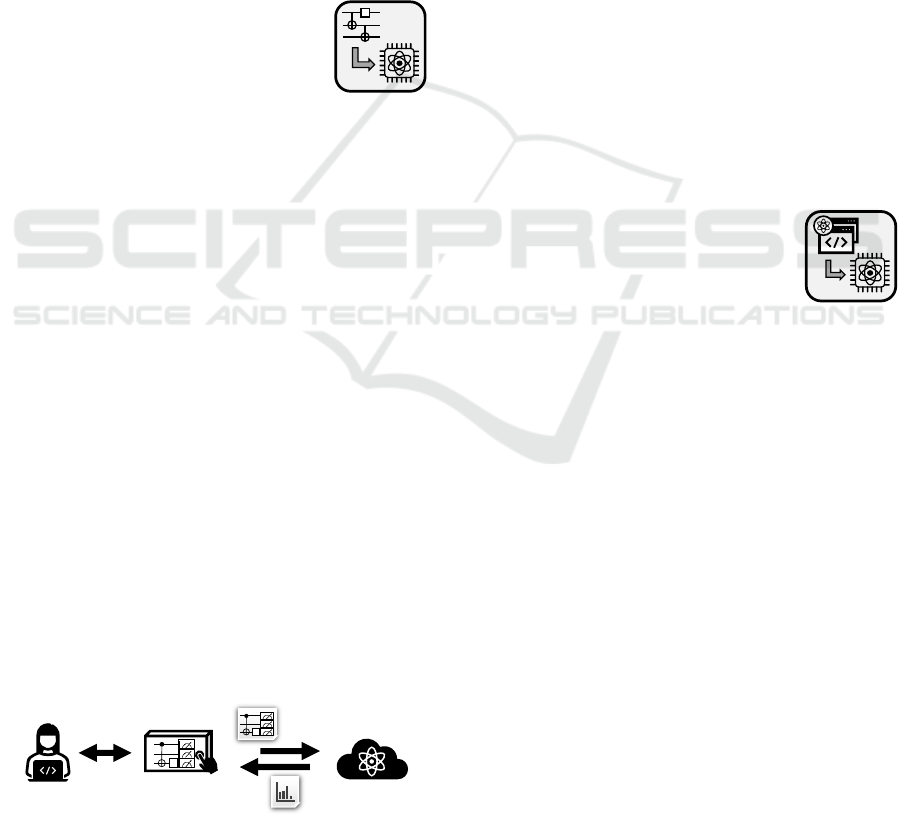

Figure 2: Solution sketch: Standalone Circuit Execution.

Result: Quantum offerings supporting this pattern

provide a simple way for executing quantum circuits.

However, classical pre- and post-processing steps can

not be deﬁned using these offerings. Thus, this style

of execution is not suitable for running larger quan-

tum applications and integration with external appli-

cations is either very limited or not supported at all.

Additionally, running computations with this pattern

cannot take advantage of prioritized executions.

Known Uses: Vendors such as IBM IBM (2023b) or

Pasqal Pasqal (2023) support this pattern via graph-

ical circuit composer services that enable modeling

quantum circuits visually and executing them from

the GUI, hence, abstracting away the authentication

and construction of the invocation request.

Related Patterns: In scenarios when quantum cir-

cuits are executed for testing purposes and afterwards

require the integration with classical pre- and post-

processing steps, the AD-HOC HYBRID CODE EX-

ECUTION can be used. Additionally, different quan-

tum computing patterns can be used while modeling

quantum circuits, e.g., AMPLITUDE AMPLIFICATION

or UNIFORM SUPERPOSITION Leymann (2019).

3.2 Ad-hoc Hybrid Code Execution

Problem: How to execute quantum

circuits with classical pre- and post-

processing steps with no additional de-

ployment or integration requirements?

Context: Often it is necessary to execute standalone

quantum circuits with their classical pre- and post-

processing steps without incurring extra overhead to

deploy, run, and manage them in the cloud.

Forces: Similar to STANDALONE CIRCUIT EXECU-

TION. However, using this pattern prevents integrat-

ing the classical pre- and post-processing steps. Us-

ing local or provider-managed development environ-

ments reduces management efforts, e.g., execution of

quantum and classical code via single commands.

Solution: Use provider-managed code editors or local

editors with manually-added token-based authentica-

tion. Figure 3 shows the execution of quantum circuits

and classical code using AD-HOC HYBRID CODE

EXECUTION. The classical pre- and post-processing

steps run in a local or remote code editor. The quan-

tum circuits are executed via function calls, often

provided by the programming language or quantum

SDK, transmitting the quantum circuit to the quantum

cloud offering.

Result: This pattern offers developers more control

over the execution of quantum and classical parts,

e.g., token management or request construction via

SDKs, than the STANDALONE CIRCUIT EXECUTION

Execution Patterns for Quantum Applications

261

Local / Remote

Code Editor

Quantum

Offering

Result

Developer

Quantum

Circuit

Classical

Code

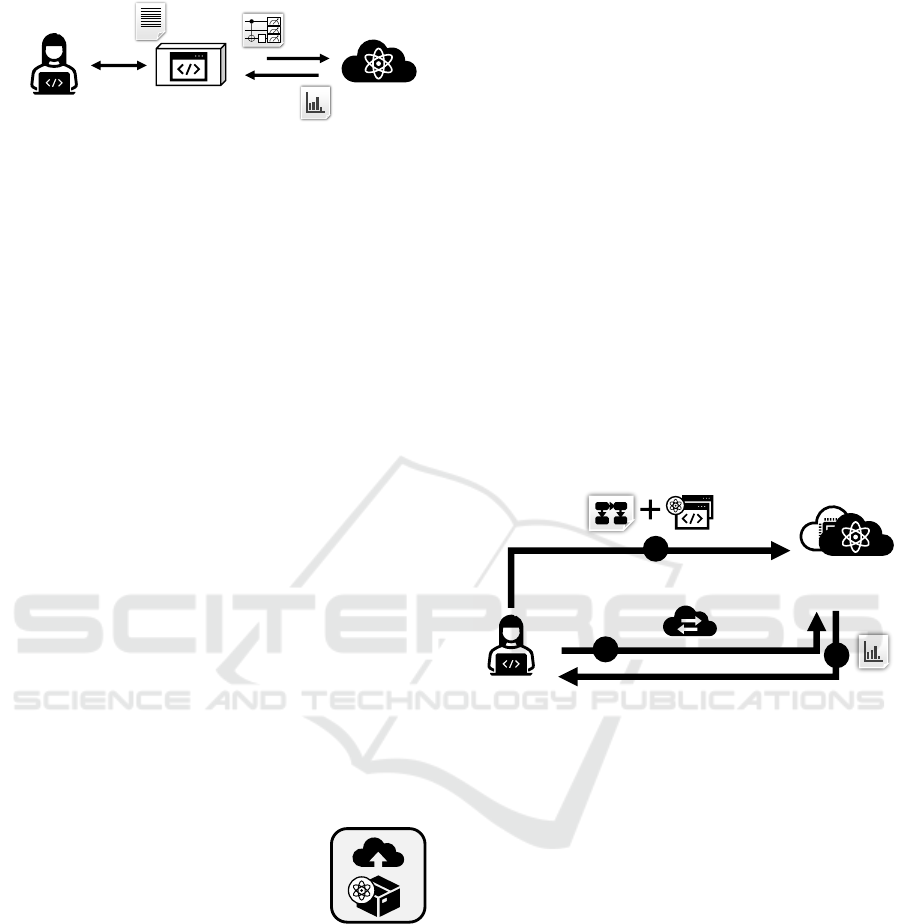

Figure 3: Solution sketch: Ad-hoc Hybrid Code Execution.

pattern. However, integration with external applica-

tions is often limited, which makes it unsuitable for

designing larger applications or running several dis-

tinct computations. After a successful ad-hoc execu-

tion of quantum circuits and their classical pre- and

post-processing steps, all artifacts can be packaged

and deployed to a compatible offering or published

via application marketplaces to simplify their reuse.

Known Uses: This pattern is supported by vari-

ous vendors. For example, iPython notebooks are

provided as remote code editors by Amazon with

Braket AWS (2023), IBM with Qiskit IBM (2023b),

and Google with Cirq Google (2020). Local code edi-

tors support different languages via dedicated pack-

ages, e.g., Rigettis pyQuil and Forest SDK Rigetti

(2023a). Authentication to quantum services is then

performed via manual conﬁguration of access tokens.

Related Patterns: Classical pre-processing steps in-

clude STATE PREPARATION, which can be done us-

ing, e.g., BASIS ENCODING or ANGLE ENCOD-

ING Weigold et al. (2020). Post-processing steps com-

prise, e.g., READOUT ERROR MITIGATION Beisel

et al. (2022). If multiple quantum circuits must be ex-

ecuted, PRIORITIZED EXECUTION can be used to in-

crease efﬁciency.

3.3 Pre-deployed Execution

Problem: How to execute quantum

circuits with classical pre- and post-

processing steps that have custom de-

ployment requirements?

Context: Most quantum algorithms are hybrid, e.g.,

VQAs contain a hybrid loop with many successive ex-

ecutions of parameterized quantum circuits with op-

timization steps in-between performed on classical

hardware Cerezo et al. (2021). Further, quantum de-

vices are accessed via the cloud and to execute a cir-

cuit, it is queued in the job-queue of the respective

service, which may not support the execution of clas-

sical code parts. Thus, a quantum circuit and its clas-

sical pre- and post-processing steps may need to be

deployed in a speciﬁc manner, e.g., together or using

speciﬁc combinations of cloud service offerings.

Forces: Quantum service offerings vary signiﬁcantly

feature-wise and often rely on different authentica-

tion mechanisms, proprietary formats, and SDKs. Ad-

ditional technical expertise may be required to suc-

cessfully execute a provided quantum circuit with its

pre- and post-processing steps that can be hosted sep-

arately, e.g., due to data processing requirements. In

certain cases, it is more beneﬁcial to execute quantum

and classical parts of the application in proximity of

each other, e.g., to reduce the networking overhead.

Solution: Pre-deploy the quantum circuit with its pre-

and post-processing steps either on (i) a single quan-

tum offering that supports execution of quantum and

classical parts, or (ii) a speciﬁc combination of quan-

tum and cloud offerings that fulﬁlls the given de-

ployment requirements. Figure 4 shows the solution

sketch of this pattern: In Step 1, the quantum and

classical parts are deployed according to deployment

preferences. The subsequent execution and fetching

of the results shown in Steps 2&3 can be done inde-

pendently by developers or client applications.

Deploy

Classical &

Quantum

Offerings

Deployment

Model

Quantum

Application

Developer

Result

Endpoint

Request

Figure 4: Solution sketch for the Pre-deployed Execution

pattern: a quantum application is executed on a combination

of different cloud offerings.

Variants: One deployment target option in Step 1

is a Hybrid Execution Environment offering that can

speed up the interaction between quantum and clas-

sical computations. Hence, they reduce the network

overhead and queuing times for many successive

quantum circuit executions. Another variant is a Dis-

tributed Deployment in which parts of the quantum

application are deployed on a combination of differ-

ent cloud offerings. Implementation of quantum and

classical parts, as well as their deployment models,

depend on chosen technologies, e.g., implementation

of QAOA for Qiskit Runtime would impose more

coding and deployment modeling constraints com-

pared to more general deployment scenarios such as

packaging the quantum application as one or more

containers that can be deployed to a container orches-

tration engine such as Kubernetes and later executed

via client requests.

Result: The deployment of quantum applications is

decoupled from its execution, hence, enabling the

ICSOFT 2023 - 18th International Conference on Software Technologies

262

invocation by other users or integration with other

applications, e.g., a pre-deployed VQA can be sub-

sumed as a part of another application. In the case

of hybrid runtimes, the pre-deployed application ben-

eﬁts from provider-managed execution transparency

but is locked into the requirements and limitations of

the underlying offering. In the Distributed Deploy-

ment variant, developers can beneﬁt from combining

different services for speciﬁc parts of the application.

Known Uses: Qiskit Runtime Qiskit (2023a) is a ser-

vice from IBM, which offers a hybrid execution envi-

ronment that enables deploying a quantum applica-

tion packaged as a Python ﬁle with a JSON meta-

data ﬁle, and subsequently executing it via a pub-

licly available HTTP endpoint. A similar service is

Amazon Braket Hybrid Jobs AWS (2023). Microsoft

also introduced the hybrid execution environment and

shows an example how to use it Frachon (2023). For

distributed deployment scenarios, various cloud offer-

ings can be employed for classical tasks. Example of-

ferings from AWS include AWS Lambda for executing

classical Python code, AWS S3 as an object storage of-

fering, and Amazon Cloudwatch for monitoring.

Related Patterns: Pre-deployed execution of hybrid

applications improves the reusability of different al-

gorithms such as the VQA and the more concrete pat-

terns like VQE and QAOA Weigold et al. (2021b).

Additionally, pre- and post-processing steps, such as

STATE PREPARATION Leymann (2019) or READOUT

ERROR MITIGATION Beisel et al. (2022), can be ap-

plied to run on preferred execution targets.

3.4 Prioritized Execution

Problem: How to execute multiple

quantum circuits in succession while

keeping the queuing time low?

Context: Quantum applications often require execut-

ing multiple quantum circuits. This is especially the

case when utilizing VQAs on contemporary NISQ

devices. Thus, these quantum circuits should be ex-

ecuted efﬁciently by minimizing the queuing times.

Forces: Quantum devices are usually accessed via

queues, ensuring their fair utilization. Thus, the queu-

ing times sum up when executing multiple quantum

circuits independently of each other. One approach is

to use batch processing, i.e., combining various quan-

tum circuits into one job, which is then executed at

once Vietz et al. (2021). However, this approach is not

possible when quantum circuits depend on the results

of previous executions, e.g., for VQAs.

Solution: Use quantum offerings that enable priori-

Quantum Offering

Results

Developer

QPU

Obtain

Prioritized

Access

Execute Circuits

& Collect Results

Quantum Circuits

Reuse Prioritized Access

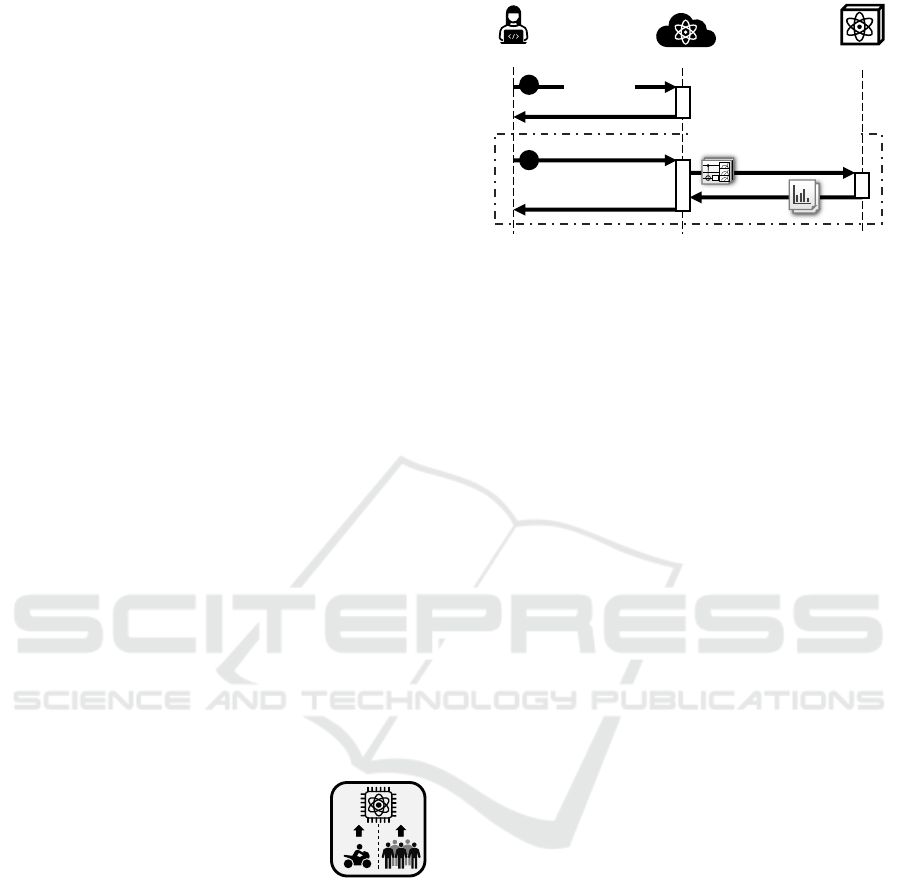

Figure 5: Solution sketch for Prioritized Execution showing

multiple circuits executed via prioritized access.

tized access to quantum devices to reduce or com-

pletely avoid queuing times, as shown in the solu-

tions sketch in Figure 5. For this, prioritized access

to quantum devices is obtained in Step 1. In Step 2,

the quantum device can then be reused via this prior-

itized access, which restricts the number of users to

reduce queuing times for multiple circuit executions.

Variants: One variant is to enable prioritization via

Session Reuse. Hence, the session established for the

ﬁrst quantum circuit execution is reused for multi-

ple subsequent circuit executions. Dedicated Access

is another variant in which a quantum device is re-

served for exclusive use without initial queuing by

booking a time-slice. However, this typically incurs

additional costs.

Result: By applying this pattern, the time spent wait-

ing inside highly occupied job queues is minimized.

The choice between the two options is a trade-off be-

tween runtime and cost. In the reserved time-slice sce-

nario, runtime is the highest priority since the reser-

vation of a quantum device incurs higher costs than

other forms of access. When using sessions for the

execution, there can still be competing executions in

the job queue from other users.

Known Uses: The Session Reuse variant is currently

supported by IBM Qiskit (2023a) and AWS AWS

(2023). Further, the Dedicated Access variant is

offered by vendors such as AWS AWS (2023),

Azure Microsoft (2023), or IBM IBM (2023b). A

concrete example of a prioritized execution using

Qiskit Qiskit (2023b) highlights which options for the

session are available and shows the details like the

session time limit.

Related Patterns: When using the VQA, VQE, or

QAOA patterns Weigold et al. (2021b), prioritization

is highly advised because of the amount of sequen-

tial quantum circuit executions. In these cases, it can

be combined with the PRE-DEPLOYED EXECUTION

pattern to address custom deployment requirements.

Execution Patterns for Quantum Applications

263

3.5 Orchestrated Execution

Problem: How to ensure the control

and data ﬂow for quantum applica-

tions comprising one or more quan-

tum circuits with corresponding clas-

sical pre- and post-processing steps?

Context: Most quantum algorithms are hybrid, i.e.,

parts are executed on quantum devices, and others run

on classical hardware Leymann and Barzen (2020).

Furthermore, quantum applications can involve multi-

ple quantum algorithms and additional classical parts,

e.g., interacting with the user or loading data from a

database. These parts must be orchestrated, i.e., the

control and data ﬂow between them must be ensured.

Forces: Quantum devices and the corresponding

quantum cloud offerings vary strongly in characteris-

tics, such as the number of available qubits, incurred

costs for the execution, or queuing times Tannu and

Qureshi (2019); Vietz et al. (2021). The orchestra-

tion of parts running in heterogeneous environments

can get unmanageable without external orchestration

tools, e.g., as there could be long invocation chains,

complex data transfers, data format transformations,

and interactions with various heterogeneous APIs.

Solution: Utilize a workﬂow language to model the

quantum and classical parts as tasks within a work-

ﬂow model Weder et al. (2020b) as shown in Fig-

ure 6. The workﬂow model can then be deployed to

a workﬂow engine, which orchestrates the quantum

and classical parts by invoking them in the speciﬁed

order and ensuring the required data ﬂow Ellis (1999).

Thereby, the invocation of heterogeneous offerings,

as well as features such as data format transforma-

tion is provided by the workﬂow engine Leymann and

Roller (2000). While there exist workﬂow offerings

speciﬁcally targeting the quantum computing domain,

e.g., providing some pre-implemented quantum algo-

rithms, standardized workﬂow languages and corre-

sponding workﬂow engines can also be employed to

beneﬁt from their maturity and rich feature sets.

Result: The classical code as well as the quantum

circuits required to realize a quantum application are

separated from the workﬂow model deﬁning how

they are integrated. This increases modularity and en-

ables the reuse of existing code, decreasing develop-

ment time and cost. Furthermore, by using workﬂows,

quantum applications can beneﬁt from the reliability,

scalability, and robustness of workﬂow engines Ley-

mann and Barzen (2021a). Finally, also the usage of

various heterogeneous quantum and classical cloud

offerings with different functionalities is supported.

However, the need to model orchestrations to enact

them on specialized middleware requires additional

expertise and may result in overhead for simple use

cases such as circuit design and testing.

Known Uses: Examples of standardized workﬂow

languages are Business Process Model and Nota-

tion (BPMN) Object Management Group (2010) or

Business Process Execution Language (BPEL) OA-

SIS (2007). For the execution of these workﬂow mod-

els, different workﬂow engines are available, e.g., the

Camunda BPMN engine Camunda Services (2023).

Furthermore, there exists a quantum-speciﬁc mod-

eling extension to ease the modeling of workﬂows

in the quantum computing domain Weder et al.

(2020b). Quantum-speciﬁc orchestration tools com-

prise Orquestra by Zapata Zapata (2022), which uses

a custom YAML-based language, and Covalent by

Agnostiq Agnostiq (2023), a quantum orchestration

platform that requires specifying control ﬂow via a

Python-based domain-speciﬁc language.

Related Patterns: If multiple quantum circuits have

to be executed by the workﬂow, the PRIORITIZED

EXECUTION pattern can be used to reduce waiting

times. Further, this pattern can be applied to integrate

several distinct quantum applications made available

using the PRE-DEPLOYED EXECUTION pattern.

4 PATTERNS SUPPORT IN

QUANTUM OFFERINGS

This section provides an overview of existing quan-

tum cloud service offerings for which documentation

has been analyzed to extract the patterns introduced

in Section 3. To compile a list of cloud services rele-

vant for this work, we conducted a thorough search

of relevant literature Fingerhuth et al. (2018); Gill

et al. (2020), and related websites Dilmegani (2023);

PAT Research (2023); Quantum Computing Report

Deploy

& Enact

Workflow

Classical

& Quantum

Offerings

Developer

Model

& Implement

Workflow

Orchestration

Middleware

Classical Programs

Orchestrate

Workflow Model

Quantum Circuit

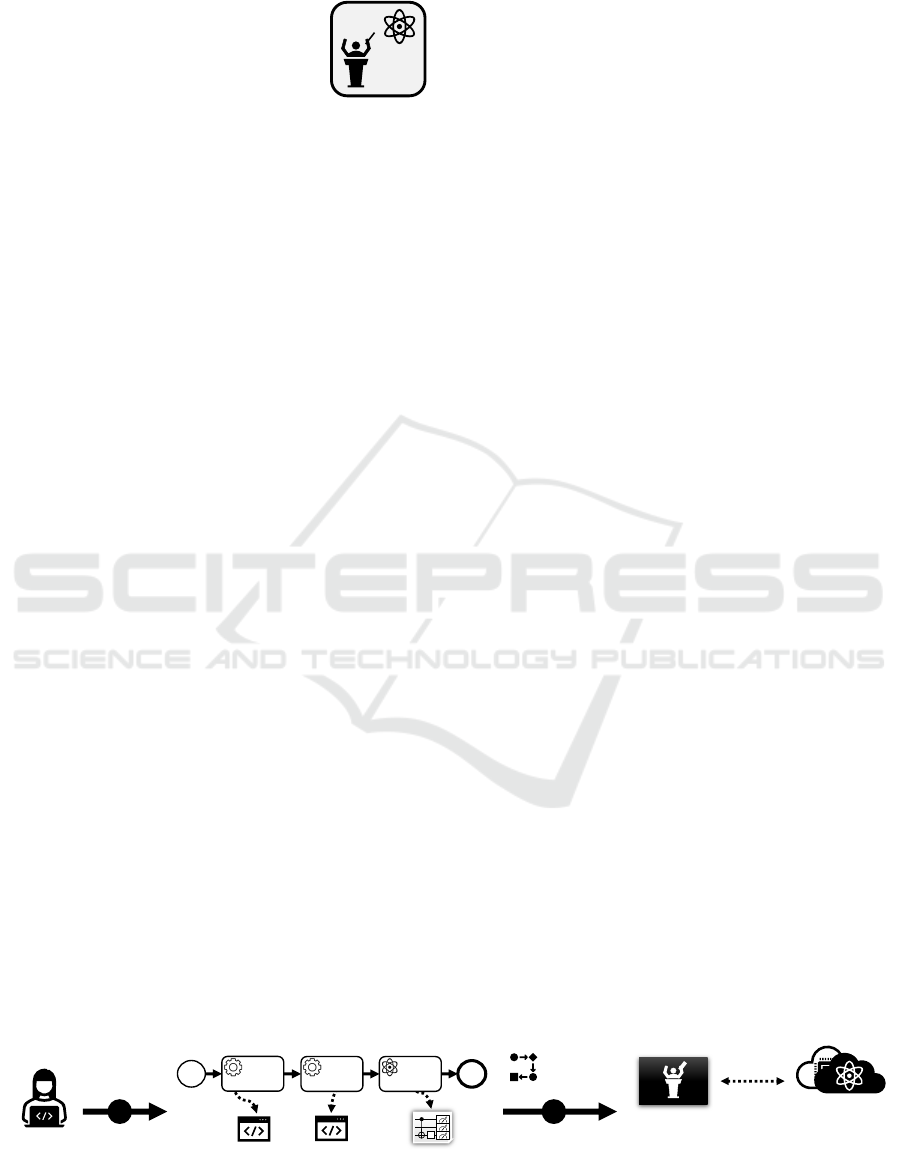

Figure 6: Solution sketch for an orchestrated execution. Implemented quantum and classical parts are tasks that are executed

in the speciﬁed order and environment with the help of an orchestration middleware.

ICSOFT 2023 - 18th International Conference on Software Technologies

264

Table 1: Patterns Support in Quantum Cloud Offerings: (✓) supported, (✗) not documented.

STANDALONE

CIRC. EXEC.

AD-HOC HYBRID

CODE EXEC.

PRE-DEPLOYED

EXECUTION

PRIORITIZED

EXECUTION

Hybrid

Runtime

Distributed

Deployment

Session

Reuse

Dedicated

Access

AWS (2023) ✓ ✓ ✓ ✓ ✓ ✗

Google (2023) ✓ ✓ ✗ ✓ ✗ ✗

IBM (2023a) ✓ ✓ ✓ ( ✓)

✓ ✓

IonQ, Inc. (2023) ✓ ✓ ✗ ✗ ✗ ✓

Microsoft (2023) ✓ ✓ ✓ ✓ ✗ ✗

Pasqal (2023) ✓ ✓ ✗ ✗ ✗ ✗

QC Ware (2023) ✓ ✓ ✗ ✗ ✗ ✗

Quantastica (2023) ✓ ✓ ✗ ✗ ✗ ✗

QuTech (2023) ✓ ✓ ✗ ✗ ✗ ✗

Rigetti (2023b) ( ✓)

✗ ( ✓)

✗ ✗ ( ✓)

Xanadu (2023) ✓ ✓ ✗ ✗ ✗ ✓

Requires multi-cloud setup (classical and quantum services of the provider are separated)

Partially supported, similar experience is achieved via obligatory VPN connections

(2023). The resulting list encompasses a diverse range

of quantum cloud services, as well as various projects

and libraries that can be utilized for development pur-

poses. Additionally, we analyzed which cloud ser-

vices are used or supported by the initial list of the

identiﬁed projects and libraries to explore further

cloud services that were not initially identiﬁed in our

search. To identify cloud services’ support for the pat-

terns and their variants, we analyzed the documenta-

tion of the respective cloud services and explored the

services directly if publicly accessible.

Table 1 presents a summary of our ﬁndings. Un-

surprisingly, the STANDALONE CIRCUIT EXECU-

TION pattern (see Section 3.1) is supported by all

vendors. Typically, this is accomplished via public

API endpoints that receive quantum circuits. Some

cloud providers have integrated a graphical circuit

composer into their offering for this purpose. Besides

graphical circuit composers, which are also available

in countless variations as standalone SaaS services,

circuits can be constructed manually or using other

tools. Please, note that different cloud services expect

the circuits in different formats. The AD-HOC HY-

BRID CODE EXECUTION pattern (see Section 3.2) is

also supported by almost all cloud providers. Cloud

providers enable this type of execution by special

SDKs that can be used for programming and execu-

tion. While some cloud providers (e.g., AWS, IBM,

Microsoft) develop their own custom SDKs, other

hardware vendors (e.g., IonQ) provide plugins for

third-party SDKs through which their service offer-

ings can be used. For the PRE-DEPLOYED EXECU-

TION pattern (see Section 3.3), we analyzed quan-

tum service offerings with respect to their support

for both variants. The ﬁrst variant is the Hybrid Run-

time, which is a specialized service that can exe-

cute both quantum and classical components that are

closely interconnected. The second variant is a de-

ployment on classical services, where the deployed

applications communicate with quantum-speciﬁc ser-

vices. Table 1 shows that the Hybrid Runtime is sup-

ported by four providers. For single-cloud deploy-

ments, the second variant is basically supported by

all cloud services that offer classical services, i.e.,

Microsoft Azure, Amazon Web Services, and IBM

cloud. Unlike the mentioned cloud providers, the rest

have only quantum-speciﬁc services in their portfo-

lio, which implies modeling multi-cloud deployments

and may result in extra integration requirements.

The PRIORITIZED EXECUTION pattern can help

to avoid long waiting times when executing multi-

ple quantum circuits by allowing users to prioritize

their requests. As discussed in Section 3.4, we have

identiﬁed two variants for this pattern: Session Reuse,

and Dedicated Access. Besides Rigetti QCS Rigetti

(2023b) which requires a VPN connection for deploy-

ment, Session Reuse is offered by the same providers

that also offer a Hybrid Runtime as it inherently en-

ables this type of prioritized execution. A minor part

of analyzed services offer a dedicated access to quan-

tum devices: To get this access, some providers need

to be contacted directly ﬁrst, as there is often no pre-

deﬁned booking action through interfaces.

The ORCHESTRATED EXECUTION pattern (see

Section 3.5) is enabled by quantum-speciﬁc work-

ﬂow technologies which provide means for automat-

ing the execution of quantum and classical tasks. So-

lutions can be divided into two categories: standards-

Execution Patterns for Quantum Applications

265

based and non-standards-based solutions. For exam-

ple, BPMN or BPEL can be used to model and exe-

cute quantum workﬂows Weder et al. (2020b). Non-

standards-based solutions include Orquestra Zapata

(2022) and Covalent Agnostiq (2023).

5 RELATED WORK

This section elaborates on the related research pub-

lications and aligns our contributions with respect

to them. The execution patterns for quantum ap-

plications presented in this work extend the exist-

ing quantum computing pattern language Leymann

(2019); Weigold et al. (2021a,b); Beisel et al. (2022).

Although there are other papers publishing patterns

for quantum computing Gilliam et al. (2019); Per-

drix (2007) and validating patterns in quantum cir-

cuits Huang and Martonosi (2019), they do not follow

the pattern format of Alexander et al. (1977). To the

best of our knowledge, there are no other works intro-

ducing patterns in the quantum computing domain.

The patterns presented in this work are not lim-

ited to concepts from the quantum computing do-

main, rather they are interdisciplinary, and also uti-

lize well-established concepts from other domains,

such as the cloud computing and application integra-

tion. Fehling et al. (2014b) present a pattern language

for cloud computing, describing solutions to com-

monly reoccurring problems of cloud applications.

For example, the quantum cloud offerings used in

this work are related to the PLATFORM AS A SER-

VICE and SOFTWARE AS A SERVICE patterns. Hohpe

and Woolf (2004) introduce the Enterprise Integration

Patterns (EIP), which support developers in building

distributed and integrated applications. The PROCESS

MANAGER pattern is part of the EIPs and is closely

related to the ORCHESTRATED EXECUTION pattern

introduced in this work, as both patterns describe how

a multitude of programs can be orchestrated by a cen-

tral unit. In contrast to the PROCESS MANAGER pat-

tern, the ORCHESTRATED EXECUTION pattern fo-

cuses on requirements imposed by the orchestration

and integration of quantum applications.

To facilitate the visualization of links between pat-

terns within a pattern language and advocate the inter-

connection of patterns across different domains, Ley-

mann and Barzen (2021b) introduce the Pattern Atlas.

The Pattern Atlas is a publicly available, cartography-

inspired tool PlanQK (2023), which enables the cre-

ation of new connections between different pattern

languages as well as Pattern Views, i.e., subsets of pat-

terns and connections from different languages.

Different research works introduce concepts

for executing and deploying quantum applications.

Nguyen et al. (2022) present a framework, which

enables the execution of quantum applications in a

serverless environment. Weder et al. (2022) provide

a concept to rewrite quantum workﬂows for the pre-

deployed execution in hybrid runtimes to increase

their efﬁciency. Leymann and Barzen (2021a) pro-

pose an approach for the orchestration and deploy-

ment of hybrid quantum applications using workﬂows

as well as deployment automation technologies.

6 SUMMARY AND OUTLOOK

Quantum devices and services evolve rapidly and

with them, real use-cases are in sight. In this work,

we captured different possibilities to use quantum

devices and documented them as ﬁve new patterns

which extend the quantum computing patterns lan-

guage. The proposed patterns capture alternatives on

how to execute quantum applications of different

granularity from atomic components like a quantum

circuit to fully orchestrated quantum workﬂows. We

also analyzed and discussed which service providers

support the execution methods documented in our

patterns. All listed quantum service providers sup-

port basic circuit executions described in the STAN-

DALONE CIRCUIT EXECUTION and the AD-HOC HY-

BRID CODE EXECUTION. Support for patterns such

as the PRE-DEPLOYED EXECUTION and PRIORI-

TIZED EXECUTION varies among the analyzed quan-

tum offerings. Additionally, we discuss several tools

for the orchestration of quantum applications en-

abling the ORCHESTRATED EXECUTION pattern.

Since patterns always evolve, we plan to continue

revising the introduced patterns and document new

execution alternatives that could appear in the future.

We also plan to enhance the patterns presented in

this work with more examples referencing concrete

use cases and to evaluate the advantages and disad-

vantages of applying the patterns in different scenar-

ios. Furthermore, we intend to incorporate the pro-

posed patterns in the pattern landscape within the Pat-

tern Atlas PlanQK (2023) and connect them to exist-

ing patterns that beneﬁt from a certain style of ex-

ecution. Additionally, we plan to further extend the

quantum computing patterns language by analyzing

which best practices appear in quantum software en-

gineering. Another direction is to automate the de-

cision making process for selecting which execution

patterns ﬁt best for a given scenario.

ICSOFT 2023 - 18th International Conference on Software Technologies

266

ACKNOWLEDGEMENTS

This work was partially funded by the BMWK

projects SeQuenC (01MQ22009B), EniQmA

(01MQ22007B), and PlanQK (01MK20005N).

REFERENCES

Agnostiq (2023). Covalent. https://agnostiq.ai/covalent/.

Alexander, C., Ishikawa, S., and Silverstein, M. (1977).

A Pattern Language: Towns, Buildings, Construction.

Oxford University Press.

Arute, F., Arya, K., Babbush, R., Bacon, D., et al. (2019).

Quantum supremacy using a programmable supercon-

ducting processor. Nature, 574(7779):505–510.

AWS (2023). Amazon Braket Usage Overview.

https://docs.aws.amazon.com/braket/latest/

developerguide/braket-using.html.

Barzen, J. (2021). From Digital Humanities to Quantum

Humanities: Potentials and Applications. In Quan-

tum Computing in the Arts and Humanities. Springer.

arXiv:2103.11825.

Beisel, M., Barzen, J., Leymann, F., Truger, F., Weder, B.,

and Yussupov, V. (2022). Patterns for Quantum Er-

ror Handling. In Proceedings of the 14

Interna-

tional Conference on Pervasive Patterns and Applica-

tions (PATTERNS 2022), pages 22–30. Xpert Publish-

ing Services (XPS).

Camunda Services (2023). Camunda workﬂow engine.

https://docs.camunda.io.

Cao, Y., Romero, J., and Aspuru-Guzik, A. (2018). Poten-

tial of quantum computing for drug discovery. IBM

Journal of Research and Development, 62(6):6:1–

6:20.

Cerezo, M., Arrasmith, A., Babbush, R., Benjamin, S. C.,

Endo, S., Fujii, K., McClean, J. R., Mitarai, K.,

Yuan, X., Cincio, L., and Coles, P. J. (2021). Varia-

tional quantum algorithms. Nature Reviews Physics,

3(9):625–644.

Coplien, J. O. (1996). Software Patterns. SIGS Books &

Multimedia.

Dilmegani, C. (2023). Quantum Software in 2023: What It

Is & How It Works. https://research.aimultiple.com/

quantum-software/.

Ellis, C. A. (1999). Workﬂow Technology. Computer Sup-

ported Cooperative Work, Trends in Software Series,

7:29–54.

Falkenthal, M., Breitenb

ucher, U., and Leymann, F. (2018).

The Nature of Pattern Languages. In Pursuit of Pat-

tern Languages for Societal Change, pages 130–150.

tredition.

Fehling, C., Barzen, J., Breitenb

ucher, U., and Leymann,

F. (2014a). A Process for Pattern Identiﬁcation, Au-

thoring, and Application. In Proceedings of the 19

European Conference on Pattern Languages of Pro-

grams (EuroPLoP 2014). ACM.

Fehling, C., Leymann, F., Retter, R., Schupeck, W., and Ar-

bitter, P. (2014b). Cloud Computing Patterns: Funda-

mentals to Design, Build, and Manage Cloud Appli-

cations. Springer.

Fingerhuth, M., Babej, T., and Wittek, P. (2018). Open

source software in quantum computing. PloS one,

13(12):1–28.

Frachon, F. (2023). Azure Quantum unlocks the

next generation of Hybrid Quantum Comput-

ing. https://devblogs.microsoft.com/qsharp/azure-

quantum-unlocks-the-next-generation-of-hybrid-

quantum-computing/.

Gabor, T., S

unkel, L., Ritz, F., Phan, T., Belzner, L., Roch,

C., Feld, S., and Linnhoff-Popien, C. (2020). The

Holy Grail of Quantum Artiﬁcial Intelligence: Ma-

jor Challenges in Accelerating the Machine Learning

Pipeline. In Proceedings of the IEEE/ACM 42

Inter-

national Conference on Software Engineering Work-

shops, pages 456–461.

Gill, S. S., Kumar, A., Singh, H., Singh, M., Kaur, K., Us-

man, M., and Buyya, R. (2020). Quantum Computing:

A Taxonomy, Systematic Review and Future Direc-

tions. arXiv:2010.15559.

Gilliam, A., Venci, C., Muralidharan, S., Dorum, V., May,

E., Narasimhan, R., and Gonciulea, C. (2019). Foun-

dational Patterns for Efﬁcient Quantum Computing.

arXiv:1907.11513.

Google (2020). Google cirq overview. https:

//colab.research.google.com/github/quantumlib/

Cirq/blob/master/docs/tutorials/google/start.ipynb.

Google (2023). Google Quantum AI. https://quantumai.

google/.

Hohpe, G. and Woolf, B. (2004). Enterprise Integration

Patterns: Designing, Building, and Deploying Mes-

saging Solutions. Addison-Wesley.

Huang, Y. and Martonosi, M. (2019). Statistical Assertions

for Validating Patterns and Finding Bugs in Quan-

tum Programs. In Proceedings of the 46th Interna-

tional Symposium on Computer Architecture, pages

541–553.

IBM (2023a). IBM Quantum. https://quantum-computing.

ibm.com.

IBM (2023b). IBM Quantum Lab. https:

//quantum-computing.ibm.com/lab/docs/iql/.

IonQ, Inc. (2023). IonQ. https://ionq.com/.

LaRose, R. (2019). Overview and Comparison of Gate

Level Quantum Software Platforms. Quantum, 3.

Leymann, F. (2019). Towards a Pattern Language for Quan-

tum Algorithms. In First International Workshop,

QTOP 2019, Proceedings. Springer.

Leymann, F. and Barzen, J. (2020). The bitter truth

about gate-based quantum algorithms in the NISQ era.

Quantum Science and Technology, pages 1–28.

Leymann, F. and Barzen, J. (2021a). Hybrid Quan-

tum Applications Need Two Orchestrations in Su-

perposition: A Software Architecture Perspective.

arXiv:2103.04320.

Leymann, F. and Barzen, J. (2021b). Pattern Atlas, pages

67–76. Springer International Publishing.

Execution Patterns for Quantum Applications

267

Leymann, F., Barzen, J., Falkenthal, M., Vietz, D., Weder,

B., and Wild, K. (2020). Quantum in the Cloud:

Application Potentials and Research Opportunities.

In Proceedings of the 10

International Conference

on Cloud Computing and Services Science (CLOSER

2020), pages 9–24. SciTePress.

Leymann, F. and Roller, D. (2000). Production Workﬂow:

Concepts and Techniques. Prentice Hall PTR.

Microsoft (2023). Microsoft Azure Quantum. https://azure.

microsoft.com/en-us/services/quantum/.

Nguyen, H. T., Usman, M., and Buyya, R. (2022). QFaaS:

A Serverless Function-as-a-Service Framework for

Quantum Computing.

OASIS (2007). Web Services Business Process Execution

Language (WS-BPEL) Version 2.0. Organization for

the Advancement of Structured Information Standards

(OASIS).

Object Management Group, I. O. (2010). BPMN 2.0. https:

//www.omg.org/spec/BPMN/2.0/PDF.

Pasqal (2023). Pasqal. https://pasqal.io.

PAT Research (2023). What is Quantum Comput-

ing? Top 18 Quantum Computing Compa-

nies. https://www.predictiveanalyticstoday.com/

what-is-quantum-computing/.

Perdrix, S. (2007). Quantum Patterns and Types for Entan-

glement and Separability. Electronic Notes in Theo-

retical Computer Science, 170:125–138.

PlanQK (2023). PlanQK - Integration of the patternreposi-

tory pattern atlas. https://patterns.platform.planqk.de/

pattern-languages.

Preskill, J. (2018). Quantum Computing in the NISQ era

and beyond. Quantum, 2:79.

QC Ware (2023). QC Ware Forge. https://forge.qcware.

com.

Qiskit (2023a). Qiskit: An Open-source Frame-

work for Quantum Computing. https://qiskit.org/

documentation/.

Qiskit (2023b). Qiskit: Run a primitive in a ses-

sion. https://qiskit.org/documentation/partners/qiskit

ibm runtime/how to/run session.html.

Quantastica (2023). Quantum Programming Studio. https:

//quantum-circuit.com.

Quantum Computing Report (2023). Tools. https://

quantumcomputingreport.com/tools/.

QuTech (2023). Quantum Inspire. https://www.

quantum-inspire.com/.

Rigetti (2023a). PyQuil and Forest SDK. https://

pyquil-docs.rigetti.com/en/v3.3.3/.

Rigetti (2023b). Rigetti Quantum Cloud Services. https:

//docs.rigetti.com/qcs/.

Sivarajah, S., Dilkes, S., Cowtan, A., Simmons, W., Edg-

ington, A., and Duncan, R. (2020). t|ket⟩: A retar-

getable compiler for NISQ devices. Quantum Science

and Technology.

Tannu, S. S. and Qureshi, M. K. (2019). Not All Qubits Are

Created Equal: A Case for Variability-Aware Policies

for NISQ-Era Quantum Computers. In Proceedings

of the 24

International Conference on Architectural

Support for Programming Languages and Operating

Systems, pages 987–999.

Vietz, D., Barzen, J., Leymann, F., Weder, B., and Yussupov,

V. (2021). An Exploratory Study on the Challenges

of Engineering Quantum Applications in the Cloud.

In Proceedings of the 2

Quantum Software Engi-

neering and Technology Workshop (Q-SET 2021) co-

located with IEEE International Conference on Quan-

tum Computing and Engineering (QCE21), pages 1–

12. CEUR Workshop Proceedings.

Weder, B., Barzen, J., Beisel, M., and Leymann, F. (2022).

Analysis and Rewrite of Quantum Workﬂows: Im-

proving the Execution of Hybrid Quantum Algo-

rithms. In Proceedings of the 12

International Con-

ference on Cloud Computing and Services Science

(CLOSER 2022), pages 38–50. SciTePress.

Weder, B., Barzen, J., Leymann, F., Salm, M., and Vietz,

D. (2020a). The Quantum Software Lifecycle. In

Proceedings of the 1

ACM SIGSOFT International

Workshop on Architectures and Paradigms for Engi-

neering Quantum Software (APEQS 2020), pages 2–9.

ACM.

Weder, B., Breitenb

ucher, U., Leymann, F., and Wild, K.

(2020b). Integrating Quantum Computing into Work-

ﬂow Modeling and Execution. In Proceedings of the

IEEE/ACM International Conference on Utility

and Cloud Computing (UCC 2020), pages 279–291.

IEEE Computer Society.

Weigold, M., Barzen, J., Leymann, F., and Salm, M. (2020).

Data Encoding Patterns For Quantum Algorithms. In

Proceedings of the 27

Conference on Pattern Lan-

guages of Programs (PLoP ’20), pages 1–11. HILL-

SIDE.

Weigold, M., Barzen, J., Leymann, F., and Salm, M.

(2021a). Expanding Data Encoding Patterns For

Quantum Algorithms. In 2021 IEEE 18

Interna-

tional Conference on Software Architecture Compan-

ion (ICSA-C), pages 95–101. IEEE.

Weigold, M., Barzen, J., Leymann, F., and Vietz, D.

(2021b). Patterns for Hybrid Quantum Algorithms.

In Proceedings of the 15

Symposium and Summer

School on Service-Oriented Computing (SummerSOC

2021), pages 34–51. Springer International Publish-

ing.

Xanadu (2023). Xanadu Quantum Cloud. https://www.

xanadu.ai/cloud.

Zapata (2022). Orquestra. https://www.zapatacomputing.

com/orquestra.

All links were last followed June 10, 2023.

ICSOFT 2023 - 18th International Conference on Software Technologies

268
