Risk-Based Illegal Information Flow Detection in the IIoT

Argiro Anagnostopoulou

, Ioannis Mavridis

and Dimitris Gritzalis

Dept. of Informatics, Athens University of Economics and Business, Patision 76 Ave, Athens, Greece

Dept. of Applied Informatics, University of Macedonia, 156 Egnatia St, Thessaloniki, Greece

Keywords: Access Control, Information Flow Control, Illegal Information Flow Detection, Critical Infrastructure

Protection, Industrial Internet of Things (IIoT), Industry 4.0.

Abstract: Industrial IoT (IIoT) consists of a great number of low-cost interconnected devices, including sensors, actua-

tors, and PLCs. Such environments deal with vast amounts of data originating from a wide range of devices,

applications, and services. These data should be adequately protected from unauthorized users and services.

As IIoT environments are scalable and decentralized, the conventional security schemes have difficulties in

protecting systems. Information flow control, along with delegation of accurate access control rules is crucial.

In this work, we propose an approach to assess the existing information flows and detect the illegal ones in

IIoT environments, which utilizes a risk-based method for critical infrastructure dependency modeling. We

define formulas to indicate the nodes with a high-risk level. We create a graph based on business processes,

operations, and current access control rules of an infrastructure. In the graph, the edges represent the infor-

mation flows. For each information flow we calculate the risk level. This aids to reconstruct current access

control rules on the high-risk nodes of the infrastructure.

1 INTRODUCTION

Internet of Things (IoT) describes ubiquitous conne-

ctivity to the Internet, turning common objects into

connected devices, also called smart objects. Smart

objects can sense the surrounding environment, tran-

smit and process acquired data, and then provide

feedback to the environment (Sisinni, 2018). How-

ever, once a device is connected to the Internet, it is

vulnerable to cyber-attacks. The fourth industrial re-

volution (Industry 4.0), the exponential increase in

connected devices worldwide, and the rapidly increa-

sing number of cyber security incidents highlight the

need for enhancing cyber resilience (ENISA, 2018).

In large scale Industrial IoT (IIoT) environments,

all these interconnected devices must be protected a-

gainst unauthorized access. Thus, there is need for the

enforcement of proper access control policies on IIoT

objects. This is the role of access control systems.

Access control systems establish which active entities

(subjects) are authorized to gain access to passive en-

https://orcid.org/0000-0003-4199-6257

https://orcid.org/0000-0001-8724-6801

https://orcid.org/0000-0002-7793-6128

tities (objects), e.g., a resource. Each subject is chara-

cterized by a set of permissions for a specific object

(Samarati, 2001), (Nakamura, 2019), (Jaune, 2011).

Only authorized subjects are allowed to manipulate

objects in authorized operations (Nakamura, 2019).

The interconnected devices exchange data, creating

information flows. However, access control mecha-

nisms cannot always control how the information is

used once it has been accessed. For this reason, infor-

mation flow control (detection) is rising. Information

flow control ensures that data contained in an object

cannot flow into another and thus, these data cannot

be accessed by users that do not have the appropriate

permission (Jaume, 2011).

1.1 Contribution

In this work, we intend to address the improper or

insufficient selection of access control rules that re-

sults to illegal information flows. Working on this di-

rection, we propose an approach to detect and assess

illegal information flows, which utilizes a risk-based

Anagnostopoulou, A., Mavridis, I. and Gritzalis, D.

Risk-Based Illegal Information Flow Detection in the IIoT.

DOI: 10.5220/0012079800003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 377-384

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

377

analysis method for critical infrastructure dependen-

cy modeling (Kotzanikolaou, 2013a), (Kotzanikola-

ou, 2013b). We focus our proposed work in IIoT en-

vironments. Our approach creates a graph based on

business processes, operations, and current access

control rules of an infrastructure. In the graph, the ed-

ges represent the information flows. Our aim is to de-

tect the high-risk nodes and thus, the nodes that are

susceptible to participate in illegal information flows.

Specifically, we compare the transactions that take

place with the current access control rules, in order to

mark the transaction that the information illegally flo-

ws from one node to another. Finally, we calculate the

risk to each information flow. The calculated risks in-

dicate the nodes that need reconstruction of their cur-

rent access control rules.

1.2 Structure

The remainder of the paper is structured as follows.

In Section 2, we present the related work regarding

methodologies used for the detection of illegal infor-

mation flows. In Section 3, we provide the theoretical

background, including the key concepts that are used

in the proposed approach. In Section 4, we present our

approach for the illegal information flow detection in

IIOT environments, while Section 5 provides a case

study in which we evaluate the formulas for the risk

calculation. Finally, the conlusion, limitations and fu-

ture work are exhibited in Section 6.

2 RELATED WORK

Researchers and security professionals distinguish

the terms of access control and information flow con-

trol. Access control verifies that subjects with specific

access rights can manipulate an object, while infor-

mation flow control tracks how information propaga-

tes through the program during execution (Hedin,

2012). In recent years, the detection of illegal infor-

mation flows is a major topic of interest in scientific

research. This section summarizes the main existing

methods that focus on this topic.

Zimmermann et. al propose a policy-based intru-

sion detection approach to verify the legality of infor-

mation flows created by system operations among ob-

jects. The flows that are not authorized by any secu-

rity policy are considered as intrusion symptoms

(Zimmermann, 2003).

Masri et al. present a dynamic information flow

analysis to detect and debug insecure flows in prog-

rams. Authors incorporate a static pre-processing

phase that detects both implicit flows at runtime, and

the explicit ones. They also utilize a dynamic slicing

algorithm that allows their approach to be applied to

structured and unstructured programs (Masri, 2004).

Cai et. al investigate illegal information flows re-

sulting from both roles and users. They obtain illegal

information flows via the operations of difference, in-

tersection, complement, etc. Authors propose, also, a

strategy that focuses on the "writing" operation, as it

is the primary means of creating information flows

(Cai, 2009).

Hammer et. al propose a method based on prog-

ram dependence graphs (PDG) to represent informa-

tion flows in a program. The authors developed a de-

pendence graph generator for full Java bytecode that

requires less annotations than the traditional ones and

provides more precise output. They, also, introduce

flow equations, including the case of the declassifica-

tion handling (Hammer, 2009).

Finally, Jaume et. al propose a framework that

identifies illegal information flows. They present two

implementations: Blare and JBlare. The first observes

system calls and identifies information flows between

OS containers, such as files or sockets. JBlare, an im-

proved version of Blare, identifies information flows

at the language level (Java) (Jaume, 2011).

Our approach assesses the information flows and

detects the illegal ones in IIoT environments by utili-

zing a risk-based method for critical infrastructure de-

pendency modeling (Kotzanikolaou, 2013a), (Kotza-

nikolaou, 2013b). Specifically, we model the business

processes as a graph and assess the risk of all infor-

mation flows to detect the nodes that are susceptible

to participate in an illegal information flow. Current-

ly, there is no research that utilizes a risk-based met-

hod for the detection of illegal information flows.

3 THEORETICAL

BACKGROUND

This section provides a theoretical background, inc-

luding the key concepts of information flow control

and access control.

3.1 Access Control

Access control manages the acceptable operations for

a user or process on system resources. The main con-

cepts of an access control system are policies, models,

and mechanisms. Access control policies specify how

and when a user, or a process, may access a resource.

An access control system enforces the access control

policies through access control mechanisms, which

SECRYPT 2023 - 20th International Conference on Security and Cryptography

378

are responsible for granting or denying access (Salo-

nikias et. al, 2019).

There are several access control models/schemes

that an organisation can adopt to enforce policies and

allocate access rights to its subjects. Below we exhibit

some of the most widely used ones.

Lattice-Based Access Control (LBAC): This

scheme is the first to be developed to secure

information flows in information systems. In a

system, information flows from one object to another.

An object can be defined as a container of informati-

on, such as files and directories in an operating sys-

tem, or relations in a database. Information flow is ty-

pically controlled by assigning a security class to eve-

ry object. Whenever information flows from object a

to object b, there is also information flow from the

security class of a to the security class of b (Sandhu,

1993), (Denning, 1976).

Mandatory Access Control (MAC): This scheme

is based on lattice model of security level. It is based

on two prominent rules: (i) No-read-up, and (ii) No-

write-down. The first describes that a low-level sub-

ject is not allowed to read high-level objects. The lat-

ter describes that high-level objects can only be writ-

ten by low-level subjects. As a result, in MAC scheme

the information flows from lower levels to the higher

ones (Bell et. al, 1972).

Discretionary Access Control (DAC): The prin-

ciple of this scheme is that access to objects can be

restricted based on the identity of the subjects and/or

groups to which they belong. Subjects are the entities

which cause an information flow between objects.

Each object has a subject as an owner. The access po-

licy of an object is determined by its owner. An owner

can transfer information access to other subjects (Do-

wns et. al, 1985).

Role-Based Access Control (RBAC): In this sche-

me the permissions are linked to roles. Users are as-

signed to appropriate roles based on their responsibi-

lities and qualifications. Roles are created for job fun-

ctions in an organisation. Users can be reassigned

from one role to another. Roles can be granted new

permissions as new applications and systems are in-

corporated, while permissions can be revoked from

roles when is necessary (Sandhu et. al, 1996), (Salo-

nikias et. al, 2019).

Capability-Based Access Control (CapBAC): In

this model an owner of a device issues a capability

token. This token is a set of access rights to a subject.

The subject is allowed to manipulate the device based

on the access rights that are defined in the capability

token (Nakamura et. al, 2019).

3.2 Information Flow Control

An information system is composed of subjects and

objects. An object contains data or operations to ma-

nipulate the data, such as databases or files. A subject

is an entity, i.e., user or transaction, that manipulates

an object. In order a subject to access data, it issues

an operation to the respective object. A transaction re-

fers to a sequence of operations on an object (Naka-

mura, 2018).

It is crucial for information security to define pro-

per access control rules, and tracks how information

is propagated by computing systems during executi-

on. Thus, information flow control aims to enhance

both the confidentiality and the integrity of the infor-

mation (Hedin et. al, 2012).

Let assume that an object o supports one of the

basic operations OP (e.g., read or write). An access

rule is composed of a tuple <s, o, op>, while the pair

<o, op> is called access right. An authorizer grants an

access right to a subject s. Subject s is allowed to ma-

nipulate the object o in an operation op only if s is

granted an access right <o, op> (Nakamura et. al,

2018).

Now, let suppose that a subject s

is granted with

the access right <f,read> on an object f, and an access

right <g,write> on object g. Suppose another subject

is granted with an access right <g,read>. Let assume

that s

reads data d in the object f and then writes data

d to the object g. The s

is not allowed to read data in

the object f. However, the s

can obtain data d in the

object f by reading data d stored in the object g. As a

result, information in the object f illegally flows into

the s

via the s

and the object g (Nakamura et. al,

2018).

In this work, we use four distinct terms to explain

illegal transactions from one object to another: (i) il-

legal read, (ii) illegal write, (iii) suspicious read, and

(iv) impossible write. Illegal read occurs if and only

if (iff) a transaction reads data that are contained in an

object, in which the transaction does not have the per-

mission to access. Suspicious read occurs iff the tran-

saction reads data in the object whose data is not al-

lowed to be brought to other objects. Illegal write oc-

curs iff the transaction writes data to the object after

illegally reading data in another object. Finally, im-

possible write occurs iff the transaction writes data to

the object after suspiciously reading data in another

object (Nakamura et, al, 2018). Figures 1 and 2 depict

two examples of illegal transactions (Nakamura et. al,

2018).

Risk-Based Illegal Information Flow Detection in the IIoT

379

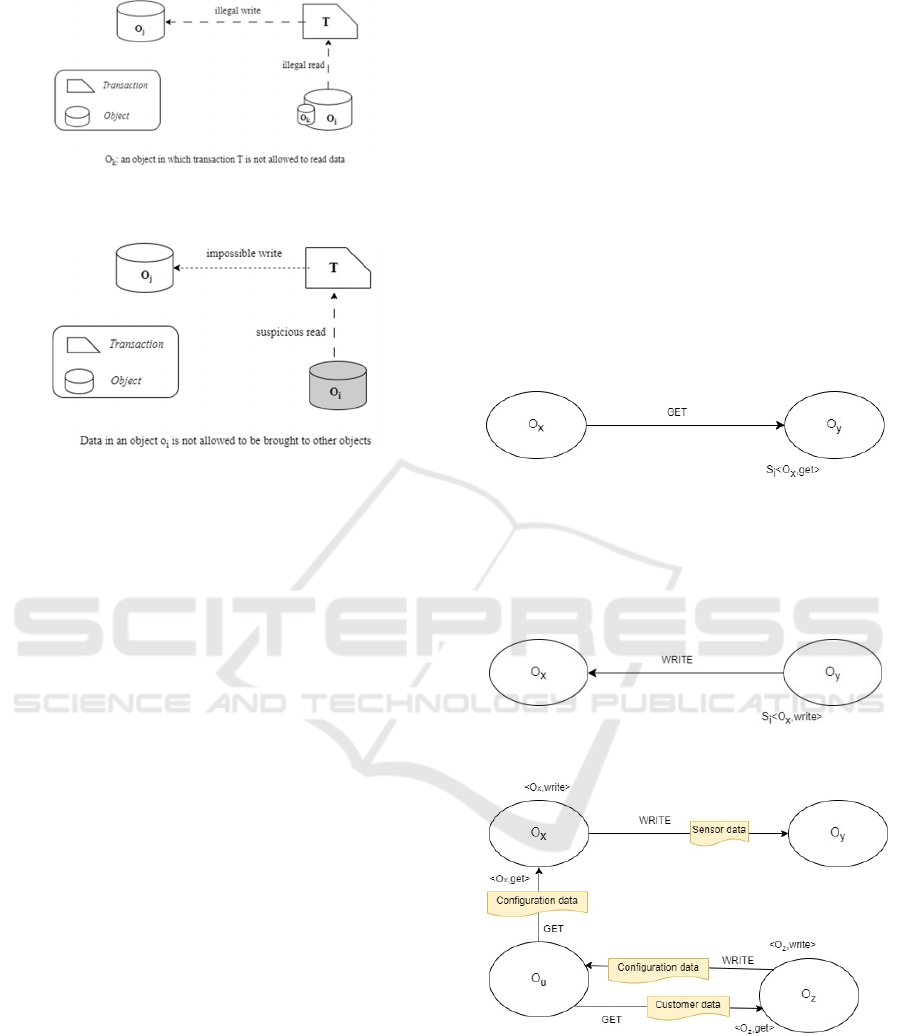

Figure 1: Illegal read and Illegal write transactions (Naka-

mura, 2018).

Figure 2: Suspicious read and impossible write transactions

(Nakamura et. al, 2018).

4 THE PROPOSED ILLEGAL

INFORMATION FLOW

DETECTION APPROACH

The proposed approach utilizes a risk-based method

for critical infrastructure dependency modeling (Kot-

zanikolaou, 2013a), (Kotzanikolaou, 2013b) to assess

information flows and detect the illegal ones in IIoT

environments. We aim to find out the high-risk nodes

that are prone to take part in illegal information flows.

The resulting method includes five steps:

Step 1. Dependency Graph Definition. The graph de-

picts information flows and thus the transactions bet-

ween the nodes of the IIoT network.

Step 2. Supporting Metrics Calculation. The support-

ing metrics are: (1) severity, (2) operation factor, and

(3) legality.

Step 3. Illegal Information Flow Likelihood Calcula-

tion for graph connections.

Step 4. Transaction Impact Calculation.

Step 5. Illegal Information Flow Risk Calculation.

4.1 Dependency Graph Definition

In this step, we denote as:

 O: set of objects in the IIoT network,

 IF: set of information flows between objects, and

 T: the set of transactions among object nodes for

each information flow.

Dependencies are modelled in directed, weighted

graphs G = (V, E), where the nodes V represent com-

ponents of an IIoT network and edges E represent in-

formation flows between them. The graph is directio-

nal to represent an information flow from one com-

ponent to another within the IIoT network. An edge

→ O

depicts an information flow IF

→

from Ob-

ject O

to Object O

. Each information flow may be

related to many connecting transactions T

→

. Each

transaction depicts a “get” or a “write” operation to

an object.

Based on bibliography (Nakamura, 2019), when a

subject S

performs a “get” operation to object O

, i.e.,

, get>, and the information flows from an object

to an object O

, the transaction is depicted as fol-

lows:

Figure 3: Depiction of “get” operation.

Similarly, we define that when a subject S

per-

forms a “write” operation to object O

, i.e., <O

, wri-

te>, and the information flows from an object O

an object O

, this transaction is depicted as follows:

Figure 4: Depiction of “write” operation.

Figure 5: Example of a network dependency graph.

An indicative example of a network dependency

graph is presented on Figure 5. The graph comprises

four (4) objects: O

, O

and O

. O

writes Sensor

data on O

, while it gets Configuration data from O

Finally, O

writes Configuration data to O

, while it

gets Customer data from O

SECRYPT 2023 - 20th International Conference on Security and Cryptography

380

4.2 Supporting Metrics Calculation

This section introduces the metrics used in our appro-

ach to calculate the risk of each node so as to identify

the nodes with the higher risk.

4.2.1 Severity

Depending on the data category that flows from one

node to another, there is a corresponding Severity.

This metric refers to both legal and illegal informati-

on flows. The range of Severity is [1,5], where 1 =

very low, and 5 = very high.

We define six categories of data that usually exist

in smart manufacturing. The catalogue with these ca-

tegories may be enlarged or altered, according to the

infrastructure that the method is applied. Table 1 pre-

sents the selected data categories and their values.

Table 1: Severity values based on data category.

Cate

of Data Severit

Confi

uration data 5

Sensor data 4

Billin

& Pricin

data 3

Customer data 2

Meteorolo

ical data 1

Acknowled

ement data 1

4.2.2 Operation Factor

Depending on the operation type (get, write) of the

transaction, we define two distinct operation values

for this metric. The value depends on the impact that

the operation has to a specific transaction. We consi-

der that the “write” operation may cause greater im-

pact when the intent of the subject is malevolent. The

term transaction defines the connection between two

nodes and thus, the information flow between them.

Table 2 presents operations and their values.

Table 2: Operation factor values based on operation type.

pe of Operation Operation facto

write 3

4.2.3 Legality

The Legality metric characterizes a transaction based

on six categories: (i) Legal Read, (ii) Legal Write, (iii)

Illegal Read, (iv) Illegal Write, (v) Suspicious Read,

and (vi) Impossible Write. The categories have been

defined in section 3.2. The range of Legality is [1,5],

where 1 = totally legal, and 5 = totally illegal. Table

3 depicts the legality values according to the category

of the transaction that takes place.

Table 3: Legality values based on the transaction type.

Categor

of Transaction Legalit

Legal Rea

al Write 1

Ille

al Rea

Ille

al Write 3

Suspicious Rea

Impossible Write 5

4.3 Illegal Information Flow Likelihood

Each relationship is assigned with a likelihood value,

which declares how likely an illegal information flow

is to occur. Intuitively, this value is a probability, ba-

sed on which we can make predictions about the in-

formation flow state, at different times.

For each information flow IF

→

from O

to O

every transaction T

→

is marked either as “Good”

or as “Bad”. A transaction is marked as “Good” when

it is characterized as legal read or legal write. When

it is characterized as illegal read, suspicious read, ille-

gal write or impossible write, we mark it as “Bad”.

Formula 1 calculates the Illegal Information Flow Li-

kelihood, denoted as Likelihood

→

. The range of Li-

kelihood

→

is [0, 1]. The parameter n is the total

number of transactions between two nodes.

𝐿𝑖𝑘𝑒𝑙𝑖ℎ𝑜𝑜𝑑

→

∑

(𝑇

(→)



𝑚𝑎𝑟𝑘𝑒𝑑 𝑎𝑠 "𝐵𝑎𝑑





∑

(𝑇

(→)







)

(1)

4.4 Transaction Impact

Each transaction T

→

is assigned with an impact va-

lue, denoted as Impact

→

. Since there is no standard

available for evaluating the legality of information

flows, we propose the following formula for the cal-

culation of the Impact

→

𝐼𝑚𝑝𝑎𝑐𝑡

(→𝑦)

𝑖

= 𝑆𝑒𝑣𝑒𝑟𝑖𝑡𝑦 ∗ 𝑂𝑝𝑒𝑟𝑎𝑡𝑖𝑜𝑛 𝐹𝑎𝑐𝑡𝑜𝑟

∗𝐿𝑒𝑔𝑎𝑙𝑖𝑡𝑦

(2)

When the value of Impact

→

is high, a security

incident may cause a serious impact to the operation

of the IIoT environment.

We have thoroughly estimated all the possible

combinations of the values for each parameter of the

formula, and we concluded that the Impact

→

va-

lues range between [2,75]. We rescale the range of the

calculated Impact

→

values into the range [1,10].

Risk-Based Illegal Information Flow Detection in the IIoT

381

Rescaling helps all values to be in the same range. It

adjusts the numbers to make it easy to compare the

values of different metrics with different value ran-

ges. Data rescaling assists in extracting inferences a-

bout the applicability and performance of an appro-

ach. Formula 3 depicts the function used for the res-

caling of the Impact

→

values:

𝑓

(

𝐼

)

(

𝑏−𝑎

)

(𝐼 − 𝑚𝑖𝑛)

𝑚𝑎𝑥 − 𝑚𝑖𝑛

+𝑎

(3)

where I is a particular Impact

→

value.

Specifically, let assume that we want to scale a

range [min, max] to [a, b]. We need a continuous fun-

ction that satisfies the conditions: (i) f(min) = a, and

(ii) f(max) = b. In our case min = 2, max = 75, a=0,

and b=10. Table 4 assigns the ranges of the scaled Im-

pact values to five concrete levels.

Table 4: Rescaling of the Impact values.

Calculated Impact

Values

Scaled Impact

Values

Scaled Impact

Level

[2, 10

)

[1,2

)

Ver

Low

[10,26

)

[2,4

)

Low

[26,42) [4,6) Mediu

[42,58) [6,8) High

[58,75] [8,10] Very High

Having calculating impact for each individual

transaction T

→

, we evaluate the Total Impact va-

lue of an information flow IF

→

from O

to O

as the

average impact of the transactions T

→

performed.

Formula 4 calculates the Total Impact value of an in-

formation flow, where n denotes the number of trans-

actions T

→

between node x and node y.

𝑇𝑜𝑡𝑎𝑙 𝐼𝑚𝑝𝑎𝑐𝑡

→

∑

𝐼𝑚𝑝𝑎𝑐𝑡

(→)







𝑛

(4)

4.5 Illegal Information Flow Risk

The proliferation of impact and likelihood values

indicate the illegal information flow Risk, denoted as

→

, for an information flow IF

→

from an object O

to an object O

as follows:

𝑅



= 𝑇𝑜𝑡𝑎𝑙 𝐼𝑚𝑝𝑎𝑐𝑡

→

∗ 𝐿𝑖𝑘𝑒𝑙𝑖ℎ𝑜𝑜𝑑

→

(5)

This metric identifies the information flows with

the higher risk. Estimating risk helps identifying the

flows and thus the nodes that are susceptible to illegal

information flows. As a result, the nodes that partici-

pate in these flows need more accurate and stricter ac-

cess control rules.

We establish a scale to determine whether the risk

of a node is acceptable. The level of acceptability de-

pends on the infrastructure and the criticality of its sy-

stems. In general, the lower the risk level, the more

acceptable it is. Table 5 assigns the ranges of R

→

values to five distinct levels.

Table 5: Levels of Illegal Information Flow Risk.

Illegal Information Flow

Risk Value

Illegal Information Flow

Ris

Level

[0,2

)

Ver

Low

[2,4

)

Low

[4,6) Mediu

[6,8) High

[8,10] Ver

5 CASE STUDY

In this section we apply our method on an IIoT infra-

structure network. Figure 6 presents a dependency

graph which depicts how the network components

(e.g., O

, O

, etc.) are connected, along with the cate-

gory of data (e.g., configuration data, sensor data,

etc.) that flow from an object to another. Each transa-

ction refers its operation type (e.g., get, write). The

illegal transactions are notated with the flag “Bad”,

along with their category (e.g. illegal write, illegal re-

ad, suspicious read, impossible write).

Let assume that our interest focuses on object A.

This object takes part in totally nine transactions.

However, seven of them are marked as “Bad”. Thus,

we suppose that O

has a primarily malicious behavi-

our. Firstly, we calculate the Illegal Information Flow

Likelihood for all the transactions of object A. The

results are presented on Table 6.

Table 6: Illegal Information Flow Likelihood Calculation.

From To

Illegal Information

Flow Likelihoo

0.5

SECRYPT 2023 - 20th International Conference on Security and Cryptography

382

Figure 6: IIoT Infrastructure Network Dependency Graph.

For all the transactions we calculate the metrics of

Legality, Operation factor and Severity. The values of

these metrics are presented in Table 7.

Table 7: Calculation of the metrics Legality, Operation

factor, and Severity.

From To Legality Operation factor Severity

4 2 1

1 2 5

2 3 4

5 3 5

5 3 2

3 3 3

5 2 3

4 2 2

1 2 1

Next step is the Impact calculation for all the tran-

sactions. Table 8 presents the values of this metric.

Table 8: Calculation of the Impact of all transactions.

From To Impact Scaled Impact

4.7

3.22

8.15

2.97

6.3

3.71

1.25

Having calculating impact for each individual

transaction, we evaluate the Total Impact value of an

information flow IF

→

from object O

to object O

the average impact of the transactions T

→

perfor-

med. The results are presented on Table 9.

Table 9: Calculation of Illegal Information Flow Impact.

From To

Illegal Information

Flow Im

act

2.85

3.22

9.08

4.33

1.25

In Table 10, we estimate the Illegal Information

Flow Risk. For this calculation we combine the values

of Illegal Information Flow Impact, and Illegal Infor-

mation Flow Likelihood.

Table 10: Calculation of Illegal Information Flow Risk.

From To

Illegal

Information Flow

Risk Value

Illegal Infor-

mation Flow

Risk Level

1.43 Very Low

3.22 Low

9.08 Very High

4.33 Medium

0.00 Very Low

We observe that the information flow from object

A to object H contains a very high risk. This indicates

that there is great possibility any transaction with

such an information flow to be illegal. Thus, security

experts should pay enough attention on objects A and

H. The current access control rules should be exami-

ned and more accurate ones should be enforced.

6 CONCLUSIONS

In this work, we propose an approach to detect the il-

legal information flows in ΙΙοΤ environments. For

this purpose, we utilise a risk-based analysis method

for assessing the information flows on bussiness pro-

cesses. For each information flow we calculate the

metrics of: (a) illegal information flow likelihood,

and (b) illegal information flow risk. This will help to

control the information that illegally transmitted from

one node to another within an IIoT infrastructure net-

work.

We demonstrate the applicability of our method

by presenting an example that is composed of both

Risk-Based Illegal Information Flow Detection in the IIoT

383

legal and illegal information flows. Overall, our met-

hod can successfully identify the high-risk informa-

tion flows, and thus the high-risk nodes that are sus-

ceptable to participate in an illegal information flow.

This is an important feedback, because we can point

out the nodes that are vulnerable and need more accu-

rate access control rules.

Our future work is to identify whether potential il-

legal information flow risk is transferred from the

previous connection to the next one, where illegal in-

formation flow of one transaction may be propagated

to the next transaction within a business process. Our

vision is to evaluate our approach in real world IIoT

environments, such as smart manufacturing or smart

grid.

ACKNOWLEDGEMENTS

This work has been supported in part by a research

grant offered by the Hellenic Ministry of Digital Go-

vernance to the Research Centre of the Athens Uni-

versity of Economics & Business, Greece (2022-24).

REFERENCES

Bell, D., & La Padula, L., Secure computer systems: Unifi-

ed exposition and Multics interpretation. MTR-2997,

MITRE Corp., USA, 1976.

Cai, G., Shi, L., & Sui, X. (2009, October). Illegal Infor-

mation Flow Detection in Electronic Institution. In

2009 3

International Conference on Genetic and

Evolutionary Computing (pp. 240-243). IEEE.

Denning, D. E. (1976). A lattice model of secure informa-

tion flow. Com. of the ACM, 19(5), 236-243.

Downs, D., Rub, J., Kung, K., & Jordan, C. (1985, April).

Issues in discretionary access control. In 1985 IEEE

Symposium on Security and Privacy (pp. 208-208).

IEEE.

ENISA (2018). Good Practices for Security of Internet of

Things in the context of Smart Manufacturing. Euro-

pean Union Agency for Network and Information Se-

curity (ENISA).

Hammer, C., & Snelting, G. (2009). Flow-sensitive, context

-sensitive, and object-sensitive information flow con-

trol based on program dependence graphs. Inter-

national Journal of Information Security, 8(6), 399-

422.

Hedin, D., & Sabelfeld, A. (2012). A perspective on infor-

mation-flow control. In Software safety and securi-

ty (pp. 319-347). IOS Press.

Jaume, M., Tong, V., & Mé, L. (2011, December). Flow

based interpretation of access control: Detection of il-

legal information flows. In ICISS (pp. 72-86).

Kotzanikolaou, P., Theoharidou, M., & Gritzalis, D. (2013

a, March). Cascading effects of common-cause failures

in critical infrastructures. In 7

IFIP International Co-

nference (pp. 171-182). Springer.

Kotzanikolaou, P., Theoharidou, M., & Gritzalis, D. (2013

b). Assessing n-order dependencies between critical

infrastructures. International Journal of Critical Infra-

structures 6, 9(1-2), 93-110.

Masri, W., Podgurski, A., & Leon, D. (2004, November).

Detecting and debugging insecure information flows.

In 15

International Symposium on Software Re-

liability Engineering (pp. 198-209). IEEE.

Nakamura, S., Ogiela, L., Enokido, T., & Takizawa, M.

(2018). An information flow control model in a topic-

based publish/subscribe system. Journal of High-Speed

Networks, 24(3), 243-257.

Nakamura, S., Enokido, T., Barolli, L., & Takizawa, M.

(2019, June). Capability-based information flow con-

trol model in the IoT. In 13

International Conference

on Innovative Mobile and Internet Services in

Ubiquitous Computing (pp. 63-71). Springer

Salonikias, S., Gouglidis, A., Mavridis, I., & Gritzalis, D.

(2019). Access control in the industrial internet of

things. Security and privacy trends in the industrial

internet of things, 95-114.

Samarati, P., & de Vimercati, S. C. (2001). Access control:

Policies, models, and mechanisms. In Foundations of

Security Analysis and Design: Tutorial Lectures 1 (pp.

137-196). Springer.

Sandhu, R. (1993). Lattice-based access control mo-

dels. Computer, 26(11), 9-19.

Sandhu, R., Coyne, E., Feinstein, H., & Youman, C. (1996).

Role-based access control models. Computer, 29 (2),

38-47.

Sisinni, E., Saifullah, A., Han, S., Jennehag, U., & Gidlund,

M. (2018). Industrial internet of things: Challenges,

opportunities, and directions. IEEE transactions on

industrial informatics, 14(11), 4724-4734.

Zimmermann, J., Mé, L., & Bidan, C. (2003). An improved

reference flow control model for policy-based intrusion

detection. Lecture notes in Computer Science, 2808,

291-308.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

384
